Network Dome Camera
Quick Start Guide
UD04369B-A
Network Dome Camera·Quick Start Guide
Quick Start Guide
COPYRIGHT © 2017 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.
About this Manual
This Manual is applicable to 21xx Network Camera.
The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website
(http://overseas.hikvision.com/en/).
Please use this user manual under the guidance of professionals.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and
1
Network Dome Camera·Quick Start Guide
logos mentioned below are the properties of their respective owners.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE
2
Network Dome Camera·Quick Start Guide
APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
Regulatory Information
For products that support Wi-Fi or cellular data:
(Marked with a “W”, “GLT”, “GLE”, “GLF”, “GE”, “GT” or “GW” in the
Part C of a product model.
Product Model Example: Part A-Part B-Part C. Part C is optional.)
FCC Information
Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
3
Network Dome Camera·Quick Start Guide
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1.This device may not cause harmful interference.
2.This device must accept any interference received, including interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European
standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info
4
Network Dome Camera·Quick Start Guide
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol,
which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1)this device may not cause interference, and
(2)this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1)l'appareil ne doit pas produire de brouillage, et
(2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential
5
Network Dome Camera·Quick Start Guide
radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body.
Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corps.
For products that do not support Wi-Fi or cellular data:
FCC Information
Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency
6
Network Dome Camera·Quick Start Guide
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1.This device may not cause harmful interference.
2.This device must accept any interference received, including interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European
standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.
7
Network Dome Camera·Quick Start Guide
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol,
which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.
Safety Instruction
These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings are neglected.
Cautions: Injury or equipment damage may occur if any of the cautions are neglected.
8
Network Dome Camera·Quick Start Guide
|
|
Warnings Follow these |
Cautions Follow these |
safeguards to prevent |
precautions to prevent |
serious injury or death. |
potential injury or material |
|
damage. |
|
|
Warnings
●In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region. Please refer to technical specifications for detailed information.
●Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 12 VDC according to the IEC60950-1 standard. Please refer to technical specifications for detailed information.
●Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard.
●Please make sure that the plug is firmly connected to the power socket. When the product is mounted on wall or ceiling, the device shall be firmly fixed.
●If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cable, and then please contact the service center.
9
Network Dome Camera·Quick Start Guide
●Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.
Cautions
●Make sure the power supply voltage is correct before using the camera.
●Do not drop the camera or subject it to physical shock.
●Do not touch sensor modules with fingers. If cleaning is necessary, use clean cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an extended period, please replace the lens cap to protect the sensor from dirt.
●Do not aim the camera at the sun or extra bright places. Blooming or smearing may occur otherwise (which is not a malfunction), and affect the endurance of sensor at the same time.
●The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.
●Do not place the camera in extremely hot, cold (the operating temperature shall be -30°C to +60°C, dusty or damp locations, and do not expose it to high electromagnetic radiation.
●To avoid heat accumulation, good ventilation is required for operating environment.
●Keep the camera away from liquid while in use.
10
Network Dome Camera·Quick Start Guide
●While in delivery, the camera shall be packed in its original packing, or packing of the same texture.
●Regular part replacement: a few parts (e.g. electrolytic capacitor) of the equipment shall be replaced regularly according to their average enduring time. The average time varies because of differences between operating environment and using history, so regular checking is recommended for all the users. Please contact with your dealer for more details.
●Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.
●If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.)
0504051070119
11
|
Network Dome Camera·Quick Start Guide |
|
|
Table of Contents |
|
1 Appearance Description ............................................................... |
13 |
|
1.1 |
Type I ............................................................................ |
13 |
1.2 |
Type II ........................................................................... |
14 |
1.3 |
Type III .......................................................................... |
16 |
1.4 |
Type IV .......................................................................... |
18 |
2 Installation.................................................................................... |
20 |
|
2.1 Memory Card Installation.............................................. |
21 |
|
2.2 Ceiling Mounting........................................................... |
22 |
|
2.3 Mounting with Brackets ................................................ |
27 |
|
2.4 |
Network Cable Water-proof Jacket Installation (Optional)39 |
|
3 Setting the Network Camera over the LAN .................................. |
42 |
|
3.1 Wiring ........................................................................... |
42 |
|
3.2 Activating the Camera................................................... |
43 |
|
3.3 Modifying the IP Address .............................................. |
46 |
|
4 Accessing via Web Browser .......................................................... |
49 |
|
5 Operating via Hik-Connect App .................................................... |
51 |
|
5.1 |
Enable Hik-Connect Service on Camera......................... |
51 |
5.2 Hik-Connect Setup ........................................................ |
54 |
|
5.3 Adding Camera to Hik-Connect ..................................... |
54 |
|
5.4 Initializing the Memory Card ......................................... |
56 |
12
Network Dome Camera·Quick Start Guide
There are three types of camera appearance for this series of camera according to the different models.
1 |
|
|
5 |
|
|
6 |
|
2 |
|
7 |
|
3 |
|
8 |
|
|
9 |
|
|
|
|
|
|
4 |
|
10 |
|
|
|
|
|
|
Figure 1-1 Overview of Type I Camera |
||
|
Table 1-1 Description of Type I Camera |
||
No. |
Description |
No. |
Description |
1 |
Mounting Base |
2 |
Horizontal Stand |
3 |
Vertical Stand |
4 |
Bubble |
13
Network Dome Camera·Quick Start Guide
No. |
Description |
No. |
Description |
5 |
Network Interface |
6 |
Power Interface |
|
|
|
|
7 |
IR LED |
8 |
Lens |
|
|
|
|
9 |
Black Liner |
10 |
Safety Rope |
|
|
|
|
Note:
Press RESET about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc.
|
|
11* |
1 |
|
12* |
|
6 |
|
2 |
7 |
5 |
|
||
8 |
|
|
3 |
|
|
9 |
|
|
|
|
|
4 |
|
|
|
10 |
|

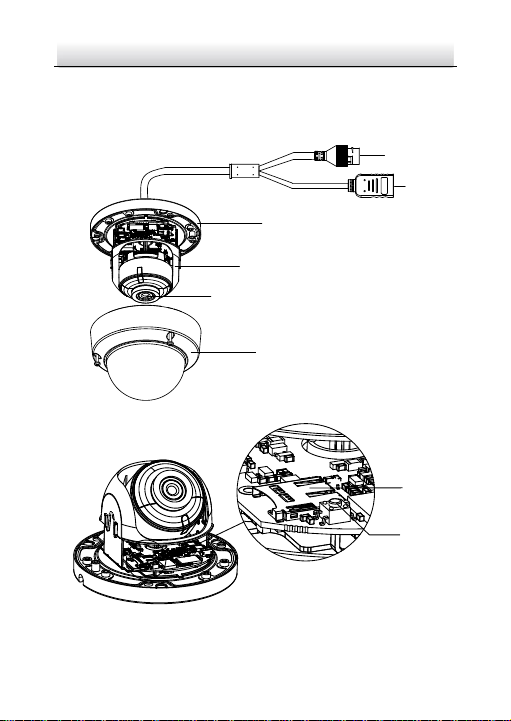

Figure 1-2 Overview Of Type II Camera
14
Network Dome Camera·Quick Start Guide
Table 1-2 Description of Type II Camera
No. |
Description |
No. |
Description |
1 |
Mounting Base |
2 |
Horizontal Stand |
|
|
|
|
3 |
Vertical Stand |
4 |
Bubble |
|
|
|
|
5 |
Network Interface |
6 |
Power Interface |
|
|
|
|
7 |
IR LED |
8 |
Lens |
|
|
|
|
9 |
Black Liner |
10 |
Safety Rope |
|
|
|
|
|
Audio Interface (Only |
|
Alarm Interface (Only |
11* |
supported by the camera |
12* |
supported by the camera |
|
with “-S” in its model) |
|
with “-S” in its model) |
|
|
|
|
Notes:
●The items marked with the "*" are only supported by certain camera models.
●Press RESET about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc.
15
Network Dome Camera·Quick Start Guide
DC12VIN 1
2*
3*
5 |
4 |
|
6
7
8
9
10
Figure 1-3 Overview Of Type III Camera
16
Network Dome Camera·Quick Start Guide
|
Table 1-3 Description of Type III Camera |
|
|
|
|
No. |
|
Description |
1 |
|
Power supply interface (12 VDC) |
|
|
|
2* |
|
Audio input and output interface |
|
|
|
3* |
|
Alarm input and output interface |
|
|
|
4 |
|
RJ45 self-adaptive network interface (PoE) |
|
|
|
5 |
|
Mounting base |
|
|
|
6 |
|
Black liner |
|
|
|
7 |
|
Lens |
|
|
|
8 |
|
Bubble |
|
|
|
9 |
|
Memory card slot |
|
|
|
10 |
|
Reset button |
|
|
|
Note:
●The items marked with the "*" are only supported by certain camera models.
●Press RESET about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc.
17
