Hikvision DS-2CD2055FWD-I-4MM, DS-2CD2055FWD-I-6MM, DS-2CD2135FWD-I-2.8MM, DS-2CD2135FWD-I-8MM, DS-2CD6626B-E-HIR5 User Manual

...

Network Camera

User Manual

UD04470B

Network Camera User Manual

User Manual

COPYRIGHT ©2017 Hangzhou Hikvision Digital Technology Co., Ltd.

ALL RIGHTS RESERVED.

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries

(hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to Network Camera.

The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website (http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND

FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND

HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY,

1

Network Camera User Manual

FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

2

Network Camera User Manual

with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1.This device may not cause harmful interference.

2.This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive

2004/108/EC, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose

of it at designated collection points. For more information see: www.recyclethis.info. 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

3

Network Camera User Manual

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to

avoid danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are

neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are

neglected.

Warnings Follow these safeguards to Cautions Follow these precautions to prevent serious injury or death. prevent potential injury or material

damage.

Warnings:

Please adopt the power adapter which can meet the safety extra low voltage (SELV) standard. And source with 12 VDC or 24 VAC (depending on models) according to the IEC60950-1 and Limited Power Source standard.

To reduce the risk of fire or electrical shock, do not expose this product to rain or moisture.

This installation should be made by a qualified service person and should conform to all the local codes.

Please install blackouts equipment into the power supply circuit for convenient supply interruption.

Please make sure that the ceiling can support more than 50(N) Newton gravities if the camera is fixed to the ceiling.

If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. (We shall not

4

Network Camera User Manual

assume any responsibility for problems caused by unauthorized repair or

maintenance.)

Cautions:

Make sure the power supply voltage is correct before using the camera.

Do not drop the camera or subject it to physical shock.

Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an extended period of time, put on the lens cap to protect the sensor from dirt.

Do not aim the camera lens at the strong light such as sun or incandescent lamp. The strong light can cause fatal damage to the camera.

The sensor may be burned out by a laser beam, so when any laser equipment is being used, make sure that the surface of the sensor not be exposed to the laser beam.

Do not place the camera in extremely hot, cold temperatures (the operating temperature should be between -30°C to +60°C, or -40°C to +60°C if the camera model has an “H” in its suffix), dusty or damp environment, and do not expose it to high electromagnetic radiation.

To avoid heat accumulation, ensure there is good ventilation to the device.

Keep the camera away from water and any liquids.

While shipping, pack the camera in its original, or equivalent, packing materials. Or packing the same texture.

Improper use or replacement of the battery may result in hazard of explosion. Please use the manufacturer recommended battery type.

Notes:

For the camera supports IR, you are required to pay attention to the following

precautions to prevent IR reflection:

Dust or grease on the dome cover will cause IR reflection. Please do not remove the dome cover film until the installation is finished. If there is dust or grease on

5

Network Camera User Manual

the dome cover, clean the dome cover with clean soft cloth and isopropyl alcohol.

Make certain the installation location does not have reflective surfaces of objects too close to the camera. The IR light from the camera may reflect back into the lens causing reflection.

The foam ring around the lens must be seated flush against the inner surface of the bubble to isolate the lens from the IR LEDS. Fasten the dome cover to camera body so that the foam ring and the dome cover are attached seamlessly.

6

Network Camera User Manual

Table of Contents

Chapter 1

System Requirement ...........................................................................

1

Chapter 2

Network Connection...........................................................................

2

2.1

Setting the Network Camera over the LAN........................................................

2

2.1.1

Wiring over the LAN .........................................................................................................

2

2.1.2



Activating the Camera ......................................................................................................

3

2.2

Setting the Network Camera over the WAN ......................................................

9

2.2.1



Static IP Connection..........................................................................................................

9

2.2.2



Dynamic IP Connection...................................................................................................

10

Chapter 3

Access to the Network Camera...........................................................

13

3.1

Accessing by Web Browsers............................................................................

13

3.2

Accessing by Client Software ........................................................................

14

Chapter 4

Wi-Fi Settings ...................................................................................

16

4.1

Configuring Wi-Fi Connection in Manage and Ad-hoc Modes ..........................

16

4.2

Easy Wi-Fi Connection with WPS function ......................................................

21

4.3

IP Property Settings for Wireless Network Connection ....................................

23

Chapter 5

Live View ..........................................................................................

25

5.1

Live View Page...............................................................................................

25

5.2

Starting Live View ..........................................................................................

26

5.3

Recording and Capturing Pictures Manually ....................................................

27

5.4

Operating PTZ Control ....................................................................................

27

5.4.1



PTZ Control Panel............................................................................................................

27

5.4.2



Setting/Calling a Preset...................................................................................................

28

5.4.3



Setting/Calling a Patrol ...................................................................................................

29

Chapter 6

Network Camera Configuration ........................................................

31

6.1

Configuring Local Parameters .........................................................................

31

6.2

Configure System Settings ..............................................................................

33

6.2.1



Configuring Basic Information ........................................................................................

33

6.2.2



Configuring Time Settings...............................................................................................

34

6.2.3



Configuring RS232 Settings.............................................................................................

36

6.2.4



Configuring RS485 Settings.............................................................................................

37

6.2.5



Configuring DST Settings.................................................................................................

38

6.2.6



Configuring External Devices ..........................................................................................

39

6.2.7



Configuring VCA Resource ..............................................................................................

40

6.3

Maintenance .................................................................................................

41

6.3.1



Upgrade & Maintenance.................................................................................................

41





7



Network Camera User Manual

6.3.2

Log ..................................................................................................................................

42

6.3.3

System Service ................................................................................................................

43

6.4

Security Settings ............................................................................................

44

6.4.1

Authentication ................................................................................................................

44

6.4.2

IP Address Filter ..............................................................................................................

44

6.4.3

Security Service...............................................................................................................

46

6.5

User Management .........................................................................................

47

6.5.1



User Management ..........................................................................................................

47

6.5.2



Online Users....................................................................................................................

50

Chapter 7

Network Settings ...............................................................................

51

7.1

Configuring Basic Settings ..............................................................................

51

7.1.1



Configuring TCP/IP Settings ............................................................................................

51

7.1.2



Configuring DDNS Settings..............................................................................................

53

7.1.3



Configuring PPPoE Settings.............................................................................................

55

7.1.4



Configuring Port Settings ................................................................................................

55

7.1.5

Configure NAT (Network Address Translation) Settings..................................................

56

7.2

Configure Advanced Settings ..........................................................................

57

7.2.1



Configuring SNMP Settings .............................................................................................

57

7.2.2



Configuring FTP Settings .................................................................................................

60

7.2.3



Configuring Email Settings ..............................................................................................

62

7.2.4



Platform Access...............................................................................................................

64

7.2.5



Wireless Dial ...................................................................................................................

65

7.2.6



HTTPS Settings ................................................................................................................

67

7.2.7



Configuring QoS Settings ................................................................................................

69

7.2.8



Configuring 802.1X Settings............................................................................................

69

Chapter 8

Video/Audio Settings .........................................................................

72

8.1

Configuring Video Settings .............................................................................

72

8.2

Configuring Audio Settings .............................................................................

75

8.3

Configuring ROI Encoding ...............................................................................

76

8.4

Display Info. on Stream ..................................................................................

78

8.5

Configuring Target Cropping ...........................................................................

79

Chapter 9

Image Settings ..................................................................................

80

9.1

Configuring Display Settings ...........................................................................

80

9.1.1



Day/Night Auto-Switch ...................................................................................................

80

9.1.2



Day/Night Scheduled-Switch ..........................................................................................

84

9.2

Configuring OSD Settings................................................................................

85

9.3

Configuring Privacy Mask ...............................................................................

87

9.4

Configuring Picture Overlay ............................................................................

88





8



Network Camera User Manual

Chapter 10

Event Settings................................................................................

89

10.1

Basic Events ...................................................................................................

89

10.1.1

Configuring Motion Detection ........................................................................................

89

10.1.2 Configuring Video Tampering Alarm ..............................................................................

95

10.1.3

Configuring Alarm Input .................................................................................................

97

10.1.4

Configuring Alarm Output ..............................................................................................

98

10.1.5

Handling Exception .........................................................................................................

99

10.1.6

Configuring Other Alarm.................................................................................................

99

10.2

Smart Events................................................................................................

102

10.2.1 Configuring Audio Exception Detection........................................................................

103

10.2.2

Configuring Defocus Detection .....................................................................................

104

10.2.3 Configuring Scene Change Detection ...........................................................................

105

10.2.4

Configuring Face Detection...........................................................................................

106

10.2.5

Configuring Intrusion Detection ...................................................................................

108

10.2.6 Configuring Line Crossing Detection.............................................................................

110

10.2.7 Configuring Region Entrance Detection........................................................................

113

10.2.8 Configuring Region Exiting Detection ...........................................................................

115

10.2.9 Configuring Unattended Baggage Detection ................................................................

117

10.2.10

Configuring Object Removal Detection....................................................................

119

10.3

VCA Configuration........................................................................................

121

10.3.1

Behavior Analysis..........................................................................................................

121

10.3.2

Face Capture .................................................................................................................

128

10.3.3

People Counting............................................................................................................

132

10.3.4

Counting .......................................................................................................................

135

10.3.5

Heat Map ......................................................................................................................

136

10.3.6

Road Traffic ...................................................................................................................

138

Chapter 11

Storage Settings ...........................................................................

141

11.1

Configuring Record Schedule ........................................................................

141

11.2

Configure Capture Schedule .........................................................................

144

11.3

Configuring Net HDD....................................................................................

146

11.4

Memory Card Detection ...............................................................................

148

11.5

Configuring Lite Storage ...............................................................................

150

Chapter 12

Playback......................................................................................

152

Chapter 13

Picture ........................................................................................

154

Chapter 14

Application..................................................................................

155

14.1

Face Capture Statistics..................................................................................

155

14.2

People Counting Statistics ............................................................................

155

14.3

Heat Map Statistics ......................................................................................

156





9



Network Camera User Manual

14.4 Counting Statistics .......................................................................................

157

Appendix ...........................................................................................................

159

Appendix 1 SADP Software Introduction ...............................................................

159

Appendix 2 Port Mapping ......................................................................................

162

10

Network Camera User Manual

Chapter 1 System Requirement

Operating System: Microsoft Windows XP SP1 and above version

CPU: 2.0 GHz or higher

RAM: 1G or higher

Display: 1024×768 resolution or higher

Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version.

1

Network Camera User Manual

Chapter 2 Network Connection

Note:

You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, please contact with your dealer or the nearest service center.

To ensure the network security of the network camera, we recommend you to have the network camera assessed and maintained termly. You can contact us if you need such service.

Before you start:

If you want to set the network camera via a LAN (Local Area Network), please refer to Section 2.1 Setting the Network Camera over the LAN.

If you want to set the network camera via a WAN (Wide Area Network), please refer to Section 2.2 Setting the Network Camera over the WAN.

2.1 Setting the Network Camera over the LAN

Purpose:

To view and configure the camera via a LAN, you need to connect the network camera in the same subnet with your computer, and install the SADP or iVMS-4200 software to search and change the IP of the network camera.

Note: For the detailed introduction of SADP, please refer to Appendix 1.

2.1.1 Wiring over the LAN

The following figures show the two ways of cable connection of a network camera and a computer:

Purpose:

To test the network camera, you can directly connect the network camera to the computer with a network cable as shown in Figure 2-1.

2

Network Camera User Manual

Refer to the Figure 2-2 to set network camera over the LAN via a switch or a router.

or Network Cable

Network Camera

Computer

Figure 2-1 Connecting Directly

or



e



l



ab



C

k

r



o



etw



N



or

Network

Cable

Network Camera

Computer

Figure 2-2 Connecting via a Switch or a Router

2.1.2 Activating the Camera

You are required to activate the camera first by setting a strong password for it before you can use the camera.

Activation via Web Browser, Activation via SADP, and Activation via Client Software are all supported.

Activation via Web Browser

Steps:

1.Power on the camera, and connect the camera to the network.

2.Input the IP address into the address bar of the web browser, and click Enter to enter the activation interface.

Notes:

The default IP address of the camera is 192.168.1.64.

The computer and the camera should belong to the same subnet.

For the camera enables the DHCP by default, you need to use the SADP software

3

Network Camera User Manual

to search the IP address.

Figure 2-3 Activation via Web Browser

3. Create a password and input the password into the password field.

STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

4.Confirm the password.

5.Click OK to save the password and enter the live view interface.

Activation via SADP Software

SADP software is used for detecting the online device, activating the camera, and resetting the password.

Get the SADP software from the supplied disk or the official website, and install the SADP according to the prompts. Follow the steps to activate the camera.

Steps:

1.Run the SADP software to search the online devices.

2.Check the device status from the device list, and select the inactive device.

4

Network Camera User Manual

Select inactive device.

Input and confirm password.

Figure 2-4 SADP Interface

Note:

The SADP software supports activating the camera in batch. Refer to the user manual of SADP software for details.

3. Create a password and input the password in the password field, and confirm the password.

STRONG PASSWORD RECOMMENDEDWe highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Note:

You can enable the Hik-Connect service for the device during activation. 4. Click Activate to start activation.

You can check whether the activation is completed on the popup window. If activation failed, please make sure that the password meets the requirement and try again.

5. Change the device IP address to the same subnet with your computer by either

modifying the IP address manually or checking the checkbox of Enable DHCP.

5

Network Camera User Manual

Figure 2-5 Modify the IP Address

6. Input the admin password and click Modify to activate your IP address modification.

The batch IP address modification is supported by the SADP. Refer to the user manual of SADP for details.

Activation via Client Software

The client software is versatile video management software for multiple kinds of devices.

Get the client software from the supplied disk or the official website, and install the software according to the prompts. Follow the steps to activate the camera.

Steps:

1. Run the client software and the control panel of the software pops up, as shown in the figure below.

6

Hikvision DS-2CD2055FWD-I-4MM, DS-2CD2055FWD-I-6MM, DS-2CD2135FWD-I-2.8MM, DS-2CD2135FWD-I-8MM, DS-2CD6626B-E-HIR5 User Manual

Network Camera User Manual

Figure 2-6 Control Panel

2. Click the Device Management icon to enter the Device Management interface, as shown in the figure below.

Figure 2-7 Device Management Interface

7

Network Camera User Manual

3.Check the device status from the device list, and select an inactive device.

4.Click the Activate button to pop up the Activation interface.

5.Create a password and input the password in the password field, and confirm the password.

STRONG PASSWORD RECOMMENDEDWe highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. We recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Figure 2-8 Activation Interface (Client Software)

6.Click OK button to start activation.

7.Click the Modify Netinfo button to pop up the Network Parameter Modification interface, as shown in the figure below.

8

Network Camera User Manual

Figure 2-9 Modifying the Network Parameters

8.Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP.

9.Input the password to activate your IP address modification.

2.2 Setting the Network Camera over the WAN

Purpose:

This section explains how to connect the network camera to the WAN with a static IP or a dynamic IP.

2.2.1 Static IP Connection

Before you start:

Please apply a static IP from an ISP (Internet Service Provider). With the static IP address, you can connect the network camera via a router or connect it to the WAN directly.

Connecting the network camera via a router

Steps:

1. Connect the network camera to the router.

9

Network Camera User Manual

2.Assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2 for detailed IP address configuration of the network camera.

3.Save the static IP in the router.

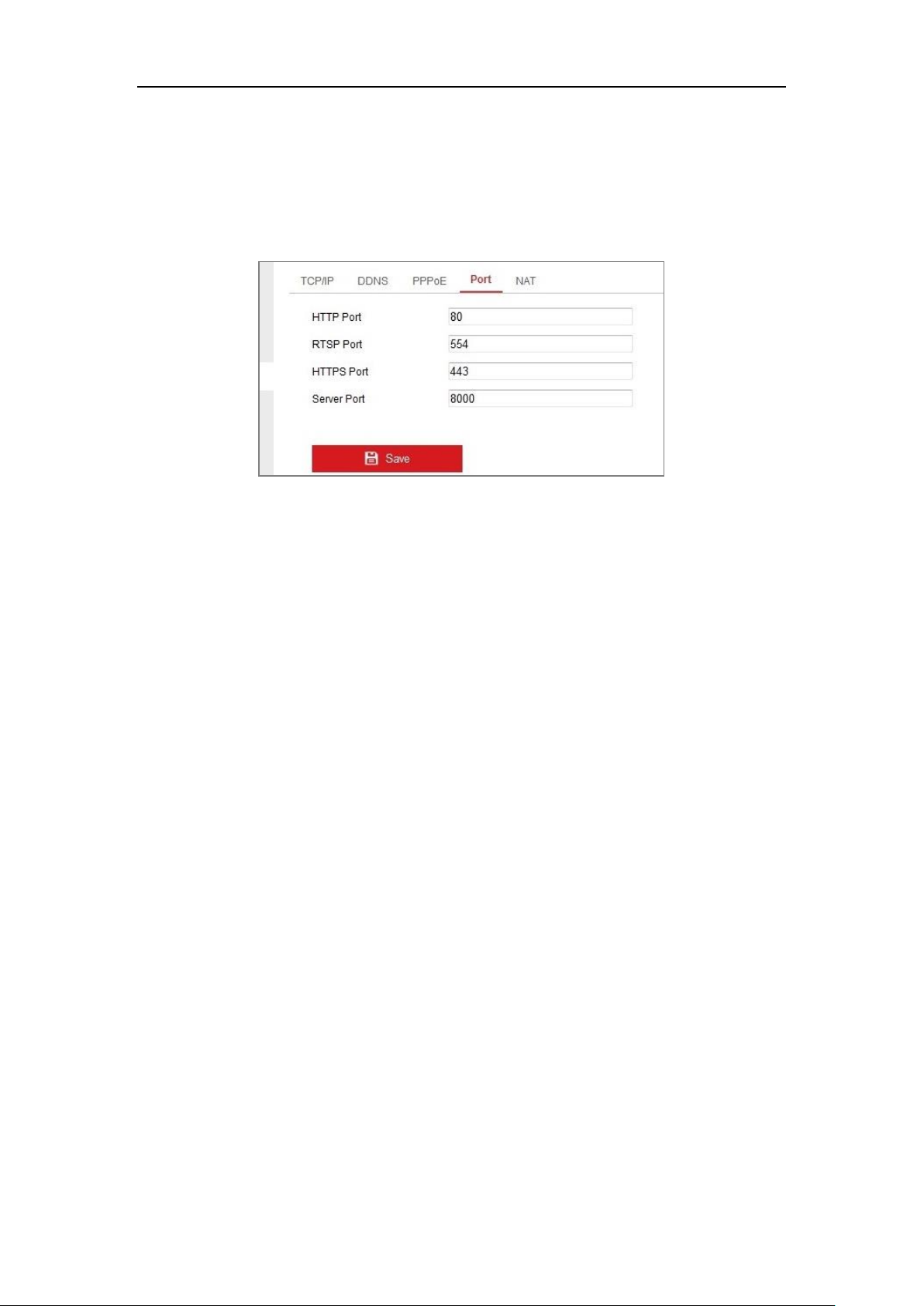

4.Set port mapping, e.g., 80, 8000, and 554 ports. The steps for port mapping vary according to the different routers. Please call the router manufacturer for assistance with port mapping.

Note: Refer to Appendix 2 for detailed information about port mapping.

5.Visit the network camera through a web browser or the client software over the internet.

Figure 2-10 Accessing the Camera through Router with Static IP

Connecting the network camera with static IP directly

You can also save the static IP in the camera and directly connect it to the internet without using a router. Refer to Section 2.1.2 for detailed IP address configuration of the network camera.

Figure 2-11 Accessing the Camera with Static IP Directly

2.2.2 Dynamic IP Connection

Before you start:

Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the network camera to a modem or a router.

Connecting the network camera via a router

Steps:

10

Network Camera User Manual

1.Connect the network camera to the router.

2.In the camera, assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2 for detailed IP address configuration of the network camera.

3.In the router, set the PPPoE user name, password and confirm the password.

4.Set port mapping. E.g. 80, 8000, and 554 ports. The steps for port mapping vary depending on different routers. Please call the router manufacturer for assistance with port mapping.

Note: Refer to Appendix 2 for detailed information about port mapping.

5.Apply a domain name from a domain name provider.

6.Configure the DDNS settings in the setting interface of the router.

7.Visit the camera via the applied domain name.

Connecting the network camera via a modem

Purpose:

This camera supports the PPPoE auto dial-up function. The camera gets a public IP address by ADSL dial-up after the camera is connected to a modem. You need to configure the PPPoE parameters of the network camera. Refer to Section 7.1.3

Configuring PPPoE Settings for detailed configuration.

Figure 2-12 Accessing the Camera with Dynamic IP

Note: The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes after rebooting the camera. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (E.g. DynDns.com). Please follow the steps below for normal domain name resolution and private domain name resolution to solve the problem.

Normal Domain Name Resolution

11

Network Camera User Manual

Figure 2-13 Normal Domain Name Resolution

Steps:

1.Apply a domain name from a domain name provider.

2.Configure the DDNS settings in the DDNS Settings interface of the network camera. Refer to Section 7.1.2 Configuring DDNS Settings for detailed configuration.

3.Visit the camera via the applied domain name.

Private Domain Name Resolution

Figure 2-14 Private Domain Name Resolution

Steps:

1.Install and run the IP Server software in a computer with a static IP.

2.Access the network camera through the LAN with a web browser or the client software.

3.Enable DDNS and select IP Server as the protocol type. Refer to Section 7.1.2

Configuring DDNS Settings for detailed configuration.

12

Network Camera User Manual

Chapter 3 Access to the Network Camera

3.1 Accessing by Web Browsers

Steps:

1.Open the web browser.

2.In the browser address bar, input the IP address of the network camera, and press the Enter key to enter the login interface.

Note:

The default IP address is 192.168.1.64. You are recommended to change the IP

address to the same subnet with your computer.

3. Input the user name and password and click Login.

The admin user should configure the device accounts and user/operator permissions properly. Delete the unnecessary accounts and user/operator permissions.

Note:

The IP address gets locked if the admin user performs 7 failed password attempts (5 attempts for the user/operator).

Figure 3-1 Login Interface

4.Click Login.

5.Install the plug-in before viewing the live video and operating the camera. Follow the installation prompts to install the plug-in.

13

Network Camera User Manual

Figure 3-2 Download and Install Plug-in

Note: You may have to close the web browser to finish the installation of the

plug-in.

6.Reopen the web browser after the installation of the plug-in and repeat steps 2 to 4 to login.

Note: For detailed instructions of further configuration, please refer to the user manual of network camera.

3.2 Accessing by Client Software

The product CD contains the iVMS-4200 client software. You can view the live video and manage the camera with the software.

Follow the installation prompts to install the software. The control panel and live view interface of iVMS-4200 client software are shown as below.

14

Network Camera User Manual

Figure 3-3 iVMS-4200 Control Panel

Figure 3-4 iVMS-4200 Main View

15

Network Camera User Manual

Chapter 4 Wi-Fi Settings

Purpose:

By connecting to the wireless network, you don’t need to use cable of any kind for network connection, which is very convenient for the actual surveillance application.

Note: This chapter is only applicable for the cameras with the built-in Wi-Fi module.

4.1 Configuring Wi-Fi Connection in Manage and

Ad-hoc Modes

Purpose:

Two connection modes are supported. Choose a mode as desired and perform the

steps to configure the Wi-Fi.

Wireless Connection in Manage Mode

Steps:

1.Enter the Wi-Fi configuration interface.

Configuration> Network> Advanced Settings> Wi-Fi

2.Click Search to search the online wireless connections.

Figure 4-1 Wi-Fi List

16

Network Camera User Manual

3. Click to choose a wireless connection on the list.

Figure 4-2 Wi-Fi SettingManage Mode

4.Check the radio button to select the Network mode as Manage, and the

Security mode of the network is automatically shown when you select the

wireless network, please don’t change it manually.

Note: These parameters are exactly identical with those of the router.

5.Enter the key to connect the wireless network. The key should be that of the wireless network connection you set on the router.

Wireless Connection in Ad-hoc Mode

If you choose the Ad-hoc mode, you don’t need to connect the wireless camera via a router. The scenario is the same as you connect the camera and the PC directly with a network cable.

Steps:

1. Choose Ad-hoc mode.

Figure 4-3 Wi-Fi Setting- Ad-hoc

17

Network Camera User Manual

2.Customize a SSID for the camera.

3.Choose the Security Mode of the wireless connection.

4.Enable the wireless connection function for your PC.

5.On the PC side, search the network and you can see the SSID of the camera listed.

Figure 4-4 Ad-hoc Connection Point

6. Choose the SSID and connect.

Security Mode Description:

Figure 4-5 Security Mode

You can choose the Security Mode as not-encrypted, WEP, WPA-personal, WPA-enterprise, WPA2-personal, and WPA2-enterprise.

WEP mode:

18

Network Camera User Manual

Figure 4-6 WEP Mode

Authentication - Select Open or Shared Key System Authentication, depending on the method used by your access point. Not all access points have this option, in which case they probably use Open System, which is sometimes known as SSID Authentication.

Key length - This sets the length of the key used for the wireless encryption, 64 or 128 bit. The encryption key length can sometimes be shown as 40/64 and 104/128.

Key type - The key types available depend on the access point being used. The following options are available:

HEX - Allows you to manually enter the hex key.

ASCII - In this method the string must be exactly 5 characters for 64-bit WEP and

13 characters for 128-bit WEP. WPA-personal and WPA2-personal Mode:

Enter the required Pre-shared Key for the access point, which can be a hexadecimal number or a passphrase.

Figure 4-7 Security Mode- WPA-personal

WPAenterprise and WPA2-enterprise Mode:

19
