Hikvision DS-2CD2012WD-I-4mm, DS-2CD2012WD-I-6mm, DS-2CD2325FWD-I-4MM, DS-2CD2325FWD-I-6MM, DS-2CD2325FWD-I-8MM User Manual

...

0 (0)

Network Camera

User Manual

UD09209B

Network Camera User Manual

User Manual

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries

(hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to Network Camera.

The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website (http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND

FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND

HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY,

Network Camera User Manual

FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

Notice:

If camera fails to synchronize local time with that of the network, you need to set up camera time manually. Visit the camera and enter system setting interface for time setting.

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss.

Network Camera User Manual

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are

neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are

neglected.

Warnings Follow these safeguards to Cautions Follow these precautions to prevent serious injury or death. prevent potential injury or material

damage.

Warnings:

Please adopt the power adapter which can meet the safety extra low voltage (SELV) standard. And source with 12 VDC or 24 VAC (depending on models) according to the IEC60950-1 and Limited Power Source standard.

To reduce the risk of fire or electrical shock, do not expose this product to rain or moisture.

This installation should be made by a qualified service person and should conform to all the local codes.

Please install blackouts equipment into the power supply circuit for convenient supply interruption.

Please make sure that the ceiling can support more than 50(N) Newton gravities if the camera is fixed to the ceiling.

If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.)

Cautions:

Network Camera User Manual

Make sure the power supply voltage is correct before using the camera.

Do not drop the camera or subject it to physical shock.

Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an extended period of time, put on the lens cap to protect the sensor from dirt.

Do not aim the camera lens at the strong light such as sun or incandescent lamp. The strong light can cause fatal damage to the camera.

The sensor may be burned out by a laser beam, so when any laser equipment is being used, make sure that the surface of the sensor not be exposed to the laser beam.

Do not place the camera in extremely hot, cold temperatures (refer to product specification for working temperature), dusty or damp environment, and do not expose it to high electromagnetic radiation.

To avoid heat accumulation, ensure there is good ventilation to the device.

Keep the camera away from water and any liquids.

While shipping, pack the camera in its original, or equivalent, packing materials. Or packing the same texture.

Improper use or replacement of the battery may result in hazard of explosion.

Please use the manufacturer recommended battery type.

Notes:

For the camera supports IR, you are required to pay attention to the following precautions to prevent IR reflection:

Dust or grease on the dome cover will cause IR reflection. Please do not remove the dome cover film until the installation is finished. If there is dust or grease on the dome cover, clean the dome cover with clean soft cloth and isopropyl alcohol.

Make certain the installation location does not have reflective surfaces of objects too close to the camera. The IR light from the camera may reflect back into the lens causing reflection.

The foam ring around the lens must be seated flush against the inner surface of

the bubble to isolate the lens from the IR LEDS. Fasten the dome cover to camera

Network Camera User Manual

body so that the foam ring and the dome cover are attached seamlessly.

Network Camera User Manual

Table of Contents

Chapter 1	System Requirement............................................................................	10
Chapter 2	Network Connection............................................................................	11
Setting the Network Camera over the LAN ........................................................		11
	Wiring over the LAN...................................................................................................	11
	Activating the Camera................................................................................................	12
	(Optional) Setting Security Question ..........................................................................	19
Setting the Network Camera over the WAN.......................................................		19
	Static IP Connection...................................................................................................	19
	Dynamic IP Connection ..............................................................................................	20
Chapter 3 Access to the Network Camera ............................................................		23
Accessing by Web Browsers ...............................................................................		23
Accessing by Client Software .............................................................................		24
Chapter 4	Wi-Fi Settings......................................................................................	26
Configuring Wi-Fi Connection in Manage and Ad-hoc Modes ............................		26
Easy Wi-Fi Connection with WPS function .........................................................		31
IP Property Settings for Wireless Network Connection ......................................		33
Chapter 5	Live View .............................................................................................	35
Live View Page ...................................................................................................		35
Starting Live View ..............................................................................................		36
Recording and Capturing Pictures Manually ......................................................		37
Operating PTZ Control........................................................................................		37
	PTZ Control Panel.......................................................................................................	37
	Setting/Calling a Preset..............................................................................................	39
	Setting/Calling a Patrol...............................................................................................	40
Chapter 6 Network Camera Configuration..........................................................		41

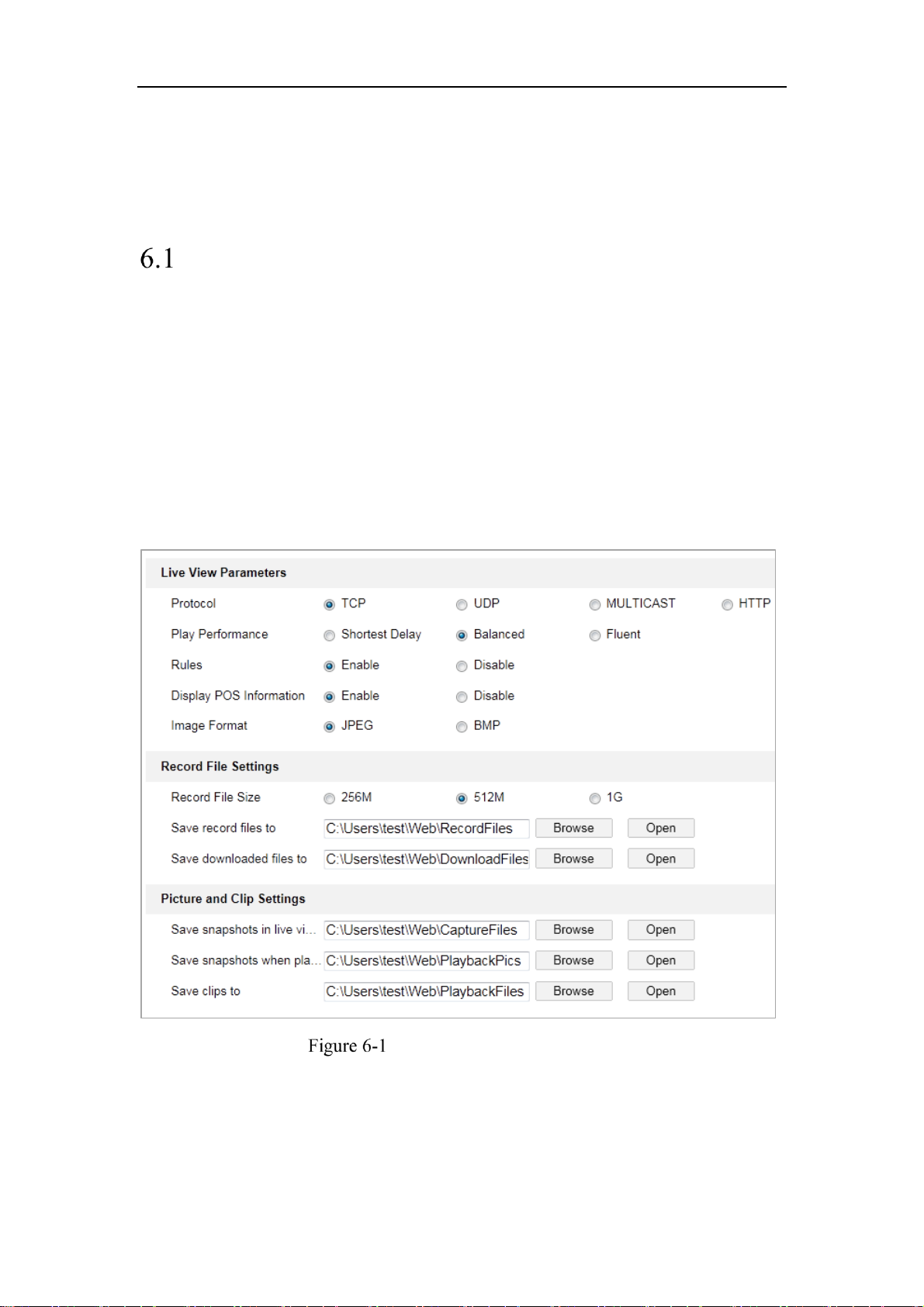

Configuring Local Parameters.............................................................................		41
Configure System Settings..................................................................................		43
	Configuring Basic Information ....................................................................................	43

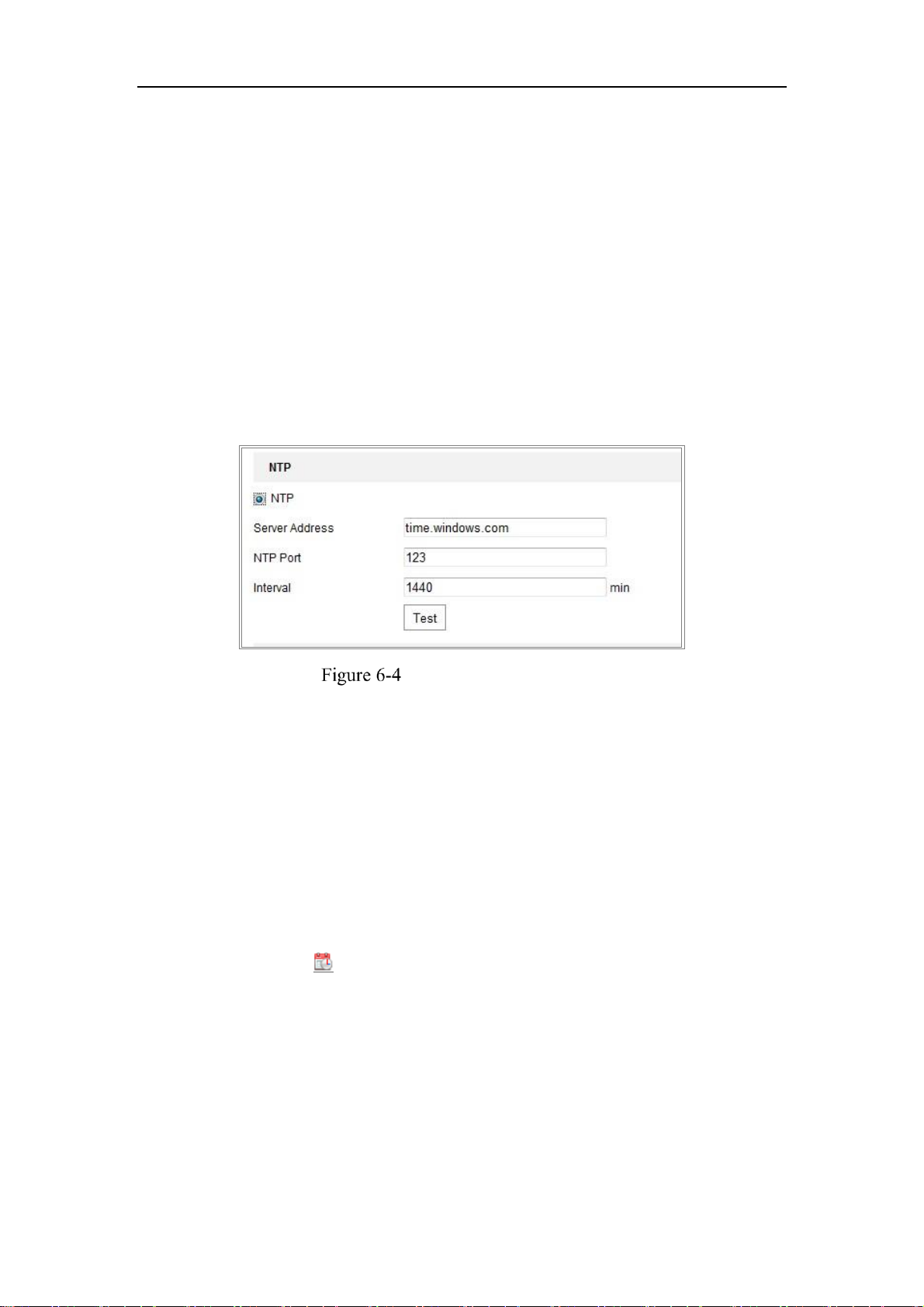

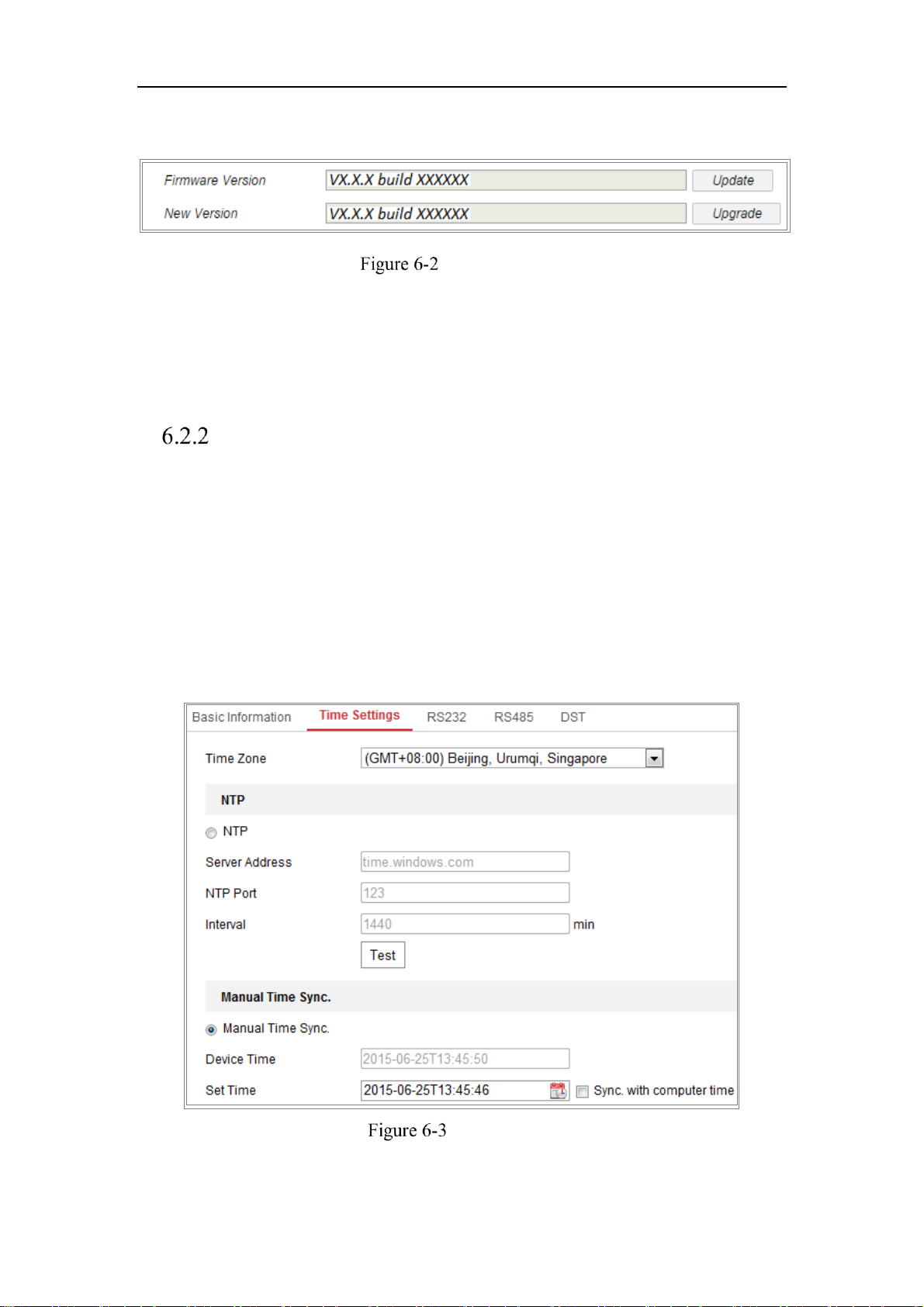

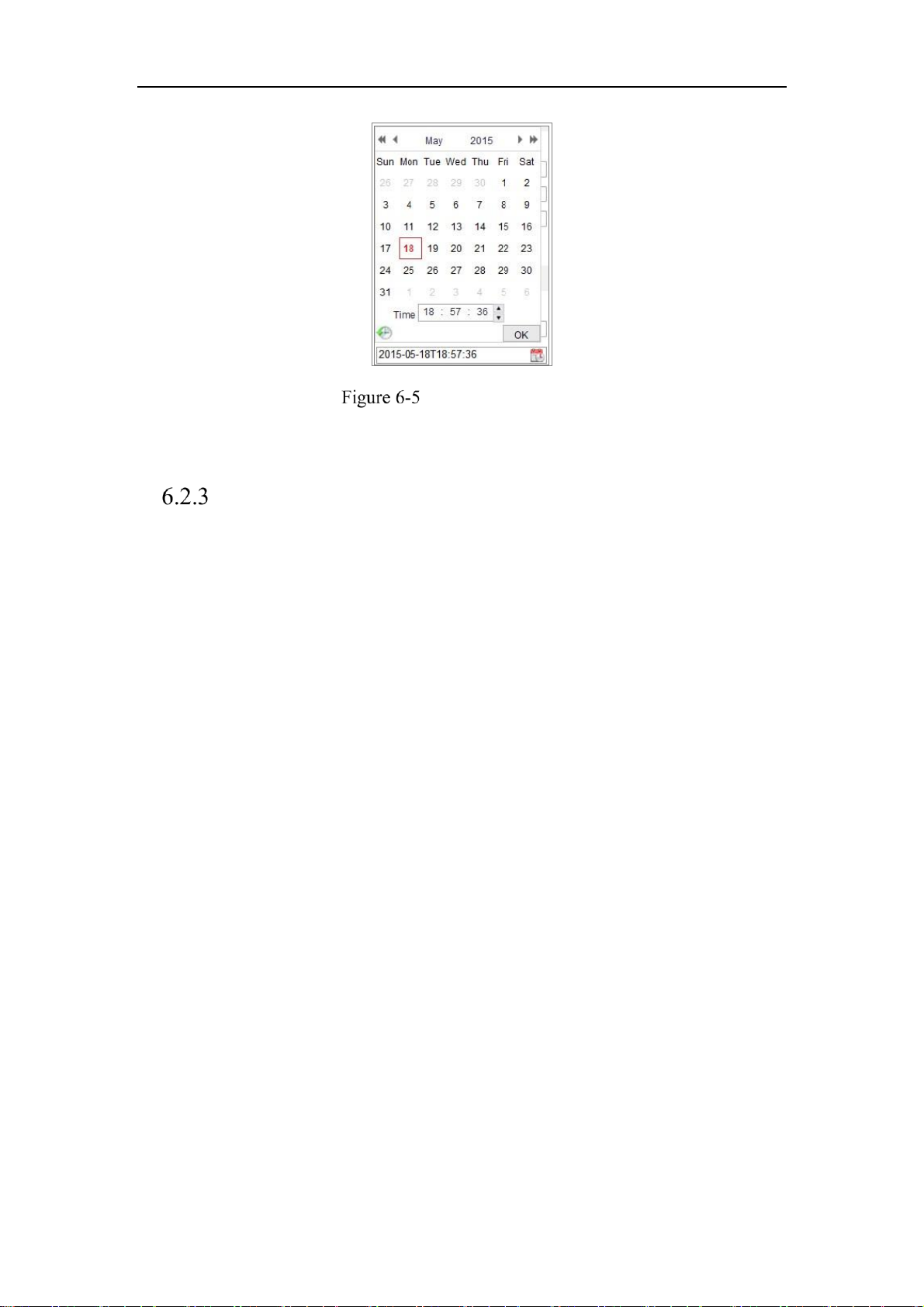

	Configuring Time Settings ..........................................................................................	44
	Configuring RS232 Settings.........................................................................................	46
	Configuring RS485 Settings.........................................................................................	47
	Configuring DST Settings ............................................................................................	48
	Configuring External Devices......................................................................................	49
	Configuring VCA Resource..........................................................................................	50
	Open Source Software License ...................................................................................	51
	6

Network Camera User Manual

Maintenance......................................................................................................	51
Upgrade & Maintenance............................................................................................	51
Log ............................................................................................................................	52
System Service...........................................................................................................	53

Security Settings ................................................................................................	54
Authentication...........................................................................................................	54

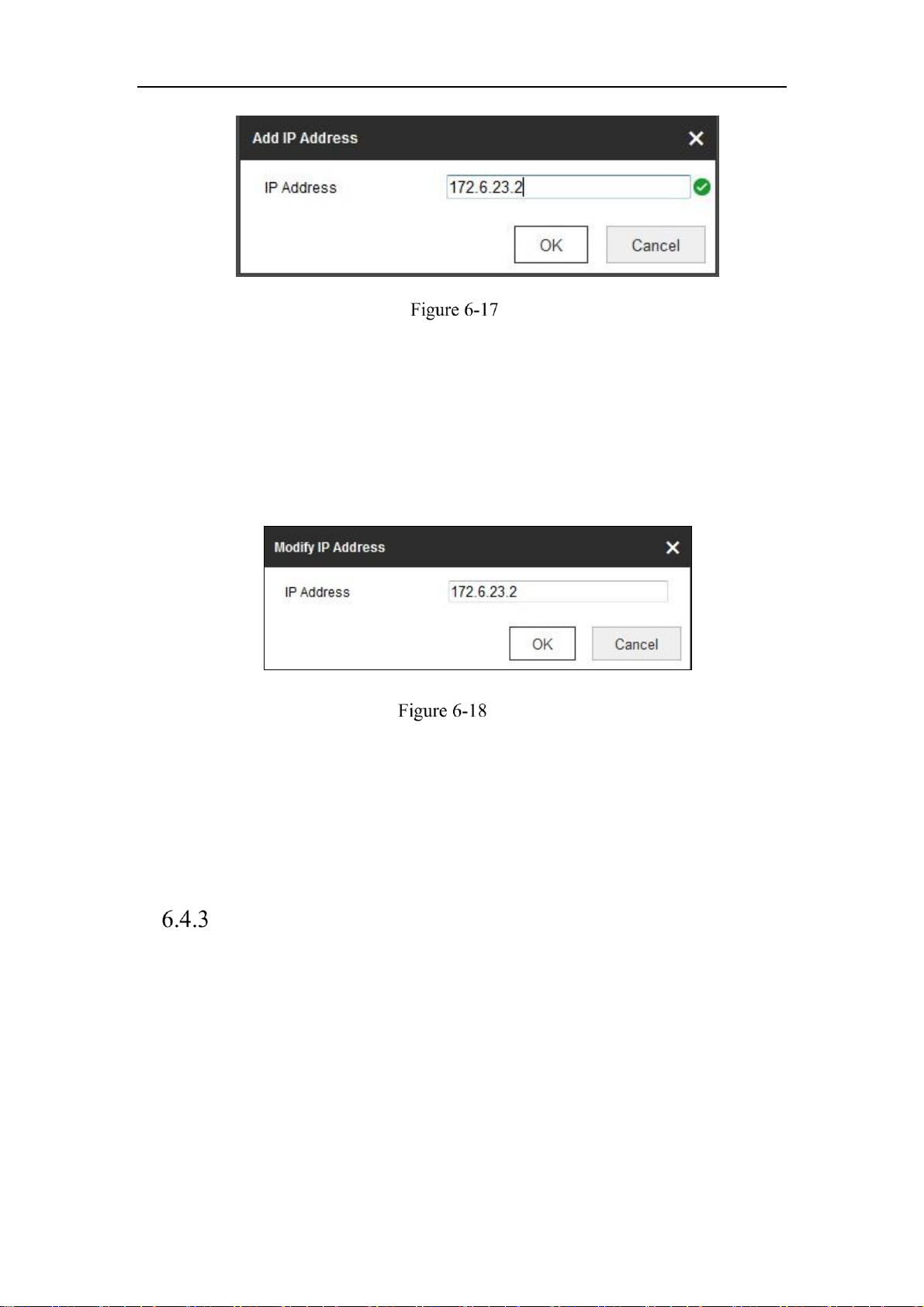

IP Address Filter.........................................................................................................	55
Security Service .........................................................................................................	56

User Management .............................................................................................		57
	User Management .....................................................................................................	57
	Security Question ......................................................................................................	59

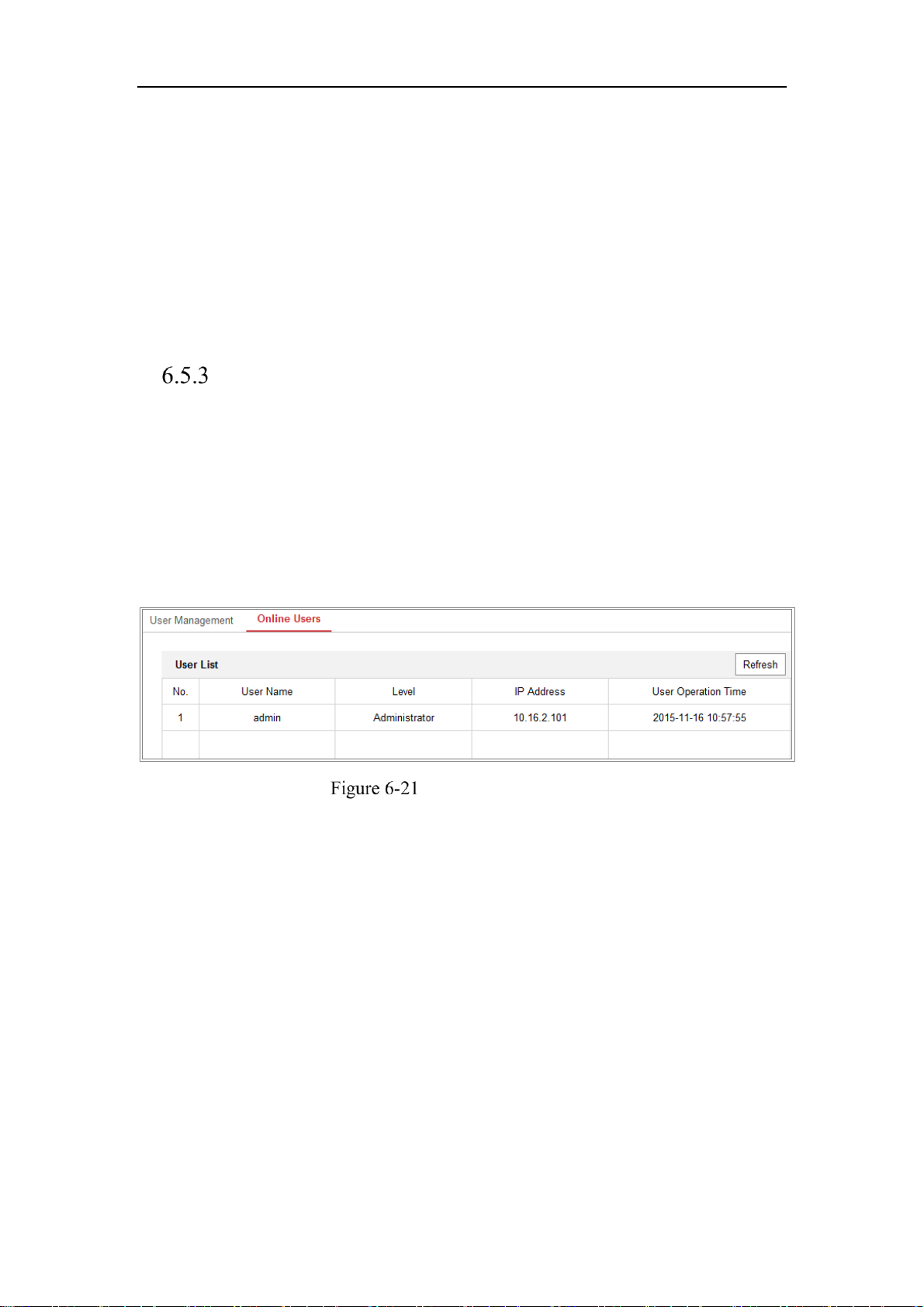

	Online Users ..............................................................................................................	60
Chapter 7	Network Settings .................................................................................	61
Configuring Basic Settings..................................................................................		61

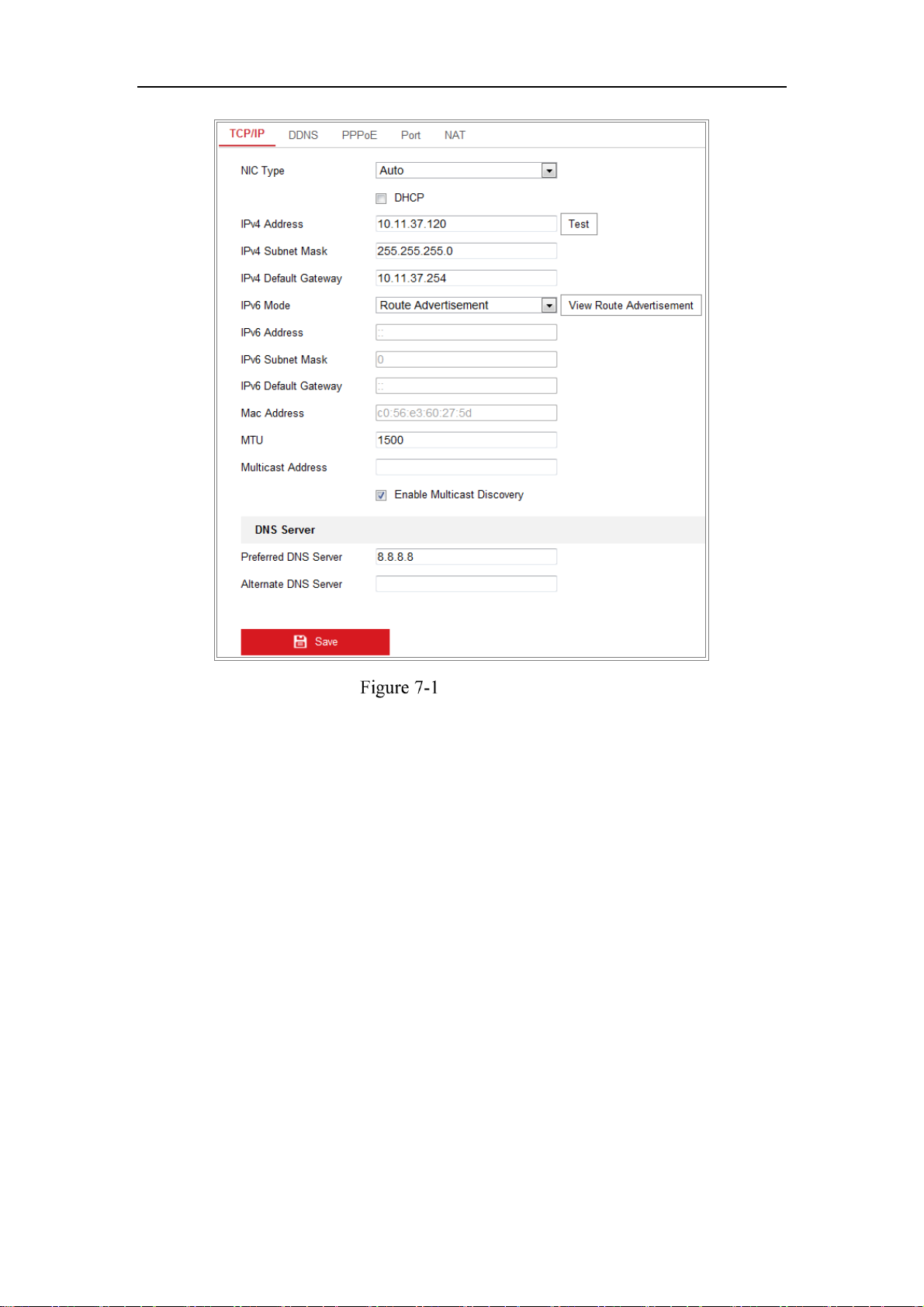

	Configuring TCP/IP Settings ........................................................................................	61
	Configuring DDNS Settings .........................................................................................	63
	Configuring PPPoE Settings ........................................................................................	65
	Configuring Port Settings............................................................................................	65
	Configure NAT (Network Address Translation) Settings ...............................................	67
Configure Advanced Settings .............................................................................		68
	Configuring SNMP Settings.........................................................................................	68
7.2.2	Configuring FTP Settings.............................................................................................	71

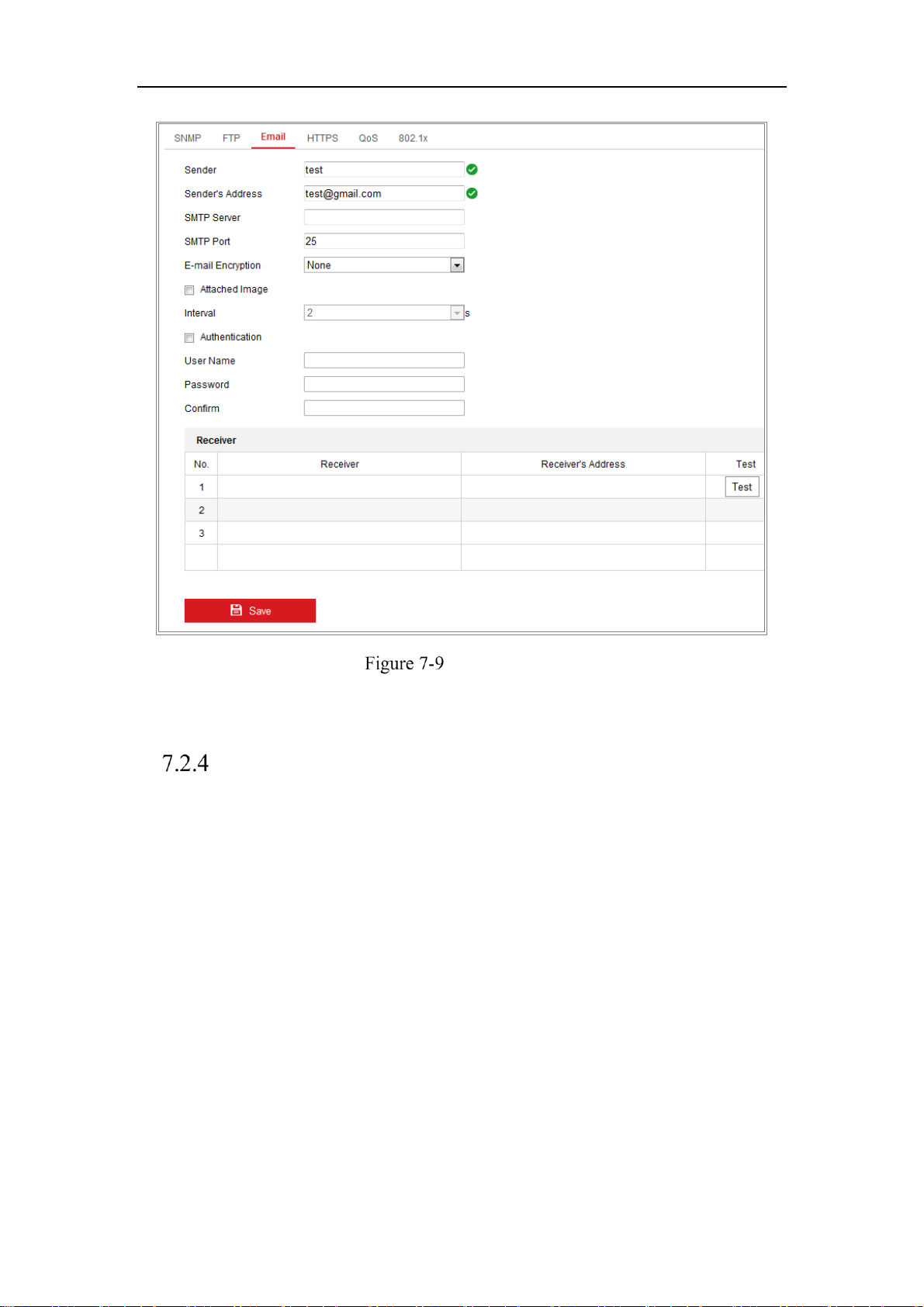

7.2.3	Configuring Email Settings..........................................................................................	73

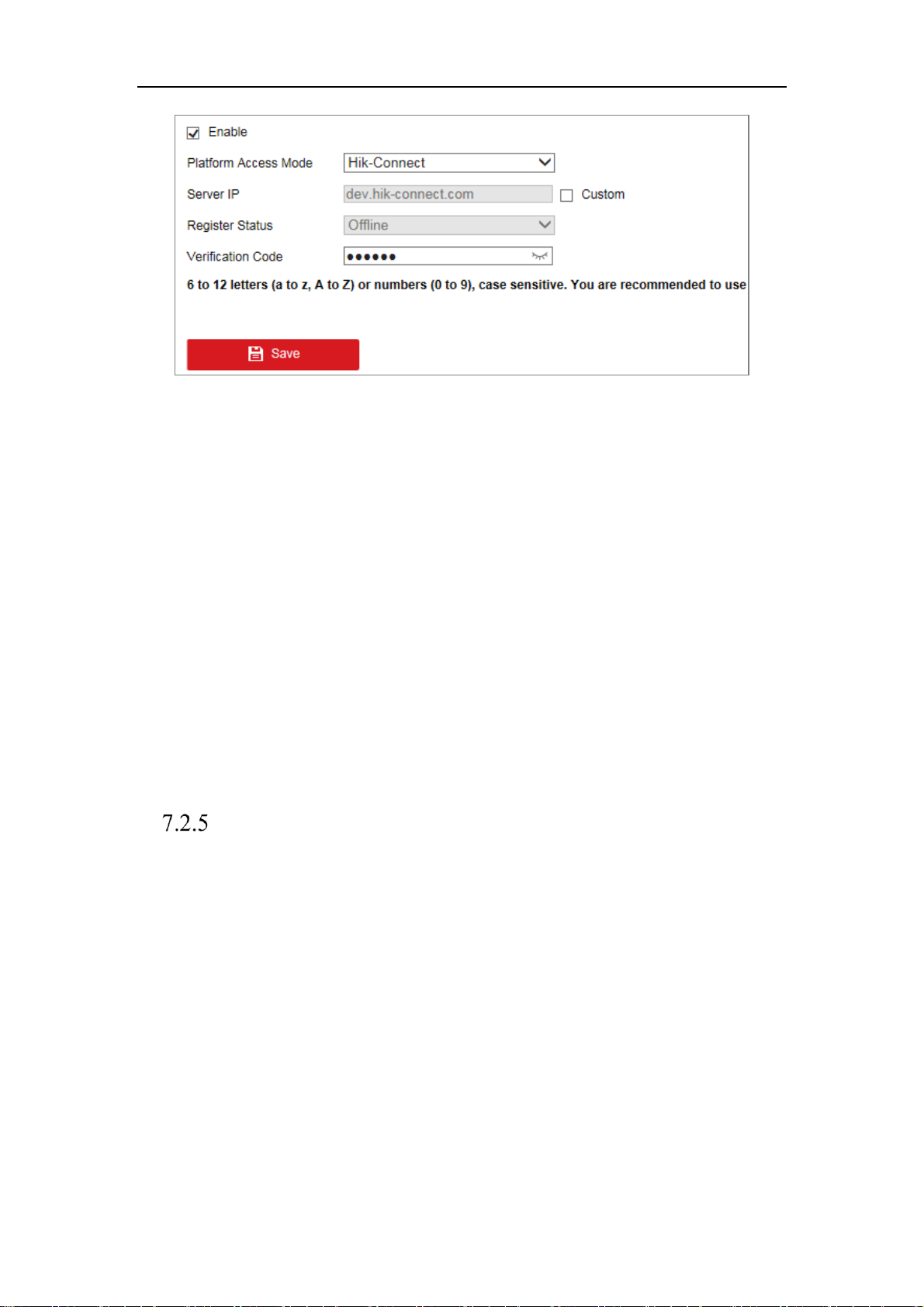

	Platform Access .........................................................................................................	75
	Wireless Dial..............................................................................................................	76
	HTTPS Settings...........................................................................................................	78
	Configuring QoS Settings............................................................................................	80

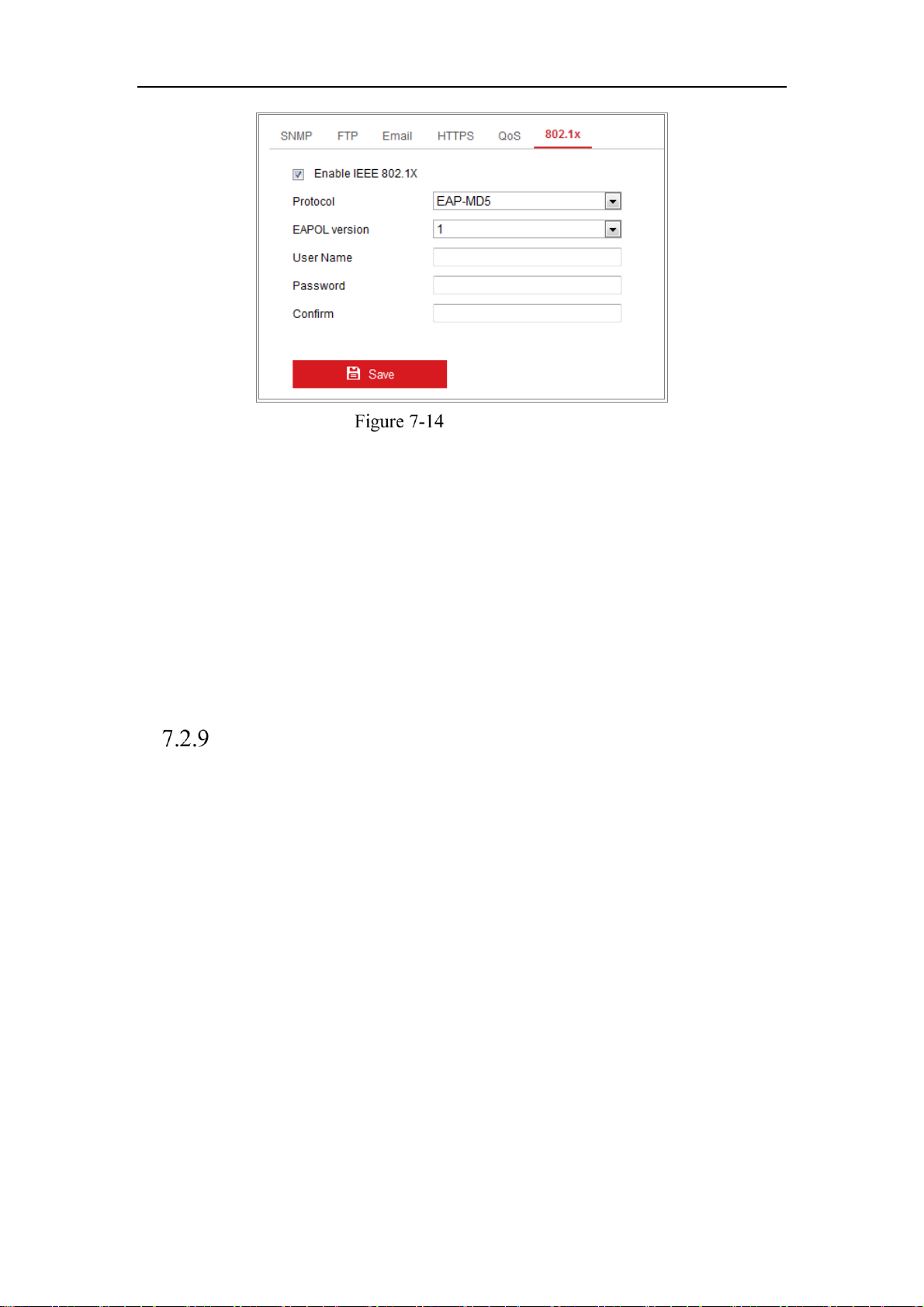

	Configuring 802.1X Settings .......................................................................................	81
	Integration Protocol...................................................................................................	82
	Bandwidth Adaptation ...............................................................................................	83
	Network Service.........................................................................................................	83
Chapter 8	Video/Audio Settings ...........................................................................	84
Configuring Video Settings.................................................................................		84
	Video Settings............................................................................................................	84
	Custom Video ............................................................................................................	88
Configuring Audio Settings.................................................................................		89

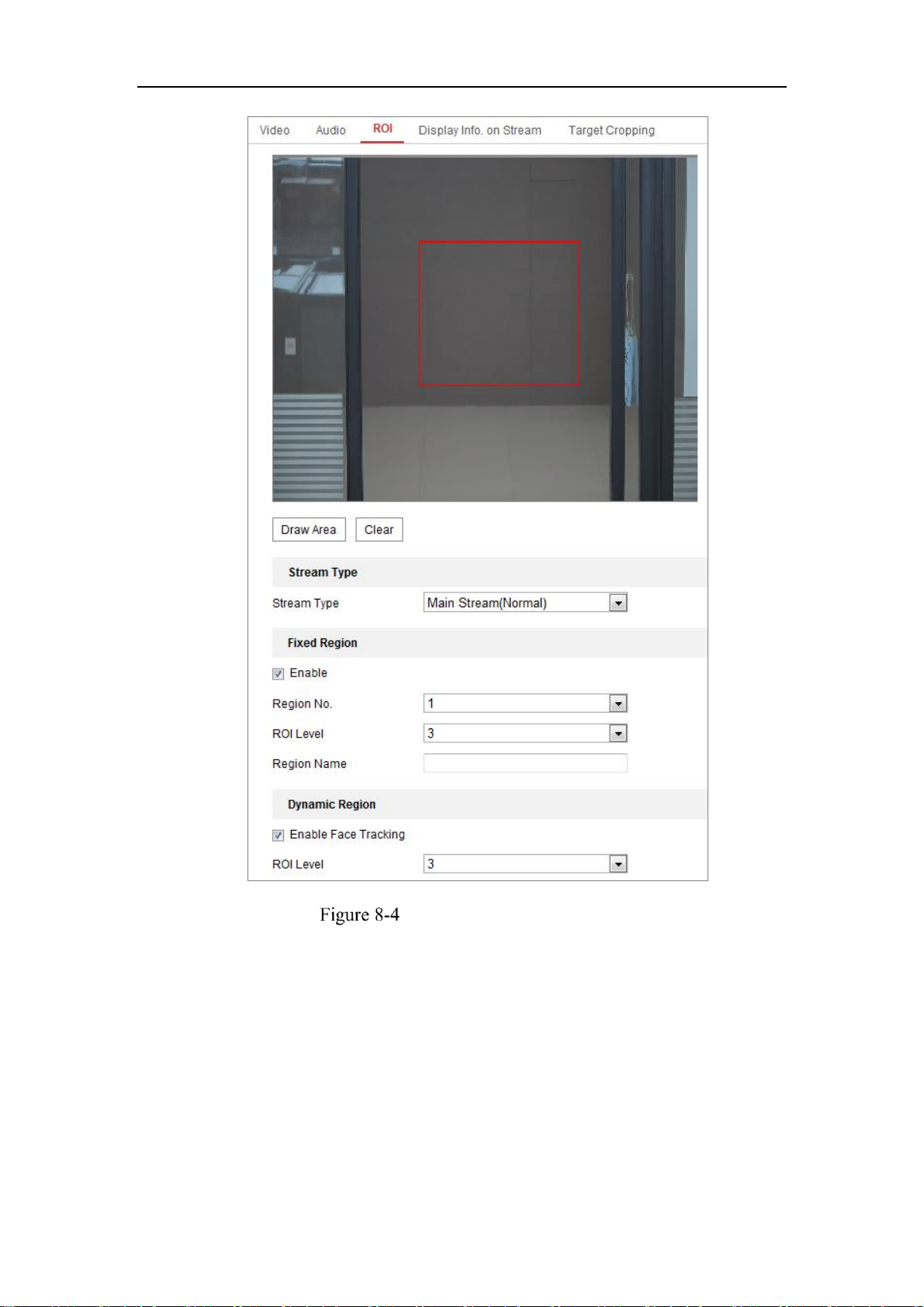

Configuring ROI Encoding...................................................................................		90

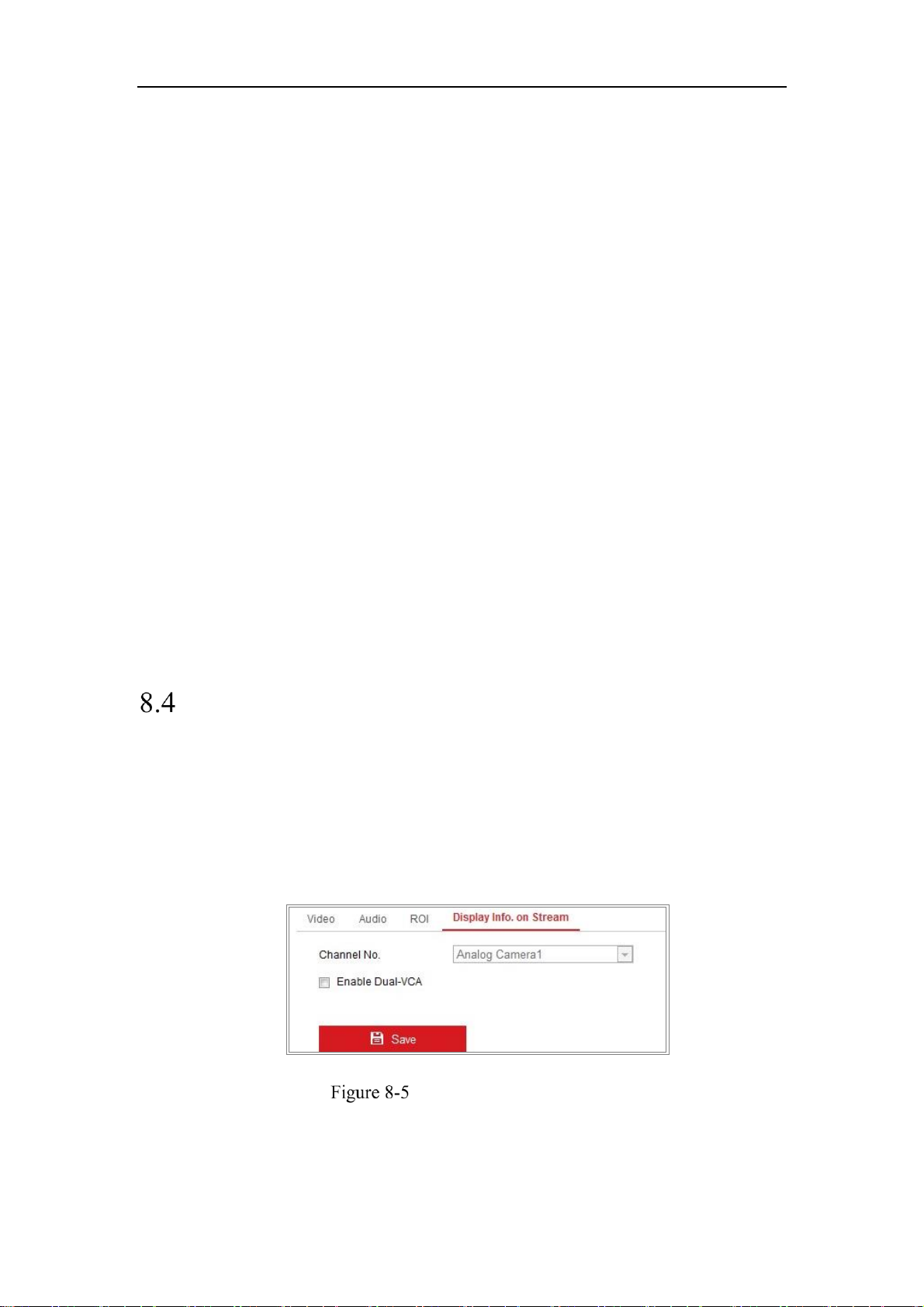

Display Info. on Stream......................................................................................		92
Configuring Target Cropping...............................................................................		93
Chapter 9	Image Settings.....................................................................................	94
	7

Network Camera User Manual

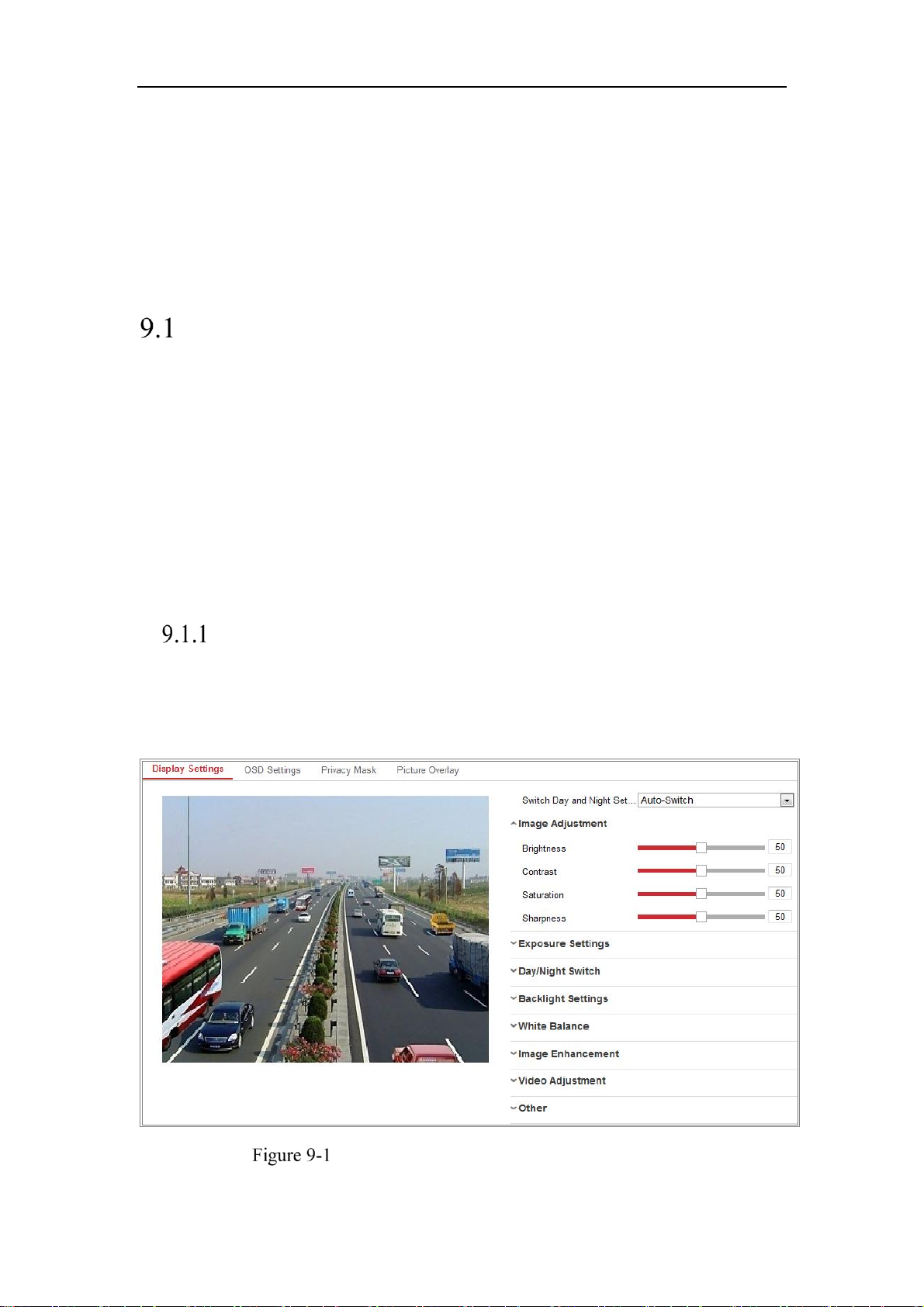

Configuring Display Settings...............................................................................		94
	Day/Night Auto-Switch...............................................................................................	94
	Day/Night Scheduled-Switch ......................................................................................	98
Configuring OSD Settings ...................................................................................		99
Configuring Privacy Mask.................................................................................		101
Configuring Picture Overlay .............................................................................		102
Chapter 10	Event Settings................................................................................	104
Basic Events .....................................................................................................		104
10.1.1	Configuring Motion Detection..................................................................................	104
10.1.2 Configuring Video Tampering Alarm .........................................................................		110
10.1.3	Configuring Alarm Input...........................................................................................	111
10.1.4	Configuring Alarm Output........................................................................................	113
10.1.5	Handling Exception ..................................................................................................	114
10.1.6	Configuring Other Alarm ..........................................................................................	114
Smart Events....................................................................................................		117
	Configuring Audio Exception Detection ....................................................................	118
	Configuring Defocus Detection.................................................................................	119
	Configuring Scene Change Detection........................................................................	120
	Configuring Face Detection ......................................................................................	121
	Configuring Intrusion Detection ...............................................................................	123
	Configuring Line Crossing Detection .........................................................................	125
	Configuring Region Entrance Detection ....................................................................	128
	Configuring Region Exiting Detection........................................................................	129
	Configuring Unattended Baggage Detection .............................................................	131
	Configuring Object Removal Detection ................................................................	133
VCA Configuration............................................................................................		135
	Behavior Analysis.....................................................................................................	135
	Face Capture............................................................................................................	142
	People Counting ......................................................................................................	146
	Counting..................................................................................................................	149
	Heat Map.................................................................................................................	150
	Road Traffic..............................................................................................................	152
	Queue Management................................................................................................	154
Chapter 11	Storage Settings.............................................................................	157
Configuring Record Schedule ...........................................................................		157
Configure Capture Schedule.............................................................................		160
Configuring Net HDD........................................................................................		162
Memory Card Detection...................................................................................		164
Configuring Lite Storage...................................................................................		166
	8

Network Camera User Manual

Chapter 12	Playback ........................................................................................	168
Chapter 13	Picture ...........................................................................................	170
Chapter 14	Application ....................................................................................	171
Face Capture Statistics .....................................................................................		171
People Counting Statistics................................................................................		171
Heat Map Statistics ..........................................................................................		172
Counting Statistics ...........................................................................................		173
Queue Management Statistics .........................................................................		174
	Queuing-Up Time Analysis .......................................................................................	175
	Queue Status Analysis..............................................................................................	176
	Raw Data .................................................................................................................	177
Appendix...............................................................................................................		178
Appendix 1 SADP Software Introduction ..................................................................		178
Appendix 2 Port Mapping ..........................................................................................		181

0505051080126

Network Camera User Manual

Chapter 1 System Requirement

Operating System

Microsoft Windows XP SP1 and above version

CPU

2.0 GHz or higher

RAM

1G or higher

Display

1024×768 resolution or higher

Web Browser

Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 30.0 and above version and Google Chrome 31.0 and above version.

Note:

For Google Chrome 45 and its above version or Mozilla Firefox 52 and its above version which are plug-in free, Picture and Playback functions are hidden.

To use mentioned functions via web browser, change to their lower version, or change to Internet Explorer 8.0 and above version.

Network Camera User Manual

Chapter 2 Network Connection

Note:

You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, please contact with your dealer or the nearest service center.

To ensure the network security of the network camera, we recommend you to have the network camera assessed and maintained termly. You can contact us if you need such service.

Before you start:

If you want to set the network camera via a LAN (Local Area Network), please refer to Section 2.1 Setting the Network Camera over the LAN.

If you want to set the network camera via a WAN (Wide Area Network), please refer to Section 2.2 Setting the Network Camera over the WAN.

Setting the Network Camera over the LAN

Purpose:

To view and configure the camera via a LAN, you need to connect the network camera in the same subnet with your computer, and install the SADP or iVMS-4200 software to search and change the IP of the network camera.

Note: For the detailed introduction of SADP, please refer to Appendix 1.

Wiring over the LAN

The following figures show the two ways of cable connection of a network camera and a computer:

Purpose:

To test the network camera, you can directly connect the network camera to the

Network Camera User Manual

computer with a network cable as shown in Figure 2-1.

Refer to the Figure 2-2 to set network camera over the LAN via a switch or a router.

or Network Cable

Network Camera

Computer

Connecting Directly

			able
			C
		k
		or
	w
	t
e
N

Netw

ork Cable

Network Camera

Computer

Connecting via a Switch or a Router

Activating the Camera

You are required to activate the camera first by setting a strong password for it before you can use the camera.

Activation via Web Browser, Activation via SADP, and Activation via Client Software are all supported.

 Activation via Web Browser

Steps:

1.Power on the camera, and connect the camera to the network.

2.Input the IP address into the address bar of the web browser, and click Enter to enter the activation interface.

Notes:

The default IP address of the camera is 192.168.1.64.

The computer and the camera should belong to the same subnet.

For the camera enables the DHCP by default, you need to use the SADP software

Network Camera User Manual

to search the IP address.

Activation via Web Browser

3.Create and input a password into the password field. A password with user name in it is not allowed.

STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

4.Confirm the password.

5.Click OK to save the password and enter the live view interface.

 Activation via SADP Software

SADP software is used for detecting the online device, activating the camera, and

resetting the password.

Get the SADP software from the supplied disk or the official website, and install the SADP according to the prompts. Follow the steps to activate the camera.

Steps:

1. Run the SADP software to search the online devices.

Network Camera User Manual

2. Check the device status from the device list, and select the inactive device.

Select inactive device.

Input and confirm password.

SADP Interface

Note:

The SADP software supports activating the camera in batch. Refer to the user manual of SADP software for details.

3.Create and input the password in the password field, and confirm the password. A password with user name in it is not allowed.

STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Note:

You can enable the Hik-Connect service for the device during activation. 4. Click Activate to start activation.

You can check whether the activation is completed on the popup window. If activation

Network Camera User Manual

failed, please make sure that the password meets the requirement and try again.

5.Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP.

Modify the IP Address

6.Input the admin password and click Modify to activate your IP address modification.

The batch IP address modification is supported by the SADP. Refer to the user manual of SADP for details.

 Activation via Client Software

The client software is versatile video management software for multiple kinds of devices.

Get the client software from the supplied disk or the official website, and install the software according to the prompts. Follow the steps to activate the camera.

Steps:

1. Run the client software and the control panel of the software pops up, as shown in

Network Camera User Manual

the figure below.

Control Panel

2.Click the Device Management icon to enter the Device Management interface, as shown in the figure below.

Hikvision DS-2CD2012WD-I-4mm, DS-2CD2012WD-I-6mm, DS-2CD2325FWD-I-4MM, DS-2CD2325FWD-I-6MM, DS-2CD2325FWD-I-8MM User Manual

Network Camera User Manual

Device Management Interface

3.Check the device status from the device list, and select an inactive device.

4.Click the Activate button to pop up the Activation interface.

5.Create a password and input the password in the password field, and confirm the password.

A password with user name in it is not allowed.

STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. We recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Network Camera User Manual

Activation Interface (Client Software)

6.Click OK button to start activation.

7.Click the Modify Netinfo button to pop up the Network Parameter Modification interface, as shown in the figure below.

Modifying the Network Parameters

8.Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP.

9.Input the password to activate your IP address modification.

Network Camera User Manual

(Optional) Setting Security Question

Security question is used to reset the admin password when admin user forgets the password.

Admin user can follow the pop-up window to complete security question settings during camera activation. Or, admin user can go to User Management interface to set up the function.

Setting the Network Camera over the WAN

Purpose:

This section explains how to connect the network camera to the WAN with a static IP or a dynamic IP.

Static IP Connection

Before you start:

Please apply a static IP from an ISP (Internet Service Provider). With the static IP address, you can connect the network camera via a router or connect it to the WAN directly.

 Connecting the network camera via a router

Steps:

1.Connect the network camera to the router.

2.Assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2 for detailed IP address configuration of the network camera.

3.Save the static IP in the router.

4.Set port mapping, e.g., 80, 8000, and 554 ports. The steps for port mapping vary according to the different routers. Please call the router manufacturer for assistance with port mapping.

Note: Refer to Appendix 2 for detailed information about port mapping.

Network Camera User Manual

5.Visit the network camera through a web browser or the client software over the internet.

Accessing the Camera through Router with Static IP

 Connecting the network camera with static IP directly

You can also save the static IP in the camera and directly connect it to the internet without using a router. Refer to Section 2.1.2 for detailed IP address configuration of the network camera.

Accessing the Camera with Static IP Directly

Dynamic IP Connection

Before you start:

Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the network camera to a modem or a router.

 Connecting the network camera via a router

Steps:

1.Connect the network camera to the router.

2.In the camera, assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2 for detailed IP address configuration of the network camera.

3.In the router, set the PPPoE user name, password and confirm the password.

4.Set port mapping. E.g. 80, 8000, and 554 ports. The steps for port mapping vary

depending on different routers. Please call the router manufacturer for assistance

Network Camera User Manual

with port mapping.

Note: Refer to Appendix 2 for detailed information about port mapping.

5.Apply a domain name from a domain name provider.

6.Configure the DDNS settings in the setting interface of the router.

7.Visit the camera via the applied domain name.

 Connecting the network camera via a modem

Purpose:

This camera supports the PPPoE auto dial-up function. The camera gets a public IP address by ADSL dial-up after the camera is connected to a modem. You need to configure the PPPoE parameters of the network camera. Refer to Section 7.1.3

Configuring PPPoE Settings for detailed configuration.

Accessing the Camera with Dynamic IP

Note: The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes after rebooting the camera. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (E.g. DynDns.com). Please follow the steps below for normal domain name resolution and private domain name resolution to solve the problem.

Normal Domain Name Resolution

Normal Domain Name Resolution

Steps:

Network Camera User Manual

1.Apply a domain name from a domain name provider.

2.Configure the DDNS settings in the DDNS Settings interface of the network camera. Refer to Section 7.1.2 Configuring DDNS Settings for detailed configuration.

3.Visit the camera via the applied domain name.

Network Camera User Manual

Chapter 3 Access to the Network Camera

Accessing by Web Browsers

Note:

For certain camera models, HTTPS is enabled by default and the camera creates an unsigned certificate automatically. When you access to the camera the first time, the web browser prompts a notification about the certificate issue.

To cancel the notification, install a signed-certificate to the camera. For detailed operation, see 7.2.6 HTTPS Settings.

Steps:

1.Open the web browser.

2.In the browser address bar, input the IP address of the network camera, and press the Enter key to enter the login interface.

Note:

The default IP address is 192.168.1.64. You are recommended to change the IP

address to the same subnet with your computer.

3. Input the user name and password and click Login.

The admin user should configure the device accounts and user/operator permissions properly. Delete the unnecessary accounts and user/operator permissions.

Note:

The IP address gets locked if the admin user performs 7 failed password attempts (5 attempts for the user/operator).

Network Camera User Manual

4.Click Login.

5.(Optional) Install the plug-in before viewing the live video and operating the camera. Follow the installation prompts to install the plug-in

Note:

If you are using Google Chrome 45 and its above version or Mozilla Firefox 52 and its above version, plug-in installation is not required. But Picture and Playback functions are hidden. To use mentioned function via web browser, change to their lower version, or change to Internet Explorer 8.0 and above version.

Accessing by Client Software

The product CD contains the iVMS-4200 client software. You can view the live video and manage the camera with the software.

Follow the installation prompts to install the software. The control panel and live view interface of iVMS-4200 client software are shown as below.

iVMS-4200 Control Panel

Network Camera User Manual

iVMS-4200 Main View

Network Camera User Manual

Chapter 4 Wi-Fi Settings

Purpose:

By connecting to the wireless network, you don’t need to use cable of any kind for network connection, which is very convenient for the actual surveillance application.

Note: This chapter is only applicable for the cameras with the built-in Wi-Fi module.

Configuring Wi-Fi Connection in Manage and

Ad-hoc Modes

Purpose:

Two connection modes are supported. Choose a mode as desired and perform the

steps to configure the Wi-Fi.

Wireless Connection in Manage Mode

Steps:

1.Enter the Wi-Fi configuration interface.

Configuration> Network> Advanced Settings> Wi-Fi

2.Click Search to search the online wireless connections.

Wi-Fi List

Network Camera User Manual

3. Click to choose a wireless connection on the list.

Wi-Fi SettingManage Mode

4.Check the radio button to select the Network mode as Manage, and the

Security mode of the network is automatically shown when you select the wireless network, please don’t change it manually.

Note: These parameters are exactly identical with those of the router.

5.Enter the key to connect the wireless network. The key should be that of the wireless network connection you set on the router.

Wireless Connection in Ad-hoc Mode

If you choose the Ad-hoc mode, you don’t need to connect the wireless camera via a router. The scenario is the same as you connect the camera and the PC directly with a network cable.

Steps:

1. Choose Ad-hoc mode.

Wi-Fi Setting- Ad-hoc

Network Camera User Manual

2.Customize a SSID for the camera.

3.Choose the Security Mode of the wireless connection.

4.Enable the wireless connection function for your PC.

5.On the PC side, search the network and you can see the SSID of the camera listed.

Ad-hoc Connection Point

6. Choose the SSID and connect.

Security Mode Description:

Security Mode

You can choose the Security Mode as not-encrypted, WEP, WPA-personal, WPA-enterprise, WPA2-personal, and WPA2-enterprise.

WEP mode:

Network Camera User Manual

WEP Mode

Authentication - Select Open or Shared Key System Authentication, depending on the method used by your access point. Not all access points have this option, in which case they probably use Open System, which is sometimes known as SSID Authentication.

Key length - This sets the length of the key used for the wireless encryption, 64 or 128 bit. The encryption key length can sometimes be shown as 40/64 and 104/128.

Key type - The key types available depend on the access point being used. The following options are available:

HEX - Allows you to manually enter the hex key.

ASCII - In this method the string must be exactly 5 characters for 64-bit WEP and

13 characters for 128-bit WEP. WPA-personal and WPA2-personal Mode:

Enter the required Pre-shared Key for the access point, which can be a hexadecimal number or a passphrase.

Security Mode- WPA-personal

WPAenterprise and WPA2-enterprise Mode:
