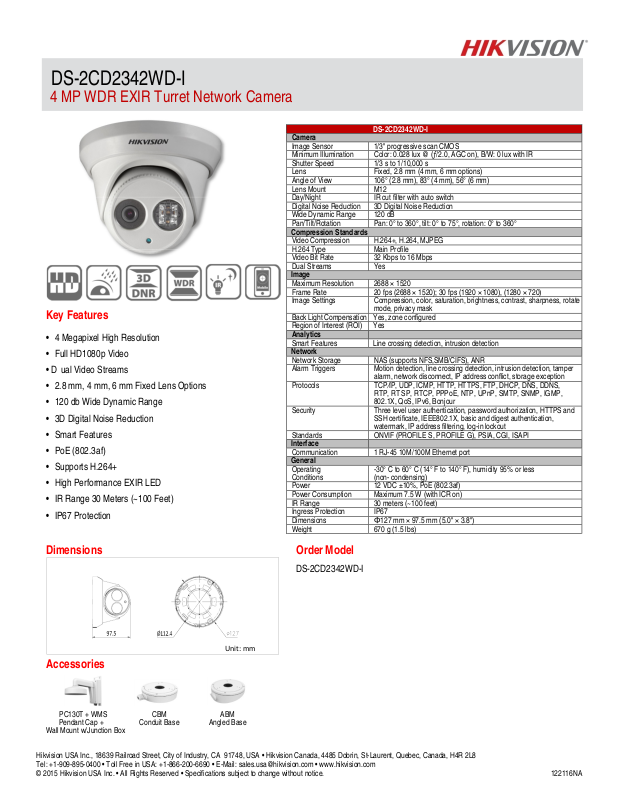

Hikvision DS-2CD2342WD-I User Manual

DS-2CD2342WD-I

4 MP WDR EXIR Turret Network Camera

Key Features

•4 Megapixel High Resolution

•Full HD1080p Video

•D ual Video Streams

•2.8 mm, 4 mm, 6 mm Fixed Lens Options

•120 db Wide Dynamic Range

•3D Digital Noise Reduction

•Smart Features

•PoE (802.3af)

•Supports H.264+

•High Performance EXIR LED

•IR Range 30 Meters (~100 Feet)

•IP67 Protection

	DS-2CD2342WD-I
Camera
Image Sensor	1/3" progressive scan CMOS
Minimum Illumination	Color: 0.028 lux @ (ƒ/2.0, AGC on), B/W: 0 lux with IR
Shutter Speed	1/3 s to 1/10,000 s
Lens	Fixed, 2.8 mm (4 mm, 6 mm options)
Angle of View	106° (2.8 mm), 83° (4 mm), 56° (6 mm)
Lens Mount	M12
Day/Night	IR cut filter with auto switch
Digital Noise Reduction	3D Digital Noise Reduction
Wide Dynamic Range	120 dB
Pan/Tilt/Rotation	Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
Compression Standards
Video Compression	H.264+, H.264, MJPEG
H.264 Type	Main Profile
Video Bit Rate	32 Kbps to 16 Mbps
Dual Streams	Yes
Maximum Resolution	2688 × 1520
Frame Rate	20 fps (2688 × 1520); 30 fps (1920 × 1080), (1280 × 720)
Image Settings	Compression, color, saturation, brightness, contrast, sharpness, rotate
	mode, privacy mask
Back Light Compensation	Yes, zone configured
Region of Interest (ROI)	Yes
Analytics
Smart Features	Line crossing detection, intrusion detection
Network
Network Storage	NAS (supports NFS,SMB/CIFS), ANR
Alarm Triggers	Motion detection, line crossing detection, intrusion detection, tamper
	alarm, network disconnect, IP address conflict, storage exception
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,
	RTP, RT SP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP,
	802.1X, QoS, IPv6, Bonjour
Security	Three level user authentication, password authorization, HTTPS and
	SSH certificate, IEEE802.1X, basic and digest authentication,
	watermark, IP address filtering, log-in lockout
Standards	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication	1 RJ-45 10M/100M Ethernet port
General
Operating	-30° C to 60° C (14° F to 140° F), humidity 95% or less
Conditions	(noncondensing)
Power	12 VDC ±10%, PoE (802.3af)
Power Consumption	Maximum 7.5 W (with ICR on)
IR Range	30 meters (~100 feet)
Ingress Protection	IP67
Dimensions	Φ127 mm × 97.5 mm (5.0" × 3.8")
Weight	670 g (1.5 lbs)

Dimensions		Order Model
		DS-2CD2342WD-I

Unit: mm

Accessories

PC130T + WMS	CBM	ABM
Pendant Cap +	Conduit Base	Angled Base
Wall Mount w/Junction Box
Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4485 Dobrin, St-Laurent, Quebec, Canada, H4R 2L8
Tel: [phone] • Toll Free in USA: [phone] • E-Mail: [e-mail] • www.hikvision.com			122116NA
© 2015 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice.
