Hellwig 7686 User Manual
559-734-7451 800-367-5480 FAX 559-734-7460

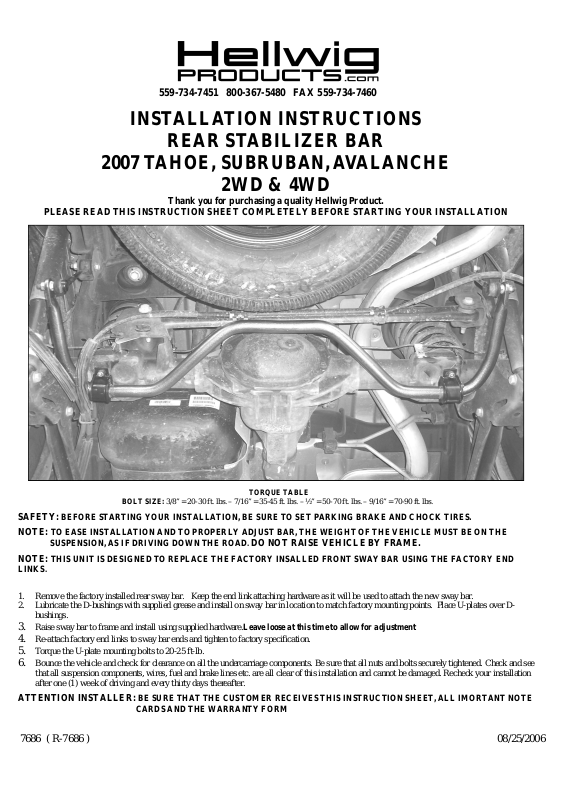

INSTALLATION INSTRUCTIONS
REAR STABILIZER BAR
2007 TAHOE, SUBRUBAN, AVALANCHE
2WD & 4WD
Thank you for purchasing a quality Hellwig Product.
PLEASE READ THIS INSTRUCTIONSHEET COMPLETELYBEFORESTARTING YOUR INSTALLATION
BOLT SIZE: 3/8” = 20-30 ft. lbs. – 7/16” = 35-45 ft. lbs. – ½” = 50-70 ft. lbs. – 9/16” = 70-90 ft. lbs.
SAFETY: BEFORESTARTINGYOUR INSTALLATION,BE SURE TO SET PARKINGBRAKE AND CHOCKTIRES.
NOTE: TO EASEINSTALLATIONAND TO PROPERLYADJUSTBAR, THE WEIGHT OF THE VEHICLEMUSTBE ON THE
SUSPENSION, AS IF DRIVING DOWN THE ROAD. DO NOT RAISE VEHICLE BY FRAME.
NOTE: THIS UNIT IS DESIGNED TO REPLACE THEFACTORYINSALLEDFRONT SWAY BAR USINGTHEFACTORY END
LINKS.
1. Remove the factory installed rear swaybar. Keep the end link attaching hardware as it will be used to attach the new sway bar.
2. Lubricate the D-bushings with supplied grease and install on sway bar in location to match factory mounting points. Place U-plates over Dbushings.
3. Raise sway bar to frame and install using supplied hardware.Leaveloose at this time to allow for adjustment
4. Re-attach factory end links to sway bar ends and tighten to factory specification.
5. Torque the U-plate mounting bolts to 20-25 ft-lb.
6. Bounce the vehicle and check for clearance on all the undercarriage components. Be sure that all nuts and bolts securely tightened. Check and see
that all suspension components, wires, fuel and brake lines etc. are all clear of this installation and cannot be damaged. Recheck your installation
after one (1) week of driving and every thirty days thereafter.
ATTENTION INSTALLER: BE SURE THAT THE CUSTOMER RECEIVES THIS INSTRUCTION SHEET, ALL IMORTANT NOTE
CARDSAND THEWARRANTY FORM
7686 ( R-7686 ) 08/25/2006
