INSTALLATION INSTRUCTIONS
REAR STABILIZER BAR
1998-2004 Dodge Dakota
Thank you for purchasing a quality Hellwig Product.
PLEASE READ THISINSTRUCTION SHEETCOMPLETELY BEFORE STARTINGYOUR INSTALLATION

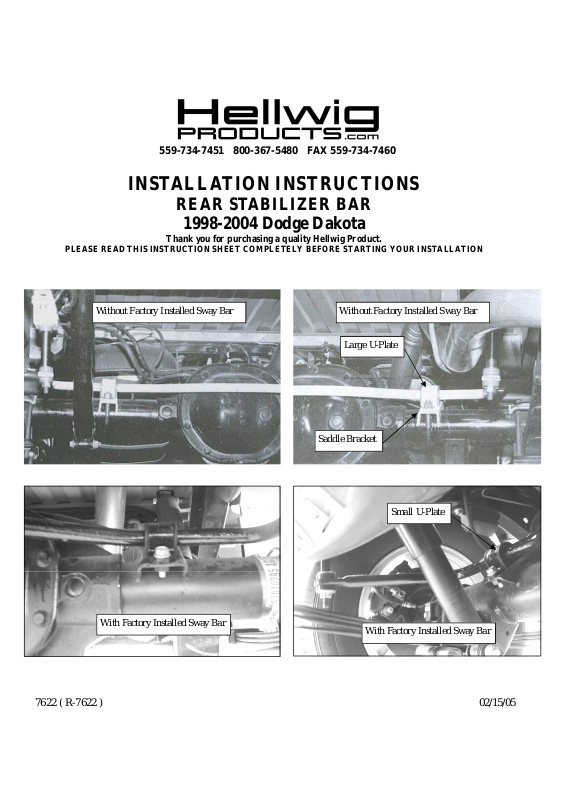

Without Factory Installed Sway Bar Without Factory Installed Sway Bar
Saddle Bracket
With Factory Installed Sway Bar
7622 ( R-7622 ) 02/15/05
With Factory Installed Sway Bar
559-734-7451 800-367-5480 FAX 559-734-7460
1. If equipped with factory installed sway bar, remove end link brackets from frame and sway bar from axle. Save fas­teners for use later.
2. Lubricate and install D-bushings on sway bar as shown on photos. Vehicles with factory installed sway bar will use the small bushings and vehicles without factory installed sway bar will use the large bushings.
3. Vehicles with factory installed sway bar— Attach sway bar to factory axle brackets using the small u-plates and fac­tory fasteners. Leave loose for adjustment later.
4. Vehicles withoutfactory installed sway bar— Attach sway bar to axle using large u-plates, saddle brackets and U­bolts. Leave loose for adjustment later.
5. Install end link brackets on frame as shown in diagram and photo below. Insert cap screw and bushings on bracket before installing on frame. There are left and right brackets in this kit. Install brackets so that end links will be aligned with sway bar as vertical as possible. If equipped with factory installed sway bar, reuse factory fasteners.
6. Attach sway bar to end links as shown in photo and diagram below.
7. Center sway bar and tighten axle bolts as follows
Vehicles with factory installed sway bar— Torque bolts to 20-25 ft-lb Vehicles withoutfactory installed sway bar—Torque nuts to 40-45 ft-lb
8. Torque frame bolts to 20-25 ft-lb.
9. Tighten end links until bushings bulge slightly.
10. Bounce vehicle a couple of times and check installation for clearance to fuel and brake lines and other components. After one week of driving recheck your installation and fastener torque. Recheck on a regular basis thereafter.
ATTENTION INSTALLER: BE SURE THAT THE CUSTOMER RECEIVES THIS INSTRUC
TION SHEET, ALL IMORTANT NOTE CARDS AND THE WARRANTY FORM
