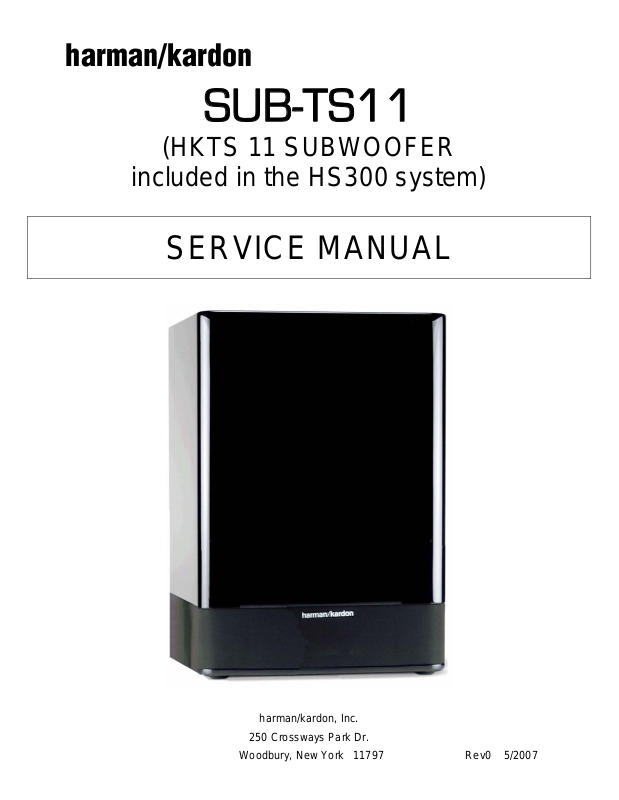

Harman Kardon HKTS-11 Service manual

harman/kardon

SUB-TS11

(HKTS 11 SUBWOOFER

included in the HS300 system)

SERVICE MANUAL

harman/kardon, Inc.

250 Crossways Park Dr.

Woodbury, New York 11797 Rev0 5/2007

1

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

Note: The Sub-TS11 subwoofer is part of the HKTS 11 system,

included in the harman/kardon HS300 system

Satellite loudspeakers SAT-T S11 order hk part# HKTS 11BQ-A SAT-EP

Center channel CEN-TS11 order hk part# HKTS 11BQ-A CEN-EP

CONTENTS

BASIC SPECIFICATIONS . . . . . . . . . . . . ……………………………………. . . . 1

DETAILED SPECIFICATIONS. . . . . . . . . . . . . .. . . . . . . . . ………………….. …2

PACKAGING. . . . . . . . . . . . . .. . . . . . . ……………………… . . . . .. . .. .. .. . . . . 4

CONTROLS & CONNECTIONS . . . . . . . . . . . . . .. . . . . . . . . ………………….. 5

SPEAKER CONNECTIONS……………………….………..……. . . .. . .. . . . .. . .. 7

OPERATION……. . . . . .. . . . . . . . .. .. . . . .. .. . . . . ………………………………10

TEST PROCEDURE. . . . . . . . . . . ………………………………………………….11

UNIT EXPLODED VI E W. . . . …………… ……………. .. ………... . . .. .. ... . … . 12

AMPLIFI ER EXPLOD ED VIEW. . . . ………………... . .. ………... . . .. . . .. . .… . 13

BLOCK DIAGRAM . . . . . . . . . . . . . .. . . . . . . ……………… . . . . .. . .. . .. . . . . 14

DETAILED TROUBLESHOOTING..…………………………………………………15

PCB DRAWIN GS. . . . . . . . . . . . . . . . .. . . . . ……… . …………. . . . .. .. .. . .. . . . 16

ELECTR IC A L P A R TS LIST …………. .... . .. . . . …………………………... … . . 20

SEMICONDUCTOR PINOUTS . . . .. .. .. .. . . . .. . ……………..………..………. .25

SCHEMATIC D IAG RAM S . . . . . . . . .. .. .. .. . . . .. . ………………………..……. .26

SPECIFICATIONS

Amplifier Power (RMS) 200 Watts
Driver 10" (254mm) woofer, Bass Reflex Enclosure
Inputs Stereo Line Level, dedicated Subwoofer (LFE)

and Speaker Level with gold-plated binding posts

Outputs Speaker Level with gold-plated binding posts
Frequency Response 35Hz – 120Hz (Filter switch ON)
35Hz – 450Hz (Filter switch OFF)

External Trigger Input Voltage: 3-30 Volts AC/DC
Dimensions (H x W x D) 20-1/2" x 14-1/2" x 14-1/2" (521mm x 368mm x 368mm)
Weight 48 lb (21.8kg)

Occasional refinements may be made to ex isting products without notice but will always meet or exceed original specifications
unless otherwi se stated.

o

t

s

n

n

e

y

n

y

e

o

A

r

r

r

e

s

d

d

d

n

A

r

R

y

n

R

)

A

2

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

HKTS 11 Sub 200W Powered Sub/ Plate Amp

LINE VOLTAGE Yes/N

Parameter
Amp Sectio

Type (Class AB, D, other) D n/a
Load Impedance (speaker) 3.5 Ohms
Rated Output Power 200 Watts
THD @ Rated Power 0.08 %
THD @ 1 Watt 0.15 %
DC Offset 5 mV-DC

Damping factor 16 n/a

Input Sensitivit

Input Frequency 50 Hz
Line (L&R) Input 220 mVrms
SUB (LFE) Input 125 mVrms

Speaker/Hi Level Input 3.4 Vrms

Hi Level Max. Input Voltag

Signal to Noise Rati

SNR-A-Weighted 85 dB
SNR-unweighted 62 dB
SNR rel. 1W-unweighted 64 dB

Residual Noise Floor 1.2 mVrms

Residual Noise Floor 0.8 mVrms

US 120vac/60Hz Yes 108-132 120 Vrms

Nonimal

Specification

Hi/Lo LineNom. Uni

Unit

32 Vrms

QA Test

Limits

n/a
n/a

150

0.1

0.5
20

10

n/a

154 - 308

87 - 175

2.4 - 4.8

30

82
59
59

3.0

2.0

Conditions

Nominal
50 - 250 Hz, 1 input driven, limiter off
22k filter
22k filter
@ Speaker Outputs

Measured at amplifier board

Nominal Freq.
To Rated Power
To Rated Power

To Rated Power

Nominal Freq., Min. Volume

relative to rated power
relative to rated power
relative to 1W Output
Volume @max, using RMS
reading DMM/VOM (or A/P)
Volume @max, w/ A/P Swept
Bandpass Measurement (Line
freq.+ harmonics)

Normal Operatio

Note

Notes

Bridge type amplifier, None of the
speaker terminals must be
connected to system GND at any
time.

Measured at the speaker at speak
output terminals on the amp board.

Single input drive
SUB (LFE) input driven onl
(20 dB below Line In), Single input
driven

-Weighting filte
22k filte
22k filte

Input Impedanc

Line Input (L, R,LFE) 10K ohms
Speaker/Hi Level Input 4.7K ohms

Filter

L&R Fixed Low-Pass Filter 160 Hz
SUB (LFE) Low pass Filter 270 Hz
Subsonic filter (HPF) 3rd Order 25 Hz

Limiter

THD at Max. Output Power

Features

Auto - On -Off Selection Switch YES
Phase Switch 0-180 deg
Filter On/Off Switch YES
Volume Pot Taper (Lin/Log) LOG
Speaker Out YES
2-Color LED power indicator YES
Power Switch YES
Fuse Holder YES

Input Configuratio

Line In (L,R) YES
SUB (LFE) YES
Speaker/Hi Level In YES

Signal Sensing (ATO

Auto-Turn-On (yes/no) YES
ATO Input test frequency 50 Hz
ATO Level Line & SUB Input 4.0 mV
ATO Level Speaker in 35 mV

ATO Turn-on time 0.9 sec.

2.0 %

n/a

Nominal

n/a

Nominal

140 - 180
240 - 300

22 - 28

functional Refer to ATO sectio
functional
functional
functional
functional Binding post connector L&
functional Blue: On, Amber: Stand-b
functional
functional

functional Dual RCA jack
functional RCA jack

functional Binding post connector L&

functional

2.0 - 6.0
20 - 50

functional

@ -6dB ref. 100Hz
@ -3dB ref. 100Hz
@ -3dB ref. 30Hz

5.0

Auto - on selection switch in Auto

n/a

mp connected and AC on, then

input signal applied

"
"
"

3rd order fixe
2nd order fixe
3rd order fixe

Tape

e

s

A

N

A

F

y

n

A

5

e

a

3

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

ATO Turn-OFF Time 12 minutes

5 - 17

Time before muting, after signal is
removed

Power on Delay tim

Transients/Pop

ATO Transient 5 mV-peak
Turn-on Transient 500 mV-peak
Turn-off Transient 500 mV-peak

Efficienc

Stand-by Input Power 8 Watts

Power Consumption @ rated power 240 Watts

Protectio

Short Circuit Protection YES

Thermal Protection YES

DC Offset Protection YES
Primary Fuse Rating

USA-Domestic 3.15 Amps

3 sec.

functional

10
700
700

12

250

functional

functional

functional

n/a

AC Power Applied

@ Speaker Outputs
@ Speaker Outputs
@ Speaker Outputs

@ nom. line voltage

@ nom. line voltage

Direct short at output

DC present at Speaker Out leads

Type-T or Slo Blo (no DENTORI m

C Line cycled from OFF to O
C Line cycled from ON to OF

Maximum allowable input power
under nominal input voltage and
frequency, in stand-by mode (HOT
or COLD operation).
200 Watts @ 3.5 ohms and
nominal line voltage

mplifier should resume operation
after short circuit condition is
removed.

Any user accessible metal parts
should always remain at 65 degree
C or less for domestic version or 5
degree C or less for EU version.
Relay or crowbar (for driver/fir
protection),

User-replacable fuse with
UL/SEMCO rated holder.

4

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

PACKAGING

OFF

ON

FILTER

NORMAL

REVERSE

PHASE

INOUT

R

L

LINE

LEVEL

IN

MAXMIN

IMPORTANT: CONNECT STRIPED WIRE
TO RED ( ) SPEAKER TERMINAL.

L

R

SUBWOOFER

LEVEL

H

I
G
H

L
E
V
E
L

™

£

¢

SUB

¡

§

ª

⁄

‚

¶

•

∞

5

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

SUB-TS11 SUBWOOFER AMPLIFIER PANEL CONTROLS AND CONNECTIONS

¡ Subwoofer-Level Control
™ High-Cut (Low-Pass) Filter Switch
£ External Trigger Input
¢ Audio-Sense On/Off Switch

¡ Subwoofer-Level Control: Volume

may be adjusted using the Subwoofer­Level Control. Turn the control clockwise

to increase the SUB-TS11’s volume, or
counterclockwise to decrease it.

™ High-Cut (Low-Pass) Filter Switch:

Placing this switch in the ON position acti­vates circuitry that cuts out all audio input
signals above 120Hz, allowing the SUB-TS11
to focus its power on reproducing the low­frequency portion of the signal, avoiding inef-

∞ Phase Switch

§ Line-Level Subwoofer (SUB) Input
¶ Line-Level Full-Range Inputs

• Speaker-Level Outputs

ficiency and distortion. Engage this filter
when using the Speaker-Level Inputs ª,
or when using the Line-Level Full-Range
Inputs ¶, unless your receiver or processor
processes its line-level output using a low­pass filter. The filter has no effect when the

SUB Input § is used.
£ External Trigger Input: Use the sup-

plied mini-plug cable to connect the trigger
output of another product to this jack. When
a trigger signal between 3 and 30 volts (AC

ª Speaker-Level Inputs
‚ Master Power Switch
⁄ AC Power Cord

or DC) is detected, the SUB-TS11 amplifier
will turn on, even when the Audio-Sense
feature has been activated by placing the
Audio-Sense On/Off Switch ¢ in the
AUTO position. The amplifier will remain
on for about 10–15 minutes without an
audio signal.

¢ Audio-Sense On/Off Switch: When
placed in the AUTO position, and when the
Master Power Switch ‚ is turned on, the
SUB-TS11 will automatically turn itself on or

6

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

SUB-TS11 SUBWOOFER AMPLIFIER PANEL CONTROLS AND CONNECTIONS

place itself in the Standby mode, depending on
whether it is receiving an audio signal. When
this switch is placed in the ON position, the
SUB-TS11 will remain on, whether or not it is
receiving an audio signal.

An LED located on top of the SUB-TS11
indicates whether the SUB-TS11 is in the On
or Standby state when used with the
Sense On/Off Switch ¢ in the AUTO
position. The LED is lit blue to indicate that
the SUB-TS11 is receiving an audio signal
and is turned on, and the LED is lit amber to
indicate that no signal is being received and
the SUB-TS11 is in the Standby mode.

When the
is in the ON position, the LED will be lit
blue, whether or not an audio signal is
present.

When the
turned off, the LED goes dark, no matter
which position the Audio-Sense On/Off

Switch ¢ is in.
∞ Phase Switch: This switch determines

whether the SUB-TS11 subwoofer’s piston­like action moves in and out in phase with
the main speakers. If the speakers were to
play out of phase, the sound waves pro­duced by the subwoofer would be canceled
out, reducing bass response.This phenome­non depends in part on the relative place­ment of the speakers in the room. In most
cases, the
in the NORMAL position. However, it
does no harm to experiment with the Phase
Switch ∞, and you may leave it in the
position that maximizes bass response.

Audio-Sense On/Off Switch ¢

Master Power Switch ‚ is

Phase Switch ∞ should be left

Audio-

§ Line-Level Subwoofer (SUB) Input:

Connect the subwoofer output of a receiver
with digital surround sound decoding, such

®

as Dolby
input bypasses the SUB-TS11’s internal
crossover circuitry, and should only be used
with a filtered signal. If your receiver does not
have digital decoding, you should use the

Line-Level Full-Range Inputs ¶ instead.
¶ Line-Level Full-Range Inputs: Connect

the line-level subwoofer output or preamp out­put(s) of your receiver or amplifier to these
inputs. If your receiver does not have a sepa­rate subwoofer output, use a Y-adapter (not
supplied) to bridge the receiver’s preamp out­put to the main amp input for that channel,
and connect the long end of the adapter
to the corresponding line-level input on the
SUB-TS11. If your receiver has only a single
subwoofer output, you may connect it to
either the left or right line-level input on the
SUB-TS11, and no Y-adapter is needed.

• Speaker-Level Outputs: If you are
using the Speaker-Level Inputs ª on the
SUB-TS11, you should connect these bind­ing post terminals to your front left and right
speakers, remembering to maintain polarity
by connecting the (+) terminal on the
SUB-TS11 subwoofer to the (+) terminal
on the speaker, and the (–) terminal on the
SUB-TS11 subwoofer to the (–) terminal
on the speaker. If you are not using the
Speaker-Level Inputs ª, then connect
your front left and right speakers directly
to your receiver or amplifier. See pages 9
through 12 for further information on speaker
connections.

Digital or DTS®, to this input. This

ª Speaker-Level Inputs: If your receiver
or amplifier does not have a line-level sub­woofer output, connect these binding-post
terminals to the main left and right speaker
terminals of your receiver or amplifier.
Remember to maintain polarity by connecting
the (+) terminal on the receiver/amplifier to the
(+) terminal on the SUB-TS11 subwoofer, and
the (–) terminal on the receiver/amplifier to the
(–) terminal on the SUB-TS11 subwoofer.

‚ Master Power Switch: Place this
switch in the “•” position to power-on the
SUB-TS11 subwoofer. The SUB-TS11 will
then be either in the Standby mode or com­pletely on, depending on the position of the

Audio-Sense On/Off Switch ¢.
⁄ AC Power Cord: Make sure to plug this

cord into an active, unswitched electrical out­let for proper operation of the SUB-TS11.
The cord should not be plugged into the
accessory outlets found on some audio
components.

LINE LEVEL IN

L

R

SUB

SUB/LFE

Out

SUB-TS11 Subwoofer

Receiver

Front

Left

Surround

Left

Front
Right

Surround

Right

Center

Surround

Right

Front
Right

Surround

Left

Front

Left

Center

– +

– +

– +

– +

– +

7

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

SPEAKER CONNECTIONS

Dolby®Digital or DTS®(or Other
Digital Surround Mode) Connection

USE THIS INSTALLATION METHOD FOR
DOLBY DIGITAL, DTS OR OTHER DIGITAL
SURROUND PROCESSORS:

Use the line-level input jack marked

§ for the low-frequency effects channel.
Connect this jack to the subwoofer output
or LFE output on your receiver or amplifier.
Connect each speaker to the corresponding
speaker terminals on your receiver or
amplifier.

Make sure you’ve configured your surround
sound processor for “Subwoofer On.” The
front left, front right, center and surround
speakers should all be set to “Small.”

When all connections have been made, plug
the AC power cord on the subwoofer into
an AC outlet.

SUB

Receiver

SUB/LFE

Out

Front

Left

Surround

Left

Front
Right

Surround

Right

SUB-TS11

Subwoofer

Center

Line-Level

R

L

– +

– +

– +

– +

– +

Surround

Right

Front
Right

Surround

Left

Front

Left

Center

8

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

SPEAKER CONNECTIONS

Dolby Pro Logic

®

(Non-Digital) – Line Level

USE THIS INSTALLATION METHOD FOR
DOLBY PRO LOGIC APPLICATIONS (NOT
DOLBY DIGITAL, DTS OR OTHER DIGITAL
PROCESSING), WHERE THE RECEIVER/
PROCESSOR IS EQUIPPED WITH A
SUBWOOFER OUTPUT, OR A VOLUME­CONTROLLED PREAMP (LINE-) LEVEL
OUTPUT:

Use the supplied RCA-type interconnect
cable to connect the
output on your receiver
the left or right Line-Level Full-Range
Input ¶ on the SUB-TS11 subwoofer.
Use both the left and right inputs on the
subwoofer if your receiver or processor has
both left and right line-level outputs. In that
case, you will need to supply a second
interconnect cable.

If your receiver is equipped with line-level out­puts but does not have a separate subwoofer
output, use a Y-adapter (not supplied) to
bridge the receiver’s preamp output to the
main amp input for that channel, and connect
the long end of the adapter to the corre­sponding line-level input on the SUB-TS11.

IMPORTANT: Do not use the SUB Input

§ on the subwoofer with Dolby Pro Logic
processors.

If your receiver/processor has a built-in low­pass-crossover filter for the subwoofer out­put, you may use the
bypass the subwoofer’s internal crossover.

Connect each speaker to the corresponding
speaker terminals on your receiver or amplifier.

Make sure that you have configured your
surround sound processor for “Subwoofer
On.” The front left, front right, center and
surround speakers should all be set to
“Small.”

When all connections have been made, plug
the AC power cord on the subwoofer into
an AC outlet.

line-level subwoofer

or amplifier to either

SUB Input § to

Front Left

Surround Left

Center

Front Right

Surround Right

Receiver

– + – +

– +

– + – +

SUB-TS11

Subwoofer

Surround

Right

Front
Right

Surround

Left

Front

Left

Center

L

R

H

I
G
H

L
E
V
E
L

9

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

SPEAKER CONNECTIONS

Dolby Pro Logic
(Non-Digital) – Speaker Level

USE THIS INSTALLATION METHOD FOR
DOLBY PRO LOGIC APPLICATIONS (NOT
DOLBY DIGITAL, DTS OR

PROCESSING), WHERE THE RECEIVER/
PROCESSOR DOES NOT HAVE A SUB­WOOFER OUTPUT, OR A VOLUME­CONTROLLED PREAMP (LINE-) LEVEL
OUTPUT:

Connect your receiver or amplifier’s front
left and right speaker terminals to the left
and right

Speaker-Level Input ª termi-

nals on the SUB-TS11 subwoofer that are
marked “High Level In.” Connect the left and
right

Speaker-Level Output • terminals

on the SUB-TS11 subwoofer that are

marked “High Level Out” to the correspond-

ing terminals on

and right speakers.
Connect your receiver or amplifier’s center,

and surround left and right speaker termi­nals to the corresponding terminals on the
back of your center, and surround left and
right speakers.

When all connections have been made,
plug the AC power cord on the subwoofer
into an AC outlet.

OTHER DIGITAL

the back of your front left

MIN MAX

Subwoofer

Level

MIN MAX

Subwoofer

Level

10

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

OPERATION

Move the Master Power Switch ‚
(marked Power) to the “•” (On) position.
The SUB-TS11 subwoofer will automatically
turn itself on or go into Standby mode,
depending on whether or not a signal is
being sent to it by your receiver or surround
processor, and provided that the

Audio-

Sense On/Off Switch ¢ is moved down

so that it is in the AUTO position.
When your receiver or amplifier is off, or is

not sending program material to the sub­woofer, the subwoofer will be in Standby
mode and the LED indicator on the top
of the subwoofer will turn amber. When the
sub

woofer senses an audio signal,

it will auto­matically turn itself on and the LED Indicator
will turn blue. If the subwoofer does not
sense a signal after
minutes,

it will automatically go into the

approximately twenty

Standby mode.
When the Audio-Sense On/Off Switch ¢

is switched to the ON position, the sub­woofer will remain on, whether or not pro­gram material is playing, and the LED indica­tor will remain lit blue.

If your receiver, processor or amplifier is
equipped with a compatible trigger output,
you may connect it to the SUB-TS11’s
External Trigger Input £. When you turn
on your component, if you have set it up cor­rectly, it will send an electrical trigger signal
to the SUB-TS11, which will cause the
subwoofer to turn itself on, even when the
Audio-Sense On/Off Switch ¢ has been
placed in the AUTO position and no audio
signal is detected.

The trigger signal must be between 3 and 30
volts, although it may be an AC or DC signal,
and an AC signal may be 50Hz or 60Hz.

If you’ll be away from home for an extended
period of time, or if the subwoofer will not be
used, switch the

Master Power Switch ‚

to the OFF position.

Volume
Volume can be adjusted using the Sub-

woofer-Level Control ¡, as shown.

Turn the control knob clockwise to
increase the volume of the subwoofer,
and counterclockwise to decrease the
subwoofer’s volume.

Additional Bass Adjustments

In addition to the volume adjustments
described above, the SUB-TS11 subwoofer
includes a Phase Switch ∞ and a Filter
Switch ™ that can be used to adjust the
bass response to suit your listening environ­ment or taste.

In most situations, the

Phase Switch ∞

should be left in the NORMAL position.
If you suspect that the subwoofer is playing
out of phase with the other speakers, which
would tend to diminish bass response, try
placing this switch in the

REVERSE

position. There is no harm in experimenting,
and you may return the switch to the
NORMAL position at any time. If you
rearrange your room and reposition the
speakers, it would be a good idea to check
whether they are in phase by flipping this
switch.

The

High-Cut (Low-Pass) Filter Switch

™ limits the frequencies of the audio signal
inputted to the subwoofer to the low fre­quencies that the subwoofer reproduces
best. This allows the subwoofer to perform
more efficiently, and with superior bass
reproduction, minimizing distortion that might
occur if the subwoofer attempted to repro­duce higher frequencies.This switch should
be left in the

ON position, except:

1. When the SUB Input § is being used,
in which case it has no effect, or

2. When the Speaker-Level Inputs ª or
the Line-Level Full-Range Inputs ¶ are
being used with a crossover or filter aboard
the receiver or processor.

In these two circumstances, place the switch
in the

OFF position.

11

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

Test Set Up and Procedure

Equipment needed:

• Function/signal generator/sweep generator

• Integrated Amplifier

• Multimeter

• Speaker cables

Initial Control Settings:

• Power Switch OFF; Filter OFF

• Level MIN (Full CCW)

• Phase, Auto/On switches do not matter

General Unit Function (UUT = Unit Under Test)

1) From the signal generator, connect one line level (RCA) cable to the Subwoofer Line Level Input jacks L/R

on the UUT. Use a Y-cable from a mono source if necessary to connect to both inputs. Do not connect to
the single, purple SUB input.

2) Turn on generator ; adjus t to 60m V, 50 H z.

3) Plug in UUT; turn the power switch ON. Turn LEVEL control full clockwise (MAX)

4) LED should turn from Amber to Blue (on top of UUT); immediate and vigorous bass response should be

heard and fel t fr om por t tube opening.

5) Turn off generator, turn LEVEL control full counterclockwise (MIN), and disconnect RCA cable.

6) Connect one pair

of speaker cables to Speaker Level input terminal (IN) on UUT. Cables should be

connected to an integrated amplifier fed by the signal generator.

7) Turn on generator and adjust so that speaker level input at the amplifier is 1.2V, 50 Hz. Turn LEV EL control

full clockwise.

8) LED should turn from Amber to Blue; immediate a nd vigorous bass respo ns e should be heard and felt from

the po r t tube opening.

Sweep Function

1) Follow steps 6-8 above, using a sweep generator as a signal source.

2) Sweep generator from 20Hz to 300Hz. Listen to the cabinet and drivers for any rattles, clicks, buzzes or

any other noi s es . If any unusual noises are hear d, remove woo fers and test.

Driver Function

1) Remove woofer from cabinet; detach + and - wire clips.

2) Check DC res istance of woofer; it should be 2.8 ohms ±10%

3) Connect a pair of speaker cables to driver terminals. Cables should be connected to an integrated amplifier

fed by a signal generator. Turn on generator and adjust so that speaker level output is 5.0V.

4) Sweep genera tor fr om 20H z to 1k H z. Li sten to driver for any rubbin g, buzzing, or other unusual noises.

12

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

Item Description Part Number Qty

1 Screw, Amplifier 352-AM04020D210-E 10
2 SU B- TS1 1 Am pl ifier Not for Sale 1
3 SUB-TS11 Enclosure Not for Sale 1
4 Logo, Top 316-AG-00557-E 1
5 Logo, Bottom 316-AL-00553-E 1
6 10” Woofer 25PF12DZB-DW02-E 1
7 Screw, Woofer 352-FM04020D605-E 5
8 Foot Pad 320-EVA-00057-0BAE 4

13

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

14

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

15

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

SUB-TS11 (UL) AMP

Troubleshooting Flow Chart

no
yes

yes
yes no

yes
yes

AMP no signal out

Check Fuse,Transformer,
D501, etc

Dc voltage check ±Vcc

Check Q501.Q502.Q503,D502 etc

Check+/-15VDC

LED red

LED light green or red

LED light green yes yes

no

Check U202 pin8 signal

yes yes no

no

Check limiter Circuit C317

yes yes
no

Test R147 signal

yes yes

Check RY101, D110,Q112,Q113 etc

yes

Check ,+VCC& -VCC
DC voltage

Check,Q206,Q207,U203 etc

Check U201
pin1 signal

Check U301,R343,R344 ,
C340,Q301,Q302, etc

Check CLASS 150W
MODEL

CheckU201,U202,VR201
etc

no

Check Q107,Q108,Q109 etc

yes
yes

Check M100 signal

Check TH1

The Amp ass’Y OK, END

16

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

17

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

18

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

19

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

20

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

SUB-TS11 120v Electrical parts List

Part Number Description Qty Reference Designator

Input/Preamp PCB

Resistors

110-12472j52-e Resistor4.7K 1/2W ±5% CF 52mm (RoHS) 2 R201,R202
110-16102j26-e Resistor 1K 1/6W ±5% CF 26mm (RoHS) 6 R213,R214,R215,R254,R253,R304

R209,R212,R216,R217,R218,R220,R221,R2

110-16103j26-e Resistor 10K 1/6W ±5% CF 26mm (RoHS) 18

110-16104j26-e Resistor 100K 1/6W ±5% CF 26mm (RoHS) 5 R231,R263,R266,R257,R300
110-16105j26-e Resistor 1M 1/6W ±5% CF 26mm (RoHS) 1 R259
110-16113j26-e Resistor 11K 1/6W ±5% 26mm (RoHS) 1 R268
110-16122j26-e Resistor 1.2K 1/6W ±5% CF 26mm (RoHS) 1 R265
110-16134j26-e Resistor 130K 1/6W ±5% CF 26mm (RoHS) 1 R233
110-16152j26-e Resistor 1.5K 1/6W ±5% CF 26mm (RoHS) 1 R302
110-16183j26-e Resistor 18K 1/6W ±5% CF 26mm (RoHS) 1 R262
110-16203j26-e Resistor 20K 1/6W ±5% CF 26mm (RoHS) 2 R237,R238
110-16223j26-e Resistor 22K 1/6W ±5% CF 26mm (RoHS) 6 R247,R255,R256,R249,R250,R261
110-16303j26-e Resistor 30K 1/6W ±5% CF 26mm (RoHS) 2 R223,R224
110-16472j26-e Resistor 4.7K 1/6W ±5% CF 26mm (RoHS) 3 R200,R207,R258
110-16473j26-e Resistor 47K 1/6W ±5% CF 26mm (RoHS) 2 R219,R264
110-16474j26-e Resistor 470K 1/6W ±5% CF 26mm (RoHS) 1 R251
110-16475j26-e Resistor 4.7M 1/6W ±5% CF 26mm (RoHS) 1 R303
110-16512j26-e Resistor 5.1K 1/6W ±5% CF 26mm (RoHS) 2 R210,R211
110-16622j26-e Resistor 6.2K 1/6W ±5% CF 26mm (RoHS) 1 R234
110-16684j26-e Resistor 680K 1/6W CF 26mm (RoHS) 1 R252
110-16912j26-e Resistor 9.1K 1/6W ±5% CF 26mm (RoHS) 2 R226,R227
110-16913j26-e Resistor 91K 1/6W ±5% CF 26mm (RoHS) 4 R203,R204,R205,R206
116-169091f26-e Resistor 9.09K 1/6W±1% MF 26mm (RoHS) 1 R301
116-201001j5vx-e metal oxide film Resistor 1K 2W ±5% standing 5mm (RoHS) 1 R267
115-h503a102-e

variable Resistor RV16AE-20B2-15K-A54-104(A50K) (RoHS) LEVEL 1 VR201

22,R225,R228,R229,R230,R232,R235,R240,
R248,R260,R270

Capacitors

129-a154j633-e METALIZE CAP. 0.15U 63V ±5% MSC (RoHS) 2 C221,C222
129-a224j633-e METALIZE CAP. 0.22uF 63V ±5% MSC (RoHS) 1 C218
130-2b103k503-e DISC Capacitor 0.01u 50V ±10% (RoHS) 1 C238

130-2b221k503-e DISC Capacitor 220P 50V ±10% (RoHS) 12

130-3f104z503-e DISC Capacitor 0.1U 50V +80/-20% (RoHS) 8
132-183j503-e MYLAR Capacitor 0.018uF 50V ±5% (RoHS) 1 C223

132-223ja03-e MYLAR Capacitor 0.022uF 100V ±5% (RoHS) 1 C215
132-473j503-e MYLAR Capacitor 0.047U 50V ±5% (RoHS) 1 C224
132-563j503-e MYLAR Capacitor 0.056U 50V ±5% (RoHS) 1 C216
132-823j503-e MYLAR Capacitor 0.082U 50V ±5% (RoHS) 1 C217
135-3105m50-e Electrolytic CAP. 1U 50V ±20% (RoHS) 1 C228

135-3106m50-e Electrolytic CAP. 10uF 50V ±20% (RoHS) 12
135-3107m16-e Electrolytic CAP. 100uF 16V ±20% (RoHS) 1 C234

135-3226m50-e Electrolytic CAP. 22U 50V ±20% (RoHS) 1 C225
135-3475m16-e Electrolytic CAP.4.7U 16V ±20% (RoHS) 1 C233
135-3107m50-e Electrolytic CAP. 100U 50V ±20% (RoHS) 1 C301
135-3227m50-e Electrolytic CAP. 220uF 50V ±20% (RoHS) 1 C300

Semiconductors

192-027c1815gr-e Transistor 2SC1815GR TOSHIBA(RoHS) NPN 4 Q201,Q206,Q207,Q208
197-631n4148-e DIODE 500mW 75V 1N4148 Panjit (RoHS) 13
199-65000513g-e

ZENER DIODE GDZJ5.1B 500mW 5.1V 2% ROHM 26mm 1N5231B 1 D213

C200,C204,C205,C207,C208,C210,C211,C2
12,C214,C220,C230,C237
C232,C242,C244,C245,C246,C252,C254,C2
56

C201,C202,C206,C213,C219,C231,C241,C2
43,C251,C253,C248,C247

D201,D202,D203,D204,D205,D206,D207,D2
08,D214,D215,D216,D301,D302

21

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

Part Number Description Qty Reference Designator

Input/Preamp PCB

190-05ps25051-e photoelectric coupler PS2505-1 NEC (RoHS) 1 U1
190-06m4558d-e I.C. OPA 4558D Dual Op-Amp (RoHS) 1 U203
190-06m4558ld-e I.C. NJRC NJM4558LD Dual Op-Amp singlerow inline (RoHS) 1 U204
190-16tl074cn-e I.C TL074CN ST (RoHS) Quad Op-Amp 2 U201,U202
197-141n4004-e DIODE 1N4004 shaping short crus (RoHS) 4 D217,D218,D219,D220
162-50122004-e dual color LED 120mm RED/WHT 2PIN (RoHS) 1 D209

Miscellaneous

162-5014d008-e WIRE 2468#26AWG RED/WHT length 140mm (RoHS) 1 P1-P2
162-a016d001-e mixed wire UL1007 160/80mm#26 (RoHS) 1 W202
174-0rca313v-e RCA JACK RCA-313G V/R/W (RoHS) R/L, LFE INPUT 1 JK201
174-20810360g-e jack SPK JK BP 8PIN (RoHS) SH0810360G US1.35 SPEAKER 1 JK202
174-6ej3556agp-e PHONE JACK EJ3556A-GP (RoHS) TRIGGER 1 JK203
175-1b08v01-e WIRE CONNECTOR & BASE 8 PIN PITCH=2.0mm(RoHS) 1 W202
175-1c07v01-e WIRE CONNECTOR & BASE 7PIN PITCH=2.5mm (RoHS) 1 M201
180-tms7210v-e

362-FE-00041-0LAE

Main Amp PCB

SWITCH SLIDE 6PIN MS7210V (RoHS) FILTER,PHASE,POWER ON

PCB support 11.75*8.5*12.5H (RoHS) 2

3 SW201,SW202,SW203

Resistors

110-14103j26-e Resistor 10K 1/4W ±5% CF 26mm (RoHS) 3 R503,R504,R510
110-14222j26-e Resistor 2.2K 1/4W ±5% CF 26mm (RoHS) 1 R511
110-14432j26-e Resistor 4.3K 1/4W ±5% CF 26mm (RoHS) 1 R506
110-14472j26-e Resistor 4.7K 1/4W ±5% CF 26mm (RoHS) 1 R505
110-16102j26-e Resistor 1K 1/6W ±5% CF 26mm (RoHS) 1 R153

110-16103j26-e Resistor 10K 1/6W ±5% CF 26mm (RoHS) 10
110-16104j26-e Resistor 100K 1/6W ±5% CF 26mm (RoHS) 3 R122,R126,R307

110-16153j26-e Resistor 15K 1/6W ±5% CF 26mm (RoHS) 1 R107
110-16182j26-e Resistor 1.8K 1/6W ±5% CF 26mm (RoHS) 1 R145
110-16203j26-e Resistor 20K 1/6W ±5% CF 26mm (RoHS) 1 R309
110-16221j26-e Resistor 220Ω 1/6W ±5% CF 26mm (RoHS) 1 R144
110-16222j26-e Resistor 2.2K 1/6W ±5% CF 26mm (RoHS) 1 R102
110-16223j26-e Resistor 22K 1/6W ±5% CF 26mm (RoHS) 1 R316
110-16333j26-e Resistor 33K 1/6W ±5% CF 26mm (RoHS) 1 R310
110-16393j26-e Resistor 39K 1/6W ±5% CF 26mm (RoHS) 1 R151
110-16434j26-e Resistor 430K 1/6W ±5% CF 26mm (RoHS) 1 R312
110-16473j26-e Resistor 47K 1/6W ±5% CF 26mm (RoHS) 2 R106,R129
110-16474j26-e Resistor 470K 1/6W ±5% CF 26mm (RoHS) 1 R127
110-16562j26-e Resistor 5.6K 1/6W ±5% CF 26mm (RoHS) 1 R152
110-16621j26-e Resistor 620Ω 1/6W ±5% CF 26mm (RoHS) 1 R160
110-16751j26-e Resistor 750Ω 1/6W ±5% CF 26mm (RoHS) 1 R315
110-16755j26-e Resistor 7.5M 1/6W ±5% CF 26mm (RoHS) 1 R313
116-161002f26-e metal film Resistor 10K 1/6W ±1% MF 26mm (RoHS) 2 R301,R303
116-161202f26-e metal film Resistor 12.0K 1/6W ±1% MF 26mm (RoHS) 1 R302
116-162200f26-e metal film Resistor 220Ω 1/6W ±1% MF 26mm (RoHS) 1 R317
116-162202f26-e metal film Resistor 22.0K 1/6W ±1% MF 26mm (RoHS) 1 R318
110-20332jk3-e Resistor 3.3K 2W ±5% standing short crus 7.5m (RoHS) 1 R134
113-50s68j00-e cement Resistor 0.068Ω 5W ±5% prone long crus (RoHS) 1 R147
116-201001jk3x-e
116-304700jk2x-e oxide film Resistor 470Ω 3W ±5% jaming and shaping type 10mm 2 R501,R502

oxide film Resistor 1.00K 2W ±5% standing short crus 7.5mm (RoHS)

R128,R130,R149,R150,R305,R306,R308,R3
11,R314,R319

1 R148

Capacitors

130-3f104z503-e DISC Capacitor 0.1U 50V +80/-20% (RoHS) 6 C107,C117,C122,C144,C320,C322
130-sl101k503-e DISC Capacitor 100P 50V SL ±10% (RoHS) 3 C302,C303,C306
132-103j503-e MYLAR Capacitor 0.01uF 50V ±5% (RoHS) 2 C305,C317
132-103ja03-e MYLAR Capacitor 0.01uf 100V ±5% (RoHS) 2 C103,C104

22

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

Part Number Description Qty Reference Designator

Main Amp PCB

132-104ja03-e MYLAR Capacitor 0.1UF 100V ±5% (RoHS) 3 C123,C503,C504
132-273ja03-e MYLAR Capacitor 0.027UF 100V ±5% (RoHS) 1 C143
135-3106m50-e Electrolytic CAP. 10uF 50V ±20% (RoHS) 2 C319,C321
135-3107m10-e Electrolytic CAP. 100U 10V ±20% (RoHS) 2 C114,C115
135-3107m35-e Electrolytic CAP. 100U 35V ±20% (RoHS) 2 C507,C508
135-3225m50-e Electrolytic CAP. 2.2U 50V ±20% (RoHS) 1 C509
135-3226m16-e Electrolytic CAP. 22U 16V ±20% (RoHS) 1 C304
135-3226m50-e Electrolytic CAP. 22U 50V ±20% (RoHS) 2 C505,C506
135-3227m16-e Electrolytic CAP. 220U 16V ±20% (RoHS) 1 C118
135-3476m16-e Electrolytic CAP. 47U 16V ±20% (RoHS) 1 C318
132-103kd00-e MYLAR Capacitor 0.01U 400V +/-10% long crus (RoHS) 1 C500
138-5478m80-e LARGE Electrolytic CAP. 4700uF 80V ±20% 85℃ (RoHS) 2 C501,C502

Semiconductors

192-027c1815gr-e Transistor 2SC1815GR TOSHIBA(RoHS) NPN 5 Q108,Q109,Q113,Q301,Q302
192-027c2235y-e Transistor 2SC2235Y TOSHIBA (RoHS) NPN 1 Q111
192-028a1015gr-e Transistor 2SA1015GR TOSHIBA(RoHS) PNP 3 Q101,Q107,Q112
192-1572n5551-e Transistor FSC 2N5551 (RoHS) NPN 2 Q114,Q115
192-1582n5401-e Transistor FSC 2N5401 AI-PNP 350V 500mA TO-92 (RoHS) 1 Q503
197-631n4148-e DIODE 500mW 75V 1N4148 Panjit (RoHS) 7 D102,D103,D104,D105,D143,D301,D302
199-65000623g-e ZENER DIODE GDZJ6.2B 500mW 6.2V 26mm 2% (RoHS) 1 D101
199-65001603g-e ZENER DIODE GDZJ16C 500mW 16V 26mm 2% (RoHS) 1 D502
190-16tl074cn-e I.C TL074CN ST (RoHS) Quad Op-Amp 1 U301
192-161tip31c-e Transistor TIP31C SGS (RoHS) NPN 1 Q501
192-162tip32c-e Transistor TIP32C SGS (RoHS) PNP 1 Q502
197-00kbu606g-e bridge rectifier 6A 800V KBU606G (RoHS) 1 D501
197-141n4004-e DIODE 1N4004 shaping and short crus (RoHS) 2 D110,D504

Miscellaneous

109-1ttc802j0-e thermistor TTC-802(JS) NTC long crus (RoHS) 1 TH1
120-1000003-e inductor 10W AI YT-C3104-005 1CRHW 354708LTB (RoHS) 2 FB1,FB2
162-50129001-e CABLE ASS'Y drop-out line 120mm AWG28 WHT (RoHS) 1 W201
171-urwh124d-e relay RWH-SH-124D (1600 ohm) (RoHS) 1 RL1
175-1d02v01-e WIRE CONNECTOR & BASE 2PIN PITCH=3.96mm (RoHS) 1 M100
175-1d03v01-e

Class D amp PCB

Resistors

118-12061001j-e SMD Resistor 1.00K 1206 5% (RoHS) 4 R2,R11,R29,R30
118-12061002j-e SMD Resistor 10.0K 1206 5% (RoHS) 3 R7,R9,R25
118-120610r0j-e SMD Resistor 10.0Ω 1206 5% (RoHS) 2 R22,R23

118-12061201j-e SMD Resistor 1.20K 1206 5% (RoHS) 16
118-12062002j-e SMD Resistor 20.0K 1206 5% (RoHS) 1 R26

118-12062201j-e SMD Resistor 2.20K 1206 5% (RoHS) 3 R6,R13,R16
118-12062701j-e SMD Resistor 2.70K 1206 5% (RoHS) 1 R10
118-12063000j-e SMD Resistor 300.0Ω 1206 5% (RoHS) 1 R24
118-12063301j-e SMD Resistor 3.30K 1206 5% (RoHS) 4 R14,R15,R27,R28
118-12063902j-e SMD Resistor 39.0K 1206 5% (RoHS) 1 R3
118-12064700j-e SMD Resistor 470Ω 1206 5% (RoHS) 1 R8
118-12064701j-e SMD Resistor 4.70K 1206 5% (RoHS) 3 R1,R5,R12
118-12064702j-e SMD Resistor 47.0K 1206 5% (RoHS) 1 R17
118-12064704j-e SMD Resistor 4.70M 1206 5% (RoHS) 1 R4
118-120647r0j-e SMD Resistor 47.0Ω 1206 5% (RoHS) 2 R20,R21

WIRE CONNECTOR & BASE 3 PIN PITCH=3.96mm JST-VH no middle PIN

(Replacment of entire module is recommended, part# 050-B00012A-E).

1 M500

R31,R32,R33,R34,R35,R36,R37,R38,R39,R4
0,R41,R42,R43,R44,R45,R46

23

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

Part Number Description Qty Reference Designator

Class D amp PCB

Capacitors

(Replacment of entire module is recommended, part# 050-B00012A-E).

141-c0101k50-e SMD Capacitor 100pF 50V 10% 1206 NP0 (RoHS) 1 C4
141-c0220k50-e SMD Capacitor 22pF 50V 10% 1206 SMT NPO (RoHS) 1 C5
141-c0561k50-e SMD Capacitor 560pF 50V 10% 1206 NPO (RoHS) 1 C6
141-c5104m50-e SMD Capacitor 1206 Y5V 0.1uF 50V ±20% (RoHS) 8 C2,C3,C7,C8,C9,C10,C11,C15
141-c7223k50-e SMD Capacitor 0.022uF 50V 10% 1206 X7R (RoHS) 1 C13
141-d7104ka0-e SMD Capacitor 0.1uF 100V 10% 1210 X7R (RoHS) 1 C12
141-d7104kb5-e SMD Capacitor 0.1uF 250V 10% 1210 X7R (RoHS) 5 C1,C18,C19,C20,C14
128-e106ma01k-e non polarized Electrolytic CAP. 10UF 100V 20% 105℃ long crus 2 C16,C17

Semiconductors

190-16tl072dts-e SMD I.C. TL072CDT SGS THOMSON (RoHS) Dual Op-Amp 1 IC1
192-09124126qs-e SMD Transistor 2SC2412K-T146Q/R ROHM (RoHS) 3 Q1,Q4,Q5
192-09139066rs-e SMD Transistor 2SC3906K-T146R ROHM (RoHS) 2 Q2,Q8
192-09210376qs-e SMD Transistor 2SA1037K-T146Q/R ROHM (RoHS) 2 Q7,Q9
192-09215146rs-e SMD Transistor 2SA1514K-T146R ROHM (RoHS) 2 Q3,Q6
197-03rls4148s-e SMD DIODE RLS4148-TE11 ROHM (RoHS) 6 D1,D2,D3,D4,D5,D6
199-15000563s-e SMD ZENER 5.6V 5% PHILIPS BZX84-C5V6 (RoHS) 2 Z1,Z2
199-1500120s-e SMD ZENER 12V 5% PHILIPS BZX84-C12 (RoHS) 2 Z5,Z6
199-15001503s-e SMD ZENER 15V 5% PHILIPS BZX84-C15 (RoHS) 2 Z3,Z4
192-232irf9640-e FET IRF9640 IR P-CH TO220 (RoHS) 1 Q10
192-233f640n-e Transistor IRF640N INTERNATIONAL (RoHS) 1 Q11

Miscellaneous

122-14121m4191-e Ferrite core word type LS-A6206-ST EFD-30 (RoHS) 1 L1
122-14350j4180-e CHOKE COIL 35uH Ferrite Core 25 Milliohm (RoHS) 1 L2
175-9f40hr2-e

WIRE CONNECTOR & BASE 40PIN PITCH=2.54mm HR2*40 (RoHS)

MISCELLANEOUS/MECHANICAL

150-r4055903-e ring transformer TT0900304490 (RoHS) 1 T501
152-u602015-e power cord joint heteropolarity SVT FT-2 6FT bi-insulate (RoHS) 1
154-k31505t0-e fuse 3.15A 250V 30mm UL/CSA/PSE (RoHS) 1 F501
155-63032i-e fuse holder HTB-32I 30mm UL/CSA (RoHS) 1 for F501
162-10152001-e WIRE UL1617 AWG22 150mm RED 6:6 (RoHS) 1
162-5020d006-e WIRE UL2468 200mm 2.5mmpitch RED/WHT (RoHS) 1
162-50552003-e WIRE UL1007 #16 550mm (RoHS) #110/#205 0.5T 1
176-wjce1-e Wire CONN Pin CE-1 (RoHS) 1
180-prf1003s-e power switch ROCK RF-1003-BB2-OHA (RoHS) 1 SW501
193-201815t2-e ceramic insulator (RoHS) 2 for Q10,Q11

302-AL-00373-1BDE

306-ABS-00714-0BAE plastic rear housing 268*213*102 spout conductive paint (RoHS)
311-ABS-00028-0BAE

317-000-00037-0LAE

323-AL-00056-0LAE

333-EVA-00096-0BAE
333-EVA-00097-0BAE
333-EVA-00121-0BAE
333-EVA-00132-0BAE
333-EVA-00133-0BAE
333-EVA-00188-0BAE
333-EVA-00219-0BAE
333-EVA-00220-0BAE
333-EVA-00866-0BAE
335-NYL-00002-0BAE
335-NYL-05015-0BAE

350-EM04012D024-E
351-AM03008A078-E

rear board (RoHS) 1

1
plastic KNOB 46077-W soft material P.V.C. (RoHS) LEVEL 1
earth teminal M3 lug plate t=0.3 (RoHS) 1
heat sink 83.5*50.5*27.5H defat 1
EVA (Gasket) pad wide sides213*15*2.0mm (RoHS) 2
EVA (Gasket)pad wide sides213*15*1.0t (RoHS) 2
8PIN BB EVA (Gasket)(RoHS) 1
EVA (Gasket) pad long sides238*15*2.0mm (RoHS) 2
EVA (Gasket)pad long sides238*15*1.0t (RoHS) 2
EVA (Gasket) pad 170x5x1t glue on back (RoHS) 1
EVA (Gasket)pad wide sides150*15*1t UL (RoHS) 2
EVA (Gasket)pad long sides225*15*1t UL (RoHS) 1
fire prevention EVA 48*18*1.5T (RoHS) 1
WIRE CLIP 4K-4 NO-BB(RoHS) 1
power cord fixed-button SB4F-2 (RoHS) 1
4￠*12 wood screw electrical black (RoHS) 4
M3*8 machine screw nickel plating (RoHS) 4

24

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

Part Number Description Qty Reference Designator

MISCELLANEOUS/MECHANICAL

351-AM03008A079-E
352-AM03008D040-E
352-AM03008D041-E
352-AM03010D065-E

352-HM03012D086-E

353-0870122-E machine screw M8*70 round head electrical black (RoHS) 1

362-FE-00013-0LAE

M3*8 machine screw electrical black (RoHS) 4

￠3*8 B type ping screw electrical black (RoHS) 2
￠3*8 B type ping screw nickel plating (RoHS) 2
￠3*10 P type ping screw electrical black (RoHS) 3
￠3*12 B type ping screw electrical black (RoHS) 1

PCB support L TYPE t=1.6mm S.P.C.C 89*9*1.6T (RoHS) 2

25

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

26

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

27

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon

28

SUB-TS11 (HKTS 11 Sub, HS300 system) harman/kardon
