DVD27/230
SERVICE MANUAL
harman/kardon
Power for the Digital Revolution®
®
MODEL NAME : □ DVD27 □ DVD27/230 MP Release
Description : Characteristics Specification of Analog Audio L / R (2CH.)
Test Disc : TDV-540A (ABEX) , YEDS7 (Sony)
Test Conditions : 10kΩ Load Terminated , Must to be connect AP GND with set chassis.
AC Input : For USA (120V/60Hz) , For Europe (230V/50Hz)
Test Measuerment : CASCADE SYS-2522 (A.P)
1.ANALOG AUDIO OUTPUT Serial No. :
Measurement Item
Output Level [Vrms]
1KHz 0dB Playback
Level difference [Vrms] ＜ 0.2 0
F/ response [dB]
Reference 1KHz 0dB
BW : 10Hz~500KHz
Filter : None
Emphasis
Characteristic[dB]
Ref.1kHz 0dB
BW : 22Hz~22KHz
S/N [dB]
22~22KHz Aweighted
Channel Se B]paration [d
1KHz 0dB Playback 1KHz Bandpass
Linearity [dB]
-90dB playback BW : 22Hz~22KHz R
T.H.D [%]
1KHz 0dB Playback BW : 22Hz~22KHz R
Dynamic Range [dB]
CD-DA 1KHz -60dB 20KHz AES17 R
T.H.D [%]
ＤＶＤ ９６ｋ BW : 22Hz~ z22KH
Dynamic Range [dB]
ＤＶＤ ９６ｋ BW : 20KHz S AE 17
T.H.D [%] L
ＤＶＤ 48ｋ BW : 22Hz~ z22KH R 0.001
Dynamic Range [dB] L
ＤＶＤ 48ｋ 20KHz AES17 R 105.3
２０ Hz
100 Hz
10 KHz
２０ KHz
４4 KHz
５ KHz
１６ KHz
L
R
L
R
L
R
L
R
L
R
L
R -1.05 T4,C16 AU3
L
R
L
R
L
R
Ｌ→Ｒ
Ｒ→Ｌ
L
L
L
L
R
L
R
Limit Norminal
０± 1.0
０± 1.0
０± 1.0
０± 1.0
０± 1.5
-4.53±1.0
-9.04 ± 1.0
＞105
> 95
-89.5±3
＜ 0.005
> 90
＜ 0.005
> 90
＜ 0.005
> 90
2.02
2.02
-0.01
-0.01
-0.01
-0.01
-0.03
-0.03
-0.14
-0.14
-1.05 TDV-540A (ABEX)
-4.55
-4.55
-9.03
-9.03
-120.8
-120.8
-120.5
-120.5
-89.5
-89.5
0.0015
0.0015
97.7
97.7
0.001
0.001
104.3
104.3
0.001
105.3
TEST DISC
YEDS7 (SONY)
TRACK 1
YEDS7 (SONY)
TRACK 2
YEDS7 (SONY)
TRACK 4
YEDS7 (SONY)
TRACK 10
YEDS7 (SONY)
TRACK 13
YEDS7 (SONY)
TRACK 40
YEDS7 (SONY)
TRACK 41
YEDS7 (SONY)
TRACK 23
YEDS7 (SONY)
TRACK 30 , 34
YEDS7 (SONY)
TRACK 22
YEDS7 (SONY)
TRACK 1
YEDS7 (SONY)
TRACK 20
TDV-540A (ABEX)
T3, C1
TDV-540A (ABEX)
T3, C2
TDV-540A (ABEX)
T2, C1 , AU2
TDV-540A (ABEX)
T2, C2 , AU2
2. DIGITAL OUT
1) OPTICAL OUT (BW : 50Hz~100KHz) Peak to Peak
JITTER 44.1KHz
(mUI) CD Playback
JITTER
96KHz
(mUI) DVD Playback
2) COAXIAL OUT
Output Level [mV]
Peak to Peak Level at 75ohm load terminated
＜ 50mUI 7.2
＜ 50mUI 13.6
500+50 (mV) 525
Normal 44.1KHz
Normal 96KHz
Normal CD or DVD
Playback
Harman / Kardon
MODEL NAME : □ DVD27 □ DVD27/230 MP Release
Description : Characteristics Specification of Video
Test Disc : TDV-540A (ABEX) , MDVD-111 (TEAC) Serial NO.:
Test Conditions : 75Ω Load Terminated
AC Input : For USA (120V/60Hz) , For Europe (230V/50Hz)
Test Measuerment : VM-700T
1. Video Level Test (75Ω Terminated)
Measurement Item
Limit
Composite 1.0V ± 0.1V
S-Video Y 1.0V ± 0.1V
S-Video C 286mV ± 30mV
Component Y 1.0V ± 0.1V
Video output [V]
Component Pb 700mV ± 70mV
Component Pr 700mV ± 70mV
Scart CVBS 1.0V ± 0.1V
Scart Red 700mV ± 70mV
Scart Green 700mV ± 70mV
Scart Blue 700mV ± 70mV
** Pb/Pr & RGB Video Level check before please setting the Black Level off in the setup menu **
Norminal Test Disc
1.02
1.02
290
1.03
680
680
1.02
MDVD-111
TITLE2,CHAPTER1
100% Color BAR
720
720
720
2. Video S/N Raito Test (75Ω Terminated)
Measurement Item
Video SNR [dB]
100KHz~4.2MHz
Use SC Trap
Limit
Composite ≥ 65.0 dB
S-Video Y ≥ 65.0 dB
Component Y ≥ 65.0 dB
Component Pb ≥ 65.0 dB
Component Pr ≥ 65.0 dB
Norminal Test Disc
-73.5
-73.9
-73.1
-73.7
TDV-540A
TITLE2,CHAPTER4
50% White Color
-73.7
3. Chroma Signal AM.PM Test (75Ω Terminated)
Measurement Item
Chroma AM [dB]
10KHz~500KHz
Chroma PM [dB]
10KHz~500KHz
Composite Chroma ≥ 65.0 dB
S-Video Chroma ≥ 65.0 dB
Composite Chroma ≥ 60.0 dB
S-Video Chroma ≥ 60.0 dB
Limit
Norminal Test Disc
-74.1
-74.1
TDV-540A
TITLE2,CHAPTER17
-65.3
100% Magenta Color
-65.3
Harman / Kardon
4. Video Frequency Respoens (75Ω Terminated)
Measurement Item
Composite [dB]
Measurement Item
S-Video Y [dB]
Limit
0.5MHz 0dB Ref. 0
1MHz 0dB ± 2dB
2MHz 0dB ± 2dB
3MHz 0dB ± 2dB
4MHz 0dB ± 2dB
5.8MHz 0dB ± 3dB
Limit
0.5MHz 0dB Ref. 0
1MHz 0dB ± 2dB
2MHz 0dB ± 2dB
3MHz 0dB ± 2dB
4MHz 0dB ± 2dB
5.8MHz 0dB ± 3dB
Norminal Test Disc
0.11
0.11
0.37
0.66
MDVD-111
TITLE2,CHAPTER8
100% Multi Brust
1.02
Norminal Test Disc
0.03
0.04
0.27
0.53
MDVD-111
TITLE2,CHAPTER8
100% Multi Brust
0.83
Measurement Item
Component Y [dB]
Interace Mode
Limit
0.5MHz 0dB Ref. 0
1MHz 0dB ± 2dB
2MHz 0dB ± 2dB
3MHz 0dB ± 2dB
4MHz 0dB ± 2dB
5.8MHz 0dB ± 3dB
Norminal Test Disc
0.04
0.08
0.08
0.17
MDVD-111
TITLE2,CHAPTER8
100% Multi Brust
0.83
Harman / Kardon
1. Instruction manual ass'y - Accessories 2. Package Drawing
Harman Consumer Group International
DVD27/230
1
5
9
POLY BAG
BATTERY ASS'Y
3
HARMAN IMAGE BROCHURES
7
CORD PIN(3P, W/R/Y)
10
4
MANUAL INSTRUCTION
8
CABLE,S-VHS(1.5M)
3
SNOW PAD
4
SNOW PAD
SET
2
MANUAL ASS'Y
1
REMOCON ASS'Y
6
SNOW PAD
3
CORF ,JACK(MONO)1200MM
STAPLE
NO DESCRIPTION PARTS NO. Q,ty
1
2
3
HARMAN IMAGE BROCHURES
4
INSTRUCTION MANUAL CQX1A1051Z 1
5
BATTERY
6
7
CORD,PIN(3P,W/R/Y)
CABLE,S-VHS(1.5M)
8
CORD,JACK(MONO)1200MM9 CJS9D002Z 1
STAPLE10
CPB1061YPOLY BAG
HQE1A273Z
HABAAAM1.5V
CJS4S004Z
CJS0I006Z
KPL0905
BOX ,OUT CARTON
5
1
1
1
2
1
1
3
MANUAL ASS'Y
1
2
SET DVD27/230SET 1
31SNOW,PAD
DESCRIPTIONNO
CQXDVD27
CPS1A714
Q,tyPARTS NO.
1
2
4
BOX,OUT CARTON
5
6
REMOCON ASS'Y CARTDVD27 1
7
CPS1A715SNOW,PAD
CPG1A798W
1
16
Harman Consumer Group International
23

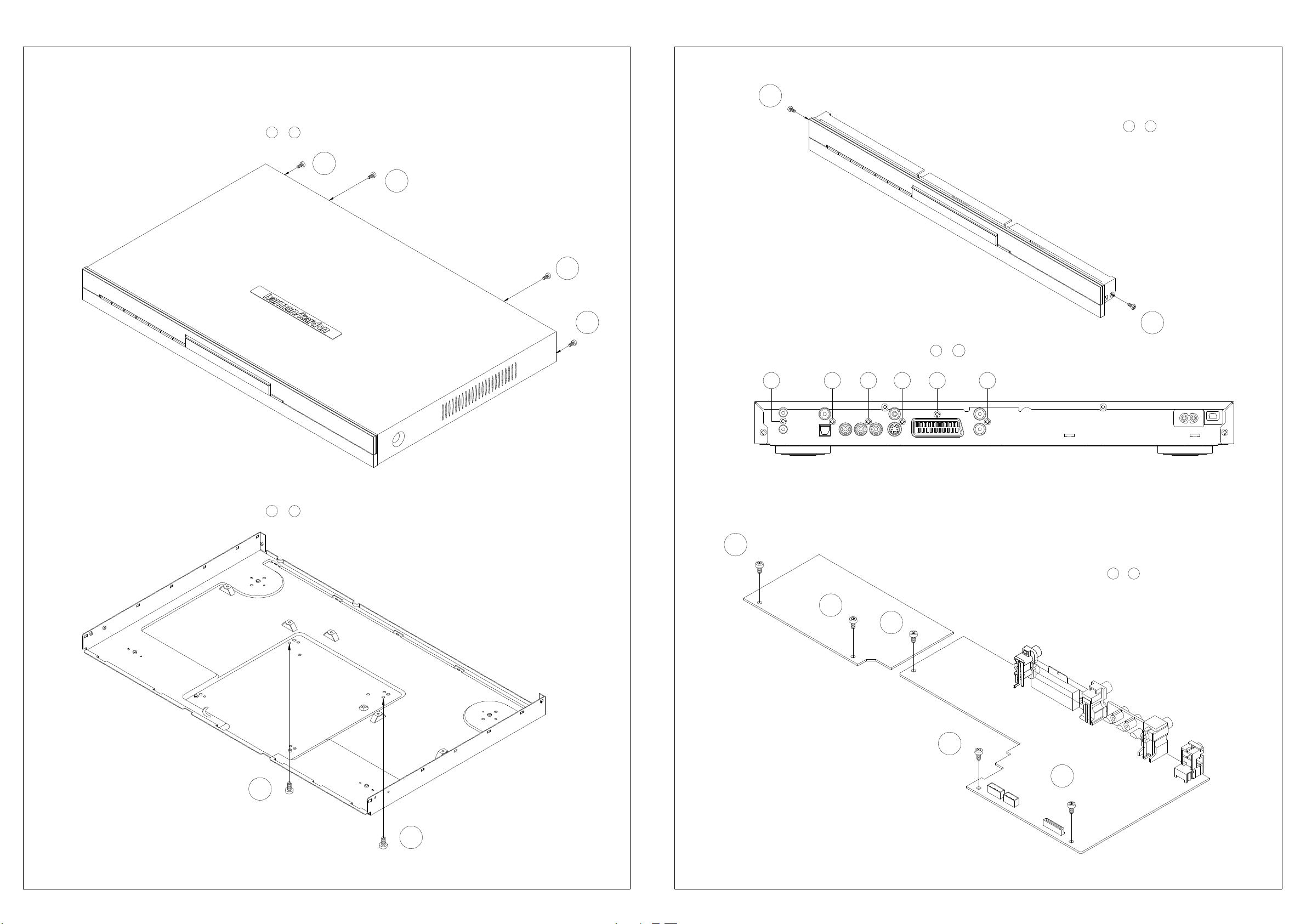

EXPLODED VIEW(DVD27/230)
x4
S6
11
7
12
10
9
20
19
8
15
18
S2
x5
S7
S4
x5
21
4
22
1
5
2
6
S1
x5
3
S5
x2
S1
x2
x4
14
17
No.
S1
SCREW
S2
SCREW
S3
SCREW
S4
SCREW
S5
SCREW
S6
SCREW
S7 SCREW
S2
x2
x4
13
PARTS-No.DESCRIPTION
CTB3+10G
CTW3+8J
CTB3+8G
CTBD3+10GFZ
CTB3+6J
CTBD3+8JFC
CHD1A055
Q,ty
7
7
2
5
2
4
1
x2
S3
DESCRIPTION
N0.
1
2
3
4
5
6
INDICATOR POWER
7
BOTTOM CHASSIS
8
REAR PANEL
9
10
MECHA
11
12
13
14
BUSHING, AC CORD
15
AC CORD
16
17
FRONT PCB ASS'Y
18
MAIN PCB ASS'Y
19
SMPS PCB ASS'Y
20
21
22
23
PARTS-No.
CGX1A374C22ORNAMENT DOOR
CGR1A387K128DVD DOOR
CGU1A383ZWINDOW
CBT1A997KNOB
CGW1A413RDH43FRONT PANEL
CGL1A240
CUA1A250
CKF4A303Z
CMX1A176INSULATOR SMPS
CADSDL003ZA
CMH1A250GUIDE CABLE
CKC1B166S46TOP CABINET
CKL2A186H43FOOT
KHG1A050RUBBER,CUSHION
KHR1A028
CMX1A177INSULATOR
KGB1A162ZBADGE,MODEL
KGB1A158ZBADGE,FRONT
CGX1A375ZATOP BADGE ASS'Y
Q,ty
1
1
1
1
1
1
1
1
1
1
1
1
4
4
1
1
1
1
1
1
1
1
11
Harman/Kardon DVD27/230
DVD27 SMPS PCB ASS'Y
Ref# Part Number Description 1 Description 2 Qty
PCB COP11840B DVD27 SMPS PCB ASS'Y DVD27 SMPS 1
C905 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V ZF 1
C906 CCKT1H101KB CAP , CERAMIC 100PF 50V KB 1
C907 CCEA1HH100T CAP , ELECT 1
C908 CCEA1HH470T CAP , ELECT 1
C910 CCEA1HH1R0T CAP , ELECT 1
C921 CCEA1EH331T CAP , ELECT 1
C922 CCEA1HH0R1T CAP , ELECT 1
C923 CCEA1EH331T CAP , ELECT 1
C924 CCEA1VH101T CAP , ELECT 100UF 50V 1
C925 CCEA1EH331T CAP , ELECT 1
C926 HCQI1H102JZT CAP , MYLAR 1000PF 50V J 1
C927 CCEA1HH470T CAP , ELECT 1
C928 CCEA1HH470T CAP , ELECT 1
C929 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V ZF 1
C931 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V ZF 1
C935 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V ZF 1
D906 HVDMTZJ12BT DIODE , ZENER 12V 1/2W 1
D907 HVD1N4148T DIODE 1N4148 1
D909 HVDMTZJ24BT DIODE , ZENER 24V T77 1
D910 HVD1N4148T DIODE 1N4148 1
D911 HVD1N4148T DIODE 1N4148 1
D912 HVDMTZJ5.1BT DIODE , ZENER 1
D913 C3A206 WIRE , COPPER SN95/PB5 , 0.6 1
D925 HVD1N4148T DIODE 1N4148 1
D926 HVDMTZJ12BT DIODE , ZENER 12V 1/2W 1
D928 HVDMTZJ5.1BT DIODE , ZENER 1
FH91 KJCFC5S HOLDER , FUSE 1
FH92 KJCFC5S HOLDER , FUSE 1
IC92 HVIKIA431BAT I.C , REGULATOR KIA431B 1
J901 C3A206 WIRE , COPPER SN95/PB5 , 0.6 1
J910 C3A206 WIRE , COPPER SN95/PB5 , 0.6 1
J915 C3A206 WIRE , COPPER SN95/PB5 , 0.6 1
J916 C3A206 WIRE , COPPER SN95/PB5 , 0.6 1
J921 C3A206 WIRE , COPPER SN95/PB5 , 0.6 1
J922 C3A206 WIRE , COPPER SN95/PB5 , 0.6 1
J925 C3A206 WIRE , COPPER SN95/PB5 , 0.6 1
L903 CLZ9Z040Z COIL , CHOKE(6.8UH) DR 6.5*7.5 1
L905 CLZ9Z040Z COIL , CHOKE(6.8UH) DR 6.5*7.5 1
NT91 KRT10D9MSFT THERMISTER 1
Q904 HVTKTC3198YT T.R 1
Q905 HVTKTA1273YT TR NORMAL KTA1273/PNP/TO-92L 1
Q906 HVTKSC1008YT T.R KSC1008Y 1
Q907 HVTKRC102MT T.R KRC102M 1
Q908 HVTKRA102MT T.R KRA102M 1
Q909 HVTKSC1008YT T.R KSC1008Y 1
Q910 HVTKSC1008YT T.R KSC1008Y 1
Q912 HVDMCR100-6ZL1G SCR (ON SEMI) 1
R901 KROS1TJ105V RES , METAL FILM (1/2W , 1M OHM) 1
R903 CRD25TJ754T RES 1
R904 CRD25TJ754T RES 1
R905 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J 1
R607 CRD25TJ123T RES , CARBON 1
R906 CRD20TJ101T RES , CARBON 100 OHM 1/5W J 1
R907 CRD20TJ103T RES , CARBON 10K OHM 1/5W J 1
R909 CRD20TJ100T RES , CARBON 10 OHM 1/5W J 1
R910 CRD20TJ103T RES , CARBON 10K OHM 1/5W J 1
R911 CRD20TJ104T RES , CARBON 100K OHM 1/5W J 1
R912 CRD20TJ102T RES , CARBON 1K OHM 1/5W J 1
R913 CRD20TJ102T RES , CARBON 1K OHM 1/5W J 1
R914 CRD20TJ333T RES , CARBON 33K OHM 1/5W J 1
R920 CRD20TJ101T RES , CARBON 100 OHM 1/5W J 1
R921 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J 1
R607 CRD25TJ123T RES , CARBON 1
R922 CRD20TF3481T RES , CARBON 1
R923 CRD20TF3001T RES , CARBON 3K 1/5W F 1
R924 CRD20TJ101T RES , CARBON 100 OHM 1/5W J 1
R925 CRD25TJ101T RES , CARBON 1
R926 CRD20TJ101T RES , CARBON 100 OHM 1/5W J 1
R928 CRD20TJ102T RES , CARBON 1K OHM 1/5W J 1
R929 CRD20TJ102T RES , CARBON 1K OHM 1/5W J 1
R930 CRD20TJ103T RES , CARBON 10K OHM 1/5W J 1
Harman Consumer Group International
Harman/Kardon DVD27/230
DVD27 SMPS PCB ASS'Y
Ref# Part Number Description 1 Description 2 Qty
R933 CRD20TJ102T RES , CARBON 1K OHM 1/5W J 1
R940 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J 1
CN91 KJP02KA060ZY WAFER 7.92MM(YUNHO) 1
CN92 CJP12GA19ZY WAFER 1
C901 HCQF2E104KZE CAP , POLYPROPYLENE FILM 1
C902 HCQF2E104KZE CAP , POLYPROPYLENE FILM 1
C903 CCET400VKRH470K CAP , ELECT(400V/47uF) KOSHIN KRH SERI 1
C904 CCKT3A222KBL CAP , CERAMIC EKR3A222K05FK5 1
C920 CCEA1EH102T CAP , ELECT 1
C930 CCKDHS222ME CAP , CERAMIC (400V Y-CAP) SDE2G222M10FF7 1
C932 CCKDHS102ME CAP , CERAMIC (400V Y-CAP) SDE2G102M10FF7 1
C933 CCKDHS102ME CAP , CERAMIC (400V Y-CAP) SDE2G102M10FF7 1
D901 HVD1N4007T DIODE 1
D902 HVD1N4007T DIODE 1
D903 HVD1N4007T DIODE 1
D904 HVD1N4007T DIODE 1
D905 HVDUF4007T DIODE , SCHOTTKY UF4007 1
D908 HVD1N4007T DIODE 1
D920 HVD31DQ06H DIODE 31DQ06-FC5 1
D921 HVDUF4007T DIODE , SCHOTTKY UF4007 1
D922 HVD1N4937T DIODE , RECTIFIERS 1N4937(600V/1A) 1
D923 HVD1N4937T DIODE , RECTIFIERS 1N4937(600V/1A) 1
D924 HVDSF26T DIODE , SUPER FAST 1
IC91 BVISG6848DZ IC,PWM SG6848DZ 1
LF91 CLZ9Z060Y LINE FILTER CLZ9Z060Y 1
PC91 HVIPC17L1CB I.C , PHOTO COUPLER 1
Q902 BVICEF04N6 FET , CEF04N6 1
Q903 HVTKSB1151Y T.R KSB1151Y 1
R902 KRG1SANJ104H RES,METAL OXIDE FILM 1
R908 KRW1PJ1R5V RES, WIRE WOUND 1W 1.5(J) NON-I 1
R927 KRDS1TJ681V RES , CARBON 680OHM 1/2W J 1
T901 CLT9Z018ZE TRANSFORMER (DVD 27) EER2828H 1
F901 KBA2C2000TLEY FUSE EUR (2A/250V) 1
DVD27/230 MAIN + FRONT PCB ASS'Y
Ref# Part Number Description 1 Description 2 Qty
PCB COP11841B-1 DVD27/230 FRONT VFD PCB ASS'Y DVD27 1
PCB COP11841B-2 DVD27/230 FRONT KEY PCB ASS'Y DVD27 1
PCB COP11841B-3 DVD27/230 MAIN PCB ASS'Y DVD27 1
C100 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C101 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C102 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C103 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C104 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C106 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C115 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C117 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C120 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C122 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C146 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C156 HCUS1H330JA CAP , CHIP 1
C157 HCUS1H330JA CAP , CHIP 1
C158 HCUS1H330JA CAP , CHIP 1
C159 HCUS1H562KC CAPACITOR 1
C160 HCUS1H562KC CAPACITOR 1
C161 HCUS1H562KC CAPACITOR 1
C162 HCUS1H561JA CAP , CHIP 1
C163 HCUS1H471JA CAP , CHIP 1
C164 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C165 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C166 HCUS1H102KC CAP , CHIP 1
C167 HCUS1H102KC CAP , CHIP 1
C168 HCUS1H102KC CAP , CHIP 1
C169 HCUS1H102KC CAP , CHIP 1
C170 HCUS1H102KC CAP , CHIP 1
C172 HCUS1H102KC CAP , CHIP 1
C173 HCUS1H102KC CAP , CHIP 1
C174 HCUS1E333KC CAP , CHIP 1
C175 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C176 HCUS1H102KC CAP , CHIP 1
C178 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C179 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
Harman Consumer Group International
Harman/Kardon DVD27/230
DVD27/230 MAIN + FRONT PCB ASS'Y
Ref# Part Number Description 1 Description 2 Qty
C180 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C181 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C183 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C185 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C186 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C187 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C188 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C189 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C190 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C191 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C192 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C193 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C194 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C195 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C196 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C197 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C200 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C201 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C204 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C205 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C207 HCUS1H272KC CAP , CHIP 1
C208 HCUS1H102KC CAP , CHIP 1
C209 HCUS1H273KC CAP,CERAMIC 0.027uF ROHM 0.027UF 1
C210 HCUS1H102KC CAP , CHIP 1
C214 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C215 HCUS1H561JA CAP , CHIP 1
C217 HCUS1H273KC CAP,CERAMIC 0.027uF ROHM 0.027UF 1
C218 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C220 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C222 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C225 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C227 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C228 HCUS1H222KC CAP , CHIP 1
C229 HCUS1H222KC CAP , CHIP 1
C230 HCUS1H222KC CAP , CHIP 1
C231 HCUS1H222KC CAP , CHIP 1
C232 HCUS1H330JA CAP , CHIP 1
C240 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C242 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C245 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C247 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C249 HCUS1H150JA CAP CHIP 1608 SIZE 1
C250 HCUS1H150JA CAP CHIP 1608 SIZE 1
C252 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C253 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C254 HCUS1H272KC CAP , CHIP 1
C255 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C256 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C257 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C260 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C261 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C262 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C263 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C266 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C267 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C277 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C281 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C282 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C283 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C284 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C285 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C295 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C303 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C304 HCSHB21A220B CAP , TANTAL B2 SIZE 1
C305 HCSHB21A220B CAP , TANTAL B2 SIZE 1
C306 HCSHB21A220B CAP , TANTAL B2 SIZE 1
C307 HCSHB21A220B CAP , TANTAL B2 SIZE 1
C308 HCSHB21A220B CAP , TANTAL B2 SIZE 1
C310 HCUS1H102KC CAP , CHIP 1
C311 HCUS1H560JA CAP , CHIP 1
C312 HCUS1H102KC CAP , CHIP 1
C313 HCUS1H102KC CAP , CHIP 1
Harman Consumer Group International
Harman/Kardon DVD27/230
g
DVD27/230 MAIN + FRONT PCB ASS'Y
Ref# Part Number Description 1 Description 2 Qty
C336 HCUS1H682KB CAP, CERAMIC, 1608 (PHILIPS) 06032R682K9B20D 1
C337 HCUS1H223KC CAP , CHIP 1
C338 HCUS1H221JA CAP , CHIP 1
C339 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C346 HCUS1H7R0DT CAP, CHIP 1608 1
C380 HCUS1H150JA CAP CHIP 1608 SIZE 1
C401 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C402 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C403 HCUS1H102KC CAP , CHIP 1
C405 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C406 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C408 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C429 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C430 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
C431 HCUS1H221JA CAP , CHIP 1
C432 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C511 HCUS1H151JA CAP , CHIP , 150PF JA 1608 SIZE 1
C531 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C533 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C552 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C553 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C555 HCUS1H150JA CAP CHIP 1608 SIZE 1
C556 HCUS1H150JA CAP CHIP 1608 SIZE 1
C581 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C593 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C594 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C602 HCQI1H332JZT CAP , MYLAR 3300PF 50V J 1
C605 HCQI1H332JZT CAP , MYLAR 3300PF 50V J 1
C607 HCQI1H332JZT CAP , MYLAR 3300PF 50V J 1
C608 HCQI1H332JZT CAP , MYLAR 3300PF 50V J 1
C609 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C621 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C624 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C636 HCUS1H561JA CAP , CHIP 1
C637 HCUS1H561JA CAP , CHIP 1
C638 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C640 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C646 HCUS1H561JA CAP , CHIP 1
C647 HCUS1H561JA CAP , CHIP 1
C663 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C809 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C810 HCUS1H510JA CAP , CHIP , 51PF JA 1608 SIZE 1
C812 HCUS1H101JA CAP , CHIP 1
C817 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C819 HCUS1H101JA CAP , CHIP 1
C820 HCUS1H101JA CAP , CHIP 1
C822 HCUS1H510JA CAP , CHIP , 51PF JA 1608 SIZE 1
C823 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C828 HCUS1H220JA CAP , CHIP 1
C830 HCUS1H150JA CAP CHIP 1608 SIZE 1
C831 HCUS1H150JA CAP CHIP 1608 SIZE 1
C832 HCSHB21A220B CAP , TANTAL B2 SIZE 1
C834 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE 1
C881 HCUS1H150JA CAP CHIP 1608 SIZE 1
D101 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11 1
D102 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11 1
D501 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11 1
D502 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11 1
D511 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11 1
D601 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11 1
D602 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11 1
D603 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11 1
D612 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11 1
D613 HVDRLS4148SR DIODE, SWITCHING, SMD TYPE RLS4148 TE-11 1
IC10 HVIZR36778 IC,MPEG (ZORAN) 1
IC11 HVILM1117S-3V3 I.C , REGULATOR (3.3V) 1117S-3.3V 1
IC12 HVILM1117S-1V8 I.C , REGULATOR (1.8V) LM1117-1V8 1
IC15 HVIAT24C08N10SC I.C EEPROM Basic settin
s AT24C08N10SC2.7 1
IC20 HVITL3472IDR IC,OP AMP 8-SOIC (TI) 1
IC21 HVIM29W160ET70N IC,16M FLASH (ST) firmware M29W160ET-70N6 1
IC22 HVIM12L64164A7T IC, 64M SDRAM (4X16) 1
IC23 HVIAM5888SLF IC,Motor Driver(AMtek,Pb free) AM5888S L/F 1
Harman Consumer Group International
Harman/Kardon DVD27/230
DVD27/230 MAIN + FRONT PCB ASS'Y
Ref# Part Number Description 1 Description 2 Qty
IC24 HVIZR36707 IC,RF (ZORAN) 1
IC41 BVIBH7862FS IC , 6CH VIDEO DRIVER ROHM (BH7862FS) 1
IC42 HVIBA7660FS IC , R.G.B DRIVER BA7660FS 1
IC43 HVICS4392KZZ I.C , DAC 1
IC45 HVIST72F324K2 IC,FLASH (ST) front mcu 1
IC47 HVITC74HCT7007F I.C TC74HC7007AFEL 1
IC51 HVILM1117S-5.0 IC REGULATOR/SOT-223 1
IC52 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 1
IC60 HVIPT6315LQ I.C VFD DRIVER PT6315 1
L101 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L102 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L103 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L104 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L105 HLQ06E100KRZ INDUCTOR , CHIP 3225 SIZE 1
L106 HLQ06E100KRZ INDUCTOR , CHIP 3225 SIZE 1
L107 HLQ06E100KRZ INDUCTOR , CHIP 3225 SIZE 1
L109 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L110 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L111 HLZ9R006Z BEAD , CHIP 1
L112 HLZ9R006Z BEAD , CHIP 1
L113 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L114 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L115 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L116 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L117 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L120 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L121 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L518 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L519 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L520 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L522 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L523 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L611 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L612 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L613 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L801 HLQ08ER68KRZ CHIP FERRITE INDUCTOR 2012-R68UH 1
L802 HLQ08E1R8KRZ CHIP , COIL (1.8UH) 2012 1
L803 HLQ08E1R8KRZ CHIP , COIL (1.8UH) 2012 1
L804 HLQ09E8R2KRZ CHIP , COIL 1
L805 HLQ08ER68KRZ CHIP FERRITE INDUCTOR 2012-R68UH 1
L806 HLQ08ER39KRZ CHIP FERRITE INDUCTOR 2012-R39UH 1
L807 HLZ9R001Z FB, 2012(0805)600E, 1.5A,POWER 600E, 1.5A 1
L809 HLQ09E8R2KRZ CHIP , COIL 1
L884 HLQ08E1R8KRZ CHIP , COIL (1.8UH) 2012 1
Q105 HVTKTA1664YP tr 1
Q106 HVTKTA1664YP tr 1
Q108 HVT2N3904SP TR, CHIP (KEC) 2N3904S-RTK/PS 1
Q109 HVT2N3904SP TR, CHIP (KEC) 2N3904S-RTK/PS 1
Q110 HVT2N3904SP TR, CHIP (KEC) 2N3904S-RTK/PS 1
Q315 HVTKRC107S TR , CHIP 1
Q316 HVTKTA1504SYRTK T.R , CHIP KTA1504S Y RTK 1
Q404 HVT2N3904SP TR, CHIP (KEC) 2N3904S-RTK/PS 1
Q405 HVTKRC107S TR , CHIP 1
Q406 HVTKTA1504SYRTK T.R , CHIP KTA1504S Y RTK 1
Q407 HVTKRC107S TR , CHIP 1
Q408 HVTKRA107ST T.R , CHIP KRA107S 1
Q501 HVTKTA1504SYRTK T.R , CHIP KTA1504S Y RTK 1
Q502 HVTKTC3875SYRTK T.R , CHIP KTC3875S Y RTK 1
Q604 HVTKRA107ST T.R , CHIP KRA107S 1
Q606 HVTKRA107ST T.R , CHIP KRA107S 1
Q607 HVTKRA107ST T.R , CHIP KRA107S 1
Q608 HVTKRC107S TR , CHIP 1
Q610 HVTKRA107ST T.R , CHIP KRA107S 1
Q613 HVTKTD1304T T.R , CHIP (MUTE) KTD1304 1
Q614 HVTKTD1304T T.R , CHIP (MUTE) KTD1304 1
Q615 HVTKRA107ST T.R , CHIP KRA107S 1
Q616 HVTKRC107S TR , CHIP 1
Q801 HVTKRC107S TR , CHIP 1
Q802 HVTKRC107S TR , CHIP 1
Q803 HVTKTA1504SYRTK T.R , CHIP KTA1504S Y RTK 1
Q804 HVTKTA1504SYRTK T.R , CHIP KTA1504S Y RTK 1
Q805 HVTKTD1304T T.R , CHIP (MUTE) KTD1304 1
Harman Consumer Group International
Harman/Kardon DVD27/230
DVD27/230 MAIN + FRONT PCB ASS'Y
Ref# Part Number Description 1 Description 2 Qty
Q806 HVTKRA107ST T.R , CHIP KRA107S 1
Q821 HVTKTA1504SYRTK T.R , CHIP KTA1504S Y RTK 1
R100 CRJ10DJ472T RES , CHIP 1608 SIZE 1
R101 CRJ10DF4700T RES, CHIP 470 OHM/1608/1% 1
R102 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R103 CRJ10DJ330T RES , CHIP 1608 SIZE 1
R104 CRJ10DJ330T RES , CHIP 1608 SIZE 1
R106 CRJ10DJ101T RES , CHIP 1608 SIZE 1
R112 CRJ10DJ202T RES , CHIP 1
R113 CRJ10DJ202T RES , CHIP 1
R114 CRJ10DJ121T RES , CHIP 1608 SIZE 1
R115 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R116 CRJ10DJ121T RES , CHIP 1608 SIZE 1
R117 CRJ10DJ121T RES , CHIP 1608 SIZE 1
R118 CRJ10DJ103T RES , CHIP 1608 SIZE 1
R123 CRJ10DJ101T RES , CHIP 1608 SIZE 1
R124 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R125 CRJ10DJ113T RES, CHIP 1608 SIZE 1
R128 CRJ10DJ121T RES , CHIP 1608 SIZE 1
R133 CRJ10DF3920T RES. CHIP (392R 1%) 1608 SIZE 1
R134 CRJ10DJ103T RES , CHIP 1608 SIZE 1
R135 CRJ10DJ100T RES , CHIP 1608 SIZE 1
R136 CRJ10DJ221T RES , CHIP 1608 SIZE 1
R137 CRJ10DJ221T RES , CHIP 1608 SIZE 1
R138 CRJ10DJ100T RES , CHIP 1608 SIZE 1
R139 CRJ10DJ472T RES , CHIP 1608 SIZE 1
R140 CRJ10DJ133T RES , CHIP 1
R145 CRJ10DJ151T RES, CHIP 1608 SIZE 1
R146 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R147 CRJ10DJ104T RES , CHIP 1608 SIZE 1
R148 CRJ10DJ151T RES, CHIP 1608 SIZE 1
R152 CRJ10DJ101T RES , CHIP 1608 SIZE 1
R153 CRJ10DJ101T RES , CHIP 1608 SIZE 1
R154 CRJ10DJ101T RES , CHIP 1608 SIZE 1
R155 CRJ10DJ101T RES , CHIP 1608 SIZE 1
R157 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R159 CRJ10DJ472T RES , CHIP 1608 SIZE 1
R160 CRJ10DJ330T RES , CHIP 1608 SIZE 1
R162 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4 1
R163 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4 1
R164 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4 1
R165 CRJ10DJ330T RES , CHIP 1608 SIZE 1
R166 CRJ10DJ330T RES , CHIP 1608 SIZE 1
R167 CRJ10DJ330T RES , CHIP 1608 SIZE 1
R168 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4 1
R169 CRJ10DJ750T RES , CHIP 1608 SIZE 1
R170 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4 1
R171 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4 1
R172 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4 1
R173 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4 1
R174 CRJ10DJ472T RES , CHIP 1608 SIZE 1
R175 CRJ10DJ912T RES,CHIP(1/10W) 9.1K OHM J 9.1K OHM/1608 1
R176 CRJ10DJ132T RES , CHIP 1608 SIZE 1
R177 CRJ10DJ132T RES , CHIP 1608 SIZE 1
R178 CRJ10DJ272T RES , CHIP 1
R180 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R181 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R182 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R183 CRJ10DF1202T RES, CHIP 1% 1
R184 CRJ10DJ471T RES , CHIP 1608 SIZE 1
R185 CRJ10DJ332T RES , CHIP 1608 SIZE 1
R186 CRJ10DJ332T RES , CHIP 1608 SIZE 1
R187 CRJ10DJ332T RES , CHIP 1608 SIZE 1
R188 CRJ10DJ113T RES, CHIP 1608 SIZE 1
R189 CRJ10DJ105T RES , CHIP 1608 SIZE 1
R190 CRJ10DJ223T RES , CHIP 1608 SIZE 1
R191 CRJ10DJ223T RES , CHIP 1608 SIZE 1
R192 CRJ10DJ103T RES , CHIP 1608 SIZE 1
R193 CRJ10DJ332T RES , CHIP 1608 SIZE 1
R195 CRJ10DJ101T RES , CHIP 1608 SIZE 1
R201 CRJ10DJ472T RES , CHIP 1608 SIZE 1
R202 CRJ10DJ622T RES , CHIP 1
Harman Consumer Group International
Harman/Kardon DVD27/230
DVD27/230 MAIN + FRONT PCB ASS'Y
Ref# Part Number Description 1 Description 2 Qty
R203 CRJ10DJ562T RES , CHIP 1608 SIZE 1
R204 CRJ10DJ562T RES , CHIP 1608 SIZE 1
R205 CRJ10DJ562T RES , CHIP 1608 SIZE 1
R206 CRJ10DJ103T RES , CHIP 1608 SIZE 1
R207 CRJ10DF4700T RES, CHIP 470 OHM/1608/1% 1
R209 CRJ10DF1002T RES , CHIP 10K /1/10W/F 1
R210 CRJ10DF1002T RES , CHIP 10K /1/10W/F 1
R211 CRJ10DF1002T RES , CHIP 10K /1/10W/F 1
R219 CRJ10DJ273T RES , CHIP 1
R220 CRJ10DJ562T RES , CHIP 1608 SIZE 1
R221 CRJ10DJ562T RES , CHIP 1608 SIZE 1
R222 CRJ10DJ562T RES , CHIP 1608 SIZE 1
R230 CRJ10DJ472T RES , CHIP 1608 SIZE 1
R231 CRJ10DJ472T RES , CHIP 1608 SIZE 1
R241 CRJ10DF75R0T RES, CHIP 1% 75 OHM 75 OHM, 1% 1
R243 CRJ10DF75R0T RES, CHIP 1% 75 OHM 75 OHM, 1% 1
R244 CRJ10DF75R0T RES, CHIP 1% 75 OHM 75 OHM, 1% 1
R265 CRJ10DJ472T RES , CHIP 1608 SIZE 1
R284 CRJ10DJ472T RES , CHIP 1608 SIZE 1
R285 CRJ10DJ472T RES , CHIP 1608 SIZE 1
R287 CRJ10DJ113T RES, CHIP 1608 SIZE 1
R301 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R302 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R377 CRJ10DJ221T RES , CHIP 1608 SIZE 1
R407 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R408 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R409 CRJ10DJ100T RES , CHIP 1608 SIZE 1
R410 CRJ10DJ103T RES , CHIP 1608 SIZE 1
R411 CRJ10DJ681T RES, CHIP 1608 SIZE 1
R412 CRJ10DJ681T RES, CHIP 1608 SIZE 1
R413 CRJ10DJ821T RES, CHIP 1608 SIZE 1
R414 CRJ10DJ122T RES , CHIP 1608 SIZE 1
R415 CRJ10DJ152T RES , CHIP 1608 SIZE 1
R416 CRJ10DJ222T RES , CHIP 1608 SIZE 1
R417 CRJ10DJ332T RES , CHIP 1608 SIZE 1
R418 CRJ10DJ472T RES , CHIP 1608 SIZE 1
R419 CRJ10DJ221T RES , CHIP 1608 SIZE 1
R420 CRJ10DJ750T RES , CHIP 1608 SIZE 1
R421 CRJ10DJ680T RES , CHIP 1
R422 CRJ10DJ121T RES , CHIP 1608 SIZE 1
R423 CRJ10DJ820T RES , CHIP 1608 SIZE 1
R424 CRJ10DJ4R7T RES , CHIP 1608 SIZE 1
R425 CRJ10DJ332T RES , CHIP 1608 SIZE 1
R431 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R432 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R433 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R434 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R435 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R436 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R503 CRJ10DJ103T RES , CHIP 1608 SIZE 1
R504 CRJ10DJ473T RES , CHIP 1608 SIZE 1
R505 CRJ10DJ470T RES , CHIP 1608 SIZE 1
R506 CRJ10DJ271T RES , CHIP 1608 SIZE 1
R511 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R512 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R513 CRJ10DJ103T RES , CHIP 1608 SIZE 1
R514 CRJ10DJ100T RES , CHIP 1608 SIZE 1
R515 CRJ10DJ103T RES , CHIP 1608 SIZE 1
R516 CRJ10DJ103T RES , CHIP 1608 SIZE 1
R517 CRJ10DJ103T RES , CHIP 1608 SIZE 1
R518 CRJ10DJ103T RES , CHIP 1608 SIZE 1
R519 CRJ10DJ473T RES , CHIP 1608 SIZE 1
R522 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R533 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R544 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R549 CRJ10DJ104T RES , CHIP 1608 SIZE 1
R552 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R553 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R561 CRJ10DJ473T RES , CHIP 1608 SIZE 1
R564 CRJ10DJ472T RES , CHIP 1608 SIZE 1
R593 CRJ10DJ330T RES , CHIP 1608 SIZE 1
R619 CRJ10DJ101T RES , CHIP 1608 SIZE 1
Harman Consumer Group International
Harman/Kardon DVD27/230
DVD27/230 MAIN + FRONT PCB ASS'Y
Ref# Part Number Description 1 Description 2 Qty
R633 CRJ10DJ272T RES , CHIP 1
R634 CRJ10DJ272T RES , CHIP 1
R635 CRJ10DJ512T RES , CHIP 1608 SIZE 1
R636 CRJ10DF4990T RES, CHIP 499 OHM/1608/1% 1
R637 CRJ10DF4990T RES, CHIP 499 OHM/1608/1% 1
R639 CRJ10DJ561T RES , CHIP 1
R640 CRJ10DJ472T RES , CHIP 1608 SIZE 1
R641 CRJ10DJ224T RES , CHIP 1
R642 CRJ10DJ224T RES , CHIP 1
R643 CRJ10DJ472T RES , CHIP 1608 SIZE 1
R644 CRJ10DJ272T RES , CHIP 1
R645 CRJ10DJ272T RES , CHIP 1
R646 CRJ10DJ152T RES , CHIP 1608 SIZE 1
R647 CRJ10DJ152T RES , CHIP 1608 SIZE 1
R649 CRJ10DJ561T RES , CHIP 1
R650 CRJ10DJ473T RES , CHIP 1608 SIZE 1
R653 CRJ10DJ512T RES , CHIP 1608 SIZE 1
R654 CRJ10DF4990T RES, CHIP 499 OHM/1608/1% 1
R655 CRJ10DF4990T RES, CHIP 499 OHM/1608/1% 1
R660 CRJ10DJ152T RES , CHIP 1608 SIZE 1
R662 CRJ10DJ512T RES , CHIP 1608 SIZE 1
R663 CRJ10DJ512T RES , CHIP 1608 SIZE 1
R665 CRJ10DJ152T RES , CHIP 1608 SIZE 1
R726 CRJ10DJ474T RES, CHIP 1608 SIZE 1
R727 CRJ10DJ221T RES , CHIP 1608 SIZE 1
R728 CRJ10DJ223T RES , CHIP 1608 SIZE 1
R729 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R730 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R733 CRJ10DJ222T RES , CHIP 1608 SIZE 1
R734 CRJ10DJ222T RES , CHIP 1608 SIZE 1
R739 CRJ10DJ224T RES , CHIP 1
R740 CRJ10DJ224T RES , CHIP 1
R801 CRJ10DJ820T RES , CHIP 1608 SIZE 1
R802 CRJ10DJ820T RES , CHIP 1608 SIZE 1
R803 CRJ10DJ820T RES , CHIP 1608 SIZE 1
R804 CRJ10DJ823T RES , CHIP 1
R806 CRJ10DJ680T RES , CHIP 1
R807 CRJ10DJ680T RES , CHIP 1
R808 CRJ10DJ680T RES , CHIP 1
R809 CRJ10DJ680T RES , CHIP 1
R810 CRJ10DJ471T RES , CHIP 1608 SIZE 1
R811 CRJ10DJ471T RES , CHIP 1608 SIZE 1
R812 CRJ10DJ102T RES , CHIP 1608 SIZE 1
R813 CRJ10DJ821T RES, CHIP 1608 SIZE 1
R814 CRJ10DJ750T RES , CHIP 1608 SIZE 1
R815 CRJ10DJ181T RES , CHIP 1608 SIZE 1
R816 CRJ10DJ390T RES, CHIP 1608 SIZE 1
R817 CRJ10DJ750T RES , CHIP 1608 SIZE 1
R818 CRJ10DJ750T RES , CHIP 1608 SIZE 1
R821 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R823 CRJ10DJ0R0T RES , CHIP 1608 SIZE 1
R824 CRJ10DJ680T RES , CHIP 1
R825 CRJ10DJ101T RES , CHIP 1608 SIZE 1
R826 CRJ10DJ222T RES , CHIP 1608 SIZE 1
R827 CRJ10DJ221T RES , CHIP 1608 SIZE 1
R828 CRJ18AJ221T RES , CHIP 1
R829 CRJ10DJ104T RES , CHIP 1608 SIZE 1
R830 CRJ10DJ390T RES, CHIP 1608 SIZE 1
R831 CRJ10DJ620T RES , CHIP 1
R832 CRJ10DJ102T RES , CHIP 1608 SIZE 1
R878 CRJ10DJ104T RES , CHIP 1608 SIZE 1
R879 CRJ10DJ101T RES , CHIP 1608 SIZE 1
R880 CRJ10DJ221T RES , CHIP 1608 SIZE 1
R895 CRJ10DJ221T RES , CHIP 1608 SIZE 1
R896 CRJ10DJ620T RES , CHIP 1
X101 HOX27000E180S CRYSTAL , CHIP(27MHZ,SMD) HC-49/US 1
C105 CCEA1CH470T CAP , ELECT 47UF 16V 1
C116 CCEA1CH101T CAP , ELECT 100UF 16V 1
C118 CCEA1AH471T CAP , ELECT 470UF 10V 1
C119 CCEA1AH471T CAP , ELECT 470UF 10V 1
C121 CCEA1CH101T CAP , ELECT 100UF 16V 1
C137 CCEA1CH470T CAP , ELECT 47UF 16V 1
Harman Consumer Group International
Harman/Kardon DVD27/230
DVD27/230 MAIN + FRONT PCB ASS'Y
Ref# Part Number Description 1 Description 2 Qty
C155 CCEA1CH470T CAP , ELECT 47UF 16V 1
C177 CCEA1CH101T CAP , ELECT 100UF 16V 1
C182 CCEA1CH470T CAP , ELECT 47UF 16V 1
C184 CCEA1CH470T CAP , ELECT 47UF 16V 1
C202 CCEA1CH470T CAP , ELECT 47UF 16V 1
C203 CCEA1CH470T CAP , ELECT 47UF 16V 1
C206 CCEA1CH470T CAP , ELECT 47UF 16V 1
C213 CCEA1CH221T CAP , ELECT 1
C219 CCEA1CH470T CAP , ELECT 47UF 16V 1
C221 CCEA1CH101T CAP , ELECT 100UF 16V 1
C223 CCEA1CH101T CAP , ELECT 100UF 16V 1
C224 CCEA1CH101T CAP , ELECT 100UF 16V 1
C226 CCEA1CH101T CAP , ELECT 100UF 16V 1
C233 CCEA1CH101T CAP , ELECT 100UF 16V 1
C241 CCEA1CH470T CAP , ELECT 47UF 16V 1
C251 CCEA1CH470T CAP , ELECT 47UF 16V 1
C258 CCEA1HH4R7T CAP , ELECT 4.7UF 50V 1
C301 CCEA1CH101T CAP , ELECT 100UF 16V 1
C302 CCEA1CH221T CAP , ELECT 1
C404 CCEA1CKS470T CAP , ELECT 47UF/16V 1
C433 CCEA1CH101T CAP , ELECT 100UF 16V 1
C504 CCEA1EH221T CAP , ELECT 220UF 25V 1
C508 CCEA1EH221T CAP , ELECT 220UF 25V 1
C510 CCEA1HH4R7T CAP , ELECT 4.7UF 50V 1
C530 CCEA1CH221T CAP , ELECT 1
C532 CCEA1CH221T CAP , ELECT 1
C548 CCEA1CH221T CAP , ELECT 1
C549 CCEA1CH221T CAP , ELECT 1
C561 CCEA1CH100T CAP , ELECT 1
C562 CCEA1HH1R0T CAP , ELECT 1
C582 CCEA1CH470T CAP , ELECT 47UF 16V 1
C620 CCEA1CH101T CAP , ELECT 100UF 16V 1
C623 CCEA1CH101T CAP , ELECT 100UF 16V 1
C648 CCEA1HH100T CAP , ELECT 1
C649 CCEA1HH100T CAP , ELECT 1
C650 CCEA1HH100T CAP , ELECT 1
C651 CCEA1CH101T CAP , ELECT 100UF 16V 1
C652 CCEA1HH100T CAP , ELECT 1
C667 CCEA1CH101T CAP , ELECT 100UF 16V 1
C668 CCEA1CH100T CAP , ELECT 1
C669 CCEA1HH100T CAP , ELECT 1
C674 CCEA1CH100T CAP , ELECT 1
C675 CCEA1CH100T CAP , ELECT 1
C733 CCEA1HH3R3T CAP , ELECT 1
C795 CCEA1CH221T CAP , ELECT 1
C801 CCEA1AH331T CAP , ELECT 1
C802 CCEA1AH331T CAP , ELECT 1
C803 CCEA1CH220T CAP , ELECT 1
C804 CCEA1CH101T CAP , ELECT 100UF 16V 1
C805 CCEA0JH102T CAP , ELECT 1000UF 6.3V 1
C811 CCEA1AH331T CAP , ELECT 1
C813 CCEA1AH331T CAP , ELECT 1
C815 CCEA1AH331T CAP , ELECT 1
C818 CCEA1AH331T CAP , ELECT 1
C825 CCEA1HH100T CAP , ELECT 1
C826 CCEA1CH470T CAP , ELECT 47UF 16V 1
C827 CCEA1CH470T CAP , ELECT 47UF 16V 1
C829 CCEA1AH471T CAP , ELECT 470UF 10V 1
C835 CCEA1CH221T CAP , ELECT 1
C882 CCEA1AH471T CAP , ELECT 470UF 10V 1
C891 CCEA1AH471T CAP , ELECT 470UF 10V 1
IC50 HVIKA79L08AZT REGULATOR, -8V KA79LXXAZTA 1
Q605 HVTKSA916YT T.R 1
S401 HST1A020ZT SW , TACT 1
S402 HST1A020ZT SW , TACT 1
S403 HST1A020ZT SW , TACT 1
S404 HST1A020ZT SW , TACT 1
S405 HST1A020ZT SW , TACT 1
S406 HST1A020ZT SW , TACT 1
S407 HST1A020ZT SW , TACT 1
S408 HST1A020ZT SW , TACT 1
BN01 CWB1C912060EN WIRE ASS'Y 1
Harman Consumer Group International
Harman/Kardon DVD27/230
DVD27/230 MAIN + FRONT PCB ASS'Y
Ref# Part Number Description 1 Description 2 Qty
BN07 CWB1A906190EN WIRE ASS'Y 1
CN03 CJP07GA01ZY WAFER, STRAIGHT, 7PIN 1
CN04 CJP15GA117ZY WAFER , CARD CABLE 1
CN05 CJP15GB113ZY WAFER 1
CN07 CJP06GA19ZY WAFER, STRAIGHT, 6PIN 1
CN12 CJP05GA19ZY WAFER, STRAIGHT, 5PIN 1
CN13 CJP06GA19ZY WAFER, STRAIGHT, 6PIN 1
D103 KVD1N4003ST DIODE 1N4003 1
D104 KVD1N4003ST DIODE 1N4003 1
D105 KVD1N4003ST DIODE 1N4003 1
D106 KVD1N4003ST DIODE 1N4003 1
D112 HVDMTZJ30BT DIODE , ZENER 1
D401 CVD50BOBBWGA L.E.D , 2 COLOR (ORG , BLUE) TOL-50BOBBWGA 1
ET02 CMC1A111 PLATE , EARTH 1
F401 HFL11BT242GNK F.I.P 11-BT-242GNK (F 1
IC46 BVIKP1010B IC, PHOTO COUPLER 1
IC49 HVIKIA7808API REGULATOR, +8V KIA7808 (KEC) 1
IC61 HRVKSM603TH2 REMOCON SENSER CN KSM-603TH2 1
JK02 CJJ4N067Z 2P, JACK RCA-201DAG-01 1
JK03 CJJ4S043Z JACK , BOARD 1
JK04 CJJ9N003Z JACK , (S-VIDEO+VHS) 1
JK05 CJJ6K003Z JACK, SCART CS-1071PB 1
JK06 HJS9U008Z Optical+Coaxial Jack (Gold Plate) YKC22-0732N 1
JK08 HJJ1D002Z JACK, HOSIDEN SR7400 1
R673 CRD25TJ681T RES , CARBON 1
X501 HOX08000E160C CRYSTAL 1
Harman Consumer Group International
TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE
SYMPTOM POSSIBLE CAUSE SOLUTION
Unit does not turn on • No AC power • Check AC power plug and make certain any switched
outlet is turned on.
Disc does not play • Disc loaded improperly • Load disc label-side up; align the disc with the guides and
place it in its proper position.
• Incorrect disc type • Check to see that disc is CD, CD-R, CD-RW,VCD, MP3, WMA, JPEG,
DVD-R, DVD-RW, DVD+R, DVD+RW (standard conforming) or
DVD-Video; other types will not play.
• Invalid Region Code • Use Region 1 or Open Region (0) disc only.
• Rating is above parental preset • Enter password to override or change rating settings (see page 18).
No picture • Intermittent connections • Check all video connections.
• Wrong input • Check input selection of TV or receiver.
• Progressive Scan output selected • Use Progressive Scan mode only with compatible TV. If needed, press the
Progressive Scan/Interlaced Button H to toggle to the correct mode.
• Video Off feature active • Press
No sound • Intermittent connections • Check all audio connections.
• Incorrect digital audio selection • Check digital audio settings.
• DVD disc is in fast or slow mode • There is no audio playback on DVD discs during fast or slow modes.
• Surround receiver not compatible • Use analog audio outputs.
with 96kHz PCM audio
Video Off ButtonFto reactivate video circuitry
(see page 20).
Picture is distorted or jumps during • MPEG-2 decoding • It is a normal artifact of DVD playback for pictures to jump
fast forward or reverse play or show some distortion during rapid play.
Some remote buttons do not operate • Function not permitted at this time • With most discs, some functions are not permitted at certain
during DVD play; prohibited symbol times (e.g., Track Skip) or at all (e.g., direct audio track selection).
appears (see below)
The OSD menu is in a foreign language • Incorrect OSD language • Change the display language selection (see page 18).
The symbol appears • Requested function not available at • Certain functions may be disabled by the DVD itself during
this time passages of a disc.
Picture is displayed in the • Incorrect match of aspect ratio settings • Change aspect ratio settings (see page 19).
wrong aspect ratio to disc
Remote control inoperative • Weak batteries • Change both batteries.
• Sensor is blocked • Clear path to sensor or use optional outboard remote sensor.
Disc will not copy to VCR • Copy protection • Many DVDs are encoded with copy protection to prevent
copying to VCR.
Password not accepted. • Incorrect password being used or • Stop play of disc. Press and hold the
password has been forgotten. blinks. This resets the password and all settings to their defaults.
Clear Button 3 until the display
34 TROUBLESHOOTING GUIDE
Harman Consumer Group International
IC47
TC74HCT7007
IC 15
AT2408A
IC 42
BA7660FS
IC 21
M29W160ET
IC22
ML12L64164A-7T
IC 41
BH7862FS
IC 23
AM5888S
IC 45
ST72F324KR
IC PIN OUT
DISASSEMBLY
Harman Consumer Group International
DVD27/230
1. Removing the Top Cabinet
Remove the Screws
2
4
1
~
3. Removing the Front Panel
Remove the Screws
1
2
~
4
3
2
1
4. Removing the Rear Panel
Remove the Screws
6
1
~
4
6
5321
1
2. Removing the Bottom Chassis
Remove the Screws
2
2
1
~
1
5. Removing the Main Pcb& Smps Pcb
1
5
Remove the Screws
~
2
3
4
5
1
Harman Consumer Group International
DVD Player Block Diagram (DVD 27)
o
Harman Consumer Group International
T.R MUTE
Control
S
C
A
R
TRAVERSE UNIT
(SANYO PICK-UP HD62)
DV-342FV
OPEN/CLOSE &
SPINDLE MOTOR
& SLED
CONTROL
AM5888S
RF SERVO
ZR36707
16M Bit
FLASH u-COM
M29W160ET70N
27MHz
OSC
M P E G
ZR36778
SDRAM 64M
M12L64164A7T
EEPROM
24C08
VIDEO
T
EUR ONLY
3CH
VIDEO DRV.
BA7660FS
6CH.
VIDEO
DRV.
BH7862FS
Built in
filter
SPDIF OUT Optical
FILTER
Y
Pb
Pr
Comp.
S-Video
Coax.
T.R BUFFER
SMPS Ass'y
COP11840B
Remote
Sensor
Key Pad
SYSTEM u-COM
ST72F324K2
8MHz
OSC
BUFFER
74HCT7007
VFD (Semi Dot Type) 11BT242GNK
I2S DATA
2Ch.
Audio DAC
CS4392KZZ
OPAMP
COUPLER
KP1010B
2Ch. Anal
IN
OUT
SYSTEM

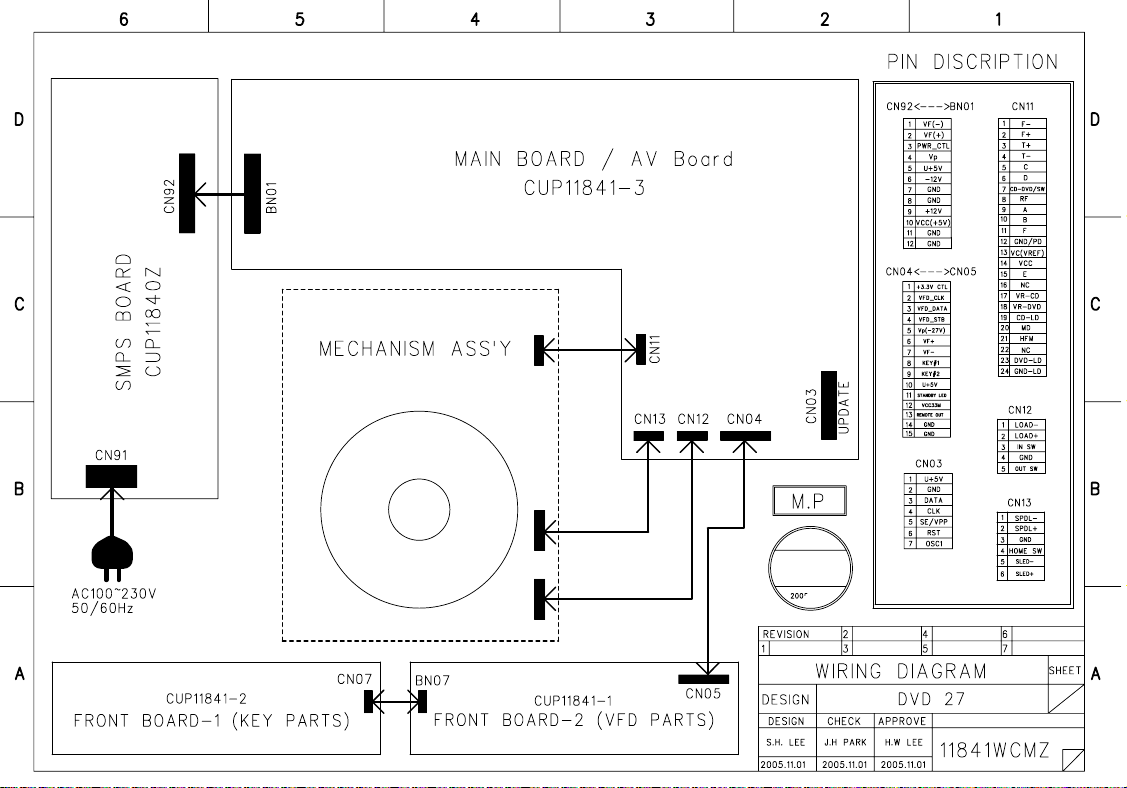

Harman Consumer Group International
Harman Consumer Group International

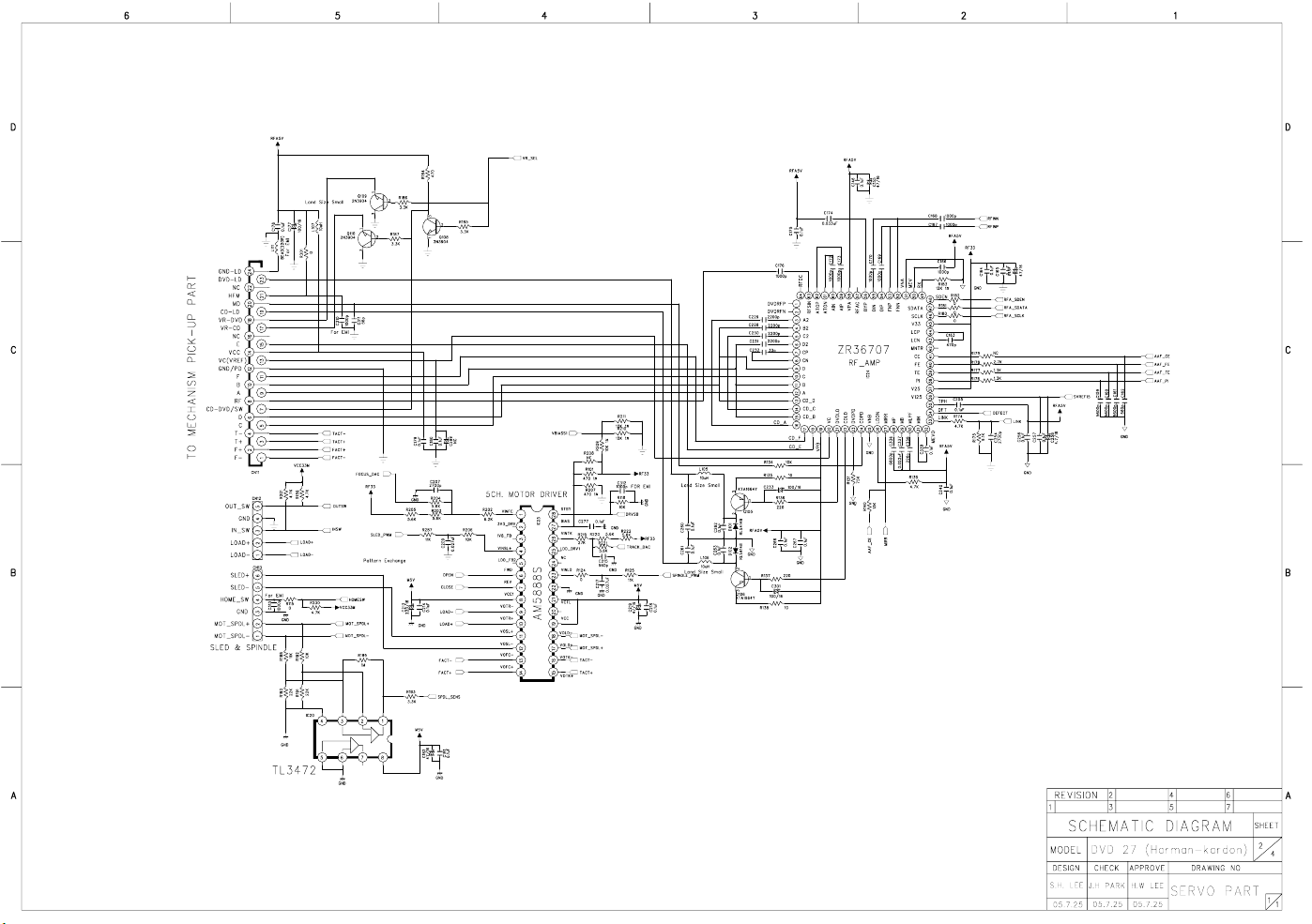

Harman Consumer Group International
Harman Consumer Group International
Harman Consumer Group International
Loading...
