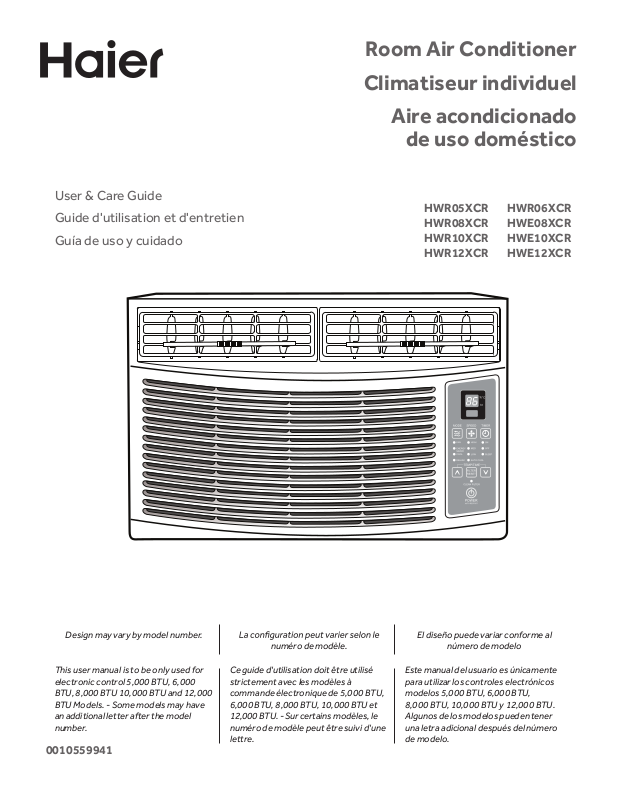

HWE12XCR
User & Care Guide
Guide d'utilisation et d'entretien
Guía de uso y cuidado
Room Air Conditioner
Climatiseur individuel
Aire acondicionado
de uso doméstico
HWR05XCR HWR06XCR
HWR08XCR
HWR10XCR
HWR12XCR
HWE08XCR
HWE10XCR
HWE12XCR
Design may vary by model number.
This user manual is to be only used for
electronic control 5,000 BTU, 6,000
BTU, 8,000 BTU 10,000 BTU and 12,000
BTU Models. - Some models may have
an additional letter after the model
number.
0010559941
numéro de modèle.
Ce guide d'utilisation doit être utilisé
strictement avec les modèles à
commande électronique de 5,000 BTU,
6,000 BTU, 8,000 BTU, 10,000 BTU et
12,000 BTU. - Sur certains modèles, le
numéro de modèle peut être suivi d'une
lettre.
El diseño puede variar conforme al
número de modelo
Este manual del usuario es únicamente
para utilizar los controles electrónicos
modelos 5,000 BTU, 6,000BTU,
8,000 BTU, 10,000 BTU y12,000 BTU.
Algunos de los modelos pueden tener
una letra adicional después del número
de modelo.
TABLE OF CONTENTS
SAFETY INFORMATION............................................................................................................. 2
Important Safety Precautions ................................................................................................ 2-3
Operational Safety & Warnings .................................................................................................. 4
INSTALLATION REQUIREMENTS .............................................................................................5
Tools and Parts ............................................................................................................................ 5
Location Requirements ..............................................................................................................6
Electrical Requirements ......................................................................................................... 7-9
HOW TO INSTALL ....................................................................................................................10
Unpacking the Air Conditioner .................................................................................................10
Preparing the Air Conditioner ............................................................................................10-11
Preparing the Window ..............................................................................................................12
Completing the Installation ......................................................................................................13
USING YOUR AIR CONDITIONER ...........................................................................................14

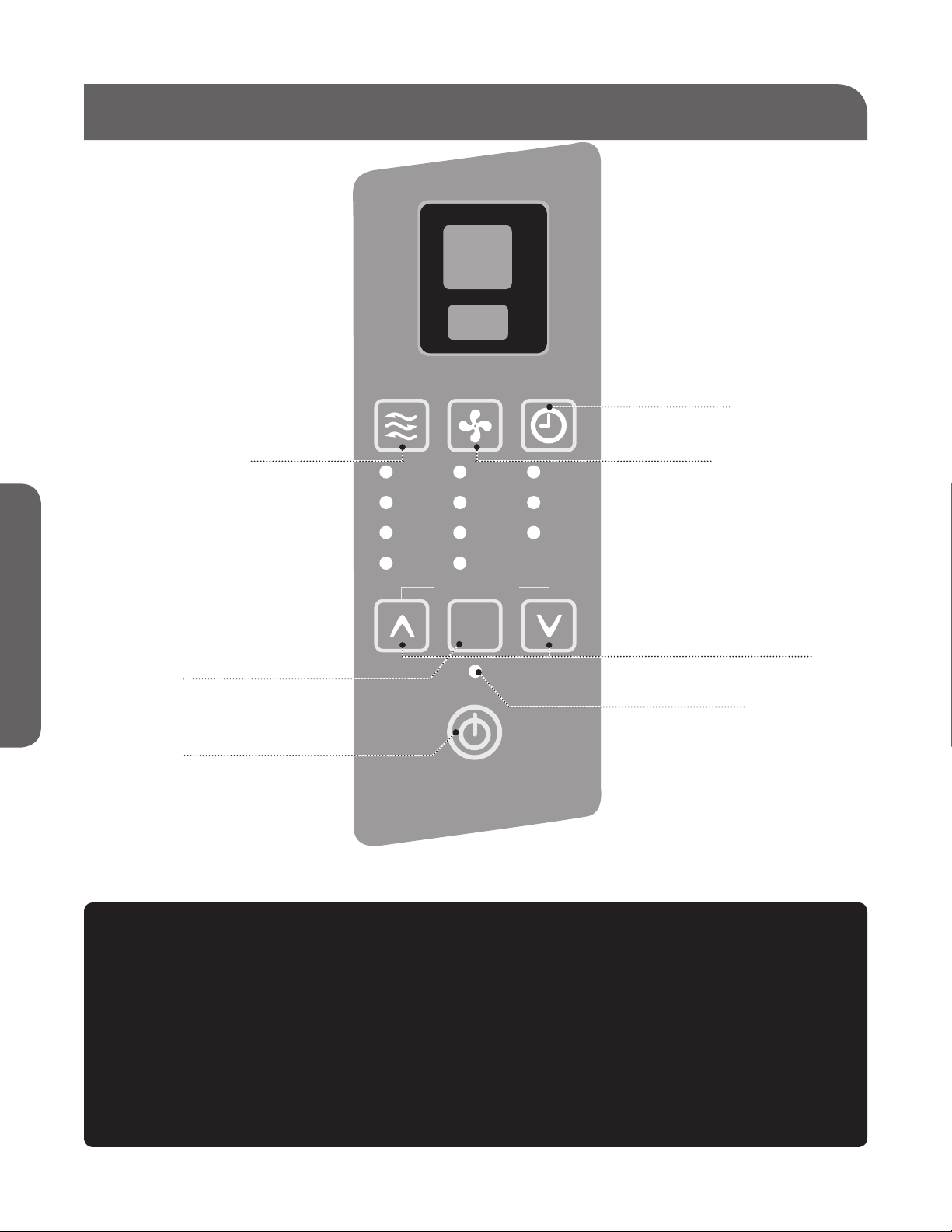

Starting the Air Conditioner ...............................................................................................14-18

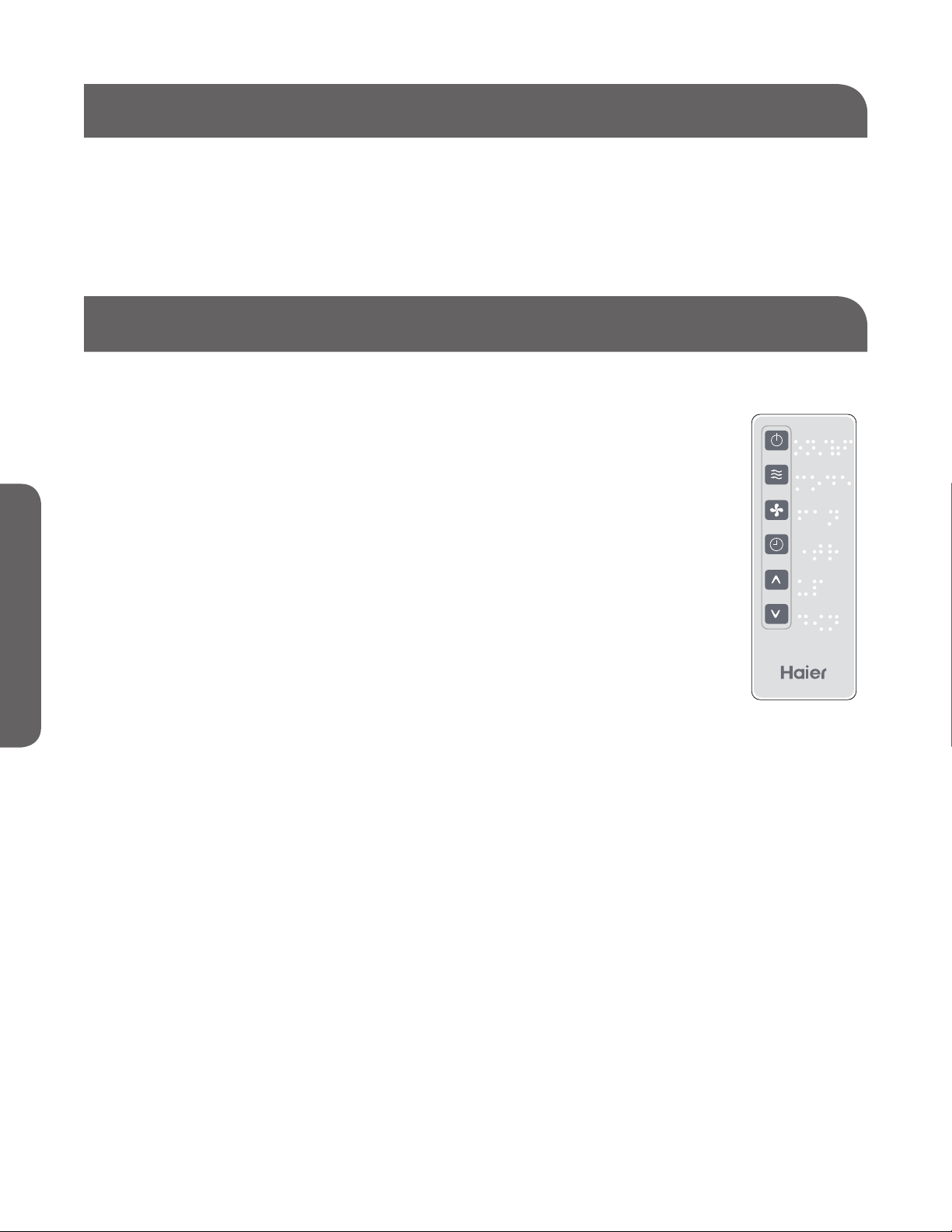

Using the Remote Control ..................................................................................................18-19
Changing the Air Direction .......................................................................................................20
ENGLISH
CARING FOR YOUR AIR CONDITIONER ................................................................................21
Cleaning the Air Filter ...............................................................................................................21
Cleaning the Front Panel ..........................................................................................................22
Customer Service .....................................................................................................................22
Normal Sounds of an Air Conditioner ......................................................................................23
TROUBLESHOOTING ..............................................................................................................24
LIMITED WARRANTY ...............................................................................................................25
PRODUCT REGISTRATION
Thank you for purchasing our Haier
product. This easy-to-use manual will guide
you in getting the best use of your product.
Remember to record the model and serial
numbers. They are on a label on the side of
your unit.
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain warranty service.
ENGLISH
1. Use this air conditioner only for its intended application as described in this
2. This air conditioner must be properly installed and use the correct wall
IMPORTANT SAFETY PRECAUTIONS
WARNING
THE INFORMATION IN THIS USE & CARE GUIDE MUST BE
FOLLOWED TO MINIMIZE THE RISK OF PERSONAL INJURY, FIRE,
ELECTRIC SHOCK OR OTHER UNSAFE CONDITIONS.
THE INSTRUCTIONS IN THIS USE & CARE GUIDE ARE NOT MEANT
TO INCLUDE EVERY POSSIBLE CONDITION OR SITUATION THAT
MAY OCCUR. USE CAUTION AND CARE WHEN INSTALLING, OPERATING
AND CLEANING THE AIR CONDITIONER.
Use & Care Guide.
outlet that matches with the air conditioner’s power supply cord in
accordance with the Installation Section of this Use & Care Guide before
it is operated.
3. Never unplug the air conditioner by pulling on the power supply cord.
Always grip the plug firmly and pull straight out from the wall outlet.
4. Replace the power supply cord immediately if it becomes damaged in any
way. A new power supply cord must be purchased from the air conditioner
manufacturer and installed by a qualified technician. DO NOT use a power
supply cord that is cracked, split, cut, or damaged anywhere along its
length or either at the plug end or connector end.
5. Turn off the air conditioner and unplug it from the wall outlet before
performing any cleaning or maintenance.
6. Do not store or use combustible or flammable materials or liquids on
or near the air conditioner.
7. If the wall outlet configuration does not match the plug configuration
on the air conditioner, the wall outlet must be changed by a qualified
electrician.
PAGE 2 SAFETY INFORMATION
IMPORTANT SAFETY PRECAUTIONS
8. This air conditioner contains R410a refrigerant and requires certified
technicians to use the proper equipment, tools and safety standards that
are approved for this refrigerant. Use only equipment certified for R410a
refrigerant. In addition, under federal law, all refrigerant must be properly
removed from the air conditioner prior to its disposal.
For responsible disposal of the product, please contact your local
municipality for additional recycling options in your area.
READ AND FOLLOW THE
SAFETY INSTRUCTIONS CAREFULLY.
ENGLISH
SAVE THESE INSTRUCTIONS
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the
State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the
State of California to cause birth defects or other reproductive harm.
SAFETY INFORMATION PAGE 3
OPERATIONAL SAFETY & WARNINGS
ENGLISH
1. This air conditioner contains no consumer serviceable parts. If you have
2. Be sure that the air conditioner is properly and securely installed in
3. DO NOT drill any holes in the base or sides of the air conditioner.
4. DO NOT place fingers or objects in the air discharge or air intake in the
5. DO NOT operate the air conditioner with a protective cover on the
6. DO NOT block the air discharge or air intake areas on the front panel.
7. DO NOT block the side louvers on the outside of the air conditioner.
8. DO NOT place any objects either on the indoor or outdoor sections of
problems or questions regarding the operation of your air conditioner
always call Haier Customer Service: 1-877-337-3639.
the window according to the installation instructions included in this
Use & Care Guide.
front of the air conditioner.
outside section.
the air conditioner
9. Operate the air conditioner with the air filter installed.
10. Keep this Use & Care Guide, carton and packing material for future use
in removing, storing and reinstalling the air conditioner.
PAGE 4 SAFETY INFORMATION
TOOLS AND PARTS
Read and follow the instructions provided with any tools listed here.
TOOLS NEEDED
ENGLISH
Phillips head screwdriver
Scissors
Level
Tape measure
Drill and 1/8” bit
Pencil

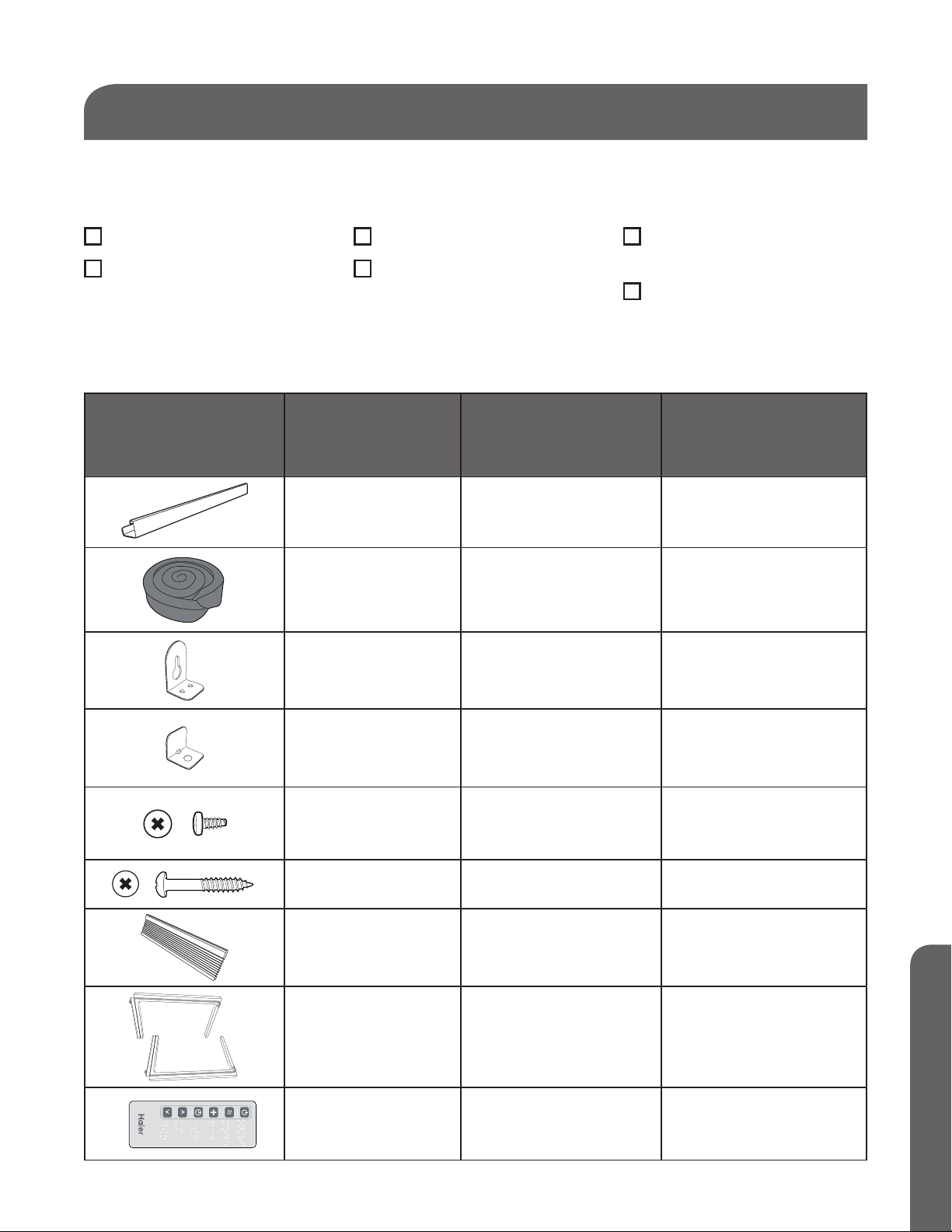

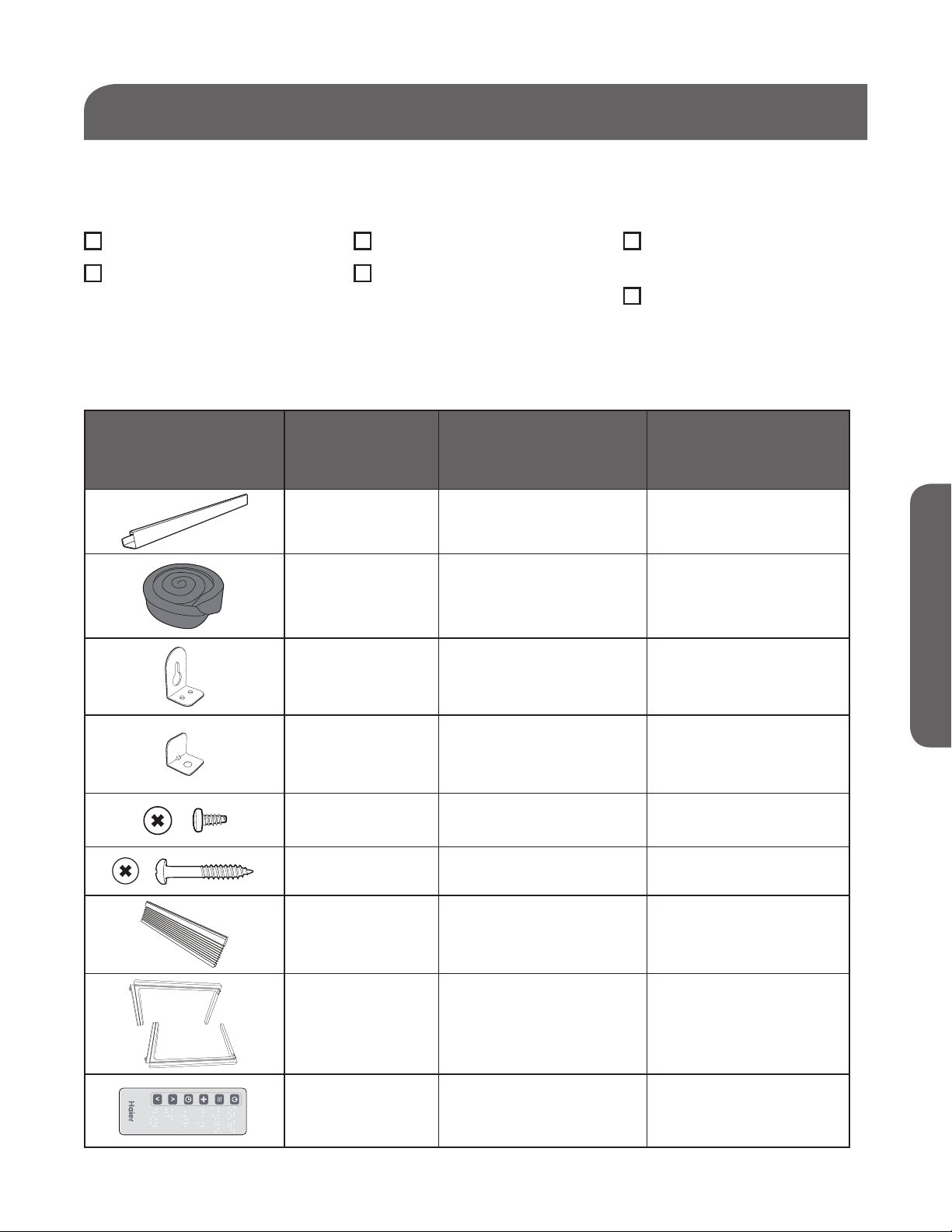

PARTS SUPPLIED:
Check that all parts for your specific air conditioner are included in the parts package.
NOTE: If parts are missing, call Haier Customer Service: 1-877-337-3639.
8,000BTU
IMAGE PART
Top channel
Foam seal
Side bracket
5,000BTU
6,000BTU
1 1
1 1
2 2
10,000BTU
12,000BTU
Window lock
1 1
bracket
3/8" self-
3 4
tapping screws
1" wood screws
Side curtains
Side curtain
9 9
2 2
2 2
frames
ON/OFF
MODE
SPEED
TIMER
TEMP/TIME
TEMP/TIME

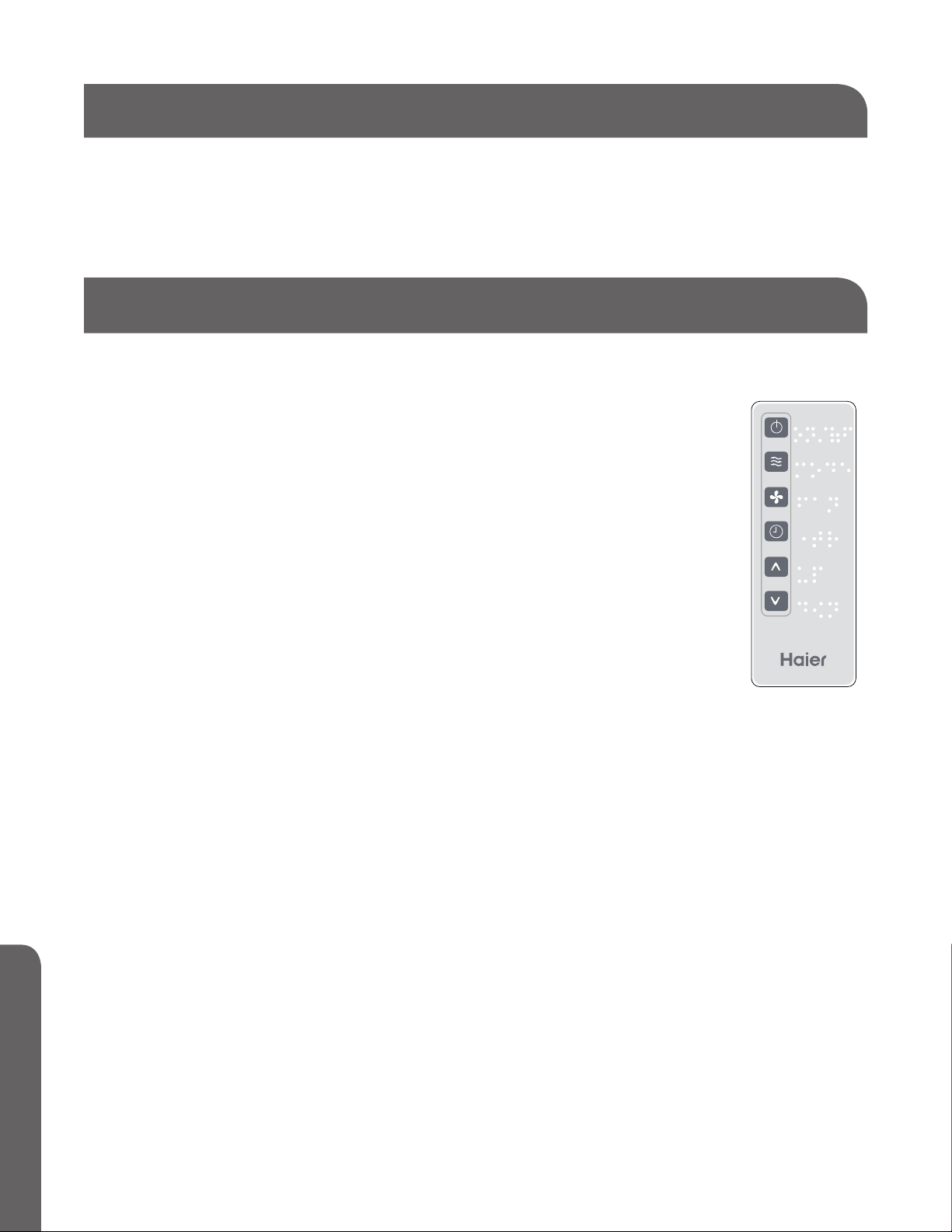

Remote control 1
INSTALLATION REQUIREMENTS PAGE 5
1

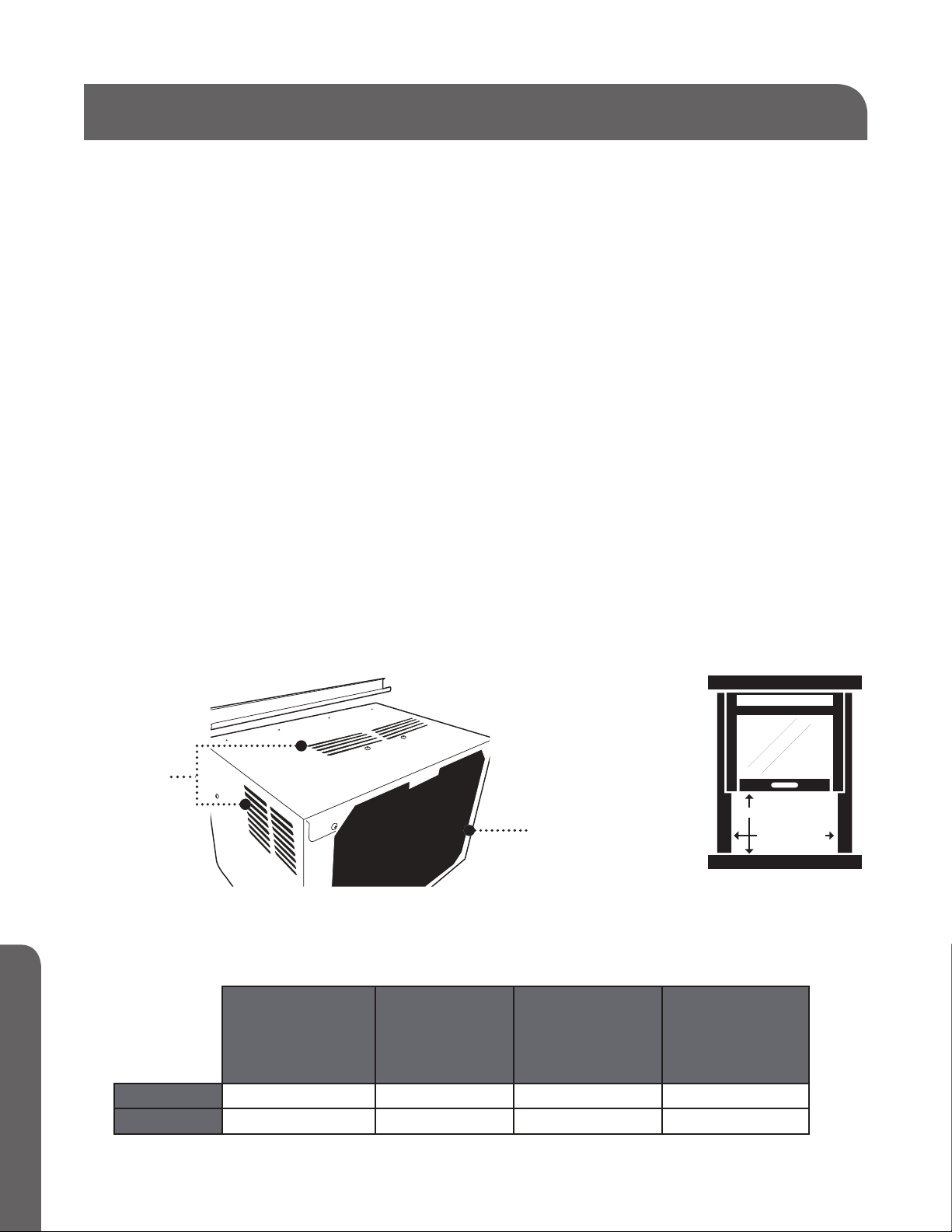

LOCATION REQUIREMENTS
ENGLISH
IMPORTANT: evresbO all governing codes and ordinances. Check the location where the air
THE LOCATION SHOULD PROVIDE:
• A grounded electrical outlet within 6 ft. (183 cm) of where the power supply cord exits the air
NOTE: oD not use an extension cord, plug adapter, surge protector or multi-outlet adapter.
•
•
•
NOTE: The outside cabinet louvers and air discharge must not be obstructed by bushes, trees,
conditioner will be installed. Make sure you have everything necessary for correct
installation.
c
onditioner, for models: ESA405R, ESA406R, ESA408R ,HWR05XCR, HWR06XCR,HWE08XCR
HWE10XCR, HWE12XCR
Free movement of air in the room to be cooled.
A large enough window opening for the air conditioner. (See Fig.2)
The air conditioner must not be installed in a through-the-wall sleeve or in a wall. It can only be
installed in a double-hung wind
ow.

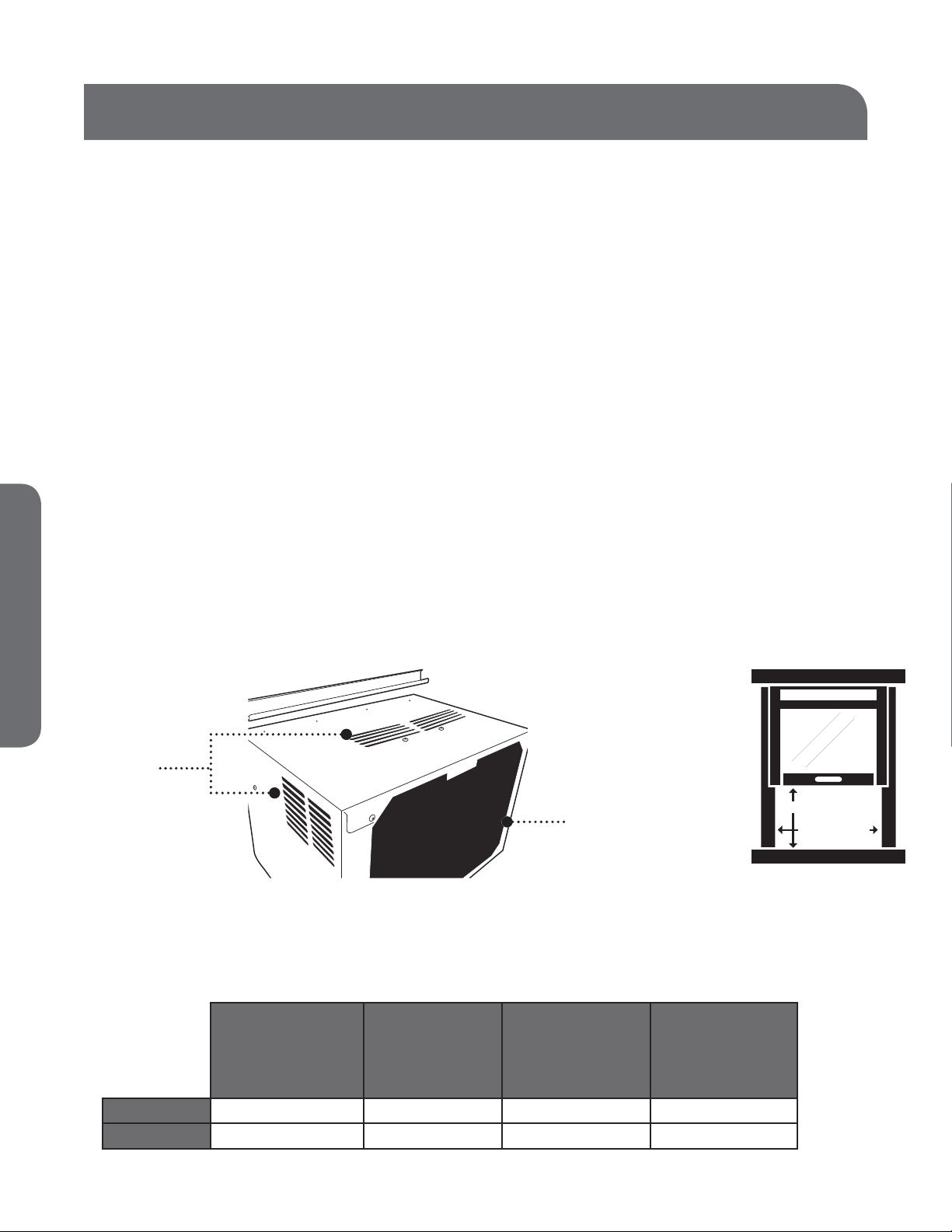

etc. Air must be able to pass freely through the cabinet louvers. (See Fig.1)
Fig. 2
Fig. 1
CABINET LOUVERS
WINDOW INSTALLATION
Window opening measurements:
HWR05XCR HWR06XCR
A. Width
B. Height 13-3/8" 13-3/8" 14-9/16" 14-9/16"
21-7/8" - 36" 24-1/2" - 36" 25" - 36-5/8" 26-1/8" - 37-3/4"
AIR DISCHARGE
HWR08XCR
HWE08XCR
HWR10XCR
HWE10XCR
B-HEIGHT
A-WIDTH
HWR12XCR
HWE12XCR
PAGE 6 INSTALLATION REQUIREMENTS
ELECTRICAL REQUIREMENTS
WARNING
ELECTRICAL SAFETY and WARNINGS
1. DO NOT cut or remove the grounding prong on the attached power supply cord. Doing so may
cause sparks or fire, and voids all warranties. For safety purposes the air conditioner must be
properly grounded.
2. To avoid a fire hazard or possible electric shock, DO NOT use an adapter plug, extension cord,
surge protectors, or multi-outlet adapters with the air conditioner.
3. The power supply cord is equipped with a 3-prong plug which mates with a standard 115 volt
wall outlet to minimize the possibility of electrical shock from this air conditioner.
4. The power supply cord includes a leakage current detection interrupter device (LCDI). A
RESET and TEST button are on the plug case. The device should be tested on a periodic
basis by pressing the TEST button and then the RESET button while it is plugged into the wall
outlet. If the TEST button does not trip or the RESET will not stay engaged, do not use the air
conditioner and contact a qualified service technician.
ENGLISH
5. Have the wall outlet and circuit inspected by a qualified electrician to ensure that the wall outlet
is properly grounded.
6. If there is a 2-prong wall outlet present and not a 3-prong wall outlet, it is the responsibility of
the user to have it replaced with a properly grounded 3-prong outlet.
7. The air conditioner should always be plugged into a dedicated electrical outlet which has a
voltage rating that matches the serial label on the side of the air conditioner.
8. The electrical ratings for your air conditioner are listed on the Model/Serial Number label. The
Model/Serial Number label is located on the side of the air conditioner cabinet.
9. Specific electrical requirements are listed in the chart below. Follow the requirements for the
type of plug on the power supply cord.
POWER SUPPLY CORD
Wiring Requirements
115-Volt (103.5 min. to 126.5 max.)
•
15-Amp time-delay grounded fuse or circuit breaker
•
Use on single outlet circuit only.
•
INSTALLATION REQUIREMENTS PAGE 7
ELECTRICAL REQUIREMENTS cont.
RESET
TEST
ENGLISH

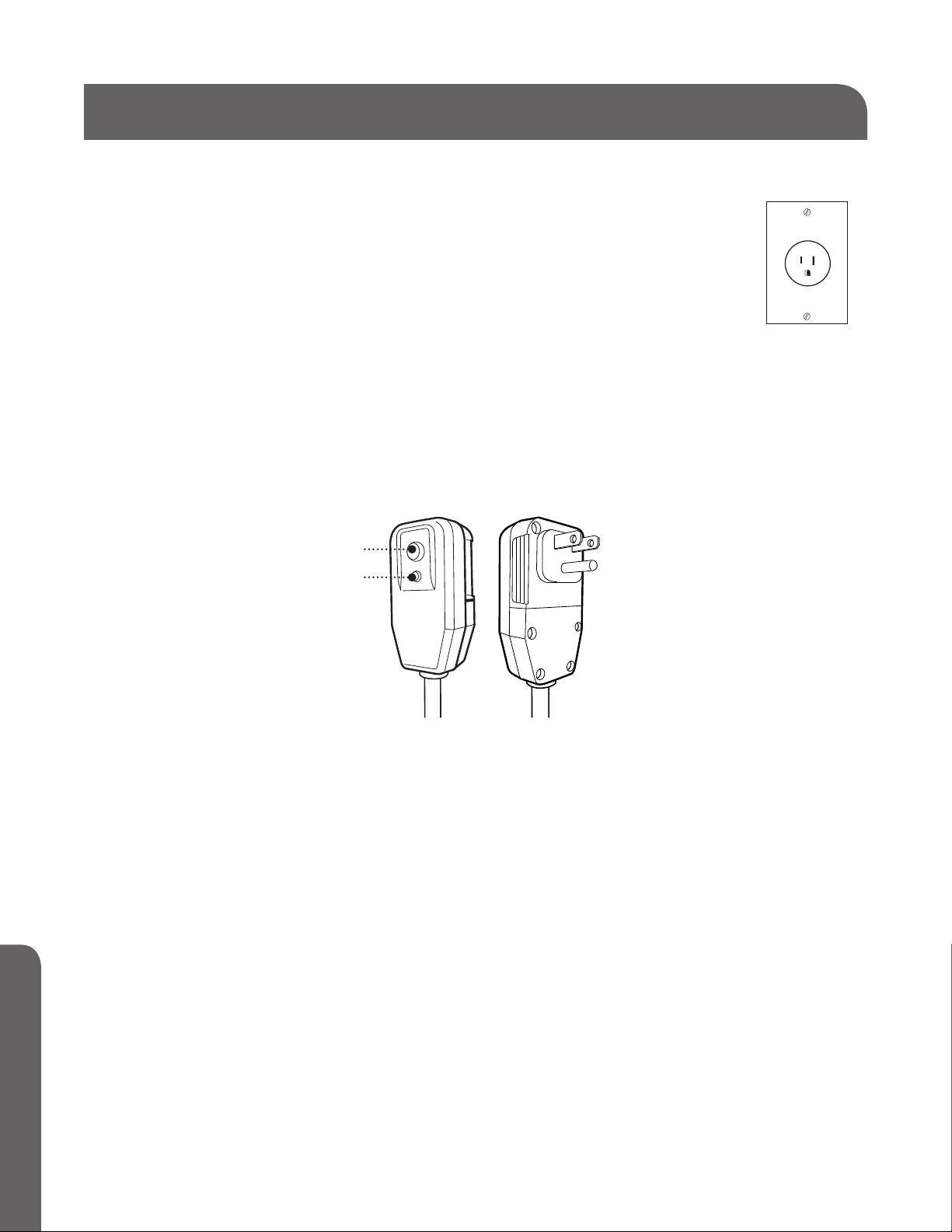

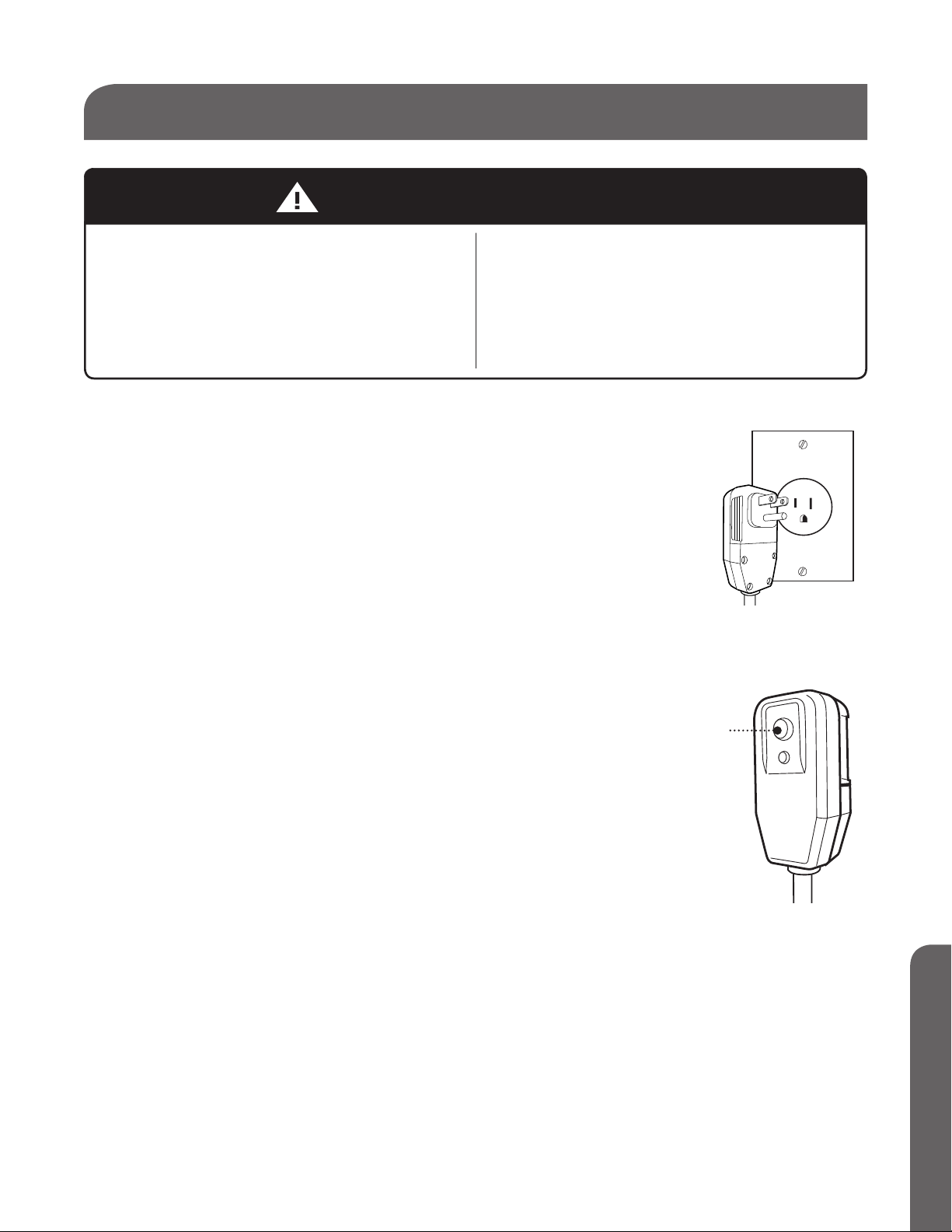

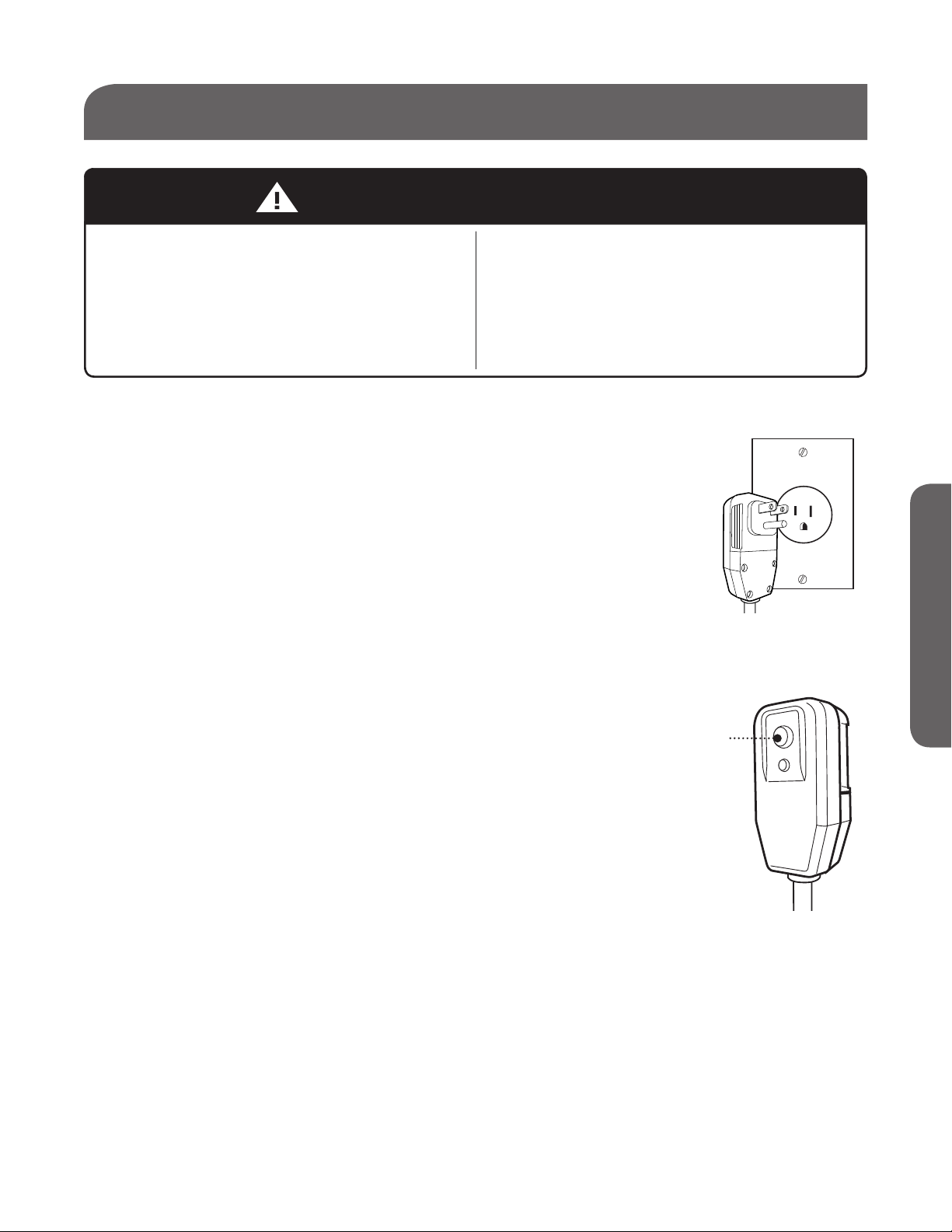

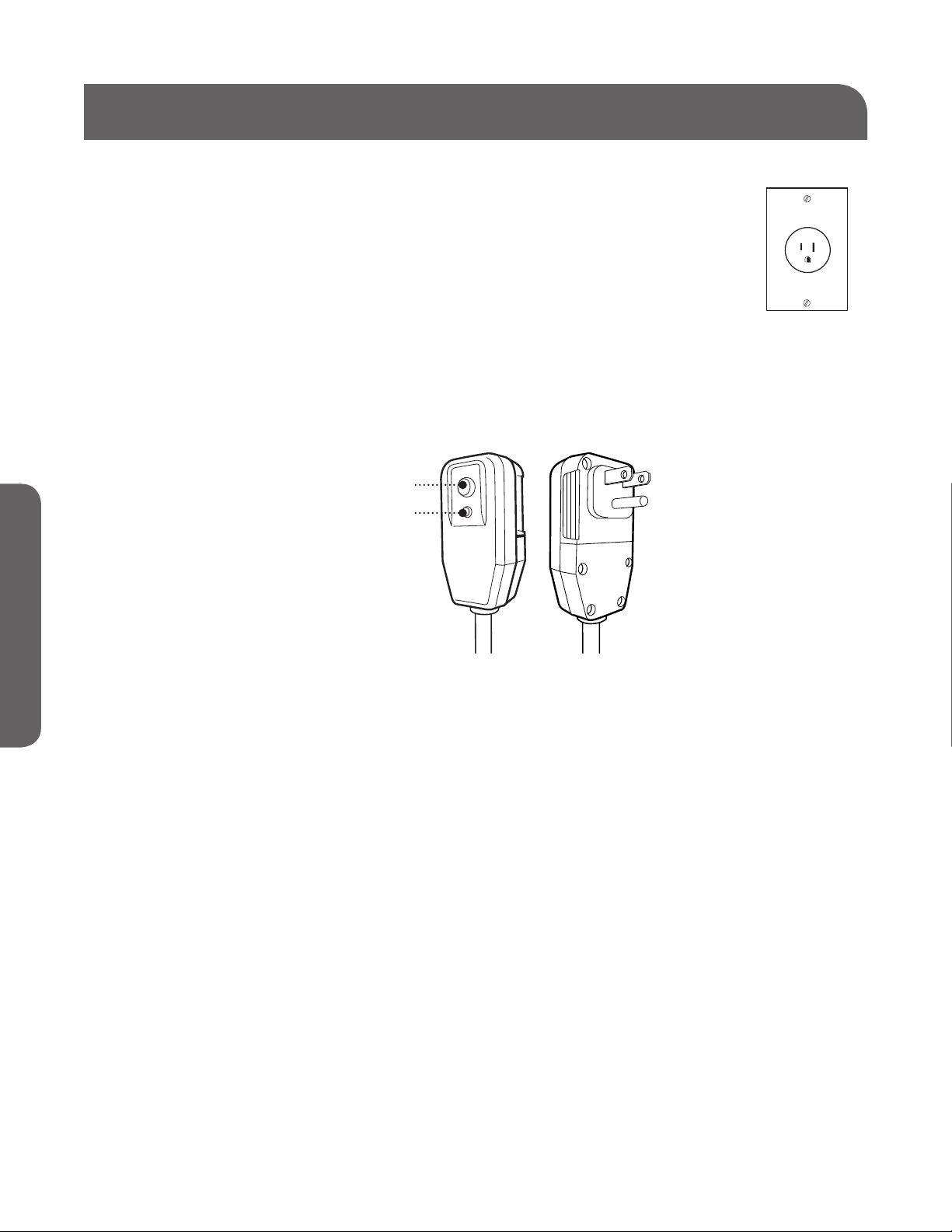

REQUIRED GROUNDING METHOD (See Fig.3)
This air conditioner must be grounded. This air conditioner is equipped with
a power supply cord that has a 3 prong grounding plug. The power supply
cord must be plugged into a mating, grounded 3 prong outlet, and grounded
in accordance with all local codes and ordinances. If a mating outlet is not
available, it is the customer’s responsibility to contact a qualified electrician
and ensure that a properly grounded 3 prong outlet is installed.
POWER SUPPLY CORD (See Fig.4)
NOTE: Your air conditioner's plug may differ slightly in appearance from the one shown.
A. Reset button
B. Test button
Fig. 3
A
B
Fig. 4
This room air conditioner is equipped with an a leakage current detection interrupter (LCDI)
power supply cord required by UL. This power supply cord contains a current detection device.
If the power supply cord is crushed, this device will detect current leakage and power will be
disconnected from the air conditioner. If this power supply cord is damaged, it cannot be
repaired and must be replaced with a cord from the product manufacturer. If the power supply
cord is damaged call Haier Customer Service: 1-877-337-3639.
PAGE 8 INSTALLATION REQUIREMENTS
ELECTRICAL REQUIREMENTS cont.
WARNING
• Electrical shock hazard
• Plug into a mating, grounded 3 prong
outlet.
• Do not remove the ground prong from the
power supply cord.
TO TEST YOUR POWER SUPPLY CORD:
ENGLISH
• Do not use a plug adapter, extension cord,
surge protector, or multi-outlet adapter
• Failure to follow these instructions can
result in injury, fire, or electrical shock.
1. Plug power supply cord into a mating, grounded 3 prong outlet.
(See Fig.5)
2. Press RESET (on some devices, a green light will turn on).
3. Press TEST (listen for click; Reset button will trip, and on some devices,
a green light will turn off).
4. Press and release RESET (listen for click; Reset button will latch, and on
some devices, a green light will turn on). The power supply cord is ready
for operation.
NOTE:
The RESET button must be pushed in completely for proper operation.
•
(See Fig.6)
The power supply cord must be replaced if it fails to trip when the test
•
button is pressed or fails to reset.
DO NOT turn the air conditioner on or off by unplugging the power
•
supply cord from the outlet. Always turn the air conditioner on or off at
the control panel or by using the remote control.
A damaged power supply cord must be replaced with a new power
•
supply cord obtained from the product manufacturer and installed my
a qualified service professional. It cannot be purchased at a retail store
and must not be repaired by the user.
Fig. 5
RESET
Fig. 6
TEST
If the power supply cord is damaged please call Haier Customer Service:
1-877-337-3639.
The power supply cord contains no user-serviceable parts.
•
• Opening the tamper-resistant case voids all manufacturer warranties.
INSTALLATION REQUIREMENTS PAGE 9
ENGLISH
REMOVE PACKAGING MATERIALS
•
NOTE: There are NO internal packing materials inside the air conditioner to remove―Do Not
•
•
UNPACKING THE AIR CONDITIONER
WARNING
EXCESSIVE WEIGHT HAZARD
When moving or lifting the air conditioner, use two or more people.
Wear gloves when handling the air conditioner to protect against
possible sharp edges and metal fins.
Remove packaging materials. Save the carton and the foam packaging for storing the unit when
not in use.
open the cabinet.
Handle the air conditioner gently.
Keep the air conditioner upright and level. Do not set the air conditioner on its side, front, back
or upside down.
The air conditioner must be standing upright for 2 hours prior to installation and operation.
•

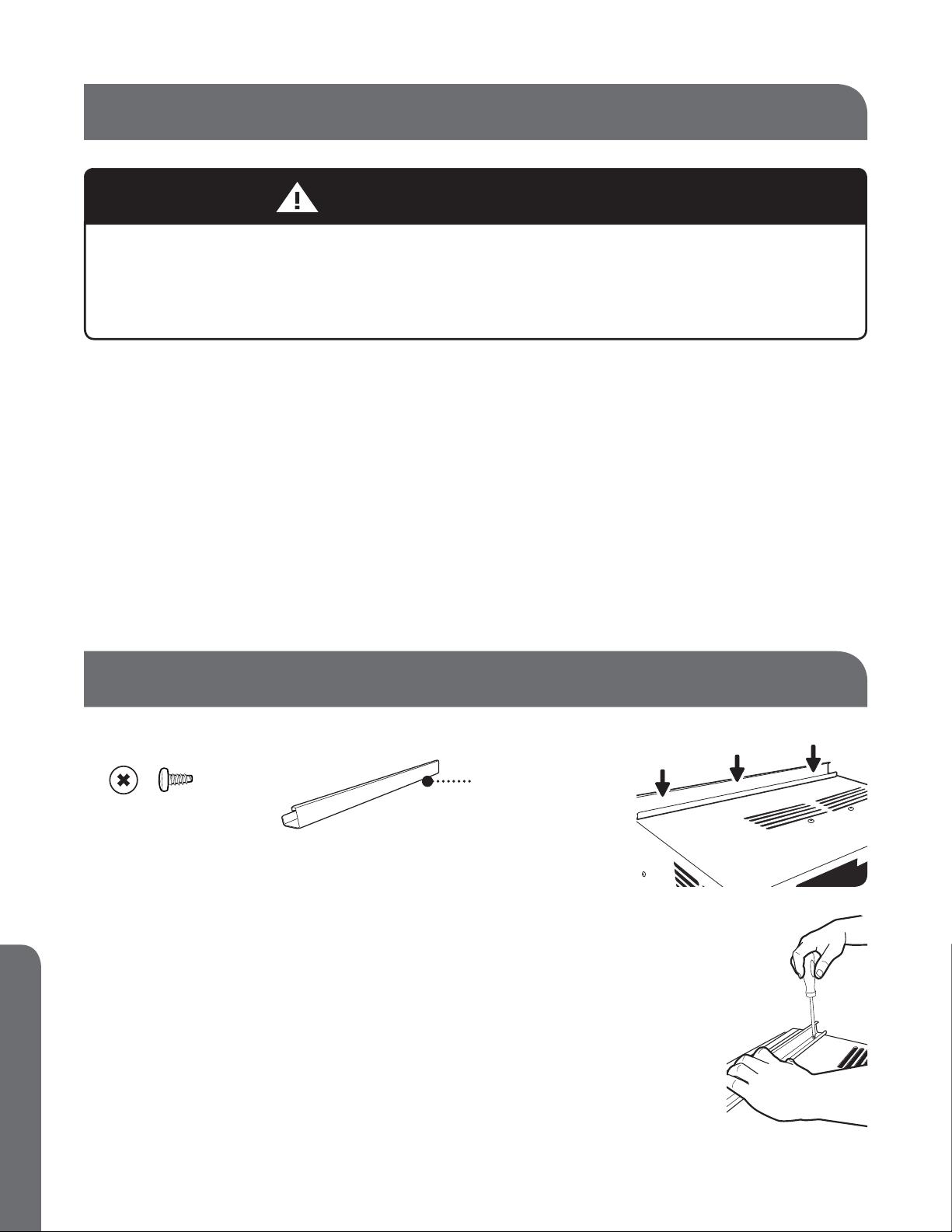

PREPARING THE AIR CONDITIONER

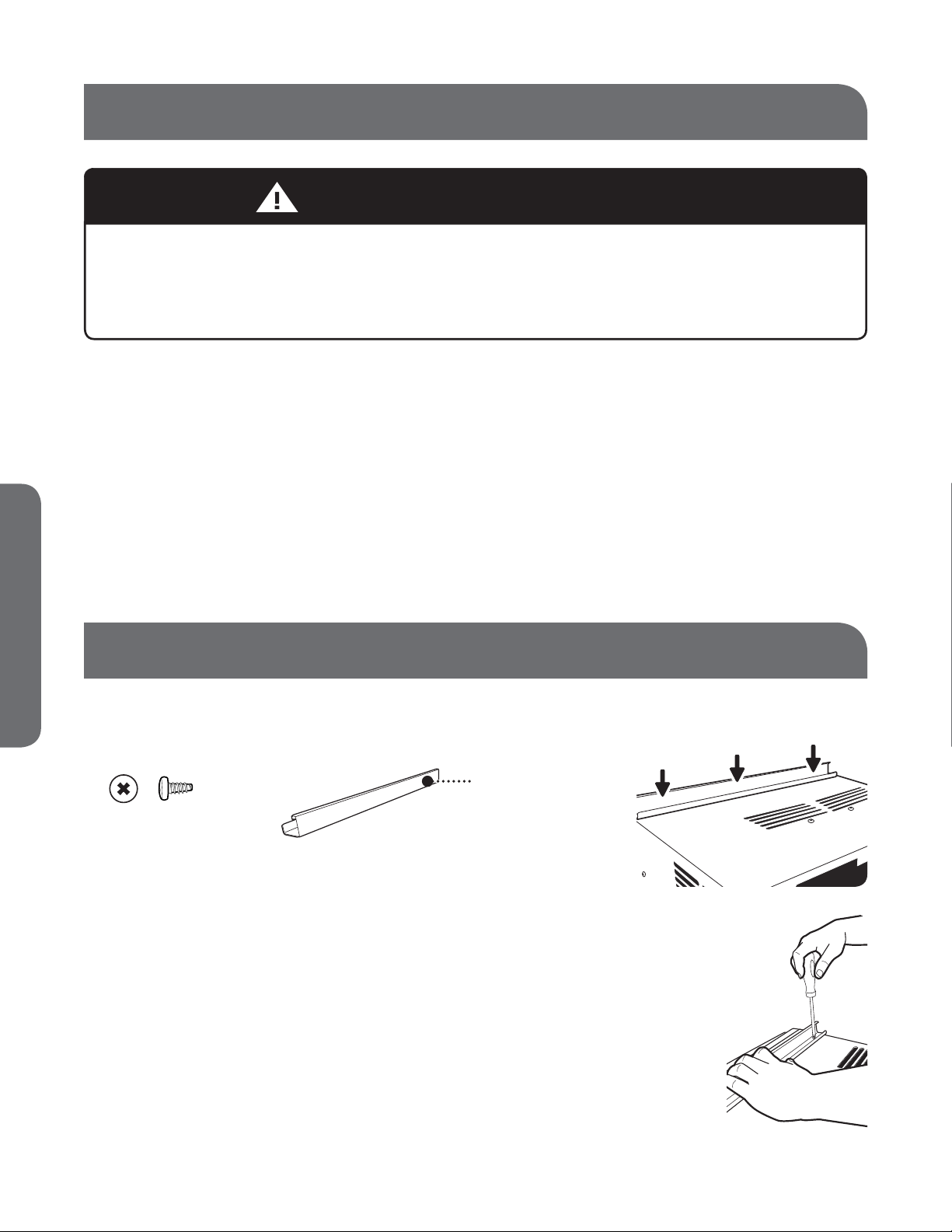

INSTALL TOP CHANNEL
Front
3/8" Screw
(Actual Size)
1. Place the top channel on the top of the air conditioner, lining up
the holes in the top channel with the holes in the top of the unit.
Make sure the channel is facing forward as indicated by the
illustrations. (See Fig.7 & 8)
2. Using 3/8" self-tapping screws, attach the top channel to the top
of the air conditioner. (See Fig.8)
Use three (3) 3/8" self-tapping screws for models:
HWR05XCR, HWR06XCR
Top Channel
Fig. 7
Fig. 8
Use four (4) 3/8" self-tapping screws for models:
HWE08XCR, HWE10XCR, HWE12XCR, HWR08XCR, HWR10XCR,
HWR12XCR
PAGE 10 HOW TO INSTALL
PREPARING THE AIR CONDITIONER cont.
INSTALL SIDE CURTAINS
NOTE: Attach side curtains to the air conditioner before placing the unit in the window.
1. Place the tabbed side of the side curtain in
the track on the right-hand side of the air conditioner cabinet. (See Fig.9)
Fig. 9 Fig. 10
ENGLISH
TABBED SIDE OF
SIDE CURTAIN
2. Slide the tabbed side of the side curtain down over
all 3 tracks until the curtain is aligned with the top and bottom
of the air conditioner cabinet. (See Fig.11)
3. Slide the side curtain frame over the top of the side curtain, then
into the channel on the top of the air conditioner and
into the track on the bottom of the air conditioner. (See Fig.12)
4. Slide the side curtain frame as close to the air
conditioner cabinet as necessary to lock the side
curtain to the frame. Gently press the frame until
it clicks. (See Fig.10 & Fig.12)
5. Repeat above steps for the left-hand side curtain
and frame. Make sure no gaps are left to ensure that
air does not escape into or out of the room.
LOCK EDGE SIDE
OF SIDE CURTAIN
Fig. 11
Fig. 12
CLICK
HOW TO INSTALL PAGE 11

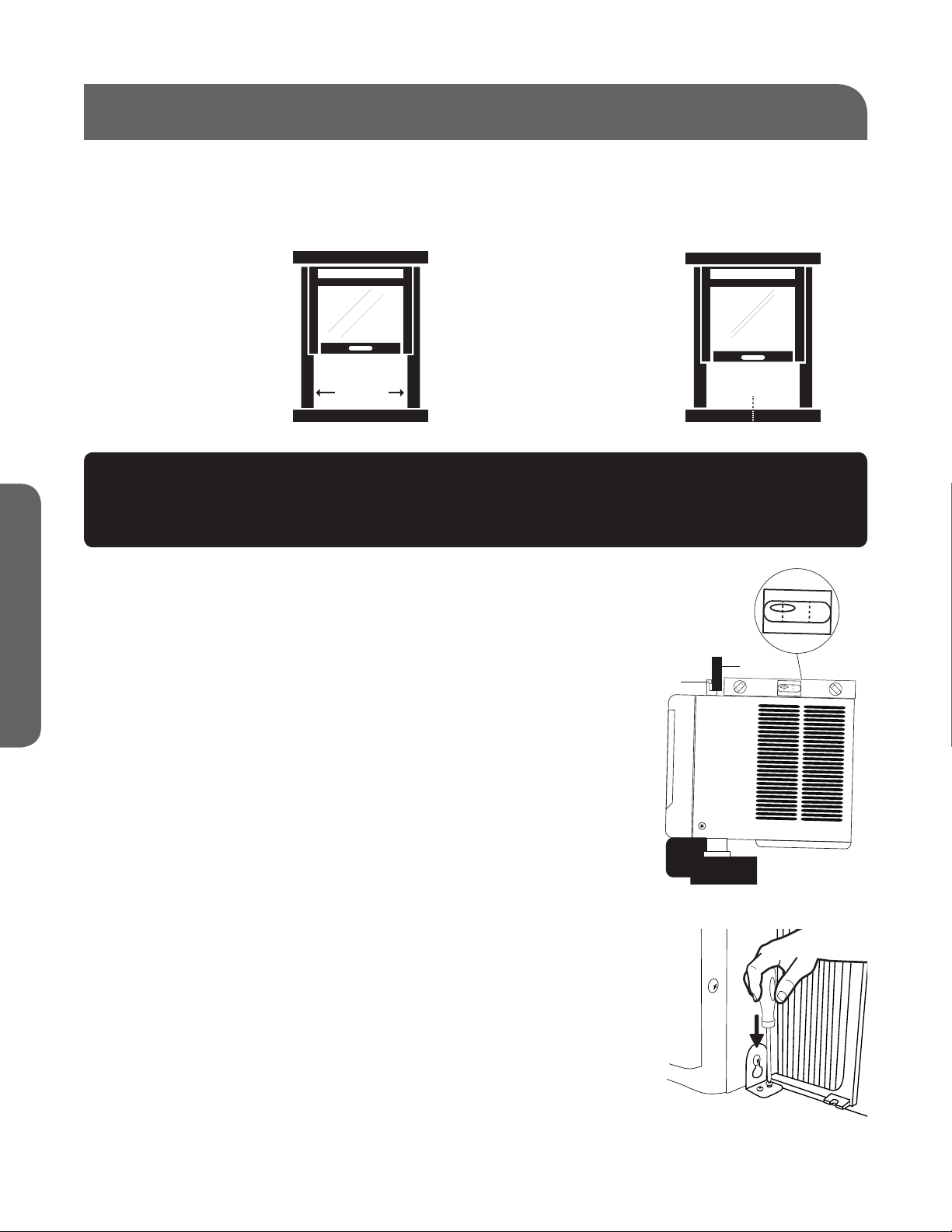

PREPARING THE WINDOW
HEIGHT
WIDTH
ENGLISH

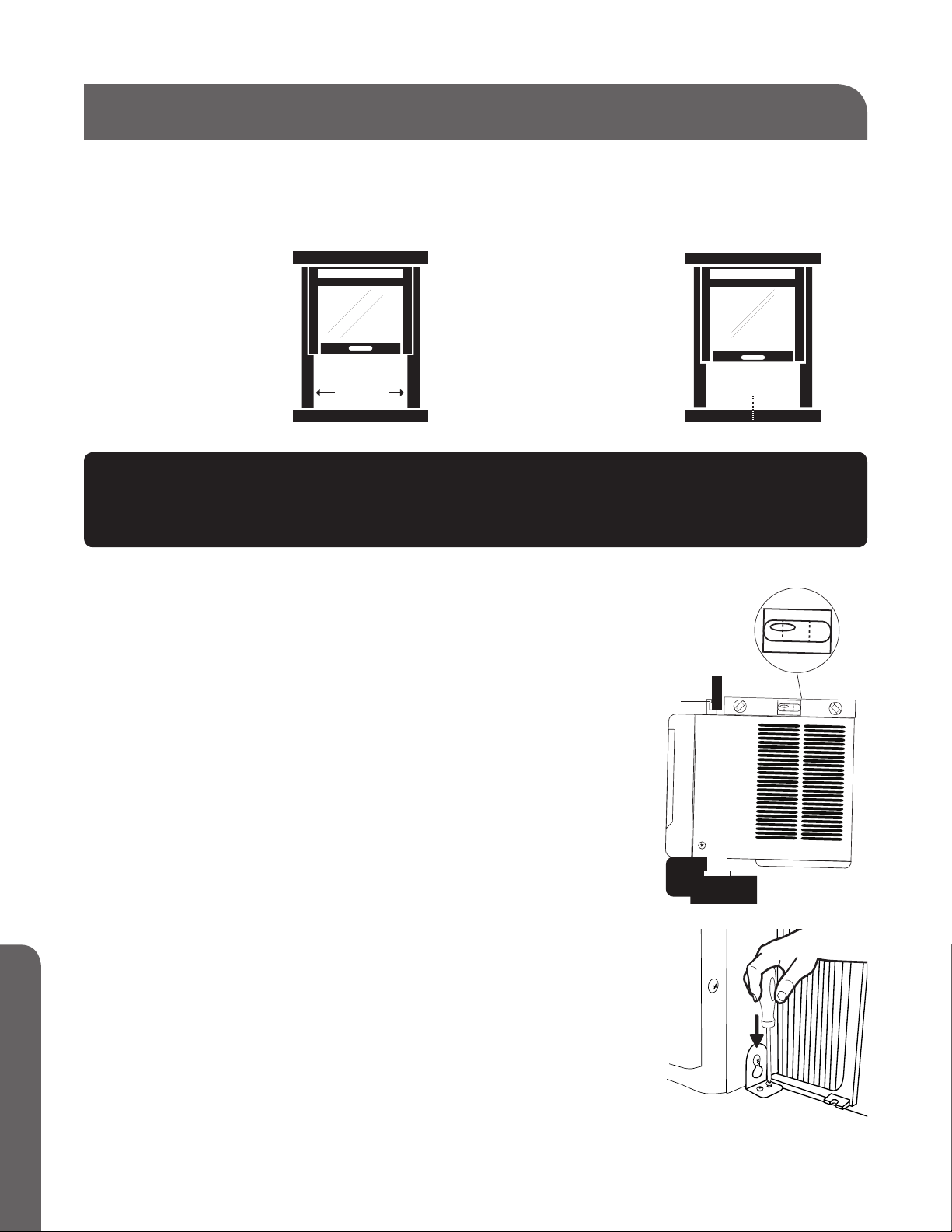

1. Measure the width of the window opening. (See Fig.13)
2. Mark the center line on the inside of the windowsill
•
•
with a pencil. (See Fig.14)
WIDTH OF
CENTER LINE
WINDOW OPENING
Fig. 13
WIDTH
Fig. 14
CENTER
NOTES AND WARNINGS:
Be sure your air conditioner does not fall out of the window opening during installation
•
or removal.
Do not block the air discharge or air intake areas on the front panel.
Do not block the louvers on the outside of the air conditioner.
3. Center the air conditioner in the window sill.
Fig. 15
Make sure to place the unit so that it is resting on the windowsill
with a ¼" to ½" downward tilt towards the outside. Lower the
Top Channel
window sash behind the top channel to hold the unit in place.
(See Fig.15)
NOTE: The appearance of your model may differ from the one
shown.
4. Loosen the screw located on the lower-right hand corner of the
air conditioner.
5. Slide the side bracket over the screw. The side bracket should be
resting on the window sill. (See Fig.16)
6. Partially tighten the screw. Secure the unit before tightening completely.
7. Use 1/8" drill bit to drill a starter hole through the holes in the side
bracket.
8. Using two (2) 1" wood screws, attach the side bracket to the
window sill.
9. Repeat for side bracket installation on the left-hand side of the air
conditioner.
Lower Window Sash
PAGE 12 HOW TO INSTALL
Fig. 16

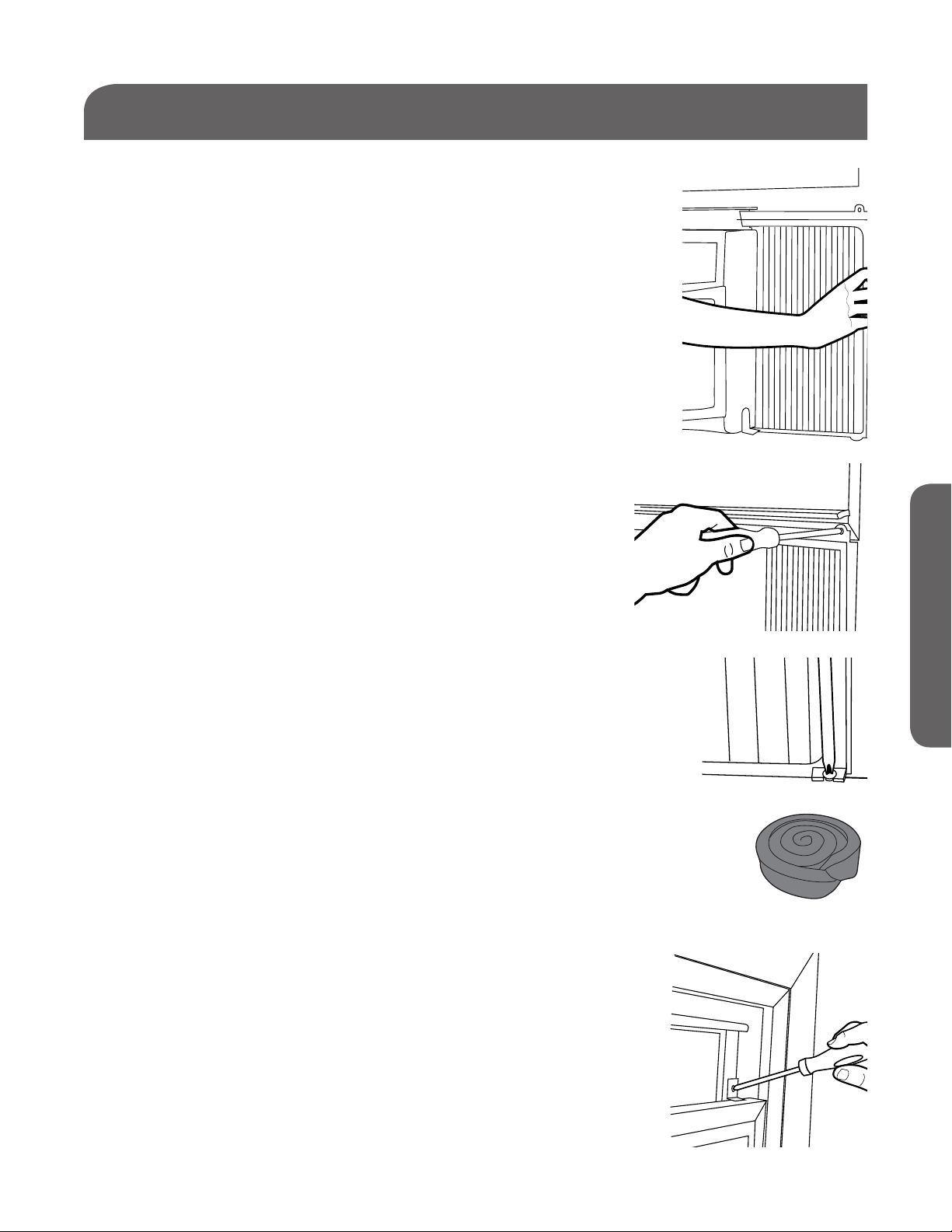

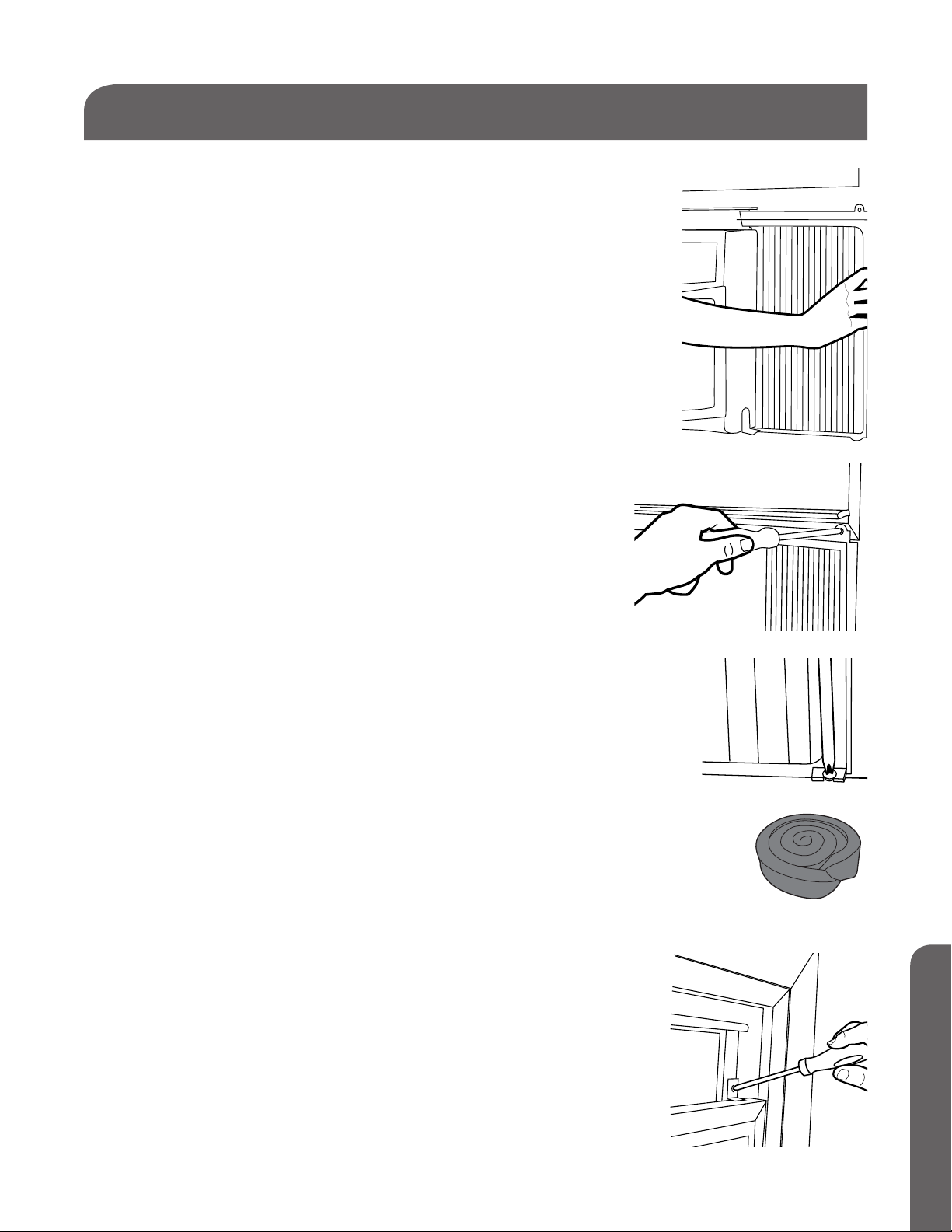

COMPLETING THE INSTALLATION
ENGLISH
ATTACH SIDE CURTAINS TO WINDOW
1. Pull the right-hand curtain and frame out until it fits flush to the side
of the window frame. (See Fig.17)
2. Use a 1/8” drill bit to drill a starter hole through the top hole in the
side curtain and into the window sash.
3. Insert one (1) 1" wood screws through the top hole of the right-
hand curtain and into the window sash. (See Fig.18)
4. Repeat for the left-hand curtain.
5. Use a 1/8" drill bit to drill a starter hole into the window sill using the
bottom hole in the side curtain as a guide.
6. Insert one (1) 1" wood screws through the bottom hole of
the right-hand curtain and into the window sill. (See Fig.19)
Fig. 18
7. Repeat for the left-hand curtain.
FINAL INSTALLATION
1. Uncoil the included foam seal. (See Fig.20)
2. Insert the foam seal behind the top of the lower window sash
and against the glass of the upper window.
Fig. 17
3. Place the window lock bracket as shown in the diagram using
a screwdriver. Use a 1/8" drill bit to drill a starter hole through the
hole in the window lock bracket and into the upper window. (See
Fig.21)
4. Attach the window lock bracket to the upper window with one (1)
1" wood screw to secure the unit in place.
5. Plug unit into a grounded 3 prong outlet.
6. Press RESET on the power supply cord on some devices.
A green light will come on. See “Electrical Requirements"
for full detail.
Fig. 19
Fig. 20
Fig. 21
HOW TO INSTALL PAGE 13
ENGLISH

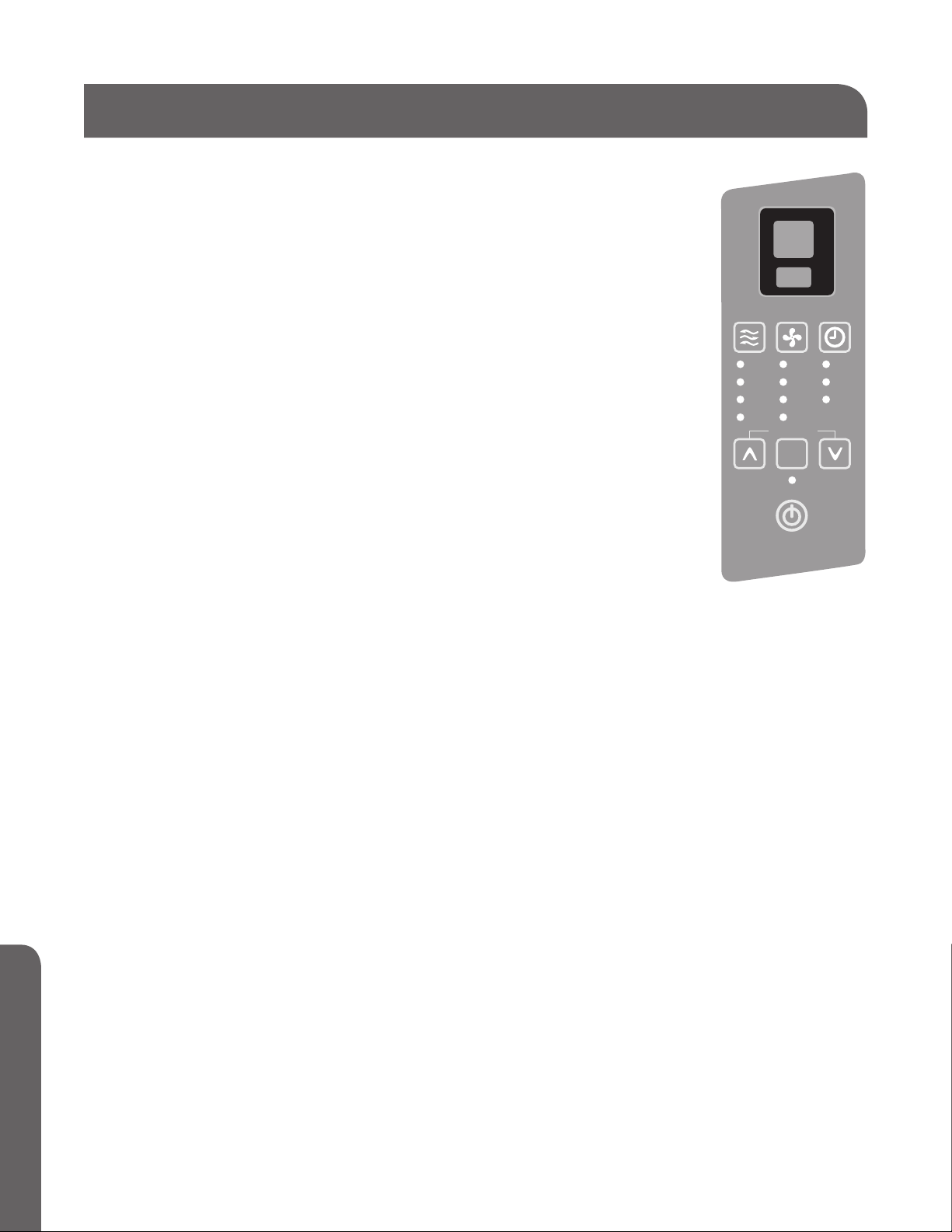

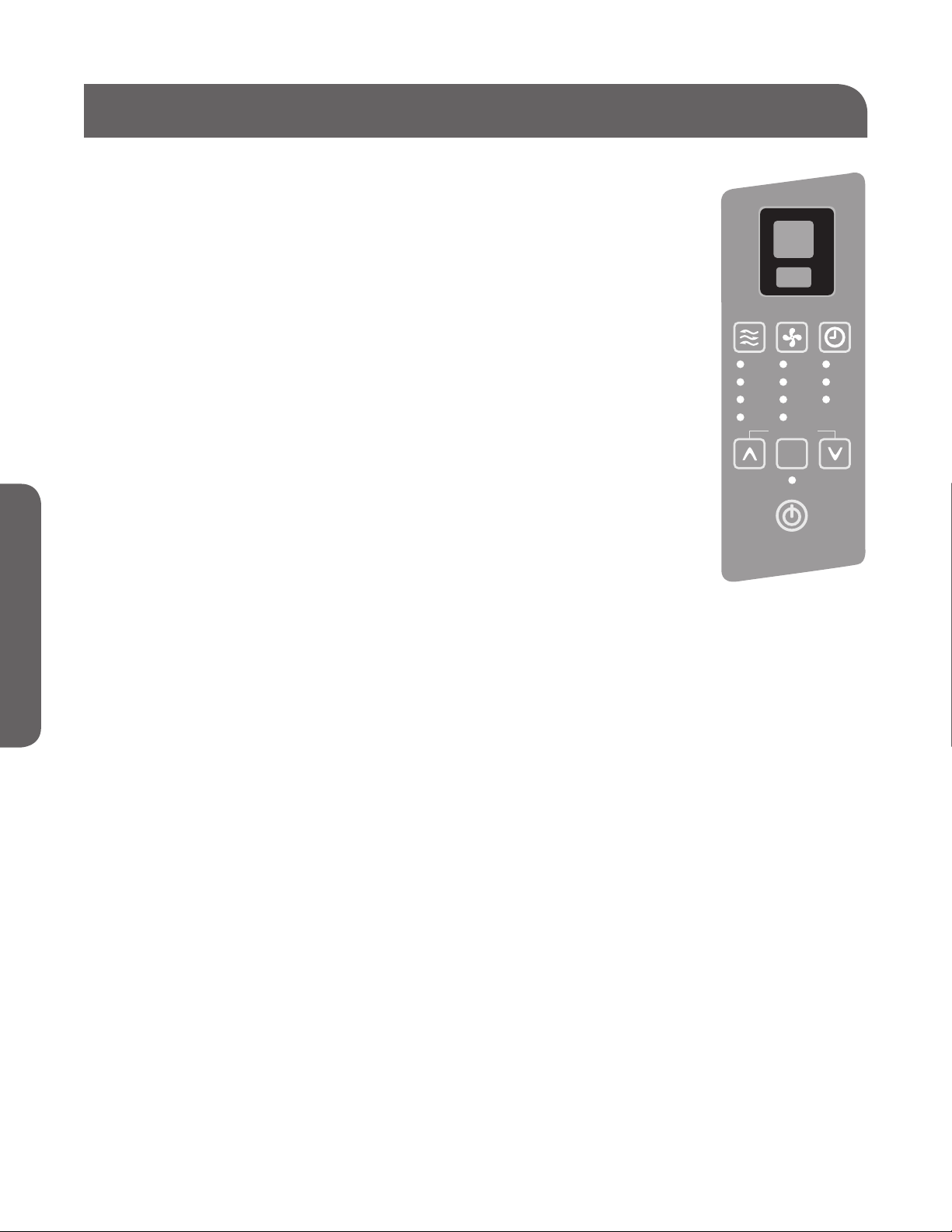

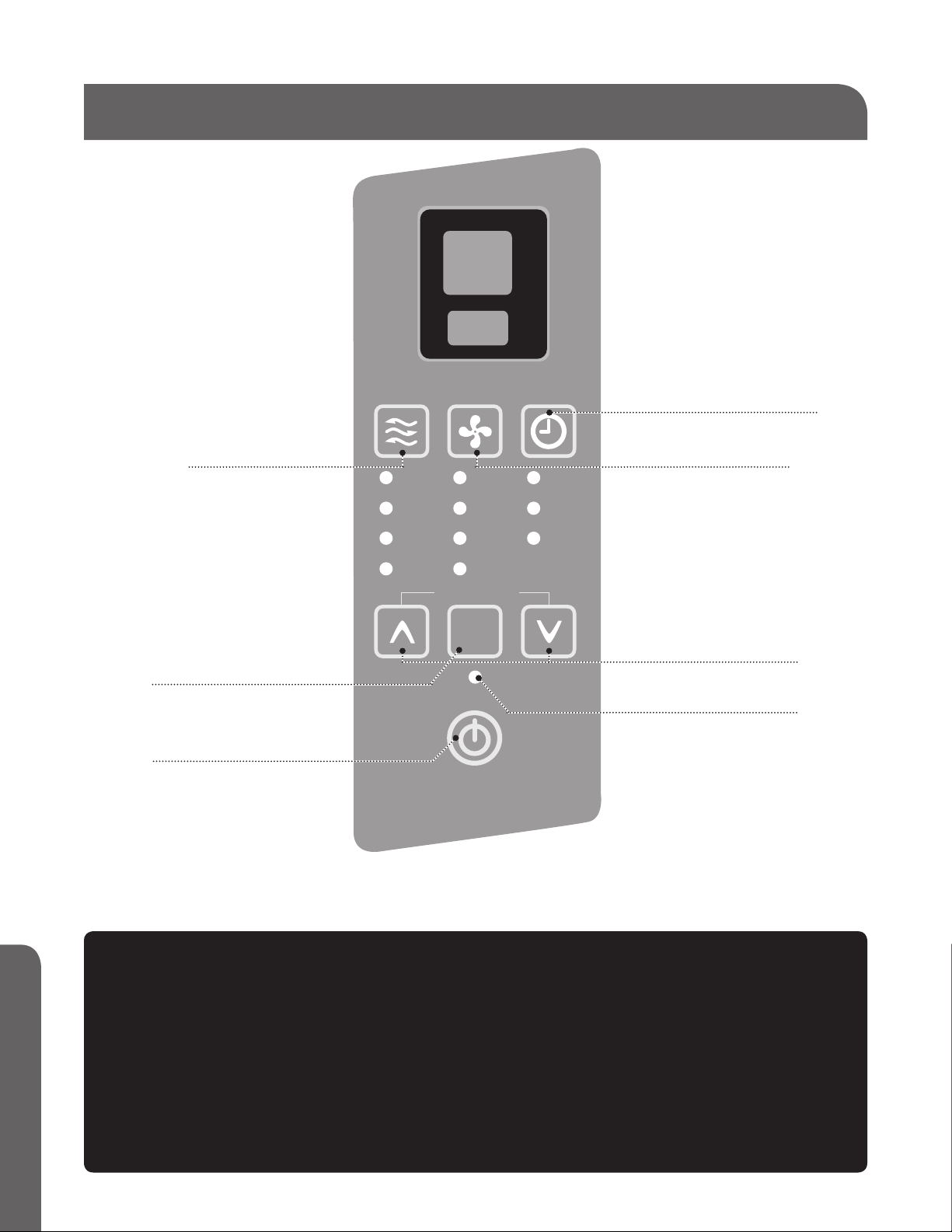

STARTING THE AIR CONDITIONER
˚F/˚C
86
MODE SPEED TIMER
hr
MODE SPEED
FAN
ENERGY
SAVE
COOL
FILTER RESET
HIGH
MED
LOW SLEEP
AUTO COOLDEHUM
TEMP/TIME
FILTER
RESET
CLEAN FILTER
ON
OFF
TEMPERATURE / TIME
CLEAN FILTER
INDICATOR
TIMER
POWER
POWER
AUTO RESTART
Operating your air conditioner properly helps you to obtain the best possible results.
This section explains how to operate this air conditioner.
IMPORTANT:
• When you turn off the air conditioner , either at the control panel or with the remote control,
wait at least 3 minutes before turning it back on. This prevents the compressor from
overloading. This 3 minute delay also applies when switching from cool mode to fan and
back.
Note: There is a built in 3 minute delay. You may notice the compressor might not start right
away. This was designed to protect the unit.
• Do not operate your air conditioner in the Cool mode when the outside temperature is below
61°F (16° C). The inside evaporator coil will freeze up, and the air conditioner will not operate
properly.
PAGE 14 USING YOUR AIR CONDITIONER
STARTING THE AIR CONDITIONER cont.
1. Carefully remove the clear plastic film from the control panel.
2. Press POWER once to turn on the air conditioner.
NOTE: When the air conditioner is first plugged in, the LED display will show “88” for 3 seconds.
After the air conditioner is turned on for the first time, the display will show the
temperature 72 F and the fan is automatically set to Low speed and the Mode indicator will
show ENERGY SAVE.
NOTE: To switch the temperature display between Fahrenheit (F) and Celsius(C), the air
conditioner must be plugged in and turned on. On the control panel on the front of the
AC, press the UP and DOWN button at the same time and hold for 3 seconds. The change
cannot be done using the remote control.
3. Select Mode. Refer to “Mode.”
4. Select Speed. Refer to “Speed.”
5. Set Timer. Refer to “Temp/Time”
6. Reset the filter. Refer to “Filter Reset”
ENGLISH
MODE
1. Press mode until you see the indicator light come on next to the desired setting.
2. Choose Fan, Cool, Energy Save, or Dehum.
FAN— Only the fan runs. Press SPEED to select High, Med or Low fan speed. The display shows
the current room temperature.
NOTE: In fan mode, the temperature cannot be set.
ENERGY SAVE— In this mode the fan runs only when cooling is needed. The fan will run for 3
minute after the compressor shuts off. The fan then cycles on for 2 minutes
at 10 minute intervals until the temperature in the room is above the set
temperature. The compressor then turns back on.
COOL— Cools the room. Press SPEED to select High,Med , Low or Auto Cool fan speed. Press
the TEMP/TIME up or down arrow button to adjust the temperature. The fan will run
continuously in cool mode.
DEHUM— Aids in removing humidity from the room. Dehum mode cannot be used to cool room.
NOTE: In Dehum mode, when the set temperature is close to ambient temperature, the
compressor may stop and the fan will run in low speed only.
USING YOUR AIR CONDITIONER PAGE 15
STARTING THE AIR CONDITIONER cont.
ENGLISH
SPEED
1. Press FAN SPEED until; you see the indicator light come on next to the
2. Choose High, Med, Low or Auto Cool
HIGH—For maximum cooling
MED—For normal cooling
LOW—For minimum cooling
AUTO COOL – Adjusts the fan speed automatically to provide ideal cooling
TIMER OFF
To set the air conditioner to turn off between 1 hour and 24 hours (The air
conditioner must be ON to set):
1. Press TIMER button until Timer Off indicator light illuminates. The display
2. Press the TEMP/TIME up or down arrow button to change the delay time
desired setting.
based on the room temperature.
will show the remaining hours before the air conditioner will turn off.
from 1 hour to 24 hours.
˚F/˚C
86
hr
MODE SPEED TIMER
FAN
HIGH
ON
ENERGY
MED
SAVE
COOL
TEMP/TIME
FILTER
RESET
CLEAN FILTER
POWER
AUTO RESTART
OFF
LOW SLEEP
AUTO COOLDEHUM
3. Timer Off indicator light will remain on. The display will show the left time to Timer Off.
TIMER ON
To set the air conditioner to turn on bwtween 1 and 24 hours:
1. Press TIMER until Timer On indicator light illuminates. The display will show the remaining
hours before the air conditioner will turn on.
2. Press the TEMP/TIME up or down arrow button to change the delay time from 1 hour to 24
hours.
3. Timer On indicator light will remain on. Unit will shut off and restart.
PAGE 16 USING YOUR AIR CONDITIONER
STARTING THE AIR CONDITIONER cont.
TO CLEAR TIMER PROGRAM:
NOTE: Air conditioner can be either on or off.
Press TIMER until Timer indicator light turns off.
TO VIEW OR CHANGE THE REMAINING TIME (IN HOURS):
TIMER OFF
1. Press the TEMP/TIME up or down arrow button to increase or decrease the time.
2. After 5 seconds, the display will show the remaining time to Timer OFF.
TIMER ON
1. Press the TEMP/TIME up or down arrow button to increase or decrease the time.
2. The display will show the remaining time to Timer ON.
NOTE: In TIMER and SLEEP mode, temperature cannot be adjusted.
SLEEP
ENGLISH
1. Press the TIMER button to choose Sleep mode. The indicator light will turn on.
2. The temperature will increase by 2˚F 1 hour after the mode is chosen. The temperature then
increases another 2˚F after 1 hour. The unit will hold this temperature for 6 hours then stops.
3. To turn off Sleep mode, press the TIMER button until the indicator light is off.
TEMP/TIME
1. Press the TEMP/TIME up arrow button to raise the temperature. Each time you press the
TEMP/TIME up arrow button, the temperature will go up 1°F until it reaches 86°F (30°C).
2. Press the TEMP/TIME down arrow button to lower the temperature. Each time you press the
TEMP/TIME down arrow button, the temperature will go down 1°F until it reaches 61°F (16°C).
NOTE: After 5 seconds, under Fan mode, the display will show the current temperature. Under
Energy Save,Cool or Dehum mode, the display will show the set temperature.
USING YOUR AIR CONDITIONER PAGE 17
STARTING THE AIR CONDITIONER cont.
ENGLISH
FILTER RESET
This feature automatically notifies you that the air filter must be cleaned. The indicator light will
come on after 240 hours of operation. Clean the air filter (refer to Care and Cleaning), place it back
in the front panel, and press the Filter Reset button. The light will turn off.
NOTE: The raised dots are Braille for the visually impaired. (See Fig.22)
Remote control may differ in appearance from the image shown.
NOTE:
POWER
Press ON/OFF to turn on the air conditioner.When you first press the ON/OFF
button, the air conditioner will operate in Energy Save mode, low fan speed and
temperature of 72°F. You can select any other mode to satisfy your needs.
USING THE REMOTE CONTROL
Remove and discard protective film prior to use. The remote control runs
on one CR2025 battery (included). Replace battery after 6 months of use,
or when the remote control starts to lose power. To change battery, first
remove screw on back panel of remote.
ON/OFF
MODE
SPEED
TIMER
TEMP/TIME
TEMP/TIME
Mode
Fig. 22
Press MODE to choose Fan, Energy Save, Cool or Dehum.
Speed
Press SPEED to choose High, Med, Low or Auto Cool.
TIMER
To set the air conditioner to turn off after a set amount between 1 hour and 24 hours (unit must
be ON):
1. Press TIMER. Timer OFF indicator light on the air conditioner control panel will illuminate.
2. Press the TEMP/TIME up or down arrow button to change the delay time from 1 hour to 24
hours.
3. Timer OFF indicator light on the air conditioner control panel will remain on.
To set the air conditioner to turn on between 1 hour and 24 hours:
1. Press TIMER. Timer On indicator light on the air conditioner control panel will illuminate.
2. Press the TEMP/TIME up or down arrow button to change the delay time from 1 hour to 24
hours.
3. Timer On indicator light on the air conditioner control panel will remain on.
PAGE 18 USING YOUR AIR CONDITIONER
USING THE REMOTE CONTROL cont.
TO CLEAR TIMER DELAY PROGRAM:
NOTE: Air conditioner can be either on or off.
Press TIMER until Timer indicator light turns off.
TO SEE OR CHANGE THE REMAINING TIME (IN HOURS):
TIMER OFF:
1. Press the TEMP/TIME up or down arrow button to increase or decrease the time.
2. The display on the air conditioner control panel will show the remaining time to Timer Off.
TIMER ON:
1. Display on the air conditioner control panel will show remaining time.
2. Press the TEMP/TIME up or down arrow button to increase or decrease the time.
ENGLISH
SLEEP
1. Press the TIMER button to choose Sleep mode. The indicator light will turn on.
2. The temperature will increase by 2F˚ 1 hour after the mode is chosen. The temperature then
increases another 2F after 1 hour. The unit will hold this temperature for 6 hours then stops.
3. To turn off Sleep mode, press the TIMER button until the indicator light is off.
TEMP/TIME
• Press the TEMP/TIME up arrow button to raise the temperature. Each time you press the TEMP/
TIME up arrow button, the temperature will go up 1°F until it reaches 86°F (30°C).
• Press the TEMP/TIME down arrow button to lower the temperature. Each time you press the
TEMP/TIME down arrow button, the temperature will go down 1°F until it reaches 61°F (16°C).
Note: In TIMER and SLEEP mode, temperature cannot be adjusted.
USING YOUR AIR CONDITIONER PAGE 19
ENGLISH
HWR05XCR
2-Way Air Flow: The air directional louvers let you control the direction of the airflow. The airflow
can be directed left to right.(See Fig.23)
HWR06XCR, HWE08XCR, HWE10XCR, HWE12XCR, HWR08XCR, HWR10XCR, HWR12XCR
4-Way Air Flow: The air directional louvers let you control the direction of the airflow. The airflow

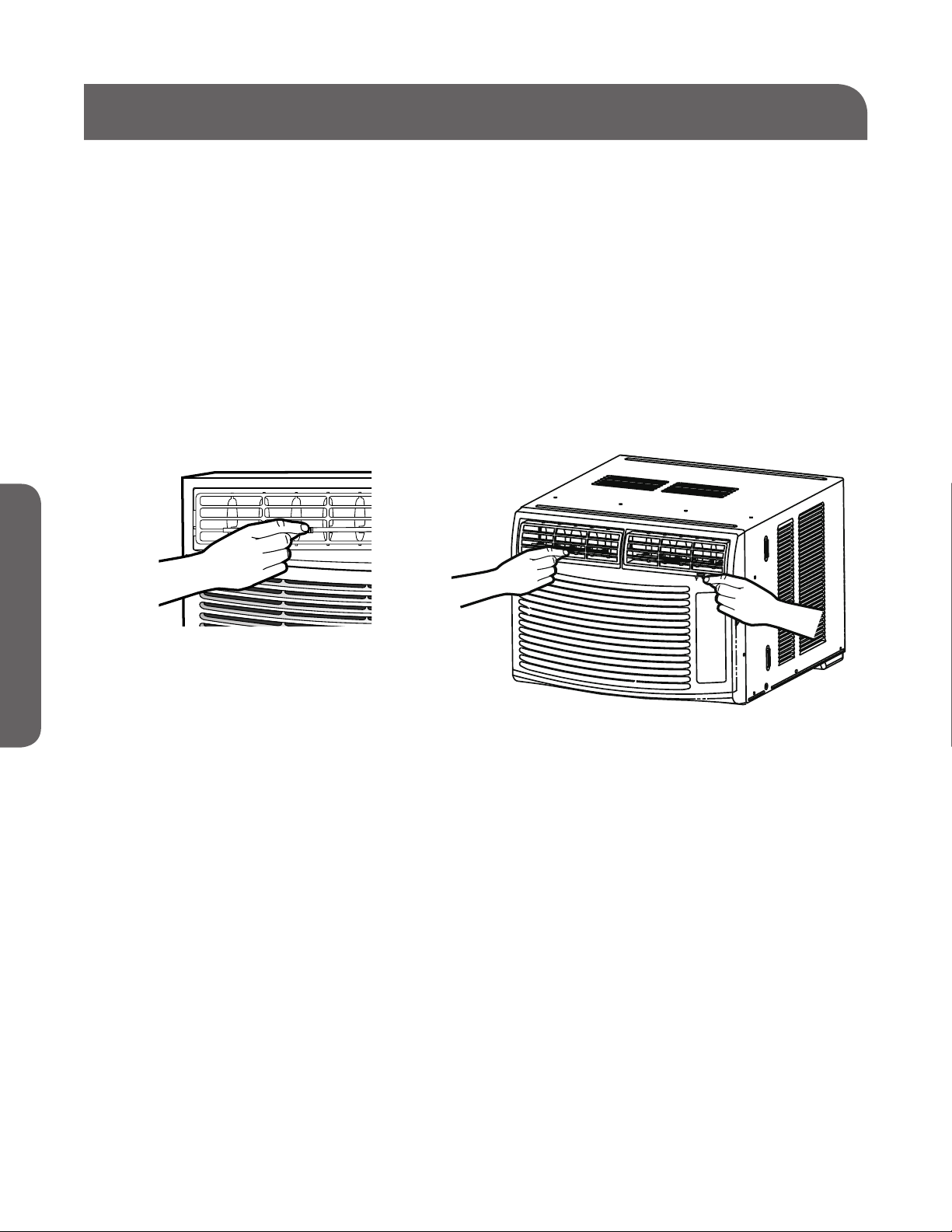

CHANGING THE AIR DIRECTION
Fig. 23
Fig. 24
o
p
e
n
PAGE 20 USING YOUR AIR CONDITIONER
CLEANING THE AIR FILTER
While your air conditioner is operating, it is normal to hear the following sounds:
The air filter is removable for easy cleaning. A clean air filter helps remove dust, lint, and particles
from the air for optimal cooling and operating efficiency. The Filter Reset light will turn on to
notify you that the air filter must be cleaned. The light goes on after the air conditioner has been
operating for 240 hours.
1. Turn off the air conditioner and unplug the power supply cord from the outlet.
ENGLISH

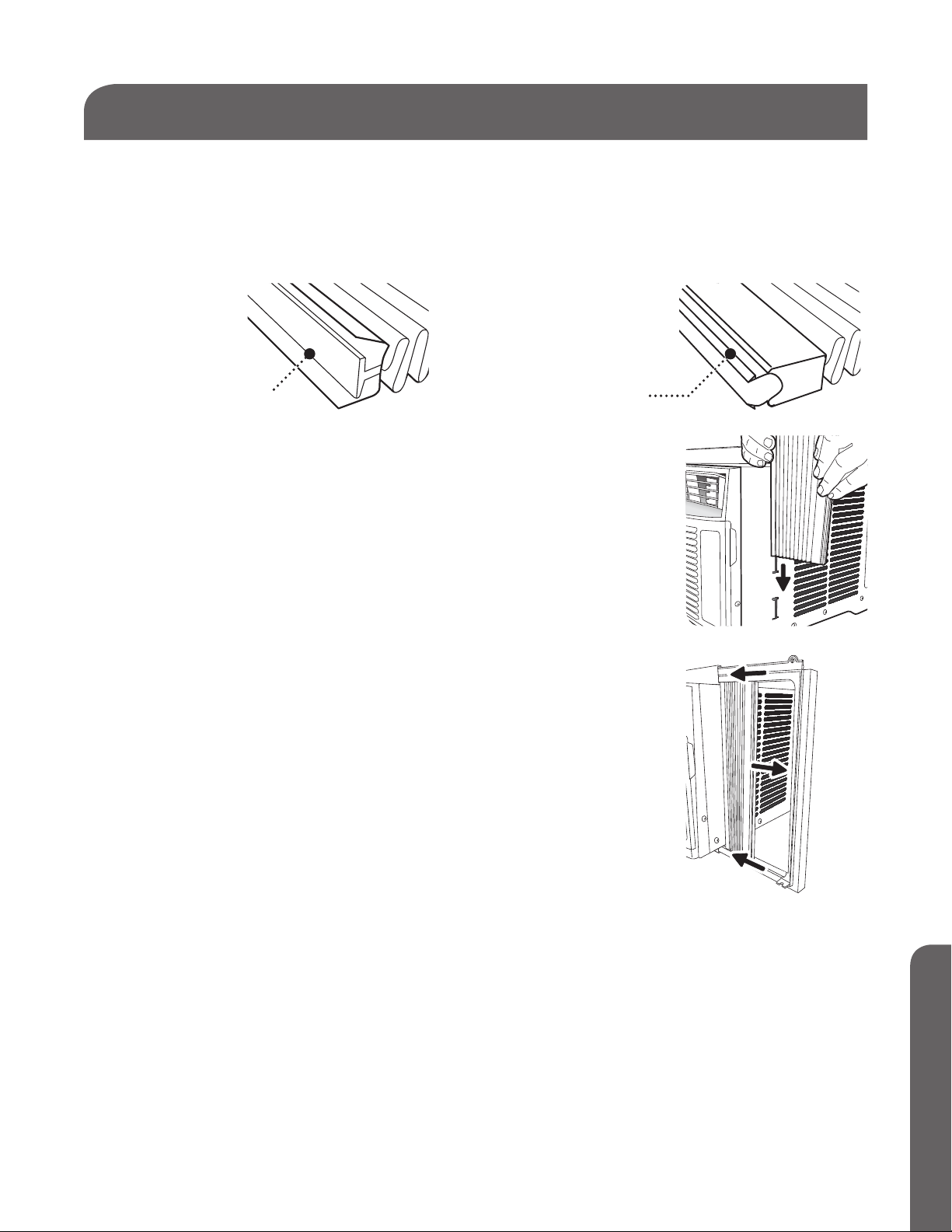

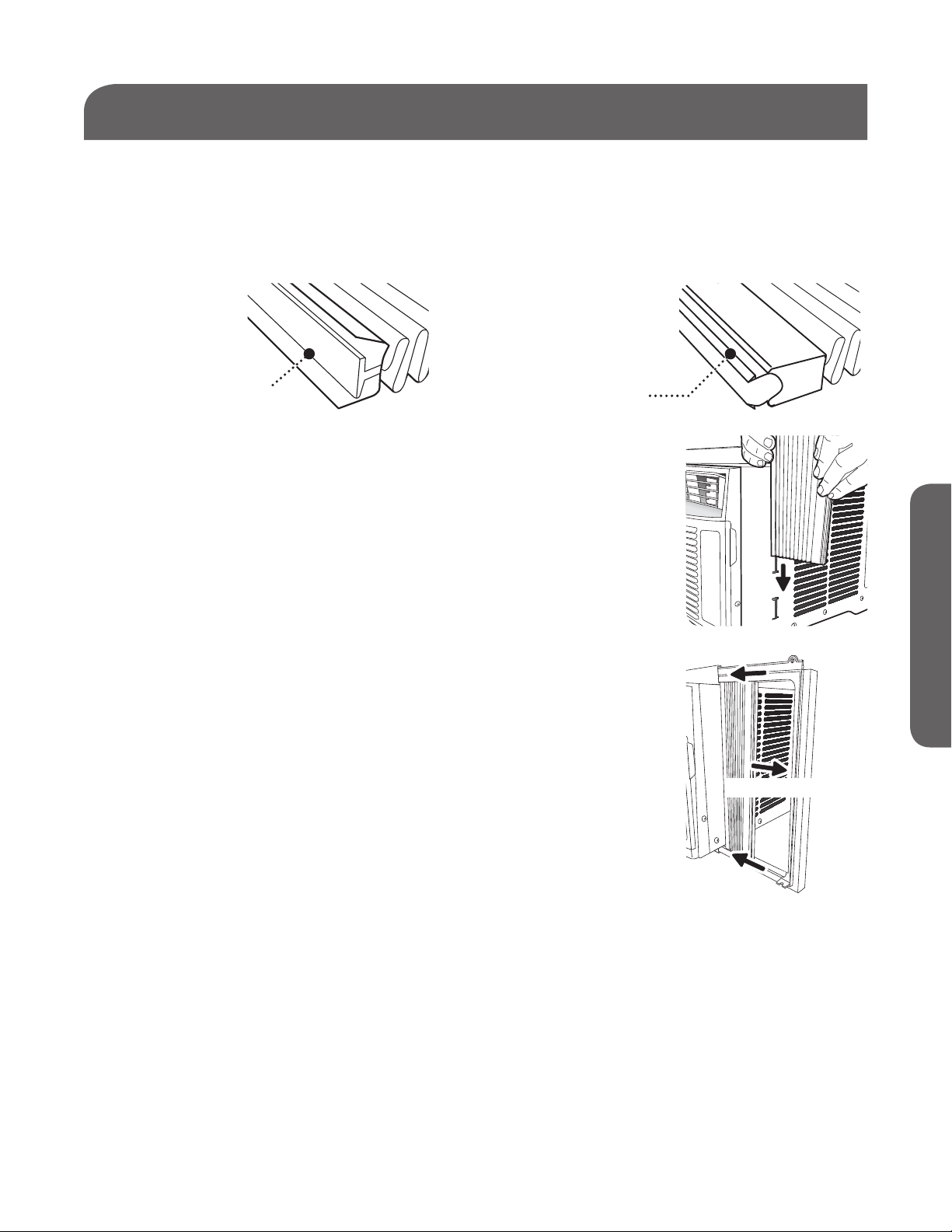

Fig. 25

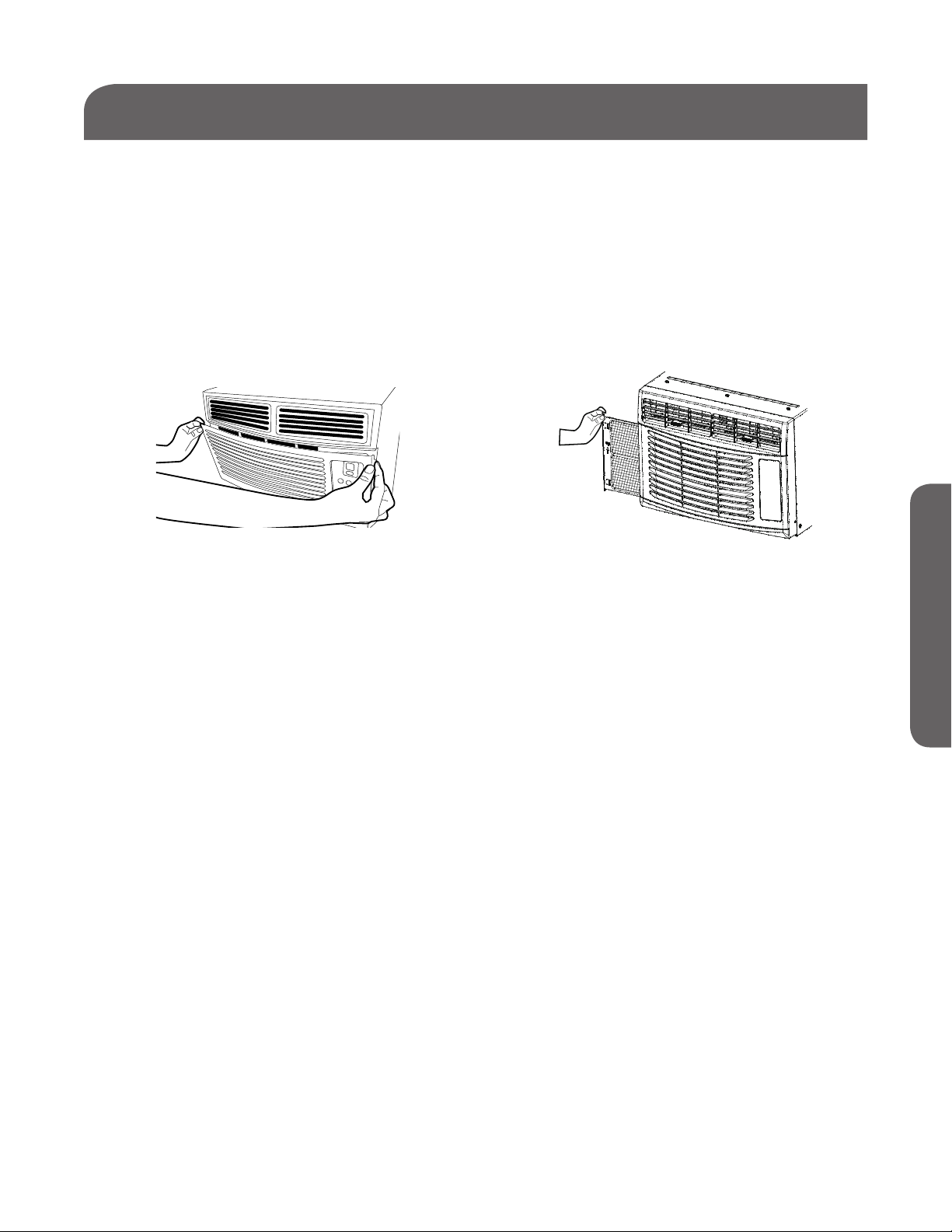

2. Remove the air filter by opening the front panel and removing the air filter. Some models may
have a filter that slides out instead and does not require opening of the front panel. (See Fig.25
& Fig.26)
3. Use a vacuum cleaner with the hose attachment to clean the air filter. If the air filter is very
dirty, wash it in warm water with a mild detergent. Do not wash the air filter in a dishwasher or
clothes washer, or use any chemical cleaners. Do not use a clothes dryer or microwave oven to
dry it. Air-dry the air filter completely before placing it back in the unit.
4. Place the air filter back in the air conditioner.
Fig. 26
USING YOUR AIR CONDITIONER PAGE 21
CLEANING THE FRONT PANEL
ENGLISH
5. Close the front panel.
6. Plug the power supply cord into the outlet, turn on the air conditioner and press the filter reset
NOTE: Do not operate the air conditioner without the filter in place.
1. Turn off the air conditioner and unplug the power supply cord from the outlet.
2. Clean the front panel with a soft cloth. Do not use chemical cleaners, especially spray cleaners,
3. Air-dry the front panel completely.
4. Plug the power supply cord in the outlet and turn on the air conditioner.
In the event that the filter is damaged and needs replacing, call Haier Customer Service:
1-877-337-3639
button to turn off the indicator light.
sharp instruments, or flammable fluids. These products can damage the surface of your air
conditioner.
CUSTOMER SERVICE
IMPORTANT
DO NOT RETURN THIS PRODUCT TO THE STORE
If you have a problem with this product, please contact the
Haier Customer Satisfaction Center at 1-877-337-3639.
DATED PROOF OF PURCHASE, MODEL # AND SERIAL #
REQUIRED FOR WARRANTY SERVICE
CUSTOMER
SERVICE
1-877-337-3639
PAGE 22 CARING FOR YOUR AIR CONDITIONER
Loading...
