OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
This manual provides information for:
TD/3 & TDA/1 Domestic
STEAM JACKETED KETTLE
· Stainless Steel
· Direct Steam Heated
· Table Top Mounted
· Tilting
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND
WARNINGS CONTAINED IN THIS MANUAL.
WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
NOTIFY CARRIER OF DAMAGE AT ONCE
It is the responsibility of the consignee to inspect the container upon receipt of
same and to determine the possibility of any damage, including concealed damage. Unified Brands suggests that if you are suspicious of damage to make a
notation on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
PART NUMBER 121006, REV. C (2/06)
1055 Mendell Davis Drive
Jackson, MS 39272
888-994-7636, fax 888-864-7636
unifiedbrands.net
IMPORTANT - READ FIRST - IMPORTANT
CAUTION: BE SURE ALL OPERATORS READ, UNDERSTAND AND FOLLOW THE OPERATING
INSTRUCTIONS, CAUTIONS, AND SAFETY INSTRUCTIONS CONTAINED IN THIS
MANUAL.
WARNING: THIS UNIT IS INTENDED FOR USE IN THE COMMERCIAL HEATING, COOKING
AND HOLDING OF WATER AND FOOD PRODUCTS, PER THE INSTRUCTIONS
CONTAINED IN THIS MANUAL. ANY OTHER USE COULD RESULT IN SERIOUS
PERSONAL INJURY OR DAMAGE TO THE EQUIPMENT AND WILL VOID
WARRANTY.
WARNING: KETTLES MUST BE INSTALLED BY PERSONNEL QUALIFIED TO WORK WITH
STEAM PLUMBING. IMPROPER INSTALLATION CAN RESULT IN INJURY TO
PERSONNEL AND/OR DAMAGE TO EQUIPMENT.
WARNING: AVOID ANY EXPOSURE TO ESCAPING STEAM. STEAM CAN CAUSE SEVERE
BURNS.
WARNING: TAKE EXTREME CARE TO KEEP HOT CONTENTS FROM SPILLING OR
SPLASHING ON ANYONE. DO NOT STAND DIRECTLY IN FRONT OF KETTLE
BODIES WHEN THEY ARE BEING TILTED.
WARNING: AVOID ALL DIRECT CONTACT WITH HOT EQUIPMENT SURFACES. DIRECT SKIN
CONTACT COULD RESULT IN SEVERE BURNS.
WARNING: AVOID ALL DIRECT CONTACT WITH HOT FOOD OR WATER IN KETTLES.
DIRECT CONTACT COULD RESULT IN SEVERE BURNS.
CAUTION: DO NOT OVER FILL THE KETTLE WHEN COOKING, HOLDING OR CLEANING.
KEEP LIQUIDS AT A MINIMUM OF 2-3” (5-8 CM) BELOW THE KETTLE BODY
RIM TO ALLOW CLEARANCE FOR STIRRING, BOILING AND SAFE PRODUCT
TRANSFER.
WARNING: TAKE SPECIAL CARE TO AVOID CONTACT WITH HOT KETTLE BODY OR HOT
PRODUCT WHEN ADDING INGREDIENTS, STIRRING OR TRANSFERRING
PRODUCT TO ANOTHER CONTAINER.
OM-TD
IMPORTANT - READ FIRST - IMPORTANT
WARNING: WHEN TILTING KETTLE FOR PRODUCT TRANSFER:
1) WEAR PROTECTIVE OVEN MITT AND PROTECTIVE APRON.
2) USE CONTAINER DEEP ENOUGH TO CONTAIN AND MINIMIZE PRODUCT
SPLASHING.
3) PLACE CONTAINER ON STABLE, FLAT SURFACE, AS CLOSE TO KETTLE
AS POSSIBLE.
4) STAND TO LEFT OR RIGHT SIDE OF KETTLE (DEPENDING ON TILTING
HANDLE PLACEMENT) WHILE POURING. DO NOT STAND DIRECTLY IN
POUR PATH OF HOT CONTENTS.
5) POUR SLOWLY, MAINTAIN CONTROL OF KETTLE BODY HANDLE AT ALL
TIMES, AND RETURN KETTLE BODY TO UPRIGHT POSITION AFTER
CONTAINER IS FILLED OR TRANSFER IS COMPLETE.
6) DO NOT OVER FILL CONTAINER. AVOID DIRECT SKIN CONTACT WITH
HOT CONTAINER AND ITS CONTENTS.
CAUTION: KEEP FLOORS IN FRONT OF KETTLE WORK AREA CLEAN AND DRY. IF SPILLS
OCCUR, CLEAN IMMEDIATELY TO AVOID SLIPS OR FALLS.
WARNING: FAILURE TO CHECK SAFETY VALVE OPERATION PERIODICALLY COULD RESULT
IN PERSONAL INJURY AND/OR DAMAGE TO EQUIPMENT.
WARNING: WHEN TESTING, AVOID AND EXPOSURE TO THE STEAM BLOWING OUT OF THE
SAFETY VALVE. DIRECT CONTACT COULD RESULT IN SEVERE BURNS.
CAUTION: MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS MEMBRANES
AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN. WEAR RUBBER GLOVES,
GOGGLES OR FACE SHIELD AND PROTECTIVE CLOTHING. CAREFULLY READ
THE WARNINGS AND FOLLOW THE DIRECTIONS ON THE LABEL OF THE
CLEANER TO BE USED.
CAUTION: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN
OR THEIR AUTHORIZED DISTRIBUTORS CAN CAUSE OPERATOR INJURY AND
DAMAGE TO THE EQUIPMENT, AND WILL VOID ALL WARRANTIES.
WARNING: SERVICE PERFORMED BY OTHER THAN FACTORY AUTHORIZED PERSONNEL
WILL VOID WARRANTIES.
OM-TD 3
Table of Contents
Important Operator Warnings ........................................................page 2
References..................................................................................... page 4
Equipment Description.................................................................. page 5
Inspection and Unpacking ............................................................ page 6
Installation..................................................................................... page 7
Initial Start-up.................................................................................page 8
Operation....................................................................................... page 8
Cleaning........................................................................................ page 12
Maintenance................................................................................. page 13
Sequence Of Operation................................................................ page 13
Troubleshooting............................................................................ page 14

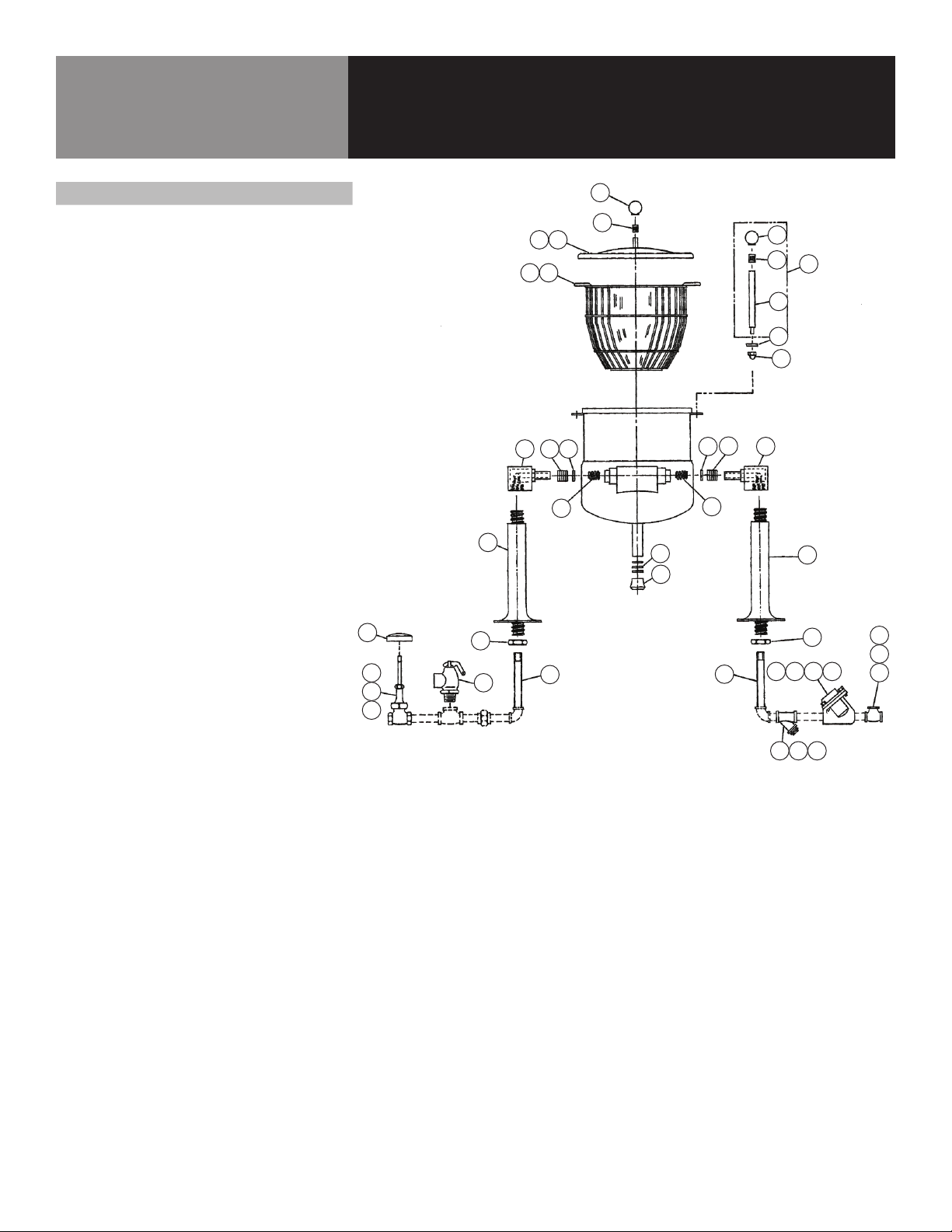

Parts Lists..................................................................................... page 15
Maintenance Log.......................................................................... page 18
Warranty........................................................................................ page 19
References
KLENZADE SALES CENTER
ECOLAB. Inc.
370 Wabasha
St. Paul, Minnesota 55102
800/352-5326 or 612/293-2233
NATIONAL SANITATION FOUNDATION
3475 Plymouth Rd.
Ann Arbor, Michigan 48106
ZEP MANUFACTURING CO.
1310-T Seaboard Industrial Blvd.
Atlanta, Georgia 30318
OM-TD
Equipment Description
A. ALL MODELS
B. MODEL TDC/3
The Groen TDC/3 and TDA/1 are tilting, table-top kettles with direct steam-heated
jackets. The one-piece stainless steel body on each includes a butterfly shaped
pouring lip. The kettles have a 180 emery grit interior finish and a bright semi-deluxe
exterior finish.
Every unit requires a remote steam source. The steam supply is controlled by an inlet
valve, and enters the jacket through one support and rotary joint. Condensate leaves
the jacket through the other rotary joint and support. Standard units are ASME shop
inspected, stamped, and registered with the National Board. These kettles operate
efficiently at pressures above five PSI. A safety valve, strainer, steam trap, and check
valve are all required for installation, and may be ordered from Groen as optional
equipment.
Optional features and equipment include:
• Higher maximum pressure • Kettle brush kit
• Lift-off covers • Steam trap assembly
• T5C table mounting • Motor-driven agitator
• Bracket inserts
The TDC/3 kettle has a 2/3 jacket rated for working pressures up to 55 PSI. The kettle
body incorporates a triple reinforced rim. Two tubular steel supports support the
swivel on which the kettle tilts. A leg projects from the bottom of the kettle.
C. MODEL TDA/1
The design of the TDC/3 makes it easy for one person to tilt the kettle with the tilting
handle, even when the kettle is full.
Model Capacity Dimensions: Inches (mm)
Quarts (liters) Front to Back Left to Right Rim Height
TDC/3-10 10 (9.4) 13-1/4 (337) 12-7/8 (327) 16-1/8 (410)
TDC/3-20 20 (18.9) 15-1/4 (387) 14-7/8 (378) 17-1/8 (435)
The TDA/1 kettle incorporates a triple reinforced rim and a 2/3 jacket registered for
working pressures up to 50 PSI. Two chrome-plated arms support the trunnions on
which the kettle tilts. The arm that also serves as the steam inlet has an integral
steam control valve.
Model Capacity Dimensions: Inches (mm)
Quarts (liters) Front to Back Left to Right Rim Height
TDA/1-40 40 (37.8) 19-3/4 (502) 26-3/4 (679) 22-3/8 (568)
OM-TD 5
Inspection & Unpacking
CAUTION
AVOID NAILS AND SPLINTERS WHEN
REMOVING KETTLES FROM WOODEN
CRATES. WEAR SAFETY GLASSES.
CAUTION
UNIT WEIGHS 40 TO 125 LBS (18 TO 61 KG).
FOR SAFE HANDLING, INSTALLER SHOULD
GET HELP AS NEEDED, OR USE MATERIALS
HANDLING EQUIPMENT (e.g., FORT LIFT,
DOLLY OR PALLET JACK) TO REMOVE THE
UNIT FROM THE SKID AND PLACE IT FOR
INSTALLATION.
When installation is to begin, cut the straps
holding the unit on the skid. Lift the unit
straight up off of the skid.
CAUTION
SHIPPING STRAPS ARE UNDER TENSION
AND CAN SNAP BACK WHEN CUT.
The kettle will arrive completely assembled and wrapped in protective plastic,
strapped and bolted on a skid, enclosed in a cardboard crate. Immediately on receipt
remove the box and plastic wrap, and inspect the unit for damage. Report any
damage or an incorrect shipment to
the delivery agent.
Write down the model number, serial number and installation date, and keep this
information for future reference. Space for these entries is provided at the top of the
Service Log in the back of this manual.
OM-TD
Installation
WARNING
THIS UNIT MUST BE INSTALLED BY
PERSONNEL QUALIFIED TO WORK WITH
PLUMBING. IMPROPER INSTALLATION CAN
CAUSE INJURY TO PERSONNEL AND/OR
DAMAGE TO EQUIPMENT.
1. Installation under a ventilation hood is recommended. Consult local codes.
2. Install and anchor the kettle on a level and rigid surface. Recommended
mounting surface is 16 gauge (.060” thick) top with a lower reinforcement
of C4 structural channel. NOTE: Failure to install the kettle per above
recommendation may cause the steam piping to flex and leak, reduce seal life
and will void warranty.
3. If the steam supply pressure is greater than the maximum working pressure
stamped on the nameplate, you must install a pressure reducing valve in the
steam supply line near the kettle.
4. Connect the steam supply line to the steam inlet fitting. Include a steam control
valve and an appropriate safety valve. To obtain the full heating capability of
the kettle, the steam supply line must be as large as the steam inlet fitting.
5. The safety valve is preset to relieve jacket pressure that exceeds its rated limit.
Do not try to adjust the valve setting, and do not allow the valve outlet or lever
to be blocked.
6. Connect the kettle condensate return line to the boiler return line, or to a drain.
A suitable steam trap, strainer, and check valve must be installed. (See piping
diagram, below).

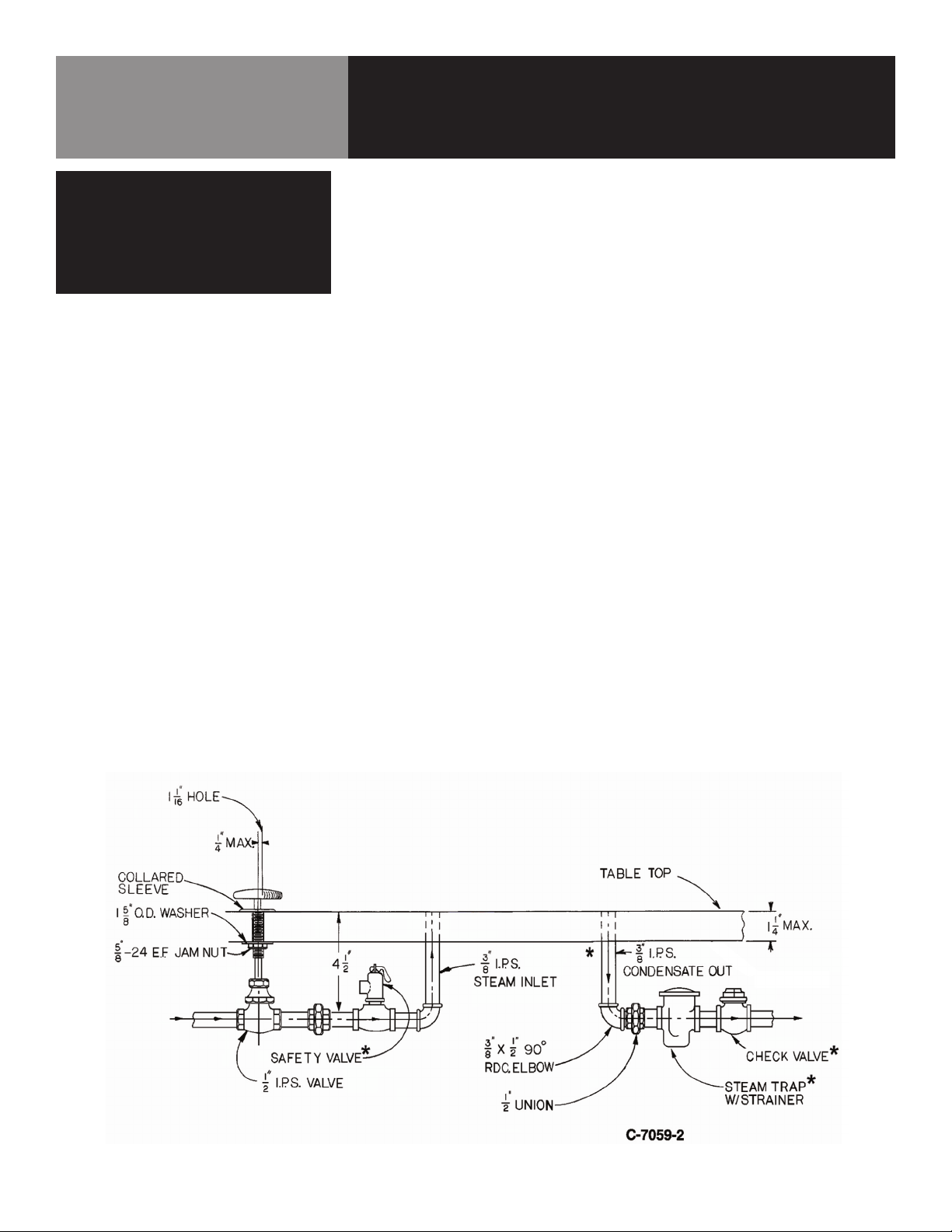

STANDARD PIPING
FOR TDC/3 & TDA/1
7. Any mechanical change must be approved by the Groen Service Department.
The inlet valve may be located anywhere on the cabinet top or face but not through
the face casting. The illustrated sleeve is designed to simplify valve installation by
allowing the valve to shift off center by 1/4”, if necessary. This should be enough to
allow for thread take-up and misalignment.
*Accessories available from Groen as options. Piping is to be supplied by the installer.
RIGID MOUNTING SURFACE
OM-TD 7
Initial Start-Up
IMPORTANT
BE SURE ALL OPERATORS READ,
UNDERSTAND AND FOLLOW THE OPERATING
INSTRUCTIONS, CAUTIONS, AND SAFETY
INSTRUCTIONS CONTAINED IN THIS
MANUAL.
WARNING
AVOID ANY EXPOSURE TO ESCAPING STEAM,
WHICH CAN CAUSE SEVERE BURNS.
Now that the kettle has been installed, you should test it to ensure that it is operating
correctly.
1. Remove all literature and packing materials from inside and outside of the unit.
2. Pour a small amount of water into the kettle.
3. Open the steam inlet valve.
4. When the water begins to boil, inspect all of the fittings to ensure that there are
no leaks.
5. Check the safety valve by lifting its lever far enough to let steam escape. Then
let it snap back into place to reset the valve so that it will not leak.
6. Shut down the unit by closing the steam inlet valve.
7. Operate the tilting mechanism to confirm that this feature functions through the
whole range of normal operation.
If the unit functions as described above, it is ready for use. If the unit does not function
as intended, contact your local Groen Certified Service Agency.
OM-TD
Operation
WARNING
AVOID EXPOSURE TO ESCAPING STEAM,
WHICH CAN CAUSE SEVERE BURNS.
CAUTION
KEEP FLOORS IN FRONT OF THE KETTLE
WORK AREA CLEAN AND DRY. IF SPILLS
OCCUR, CLEAN AT ONCE TO AVOID SLIPS
OR FALLS.
WARNING
AVOID ALL DIRECT CONTACT WITH HOT
FOOD OR WATER IN THE KETTLE. DIRECT
CONTACT COULD RESULT IN SEVERE BURNS.
TAKE SPECIAL CARE TO AVOID CONTACT
WITH HOT KETTLE BODY OR HOT PRODUCT
WHEN ADDING INGREDIENTS, STIRRING,
OR TRANSFERRING PRODUCT TO ANOTHER
CONTAINER.
CAUTION
DO NOT OVER FILL THE KETTLE WHEN
COOKING, HOLDING OR CLEANING. KEEP
LIQUIDS AT A MINIMUM OF 2-3” (5-8 CM)
BELOW THE KETTLE BODY RIM TO ALLOW
CLEARANCE FOR STIRRING, BOILING AND
SAFE PRODUCT TRANSFER.
To heat the kettle, open the steam inlet valve. Adjusting the valve allows you to
control the heating rate. Opening the valve more allows steam to flow into the jacket
faster, and heats the product faster.
The kettle operates efficiently at pressures from five PSI to the maximum working
pressure for which the kettle was designed. The maximum pressure is stamped on
the kettle nameplate.
TILTING
To transfer product or empty the kettle: the kettle is designed and manufactured to
be tilted in a controlled manner. Grasp the insulated plastic ball firmly. Maintain a firm
grip on handle when tilting, while keeping the kettle body in a tilted position and then
SLOWLY returning the kettle body to an upright position.
WARNING
WHEN TILTING KETTLE FOR PRODUCT
TRANSFER:
1) WEAR PROTECTIVE OVEN MITT AND
PROTECTIVE APRON.
2) USE CONTAINER DEEP ENOUGH TO
CONTAIN AND MINIMIZE PRODUCT
SPLASHING.
3) PLACE CONTAINER ON STABLE, FLAT
SURFACE, AS CLOSE TO KETTLE AS
POSSIBLE.
4) STAND TO LEFT OR RIGHT SIDE OF
KETTLE (DEPENDING ON TILTING HANDLE
PLACEMENT) WHILE POURING. DO NOT
STAND DIRECTLY IN POUR PATH OF HOT
CONTENTS.
5) POUR SLOWLY, MAINTAIN CONTROL OF
KETTLE BODY HANDLE AT ALL TIMES,
AND RETURN KETTLE BODY TO UPRIGHT
POSITION AFTER CONTAINER IS FILLED OR
TRANSFER IS COMPLETE.
6) DO NOT OVER FILL CONTAINER. AVOID
DIRECT SKIN CONTACT WITH HOT
CONTAINER AND ITS CONTENTS.
OM-TD 9
Operation
ACCESSORIES
CAUTION
DO NOT TILT KETTLE BODY WITH COVER
IN PLACE. COVER MAY SLIDE OFF,
CAUSING INJURY TO OPERATOR.
WARNING
AVOID ALL DIRECT CONTACT WITH HOT
SURFACES. DIRECT SKIN CONTACT COULD
RESULT IN SEVERE BURNS.
AVOID ALL DIRECT CONTACT WITH HOT
FOOD OR WATER IN THE KETTLE. DIRECT
CONTACT COULD RESULT IN SEVERE BURNS.
CAUTION
DO NOT OVERFILL THE KETTLE WHEN
COOKING, HOLDING OR CLEANING. KEEP
LIQUIDS A MINIMUM OF 2-3” (5-8 CM)
BELOW THE KETTLE RIM TO ALLOW
CLEARANCE FOR STIRRING, BOILING AND
SAFE PRODUCT TRANSFER.
1. Cover
As with stock pot cooking, an optional lift-off cover can speed up the heating
of water and food products. A cover helps retain heat in the cooking vessel and
reduces the amount of heat and humidity released into the kitchen. Use of a
cover can reduce some product cook times and help maintain the temperature,
color and texture of products being held or simmered for extended periods.
Make sure plastic ball handle is secure on the lift off cover before using. AL-
WAYS use the plastic handle to place or remove the cover from the kettle. Wear
protective oven mitts and a protective apron.
When putting the cover on the kettle, position it on top of kettle rim, with its flat
edge facing the pouring lip.
When removing cover:
a) Firmly grasp the plastic handle
b) Lift rear edge (farthest from operator) 1-2” (3-5 cm) to allow any steam
and water vapor to escape the cooking vessel. Wait 2-3 seconds.
c) Tilt cover to 45-60° angle and allow any hot condensate or product to
roll off cover back into kettle.
d) Remove the cover, ensuring that any remaining hot condensate or prod-
uct does not drip on operator, floor or work surfaces.
AVOID CONTACT WITH STEAM AND HOT
CONDENSATE WHEN REMOVING A COVER.
e) Place cover on safe, flat, sanitary, out- of-the-way surface, or return to
kettle rim.
OM-TD
Operation
ACCESSORIES Continued...
WARNING
AVOID ALL DIRECT CONTACT WITH HOT
SURFACES. DIRECT SKIN CONTACT COULD
RESULT IN SEVERE BURNS.
AVOID ALL DIRECT CONTACT WITH HOT
FOOD OR WATER IN THE KETTLE. DIRECT
CONTACT COULD RESULT IN SEVERE BURNS.
CAUTION
DO NOT OVERFILL THE KETTLE WHEN
COOKING, HOLDING OR CLEANING. KEEP
LIQUIDS A MINIMUM OF 2-3” (5-8 CM)
BELOW THE KETTLE RIM TO ALLOW
CLEARANCE FOR STIRRING, BOILING AND
SAFE PRODUCT TRANSFER.
2. Basket Insert
An optional kettle basket insert (10 Quart and larger) can assist in cooking wa-
ter boiled products, including eggs, potatoes, vegetables, shell fish, pasta and
rice. The nylon mesh liner must be used when cooking product smaller than the
mesh size of the basket, which is approximately 1/4” (6 mm). This includes rice
and small pasta shapes.
Allow for the water displacement of basket and product to be cooked. This
may mean only filling the kettle half full of water. Test the basket and product
displacement with the kettle OFF, and with cold water in the kettle.
a) Load basket on a level, stable work surface.
b) Lift the loaded basket with both hands. Get help from another person if
the basket is too heavy for safe handling.
c) Slowly lower product into kettle.
d) When removing basket with cooked product, lift the basket straight up,
ensuring that the bottom of the basket clears the rim and pouring lip of
the kettle. Wear protective oven mitts and a protective apron.
e) Allow hot water to fully drain from product before moving the basket
away from the kettle. Do not rest the kettle basket on the kettle rim or
pouring lip. If the basket is too heavy for one individual to lift and safely
move, get help from another person. Remove product immediately from
the basket into another container, being sure to avoid contact with hot
product and hot basket or. . .
f) Place basket with food on stable, flat surface, setting it inside a solid
steamer or bake pan, to catch any remaining hot water which might
drain from product.
OM-TD 11
Cleaning
WEAR EYE
PROTECTION
OM-TD
another container, being sure to avoid
contact with hot product and hot basket
or. . .
f) Place basket with food on stable, at
surface, setting it inside a solid steamer
or bake pan, to catch any remaining hot
water which might drain from product.
c. Prepare a hot solution of the detergent/
cleaning compound as instructed by the
supplier.
OM-TD
OM-TD
another container, being sure to avoid
contact with hot product and hot basket
or. . .
surface, setting it inside a solid steamer
or bake pan, to catch any remaining hot
water which might drain from product.
cleaning compound as instructed by the
supplier.
OM-TD
CAUTION
MOST CLEANERS ARE HARMFUL TO
THE SKIN, EYES, MUCOUS MEMBRANES
AND CLOTHING. PRECAUTIONS SHOULD
BE TAKEN. WEAR RUBBER GLOVES,
GOGGLES OR FACE SHIELD AND
PROTECTIVE CLOTHING. CAREFULLY
READ THE WARNINGS AND FOLLOW
THE DIRECTIONS ON THE LABEL OF THE
CLEANER TO BE USED.
WARNING
AVOID ANY DIRECT CONTACT WITH HOT
SURFACES. DIRECT SKIN CONTACT COULD
RESULT IN SEVERE BURNS.
USE BRUSHED, SPONGES OR CLOTH TO
CLEAN YOUR KETTLES
CAUTION
NEVER LEAVE A CHLORINE SANITIZER
IN CONTACT WITH STAINLESS STEEL
SURFACES LONGER THAN 30 MINUTES.
LONGER CONTACT CAN CAUSE STAINING
AND CORROSION.
1. Suggested Tools:
a) A good cleaner
b) Kettle brushes in good condition
c) A good sanitizer
d) Film remover
2. Procedure:
a) Clean food-contact surfaces as soon as possible after use. If the unit is in
continuous use, thoroughly clean and sanitize the interior and exterior at
least once every 12 hours.
b) Scrape and flush out food residues. Be careful not to scratch the kettle
with metal implements.
c) Prepare a hot solution of the detergent/ cleaning compound as instructed
by the supplier.
d) Clean the unit thoroughly, inside and outside.
e) Rinse the kettle thoroughly with hot water, then drain completely.
f) As part of the daily cleaning program, clean soiled external and internal
surfaces.
g) To remove stuck materials, use a brush, sponge, cloth, plastic or rub-
ber scraper, or plastic wool with the cleaning solution. To reduce effort
required in washing, let the detergent solution sit in the kettle and soak
into the residue. Do not use abrasive materials or metal tools that might
scratch the surface. Scratches make the surface harder to clean and
provide places for bacteria to grow.
h) Do not use steel wool, which may leave particles in the surface and
cause eventual corrosion and pitting.
i) The outside of the unit may be polished with a stainless steel cleaner
such as “Zepper” from Zep Manufacturing Co.
j) When equipment needs to be sanitized, use a solution equivalent to one
that supplies 200 parts per million available chlorine. Obtain advice on
sanitizing agents from your supplier of sanitizing products.
k) Following the supplier’s instructions, apply the agent after the unit has
been cleaned and drained. Drain and thoroughly rinse off the sanitizer.
l) It is recommended that each piece of equipment be sanitized just before
use.
m) If there is difficulty removing mineral deposits or a film left by hard water
or food residues, clean the kettle thoroughly and use a deliming agent,
such as Groen Delimer/Descaler (Part Number 114800) or Lime-Away®
from Ecolab, in accordance with the manufacturer’s directions. Rinse and
drain the unit thoroughly before further use.
n) If cleaning problems persist, contact your cleaning product representa-
tive for assistance. The supplier has a trained technical staff with laboratory facilities to serve you.
DON’T SCRAPE WITH TOOLS, STEEL WOOL
OR OTHER ABRASIVES
OM-TD
Maintenance
PERIODIC MAINTENANCE
CAUTION
USE OF ANY REPLACEMENT PARTS OTHER
THAN THOSE SUPPLIED BY GROEN OR AN
AUTHORIZED SUPPLIER WILL VOID ALL
WARRANTIES AND COULD INJURE THE
OPERATOR OR DAMAGE THE EQUIPMENT.
WARNING
WHEN TESTING, AVOID ANY EXPOSURE TO
THE STEAM BLOWING OUT OF THE SAFETY
VALVE. DIRECT CONTACT COULD RESULT IN
SEVERE BURNS.
NOTICE: Contact Groen or an authorized Groen representative when
repairs are required.
A Maintenance and Service Log is provided at the back of this manual. Each time
maintenance is performed on your Groen kettle, enter the date on which the work was
done, what was done, and who did it. File the log with the warranty.
Periodic inspection will minimize equipment down time and increase the efficiency of
operation. The following points should be checked:
1) Once a day, with pressure in the jacket, check the operation of the safety valve.
Lift the lever of the safety valve until steam is released. Then release the
lever and let the valve snap shut. If the lever does not activate, or there is no
evidence of discharge, or the valve leaks, immediately discontinue use of the
kettle and contact a qualified Groen service representative.
2) At least once every 90 days, inspect fittings and valves for signs of damage
or wear. Regularly examine trunnion packings and valve seats for wear, and
replace them when necessary.
NOTE: Service performed by other than factory authorized personnel will void
all warranties.
3) Lubricate trunnions and gears with a good grade of high temperature grease.
Grease trunnions at least once every 60 days, and grease gears when
inspection shows that they are dry.
SEQUENCE OF OPERATION
The following “action-reaction” outline is provided to help the user understand the
function of the equipment.
When the steam inlet valve is opened, steam flows into the jacket at a pressure
determined by the boiler system or by the pressure reducing valve that serves the
kettle.
In the jacket, steam transfers heat to the kettle as it condenses into water. The steam
trap allows condensate (water) to leave the jacket, while it holds steam in. When the
steam is shut off, condensation produces a vacuum in the jacket, but the check valve
in the condensate return line keeps water from flowing back into the jacket.
OM-TD 13
Troubleshooting
WARNING
USE OF ANY REPLACEMENT PARTS OTHER
THAN THOSE SUPPLIED BY GROEN OR AN
AUTHORIZED SUPPLIER/DISTRIBUTOR
WILL VOID ALL WARRANTIES AND COULD
INJURE THE OPERATOR OR DAMAGE THE
EQUIPMENT.
WARNING
TO AVOID INJURY FROM SPLASHING OR
SPILLING HOT CONTENTS, EMPTY THE
KETTLE THROUGH THE DRAWOFF OR BY
BAILING BEFORE ANY WORK IS DONE ON
THE TILTING MECHANISM.
SYMPTOM WHO
Kettle will not heat. User a. That the steam inlet valve is open.
Auth Service
Rep Only
Safety valve leaks a small
amount of steam.
Safety valve leaks a large
amount of steam.
Pipe fitting leaks. User a. Is the fitting tight?
User a. For contamination that prevents seating the valve. With
Auth Service
Rep Only
Auth Service
Rep Only
Auth Service
Rep Only
Your Groen kettle will operate smoothly and efficiently if properly maintained. However,
the following is a list of checks to make in the event of a problem. If the actions
suggested do not solve the problem, call your qualified Groen Service Representative.
For the phone number of the nearest agency, call your area Groen representative or
the Groen Parts and Service Department. If an item on the list is followed by X, the
work should be done by a qualified service representative.
WHAT TO CHECK
X indicates items which must be performed by an authorized technician.
b. That the steam supply line is turned on.
c. That the condensate return valve is open.
d. That the boiler is operating properly. Steam should be
supplied at a pressure greater than five PSI.
e. Steam supply line for blockage. X
f. Condensate return line for blockage. X
g. Steam trap operation. X
pressure in the jacket, lift the valve lever briefly all the way up,
to blow the valve clean then let it snap back down to seat the
valve.
b. Safety valve for defects. Defective valve MUST be replaced
with an identical valve. X
a. Steam supply pressure. X
b. Safety valve for defects. Defective valve MUST be replaced
with an identical valve. X
b. If the leak is at a trunnion, and tightening the packing gland
does not stop the leak, replace the packing. X
OM-TD
Parts List Model TDC/3
OM-TD
Parts List
Model TDC/3
OM-TD
Key Description Part No.
1 Pedestal Assembly 081572
2 Pedestal Cap 081574
3 Nut, Hex Jam 1-3/4” OD 081707
7 Packing Ring Set 002033
8 Washer Packing 002019
9 Spring 002025
10 Washer 5/8” Neoprene 003242
11 Tip, Crutch 1” ID 002032
12 Handle Assembly 012694
13 Knob, Maroon Ball 012691
14 Ring, Tolerance 012692
15 Handle Shaft 018963
16 Lockwasher 3/8” 005618
17 Nut Cap 3/8-24 003188
18 Basket TDC/3-10 001110
19 Basket TDC/3-20 001120
20 Cover Assembly TDC/3-10 001107
21 Cover Assembly TDC/3-20 001108
22 Valve, Globe 3/8” Brass 002051
23 Valve, Globe 3/8” RCP 010145
24 Valve, Globe 3/8” PCP 010146
25 Handwheel, Valve 01148
26 Valve, Safety (not incl.) 011001
27 Strainer, 1/2” Blk 004181
28 Strainer, 1/2” RCP 010165
29 Strainer, 1/2” PCP 010166
30 Steam Trap Repair Kit 002886
31 Steam Trap, 1/2” Blk 010250
32 Steam Trap, 1/2” RCP 010251
33 Steam Trap, 1/2” PCP 010252
34 Valve, Check 1/2” Brass 004187
35 Valve, Check 1/2” RCP 010124
36 Valve, Check 1/2” PCP 010140
37 Nipple, 3/8” x 12-1/2” Lg 005485
-- Pedestal Gasket (old style) 001968
-- Bullet Foot 042505
-- Stem Extension PCP 012722
--
Kettle Body
--
Control, DC Adjustable
--
Control, DC Adjustable
MS2043
013972
005125
25
22
23
24
3
26
1
2120
1918
297 8
9
37
13
14
10
11
14
8
7
2
37
30 3231 33
13
15
16
17
27 2928
12
1
3
36
35
34
OM-TD 15
Key Description Part No.
OM-TD
Parts List
Model TDA
OM-TD
1 Knob 001385
2 Handle & Bushing Assy. 001022
3 Spring 001067
4 Handle Guide Nut 001025
5 Plunger Guide 001046
6 Elbow Assembly (incl. item 5)
see 6a
6a Elbow Assembly- 1,4,6 Qt pre
1957
7 O-Ring 007360
8 Hex Nut (see 8a) 001032
8a Hex Nut 1,4,6 Qt pre 1957 001034
9 Ferrule 001023
10 Pedestal (to 20 Qts incl) 001087
10a Pedestal (40 Qt size only) 001088
11 Hex Mounting Nut 001031
12 Pipe (for 1087 Pedestal) 001056
12a Pipe (for 1088 Pedestal) 001057
13 Packing 001065
14 Packing Gland (see 14a) 001036
14a Packing Gland-1,4,6 sizes pre
1957
15 Valve Assembly (incl.
16,17,18,19,20) see 15a
15a Valve Assy-1,4,6 Qt pre 1957 001042
16 Stem Assembly 001098
16a Stem Ass-1,4,6 Qt pre 1957 002076
17 Bonnet, see 17a 001142
17a Bonnet-1,4,6 Qt pre 1957 001075
18 Packing Ring 001152
19 Packing Nut 001144
20 Handle (small 2” dia) 001148
21 Basket TDA 10 001110
21a Basket TDA 20 001120
22 Cover TDA 10 001107
22a Cover TDA 20 001108
23 Safety Valve (state pressure) --
24 1/2” Strainer 004181
25 1/2” Steam Trap 004182
26 1/2” Swing Check Valve 004187
27 Handle Screw 002613
28
Valve Stem Assembly (incl.
16,17,18,19,20,27)
001083
001043
001045
001037
002615
Parts List Model TDA
* Obsolete, see item 28
OM-TD
OM-TD
Diagram
Trunnion Packings
OM-TD
MODEL TDC/3
Pedestal Cap 081754
NOTE: THESE 5 RINGS COMPRISE ONE SET
OF PACKING & MUST BE ASSEMBLED IN
THE MANNER SHOWN. PART NO 2033
PEDESTAL CAP 081754
Diagram - Trunnion Packings
for Model TDC/3
FEMALE PACKING RING ADAPTER
MALE PACKING RING ADAPTER
SPRING PART NO. 2025
KETTLE TRUNNION
WASHER PART NO. 2019
INTERMEDIATE PACKING RING, 3 FURNISHED
OM-TD 17
Limited Warranty
to Commercial Purchasers*
(Domestic U.S., Hawaii & Canadian Sales Only)
Groen Foodservice Equipment (”Groen Equipment”) has been skillfully manufactured,
carefully inspected and packaged to meet rigid standards of excellence. Groen
warrants its Equipment to be free from defects in material and workmanship for (12)
twelve months with the following conditions and subject to the following limitations.
I. This parts and labor warranty is limited to Groen Equipment sold to the original
commercial purchaser/users (but not original equipment manufacturers), at
its original place of installation in the continental United States, Hawaii and
Canada.
II. Damage during shipment is to be reported to the carrier, is not covered under
this warranty, and is the sole responsibility of purchaser/user.
III. Groen, or an authorized service representative, will repair or replace, at Groen’s
sole election, any Groen Equipment, including but not limited to, drawoff valves,
safety valves, gas and electric components, found to be defective during the
warranty period. As to warranty service in the territory described above, Groen
will absorb labor and portal to portal transportation costs (time and mileage) for
the first (12) twelve months from date of installation or (15) fifteen months from
date of shipment from Groen.
IV. This warranty does not cover boiler maintenance, calibration, periodic
adjustments as specified in operating instructions or manuals, and consumable
parts such as scraper blades, gaskets, packing, etc.,or labor costs incurred for
removal of adjacent equipment or objects to gain access to Groen Equipment.
This warranty does not cover defects caused by improper installation, abuse,
careless operation, or improper maintenance of equipment. This warranty
does not cover damage caused by poor water quality or improper boiler
maintenance.
V. THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERC
HANABILITY OR FITNESS FOR A PARTICULAR PURPOSE, EACH OF WHICH
IS HEREBY EXPRESSLY DISCLAIMED. THE REMEDIES DESCRIBED ABOVE
ARE EXCLUSIVE AND IN NO EVENT SHALL GROEN BE LIABLE FOR SPECIAL,
CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR THE BREACH OR DELAY IN
PERFORMANCE OF THIS WARRANTY.
VI. Groen Equipment is for commercial use only. If sold as a component of another
(OEM) manufacturer’s equipment, or if used as a consumer product, such
Equipment is sold AS IS and without any warranty.
* Covers All Foodservice Equipment Ordered After October 1, 1995
OM-TD 19
Loading...
