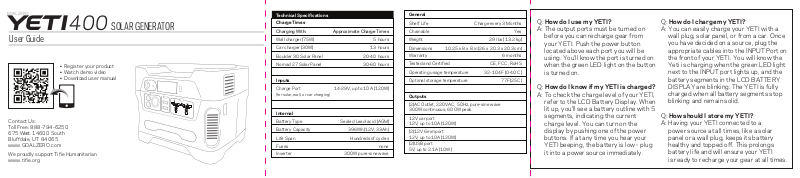

Goal Zero YETI400 User Guide

YETI400

User Guide

• Register your product

• Watch demo video

• Download user manual

Contact Us:
Toll Free: 888-794-6250
675 West. 14600 South
Bluffdale, UT 84065
www.GOALZERO.com

We proudly support Tifie Humanitarian
www.tifie.org

SOLAR GENERATOR

Technical Specifications

Charge Times

Charging With: Approximate Charge Times

Wall charger (75W) 5 hours

Car charger (30W) 13 hours

Boulder 30 Solar Panel 20-40 hours

Nomad 27 Solar Panel 30-60 hours

Inputs

Charge Port 14-29V, up to 10A (120W)

(for solar, wall, or car charging)

Internal

Battery Type Sealed Lead-acid (AGM)

Battery Capacity 396Wh (12V, 33Ah)

Life Span Hundreds of cycles

Fuses none
Inverter 300W pure-sine wave

General

Shelf Life Charge every 3 Months

Chainable Yes

Weight 29 lbs (13.2 kg)

Dimensions

Warranty 6 months

Tested and Certified CE, FCC, RoHS

Operating usage temperature 32-104F (0-40 C)

Optimal storage temperature 77F (25C)

Outputs

(2)AC Outlet, 220VAC, 50Hz, pure-sine wave
300W continuous, 600W peak

12V car port
12V, up to 10A (120W)

(2)12V 6mm port
12V, up to 10A (120W)

(2)USB port
5V, up to 2.1A (10W)

10.25 x 8 x 8 in (26 x 20.3 x 20.3cm)

Q: How do I use my YETI?
A: The output ports must be turned on
before you can recharge gear from
your YETI. Push the power button
located above each port you will be
using. You'll know the port is turned on

when the green LED light on the button

is turned on.

Q: How do I know if my YETI is charged?
A: To check the charge level of your YETI,

refer to the LCD Battery Display. When

lit up, you'll see a battery outline with 5
segments, indicating the current
charge level. You can turn on the
display by pushing one of the power
buttons. If at any time you hear your
YETI beeping, the battery is low - plug
it into a power source immediately.

Q: How do I charge my YETI?
A: You can easily charge your YETI with a
wall plug, solar panel, or from a car. Once
you have decided on a source, plug the
appropriate cables into the INPUT Port on
the front of your YETI. You will know the

Yeti is charging when the green LED light

next to the INPUT port lights up, and the

battery segments in the LCD BATTERY
DISPLAY are blinking. The YETI is fully

charged when all battery segments stop
blinking and remain solid.

Q: How should I store my YETI?
A: Having your YETI connected to a
power source at all times, like a solar
panel or a wall plug, keeps its battery
healthy and topped off. This prolongs
battery life and will ensure your YETI
is ready to recharge your gear at all times.

Before using or storing, plug your GOAL ZERO YETI 400 into the wall until it

CHARGE

ME NOW!

is fully charged. If at any point you hear beeping from your YETI, plug it
into a power source as soon as possible.

CLOSE-UP OF YETI 400 FACE PLATE

INPUT

Charging Port
Charging Indicator Light

LCD Battery Display

POWER BUTTONS

12V Power Button
USB Power Button
AC Power Button

OUTPUT

AC Port
USB Port
12V Port
12V Port

CLOSE-UP OF LCD BATTERY DISPLAY

Indicates power flowing into

BATTERY FAIL:

BLOWN FUSE: contact Goal Zero Solutions Center

LOW BATTERY: Plug into power source immediately

TEMPERATURE WARNING; Too Hot: Unplug YETI and allow it to cool down

INVERTER FAIL: contact Goal Zero Solutions Center

INPUT POWER:

the YETI while recharging.

Will display LOW if power

flow is below a measurable

amount.

contact Goal Zero Solutions Center

BATTERY LEVEL
INDICATOR

OUTPUT POWER:

Indicates amount of power
plugged-in devices are
pulling from the YETI.

SWITCH DISPLAY MODES:

Push and hold the button
until display flashes.
Continue pushing button
to scroll through options.

WHAT IT POWERS

Powers USB, 12V and AC devices like:

Small appliances CPAP Tablets
Televisions Smartphones Laptops
Power tools Lights …And More

12V Light

100+ Hours

Note: Recharges are based on averages of most popular devices.

Smartphone

30+ Recharges

Laptop

5 Recharges

TV

3 Hours
