Gentec-EO Diffractive Optics User Manual

Warranty

The Gentec-EO inc Holographic Beam Sampler carries a one year warranty (from date of shipment)
against material and / or workmanship defects, when used under normal operating conditions. The
warranty does not cover damages related to misuse.

Gentec-EO inc will repair or replace, optionally, any product which proves to be defective during the
warranty period, except in the case of product misuse.

Any attempt by an unauthorized person to alter or repair the product is also not covered by the warranty.
The manufacturer is not liable for consequential damages of any kind.
In the case of a malfunction, contact the local Gentec-EO inc distributor or the nearest Gentec-EO inc

office to obtain a return authorization number. The material should be returned to:

Gentec Electro-Optics, Inc.
445, St-Jean-Baptiste, Suite 160
Québec, Qc
Canada G2E 5N7

Tel: [phone]
Fax: [phone]
e-mail: [e-mail]

www.Gentec-EO.com

ii

HBS Instruction Manual Revision 4.1 Feburary 2014

TABLE OF CONTENTS

WARRANTY .................................................................................................................................. ii

TABLE OF CONTENTS ............................................................................................................... iii

LIST OF ILLUSTRATIONS .......................................................................................................... iv

1 GENERAL INFORMATION ....................................................................................................... 1

1.1 RECEPTION ............................................................................................................... 1

1.2 INTRODUCTION ........................................................................................................ 2

HBS STANDARD SPECIFICATIONS ............................................................................... 3

HBS SUBSTRATES .......................................................................................................... 3

HBS CUSTOMIZED SPECIFICATIONS ........................................................................... 4

2 HBS SETUP AND ALIGNMENT ............................................................................................... 5

3 BEAM PROFILING ................................................................................................................... 7

4 MAINTENANCE ........................................................................................................................ 9

DAMAGE TO THE MATERIAL ................................................................................................... 10

iii

HBS Instruction Manual Revision 4.1 Feburary 2014

LIST OF ILLUSTRATIONS

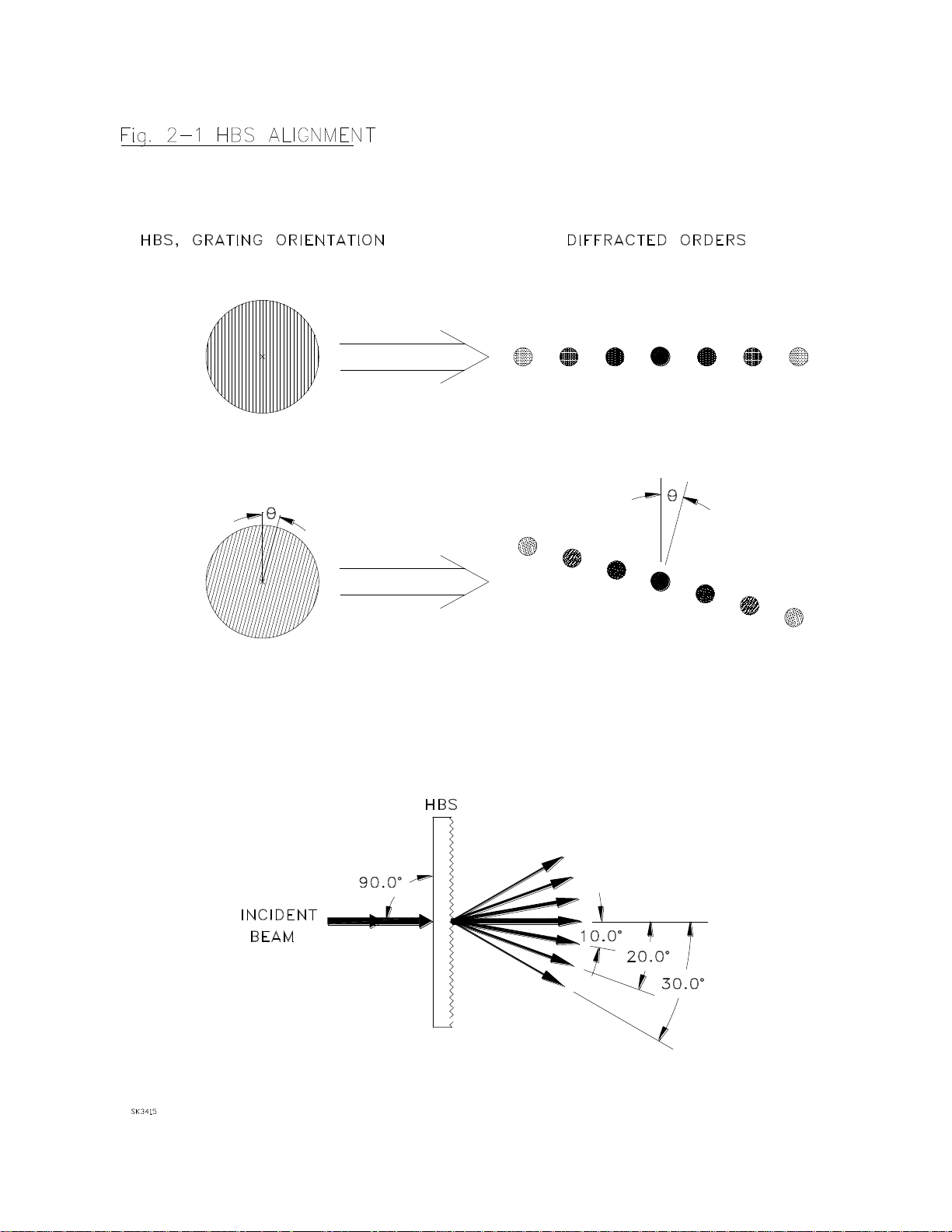

Fig. 2-1 HBS Alignment .................................................................................................................. 6

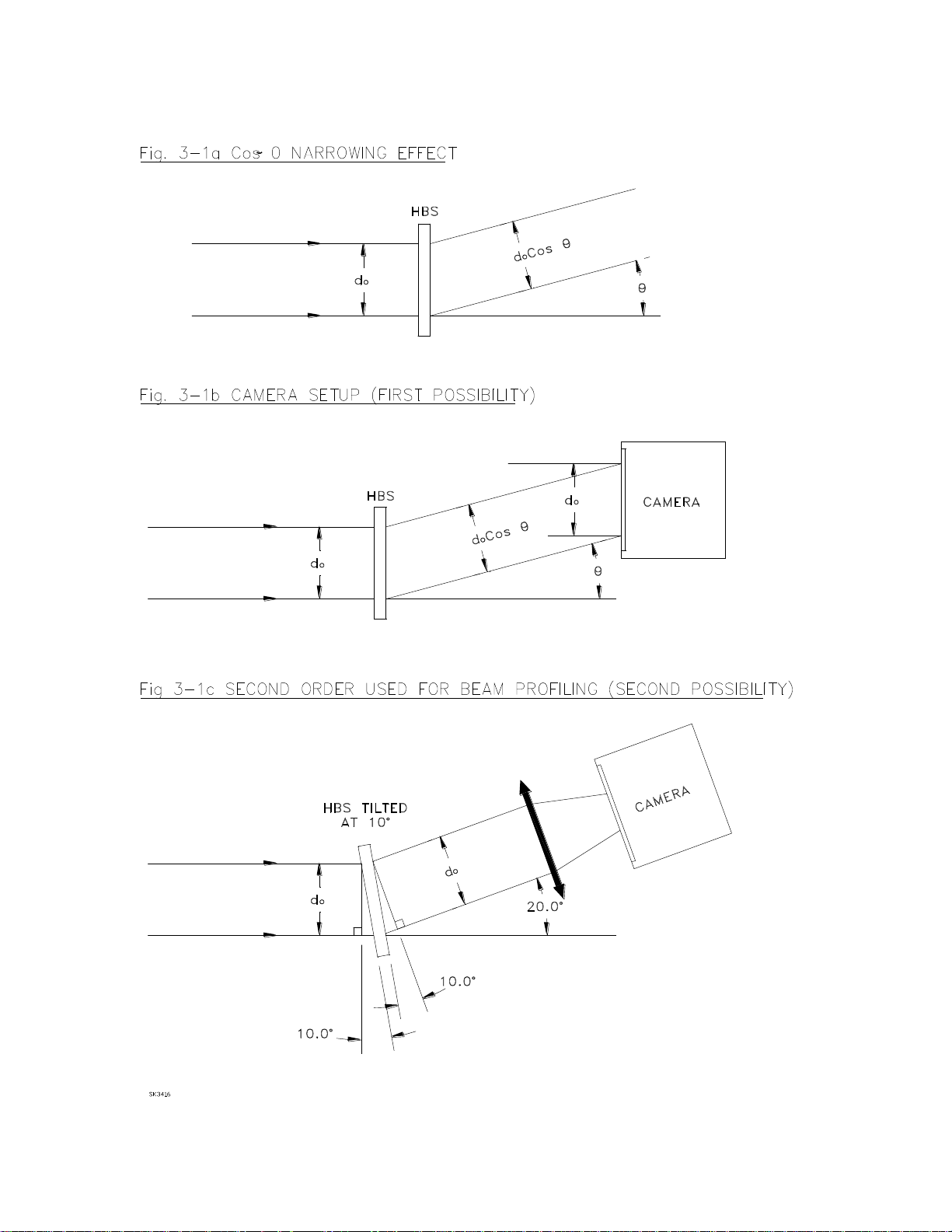

Fig. 3-1a Cos narrowing effect ....................................................................................................... 8

Fig. 3-1b Camera setup .................................................................................................................. 8

Fig. 3-1c Second order used for beam profiling ............................................................................. 8

iv

HBS Instruction Manual Revision 4.1 Feburary 2014

1 GENERAL INFORMATION

1.1 RECEPTION

The Gentec-EO inc HBS equipment was delivered in good condition. Once the shipment is
received, it should be immediately inspected for damage. The contents of all boxes should be

unpacked carefully.
Notify and file a claim with the carrier in the case of any loss or damage.
All shipping boxes must be inspected by the carrier in order to file a claim.

Send a purchase order to Gentec-EO inc in order to replace any parts damaged during shipment.

The amount indicated on the replacement part invoice can then be collected from the carrier.

1
