SETUP & OPERATION MANUAL
FEATURES
3 HP DUST COLLECTOR
All single phase models are equipped with
totally enclosed, fan cooled, permanently
lubricated motors.
Heavy-duty motor design with a continuous duty rating for industrial applications.
Heavy-duty base, mounted on four swivel
casters for total mobility and stability.
Precision spin-balanced aluminum impeller for smooth operation, minimal noise
and to reduce the risk of sparking.
All models are equipped with 2 micron
filter bags. (Not included on “CF”canister
filter model)
Quick-release bag clamps with metal
straps on all models.
Safety switch with key, prevents unit from
being started when key is removed.
Heavy-duty collection bags made from
extra thick, transparent, recyclable plastic.
10-210CF
10-210
SPECIFICATIONS
INLET DIAMETERS
(1) 6” (152 mm)
(3) 4” (102 mm)
AIRFLOW CAPACITY
2280 CFM
BLOWER WHEEL
12’’ (305 mm)
SOUND RATING
85 TO 95 dB
BAG DIAMETER
20’’ (508 mm)
BAG CAPACITY
83 GAL (377 L.)
STATIC PRESSURE
11”OF WATER
MOTOR
M1 3 HP, 220 V, 1 Ph, 12 A
M3 3 HP, 600 V, 3 Ph, 3.5 A
OVERALL DIMENSIONS (L x W x H)
60” x 32 5⁄8” x 76”
(1520 x 830 x 1930 mm)
61” x 21 5⁄8” x 74 3/4”
(1550 x 550 x 1900 mm)
WEIGHT
165 LBS (75 kg)
222 LBS (101 kg) – 10-210CF
– 10-210
– 10-210
– 10-210CF
MODEL
#10-210
#10-210CF
VERSION 2_REVISION 1 - January 2015
© COPYRIGHT GENERAL INTERNATIONAL
GENERAL® INTERNATIONAL
8360 Champ-d’Eau, Montreal (Quebec) Canada H1P 1Y3
Telephone (514) 326-1161 • Fax (514) 326-5555 • www.general.ca
THANK YOU for choosing this General® International model 10-210 or
10-210CF 3 HP Dust Collector. This dust collector has been carefully tested and inspected
before shipment and if properly used and maintained, will provide you with years of reliable
service. For your safety, as well as to ensure optimum performance and trouble-free operation,
and to get the most from your investment, please take the time to read this manual before
assembling, installing and operating the unit.
The manual’s purpose is to familiarize you with the safe operation, basic function, and features
of this dust collector as well as the set-up, maintenance and identification of its parts and components. This manual is not intended as a substitute for formal woodworking instruction, nor
to offer the user instruction in the craft of woodworking. If you are not sure about the safety of
performing a certain operation or procedure, do not proceed until you can confirm, from
knowledgeable and qualified sources, that it is safe to do so.
Once you’ve read through these instructions, keep this manual handy for future reference.
Disclaimer: The information and specifications in this
manual pertain to the unit as it was supplied from the
factory at the time of printing. Because we are committed to making constant improvements, General
Inter-national reserves the right to make changes to
components, parts or features of this unit as deemed
necessary, without prior notice and without obligation
to install any such changes on previously delivered
units. Reasonable care is taken at the factory to ensure
that the specifications and information in this manual corresponds with that of the unit with which it was
®
supplied. However, special orders and “after factory”
modifications may render some or all information in
this manual inapplicable to your machine. Further, as
several generations of this model of dust collector and
several versions of this ma-nual may be in circulation, if
you own an earlier or later version of this unit, this manual may not depict your machine exactly. If you have
any doubts or questions contact your retailer or our
support line with the model and serial number of your
unit for clarification.
GENERAL
All component parts of General® International and Excalibur by General International ®
products are carefully inspected during all stages of production and each unit is thoroughly
inspected upon completion of assembly.
Limited Lifetime Warranty
Because of our commitment to quality and customer satisfaction, General® International
agree to repair or replace any part or component which upon examination, proves to be
defective in either workmanship or material to the original purchaser for the life of the tool.
However, the Limited Lifetime Warranty does not cover any product used for professional or
commercial production purposes nor for industrial or educational applications. Such cases
are covered by our Standard 2-year Limited Warranty only. The Limited Lifetime Warranty is
also subject to the “Conditions and Exceptions” as listed below.
Standard 2-Year Limited Warranty
All products not covered by our lifetime warranty including products used in commercial,
industrial and educational applications are warranted for a period of 2 years (24 months)
from the date of purchase. General® International agrees to repair or replace any part or
component which upon examination, proves to be defective in either workmanship or material to the original purchaser during this 2-year warranty period, subject to the “conditions and
exceptions” as listed below.
INTERNATIONAL WARRANTY
®
To file a Claim
To file a claim under our Standard 2-year Limited Warranty or under our Limited Lifetime
Warranty, all defective parts, components or machinery must be returned freight or postage
prepaid to General® International, or to a nearby distributor, repair center or other location
designated by General® International. For further details call our service department at 1-888949-1161 or your local distributor for assistance when filing your claim.
Along with the return of the product being claimed for warranty, a copy of the original proof
of purchase and a “letter of claim” must be included (a warranty claim form can also be used
and can be obtained, upon request, from General® International or an authorized distributor)
clearly stating the model and serial number of the unit (if applicable) and including an explanation of the complaint or presumed defect in material or workmanship.
CONDITIONS AND EXCEPTIONS:
This coverage is extended to the original purchaser only. Prior warranty registration is not
required but documented proof of purchase i.e. a copy of original sales invoice or receipt
showing the date and location of the purchase as well as the purchase price paid, must be
provided at the time of claim.
Warranty does not include failures, breakage or defects deemed after inspection by
General® International to have been directly or indirectly caused by or resulting from; improper use, or lack of or improper maintenance, misuse or abuse, negligence, accidents, damage
in handling or transport, or normal wear and tear of any generally considered consumable
parts or components.
Repairs made without the written consent of General® Internationallwill void all warranty.
RULES FOR SAFE OPERATION
To help ensure safe operation, please take a moment to learn the machine’s applications and limitations, as well as potential hazards. General® International disclaims any real or implied warranty and holds itself harmless for any injury that
may result from improper use of its equipment.
1. Do not operate the dust collector when tired, distract
ed, or under the effects of drugs, alcohol or any me dication that impairs reflexes or alertness.
2. The working area should be well lit, clean and free of
debris.
3. Keep children and visitors at a safe distance when the
dust collector is in operation; do not permit them to
operate the dust collector.
4. Childproof and tamper proof your shop and all
machinery with locks, master electrical switches and
switch keys, to prevent unauthorized or unsupervised
use.
5. Stay alert! Give your work your undivided attention.
Even a momentary distraction can lead to serious
injury.
6. Fine particulate dust is a carcinogen that can be haz ardous to health. Work in a well-ventilated area and
wear face, eye, ear, respiratory and body protection
devices.
7. Do not wear loose clothing, gloves, bracelets, neck laces or other jewelry while the dust collector is in
operation. Wear protective hair covering to contain
long hair and wear non-slip footwear.
8. Do not insert hands, fingers or any foreign objects into
ventilation inlet and outlet openings.
9. Do not operate this machine without either a filter bag
or canister filter properly installed on the unit.
10. Clean filters (bags on standard model or canister
on “CF” model) on a regular basis and replace as
needed.
11. Do not handle the electrical plug with wet hands.
12. Do not use this unit outdoors, on or near wet surfaces.
13. Always turn on the dust collector before starting the
dust producing machine. Always turn off the dust pro ducing machine before turning off the dust collector.
14. Do not vacuum anything that is burning, smoking or
smoldering such as cigarettes, matches or hot ashes.
15. Do not vacuum or use this dust collector near flamma ble or combustible liquids, gases, gasoline or other
fuels, lighter fluid, cleaners, oil or solvent based paints,
natural gas, hydrogen or explosive dusts like coal
dust, magnesium dust, grain dust or gun powder.
16. Do not operate the unit until a dust hose is installed
onto the hose inlet.
17. Never leave the machine unattended while it is run ning or with the power on.
18. To avoid health hazards from vapors or dusts, do not
vacuum toxic material.
19. Use only recommended accessories. Use of accessories
NOT recommended by GENERAL® INTERNATIONAL
may result in a risk of injury or damage to the
machine.
20. Always disconnect the unit from the power source
before servicing, performing any maintenance or
repairs and when changing bags or hoses, or if the
machine will be left unattended.
21. Make sure that the switch is in the “OFF” position before
plugging in the power cord.
22. Make sure the tool is properly grounded. If equipped
with a 3-prong plug, it should be used with a three pole receptacle. Never remove the third prong.
23. Do not use this dust collector for any purpose other
than its intended use. If used for other purposes,
GENERAL® INTERNATIONAL disclaims any real or
implied warranty and holds itself harmless for any
injury, which may result from that use.
4
ELECTRICAL REQUIREMENTS
BEFORE CONNECTING THE MACHINE TO THE POWER SOURCE, VERIFY THAT THE VOLTAGE OF YOUR POWER SUPPLY CORRESPONDS WITH THE VOLTAGE SPECIFIED ON THE MOTOR I.D. NAMEPLATE. A POWER SOURCE WITH GREATER VOLTAGE THAN NEEDED CAN RESULT IN SERIOUS INJURY TO THE USER AS WELL AS DAMAGE TO THE MACHINE. IF IN DOUBT, CONTACT A QUALIFIED
ELECTRICIAN BEFORE CONNECTING TO THE POWER SOURCE.
THIS TOOL IS FOR INDOOR USE ONLY. DO NOT EXPOSE TO RAIN OR USE IN WET OR DAMP LOCATIONS.
NOTE: VOLTAGE REQUIREMENTS AND AMPERAGE DRAW FOR M2 3-PHASE MOTORS MAY NOT BE FULLY DESCRIBED IN
THIS MANUAL. FOR COMPLETE ELECTRICAL REQUIREMENTS REFER TO THE MOTOR I.D. NAME PLATE ON THE MACHINE.
IF IN DOUBT CONSULT A LICENSED QUALIFIED ELECTRICIAN BEFORE PROCEEDING.
EXTENSION CORDS
A
B
GROUNDING INSTRUCTIONS
In the event of an electrical malfunction or short circuit,
grounding reduces the risk of electric shock to the
ope-rator. The motor of this machine is wired for 220V
single phase operation and is equipped with a 3-conductor cord A and a 3-prong grounded plug B to fit a
matching grounding type receptacle C.
C
The use of an extension cord is not generally recommended for 220V equipment. If you find it necessary,
use only 3-wire extension cords that have 3-prong
grounding plug and a matching 3-pole receptacle that
accepts the tool’s plug. Repair or replace a damaged
extension cord or plug immediately.
Make sure the cord rating is suitable for the amperage
listed on the motor I.D. plate. An undersized cord will
cause a drop in line voltage resulting in loss of power
and overheating. The accompanying chart shows the
correct size extension cord to be used based on cord
length and motor I.D. plate amp rating. If in doubt, use
the next heavier gauge. The smaller the number, the
heavier the gauge.
AMPERES
(AMPS)
< 5
6 TO 10 18 16 14 12
EXTENSION CORD LENGTH
25 FEET 50 FEET 100 FEET 150 FEET
18 16 16 14
DO NOT MODIFY THE PLUG PROVIDED ! If it will not fit your recepta-
cle, have the proper receptacle installed by a qualified
electrician.
CHECK with a qualified electrician or service person if
you do not completely understand these grounding
instructions, or if you are not sure the tool is properly
grounded.
CIRCUIT CAPACITY
Make sure that the wires in your circuit are capable of
handling the amperage draw from your machine, as
well as any other machines that could be operating on
the same circuit. If you are unsure, consult a qualified
electrician. If the circuit breaker trips or the fuse blows
regularly, your machine may be operating on a circuit
that is close to its amperage draw capacity. However,
if an unusual amperage draw does not exist and a
power failure still occurs, contact a qualified technician
or our service department.
10 TO 12 16 16 14 14
12 TO 16 14 12
* NR = Not Recommended
* NR * NR
5

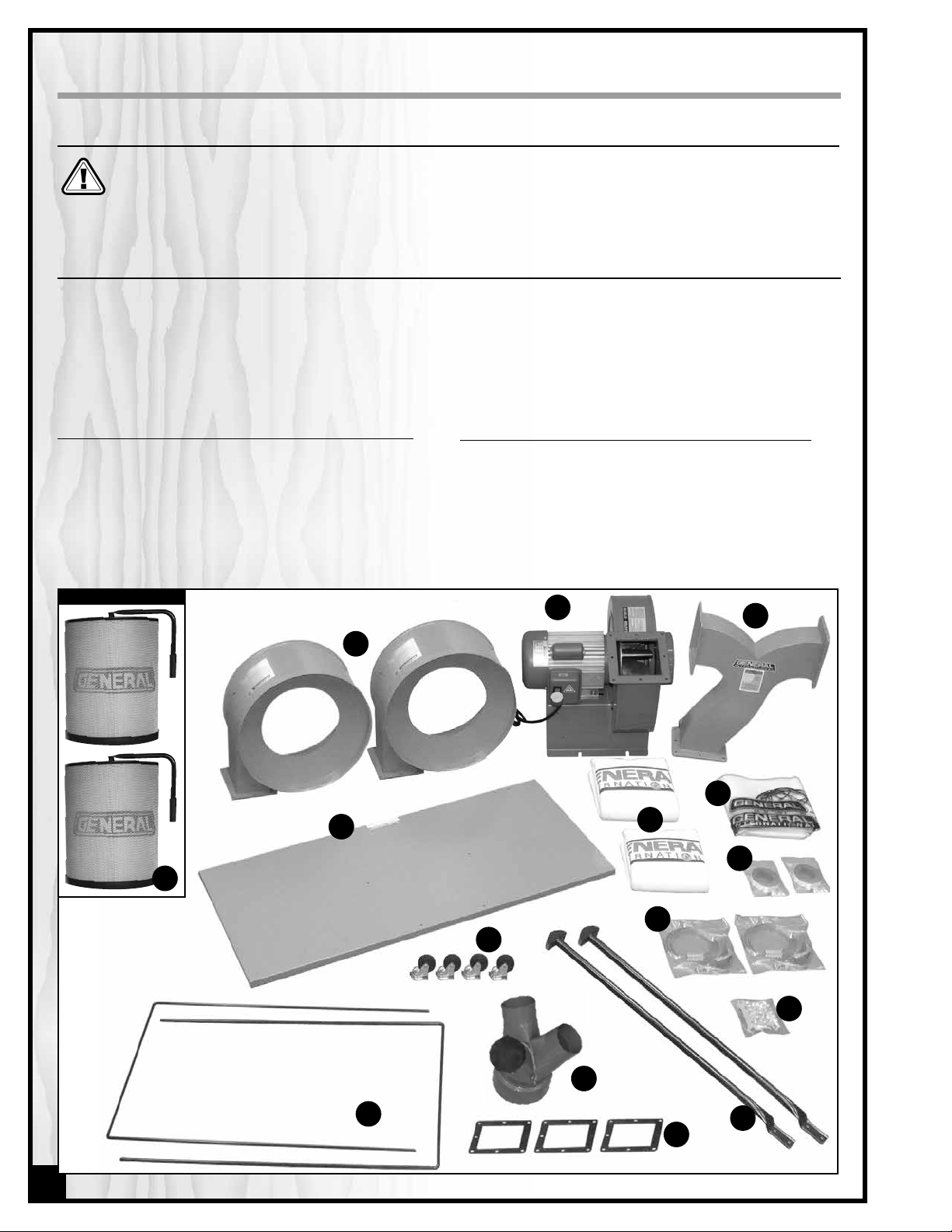

UNPACKING AND PREPARATION FOR SET-UP & ASSEMBLY
SAFETY
Use caution and wear gloves when handling metal parts such as the belt clamps, which can cut if handled
carelessly.
Models 10-210 and 10-210CF are heavy machines (165/222 lbs - shipping weight - 75 kg/101 kg.) Do not overexert.
Arrange to have help nearby and ready for unpacking and set up.
The sound level of this machine is rated at approximately 85 to 95 db during operation. Make sure that adequate hearing protection is used and that the overall sound level within the working environment is taken into
consi-deration.
UNPACKING
Carefully unpack and remove the dust collector, its components and tools from its shipping container and check
for missing or damaged items as per the list of contents below.
NOTE: Please report any damaged or missing items to your GENERAL® INTERNATIONAL distributor immediately.
LIST OF CONTENTS QTY
A - FILTER CARTRIDGE (model 10-210CF only) .......................2
B - DRUM ...................................................................................2
C - FAN/MOTOR ASSEMBLY ......................................................1
D - CONNECTOR .......................................................................1
E - BASE PLATE ........................................................................... 1
F - CASTER ................................................................................. 4
G - FILTER BAG (model 10-210 only) .......................................2
H - COLLECTOR BAG .................................................................2
WITH 10-210CF
B
E
A
LIST OF CONTENTS QTY
I - FOAM GASKET .....................................................................2
J - BELT CLAMP ......................................................................... 2
K - HARDWARE BAG ..................................................................1
L - VERTICAL SUPPORT ROD .....................................................2
M - RUBBER GASKET ...................................................................3
N - HOSE INLET (3-HOLE MANIFOLD) ....................................... 1
O - BAG HANGER (mod el 10-210 only) ..................................2
C
D
H
G
I
J
F
K
N
O
L
M
6
ASSEMBLY INSTRUCTIONS
SERIOUS PERSONAL INJURY COULD OCCUR IF YOU CONNECT THE MACHINE TO THE POWER SOURCE BEFORE YOU
HAVE COMPLETED THE INSTALLATION AND ASSEMBLY STEPS. DO NOT CONNECT THE MACHINE TO THE POWER
SOURCE UNTIL INSTRUCTED TO DO SO.
A
1. Place the base plate upside down and attach the
4 casters to the base using 16 hex head flange
bolts (4 per caster) A. Tighten with the supplied 12
mm wrench.
3. Install a rubber gasket on the opening of the fan /
motor assembly outlet.
2. Turn the base right side up and secure the fan /
motor assembly to the base as shown using 4
hex head flange bolts. Tighten with the supplied 12
mm wrench.
4. Attach the connector to the fan/motor assembly as
shown using 8 hex head flange bolts. Tighten with
the supplied 12 mm wrench.
5. Install a rubber gasket on one outlet of the con nector, then attach one drum to the connector
using 8 hex head bolts.
6. Repeat step 5 with the second drum and con nector outlet.
7
7. Attach the two vertical support rods to the rear of
the base plate using 4 hex head bolts (2 per sup ports). Tighten with the supplied 12 mm wrench.
8. With the help of an assistant line up the holes in the
drums with the holes in the support rods and secure
using 4 hex head bolts (2 per drum).
9. Fit the hose inlet (3-hole manifold) over the main air
inlet as shown and secure it in place using the sup plied pan head screw.
INSTALL A FILTER BAG ON THE DRUMS – model #10-210 only
If you have purchased model # 10-210CF (with canister
filter) skip ahead to step #13 on next page.
11. Install the 2 bag hangers onto the drums as shown.
8
USE CAUTION AND WEAR GLOVES WHEN
HANDLING METAL PARTS SUCH AS BELT CLAMPS,
WHICH CAN CUT IF HANDLED CARELESSLY.
10. Attach a collector bag to the lower portion of both
drums using a belt clamp. Before tightening the
clamps make sure the metal strap is sitting in the
groove on the lower portion of the drums to create
an airtight seal between the drum and the bag.
USE CAUTION AND WEAR GLOVES WHEN
HANDLING METAL PARTS SUCH AS BELT CLAMPS,
WHICH CAN CUT IF HANDLED CARELESSLY.
12. Attach a filter bag to the upper portion of both
drums using a belt clamp. Before tightening the
clamps make sure the metal strap is sitting in the
groove on the upper portion of the drum to create
an airtight seal between the drum and the bag.
A
C
B
INSTALL A CANISTER FILTER ON THE DRUMS – #10-210CF only
If you have purchased model #10-210 (with filter bag) follow the instuctions of steps 11 and 12 on previous page.
13. Fit the canister filter onto the drum as shown A and
a use a belt clamp to hold the canister securely
onto the drum B.
Tip/Hint: To seat the canister on the rim of the drum, run a
flat piece of wood (such as a ruler) between the drum and
the black apron on the bottom of the canister C.
Basic assembly is now complete and your dust collector is ready to be put into service. Once the unit
is hooked up to an appropriate electrical connection, turn on the unit and check for air leaks around
the bags (model 10-210) or canister filter (model
10-210CF). If there is an air leak, peel off the backing of
the adhesive foam gasket and stick it onto the drum,
making sure the gasket is sitting in the appropriate
groove.
OPERATING INSTRUCTIONS
BASIC INSTRUCTIONS
Models 10-210 and 10-210CF 3 HP Dust Collector have been designed to capture, remove, and collect non-metallic dust and wood dust around the workshop and from woodworking machinery.
ALWAYS TURN ON THE DUST COLLECTOR BEFORE STARTING YOUR DUST PRODUCING MACHINE AND ALWAYS
STOP THE DUST PRODUCING MACHINE BEFORE TURNING OFF THE DUST COLLECTOR.
BEFORE STARTING
1. To minimize airborne dust make sure that all hoses, fittings and clamps are secure and airtight.
2. For maximum system efficiency, make sure a cover is installed on any unused hose inlet openings.
3. Never operate the machine without the filter bag or canister and the collection bag properly installed.
THE SOUND LEVEL OF THIS MACHINE IS RATED AT APPROXIMATELY 85-95 DB DURING OPERATION. MAKE SURE
THAT ADEQUATE HEARING PROTECTION IS USED AND THAT THE OVERALL SOUND LEVEL WITHIN THE WORKING
ENVIRONMENT IS TAKEN INTO CONSIDERATION.
CONNECTING TO A POWER SOURCE
TO REDUCE THE RISK OF SHOCK OR FIRE DO NOT
OPERATE THE UNIT WITH A DAMAGED POWER
CORD OR PLUG. REPLACE DAMAGED CORD OR
PLUG IMMEDIATELY.
TO AVOID UNEXPECTED OR UNINTENTIONAL
START-UP, MAKE SURE THAT THE POWER SWITCH
A IS IN THE OFF POSITION BEFORE CONNECTING
TO A POWER SOURCE.
Once the assembly steps have been completed, plug
the power cord into an appropriate outlet. Refer back to
the section entitled “Electrical Requirements” and make
sure all requirements and grounding instructions are
followed.
9
ON/OFF SWITCH
Models 10-210 and 10-210CF are equipped with a simple
“rocker style” On/Off switch featuring a removable lock
out safety key.
To prevent unauthorized use or unintentional start-up,
remove the safety key and store it in a safe place whenever the dust collector is not in use.
To start the dust collector, insert the safety key and pull up
the switch. To stop the machine, push down on the power
switch.
REMOVE THE SWITCH KEY WHENEVER THE DUST COLLECTOR IS NOT IN USE. PLACE IT IN A SAFE PLACE AND OUT
OF THE REACH OF CHILDREN.
POWER ON
POWER OFF
SAFETY KEY
(PREVENTS START-UP
WHEN REMOVED)
MAINTENANCE & SERVICING
MAKE SURE THE SWITCH IS IN THE “OFF” POSITION AND UNPLUG THE UNIT FROM THE POWER SOURCE BEFORE
PERFORMING ANY MAINTENANCE.
The M1 version of this machine operates on 220 V single phase power; if you suspect any electrical problems call
a qualified electrician to do the verification of the electrical circuit or the machine. If you need further help with your
dust collector contact your General® International distributor or call our Technical Support at (514) 326-1161.
• All bearings are sealed and permanently lubricated. No further lubrication is needed.
• Periodically inspect all hardware, fittings and fasteners that may have loosened due to vibration - retighten
as needed.
• Keep the outside of the unit clean and wipe off excessive dust or dirt with a dry rag.
• Clean the filters on a regular basis and replace as needed, or if damaged or perforated.
• Periodically inspect inside all pipes, fittings, blast gates, and connectors for accumulated dust build-up
or other obstructions and clean as needed. Remove sections and vacuum or manually remove debris as
needed.
• Check and if necessary replace all damaged parts or components.
• Do not operate with a damaged canister filter or bag - replace damaged filter or bag immediately.
• Periodically inspect the power cord and plug for damage. If necessary replace the power cord and plug
at the first signs of visible damage.
• Use only recommended parts and accessories. The use of parts or accessories NOT recommended by
GENERAL® INTERNATIONAL may result in a risk of injury or damage to the machine.
10
CLEANING OR REPLACING THE FILTER BAGS (model #10-210 only)
TURN THE SWITCH TO THE “OFF” POSITION AND UNPLUG THE UNIT FROM THE POWER SOURCE BEFORE CLEANING
OR REPLACING FILTER BAGS OR BEFORE PERFORMING ANY MAINTENANCE.
Tip/Hint: To avoid potentially costly down-time, consider keeping a spare filter bag on
hand and nearby for use if needed.
After a period of time, depending on the frequency of use, the filter bag may
become clogged and affect airflow as well the overall efficiency of the unit.
Should you notice a drop in the efficiency or performance of the unit, it may be
a sign that it is time to clean the filter bag. If so, proceed as follows:
1. Turn off and unplug the machine.
2. Unclip the belt clamp and remove the bag from the machine.
3. Clean the dust from inside the filter bag using a vacuum.
4. For extreme cases, after the initial cleaning with a vacuum, turn filter bag
inside out and vacuum a second time, laying the bag on a flat hard surface
(such as a table or workbench) and slowly passing the vacuum nozzle
over the entire surface area.
5. Re-install the bag and reattach the clamp.
Note: Filter bags can also be machine washed (gentle cycle only) in cold or warm water. Do not use hot water or detergent. Make sure the bag has completely dried before reinstalling on the machine. Make sure to remove the belt clamp
from the bag before washing!
EMPTYING OR REPLACING THE CANISTER FILTERS (model #10-210CF only)
TURN THE SWITCH TO THE “OFF” POSITION AND UNPLUG THE UNIT FROM THE POWER SOURCE BEFORE CLEANING
OR REPLACING CANISTER FILTERS OR BEFORE PERFORMING ANY MAINTENANCE.
After a period of time depending on the frequency of use, the canister filters may
become clogged and affect airflow as well as the overall efficiency of the unit.
Should you notice a drop in the efficiency or performance of the unit, it may be
a sign that it is time to clean the filters. If so, proceed as follows:
1. Turn off and unplug the machine.
2. For basic cleaning, simply rotate the handle on the top of the canister sever-
al rotations. The internal flap will rub against the corrugated inner filter and
shake free any built-up dust from inside the filter.
3. For a more thorough cleaning, after rotating the handle, unclip the belt
clamps and remove the canisters from the machine and place it on the
ground upside down.
4. Vacuum the inside of the canisters to remove any remaining dust from inside.
5. Reinstall the canisters and reattach the clamp.
CLEANING OR REPLACING THE COLLECTOR BAGS
TURN THE SWITCH TO THE “OFF” POSITION AND UNPLUG THE UNIT FROM THE POWER SOURCE BEFORE CLEANING
OR REPLACING COLLECTOR BAGS OR BEFORE PERFORMING ANY MAINTENANCE.
Note: Depending on your needs, shop situation and local regulations collections bags
can be emptied and reused or disposed (with their contents) and replaced with a
new bag.
1. Turn off and unplug the machine.
2. Unclip the bag clamps and remove the bags from the machine.
3. Empty the bags (or simply dispose of the bag and its contents and replace
with a new bag) disposing of the contents in a safe and responsible manner
that complies with all local codes and regulations regarding waste disposal.
4. Reinstall the bags and reattach the clamps.
11
RECOMMENDED OPTIONAL ACCESSORIES
We offer a large variety of products for increased convenience, productivity, accuracy and safety when
using your dust collector. Here’s a small sampling of optional accessories available from your local General
International dealer.
For more information about our products, please visit our website at www.general.ca
4” x 10’ Polyethylene
Flexible Hose - #10-410
4” x 50’ Polyethylene
Flexible Hose - #10-130
6” x 50’ Polyethylene
Flexible Hose - #10-140
Dust Collection Fire Protection
Cage - #10-430
Modular panel design for
ease of assembly, with open
top for easy hose access.
All steel construction – 100%
non flammable. A quick
economical solution to most
local
safety codes.
4” x 50’ heavy-duty
polyethylene
flexible hose
#10-130
1 Micron Canister Filter
#10-106C
Notes
Clear Plastic
Collector Bag
- #10-120
2 Micron Filter Bag
#10-115
12
13
12
18
2
11A
10A
9
7A
3
6
A
A
27
34
26A
27
34
26A
A
29A
N
DIAGRAM
13
PARTS LIST
10-210 & 10-210CF
REF. N0.
1
2
4A
5
6A
7A
9
10A
11A
12
13
15
16
17A
18
19
21
22
23
24
25
26A
27
28
29N
29A
30
31
32
33
34
35
36
PART N0.
10210-01
10210-02
10210-04A
10210-05
10210-06A
10210-07A
10210-09
10210-10A
10210-11A
10210-12
10210-13
10210-15
10210-16
10210-17A
10210-18
10210-19
10210-21
10210-22
10210-23
10210-24
10210-25
10210-26A
10210-27
10210-28
10210-29N
10210-29A
10210-30
10210-31
10210-32
10210-33
10210-34
10210-35
10210-36
DESCRIPTION
CASTER
HEX. HEAD BOLT
BASE PLATE
PAN HEAD SCREW
INLET COVER
HEX. SOCKET HEAD SCREW
WASHER
FAN
COLLECTOR BODY
WASHER
PAN. HEAD SCREW
HEX HEAD BOLT
SWITCH
MOTOR
NUT
CONNECTOR
LEFT DRUM
COLLECTOR BAG
DRUM SUPPORT
RIGHT DRUM
RUBBER GASKET
UPPER BAG SUPPORT
FILTER*
RUBBER GASKET
INLET FITTING
CAP
KEY
POWER CORD
OPEN END WRENCH
ALLEN KEY
BAG CLAMP
FOAM GASKET
LOCK WASHER
(ITEM #10-120)
SPECIFICATION
5/16” X 1/2” L
3/16” X 3/8”L
7”
M6 X 1 X 30MM L.H.
5/16”
3/16” X 3/8”L
5/16” X 1” L
5/16”
6” X 4” X 4” X 4”
7MM X 7MM X 30MM
12MM
5MM
1/4”
QTY
4
52
1
12
1
1
1
1
1
8
1
4
1
1
4
1
1
2
2
1
1
2
2
3
1
2
1
1
1
1
4
2
1
14
*Filter bag #10-115 for model 10-210 or Canister filter #10-106C for model 10-210CF.
Notes
Canister supplied on
Models #10-105 CF,
#10-110 CF & #10-210 CF
PARTS LIST
10-106C
PART # DESCRIPTION SPEC. QTY
10106C-25 CANISTER FILTER DIA.500MM 1
10106C-26 NUT 5/16” 1
10106C-27 SET SCREW 5/16”X3/4” 1
10106C-28 HANDLE 1
10106C-29 HANDLE SPONGE 7/8” 1
10106C-30 CAP 3/4” 1
10106C-31 CANISTER FIXING PLATE 2
10106C-32 BEARING 1206 2
10106C-35 FLAPPER 3
10106C-36 SPINDLE 1
PART # DESCRIPTION SPEC. QTY
10106C-38 ROUND HEAD SCREW M5X6 6
10106C-39 FIXING PLATE 2
10106C-40 BOTTON FIXING PLATE 1
10106C-41 PHILLIPS HEAD SCREW M5X15 4
10106C-42 FOAM GASKET 3X20X1560 1
10106C-43 FOAM GASKET 5X42X1565 1
10106C-44 BELT CLAMP 500CK 1
10106C-58 FLANGE BOLT M5X12 8
10106C-59 NUT M5 6
10106C-60 FLAPPER BRACKET 1
15
10-210CF
MODEL 10-210 / 10-210CF
10-210
8360 Champ-d’Eau, Montreal (Quebec) Canada H1P 1Y3
Tel.: (514) 326-1161
Fax: (514) 326-5565 - Parts & Service / Fax: (514) 326-5555 - Order Desk
orderdesk@general.ca
www.general.ca
IMPORTANT
When ordering replacement parts, always give the model number, serial number of the machine and
part number. Also a brief description of each item and quantity desired.
Loading...
