Data Sheet
August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

RoHS Compliant

Applications

n

Distributed Power Architectures

n

Wireless Networks

n

Access and Optical Network Equipment

n

Enterprise Networks

n

Latest generation IC’s (DSP, FPGA, ASIC) and Micropro-

cessor-powered applications.

Options

n

Remote On/Off negative logic

n

Surface-mount package (–S Suffix)

n

Basic Insulation (–B Suffix)

n

Baseplate version for heatsink attachment

(only Through-hole version)

Features

n

Compatible with RoHS EU Directive 200295/EC (-Z Ver-

sions)

n

Compatible in RoHS EU Directive 200295/EC with lead

solder exemption (non -Z versions)

n

Delivers up to 20 A output current

n

High efficiency: 91% at 3.3V full load (VIN = 48V)

n

Small size and low profile:

36.8 mm x 57.9 mm x 8.50 mm
(1.45 in x 2.28 in x 0.335 in)

n

Low output ripple and noise

n

Exceptional thermal performance

n

Industry standard "quarter-brick" footprint

n

High reliability: MTBF > 3.1M hours at 25 °C

n

Remote On/Off positive logic (primary referenced)

n

Constant switching frequency (320 KHz typical)

n

Remote Sense

n

Output overvoltage and overcurrent protection

n

Overtemperature protection

n

Adjustable output voltage (± 10%)

n

Meets the voltage and current requirements for

ETSI 300-132-2 and complies with and is approved for
Basic Insulation rating per IEC60950 3
only)

n

UL* 60950 Recognized, CSA† C22.2 No. 60950-00 Certi-

fied, and VDE

n

CE mark meets 73/23/EEC and 93/68/EEC directives

n

ISO** 9001 and ISO14001 certified manufacturing facili-

‡

0805 (IEC60950, 3rd edition) Licensed

ties

rd

(-B version

§

Description

The QW series power modules are isolated dc-dc converters that ca n deliver u p to 20A of o utput cu rrent an d provide a pre­cisely regulated output voltage over a w ide ra ng e of inpu t voltages (VI = 36Vdc to 75Vdc). The modules achieve full load effi­ciency of 91% at 3.3V output voltage, The open frame modules, available in both surface-mou nt and through-ho le pa ckaging,
enable designers to develop cost- and space-efficient solutions.
ment, remote sense,overvoltage, overcurrent and overtemperature protection.

* UL is a registered trademark of Underwriters Laboratories, Inc.
† CSA is a registered trademark of Canadian Standards Association.
‡ VDE is a trademark of Verband Deutscher Elektrotechniker e.V.

§ This product is intended for integration into end-use equipment. All the required procedures for CE marking of end-use equipment should be followed. (The CE mark is placed on selected products.)
** ISO is a registered trademark of the Internation Organization of Standards

Standard features include remote On/Off, output voltage adjust-

Document Name: DS06-008 ver.1.3

PDF Name: QW010-015-020_ds.pdf

Data Sheet
August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Absolute Maximum Ratings

Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress
ratings only, functional operation of the device is not implied at these or any other conditions in excess of those given in the
operations sections of the data sheet. Exposure to absolute maximum ratings for extended periods can adversely affect the
device reliabiltiy.

Parameter Device Symbol Min Max Unit

Input Voltage:Continuous

Transient (100ms)

Operating Ambient Temperature
(See Thermal Considerations section)

Storage Temperature All Tstg –55 125 °C

All
All

All TA –40 85 °C

VI

VI, trans

—
—

75

100

Vdc
Vdc

Electrical Specifications

Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature conditions.

Parameter Device Symbol Min Typ Max Unit

Operating Input Voltage All VIN 36 48 75 Vdc
Maximum Input Current

(VI = 0 V to 75 V; IO = IO, max) All II, max — — 2.0 Adc
Inrush Transient All I
Input Reflected Ripple Current, peak-peak

(5 Hz to 20 MHz, 12 µH source impedance
See Test configuration section)

Input Ripple Rejection (120 Hz) All 50 dB

All II 10 mAp-p

2

t0.2A

2

s

CAUTION: This power module is not internally fused. An input line fuse must always be used.

This power module can be used in a wide variety of applications, ranging from simple stand-alone operation to an integrated
part of a sophisticated power architecture. To preserve maximum flexibility, internal fusing is not included however, to achieve
maximum safety and system protection, always use an input line fuse. The safety agencies require a time-delay fuse with a
maximum rating of 5 A (see Safety Considerations section). Based on the information provided in this data sheet on inrush
energy and maximum dc input current, the same type of fuse with a lower rating can be used. Refer to the fuse manufacturer’s
data sheet for further information.

Tyco Electronics Power Systems 2

Data Sheet
August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Electrical Specifications (continued)

Parameter Device Symbol Min Typ Max Unit

Output Voltage Set Point
(VI = 48 Vdc; IO = IO, min to IO, max; TA = 25 °C)

Output Voltage
(Over all operating input voltage, resistive load, and
temperature conditions until end of life. See Test
Configurations section.)

Output Regulation:

Line (VI = 36 V to 75 V)
Load (IO = IO, min to IO, max)
Temperature (TA = –40 °C to + 85 °C)

Output Ripple and Noise Voltage
See Test Configurations section
Measured across 10 µF T antalum, 1 µF ceramic, VI = 48
Vdc, TA = 25 °C, IO = IO,max

RMS

Peak-to-peak
External Load Capacitance All CO 0 — 10,000 µF
Output Current G,Y,M,P

Output Current-limit Inception
(VO = 90% of VO, set)

Output Short-circuit Current (Average)
(VO = 0.25 V)

Efficiency (VI = 48 Vdc; IO = IO, max),TA = 25 °C P

Switching Frequency All fsw — 320 — kHZ

P
M
Y
G
F
A

P
M
Y
G
F
A

All
All
All

All
All

F
A

G,Y,M,P

F
A

G,Y,M,P

F
A

M
Y
G
F
A

VO, set
VO, set
VO, set
VO, set
VO, set
VO, set

VO
VO
VO
VO
VO
VO

—
—
—

IO
IO
IO

IO
IO
IO

IO
IO
IO

η
η
η
η
η
η

1.18

1.47

1.76

2.45

3.23

4.9

1.16

1.45

1.74

2.42

3.20

4.85

—
—
—

—
—

0
0
0

—
—
—

—
—
—

—
—
—
—
—
—

1.2

1.5

1.8

2.5

3.3

5.0
—

—
—
—
—
—

—
—
—

12
45

—
—
—

23.5

17.5

11.75
13

10

7

84
86
87
89
91
92

1.22

1.52

1.84

2.55

3.37

5.1

1.24

1.55

1.85

2.57

3.40

5.15

±5
±5

1.0

—
75

20.0

15.0

10.0
—

—
—

—
—
—

—
—
—
—
—
—

%VO, set

mVrms

mVp-p

Vdc
Vdc
Vdc
Vdc
Vdc
Vdc

Vdc
Vdc
Vdc
Vdc
Vdc
Vdc

mV
mV

Adc
Adc
Adc

Adc
Adc
Adc

Adc
Adc
Adc

%
%
%
%
%
%

Tyco Electronics Power Systems 3

Data Sheet
August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Electrical Specifications (continued)

Parameter Device Symbol Min Typ Max Unit

Dynamic Response
(di/dt = 0.1 A/µs, VI = 48 V, TA = 25 °C)
Cout = 220µF Electrolytic and 1µF tantalum.
Load Change from IO = 50% to 75% of IO, max,

Peak Deviation
Settling Time (VO < 10% of peak deviation)

Load Change from IO = 50% to 25% of IO, max,

Peak Deviation
Settling Time (VO < 10% of peak deviation)

All
All

All
All

—
—

—
—

—
—

—
—

200

0.2

200

0.2

—
—

—
—

Isolation Specifications

Parameter Symbol Min Typ Max Unit

Isolation Capacitance Ciso — 1000 — PF
Isolation Resistance Riso 10 — — MΩ
Isolation Voltage Viso — — 1500 Vdc

mV
ms

mV
ms

General Specifications

Parameter Min Typ Max Unit

Calculated MTBF (IO = 80% of IO, max TA = 25 °C)
Tyco RIN (Reliability Infomation Notebook) Method

Weight — 27.4(0.97) — g (oz.)

3,178,000 Hours

Tyco Electronics Power Systems 4

Data Sheet
August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Feature Specifications

Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature conditions. See
Feature Descriptions for additional information

Parameter Device Symbol Min Typ Max Unit

Remote On/Off Signal Interface
(VI = VI,min to VI,max; open collector or compatible, signal
referenced to VI(–) terminal)
Negative Logic: Device Code Suffix “1”:
Logic Low—Module On / Logic High—Module Off
Positive Logic: If Device Code Suffix “1” Is Not Specified:
Logic Low—Module Off / Logic High—Module On
Module Specifications:

On/Off Current—Logic Low
On/Off Voltage—Logic Low
On/Off Voltage—Logic High (Ion/off = 0 mA)

Open Collector Switch Specifications:

Leakage Current During Logic High (Von/off = 15 V)
Output Low Voltage During Logic Low (Ion/off = 1 mA)

Turn-on Delay and Rise Times
(at 80% of IO, max; TA = 25 °C):

Case 1: On/Off Input Is Set for Logic High and then Input
Power Is Applied (delay from point at which VI = VI, min until
VO = 10% of VO, set).
Case 2: Input Power Is Applied for at Least One Second, and
Then the On/Off Input Is Set to Logic High (delay from point at
which Von/off = 0.9 V until VO = 10% of VO, set).
Output Voltage Rise Time (time for VO to rise from 10% of
VO, nom to 90% of VO, set)

Output voltage overshoot
(IO = 80% of IO,max, VI = 48 Vdc TA = 25 °C)

Output Voltage Adjustment (See Feature Descriptions section):

Output Voltage Remote-sense Range

Output Voltage Set-point Adjustment Range (trim) All 90 — 110 %VO, set

Output Overvoltage Protection (clamp) P

Overtemperature Protection (VI = 75 V, IO = IO, max)
See Figure 44 All

Input Undervoltage Lockout:

Turn-on Threshold
Turn-off Threshold

.

All
All
All

All
All

All

All

All
All — — 5 %VO,set

P,M,Y

G,F,A

M
Y
G
F
A

All
All

Ion/off
Von/off
Von/off

Ion/off
Von/off

Tdelay

Tdelay

Trise

VO, ovsd
VO, ovsd
VO, ovsd
VO, ovsd
VO, ovsd
VO, ovsd

TQ10 /
TQ560 — 120 — °C

—

–0.7

2.0

2.3

2.3

2.7

3.6

5.5

—
—

—

—

—

—

—

—

17

—

—

— — 0.25

—
33353436—

3

13

—
—
—
—
—
—

1.2
15

50

1.2

—

—

—

10V%VO, set

2.4

2.7

2.7

3.7

4.5

7.2

1.0

—

mA

V
V

µA

V

ms

ms

ms

V
V
V
V
V
V

V
V

Tyco Electronics Power Systems 5

Data Sheet

0

INPUT VOLTAGE, VI (V)

IN

0

OUTPUT CURRENT, IO (A)

TIME, t (1 µs/div)

OUTPUT VOLTAGE,

TIME, t (100 µs/div)

E,

TIME, t (100 µs/div)

E,

TIME, t (1 ms/div)

,

)

August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Characteristic Curves

The following figures provide typical characteristics curves for the QW020A0P1 (VO = 1.2V) module at room temperature (TA
= 25 °C)

0.9

0.8

(A)

I

0.7

0.6

0.5

0.4

0.3

PUT CURRENT, I

0.2

0.1
0

30 35 40 45 50 55 60 65 7

IO = 20 A

IO = 10 A

IO = 0 A

(A) (5 A/div)

O

I

OUTPUT CURRENT,

(V) (200 mV/div)

O

V

OUTPUT VOLT AG

Figure 1. Input Voltage and Current Characteristics.

86
84
82
80

VI = 36 V

I

= 48 V

V

I

= 75 V

V

78
76

EFFICIENCY, (%)

74
72
70

0 5 10 15 2

Figure 2. Converter Efficiency vs. Output Current.

Figure 4. Transient Response to Step Decrease in

Load from 50% to 25% of Full Load
(VI = 48 Vdc).

(A) (5 A/div)

O

I

OUTPUT CURRENT,

(V) (200 mV/div)

O

V

OUTPUT VOLT AG

Figure 5. Transient Response to Step Increase in

Load from 50% to 75% of Full Load
(VI = 48 Vdc).

(V) (5 V/div

ON/OFF

REMOTE ON/OFF

V

(V) (20 mV/div)

O

V

(V) (500 mV/div)

O

V

OUTPUT VOLTAGE,

Figure 3. Output Ripple Voltage (IO = IO, max).

Figure 6. Start-up from Remote On/Off (IO = IO, max).

Tyco Electronics Power Systems 6

Data Sheet

1.2

5

INPUT CURRENT, I

(A)

88

0

OUTPUT CURRENT, I

(A)

TIME, t (1 µs/div)

E,

TIME, t (100 µs/div)

E,

TIME, t (100 µs/div)

E,

TIME, t (1 ms/div)

E,

August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Characteristic Curves

The following figures provide typical characteristics curves for the QW020A0M1 (VO = 1.5 V) module at room temperature (TA
= 25 °C)

1

I

0.8

0.6

IO = 20A

(A) (5 A/div)

O

I

OUTPUT CURRENT,

0.4

0.2

0

30 35 40 45 50 55 60 65 70 7

IO = 10A

IO = 0A

INPUT VOLT AGE, VI (V)

Figure 7. Input Voltage and Current Characteristics.

86
84
82
80
78
76

EFFICIENCY, (%)

74
72
70

0 2 4 6 8 10 12 14 16 18 2

VI = 36V
V

I

V

I

O

= 48V
= 75V

Figure 8. Converter Efficiency vs. Output Current.

(V) (200 mV/div)

O

V

OUTPUT VOLT AG

Figure 10. Transient Response to Step Decrease in

Load from 50% to 25% of Full Load
(VI = 48 Vdc).

(A) (5 A/div)

O

I

OUTPUT CURRENT,

(V) (200 mV/div)

O

V

OUTPUT VOLT AG

Figure 11. Transi ent Respon se to S tep In crease in Lo ad

from 50% to 75% of Full Load
(VI = 48 Vdc).

(5 V/div)

ON/OFF

V

REMOTE ON/OFF,

(V) (200 V/div)

O

V

OUTPUT VOLT AG

(V) (500 mV/div)

O

V

OUTPUT VOLT AG

Figure 9. Output Ripple Voltage (IO = IO, max).

Figure 12. Start-up from Remote On/Off (IO = IO, max).

Tyco Electronics Power Systems 7

Data Sheet

0

INPUT VOLTAGE, VI (V)

INPUT CURRENT, I

(A)

0

TIME, t (1 µs/div)

OUTPUT VOLTAGE,

TIME, t (100 µs/div)

E,

TIME, t (100 µs/div)

E,

TIME, t (1 ms/div)

,

)

August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Characteristic Curves

The following figures provide typical characteristics curves for the QW020A0Y1 (VO = 1.8V) module at room temperature (TA
= 25 °C)

1.4

1.2

I

1

0.8

0.6

0.4

0.2
0

30 35 40 45 50 55 60 65 7

IO = 20 A

IO = 10 A

IO = 0 A

Figure 13. Input Voltage and Current Characteristics.

88
86

VI = 36 V
V

I

= 48 V

84

I = 75 V

V

82
80
78
76

EFFICIENCY, (%)

74
72
70

0 5 10 15 2

OUTPUT CURRENT, IO (A)

(A) (5 A/div)

O

I

OUTPUT CURRENT,

(V) (200 mV/div)

O

V

OUTPUT VOLT AG

Figure 16. Transient Response to Step Decrease in

Load from 50% to 25% of Full Load
(VI = 48 Vdc).

(A) (5 A/div)

O

I

OUTPUT CURRENT,

(V) (200 mV/div)

O

V

OUTPUT VOLT AG

Figure 14. Converter Efficiency vs. Output Current.

Figure 17. Transient Response to Step Increase in

Load from 50% to 75% of Full Load
(VI = 48 Vdc).

(V) (5 V/div

ON/OFF

REMOTE ON/OFF

V

(V) (20 mV/div)

O

V

(V) (500 mV/div)

O

V

OUTPUT VOLTAGE,

Figure 15. Output Ripple Voltage (IO = IO, max).

Figure 18. Start-up from Remote On/Off (IO = IO, max).

Tyco Electronics Power Systems 8

Data Sheet

0

INPUT CURRENT, I

(A)

0

OUTPUT CURRENT, IO (A)

TIME, t (1 µs/div)

OUTPUT VOLTAGE,

TIME, t (100 µs/div)

E,

TIME, t (100 µs/div)

E,

,

v)

August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Characteristic Curves

The following figures provide typical characteristics curves for the QW020A0G1 (VO = 2.5 V) module at room temperature (TA =
25 °C)

1.8

1.6

1.4

I

1.2
1

0.8

0.6

0.4

0.2
0

30 35 40 45 50 55 60 65 7

IO = 20 A

IO = 10 A

IO = 0 A

INPUT VOLTAGE, VI (V)

(A) (5 A/div)

O

I

OUTPUT CURRENT,

(V) (100 mV/div)

O

V

OUTPUT VOLT AG

Figure 19. Input Voltage and Current Characteristics.

90
88

VI = 36 V

86

I = 48 V

V
84
82
80
78
76

EFFICIENCY, (%)

74
72
70

0 5 10 15 2

VI = 75 V

Figure 20. Converter Efficiency vs. Output Current.

Figure 22. Transient Response to Step Decrease in

Load from 50% to 25% of Full Load
(VI = 48 Vdc).

(A) (5 A/div)

O

I

OUTPUT CURRENT,

(V) (100 mV/div)

O

V

OUTPUT VOLT AG

Figure 23. Tra nsient Respon se to S tep In crease in Load

from 50% to 75% of Full Load
(VI = 48 Vdc).

(V) (5 V/di

ON/OFF

ON/OFF VOLT A GE

V

(V) (20 mV/div)

O

V

(V) (1 V/div)

O

V

OUTPUT VOLT A GE,

TIME, t (5 ms/div)

Figure 21. Output Ripple Voltage (IO = IO, max).

Figure 24. Start-up from Remote On/Off (IO = IO, max).

Tyco Electronics Power Systems 9

Data Sheet

INPUT VOL TAGE, VI (V)

INPUT CURRENT, I

(A)

5

OUTPUT CURRENT, I

(A)

TIME,t (2 µs/div)

OUTPUT VOLT AGE,

TIME, t (100 µs/div)

E,

TIME, t (100 µs/div)

E,

TIME, t (100 µs/div)

E,

August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Characteristic Curves

The following figures provide typical characteristics curves for the QW015A0F1(VO = 3.3 V) module at room temperature (TA
= 25 °C)

1.8

1.6

1.4

1.2

I

1

0.8

0.6

0.4

0.2

0

30 40 50 60 70

IO = 15 A

O

= 7.5 A

I

IO = 1 A

(A) (2 A/div)

O

I

OUTPUT CURRENT,

(V) (200 mV/div)

O

V

OUTPUT VOLT AG

Figure 25. Input Voltage and Current Characteristics.

95

90

85

80

EFFICIENCY, (%)

75

70

012345678910111213141

VI = 36 V

VI = 48 V

I

= 75 V

V

O

Figure 26. Converter Efficiency vs. Output Current.

Figure 28. Transient Response to Step Decrease in

Load from 50% to 25% of Full Load
(VI = 48 Vdc).

(A) (2 A/div)

O

I

OUTPUT CURRENT,

(V) (200 mV/div)

O

V

OUTPUT VOLT AG

Figure 29. Transient Response to Step Increase in

Load from 50% to 75% of Full Load
(VI = 48 Vdc).

(A) (2 A/div)

O

I

OUTPUT CURRENT,

(V) (10 mV/div)

O

V

(V) (200 mV/div)

O

V

OUTPUT VOLT AG

Figure 27. Output Ripple Voltage (IO = IO, max).

Figure 30. Start-up from Remote On/Off (IO = IO, max).

Tyco Electronics Power Systems 10

Data Sheet

1.6

5

INPUT CURRENT, I

(A)

95

0

OUTPUT CURRENT, I

(A)

TIME, t (1 µs/div)

E,

TIME, t (100 µs/div)

E,

TIME, t (100 µs/div)

E,

TIME, t (10 ms/div)

E,

August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Characteristic Curves

The following figures provide typical characteristics curves for the QW010A0A1(VO = 5.0 V) module at room temperature (TA =
25 °C)

1.4

1.2

I

1

0.8

0.6

0.4

0.2

0

30 35 40 45 50 55 60 65 70 7

IO = 10A

IO = 5A

IO = 0A

INPUT VOLT AGE, VI (V)

(A) (2 A/div)

O

I

OUTPUT CURRENT,

(V) (200 mV/div)

O

V

OUTPUT VOLT AG

Figure 31. Input Voltage and Current Characteristics.

90

85

80

EFFICIENCY, (%)

75

70

01234567891

VI = 36V

I

= 48V

V
V

I

= 75V

O

Figure 32. Converter Efficiency vs. Output Current.

Figure 34. Transient Response to Step Decrease in

Load from 50% to 25% of Full Load
(VI = 48 Vdc).

(A) (2 A/div)

O

I

OUTPUT CURRENT,

(V) (200 mV/div)

O

V

OUTPUT VOLT AG

Figure 35. Tra nsient Respon se to S tep In crease in Load

from 50% to 75% of Full Load
(VI = 48 Vdc).

(5 V/div)

ON/OFF

V

REMOTE ON/OFF,

(V) (10 mV/div)

O

V

OUTPUT VOLT AG

(V) (2 V/div)

O

V

OUTPUT VOLT AG

Figure 33. Output Ripple Voltage (IO = IO, max).

Figure 36. Start-up from Remote On/Off (IO = IO, max).

Tyco Electronics Power Systems 11

Data Sheet

B

August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Test Configurations

TO OSCILLOSCOPE

L

TEST

12 µH

C

S

220 µF

ATTERY

ESR < 0.1
@ 20 ˚C, 100 kHz

33 µF
ESR < 0.7
@ 100 kHz

Note: Measure input reflected ripple current with a simulated source

inductance (L

TEST) of 12µH. Capacitor CS offsets possible

battery impedance. Measure current as shown above.

Figure 37. Input Reflected Ripple Current Test Setup.

COPPER STRIP

VO(+)

10 µF

O

(–)

V

1 µF

SCOPE

Note: Scope measurements should be made using a BNC socket,

with a 10 µF tantalum capacitor and a 1 µF ceramic capcitor.
Position the load between 51 mm and 76 mm (2 in and 3 in)
from the module

Figure 38. Peak-to-Peak Output Ripple Measurement

Test Setup.

SENSE(+)

DISTRIBUTION LOSSES

SUPPLY

CONT ACT

RESIST ANCE

VI(+)

I

I

I

(-)

V

VO(+)

VO(-)

SENSE(-)

I

O

Note: All voltage measurements to be taken at the module termi-

nals, as shown above. If sockets are used then Kelvin con­nections are required at the module terminals to avoid
measurement

errors due to socket contact resistance.

Figure 39. Output Voltage and Efficiency Test Setup.

V

–[]I

O(+)VO(-)

⎛⎞

η

------------------------------------------------

⎝⎠

–[]I

V

I(+)VI(-)

×

O

×

I

V

I

I

V

RESISTIVE
LOAD

CONT ACT AND

100×=

(+)

(-)

LOAD

Safety Considerations

For safety-agency approval of the system in which the power
module is used, the power module must be installed in com­pliance with the spacing and separation requirements of the
end-use safety agency standard, i.e., UL60950, CSA C22.2
No. 60950-00, and
VDE 0805:2001-12 (IEC60950, 3rd Ed).

These converters have been evaluated to the spacing
requirements for Basic Insulation, per the above safety stan­dards.

For Basic Insulation models ("–B" Suffix), 1500 Vdc is
applied from VI to VO to 100% of outgoing production.

For end products connected to –48 Vdc, or –60 Vdc nomianl
DC MAINS (i.e. central office dc battery plant), no further
fault testing is required.

Note:–60 V dc nominal bettery plants are not available in the

U.S. or Canada.
For all input voltages, other than DC MAINS, where the input
voltage is less than 60 Vdc, if the input meets all of the
requirements for SELV, then:

n

The output may be considered SELV. Output voltages will
remain withing SELV limits even with internally-generated
non-SELV voltages. Single component failure and fault
tests were performed in the power converters.

n

One pole of the input and one pole of the output are to be
grounded, or both circuits are to be kept floating, to main­tain the output voltage to ground voltage within ELV or
SELV limits.

For all input sources, other than DC MAINS, where the input
voltage is between 60 and 75 Vdc (Classified as TNV-2 in
Europe), the following must be adhered to, if the converter’s
output is to be evaluated for SELV:

n

The input source is to be provided with reinforced insula­tion from any hazardous voltage, including the AC mains.

n

One VI pin and one VO pin are to be reliably earthed, or
both the input and output pins are to be kept floating.

n

Another SELV reliability test is conducted on the whole
system, as required by the safety agencies, on the combi­nation of supply source and the subject module to verify
that under a single fault, hazardous voltages do not
appear at the module’s output.

The power module has ELV (extra-low voltage) outputs
when all inputs are ELV.

All flammable materials used in the manufacturing of these
modules are rated 94V-0, and UL60950A.2 for reduced
thicknesses. The input to these units is to be provided with a
maximum 5A time-delay in the unearthed lead.

Tyco Electronics Power Systems 12

Data Sheet

S

⎧⎫

August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Design Considerations

Input Source Impedance

The power module should be connected to a low
ac-impedance input source. Highly inductive source imped­ances can affect the stability of the power module. If the input
source inductance exceeds 4 µH, a 33 µF electrolytic capaci­tor (ESR < 0.7 W at 100 kHz) mounted close to the power
module helps ensure stability of the unit.

Feature Descriptions

Remote On/Off

Two remote On/Off options are available. Positive logic
remote On/Off turns the module on during a logic-high volt­age on the remote ON/OFF pin, and off during a logic low.
Negative logic remote On/Off, device code suffix "1", turns
the module off during logic-high voltage and on during a logic
low.

To turn the power module on and off, the user must supply a
switch to control the voltage betw e en the
ON/OFF pin and the VI(–) terminal. The switch may be an
open collector or equivalent (see Figure 40). A logic low is
Von/off = –0.7 V to 1.2 V. The maximum Ion/off during a logic
low is 1 mA. The switch should maintain a logic-low voltage
while sinking 1 mA. During a logic high, the maximum Von/off
generated by the power module is 15 V. The maximum allow­able leakage current of the switch at Von/off = 15 V is 50 µA.

If not using the remote on/off feature, do one of the following:
For positive logic, leave the ON/OFF pin open.
For negative logic, short the ON/OFF pin to VI(–).

exceed the minimum output overvoltage protection value
shown in the Feature Specifications table. This limit includes
any increase in voltage due to remote sense compensation
and output voltage set-point adjustment (trim) (See Figure

41). If not using the remote sense feature to regulate the out­put at the point of load, then connect SENSE(+) to VO(+) and
SENSE
(–) to VO(–) at the module.

Although the output voltage can be increased by both the
remote sense and by the trim, the maximum increase for the
output voltage is not the sum of both. The maximum increase
is the larger of either the remote sense or the trim.

The amount of power delivered by the module is defined as
the voltage at the output terminals multiplied by the output
current. When using remote sense and trim, the output volt­age of the module can be increased, which at the same out­put current would increase the power output of the module.
Care should be taken to ensure that the maximum output
power of the module remains at or below the maximum rated
power.

SENSE(+)

SENSE(-)

I(+)

SUPPLY

CONTACT

RESISTANCE

V

I

I

V

I(-)

VO(+)

V

O(-)

IO

DISTRIBUTION LOSSE

LOAD

CONTACT AND

Figure 41. Effective Equivalent Circuit Configuration for

Single-Module Remote-Sense Ope r ation.

Output Voltage Set-Point Adjustment (Trim)

I(+)

V
V

I(-)

-

Von/off

+

REMOTE

Ion/off

ON/OFF

Figure 40. Remote On/Off Implementation.

Remote Sense

Remote sense minimizes the effects of distribution losses by
regulating the voltage at the remote sense connections. The
voltage between the remote sense pins and the output termi­nals must not exceed the output voltage sense range given in
the Feature Specifications table:

[VO(+) – VO(–)] – [SENSE(+) – SENSE(–)] £ 0.5 V
The voltage between the VO(+) and VO(–) terminals must not
Tyco Electronics Power Systems 13

Output voltage trim allows the user to increase or decrease
the output voltage set point of a module. This is accom­plished by connecting an external resistor between the TRIM
pin and either the SENSE(+) or SENSE(–) pins. The trim
resistor should be positioned close to the module. If not using
the trim feature, leave the TRIM pin open.

with an external resistor Rtrim-down between the TRIM and
SENSE(–) pins, the output voltage set point VO, set
decreases (see Figure 48). The following equation deter­mines the required external-resistor value to trim-down the
output voltage:

R

trim-down

A

kΩ=

B–

--- -

⎨⎬

F

⎩⎭

Rtrim-down is the external resistor in kΩ

∆%

F

=

-------- -

100

∆%

is the percentage change in voltage

A and B values are defined in Table 1 for various models.

Data Sheet

⎧⎫

D

August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Feature Descriptions (continued)

Output Voltage Set-Point Adjustment (Trim)

tinued)

Table 1

V

O

5.0 5.11 45.31

3.3 5.11 45.31

2.5 5.11 45.31

1.8 3.248 18.645

1.5 2.312 17.711

1.2 2.315 17.711

For example, to trim-down the output voltage of 2.5 V mod­ule (QW020A0G) by 8% to 2.3 V, Rtrim-down is calculated
as follows:

F= 0.08, A = 5.11, & B = 45.31

R

trim-down

AB

⎧⎫

5.11

45.31–

----------

⎨⎬

0.08

⎩⎭

kΩ=

(con-

A and B values are defined in Table 2 for various
models

Ta ble 2

Output Voltage

(V)

ABC

1.2 15.9 1089 62.0

1.5 19.8 1089 104

1.8 23.8 1089 104

2.5 34.5 1690 73.1

3.3 45.5 1690 73.1

5.0 69.0 1690 73.1

For example, to trim-up the output voltage of 1.5 V module
(QW020A0M) by 8% to 1.62 V, Rtrim-up is calculated as fol­lows:

F= 0.08, A = 3.946, & B = 11.454

R

trim-up

R

3.946

------------ -

⎨⎬

0.08

⎩⎭

trim-up

11.454–

kΩ=

37.871kΩ=

VI(+)

ON/OFF

I(–)

V

R

trim-down

SENSE(+)

SENSE(–)

V

O(+)

TRIM

V

O(–)

18.565kΩ=

Rtrim-down

RLOAD

VI (+)

ON/OFF

V

I (–)

O (+)

V

SENSE(+)

TRIM

SENSE(–)

V

O(-)

Rtrim-up

RLOA

Figure 43. Circuit Configuration to Increase Output

Figure 42. Circuit Configuration to Decrease Output

Voltage.

The QW010/015/020 modules have a fixed current-limit set
point. As the output voltage is trim-down, the available out­put power is reduced.

With an external resistor Rtrim-up, connected between the
TRIM and SENSE(+) pins, the output voltage set point VO,
set increases (see Figure 42). The following equation deter­mines the required external-resistor value to trim-up and out­put voltage:

⎧⎫

R

trim-up

A

B–

--- -

⎨⎬

F

⎩⎭

kΩ=

Rtrim-up is the external resistor in kW

The voltage between the VO(+) and VO(–) terminals must
not exceed the minimum output overvoltage protection value
shown in the Feature Specifications table. This limit includes
any increase in voltage due to remote-sense compensation
and output voltage set-point adjustment trim.

Although the output voltage can be increased by both the
remote sense and by the trim, the maximum increase for the
output voltage is not the sum of both. The maximum
increase is the larger of either the remote sense or the trim.

The amount of power delivered by the module is defined as
the voltage at the output terminals multiplied by the output
current. When using remote sense and trim, the output volt­age of the module can be increased, which at the same out-

Voltage.

put current would increase the power output of the module.

∆%

=

F

-------- -

100

∆% is the percentage change in voltage

Care should be taken to ensure that the maximum output
power of the module remains at or below the maxi mum
rated power.

Tyco Electronics Power Systems 14

Data Sheet
August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Feature Descriptions (continued)

Overcurrent Protection

To provide protection in an output overload fault condition,
the module is equipped with internal current-limiting circuitry,
and can endure current limiting for an unlimited duration. At
the instance of current-limit inception, the module enters a
"hiccup" mode of operation, whereby it shuts down and auto­matically attempts to restart. While the fault condition exists,
the module will remain in this mode until the fault is cleared.
The unit operates normally once the output current is
reduced back into its specified range.

Output Overvoltage Protection

The output overvoltage protection consists of circuitry that
monitors the voltage of the output terminals. If the output volt­age exceeds the overvoltage protection threshold, the mod­ule enters a "hiccup" mode of operation, whereby it shuts
down and automatically attempts to restart. While the fault
condition exists, the module will remain in this hiccup mode
until the overvoltage fault is cleared.

Overtemperature Protection

The output overvoltage protection consists of circuitry that
monitors the voltage on the output terminals. If the output
voltage exceeds the overvoltage protection threshold, the
module enters a "hiccup" mode of operation, whereby it shuts
down and automatically attempts to restart. While the fault
condition exists, the module will remain in this hiccup mode
until the overvoltage fault is cleared.

Input Undervoltage Lockout

At input voltages below the input undervoltage lockout limit,
the module operation is disabled. The module will begin to
operate at an input voltage above the undervoltage lockout
turn-on threshold.

Tyco Electronics Power Systems 15

Data Sheet

Q560

10

5

LOCAL AMBIENT TEMPERATURE, TA (˚C)

0

Output Current I

(A)

5

LOCAL AMBIENT TEMPERATURE, T

(˚C)

August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Thermal Considerations

Determine airflow (v) (Use Figure 52)

v = 0.5 m/s (100 ft./min.)

The power modules operate in a variety of thermal environ­ments; however, sufficient cooling should be provided to help
ensure reliable operation of the unit. Heat is removed by con­duction, convection, and radiation to the surrounding environ­ment. Proper cooling can be verified by measuring drain pin
of Q560 or of Q10 at the position indicated in Figure 44.

The temperature at Q560 and Q10 drain pins should not
exceed 110 °C. The output power of the module should not
exceed the rated power for the module
(VO, set x IO, max).

Although the maximum operating ambient temperature of the
power modules is 85 °C, you can limit this temperature to a

8

6

4

2

OUTPUT CURRENT, IO (A)

0

25 35 45 55 65 75 8

2.0 m/s (400 ft./min.)

1.0 m/s (200 ft./min.)

0.5 m/s (100 ft./min.)

NATURAL CONVECTION

lower value for extremely high reliability.

Figure 45. Derating Curves for QW010A0A1 (VO = 5.0V)

in Longitudinal Orientation with no heat sink
(VI = 48 Vdc).

16
14
12

O

Q10

AIRFLOW

10

8
6
4
2
0

20 30 40 50 60 70 80 9

2.0 m/s (400 ft./min.)

1.0 m/s (200 ft./min.)

0.5 m/s (100 ft./min.)

NATURAL CONVECTION

Local Ambient Temperature TA (˚C)

Figure 44. Temperature Measurement

Location,QW015A0F (Top View).

Heat Transfer via Convection

Figure 46. Derating Curves for QW010A0F1 (VO = 3.3V)

in Longitudinal Orientation with no heat sink
(VI = 48 Vdc).

Increasing airflow over the module enhances the heat trans­fer via convection. Figures 45—55 show the maximum cur­rent that can be delivered by various modules versus local

20

ambient temperature (TA) for natural convection through 2 m/
s (400 ft./min.).

Systems in which these power modules may be used typi­cally generate natural convection airflow rates of 0.3 ms
(60 ft./min.) due to other heat-dissipating components in the
system. Therefore, the natural convection condition repre­sents airflow rates of up to 0.3 ms

–1

(60 ft./min.).

–1

Example

What is the minimum airflow necessary for a QW015A0F1
operating at VIN = 48 V, an output current of 12 A, and a
maximum ambient temperature of 75 °C.

Solution

Given: VIN = 48V

IO = 12 A

(A)

15

O

10

5

OUTPUT CURRENT, I

0

25 30 35 40 45 50 55 60 65 70 75 80 8

2.0 m/s (400 ft./min.)

1.0 m/s (200 ft./min.)

0.5 m/s (100 ft./min.)

NATURAL CONVECTION

A

Figure 47. Derating Curves for QW010A0G1 (VO = 2.5V)

in Longitudinal Orientation with no heat sink
(VI = 48 Vdc).

TA = 75 °C

Tyco Electronics Power Systems 16

Data Sheet

5

LOCAL AMBIENT TEMPERATURE, T

(˚C)

OUTPUT CURRENT, I

(A)

5

LOCAL AMBIENT TEMPERATURE, TA (˚C)

OUTPUT CURRENT, I

(A)

August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Thermal Considerations (continued)

20

15

O

2.0 m/s (400 ft./min.)

10

5

0

25 30 35 40 45 50 55 60 65 70 75 80 8

Figure 48. Derating Curves for QW010A0Y1 (VO = 1.8V)

in Longitudinal Orient a tion with no heat sink
(VI = 48 Vdc).

20

1.0 m/s (200 ft./min.)

0.5 m/s (100 ft./min.)

NATURAL CONVECTION

A

15

O

10

5

0

25 30 35 40 45 50 55 60 65 70 75 80 8

2.0 m/s (400 ft./min.)

1.0 m/s (200 ft./min.)

0.5 m/s (100 ft./min.)

NATURAL CONVECTION

Figure 49. Derating Curves for QW010A0P1 (VO = 1.2V)

in Longitudinal Orient a tion with no heat sink
(VI = 48 Vdc).

Layout Considerations

Copper paths must not be routed beneath the power module.
For additional layout guidelines, refer to the FLTR100V10 or
FLTR100V20 data sheet.

Tyco Electronics Power Systems 17

Data Sheet

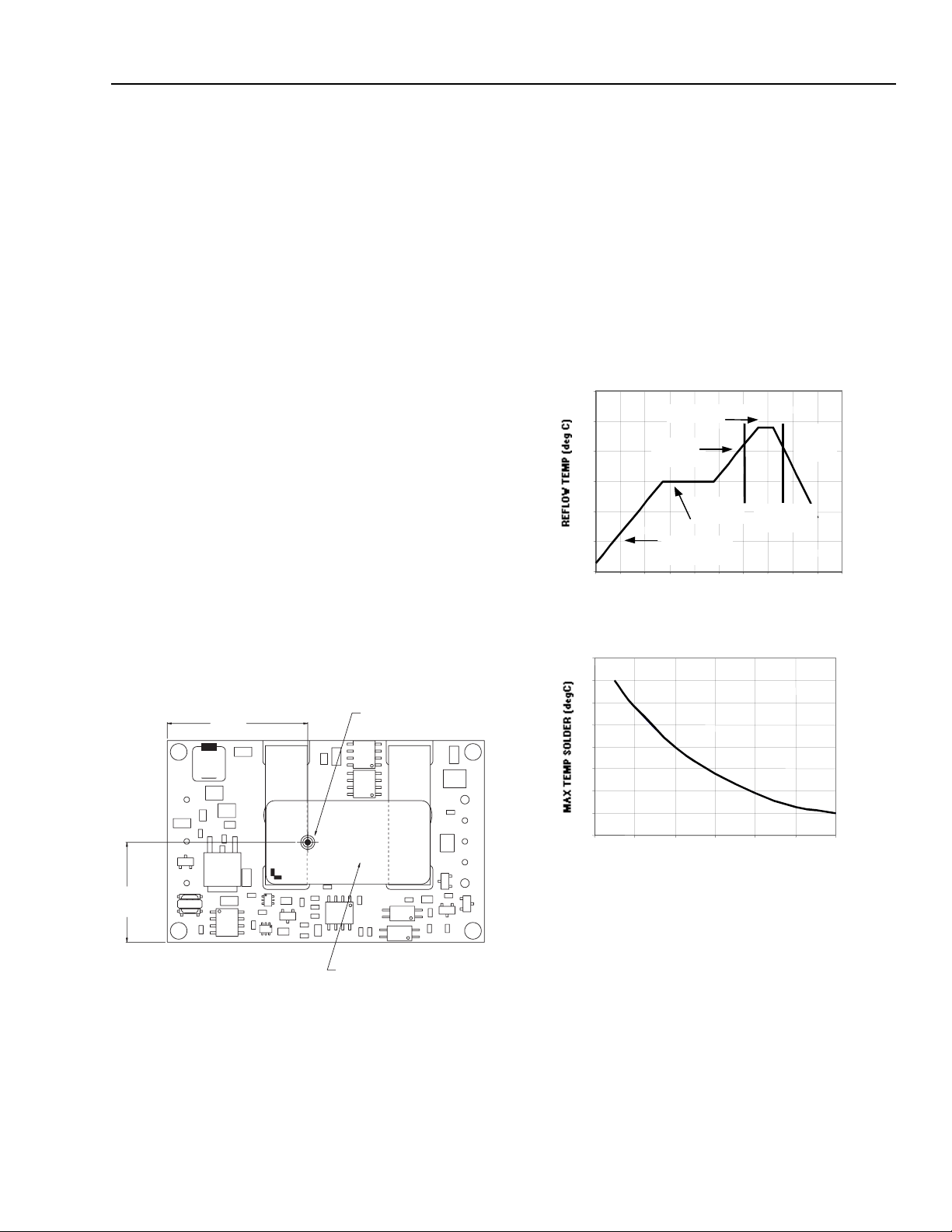

Pick and Place Target

1

August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Through-Hole Lead-Free Soldering Infor­mation

The RoHS-compliant through-hole products use the SAC
(Sn/Ag/Cu) Pb-free solder and RoHS-compliant components.
They are designed to be processed through single or dual
wave soldering machines. The pins have an RoHS-compli­ant finish that is compatible with both Pb and Pb-free wave
soldering processes. A maximum preheat rate of 3°C/s is
suggested. The wave preheat process should be such that
the temperature of the power module board is kept below
210°C. For Pb solder, the recommended pot temperature is
260°C, while the Pb-free solder pot is 270°C max. Not all
RoHS-compliant through-hole products can be processed

sheets in order to customize the solder reflow profile for each
application board assembly.
The following instructions must be observed when SMT sol­dering these units. Failure to observe these instructions may
result in the failure of or cause damage to the modules, and
can adversely affect long-term reliability.
Typically, the eutectic solder melts at 183

o

C, wets the land,
and subsequently wicks the device connection. Sufficient
time must be allowed to fuse the plating on the connection to
ensure a reliable solder joint. There are several types of
SMT reflow technologies currently used in the industry.
These surface mount power modules can be reliably sol­dered using natural forced convection, IR (radiant infrared),
or a combination of convection/IR.

with paste-through-hole Pb or Pb-free reflow process. If addi­tional information is needed, please consult with your Tyco
Electronics Power System representative for more details.

Surface Mount Information

Pick and Place Area

Although the module weight is minimized by using open­frame construction, the modules have a relatively large mass
compared to conventional surface-mount components. To
optimize the pick-and-place process, automated vacuum
equipment variables such as nozzle size, tip style, vacuum

300

o

250

200

150

100

50

0

Peak Temp 235

Heat zone

o

max 4

Cs

Preheat zone

o

max 4

REFLOW TIME (S)

Soak zone
30-240s

Cs

C

Cooling

T
205

above

lim

zone

oCs-1

1-4

o

C

-1

-1

pressure, and placement speed should be considered. Sur­face-mount versions of this family have a flat surface which
serves as a pick-and-place location for automated vacuum
equipment. The module’s pick-and-place location is identified
in Figure 56.

8.288

(0.72)

25.654
(1.01)

PIN 1 PIN 2 PIN 3

Symbol on Label

PIN 8 PIN 7 PIN 6 PIN 5 PIN 4

Figure 51. Recommended Reflow profile.

240

235

230

225

220

215

210

205

200

0 10 20

Figure 52. Time Limit curve above 205

30 40

TIME (S)

0

C.

Lead Free Soldering

50 60

The -Z version SMT modules of the QW series are lead-free
(Pb-free) and RoHS compliant and are compatible in a Pb-

Product Label

free soldering process. Failure to observe the instructions
below may result in the failure of or cause damage to the
modules and can adversely affect long-term reliability.

Figure 50. Pick and Place Location.

Pb-free Reflow Profile

Power Systems will comply with J-STD-020 Rev. C (Moisture/
Reflow Sensitivity Classification for Nonhermetic Solid State

Reflow Soldering Information

The QW series of power modules is available for either
Through-Hole (TH) or Surface Mount (SMT) soldering.
These power modules are large mass, low thermal resistance
devices and typically heat up slower than other SMT compo­nents. It is recommended that the customer review data

Surface Mount Devices) for both Pb-free solder profiles and
MSL classification procedures. This standard provides a rec­ommended forced-air-convection reflow profile based on the
volume and thickness of the package (table 4-2). The sug­gested Pb-free solder paste is Sn/Ag/Cu (SAC). The recom­mended linear reflow profile using Sn/Ag/Cu solder is shown
in Figure. 59.

Tyco Electronics Power Systems 18

Data Sheet
August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Surface Mount Information (continued)

MSL Rating

The QW series SMT modules have a MSL rating of 2.

Storage and Handling

The recommended storage environment and handling proce­dures for moisture-sensitive surface mount packages is
detailed in J-STD-033 Rev. A (Handling, Packing, Shipping
and Use of Moisture/Reflow Sensitive Surface Mount
Devices). Moisture barrier bags (MBB) with desiccant are
required for MSL ratings of 2 or greater. These sealed pack­ages should not be broken until time of use. Once the origi­nal package is broken, the floor life of the product at
conditions of £ 30°C and 60% relative humidity varies
according to the MSL rating (see J-STD-033A). The shelf life
for dry packed SMT packages will be a minimum of 12
months from the bag seal date, when stored at the following
conditions: < 40° C, < 90% relative humidity.

Post Solder Cleaning and Drying Considerations

Post solder cleaning is usually the final circuit-board
assembly process prior to electrical board testing. The result
of inadequate cleaning and drying can affect both the
reliability of a power module and the testability of the finished
circuit-board assembly. For guidance on appropriate
soldering, cleaning and drying procedures, refer to Tyco
Electronics Board Mounted Power Modules: Soldering and
Cleaning Application Note (AP01-056EPS).

300

Per J-STD-020 Rev. C

250

200

150

Heating Zone
1°C/Second

100

Reflow Temp (°C)

50

0

Peak Temp 260°C

* Min. Time Above 235°C
15 Seconds

*Time Above 217°C

60 Seconds

Reflow Time (Seco nds)

Cooling
Zone

Figure 53. Recommended linear reflow profile using Sn/

Ag/Cu solder.

Solder Ball and Cleanliness Requirements

The open frame (no case or potting) power module will meet
the solder ball requirements per J-STD-001B. These require­ments state that solder balls must neither be loose nor violate
the power module minimum electrical spacing.
The cleanliness designator of the open frame power module

is C00 (per J specification).

Tyco Electronics Power Systems 19

Data Sheet

S

TOP VIEW

B

2 Places

4

0)

August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Outline Diagram for Surface-Mount Module

Dimensions are in millimeters and (inches).
Tolerances: x.x mm ± 0.5 mm (x.xx in. ± 0.02 in.) [unless otherwise indicated]

x.xx mm ± 0.25 mm (x.xxx in. ± 0.010 in.)

LABEL LOCATION AND
ORIENTATION (CONTENTS
WILL VAR Y)

IDE VIEW

OTT OM VIEW

36.8

(1.45)

min stand-off

0.5

(.020)

max compliance

3.6

(0.14)

10.8

(0.43)

7.62

(0.300)

15.24

(0.600)

3.3

(.130)
height

VIN (+)

ON/OFF

V

IN

(-)

57.9

(2.28)

50.8

(2.00)

OUT

(+)

V
+SENSE
TRIM

-SENSE
V

OUT

(-)

3.81

(.150)

8.5

(.335)

MAX

7.62

(.300)

11.43
(.450)

15.2

(.60

ø

1.00

(.040)

6 Places

ø

1.50

(.060)

Tyco Electronics Power Systems 20

Data Sheet

S

TOP VIEW

B

2 Places

4

0)

August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Outline Diagram for Through-Hole Module

Dimensions are in millimeters and (inches).
Tolerances: x.x mm ± 0.5 mm (x.xx in. ± 0.02 in.) [unless otherwise indicated]

x.xx mm ± 0.25 mm (x.xxx in. ± 0.010 in.)

LABEL LOCATION AND
ORIENTATION (CONTENTS
WILL VAR Y)

IDE VIEW

OTT OM VIEW

15.24

(0.600)

36.8

(1.45)

(0.14)

10.8

(0.43)

7.62

(0.300)

3.6

VIN (+)

ON/OFF

V

IN

(-)

57.9

(2.28)

50.8

(2.00)

OUT

(+)

V
+SENSE
TRIM

-SENSE
V

OUT

(-)

3.81

(.150)

4.5

(0.18)

MIN

7.62

(.300)

8.5

(.335)

Max

11.43
(.450)

15.2
(.60

ø

1.00

(.040)

6 Places

ø

1.50

(.060)

Tyco Electronics Power Systems 21

Data Sheet

G

57.9

(

August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Recommended Pad Layout for Surface-Mount Module
and Recommended Hole Layout for Through-Hole Module

Component-side footprint.
Dimensions are in millimeters and (inches), unless otherwise noted.

(2.28)

49.28

(1.940)

V

OUT

(+)

+SENSE

TRIM

-SENSE
V

OUT

(-)

36.8

1.45)

10.8

(0.43)

16.71

(0.658)

VI(+)

ON/OFF

V

I

(–)

26.75

(1.053)

39.24

(1.545)

3.81

(.150)

7.62

(.300)

11.43
(.450)

15.24

(.600)

ROUTING KEEP OUT AREA

NOTES:

1. FOR CGA SURFACE MOUNT PIN
USE THE FOLLOWING PAD

3.18 (0.125)

(0.350)

50.8

(2.00)

5.08 (0.200)

8.89

0.022" DIA VIA

0.032" DIA SOLDER MASK OPENIN
4 PLACES FOR OUTPUT PINS
2 PLACES FOR INPUT PINS

0.025" SPACING VIA T O PAD

0.015" MIN SOLDER MASK WALL

0.105" PASTE MASK OPENING

0.110" SOLDER MASK OPENING

Tyco Electronics Power Systems 22

Data Sheet
August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Ordering Information

Please contact your Tyco Electronics’ Sales Representative for pricing, availability and optional features.

Table 1. Device Codes

Input Volt age

36 – 75 Vdc 1.2 V 20 A 85% Through-hole QW020A0P1 108968447
36 – 75 Vdc 1.5 V 20 A 87% Through-hole QW020A0M 108976036
36 – 75 Vdc 1.5 V 20 A 87% Through-hole QW020A0M1 108970708
36 – 75 Vdc 1.8 V 20 A 89% Through-hole QW020A0Y1 108967522
36 – 75 Vdc 2.5 V 20 A 90% Through-hole QW020A0G 108974783
36 – 75 Vdc 2.5 V 20 A 90% Through-hole QW020A0G1 108969296
36 – 75 Vdc 3.3 V 15 A 91% Through-hole QW015A0F 108971797
36 – 75 Vdc 3.3 V 15 A 91% Through-hole QW015A0F1 108966508
36 – 75 Vdc 5.0 V 10 A 92% Through-hole QW010A0A 108981226
36 – 75 Vdc 5.0 V 10 A 92% Through-hole QW010A0A1 108969585
36 – 75 Vdc 1.2 V 20 A 85% SMT QW020A0P-S 108968488
36 – 75 Vdc 1.2 V 20 A 85% SMT QW020A0P1-S 108971961
36 – 75 Vdc 1.2 V 20 A 85% Through-hole QW020A0P1Z CC109107281
36 – 75 Vdc 1.5 V 20 A 87% Through-hole QW020A0M1Z CC109107273
36 – 75 Vdc 1.8 V 20 A 89% Through-hole QW020A0Y1Z CC109102968
36 – 75 Vdc 2.5 V 20 A 90% Through-hole QW020A0G1Z CC109101490
36 – 75 Vdc 2.5 V 20 A 90% Through-hole QW020A0GZ CC109107265
36 – 75 Vdc 3.3 V 15 A 91% Through-hole QW015A0FZ CC109103280
36 – 75 Vdc 3.3 V 15 A 91% Through-hole QW015A0F1Z CC109107240
36 – 75 Vdc 5.0 V 10 A 92% Through-hole QW010A0A1Z CC109107232
36 – 75 Vdc 3.3 V 15 A 91% SMT Q W015A0F1-SZ 109100427
36 – 75 Vdc 5.0 V 10 A 92% SMT QW010A0A1-SZ 109100410

Output
Voltage

Output

Current

Efficiency Connector Type Device Code Comcodes

Tyco Electronics Power Systems 23

Data Sheet
August 22, 2006

QW010/015/020 Series Power Modules: dc-dc Converters;

36 Vdc to 75 Vdc Input; 1.2 Vdc to 5.0 Vdc Output; 10 A to 20 A

Ordering Information

(continued)

Optional features can be ordered using the suffixes shown below. The suffixes follow the last letter of the Product Code and are
placed in descending alphanumerical order.

Table 2. Device Options

Option Suffix

Negative remote on/off logic 1
Approved for Basic Insulation –B
Surface mount interconnections –S
Baseplate version for Heatsink attachment

–H

(Through-hole version only)

RoHS Compliant -Z

Europe, Middle-East and Africa Headquarters

Tyco Electronics (UK) Ltd
Tel: [phone], Fax: [phone]

Central America-Latin America Headquarters

World Wide Headquarters
Tyco Electronics Power Systems, Inc.

3000 Skyline Drive, Mesquite, TX 75149, USA
[phone] FAX: [phone]
(Outside U.S.A.: [phone], FAX: [phone])

www.power.tycoelectronics.com
e-mail: [e-mail]

Tyco Electronics Corporation reserves the right to make changes to the product(s) or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.

© 2001 Tyco Electronics Power Systems, Inc. (Mesquite, Texas) All International Rights Reserved.
Printed in U.S.A.

Document Name: DS06-008 ver.1.3
PDF Name: QW010-015-020_ds.pdf

Tyco Electronics Power Systems
Tel: [phone], Fax: [phone]

Asia-Pacific Headquarters

Tyco Electronics Singapore Pte Ltd
Tel: [phone], Fax: [phone]
