GE
Lighting Solutions
Industrial Lighting
Lowmount™ II (LM5)
imagination at work
Product Features
GE Indoor Lighting luminaires are designed to produce optimum illumination from the lamp, optical system and ballast,
while providing specific light patterns for specific applications. These reliable systems help to improve safety and energy
savings, while enhancing productivity and efficiency, to put your industrial workplace in the best possible light.
Applications
• For 10-25 ft. (3-8 meter) applications in factories,
foundries, canneries and textile, metal, chemical, rubber,
food, cement, and other industrial applications
Housing
• Symmetrical heavy-duty die-cast aluminum ballast
housing
Finish
• Polyester powder gray or white paint finish
Ratings
• Listed Suitable for Wet or Damp locations depending
on mounting receptacle used
• Listed for metal halide lamps in polymeric lamp
containment barriers
• Listed to Canadian standards & codes
Mounting
Unique Features
• 55° C ambient standard
• Unique optical sliding disconnect
• In-line EZ Connect™ plug-in adapter port allows for:
• hook/loop, cord & NEMA plug
• plug-in modular wiring systems
• plug-in fuse kits
• V stabilized injection molded prismatic refractor for low
brightness
• Enclosed with activated charcoal filter
• Stick relampable
• Safety chain provisions
• Base-up Mogul base socket - E39 standard allowing
maximum efficiency
• Shipped as components: Ballast, Optical
• Magnapack available for ballast
• Pulse start system for metal halide available
• Threaded slide-in mounting adapter for easy mounting
Reflectors
• Alzak finish on reflector
Ordering Number Logic
Lowmount™ II (LM5)
LM5 EA VE
_ _ _ - _ - _ _ - _ - _ - _ - _ _ - _ _ - _ _ - _
PROD. ID
LM5 =
Lowmount
II
Luminaire
COLOR
G = Gray
W = White
WATTAGE
25 = 250
35 = 350
40 = 400
LIGHT
SOURCE
E = Energy
Act Compliant
Pulse MH
(EPMH)
S = HPS
For
International
Markets only
M = MH
P = Pulse
Start
MH
Note: Lamp is
vertical base
up. Lamp not
included.
VOLTAGE
60Hz
0 = 120/208/
240/277
MULTIVOLT
1 = 120
2 = 208
3 = 240
4 = 277
5 = 480
D = 347
F =
120X347
T = 220
50Hz
6 = 220
R = 230
Y = 240
G = 380
BALLAST
TYPE
See Ballast
Selection
Table
A = Autoreg
D = System
3 Bilevel
Autoreg
G =
CANADIAN
Mag-Reg
(Grounded
Socket
Shell)
H = HPF
Reactor or Lag
M = Mag- Reg
OPTICAL
CODE
EA = Enclosed
Acrylic
w/Trap
Door
PHOTOMETRY
CODE
VE = Fixed B = Time Delay
XX = Select Code Below
11 = Pendant mounting
13 = Provision for Slide-on Primary Electrical Discon-
nect. Order TWOBP Box (Thru Feed Capability
Only) Separately.
(Not available with W option)
14 = Provision for Slide-on Primary Electrical Discon-
nect. (Pendant and Thru Feed Capability) Order
PED Box Separately
(Not available with W option)
15 = Prewire with EZ-Loop, Cord and Plug Part of
“Power Hook”. Order Receptacle/Hook Box
Separately. (Not CSA/CUL)
31 = Prewire with EZ-Hook, 3-ft (0.9 Meters) #16/3
Cord, and Nema Plug
33 = Prewire with EZ-Loop, 3-ft (0.9 Meters) #16/3
Cord, and Nema Plug (Order locking receptacle
hook box separately.)
67 = Pendant, Nut and Hanger Hub Mounting.
(For use with “D” or “W”, Wet Locations Option,
only)
MODULAR PREWIRE
41 = ACS with 3-ft (0.9 meter) cord & EZ-Hook
69 = ACS with 6-ft (1.8 meter) cord & EZ-Hook
43 = ACS with 3-ft (0.9 meter) cord & EZ-Loop
70 = ACS with 6-ft (1.8 meter) cord & EZ-Loop
PLUG-N-GO
51 = Plug-N-Go with 3 ft. (0.9 meter) Cord & Hook
71 = Plug-N-Go with 6 ft. (1.8meter) Cord & Hook
53 = Plug-N-Go with 3 ft. (0.9 meter) Cord & Loop
72 = Plug-N-Go with 6 ft. (1.8 meter) Cord & Loop
Note: ACS = Flex 3+
Plug-N-Go = FSC Series
MOUNTING
CODE
OPTIONS
Automatically
Switched
Quartz
F = Fusing (Not
available with
W option and
multivolt)
G = Secondary
Wiring Access.
7/8 in. dia. knockout
(Not available with
W option)
Q = Non-Time Delay
Automatically
Switched
Quartz
R = Non-Switched Quartz.
T = E40 / European Socket
W = Wet Location (For
use with Mounting
67 only)
Photometric Selection Table
EA, EP OPTICAL - Enclosed Acrylic with Trap Door
Light Socket Photometric Optical Photometry
Wattage Source Position Curve Code Code
400 MH 2.1 177129 EA VE
350 EPMH 2.1 177129 EA VE
400 EPMH 2.1 177129 EA VE
250 HPS 2.0 178351 EA VE
400 HPS 2.0 178351 EA VE
Ballast Selection Table
60HZ 50HZ
120, 208 120
Light 240, 277 x
Wattage Source Multivolt 480 347 347 220 220 230 240 380
250 HPS A,M A,D,G,M A,D,G A A,H A,H,M A,H A,H M
400 HPS A,M A,D,G,M A,D,G A A,H A,H,M A,H,M A,H,M M
400 MH A A,D A,D A A A A A N/A
PULSE START METAL HALIDE LIGHT SOURCE
BALLAST SELECTION TABLE
250 EPMH A A A N/A N/A N/A N/A N/A N/A
350 EPMH A A A N/A N/A N/A N/A N/A N/A
400 EPMH A A A N/A N/A N/A N/A N/A N/A
NOTE: N/A = Not Available
* H is HPF-Linear Reactor available as 277 volt only.
Cannot be used with Automatic Switch Quartz Option.
Ballast Type / Voltage
CANADIAN NOTES:
1. “A”, Autoreg, and “D”, Bilevel Autoreg
available 120, 277 or 347 volts only
2. 208, 240, and 480 volts require CWI ballast.
Use “G” when available.
Contact factory for all others.
3. Multivolt not available.
4. 208, 240 and 480 volts with “G” ballast not
available with switched quartz.

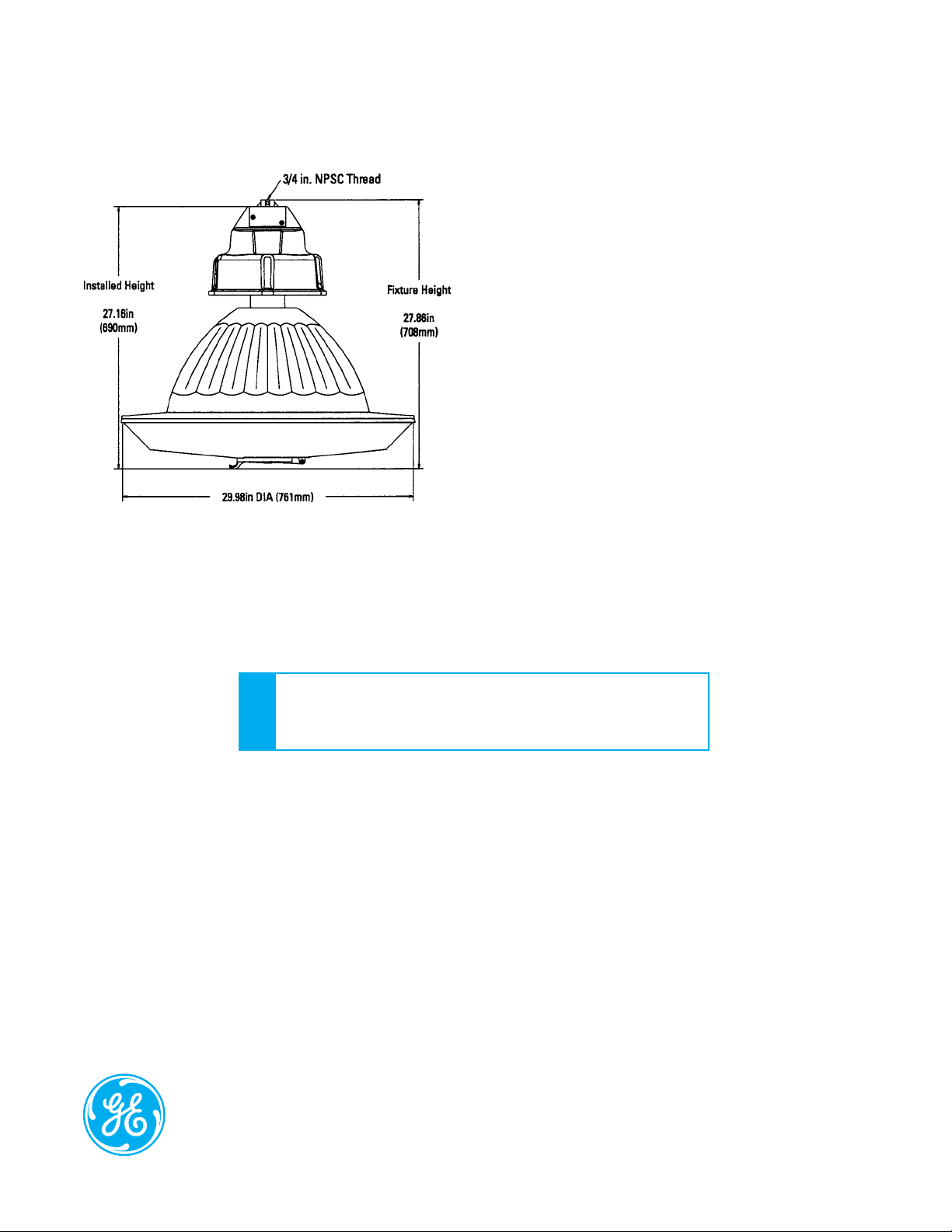

Product Dimensions
DIMENSIONS
For wet location dimensions 1.72 inches (44mm) must be
added to overall height.
• Approximate Net Weight Ballast and Optical: 32-42 lbs (15-19 kgs)
DATA
GE Lighting Solutions • 1-888-MY-GE-LED • www.gelightingsolutions.com
1 - 8 8 8 - 6 9 - 4 3 - 5 3 3
GE Lighting Solutions, LLC is a subsidiary of the General Electric Company. The GE brand and logo are trademarks of the General Electric Company.
© 2012 GE Lighting Solutions, LLC. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions.
OLP-3008 (Rev. 05/25/12)
