GE 49-60639, 200D8074P046 User Manual
GEAppliances.com
Safety Instructions . . . . . . . . . . .2–4
Operating Instructions
Automatic Icemaker . . . . . . . . . . . . . . .12
Care and Cleaning . . . . . . . . . . . . .14, 15
ClimateKeeper2 . . . . . . . . . . . . . . . . . . . . .6
Crispers and Pans . . . . . . . . . . . . . . . . .11
CustomCool . . . . . . . . . . . . . . . . . . . . . . . .6

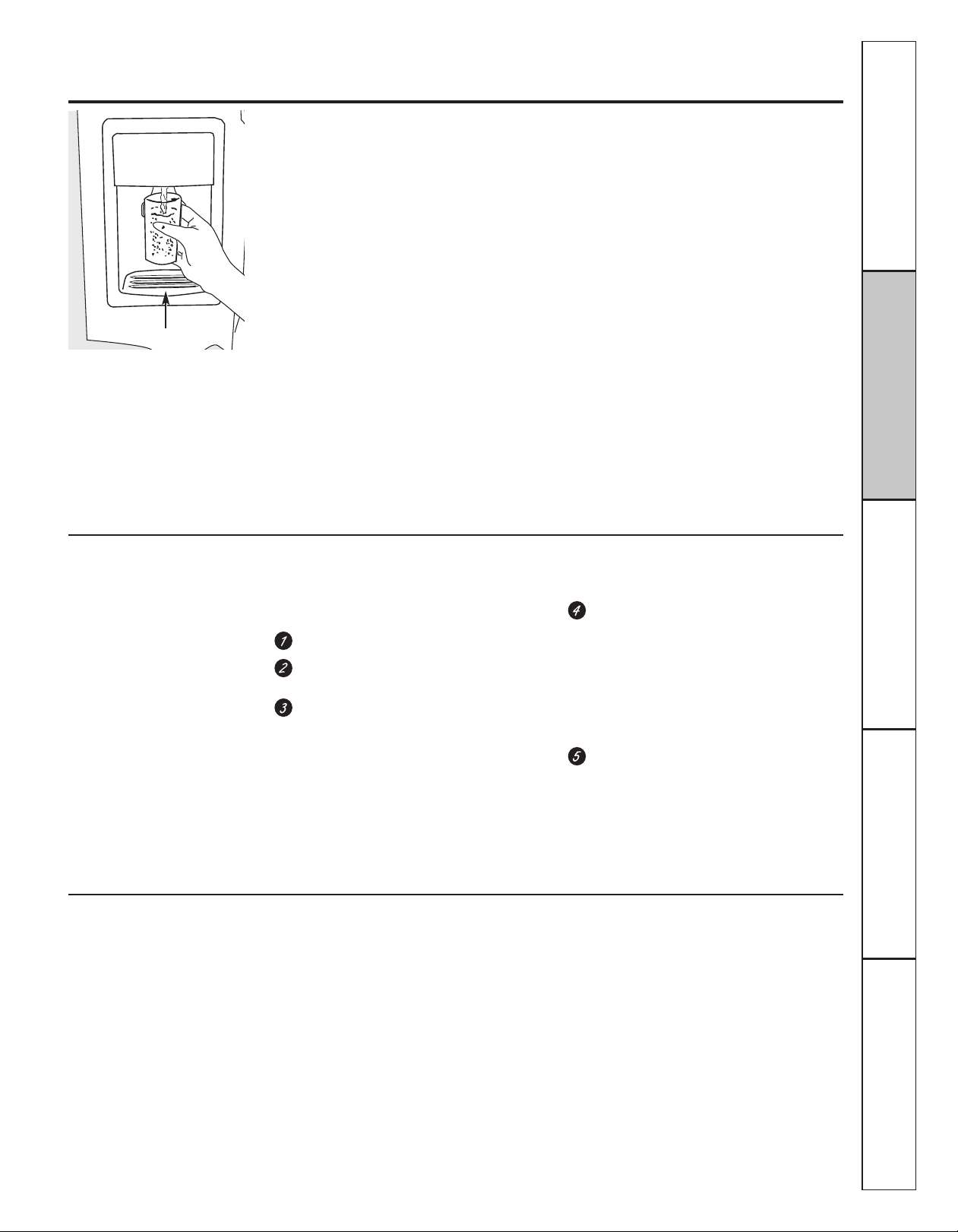

Ice and Water Dispenser . . . . . . . . . . .13

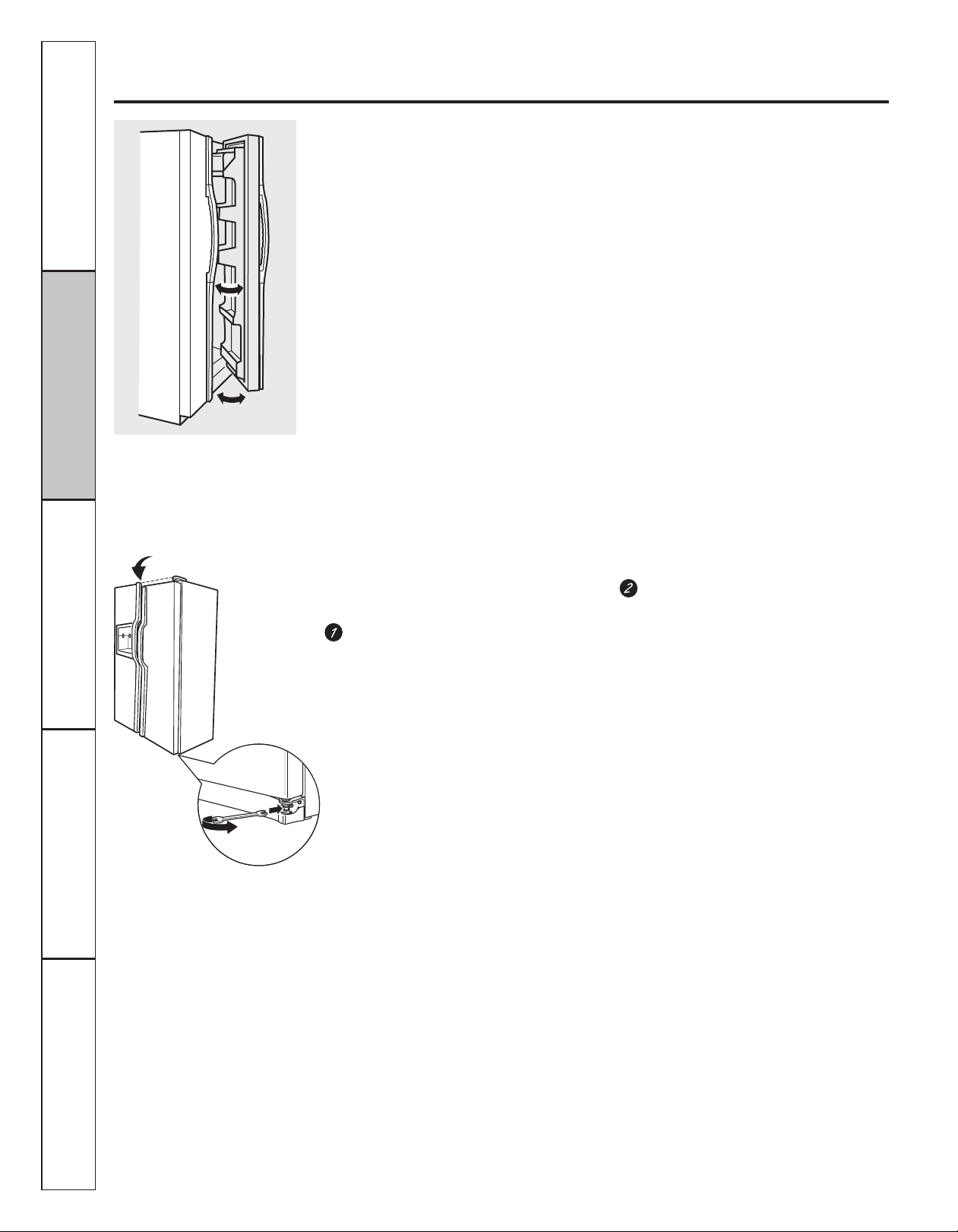

Refrigerator Doors . . . . . . . . . . . . . . . . .10
Replacing the Light Bulbs . . . . . . . . . .16

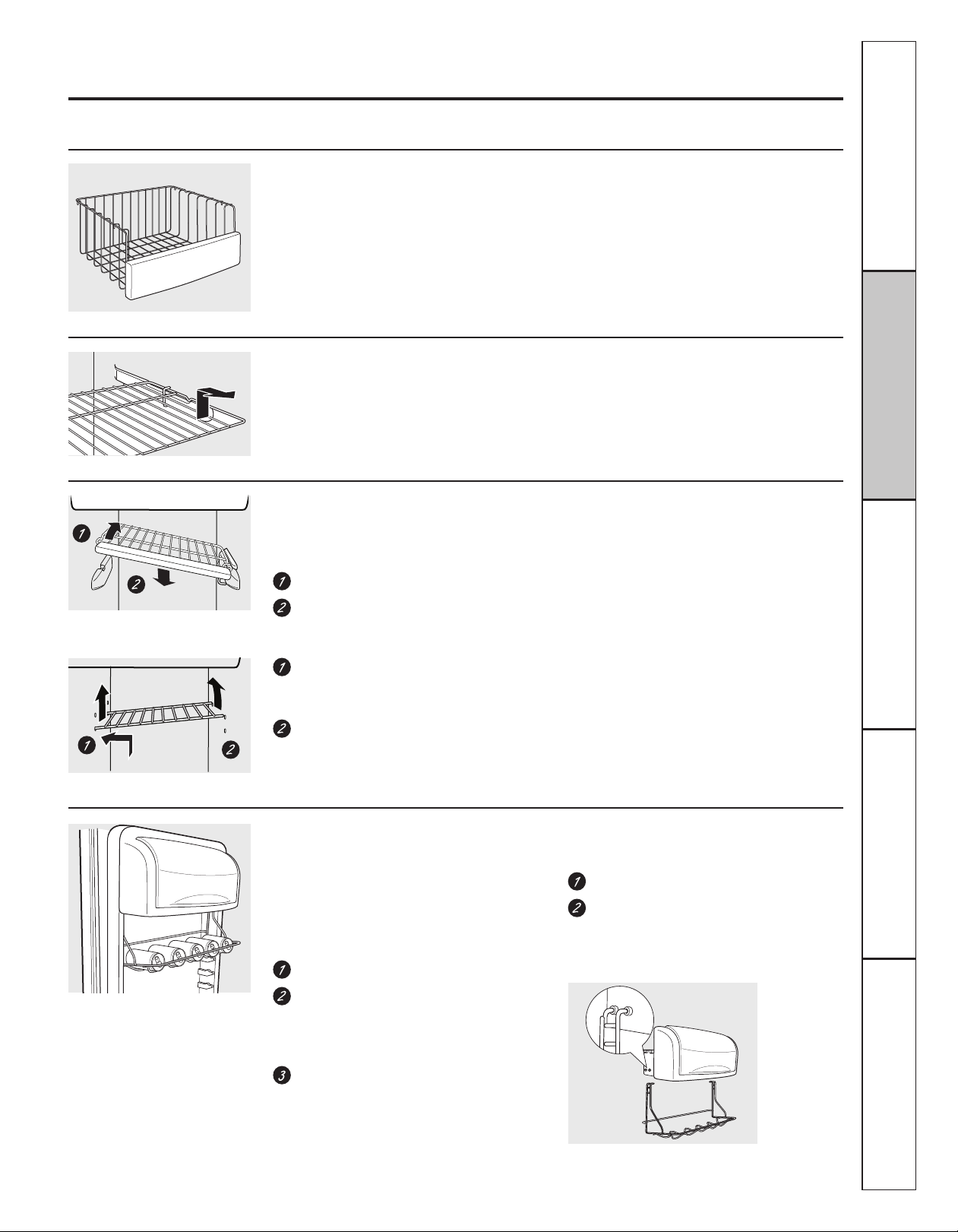

Shelves and Bins . . . . . . . . . . . . . . . . . .8, 9
Temperature Controls . . . . . . . . . . . . . . .5
TurboCool . . . . . . . . . . . . . . . . . . . . . . . . . .5

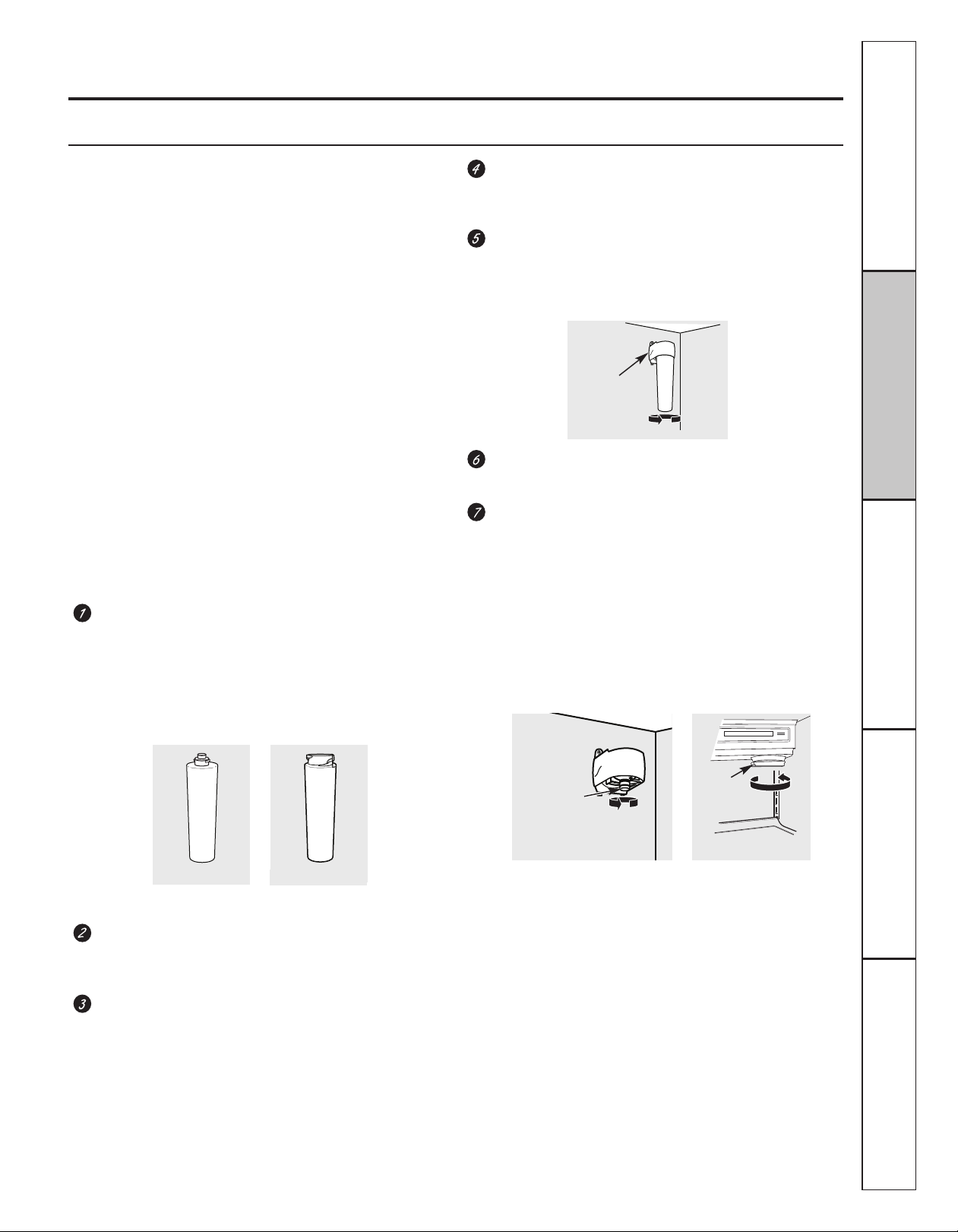

Water Filter . . . . . . . . . . . . . . . . . . . . . . . . .7
Installation Instructions
Installing the Refrigerator . . . . . .26–29
Moving the Refrigerator . . . . . . . .22–25
Preparing to Install
the Refrigerator . . . . . . . . . . . . . . . . . . . .21
Profile Side by Side
Trim Kits and Panels . . . . . . . . . . .17–20
Water Line Installation . . . . . . . . .30–32
Troubleshooting Tips . . . . . .33–36
Normal Operating Sounds . . . . . . . . . .33
Owner’s Manual
and Installation
Models 23, 25 and 26
Profile Côte à Côte
Réfrigérateurs
Manuel d’utilisation
et d’installation
La section française commence à la page 46
Profile Lado a Lado
Refrigeradores
Manual del propietario
e instalación
La sección en español empieza en la página 88
Consumer Support
Consumer Support . . . . . . . .Back Cover
Performance Data Sheet . . . . . . . . . . .41
Product Registration . . . . . . . . . . . .43, 44
State of California Water
Treatment Device Certificate . . . . . . .42
Warranty (Canadian) . . . . . . . . . . . . . . .39
Warranty (U.S.) . . . . . . . . . . . . . . . . . . . .40
Write the model and serial numbers
here:
Model # __________________________
Serial # __________________________
Find these numbers on a label inside
the refrigerator compartment at the top
Refrigerators
on the right side.
200D8074P046 49-60639 03-10 GE
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
Use this appliance only for its intended purpose as described in this Owner’s Manual.
SAFETY PRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
Installation
Instructions
This refrigerator must be properly installed
and located in accordance with the Installation
Instructions before it is used.
Do not allow children to climb, stand or hang
on the shelves in the refrigerator. They could
damage the refrigerator and seriously injure
themselves.
Do not touch the cold surfaces in the freezer
compartment when hands are damp or wet.
Skin may stick to these extremely cold surfaces.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
In refrigerators with automatic icemakers,
avoid contact with the moving parts of the ejector
mechanism, or with the heating element located
on the bottom of the icemaker. Do not place fingers
or hands on the automatic icemaking mechanism
while the refrigerator is plugged in.
Keep fingers out of the “pinch point” areas;
clearances between the doors and between
the doors and cabinet are necessarily small.
Be careful closing doors when children are
in the area.
Unplug the refrigerator before cleaning and making
repairs.
NOTE: We strongly recommend that any servicing
be performed by a qualified individual.
Setting either or both controls to OFF does not
remove power to the light circuit.
Do not refreeze frozen foods which have thawed
completely.
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
2
GEAppliances.com
DANGER! RISK OF CHILD ENTRAPMENT
PROPER DISPOSAL OF THE REFRIGERATOR
Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are
still dangerous…even if they will sit for “just a few
days.” If you are getting rid of your old refrigerator,
please follow the instructions below to help prevent
accidents.
Refrigerants
All refrigeration products contain refrigerants,
which under federal law must be removed prior
to product disposal. If you are getting rid of an
old refrigeration product, check with the company
handling the disposal about what to do.
Before You Throw Away Your Old
Refrigerator or Freezer:
Take off the doors.
Leave the shelves in place so that children may not
easily climb inside.
USE OF EBNSION CORDS
Because of potential safety hazards under certain conditions, we strongly recommend against the use
of an extension cord.
However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the United
States) or a CSA-listed (in Canada), 3-wire grounding type appliance extension cord having a grounding type
plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.
Instructions
Installation
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
3
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
HOW TO CONNECT ELECTRICITY
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
For personal safety, this appliance must be properly grounded.
Installation
Instructions
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall outlet
to minimize the possibility of electric shock hazard
from this appliance.
Have the wall outlet and circuit checked by
a qualified electrician to make sure the outlet is
properly grounded.
If the outlet is a standard 2-prong outlet, it is your
personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall
outlet.
The refrigerator should always be plugged into its
own individual electrical outlet which has a voltage
rating that matches the rating plate.
This provides the best performance and also prevents
overloading house wiring circuits which could cause
a fire hazard from overheated wires.
Never unplug your refrigerator by pulling on the
power cord. Always grip plug firmly and pull straight
out from the outlet.
Repair or replace immediately all power cords that
have become frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage
along its length or at either end.
When moving the refrigerator away from the wall,
be careful not to roll over or damage the power cord.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
4

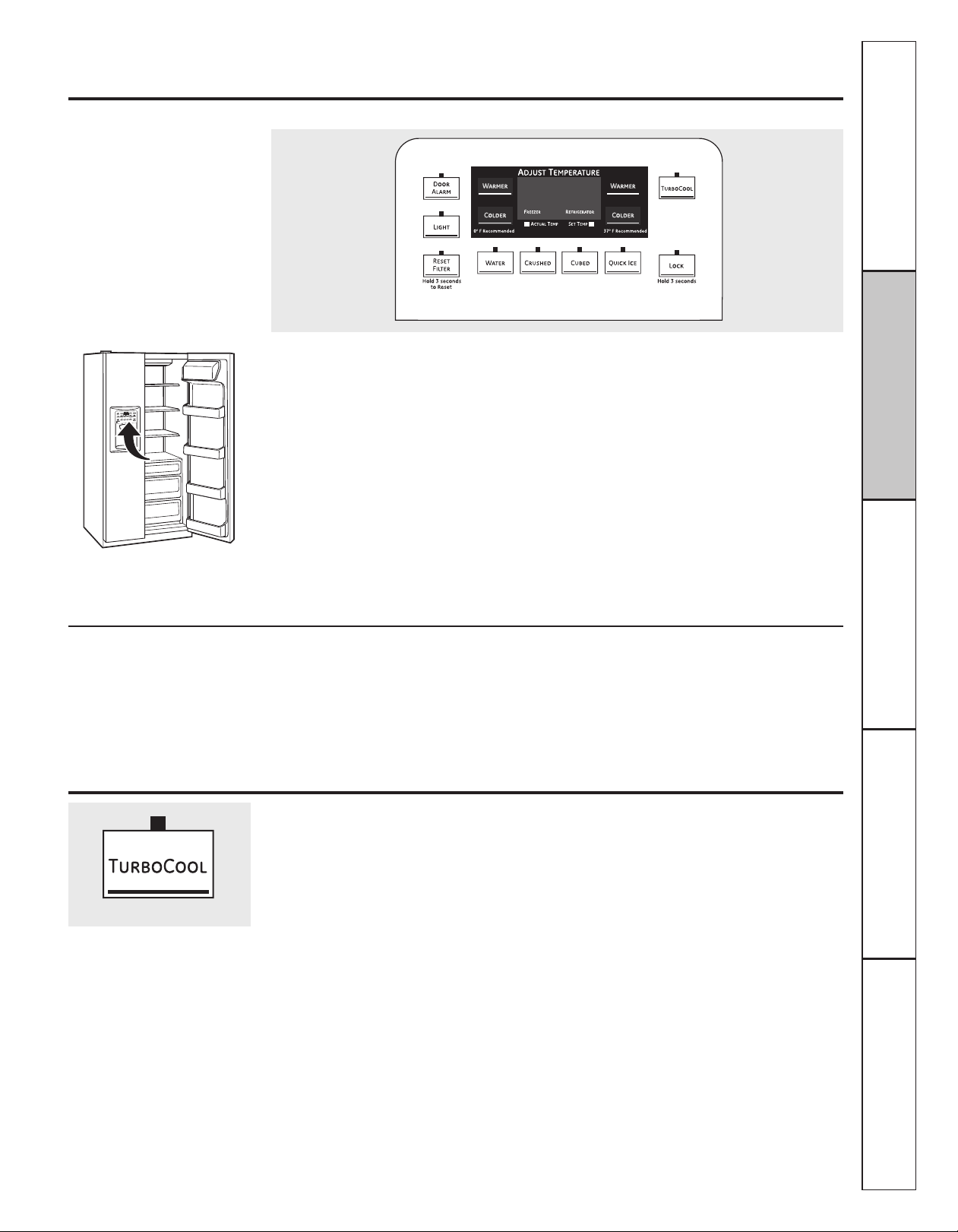

About the temperature controls. GEAppliances.com
Not all features are on all models.
The temperature controls are preset in the factory at 37°F for the refrigerator compartment and 0°F for the
freezer compartment. Allow 24 hours for the temperature to stabilize to the preset recommended settings.
The temperature controls can display both the SET temperature as well as the actual temperature in
the refrigerator and freezer. The actual temperature may vary slightly from the SET temperature based
on usage and operating environment.
On some models, setting both controls to the warmest setting until the display flashes (off) will stop
cooling in both the freezer and refrigerator compartments.
On other models, setting either control to the warmest setting until the display flashes (off) will stop
the cooling to the freezer and refrigerator.
NOTE: Turning the refrigerator off via the controls on the touch panel does not shut off electrical power
to the refrigerator.
NOTE: The refrigerator is shipped with protective film covering the temperature controls. If this f ilm was
not removed during installation, remove it now.
Instructions
Installation
About TurboCool.
Performance Air Flow System
The Performance Air-Flow System is designed to
maximize temperature control in the refrigerator
and freezer compartments. This unique special
feature consists of the Air Tower along the back
wall of the refrigerator and the Air Tunnel on the
bottom portion of the freezer rear wall. Placing
food in front of the louvers on these components
™
(on some models)
How it Works
TurboCool rapidly cools the refrigerator
compartment in order to more quickly cool foods.
Use TurboCool when adding a large amount
of food to the refrigerator compartment, putting
away foods after they have been sitting out at
room temperature or when putting away warm
leftovers. It can also be used if the refrigerator has
been without power for an extended period.
Once activated, the compressor will turn on
immediately and the fans will cycle on and off
at high speed as needed for eight hours.
The compressor will continue to run until the
refrigerator compartment cools to approximately
34°F (1°C), then it will cycle on and off to maintain
this setting. After 8 hours, or if TurboCool is
pressed again, the refrigerator compartment
will return to the original setting.
will not affect performance. Although the Air
Tower and the Air Tunnel can be removed, doing
so will affect temperature performance. (For
removal instructions, on-line, contact us at
GEAppliances.com or
call 800.GE.CARES. In Canada, contact us at
geappliances.ca or call 1.800.561.3344.)
How to Use
Press TurboCool. The TurboCool temperature
display will show Tc and the LED will be activated.
After TurboCool is complete, the TurboCool
indicator light will go out.
NOTES: The refrigerator temperature cannot
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
be changed during TurboCool.
The freezer temperature is not affected
during TurboCool.
When opening the refrigerator door
during TurboCool, the fans will continue
to run if they have cycled on.
5
About ClimateKeeper2.
™
How it Works
The new ClimateKeeper2™is the industry’s most advanced refrigeration system, delivering optimum temperature and humidity performance to keep food garden fresh longer and reduce freezer burn, while maintaining E star-level efficiency.
The new ClimateKeeper2 system features
two evaporators—one for the refrigerator
and one for the freezer.
This provides two separate cooling systems
for the entire unit, and separates the airflow
between the fresh food and freezer sections
during normal cooling operations.
This ensures that the humidity levels in the
fresh food section are significantly higher
than in a conventional system,* allowing
fresh produce and other unsealed foods to
retain their moisture content and freshness
longer. Moisture sensitive foods such as fresh
About CustomCool™. (on some models)
fruit, salads, rice, etc., can now be stored on
open shelves without excessive moisture loss.
Due to the higher humidity in the refrigerator,
you may on occasion experience fog or small
amounts of moisture in the refrigerator
compartment. This is normal and may
come and go as different food loads
and environmental conditions change.
Wipe dry with a paper towel if desired.
The separate airflow system minimizes
the mixing of air between the two
compartments, which reduces odor
transfer to improve the taste of ice.
The ClimateKeeper2 system also reduces
the number of defrosting cycles in the freezer
evaporator, thereby reducing freezer burn.
*Testing shows a higher level of humidity in
the Fresh Food section in ClimateKeeper2
refrigerators versus conventional units.
Installation
Instructions
ExpressThaw
ExpressChill
How to Use
Empty the pan. Place the Chill/Thaw tray
in the pan. Place the items on the tray
and close the pan completely.
LCD Models:
Access by: Home > Options >
Refrigerator Options > CustomCool Pan
™
™
Non-LCD Models:
Select the ExpressThaw™, ExpressChill
or SelectTemp™pad. The display and SET
light will come on. Tap the pad until the
light appears next to the desired setting.
Use the following chart to determine the
best setting to use.
ExpressChill can be set to 15, 30 or 45
minutes. The default is 15 minutes.
To stop a feature before it is finished:
For LCD Models:
Go into that feature’s menu and press
the OFF button.
™
For Non-LCD Models:
Tap that feature’s pad until no options
are selected and the display is off.
During ExpressThaw and
ExpressChill,the display on the
controls will count down the time
in the cycle (on some models).
After the ExpressThaw cycle is
complete, the pan will reset to the
MEAT setting (32°F [0°C]) to help
preserve thawed items until they
are used.
The displayed actual temperature
of the CustomCool pan may vary
slightly from the SET temperature
based on usage and operating
environment.
NOTE: For food safety reasons, it is
recommended that foods be wrapped in
plastic wrap when using ExpressThaw.
This will help contain meat juices and improve
thawing performance.
How to Remove and Replace the Drawer
To remove:
Pull the drawer out to the stop position.
Lock all four swing locks by rotating them
to the lock position.
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
6
Rotate all four swing locks to the unlock
position.
Lift the front of the drawer up and out.
To replace:
Make sure all four swing locks are in
the unlock position.
Place the sides of the drawer into
the drawer supports, making sure
the swing locks fit on the drawer slots.
About the water filter. (on some models) GEAppliances.com
Water Filter Cartridge
The water filter cartridge is located in the back upper right
corner of the refrigerator compartment.
When to Replace the Filter on Models With
a Replacement Indicator Light
There is a replacement indicator light for the water filter
cartridge on the dispenser. This light will turn orange to tell
you that you need to replace the filter soon.
The filter cartridge should be replaced when the replacement
indicator light turns red or if the flow of water to the dispenser
or icemaker decreases.
When to Replace the Filter on Models Without
a Replacement Indicator Light
The filter cartridge should be replaced every six months or
earlier if the flow of water to the water dispenser or icemaker
decreases.
Removing the Filter Cartridge
If you are replacing the cartridge, first remove the old one
by slowly turning it to the left. Do not pull down on the
cartridge. A small amount of water may drip down.
Installing the Filter Cartridge
If you are replacing a SmartWater cartridge with
an adapter, it must be removed before installing the
cartridge. To remove the adapter, turn it to the left
about 1/4 turn.
Line up the arrow on the cartridge and the cartridge
holder. Place the top of the new cartridge up inside
the holder. Do not push it up into the holder.
Slowly turn it to the right until the filter cartridge stops.
DO NOT OVERTIGHTEN. As you turn the cartridge, it will
automatically raise itself into position. The cartridge will
move about 1/2 turn.
Cartridge
Holder
Run water from the dispenser for 3 minutes (about
1-1/2 gallons) to clear the system and prevent sputtering.
Press and hold the WATER FILTER pad (on some models)
on the dispenser for 3 seconds.
NOTE: A newly-installed water filter cartridge may cause
water to spurt from the dispenser.
Filter Bypass Plug
You must use the filter bypass plug when a replacement filter
cartridge is not available. The dispenser and the icemaker will
not operate without the filter or filter bypass plug.
Instructions
Installation
If you are replacing a Water by Culligan cartridge,
leave the adapter in place. This adapter will stay in
the refrigerator when you replace future cartridges.
With adapter
(appearance may vary)
On models without a replacement indicator light, apply
the month and year sticker to the new cartridge to
remind you to replace the filter in six months.
Fill the replacement cartridge with water from the tap to
allow for better flow from the dispenser immediately after
installation.
Without adapter
Filter
Filter
Bypass
Plug
SmartWater
To use the filter bypass plug on Water by Culligan models,
you must first remove the filter adapter from the cartridge
holder by turning it to the left.
If you have questions—visit our Website at GEAppliances.com,
or call 1.800.GE.CARES (1.800.432.2737).
Replacement filters:
To order additional filter cartridges in the United States,
visit our Website at GEAppliances.com, or call GE Parts and
Accessories, 800.626.2002.
MSWF
Suggested Retail $36.95–41.95
Customers in Canada should consult the yellow pages
for the nearest Mabe Service Center.
Bypass
Plug
Water by Culligan
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
7
About the shelves and bins.
Not all features are on all models.
Snugger
Refrigerator bin
Freezer tilt-out bin
Refrigerator Door Bins and Freezer Door Tilt-Out Bins
Large Bins
The larger refrigerator door bins and freezer
tilt-out door bins are adjustable.
To remove: Lift the front of the bin straight
up, then lift up and out.
To replace or relocate: Engage the back side
of the bin in the molded supports on the
door. Then push down on the front of the bin.
Bin will lock in place.
Small Bins
To remove: Lift the front of the bin straight up
then out.
To replace: Position the bin above the
rectangular molded supports on the door.
Then slide the bin down onto the support
to lock it in place.
The snugger helps prevent tipping, spilling
or sliding of small items stored on the door
shelf. Place a finger on either side of the
snugger near the rear and move it back
and forth to fit your needs.
Top freezer bin
CAUTION:
Be careful when
placing items in
the top bin. Make
sure that items do
not block or fall
into the ice chute.
Installation
Instructions
Press tab and pull shelf forward
to remove
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
8
Slide-Out Spillproof Shelf
The slide-out spillproof shelf allows you
to reach items stored behind others.
The special edges are designed to help
prevent spills from dripping to lower shelves.
To remove:
Slide the shelf out until it reaches the stop,
then press down on the tab and slide
the shelf straight out.
QuickSpace™Shelf
This shelf splits in half and slides under itself
for storage of tall items on the shelf below.
This shelf can be removed and replaced
or relocated just like the Slide-Out Spillproof
Shelves.
On some models, this shelf cannot be used
in the lowest position.
To replace or relocate:
Line the shelf up with the supports and slide
it into place. The shelf can be repositioned
when the door is at 90° or more. To reposition
the shelf, slide the shelf past the stops and
angle downward. Slide shelf down to the
desired position, line up with the supports
and slide into place.
Make sure you push the shelves all the way
back in before you close the door.
Not all features are on all models.
Freezer Baskets
GEAppliances.com
To remove, push the basket all the way to
the back of the freezer. Lift up until the back
pins are disengaged. Lift the entire basket
up and pull out.
Slide-Out Freezer Shelves
To remove, slide out to the stop position,
lift the front past the stop position and
slide out.
Fixed Freezer Shelves
There are two types of fixed freezer shelves.
To remove this type of shelf:
Lift the shelf up at the left side.
Bring the shelf out.
Make sure you push the baskets all the way
back in before you close the door.
Make sure you push the shelves all the way
back in before you close the door.
NOTE FOR DISPENSER MODELS: In order to
take full advantage of the tilt-out ice bin, only
store items on the shelf below the ice bin that
are no taller than the lowest point on the bin.
Instructions
Installation
To remove this type of shelf:
Lift up the left side of the shelf and slide it
left into the center of the shelf supports.
Rotate the right side of the shelf up
and out of the shelf supports.
Door Wine/Beverage Rack (on some models)
This rack holds up to 5 cans or one bottle
of wine.
The rack hangs from the sides
of the dairy bin.
To remove:
Empty the wine/beverage rack.
Holding the bottom of the dairy bin,
lift the front straight up, then lift up
and out.
To detach the rack from the dairy bin,
pull the rack’s side wires out of the holes
on each side of the dairy bin.
To replace:
Reattach the rack to the sides of the bin.
Engage the back side of the bin in
the molded supports on the door.
Then push down on the front of
the bin. The bin will lock into place.
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
9

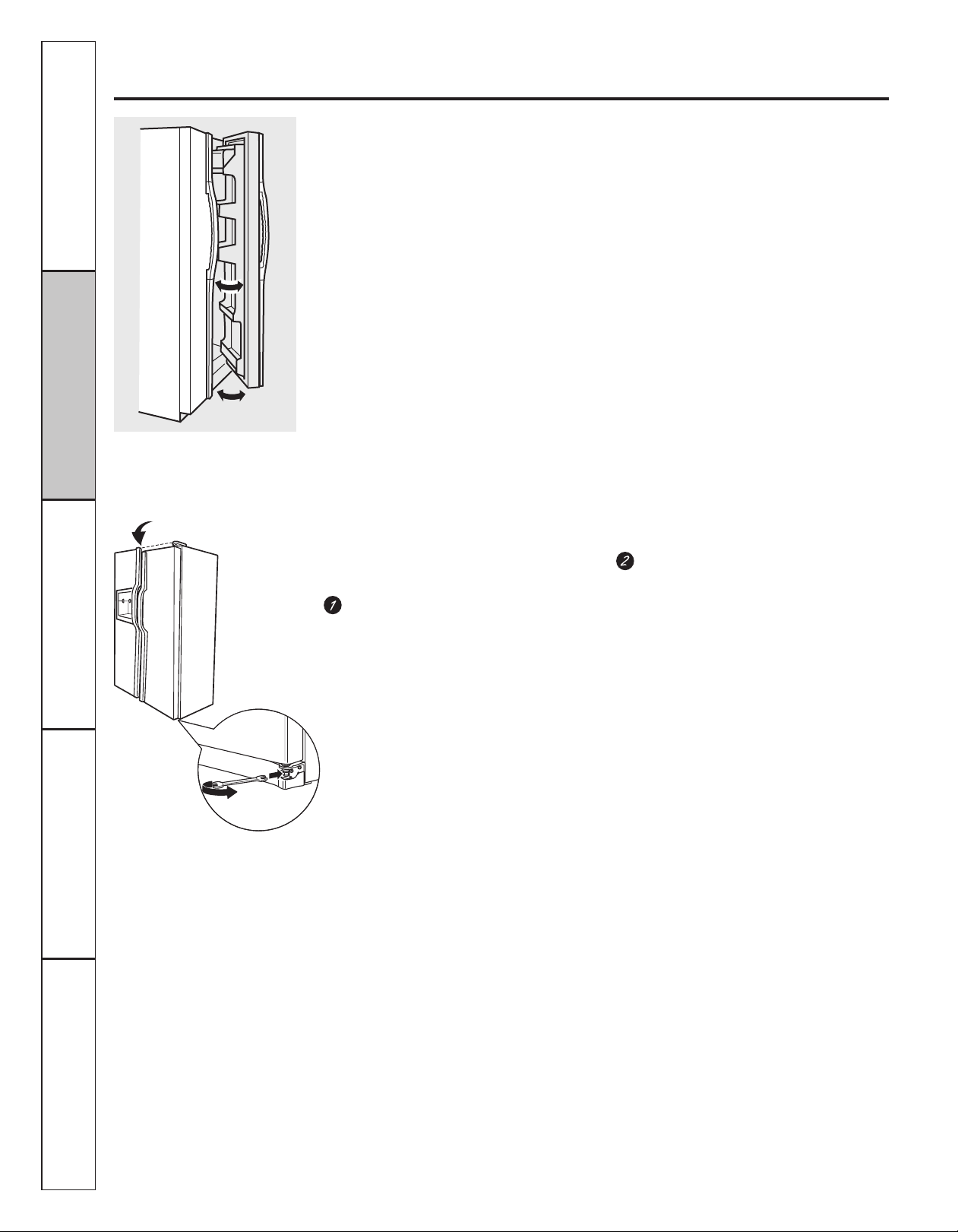

About the refrigerator doors.
Refrigerator Doors
When the door is only partially open,
it will automatically close.
Beyond this stop the door will
stay open.
Installation
Instructions
The refrigerator doors may feel different than
the ones you are used to. The special door
opening/closing feature makes sure the
doors close all the way and are securely
sealed.
When opening and closing the door you will
notice a stop position. If the door is opened
past this stop point, the door will remain
open to allow you to load and unload food
more easily. When the door is only partially
open, it will automatically close.
Door Alignment
If doors are uneven, adjust
the refrigerator door.
Using a 7/16” wrench, turn the door
adjusting screw to the right to raise the
door, to the left to lower it. (A nylon plug,
imbedded in the threads of the pin,
prevents the pin from turning unless
a wrench is used.)
The resistance you feel at the stop position
will be reduced as the door is loaded
with food.
After one or two turns of the wrench,
open and close the refrigerator door
and check the alignment at the top
of the doors.
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
10
7/16” Wrench
Raise
About the crispers and pans. GEAppliances.com
Not all features are on all models.

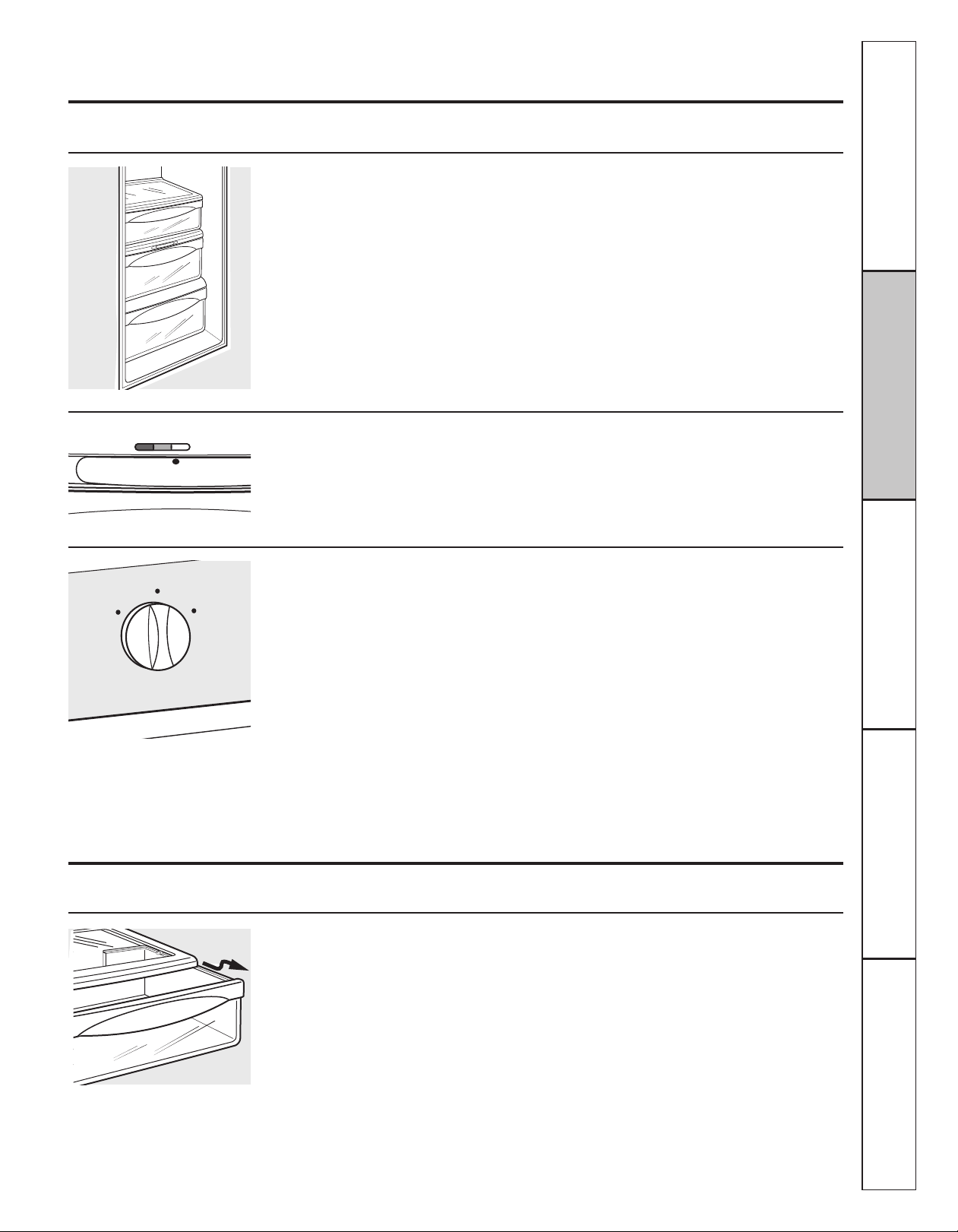

Fruit and Vegetable Crispers
Excess water that may accumulate in the
bottom of the drawers should be wiped dry.
On some models, the bottom drawer has
full extension slides that allow full access
to the drawer.
HI
LO
Adjustable Humidity Crispers
Slide the control all the way to the HI setting
to provide high humidity recommended for
most vegetables.
D
L
O
C
C
O
L
D
E
S
T
Convertible Deli Pan
The convertible deli pan has its own cold
air duct to allow a stream of cold air from
the freezer compartment or fresh food
compartment to flow to the pan.
The variable temperature control regulates
the air flow from the Climate Keeper Air
Tower.
About crisper removal.
Slide the control all the way to the LO
setting to provide lower humidity levels
recommended for most fruits.
Set the control to the coldest setting to store
fresh meats.
Set the control to cold to convert the pan
to normal refrigerator temperature and
provide extra vegetable storage space. The
cold air duct is turned off. Variable settings
between these extremes can be selected.
Instructions
Installation
Not all features are on all models.
Crisper Removal
Crispers can easily be removed by pulling
the drawer straight out and lifting the drawer
up and over the stop location.
If the door prevents you from taking out
the drawers, first try to remove the door
bins. If this does not offer enough clearance,
the refrigerator will need to be rolled forward
until the door opens enough to slide the
drawers out. In some cases, when you roll
the refrigerator out, you will need to move
the refrigerator to the left or right as you
roll it out.
11
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
About the automatic icemaker.
A newly installed refrigerator may take 12 to 24 hours to begin making ice.
On dispenser models,
to access ice or reach
the power switch:
Pull the bin forward until the
bin stops.
Lower the bin to access ice
or reach the power switch.
Installation
Instructions
Automatic Icemaker
The icemaker will produce seven cubes
per cycle—approximately 100–130 cubes
in a 24-hour period, depending on freezer
compartment temperature, room
temperature, number of door openings
and other use conditions.
If the refrigerator is operated before the
water connection is made to the icemaker,
set the power switch in the OFF position.
When the refrigerator has been connected
to the water supply, set the power switch
to the ON position.
The icemaker will fill with water when it cools
to 15°F (–10°C). A newly installed refrigerator
may take 12 to 24 hours to begin making
ice cubes.
You will hear a buzzing sound each time
the icemaker fills with water.
Throw away the first few batches of ice
to allow the water line to clear.
Be sure nothing interferes with the sweep
of the feeler arm.
When the bin fills to the level of the feeler
arm, the icemaker will stop producing ice.
It is normal for several cubes to be joined
together.
Special note about dispenser models:
Dispenser models have a tilt-out ice bin.
The bin can be tilted out as shown in the
illustrations, and it will hold itself up while
you take ice out or turn the icemaker
power switch on and off. Be sure to put the
bin back in place before closing the door.
To restore your ice level from an empty
bucket stage, the following steps are
recommended:
12 hours after the first batch of ice has
fallen into the bin, dispense 3 to 4 cubes.
After an additional 6 hours, dispense
3 to 4 cubes again.
These steps will restore your ice level in
the shortest amount of time.
Icemaker
Power
Switch
Feeler Arm
If ice is not used frequently, old ice cubes will
become cloudy, taste stale and shrink.
Removing Ice Bin (dispenser models)
CAUTION: The ice bin is heavy when full.
Set the power switch to the OFF position
before removing the bin.
When replacing the bin, be sure to press
it firmly into place. If it does not go all the
way back, remove it and rotate the drive
mechanism 1/4 turn. Then push the bin
back again.
Rotate
Drive
Mechanism
Dispenser Models only
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
12
About the ice and water dispenser. (on some models) GEAppliances.com
To Use the Dispenser
Spill Shelf
Select CUBED ICE, CRUSHED ICE or WATER.
Press the glass gently against the top of the
dispenser cradle.
The spill shelf is not self-draining. To reduce water
spotting, the shelf and its grille should be cleaned
regularly.
If no water is dispensed when the refrigerator is
first installed, there may be air in the water line
system. Press the dispenser arm for at least two
minutes to remove trapped air from the water line
and to fill the water system. To flush out impurities
in the water line, throw away the first six glassfuls
of water.
CAUTION: Never put fingers or any other objects
into the ice crusher discharge opening.
Locking the Dispenser
Press the LOCK pad for 3 seconds to lock the
dispenser and control panel. To unlock, press
and hold the pad again for 3 seconds.
Dispenser Light
The LIGHT pad turns the night light in the
dispenser on and off. The light also comes on
when the dispenser cradle is pressed. On some
models, if this light burns out, it should be replaced
with a 6 watt 12V maximum bulb.
Quick Ice
When you need ice in a hurry, press the QUICK
ICE pad to speed up ice production. This will
increase ice production for the following 48 hours
or until you press the pad again.
Door Alarm
To set the alarm, press the DOOR ALARM pad until
the indicator light comes on. This alarm will sound
if either door is open for more than 3 minutes.
The light goes out and the beeping stops when
you close the door.
Precise Fill
This water dispenser is equipped with a feature
called “precise fill.” This feature allows you to
choose a precise amount of water (cups or
ounces) that you would like dispensed.
Press the WATER pad.
Press the CUPS or OUNCES pad.
Select the precise amount of water you
would like dispensed.
If you selected OUNCES, press the arrow
pads on either side of the display to select
the number of ounces you would like to have
dispensed between 1–99 ounces.
If you selected CUPS, press the arrow pads
on the left of the display to select the whole
cups (1–16 cups) and/or the arrow pads on
the right side of the display to select fractions
of a cup (1/4–3/4 cups).
Important Facts About Your Dispenser
Do not add ice from trays or bags to
the storage drawer. It may not crush or
dispense well.
Avoid overfilling glass with ice and use of
narrow glasses. Backed-up ice can jam the
chute or cause the door in the chute to freeze
shut. If ice is blocking the chute, poke it through
with a wooden spoon.
Beverages and foods should not be quick-
chilled in the ice storage drawer. Cans, bottles
or food packages in the storage drawer may
cause the icemaker or auger to jam.
To keep dispensed ice from missing the glass,
put the glass close to, but not touching, the
dispenser opening.
Press the cup against the cradle and water
will begin dispensing. It will automatically
stop when the amount set has been
dispensed. The display will show there
is no water left to dispense, then reset.
NOTE: Do not leave the dispenser unattended
when water is being dispensed.
If you would like to stop dispensing water
before the specified amount has been
dispensed, just remove the cup from the
cradle. The display will show the amount
left to dispense.
Some crushed ice may be dispensed even
though you selected CUBED ICE. This happens
occasionally when a few cubes accidentally get
directed to the crusher.
After crushed ice is dispensed, some water may
drip from the chute.
Sometimes a small mound of snow will form
on the door in the ice chute. This condition is
normal and usually occurs when you have
dispensed crushed ice repeatedly. The snow
will eventually evaporate.
13
Instructions
Installation
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Care and cleaning of the refrigerator.
Cleaning the Outside
Dispenser drip area.
Installation
Instructions
The dispenser drip area, beneath the grille,
should be wiped dry. Water left in this area
may leave deposits. Remove the deposits
by adding undiluted vinegar to the well. Soak
until the deposits disappear or become loose
enough to rinse away.
The dispenser cradle. Before cleaning,
lock the dispenser by pressing and holding
the LOCK pad for 3 seconds. Clean with
warm water and baking soda solution—
about a tablespoon (15 ml) of baking soda
to a quart (1 liter) of water. Rinse thoroughly
and wipe dry.
The door handles and trim. Clean with
a cloth dampened with soapy water.
Dry with a soft cloth.
Cleaning the Inside
To help prevent odors, leave an open box
of baking soda in the fresh food and freezer
compartments.
Unplug the refrigerator before cleaning.
If this is not practical, wring excess moisture
out of sponge or cloth when cleaning around
switches, lights or controls.
The stainless steel panels and door handles
(on some models) can be cleaned with
a commercially available stainless steel
cleaner. A spray-on stainless steel cleaner
works best.
Do not use appliance wax or polish
on the stainless steel.
Keep the outside clean. Wipe with a
clean cloth lightly dampened with kitchen
appliance wax or mild liquid dish detergent .
Dry and polish with a clean, soft cloth.
Do not wipe the refrigerator with a soiled
dish cloth or wet towel. These may leave
a residue that can erode the paint. Do not
use scouring pads, powdered cleaners,
bleach or cleaners containing bleach
because these products can scratch
and weaken the paint finish.
Avoid cleaning cold glass shelves with hot
water because the extreme temperature
difference may cause them to break.
Handle glass shelves carefully. Bumping
tempered glass can cause it to shatter.
Do not wash any plastic refrigerator parts
in the dishwasher.
Use warm water and baking soda solution—
about a tablespoon (15 ml) of baking soda to
a quart (1 liter) of water. This both cleans and
neutralizes odors. Rinse and wipe dry.
Use of any cleaning solution other than
that which is recommended, especially
those that contain petroleum distillates,
can crack or damage the interior of the
refrigerator.
The chill/thaw tray is dishwasher safe.
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
14
Behind the Refrigerator
GEAppliances.com
Be careful when moving the refrigerator
away from the wall. All types of floor
coverings can be damaged, particularly
cushioned coverings and those with
embossed surfaces.
Pull the refrigerator straight out and return
it to position by pushing it straight in. Moving
the refrigerator in a side direction may result
in damage to the floor covering or
refrigerator.
Preparing for Vacation
For long vacations or absences, remove
food and unplug the refrigerator. Clean
the interior with a baking soda solution of
one tablespoon (15 ml) of baking soda to one
quart (1 liter) of water. Leave the doors open.
Set the icemaker power switch to the OFF
position and shut off the water supply to
the refrigerator.
Preparing to Move
When pushing the refrigerator back, make
sure you don’t roll over the power cord or
icemaker supply line.
If the temperature can drop below freezing,
have a qualified servicer drain the water
supply system to prevent serious property
damage due to flooding.
Instructions
Installation
Secure all loose items such as shelves and
drawers by taping them securely in place
to prevent damage.
When using a hand truck to move the
refrigerator, do not rest the front or back
of the refrigerator against the hand truck.
This could damage the refrigerator. Handle
only from the sides of the refrigerator.
Be sure the refrigerator stays in an upright
position during moving.
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
15
Replacing the light bulbs.
Setting the controls to OFF does not remove power to the light circuit .
Reveal
are not illuminated.
Not all features are on all models.
®
appliance bulbs are used on some models. They can be identif ied by their blue color when they
Your light shield will look like
one of the following:
Installation
Instructions
OR
Pocket
C
O
L
D
D
L
E
O
S
C
T
Tabs
Refrigerator Compartment—Upper Light
Unplug the refrigerator.
The bulbs are located at the top of
the compartment, inside the light shield.
On some models, a screw at the front
of the light shield will have to be
removed. On other models,
the screw is located in the pocket
located at the back of the light shield.
To remove the light shield, on some
models, press in on the tabs on the sides
of the shield and slide forward and out.
On other models, just slide the shield
forward and out.
Refrigerator Compartment—Lower Light
This light is located above the top drawer.
Unplug the refrigerator.
Remove the convertible meat drawer
control knob by pulling straight out.
After replacing the bulb with an
appliance bulb of the same or lower
wattage, replace the light shield and
screws (on some models). When
replacing the light shield, make
sure that the tabs at the back
of the shield fit into the slots at
the back of the light shield housing.
Plug the refrigerator back in.
After replacing the bulb with an
appliance bulb of the same or lower
wattage, replace the shield and the knob.
Plug the refrigerator back in.
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
16
Lift the light shield up and pull it out.
Freezer Compartment
Unplug the refrigerator.
Remove the shelf just above the light
shield. (The shelf will be easier to remove
if it is emptied first .) On some models,
a screw at the top of the light shield
will need to be removed.
To remove the light shield, press in
on the sides, and lift up and out.
Dispenser (on some models)
Unplug the refrigerator.
The bulb is located on the dispenser
under the control panel. Remove the light
bulb by turning it counterclockwise.
Replace the bulb with an appliance
bulb of the same or lower wattage,
and reinstall the light shield. When
reinstalling the light shield, make sure
the top tabs snap securely into place.
Replace the screw (on some models).
Reinstall the shelf and plug
the refrigerator back in.
Replace the bulb with a bulb
of the same size and wattage.
Plug the refrigerator back in.
Trim kits and decorator panels.
For CustomStyle™models
Read these instructions completely and carefully.
Before You Begin
Some models are equipped with trim kits that allow you to install door panels. You can order
pre-cut black, white, bisque or stainless steel decorator panels from GE Parts and Accessories,
800.626.2002, or you can add wood panels to match your kitchen cabinets.
Panels less than 1/4” (6 mm) thick
When installing wood panels less than 1/4” (6 mm) thick, you need to create a filler panel, such as 1/8”
cardboard, that will fit between the face of the door and the wood panel. If you are installing the pre-cut
decorator panels, pre-cut filler panels are included in the kit . The combined thickness of the decorator
or wood panel and the filler panel should be 1/4” (6 mm).
Panels 1/4” thick or less
1/4” max
3/4” (19 mm) or Raised Panel
A raised panel design screwed or glued to a 1/4” (6 mm) thick backing, or a 3/4” (19 mm) routed board can
be used. The raised portion of the panel must be fabricated to permit clearances of at least 2” (5.1 cm) from
the handle side for fingertip clearance.
Panels thicker than 1/4” (6 mm), up to 3/4” (19 mm) max, will require that the outer 5/16” (8 mm) of panel
perimeter be no thicker than 1/4” (6 mm).
Weight limitations for custom panels:
Fresh Food 38 lbs. (17 kg) max.
Freezer Door 28 lbs. (13 kg) max.
Panels thicker than 1/4” (6 mm)
5/16” (8 mm)
1/4” (6 mm) max
3/4” (19 mm)
2” (5.1 cm)
Clearance
Handle Side
Appearance
Panel
1/4” (6 mm)
Thick Backing
3/4”
(19 mm)
Refrigerator
Door
Instructions
Installation
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
17
Trim kits and decorator panels.
23‘ Dimensions for Custom Wood Panels
The areas at the top of the panels need to be cut out of the panels.
Freezer Panel
Without Dispenser
Cutout
5/16”
(8 mm)
(170.9 cm)
1/8” (3 mm)
679⁄32”
FRONT
1415⁄32”
(36.8 cm)
Freezer Panel
With Dispenser Fresh Food Panel
Cutout
5/16”
(8 mm)
1/8” (3 mm)
177⁄8”
(45.4 cm)
FRONT
1415⁄32”
(36.8 cm)
335⁄8”
(85.4 cm)
1/8” (3 mm)
Cutout
5/16”
(8 mm)
679⁄32”
(170.9 cm)
FRONT
1915⁄32”
(49.5 cm)
Installation
Instructions
25‘
CustomStyle™Dimensions for Custom Wood Panels
The areas at the top of the panels need to be cut out of the panels.
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
18
Freezer Panel
Without Dispenser
Cutout
5/16”
(8 mm)
(175.3 cm)
1/8” (3 mm)
69”
FRONT
1415⁄32”
(36.8 cm)
Freezer Panel
With Dispenser Fresh Food Panel
Cutout
5/16”
(8 mm)
1/8” (3 mm)
17”
(43.2 cm)
FRONT
1415⁄32”
(36.8 cm)
361⁄4”
(92.0 cm)
1/8” (3 mm)
Cutout
5/16”
(8 mm)
69”
(175.3 cm)
FRONT
1915⁄32”
(49.5 cm)
Inserting the door panels.
Read these instructions completely and carefully.
Insert the Freezer Panel and Fresh Food Panel.
Carefully push the freezer panel in until it slides into
the slot behind the door handle. Push the filler panel
(required with some door panels) in behind the
decorator panel. Repeat for fresh food panel.
If your model has a dispenser, this step only applies
to the fresh food panel and top freezer panel.
Insert the Bottom Freezer Panel (on dispenser models).
Carefully push the panel in until it slides into the slot
behind the door handle. Push the filler panel (required
with some door panels) in behind the decorator panel.
Attach the Top Trim on the Freezer and Fresh Food Doors.
The Top Trim can be found inside the refrigerator
compartment.
With a T-20 Torxdriver, attach the Top Trim, using
two screws on each Top Trim piece, to the top of
Top Trim Screws
each door. Hand tighten only. Make sure that
the top of each panel fits snugly behind the lip
of the Top Trim.
Instructions
Installation
Side Trim
Cut-Out
Top Trim Screws
Top
Freezer
Panel
Bottom
Freezer
Panel
Cut-Out
Fresh
Food
Panel
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Side Trim
19
Inserting the door panels.
Install the Side Trim.
These pieces are tucked inside the refrigerator
door handle.
Do not remove the protective film on the outside
of the Side Trim until the Side Trim is installed.
Fit the bottom of the Side Trim under the Bottom Trim
as illustrated.
Top Trim
Side
Trim
Hold the Side Trim against the front face
of the decorator panels and fit the Side Trim under
the Top Trim. Make sure the magnetically attached
Side Trim is fitted correctly and that you are satisfied
with the appearance of all the parts.
Installation
Instructions
Side
Trim
Bottom Trim
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
20
Installation
Refrigerator
Instructions
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com
In Canada, call 1.800.561.3344 or Visit our Website at: geappliances.ca
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
•
IMPORTANT — Save these instructions
for local inspector’s use.
•
IMPORTANT — Observe all governing
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions
for future reference.
• Skill level – Installation of this appliance requires
basic mechanical skills.
• Completion time – Refrigerator Installation
30 minutes
Water Line Installation
30 minutes
• Proper installation is the responsibility
of the installer.
• Product failure due to improper installation
is not covered under the Warranty.
If the refrigerator has already been installed,
remove the base grille (see Step 2 in Moving
the Refrigerator), then skip to Step 5 in Installing
the Refrigerator.
PREPARATION
WATER SUPPLY TO THE ICEMAKER
If the refrigerator has an icemaker, it will have to be
connected to a cold water line. A GE water supply
kit (containing tubing, shutoff valve, fittings and
instructions) is available at extra cost from your
dealer, by visiting our Website at
GEAppliances.com (in Canada at geappliances.ca)
or from Parts and Accessories, 800.626.2002 (in
Canada 1.800.661.1616).

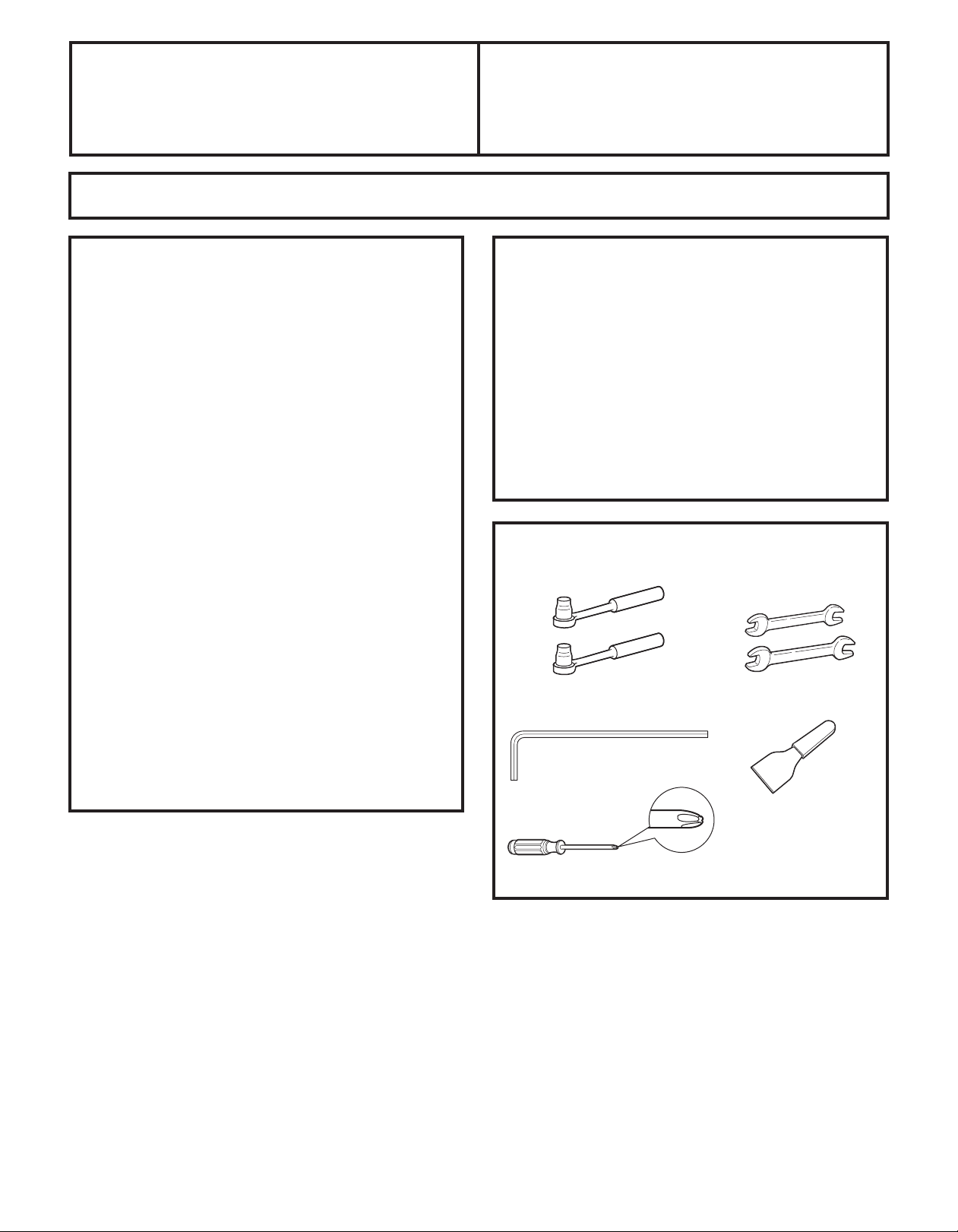

TOOLS YOU WILL NEED
3/8” and 5/16” Socket 1/2” and 7/16” Wrench
1/8” Hex Wrench
Models 23, 25 and 26
Plastic Putty Knife
21
Phillips Head Screwdriver
Installation Instructions
MOVING THE REFRIGERATOR
1
LOADING THE REFRIGERATOR
ONTO A HAND TRUCK
Leave all tape and door pads on doors until
the refrigerator is in its final location.
To move the refrigerator, use a padded hand
truck. Center the refrigerator on the hand truck
and secure the strap around the refrigerator.
DO NOT OVERTIGHTEN THE STRAP.
If the refrigerator must go through
any entrance that is less than 38” wide,
the doors must be removed. Proceed to
Step 3.
DO NOT remove the handles.
If all entrances are more than 38” wide,
skip to Installing the Refrigerator.
3
DISCONNECT THE WATER COUPLING
(on some models)
If the refrigerator has a water dispenser,
there is a water line from the cabinet into
the bottom hinge on the freezer door that
must be disconnected.
To disconnect, push in on the white collar
of the coupling and pull out the tubing.
2
REMOVE THE BASE GRILLE
Remove the grille by removing the two Phillips
head screws.
White collar
Bottom
freezer
hinge
22
Installation Instructions
4
DISCONNECT THE POWER COUPLING
(on some models)
If the refrigerator has a water dispenser,
there is a power line (harness) from the cabinet
into the bottom hinge on the freezer door that
must be disconnected.
To disconnect, pull apart at the coupling.
Bottom
freezer
hinge
5
DISCONNECT THE ELECTRICAL
CONNECTORS (on some models)
If the refrigerator has a refreshment center,
there are electrical connectors (harnesses)
from the cabinet into the bottom hinge
on the refrigerator door that must be
disconnected.
To disconnect, pull apart each connector.
6
CLOSE THE FREEZER AND
REFRIGERATOR DOORS
7
REMOVE THE FREEZER DOOR
Remove the freezer door top hinge cover
A
(if equipped) by either squeezing it and pulling
it up or by prying it off with a plastic putty
knife.
Remove the two 5/16” or 1/8” hex head
B
screws, then lift the hinge straight up to free
the hinge pin.
5/16” or 1/8” hex head
Bottom
refrigerator
hinge
23
Open the freezer door to 90.°
C
90°
Installation Instructions
MOVING THE REFRIGERATOR (CONT.)
7
REMOVE THE FREEZER DOOR (cont.)
As one person slowly lifts the freezer door up
D
and off the bottom hinge, the second person
should carefully guide the water line and
power line (harness) through the bottom hinge.
90°
Set the door on a non-scratching surface with
E
the inside up.
8
REMOVE THE REFRIGERATOR DOOR
A
Remove the refrigerator door top hinge
cover (if equipped) by either squeezing it and
pulling it up or by prying it off with a plastic
putty knife.
8
REMOVE THE REFRIGERATOR DOOR
(cont.)
Remove the two 5/16” or 1/8” hex head
B
screws, then lift the hinge straight up to free
the hinge pin.
5/16” or 1/8” hex head
Open the refrigerator door to 90.°
C
90°
24
Installation Instructions
8
REMOVE THE REFRIGERATOR DOOR
(cont.)
Lift the refrigerator door up and off the bottom
D
hinge.
If the refrigerator has a refreshment center,
one person should slowly lift the door up and
off the bottom hinge and the second person
should carefully guide the electrical lines
(harnesses) through the bottom hinge.
90°
Refreshment Center Models Only
Set the door on a non-scratching surface with
E
the inside up.
9
REPLACING THE DOORS
To replace the doors, simply reverse
steps 3 through 8.
However, please note the following:
• When lowering the doors onto the bottom
hinges, make sure the second person
carefully guides the tube and harnesses
through the holes in the hinges.
• When connecting the water line, make sure
you insert the tubing all the way to the mark.
Mark
• Do not pinch the tubing and harnesses when
placing the doors on the bottom hinges.
• When connecting the power line and the
electrical lines (refreshment center models
only), be sure that the connectors are seated
together fully.
25
Installation Instructions
INSTALLING THE REFRIGERATOR
REFRIGERATOR LOCATION
• Do not install the refrigerator where the
temperature will go below 60°F (16°C) because
it will not run often enough to maintain proper
temperatures.
• Do not install the refrigerator where the
temperature will go above 100°F (37°C) because
it will not perform properly.
• Install it on a floor strong enough to support it
fully loaded.
CLEARANCES
Allow the following clearances for ease
of installation, proper air circulation and plumbing
and electrical connections:
23‘/25‘ CustomStyle
Sides 1/8” (4 mm) 1/8” (4 mm)
Top 1” (25 mm) 1” (25 mm)
Back 1/2” (13 mm) 1” (25 mm)
™
23‘ (33” wide),
25‘, 26‘
DIMENSIONS AND SPECIFICATIONS
(for 23‘ CustomStyle
701⁄4” (178.4
™
cm)
36”
(91.4 cm)
24” (61 cm)
models)
DIMENSIONS AND SPECIFICATIONS
(for 25‘ CustomStyle
™
models)
DIMENSIONS AND SPECIFICATIONS
Electrical
25” (63.5 cm)
Countertop
24” (61 cm)
Cabinet
Water
3/4” (19 mm)
Airspace
(1/2” [13 mm] Gap +
1/4” [6 mm] Wall
Plates)
721⁄4” (183.5 cm)*
36”
(91.4 cm)
24” (61 cm)
*721/4” (183.5 cm) required for full adjustment
of mobility wheels. If cabinets installed above
refrigerator have doors that are flush to the top of
the opening for the refrigerator, then an
additional 1/8” may be required to provide
clearance for cabinet doors to open freely.
26
Installation Instructions
1
CONNECTING THE REFRIGERATOR
TO THE HOUSE WATER LINE
(icemaker and dispenser models)
A cold water supply is required for automatic
icemaker and dispenser operation. If there
is not a cold water supply, you will need to
provide one. See Installing the Water Line
section.
NOTES:
• Before making the connection to the
refrigerator, be sure the refrigerator power
cord is not plugged into the wall outlet.
• If your refrigerator does not have a water
filter, we recommend installing one if your
water supply has sand or particles that could
clog the screen of the refrigerator’s water
valve. Install it in the water line near the
refrigerator. If using GE SmartConnect
Refrigerator Tubing Kit , you will need an
additional tube (WX08X10002) to connect
the filter. Do not cut plastic tube to install
filter.
If you are using copper tubing, place a
A
compression nut and ferrule (sleeve) onto
the end of the tubing coming from the house
cold water supply.
If you are using the GE SmartConnect
tubing, the nuts are already assembled to
the tubing.
If you are using copper tubing, insert
B
the end of the tubing into the refrigerator
connection, at the back of the refrigerator,
as far as possible. While holding the tubing,
tighten the fitting.
If you are using GE SmartConnect
insert the molded end of the tubing into the
refrigerator connection, at the back of the
refrigerator, and tighten the compression
nut until it is hand tight. Then tighten one
additional turn with a wrench. Overtightening
may cause leaks.
™
™
™
tubing,
Fasten the tubing into the clamp provided to
C
hold it in position. You may need to pry open
the clamp.
Tubing Clamp
1/4”
Compression Nut
Ferrule
(sleeve)
Refrigerator
Connection
2
TURN ON THE WATER SUPPLY
SmartConnect™Tubing
1/4” Tubing
Turn the water on at the shutoff valve
(house water supply) and check for any leaks.
3
PLUG IN THE REFRIGERATOR
Before plugging in the refrigerator, make sure
the icemaker power switch is set to the OFF
position.
27
See the grounding information attached
to the power cord.
Installation Instructions
INSTALLING THE REFRIGERATOR (CONT.)
4 5
PUT THE REFRIGERATOR IN PLACE
Move the refrigerator to its final location.
5
LEVEL THE REFRIGERATOR
The refrigerator can be leveled by adjusting
the rollers located near the bottom hinges.
Raise
Rollers
Rollers have three purposes:
• Rollers adjust so the door closes easily when
opened about halfway. (Raise the front about
5/8” [16 mm] from the floor.)
• Rollers adjust so the refrigerator is firmly
positioned on the floor and does not wobble.
• Rollers allow you to move the refrigerator
away from the wall for cleaning.
To adjust the rollers on 23‘ (33” wide), 25‘
and 26‘ models:
• Turn the roller
adjusting screws
clockwise to raise
the refrigerator,
counterclockwise
to lower it. Use
a 3/8” hex socket
or wrench, or
an adjustable
wrench.
LEVEL THE REFRIGERATOR
(cont.)
To adjust the rollers on 23‘/25‘ CustomStyle
models:
Turn the front roller
adjusting screws
clockwise to raise
the refrigerator,
counterclockwise
to lower it. Use a
3/8” hex wrench
with extension, or
an adjustable wrench.
These models also have rear adjustable rollers
so you can align the refrigerator with your
kitchen cabinets. Use a 3/8” hex wrench with
extension to turn the screws for the rear rollers—
clockwise to raise the refrigerator,
counterclockwise to lower it.
6
LEVEL THE DOORS
Adjust the refrigerator door to make the doors
even at the top.
To align:
Using a 7/16” wrench, turn the door adjusting
A
screw to the right to raise the door, to the left
to lower it.
NOTE:
A nylon plug, imbedded in the threads
of the pin, prevents the pin from turning unless
a wrench is used.
After one or two turns of the wrench, open
B
and close the refrigerator door and check
the alignment at the top of the doors.
Doors should be even at top
Roller adjusting screws
™
Roller adjusting screw
Raise
7/16” wrench
28
Installation Instructions

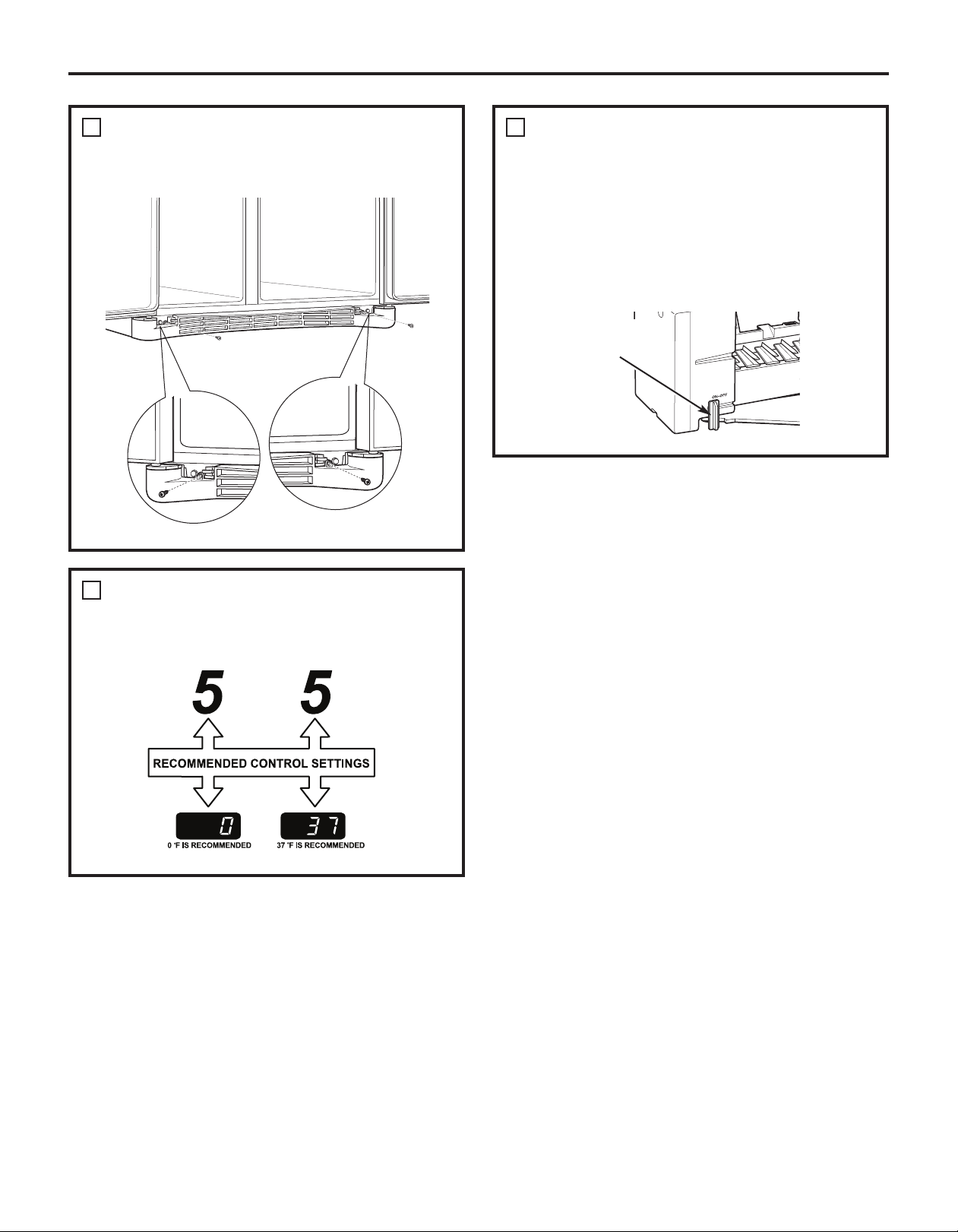

7
REPLACE THE BASE GRILLE
Replace the grille by installing the two Phillips
head screws.
9
START THE ICEMAKER
Set the icemaker power switch to the ON
position. The icemaker will not begin to operate
until it reaches its operating temperature
of 15°F (–9°C) or below. It will then begin
operation automatically. It will take 2–3 days
to fill the ice bin.
Power
switch
8
SET THE CONTROLS
Set the controls to the recommended setting.
29
Installation Instructions
INSTALLING THE WATER LINE (ICEMAKER & DISPENSER MODELS)
BEFORE YOU BEGIN
Recommended copper water supply kits are WX8X2,
WX8X3 or WX8X4, depending on the amount of tubing
you need. Approved plastic water supply lines are GE
SmartConnect
WX08X10006, WX08X10015 and WX08X10025).
When connecting your refrigerator to a GE Reverse
Osmosis Water System, the only approved installation
is with a GE RVKit. For other reverse osmosis water
systems, follow the manufacturer’s recommendations.
If the water supply to the refrigerator is from
a Reverse Osmosis Water Filtration System
AND the refrigerator also has a water filter,
use the refrigerator’s filter bypass plug. Using
the refrigerator’s water filtration cartridge in
conjunction with the RO filter can result in hollow
ice cubes and slower water flow from the water
dispenser.
This water line installation is not warranted by
the refrigerator or icemaker manufacturer. Follow
these instructions carefully to minimize the risk
of expensive water damage.
Water hammer (water banging in the pipes) in
house plumbing can cause damage to refrigerator
parts and lead to water leakage or flooding. Call a
qualified plumber to correct water hammer before
installing the water supply line to the refrigerator.
To prevent burns and product damage, do not hook
up the water line to the hot water line.
If you use your refrigerator before connecting
the water line, make sure the icemaker power
switch is in the OFF position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power
drill) during installation, be sure the device is double
insulated or grounded in a manner to prevent the
hazard of electric shock, or is battery powered.
All installations must be in accordance with local
plumbing code requirements.
™
Refrigerator Tubing (WX08X10002,
WHAT YOU WILL NEED
• Copper or GE SmartConnect™Refrigerator
Tubing kit,1/4” outer diameter to connect the
refrigerator to the water supply. If using copper,
be sure both ends of the tubing are cut square.
To determine how much tubing you need:
measure the distance from the water valve
on the back of the refrigerator to the water supply
pipe. Then add 8’ (2.4 m). Be sure there is sufficient
extra tubing (about 8’ [2.4 m] coiled into 3 turns
of about 10” [25 cm] diameter) to allow the
refrigerator to move out from the wall after
installation.
™
GE SmartConnect
available in the following lengths:
2’ (0.6 m) – WX08X10002
6’ (1.8 m) – WX08X10006
15’ (4.6 m) – WX08X10015
25’ (7.6 m) – WX08X10025
Be sure that the kit you select allows at least
8’ (2.4 m) as described above.
Refrigerator Tubing Kits are
30
Loading...
