FPD1976W 19-INCH WIDESCREEN LCD MONITOR

USERGUIDE

®

Contents

Using Your Gateway Flat-panel Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Connecting the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Setting up the optional stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Attaching the USB stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Adjusting monitor height tension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Adjusting monitor tilt tension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Connecting the USB hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Setting up the optional speaker bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Installing the speaker bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Starting the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Adjusting monitor settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Monitor buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 On-screen display options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Changing Windows screen settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Changing color depth and screen resolution . . . . . . . . . . . . . . . . . . . . . . 15 EzTune software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Video modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 ENERGY STAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Energy declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Maintaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 No power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Display colors are wrong . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Color is not uniform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 No picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Picture has shadows or “ghosts” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Image is not sized or centered correctly . . . . . . . . . . . . . . . . . . . . . . . . . . 20 The monitor has pixels that are always dark or too bright . . . . . . . . . . . 20 Speaker bar does not work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Legal Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

i

Contents

ii

Using Your Gateway

Flat-panel Monitor

Connecting the monitor

Setting up the optional stand

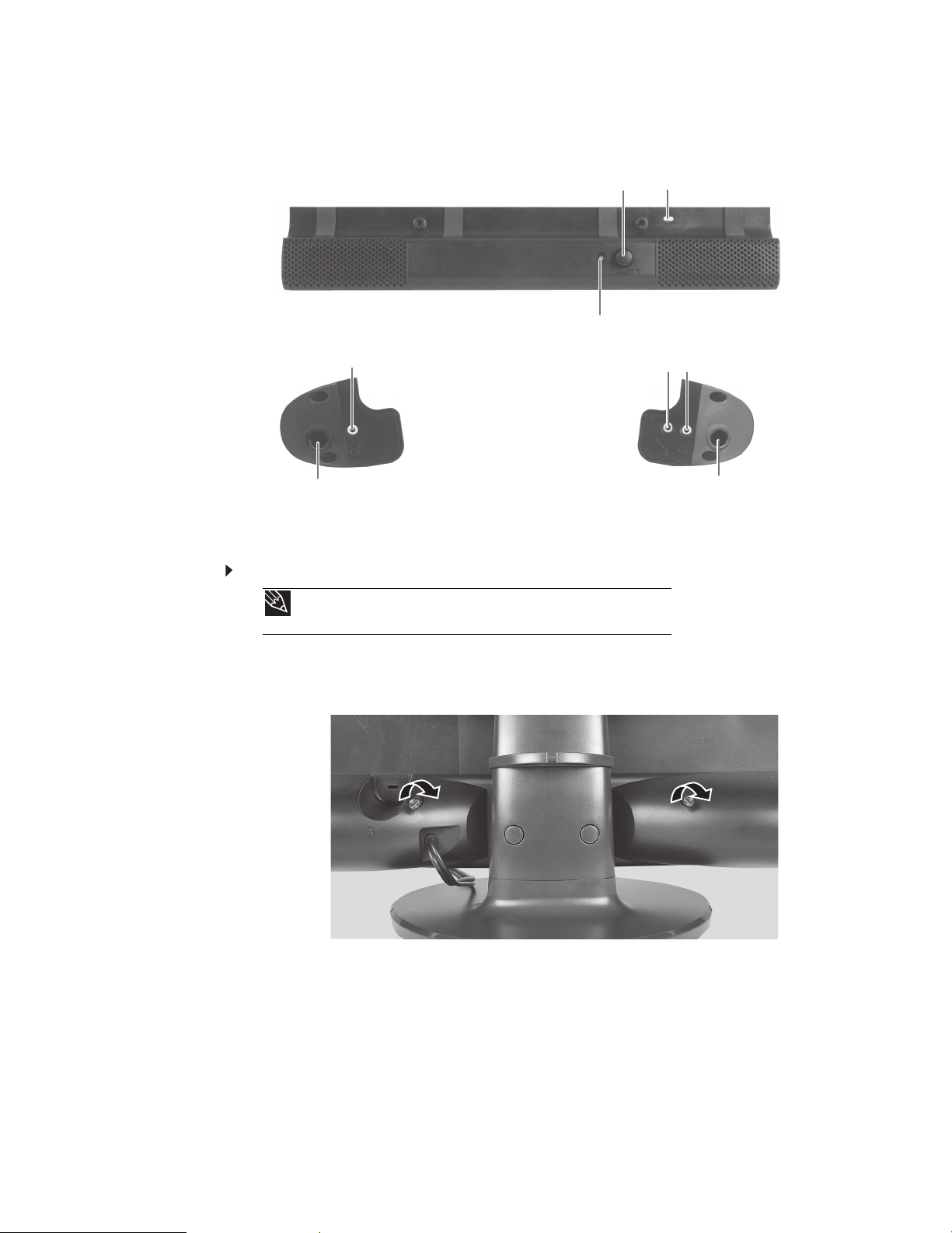

Setting up the optional speaker bar

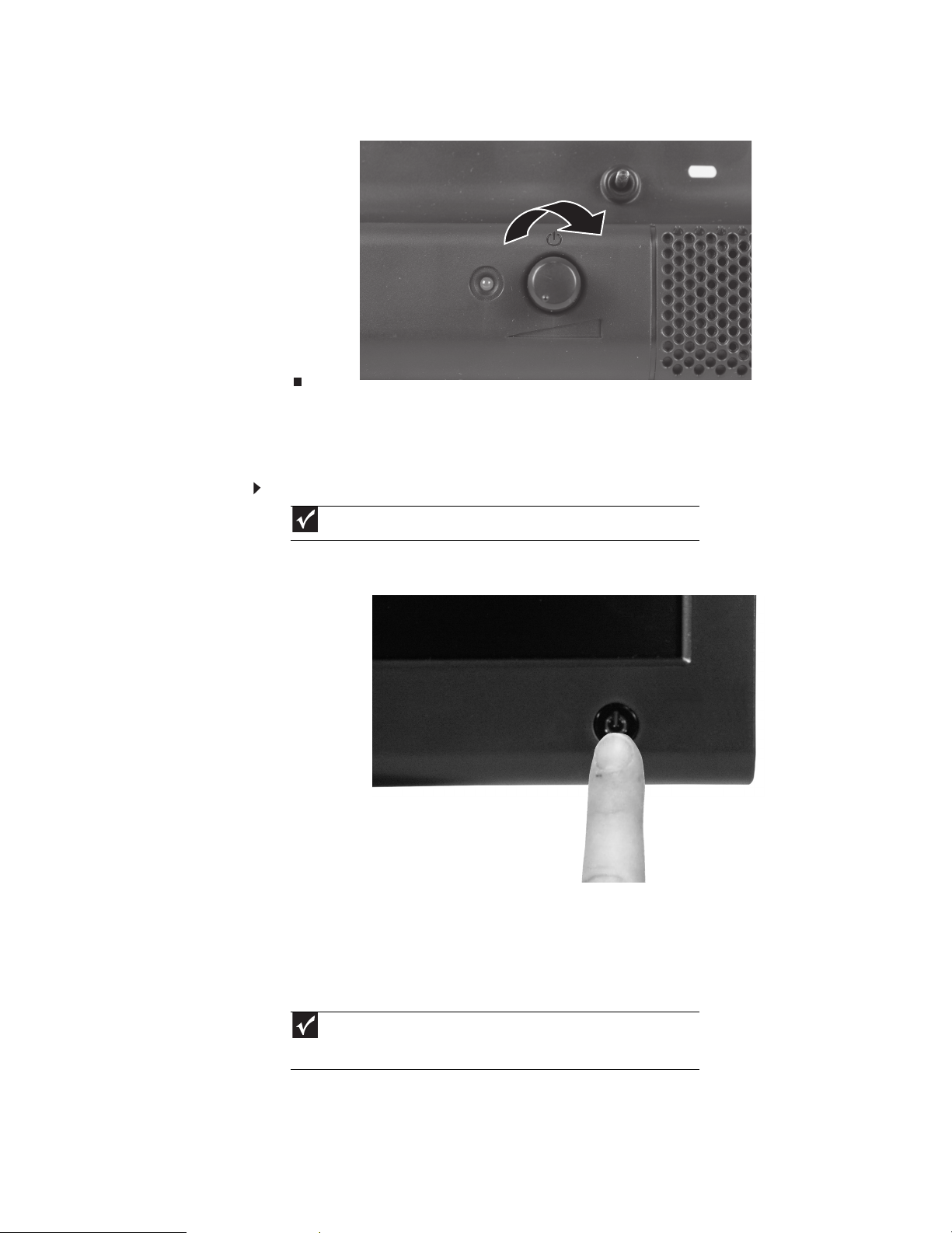

Starting the monitor

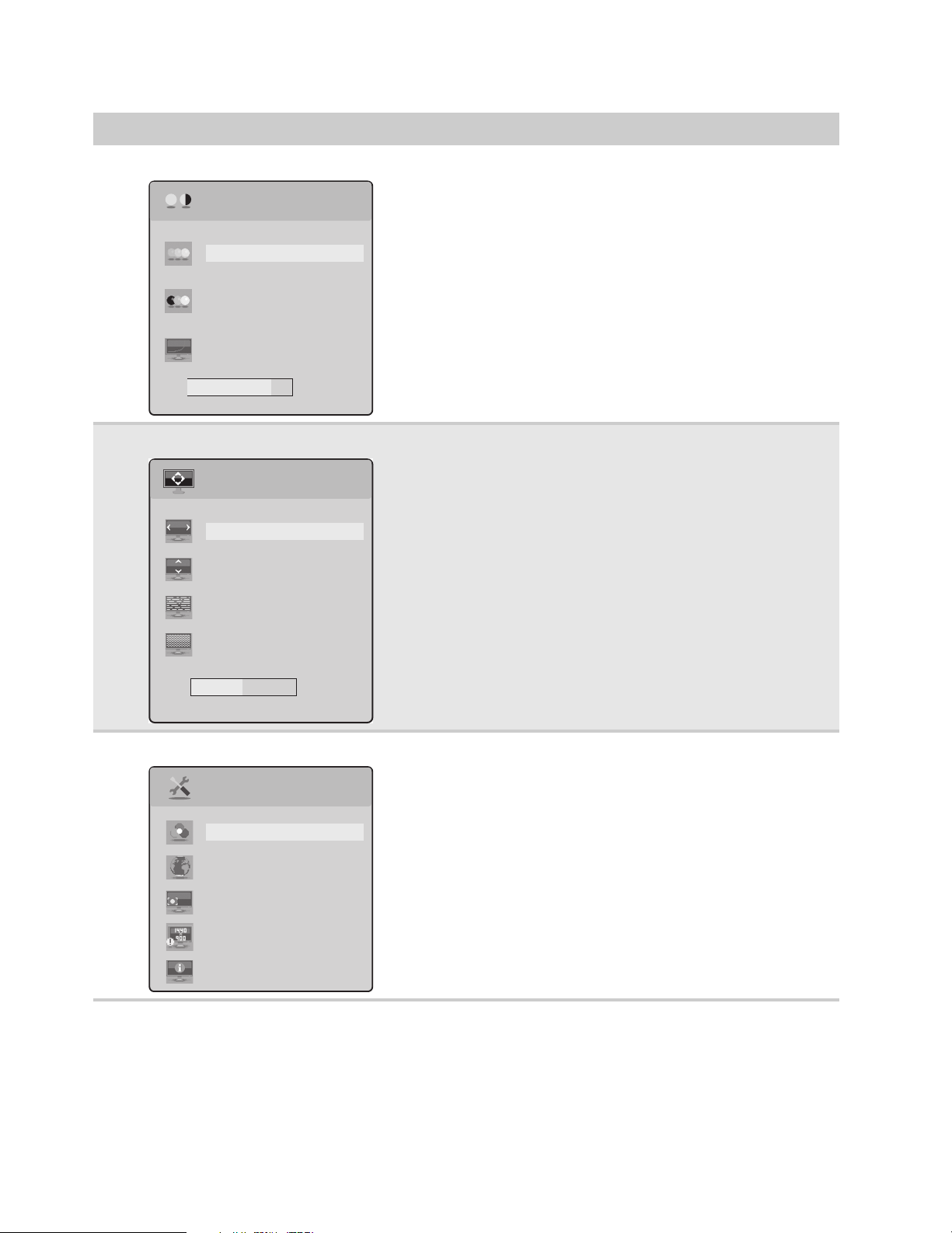

Adjusting monitor settings

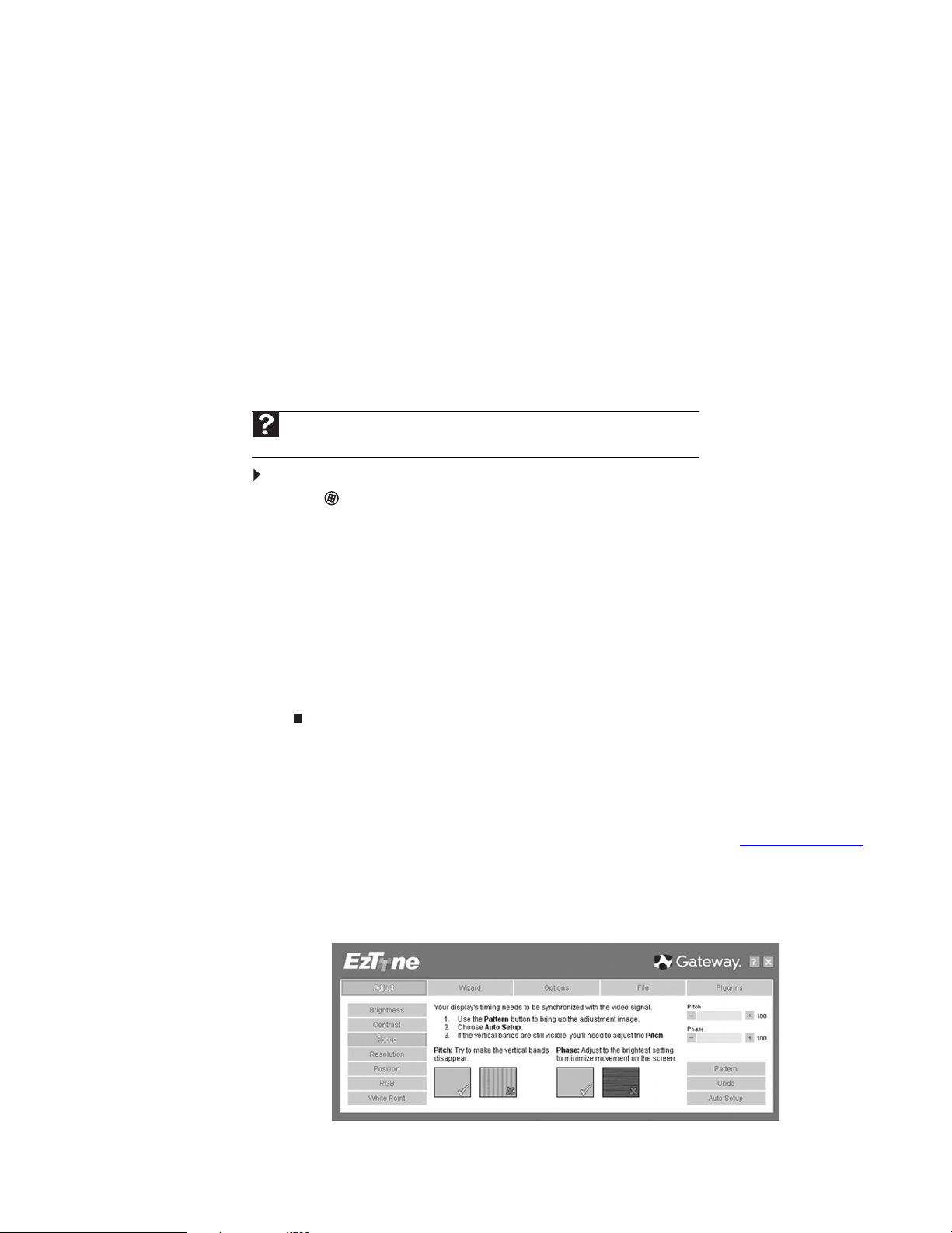

Changing Windows screen settings

Power management

Maintaining

Troubleshooting

Specifications

1

Using Your Gateway Flat-panel Monitor

Connecting the monitor

To connect the monitor:

1Place the monitor base on a table top, then slide the monitor neck down onto the base until it clicks into place. You may need to press the two buttons on the base to let the monitor slide on smoothly.

2Position your computer and the monitor so you can reach the back of each.

3Connect the power cord to the power connector under the back of the display.

2

www.gateway.com

4Connect the blue right-angle VGA video cable to the blue video connector under the back of the display. Although a standard VGA cable is acceptable, we recommend using the right-angle cable (available in the U.S. at www.gateway.com), especially for use with the optional speaker bar. The right-angle cable’s thumbscrews are easier to tighten, and the cord does not get in the way of the speaker bar.

- OR -

If your computer has a digital video connector (DVI), connect a white DVI video cable (available in the U.S. at www.gateway.com) to the white connector under the back of the display. Although a standard DVI cable is acceptable, we recommend using the right-angle cable (available in the U.S. at www.gateway.com), especially for use with the optional speaker bar. The right-angle cable’s thumbscrews are easier to tighten, and the cord does not get in the way of the speaker bar.

5Make sure that your computer is turned off, then connect the other end of the video cable to the matching video port on the back of your computer.

6Plug the power cord into a correctly grounded electrical outlet.

3

Using Your Gateway Flat-panel Monitor

Setting up the optional stand

Attaching the USB stand

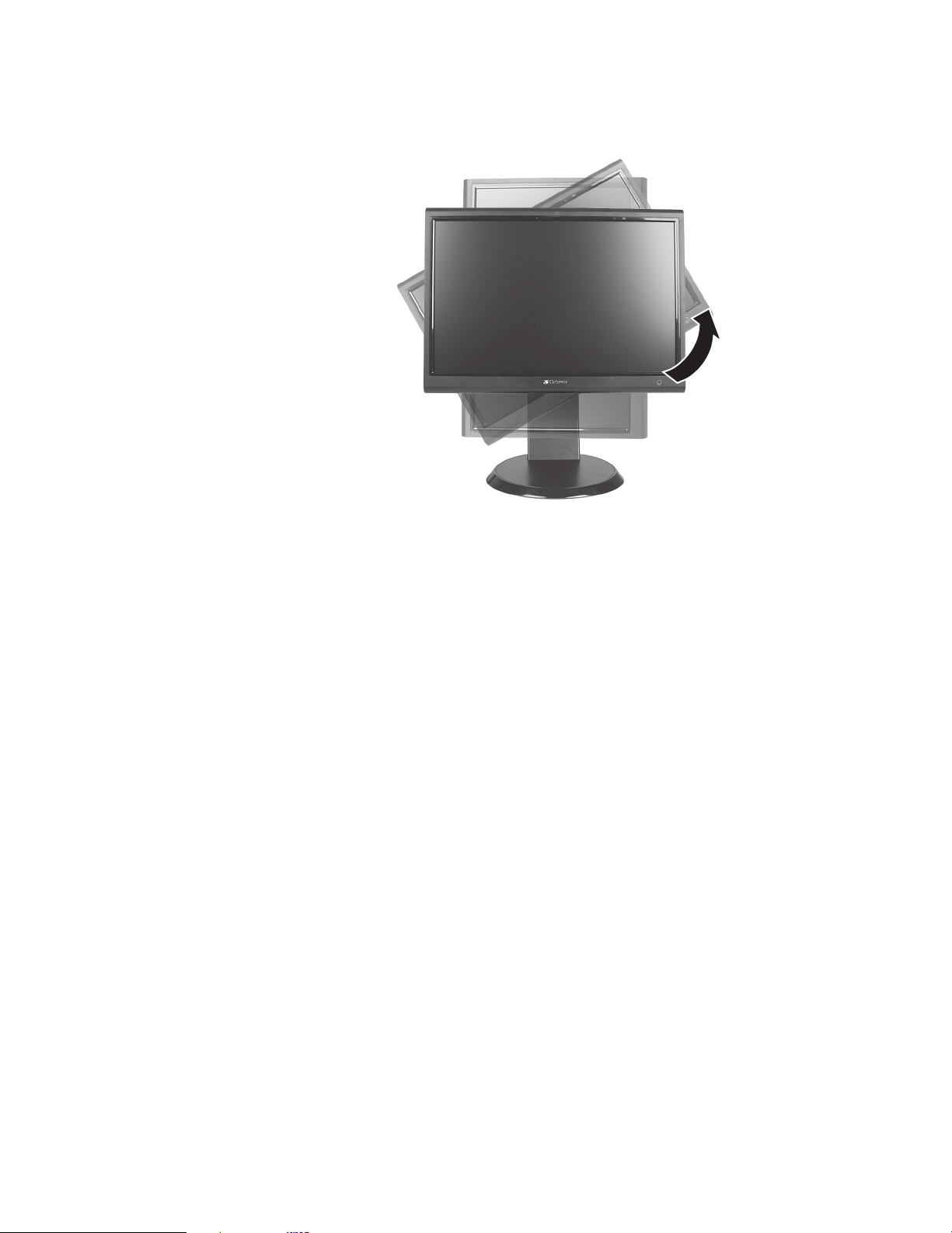

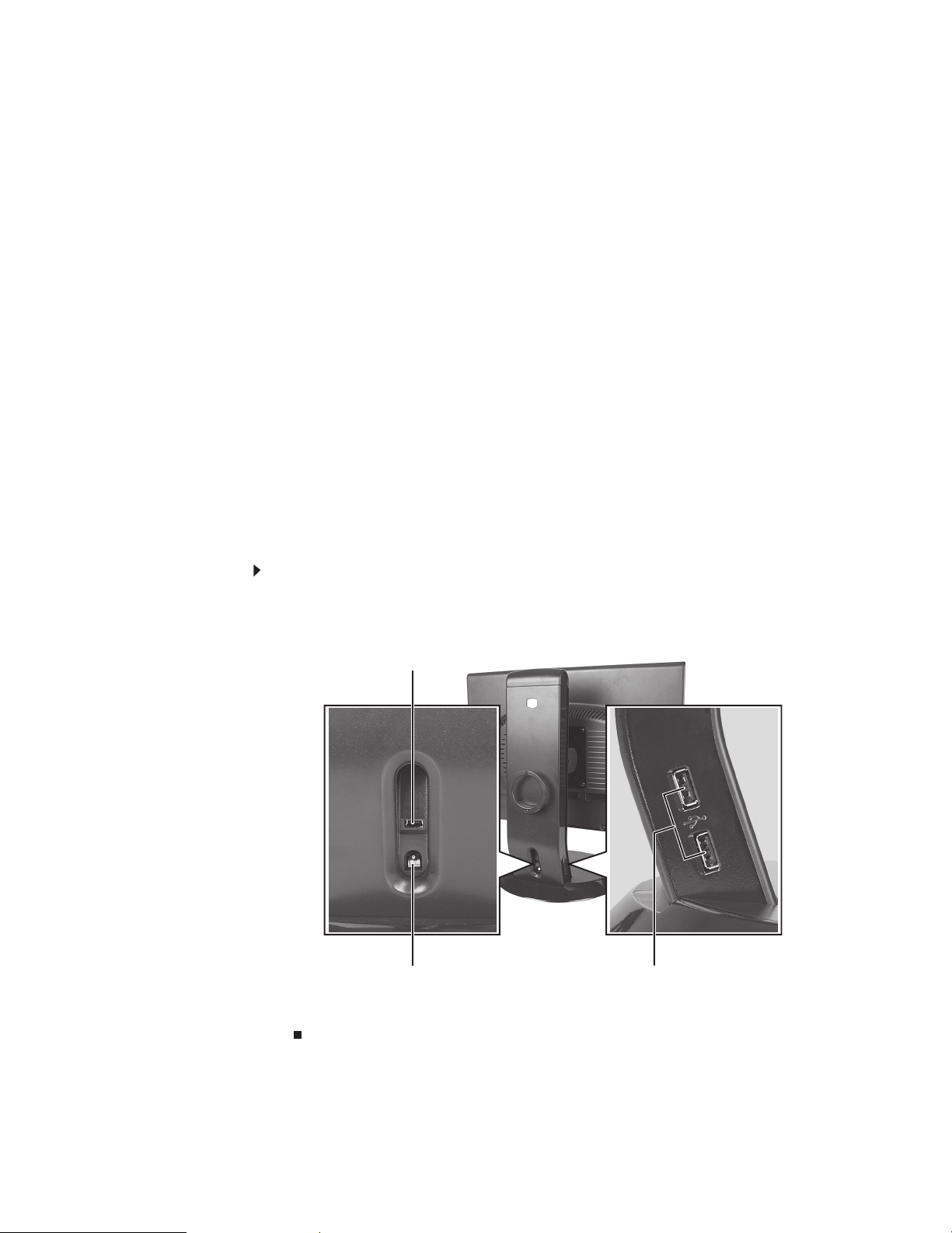

In the United States, you can buy an adjustable USB stand from www.gateway.com. The stand can be adjusted for height, tilt, and screen rotation. When connected to your computer’s USB port, you can connect as many as four USB devices to the USB 2.0 ports on the stand.

To attach the adjustable stand:

1Make sure that the monitor is turned off.

2Place the monitor face-down on a soft, non-marring surface. A non-slip mat on a tabletop is ideal. Let the monitor base hang down over the edge of the table.

3Press the two release buttons on the back of the monitor’s original neck, then slide the monitor base out of the neck.

Release Button

Release Button

4Remove the screw from the neck hinge, then remove the neck from the LCD panel. Do not discard the screw.

Screw

4

www.gateway.com

5Place the hinge cover over the hinge. The hinge cover came with your optional stand.

6Attach the hinge cover using the screw you removed from the original neck hinge.

7Remove the four small screws from the back of the LCD panel. Do not discard the four screws.

Screw

Screw

Screw

Screw

8Slide the adjustable stand’s neck onto the base.

5

Using Your Gateway Flat-panel Monitor

9Tighten the thumbscrew under the base with your fingers (or a flat screwdriver) to secure the neck into place.

Thumbscrew

10With the stand facing you, press the mounting bracket lever to the left and hold it, then remove the bracket from the stand.

11 Attach the bracket to the LCD panel using the four screws you removed previously.

Screws

Screws

6
