USER GUIDE

Gateway FPD1975W 19-inch Widescreen LCD Monitor

Contents

Using Your Gateway Flat Panel Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Connecting the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Setting up the optional stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Attaching the USB stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Adjusting monitor height tension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Adjusting monitor tilt tension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Connecting the USB hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Setting up the optional speaker bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Installing the speaker bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Starting the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Adjusting monitor settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Monitor buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 On-screen display options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Windows controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 EzTune software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Video modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 ENERGY STAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Energy declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Maintaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 No power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Display colors are wrong . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Color is not uniform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 No picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Picture has shadows or “ghosts” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Image is not sized or centered correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 The monitor has pixels that are always dark or too bright . . . . . . . . . . . 24 Speaker bar does not work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Safety, Regulatory, and Legal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

EPA ENERGY STAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

i

Contents

www.gateway.com

ii

Using Your Gateway Flat Panel Monitor

Connecting the monitor

Setting up the optional stand

Setting up the optional speaker bar

Starting the monitor

Adjusting monitor settings

Windows controls

Power management

Maintaining

Troubleshooting

Specifications

1

Connecting the monitor

www.gateway.com

Connecting the monitor

To connect the monitor:

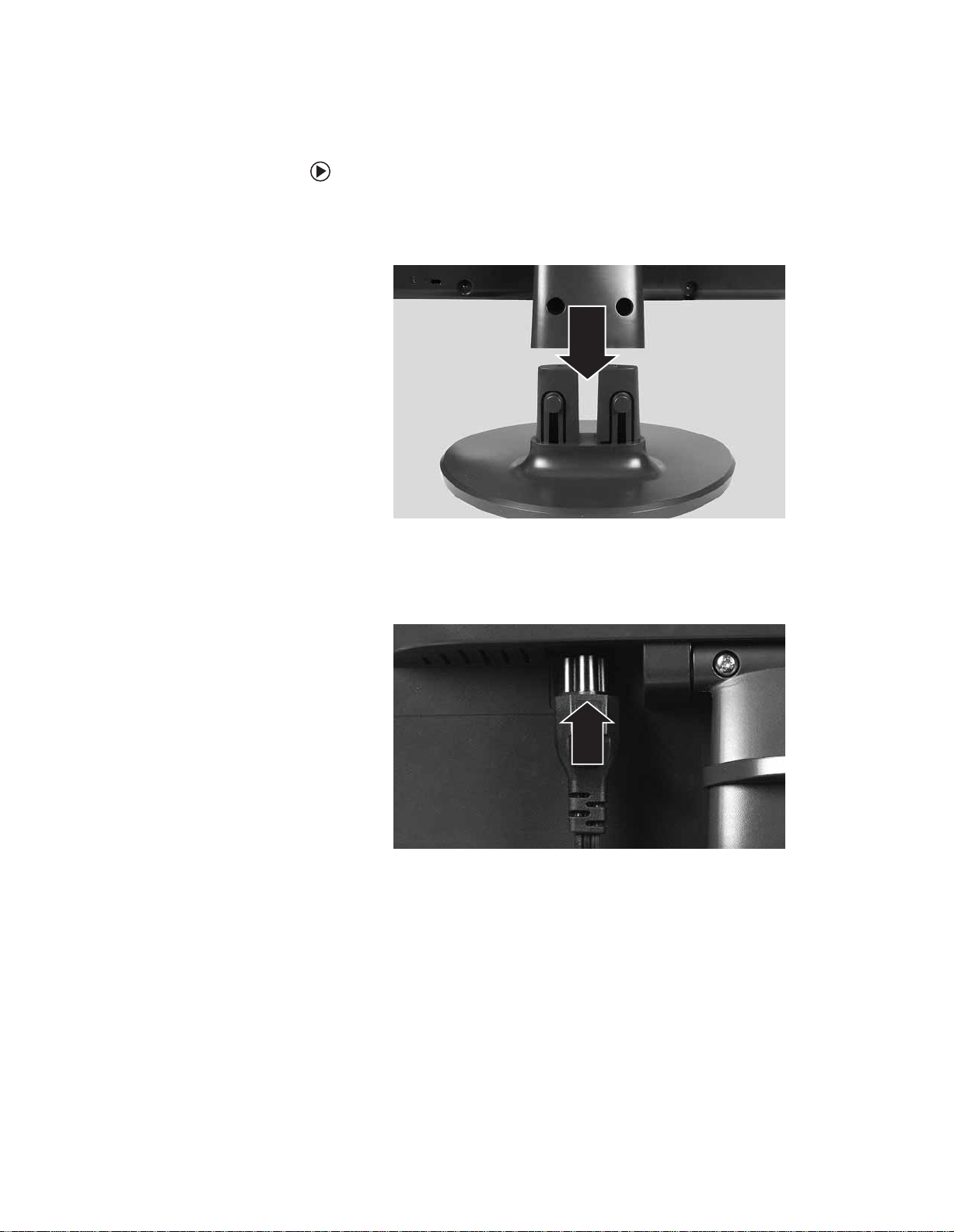

1Place the monitor base on a table top, then slide the monitor neck down onto the base until it clicks into place. You may need to press the two buttons on the base to let the monitor slide on smoothly.

2 Position your computer and the monitor so you can reach the back of each.

3Connect the power cord to the power connector under the back of the display.

2

www.gateway.com

Connecting the monitor

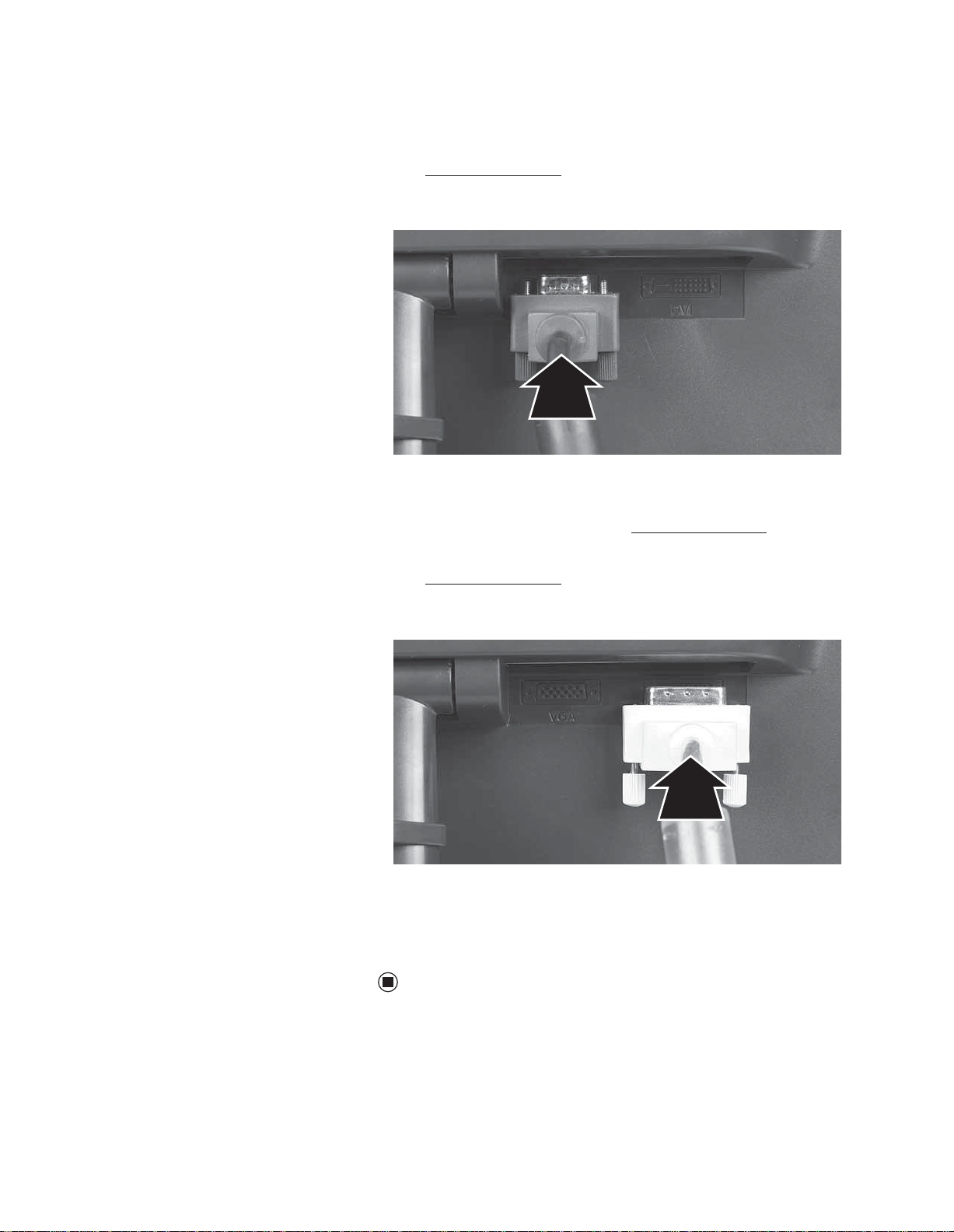

4Connect the blue right-angle VGA video cable to the blue video connector under the back of the display. Although a standard VGA cable is acceptable, we recommend using the right-angle cable (available in the U.S. at www.gateway.com), especially for use with the optional speaker bar. The right-angle cable’s thumbscrews are easier to tighten, and the cord does not get in the way of the speaker bar.

- OR -

If your computer has a digital video connector (DVI), connect a white DVI video cable (available in the U.S. at www.gateway.com) to the white connector under the back of the display. Although a standard DVI cable is acceptable, we recommend using the right-angle cable (available in the U.S. at www.gateway.com), especially for use with the optional speaker bar. The right-angle cable’s thumbscrews are easier to tighten, and the cord does not get in the way of the speaker bar.

5Make sure that your computer is turned off, then connect the other end of the video cable to the matching video port on the back of your computer.

6 Plug the power cord into a correctly grounded electrical outlet.

3

Setting up the optional stand

www.gateway.com

Setting up the optional stand

Attaching the USB stand

In the United States, you can buy an adjustable USB stand from www.gateway.com. The stand can be adjusted for height, tilt, and screen rotation. When connected to your computer’s USB port, you can connect up to four USB devices to the USB 2.0 ports on the stand.

To attach the adjustable stand:

1 Make sure that the monitor is turned off.

2Place the monitor face-down on a soft, non-marring surface. A non-slip mat on a tabletop is ideal. Let the monitor base hang down over the edge of the table.

3Press the two release buttons on the back of the monitor’s original neck, then slide the monitor base out of the neck.

Release

Release

Button

Button

4Remove the screw from the neck hinge, then remove the neck from the LCD panel. Do not discard the screw.

Screw

4

www.gateway.com

Setting up the optional stand

5Place the hinge cover over the hinge. The hinge cover came with your optional stand.

6Attach the hinge cover using the screw you removed from the original neck hinge.

7Remove the four small screws from the back of the LCD panel. Do not discard the four screws.

Screw

Screw

Screw

Screw

8 Slide the adjustable stand’s neck onto the base.

5

Setting up the optional stand

www.gateway.com

9Tighten the thumbscrew with your fingers (or a flat screwdriver) under the base to secure the neck into place.

Thumbscrew

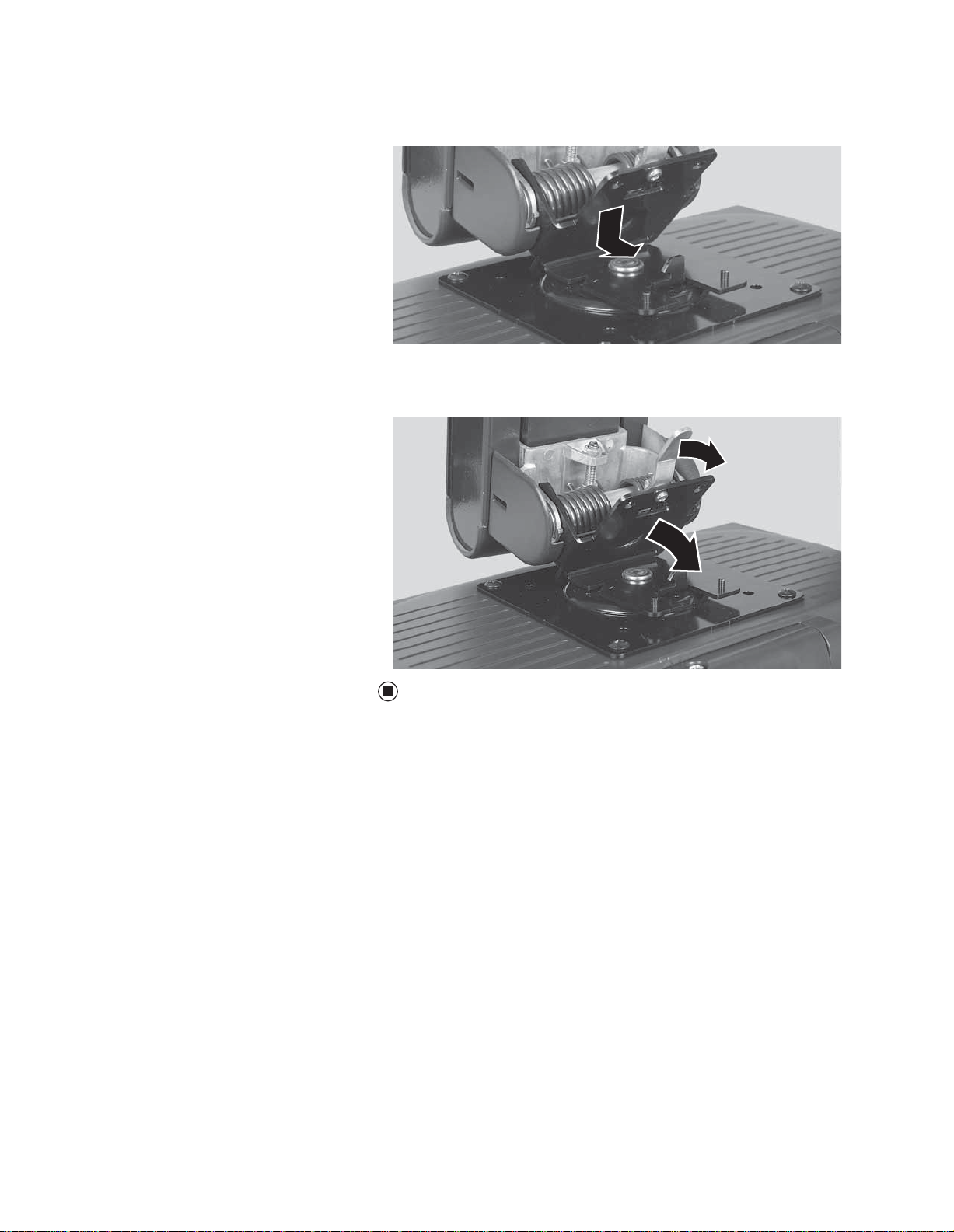

10With the stand facing you, press the mounting bracket lever to the left and hold it, then remove the bracket from the stand.

11Attach the bracket to the LCD panel using the four screws you removed previously.

Screws

Screws

6
