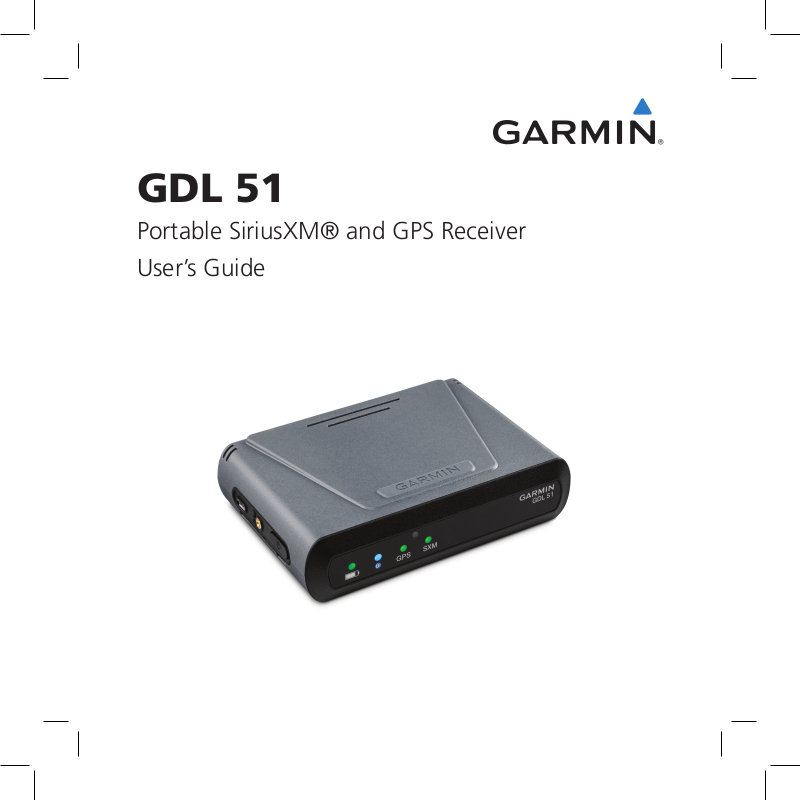

GDL 51

Portable SiriusXM® and GPS Receiver

User’s Guide

© 2017 Garmin Ltd. or its subsidiaries. All rights reserved.
This manual reflects the operation of System Software version 2.00, or later. Some differences in operation may be

observed when comparing the information in this manual to later software versions.
Garmin International, Inc.

1200 E. 151st Street, Olathe, KS 66062 USA
Aircraft On Ground (AOG) Hotline: [phone]
Aviation Dealer Technical Support Line (Toll Free): [phone]

Garmin (Europe) Ltd.
Liberty House, Hounsdown Business Park, Southampton, Hampshire SO40 9LR U.K.

Garmin aviation product support and warranty information can be found at www.flygarmin.com.

Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated,
downloaded or stored in any storage medium, for any purpose without the express written permission of Garmin. Garmin
hereby grants permission to download a single copy of this manual and of any revision to this manual onto a hard drive
or other electronic storage medium to be viewed for personal use, provided that such electronic or printed copy of this
manual or revision must contain the complete text of this copyright notice and provided further that any unauthorized
commercial distribution of this manual or any revision hereto is strictly prohibited.
This part shall comply with Garmin Banned and Restricted Substances document, 001-00211-00.

®

Garmin

is a registered trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the
express permission of Garmin. iPad®, iPhone®, iPod®, and iPod touch are trademarks of Apple Inc., registered in the
USA and other countries. AndroidTM is a trademark of Google Inc. Sirius, XM, SiriusXM, and all related marks and logos
are trademarks of Sirius XM Radio Inc. All other marks, channel names, and logos are the property of their respective
owners. All rights reserved. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of
such marks by Garmin is under license.

July 2017 Printed in the United States or Taiwan

190-02087-00 Rev. A

Garmin GDL 51 User’s Guide

WARNING: The attitude information provided by the GDL 51 is not intended
to be used as a source of attitude information for flight in instrument
meteorological conditions.

WARNING: This unit provides the ability to receive weather information
through external sources. Use weather data only as an aid to situational
awareness. Such weather information is merely supplemental and advisory
in nature and is not intended to be relied upon as safety-critical information
in connection with any aviation, vehicle, or marine usage. The user should
always exercise caution and common sense when confronted with severe
weather conditions.

WARNING: Do not use data link weather information for maneuvering in,
near, or around areas of hazardous weather. Information contained within data
link weather products may not accurately depict current weather conditions.

WARNING: For safety reasons, GDL 51 operational procedures must be
learned on the ground.

WARNING: Use the GDL 51 only as an aid for VFR navigation. Do not
attempt to use the GDL 51 for any purpose requiring precise measurement
of direction, distance, location, or topography. This product should not be
used to determine ground proximity for aircraft navigation.

i

Garmin GDL 51 User’s Guide

190-02087-00 Rev. A

WARNING: The altitude calculated by the GPS receiver is geometric height
above Mean Sea Level and could vary significantly from the altitude displayed
by pressure altimeters.

WARNING: The pressure altitude information provided by the
GDL 51 in a pressurized airplane will not be accurate. Use the connected
display device to disable pressure information from the GDL 51.

WARNING: The GDL 51 has a very high degree of functional integrity.
However, the pilot must recognize that providing monitoring and/or self­test capability for all conceivable system failures is not practical. Although
unlikely, it may be possible for erroneous operation to occur without a fault
indication shown by the GDL 51. It is thus the responsibility of the pilot to
detect such an occurrence by means of cross-checking with all redundant
or correlated information available in the cockpit.

WARNING: The GDL 51 contains a lithium-ion battery. To prevent damage,
remove the unit from the aircraft or vehicle when exiting or store it out of
direct sunlight.

WARNING: The United States government operates the Global Positioning
System and is solely responsible for its accuracy and maintenance. The GPS
system is subject to changes which could affect the accuracy and performance
of all GPS equipment.

ii

190-02087-00 Rev. A

Garmin GDL 51 User’s Guide

WARNING: When installing the GDL 51 in an aircraft, place the unit securely
so that it does not interfere with aircraft operating controls or obstruct the
pilot’s view.

CAUTION: The Garmin GDL 51 does not contain any user-serviceable
parts. Repairs should only be made by an authorized Garmin service center.
Unauthorized repairs or modifications could void both the warranty and the
pilot’s authority to operate this device under FAA/FCC regulations.

NOTE: Temporary Flight Restriction (TFR) data is provided by the FAA and
may not be updated outside of normal business hours. Confirm data currency
through alternate sources and contact the local FSS for interpretation of TFR
data. This product has not been endorsed or otherwise approved by the
National Geospatial-Intelligence Agency, or the United States Department
of Defense (10 U.S.C. 425).

NOTE: All visual depictions contained within this document, including images
of the GDL 51 and the bezel, displays, and screens of other products are
subject to change and may not reflect the most current software or hardware.
Depictions of equipment may differ slightly from the actual equipment.

NOTE: This product, its packaging, and its components contain chemicals
known to the State of California to cause cancer, birth defects, or reproductive
harm. This notice is being provided in accordance with California’s Proposition

65. If you have any questions or would like additional information, please
refer to our web site at www.garmin.com/prop65.

iii

Garmin GDL 51 User’s Guide

190-02087-00 Rev. A

FCC Compliance

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and may cause harmful interference to radio communications if not installed and used in accordance
with the instructions. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet that is on a different circuit from the unit.

• Consult the dealer or an experienced radio/TV technician for help.

Innovation, Science and Economic Development Canada Compliance

This device complies with Innovation, Science and Economic Development Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause undesired operation
of the device.

Innovation, Sciences et Développment économique Canada - Conformité

Cet appareil est conforme aux normes RSS sans licence du ministére Innovation, Sciences et
Développement économique Canada. Son fonctionnement est soumis aux deux conditions suivantes
: (1) ce périphérique ne doit pas causer d’interférences et (2) doit accepter toute interférence,
y compris les interférences pouvant entraîner un fonctionnement indésirable de l’appareil.
M/N: A02895

iv

190-02087-00 Rev. A

Garmin GDL 51 User’s Guide

1 UNIT OVERVIEW

Antenna Connection

Micro-USB Connector

Optional External SXM

Antenna Connection

Power Button

Optional External GPS

Figure 1 GDL 51 Interface

Data/Power Port

Audio Out Port

1

Garmin GDL 51 User’s Guide

190-02087-00 Rev. A

1.1 Power and Charging

The unit will always turn on when external power is applied.

Power source via the micro-USB connector:

• 5.0V ± 0.25V; 1.0A (powered on and slow charge)

• 5.0V ± 0.25V; 2.0A (powered off and fast charge)

Power Source via the power/data connector:

• 10-32V; 0.75A Max (powered on and slow charge)

• 10-32V; 1.0A Max (powered off and fast charge)

NOTE:

auto detect the wall charger and go into standby mode. In standby
mode, the battery LED will be solid red if charging, or off if the battery is
fully charged. Press the power button for normal operation. Maximum
total power while in standby mode is 10W. Total charge time is ~2
hours in this state.

NOTE:

power is removed if all three of the following conditions are true:

1. Ground Speed less than 20kts OR No GPS fix

2. No Connext connection

3. Running on battery only

If powered ON from a standard USB wall charger the unit will

The battery saver feature will turn off the unit when external

2

190-02087-00 Rev. A

Garmin GDL 51 User’s Guide

NOTE:

When the battery saver feature is active and the above three
conditions are met, the green battery LED will flash if the unit is about
to shut down. Press the power button once to cancel the battery
saver feature and keep the unit on.

2 OPERATION

2.1 Power Button Functions

• ON/OFF – single press

• Clear Paired Devices
o See Section 2.2 Bluetooth Setup

• USB Mass Storage Mode – 3 second press
o While the unit is booting up, hold the Power Button for 3 seconds.
o GPS, SXM LEDs will flash orange while in this state.
o Limited functionality, can be used to install SW upgrades.

(see Section 2.3)

o Press the power button to exit this mode.

• Reset the Unit – Hold for more than 10 seconds.
