BC™ 35 WIRELESS BACKUP

CAMERA

Installation Instructions

Introduction

WARNING

See the Important Safety and Product Information guide in the product box for product warnings and other important information.

Garmin® strongly recommends having an experienced installer with the proper knowledge of electrical systems install the device. Incorrectly wiring the power cable can result in damage to the vehicle or the battery and can cause bodily injury.

When connecting the power cable, do not remove the in-line fuse holder. To prevent the possibility of injury or product damage caused by fire or overheating, the appropriate fuse must be in place as indicated in the product specifications.

In addition, connecting the power cable without the appropriate fuse in place will void the product warranty.

CAUTION

Always wear safety goggles, ear protection, and a dust mask when drilling, cutting, or sanding.

NOTICE

When drilling or cutting, always check what is on the opposite side of the surface.

These installation instructions do not apply to a specific vehicle type, and are meant as a guide when installing this product on your vehicle. For questions specific to your vehicle, you should contact the vehicle manufacturer.

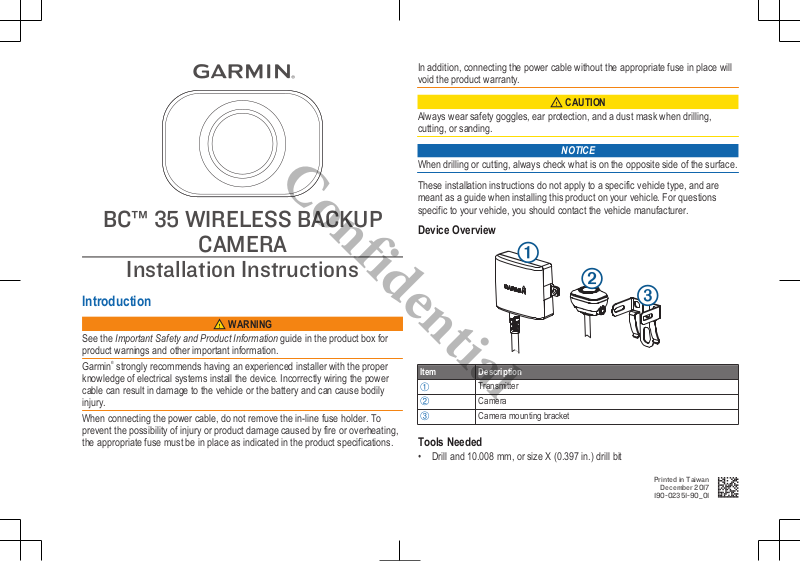

Device Overview

Item Description

Transmitter

Camera

Camera mounting bracket

Tools Needed

• Drill and 10.008 mm, or size X (0.397 in.) drill bit

Printed in Taiwan

December 2017

190-02351-90_01

Confidential

• #2 Phillips screwdriver

• Screws, bolts, or cable ties (to secure the transmitter)

•

Solderless wire-splice connector or solder and heat-shrink tubing

• RV sealant (optional)

Installation

Camera Mounting Considerations

When selecting a location to mount the camera, observe these considerations.

• You should test a mounting location before you permanently mount the camera.

• Installing the camera higher on the back of the vehicle provides a better viewing angle.

• The included bracket can be clipped onto a license plate or other similar surface, or it can be fastened to the back of the vehicle using the included self-tapping, panhead screws.

Transmitter Location and Wiring Considerations

NOTICE

The transmitter is not intended to be held or worn on your body while it is in use.

When selecting a location to install the wireless transmitter, observe these considerations.

• You should test a proposed installation location before you permanently install the transmitter.

•

Some vehicles do not provide constant minimum voltage to the reverse lamps. You should use an automotive relay when connecting the transmitter and camera to a power source that does not provide constant voltage.

• Although the transmitter can transmit the video signal approximately 45 ft (13.5 m), the location of the transmitter can affect this range.

◦ The closer you install the transmitter to the device, the more reliable the

signal.

◦ The signal transmits from the flat front and back surfaces À of the

transmitter. The transmitter provides the best signal when either flat surface points toward the receiver.

◦ Dense metal or appliances Á in the path of the transmitter greatly reduce

the transmission distance.

◦ The fewer solid objects that exist between the path of the transmitter and

the device, the more reliable the signal.

•

The fuse holder located near the transmitter is not waterproof. Installing the fuse holder in a location that is exposed to the elements is not recommended.

• The connector between the camera and the transmitter is not waterproof. If you make this connection in a location exposed to the elements, you must make sure that the connection is waterproof.

• If you are installing the camera on a boat trailer or other location that may be exposed to water, you must waterproof all wiring connections and the fuse holder in the transmitter cable.

Testing the Camera and Transmitter Location

Temporarily secure the camera in the preferred mounting location.

Confidential

Temporarily place the transmitter in the preferred installation location, and connect it to power and to the camera.

TIP: If you do not want to splice into the wiring of your vehicle for this test, you can connect the transmitter and camera to a 12 Vdc battery.

Test the transmitter for correct operation by viewing the camera on the compatible Garmin device.

NOTE: You may need to pair the camera to the Garmin device before you can view the image and test the transmitter location (page 4).

If you do not see video on the Garmin device at the preferred installation location, move the transmitter to another location and test it again.

Repeat steps 2–3 until the transmitter operates correctly.

Test the camera view by observing the video on the device.

If the camera does not provide the optimal view for your vehicle, move it to another location and test it again.

Repeat steps 5–6 until the camera mounting location provides the optimal view for your vehicle.

TIP: Make note of which direction is up when you are testing the camera view to ensure correct permanent installation.

Mounting the Camera

Before you permanently mount the camera, you should test the mounting location for the optimal view for your vehicle (page 2).

If you have already connected the camera to the bracket, you must first disassemble it.

Place the bracket À in the mounting location.

Select an option:

• If you are mounting the bracket directly on the surface of your vehicle, mark the locations of the two holes on the bracket Á.

• If you are installing the bracket on a license plate, remove one of the license plate screws and clip the bracket in place so the hole on the bracket Â lines up with the hole on the license plate.

Secure the bracket to the vehicle using either the included self-tapping screws Ã or the license-plate screw you removed in step 2 Ä.

Place the camera in the bracket, and determine the best place for the camera cable Å to enter the vehicle.

Using an appropriate drill bit, drill a hole for the camera cable to enter the vehicle.

Feed the camera cable through the hole and route it to the transmitter location.

Secure the camera in the bracket using the included hex bolts Æ.

Confidential

Adjust the angle of the camera and tighten the hex bolts using the included hex key.

Apply RV sealant around the cable where it enters the vehicle (optional).

Installing the Transmitter

Before you permanently install the transmitter, you must test the installation location for correct operation (page 2).

Secure the transmitter to the installation location using hardware appropriate for the location, such as screws, bolts, or cable ties.

The fuse holder located near the transmitter is not waterproof. Installing the fuse holder in a location that is exposed to the elements is not recommended.

Connect the camera and transmitter cables. The connector between the camera and the transmitter is not waterproof. If

you make this connection in a location exposed to the elements, you must make sure that the connection is waterproof.

Connect the power cable À from the transmitter to a 12–24 VDC power source, preferably a reverse lamp Á, using a solderless wire-splice connector (not included).

NOTE: Connecting the transmitter to an always-on 12-24 VDC source (such as a running lamp) instead of a reverse lamp requires you to manually switch power to the transmitter. The transmitter may drain your vehicle battery if it is left on.

If you did not use a solderless wire-splice connector, solder and heat-shrink the electrical connections to protect them from the elements.

Pairing the Camera with a Garmin Navigation Device

You must install AA batteries in the camera before you can pair it to a compatible Garmin navigation device.

Turn on the compatible Garmin

navigation device, and bring it within 3 m

(10 ft.) of the camera.

Select Apps > Backup Camera, and follow the on-screen instructions.

Multiple Cameras

You can pair up to four wireless cameras with a compatible Garmin device. For example, you can pair one backup camera installed on the cab and a second backup camera installed on a trailer. See the BC 35 Owner's Manual for information about pairing multiple cameras.

Appendix

Getting the Owner's Manual

You can get the most recent owner's manual from the web.

Go to garmin.com/manuals/BC35.

View or download the full owner's manual in your preferred format.

Specifications

Camera and transmitter input voltage From 9 to 28 Vdc Transmitter fuse 500 mA, fast-blow Camera and transmitter current usage 150 mA at 12 Vdc

Confidential

Water rating Camera = IEC 60529 IPX7*

Transmitter = not waterproof

Operating temperature range From -20° to 70°C (from -4° to 158°F)

*The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating.

BC™ is a trademark of Garmin Ltd. or its subsidiaries.

These trademarks may not be used without the express permission of Garmin.

Confidential

support.garmin.com

Confidential
