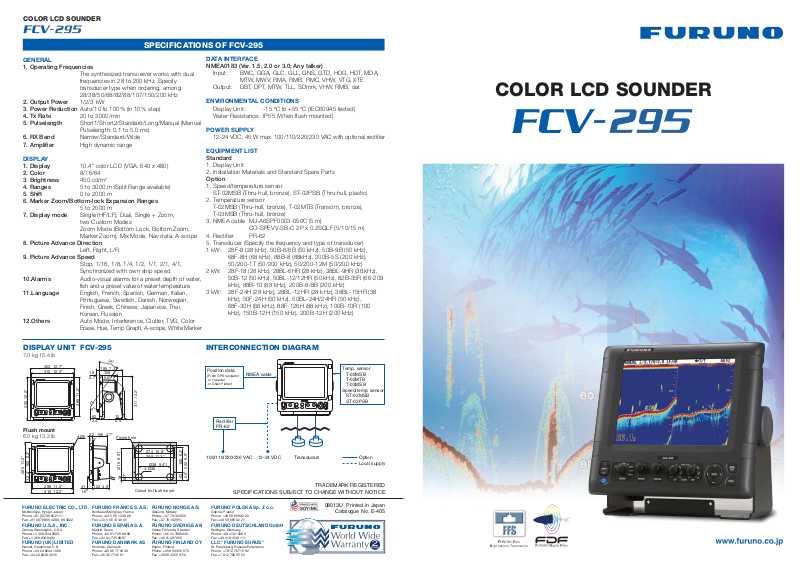

Furuno FCV-295 User Manual

COLOR LCD SOUNDER

SPECIFICATIONS OF FCV-295

GENERAL

1. Operating Frequencies

The synthesized transceiver works with dual

frequencies in 28 to 200 kHz. Specify
transducer type when ordering, among
28/38/50/68/82/88/107/150/200 kHz

2. Output Power 1/2/3 kW

3. Power Reduction Auto/10 to 100% (in 10% step)

4. Tx Rate 20 to 3000/min

5. Pulselength Short1/Short2/Standard/Long/Manual (Manual

Pulselength: 0.1 to 5.0 ms)

6. RX Band Narrow/Standard/Wide

7. Amplifier High dynamic range

DISPLAY

1. Display 10.4" color LCD (VGA: 640 x 480)

2. Color 8/16/64

3. Brightness 450 cd/m

2

4. Ranges 5 to 3000 m (Split Range available)

5. Shift 0 to 2000 m

6. Marker Zoom/Bottom-lock Expansion Ranges

5 to 2000 m

7. Display mode Single (HF/LF), Dual, Single + Zoom,
two Custom Modes
Zoom Mode (Bottom Lock, Bottom Zoom,

Marker Zoom), Mix Mode, Nav data, A-scope

8. Picture Advance Direction

Left, Right, L/R

9. Picture Advance Speed

Stop, 1/16, 1/8, 1/4, 1/2, 1/1, 2/1, 4/1,

Synchronized with own ship speed

10.Alarms Audio-visual alarms for a preset depth of water,

fish and a preset value of water temperature

11.Language English, French, Spanish, German, Italian,

Portuguese, Swedish, Danish, Norwegian,
Finish, Greek, Chinese, Japanese, Thai,
Korean, Russian

12.Others Auto Mode, Interference, Clutter, TVG, Color

Erase, Hue, Temp Graph, A-scope, White Marker

DATA INTERFACE

NMEA0183 (Ver. 1.5, 2.0 or 3.0; Any talker)

Input: BWC, GGA, GLC, GLL, GNS, GTD, HDG, HDT, MDA,

MTW, MWV, RMA, RMB, RMC, VHW, VTG, XTE

Output: DBT, DPT, MTW, TLL, SDmrk, VHW, RMB, dat

ENVIRONMENTAL CONDITIONS

Display Unit: -15 ºC to +55 ºC (IEC60945 tested)
Water Resistance: IP55 (When flush mounted)

POWER SUPPLY

12-24 VDC, 45 W max. 100/110/220/230 VAC with optional rectifier

EQUIPMENT LIST

Standard

1. Display Unit

2. Installation Materials and Standard Spare Parts

Option

1. Speed/temperature sensor
ST-02MSB (Thru-hull, bronze), ST-02PSB (Thru-hull, plastic)

2. Temperature sensor
T-02MSB (Thru-hull, bronze), T-02MTB (Transom, bronze),
T-03MSB (Thru-hull, bronze)

3. NMEA cable MJ-A6SPF0003-050C (5 m)
CO-SPEVV-SB-C 2P x 0.2SQLF (5/10/15 m)

4. Rectifier PR-62

5. Transducer (Specify the frequency and type of transducer)
1 kW: 28F-8 (28 kHz), 50B-6/6B (50 kHz), 50B-9B (50 kHz),

68F-8H (68 kHz), 88B-8 (88kHz), 200B-5S (200 kHz),
50/200-1T (50/200 kHz), 50/200-12M (50/200 kHz)
2 kW: 28F-18 (28

kHz), 28BL-6HR (28 kHz), 38BL-9HR (38 kHz),
50B-12 (50 kHz), 50BL-12/12HR (50 kHz), 82B-35R (66-209
kHz), 88B-10 (88 kHz), 200B-8/8B (200 kHz)

3 kW: 28F-24H (28 kHz), 28BL-12HR (28 kHz), 38BL-15HR (38

kHz), 50F-24H (50 kHz), 50BL-24H/24HR (50 kHz),
68F-30H (68 kHz), 88F-126H (88 kHz), 100B-10R (100
kHz), 150B-12H (150 kHz), 200B-12H (200 kHz)

COLOR LCD SOUNDER

DISPLAY UNIT FCV-295

7.0 kg 15.4 lb

323 12.7"
310 12.2"

306 12.0"

285 11.2"

Flush mount

6.0 kg 13.2 lb

160 6.3"

285 11.2"

81 3.2"

288 11.3"
310 12.2"

FURUNO ELECTRIC CO., LTD.

Nishinomiya, Hyogo, Japan
Phone: [phone]
Fax: [phone], 66-4622

FURUNO U.S.A., INC.

Camas, Washington, U.S.A.
Phone: [phone]
Fax: [phone]

FURUNO (UK) LIMITED

Havant, Hampshire, U.K.
Phone: [phone]
Fax: [phone]

4-Ø6

185 7.3"

18

0.7”

62

2.4”

22

106 4.7"

0.9"

41

122 4.8"

1.6"

FURUNO FRANCE S.A.S.

Bordeaux-Mérignac, France
Phone: [phone]
Fax: [phone]

FURUNO ESPAÑA S.A.

Madrid, Spain
Phone: [phone]
Fax: [phone]

FURUNO DANMARK AS

Hvidovre, Denmark
Phone: [phone]
Fax: [phone]

128

5.0"

35°

10

0.4”

Fixing hole

(216 8.5")

18

0.7"

311 12.2"

274 10.8"
288 11.3"

(238 9.4")

4-Ø36

Cutout for flush mount

FURUNO NORGE A/S

Ålesund, Norway
Phone: [phone]
Fax: [phone]

FURUNO SVERIGE AB

Västra Frölunda, Sweden
Phone: [phone]
Fax: [phone]

FURUNO FINLAND OY

Espoo, Finland
Phone: [phone]
Fax: [phone]

160 6.3"

252 9.9"

63

2.5"

INTERCONNECTION DIAGRAM

Position data

(From GPS navigator
or via radar
or Chart Plotter)

Rectifier
PR-62

FURUNO POLSKA Sp. Z o.o.

Gdynia, Poland
Phone: [phone]
Fax: [phone]

FURUNO DEUTSCHLAND GmbH

Rellingen, Germany
Phone: [phone]
Fax: [phone]

LLC “FURUNO EURUS”

St. Petersburg, Russian Federation
Phone: [phone]
Fax: [phone]

NMEA cable

12-24 VDC100/110/220/230 VAC Option

Transducers

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Temp. sensor
T-02MSB
T-02MTB
T-03MSB
Speed/temp. sensor
ST-02MSB
ST-02PSB

Local supply

TRADEMARK REGISTERED

08013U Printed in Japan

Catalogue No. E-405

Fogging Free Display

FURUNO Free

Synthesizer Transceiver

New digital fish finder delivers crystal clear image of fish targets and bottom structure

Fogging Free Display

FURUNO Free

Synthesizer Transceiver

COLOR LCD SOUNDER

The FCV-295 is a new color digital sounder designed for a

variety of professional fishing operations. It features a

bonded 10.4" LCD display providing superior

viewing even in direct sunlight. You can display echoes in 8,

16, or 64 colors, with color assignment dependent on the

strength of the returned echo.

The FURUNO Free Synthesizer (FFS) Transceiver allows a

wide selection of operating frequencies. You may choose

any two frequencies between 28 and 200 kHz to fit your

fishing operation. Output power is selectable from 1, 2 or 3

kW. A wide variety of display modes and functions are

available, which provide skippers with simple and intuitive

information.

•

10.4" color LCD provides clear view in any weather conditions

•

Post-processing gain control applies to all existing returns on the display

•

White Edge function trace the bottom contour with a thin white line

•

FURUNO Digital Filter delivers crystal clear target presentation

•

FURUNO Free Synthesizer transceiver allows adjustable operating frequency

FURUNO digital filter optimizes the
gain to obtain highly defined
images of underwater conditions.
The FCV-295 can clearly show

target fish close to the seabed.
The digital filter also eliminates noise to deliver
sharp and detailed echo presentation, achieving
detection of fishing reef and even individual fish
with absolute clarity.

Fish targets close to the seabed

Quick Gain Control

With the FCV-295's Quick Gain control,
changes in the Gain setting are applied to
not only to new echoes, but to all past
echoes on the screen. You can compare
the past and current echoes under same
gain setting. Because the changes are
applied to both new and existing returns,
you will be able to quickly and easily find
the right Gain setting for your conditions.

White EdgeFURUNO Digital Filter

The top of the seabed is displayed in white to easily discern seabed structure from
bottom fish returns. While conventional bottom discrimination function called
“White Line” applies also to the strongest echoes, the White Edge function
enhances the discrimination of bottom fish and seabed by painting a very thin line
above the bottom contour regardless of gain setting or display color.

Fish

Seabed

White Edge

Gain: 8Gain: 5

White Line

Gain: 5

With conventional gain controls,
changes are made for new echoes
only when the gain setting is
changed.

Gain: 8

Operating Frequency Adjustment

When FURUNO transducers are connected and set to the FCV-295,
the operating frequency range will be registered and shown in the
menu. The user can shift the operating frequency freely between the
ranges at any time from the menu. With the FURUNO 82B-35R
transducer, the operator can select any operating frequency from 66
to 109 kHz. This feature is particularly useful for vessels targeting
many different species, or when the fish finders of other ships in the
a

rea cause interference.

Faster Transmission Rate For Detailed Detection

The rate of transmission is increased by more than 30% compared to conventional fish
finders. As the result, more detailed information about underwater conditions can be
gained through the same sounding interval. With the FCV-295’ s AUTO transmission
function, the rate is automatically raised in shallow waters and lowered in deep waters,
which provides for detailed detection of seabed targets.

about 3 mi n.

conventional fish finder

about 3 min.

FCV-295

Function Key

An often-used function such as TVG (Time
Varied Gain) can be programmed and made
available with the press of the
Function key. This will give you
access to any menu item
without opening the menu.

Functions which can be registered

Pic. Advance / Interference / Color Erase /

Clutter / White Line / White Marker / TVG /

STC / Bottom Zone / A-Scope / Split Range /

Auto Shift / Freq Choice / Freq Control
