Funai LT8-M40BB Service Manual

Page 1

SERVICE MANUAL

This Service Manual is for the LH8-M40BB (A03P0EP) / LT8-M40BB (A03P1EP) model. For the LH8-M40BB (A03P0EP) / LT8-M40BB (A03P1EP) model, the letter (A03P0EP) / (A03P1EP) is printed on the Serial Number Label on the back of the unit. Refer to the Serial Number Label below.

Serial No. Label Serial No. Label

"A03P0EP" "A03P1EP"

40″ COLOR LCD TELEVISION

LH8-M40BB / LT8-M40BB

Page 2

40″ COLOR LCD TELEVISION

LH8-M40BB / LT8-M40BB

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

How to Initialize the LCD Television. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

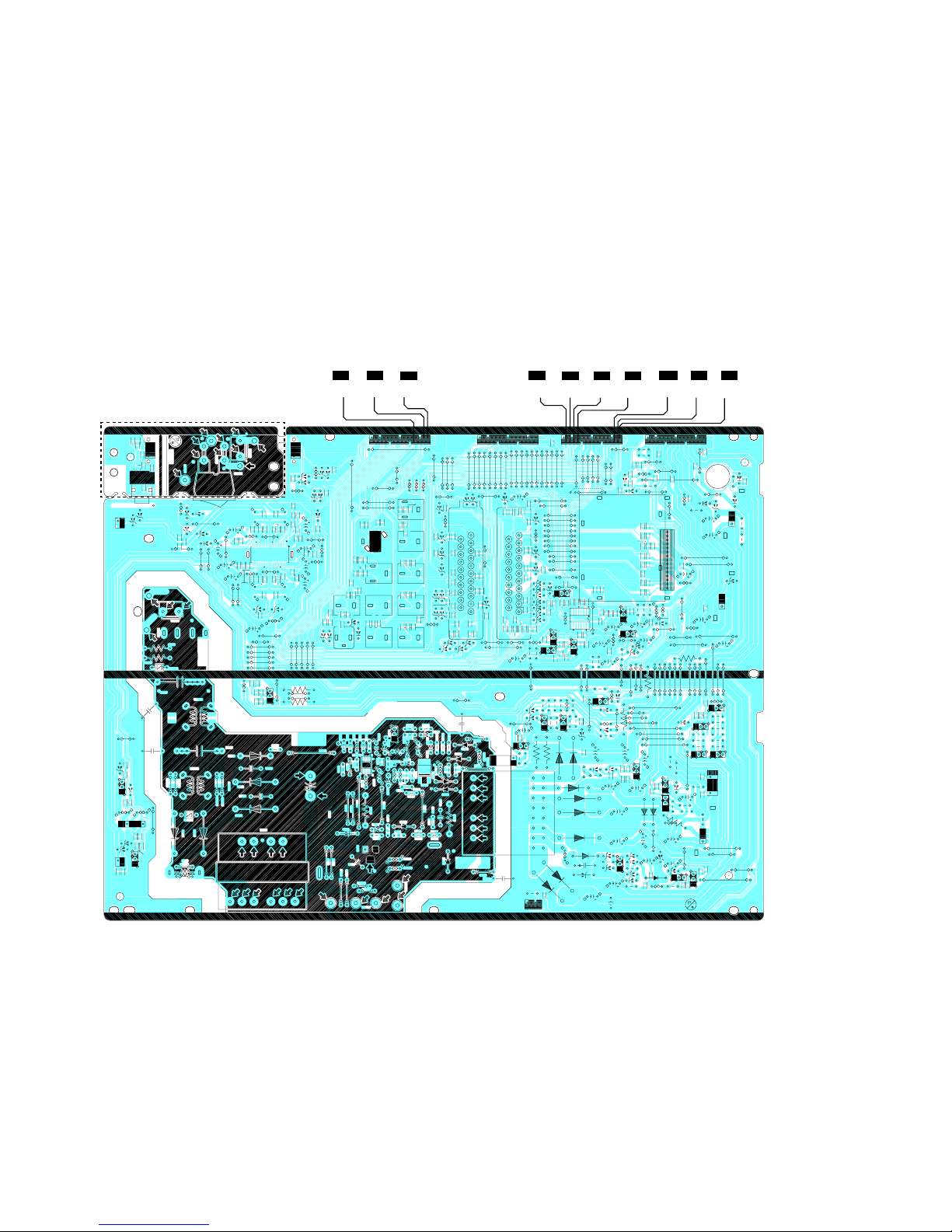

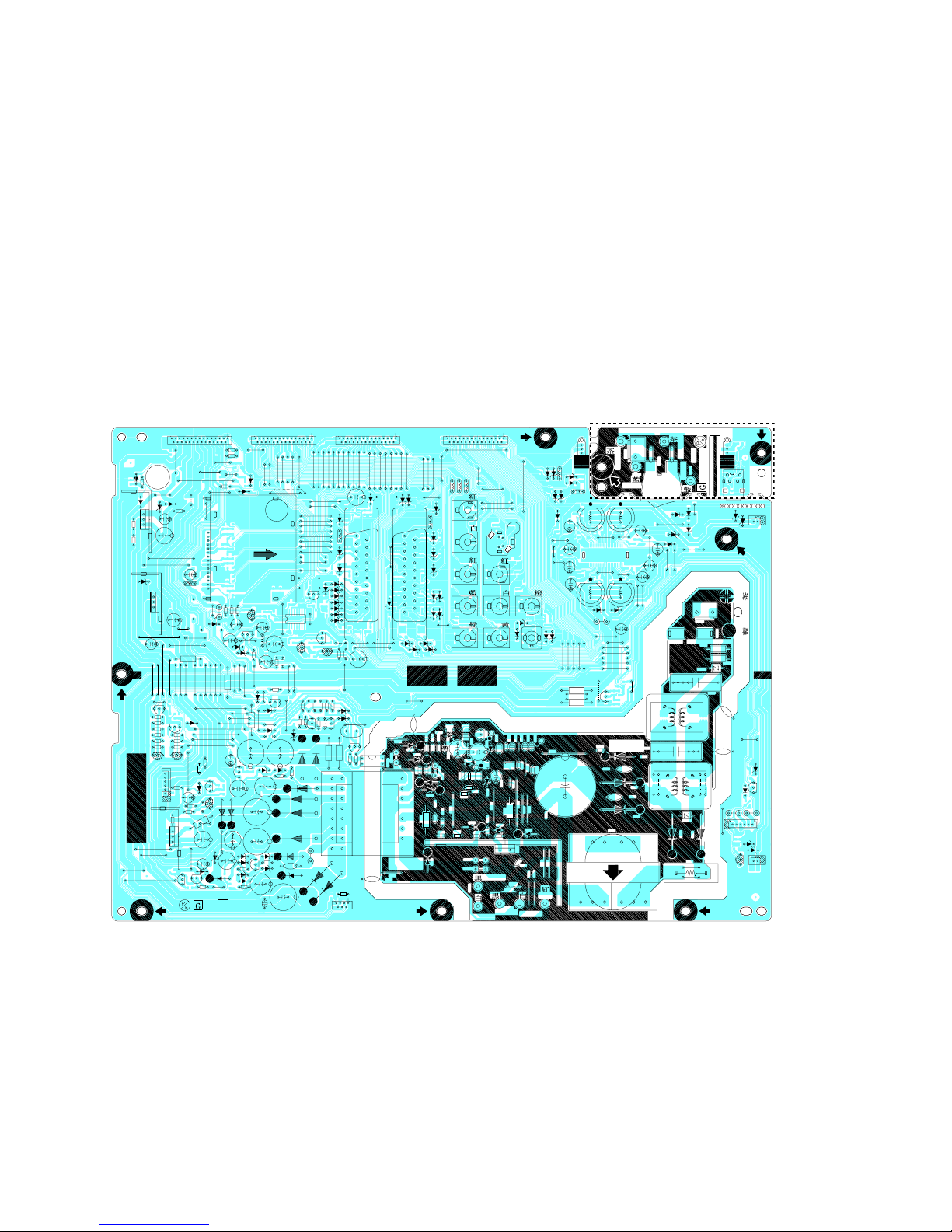

Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

Electrical Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1

The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a tiny spec of color. This is not to be considered a defect in the LCD screen.

Page 3

1-1 A03P0SP

SPECIFICATIONS

< TUNER >

VHS/UHF Input ----------- 75Ω unbal., IEC Connector Center IF ------------------- SECAM-L 38.9MHz, SECAM-L’ 33.9MHz

< LCD PANEL >

<DVB-T>

*1: modulation parameters = [8k 64QAM CR=2/3 GI=1/32] *2: modulation parameters = [8k 16QAM CR=3/4 GI=1/8] *3: modulation parameters = [2k 64QAM CR=2/3 GI=1/32] *4: modulation parameters = [2k 16QAM CR=3/4 GI=1/32]

< VIDEO >

Description Condition Unit Nominal Limit

1. Video S/N 80 dB --- 40

2. Audio S/N --- dB --- 40/40

Description Condition Unit Nominal Limit

1. Number of Pixels

Horizontal

Ver ti ca l

pixels pixels

1920 1080

---

2. Viewing Angle

Horizontal

Ver ti ca l

° °

-88 to 88

---

Description Condition Unit Nominal Limit

RECEIVED FREQ.RANGE (-60dBm, 45ch.) *1, *2

kHz kHz

1000

900

500 167

2. INPUT DYNAMIC RANGE (mix./max)

c:*1 VHF HIGH 8ch.

UHF 45ch.

dBuV dBuV

25/101 25/101

28/98 29/98

d:*2 VHF HIGH 8ch.

UHF 45ch.

dBuV dBuV

18/101 18/101

21/98 21/98

3. C/N PERFORMANCE

(-50dBm)

c:*1 VHF HIGH 8ch.

UHF 45ch.

dB dB

15 15

≦18 ≦18

d:*2 VHF HIGH 8ch.

UHF 45ch.

dB dB

11 11

≦14 ≦14

4. MULTIPATH (-50dBm)

a. Performance with

short delay echoes

b. Performance with

long delay echoes

UHF 45ch.

c:*3 d:*4 c:*3 d:*4

dB dB dB dB

18.7

14.0

19.1

13.0

≦23 ≦20 ≦23 ≦18

Description Condition Unit Nominal Limit

1. Over Scan

Horizontal

Ver t i cal

% %

5 5

---

2. Color Temperature

AT 70 % W H IT E F I E L D

x y

°K 9200

0.286

0.295

--±0.008 ±0.008

3. Resolution

Horizontal

Ver t i cal

line line

400 350

---

4. Brightness AT 100% WHITE FIELD cd/m

450 ---

Page 4

1-2 A03P0SP

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal.

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.

Some will exceed and some may drop slightly below these specifications. Limit specifications represent the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet limit specifications.

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD: Lch/Rch W 10.0/10.0 8.0/8.0

2. Audio Distortion 500mW: Lch/Rch % 1.5/1.5 3.0/3.0

3. Audio Freq. Response

6dB: Lch

6dB: Rch

Hz Hz

70 to 10 k 70 to 10 k

---

4. Audio S/N Lch/Rch dB ---

≧45/45

Page 5

2-1 LTVP_ISP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV Circuit

1. Before returning an instrument to the customer, always make a safety check of the

entire instrument, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this instrument or

permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the LCD module and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the AC line cord directly into a 230 V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American

National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on the receiver chassis, or on the LCD module.

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this LCD TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

TEST ALL EXPOSED METAL SURFACES

READING SHOULD NOT BE ABOVE 0.5 mA

EARTH GROUND

DEVICE

LEAKAGE

CURRENT

TESTER

BEING

TESTED

Page 6

2-2 LTVP_ISP

4. Hot Chassis Warning -

a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC power cord and maybe safety-serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

5. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts, c. the AC supply, d. high voltage, and, e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc.. Par ts that have special safety characteristics are identified by a ! on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The product's safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Page 7

2-3 LTVP_ISP

Precautions during Servicing

A. Par ts identified by the ! symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.

J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and tighten certainly.

Page 8

2-4 LTVP_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Obser ve that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1 : Ra t ings for se l ecte d area

Note: This table is unofficial and for reference only.

Be sure to confirm the precise values.

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.).

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

Table 2 : Leak age c urre n t ra t ings for sel ected area s

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

AC Line Voltage Clearance Distance (d), (d’)

220 to 240 V

≥ 3mm(d)

≥ 8mm(d’)

Fig. 1

Chassis or Secondary Conductor

Primary Circuit

d' d

Fig. 2

AC Voltmeter (High Impedance)

Exposed Accessible Part

One side of Power Cord Plug Prongs

AC Line Voltag e Load Z Leakage Current (i)

One side of power cord plug

prongs (B) to:

220 to 240 V

2kΩ RES.

Connected in

parallel

i≤0.7mA AC Peak

i≤2mA DC

RF or

Antenna terminals

50kΩ RES.

Connected in

parallel

i≤0.7mA AC Peak

i≤2mA DC

A/V Input, Output

Page 9

3-1 TVP_SN

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown.

2. For other ICs, pin 1 and every fifth pin are indicated as shown.

3. The 1st pin of every male connector is indicated as shown.

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

2. Remove the flat pack-IC with tweezers while applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-I C.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

Top View

Out

Bottom View

Input

Pin 1

Pb free mark

Fig. S-1-1

Hot-air Flat Pack-IC Desoldering Machine

CBA

Flat Pack-IC

Tweezers

Masking Tape

Fig. S-1-2

Page 10

3-2 TVP_SN

With Soldering Iron:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

With Iron Wire:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

Fine Tip Soldering Iron

Sharp Pin

Fig. S-1-4

To Solid Mounting Point

Soldering Iron

Iron Wire

Hot Air Blower

Fig. S-1-5

Fine Tip Soldering Iron

CBA

Flat Pack-IC

Tweezers

Fig. S-1-6

Page 11

3-3 TVP_SN

2. Installation

1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

2. The “ I ” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the pin 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges.

Instructions for Handling Semiconductors

Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

Presolder

CBA

Flat Pack-IC

Fig. S-1-8

CBA

Grounding Band

Conductive Sheet or Copper Plate

1MΩ

CBA

Page 12

4-1 A03P0DC

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts, and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

2. Disassembly Method

Step/

Loc.

No.

Part

Removal

Fig.

No.

Remove/*Unhook/

Unlock/Release/

Unplug/Unclamp/

Desolder

Note

[1]

Stand Cover Assembly

D1 6(S-1) ---

[2]

Stand Hinge

D1 4(S-2), 2(S-3), 2(S-4) ---

[3]

Stand Sub Cover

D1 --------------- ---

[2] Stand Hinge

[4] Rear Cabinet

[6] Speaker

[5] Speaker Holder

[3] Stand Sub Cover

[12] Inverter Power CBA

[16] Shield Box

[18] PCB Holder

[20] Stand Bracket

[19] AC Inlet Holder

[15] Jack Holder

[13] Tuner Shield

[10] Jack Holder(HP)

[11] Jack CBA

[17] Digital Main CBA Unit

[14] Power Supply CBA

[22] LCD Module Assembly

[23] Front Cabinet

[1] Stand Cover

Assembly

[7] Junction CBA

[9] Function CBA

[8] IR Sensor CBA

[21] Wall Mount Bracket (L,R)

[4]

Rear Cabinet

20(S-5), 4(S-6), 2(S-7), (S-8), (S-9)

---

[5]

Speaker Holder

D2D64(S-10), *CN801,

*CN802

---

[6] Speaker D2 --------------- ---

[7]

Junction CBA

D2 D6

*CN101, *CL102B ---

[8]

IR Sensor CBA

D2 D6

(S-11), *CL103B ---

[9]

Function CBA

D2D6Function Knob,

Knob Frame

---

[10]

Jack Holder (HP)

D3 (S-12) ---

[11] Jack CBA

D3 D6

2(S-13), *CL201B ---

[12]

Inverter Power CBAD3D6

4(S-14), *CN1801, *CN1810, *CN1851, *CN1852

---

[13]

Tu ne r Shield

D4 2(S-15) ---

[14]

Power Supply CBA

D4 D6

6(S-16), *CN401, *CN402, *CN403, *CN404, *CN452, *CN601

---

[15] Jack Holder D4 2(S-17) ---

[16] Shield Box D4

9(S-18), 2(S-19), 2(H-1), *CN3903

---

[17]

Digital Main CBA UnitD4D6

--------------- ---

[18] PCB Holder D4 4(S-20) ---

[19]

AC Inlet Holder

D5 2(S-21) ---

[20]

Stand Bracket

D5 4(S-22), 4(S-23) ---

[21]

Wall Mount Bracket (L,R)

D5 4(S-24) ---

[22]

LCD Module Assembly

D5 3(S-25), 6(S-26) ---

[23]

Front Cabinet

D5 --------------- ---

↓

(1)

↓

(2)

↓

(3)

↓

(4)

↓

(5)

Step/

Loc.

No.

Part

Removal

Fig.

No.

Remove/*Unhook/

Unlock/Release/

Unplug/Unclamp/

Desolder

Note

Page 13

4-2 A03P0DC

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers are also used as the Identification (location) No. of parts in figures.

(2) Parts to be removed or installed.

(3) Fig. No. showing procedure of part location

(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered.

N = Nut, L = Locking Tab, S = Screw, H = Hex Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following "Reference Notes in the

Ta b l e. "

[4] Rear Cabinet

[2] Stand Hinge

[3] Stand Sub Cover

[1] Stand Cover Assembly

(S-6)

(S-7)

(S-8)

(S-9)

(S-5)

(S-2)

(S-3)

(S-5)

(S-1)

(S-4)

(S-5)

Fig. D1

Page 14

4-3 A03P0DC

[8] IR Sensor CBA

[7] Junction CBA

[9] Function CBA

[5] Speaker Holder

[6] Speaker

(S-11)

(S-10)

Function Knob

(S-10)

Knob Frame

Fig. D2

(S-12)

(S-13)

(S-14)

[10] Jack Holder(HP)

[11] Jack CBA

[12] Inverter Power CBA

Fig. D3

Page 15

4-4 A03P0DC

[13] Tuner Shield

[15] Jack Holder

[18] PCB Holder

[14] Power Supply CBA

[17] Digital Main CBA Unit

(H-1)

(S-18)

(S-20)

(S-17)

(S-18)

(S-19)

(S-15)

[16] Shield Box

(S-16)

Fig. D4

Page 16

4-5 A03P0DC

(S-21)

(S-22)

(S-23)

(S-24)

(S-26)

(S-25)

(S-24)

(S-26)

[22] LCD Module Assembly

[23] Front Cabinet

[19] AC Inlet Holder

[21] Wall Mount Bracket(R)

[20] Stand Bracket

[21] Wall Mount Bracket(L)

Fig. D5

Page 17

4-6 A03P0DC

3. TV Cable Wiring Diagram

To LCD Module Assembly

To Speaker

To AC Inlet

To Speaker

To LCD Module Assembly

CN453

CN452

CN610

CN600

CN101

CN801

CN601

CL202B

CN802

CL201A

CN401

CN403

CN404

CN402

CN3903

CN3701

CN3711

CN3702

CN3703

CN3704

CN103

CL102A

CL102B

CL103A

CL103B

CN1852

CN1851

CN1801

CN1810

Power Supply CBA

Jack CBA

Digital Main CBA Unit

Function CBA

IR Sensor CBA

Junction CBA

Inverter Power CBA

Fig. D6

Page 18

5-1 A03A0EA

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for “Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. Pattern Generator

2. Color Analyzer

3. Service Remote control unit

How to make the Service remote control unit:

Cut “A” portion of the attached remote control unit as shown in Fig. 1.

How to set up the service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on.

3. Press the service button on the service remote control unit as shown in Fig.1.

1. Purity Check Mode

This mode cycles through full-screen displays of red, green, blue, and white to check for non-active pixels.

1. Enter the Service mode.

2. Each time pressing [7] button on the service remote control unit, the display changes as follows.

3. To cancel or to exit from the Purity Check Mode, press [BACK] button.

Fig. 1

service button

[7] button

Note:

When entering this mode, the default setting is White mode.

Purity Check Mode

[7] button

Red mode

Green mode

Blue mode

Black mode

[7] button

White mode

[7] button

White 20% mode

[7] button

Page 19

5-2 A03A0EA

2. Auto Calibration [Component]

Purpose: To bring the color adjustment of each

component into standard alignment.

Symptom of Misadjustment: If this adjustment is incorrect, component signals do not reproduce the corresponding color.

1. Input 720P 100% Color Bar signal.

2. Enter the service mode.

3. To enter the Auto Calibration adjustment mode, press [6] button on the service remote control unit.

4. To start auto adjustment, press [P ] button on the service remote control unit.

-In the auto adjustment mode, “Calibration Check”

appears on the screen.

-Upon completion, “OK” appears on the screen.

5. To cancel or to exit from the Auto Calibration [Component], press [BACK] button.

3. Auto Calibration [PC]

Purpose: To bring the color adjustment of PC into

standard alignment.

Symptom of Misadjustment: If this adjustment is incorrect, PC signals do not reproduce the corresponding color.

1. Input SVGA 100% White signal.

2. Enter the service mode.

3. To enter the Auto Calibration adjustment mode, press [5] button on the service remote control unit.

4. To start auto adjustment, press [P ] button on the service remote control unit.

-In the auto adjustment mode, “Calibration Check”

appears on the screen.

-Upon completion, “OK” appears on the screen.

5. To cancel or to exit from the Auto Calibration [PC], press [BACK] button.

Page 20

5-3 A03A0EA

The White Balance Adjustment should be performed when replacing the LCD Panel or Digital CBA.

4. White Balance Adjustment [Video/Component/PC]

Purpose: To mix red, green and blue beams correctly

for pure white.

Symptom of Misadjustment: White becomes bluish or reddish.

1. Operate the unit for more than 20 minutes.

2. [VIDEO input]

Input the White Raster (70%=70IRE, 30%=30IRE). [Component input] Input the 720P White Raster (70%=70IRE, 30%=30IRE). [PC input] Input the SVGA White Raster (70%=70IRE, 30%=30IRE).

3. Set the color analyzer to the CHROMA mode and

bring the optical receptor to the center on the LCD-Panel surface after zero point calibration as shown above. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

4. Enter the Service mode. Press [ -] button on the service remote control unit and select “C/D” mode.

5. [CUTOFF] Press [3] button to select “COB” for Blue Cutoff adjustment. Press [1] button to select “COR” for Red Cutoff adjustment.

[DRIVE]

Press [6] button to select “DB” for Blue Drive adjustment. Press [4] button to select “DR” for Red Drive adjustment.

6. In each color mode, press [P / ] buttons to adjust the values of color.

7. Adjust Cutoff and Drive so that the color temperature becomes 9200°K (x

0.286 / y= 0.295

±0.005).

8. Change the video signal input in step 2 and repeat from step 3.

9. To cancel or to exit from the White Balance Adjustment, press [BACK] button.

Tes t Po int

Adj. Point Mode Input

Screen

[P / ]

buttons

[VIDEO]

C/D

White Raster

(APL 70%)

(APL 30%)

M. EQ. Spec.

Pattern Generator,

Color analyzer

x= 0.286 ± 0.005 y= 0.295 ± 0.005

Figure

Color Analyzer

L = 3 cm

Perpendicularity

INPUT: WHITE 70%, 30%

To avoid interference from ambient light, this adjustment should be performed in a dark room.

30%=30IRE

70%=70IRE

INPUT SIGNAL

Page 21

6-1 A03A0INT

HOW TO INITIALIZE THE LCD TELEVISION

How to initialize the LCD television:

1. Turn the power on.

2. To enter the service mode, press the service button on the service remote control unit. (Refer to page 5-1.)

-To cancel the service mode, Press [ ] button on

the remote control unit.

3. Press [ ] button on the service remote control unit to initialize the LCD television.

4. "INITIALIZED" will appear in the upper right of the screen. "INITIALIZED" color will change to green from red when initializing is complete.

Page 22

7-1 LC7/8FW

FIRMWARE RENEWAL MODE

Equipment Required

a. USB storage device b. Remote Control Uni t

Firmware Update Procedure

[Preparation]

1. Prepare a blank USB storage device.

2. Copy “pkg” file (example: funai_LC7_WHD_ ZF536232PB10S-001.pkg) to USB storage device.

3. Rename the “pkg” file’s name to “upgrade.pkg”.

[Update procedure]

1. Plug in the AC power cord of TV set.

2. Press [ ] button on the remote control unit to turn off (standby).

3. Check “STAND BY” indicator (Red LED) lighting.

4. Insert USB storage device with “upgrade.pkg” file to TV set.

5. Press [ ] button to turn on.

6. After approximately 70 seconds, the following will appear on the screen.

7. Select “Yes” and press the [OK] button to update.

Note: Do not turn off the TV set and do not remove the USB storage device while this procedure.

8. The update will start and the following will appear on the screen.

9. When the firmware update is completed, the following will appear on the screen.

10. Turn the power off.

11. Remove the USB storage device from the USB port.

12. Turn the power on.

(Example)

Page 23

8-1 A03P0TR

TROUBLESHOOTING

Check IC607, IC

621, D625, D

628, D630, D

631, D634,

D635, D6

36, D638 and their per

iphery

, and service it

if def

ective

The power cannot be turned on.

The fuse blows out.

FLOW CHART NO.1

FLOW CHART NO.2

Is normal state r

estored when once un

plugged pow

cord is plugged again sev

eral seconds

Check if there is any leak or short-circuiting on the primary circuit component, and service it if defective. (IC607, IC621, Q621, Q622, Q623, D609, D610, D611, D612, T601, T602)

Yes

Is the fuse (F601) normal?

See FLOW CHART No.2 <The fuse blows out.>

Yes

Is approximately 15V voltage supplied to the cathode of D504?

Check eac

h rectifying circuit of

the secondar

y circuit

and service it if de

fective

Check the pres

ence that the

primar

y compo

nent is

leaking or shor

ted and service it if defective

Check the pres

ence that the

rectifying

diode or ci

rcuit

is shorted in each r

ectifying c

ircuit of secondar

y side,

and service it if de

fective.

After ser

vicing, replace the fus

e (F601).

When the output voltage fluctuates.

FLOW CHART NO.3

Does the photocoupler circuit on

the secondar

y side

operate normally?

Yes

Check IC607, Q512, Q513, D505, D530 and their periphery, and service it if defective.

When buzz sound can be heard in the vicinity of power circuit.

FLOW CHART NO.4

Check if there is an

y short-cir

cuit on the rectifyi

ng diode and

the circuit in e

ach rectifying

circuit of the

secondary side, and

service it if def

ective

. (D504, D511,

D514, D523,

D524, D525,

D539, D540, Q501, Q510, Q

517, Q518, Q521)

Page 24

8-2 A03P0TR

Replace Q501.

LCD+12V is not output.

FLOW CHART NO.5

Is approximately 1

5V voltage supp

lied to the co

llector

of Q501?

Yes

Check D504, D505, C503 and their periphery circuit, and service it defective.

Is approximately 1

3V voltage supp

lied to the base

of Q501?

Check Q504, Q505, D501, P-ON-H1 line and their periphery circuit, and service it defective.

P-ON+5V is not output.

FLOW CHART NO.7

Yes

Is approximately 5V voltage supplied to the base of Q518?

AL+3.3V is not output.

FLOW CHART NO.6

Yes

Is approximately 6V voltage supplied to the collector of Q521?

Check D525, D527, D528, C516 and their periphery circuit, and service it if defective.

Check D525, C516 and their periphery circuit, and service it if defective.

Check Q508, Q520, D543, P-ON-H2 line and their periphery circuit, and service it if defective.

Yes

Is approximately 4V voltage supplied to the base of Q521?

Check D552 and their periphery circuit, and service it if defective.

Replace Q521.

Is approximately 6

V voltage supp

lied to the collector

of Q518?

Replace Q518.

LCD+24V is not output.

FLOW CHART NO.8

Check IC1801, IC1831, IC183

2, Q1801, Q

1802,

T1831 and

their per

iphery cir

cuit, and ser

vice it if

defectiv

Page 25

8-3 A03P0TR

AL+5V is not output.

FLOW CHART NO.9

Is approximately 5

V voltage supp

lied to the cathode

of D523?

Check if there is any leak or short-circuit on the loaded circuit, and service it if defective.

Yes

Check D523, D524, C515

and their pe

riphery cir

cuit,

and service it if def

ective

P-ON+9V is not output.

FLOW CHART NO.11

Yes

Is approximately 1

3V voltage supp

lied to the

collector o

f Q517?

Is approximately 10V voltage supplied to the base of Q517?

Yes

Replace Q517.

Replace Q510.

P-ON+3.3V is not output.

FLOW CHART NO.10

Is approximately

5V voltage supp

lied to the co

llector

of Q510?

Yes

Check D523, D524, C515 and their per

iphery cir

cuit,

and service it if de

fec

tive.

Check D539, C522 and their per

iphery cir

cuit, and

service it if def

ective

Check Q508, Q520, D541, D

542, P-ON-H2 line an

their per

iphery cir

cuit, and ser

vice it if def

ective

Is approximately 3.4V voltage supplied to the base of Q510?

Yes

Check Q508, Q5

11, D526, P-ON-H2 l

ine and thei

peripher

y circuit, and ser

vice it if de

fec

tive.

When pre

ssing each s

witches (SW101B, SW103B-

SW107B) do the v

oltage of Pin(11) on C

N403

increase

Yes

FLOW CHART NO.12

Are the cont

act point and installation

state of the ke

switches (SW101B

, SW103B-SW107B) normal?

Re-install the switches (SW101B, SW103B-SW107B) correctly or replace the poor switch.

Check the switches (SW101B, SW103B-SW107B) and their periphery, and service it if defective.

Yes

Replace Digital Main CBA Unit.

The key operation is not functioning.

Page 26

8-4 A03P0TR

Is the "L" pulse sent out Pin(1) of

RS102 (remote control

receiver)

when the in

frar

ed remote

control is activ

ated?

Check the line between Pin(1) of RS102 (remote control receiver) and Pin(13) of CN403, and service it if defective.

Yes

Is the "L" pulse supplied to Pin(13

) of CN403?

Yes

Is 3.3V voltage supp

lied to Pin(2) of RS102 (remote

control rec

eiver)?

No operation is possible from the remote control unit.

FLOW CHART NO.13

Operation is pos

sible from the

unit.

Check AL+3.3V line and service it if defective.

Replace the RS102 (remote control receiver) or remote control unit.

Yes

Replace Digital Main CBA Unit.

Picture does not appear normally. (Video input/S-Video input/Y/Pb/Pr input/RGB input)

Are the video signals outputted to the specific terminal?

Check the luminance signal line, and service it if defective.

Check the chrominance signal line, and service it if defective.

Check the RGB video signal line, and service it if defective.

Check the composite video signal line, and service it if defective.

Check the component video(Y/Pb/Pr) signal line, and service it if defective.

Check the line between each pin of CN401 and CN404 and input terminal and service it if defective.

Yes

Are the luminance signals outputted to Pin(27) of CN401?

Are the chrominance signals outputted to Pin(29) of CN401?

Are the component video(Y/Pb/Pr) signals outputted to Pin(4, 6, 8) of CN404?

Are the RGB video signals outputted to Pin(26, 28, 29) of CN404?

Are the composite video signals outputted to Pin(2,12,22) of CN404?

Replace Digital Main CBA Unit or LCD Module Assembly.

FLOW CHART NO.14

Page 27

8-5 A03P0TR

Are the DIF signals outputted to Pin(16,18) of CN403?

Yes

Check the line between Pin(16, 18) of CN403 and Pin(4, 5) of TU1, and TU1(Tuner Unit), and service it if defective.

Audio is not outputted normally. (Tuner input (Digital))

FLOW CHART NO.16

Are the audio(L/R) signals inputted to the Pin(1,44) of IC803?

Yes

Are the audio(L/R) signals outputted to Pin(8,10) of CN403?

Yes

Check the line between Pin(8,10) of CN403 and Pin(1,44) of IC803, and service it if defective.

Are the audio(L/R) signals outputted to CN801 and CN802?

Yes

Check SP801,SP802 and their periphery circuit, and service it if defective.

Check IC803 and the periphery circuit, and service it if defective.

Replace Digital Main CBA Unit.

Audio is not outputted normally. (Audio input terminals)

FLOW CHART NO.17

Check the line between Pin(16, 18) of CN403 and Pin(4, 5) of TU1, and TU1(Tuner Unit), and service it if defective.

Are the DIF signals outputted to Pin(16, 18) of CN403?

FLOW CHART NO.15

Replace Digital Main CBA Unit or LCD Module Assembly.

Are the audio(L/R) signals outputted to the specific terminal?

Check the audio(L/R) signal line, and service it if defective.

Check the component audio(L/R) signal line, and service it if defective.

Check the PC audio(L/R) signal line, and service it if defective.

Check the line between each pin of CN401 and input terminal and service it if defective.

Yes

Are the audio(L/R) signals outputted to Pin(21,22) of CN401?

Are the component audio(L/R) signals outputted to Pin(18,19) of CN401?

Are the PC audio(L/R) signals outputted to Pin(24,25) of CN401?

Replace Digital Main CBA Unit.

Yes

Picture does not appear normally. (Tuner input (Digital))

Page 28

9-1

System Control Block Diagram

A03P0BLS

BLOCK DIAGRAMS

F24

IC3301

(MAIN MICRO CONTROLLER)

DIGITAL MAIN CBA UNIT

IR SENSOR CBAFUNCTION CBA

POWER SUPPLY CBA

CL102B

CL103A

REMOTE

SENSOR

RS102

AL+3.3V

D104

POWER

STANDBY

D105

AL+3.3V

P-ON+9V

POWER-LED44

CL102A

CL103B

REMOTE22

STANDBY-LED55

CN3703 CN403

XTALO

XTALI

X3101

54MHz

OSC

V26

V25

SCL

SDA

TU1 (TUNER UNIT)

INVERTER

POWER

BLOCK

DIAGRAM

(CN1851)

POWER SUPPLY

BLOCK DIAGRAM

PROTECT3

W23

PROTECT1 Y24

KEY-IN

AA25

BACKLIGHT-SW D23

LED1 B16

P-ON-H2

A12

REMOTE

AD11

P-ON-H1

PROTECT1

P-ON-H2

P-ON-H1

AC11

JUNCTION

CBA

CN103

KEY-IN166

KEY-IN133

CN453

CN101

CN403

Q181

CN3703

D16

BACKLIGHT-ADJ

IC3101 (MEMORY)

SCL

SDA

AE4

AF3

IC3802

(AUDIO SELECTOR)

SCL

SDA

F25

TUNER-CLK

TUNER-DATA

CN403CN3703

CN402CN3701

OSCL0

OSDA0

SCL

SDA

PROTECT1

PROTECT3

BACKLIGHT-SW

BACKLIGHT-ADJ

KEY-IN111 11

P-ON-H111

REMOTE13 13

LED114 14

P-ON-H222

POWER-LED33

REMOTE55

STANDBY-LED22

KEY-IN111

PROTECT36BACKLIGHT-SW4BACKLIGHT-ADJ3P-ON-H1

TO AUDIO

BLOCK

DIAGRAM

AUDIO-MUTE

A15

TO VIDEO

BLOCK

DIAGRAM

SCART-OUT-SEL

E16

Q182

KEY SWITCH

Page 29

9-2

Video Block Diagram

A03P0BLV

JK211

VIDEO-IN

COMPONENT

-Y-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

JK201

JK202

JK203

CN404 CN3702

CN401 CN3704

JK301

VIDEO-B1

VIDEO-G1

VIDEO-R1

RGB-

VIDEO-IN1

VIDEO-OUT1

JK302

VIDEO-R2

RGB-

VIDEO-IN2

VIDEO-OUT2

VIDEO SIGNAL

POWER SUPPLY CBA

VIDEO-IN22

VIDEO-OUT124 24

VIDEO-R126 26

VIDEO-R216 16

VIDEO-OUT214 14

VIDEO-G128 28

VIDEO-B129 29

RGB-VIDEO-IN1

22 22

RGB-VIDEO-IN2

12 12

S-VIDEO-C-IN29 29

S-VIDEO-Y-IN27 27

COM-VIDEO-Y-IN 88

COM-VIDEO-Pb-IN 66

COM-VIDEO-Pr-IN 44

VIDEO-OUT

BUFFER

Q011

TU-CVBS29 29

SCART-OUT-SEL 66

IC1

(INPUT SELECT)

SW CTL

TU-CVBS

TU1

DIF-OUT2

DIF-OUT1

(TUNER UNIT)

IF-AGC

CN403 CN3703

DIF-OUT216 16

IF-AGC20 20

DIF-OUT118 18

VIDEO-IN

RGB-VIDEO-IN1

RGB-VIDEO-IN2

VIDEO-OUT2

VIDEO-OUT1

VIDEO-R1

VIDEO-R2

VIDEO-G1

VIDEO-B1

TO DIGITAL SIGNAL

PROCESS

BLOCK DIAGRAM

S-VIDEO-Y-IN

S-VIDEO-C-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

COM-VIDEO-Pr-IN

DIF-OUT2

DIF-OUT1

IF-AGC

TO DIGITAL SIGNAL

PROCESS

BLOCK DIAGRAM

TO SYSTEM CONTROL

BLOCK DIAGRAM

AUDIO SIGNAL

JK210

S-VIDEO-IN

WF1

WF10WF8

WF9

WF6

WF5

WF3

WF4

WF2

DIGITAL MAIN CBA UNIT

SCART-OUT-SEL

Q15

Q12

BUFFER

Page 30

9-3

Audio Block Diagram

A03P0BLA

AUDIO SIGNAL

CN3704CN401

CN3704

CN3703

CN401

AUDIO(L)22 22

SPDIF11

AUDIO(R)21 21

COM-AUDIO(L)19 19

PC-AUDIO(L)25 25

PC-AUDIO(R)24 24

RGB-AUDIO(L)-IN1

10 10

RGB-AUDIO(R)-IN1 99

RGB-AUDIO(L)-IN2

16 16

RGB-AUDIO(R)-IN2

15 15

COM-AUDIO(R)

18 18

PC-AUDIO-IN

JK206

COMPONENT

AUDIO(L)-IN

COMPONENT

AUDIO(R)-IN

JK205

JK204

IC3802

(AUDIO SELECTOR)

ADC-OUT(L)

AUDIO(L)-2

AUDIO(L)-1

AUDIO(L)-0

ADC-OUT(R)

AUDIO(R)-2

AUDIO(R)-1

AUDIO(R)-0

MCLK

SIF(+)

AUDIO-MUTE2

HEADPHONE-DET

AUDIO-MUTE

SDATA0

BCK

LRCK

AUDIO(L)

-IN

DIGITAL

AUDIO-OUT

(COAXIAL)

AUDIO(R)

-IN

JK212

JK207

JK213

4844514947

AUDIO

SELECTOR

(L-CH)

AUDIO

SELECTOR

(R-CH)

452123

8116

JK301

3RGB-AUDIO(L)-OUT1

RGB-AUDIO(R)-OUT1

RGB-AUDIO(L)-IN1

RGB-AUDIO(R)-IN1

JK302

RGB-AUDIO(L)-OUT2

RGB-AUDIO(R)-OUT2

RGB-AUDIO(L)-IN2

RGB-AUDIO(R)-IN2

POWER SUPPLY CBA

JACK CBA

TO DIGITALSIGNAL

PROCESS

BLOCK DIAGRAM

TO DIGITALSIGNAL PROCESS

BLOCK DIAGRAM

DIGITAL MAIN CBA UNIT

SIF-OUT

TU1

(TUNER UNIT)

IC3801

(AUDIO D/A CONVERTER)

D/A

CONVERTER

(L-CH)

(R-CH)

SIF(+)26 26

HEADPHONE(L) 33

HEADPHONE(R) 44

HEADPHONE-DET 22

CN3703CN403

AMP(L)-OUT10 10

AMP(R)-OUT88

AUDIO-MUTE12 12

TO SYSTEM CONTROL

BLOCK DIAGRAM

WF7

RGB-AUDIO(L)-OUT1 66

RGB-AUDIO(R)-OUT1 77

RGB-AUDIO(L)-OUT2

12 12

CL202BCL201A

HEADPHONE-DET 44

HEADPHONE(R) 33

HEADPHONE(L) 22

RGB-AUDIO(R)-OUT2

13 13

IC803 (AUDIO AMP)

9,10

13,14

35,36

31,32

MUTE CONTROL

CN802CL802

SP802

SPEAKER

L-CH

CN801

SP(R)- 1

CL801

SP801

SPEAKER

R-CH

PWM1

PWM2

DRIVE1

SP(R)+ 2

SP(L)- 1

SP(L)+ 2

DRIVE2

JK208

HEADPHONE

JACK

SPDIF

Q3813

Q3802, Q3809, Q3810

MUTE

DRIVE

Q3812

MUTE

Q3805

MUTE

Q3806

MUTE

Q3808

MUTE

Q3807

MUTE

CN403

Comparison Chart of

Models and Marks

Model Mark

LH8-M40BB A

LT8-M40BB

Page 31

9-4

A03P0BLD

Digital Signal Process Block Diagram

DIGITAL MAIN CBA UNIT

IC3301 (DIGITAL SIGNAL PROCESS)

VIDEO-OUT1

LVDS

DIGITAL

SIGNAL

PROCESS

IC3704 (MEMORY)

SDA

SCL

D-SUB

RED

GREEN

BLUE

DATA

CLOCK

JK3701

AE20

AE19

AD19

AF19

A/D

CONVERTER

HSYNC

VSYNC

AC18

AB18

T25

R25

E24

H26

B13

A13

J26

K26

H25

J25

J24

D24

C25

B25

D25

AB25

L26

K25

VIDEO-IN

VIDEO-R1

VIDEO-G1

VIDEO-B1

TO VIDEO

BLOCK

DIAGRAM

TO VIDEO

BLOCK

DIAGRAM

TO VIDEO

BLOCK DIAGRAM

TO AUDIO

BLOCK

DIAGRAM

AC24

AE26

AE25

AF22

AF24

AD24

AD23

AD22

AF25

RGB-VIDEO-IN1

AD26

RGB-VIDEO-IN2

AE24

DIF-OUT2

DIF-OUT1

IF-AGC

AUDIO(L)-0

AE21

TU-CVBS

AB24

AD21

HSYNC

VSYNC

IF-AGC

HDMI-IN1

HDMI-IN2

JK3702

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

SDA

SCL

79461

101216

79461

101216

JK3703

HDMI-IN3

79461

101216

JK3704

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

SCL

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

TMDS-CLOCK(-)

SDA

SCL

AF16

AE16

AF17

AE17

AF18

AE18

AF15

AE15

AB16

AC16

AF12

AE12

AF13

AE13

AF14

AE14

AF11

AE11

AC14

AC15

AF8

AE8

AF9

AE9

AF10

AE10

AF7

AE7

AB12

AC12

TMDS-CLOCK(+)

TMDS-CLOCK(-)

DEMODULATOR

/MPEG DECODER

DEMODU.

ADC

AUDIO I/F

RDQ(0-31)

CONTROL

RA(0-12)

IC3201, IC3202

(SDRAM)

HDMI I/F

AUDIO

DECODER

VIDEO

DECODER

VIDEO SIGNAL

AUDIO SIGNAL

IC3401

CARD

SLOT

DAC

AUDIO(L)-1

AUDIO(L)-2

AUDIO(R)-0

AUDIO(R)-1

AUDIO(R)-2

LRCK

BCK

DATA0

MCLK

SIF(+)

ADC-OUT(L)

ADC-OUT(R)

E26

SPDIF

LCD MODULE

ASSEMBLY

CN3903

LVDS-OD1(-)46LVD S -O D 1( + )

LVDS-OD0(-)48LVD S -O D 0( + )47LVDS-OD2(-)44LVD S -O D 2( + )43LVDS-OD3(-)38LVD S -O D 3( + )37LVDS-OCLK(-)

LVDS-OCLK(+)

B7A7B8

B10

A10

LVDS-OD4(-)36LVD S -O D 4( + )

B11

A11

D10

C10

D11

C11

D13

C13

D14

C14

D12

C12

DATA(0-31)

ADDESS(0-12)

CI-D(0-15)

CI-A(0-14)

VIDEO-R2

S-VIDEO-Y-IN

S-VIDEO-C-IN

COM-VIDEO-Y-IN

COM-VIDEO-Pb-IN

COM-VIDEO-Pr-IN

VIDEO-OUT2

AUDIO-MUTE2

TO AUDIO

BLOCK DIAGRAM

HEADPHONE-DET

LVDS-ED1(-)22LVDS-ED1(+)

LVDS-ED0(-)24LVDS-ED0(+)23LVDS-ED2(-)20LVDS-ED2(+)19LVDS-ED3(-)14LVDS-ED3(+)13LVDS-ECLK(-)

LVDS-ECLK(+)

LVDS-ED4(-)12LVDS-ED4(+)

Page 32

9-5

A03P0BLINV

Inverter Power Block Diagram

LCD MODULE

ASSEMBLY

HOT

COLD

HOT CIRCUIT. BE CAREFUL.

TO SYSTEM

CONTROL

BLOCK DIAGRAM

CN453

INVERTER POWER CBA

CN1810

CN1801

T1801

T1831

534

10911

Q1801

SWITCHING

Q1802

Q1884

SWITCHING

IC1832

(ISOLATOR)

IC1831

(FEED BACK)

IC1801

(HIGH-VOLTAGE

RESONANT CONTROL)

TO POWER

SUPPLY

BLOCK

DIAGRAM

CN610

TO POWER

SUPPLY

BLOCK

DIAGRAM

CN600

HIGH-

VOLTAGE

RESONANT

CONTROL

3 2

Q1803

Q1804

Q1882

Q1871

AL+3.3V

CN1852

CN1851

PANEL+24V

10-14

Q1883

H.V.(BLACK)

HOT+15V(RED)

H.V.(BLACK)

BACKLIGHT-ADJ2BACKLIGHT-SW

89321

654

BACKLIGHT-SW2P-ON-H15PROTECT3

BACKLIGHT-ADJ 4

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

Page 33

9-6

A03P0BLP

Power Supply Block Diagram

HOT COLD

POWER SUPPLY CBA

HOT CIRCUIT. BE CAREFUL.

3 2

IC607

T601

TO INVERTER

POWER BLOCK

DIAGRAM

(CN1810)

CN610

H.V.(BLACK)1

HOT+15V(RED) 4

H.V.(BLACK)1

LINE

FILTER

L601A, L602A

BRIDGE

RECTIFIER

D609- D612

TO INVERTER

POWER BLOCK

DIAGRAM

(CN1801)

FEED

BACK

FEED

BACK

Q621

SWITCHING

Q512,

Q522

CN402

CN452

CN3701

CN3711

Q504, Q505

SWITCHING

Q516

Q513

Q514

Q623

Q511

Q508

Q518

SW+5V

Q521

Q517

SW+9V

Q501

SW+12V

Q510,D526

SW+3.3V

LINE

FILTER

T602F601

T4A H 250V

P-ON-H1

TO SYSTEM

CONTROL

BLOCK

DIAGRAM

P-ON-H2

PROTECT1

Q520

P-ON+5V

AL+3.3V

AL+13V

P-ON+9V

13,14

27-29

LCD+12V

P-ON+9V

AL+3.3V(1)

AL+5V

AL+3.3V

P-ON+3.3V

P-ON+5V

DIGITAL MAIN CBA UNIT

P-ON+3.3V13,14

P-ON+9V6

2,3

LCD+12V3,4

AL+3.3V10

24,26

19-21

AL+5V24,26

AL+3.3V(1)19-21

P-ON+5V27-29

CN600

CN601

IC621

SWITCHING

CONTROL

ZCD

OUT

2FB3IS6

VCC

Q622

SWITCHING

AC CORD

INLET

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

CAUTION !

For continued protection against fire hazard,

replace only with the same type fuse.

Page 34

10-1 LCDP_SC

SCHEMATIC DIAGRAMS / CBA AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “!” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K = 10

, M = 106).

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P = 10

-6

µF).

5. All voltages are DC voltages unless otherwise specified.

6. Electrical parts such as capacitors, connectors, diodes, IC’s, transistors, resistors, switches, and fuses are identified by four digits. The first two digits are not shown for each component. In each block of the diagram, there is a note such as shown below to indicate these abbreviated two digits.

Page 35

10-2 LCDP_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES:

1. CAUTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

5. How to read converged lines

6. Test Point Information

5.0 5.0

Voltage

Indicates that the voltage is not consistent here.

Power on mode

(Unit: Volt)

ABCD

1-B1

1-D3

AREA D3

AREA B1

1-D3

Distinction Area

Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line numbe

"1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1".

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

Page 36

10-3

A03P0SCP1

Power Supply 1 Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F601) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

Page 37

10-4

A03P0SCP2

Power Supply 2 Schematic Diagram

Page 38

10-5 A03P0SCP3

Power Supply 3 & Jack Schematic Diagram

Comparison Chart of Models and Marks

Model Mark

LH8-M40BB A

LT8-M40BB

Page 39

10-6

A03P0SCINP

Inverter Power Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

Page 40

10-7

A03P0SCIRF

IR Sensor, Function & Junction Schematic Diagram

Page 41

10-8

A03P0SCD1

Digital Main 1 Schematic Diagram

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into six and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

Comparison Chart of Models and Marks

Model Mark

LH8-M40BB A

LT8-M40BB

Page 42

10-9

A03P0SCD2

Digital Main 2 Schematic Diagram

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into six and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

Comparison Chart of Models and Marks

Model Mark

LH8-M40BB A

LT8-M40BB

Page 43

10-10

A03P0SCD3

Digital Main 3 Schematic Diagram

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into six and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

Comparison Chart of Models and Marks

Model Mark

LH8-M40BB A

LT8-M40BB

Page 44

10-11

A03P0SCD4

Digital Main 4 Schematic Diagram

Page 45

10-12

A03P0SCD5

Digital Main 5 Schematic Diagram

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into six and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

Comparison Chart of Models and Marks

Model Mark

LH8-M40BB A

LT8-M40BB

Page 46

10-13

A03P0SCD6

Digital Main 6 Schematic Diagram

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into six and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

Comparison Chart of Models and Marks

Model Mark

LH8-M40BB A

LT8-M40BB

Page 47

10-14

A03P0SCD7

Digital Main 7 Schematic Diagram

The order of pins shown in this diagram is different from that of actual IC3301. IC3301 is divided into six and shown as IC3301 (1/6) ~ IC3301 (6/6) in this Digital Main Schematic Diagram Section.

1 NOTE:

Comparison Chart of Models and Marks

Model Mark

LH8-M40BB A

LT8-M40BB

Page 48

10-15

D309

D311

D315

D316

D317

D318

D319

D320

HOT

COLD

HOT

1 2

2 28

BA03A0F0101 3 B

C7A3/A3

T 4A H/250V

COLD

BA03A0F0101 3 A

C7A3/A3

WARNING: TO PREVENT ELECTRIC SHOCK AND FIRE HAZARD.

DISCONNECT MAINS PLUG BEFORE FUSE REPLACEMENT

AND REPLACE ONLY WITH MARKED.

HOT

F601

WHITE

BLACK

RED

BROWN

BLUE

BROWN

TOOL NO.

1 2 3 4 5 6 7 8 9 10

C20

J124

J125

J126

J127

510

J128

J511

J129

C28

J130

J131

R601

J132

J133

J134

J135

R605

D181

C32

J136

J137

D183

J138

JS505

J139

C36

J140

CN401

J141

CN402

J142

J143

CN403

CN404

J144

JS511

J145

JS512

J146

J147

R617

J148

JS515

J149

CN601

J150

J153

CN801

CN802

CN610

L601A

L601B

R631

R632

R633

R634

R635

R636

R637

R638

Q11

R639

Q12

Q13

Q14

L602A

Q15

L602B

C602

C603

R640

C604

FH605

R641

C605

FH606

R642

C606

R643

C607

C608

R644

C609

R645

R646

R647

R648

R649

C610

R650

C809

R651

R652

R653

JS551

R656

JS552

JS553

C815

C621

C816

C817

C623

C624

C819

C625

CN452

C626

C627

CN453

C628

C629

C630

C825

C826

C828

C829

D201

D202

D203

D204

R496

D206

R497

D207

D208

D209

D210

Q501

D211

Q504

Q505

Q506

Q508

AC701

L301

L302

L303

L304

Q510

Q511

D609

Q512

Q513

Q514

D801

Q516

Q517

D803

Q518

D804

D610

D805

JS11

D611

D806

D612

D807

D808

D809

Q520

Q521

BC501

D814

D815

D816

T601

D625

D626

T602

IC607

D627

D628

D629

J002

J003

J004

J005

J006

J007

D630

J008

D631

J009

D633

D634

D635

D636

D637

D638

J010

J011

J014

J015

J016

J017

J018

SW701

JK301

JK302

J021

J022

J023

J024

J025

J026

J027

J028

J029

J030

J031

R501

J032

R502

J033

R503

R504

J034

J035

CN101

R506

J036

R507

J037

R508

J038

R509

J039

CL201A

Q181

Q182

Q183

R510

J040

R511

JS601

J041

JS602

J042

R513

J043

J044

J045

JS605

J046

JS606

J047

JS607

J048

JS608

J049

JS609

CL202B

JS801

J050

JS610

J051

L11

J052

R522

J053

R523

J054

J055

J056

R526

J057

J058

J059

BC181

CN702

BC182

J060

L21

R531

J061

R532

J062

J063

J064

R535

J065

J066

R537

J067

J068

R539

J069

C502

C503

C504

R540

J070

C310

BC11

C505

R541

J071

J072

C507

J073

J074

C508

J075

C509

J076

R546

J077

R547

R14

R548

J078

R15

R549

C319

J079

R18

C511

R550

C514

J080

C515

R551

J081

R552

C516

J082

C517

R553

J083

J084

C519

J085

J086

J087

R557

J088

R558

R559

J089

C520

C521

C522

C523

C524

R560

J090

J091

C525

J092

R562

J093

C527

J094

C528

J095

R565

J096

R566

J097

J098

R34

R569

J481

R35

J099

J482

J483

C531

C532

J487

R570

R572

SA602

R573

J490

R578

SA608

J492

J493

J494

J495

J497

J498

R580

J499

R581

R583

R590

R591

D301

D302

R592

D303

R593

R594

D304

R595

D305

D306

D307

R598

D308

TU1

D501

D502

L202

D503

L203

D504

L204

D310

D505

D312

D313

D508

D314

D511

Q801

D514

D515

D321

D516

D322

523D423D323D

D326

D327

D520

D522

D523

D524

D525

L801

Q621

D526

L802

D527

L803

Q623

D528

L804

D529

D530

D531

BC801

D532

D533

D534

J100

D535

J101

D536

J102

D537

J103

D538

J104

D539

J105

J106

J107

J108

J109

D540

D541

D542

D543

J110

D544

D545

J111

JK201

BC621

D546

J112

JK202

BC622

J113

D547

JK203

BC623

J114

D548

JK204

BC624

J115

D549

JK205

J116

JK206

J117

JK207

J500

J118

JK208

J501

J119

D550

D552

J507

D554

J120

JK210

J121

JK211

J122

JK212

J123

JK213

CN600

GND

P-ON+5V

PROTECT1

ALL+3.3V

P-ON+3.3V

+3.0V for 2.5V

+3.0V for

2.5V

PANEL

+12V

PANEL+12V

P-ON+5V

P-ON+9V

POW for

1.1V

POW for 1.1V

P-ON

+3.3V

GND

+6.7V

GND

for 5V

+35V

+6.7V

for 5.0V

+6.7V for 5.0V

GND

CN701

AC601

GND

J120A

D624

J01

BA03A0F01013

Power Supply CBA & Jack CBA Top View

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

Because a hot chassis ground is present in the power supply circuit, an isolation transformer must be used when repairing. Also, in order to have the ability to increase the input slowly, when troubleshooting this type of power supply circuit, a variable isolation transformer is required.

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

Power Sup ply CBA

Jack CBA

Page 49

10-16

C20

J124

J125

J126

J127

J5 10

J128

J511

J129

C28

J130

J131

R601

J132

J133

J134

J135

R605

D181

C32

J136

J137

D183

J138

JS505

J139

C36

J140

CN401

J141

CN402

J142

J143

CN403

CN404

J144

JS511

J145

JS512

J146

J147

R617

J148

JS515

J149

CN601

J150

J153

CN801

CN802

CN610

L601A

L601B

R631

R632

R633

R634

R635

R636

R637

R638

Q11

R639

Q12

Q13

Q14

L602A

Q15

L602B

C602

C603

R640

C604

FH605

R641

C605

FH606

R642

C606

R643

C607

C608

R644

C609

R645

R646

R647

R648

R649

C610

R650

C809

R651

R652

R653

JS551

R656

JS552

R 65 7

JS553

C815

C621

C816

C817

C623

C624

C819

C625

CN452

C626

C627

CN453

C628

C629

C630

C825

C826

C828

C829

D201

D202

D203

D204

R496

D206

R497

D207

D208

D209

D210

Q501

D211

Q504

Q505

Q506

Q508

AC701

L301

L302

L303

L304

Q510

Q511

D609

Q512

Q513

Q514

D801

Q516

Q517

D803

Q518

D804

D610

D805

JS11

D611

D806

D612

D807

D808

D809

Q520

Q521

BC501

D 81 3

D814

D815

D816

T601

D625

D626

T602

IC607

D627

D628

D629

J002

J003

J004

J005

J006

J007

D630

J008

D631

J009

D633

D634

D635

D636

D637

D638

J010

J011

J014

J015

J016

J017

J018

SW701

JK301

JK302

J021

J022

J023

J024

J025

J026

J027

J028

J029

J030

J031

R501

J032

R502

J033

R503

R504

J034

J035

CN101

R506

J036

R507

J037

R508

J038

R509

J039

CL201A

Q181

Q182

Q183

R510

J040

R511

JS601

J041

R512

JS602

J042

R513

J043

J044

J045

JS605

J046

JS606

J047

JS607

J048

JS608

J049

JS609

CL202B

JS801

J050

JS610

J051

L11

J052

R522

J053

R523

J054

J055

J056

R526

J057

J058

J059

BC181

CN702

BC182

J060

L21

R531

J061

R532

J062

J063

J064

R535

J065

J066

R537

J067

J068

R539

J069

C502

C503

C504

R540

J070

C310

BC11

C505

R541

J071

J072

C507

J073

J074

C508

J075

C509

J076

R546

J077

R547

R14

R548

J078

R15

R549

C319

J079

R18

C511

R550

C514

J080

C515

R551

J081

R552

C516

J082

C517

R553

J083

J084

C519

J085

J086

J087

R557

J088

R558

R559

J089

C520

C521

C522

C523

C524

R560

J090

J091

C525

J092

R562

J093

C527

J094

C528

J095

R565

J096

R566

J097

J098

R34

R569

J481

R35

J099

J482

J483

C531

C532

J487

R570

R572

SA602

R573

J490

R578

SA608

J492

J493

J494

J495

J497

J498

R580

J499

R581

R583

R590

R591

D301

D302

R592

D303

R593

R594

D304

R595

D305

D306

D307

R598

D308

TU1

D501

D502

L202

D503

L203

D504

L204

D310

D505

D312

D313

D508

D314

D511

Q801

D514

D515

D321

D516

D322

D323D324D325

D326

D327

D520

D522

D523

D524

D525

L801

Q621

D526

L802

D527

L803

Q623

D528

L804

D529

D530

D531

BC801

D532

D533

D534

J100

D535

J101

D536

J102

D537

J103

D538

J104

D539

J105

J106

J107

J108

J109

D540

D541

D542

D543

J110

D544

D545

J111

JK201

BC621

D546

J112

JK202

BC622

J113

D547

JK203

BC623

J114

D548

JK204

BC624

J115

D549

JK205

J116

JK206

J117

JK207

J500

J118

JK208

J501

J119

D550

J5 0 5

J 5 06

D552

J507

J5 08

D554

J120

JK210

D55 5

J5 09

J121

JK211

J122

JK212

J123

JK213

CN600

GND

P-ON+5V

PROTECT1

ALL+3.3V

P-ON+3.3V

+3.0V for 2.5V

+3.0V for

2.5V

PANEL

+12V

PANEL+12V

P-ON+5V

P-ON+9V

POW for

1.1V

POW for 1.1V

P-ON

+3.3V

GND

+6.7V

GND

for 5V

+35V

+6.7V

for 5.0V

+6.7V for 5.0V

GND

CN701

AC601

GND

J120A

D624

J 0 01

J0 12

J0 13

C21

C22

C23

C24

R210

C25

R211

C26

R212

C27

R213

R214

C29

R215

R216

R217

R218

R219

C31

C33

C34

R220

C35

R221

R222

C37

R223

C38

R224

R801

R225

R802

R226

R803

R227

R804

R228

R805

R229

R806

R807

R808

R421

R809

R422

R423

R230

R810

R811

R812

R813

C201

C202C203

R628

C204

R629

C205

C206

C207

C208

C209

R823

R630

R824

C401

C402

C403

C404

C212

C213

C214

C215

C216

C217

C220

C221

C222

C223

C801

C802

C803

C805

C806

C807

C421

JS554

C810

C811

C812

C813

C814

C818

C820

C821

C822

C823

C824

C827

C830

C831

C832

C833

C834

C835

C836

C837

C838

C839

C452

C454

C455

C456

C840

R495

C841

JS12

JS13

JS14

IC803

IC621

R301

R303

R304

R305

R307

R308

R309

R310

R505

R311

R312

R313

R314

R315

R316

R317

R318

R319

R320

R515

R321

R322

R324

R325

R326

R328

R329

R521

R524

R330

R331

R332

R527

R333

R528

R334

R529

R335

R336

R337

C301

C302

C303

C304

IC1

C305

R536

C306

C307

R538

C308

C309

C311

C312

C313

C314

R545

C315

R12

C316

R13

C317

C318

R16

R17

C320

C321

C322

C323

C324

R20

C518

R21

R22

R556

R23

R24

R25

R26

R27

R28

R29

R30

C529

R31

R32

R567

R33

R568

R181

R36

R182

R37

R183

R184

R186

C 53 3

R187

C5 34

C535

R579

R582

R586

R587

D309

D311

D315

C181

D316

C182

D317

D318

D319

D320

Q622

C11

C12

C13

C14

R201

C16

R202

R203

C18

R204

C19

R205

R206

R207

R208

R209

C 631

R625

R624

R623 R622

R 621

COLD

HOT

COLD

HOT

1 2

COLD

HOT

WF8

PIN 29 OF CN404

WF9

PIN 28 OF CN404

WF10

PIN 26 OF CN404

WF1

PIN 2 OF CN404

WF2

PIN 27 OF CN401

WF3

PIN 29 OF CN401

WF6

PIN 4 OF CN404

WF5

PIN 6 OF CN404

WF4

PIN 8 OF CN404

WF7

PIN 22 OF CN401

Power Supply CBA & Jack CBA Bottom View

BA03A0F01013

Powe r Sup ply CBA

Jack CBA

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

Page 50

10-17

C1853

C1855

C1856

D1811

C7A3/A3

BA03P0F0102 2 A

TOOL NO. 1 2 3 4 5 6 7 8 9 10

BA03P0F0102 2 B

BA03P0F0102 2 C

C7A3/A3

J1802

J1804

J1805

J1806

J1807

J1808

J1809

J1810

J1811

J1812

J1813

J1814

J1815

J1816

J1817

J1818

J1819

J1820

J1821

J1822

J1823

J1824

J1825

J1826

J1827

J1828

J1829

J1830

CL102A

CL102B

CL103A

CL103B

R108

R109

R111

R113

R114

R115R116

CN1801

CN103

R123

R124

R125

C1801

R126

C1802

R127

C1803

R128

C1804

CN1810

C1805

Q1801

C1806

Q1802

C1807

Q1803

C1808

Q1804

C1809

RS102

SW101B

C1810

C1811

BC1801

C1812

BC1802

C1813

C1814

C1815

C1816

C1817

C1818

C1819

C1821

D1801

D1802

D1803

D1804

R1801

D1805

R1802

D1806

C113

R1803

D1807

D1808

R1804

C115

D1809

R1805

SW103B

R1806

R1807

R1808

R1809

D1810

C1834

R1810

R1811

R1812

R1813

R1814

R1815

SW104B

R1816

R1817

R1818

R1819

CN1851

CN1852

R1820

R1821

R1822

R1823

R1824

SW105B

C1851

C1852

C1854

C1857

C1858

C1859

SW106B

C1860

BC1851

IC1831

C1861

BC1852

IC1832

C1862

C1863

SW107B

C1871

T1801

C1872

C1873

Q1871

D1851

D1852

D1853

D1854

D1855

R1851

R1852

R1853

D104

R1854

R1855

D105

R1856

R1857

D107

R1858

R1859

C1882

C1883

C1884

Q1882

Q1883

Q1884

D1871

D1872

D1873

D1874

R1871

R1872

R1873

R1874

R1875

R1876

R1877

R1878

R1879

T1831

R1880

R1881

R1886

R1887

R1888

R1889

D1891

D1892

R1890

R1892

R1895

J101

COLD

HOT

COLD

VOL UP

VOL DOWN

CH UP

CH DOWN

POWER

POWER STD BY

D1812

J1831

J1832

J1803

J1801

BA03P0F01022

Inverter Power CBA, Function CBA, IR Sensor CBA & Junction CBA Top View

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

Function CBA

Junction CBA

Inverter Power CBA

IR Sensor CBA

Page 51

10-18

J1802

J1804

J1805

J1806

J1807

J1808

J1809

J1810

J1811

J1812

J1813

J1814

J1815

J1816

J1817

J1818

J1819

J1820

J1821

J1822

J1823

J1824

J1825

J1826

J1827

J1828

J1829

J1830

CL102A

CL102B

CL103A

CL103B

R108

R109

R111

R113

R114

611R511R

CN1801

CN103

R123

R124

R125

C1801

R126

C1802

R127

C1803

R128

C1804

CN1810

C1805

Q1801

C1806

Q1802

C1807

Q1803

C1808

Q1804

C1809

RS102

SW101B

C1810

C1811

BC1801

C1812

BC1802

C1813

C1814

C1815

C1816

C1817

C1818

C1819

C1821

D1801

D1802

D1803

D1804

R1801

D1805

R1802

D1806

C113

R1803

D1807

D1808

R1804

C115

D1809

R1805

SW103B

R1806

R1807

R1808

R1809

D1810

C1834

R1810

R1811

R1812

R1813

R1814

R1815

SW104B

R1816

R1817

R1818

R1819

CN1851

CN1852

R1820

R1821

R1822

R1823

R1824

SW105B

C1851

C1852

C1854

C1857

C1858

C1859

SW106B

C1860

BC1851

IC1831

C1861

BC1852

IC1832

C1862

C1863

SW107B

C1871

T1801

C1872

C1873

Q1871

D1851

D1852

D1853

D1854

D1855

R1851

R1852

R1853

D104

R1854

R1855

D105

R1856

R1857

D107

R1858

R1859

C1882

C1883

C1884

Q1882

Q1883

Q1884

D1871

D1872

D1873

D1874

R1871

R1872

R1873

R1874

R1875

R1876

R1877

R1878

R1879

T1831

R1880

R1881

R1886

R1887

R1888

R1889

D1891

D1892

R1890

R1892

R1895

J101

COLD

HOT

COLD

VOL

DOWN

CH UP

DOWN

POWER

POWERSTD BY

D1812

J1831

J1832

J1803

J1801

IC1801

C1853

C1855

C1856

D1811

Inverter Power CBA, Function CBA, IR Sensor CBA & Junction CBA Bottom View

BA03P0F01022

Function CBA

Junction CBA

Inverter Power CBA

NOTE:

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

IR Sensor CBA

Page 52

11-1

LC8PWF

WAVEFORMS

Input: PAL Color Bar Signal (with 1kHz Audio Signal)

WF1 ~ WF6 = Waveforms to be observed at

Waveform check points. (Shown in Schematic Diagram.)

S-VIDEO-Y 0.2V

20µs

S-VIDEO-C 0.2V

20µs

VIDEO-Y 0.2V 20µs

VIDEO-Pr 0.2V 20µs

VIDEO-Pb 0.2V 20µs

Pin 6 of CN404

WF5

VIDEO 0.2V 20µs

WF1

Pin 2 of CN404

WF4

Pin 8 of CN404

WF2

Pin 27 of CN401

WF6

Pin 4 of CN404

WF3

Pin 29 of CN401

Page 53

11-2

LC8PWF

VIDEO-B 0.5V

WF8

Pin 29 of CN404

WF9

Pin 28 of CN404

WF10

Pin 26 of CN404

AUDIO(L) 0.5V 0.5ms

WF7

Pin 22 of CN401

20µs

VIDEO-G 0.5V

VIDEO-R 0.5V

Input: PAL Color Bar Signal (with 1kHz Audio Signal)

WF7 ~ WF10 = Waveforms to be observed at

Waveform check points. (Shown in Schematic Diagram.)

Page 54

12-1

A03P0WI

WIRING DIAGRAMS

CN3903CL3903

GND

LVDS-ED3(-)

LVDS-ECLK(-)

LVDS-ED0(-)

GND

LVDS-ED4(+)

LVDS-ED4(-)

LVDS-ED3(+)

GND

LVDS-ED2(+)

LVDS-ED2(-)

LVDS-ED1(+)

LVDS-ED1(-)

LVDS-ED0(+)

GND

LVDS-ECLK(+)

GND

LCD+12V

GND

25NU26NU27NU28NU29NU30NU31

GND

32NU33NU34

LVDS-OD4(+)

LVDS-OD4(-)

LVDS-OD3(+)

LVDS-OD3(-)

LVDS-OD2(+)

LVDS-OD2(-)

LVDS-OD1(+)

LVDS-OD1(-)

LVDS-OD0(+)

LVDS-OD0(-)

GND

LVDS-CLK(+)

LVDS-CLK(-)

GND

39404142434445464748495051

161214

101513

735

214

INVERTER

POWER CBA

TU1 TUNER UNIT

PC-

AUDIO-IN

POWER SUPPLY CBA

DIGITAL MAIN CBA UNIT

HDMI-

CONNECTOR-2

HDMI-

CONNECTOR-1

HDMI-

CONNECTOR-3

D-SUB

CONNECTOR

LCD MODULE ASSEMBLY

CL801

CN801

SP(R)+

SP(R)-

CL802

CN802

SP(L)+

SP(L)-

SP801

SPEAKER

R-CH

SP802

SPEAKER

L-CH

COMPONENT

-Y-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN COMPONENT-

AUDIO(L)-IN

COMPONENT-

AUDIO(R)-IN

VIDEO-IN

AUDIO(L)

-IN

AUDIO(R)

-IN

S-VIDEO

-IN

CN610

CN1810

H.V.(BLACK)

GND

P-ON-H1

BACKLIGHT-ADJ

PROTECT3

GND

AL+3.3V

HOT-GND(WHITE)

JUNCTION CBA

JACK CBA

IR SENSOR CBA

CN103

CN101

CN201A

CN202B

123

234

GND

HEADPHONE(L)

HEADPHONE(R)

HEADPHONE-DET

GND

4 AL+3.3V

REMOTE

POWER-LED

STANDBY-LED

13245

KEY-IN1

AL+3.3V

REMOTE

POWER-LED

STANDBY-LED

KEY-IN1

CL102B

FUNCTION CBA

CL103A CL103B

CL102A

GND

2 2

1 1AL+3.3V

3 3

KEY-IN1

CN3711CL452CN452

GND

2 1

P-ON+3.3V(NU)

3 2

LCD+12V

4 3

LCD+12V

5 4

GND6GND(NU)

CL453

CL401

CL403

CL402

CL404

CN600

CN1801

H.V.(BLACK)

HOT-15V(RED)34HOT-GND(WHITE)

CN3703CN403

231921

172220

141012

513

BACKLIGHT-ADJNUNU

SCART-OUT-SEL

GND

AMP(R)-OUT

KEY-IN1

GND

AMP(L)-OUT

AUDIO -MUT E

GND

REMOTE

LED1

DIF-OUT2

GND

DIF-OUT1

IF-AGC

GND

SCL

GND

SIF(-)

SIF(+)

GND

TU-CVBS

SDA

BACKLIGHT-SW

GND

2 2

CN3701CN402

724

1014121816

537

252123

192422

161214

101513

735

RESET

P-ON-H2

P-ON-H1

P-ON+9V

GND

AL+3.3V

P-ON+3.3V

GND

P-ON+3.3V

GND

LCD+12V(NU)

GND

AL+3.3V(1)

GND

GND26AL+5V27P-ON+5V28P-ON+5V

2524262728

262728

231921

172220

141012

513

2524262728

262728

P-ON+5V

AL+5V

PROTECT3

PROTECT1

HEADPHONE(L)

RGB-AUDIO(L)-OUT1

RGB-AUDIO(R)-OUT1

GND

RGB-AUDIO(R)-IN1

RGB-AUDIO(L)-IN1

RGB-AUDIO(R)-OUT2

GND

RGB-AUDIO(L)-OUT2

GND

RGB-AUDIO(R)-IN2

RGB-AUDIO(L)-IN2

COM-AUDIO(R)

AUDIO(R)

COM-AUDIO(L)

GND

AUDIO(L)

GND

S-VIDEO-Y-IN

GND

S-VIDEO-C-IN

PC-AUDIO(L)

PC-AUDIO(R)

CN401

HEADPHONE(R)

GND

CN3704

252123

192422

161214

101513

HEADPHONE-DET

SPDIF

252123

192422

161214

101513

321

GND

COM-VIDEO-Pb-IN

GND

COM-VIDEO-

-IN

GND

SLOW-SW2

GND

RGB-VIDEO-IN2

VIDEO-OUT2

GND

VIDEO-R2

SLOW-SW1

GND

FBIN1

RGB-VIDEO-IN1

GND

VIDEO-R1

GND

VIDEO-G1

VIDEO-B1

VIDEO-OUT1

CN404

COM-VIDEO-

-IN

GND

CN3702

252123

192422

161214

101513

VIDEO-IN

GND

262728

252123

192422

161214

101513

321

SCART

JACK 1

SCART

JACK 2

HEADPHONE

JACK

DIGITAL

AUDIO-OUT

(COAXIAL)

CARD SLOT

USB JACK

CN453

CN1851

BACKLIGHT-SW

GND

BACKLIGHT-ADJ

BACKLIGHT-SWNUGND

GND

PANEL+24V

CL1852

PANEL+24V12PANEL+24V13PANEL+24V

CN1852

CN601

AC CORD

INLET

CL1601

Comparison Chart of

Models and Marks

Model Mark

LH8-M40BB A

LT8-M40BB

Page 55

13-1 A03P0_P1CEX

EXPLODED VIEWS

Cabinet

A12

B14

Stand Cover Assembly

L17

L18

L10

B15

L15

Digital Main CBA Unit

Inverter Power CBA

Function CBA

Jack CBA

Power Supply CBA

L13

A11

B11

B17

B19

LCD-1

X803

X3301

L16

Junction CBA

CL102A

CL404

CL402

CL401

CL601

CL3903

CL452

CL1852

CL453

CL403

L13

B15

CL802

SP802

SP801

B19

A10

L15

L16

B15

L16

B17

B12

B10

IR Sensor CBA

See Electrical Parts List for parts with this mark.

CL801

CL103A

CL201A

Page 56

13-2 A03P0PEX

Packing

Tape

Packing Tape

PP Band

Packing Tape

Some Ref. Numbers are not in sequence.

Stand Cover Assembly

FRONT

AC601

Page 57

20100323 14-1 A03P0/P1EL

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

! have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Comparison Chart of Models and Marks

Model Mark

LH8-M40BB A

LT8 - M 4 0 B B B

Ref. No. Mark Description Part No.

STAND COVER ASSEMBLY A03P0EZ 1ESA23066

A1 FRONT CABINET A03P0EP 1EM025222

A2 KNOB FRAME A03P0EP 1EM223824

A3 A DECORATION PLATE A03P0EP 1EM024907

A3 B DECORATION PLATE A03P1EP 1EM024908

A4 A REAR CABINET A03P0EP 1EM024909

A4 B REAR CABINET A03P1EP 1EM024910

A6 JACK HOLDER(HP) A03A0EP 1EM326877

A9 FUNCTION KNOB A03P0EP 1EM223825

A10 A POP LABEL A03P0EP ----------

A10 B POP LABEL A03P1EP ----------

A11 JACK HOLDER A93F0FP 1EM123494A

A12 STAND SUB COVER A03P0EP 1EM327558

B1 SHIELD BOX A03A0EP 1EM223605

B2 TUNER SHIELD A03A0EP 1EM223604

B3 STAND BRACKET A03P0EP 1EM124196

B4 WALL MOUNT BRACKET(L) A03P0EP 1EM124193

B5 WALL MOUNT BRACKET(R) A03P0EP 1EM124194

B6 SPEAKER HOLDER A01P0UH 1EM124113

B7 PCB HOLDER A03P0EP 1EM124195

B8 AC INLET HOLDER A01P0UH 1EM327037

B14 STAND HINGE A01P0UH 1EM124035

B15 CLOTH 10X150XT1.0 1EM421092

B17 GASKET A8AF0UH 1EM425861

CL401 WIRE ASSEMBLY 29PIN FFC 29PIN

50MM

WX1A94F0-101

CL402 WIRE ASSEMBLY 29PIN FFC 29PIN

50MM

WX1A94F0-101

CL403 WIRE ASSEMBLY 29PIN FFC 29PIN

50MM

WX1A94F0-101

CL404 WIRE ASSEMBLY 29PIN FFC 29PIN

50MM

WX1A94F0-101

CL452 WIRE ASSEMBLY 4-6PIN 4-6PIN/280MM/

AWG2 4/U

WX1A03P0-204

CL453 WIRE ASSEMBLY 7PIN FFC 7PIN/50MM WX1A03A0-102

CL601 WIRE ASSEMBLY 2PIN 2PIN/120MM/

AWG1 8/U L1

WX1A03P0-304

CL801 WIRE ASSEMBLY 2PIN 2PIN/400MM/

AWG2 4/U L1

WX1A03P0-203

CL802 WIRE ASSEMBLY 2PIN 2PIN/310MM/

AWG2 4/U L1

WX1A03P0-202

CL1852 WIRE ASSEMBLY 14PIN 14PIN/230MM/

AWG2 4/U L

WX1A03P0-201

CL3903 WIRE ASSEMBLY 51-51PIN LVDS 51-

51PIN/320MM/AWG32

WX1A03P0-401

L2 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100

L4 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080

L6 ASSEMBLED SCREW ( D9 M3X6 )

A71F0UH

1EM424392B

L8 S-TIGHT SCREW M3X6 BIND

HEAD+BLACK

GBHS3060

L9 HEX SCREW #4-40 7MM 1EM430139

SP801 SP EAKER MAGNETIC S0412F06A or DSD0809XQ006

SPEAKER MAGNETIC 8OHM/10W YDP411-5FN

DSD0809EFU01

SP802 SP EAKER MAGNETIC S0412F06A or DSD0809XQ006

SPEAKER MAGNETIC 8OHM/10W YDP411-5FN

DSD0809EFU01

X803 THE RMOSTA R TMS-L-2(12*1 2HC) XK10000X4003

X3301 THERMOSTAR TMS-L-2(12*12HC) XK10000X4003

PAC KI NG

S5 SET BAG A 03P0EP 1EM327238

S9 STAND BAG A91H2U H 1EM42 8517

ACCESSORY

X3 REMOTE CON TROL NF036RD 170/

ECPLC6.501/NF036

NF036RD

Ref. No. Mark Description Part No.

A8! ARATING LABEL A03P0EP ----------

A8! BRATING LABEL A03P1EP ----------

B15 CLOTH 10X150XT1.0 1EM42 1092

B19 CLOTH(B ) L5201U0 15X10X1.0T 0EM400076

L1 SCREW P-TIGHT M4X14 BIND

HEAD+BLK

GBHP4140

L2 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100

L6 ASSEMBLED SCREW ( D9 M3X6 )

A71F0UH

1EM424392B

L7 DOUBLE SEMS SCREW M5X12 BLK

M5X12PAN HEAD +BLK

FPH35120

L10 SCREW S-TIGHT 3X8 WASHER

HEAD+BLAC

GCHS3080

L13 SCREW SEMS M4X8 PAN HEAD + FPJ34080

L15 DOUBLE SEMS SCREW M5X8 M5X8

PA N H E A D +

FPJ35080

L16 SCREW S-TIGHT M4X5 BIND HEAD+ GBJS4050

L17 SCREW TAP TIGHT M3X10 BIND

HEAD+BLK NI

GBHS3100

L18 SCREW P-TIGHT 3X12 BIND HEAD+

BLK

GBHP3120

LCD-1 LCD MODULE 40W LTA40OHM01 UDULCD0SM006

PAC KI NG

S1 A CARTON(U) A03P0EP 1EM3276 17

S1 B CARTON(U) A03P1EP 1EM3276 18

S2 STYROFOAM TOP A03P0 EP 1EM024925

S3 STYROFOAM BOTTOM A03P0EP 1EM024926

S4 CARTON(L) A0 3P0EP 1EM327619

S6 SERIAL NO. LABEL L9750UA -- --------

ACCESSORIES

AC601 ! CORD W/O A GND WIRE CB/162/NO/

BLACK

WAE 0162 LW003

! CORD W/O A GND WIRE CEE/152/NO/

BLACK

WAE 152Z HN0 01

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A

X2! AOWNERS MANUAL(WE-10) A03P0EP or1EMN25899

! AOWNERS MANUAL(PL-7) A03P0EP 1EMN25900

X2! BOWNERS MANUAL(WE-10) A03P1EP or1EMN25901

! BOWNERS MANUAL(PL-7) A03P1EP 1EMN25902

X4 BATTERY R6DB/2PA XB0M601MS00 3

X5 STAND SCREW KIT A03P0EP 1ESA23712

Ref. No. Mark Description Part No.

Page 58

20100323 15-1 A03P0/P1EL

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

Comparison Chart of Models and Marks

DIGITAL MAIN CBA UNIT

POWER SUPPLY ASSEMBLY

POWER SUPPLY CBA

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Model Mark

LH8-M40BB A

LT8 - M 4 0 B B B

Ref. No. Mark Description Part No.

ABDIGITAL MAIN CBA UNIT

DIGITAL MAIN CBA UNIT

A03P0MMA-001 A03P1MMA-001

Ref. No. Mark Description Part No.

ABPOWER SUPPLY ASSEMBLY

POWER SUPPLY ASSEMBLY Consists of the following:

A03P0MPW-001 A03P1MPW-001

POWER SUPPLY CBA JACK CBA

----------

Ref. No. Mark Description Part No.

POWER SUPPLY CBA Consists of the following:

----------

CAPACITORS

C11 CHIP CERAMIC CAP. CH J 15pF/50V CHD1JJ3CH150 C12 CHIP CERAMIC CAP.(1608) B K 0.01µF/

50V

CHD1JK30B103

C13 CHIP CERAMIC CAP.(1608) B K 0.01µF/

50V

CHD1JK30B103

C16 CHIP CERAMIC CAP.(1608) CH J 47pF/

50V

CHD1JJ3CH470

C18 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V

CHD1JJ3CH101

C19 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V

CHD1JJ3CH101

C20 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C21 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

CHD1EZ30F104

C22 CHIP CERAMIC CAP.(1608) CH J 47pF/

50V

CHD1JJ3CH470

C24 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V

CHD1JJ3CH101

C27 CHIP CERAMIC CAP.(1608) B K 0.01µF/

50V

CHD1JK30B103

C28 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C31 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

CHD1EZ30F104

C33 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

C34 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

C35 CHIP CERAMIC CAP.(1608) B K 0.1µF/

25V

CHD1EK30B104

C36 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221 C37 CHIP CERAMIC CAP.(1608) B K 0.1µF/

25V

CHD1EK30B104

C38 CHIP CERAMIC CAP.(1608) B K 1µF/10V CHD1AK30B105

C181 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V

CHD1JJ3CH101

C182 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

50V

CHD1JZ30F104

C204 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C205 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C206 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C207 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C208 A CHIP CERAMIC CAP.(1608) CH J 33pF/

50V

CHD1JJ3CH330

C209 A CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105

C213 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V

CHD1JJ3CH101

C214 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V

CHD1JJ3CH101

C215 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V

CHD1JJ3CH101

C216 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C217 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C222 CHIP CERAMIC CAP.(1608) B K 1000pF/

50V

CHD1JK30B102

C223 CHIP CERAMIC CAP.(1608) B K 1000pF/

50V

CHD1JK30B102

C301 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

C302 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V

CHD1JJ3CH101

C303 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331 C304 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

C305 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V

CHD1JJ3CH101

C306 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C307 CHIP CERAMIC CAP.(1608) CH J 33pF/

50V

CHD1JJ3CH330

C308 CHIP CERAMIC CAP.(1608) CH J 33pF/

50V

CHD1JJ3CH330

C309 CHIP CERAMIC CAP.(1608) CH J 33pF/

50V

CHD1JJ3CH330

C310 ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471

C311 CHIP CERAMIC CAP.(1608) CH J 33pF/

50V

CHD1JJ3CH330

C312 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

C313 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V

CHD1JJ3CH101

C314 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331 C315 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

C316 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V

CHD1JJ3CH101

C317 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331

C318 CHIP CERAMIC CAP.(1608) CH J 33pF/

50V

CHD1JJ3CH330

C319 ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471

C320 CHIP CERAMIC CAP.(1608) CH J 33pF/

50V

CHD1JJ3CH330

C323 CHIP CERAMIC CAP.(1608) B K 3300pF/

50V

CHD1JK30B332

C324 CHIP CERAMIC CAP.(1608) B K 3300pF/

50V

CHD1JK30B332

C401 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

CHD1EZ30F104

C402 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

CHD1EZ30F104

Ref. No. Mark Description Part No.

Page 59

20100323 15-2 A03P0/P1EL

C403 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

CHD1EZ30F104

C404 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

CHD1EZ30F104

C421 CHIP CERAMIC CAP.(1608) CH D 10pF/

50V or

CHD1JD3CH100

CHIP CERAMIC CAP.(1608) CH J 10pF/ 50V

CHD1JJ3CH100

C452 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

CHD1EZ30F104

C454 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

CHD1EZ30F104

C456 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

CHD1EZ30F104

C502 ELECTROLYTIC CAP. 2200µF/25V M or CE1EMZPDL222

ELECTROLYTIC CAP. 2200µF/25V M CE1EMZNDL222

C503 ELECTROLYTIC CAP. 2200µF/25V M or CE1EMZPDL222

ELECTROLYTIC CAP. 2200µF/25V M CE1EMZNDL222 C504 ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101 C505 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C507 CAP ELE STD-85 4700µF 6.3V SL or CE0KMZNDL472

ELECTROLYTIC CAP. 4700µF/6.3V SM or CE0KMZPDL472

CAP ELE 4700µF/6.3V/M/85 or CEA472KSN002

CAP ELE 4700µF/6.3V/M/85 CEA472TEP002 C508 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102

C509 CERAMIC CAP. 1500pF/2KV or CA3D152PAN04

CERAMIC CAP RB 1500pF/2KV or CA3D152TE006

CERAMIC CAP. BL 1500pF/2KV CA3D152XF003 C511 ELECTROLYTIC CAP. 220µF/50V M or CE1JMZADL221

ELECTROLYTIC CAP 220µF/50V M CE1JMZPDL221 C514 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2 C515 ELECTROLYTIC CAP 3300µF/10V or CE1AMZNDL332

ELECTROLYTIC CAP. 3300µF/10V M CE1AMZPDL332 C516 ELECTROLYTIC CAP. 2200µF/10V M or CE1AMZNDL222

ELECTROLYTIC CAP. 2200µF/10V M CE1AMZPDL222 C517 ELECTROLYTIC CAP. 1000µF/10V M CE1AMASDL102 C518 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V

CHD1JK30B104

C519 POLYESTER FILM CAP. (PB FREE)

0.1µF/100V J or

CA2A104DT018

CAP POLYESTER FILM 0.1µF/100V J or CA2A104SER02

CAP POLYESTER FILM 0.1µF/100V/J/

PCMT or

CTA104PKR003

POLYESTER FILM CAP. 0.1µF/100V J or CMB104EUR001

POLYESTER FILM CAP. (PB FREE)

0.1µF/100V J

CA2A104DT026

C521 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101 C522 ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZPDL102

ELECTROLYTIC CAP. 1000µF/25V M CE1EMZNDL102 C524 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C525 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101 C527 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C528 ELECTROLYTIC CAP. 1000µF/10V M CE1AMASDL102 C529 CHIP CERAMIC CAP.(1608) F Z 0.1µF/

25V

CHD1EZ30F104

C531 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C533 CHIP CERAMIC CAP.(1608) B K 0.22µF/

16V

CHD1CK30B224

C534 CHIP CERAMIC CAP.(1608) B K 0.22µF/

16V

CHD1CK30B224

C535 CHIP CERAMIC CAP.(1608) B K 0.047µF/

50V

CHD1JK30B473

C604! CAP METALIZED FILM 0.47µF/300V K

3.5MM or

CT2F474DC004

! CAP METALIZED FILM 0.47µF/310V /K/

LE-MX or

CTA4740DC001

! CAP METALIZED FILM 0.47µF/250V/K/

MPX

CTA474EUR001

C605! CAP METALIZED FILM 0.47µF/300V K

3.5MM or

CT2F474DC004

! CAP METALIZED FILM 0.47µF/310V /K/

LE-MX or

CTA4740DC001

! CAP METALIZED FILM 0.47µF/250V/K/

MPX

CTA474EUR001

C606 CERAMIC CAP. B K 0.01µF/500V CCD2JKP0B103

Ref. No. Mark Description Part No.

C607 CERAMIC CAP. B K 0.01µF/500V CCD2JKP0B103

C608! CAP CERAMIC 680pF/250V KX or CA2E681MR100

! SAFETY CAP. 680pF/250V M or CCN2HMN0E681

! SAFETY CAP. 680pF/250 CCN2EKA0B681

C610 CAP ELECTROLYTIC 270µF/400V/M/30/

30 or

CA2H271DYG10

ELECTROLYTIC CAPACITOR 270µF/ 400V or

CA2H271NC226

ELECTROLYTIC CAP. 270µF/400V M CA2H271S6037

C621 CERAMIC CAP. 470pF/2KV or CA3D471PAN04

CERAMIC CAP. RB 470pF/2KV or CA3D471TE006

CERAMIC CAP. BL 470pF/2KV CA3D471XF003

C623 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C624 CAP CERAMIC (AX) 220pF/50V/B/K CA1J221TU061 C625 CAP CERAMIC (AX) 0.01µF/50V/B/K CA1J103TU061 C626 CAP CERAMIC (AX) 0.022µF/50V/B/K CA1J223TU061 C628 ELECTROLYTIC CAP. 100µF/35V M CE1GMASDL101

C629 POLYESTER FILM CAP. (PB FREE)

0.001µF/100V J or

CA2A102DT018

CAP POLYESTER FILM 0.001µF/100V J orCA2A102SER02

POLYESTER FILM CAP. 0.001µF/100V J orCMB102EUR001

POLYESTER FILM CAP. (PB FREE)

0.001µF/100V J or

CA2A102DT026

CAP POLYESTER FILM 0.001µF/100/J/ AMB

CMB1020DT001

C630 ELECTROLYTIC CAP. 100µF/35V M CE1GMASDL101 C631 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V

CHD1JK30B104

C801 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V

CHD1JK30B104

C802 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V

CHD1JK30B104

C803 CHIP CERAMIC CAP.(1608) B K 0.47µF/

16V

CHD1CK30B474

C805 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V

CHD1JK30B104

C806 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V

CHD1JK30B104

C807 CHIP CERAMIC CAP.(1608) B K 0.47µF/

16V

CHD1CK30B474

C809 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2 C810 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V

CHD1JK30B104

C811 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V

CHD1JK30B104

C812 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C813 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V

CHD1JK30B104

C814 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C815 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C816 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2 C817 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C818 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C819 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C820 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V

CHD1JK30B104

C821 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V

CHD1JK30B104

C822 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C823 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V

CHD1JK30B104

C824 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105 C825 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C826 ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3 C827 CHIP CERAMIC CAP.(1608) B K 0.1µF/

50V

CHD1JK30B104

C828 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470

C830 CHIP CERAMIC CAP.(1608) CH J

1000pF/50V

CHD1JJ3CH102

C831 CHIP CERAMIC CAP.(1608) CH J

1000pF/50V

CHD1JJ3CH102

C832 CHIP CERAMIC CAP.(1608) CH J

1000pF/50V

CHD1JJ3CH102

Ref. No. Mark Description Part No.

Page 60

20100323 15-3 A03P0/P1EL

C833 CHIP CERAMIC CAP.(1608) CH J

1000pF/50V

CHD1JJ3CH102

C835 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V

CHD1JJ3CH101

C836 CHIP CERAMIC CAP.(1608) CH J 100pF/

50V

CHD1JJ3CH101

C838 CHIP CERAMIC CAP.(1608) B K 1000pF/

50V

CHD1JK30B102

C839 CHIP CERAMIC CAP.(1608) B K 1000pF/

50V

CHD1JK30B102

C840 CHIP CERAMIC CAP.(1608) B K 1000pF/

50V

CHD1JK30B102

C841 CHIP CERAMIC CAP.(1608) B K 1000pF/

50V

CHD1JK30B102

CONNECTORS

CN101 242 SERIES CONNECTOR

224202106W1

J322C06TG001

CN401 FFC CONNECTOR IMSA-9615S-29A-PP-

A or

JC96J29ER007

CONNECTOR PRINT MES 00 6232 029

006 800+ or

JC62G29UG026

CONNECTOR PRINT MES 29 S 1.0-11-

29P

JC1129JSH001

CN402 FFC CONNECTOR IMSA-9615S-29A-PP-

A or

JC96J29ER007

CONNECTOR PRINT MES 00 6232 029

006 800+ or

JC62G29UG026

CONNECTOR PRINT MES 29 S 1.0-11-

29P

JC1129JSH001

CN403 FFC CONNECTOR IMSA-9615S-29A-PP-

A or

JC96J29ER007

CONNECTOR PRINT MES 00 6232 029

006 800+ or

JC62G29UG026

CONNECTOR PRINT MES 29 S 1.0-11-

29P

JC1129JSH001

CN404 FFC CONNECTOR IMSA-9615S-29A-PP-

A or

JC96J29ER007

CONNECTOR PRINT MES 00 6232 029

006 800+ or

JC62G29UG026

CONNECTOR PRINT MES 29 S 1.0-11-

29P

JC1129JSH001

CN452 PH CONNECTOR TOP 6P B6B-PH-K-S

(LF)(SN) or

J3PHC06JG029

CONNECTOR PRINT OSU C S 440054-6 orJ344C06AP001

CONNECTOR PRINT OSU JS-1125-

06(K)

J3JT06CHY001

CN453 FPC/FFC CONNECTOR IMSA-9615S-

07A-PP-A or

JC96J07ER007

CONNECTOR PRINT MES 07 S 1.0-11-

7P or

JC1107JSH001

CONNECTOR PRINT MES 00 6232 007

006 800+

JC62G07UG026

CN600

WIRE ASSEMBLY 3PIN 3PIN/70MM/

AWG1 8/U L10

WX1A03P0-303

CN601 CONNECTOR B2P3-VH(LF)(SN) or J3VH020JG001

CONNECTOR PRINT OSU 02/S/JS-

1120-03N02

J3JT02CHY004

CN610

WIRE ASSEMBLY 2PIN 2PIN/80MM/

AWG1 8/B LAC

WX1A03A0-302

CN801 PH CONNECTOR TOP 2P B2B-PH-K-S

(LF)(SN) or

J3PHC02JG029

CONNECTOR PRINT OSU TOP 2P

440054-2 or

J344C02AP001

CONNECTOR PRINT OSU JS-1125-

02KK

J3JT02CHY002

CN802 PH CONNECTOR TOP 2P B2B-PH-K-S

(LF)(SN) or

J3PHC02JG029

CONNECTOR PRINT OSU TOP 2P

440054-2 or

J344C02AP001

CONNECTOR PRINT OSU JS-1125-

02KK

J3JT02CHY002

DIODES

D183 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D301 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D302 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

Ref. No. Mark Description Part No.

D303 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D304 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D305 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D306 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D307 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D308 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D309 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D310 DIODE ZENER 3V9BSB-T26 or NDTB3R9BST26

DIODE ZENER HZS3.9NB2TE-EQ QDTB0HZS3R9N

D311 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D312 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D313 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D314 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D315 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D316 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D317 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D318 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D319 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D320 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D321 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D322 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D323 DIODE ZENER 3V9BSB-T26 or NDTB3R9BST26

DIODE ZENER HZS3.9NB2TE-EQ QDTB0HZS3R9N

D324 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D325 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D326 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D501 DIODE ZENER 13BSB-T26 or NDTB013BST26

ZENER DIODE MTZJT-7713B or QDTB00MTZJ13

DIODE ZENER DO-34 MTZJ13B or NDTB00MTZJ13

DIODE ZENER HZS13NB2TE-EQ QDTBHZS13NB2

D502 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D503 SCHOTTKY BARRIER DIODE SB390 NDWZ000SB390

D504 SCHOTTKY BARRIER DIODE SB390 NDWZ000SB390

D505 DIODE ZENER 18BSB-T26 or NDTB018BST26

DIODE ZENER HZS18NB2TE-EQ QDTBHZS18NB2

D508 DIODE ZENER 8V2BSA-T26 or NDTA8R2BST26

DIODE ZENER HZS8.2NB1TE-EQ QDTA0HZS8R2N

D511 SCHOTTKY BARRIER DIODE SB340 NDWZ000SB340

D514 DIODE FR154 or NDLZ000FR154

DIODE FR154BD NDL1000FR154

D515 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

Ref. No. Mark Description Part No.

Page 61

20100323 15-4 A03P0/P1EL

D516 DIODE ZENER 1ZB43BB NDWZ0001ZB43

D520 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D522 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D523 SCHOTTKY BARRIER DIODE SB340 NDWZ000SB340

D524 SCHOTTKY BARRIER DIODE SB340 NDWZ000SB340

D525 SCHOTTKY BARRIER DIODE SB270-B/PNDWZ000SB270

D526 IC SHUNT REGULATOR KIA431-AT/P or NSZBA0TJY036

IC SHUNT REGULATOR SL431A-AT or NSZBA0TAUK01

IC SHUNT REGULATOR AS431BZTR-E1 NSZBA0TBCD01

D527 DIODE FR154 or NDLZ000FR154

DIODE FR154BD NDL1000FR154

D528 DIODE FR154 or NDLZ000FR154

DIODE FR154BD NDL1000FR154

D529 DIODE ZENER 6V2BSB-T26 or NDTB6R2BST26

DIODE ZENER HZS6.2NB2TE-EQ QDTB0HZS6R2N

D530 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D531 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

D532 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

D533 DIODE ZENER 6V2BSB-T26 or NDTB6R2BST26

DIODE ZENER HZS6.2NB2TE-EQ QDTB0HZS6R2N

D534 DIODE FR104-B or NDLZ000FR104

DIODE FR104BB NDL1000FR104

D536 DIODE ZENER 6V2BSC-T26 or NDTC6R2BST26

DIODE ZENER HZS6.2NB3TE-EQ QDTC0HZS6R2N

D537 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D538 DIODE ZENER 6V8BSB-T26 or NDTB6R8BST26

DIODE ZENER HZS6.8NB2TE-EQ QDTB0HZS6R8N

D539 SCHOTTKY BARRIER DIODE SB390 NDWZ000SB390

D540 SCHOTTKY BARRIER DIODE SB390 NDWZ000SB390

D541 DIODE ZENER 3V3BSB-T26 or NDTB3R3BST26

DIODE ZENER HZS3.3NB2TE-EQ QDTB0HZS3R3N

D542 DIODE ZENER 6V2BSB-T26 or NDTB6R2BST26

DIODE ZENER HZS6.2NB2TE-EQ QDTB0HZS6R2N

D543 DIODE ZENER 5V6BSC-T26 or NDTC5R6BST26

DIODE ZENER HZS5.6NB3TE-EQ QDTC0HZS5R6N

D544 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

D545 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D546 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D549 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D550 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D552 IC SHUNT REGULATOR KIA431-AT/P or NSZBA0TJY036

IC SHUNT REGULATOR SL431A-AT or NSZBA0TAUK01

IC SHUNT REGULATOR AS431BZTR-E1 NSZBA0TBCD01

D554 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D555 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

Ref. No. Mark Description Part No.

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D609 DIODE 1N5408-B/P or NDLZ001N5408

DIODE RECTIFIEY 1N5408BH NDL2001N5408

D610 DIODE 1N5408-B/P or NDLZ001N5408

DIODE RECTIFIEY 1N5408BH NDL2001N5408

D611 DIODE 1N5408-B/P or NDLZ001N5408

DIODE RECTIFIEY 1N5408BH NDL2001N5408

D612 DIODE 1N5408-B/P or NDLZ001N5408

DIODE RECTIFIEY 1N5408BH NDL2001N5408

D624 DIODE ZENER 27BSB-T26 or NDTB027BST26

DIODE ZENER HZS27NB2TE-EQ QDTBHZS27NB2

D625 DIODE ZENER 27BSB-T26 or NDTB027BST26

DIODE ZENER HZS27NB2TE-EQ QDTBHZS27NB2

D626 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D627 DIODE FR104-B or NDLZ000FR104

DIODE FR104BB NDL1000FR104

D628 DIODE FR104-B or NDLZ000FR104

DIODE FR104BB NDL1000FR104

D629 DIODE 1N5399BE or NDL1001N5399

DIODE 1N5399-B/P NDLZ001N5399

D630 DIODE ZENER 27BSB-T26 or NDTB027BST26

DIODE ZENER HZS27NB2TE-EQ QDTBHZS27NB2

D631 DIODE ZENER 1ZB18BB NDWZ0001ZB18

D634 DIODE FR104-B or NDLZ000FR104

DIODE FR104BB NDL1000FR104

D635 DIODE ZENER 9V1BSB-T26 or NDTB9R1BST26

DIODE ZENER HZS9.1NB2TE-EQ QDTB0HZS9R1N

D636 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D637 DIODE FR104-B or NDLZ000FR104

DIODE FR104BB NDL1000FR104

D638 DIODE FR104-B or NDLZ000FR104

DIODE FR104BB NDL1000FR104

D801 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D803 DIODE ZENER 18BSB-T26 or NDTB018BST26

DIODE ZENER HZS18NB2TE-EQ QDTBHZS18NB2

D804 DIODE ZENER 18BSB-T26 or NDTB018BST26

DIODE ZENER HZS18NB2TE-EQ QDTBHZS18NB2

D807 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D815 DIODE ZENER 18BSB-T26 or NDTB018BST26

DIODE ZENER HZS18NB2TE-EQ QDTBHZS18NB2

D816 DIODE ZENER 18BSB-T26 or NDTB018BST26

DIODE ZENER HZS18NB2TE-EQ QDTBHZS18NB2

ICS

IC1 IC SWITCH TC4053BF(EL N F) or QSZBA0TTS163

IC SWITCH 4053L-S16-R or NSZBA0TUTC04

IC ANALOG MULTIPLEXERS HCF4053M013TR or

NSZBA0SSS002

IC ANALOG MULTIPLEXER CD4053BNSR

NSZBA0TTY093

IC607! PHOTO COUPLER PS2561L1-1-A-V(L) QPEL561L11AV

IC621 IC SWITING FA5571N-D1-TE1/SOP-8 QSCA0T0FD003

IC803 IC D-AMP BD5426EFS-E2 QSZBA0TRM137

COILS

L11 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

L21 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

L202 INDUCTOR 0.22µH-J-26T LLAXJATTUR22 L203 INDUCTOR 0.22µH-J-26T LLAXJATTUR22 L204 INDUCTOR 0.22µH-J-26T LLAXJATTUR22

Ref. No. Mark Description Part No.

Page 62

20100323 15-5 A03P0/P1EL

L301 INDUCTOR 4.7µH-J-26T LLAXJATTU4R7 L302 INDUCTOR 4.7µH-J-26T LLAXJATTU4R7 L303 INDUCTOR 12µH-J-26T LLAXJATTU120 L304 INDUCTOR 12µH-J-26T LLAXJATTU120

L601A! LINE FILTER MS036 or LLBG00ZY2009

! LINE FILTER JLB2808 LLBG00ZXB004

L602A! LINE FILTER MS036 or LLBG00ZY2009

! LINE FILTER JLB2808 LLBG00ZXB004 L801 RADIAL LEAD INDUCTORS 33µH or LLARKGQTU330

COIL SEALED POWER INDUCTORS

CWKBNP-330K 33µH or

LLF3300KV002

COIL DRUM JLC0896 33µHLLED0A0XB002 L802 RADIAL LEAD INDUCTORS 33µH or LLARKGQTU330

COIL SEALED POWER INDUCTORS

CWKBNP-330K 33µH or

LLF3300KV002

COIL DRUM JLC0896 33µHLLED0A0XB002 L803 RADIAL LEAD INDUCTORS 33µH or LLARKGQTU330

COIL SEALED POWER INDUCTORS

CWKBNP-330K 33µH or

LLF3300KV002

COIL DRUM JLC0896 33µHLLED0A0XB002 L804 RADIAL LEAD INDUCTORS 33µH or LLARKGQTU330

COIL SEALED POWER INDUCTORS

CWKBNP-330K 33µH or

LLF3300KV002

COIL DRUM JLC0896 33µHLLED0A0XB002

TRANSISTORS

Q11 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q12 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q15 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q181 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q182 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q183 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

Ref. No. Mark Description Part No.

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q501 NPN TRANSISTOR POWER 2SC4881F

HFE MAX320 or

QQWZ2SC4881F

TRANSISTOR(PB FREE) KTC2026-Y/P orNQEYKTC2026P

NPN TRANSISTOR STC403 NQEZ00STC403

Q504 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q505 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q506 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q508 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q510 NPN TRANSISTOR POWER 2SC4881F

HFE MAX320 or

QQWZ2SC4881F

TRANSISTOR(PB FREE) KTC2026-Y/P orNQEYKTC2026P

NPN TRANSISTOR STC403 NQEZ00STC403

Q511 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q512 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

Ref. No. Mark Description Part No.

Page 63

20100323 15-6 A03P0/P1EL

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q513 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q514 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q516 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q517 TRANSISTOR 2SC2120-Y(TE2 F T) or QQSY2SC2120F

TRANSISTOR 2SC2120-O(TE2 F T) or QQS02SC2120F

TRANSISTOR KTC3203-Y-AT/P or NQSYKTC3203P

TRANSISTOR KTC3203-O-AT/P or NQS0KTC3203P

NPN TRANSISTOR 2SC5344 Y or NQSY02SC5344

NPN TRANSISTOR 2SC5344O-AT NQS002SC5344

Q518 NPN TRANSISTOR POWER 2SC4881F

HFE MAX320 or

QQWZ2SC4881F

TRANSISTOR(PB FREE) KTC2026-Y/P orNQEYKTC2026P

NPN TRANSISTOR STC403 NQEZ00STC403

Q520 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q521 TRANSISTOR 2SC2120-Y(TE2 F T) or QQSY2SC2120F

TRANSISTOR 2SC2120-O(TE2 F T) or QQS02SC2120F

TRANSISTOR KTC3203-Y-AT/P or NQSYKTC3203P

TRANSISTOR KTC3203-O-AT/P or NQS0KTC3203P

NPN TRANSISTOR 2SC5344 Y or NQSY02SC5344

NPN TRANSISTOR 2SC5344O-AT NQS002SC5344

Q621 FET 2SK3566(Q) or QFWZ02SK3566

FET 2SK3566(Q M) QFQZSK3566QM

Q622 FET POWER MOS SMD KHB1D0N60D-

RTF/ PMC or

NF1ZKHB1D0N6

FET 2SK3498(T6L1FUNANQ) QF1Z02SK3498

Q623 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Ref. No. Mark Description Part No.

RESISTORS

R12 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R13 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R14 RES CARBON FILM 1/4W J 1.2k Ω or RCX4122FS002

RES CARBON FILM T 1/4W J 1.2k Ω RCX4122T1001

R15 RES CARBON FILM 1/4W J 100 Ω or RCX4101FS002

RES CARBON FILM T 1/4W J 100 Ω RCX4101T1001

R17 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R18 RES CARBON FILM 1/4W J 1k Ω or RCX4102FS002

RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001

R25 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002

R26 CHIP RES. 1/10W J 4.7k Ω or RRXAJR5Z0472

RES CHIP 1608 1/10W J 4.7k Ω RRXA472YF002

R30 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R31 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R33 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R35 RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002

RES CARBON FILM T 1/4W J 470 Ω RCX4471T1001

R37 CHIP RES. 1/10W J 390 Ω or RRXAJR5Z0391

RES CHIP 1608 1/10W J 390 Ω RRXA391YF002

R181 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R182 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R183 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R184 CHIP RES. 1/10W J 18k Ω or RRXAJR5Z0183

RES CHIP 1608 1/10W J 18k Ω RRXA183YF002

R186 CHIP RES. 1/10W J 33k Ω or RRXAJR5Z0333

RES CHIP 1608 1/10W J 33k Ω RRXA333YF002

R201 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R203 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R204 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R206 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R208 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R209 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R210 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R211 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R212 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R213 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R214 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R215 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002

R216 A CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

ARES CHIP 1608 1/10W J 22k Ω RRXA223YF002

R217 A CHIP RES. 1/10W J 300 Ω or RRXAJR5Z0301

ARES CHIP 1608 1/10W J 300 Ω RRXA301YF002

R222 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

Ref. No. Mark Description Part No.

Page 64

20100323 15-7 A03P0/P1EL

R226 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R227 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002 R228 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002 R229 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002 R230 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002 R301 CHIP RES. 1/10W J 560 Ω or RRXAJR5Z0561

RES CHIP 1608 1/10W J 560 Ω RRXA561YF002 R303 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002 R304 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002 R305 CHIP RES. 1/10W J 560 Ω or RRXAJR5Z0561

RES CHIP 1608 1/10W J 560 Ω RRXA561YF002 R307 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002 R308 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002 R309 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R310 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R311 CHIP RES. 1/10W J 6.8k Ω or RRXAJR5Z0682

RES CHIP 1608 1/10W J 6.8k Ω RRXA682YF002 R312 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002 R313 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R314 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R315 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R316 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R317 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R318 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R319 CHIP RES. 1/10W J 39 Ω or RRXAJR5Z0390

RES CHIP 1608 1/10W J 39 Ω RRXA390YF002 R320 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R321 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002 R322 CHIP RES. 1/10W J 560 Ω or RRXAJR5Z0561

RES CHIP 1608 1/10W J 560 Ω RRXA561YF002 R324 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002 R325 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002 R326 CHIP RES. 1/10W J 560 Ω or RRXAJR5Z0561

RES CHIP 1608 1/10W J 560 Ω RRXA561YF002 R328 CHIP RES. 1/10W J 15k Ω or RRXAJR5Z0153

RES CHIP 1608 1/10W J 15k Ω RRXA153YF002 R329 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002 R330 CHIP RES. 1/10W J 6.8k Ω or RRXAJR5Z0682

RES CHIP 1608 1/10W J 6.8k Ω RRXA682YF002 R331 CHIP RES. 1/10W J 2.2k Ω or RRXAJR5Z0222

RES CHIP 1608 1/10W J 2.2k Ω RRXA222YF002 R332 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002 R333 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

Ref. No. Mark Description Part No.

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R334 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R335 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R336 CHIP RES. 1/10W J 75 Ω or RRXAJR5Z0750

RES CHIP 1608 1/10W J 75 Ω RRXA750YF002

R422 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R423 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R495 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R503 METAL OXIDE FILM RES. 2W J 0.27 Ω or RN02R27ZU001

METAL OXIDE FILM RES. 2W J 0.27 Ω RN02R27DP004

R504 METAL OXIDE FILM RES. 2W J 0.27 Ω or RN02R27ZU001

METAL OXIDE FILM RES. 2W J 0.27 Ω RN02R27DP004

R506 RES CARBON FILM 1/4W J 1.5k Ω or RCX4152FS002

RES CARBON FILM T 1/4W J 1.5k Ω RCX4152T1001

R507 RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002

RES CARBON FILM T 1/4W J 470 Ω RCX4471T1001

R508 RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002

RES CARBON FILM T 1/4W J 470 Ω RCX4471T1001

R509 RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002

RES CARBON FILM T 1/4W J 470 Ω RCX4471T1001

R510 RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002

RES CARBON FILM T 1/4W J 470 Ω RCX4471T1001

R515 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R521 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R522 RES CARBON FILM 1/4W J 3.3k Ω or RCX4332FS002

RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001

R523 RES CARBON FILM 1/4W J 27k Ω or RCX4273FS002

RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001

R524 CHIP RES. 1/10W J 22k Ω or RRXAJR5Z0223

RES CHIP 1608 1/10W J 22k Ω RRXA223YF002

R526 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

R527 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R529 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R531 RES CARBON FILM 1/4W J 47k Ω or RCX4473FS002

RES CARBON FILM T 1/4W J 47k Ω RCX4473T1001

R532 RES CARBON FILM 1/4W J 6.8k Ω or RCX4682FS002

RES CARBON FILM T 1/4W J 6.8k Ω RCX4682T1001 R535 METAL OXIDE FILM RES. 1W J 0.27 Ω RN01R27ZU001 R536 CHIP RES. 1/10W F 10k Ω or RRXAFR5H1002

CHIP RES. 1/10W F 10k Ω or RRXAFR5Z1002

RES CHIP 1608 1/10W F 10.0k Ω RTW100 2YF00 2 R537 RES CARBON FILM 1/4W J 10 Ω or RCX4100FS002

RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001 R538 CHIP RES. 1/10W F 3.3k Ω or RRXAFR5H3301

CHIP RES.(1608) 1/10W F 3.3k Ω or RRXAFR5Z3301

RES CHIP 1608 1/10W F 3.30k Ω RTW330 1YF00 2 R540 RES CARBON FILM 1/4W J 270 Ω or RCX4271FS002

RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001 R541 RES CARBON FILM 1/4W J 22k Ω or RCX4223FS002

RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001 R545 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002

R546 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001 R547 RES CARBON FILM 1/4W J 270 Ω or RCX4271FS002

RES CARBON FILM T 1/4W J 270 Ω RCX4271T1001 R548 RES CARBON FILM 1/4W J 1k Ω or RCX4102FS002

Ref. No. Mark Description Part No.

Page 65

20100323 15-8 A03P0/P1EL

RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001

R549 RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002

RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001

R550 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

R551 RES CARBON FILM 1/4W J 12k Ω or RCX4123FS002

RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001

R552 RES CARBON FILM 1/4W J 12k Ω or RCX4123FS002

RES CARBON FILM T 1/4W J 12k Ω RCX4123T1001

R553 RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002

RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001

R556 CHIP RES. 1/10W J 47k Ω or RRXAJR5Z0473

RES CHIP 1608 1/10W J 47k Ω RRXA473YF002

R557 RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002

RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001

R558 RES CARBON FILM 1/4W J 27k Ω or RCX4273FS002

RES CARBON FILM T 1/4W J 27k Ω RCX4273T1001

R559 RES CARBON FILM 1/4W J 3.3k Ω or RCX4332FS002

RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001

R560 RES CARBON FILM 1/4W J 68 Ω or RCX4680FS002

RES CARBON FILM T 1/4W J 68 Ω RCX4680T1001

R562 RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002

RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001

R565 RES CARBON FILM 1/4W J 1.8k Ω or RCX4182FS002

RES CARBON FILM T 1/4W J 1.8k Ω RCX4182T1001

R566 RES CARBON FILM 1/4W J 1.8k Ω or RCX4182FS002

RES CARBON FILM T 1/4W J 1.8k Ω RCX4182T1001

R567 CHIP RES. 1/10W J 100k Ω or RRXAJR5Z0104

RES CHIP 1608 1/10W J 100k Ω RRXA104YF002

R568 CHIP RES. 1/10W J 6.8k Ω or RRXAJR5Z0682

RES CHIP 1608 1/10W J 6.8k Ω RRXA682YF002

R569 RES CARBON FILM 1/4W J 47 Ω or RCX4470FS002

RES CARBON FILM T 1/4W J 47 Ω RCX4470T1001

R570 RES CARBON FILM 1/4W J 1.8k Ω or RCX4182FS002

RES CARBON FILM T 1/4W J 1.8k Ω RCX4182T1001 R572 METAL OXIDE FILM RES. 1W J 1 Ω RN011R0ZU001 R573 RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002

RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R578 RES CARBON FILM 1/4W J 3.3k Ω or RCX4332FS002

RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001

R580 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

R581 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001 R583 RES CARBON FILM 1/4W J 100k Ω or RCX4104FS002

RES CARBON FILM T 1/4W J 100k Ω RCX4104T1001 R586 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R590 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

R591 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001 R594 RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002

RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R595 RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002

RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R598 RES CARBON FILM 1/4W J 470 Ω or RCX4471FS002

RES CARBON FILM T 1/4W J 470 Ω RCX4471T1001 R605! GLASS GLAZE RES. 1/2W J 1M Ω RXX2JZLZ0105 R621 A RES CHIP 3216 1/4W J 1.0M Ω or RRX4105HH034

ARES CHIP 3216 1/4W J 1.0M Ω or RRX4105YF004 ACHIP RES. 1/4W J 1M Ω RRX4JR7Z0105

R621 B CHIP RES. 1/4W J 1M Ω or RRX4JR7Z0105

BRES CHIP 3216 1/4W J 1.0M Ω or RRX4105HH034 BRES CHIP 3216 1/4W J 1.0M Ω RRX4105YF004

R622 A RES CHIP 3216 1/4W J 1.0M Ω or RRX4105HH034

ARES CHIP 3216 1/4W J 1.0M Ω or RRX4105YF004

Ref. No. Mark Description Part No.

ACHIP RES. 1/4W J 1M Ω RRX4JR7Z0105

R622 B CHIP RES. 1/4W J 1M Ω or RRX4JR7Z0105

BRES CHIP 3216 1/4W J 1.0M Ω or RRX4105HH034 BRES CHIP 3216 1/4W J 1.0M Ω RRX4105YF004

R623 A RES CHIP 3216 1/4W J 1.0M Ω or RRX4105HH034

ARES CHIP 3216 1/4W J 1.0M Ω or RRX4105YF004 ACHIP RES. 1/4W J 1M Ω RRX4JR7Z0105

R623 B CHIP RES. 1/4W J 1M Ω or RRX4JR7Z0105

BRES CHIP 3216 1/4W J 1.0M Ω or RRX4105HH034 BRES CHIP 3216 1/4W J 1.0M Ω RRX4105YF004

R624 A RES CHIP 3216 1/4W J 1.0M Ω or RRX4105HH034

ARES CHIP 3216 1/4W J 1.0M Ω or RRX4105YF004 ACHIP RES. 1/4W J 1M Ω RRX4JR7Z0105

R624 B CHIP RES. 1/4W J 1M Ω or RRX4JR7Z0105

BRES CHIP 3216 1/4W J 1.0M Ω or RRX4105HH034 BRES CHIP 3216 1/4W J 1.0M Ω RRX4105YF004

R625 A RES CHIP 3216 1/4W J 1.0M Ω or RRX4105HH034

ARES CHIP 3216 1/4W J 1.0M Ω or RRX4105YF004 ACHIP RES. 1/4W J 1M Ω RRX4JR7Z0105

R625 B CHIP RES. 1/4W J 1M Ω or RRX4JR7Z0105

BRES CHIP 3216 1/4W J 1.0M Ω or RRX4105HH034 BRES CHIP 3216 1/4W J 1.0M Ω RRX4105YF004

R628 CHIP RES. 1/10W F 3.3k Ω or RRXAFR5H3301

CHIP RES.(1608) 1/10W F 3.3k Ω or RRXAFR5Z3301 RES CHIP 1608 1/10W F 3.30k Ω RTW330 1YF00 2

R629 CHIP RES. 1/10W F 10k Ω or RRXAFR5H1002

CHIP RES. 1/10W F 10k Ω or RRXAFR5Z1002 RES CHIP 1608 1/10W F 10.0k Ω RTW100 2YF00 2

R630 CHIP RES. 1/10W J 100 Ω or RRXAJR5Z0101

RES CHIP 1608 1/10W J 100 Ω RRXA101YF002

R636 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

R638 METAL RESISTER. 2W J 0.56 Ω RN02R56ZU001 R639 RES CARBON FILM 1/4W J 4.7k Ω or RCX4472FS002

RES CARBON FILM T 1/4W J 4.7k Ω RCX4472T1001

R640 RES CARBON FILM 1/4W J 100 Ω or RCX4101FS002

RES CARBON FILM T 1/4W J 100 Ω RCX4101T1001

R641 RES CARBON FILM 1/4W J 10 Ω or RCX4100FS002

RES CARBON FILM T 1/4W J 10 Ω RCX4100T1001

R642 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

R643 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

R644 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

R645 RES CARBON FILM 1/4W J 8.2k Ω or RCX4822FS002

RES CARBON FILM T 1/4W J 8.2k Ω RCX4822T1001

R646 RES CARBON FILM 1/4W J 68k Ω or RCX4683FS002

RES CARBON FILM T 1/4W J 68k Ω RCX4683T1001

R647 RES CARBON FILM 1/4W J 22 Ω or RCX4220FS002

RES CARBON FILM T 1/4W J 22 Ω RCX4220T1001

R648 RES CARBON FILM 1/4W J 1k Ω or RCX4102FS002

RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001

R649 RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002

RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001

R650 RES CARBON FILM 1/4W J 1.2k Ω or RCX4122FS002

RES CARBON FILM T 1/4W J 1.2k Ω RCX4122T1001

R651 RES CARBON FILM 1/4W J 5.6 Ω or RCX45R6FS002

RES CARBON FILM T 1/4W J 5.6 Ω RCX45R6T1001

R652 RES CARBON FILM 1/4W J 5.6 Ω or RCX45R6FS002

RES CARBON FILM T 1/4W J 5.6 Ω RCX45R6T1001

R653 RES CARBON FILM 1/4W J 100k Ω or RCX4104FS002

RES CARBON FILM T 1/4W J 100k Ω RCX4104T1001

R657 RES CARBON FILM 1/4W J 1k Ω or RCX4102FS002

RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001

R801 CHIP RES. 1/10W J 12k Ω or RRXAJR5Z0123

RES CHIP 1608 1/10W J 12k Ω RRXA123YF002

Ref. No. Mark Description Part No.

Page 66

20100323 15-9 A03P0/P1EL

JACK CBA

R802 CHIP RES. 1/10W F 27k Ω or R RXAFR5H2702

CHIP RES.(1608) 1/10W F 27k Ω or RRXAFR5Z2702

RES CHIP 1608 1/10W F 27.0k Ω RTW2702YF00 2 R803 CHIP RES. 1/10W F 10k Ω or R RXAFR5H1002

CHIP RES. 1/10W F 10k Ω or RRXAFR5Z1002

RES CHIP 1608 1/10W F 10.0k Ω RTW1002YF00 2 R804 CHIP RES. 1/10W F 10k Ω or R RXAFR5H1002

CHIP RES. 1/10W F 10k Ω or RRXAFR5Z1002

RES CHIP 1608 1/10W F 10.0k Ω RTW1002YF00 2 R806 CHIP RES. 1/10W J 10k Ω or RRXAJR5Z0103

RES CHIP 1608 1/10W J 10k Ω RRXA103YF002 R807 CHIP RES. 1/10W J 12k Ω or RRXAJR5Z0123

RES CHIP 1608 1/10W J 12k Ω RRXA123YF002 R810 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002 R824 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

MISCELLANEOUS

B9 HEAT SINK PMR ASSEMBLY A8CN0FP 1EM425837A

B10 MODULE HEAT SINK PMC P7150UT 1EM423968

BC11 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC181 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

BC182 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

BC501 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC621 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC622 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC623 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC624 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC801 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

F601! FUSE 4A/250V(PB FREE) 0215004.MXP PBGZ20BAG021

FH605 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002

FH606 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002

JK201 JACK RCA PCB S GREEN 01/RCA-

101H(GN) or

JXRJ010YUQ03

JACK RCA PCB S(GRE EN) 01 MTJ -032-

04B-73 FE

JXRJ010LY030

JK202 JACK RCA PCB S BLUE 01/RCA-

101H(BL) or

JXRJ010YUQ04

JACK RCA PCB S(BLU E) 01 MTJ- 032-

04B-74 FE

JXRJ010LY033

JK203 JACK RCA PCB S RED 01/RCA-

101H(RD) or

JXRJ010YUQ01

JACK RCA PCB S(RE D) 01 MTJ- 032-

04B-75 FE

JXRJ010LY028

JK204 JACK RCA PCB S WHITE 01/RCA-

101H(WH) or

JXRJ010YUQ02

JACK RCA PCB S (WHITE) 01 MTJ-032-

04B-41 FE

JXRJ010LY031

JK205 JACK SW RCA PCB S RED RCA-

102H(RD) or

JYRJ010YUQ03

JACK SW RCA P CB S(RED) 01 MTJ-032 -

04A-75 FE

JYRJ010LY031

JK206 JACK HPEP SML PCB S PJ-358H or JXSJ020YUQ01

JACK HPE P SML PCB S 02 MSJ-0 35-

29D (ABS)

JXSJ020LY001

JK207 A JACK RCA PCB S ORANGE 01/RCA-

101H(OR) or

JXRJ010YUQ06

AJACK RCA PCB S(ORANGE) 01 MTJ-

032-04B-76 FE

JXRJ010LY029

JK210 JACK SW DIN PCB S 04/DIN-417HA-01 orJYEJ040YUQ03

JACK SW DIN PCB S 04 MD C-076H-A L F JYEJ040LY002

JK211 JACK RCA PCB S YELLOW 01/RCA-

101H(YL) or

JXRJ010YUQ05

JACK RCA PCB S (YELLOW) 01 MTJ-

032-04B-40 FE

JXRJ010LY032

JK212 JACK RCA PCB S WHITE 01/RCA-

101H(WH) or

JXRJ010YUQ02

JACK RCA PCB S (WHITE) 01 MTJ-032-

04B-41 FE

JXRJ010LY031

JK213 JACK SW RCA PCB S RED RCA-

102H(RD) or

JYRJ010YUQ03

Ref. No. Mark Description Part No.

JACK SW RCA P CB S(RED) 01 MTJ-032 04A-75 FE

JYRJ010LY031

JK301 JACK RGB PCB S 01/RGB-11HS JXGJ21YUQ001

JK302 JACK RGB PCB S 01/RGB-11HS JXGJ21YUQ001 JS12 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

JS13 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

JS14 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

JS505 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

JS511 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

JS551 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

JS552 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

JS553 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

JS609 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

JS610 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

JS801 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

L3 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080

SA602! SURGE ABSORBER 470V+-10PER or NVQZ10D471KB

! VA RI S TOR 10 D 4 71 K SV R NVQ Z VR 10 D 47 1

SA608! SURGE ABSORBER 470V+-10PER or NVQZ10D471KB

! VA RI S TOR 10 D 4 71 K SV R NVQ Z VR 10 D 47 1

T601! TRANS POWER BCK-35-0720 LTT3PE0XB058

T602! PFC CHOKE JCC41-0026 LLEE0Z0XB009

Ref. No. Mark Description Part No.

JACK CBA Consists of the following:

----------

CAPACITORS

C212 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C220 CHIP CERAMIC CAP.(1608) B K 0.047µF/

50V

CHD1JK30B473

C221 CHIP CERAMIC CAP.(1608) B K 0.047µF/

50V

CHD1JK30B473

RESISTORS

R218 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

R219 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000

RES CHIP 1608 1/10W J 0 Ω RRXA000YF002

MISCELLANEOUS

JK208 JACK SW HPEP SML PCB L PJ-350 or JYSL010YUQ03

JACK SW HPEP SML P CB L MSJ- 2000 AG(B 110)

JYSL010LY005

CL201A WIRE ASSEMBLY 4PIN 4PIN/120MM/

AWG 26/S TR

WX1A03A0-001

Ref. No. Mark Description Part No.

Page 67

20100323 15-10 A03P0/P1EL

INVERTER ASSEMBLY

INVERTER POWER CBA

Ref. No. Description Part No.

INVERTER ASSEMBLY Consists of the following:

A03P0M1V-002

INVERTER POWER CBA FUNCTION CBA IR SENSOR CBA JUNCTION CBA

----------

Ref. No. Description Part No.

INVERTER POWER CBA Consists of the following:

----------

CAPACITORS

C1801 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062

C1802 CERAMIC CAP. 330pF/2KV or CA3D331PAN04

CERAMIC CAP. RB 330pF/2KV or CA3D331TE006

CERAMIC CAP. BL 330pF/2KV CA3D331XF003

C1803 CERAMIC CAP. 330pF/2KV or CA3D331PAN04

CERAMIC CAP. RB 330pF/2KV or CA3D331TE006

CERAMIC CAP. BL 330pF/2KV CA3D331XF003

C1804 ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101

C1805 CAP CERAMIC (AX) 4700pF/50V/B/K CA1J472TU061

C1806 CERAMIC CAP. B K 100pF/1KV or CCD3AKD0B101

CERAMIC CAP. B K 100pF/1KV or CA3A101MR028

CERAMIC CAP. B K 100pF/1KV or CCD3AKN0B101

CERAMIC CAP. B K 100pF/1KV CCD3AKQ0B101

C1807 POLYESTER FILM CAP. (PB FREE) 0.1µF/100V

J or

CA2A104DT018

CAP POLYESTER FILM 0.1µF/100V J or CA2A104SER02 CAP POLYESTER FILM 0.1µF/100V/J/PCMT or CTA104PKR003 POLYESTER FILM CAP. 0.1µF/100V J or C MB104EUR001 POLYESTER FILM CAP. (PB FREE) 0.1µF/100V JCA2A104DT026

C1808 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062

C1809 CERAMIC CAP.(AX) B K 330pF/50V or CCA1JKT0B331

CAP CERAMIC (AX) 330pF/50V/B/K CA1J331TU061

C1810 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062 C1811 METALIZED POLYESTER FILM CAP. 0.47µF/

50V J or

CT1J474DT040

METALIZED POLYESTER FILM CAP. 0.47µF/ 63V J or

CT1K474SER01

CAP POLYESTER FILM 0.47µF/63V/J/PCMT CTA474PKR002 C1812 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062 C1813 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470 C1814 CAP METALIZED FILM J0.039µF/630V/J/MPEF orCA2K393DT045

CAP METALIZED FILM 0.039µF/630V/J CTA393PKR004

C1815 CAP CERAMIC (AX) 4700pF/50V/B/K CA1J472TU061 C1816 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100 C1817 CAP CERAMIC (AX) 0.01µF/50V/F/Z CA1J103TU062 C1818 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0

C1819 SAFTY CAP. 2200pF/250V KX or CA2E222MR101

SAFTY CAP. 2200pF/250V or CCN2EMA0E222

SAFETY CAP. 2200pF/250V M CCN2HMN0E222 C1821 CAP ELECTROLYTIC 330µF/400V/M/30/35 or CA2H331DYG10

ELECTROLYTIC CAPACITOR 330µF/400V CA2H331NC226 C1834 ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101

C1851 CAP ELE 4700/35V/M/85/D22XL2 CEA472KSN004

C1852 CAP ELE 4700/35V/M/85/D22XL2 CEA472KSN004 C1853 CAP CERAMIC (AX) 0.1µF/50V/F/Z CA1J104TU062

C1854 CAP ELE 4700/35V/M/85/D22XL2 CEA472KSN004 C1858 ELECTROLYTIC CAP. 2200µF/35V M or CE1GMZNDL222

ELECTROLYTIC CAP. 2200µF/35V M or CE1GMZPDL222

CAP ELE 2200µF/35V/M/85 or CEE222KSN002

CAP ELE 2200µF/35V/M/85 CEE222TEP002 C1859 ELECTROLYTIC CAP. 2200µF/35V M or CE1GMZNDL222

ELECTROLYTIC CAP. 2200µF/35V M or CE1GMZPDL222

CAP ELE 2200µF/35V/M/85 or CEE222KSN002

CAP ELE 2200µF/35V/M/85 CEE222TEP002

C1863 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0 C1871 CAP CERAMIC (AX) 0.01µF/50V/F/Z CA1J103TU062 C1872 POLYESTER FILM CAP. (PB FREE) 0.047µF/

100V J or

CA2A473DT018

CAP POLYESTER FILM 0.047µF/100V J or CA2A473SER02 CAP POLYESTER FILM 0.047µF/100V/J/PCMT orCTA473PKR003

POLYESTER FILM CAP. 0.047µF/100V J or CMB473EUR001 POLYESTER FILM CAP. (PB FREE) 0.047µF/

100V J

CA2A473DT026

C1882 CAP CERAMIC (AX) 0.01µF/50V/F/Z CA1J103TU062 C1883 CAP CERAMIC (AX) 0.01µF/50V/F/Z CA1J103TU062

CONNECTORS

CN1801! CONNECTOR PRINT OSU 3 S B3P4-VH-L or J3VH030JG015

! CONNECTOR PRINT OSU 03/S/JS-1120-

04N03

J3JT03CHY005

CN1810! CONNECTOR B2P3-VH(LF)(SN) or J3VH020JG001

! CONNECTOR PRINT OSU 02/S/JS-1120-

03N02

J3JT02CHY004

CN1851 FPC/FFC CONNECTOR IMSA-9615S-07A-PP-

A or

JC96J07ER007

CONNECTOR PRINT MES 07 S 1.0-11-7P or JC1107JSH001

CONNECTOR PRINT MES 00 6232 007 006 800+

JC62G07UG026

CN1852 CONNECTOR PRINT OSU B14B-PH-K-

S(LF)(SN) or

J3PHC14JG029

CONNECTOR PRINT OSU JS-1125-14(K) or J3JT14CHY001

CONNECTOR PRINT OSU C S 1-440054-4 J344C14AP001

DIODES

D1803 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1804 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1805 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1806 SCHOTTKY BARRIER DIODE SB140 NDWZ000SB140

D1807 SCHOTTKY BARRIER DIODE SB140 NDWZ000SB140

D1808 DIODE ZENER 4V7BSB-T26 or NDTB4R7BST26

DIODE ZENER HZS4.7NB2TE-EQ QDTB0HZS4R7N

D1809 DIODE ZENER 27BSB-T26 or NDTB027BST26

DIODE ZENER HZS27NB2TE-EQ QDTBHZS27NB2

D1810 DIODE ZENER 18BSB-T26 or NDTB018BST26

DIODE ZENER HZS18NB2TE-EQ QDTBHZS18NB2

D1811 DIODE ZENER 15BSB-T26 or NDTB015BST26

DIODE ZENER HZS15NB2TE-EQ QDTBHZS15NB2

D1851 DIODE SHOTTKY FCHS20A08 QDWZCHS20A08

D1852 DIODE SHOTTKY FCHS20A08 QDWZCHS20A08

D1853 DIODE ZENER 13BSB-T26 or NDTB013BST26

ZENER DIODE MTZJT-7713B or QDTB00MTZJ13

DIODE ZENER DO-34 MTZJ13B or NDTB00MTZJ13

DIODE ZENER HZS13NB2TE-EQ QDTBHZS13NB2

D1855 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1871 DIODE ZENER 20BSB-T26 or NDTB020BST26

DIODE ZENER HZS20NB2TE-EQ QDTBHZS20NB2

D1872 DIODE ZENER 27BSB-T26 or NDTB027BST26

DIODE ZENER HZS27NB2TE-EQ QDTBHZS27NB2

D1873 IC SHUNT REGULATOR KIA431-AT/P or NSZBA0TJY036

IC SHUNT REGULATOR SL431A-AT or NSZBA0TAUK01

IC SHUNT REGULATOR AS431BZTR-E1 NSZBA0TBCD01

D1891 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

ICS

IC1801 IC 0V-SWITCHING RESONANT CONVE

TEA1611T/N1.518

NSCA0TNXP002

IC1831! PHOTO COUPLER PS2561L1-1-A-V(L) QPEL561L11AV

Ref. No. Description Part No.

Page 68

20100323 15-11 A03P0/P1EL

IC1832! PHOTO COUPLER PS2561L1-1-A-V(L) QPEL561L11AV

TRANSISTORS

Q1801! FET MOS 2SK3561(Q) IDSS100UA or QFWZ2SK3561Q

! MOS FET 2SK3561(Q.M) or QFQZSK3561QM

! MOS FET TK8A50D QFWZTK8A50DQ

Q1802! FET MOS 2SK3561(Q) IDSS100UA or QFWZ2SK3561Q

! MOS FET 2SK3561(Q.M) or QFQZSK3561QM

! MOS FET TK8A50D QFWZTK8A50DQ

Q1803 TRANSISTOR 2SA950-O (TE2 F T) or QQS002SA950F

TRANSISTOR 2SA950-Y(TE2 F T) or QQSY02SA950F

TRANSISTOR (PB FREE) KTA1271-Y-AT/P or NQSYKTA1271P

TRANSISTOR (PB FREE) KTA1271-O-AT/P or NQS0KTA1271P

PNP TRANSISTOR 2SA1981 or NQS002SA1981

PNP TRANSISTOR 2SA1981Y-AT NQSY02SA1981

Q1804 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q1871 TRANSISTOR KTA1267-GR-AT/P or NQS1KTA1267P

TRANSISTOR KTA-1266-GR-AT/P or NQS4KTA1266P

TRANSISTOR 2SA1015-Y(TE2 F T) or QQSY2SA1015F

TRANSISTOR 2SA1015-GR(TE2 F T) or QQS12SA1015F

PNP TRANSISTOR 2SA1980Y-AT or NQSY02SA1980

PNP TRANSISTOR 2SA1980 G or NQSG02SA1980

PNP TRANSISTOR 2SA1980M Y or NQSY2SA1980M

PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q1882 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q1883 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

Q1884 TRANSISTOR KTC3198-Y-AT/P or NQSYKTC3198P

TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P

TRANSISTOR KTC3198-GR-AT/P or NQS4KTC3198P

TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F

TRANSISTOR 2SC1815-GR(TE2 F T) or QQS12SC1815F

NPN TRANSISTOR 2SC5343Y-AT or NQSY02SC5343

NPN TRANSISTOR 2SC5343G-AT or NQSG02SC5343

NPN TRANSISTOR 2SC5343MG-AT or NQSG2SC5343M

NPN TRANSISTOR 2SC5343M Y NQSY2SC5343M

RESISTORS

R1801 RES CARBON FILM T 1/4W J 10 Ω or RCX4100T1001

RES CARBON FILM 1/4W J 10 Ω RCX4100FS002 R1802 RES CARBON FILM T 1/4W J 10 Ω or RCX4100T1001

RES CARBON FILM 1/4W J 10 Ω RCX4100FS002 R1803 RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002

RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R1804 RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002

RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001

Ref. No. Description Part No.

R1805 RES CARBON FILM T 1/4W J 39k Ω or RCX4393T1001

RES CARBON FILM 1/4W J 39k Ω RCX4393FS002

R1806 RES CARBON FILM T 1/4W J 390 Ω or RCX4391T1001

RES CARBON FILM 1/4W J 390 Ω RCX4391FS002

R1807 RES CARBON FILM T 1/4W J 1.0k Ω or RCX4102T1001

RES CARBON FILM 1/4W J 1k Ω RCX4102FS002

R1808 RES CARBON FILM T 1/4W J 82k Ω or RCX4823T1001

RES CARBON FILM 1/4W J 82k Ω RCX4823FS002

R1809 RES CARBON FILM T 1/4W J 1.0k Ω or RCX4102T1001

RES CARBON FILM 1/4W J 1k Ω RCX4102FS002

R1810 RES CARBON FILM T 1/4W J 12k Ω or RCX4123T1001

RES CARBON FILM 1/4W J 12k Ω RCX4123FS002

R1811 RES CARBON FILM T 1/4W J 33k Ω or RCX4333T1001

RES CARBON FILM 1/4W J 33k Ω RCX4333FS002

R1812 RES CARBON FILM T 1/4W J 68k Ω or RCX4683T1001

RES CARBON FILM 1/4W J 68k Ω RCX4683FS002

R1813 RES CARBON FILM 1/4W J 47 Ω or RCX4470FS002

RES CARBON FILM T 1/4W J 47 Ω RCX4470T1001

R1814 RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002

RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001

R1815 RES CARBON FILM 1/4W J 22k Ω or RCX4223FS002

RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001

R1816 RES CARBON FILM T 1/4W J 47k Ω or RCX4473T1001

RES CARBON FILM 1/4W J 47k Ω RCX4473FS002

R1817 RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002

RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001

R1818 RES CARBON FILM 1/4W J 47 Ω or RCX4470FS002

RES CARBON FILM T 1/4W J 47 Ω RCX4470T1001 R1819 CEMENT RESISTOR 2W J 0.039 Ω RWJ L39PAK00 1 R1820 CEMENT RESISTOR 2W J 0.039 Ω RWJ L39PAK00 1 R1821 RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002

RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R1822 RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002

RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R1824 RES CARBON FILM T 1/4W J 100 Ω or RCX4101T1001

RES CARBON FILM 1/4W J 100 Ω RCX4101FS002 R1851 RES CARBON FILM T 1/4W J 1.0k Ω or RCX4102T1001

RES CARBON FILM 1/4W J 1k Ω RCX4102FS002 R1852 RES CARBON FILM 1/4W J 2.2k Ω or RCX4222FS002

RES CARBON FILM T 1/4W J 2.2k Ω RCX4222T1001 R1853 RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002

RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R1854 RES CARBON FILM T 1/4W J 6.8k Ω or RCX4682T1001

RES CARBON FILM 1/4W J 6.8k Ω RCX4682FS002 R1855 RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002

RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001 R1857 RES CARBON FILM T 1/4W J 1.0k Ω or RCX4102T1001

RES CARBON FILM 1/4W J 1k Ω RCX4102FS002 R1871 RES CARBON FILM T 1/4W J 1.0k Ω or RCX4102T1001

RES CARBON FILM 1/4W J 1k Ω RCX4102FS002 R1872 RES CARBON FILM T 1/4W J 4.7k Ω or RCX4472T1001

RES CARBON FILM 1/4W J 4.7k Ω RCX4472FS002 R1873 RES CARBON FILM T 1/4W J 82 Ω or RCX4820T1001

RES CARBON FILM 1/4W J 82 Ω RCX4820FS002 R1874 RES CARBON FILM 1/4W J 2.7k Ω or RCX4272FS002

RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R1875 RES CARBON FILM 1/4W J 3.9k Ω or RCX4392FS002

RES CARBON FILM T 1/4W J 3.9k Ω RCX4392T1001

R1876 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001 R1877 RES CARBON FILM T 1/4W G 12k Ω RCX4123T1002 R1878 RES CARBON FILM T 1/4W G 6.8k Ω RCX4682T1002 R1879 RES CARBON FILM T 1/4W G 10k Ω RCX4103T1002 R1880 RES CARBON FILM T 1/4W G 3.3k Ω RCX4332T1002 R1881 RES CARBON FILM 1/4W J 2.7k Ω or RCX4272FS002

RES CARBON FILM T 1/4W J 2.7k Ω RCX4272T1001 R1886 RES CARBON FILM T 1/4W J 390 Ω or RCX4391T1001

Ref. No. Description Part No.

Page 69

20100323 15-12 A03P0/P1EL

FUNCTION CBA

IR SENSOR CBA

JUNCTION CBA

RES CARBON FILM 1/4W J 390 Ω RCX4391FS002

R1887 RES CARBON FILM 1/4W J 22k Ω or RCX4223FS002

RES CARBON FILM T 1/4W J 22k Ω RCX4223T1001

R1888 RES CARBON FILM T 1/4W J 47k Ω or RCX4473T1001

RES CARBON FILM 1/4W J 47k Ω RCX4473FS002

R1889 RES CARBON FILM 1/4W J 3.3k Ω or RCX4332FS002

RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001

R1890 RES CARBON FILM 1/4W J 10k Ω or RCX4103FS002

RES CARBON FILM T 1/4W J 10k Ω RCX4103T1001

R1892 RES CARBON FILM T 1/4W J 4.7k Ω or RCX4472T1001

RES CARBON FILM 1/4W J 4.7k Ω RCX4472FS002

MISCELLANEOUS

B11 HEAT SINK EAJ ASSEMBLY A81H0UH 1EM424644

B12 HEAT SINK EAK ASSEMBLY A81H0UH 1EM424646A

BC1801 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC1851 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

BC1852 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030

L3 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080

T1801! PFC CHOKE JCC41-0026 LLEE0Z0XB009

T1831! TRANS INV SRX40ER-E240000H8501 LTZ4PZ0TE003

Ref. No. Description Part No.

FUNCTION CBA Consists of the following:

----------

RESISTORS

R108 RES CARBON FILM 1/4W J 220 Ω or RCX4221FS002

RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001 R109 RES CARBON FILM T 1/4W G 47k Ω RCX4473T1002 R111 RES CARBON FILM T 1/4W G 9.1k Ω RCX4912T1002 R113 RES CARBON FILM T 1/4W G 11k Ω RCX4113T1002 R114 RES CARBON FILM T 1/4W G 16k Ω RCX4163T1002 R115 RES CARBON FILM T 1/4W G 27k Ω RCX4273T1002 R116 RES CARBON FILM T 1/4W G 56k Ω RCX4563T1002

SWITCHES

SW101B TACT SWITCH SKQSAB or SST0101AL038

TAC T S W I T C H T C - 1 1 0 4 ( H = 5 . 0 ) o r S S T 0 1 0 1 D N G 0 2

TAC T S W I T C H K S M 0 6 1 2 B SS T 0 1 0 1 H H 0 03

SW103B TACT SWITCH SKQSAB or SST0101AL038

TAC T S W I T C H T C - 1 1 0 4 ( H = 5 . 0 ) o r S S T 0 1 0 1 D N G 0 2

TAC T S W I T C H K S M 0 6 1 2 B SS T 0 1 0 1 H H 0 03

SW104B TACT SWITCH SKQSAB or SST0101AL038

TAC T S W I T C H T C - 1 1 0 4 ( H = 5 . 0 ) o r S S T 0 1 0 1 D N G 0 2

TAC T S W I T C H K S M 0 6 1 2 B SS T 0 1 0 1 H H 0 03

SW105B TACT SWITCH SKQSAB or SST0101AL038

TAC T S W I T C H T C - 1 1 0 4 ( H = 5 . 0 ) o r S S T 0 1 0 1 D N G 0 2

TAC T S W I T C H K S M 0 6 1 2 B SS T 0 1 0 1 H H 0 03

SW106B TACT SWITCH SKQSAB or SST0101AL038

TAC T S W I T C H T C - 1 1 0 4 ( H = 5 . 0 ) o r S S T 0 1 0 1 D N G 0 2

TAC T S W I T C H K S M 0 6 1 2 B SS T 0 1 0 1 H H 0 03

SW107B TACT SWITCH SKQSAB or SST0101AL038

TAC T S W I T C H T C - 1 1 0 4 ( H = 5 . 0 ) o r S S T 0 1 0 1 D N G 0 2

TAC T S W I T C H K S M 0 6 1 2 B SS T 0 1 0 1 H H 0 03

Ref. No. Description Part No.

IR SENSOR CBA

Consists of the following:

----------

CAPACITORS

C113 ELECTROLYTIC CAP. 47µF/16V M H7 or CE1CMAVSL470

CAP ELE 47µF/16V/M/85 H7 CEC470KSN003

C115 CERAMIC CAP.(AX) B K 330pF/50V or CCA1JKT0B331

CAP CERAMIC (AX) 330pF/50V/B/K CA1J331TU061

DIODES

D104 LED GREEN 333GT/E(FNA) or NPWZ33GTEFNA

LED(GREEN) LTL-4234 NPWZ0LTL4234

Ref. No. Description Part No.

D105 LED L-53HT or NP4Z000L53HT

LED 333HT/E-L or NPHL00333HTE

LED 333HT/E-K NPHK00333HTE

RESISTORS

R123 RES CARBON FILM 1/4W J 220 Ω or RCX4221FS002

RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001

R124 RES CARBON FILM 1/4W J 220 Ω or RCX4221FS002

RES CARBON FILM T 1/4W J 220 Ω RCX4221T1001

R126 RES CARBON FILM 1/4W J 1k Ω or RCX4102FS002

RES CARBON FILM T 1/4W J 1.0k Ω RCX4102T1001

R127 RES CARBON FILM 1/4W J 3.3k Ω or RCX4332FS002

RES CARBON FILM T 1/4W J 3.3k Ω RCX4332T1001

R128 RES CARBON FILM T 1/4W J 100 Ω or RCX4101T1001

RES CARBON FILM 1/4W J 100 Ω RCX4101FS002

MISCELLANEOUS

CL103A WIRE ASSEMBLY 3PIN 3PIN/250MM/AWG28/

UL1

WX1A03P0-205

RS102 SENSOR REMOTE RECEIVER KSM-712TH2E orUSESJRSKK044

SENSOR REMOTE RECEIVER KSM-712TH2M USEJRS0KK001

Ref. No. Description Part No.

JUNCTION CBA Consists of the following:

----------

CONNECTOR

CN103 242 SERIES CONNECTOR TUC-P06X-B1 WHT STJCTUB06TG002

MISCELLANEOUS

CL102A WIRE ASSEMBLY 6PIN 6PIN/530MM/AWG26/

UL2

WX1A03P0-002

Ref. No. Description Part No.

TU1 TUNER UNIT DTOS40AML201A UTNPSG0SM002

Ref. No. Description Part No.

Page 70

LH8-M40BB/LT8-M40BB

A03P0EP/P1EP

2010-04-23

Funai LT8-M40BB Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
