Funai LED40-H9825M Schematic

SERVICE MANUAL

This Service Manual is for the LED40-H9825M (A13P1EP) model.
For the LED40-H9825M (A13P1EP) model, the letter (A13P1EP) is pri nted
on the Serial Number Label on the back of the unit. Refer to the Serial
Number Label below.

Serial No. Label

"A13P1EP"

40″ COLOR LCD TELEVISION

LED40-H9825M

40″ COLOR LCD TELEVISION

LED40-H9825M

TABLE OF CONTENTS

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

How to Initialize the LCD Television. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

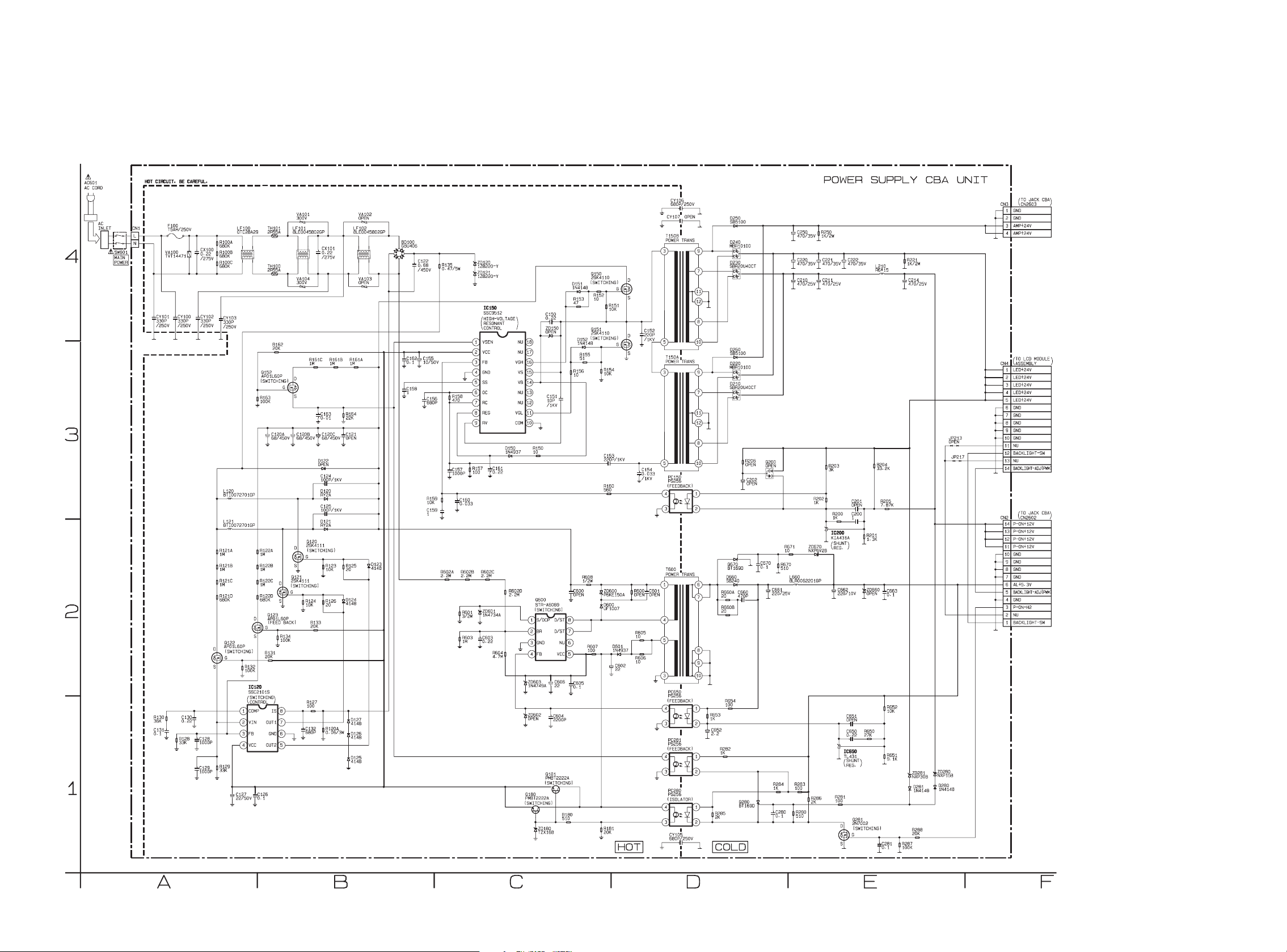

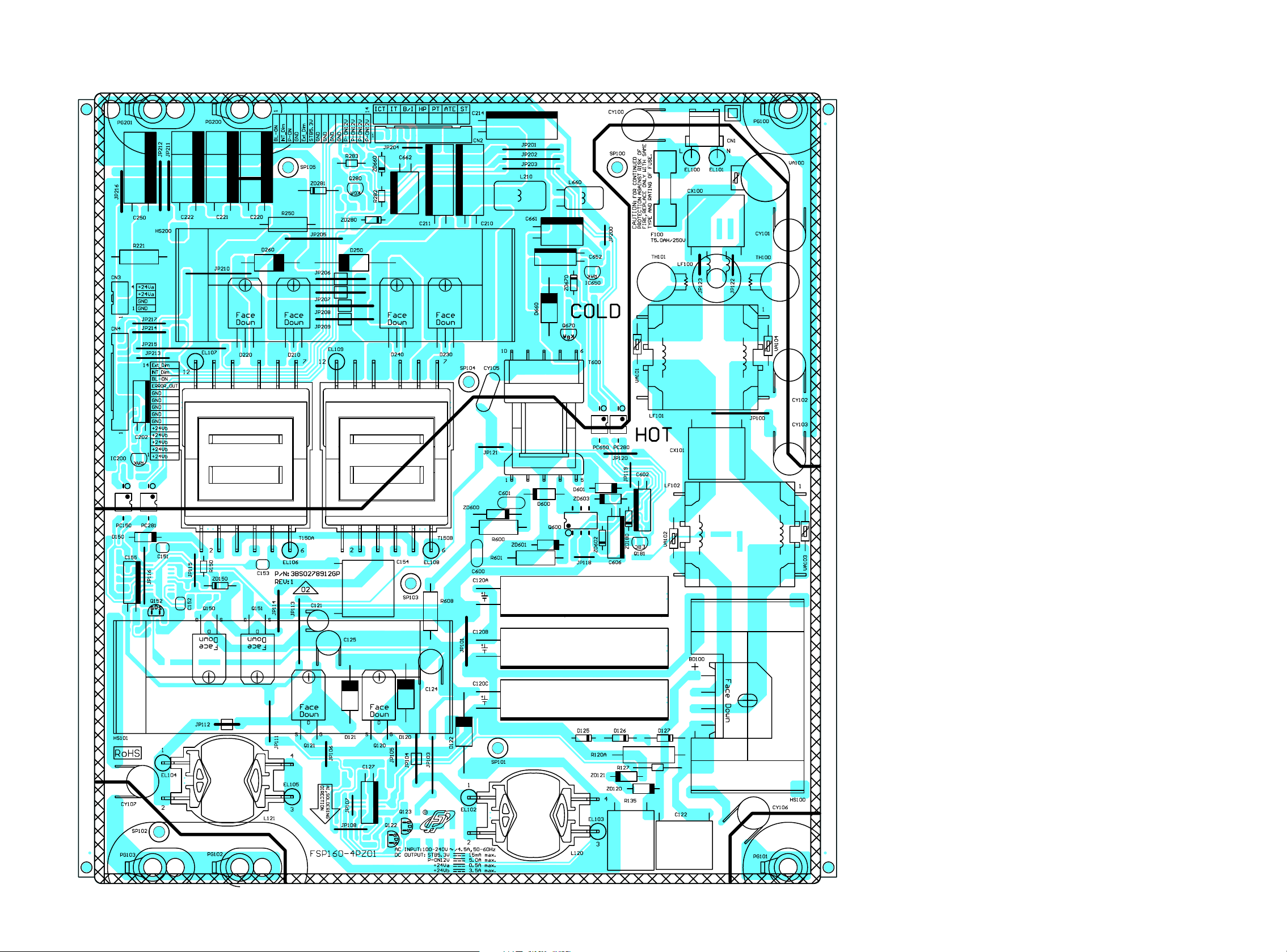

Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

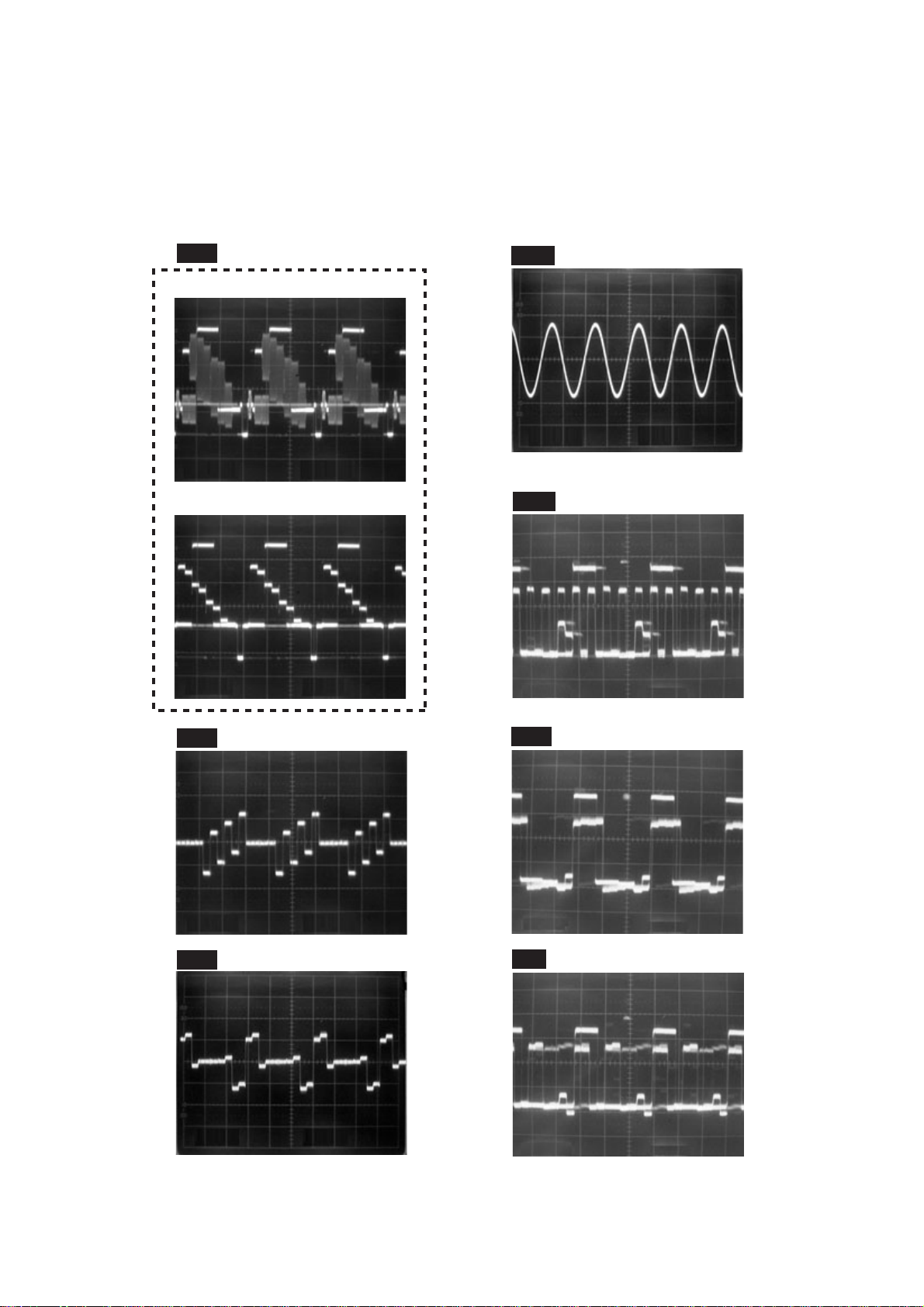

Waveforms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

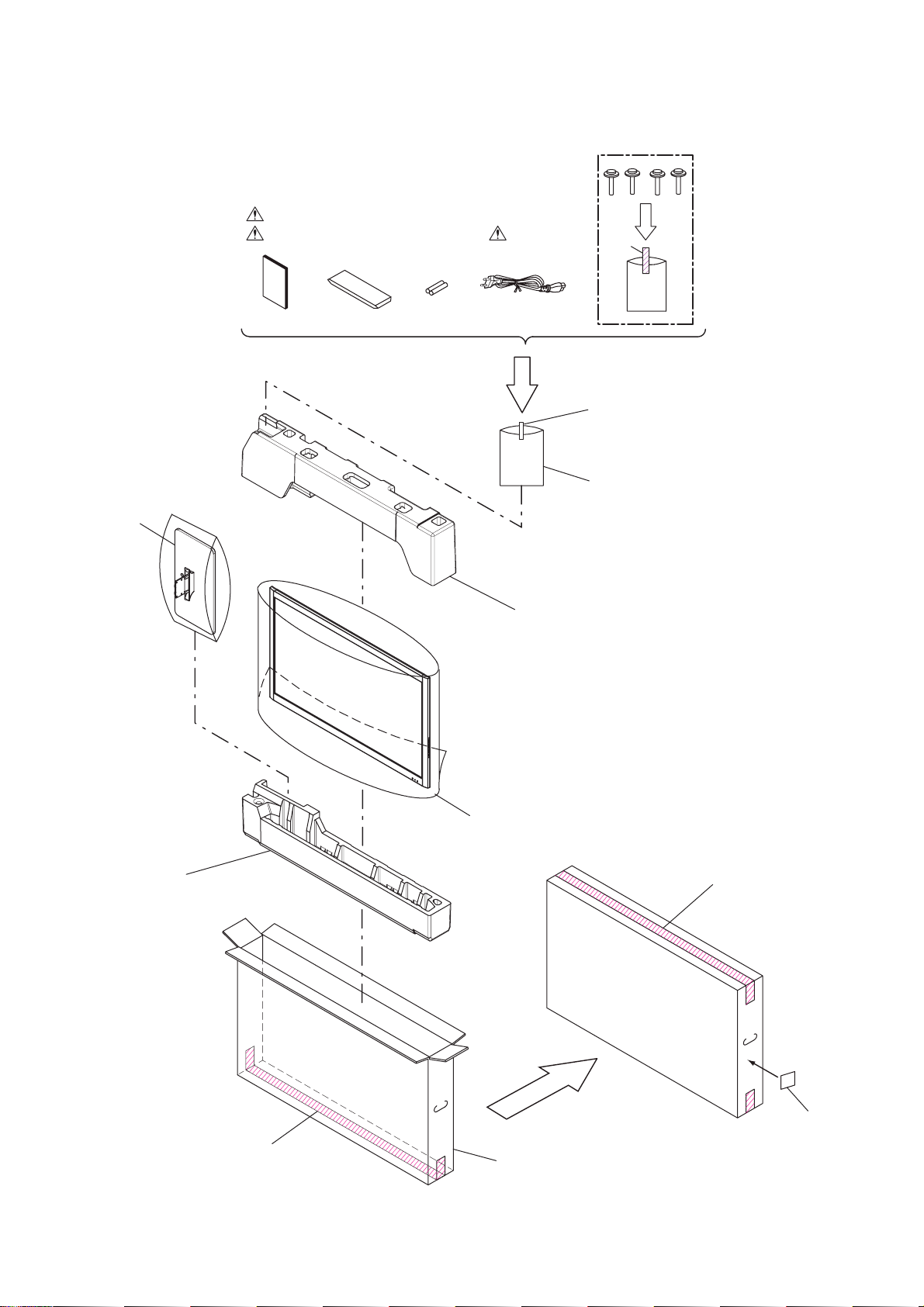

Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

Mechanical Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

Electrical Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1

The LCD panel is manufactured to provide many years of useful life.
Occasionally a few non active pixels may appear as a tiny spec of color.
This is not to be considered a defect in the LCD screen.

SPECIFICATIONS

< TUNER >

VHS/UHF Input ----------- 75Ω unbal., IEC Connector
Center IF ------------------- SECAM-L 38.9MHz, SECAM-L’ 33.9MHz

Description Condition Unit Nominal Limit

1. Video S/N 80 dB --- 40

2. Audio S/N --- dB --- 40/40

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Number of Pixels

2. Viewing Angle

<DVB-T>

Description Condition Unit Nominal Limit

1.

RECEIVED FREQ.RANGE
(-60dBm, 45ch.) *1, *2

2. INPUT DYNAMIC
RANGE (mix./max)

3. C/N PERFORMANCE

(-50dBm)

4. MULTIPATH (-50dBm)

a. Performance with

short delay echoes

b. Performance with

long delay echoes

Horizontal

Ver ti ca l

Horizontal

Ver ti ca l

+

-

c:*1 VHF HIGH 8ch.

UHF 45ch.

d:*2 VHF HIGH 8ch.

UHF 45ch.

c:*1 VHF HIGH 8ch.

UHF 45ch.

d:*2 VHF HIGH 8ch.

UHF 45ch.

UHF 45ch.

c:*3
d:*4
c:*3
d:*4

pixels
pixels

kHz
kHz

dBuV
dBuV

dBuV
dBuV

dB
dB

dB
dB

dB
dB
dB
dB

1366

768

°
°

-85 to 85

-80 to 80

1000

900

25/101
25/101

18/101
18/101

15
15

11
11

18.7

14.0

19.1

13.0

---

---

-75 to 75

-70 to 70

500
167

28/98
29/98

21/98
21/98

≦18
≦18

≦14
≦14

≦23
≦20
≦23
≦18

*1: modulation parameters = [8k 64QAM CR=2/3 GI=1/32]
*2: modulation parameters = [8k 16QAM CR=3/4 GI=1/8]
*3: modulation parameters = [2k 64QAM CR=2/3 GI=1/32]
*4: modulation parameters = [2k 16QAM CR=3/4 GI=1/32]

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution

4. Brightness AT 100% WHITE FIELD cd/m

Horizontal

Ver t i cal

AT 70% WHITE FIELD

x
y

Horizontal

Ver t i cal

1-1 A13P1SP

line
line

%
%

°K 12000

2

5
5

0.272

0.278

400
350

280 200

---

---

--­±0.008
±0.008

---

---

< AUDIO >

All items are measured across 16 Ω load at speaker output terminal.

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD: Lch/Rch W 10/10 9/9

2. Audio Distortion 500mW: Lch/Rch % 1.5/1.5 3.0/3.0

-

3. Audio Freq. Response

6dB: Lch

-

6dB: Rch

Hz
Hz

---

---

---

---

4. Audio S/N Lch/Rch dB ---

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.

Some will exceed and some may drop slightly below these specifications. Limit specifications represent
the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet
limit specifications.

≧45/45

1-2 A13P0SP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV
Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the
following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during
servicing. (1) Protective shields are provided
on this chassis to protect both the technician
and the customer. Correctly replace all missing
protective shields, including any removed for
servici ng co nvenience. (2) When reinstal li ng
the chassis and/or other assembly in the
cabinet, be sure to put back in place all
protective devices, including but not limited to,
nonmetallic control knobs, insulating
fishpapers, adjustment and compartment
covers/shields, and isolation resistor/capacitor
networks. Do not operate this instrument or

permit it to be operated without all
protective devices correctly installed and
functioning. Servicers who defeat safety
features or fail to perform safety checks
may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to
insert their fingers and contact a hazardous
voltage. Such openings include, but are not
limited to, (1) spacing between the LCD module
and the cabinet mask, (2) excessively wide
cabinet ventilation slots, and (3) an improperly
fitted and/or incorrectly secured cabinet back
cover.

c. Antenna C old Ch eck - With the instrument AC

plug removed from any AC source, connect an
electrical jumper across the two AC plug
prongs. Place the instrument AC switch in the
on position. Connect one lead of an ohmmeter
to the AC plug prongs tied together and touch
the other ohmmeter lead in turn to each tuner
antenna input exposed terminal screw and, if
applicable, to the coaxial connector. If the
measured resistance is less than 1.0 megohm
or greater than 5.2 megohm, an abnormality
exists that must be corrected before the
instrument is returned to the customer. Repeat
this test with the instrument AC switch in the off
position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the
AC line cord directly into a 230 V AC outlet. (Do
not use an isolation transformer during this
test.) Use a leakage current tester or a
metering system that complies with American

National Standards Institute (ANSI) C101.1
Leakage Current for Appliances and
Underwriters Laboratories (UL) 1410, (50.7).
With the instrument AC switch first in the on
position and then in the off position, measure
from a known earth ground (metal water pipe,
conduit, etc.) to all exposed metal parts of the
instrument (antennas, handle brackets, metal
cabinet, screw heads, metallic overlays, control
shafts, etc.), especially any exposed metal
parts that offer an electrical return path to the
chassis. Any current measured must not
exceed 0.5 milli-ampere. Reverse the
instrument power cord plug in the outlet and
repeat the test.

READING SHOULD
NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED
METAL SURFACES

ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG
AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE
LIMITS SPECIFIED HEREIN INDICATE A
POTENTIAL SHOCK HAZARD THAT MUST
BE ELIMINATED BEFORE RETURNING THE
INSTRUMENT TO THE CUSTOMER OR
BEFORE CONNECTING THE ANTENNA OR
ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on
the receiver chassis, or on the LCD module.

3. Design Alteration Warning - Do not alter or add
to the mechanical or electrical design of this LCD
TV receiver. Design alterations and additions,
including, but not limited to circuit modifications
and the addition of items such as auxiliary audio
and/or video output connections, might alter the
safety characteristics of this receiver and create a
hazard to the user. Any design alterations or
additions will void the manufacturer's warranty and
may make you, the servicer, responsible for
personal injury or property damage resulting
therefrom.

CURRENT

TESTER

+

EARTH
GROUND

_

2-1 LTVP_ISP

4. Hot Chassis Warning -

a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC
power cord and maybe safety-serviced without
an isolation transformer only if the AC power
plug is inserted so that the chassis is
connected to the ground side of the AC power
source. To confirm that the AC power plug is
inserted correctly, with an AC voltmeter,
measure between the chassis and a known
earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC
power plug in the opposite polarity and again
measure the voltage potential between the
chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground
regardless of the AC plug polarity. This chassis
can be safety-serviced only with an isolation
transformer inserted in the power line between
the receiver and the AC power source, for both
personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis
ground. This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulation material that must not be defeated or
altered.

5. Observe original lead dress. Take extra care to
assure correct lead dress in the following areas: a.
near sharp edges, b. near thermally hot parts-be
sure that leads and components do not touch
thermally hot parts, c. the AC supply, d. high
voltage, and, e. antenna wiring. Always inspect in
all areas for pinched, out of place, or frayed wiring.
Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to
have overheated or are otherwise damaged
should be replaced with components, parts, or
wiring that meet original specifications.
Additionally, determine the cause of overheating
and/or damage and, if necessary, take corrective
action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and
mechanical parts have special safety-related
characteristics which are often not evident from
visual inspection, nor can the protection they give
necessarily be obtained by replacing them with
components rated for higher voltage, wattage, etc..
Parts that have special safety characteristics are
identified by a ! on schematics and in parts lists.
Use of a substitute replacement that does not
have the same safety characteristics as the
recommended replacement part might create
shock, fire, and/or other hazards. The product's
safety is under review continuously and new
instructions are issued whenever appropriate.
Prior to shipment from the factory, our products
are strictly inspected to confirm they comply with
the recognized product safety and electrical codes
of the countries in which they are to be sold.
However, in order to maintain such compliance, it
is equally important to implement the following
precautions when a set is being serviced.

2-2 LTVP_ISP

Precautions during Servicing

A. Parts identified by the ! symbol are critical for

safety.
Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) In sulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a powe r cord ha s been re place d, chec k th at

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.
J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and
tighten certainly.

2-3 LTVP_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location
for damage or deterioration. Observe that screws,
parts and wires have been returned to original posi­tions. Afterwards, perform th e following t ests and c on­firm the specifi ed values in order to verify c ompliance
with safety standards.

1. Clearance Distan ce

When replacing primary circuit components, confirm
specified clearance dis tance (d) and (d') between sol ­dered terminals, and between terminals and surround­ing metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

AC Line Voltage Clearance Distance (d), (d’)

220 to 240 V

Note: This table is unofficial and for reference only.
Be sure to confirm the prec ise values.

≥ 3mm(d)

≥ 8mm(d’)

2. Leakage Current Test

Confirm the specified (or lower) leakage current be­tween B (eart h ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals, an­tenna terminals, video and audio in put and outpu t ter­minals, microphone jacks, earphone jacks, etc.).

Chassis or Secondary Conductor

Primary Circuit

d' d

Exposed Accessible Part

Z

AC Voltmeter
(High Impedance)

Fig. 1

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC v olt mete r to me asur e ac ross bo th termi nals of loa d
Z. See Fig. 2 and following table.

Table 2: Leakage current ratings for selected areas

AC Line Voltage Load Z Leakage Current (i)

2kΩ RES.

Connected in

parallel

220 to 240 V

50kΩ RES.

Connected in

parallel

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

i≤0.7mA AC Peak

i≤2mA DC

i≤0.7mA AC Peak

i≤2mA DC

One side of

B

Power Cord Plug Prongs

One side of power cord plug

prongs (B) to:

Antenna terminals

A/V Input, Output

Fig. 2

RF or

2-4 LTVP_ISP

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is
indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are
indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as
shown.

Pin 1

Input

In

Bottom View

5

10

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb
free solder . (Re fer to figure.) For P CBs with Pb fre e
mark, be sure to use Pb free solder. For PCBs
without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while
applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.

2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)

3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.

Hot-air
Flat Pack-IC
Desoldering

CBA

Masking
Tape

Tweezers

3-1 TVP_SN

Machine

Flat Pack-IC

Fig. S-1-2

With Soldering Iron:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)

With Iron Wire:

1. Using desoldering brai d, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.

Sharp
Pin

Fine Tip
Soldering Iron

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Fig. S-1-4

To Solid
Mounting Point

CBA

Hot Air Blower

or

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip
Soldering Iron

Flat Pack-IC

Tweezers

Fig. S-1-6

3-2 TVP_SN

2. Installation

1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.

2. The “ I ” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the
pin 1 on the PCB when positioning for installation.
Then presolder the four corners of the flat pack-IC.
(See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

Instructions for Handling Semi­conductors

Electrostatic breakdown of the semi-cond uc tors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.

<Incorrect>

CBA

Presolder

Flat Pack-IC

Fig. S-1-8

<Correct>

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or
Copper Plate

3-3 TVP_SN

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the
cabinet parts and the CBA in order to gain access to
items to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.

[8] FRC CBA Unit

[10] AC Inlet
Holder

[11] SW Holder

[3] Tuner Shield

[4] Digital Main
CBA Unit

[5] Jack CBA

[7] PCB Holder

[1] Stand

Assembly

[2] Rear Cabinet

[6] Power Supply
CBA Unit

[15] LCD Module
Assembly

[16] Front
Cabinet

[12] Speaker

[13] IR Sensor
CBA

[14] Function
CBA

[9] Stand Bracket

2. Disassembly Method

Step/

Loc.

Part

No.

Stand

[1]

Assembly

Rear

[2]

Cabinet

Tuner

[3]

Shield

Digital Main

[4]

CBA UnitD2D5

[5] Jack CBA

Power

[6]

Supply
CBA Unit

[7] PCB Holder D3 5(S-12) ---

FRC CBA

[8]

Unit

Stand

[9]

Bracket

Fig.

No.

Removal Note

D1 4(S-1) ---

16(S-2), 4(S-3),

D1

6(S-4), (S-5)

D2 (S-6), 2(S-7) ---

4(S-8), CN2103,
CN2104, CN2105,
CN3901, Shield Box,
Jack Holder(D)

3(S-9), CN2102,
CN2601, CN2602,

D2

CN2603, CN2801,

D5

CN2802, Jack
Holder(A)

3(S-10), (S-11), CN1,

D2

CN4, Separation

D5

Sheet

8(S-13), CN5002,

D3

CN5003, FRC Shield

D3 4(S-14), (S-15) ---

---

---

---

---

---

Step/

Loc.

Part

No.

AC Inlet

[10]

Holder

[11] SW Holder D3

Fig.

No.

Removal Note

D3 2(S-16), CL602 ---

2(S-17), CL601,
Switch Power

---

[12] Speaker D3 --------------- ---

[13]

[14]

IR Sensor
CBA

Function
CBA

D4D5CN2161, Sensor LED

Lens

D4

Function Knob(High) ---

D5

---

LCD

[15]

Module

D4 Sensor Shield ---

Assembly

10(S-18), Knob Cover,

D4

Decoration
Panel(L),(R)

↓

(3)

↓

(4)

---

↓

(5)

[16]

↓

(1)

Front
Cabinet

↓

(2)

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers
are also used as the Identification (location) No. of
parts in figures.

(2) Parts to be removed or installed.

(3) Fig. No. showing procedure of part location

(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or
desoldered.
N = Nut, L = Locking Tab, S = Screw,
H = Hex Screw, CN = Connector
e.g. 2(S-2) = two Screws of (S-2),
2(L-2) = two Locking Tabs of (L-2)

(5) Refer to the following "Reference Notes in the

Ta b le . "

4-1 A13P1DC

(S-2)

(S-2)

(S-2)

(S-2)

(S-2)

(S-3)

(S-4)

(S-4)

(S-2)

(S-5)

(S-2)

[2] Rear Cabinet

[1] Stand Assembly

(S-4)

(S-2)

(S-2)

(S-3)

(S-1)

(S-3)

Fig. D1

4-2 A13P1DC

[4] Digital Main CBA Unit

Separation Sheet

[6] Power Supply
CBA Unit

(S-10)

(S-11)

(S-9)

(S-8)

Shield Box

Jack Holder (D)

[3] Tuner Shield

(S-7)

(S-8)

(S-6)

Jack Holder (A)

[5] Jack CBA

(S-9)

Fig. D2

4-3 A13P1DC

(S-12)

[7] PCB Holder

(S-12)

CL601

Switch
Powe r

[11] SW Holder

(S-17)

(S-16)

(S-16)

CL602

[10] AC Inlet Holder

[12] Speaker

[12] Speaker

(S-14)

[9] Stand Bracket

(S-13)

(S-14)

(S-12)

[8] FRC CBA Unit

FRC Shield

(S-13)

(S-14)

(S-15)

Fig. D3

4-4 A13P1DC

[16] Front Cabinet

Decoration Panel (L)

Decoration Panel (R)

(S-18)

Knob
Cover

(S-18)

(S-18)

[15] LCD Module Assembly

(S-18)

Function Knob (High)

[14] Function CBA

Sensor LED Lens

Sensor Shield

[13] IR Sensor CBA

Fig. D4

4-5 A13P1DC

TV Cable Wiring Diagram

To LCD Module Assembly

Power Supply CBA Unit

CN1

To Main Power
Switch

FRC CBA Unit

CN2

CN4

CN3

Digital Main CBA Unit

CN3901

CN3701

CN2105

CN2602

CN2603

CN2601

CN2801

CN2102

CN3702

CN2104

CN3703

CN2103

CN2802

To AC Inlet

Function
CBA

CN2150

CN5002 CN5003

To LCD Module
Assembly

IR Sensor CBA

CN2161

CN5001

CN5004

CN2162

To Speaker

Jack CBA

To Speaker

Fig. D5

4-6 A13P1DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for
“Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain
mechanical parts. It is important to perform
these adjustments only after all repairs and
replacements have been completed.
Also, do not attempt these adjustments unless
the proper equipment is available.

Test Equipment Required

1. Remote control unit

2. Color Analyzer,
CA-310 (KONICA MINOLTA Luminance meter) or
measuring instrument as good as CA-310.

How to set up the service mode:

Service mode:

1. Turn the power on.

2. Press [MENU] button to display Setup menu.

3. Select “Software” in “OTHERS” and press [OK]
button.

4. Press [0], [4], [2], [5], [7], [4] and [ ] buttons on
the remote control unit in this order. The following
screen appears.

1. Purity Check Mode

This mode cycles through full-screen displays of red,
green, blue, and white to check for non-active pixels.

1. Enter the Service mode.

2. Each time the [7] button on the remote control unit
is pressed, the display changes as follows.

Purity Check Mode

White mode

[7] button

[7] button

Black mode

[7] button

Red mode

"*" differs depending on the models.

Code:
Pic code:
Inch:
Total:

Safety: Safety Non

*************-***-**
*** *** ***

*****_***_**_****
Push 0 key

Exit/Beenden/Quitter/Zakoñcz

Total W atch Time:

Light sensor:

***h ***min

[7] button

Green mode

[7] button

Blue mode

*****
****

[7] button

White 20% mode

Note:

When entering this mode, the default setting is White mode.

3. To cancel or to exit from the Purity Check Mode,
press [BACK] button.

5-1 LC9P(LED)EA

The White Balance Adjustment should be
performed when replacing the LCD Panel
or Digital Main CBA.

2. White Balance Adjustment

6. Press [MENU] button. The internal Raster signal
appears on the screen. (“Internal (Single)”
appears on the upper right of the screen as shown
below.)

Purpose: To mix red and blue beams correctly for
pure white.

Symptom of Misadjustment: White becomes bluish
or reddish.

ITEM

Color temperature

Input Signal

SPECIFICATION

x= 0.272 ± 0.002
y= 0.278 ± 0.002

Internal pattern
(40/70% raster)

Measurement point Screen center

CA-310 (KONICA MIN O LTA

M. EQ.

Luminance meter) or
measuring instrument as
good as CA-310.

60min.

Aging time

(Retail MODE/100IRE Raster
HDMI 1080i@60)

MODE setting of TV
Ambient

temperature

Shipment setting/
Retail MODE

25°C ± 5°C

1. Operate the unit for more than 60 minutes.

2. Set the color analyzer at the CHROMA mode and
zero point calibration. Bring the optical receptor
pointing at the center of the LCD-Panel.

Internal (Single)

HDB 0

7. Press [P / ] buttons to adjust the color
temperature becomes 12000°K

=

0.272 / y= 0.278 ±0.002).

(x

8. Press [1] button to select the “HDR” for High Drive
Red adjustment (“HDR” appears on the screen.)
and press [P / ] buttons to adjust the color
temperature.

9. If necessary, adjust the “HDB” or “HDR” again.

10. Press [6] button to select the “LDB” for Low Drive
Blue adjustment (“LDB” appears on the screen.)
and press [P / ] buttons to adjust the color
temperature.

Internal (Single)

To avoid interference from ambient
light, this adjustment should be
performed in a dark room.

Perpendicularity

Color Analyzer

Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.

3. Enter the Service mode.

4. Press [ -] button three times on the remote control
unit to select “Drive setting” mode. “Drive” appears on
the screen.

5. Press [3] button to select the “HDB” for High Drive
Blue adjustment. (“HDB” appears on the screen.)

LDB 0

11. Press [4] button to select the “LDR” for Low Drive
Red adjustment (“LDR” appears on the screen.)
and press [P / ] buttons to adjust the color
temperature.

12. If necessary, adjust the “LDB” or “LDR” again.

13. Press [BACK] button to enter the Service mode
again.

14. Press [ ] button on the remote control unit to shift
to the self check mode screen.
If “WB OK” is displayed, this adjustment
completes.
If “WB NG” is displayed, turn the AC switch (on the
lower left of the back of the unit) off and on. Then
repeat above steps from 3. to 13. Check the self
check mode screen again. If “WB NG” is
displayed, replace the LCD Panel or Digital Main
CBA.

15. To cancel or to exit from the White Balance
Adjustment, press [BACK] button.

5-2 LC9P(LED)EA

HOW TO INITIALIZE THE LCD TELEVISION

How to initialize th e LCD te levisi on:

1. Turn the power on.

2. Enter the service mode. (Refer to page 5-1.)

- To cancel the service mode, press [ ] button on
the remote control unit.

3. Press [ ] button on the remote control unit to
initialize the LCD television.

4. After confirming that “INITIALIZED : OK” appears
on the screen, turn the AC switch (on the lower left
of the back of the unit) off.

6-1 LC9PINT

FIRMWARE RENEWAL MODE

Equipment Required

a. USB storage device
b. Remote Control Unit

Firmware Update Procedure

[Check the current version]

1. Press [MENU] button on the remote control unit to
display the menu mode.

2. Press [ÅK] or [ÅL] to select “Others”, then press
[OK] button.

3. Press [ÅK] or [ÅL] to select “Software”, then press
[OK] button.

The current FW version will be displayed.

[Preparation]

1. Prepare USB storage device.

2. Copy F/W-file (pkg file) to USB storage device.
Note: Make sure to use the blank USB Storage.

3. Rename the F/W-file’s name to “upgrade.pkg”.

[Update procedure]

1. Turn the AC switch (on the lower left of the back of
the unit) off.

2. Insert USB storage device with F/W to TV set.

3. Turn the AC switch on.

4. Updating starts automatically. Red LED flashes.
Note: Do not turn off the TV set and do not

remove the USB storage device while this
procedure.

5. When updating is completed, the TV set will turn
back on automatically.

6. To shift the TV set to standby mode, press [ ]
button on the remote control unit.

7. Remove USB storage device from TV set.

8. Press [ ] button again to turn the power on.

9. Press [MENU] button on the remote control unit to
display the menu mode.

10. Select “Parental” - “PIN CODE:”.

11. Press [4], [7], [3] and [7] buttons on the remote
control unit.

12. Select “Factory Reset” and press [OK] button.

7-1 LC9P_FW

FLOW CHART NO.1

The power cannot be turned on.

TROUBLESHOOTING

Are the voltage of each pin of CN2602 and CN2603
become as shown below?

CN2603
CN2602
CN2602

Check for short-circuiting or leak on the load circuit,
and service it if defective.

FLOW CHART NO.2

P-ON+3.3V is not output.

Is approximately 12V voltage supplied to Pin(2) of
IC2602?

Replace IC2602.

FLOW CHART NO.3

P-ON+6V is not output. (P-ON+3.3V is outputted normally.)

Is approximately 12V voltage supplied to Pin(2) of
IC2603?

3, 4PIN

11-14PIN

6PIN

+24V
+12V
+5.3V

AMP+24V
P-ON+12V
AL+5.3V

Ye s

Ye s

Ye s

No

No

No

Check SW601 and their periphery circuit, and service
it if defective.
Or replace Power Supply CBA Unit.

Check F2602, P-ON+12V line and their periphery
circuit, and service it if defective.

Check F2603, P-ON+12V line and their periphery
circuit, and service it if defective.

Replace IC2603.

FLOW CHART NO.4

P-ON+5V is not output.

Is approximately 6V voltage supplied to Pin(4) of
IC2605?

Ye s

Replace IC2605.

FLOW CHART NO.5

The key operation is not functioning.

Are the contact point and installation state of the key
switches (SW2150-SW2156) normal?

Ye s

When pressing each switches (SW2150-SW2156) do
the voltage of Pin(1) on CN2104 decrease?

Ye s

Replace Digital Main CBA Unit.

No

No

No

See FLOW CHART NO.3 <P-ON+6V is not output.
(P-ON+3.3V is outputted normally.)>

Re-install the switches (SW2150-SW2156) correctly
or replace the poor switch.

Check the switches (SW2150-SW2156) and their
periphery, and service it if defective.

8-1 A13P1TR

FLOW CHART NO.6

No operation is possible from the remote control unit. (Operation is possible from the unit.)

Is 3.3V voltage supplied to Pin(3) of RS2161 (remote
control receiver)?

Ye s

Is the "L" pulse sent out Pin(1) of
receiver) when the infrared remote control is activated?

Ye s

Is the "L" pulse supplied to Pin(2) of CN2104?

Ye s

Replace Digital Main CBA Unit.

FLOW CHART NO.7

Picture does not appear normally. (Video input/Y/Pb/Pr input/RGB input)

Are the video signals outputted to the specific
terminal?

Are the component video(Y/Pb/Pr) signals outputted
to Pin(18, 20, 22) of CN2104?

Are the RGB video signals outputted to Pin(1, 3, 5)
of CN2103?

Are the composite video signals outputted to
Pin(9) of CN2103?

RS2161

Ye s

(remote control

No

No

No

No

No

No

Check AL+3.3V line and service it if defective.

Replace RS2161 (remote control receiver) or
remote control unit.

Check the line between Pin(1) of RS2161 (remote
control receiver) and Pin(2) of CN2104, and service
it if defective.

Check the line between each pin of CN2104 and
CN2103 and input terminal and service it if defective.

Check the component video(Y/Pb/Pr) signal line,
and service it if defective.

Check the RGB video signal line, and service it if
defective.

Check the composite video signal line, and service it
if defective.

Replace Digital Main CBA Unit, FRC CBA Unit or LCD
Module Assembly.

FLOW CHART NO.8

Picture does not appear normally. (Tuner input)

Are the DIF signals outputted to Pin(17, 18) of CN2103?

Ye s

Replace Digital Main CBA Unit, FRC CBA Unit or LCD
Module Assembly.

No

Check the line between Pin(17, 18) of CN2103 and
Pin(10, 11) of TU2301, and TU2301(Tuner Unit), and
service it if defective.

8-2 A13P1TR

FLOW CHART NO.9

Audio is not outputted normally. (Tuner input)

Are the DIF signals outputted to Pin(17,18) of CN2103?

Ye s

Are the audio(L/R) signals outputted to Pin(9,10) of
CN2104?

Yes (Output to headphone)

Are the audio(L/R) signals inputted to the Pin(19, 32)
of IC2801?

Ye s

Are the audio(L/R) signals outputted to CN2801 and
CN2802?

Ye s

Check the CL2801, CL2802, speakers and their
periphery circuit, and service it if defective.

Yes (Output to speakers)

No

No

No

No

Check the line between Pin(17, 18) of CN2103 and
Pin(10, 11) of TU2301, and TU2301(Tuner Unit), and
service it if defective.

Replace Digital Main CBA Unit.

Check the line between Pin(9,10) of CN2104 and
Pin(19, 32) of IC2801, and service it if defective.

Check IC2801 and the periphery circuit, and service it
if defective.

Are the audio(L/R) signals outputted to Pin(1, 7) of
IC2701?

Ye s

Check JK2708 and their periphery circuit, and service
it if defective.

FLOW CHART NO.10

Audio is not outputted normally. (Audio input terminals)

Are the audio(L/R) signals outputted to the specific
terminal?

Are the RGB-audio(L/R) signals outputted to
Pin(14, 15) of CN2103?

Are the audio(L/R) signals outputted to Pin(24, 25) of
CN2104?

Are the PC audio(L/R) signals outputted to Pin(12, 13)
of CN2104?

Ye s

Are the audio(L/R) signals outputted to Pin(9,10) of
CN2104?

Yes (Output to headphone)

Are the audio(L/R) signals inputted to the Pin(19, 32)
of IC2801?

Ye s

Are the audio(L/R) signals outputted to CN2801 and
CN2802?

Ye s

Check the CL2801, CL2802, speakers and their
periphery circuit, and service it if defective.

Yes (Output to speakers)

No

No

No

No

No

No

No

Is 5V voltage supplied to Pin(8) of IC2701?

Ye s

Replace IC2701?

Check the line between each pin of CN2103 and
CN2104 and input terminal and service it if defective.

Check the RGB-audio(L/R) signal line, and service it
if defective.

Check the audio(L/R) signal line, and service it if
defective.

Check the PC audio(L/R) signal line, and service it if
defective.

Replace Digital Main CBA Unit.

Check the line between Pin(9,10) of CN2104 and
Pin(19, 32) of IC2801, and service it if defective.

Check IC2801 and the periphery circuit, and service it
if defective.

Check P-ON+5V line and
their periphery, and service
it if defective.

No

Are the audio(L/R) signals outputted to Pin(1, 7) of
IC2701?

Ye s

Check JK2708 and their periphery circuit, and service
it if defective.

No

Is 5V voltage supplied to Pin(8) of IC2701?

Ye s

Replace IC2701?

Check P-ON+5V line and
their periphery, and service
it if defective.

No

8-3 A13P1TR

BLOCK DIAGRAMS

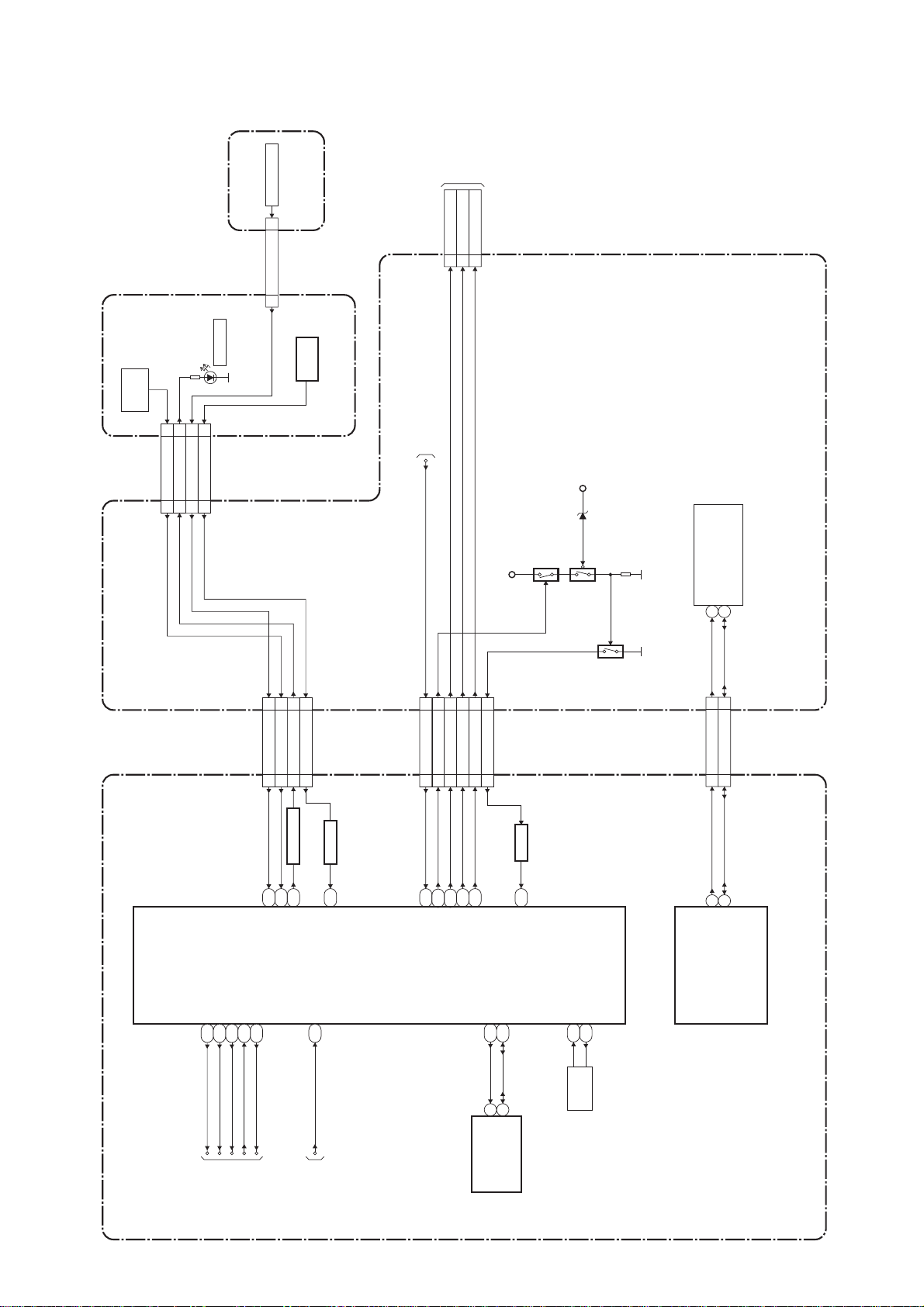

System Control Block Diagram

KEY SWITCH

CN2150

FUNCTION CBA

TO

POWER

P-ON-H2
3

BLOCK

DIAGRAM

CN2

BACKLIGHT-SW5BACKLIGHT-ADJ
1

REMOTE

RS2161

D2161

STANDBY

SENSOR

CN2162

REMOTE33

RED-LED44

KEY-IN111

LIGHT66

CN2102

KEY-IN111

CN2161

LIGHT

SENSOR

IC2161

IR SENSOR CBA

CN2104

TO

POWER SUPPLY

PROTECT1

7

CN2105CN3701

CN2602

BLOCK DIAGRAM

P-ON+12V

JACK CBA

Q2403

Q2401

AL+3.3V

Q2402

3

6

SCL

SDA

TU2301 (TUNER UNIT)

742416

22

23

IC3301

(MAIN MICRO CONTROLLER)

SCART-MUTE

HP-MUTE

AUDIO-MUTE

U5

H25

G23

SCART-MUTE

HP-MUTE

AUDIO-MUTE

TO AUDI O

BLOCK

CN3702

STBYL-ON

HP-DET

Y7

P5

STBYL-ON

HP-DET

DIAGRAM

KEY-IN129 1

W10

KEY-IN1

REMOTE28 2

RED-LED26 4

LED DRIVE

AE6

AC8

REMOTE

RED-LED

LIGHT25 5

BUFFER

Q3702

W9

LIGHT

COMP-DET

P3

COMP-DET

TO VIDEO

BLOCK

DIAGRAM

Q3701

P-ON-H126 4

PROTECT1

23

AD8

P-ON-H1

PROTECT1 Y11

P-ON-H225 5

BACKLIGHT-SW

27

AB9

P-ON-H2

BACKLIGHT-SW U6

IC3101 (MEMORY)

BACKLIGHT-ADJ

24

R7

BACKLIGHT-ADJ

RESET28 2

OSCL0

J23

6

SCL

IC3102

OSDA0

J22

5

SDA

RESETRESET

Y8

XIN

AE19

27MHz

X3101

XOUT

AD19

OSC

IC3901

(CI CONTROL)

SCL

SDA

8

7

CN3703 CN2103

TUNER-CLK

TUNER-DATA

DIGITAL MAIN CBA UNIT

9-1

A13P1BLS

Video Block Diagram

AUDIO SIGNAL

VIDEO SIGNAL

TO DIGITAL SIGNAL

DIF-OUT2

DIF-OUT1

DIF-OUT217 13

CN2103 CN3703

PROCESS

BLOCK DIAGRAM

RF-AGC

RF-AGC25 5

DIF-OUT118 12

VIDEO-B

VIDEO-R

VIDEO-G

RGB-VIDEO-IN

VIDEO-R525

VIDEO-G327

RGB-VIDEO-IN
921

CN2103 CN3703

RGB-VIDEO-OUT

VIDEO-B129

RGB-VIDEO-OUT
723

TO DIGITAL SIGNAL

PROCESS

BLOCK DIAGRAM

VIDEO-IN

COM-Y-IN

COM-Pr-IN

COM-Pb-IN

COM-Y/VIDEO-IN

COM-Pb-IN20 10

18 12

CN2104 CN3702

TO SYSTEM CONTROL

BLOCK DIAGRAM

COMP-DET

DIGITAL MAIN CBA UNIT

COM-Pr-IN22 8

COMP-DET21 9

WF7

WF6

WF5

WF1

WF3

WF2

JACK CBA

7

15

4

11

10

JK2701

20

19

11

TU2301

(TUNER UNIT)

RF-AGC

DIF-OUT1

DIF-OUT2

RGB-

VIDEO-IN

VIDEO-R

VIDEO-G

9-2

VIDEO-B

VIDEO-OUT

COMPONENT

-Y/VIDEO-IN

JK2704

JK2705

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

JK2706

A13P1BLV

Audio Block Diagram

AUDIO SIGNAL

SPDIF

AUDIO(L)

CN3702CN2104

AUDIO(R)

PC-AUDIO(L)

TO DIGITALSIGNAL

PROCESS

BLOCK DIAGRAM

PC-AUDIO(R)

RGB-AUDIO(L)-OUT

RGB-AUDIO(R)-OUT

AMP(L)-OUT

RGB-AUDIO(L)-IN

RGB-AUDIO(R)-IN

AMP(R)-OUT

CN3703

TO SYSTEM

HP-DET

HP-MUTE

AUDIO-MUTE

CONTROL

BLOCK DIAGRAM

STBYL-ON

SCART-MUTE

IC3801

(OP AMP)

P-ON+5V

Q3705

Q3706

21

67

21

67

IC3802 (OP AMP)

CN3702CN2104

Q3807

MUTE

DRIVE

Q3809

Q3806

MUTE

DIGITAL MAIN CBA UNIT

WF4

AUDIO(L)24 6

SPDIF16 14

AUDIO(R)25 5

PC-AUDIO(L)12 18

PC-AUDIO(R)13 17

RGB-AUDIO(L)-OUT

RGB-AUDIO(R)-OUT

28 2

27 3

RGB-AUDIO(L)-IN

14 16

CN2103

JK2701

HP-MUTE28 2

HP-DET29 1

RGB-AUDIO(R)-IN

15 15

6

2

1

3RGB-AUDIO(L)-OUT

57

IC2701 (HP AMP)

AMP(L)-OUT10 20

AMP(R)-OUT921

AUDIO-MUTE723

STBYL-ON624

P-ON+5V

Q2803

19

32

3

2

MUTE

1

DRIVE PWM

IC2801 (AUDIO AMP)

39,40

CN2802

SP(L) 2

CL2802

17

STANDBY

DRIVE PWM

11,12

SP-GND 1

Q2801

34

MUTE CONTROL

JACK CBA

CN2801

SP(R) 2

SP-GND 1

CL2801

DIGITAL

JK2709

JK2702

AUDIO-OUT

(COAXIAL)

JK2703

AUDIO(L)-IN

AUDIO(R)-IN

PC-AUDIO-IN

JK2707

RGB-AUDIO(L)-IN

RGB-AUDIO(R)-IN

RGB-AUDIO(R)-OUT

9-3

JK2708

HEADPHONE

JACK

SPEAKER

L-CH

SPEAKER

R-CH

A13P1BLA

Digital Signal Process Block Diagram

LCD MODULE

ASSEMBLY

LVDS-TXA-O0(-)

LVDS-TXA-O0(+)

32

31

CN5003

LVDS-TXA-O1(-)

LVDS-TXA-O1(+)

LVDS-TXA-O2(-)

LVDS-TXA-O2(+)

30

29

28

27

LVDS-TXA-O3(-)

LVDS-TXA-O3(+)

22

21

LVDS-TXA-O4(-)

LVDS-TXA-O4(+)

LVDS-TXA-OCLK(-)

LVDS-TXA-OCLK(+)

20

19

25

24

LVDS-TXA-E0(-)

LVDS-TXA-E0(+)

LVDS-TXA-E1(-)

LVDS-TXA-E1(+)

17

16

15

14

LVDS-TXA-E2(-)

LVDS-TXA-E2(+)

LVDS-TXA-E3(-)

LVDS-TXA-E3(+)

7

6

13

12

LVDS-TXA-E4(-)

LVDS-TXA-E4(+)

LVDS-TXA-ECLK(-)

LVDS-TXA-ECLK(+)

5

4

9

10

LVDS-TXB-O0(-)

LVDS-TXB-O0(+)

42

41

CN5002

LVDS-TXB-O1(-)

LVDS-TXB-O1(+)

LVDS-TXB-O2(-)

LVDS-TXB-O2(+)

40

39

38

37

LVDS-TXB-O3(-)

32

LVDS-TXB-O3(+)

LVDS-TXB-O4(-)

LVDS-TXB-O4(+)

LVDS-TXB-OCLK(-)

31

30

29

35

LVDS-TXB-E0(-)

LVDS-TXB-E0(+)

LVDS-TXB-E1(-)

LVDS-TXB-E1(+)

LVDS-TXB-OCLK(+)

27

26

25

24

34

LVDS-TXB-E2(-)

LVDS-TXB-E2(+)

LVDS-TXB-E3(-)

LVDS-TXB-E3(+)

23

22

17

16

LVDS-TXB-E4(-)

LVDS-TXB-E4(+)

LVDS-TXB-ECLK(-)

LVDS-TXB-ECLK(+)

15

14

20

19

AUDIO SIGNAL

D18

VIDEO SIGNAL

IC5001

(FRAME RATE CONVERTER)

F18

F17

E18

E17

D17

CN5001

CN3901

H18

H17

Y4

W4Y5W5Y6W6Y8W8Y9W9

141512

13

16172223242519202829303132333839404135

LVDS-OD1(-)38LVDS-OD1(+)

LVDS-OD0(-)40LVDS-OD0(+)39LVDS-OD2(-)36LVDS-OD2(+)

37

35

B17

A18

A19

A17

B18

B19

J18

J17

LVDS-OD3(-)30LVDS-OD3(+)29LVDS-OCLK(-)

B21

A21

E19

D19

D20

G18

G17

W7

W7

Y10

LVDS-OCLK(+)

LVDS-OD4(-)28LVDS-OD4(+)

LVDS-ED0(-)24LVDS-ED0(+)23LVDS-ED2(-)20LVDS-ED2(+)19LVDS-ED3(-)14LVDS-ED3(+)13LVDS-ECLK(-)

33

32

27

B22

B20

A22

A20

C17

LVD S

TX

F19

F20

E20

Y11

W10

W11

LVDS-ED1(-)22LVDS-ED1(+)

21

D17

D19

C19

DIGITAL

H19

H20

Y12

W12

C20

D20

SIGNAL

PROCESS

J19

J20

Y14

W14

C23

D23

G19

G20

M20

FRAME

RATE

CONVERTER

Y15

Y13

W15

W13

36

LVDS-ECLK(+)

LVDS-ED4(-)12LVDS-ED4(+)

17

16

11

D24

C24

D21

C21

M19

N20

N19

P20

P19

T20

T19

U20

U19

R20

R19

M17

M18

N17

N18

P17

P18

T17

T18

U17

U18

R17

R18

IC5006

(DDR2 SDRAM)

RDQ(0-31)

IC3401, IC3402

(SDRAM)

DATA(0-31)

ADDESS(0-12)

DATA(0-15)

DATA(0-15)

ADDESS(0-12)

RA(0-13)

ADDESS(0-13)

FRC CBA UNIT

IC3301 (DIGITAL SIGNAL PROCESS)

AE12

AC17

AD11

AD12

RGB-VIDEO-OUT

COM-Y-IN

VIDEO-IN

COM-Pb-IN

COM-Pr-IN

TO VIDEO

AC14

VIDEO-R

VIDEO-G

BLOCK

DIAGRAM

A/D

CONVERTER

SW

AB14

AB13

AB17

VIDEO-B

RGB-VIDEO-IN

JK3704

PC-RGB-IN

AC10

RED

1

AC9

GREEN

BLUE

2

AD9

HSYNC

3

AE9

VSYNC

13

HSYNC

VSYNC

W12

W11

DATA

12

14

VGA-SDA

AC11

CLOCK

15

DAC

VGA-SCL

AB12

W13

(CI CONTROL)

IC3901

CI

CONTROL

CI-D(0-7)

CI

CARD

SLOT

CI-A(0-14)

DEMODULATOR

AE17

DESCRAMBLE

/TS INTERFACE

DIF-OUT2

DIF-OUT1

TO VIDEO

/MPEG DECODER

RF-AGC

P23

AB21

RF-AGC

DIAGRAM

Q3305

AUDIO(L)

AD22

PC-AUDIO(L)

AC25

AUDIO(R)

AD17

BLOCK

9-4

Y25

AE25

PC-AUDIO(R)

RGB-AUDIO(L)-OUT

RGB-AUDIO(R)-OUT

TO AUDIO

BLOCK

AUDIO I/F

V24

AE22

RGB-AUDIO(L)-IN

RGB-AUDIO(R)-IN

DIAGRAM

Y23

AA25

AD25

AMP(L)-OUT

AMP(R)-OUT

SPDIF

AUDI O

DECODER

V20

AE2

AD2

26272324202117

IC3403 (HDMI SW)

424145444847393836

TMDS-D0(+)

TMDS-D0(-)

TMDS-D1(+)

HDMI-IN2

JK3701

79461

HDMI

I/F

AE3

AE4

AD3

TMDS-D1(-)

TMDS-D2(+)

VIDEO

DECODER

AE5

AD4

AD5

18

TMDS-D2(-)

SDA

TMDS-CLOCK(+)

TMDS-CLOCK(-)

3

101216

SCL

HDMI

SW

37

HDMI-IN3

JK3702

15

79461

TMDS-D0(-)

TMDS-D0(+)

575660596362545351

8

TMDS-D0(+)

TMDS-D0(-)

79461

TMDS-D1(-)

TMDS-D1(+)

7

111014

TMDS-D1(+)

TMDS-D1(-)

3

101216

TMDS-D2(-)

TMDS-D2(+)

TMDS-CLOCK(+)

541

13

TMDS-CLOCK(+)

TMDS-D2(+)

TMDS-D2(-)

3

101216

HDMI-IN1

JK3703

A13P1BLD

DIGITAL MAIN CBA UNIT

15

SCL

SDA

TMDS-CLOCK(-)

52

2

TMDS-CLOCK(-)

SDA

SCL

15

Power Supply Block Diagram

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

TO SYSTEM

CONTROL

BLOCK

PROTECT1

DIAGRAM

AL+3.3V

+6V REG.

IC2603

F2603

IC2602

F2602

AMP+24V

P-ON+12V

JACK CBA

+3.3V REG.

IC2605

P-ON+5V

+5V REG.

P-ON+6V20,21

CN2105

TO DIGITAL

MAIN CBA

UNIT

P-ON+3.3V15-17

P-ON+12V26-29

CN3701

AL+5.3V9,10

AL+3.3V11

TO FRC

CBA UNIT

P-ON+3.3V1

CN2601

CN5004

P-ON+12V3,4

TO SYSTEM

CONTROL

BLOCK DIAGRAM

BACKLIGHT-SW5BACKLIGHT-ADJ12BACKLIGHT-SW14BACKLIGHT-ADJ

P-ON-H2

1

3

CN2

CN2602

CN4

TO LCD MODULE

ASSEMBLY

LED+24V1-5

CN4

3,4

AMP+24V3,4

CN3 CN2603

Q670

6

7

T600

1

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F100) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

8

4

5

CN2602

CN2

9

6

11-14

P-ON+12V

AL+5.3V6

11-14

10

3

Q123

Q121

14

PC650

(FEED BACK)

FEED

BACK

3 2

Q120

IC650

Q122

REG.

SHUNT

PC280

(ISOLATOR)

SWITCHING

Q180, Q181

Q281

14

3 2

T150B

7

9

SWITCHING

Q150

11

3

SWITCHING

Q151

IC200

14

(FEED BACK)

3 2

Q280

REG.

SHUNT

8

12

5

Q152

7

9

10

T150A

8

11

12

5

3

10

14

PC150

(FEED BACK)

PC281

3 2

HOT COLD

F100

T5AH

CAUTION !

HOT CIRCUIT. BE CAREFUL.

For continued protection against fire hazard,

replace only with the same type fuse.

AC601

AC CORD

BRIDGE

RECTIFIER

BD100

LINE

FILTER

LF100-LF102

/250V

L

CN1

N

SW601

7

3

FB

OUT1

IC120

(SWITCHING CONTROL)

5

OUT2

2

VIN

(SWITCHING)

Q600

7

8

DRIVE

DRIVE

4

FB

5

VCC

9-5

16

11

VGL

VGH

HIGH-VOLTAGE

RESONANT CONTROL

IC150

2

VCC

1

VSEN

3

7

6

FB

RC

OC

POWER SUPPLY CBA UNIT

A13P1BLP

SCHEMATIC DIAGRAMS / CBA AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis
have special characteristics. These characteristi cs
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “!” in
the schematic diagram and the parts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.

2. All resistance values are indicated in ohms
(K = 10

3. Resistor wattages are 1/4W or 1/6W unless
otherwise specified.

4. All capacitance values are indicated in µF
(P = 10

5. All voltages are DC voltages unless otherwise
specified.

6. Electrical parts such as capacitors, connectors,
diodes, IC’s, transistors, resistors, switches, and
fuses are identified by four digits. The first two
digits are not shown for each component. In each
block of the diagram, there is a note such as
shown below to indicate these abbreviated two
digits.

3

, M = 106).

-6

µF).

10-1 LCDP_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON

r

THE FOLLOWING PAGES:

1. CAUTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE
FUSE.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F100) is blown, first check to see that all components in the power supply circuit are not

defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components
in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schem atics are as shown below:

Plug the TV power cord into a standard AC outlet.:

2

(Unit: Volt)

1

5.0 5.0

3

Power on mode

5. How to read converged lines

1-D3
Distinction Area

Line Number
(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line numbe
"1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number
"1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
: Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage
is not consistent here.

3

2

1

AREA D3

1-B1

AREA B1

1-D3

ABCD

The reference number of parts on Schematic Diagrams/CBA, except for the
Power Supply CBA Unit, can be retrieved by application search function.

10-2 LCDP_SC

Jack 1 Schematic Diagram

4

3

2

1

CONTINUE
JACK 2

DIF-OUT1
DIF-OUT2

SCL
SDA

RF-AGC

TO DIGITAL MAIN
CBA UNIT CN3703

10GND EDZTE615.6B
11FBIN
12SLOW-SW-IN
13GND
14RGB-AUDIO(L)-IN
15RGB-AUDIO(R)-IN
16GND
17DIF-OUT2
18DIF-OUT1
19GND
20NU
21GND
22SCL
23SDA
24GND
25RF-AGC
26GND
27NU
28HP-MUTE
29HP-DET

CONTINUE
JACK 2

STBYL-ON
AUDIO-MUTE
AMP(R)-OUT
AMP(L)-OUT

TO DIGITAL MAIN
CBA UNIT CN3702

10AMP(L)-OUT
11GND
12PC-AUDIO(L)
13PC-AUDIO(R)
14GND
15GND
16SPDIF
17GND
18COM-Y/VIDEO-IN
19GND
20COM-Pb-IN
21COMP-DET
22COM-Pr-IN
23GND
24AUDIO(L)
25AUDIO(R)
26GND
27RGB-AUDIO(R)-OUT
28RGB-AUDIO(L)-OUT
29GND

CN2103

0

1VIDEO-B

0

2GND

0

3VIDEO-G

0

4GND

0

5VIDEO-R

0

6GND

0

7RGB-VIDEO-OUT

0

8GND

0

9RGB-VIDEO-IN

0
0
0
0

0.5

0.5
0

2.1

2.1
0

0

5.1

5.1
0

1.8
0

0

0.7

CN2104

3.4

1KEY-IN1

3.4

2REMOTE
3NU

0

4RED-LED

4.0

5LIGHT

4.4

6STBYL-ON

3.4

7AUDIO-MUTE

0

8GND

0

9AMP(R)-OUT

0
0

0.4

0.4
0
0

1.7
0
0
0
0
0
0
0

0.3

0.3
0
0
0
0

WF5

WF6

WF7

R2104
0

WF1

WF2

WF3

WF4

R2102
0

R2103
0

R2757
0

R2755
0

R2721
0

R2724
100

R2709
470

D2709
3v9BSB-T26

C2706
330P

C2704
330P

R2711
0

R2712
0

R2725
75

R2710
75

R2720
10K

R2717
0

R2714
0

C2729
33P

C2728
33P

C2707
33P

C2709
33P

R2719
51K

R2713
560

R2716
560

JK2701
SCART JACK

D2715
EDZTE615.6B

D2714
EDZTE615.6B

D2710
EDZTE615.6B

D2712

D2713
EDZTE615.6B

D2707
5V6BSB-T26

D2708
5V6BSB-T26

D2703
5V6BSB-T26

D2704
5V6BSB-T26

D2701
EDZTE615.6B

D2702
EDZTE615.6B

D2705
EDZTE615.6B

D2706
EDZTE615.6B

123456789101112131415161718192021

R2739

2.7K

R2740

2.7K

L2701
12uH

R2759
100K

R2723
0

R2742
820

R2760
27K

R2761
27K

C2708
220/6.3V

L2708

1.8uH

C2731
1

C2735
2200P

C2738
1

C2736
2200P

D2711
EDZTE615.6B

C2737
1

0 2.1 2.10

4

GND5MUTE

BIAS

2.1 2.1 2.1 5.1

C2719
47/10

VIDEO SIGNAL

AUDIO SIGNAL

JACK CBA

CONTINUE
JACK 2

P-ON+5V
AL+3.3V

C2726
47P

C2711
100P

C2722
10

L2703

4.7uH

L2704

4.7uH

R2105
220

R2754
300

L2705

0.22uH

L2706

0.22uH

L2707

0.22uH

R2701
470

C2730

0.047

C2732

0.047

C2105
100P

R2753
22K

C2712
330P

C2713
330P

C2104
100P

R2705
0

R2763
0

C2109
100P

C2718
33P

C2720
100P

C2106
100P

R2728
0

JK2708

R2101

4.7K

C2107
100P

JK2707

JK2709

JK2704

JK2705

JK2706

JK2702

JK2703

HEADPHONE
JACK

C2110
100P

PC-AUDIO-IN

DIGITAL
AUDIO-OUT
(COAXIAL)

COMPONENT

-Y/VIDEO-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

AUDIO(L)-IN

AUDIO(R)-IN

CN2102

1 KEY-IN1
2 AL+3.3V
3 REMOTE
4 RED-LED
5 P-ON+5V
6 LIGHT
7 GND

TO IR SENSOR
CBA CN2162

D2716

1SS133

D2717

R2737
10

R2738
10

3V9BSB-T26

D2718
EDZTE615.6B

D2719
5V6BSB-T26

D2720
EDZTE615.6B

D2721
5V6BSB-T26

C2721

0.1

C2717
1

C2724
220/10V

2

3

1

IC2701
BH3547F

(HP AMP)

VCC

7

8

6

C2723
220/10V

10-3

EDCBA

F

A13P1SCJ1

Jack 2 Schematic Diagram

4

3

2

1

CONTINUE
JACK 1

CONTINUE
JACK 1

SPEAKER
R-CH

SPEAKER
L-CH

DIF-OUT1
DIF-OUT2

SCL
SDA

RF-AGC

STBYL-ON

AUDIO-MUTE
AMP(R)-OUT
AMP(L)-OUT

JACK CBA

R2818
10K

R2810
10K

R2811
10K

Q2801
KTC3875S

-Y-RTK/P
(AUDIO-MUTE)

0

C2823
0

5.0

0

R2814

1.8K

C2814

0.1

CN2801
1SP(R)

2SP-GND

CN2802
1SP(L)

2SP-GND

5.0

R2307
10K

5.1
Q2803

KTA1504S

-Y-RTK/P

0

(AUDIO-MUTE)

C2822
470P

R2820
47K

R2801
47K

C2827
220/35V

C2313
220P

C2314
220P

C2819

0.1

L2301
WIRE

C2806
1

C2831
1000P

C2804
1000P

TU2301 TUNER UNIT

NU

C2309

0.01

C2310

0.01

C2303
1

GND

GND

CONTROL
LOGIC

GND

GND

1

GND

GND

C2307

5.6P

L2302

0.12uH

L2304

0.22uH

L2303

0.12uH

C2308

5.6P

C281510C2816

0.47

4.9 2.5 0 0 0 0 0 4.9 2.3

PROT

31

GND

2.5
32

33

4.4
34

0

35

GND

0

36

GND GND

24.9
37

VDD

24.9
38

VDD

11.3
39

11.3
40

GND

IC2801
R2A15122FP

-W00R
(AUDIO AMP)

L2802
33uH

12345678910

0 20.4 9.7 00000 020.4

C2812

0.1

R2804
10

C2802
1000P

R2308
0

C2312

R2309220P
0

R2305
100

R2306
100

C2302
220/6.3V

NU

GND

VREFF

PWM
GENE.

HB2

DVDD1

GND

C2828
10

D2803
HZS30NB2TE-EQ

C2807

220/35V

C2834
220/35V

C2808
220/35V

C2833
220/35V

C2810

0.22

2NU3NU4

C2318
56P

C2319
56P

C2305
33P

C2306
33P

C2304

0.047

C2817
10

GND

PWM
GENE.

GND

RF-AGC5+5V

21222324252627282930

HB1 AVCC

C2811

0.1

L2801
33uH

C2809

0.22

SDA

6

R2809
33K

ROSC

CBIAS

GND

VDD

VDD

GND

R2830
0

SCL

7

8NU11

20

19

18

17

16

15

14

13

12

11

R2803
10

C2801
1000P

9NU10

R2827

1.8K

4.1

2.5

0

4.4

0

0

24.9

24.9

11.3

11.3

DIF-OUT2

DIF-OUT1

R2812
0

C2818
10

C2805
1

C2803

0.1

D2802
HZS30NB2TE-EQ

C2832

0.01

JS2802

C2821
470P

C2813

0.1

JS2801

C2826
220/35V

D2613

D2604
SB140

R2627
68

C2643

0.01

C2647
1000P

R2633
10

C2829
220/35V

R2619
68

C2631

0.01

C2625
1000P

R2612
10

R2636
100K

R2637
15K

R2401

D2401

2.7K

R2402

C2401

2.7K

2.2

D2614

R2638
75K

R2639
39K

IC2605
XC6222D501PR-G

(+5V REG.)

2.4
CE

1

0

GND

2

NU

3

IC2603
BD9329EFJ-E2
(+6V REG.)

10.4
1

12.3
2

6.0 1.7
3

0

45

L2603
10uH

C2630
1

IC2602
BD9329EFJ-E2
(+3.3V REG.)

7.9
1

12.3
2

3.4
3

0

45

L2602
10uH

3.4

3.1

Q2401
KTA1504S

-Y-RTK/P

(SWITCHING)

3.4

C2662
1

C2663
220/10V

5.1

VOUT

5

6.0

VIN

4

C2660

2.2

BST

SS

VIN

EN

SW

COMP

GND FB

C2639
10

F2602
FMC16302AHTP

BST

SS

VIN

EN

SW

COMP

GND FB

C2632
10

(SWITCHING)

3.1

0

R2406
10K

2.7

8

3.4

7

6

1.0

C2638
220/10V

C2634

4.7

2.7

8

2.9

7

1.6

6

0.9

C2633
220/6.3V

R2405
100

3.3
Q2403

KTC3875S

-Y-RTK/P

Q2402
KTC3875S

-Y-RTK/P

(SWITCHING)

D2602

C2641
1

C2642

0.22

C2640

0.1

C2629
100/16V

C2628

0.22

D2402
5V6BSB-T26

R2403
10K

2.5

0

0

JW2401

0.01C2606

0.01C2609

0.01C2607

F2603
FMC16302AHTP

R2625
39K

C2644
680P

D2611
6V8BSB-T26

J2602

R2613
100K

R2615

R2614

43K

47K

C2627
680P

D2608
6V8BSB-T26

C2646

4.7

R2616
30K

R2617
11K

C2612
100/6.3V 1000P

L2608 15uH
L2606 15uH
L2604 15uH

C2637
100/16V

R2622
100

R2623
68K

R2624
12K

BC2602
BEAD

C2624

0.1

C2605

0.1

C2650

BC2603
BEAD

C2635

0.1

C2602
100/16V

D2601
1ZB18BB

JS2601

R2605
33K

L2605 15uH

L2609 15uH
L2607 15uH

R2634
15K

R2635
15K

C2648
220/35V

D2616
1SS400

R2606
12K

WIRER2602

C2115

0.1

D2612

C2603

0.1

C2601

0.1

C2604
100/16V

C2103

0.1

C2113

0.1

C2114

0.1

C2111

0.1

C2649

0.1

AUDIO SIGNALVIDEO SIGNAL

CONTINUE
JACK 1

P-ON+5V
AL+3.3V

TO FRC CBA

CN2601

UNIT CN5004

3.4
1 P-ON+3.3V

0

2 GND

12.3
3 P-ON+12V

12.3
4 P-ON+12V

0

5 GND

0

6 GND

TO POWER SUPPLY

CN2602

CBA UNIT CN2

12.3

14 P-ON+12V

12.3

13 P-ON+12V

12.3

12 P-ON+12V

12.3

11 P-ON+12V

0

10 GND

0

9 GND

0

8 GND

0

7 GND

5.3
6 AL+5.3V

2.5
5 BACKLIGHT-ADJ(PWM)

0

4 GND

3.2
3 P-ON-H2

2NU

3.3
1 BACKLIGHT-SW

TO DIGITAL MAIN

CN2105

CBA UNIT CN3701

1NU

2.5
2 RESET

3.3
3 BACKLIGHT-SW

3.3
4 P-ON-H1

3.2
5 P-ON-H2

2.7
6 BACKLIGHT-ADJ

3.3
7 PROTECT1

0

8 GND

5.3
9 AL+5.3V

5.3

10 AL+5.3V

3.4

11 AL+3.3V

0

12 GND

0

13 GND

0

14 GND

3.4

15 P-ON+3.3V

3.4

16 P-ON+3.3V

3.4

17 P-ON+3.3V

0

18 GND

0

19 GND

6.0

20 P-ON+6V

6.0

21 P-ON+6V

0

22 GND

0

23 GND

0

24 GND

0

25 GND

12.3
26 P-ON+12V

12.3
27 P-ON+12V

12.3
28 P-ON+12V

12.3
29 P-ON+12V

TO POWER SUPPLY

CN2603

CBA UNIT CN3

24.9

4 AMP+24V

24.9

3 AMP+24V

0

2 GND

0

1 GND

10-4

UNLESS OTHERWISE SPECIFIED:
DIODES ARE 1SS133.

LKJIHG

A13P1SCJ2

IR Sensor Schematic Diagram

2

1

R2165
100

C2162
10

RS2161
KSM-2002TN2M-FU

(REMOTE SENSOR)

VOUT

GND

VCC

231

C2166
10

R2160

3.3K

R2161
1K

C2163

0.01

R2167
220

C2167

D2161
LTL-1CHEE

STANDBY LIGHT-SENSOR

0.1

C2164

0.1
R2166
220

5.1
IC2161

JSA-3113B

4.0

R2163

2.4K

R2164
330K 0.1

C216010C2161

C2165

0.1

CN2162

1 KEY-IN1
2 AL+3.3V
3 REMOTE
4 RED-LED
5 P-ON+5V
6 LIGHT
7 GND

CN2161

1 KEY-IN1
2 GND

TO JACK CBA
CN2102

TO FUNCTION
CBA CN2150

IR SENSOR CBA

AB

10-5

C

A13P1SCIR

Function Schematic Diagram

2

1

TO IR SENSOR
CBA CN2161

CN2150
1KEY-IN1

2GND

C2150

0.1

R2156
1K

R2155
330

SW2155

POWER CH UP

R2154
680

R2153
1K

SW2154 SW2153

SOURCEMENU

R2152

1.8K

CH
DOWN

SW2152 SW2151 SW2150SW2156

R2151
3K

R2150

6.8K

VOL
DOWN

VOL
UP

FUNCTION CBA

UNLESS OTHERWISE SPECIFIED:
SWITCHES ARE SKQSAB.

ABC

10-6

A13P1SCF

Power Supply Schematic Diagram

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.

4

3

2

1

AC601
AC CORD

AC
INLET

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F100) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

HOT CIRCUIT. BE CAREFUL.

SW601
MAIN

POWER

CN1

L
N

CY101
330P
/250V

R130
36K

C131

0.1

F100
T5AH/250V

VA100
TVT14471

CY100
330P
/250V

C130

0.22

R128
33K

CX100

0.22
/275V

CY102
330P
/250V

C128
1000P

C129
1000P

TH101

LF100

2R55A

OTC28A29

R100A
680K

R100B
680K

R100C
680K

CY103
330P
/250V

L120
8TI0072701GP

L121
8TI0072701GP

R121A
1M

R121B
1M

R121C
1M

R121D
680K

Q122
AP01L60P

D

(SWITCHING)

G

S

R129
33K

TH100
2R55A

R162
20K

Q152
AP01L60P

(SWITCHING)

R163
100K

C120A
68/450V

R122A
1M

R122B
1M

R122C
1M

R122D
680K

Q123
AP01L60P

D

(FEED BACK)

G

S

R131
20K

R132
100K

IC120
SSC2101S

SWITCHING
CONTROL

IS

COMP

1

OUT1

VIN

2

GND

FB

3

OUT2

VCC

45

C127

C126

22/50V

0.1

VA101
300V

LF101
8LE0045802GP

VA104
300V

D

G

S

C120B
68/450V

D

S

Q121

2SK4111

D

(SWITCHING)
G

S

R134
100K

8

7

6

CX101

0.22
/275V

R161C1MR161B1MR161A
1M

C163

0.01

C120C
68/450V

D122
OPEN

C124
100P/1KV

D120
RY2A

C125
100P/1KV

D121
RY2A

Q120

2SK4111

(SWITCHING)

G

R124
10K

R133
20K

R127
100

C132
680P

R164
22K

C121
OPEN

R12320R125
10K

D124

R126

4148

20

D127
4148

R120A

0.06/3W

D126
4148

D125
4148

VA102
OPEN

LF102
8LE0045802GP

VA103
OPEN

D123
4148

BD100
GBU406

C162

0.1

C158
1

C122

0.68
/450V

C155
10/50V

C156
680P

R159
10K

C159
1

R135

0.47/5W

R602A

2.2M

ZD120
1ZB220-Y

ZD121
1ZB220-Y

IC150
SSC9512
HIGH-VOLTAGE
RESONANT
CONTROL

VSEN

1

VCC

FB

GND

4

SS

5

OC

6
R158
470

RC

712

8

RV COM

9

R157

C157

100

1000P

C160

0.033

R602C

R602B

2.2M

2.2M

ZD601

R601

1N4734A

3/2W

C603

R603

0.22

1M

D15010R150
1N4937

C161

0.22

R602D

2.2M

R604

4.7M

NU

NU

VGH

VS

VB

NU

NU

VGLREG

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

CY106
680P/250V

OPENCY107

T150B
POWER TRANS

3

9

5

T150A
POWER TRANS

3

5

PC150
PS256

(FEEDBACK)
4

32

T600
POWER TRANS

1

4

5

3

PC650
PS256

(FEEDBACK)
4

32

PC281
PS256

(FEEDBACK)
4

32

PC280
PS256

(ISOLATOR)
4

32

CY105
680P/250V

7

11

12

8

10

9

7

11

12

8

10

1

6

7

8

9

10

1

R653
1K

C652

2.2

1

1

R285
2K

Q150
2SK4110

(SWITCHING)

D151
1N4148

R152
10

R153
47

C150

0.22

ZD150
OPEN

18

172

163

15

14

13

11

10

Q600
STR-A6069

(SWITCHING)

S/OCP

1

BR

2

GND

3

FB

45

ZD60322C606
1N4749A

ZD602
OPEN

Q180
PMBT2222A

(SWITCHING)

ZD180
TZX16B

R156
10

C151
10P
/1KV

C600
OPEN

D/ST

8

D/ST

7

NU

6

VCC

C605

0.1

C604
2200P

Q181
PMBT2222A

(SWITCHING)

R180
510

Q151
2SK4110

(SWITCHING)

D152
1N4148

R155
51

R608
1/2W

R607
100

R151
10K

R154
10K

C153
220P/1KV

R160
560

ZD600
P6KE150A

D600
UF1007

R181
20K

G

G

D601
1N4937

C602
22

D

S

C152
220P

D

/1KV

S

C154

0.033
/1KV

C601

R600

OPEN

OPEN

R605
10

R606
10

COLDHOT

D250
SB5100

D240
MBR10100

D230
SBR20U40CT

D260
SB5100

D220
MBR10100

D210
SBR20U40CT

Q670
BT169D

D660
SB240

R660A
20

R660B
20

R654
100

R282
1K

R206
OPEN

C202
OPEN

C660
470P

Q280
BT169D

C670

0.1

Q200
OPEN

C661
220/25V

R284
1K

R671
10

R670
510

L660
8LR0062201GP

R283
100

C280

R280

0.1

510

POWER SUPPLY CBA UNIT

C250

R250

470/35V

1K/2W

C220

C221

470/35V

C210
470/25V

ZD670
NXP6V2B

R286
2K

R202
1K

470/35V

C211
470/25V

R203
3K

R2001C200
1K

IC200
KIA431A

SHUNT
REG.

C662
220/10V

R281
100

C222
470/35V

C201
OPEN

C651
OPEN

C650

0.22

IC650
TL431

SHUNT
REG.

Q281
2N7002

D

(SWITCHING)

G

S

R201

1.3K

ZD660
OPEN

R650
27K

L210
R6*15

R204

33.2K

R205

7.87K

C281

0.1

C663

0.1

R652
10K

R651

9.1K

R221
1K/2W

C214
470/25V

R287
100K

ZD281
NXP30B

D281
1N4148

R288
20K

JP213
OPEN

ZD280
NXP15B

D280
1N4148

JP217

TO JACK CBA
CN2603

CN3

1GND
2GND
3 AMP+24V
4 AMP+24V

TO LCD MODULE
ASSEMBLY

CN4

1 LED+24V
2 LED+24V
3 LED+24V
4 LED+24V
5 LED+24V
6GND
7GND
8GND

9GND
10 GND
11 NU
12 BACKLIGHT-SW
13 NU
14 BACKLIGHT-ADJ(PWM)

TO JACK CBA
CN2602

CN2

14 P-ON+12V
13 P-ON+12V
12 P-ON+12V
11 P-ON+12V
10 GND

9GND

8GND

7GND

6 AL+5.3V

5 BACKLIGHT-ADJ(PWM)

4GND

3 P-ON-H2

2NU

1 BACKLIGHT-SW

A EC

B

10-7

FD

A13P1SCP

Digital Main 1 Schematic Diagram

CONTINUE
DIGITAL 5

SCL2
SDA2

4

CONTINUE
DIGITAL 5

FRC-CTRL-1
FRC-CTRL-2
FRC-CTRL-3

FRC-RESET 44 FRC-CTRL-3(NU)

*1

IC3301(1/7)
MT5366EDXG

DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

3

2

LVDS
TX

TO DIGITAL
MAIN 5
IC3301(5/7)

D25NU
C25NU
A23NU
B23NU
B17
A17
B18
A18
B19
A19
B20
A20
B21
A21
B22
A22
C17
D17
D19
C19
C20
D20
D21
C21
C23
D23
D24
C24

E18AVDD33-LVDSA1

E19AVDD33_LVDSA2
E16AVSS33-LVDSA1
E17AVSS33-LVDSA2

C3258
10

C3261
10

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into seven and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

R3911 100
R3912 100

R3913 100
R3914 100

R3915 100
R3910 100

R3981
0

L3212
BEAD

C3260

C3259

1

0.1

C32621C3263

0.1

L3211
BEAD

VIDEO SIGNAL

DIGITAL MAIN CBA UNIT

L3907
EXC28CG900U

L3906
EXC28CG900U

L3905
EXC28CG900U

L3904
EXC28CG900U

L3903
EXC28CG900U

L3902
EXC28CG900U

TO FRC CBA
UNIT CN5001

CN3901

51 GND
50 SDA2
49 SCL2
48 NU
47 FRC-CTRL-1(NU)
46 FRC-CTRL-2(NU)
45 LVDS-SEL

43 FRC-RESET
42 NU
41 GND
40 LVDS-OD0(-)
39 LVDS-OD0(+)
38 LVDS-OD1(-)
37 LVDS-OD1(+)
36 LVDS-OD2(-)
35 LVDS-OD2(+)
34 GND
33 LVDS-OCLK(-)
32 LVDS-OCLK(+)
31 GND
30 LVDS-OD3(-)
29 LVDS-OD3(+)
28 LVDS-OD4(-)
27 LVDS-OD4(+)
26 GND
25 GND
24 LVDS-ED0(-)
23 LVDS-ED0(+)
22 LVDS-ED1(-)
21 LVDS-ED1(+)
20 LVDS-ED2(-)
19 LVDS-ED2(+)
18 GND
17 LVDS-ECLK(-)
16 LVDS-ECLK(+)
15 GND
14 LVDS-ED3(-)
13 LVDS-ED3(+)
12 LVDS-ED4(-)
11 LVDS-ED4(+)
10 GND

9 GND
8 GND
7 GND
6 GND
5NU
4NU
3NU
2NU
1NU

1

10-8

CONTINUE
DIGITAL 2

P-ON+3.3V

DCFAB E

A13P1SCD1

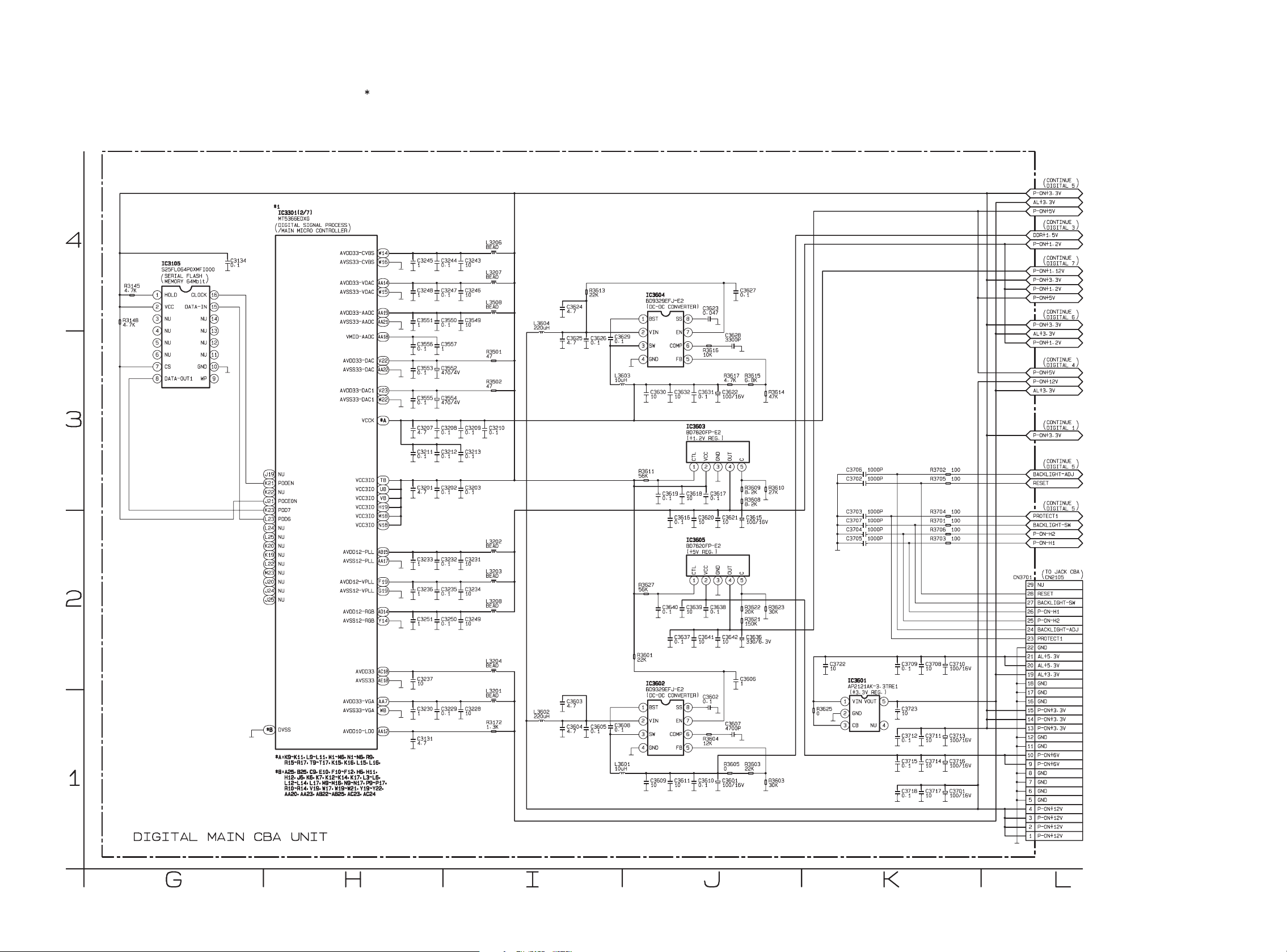

Digital Main 2 Schematic Diagram

*1

IC3301(2/7)
MT5366EDXG
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

4

NU

NU

NU

NU

GND

C3134

0.1

16

15

14

13

12

11

10

IC3105
S25FL064P0XMFI000

SERIAL FLASH

R3145

4.7K

R3148

4.7K

MEMORY 64Mbit

1

HOLD

CLOCK

2

DATA-IN

VCC

3

NU

4

NU

5

NU

6

NU

7

CS

89

DATA-OUT1 WP

3

J19 NU
K21 POOEN
K22 NU
J21 POCE0N
K23 PDD7
L23 PDD6
L24 NU
L25 NU
K20 NU
K19 NU
L22 NU
M23 NU
J20 NU
J24 NU

2

1

DIGITAL MAIN CBA UNIT

J25 NU

*B DVSS

*A:K9~K11,L9~L11,M1~M6,N1~N6,R9,
R15~R17,T9~T17,K15,K16,L15,L16,

*B:A25,B25,C9,E10,F10~F12,H6,H11,
H12,J6,K6,K7,K12~K14,K17,L3~L6,
L12~L14,L17,M9~M16,N9~N17,P9~P17,
R10~R14,V19,W17,W19~W21,Y19~Y22,
AA20,AA23,AB22~AB25,AC23,AC24

1 NOTE:

AVDD33-CVBS

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into seven and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

L3206

W14
W16AVSS33-CVBS

AA14AVDD33-VDAC

W15AVSS33-VDAC

AA19AVDD33-AADC
AA21AVSS33-AADC

AA18VMID-AADC

V22AVDD33-DAC

AA22AVSS33-DAC

V23AVDD33-DAC1
W22AVSS33-DAC1

*AVCCK

T8VCC3IO
U8VCC3IO

V8VCC3IO
H19VCC3IO
M18VCC3IO
N18VCC3IO

AB15AVDD12-PLL
AA17AVSS12-PLL

F19AVDD12-VPLL
G19AVSS12-VPLL

AD14AVDD12-RGB

Y14AVSS12-RGB

AC18AVDD33
AE18AVSS33

AA7AVDD33-VGA

W8AVSS33-VGA

AA12AVDD10-LD0

C3244

C3245

0.1

1

C3248

C3247

1

0.1

C3550

C3551

0.1

1

C35561C3557

0.1

C3553

C3552

0.1

470/4V

C3555

C3554

0.1

470/4V

C3207

C3208

4.7

0.1

C3211

C3212

0.1

0.1

C3202

C3201

0.1

4.7

C3233

C3232

1

0.1

C3235

C3236

0.1

1

C3251

C325010C3249

1

0.1

C3237
10

C3229

C3230

0.1

1

C3131

4.7

C3243
10

C3246
10

C3549
10

C3209

0.1

C3213

0.1

C3203

0.1

C3231
10

C3234
10

C3228
10

BEAD

L3207
BEAD

L3508
BEAD

R3501
47

R3502
47

C3210

0.1

L3202
BEAD

L3203
BEAD

L3208
BEAD

L3204
BEAD

L3201
BEAD

R3172

1.3K

L3604
220uH

L3602
220uH

C3624

4.7

C3625

4.7

C3603

4.7

C3604

4.7

R3613
22K

C3626

0.1

C3605

0.1

IC3604
BD9329EFJ-E2
(DC-DC CONVERTER)

1

BST

2

C3629

0.1

10uH 6.8K

C3608

0.1

L3601
10uH

VIN

3

SW

45

GND FB

C363010C3632
10

R3611
56K

R3627
56K

R3601
22K

IC3602
BD9329EFJ-E2
(DC-DC CONVERTER)

1

BST

2

VIN

3

SW

45

GND FB

C3609
10

8

SS

7

EN

6

COMP

C3631 C3622

0.1

IC3603
BD7820FP-E2
(+1.2V REG.)

CTL

12345

C3619

C3618

0.1

10

C3620

C3616

10

0.1

IC3605
BD7820FP-E2
(+5V REG.)

CTL

12345

C3639

C3640

10

0.1

C363710C364110C3642 C3636

0.1

8

SS

7

EN

6

COMP

C3611

C3610

10

0.1

C3623

0.047

R3616
10K

VCC

C3617

0.1

VCC

C3638

0.1

C3602

0.1

R3604
12K

GND

GND

C3627

0.1

C3628
3300P

R3617L3603

R3615

4.7K

100/16V

OUT

C

R3609

8.2K
R3608

8.2K

C3621 C3615
10

100/16V

OUT

C

R3622
20K

R3621
150K

330/6.3V

C3606
1

C3607
4700P

R3603

R3605

22K

0

C3601
100/16V

R3614
47K

R3610
27K

R3623
30K

R3603
30K

C3722
10

IC3601
AP2121AK-3.3TRE1

(+3.3V REG.)

1

R3625
0

VIN

2

GND

34

CB NU

1000PC3706
1000PC3702 100R3705

1000PC3703
1000PC3707 100R3701
1000PC3704
1000PC3705

C3708

C3709

0.1

5

VOUT

C3723
10

C3711 C3713

C3712

10

C371510C3714

C371810C3717 C3701

0.1

100R3702

100R3704

100R3706
100R3703

C3710
100/16V10

100/16V0.1

C3716
100/16V0.1

100/16V

CONTINUE
DIGITAL 5

P-ON+3.3V
AL+3.3V
P-ON+5V

CONTINUE
DIGITAL 3

DDR+1.5V
P-ON+1.2V

CONTINUE
DIGITAL 7

P-ON+1.12V
P-ON+3.3V
P-ON+1.2V
P-ON+5V

CONTINUE
DIGITAL 6

P-ON+3.3V
AL+3.3V
P-ON+1.2V

CONTINUE
DIGITAL 4

P-ON+5V
P-ON+12V
AL+3.3V

CONTINUE
DIGITAL 1

P-ON+3.3V

CONTINUE
DIGITAL 5

BACKLIGHT-ADJ
RESET

CONTINUE
DIGITAL 5

PROTECT1
BACKLIGHT-SW
P-ON-H2
P-ON-H1

TO JACK CBA

CN3701

CN2105

29 NU
28 RESET
27 BACKLIGHT-SW
26 P-ON-H1
25 P-ON-H2
24 BACKLIGHT-ADJ
23 PROTECT1
22 GND
21 AL+5.3V
20 AL+5.3V
19 AL+3.3V
18 GND
17 GND
16 GND
15 P-ON+3.3V
14 P-ON+3.3V
13 P-ON+3.3V
12 GND
11 GND
10 P-ON+6V

9 P-ON+6V
8 GND
7 GND
6 GND
5 GND
4 P-ON+12V
3 P-ON+12V
2 P-ON+12V
1 P-ON+12V

10-9

KGJH

LI

A13P1SCD2

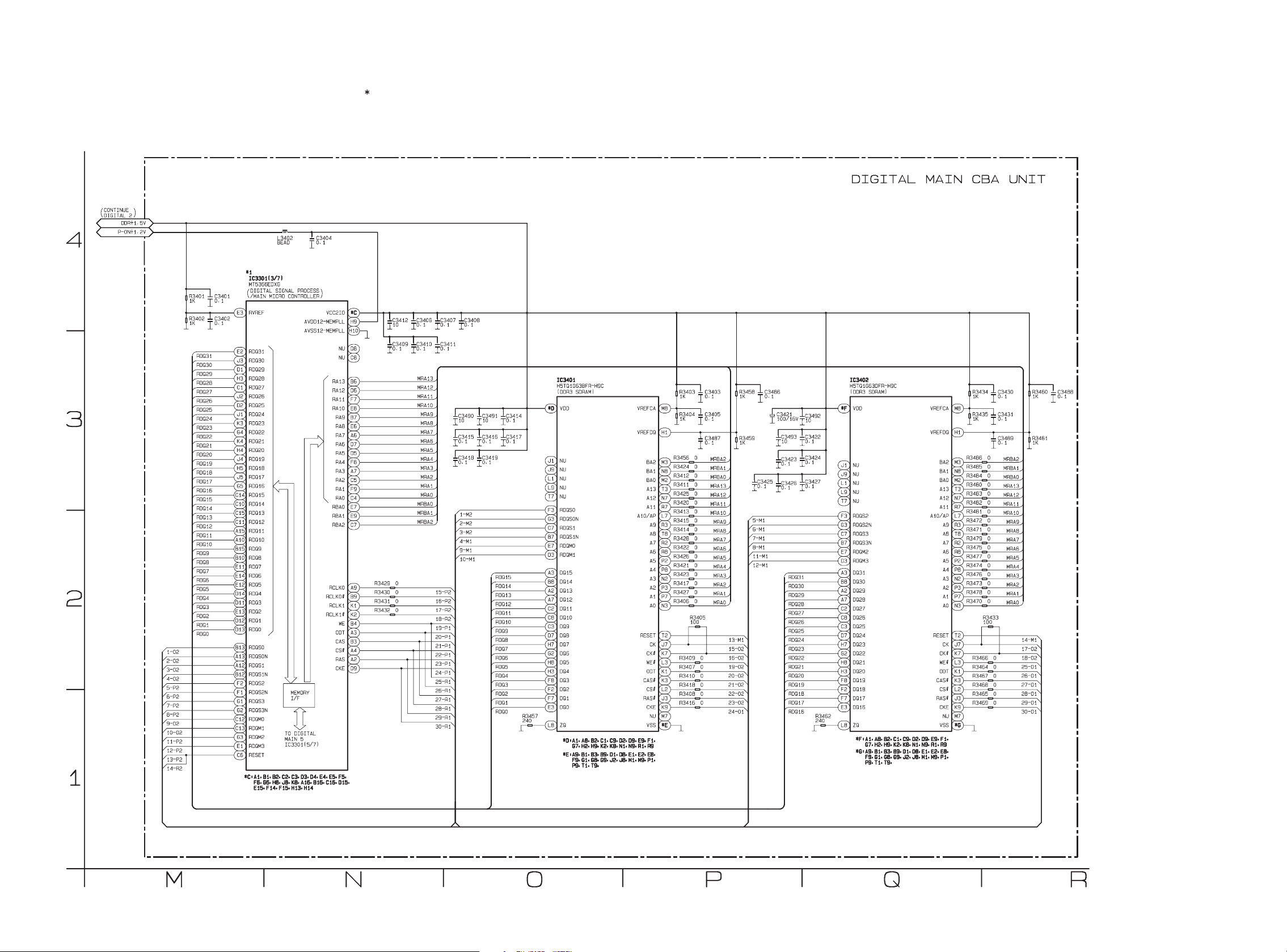

Digital Main 3 Schematic Diagram

CONTINUE
DIGITAL 2

DDR+1.5V

4

3

2

1

P-ON+1.2V

1-O2
2-O2
3-O2
4-O2
5-P2
6-P2
7-P2
8-P2
9-O2
10-O2
11-P2
12-P2
13-P2
14-R2

R34011KC3401

0.1

R34021KC3402

0.1

RDQ31
RDQ30
RDQ29
RDQ28
RDQ27
RDQ26
RDQ25
RDQ24
RDQ23
RDQ22
RDQ21
RDQ20
RDQ19
RDQ18
RDQ17
RDQ16
RDQ15
RDQ14
RDQ13
RDQ12
RDQ11
RDQ10
RDQ9
RDQ8
RDQ7
RDQ6
RDQ5
RDQ4
RDQ3
RDQ2
RDQ1
RDQ0

L3402
BEAD

*1

IC3301(3/7)
MT5366EDXG

DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

E3

RVREF

E2 RDQ31
J3 RDQ30
D1 RDQ29
H3 RDQ28
C1 RDQ27
J2 RDQ26
D2 RDQ25
J1 RDQ24
K3 RDQ23
G4 RDQ22
K4 RDQ21
H4 RDQ20
J4 RDQ19
H5 RDQ18
J5 RDQ17

G5 RDQ16
C14 RDQ15
C10 RDQ14
C15 RDQ13
C11 RDQ12
A15 RDQ11
A10 RDQ10
B15 RDQ9
B10 RDQ8
E11 RDQ7
E14 RDQ6
E12 RDQ5
D14 RDQ4
D11 RDQ3
E13 RDQ2
D12 RDQ1
D13 RDQ0

B13 RDQS0
A13 RDQS0N
A12 RDQS1
B12 RDQS1N

F2 RDQS2

F1 RDQS2N

G1 RDQS3

G2 RDQS3N
C12 RDQM0
C13 RDQM1

G3 RDQM2

E1 RDQM3

C6 RESET

*C:A1,B1,B2,C2,C3,D3,D4,E4,E5,F5,
F6,G6,H8,J8,K8,A16,B16,C16,D15,
E15,F14,F15,H13,H14

C3404

0.1

MEMORY
I/F

TO DIGITAL
MAIN 5
IC3301(5/7)

H10AVSS12-MEMPLL

*CVCC2IO
H9AVDD12-MEMPLL

D8NU
C8NU

B6RA13
D6RA12
F7RA11
E8RA10
B7RA9
E6RA8
A6RA7
D7RA6
D5RA5
F8RA4
A7RA3
C5RA2
F9RA1
C4RA0
E7RBA0
E9RBA1
C7RBA2

A9RCLK0
B9RCLK0#
K1RCLK1
K2RCLK1#
B4WE
A3ODT
B3CAS
A4CS#
A2RAS
D9CKE

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into seven and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

C3412

C3406

C3407

10

C3409

0.1

0R3429
0R3430
0R3431
0R3432

0.1

C3410

0.1

MRA13
MRA12
MRA11
MRA10

MRA9
MRA8
MRA7
MRA6
MRA5
MRA4
MRA3
MRA2
MRA1

MRA0
MRBA0
MRBA1
MRBA2

0.1

C3411

0.1

15-P2
16-P2
17-R2
18-R2
19-P1
20-P1
21-P1
22-P1
23-P1
24-P1
25-R1
26-R1
27-R1
28-R1
29-R1
30-R1

C3408

0.1

C349010C3491
10

C3415

C3416

0.1

0.1

C3418

C3419

0.1

0.1

1-M2
2-M2
3-M2
4-M1
9-M1
10-M1

C3414

0.1

C3417

0.1

RDQ15
RDQ14
RDQ13
RDQ12
RDQ11
RDQ10
RDQ9
RDQ8
RDQ7
RDQ6
RDQ5
RDQ4
RDQ3
RDQ2
RDQ1
RDQ0

R3457
240

IC3401
H5TQ1G63BFR-H9C
(DDR3 SDRAM)

*D VDD

J1 NU
J9 NU
L1 NU
L9 NU
T7 NU

F3 RDQS0
G3 RDQS0N
C7 RDQS1
B7 RDQS1N
E7 RDQM0
D3 RDQM1

A3 DQ15
B8 DQ14
A2 DQ13
A7 DQ12
C2 DQ11
C8 DQ10
C3 DQ9
D7 DQ8
H7 DQ7
G2 DQ6
H8 DQ5
H3 DQ4
F8 DQ3
F2 DQ2
F7 DQ1
E3 DQ0

L8 ZQ

*D:A1,A8,B2,C1,C9,D2,D9,E9,F1,
G7,H2,H9,K2,K8,N1,N9,R1,R9

*E:A9,B1,B3,B9,D1,D8,E1,E2,E8,
F9,G1,G8,G9,J2,J8,M1,M9,P1,
P9,T1,T9,

R34031KC3403

0.1

M8VREFCA

H1VREFDQ

M3BA2
N8BA1
M2BA0
T3A13
N7A12
R7A11
L7A10/AP
R3A9
T8A8
R2A7
R8A6
P2A5
P8A4
N2A3
P3A2
P7A1
N3A0

T2RESET
J7CK
K7CK#
L3WE#
K1ODT
K3CAS#
L2CS#
J3RAS#
K9CKE
M7NU M7NU
*EVSS

R3404
1K

R3405
100

0R3456
0R3424
0R3412
0R3411
0R3425
0R3420
0R3413
0R3415
0R3414
0R3428
0R3422
0R3426
0R3421
0R3423
0R3417
0R3427
0R3406

C3405

0.1

C3487

0.1

0R3409
0R3407
0R3410
0R3418
0R3408
0R3416

R3458

C3486

1K

0.1

C3421

C3492

100/16V

10

C3422

C3425

0.1

5-M1
6-M1
7-M1
8-M1
11-M1
12-M1

C3493
10

C3423

0.1

C3426

0.1

RDQ31
RDQ30
RDQ29
RDQ28
RDQ27
RDQ26
RDQ25
RDQ24
RDQ23
RDQ22
RDQ21
RDQ20
RDQ19
RDQ18
RDQ17
RDQ16

0.1

C3424

0.1

C3427

0.1

R3462
240

R3459
1K

MRBA2 MRBA2
MRBA1
MRBA0
MRA13
MRA12
MRA11
MRA10

MRA9
MRA8
MRA7
MRA6
MRA5
MRA4
MRA3
MRA2
MRA1
MRA0

13-M1
15-O2
16-O2
19-O2
20-O2
21-O2
22-O2
23-O2
24-O1

DIGITAL MAIN CBA UNIT

IC3402
H5TQ1G63DFR-H9C
(DDR3 SDRAM)

*F VDD

J1 NU
J9 NU
L1 NU
L9 NU
T7 NU

F3 RDQS2
G3 RDQS2N
C7 RDQS3
B7 RDQS3N
E7 RDQM2
D3 RDQM3

A3 DQ31
B8 DQ30
A2 DQ29
A7 DQ28
C2 DQ27
C8 DQ26
C3 DQ25
D7 DQ24
H7 DQ23
G2 DQ22
H8 DQ21
H3 DQ20
F8 DQ19
F2 DQ18
F7 DQ17
E3 DQ16

L8 ZQ

*F:A1,A8,B2,C1,C9,D2,D9,E9,F1,
G7,H2,H9,K2,K8,N1,N9,R1,R9

*G:A9,B1,B3,B9,D1,D8,E1,E2,E8,
F9,G1,G8,G9,J2,J8,M1,M9,P1,
P9,T1,T9,

M8VREFCA

H1VREFDQ

M3BA2
N8BA1
M2BA0
T3A13
N7A12
R7A11
L7A10/AP
R3A9
T8A8
R2A7
R8A6
P2A5
P8A4
N2A3
P3A2
P7A1
N3A0

T2RESET
J7CK
K7CK#
L3WE#
K1ODT
K3CAS#
L2CS#
J3RAS#
K9CKE

*GVSS

R3434
1K

R3435
1K

R3433
100

0R3486
0R3485
0R3484
0R3480
0R3483
0R3482
0R3481
0R3472
0R3471
0R3479
0R3475
0R3477
0R3474
0R3476
0R3473
0R3478
0R3470

C3430

0.1

C3431

0.1

C3489

0.1

0R3466
0R3464
0R3467
0R3468
0R3465
0R3469

MRBA1
MRBA0
MRA13
MRA12
MRA11
MRA10

MRA9
MRA8
MRA7
MRA6
MRA5
MRA4
MRA3
MRA2
MRA1
MRA0

R3460
1K

R3461
1K

14-M1
17-O2
18-O2
25-O1
26-O1
27-O1
28-O1
29-O1
30-O1

C3488

0.1

NQM

O

P

10-10

R

A13P1SCD3

Digital Main 4 Schematic Diagram

CONTINUE
DIGITAL 5

RGB-AUDIO(L)-IN
RGB-AUDIO(R)-IN

4

3

2

1

REMOTE

AUDIO-MUTE

KEY-IN1

TO JACK CBA
CN2104

CONTINUE
DIGITAL 2

P-ON+5V

P-ON+12V

AL+3.3V

CONTINUE
DIGITAL 5

COMP-DET

LIGHT

STBYL-ON

RED-LED

SCART-MUTE

RGB-VIDEO-IN

CONTINUE
DIGITAL 5

VGA-H-SYNC
VGA-V-SYNC

VGA-R
VGA-G
VGA-B

VGA-COM

CONTINUE
DIGITAL 5

COM0
VIDEO-G
VIDEO-R
VIDEO-B

FBIN

CN3702
29KEY-IN1
28REMOTE
27NU
26RED-LED
25LIGHT
24STBYL-ON
23AUDIO-MUTE
22GND
21AMP(R)-OUT
20AMP(L)-OUT
19GND
18PC-AUDIO(L)
17PC-AUDIO(R)
16GND
15GND
14SPDIF
13GND
12COM-Y/VIDEO-IN
11GND
10COM-Pb-IN

9COMP-DET

8COM-Pr-IN

7GND

6AUDIO(L)

5AUDIO(R)

4GND

3RGB-AUDIO(R)-OUT

2RGB-AUDIO(L)-OUT

1GND

C3733
1000P

0R3733

18R3727

18R3729

18R3731

Q3701
KTC3875S

-GR-RTK/P
(BUFFER)

R3737

R3735

10K

10K

C3729
1000P

C3719
1000P

C3725
1000P

C3726
47P

C373456R3728
47P

C373556R3730
47P

R3725
10K

R3726
39K

Q3702
KTA1504S

-Y-RTK/P

(LED DRIVE)

C3731
1000P

C3728
1000P

C3724
1000P

C3730
1000P

C3727
1000P

0R3848

100R3711
100R3710

100R3873

100R3707
100R3712

22R3714
22R3713

0R3721

0R3708
0R3709

C3736
47P

100R3722

R3732
56

R3834
0

OPEN

R3881

R3880

5.6K

47K

Q3706
KTA1504S

-Y-RTK/P

(SWITCHING)

Q3705
KTC3875S

-GR-RTK/P

(SWITCHING)

R3877

R3878

10K

10K

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into seven and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

0R3738

0R3723

C3817

R3831
10K100P

R3832
10K

C3811
1000P

R3820
47K

C3802
1000P

10

C3812
1000P

C3819
100/16V

C3816

10.

C3124
10

R3819
47KR3817

C3803
1000P

C3808
100/16V

C3123
10

R3879
47K

R3868
47K

R3865
1K

R3864
820

D3807
1SS400

R3870
10

R3871
1K

C3823
100/16V

R3867
1K

R3863
100K

Q3810
2SC5344SY

(SWITCHING)

D3808
MM5Z9V1B

2SC4081UBTLQ
(MUTE)

Q3809
2SA1576AT106Q

(MUTE DRIVE)

Q3806
2SC4081UBTLQ

(MUTE)

Q3808
2SA1576AT106Q

(MUTE DRIVE)

R3862

C3822

470K

10

100/16V

L3802
BEAD

L3801
BEAD

R3860
10KQ3807

R3859
10K

R3861
0

C3818C3815

0.1
R3822

0

R3852
100K

IC3802
NJM4558M
(OP AMP)

R3823
0

R3854
100K

C3806
100/16V 0.1

R3810
560

R3856
100K

IC3801
NJM4558M
(OP AMP)

R3811
560

R3855
100K

C3814

C3810
10

VCC

1234

C3820
10

C3813
100P

C3807

C3801

C3805

10

100P

VCC

1234

C3809
10

C3804
100P

R3824

9.1K

R3812

9.1K

R3828

9.1K

5678

GND

R3816

9.1K

5678

GND

R3829
15K

R3825
15K

15K

R3813
15K

10C3739 30KR3715

10C3755 30KR3751

10C3737 30KR3719

100R3138
100R3123

100R3137 0.01C3120

100R3125

100R3127
100R3128

100R3132
100R3134
100R3136
100R3129

AUDIO SIGNALVIDEO SIGNAL

*1

IC3301(4/7)
MT5366EDXG

DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

30KR371810C3740
30KR375210C3756

30KR372010C3738

5.1KR3827

5.1KR3833

5.1KR3815

5.1KR3821
100R3886
10KR3153

0.047C3121

0.047C3105
1C3122

0.01C3116100R3131

0.01C3118100R3135

0.01C3115100R3130
3300PC3106

0.01C3109

0.01C3110100R3126

0.01C3111

0.01C3112
1500PC3113

0.01C3108

0.01C3117

0.01C3119

0.01C3114

AB21
AE25
AE22
AD25
AD22
AC25
Y23
AA25
V24
Y25

SPDIF

V20
U23 NU

AC17
AB17
Y15

AE11
AD12
AE12
AD11
AB11

A/D
CONVERTER

TO DIGITAL
MAIN 5
IC3301(5/7)

AB20 NU
AD23 NU
AC21 NU
AE24 NU
AC20 NU
AE23 NU
AC22 NU
AD24 NU
W23 NU
AA24 NU
V25 NU
Y24 NU
V21 NU
T21 NU
U24 NU
U25 NU
R21 NU
R20 NU
T19 NU
T20 NU
AD15 NU
AC15 NU
AE15 NU
AE16 NU
AC16 NU

W12 HSYNC
W11 VSYNC
AC10
AC9
AD9
AB10 VGA-GND
AE9

AC13
AB14
AC14
AB13
AC12

AUDIO
I/F

TO DIGITAL
MAIN 5
IC3301(5/7)

TO DIGITAL
MAIN 6
IC3301(6/7)

SW

DIGITAL MAIN CBA UNIT

SUVTWX

10-11

A13P1SCD4

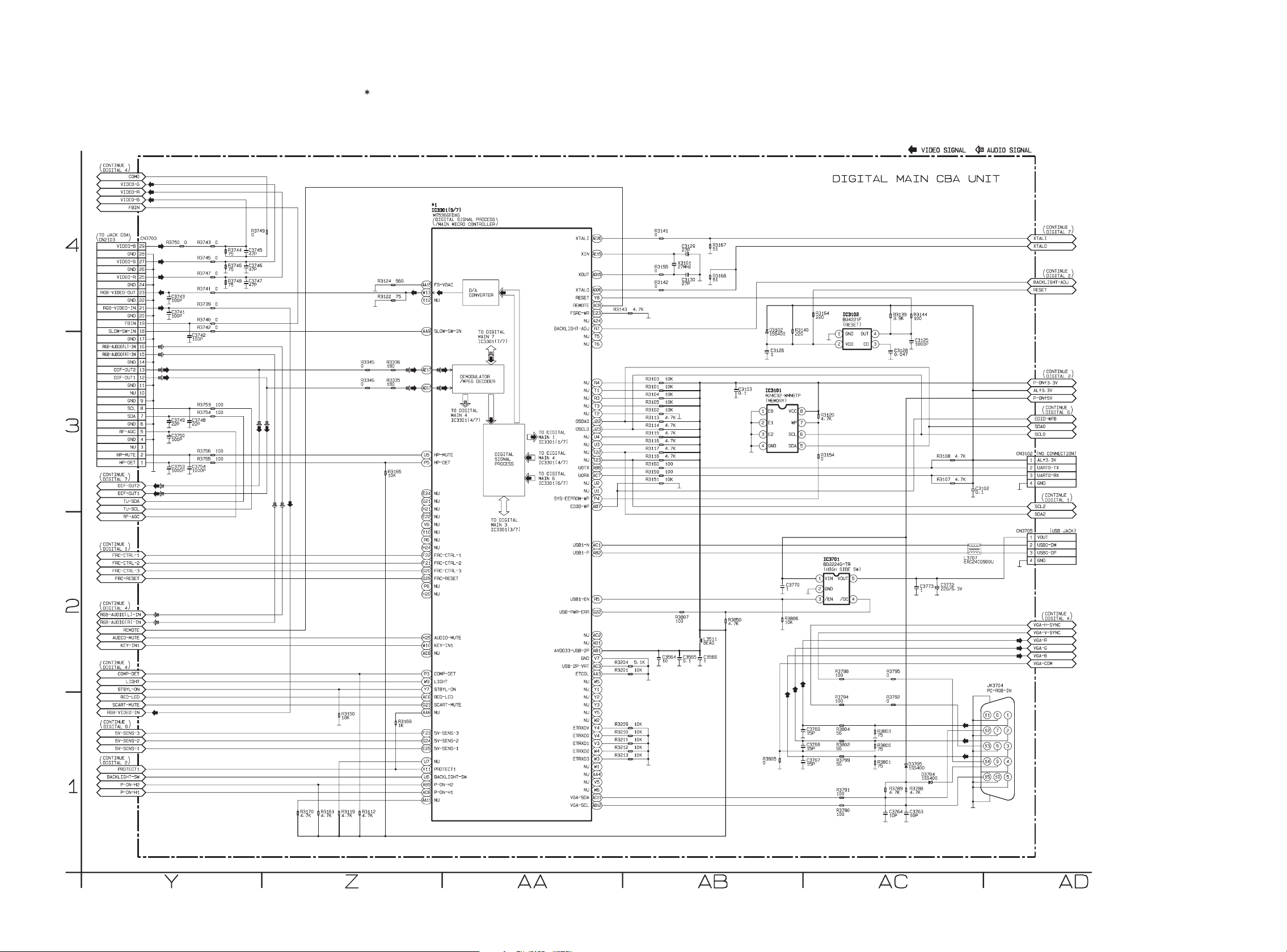

Digital Main 5 Schematic Diagram

CONTINUE
DIGITAL 4

COM0
VIDEO-G
VIDEO-R
VIDEO-B

FBIN

R3749

4

3

2

1

TO JACK CBA
CN2103

CONTINUE
DIGITAL 7

CONTINUE
DIGITAL 1

CONTINUE
DIGITAL 4

RGB-AUDIO(L)-IN
RGB-AUDIO(R)-IN

CONTINUE
DIGITAL 4

CONTINUE
DIGITAL 6

CONTINUE
DIGITAL 2

CN3703
29VIDEO-B
28GND
27VIDEO-G
26GND
25VIDEO-R
24GND
23RGB-VIDEO-OUT
22GND
21RGB-VIDEO-IN
20GND
19FBIN
18SLOW-SW-IN
17GND
16RGB-AUDIO(L)-IN
15RGB-AUDIO(R)-IN
14GND
13DIF-OUT2
12DIF-OUT1
11GND
10NU

9GND

8SCL

7SDA

6GND

5RF-AGC

4GND

3NU

2HP-MUTE

1HP-DET

DIF-OUT2
DIF-OUT1

TU-SDA
TU-SCL
RF-AGC

FRC-CTRL-1
FRC-CTRL-2
FRC-CTRL-3

FRC-RESET

REMOTE

AUDIO-MUTE

KEY-IN1

COMP-DET

LIGHT

STBYL-ON

RED-LED

SCART-MUTE

RGB-VIDEO-IN

5V-SENS-3
5V-SENS-2
5V-SENS-1

PROTECT1

BACKLIGHT-SW

P-ON-H2
P-ON-H1

C3743
100P

C3741
100P

C3749
22P

C3750
100P

C3753
1000P

0R3750

C3742
100P

C3748
22P

C3754
1000P

0R3743

0R3745

0R3747

0R3741

0R3739

0R3740
0R3742

100R3753
100R3754

100R3756
100R3755

R3744
75

R3746
75

R3748
75

0

C3745
47P

C3746
47P

C3747
47P

R3170

4.7K

R3161

4.7K

R3150
10K

R3119

4.7K

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into seven and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

*1
IC3301(5/7)

MT5366EDXG

DIGITAL SIGNAL PROCESS

R3345
0

R3346
0

R3112

4.7K

R3336
180

R3335
180

R3165
10K

560R3124

75R3122

R3169
1K

/MAIN MICRO CONTROLLER

AA15 FS-VDAC

W13
Y12 NU

AA9 SLOW-SW-IN

AE17

AD17

U5 HP-MUTE
P5 HP-DET

E24 NU
G21 NU
H21 NU
E22 NU

V6 NU

Y10 NU

R6 NU
H24 NU
F22 FRC-CTRL-1
F21 FRC-CTRL-2
G20 FRC-CTRL-3
G25 FRC-RESET

P6 NU
H20 NU

H25 AUDIO-MUTE
W10 KEY-IN1
AE8 NU

P3 COMP-DET

W9 LIGHT

Y7 STBYL-ON
AE6 RED-LED
G23 SCART-MUTE
AA8 NU

F23 5V-SENS-3
G24 5V-SENS-2
E25 5V-SENS-1

U7 NU
Y11 PROTECT1

U6 BACKLIGHT-SW
AB9 P-ON-H2
AD8 P-ON-H1

AA11 NU

D/A
CONVERTER

TO DIGITAL
MAIN 7
IC3301(7/7)

DEMODULATOR
/MPEG DECODER

TO DIGITAL
MAIN 4
IC3301(4/7)

DIGITAL
SIGNAL
PROCESS

TO DIGITAL
MAIN 3
IC3301(3/7)

TO DIGITAL
MAIN 1
IC3301(1/7)

TO DIGITAL
MAIN 4
IC3301(4/7)

TO DIGITAL
MAIN 6
IC3301(6/7)

AE20XTALI

AE19XIN

AD19XOUT

AD20XTALO

Y8RESET
AC8REMOTE
E23FSRC-WR
A24NU

R7BACKLIGHT-ADJ

T5NU

T6NU

R4NU

T1NU

R3NU

T3NU

T2NU
J22OSDA0
J23OSCL0

U4NU

U3NU
T22NU
T23NU
AB8U0TX

U1NU

P4SYS-EEPROM-WP
AB7EDID-WP

AC1USB1-N
AB2USB1-P

R5USB1-EN

G22USB-PWR-ERR

AC2NU
AD1NU
AB1AVDD33-USB-2P

V7GND
AC3USB-2P-VRT
AA3ETCOL

W5NU

Y1NU

Y2NU

Y3NU

Y5NU

W2NU

Y4ETRXDV

V4ETRXD0

V3ETRXD1

W4ETRXD2

W3ETRXD3

W1NU
AA4NU

V5NU

W6NU
AC11VGA-SDA
AB12VGA-SCL

R3141
0

X3101
27MHz

R3155
0

R3142
0

4.7KR3143

10KR3103
10KR3101
10KR3104
10KR3105
10KR3102

4.7KR3113

4.7KR3114

4.7KR3115

4.7KR3116

4.7KR3117

4.7KR3118
100R3160
100R3159
10KR3151

R3807
100

C3564
10

5.1KR3204
10KR3201

10KR3209
10KR3210
10KR3211
10KR3212
10KR3213

C3129
27P

C3130
27P

C3565

0.1

L3511
BEAD

C3566
1

R3167
51

R3168
51

D3102
1SS400

C3126
1

C3103

IC3101

0.1
M24C32-WMN6TP

(MEMORY)

1

E0

VCC

2

E1

3

E2

SCL

45

GND SDA

C3770
1

R3805
0

R3806
10K

R3850

4.7K

R3164
220

R3140
220

8

7

WP

6

1

2

34

C3769
15P

C3768
15P

C3767
15P

DIGITAL MAIN CBA UNIT

IC3102
BU4221F
(RESET)

14

GND OUT

32

CDVDD

R3120

4.7K

R3154
0

IC3701
BD2224G-TR
(HIGH SIDE SW)

5

VIN

VOUT

GND

/EN /OC

R3798
100

R3794
100

R3804
56

R3802
56

R3799
56

R3791
100

R3790
100

R3803
75

R3800
75

R3801
75

R3139

3.9K

C3128

0.047

R3795
0

R3792
0

R3789

4.7K

C3764
10P

R3144
100

C3125
1000P

C3773
1

D3705
1SS400

R3788

4.7K

C3763
10P

D3704
1SS400

4.7KR3108

4.7KR3107

C3772
220/6.3V

L3707
EXC24CG900U

AUDIO SIGNALVIDEO SIGNAL

C3102

0.1

JK3704
PC-RGB-IN

11156

12

13

14

CONTINUE
DIGITAL 7

XTALI
XTALO

CONTINUE
DIGITAL 2

BACKLIGHT-ADJ
RESET

CONTINUE
DIGITAL 2

P-ON+3.3V
AL+3.3V
P-ON+5V

CONTINUE
DIGITAL 6

EDID-WPB
SDA0
SCL0

(NO CONNECTION)

CN3102

1 AL+3.3V
2 UART0-TX
3 UART0-RXAC7U0RX
4 GNDU2NU

CONTINUE
DIGITAL 1

SCL2
SDA2

(USB JACK)

CN3705

1 VOUT
2 USB0-DM
3 USB0-DP
4 GND

CONTINUE
DIGITAL 4

VGA-H-SYNC
VGA-V-SYNC
VGA-R
VGA-G
VGA-B
VGA-COM

1

2

7

3

8

4

9

5

10

YAAABZACAD

10-12

A13P1SCD5

Digital Main 6 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into seven and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

VIDEO SIGNAL AUDIO SIGNAL

4

3

2

1

CONTINUE
DIGITAL 2

P-ON+3.3V

AL+3.3V

P-ON+1.2V

CONTINUE
DIGITAL 5

EDID-WPB

SDA0
SCL0

*1

IC3301(6/7)
MT5366EDXG

DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

HDMI
I/F

AUDIO
DECODER

TO DIGITAL
MAIN 4
IC3301(4/7)

VIDEO
DECODER

TO DIGITAL
MAIN 5
IC3301(5/7)

C3560

C355910C3558

1

0.1

C3562

C3563

0.1

1

AA6AVDD12-HDMI
AE1AVDD33-HDMI
AD6NU
AC4GND

HDMI-CEC AB6

AE5
AD5
AE4
AD4
AE3
AD3
AE2
AD2

AC5HDMI-SCL

AB5HDMI-SDA

AC6HDMI-HPD

L3401
BK1608HM102-T

C3461

L3509
BEAD

L3510
BEAD

C3561
10

P2HDMI-SEL0

P1HDMI-SEL1

R3717
10K

10

D3401
RB751S-40TE61

R3448
27K

R3455
0

R3446

4.7K

R3450
0

R3453
0

R3454
10K

C3462
10

C3468

0.1

C3474

0.01

C3479

0.01

C3463

0.1

C3469

0.1

C3475

0.01

C3480

0.01

R3449
0

R3447

4.7K

R3419
10K

C3464

0.1

C3470

0.1

C3476

0.01

C3481

0.01

C3465

0.1

C3471

0.1

C3477

0.01

C3482

0.01

C3467

C3466

0.1

0.1

C3473

C3472

0.1

0.1

C3478

0.01

C3485

0.01

R3445

4.64K

16

17

18

19 VCC

20

21

22 GND

23

24

25 VCC

26

27

28 GND

29 SCL-SINK

30 SDA-SINK

HOT-PLUG-

31

DETECT-SINK
HDMI-

32

SEL0

HDMI-

33

R3437
0

131415

NU

GND

SEL134NU35HOT-PLUG-

DETECT1

36 37 38

C3433

0.1

789

41 42 43

VCC2

SCL2

SDA2

GND

SDA3

SCL3

VCC

GND

45 46

44

16

15

14

13

NU

12

11

10

GND

HDMI SW

VCC

IC3404
BU9883FV-WE2
(HDMI SERIAL EEPROM)

1

VCC1

2

SCL1

3

SDA1

4

WPB

5

VCC-OUT

6

SDA0

7

SCL0

89

VCC0 VCC3

VCC

0.1C3432

C3436

0.1

10

1112

39 40

4

56

GND

VCC

C3434

0.1

C3435

0.1

123

HOT-PLUG­DETECT3

HOT-PLUG­DETECT2

47 48

IC3403
BU16027KV
(HDMI SW)

64

63

62

61VCC

60

59

58GND

57

56

55VCC

54

53

52

51

50

49NU

R3874
1K

R3884
1K

R3875
1K

R3885
1K

R3876
1K

R3883
1K

33R3772
33R3773

33R3774
33R3775

33R3776
33R3777

L3701 EXC28CG900U

L3702 EXC28CG900U

R3763

R3762

47K

47K

D3701

C3757

EDZTE615.6B

0.1

Q3708
2SC4081UBTLQ

(SWITCHING)

L3703 EXC28CG900U

L3704 EXC28CG900U

R3766

R3765

47K

47K

C3762

D3703

0.1

EDZTE615.6B

Q3709
2SC4081UBTLQ

(SWITCHING)

L3705 EXC28CG900U

L3706 EXC28CG900U

R3761

R3760

47K

47K

C3759

D3702

0.1

EDZTE615.6B

Q3707
2SC4081UBTLQ

(SWITCHING)

R3770
0

R3768
100K

R3771
0

R3764
100K

R3757
0

R3769
100K

R3784
1K

R3779
1K

R3778
1K

R3785
0

R3786
0

R3787
0

HDMI­CONNECTOR-3

JK3702

1 TMDS-D2(+)
2 D-SHIELD0
3 TMDS-D2(-)
4 TMDS-D1(+)
5 D-SHIELD1
6 TMDS-D1(-)
7 TMDS-D0(+)
8 D-SHIELD2

9 TMDS-D0(-)
10 TMDS-CLOCK(+)
11 C-SHIELD0
12 TMDS-CLOCK(-)
13 HDMI-CEC
14 NU
15 SCL
16 SDA
17 GND
18 +5V
19 HOT PLUG DETECT

HDMI­CONNECTOR-1

JK3703

1 TMDS-D2(+)

2 D-SHIELD0

3 TMDS-D2(-)

4 TMDS-D1(+)

5 D-SHIELD1

6 TMDS-D1(-)

7 TMDS-D0(+)

8 D-SHIELD2

9 TMDS-D0(-)
10 TMDS-CLOCK(+)
11 C-SHIELD0
12 TMDS-CLOCK(-)
13 HDMI-CEC
14 NU
15 SCL
16 SDA
17 GND
18 +5V
19 HOT PLUG DETECT

HDMI­CONNECTOR-2

JK3701

1 TMDS-D2(+)

2 D-SHIELD0

3 TMDS-D2(-)

4 TMDS-D1(+)

5 D-SHIELD1

6 TMDS-D1(-)

7 TMDS-D0(+)

8 D-SHIELD2

9 TMDS-D0(-)
10 TMDS-CLOCK(+)
11 C-SHIELD0
12 TMDS-CLOCK(-)
13 HDMI-CEC
14 NU
15 SCL
16 SDA
17 GND
18 +5V
19 HOT PLUG DETECT

CONTINUE
DIGITAL 5

5V-SENS-3
5V-SENS-2
5V-SENS-1

DIGITAL MAIN CBA UNIT

AE AF AG AH AI AJ

10-13

A13P1SCD6

Digital Main 7 Schematic Diagram

DIGITAL MAIN CBA UNIT

4

3

2

1

CONTINUE
DIGITAL 2

P-ON+1.12V

P-ON+3.3V
P-ON+1.2V

P-ON+5V

CONTINUE
DIGITAL 5

XTALI
XTALO

CONTINUE
DIGITAL 5

DIF-OUT2
DIF-OUT1

TU-SDA
TU-SCL
RF-AGC

*1

IC3301(7/7)
MT5366EDXG
DIGITAL SIGNAL PROCESS
/MAIN MICRO CONTROLLER

TO DIGITAL
MAIN 5
IC3301(5/7)

C3255
10

C3252
10

R3984
0

R3985
0

M24CI-INT
M25SPI-CLE
M22SPI-DATA
N21SPI-CLK
N22PVR-TSDATA1
M19PVR-TSDATA0
M20PVR-TSSYNC
M21PVR-TSVAL
P22PVR-TSCLK
P24CI-TSDATA0
P21CI-TSSYNC
N20CI-TSVAL
P25CI-TSCLK
N19DEMOD-TSDATA0
R22DEMOD-TSSYNC
R24DEMOD-TSVAL
R25DEMOD-TSCLK
R23DEMOD-RST
Y16GND

AB18AVDD12

Y18GND
AB19AVDD33
AC19AVDD33

P23RF-AGC

R19NU

C3256

0.1

C3253

0.1

L3210
BEAD

C3257

0.1

L3209
BEAD

C3254

0.1

C3922

0.1

L3205
BEAD

L3908
BEAD

L3910
BEAD

C3242
1

R3921
0

R3964
470K

R3922
0

C3937
10

C3923

0.1

C3240
10

C3241

0.1

C3931
10

C3932
10

R3982
0

C3929

0.1

C3935

0.1

C3924

0.1

C3927

0.1

R3965
330K

C3928

0.1

C3933
10

C3936

0.1

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into seven and shown as IC3301 (1/7) ~ IC3301 (7/7) in this Digital Main Schematic Diagram Section.

CI-A7

CI-A6

CI-A5

CI-A4

CI-A3

GND

CI-A4

CI-A3

DVDD33

CI
CONTROL

NU

NU

NU

NU

C3938

C3939

0.1

0.1

Q3305
2SA1576AT106Q

(SWITCHING)

31-

30-

AO2

AO2

CI-A5

CI-A6

WAITN

CI-RESET

NU

NU

NU

NU

58 59 60 61 62 63 64

R3924

4.7K

29­AO2

22R3947

47R3978

CI-A7

CI-INDATA7

MOCLK/VS2N

CI-OUTDATA3

CI-D3

CD1N

22R3948

CI-D3

23­AO3

CI-A12

CI-INDATA6

CI-INDATA7

22­AO3

22R3949

R3977
47 10P

VCC33

CI-A12

CI-INDATA5

CI-INDATA6

CI-INDATA4

IREQN/READY

CI-INDATA3

CI-INDATA2

CI-INDATA1

CI-INDATA0

CI-INSYNC

CI-OUTDATA7

CI-OUTDATA6

CI-OUTDATA5

CI-OUTDATA4

CI-D4

CI-D5

22R3950

CI-OUTDATA3

CI-OUTDATA4

CI-D4

CI-D5

MIVAL

WEN

GND

DVDD33

CI-A14

CI-A13

DVDD10

VCC18

CI-A8

CI-A9

IOWRN

CI-A11

IORDN

OEN

REGN

CI-A10

GND

DVDD33

CE1N

CI-D7

CI-D6

C3947

96

95

94

93

92

91

90

89

88

87

86

85

84

83

82

81

80

79

78

77

76

75

74

73

72

71

70

69

68

67

66

65

C3946
10P

22R3951

22R3952

22R3953

22R3954

22R3955

22R3956

22R3957

22R3958

22R3959

22R3960

22R3961

0R3975
0R3974

CI-INDATA5

CI-INDATA4

CI-INDATA3

CI-INDATA2

CI-A14

CI-INDATA1

CI-A13

CI-INDATA0

CI-A8

CI-A9

CI-A11

CI-A10

CI-OUTDATA7

CI-D7

CI-OUTDATA6

CI-D6

CI-OUTDATA5

C3925

0.1

R3341

49.9

R3340

49.9

C3921

C3926

0.1

0.1

IC3901
MT5135AE

(CI CONTROL)

SPI-CLE

1

SPI-DATA

2

SPI-CLK

3

47R3929

PVR-TSDATA1

4

47R3930

PVR-TSDATA0

5

47R3931

6

PVR-TSSYNC

47R3932

7

PVR-TSVAL

47R3933

8

PVR-TSCLK

47R3934

9

CI-TSDATA0

47R3935

10

CI-TSSYNC

47R3936

11

CI-TSVAL

47R3937

12

CI-TSCLK

13

GND

14

DVDD33

47R3938

DEMOD-TSDATA0

15

47R3939

DEMOD-TSSYNC

16

47R3940

DEMOD-TSVAL

17

47R3941

DEMOD-TSCLK

18

DEMOD-RST

19

20

DVDD10

21

AVDD12

22

AVDD33

ADIN0

24

GND

25

NU

26

TP

27

CI-OUTDATA4

28

GND

29

XTALI

30

GND

31

XTALI0

32

AVDD33

R3927

4.7K

R3344
0

R3342

R3343

75

0

R3928

R3333

0

10K

CI-A2

CI-A1

CI-A0

CI-D0

CI-D1

CI-D2

R3980
0

GND

CI-INT

DVDD33

GND

EXT-CLKSEL

DIF-OUT2

33 34 35 362337 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57

C3309

0.01

L3909
BEAD

35­AO1

22R3942

CD2N

CI-D2

DESCRAMBLER

AVDD12

DIF-OUT1

C3308

0.01

C3934
10

CI-OUTDATA2

CI-D1

CI-OUTDATA2

TS INTERFACE

AVDD33

GND

C3930

0.1

CI-OUTDATA1

22R3943

120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97126127 121128 122124 123125

CI-D0

CI-OUTDATA1

DVDD10

TUNER-DATA

R3328

R3327

4.7K

4.7K

CI-OUTDATA0

34­AO2

22R3945

22R3944

CI-A0

MOVAL/BVD1

CI-OUTDATA0

TUNER-CLK

IF-AGC

RF-AGC

R3963
0

33­AO2

22R3946

CI-A1

MOVAL/BVD2

NU

NU

CI-A2

NU

C3941

0.1

C3331

0.047

GND

DVDD10

NU

GND

C3940

0.1

R3337
100K

32­AO2

REGN

DVDD33

C3943
10/16V

21-AO3

20-AO4

19-AO4

28-AO2

27-AO2

26-AO2

18-AO4

25-AO2

17-AO4

CI-D3
CI-D4
CI-D5
CI-D6
CI-D7

CI-A10

CI-A11
CI-A9
CI-A8
CI-A13
CI-A14

CI-A12
CI-A7
CI-A6
CI-A5
CI-A4
CI-A3
CI-A2
CI-A1
CI-A0
CI-D0
CI-D1
CI-D2

CI-OUTDATA3
CI-OUTDATA4
CI-OUTDATA5
CI-OUTDATA6
CI-OUTDATA7

CI-INDATA0
CI-INDATA1
CI-INDATA2
CI-INDATA3

CI-INDATA4
CI-INDATA5
CI-INDATA6
CI-INDATA7

CI-OUTDATA0
CI-OUTDATA1
CI-OUTDATA2

R3967

C3945

10K

0.1

R3971
10K

R3976
10K

R3970
10K

17-AO2

18-AO2

19-AO3
20-AO3

21-AO3
22-AN4

23-AN1

25-AO2
26-AO2
27-AO2
28-AO3

29-AN4
30-AN4
31-AN4

32-AM4
33-AM4
34-AM4

35-AM4

R3966
10K

AUDIO SIGNALVIDEO SIGNAL

(TO CI CARD SLOT)

CN3902

1 GND
2D3
3D4
4D5
5D6
6D7
7 CE1N
8 A10

9 OEN
10 A11
11 A9/DRX
12 A8/CRX
13 A13
14 A14
15 WEN
16 IREQN/READY
17 VCC0
18 VPP1
19 MIVAL
20 MCLK
21 A12
22 A7/QTX
23 A6/ETX
24 A5/ITX
25 A4/CTX
26 A3
27 A2
28 A1
29 A0
30 D0
31 D1
32 D2
33 NU
34 GND

C3944

0.1

35 GND
36 CD1N
37 D11/MDO3
38 D12/MDO4
39 D13/MDO5
40 D14/MDO6
41 D15/MDO7
42 CE2N
43 VS1N
44 IORDN
45 IOWRN
46 MISTRT
47 MDIO
48 MDI1
49 MDI2
50 MDI3
51 VCC1
52 VPP2
53 MDI4
54 MDI5
55 MDI6
56 MDI7
57 MOCLK/VS2N
58 CI-RESET
59 WAITN
60 NU
61 REGN
62 MOVAL/BVD2
63 MOSTR/BVD1
64 D8/MDO0
65 D9/MDO1
66 D10/MDO2
67 CD2N
68 GND

R3968
10K

AK AL AM AN AO AP

10-14

A13P1SCD7

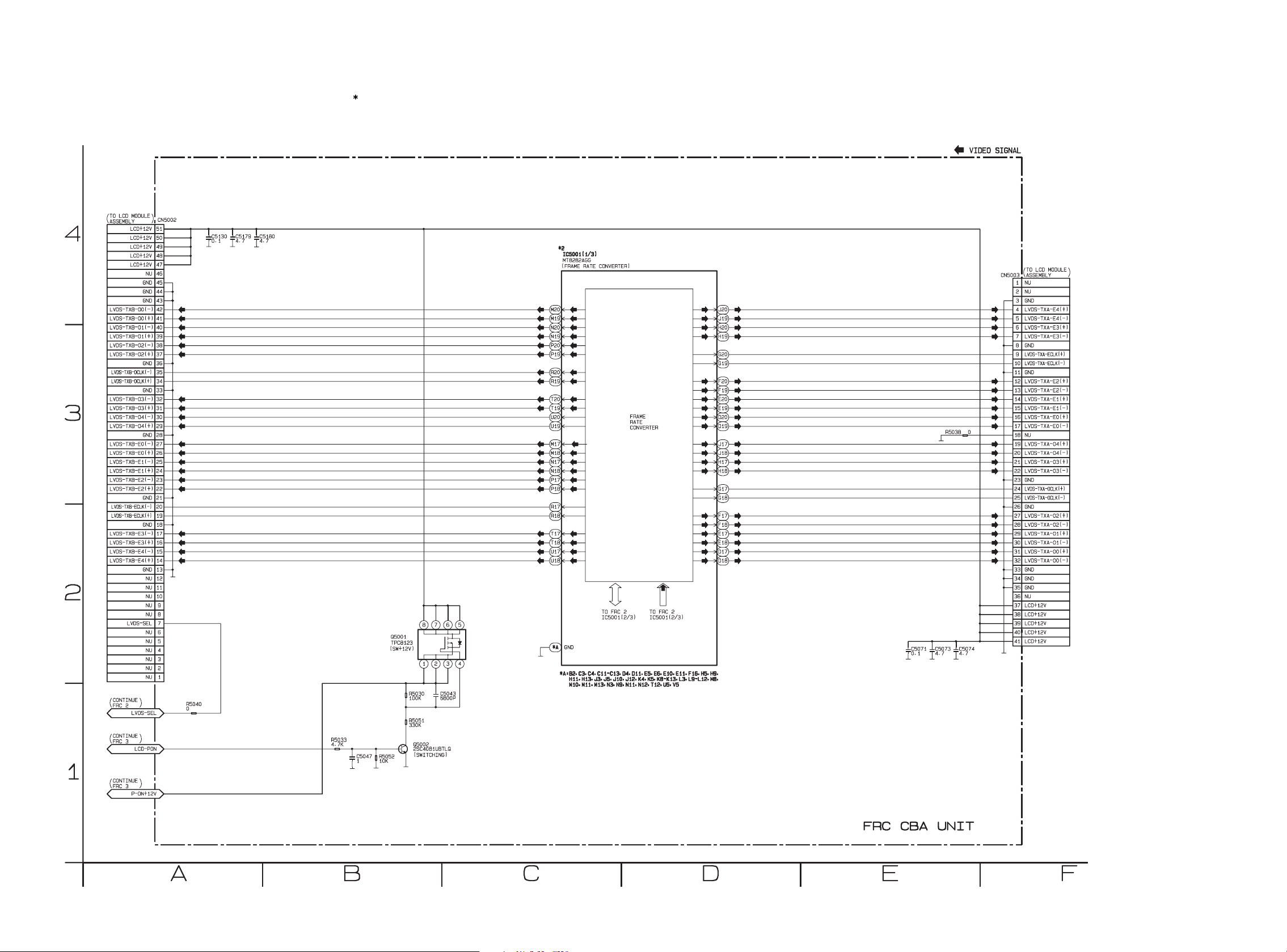

FRC 1 Schematic Diagram

2 NOTE:

The order of pins shown in this diagram is different from that of actual IC5001.
IC5001 is divided into three and shown as IC5001 (1/3) ~ IC5001 (3/3) in this FRC Schematic Diagram Section.

VIDEO SIGNAL

4

3

2

1

TO LCD MODULE
ASSEMBLY

CONTINUE
FRC 2

LVDS-SEL

CONTINUE
FRC 3

LCD-PON

CONTINUE
FRC 3

P-ON+12V

CN5002
51LCD+12V
50LCD+12V
49LCD+12V
48LCD+12V
47LCD+12V
46NU
45GND
44GND
43GND
42LVDS-TXB-O0(-)
41LVDS-TXB-O0(+)
40LVDS-TXB-O1(-)
39LVDS-TXB-O1(+)
38LVDS-TXB-O2(-)
37LVDS-TXB-O2(+)
36GND
35LVDS-TXB-OCLK(-)
34LVDS-TXB-OCLK(+)
33GND
32LVDS-TXB-O3(-)
31LVDS-TXB-O3(+)
30LVDS-TXB-O4(-)
29LVDS-TXB-O4(+)
28GND
27LVDS-TXB-E0(-)
26LVDS-TXB-E0(+)
25LVDS-TXB-E1(-)
24LVDS-TXB-E1(+)
23LVDS-TXB-E2(-)
22LVDS-TXB-E2(+)
21GND
20LVDS-TXB-ECLK(-)
19LVDS-TXB-ECLK(+)
18GND
17LVDS-TXB-E3(-)
16LVDS-TXB-E3(+)
15LVDS-TXB-E4(-)
14LVDS-TXB-E4(+)
13GND
12NU
11NU
10NU

9NU

8NU

7LVDS-SEL

6NU

5NU

4NU

3NU

2NU

1NU

R5040
0

C5130

0.1

C5179

4.7

C5180

4.7

Q5001
TPC8123

(SW+12V)

123

R5030
100K

R5051
330K

R5033

4.7K Q5002

C5047
1

R5052
10K

2SC4081UBTLQ
(SWITCHING)

678

C5043
6800P

*2

IC5001(1/3)
MT8282AGG

(FRAME RATE CONVERTER)

M20
M19
N20
N19
P20
P19

R20
R19

T20
T19
U20
U19

M17
M18
N17
N18
P17
P18

R17
R18

T17
T18
U17
U18

5

*A GND

4

*A:B2,C3,C4,C11~C13,D4,D11,E5,E6,E10,E11,F16,H5,H9,
H11,H13,J3,J5,J10,J12,K4,K5,K8~K13,L3,L9~L12,M8,
M10,M11,M13,N3,N9,N11,N12,T12,U5,V5

FRAME
RATE
CONVERTER

TO FRC 2
IC5001(2/3)

TO FRC 2
IC5001(2/3)

J20
J19
H20
H19

G20
G19

F20
F19
E20
E19
D20
D19

J17
J18
H17
H18

G17
G18

F17
F18
E17
E18
D17
D18

C5071

0.1

R5038 0

C5073

4.7

C5074

4.7

TO LCD MODULE
ASSEMBLY

CN5003

1NU
2NU
3 GND
4 LVDS-TXA-E4(+)
5 LVDS-TXA-E4(-)
6 LVDS-TXA-E3(+)
7 LVDS-TXA-E3(-)
8 GND

9 LVDS-TXA-ECLK(+)
10 LVDS-TXA-ECLK(-)
11 GND
12 LVDS-TXA-E2(+)
13 LVDS-TXA-E2(-)
14 LVDS-TXA-E1(+)
15 LVDS-TXA-E1(-)
16 LVDS-TXA-E0(+)
17 LVDS-TXA-E0(-)
18 NU
19 LVDS-TXA-O4(+)
20 LVDS-TXA-O4(-)
21 LVDS-TXA-O3(+)
22 LVDS-TXA-O3(-)
23 GND
24 LVDS-TXA-OCLK(+)
25 LVDS-TXA-OCLK(-)
26 GND
27 LVDS-TXA-O2(+)
28 LVDS-TXA-O2(-)
29 LVDS-TXA-O1(+)
30 LVDS-TXA-O1(-)
31 LVDS-TXA-O0(+)
32 LVDS-TXA-O0(-)
33 GND
34 GND
35 GND
36 NU
37 LCD+12V
38 LCD+12V
39 LCD+12V
40 LCD+12V
41 LCD+12V

FRC CBA UNIT

BDCEA

10-15

F

A13P1SCFR1

FRC 2 Schematic Diagram

CONTINUE
FRC 1

LVDS-SEL

CONTINUE
FRC 3

RESET

SCL2
SDA2

4

3

2

TO DIGITAL MAIN
CBA UNIT CN3901

CN5001
1GND
2SDA2
3SCL2
4NU
5FRC-CTL1(NU)
6FRC-CTRL2(NU)
7LVDS-SEL
8FRC-CTRL3(NU)
9FRC-RESET

10NU
11GND
12LVDS-OD0(-)
13LVDS-OD0(+)
14LVDS-OD1(-)
15LVDS-OD1(+)
16LVDS-OD2(-)
17LVDS-OD2(+)
18GND
19LVDS-OCLK(-)
20LVDS-OCLK(+)
21GND
22LVDS-OD3(-)
23LVDS-OD3(+)
24LVDS-OD4(-)
25LVDS-OD4(+)
26GND
27GND
28LVDS-ED0(-)
29LVDS-ED0(+)
30LVDS-ED1(-)
31LVDS-ED1(+)
32LVDS-ED2(-)
33LVDS-ED2(+)
34GND
35LVDS-ECLK(-)
36LVDS-ECLK(+)
37GND
38LVDS-ED3(-)
39LVDS-ED3(+)
40LVDS-ED4(-)
41LVDS-ED4(+)
42GND
43GND
44GND
45GND
46GND
47NU
48NU
49NU
50NU
51NU

0R5078

1

2 NOTE:

The order of pins shown in this diagram is different from that of actual IC5001.
IC5001 is divided into three and shown as IC5001 (1/3) ~ IC5001 (3/3) in this FRC Schematic Diagram Section.

*2

IC5001(2/3)
MT8282AGG

(FRAME RATE CONVERTER)

Y4
W4
Y5
W5
Y6
W6

Y7
W7

Y8
W8
Y9
W9

Y10
W10
Y11
W11
Y12
W12

Y13
W13

Y14
W14
Y15
W15

M5
G1
N1
G2
G3
N4
H4
N2
L4
H2
M2
H1
H3
M3
J4
M4

NU
NU
NU
NU
NU
NU
NU
NU
NU
NU
NU
NU
NU
NU
NU
NU

LVDS
OUTPUT

TO FRC 1
IC5001(1/3)

MEMORY
I/F

TO FRC 1
IC5001(1/3)

RDQ0
RDQ1
RDQ2
RDQ3
RDQ4
RDQ5
RDQ6
RDQ7
RDQ8

RDQ9
RDQ10
RDQ11
RDQ12
RDQ13
RDQ14
RDQ15

RDQS0-N
RDQS0-P
RDQS1-N
RDQS1-P

RDQM0

RDQM1

RA0
RA1
RA2
RA3
RA4
RA5
RA6
RA7
RA8

RA9
RA10
RA11
RA12
RBA0
RBA1

NU

RCS
RCAS
RRAS

RWE
RODT

RCLK0-N
RCLK0-P

RCKE

RVREF0-1
RVREF0-2

REXTDN

NU
NU
NU
NU
NU
NU
NU
NU

B9

A15

A8
B15
A16

C8
C14

D9
A10
B13
B10
B14
A14
C10
D12
D10

A12
B12
B11
A11
E12
D13

C6

A3

A4

D3

D6

B3

B5

C1

C5

B1

D2

B4

C2

E4

D5

E2

B6

D7

A6

E1

C7

A7

B7

E3

F4

F5

R1

P1

P2

K1

K2

L2

L1

K3

J2

DDRDQ0
DDRDQ1
DDRDQ2
DDRDQ3
DDRDQ4
DDRDQ5
DDRDQ6
DDRDQ7
DDRDQ8

DDRDQ9
DDRDQ10
DDRDQ11
DDRDQ12
DDRDQ13
DDRDQ14
DDRDQ15

DDRA0
DDRA1
DDRA2
DDRA3
DDRA4
DDRA5
DDRA6
DDRA7
DDRA8

DDRA9
DDRA10
DDRA11
DDRA12
DDRBA0
DDRBA1

22R5012
22R5013

300R5014

DDRBA0
DDRBA1
DDRA12
DDRA11
DDRA10
DDRA9
DDRA8
DDRA7
DDRA6
DDRA5
DDRA4
DDRA3
DDRA2
DDRA1
DDRA0

DDRDQ15
DDRDQ14
DDRDQ13
DDRDQ12
DDRDQ11
DDRDQ10
DDRDQ9
DDRDQ8
DDRDQ7
DDRDQ6
DDRDQ5
DDRDQ4
DDRDQ3
DDRDQ2
DDRDQ1
DDRDQ0

C5090

0.1

IC5006
NT5TU32M16DG-BD
(DDR2 SDRAM)

NU

L1

BA0L2
BA1L3 J9VDD
A12R2
A11P7
A10/APM2
A9P3
A8P8
A7P2
A6N7
A5N3
A4N8
A3N2
A2M7
A1M3
A0M8

E8 LDQS
F7 LDQS
A8 UDQS
B7 UDQS
F3 LDM
B3 UDM

DQ15B9
DQ14B1
DQ13D9
DQ12D1
DQ11D3
DQ10D7
DQ9C2
DQ8C8
DQ7F9
DQ6F1
DQ5H9
DQ4H1
DQ3H3
DQ2H7
DQ1G2
DQ0G8

L8 /CS
L7 /CAS
K7 /RAS
K3 /WE
K9 ODT

C50921KR5044

0.01

CK J8

NU E2
NU A2

NU R7
NU R3

CONTINUE
FRC 3

A1VDD
E1VDD

M9VDD
R1VDD
A9VDDQ
C1VDDQ
C3VDDQ
C7VDDQ
C9VDDQ
E9VDDQ
G1VDDQ
G3VDDQ
G7VDDQ
G9VDDQ
J1VDDL

J2VREF

A3VSS
E3VSS
J3VSS
N1VSS
P9VSS
A7VSSQ
B2VSSQ
B8VSSQ
D2VSSQ
D8VSSQ
E7VSSQ
F2VSSQ
F8VSSQ
H2VSSQ
H8VSSQ
J7VSSDL

K8/CK
K2CKE

R8NU

C5129

0.01

C5176
10

C5136
4700P

C5140
330P

C5128

0.1

R5048
100

C5134

0.1

C5137
4700P

C5141
330P

C5135

0.1

C5138
1500P

C5142

0.01

R5041
1K

C5139
1500P

C5143

0.01

C5086

4.7

C5087

0.1

P-ON+1.8V

FRC CBA UNIT

10-16

JILGH K

A13P1SCFR2

FRC 3 Schematic Diagram

FRC CBA UNIT

CONTINUE
FRC 2

P-ON+1.8V

4

R5096
0

C5165

C5163

2200P

4.7

R5043
0

C5091

C5089

0.1

10

C5041
10

C505110C5052

R5035
10

C5049
1000P

C5044
10

3

2

1

TO JACK CBA
CN2601

CONTINUE
FRC 1

P-ON+12V

CN5004

6P-ON+3.3V
5GND
4P-ON+12V
3P-ON+12V
2GND
1GND

L5027
220uH

L5023
220uH

L5022
60uH

C5162

4.7

C5037

0.1

C5038

0.1

C5039

0.1

C5050
100/16V

IC5008
BD7820FP-E2

(+1.8V REG.)

C

5

CTL

1

VCC

2

GND OUT

34

IC5005
BD7820FP-E2

(+1.2V REG.)

C

5

CTL

1

VCC

2

GND OUT

34

L5024
10uH

C5053
10

IC5004
BD9329EFJ-E2

(+3.3V REG.)

BST SS

1

C5046

0.1

R5031
10

C5045
1000P

L5025
BK1608HS220-T

0.1

VIN EN

2

SW

3

GND

45

R5004
22K

R5092
30K

R5046

9.1K

R5047
15K

C5054
10

COMP

C5033
100/16V

2 NOTE:

The order of pins shown in this diagram is different from that of actual IC5001.
IC5001 is divided into three and shown as IC5001 (1/3) ~ IC5001 (3/3) in this FRC Schematic Diagram Section.

*2

IC5001(3/3)
MT8282AGG

FB

R5003
20K

C5171
220/4V

R5045
0

C5107
10

C5070

0.1

8

7

6

R5032

4.7K

C5048

0.01

C503410C5035

C5172

C5174

10

0.01

L5013
BK1608HS220-T

C5012

C5106

1

0.1

C5056
220/4V

C5042

0.1

0.1

R5037
0

R5036

1.5K

R5053
0

R5034

6.8K

C5175
2200P

C5108
100/4V

C5002

0.1

R5001
1K

C5003
1

C5011
100/4V

C5096

0.1

C5093

0.01

C5100
1500P

C5098
330P

C5109

4.7

C5112

0.1

C5115
100/4V

C5116
10

C5119

0.1

C5122

0.01

C5125
1500P

C5097

0.1

C5102
4700P

C5101
1500P

C5104
330P

C5111

0.1

C5113
3300P

C5117
10

C5120

0.1

C5123
4700P

C5126
1500P

C5095
10

C5094

0.01

C5103
4700P

C5099
1500P

C5105
330P

C5114
3300P

C5118

4.7

C5121

0.01

C5124
4700P

C5127
330P

(FRAME RATE CONVERTER)

A17

VCC2IO-1

B8 VCC2IO-2

B16 VCC2IO-3

C9 VCC2IO-4

C15 VCC2IO-5

D8 VCC2IO-6

D14 VCC2IO-7

E7 VCC2IO-8
E8 VCC2IO-9
E9 VCC2IO-10

E13 VCC2IO-11

F1 VCC2IO-12
F2 VCC2IO-13
F3 VCC2IO-14
G4 VCC2IO-15
G5 VCC2IO-16
L5 VCC2IO-17
N5 VCC2IO-18
P3 VCC2IO-19
P4 VCC2IO-20
P5 VCC2IO-21
R2 VCC2IO-22
R3 VCC2IO-23
R4 VCC2IO-24
T1 VCC2IO-25
T2 VCC2IO-26
T3 VCC2IO-27
U1 VCC2IO-28

C18 VCC3IO-1

R5 VCC3IO-2

T4 VCC3IO-3
U12 VCC3IO-4
A18 VCCK-1
A19 VCCK-2
A20 VCCK-3
B17 VCCK-4
B18 VCCK-5
C16 VCCK-6
C17 VCCK-7
D15 VCCK-8
D16 VCCK-9
E14 VCCK-10
E15 VCCK-11
H10 VCCK-12
H12 VCCK-13

J9 VCCK-14
J11 VCCK-15
J13 VCCK-16

L8 VCCK-17
L13 VCCK-18

M9 VCCK-19
M12 VCCK-20

N8 VCCK-21
N10 VCCK-22
N13 VCCK-23

W17RXD
Y17TXD
V11SCL
U11SDA
C19SFCS
B20SFCK
C20SFD1
B19SFD0

W16NU
Y16NU

Y19VSS
V20VDD33-XTAL
W19XTALI
W20XTALO
W18NU
Y18NU
V15VSS
V14VSS
V13VSS
U13VDD12-SYSPLL
U15VDD12-MJCPLL
U14VDD12-DMPLL

V10VSS

U10VDD33-LVDSRXE

K17VDD33-LVDSA-1
K18VDD33-LVDSA-2
H16VSS
J16VSS
U16VDD33-LVDSB-1
V17VDD33-LVDSB-2
R16VSS
T16VSS
V16VSS
V19VSS
L19VDD12-VPLL
L17VSS
K20NU
K19VDD12-LVDS
L18VSS

U3JTMS
U4NU
U2NU
V2NU
V1NU
T5JTD0
W2PRST
Y2EFUSE
W1NU

V3NU
Y3NU
W3LCD-PON
V4NU
J8AVSS
H8AVDD12-MEMPLL
A2NU
A1NU

V6VSS

V7VSS
V8VSS
U6VDD33-LVDSRXO

U7VDD33-LVDSRX-CK
U8VDD12-LVDSRX
U9NU
V9NU

R5024 1K

R5019 0
R5016 0
R5017 0
R5018 0
R5025 0

R5074 10K
R5022 0

R5049
820K

4.7C5031

0.1C5032

4.7C5029

0.1C5030

R5050
0

4.7C5026

0.1C5027
330PC5028

4.7C5013

0.1C5014
330PC5015

4.7C5016

0.1C5017
330PC5018

4.7C5023

0.1C5024

0.1C5025

4.7C5021

0.1C5022

4.7C5019

0.1C5020

1KR5026

X5001
27MHz

4.7KR5065

L5021
BK1608HS220-T

C5146
27P

C5145
30P

L5020
BK1608HS220-T

L5017
BK1608HS220-T

L5018
BK1608HS220-T

L5019
BK1608HS220-T

L5016
BK1608HS220-T

L5015
BK1608HS220-T

L5014
BK1608HS220-T

C5148

C5147

10

0.1

IC5007
MX25L8006EM2I-12G
(MEMORY)

VCC

/CS

1

2

3

45

8

/HOLDSO

7

SCLK/WP

6

SIGND

C5144
1000P

R5020

R5021

4.7K

4.7K

R5069

4.7K

R5075 100
R5071 0
R5070 0

CN5005

(NO CONNECTION)

1 P-ON+3.3V
2 TX1
3 RX1
4 GND

LCD-PON

RESET
SCL2
SDA2

CONTINUE
FRC 1

CONTINUE
FRC 2

10-17

RQPONM

A13P1SCFR3

Jack CBA, IR Sensor CBA & Function CBA Top View

IR Sensor CBA

Function CBA

D2150

R2155

R2156

R2154

BA13P0F0101 2B

2

1

D2161

IC2161

CN2161

R2153

RS2161

LC9-EU-40W

0512R2512R

R2151

C7A3 A3/A3C1

C7A3/A3/A3C1

7

Jack CBA

CN2602

C2612

D2610

P-ON+6.0V

J2066

GND

GND

L2701

L2702

C2725

J2063
J2055

HP-MUTE

D2717

C

R2602

L260

3

J2067

J2069

J2068

GND

JK2704

GND

D2716

J2071

GND

L2705

L2706

J2070

D2709

J2074

P-ON+12V

J2072

GND

C2708

TU2301

GNDJ2073

1

J2076

P-ON+12V

L2707

GND J2081

J2077

J2075

GND

P-ON+5.0V

P-ON-H2

J2603

J2080

GND

J2047

J2079

GND

GND J2084

J2078

J2082

J2086

J2088

GND

J2089

GND

GND

GND

J2085

GND

J2093

J2087

VDACOUT

A

R2613

D2801

J2096

J2095

J2009

GND

P-ON+5.0V

J2014

J2015

J2016

J2011

GND

J2012

L2801

C2663

D2614

D2604

GND

C2629

KEY-IN1

J2018

GND

R2634

J2026

AMP+24V

R2619

L2602

J2021

ALL+3.3V

J2023

C2829

GNDA

J2022

AMP-L

J2017

D2612

L2703

R2620

C2633

D2802

J2024

J2013

A-MUTE
J2020

D2602

C2724

J2028

GND

CN2601

J2025

GND

J2019
GNDA

J2027

J2034

BC2602

GND

D2608

J2033

GND

AMP-L

J2029

GNDJ2035

C2602

P-ON+3.3V

D2606

J2032

J2604

JK2709

JK2703

GNDJ2030

AMP-R

J2037

P-ON+5.0VJ2031

J2038

GND

GND

D2721

D2719

16

GND

J2041

J2036

GND

P-ON-H2

L2704

C2648

J2602

GND

J2044

J2040

ALL+3.3V

J2039

GND

P-ON+5.0V

J2046

GND

PROTECT1J2045

J2043

AMP+24V

D2402

JW2401

J2048

GND

JK2702

C2719

C2723

J2042

J2049

D2401

D2613

J2051

SPDIF

D2703

D2704

D2708

CN2603

4

JK2701

GND
J2052

LC9-SW

CN2801

CN2150

J2090

J2083

GNDA

J2004

GNDA

J2005

J2010

GNDA

J2006

JS2801

C2826

J2008

12

1

CN2102

SW2155

POWER

J2003

7

SW2156

P-ON+5.0V

MENU

J2001

R2828

C2807

SOURCE

SW2154

CH DOWN

SW2153

SW2152

CH UP

VOL DOWN

SW2151

VOL UP

SW2150

C2834

JS2802

D2803

L2802

C2827

C2833

C2808

R2829

3

BA13P0F0101 2C

LC9-EU-40W

J2007

GND

J2050

CN2802

B

C2604

JS2601

C2637

GND

J2060 GND

P-ON+6.0V

J2059

GND

C2311

14

D2611

J2061

JK2705

L2301

D2601

R2621

J2062

GND

R2627

C2638

JK2707

C2302

P-ON+5.0V

J2064

1

P-ON+12V

P-ON+12V

J2053

J2056

GND

BC2603

C7A3/A3/A3C1

P-ON+3.3V

J2057

J2058

JK2706

D2707

JK2708

J2054

GND

1

2

LC9-40W-EU

CN2105

J2094

29

28

BA13P0F0101 2A

1

2

GNDJ2091

CN2104

28

29

GND

2

1

J2092

CN2103

29

28

1

CN2162

10-15

BA13P0F01012

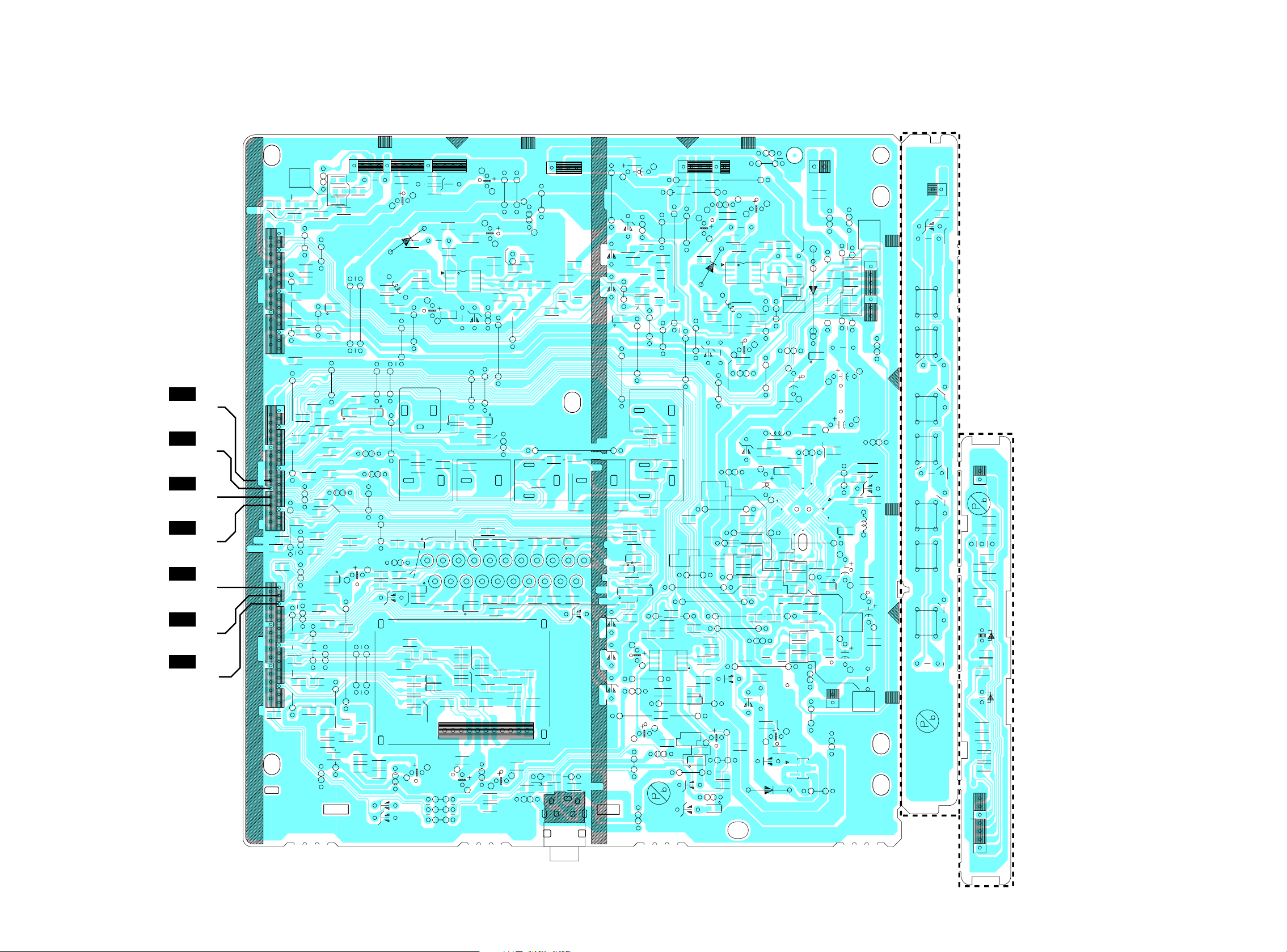

Jack CBA, IR Sensor CBA & Function CBA Bottom View

WF1

PIN 18 OF
CN2104

WF2

PIN 20 OF
CN2104

WF3

PIN 22 OF
CN2104

WF4

PIN 24 OF
CN2104

WF5

PIN 1 OF
CN2103

WF6

PIN 3 OF
CN2103

WF7

PIN 5 OF
CN2103

Jack CBA

L2604
L2606
C2606

C2609

L2608

L2609

L2605

C2132

CN2105

CN2104

28

J2098

CN2103

28

R2104

2

28

2

C2101

2

1

1

1

C2115

C2103

C2113

J2094

C2114

29

C2111

GND J2091

J2097
C2702

C2118

C2123

GND
29

J2092

C2127

C2126

R2102

R2316

29

VDACOUT

R2605

J2093

J2087

R2742

J2085

C2117

C2119

GND

J2088

GND

J2089

C2130

R2315

L2708

C2726

R2747

GND

L2607

C2120

J2086

C2116

C2131

C2102

D2711

GND

C2129

GND

C2128

C2739

J2082

J2603

P-ON-H2

GND J2080

D2616

J2047

R2606

GND

J2079

C2125

C2124

C2122

C2121

GNDJ2084

J2078

R2601

C2607

J2076

P-ON+12V

R2708

D2723

L2707

R2755

C2708

C2727

R2103

GNDJ2081

J2077

R2746

R2752

P-ON+5.0V

1

J2074

P-ON+12V

L2705

J2072

R2723

R2724

D2709

GND J2075

Q2702

R2745

R2602

C2647

C2640

D2722

L2706

GND

TU2301

GND J2073

R2744

R2751

D2716

03

L2 6

C2635

GND

J2071

R2721

J2070

L2305

C2314

R2306

D2717

C

CN2602

C2650

C2612

D2610

J2067

J2068

GND

L2701

R2725

R2305

C2643

R2633

C2639

J2066

GND

GND

JK2707

J2069

GND

R2730

JK2704

D2710

D2712

C2709

C2313

R2302

R2307

C2725

L2702

P-ON+5.0V

J2063
J2055

HP-MUTE

C2608

F2603

R2627

C2638

P-ON+6.0V

R2705

R2732

C2714

R2722

C2710

R2709

C2320

C2307

D2301

D2302

C2304

J2064

C2605

D2601

1

4

C2613

D2724

C2707

L2302

L2303

C2302

C2646

C2641

D2714

R2710

C2308

C2306

C2303

14

8

R2621

GND

J2062

D2713

L2304

R2701
C2711

C2637

C2642

IC2603

5

R2624

GND

D2611

J2061

C2701

JK2705

C2715

R2757

R2756

R2720

C2312

R2309

C2305

C2311

L2301

C2604

JS2601

R2622

C2645

J2060GND

J2059

P-ON+6.0V

D2725

R2706

GND

C2728

R2719

C2706

R2308

C2319

C2301

R2736

J2054

B

1

P-ON+12V

J2056

P-ON+12V

R2632

R2625

R2623

J2057

P-ON+3.3V

J2058

JK2706

C2716

C2729

R2717 R2718

C2309

C2310

C2318

C2720

GND

J2053

BC2603

C2644

R2403

R2734

R2758

D2707

C2732

JK2708

GND

CN2603

R2636

R2637

C2712

JK2701

D2715

R2715

J2052

4

Q2403

GND

SPDIF

R2727

C2730

D2401

D2613

J2051

JK2702

R2712

D2705

R2713

D2701

R2714

D2703

D2704

D2708

C2649

J2049

AMP+24V

D2402

R2401

C2401

R2405

D2605

GND J2048

C2717

C2713

R2711

C2704

C2738

C2719

J2043

P-ON+5.0V

C2723

J2042

C2648

R2402

R2404

JW2401

PROTECT1 J2045

R2754

R2728

C2705
D2706

D2702

R2761

J2039

R2738

J2602

R2406

Q2401

Q2402

J2044

ALL+3.3V

C2703

R2716

R2740

C2736

5

8

GND

C2722

C2721

L2704

GND

J2046

CN2601

C2601

C2624

J2034

GND

BC2602

GND J2035

C2631

C2602

J2036

D2606

P-ON+3.3V

C2625

R2612

GND

J2032

J2604

P-ON-H2

JK2709

R2753

C2718

JK2703

R2808

C2818

C2805

R2830

J2033

GND

GND J2030

R2812

AMP-R

AMP-L

R2739

4

IC2701

C2737

1

C2731

R2759

C2734

D2720

GND

J2029

F2602

C2614

D2608

GND

C2815

R2809

J2019

GNDA

L2803

J2027

D2810

C2724

J2028

D2718

J2013

GND

J2041

GND

J2040

R2729

R2763

R2813
C2821

J2037

P-ON+5.0V J2031

J2038

GND

D2721

D2719

AMP+24V

C2630

1

4

R2620

ALL+3.3V

C2633

J2025

J2023

J2024

C2803

GNDA

R2827

A-MUTE

J2020

J2022

AMP-L

R2760

C2735

D2602

GND

L2703

61

J2026

C2634

C2632

C2603

J2021

D2802

C2813

C2823

C2662

R2635

R2638

C2660

R2737
C2733

A

C2629

R2619

8

R2616

R2803

J2018

GND

J2017

D2612

R2639

J2014

GND

J2015

R2614

C2628

R2615

IC2602

5

L2602

J2016

GND

J2012

KEY-IN1

L2801

C2811

D2804

C2829

21

C2817

C2822

R2814

Q2801

P-ON+5.0V

R2634

C2663

D2614

D2604

C2626

C2627
R2617

J2011

J2009

GND

C2832

C2801

20

IC2801

C2806

R2613

11

30

CN2801

D2806

C2809

J2008

R2801

J2096

J2095

1

C2831

R2105

D2801

JS2801

C2826

10

J2010

31

R2807

C2819

R2817

R2820

GNDA

C2105

J2006

C2110

C2830

40

C2814

R2819

Q2803

CN2802

IC2605

J2050

J2083

J2005

1

R2804

D2805

D2807

R2821
C2816
R2815

GND

J2007

R2101

J2090

C2104
C2109
C2106
C2107

GNDA

J2003

R2828

JS2802

C2828

GNDA

J2004

C2810

R2811
R2810
R2818

Function CBA

D2150

12

1

CN2102

POWER

SW2155

7

MENU

SW2156

J2001

P-ON+5.0V

C2807

SW2154

C2812

C2804

R2829

L2802

C2833

SOURCE

SW2153

CH DOWN

CH UP

SW2152

SW2151

VOL DOWN

SW2150

VOL UP

C2834

D2803

C2802

C2827

C2808

3

BA13P0F0101 2C

CN2150

C2150

R2155

R2156

R2154

R2152R2150

CN2161

C2162

RS2161

R2161

C2160

TP2163

7

R2153

R2151

LC9-EU-40W

TP2162

IR Sensor CBA

2

TP2160TP2161

1

C2166

BA13P0F0101 2B

R2165

R2160

C2165

C2163

D2161

R2167

C2164

R2163

IC2161

C2161

R2164

C2167

R2166

TP2164

TP2165

TP2168

10-16

1

CN2162

TP2167

TP2166

BA13P0F01012

Power Supply CBA Top View

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F100) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

10-17

UPBPSPFSP004

Power Supply CBA Bottom View

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F100) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

10-18

UPBPSPFSP004

WAVEFORMS

VIDEO-Y

0.2V2020

20

VIDEO-Pr

0.2V

VIDEO-Pb

0.2V

VIDEO

0.2V

AUDIO(L)

0.5V

0.5m

VIDEO-B

0.5V

VIDEO-G

0.5V

VIDEO-R

0.5V

WF1 ~ WF7 = Waveforms to be observed at
Waveform check points.
(Shown in Schematic Diagram.)

Input: PAL Color Bar Signal (with 1kHz Audio Signal)

WF1

(VIDEO IN)

VIDEO

(COMPONENT IN)

VIDEO-Y

Pin 18 of CN2104

0.2V

0.2V

2020µ

20

µ

µ

s

s

s

WF4

WF4

AUDIO(L)

WF5

VIDEO-B

Pin 24 of CN2104

0.5V

Pin 1 of CN2103

0.5V

2020µ

0.5m

s

s

WF2

VIDEO-Pb

WF3

VIDEO-Pr

Pin 20 of CN2104

Pin 22 of CN2104

0.2V

0.2V

2020µ

2020µ

s

s

WF6

VIDEO-G

WF7

VIDEO-R

Pin 3 of CN2103

0.5V

Pin 5 of CN2103

0.5V

2020µ

2020µ

s

s

11-1

LC9PWF

WIRING DIAGRAMS

DIGITAL MAIN CBA UNIT

CN3702CN2104

29

CL2104

KEY-IN1

HDMI-

CONNECTOR-1

4

2

1

CN3901

NUNUNUNUNU

50

51

474849

CN5001

CN5002

1

5

3

2

4

CL5002 CL3901

NUNUNUNUNUNULVDS-SELNUNUNUNUNUGND

LED+24V

LED+24V

LED+24V

POWER SUPPLY CBA UNIT

CN2

BACKLIGHT-SW

NU

P-ON-H2

CN2602 CN4

JACK CBA

321

5

6

4

CN2103

CL2103

VIDEO-B

GND

VIDEO-G

GND

VIDEO-R

GND

252123

24

262728

29

CN3703

252123

24

262728

22

20

REMOTENURED-LED

LIGHT

STBYL-ON

AUDIO-MUTE

GND

AMP(R)-OUT

AMP(L)-OUT

6

8

9

7

51342

HDMI-

8

9

735

6

101513

GND

GND

GND

GND

GND

44

45

42

43

46

9

7

6

8

10

GND

GND

LED+24V

LED+24V

6

7

51342

6

7

51342

BACKLIGHT-ADJ(PWM)

GND

AL+5.3V

GND

6

7

51342

8

9

7

101513

RGB-VIDEO-OUT

GND

RGB-VIDEO-IN

GND

22

20

17

19

16

18

GND

PC-AUDIO(L)

PC-AUDIO(R)

GND

141012

13

11

CONNECTOR-2

12

11

LVDS-ED4(-)

LVDS-ED4(+)

LVDS-ED3(+)

40

41

39

12

13

11

GND

GND

GND

NU

8

9

10

111213

8119

10

GND

GND

P-ON+12V

GND

8

9

10

111213

TUNER UNIT

11

FBIN

SLOW-SW-IN

GND

RGB-AUDIO(L)-IN

17

19

16

18

12

14

15

13

-IN

Y/VIDEO

GND

SPDIF

GND

COM-

15

172220

18

16

HDMI-

CONNECTOR-3

17

16

14

GND

LVDS-ED3(-)

LVDS-ECLK(-)

LVDS-ECLK(+)

37

38

15

14

16

17

LVDS-TXB-E4(+)

LVDS-TXB-E4(-)

LVDS-TXB-E3(+)

LVDS-TXB-E3(-)

BACKLIGHT-ADJ(PWM)

BACKLIGHT-SW

NU

14

121314

P-ON+12V

P-ON+12V

P-ON+12V

14

17

161214

RGB-AUDIO(R)-IN

GND

DIF-OUT2

14

15

13

8

9

10

11

-IN
Pr

GND

COM-Pb-IN

COMP-DET

COM-

19

20

18

GND

LVDS-ED2(-)

LVDS-ED2(+)

3233343536

192321

18

20

GND

LVDS-TXB-ECLK(+)

LVDS-TXB-ECLK(-)

134

2

CN3

GND

GND

134

2

CN2603

192422

20

18

DIF-OUT1

GNDNUGND

9

12

10

11

7

5

GND

AUDIO(L)

AUDIO(R)

231921

2524262728

PC-RGB-IN

21

23

242526272829303132333435363738394041424344454647484950

22

LVDS-ED1(-)

LVDS-ED0(-)

LVDS-ED1(+)

LVDS-ED0(+)

22

24

GND

LVDS-TXB-E2(+)

LVDS-TXB-E2(-)

LVDS-TXB-E1(+)

CN1

N L

AMP+24V

AMP+24V

SCL

SDA

GND

7

8

462

3

GND

RGB-AUDIO(R)-OUT

RGB-AUDIO(L)-OUT

GND

GND

2728293031

25

26

LVDS-TXB-E1(-)

LVDS-TXB-E0(+)

CL601

SPEAKER

CL2801

2

SP(R)

CN2801

262728

252123

RF-AGC

GNDNUHP-MUTE

5

462

3

1

CN3701

29

CL2105

NU

GND

1

29

CN2105

CI

CARD SLOT

LVDS-OD4(-)

LVDS-OD3(-)

LVDS-OD4(+)

LVDS-OD3(+)

22

23

242526

27

28

29

30

LVDS-TXB-E0(-)

GND

LVDS-TXB-O4(+)

LVDS-TXB-O4(-)

LCD MODULE

ASSEMBLY

MAIN POWER

SWITCH

SW601

R-CH

1

SP-GND

29

HP-DET

1

262728

RESET

BACKLIGHT-SW

P-ON-H1

3

2

4

USB JACK

GND

LVDS-OCLK(-)

LVDS-OCLK(+)

19

20

21

32

31

33

LVDS-TXB-O3(+)

LVDS-TXB-O3(-)

GND

AC

INLET

CL602

SPEAKER

CL2802

2

SP(L)

CN2802

252123

24

22

P-ON-H2

BACKLIGHT-ADJ

PROTECT1

GND

6

5

7

8

GND

LVDS-OD2(-)

LVDS-OD1(-)

LVDS-OD2(+)

LVDS-OD1(+)

17

18

16

15

14

38

36

35

34

37

LVDS-TXB-OCLK(+)

LVDS-TXB-OCLK(-)

GND

LVDS-TXB-O2(+)

LVDS-TXB-O2(-)

AC601

AC CORD

L-CH

1

SP-GND

19

20

18

AL+5.3V

AL+5.3V

AL+3.3V

GND

9

101412

11

NU

GND

LVDS-OD0(-)

LVDS-OD0(+)

10

12

13

11

41

42

39

40

LVDS-TXB-O1(+)

LVDS-TXB-O1(-)

LVDS-TXB-O0(+)

LVDS-TXB-O0(-)

CN2150

CL2161

KEY-IN1

1 1

CN2161

2

1

CN2162

CL2162

KEY-IN1

AL+3.3V

2

1

CN2102

17

16

14

15

GND

GND

P-ON+3.3V

P-ON+3.3V

13

16

15

FRC-RESET

FRC-CTRL-3(NU)

8

9

44

43

GND

GND

GND

2 2

3

REMOTE

RED-LED

3

12

13

P-ON+3.3V

GND

18

17

LVDS-SEL

FRC-CTRL-2(NU)

FRC-CTRL-1(NU)

6

735

47

45

46

GNDNULCD+12V

6

745

P-ON+5V

LIGHT

GND

6

745

9

10

11

GND

P-ON+6V

P-ON+6V

21

20

19

NU

4

48

LCD+12V

FUNCTION CBA

IR SENSOR CBA

7

8

GND

GND

23

22

SCL2

SDA2

2

50

49

LCD+12V

LCD+12V

6

5

GND

GND

24225

51

GND

1

51

LCD+12V

12345

CN5004

GND

GND

LCD+12V

LCD+12V

CL5003

LVDS-TXA-E4(+)

LVDS-TXA-E4(-)

LVDS-TXA-E3(+)

LVDS-TXA-E3(-)

LVDS-TXA-ECLK(+)

LVDS-TXA-ECLK(-)

LVDS-TXA-E2(+)

LVDS-TXA-E2(-)

LVDS-TXA-E1(+)

LVDS-TXA-E1(-)

LVDS-TXA-E0(+)

LVDS-TXA-E0(-)

LVDS-TXA-O4(+)

LVDS-TXA-O4(-)

LVDS-TXA-O3(+)

LVDS-TXA-O3(-)

LVDS-TXA-OCLK(+)

LVDS-TXA-OCLK(-)

LVDS-TXA-O2(+)

LVDS-TXA-O2(-)

LVDS-TXA-O1(+)

LVDS-TXA-O1(-)

LVDS-TXA-O0(+)

LVDS-TXA-O0(-)

4

1

3

P-ON+12V

P-ON+12V

P-ON+12V

P-ON+12V

262728

29

6

GND

P-ON+3.3V

1NU
2NU
3GND
4
5
6
7
8GND
9

10
11GND
12
13
14
15
16
17
18NU
19
20
21
22
23GND
24
25
26GND
27
28
29
30
31
32
33GND
34GND
35GND
36NU
37LCD+12V
38LCD+12V
39LCD+12V
40LCD+12V
41LCD+12V

FRC CBA UNIT

CN5003

COMPONENT

-Y/VIDEO-IN

COMPONENT

-Pb-IN

COMPONENT

-Pr-IN

AUDIO(L)-IN

AUDIO(R)-IN

DIGITAL

PC-AUDIO-IN

AUDIO-OUT

(COAXIAL)

HEADPHONE

JACK

12-1

SCART

JACK

CN2601

GND

GND

LCD+12V

LCD+12V

GND

P-ON+3.3V

1

23456

A13P1WI

Cabinet

A20

A42

B27

B27

A19

A13

A1

L47

L47

EXPLODED VIEWS

LCD1

CL5003

CL5002

L3

B12

L3

See Electrical Parts List
for parts with this mark.

Digital Main CBA Unit

Thermostar

B18

L3

A9

L47

L47

L47

A5

Function CBA

A4

B9

A11

IR Sensor CBA

B27

CL601

SW601

B61

L18

L3

B27

B10

CL602

B13

L3

Speaker

CL2801

L15

L3

CL2802

B5

L15

L3

Speaker

L1

CL2601

FRC CBA Unit

L15

L12

CL3901

B33

L1

L3

B50

L3

L3

L3

Thermostar

L3

L1

L18

L3

CL2104CL2105

CL2103

B1

A8

Jack CBA

L9

L1

L3

A2

B18

B23

L5

L3

L1

L18

L1

L5

A12

Power Supply CBA Unit

L18

L1

A22

L1

L28

L9

L1

S6

L9

13-1 A13P1CEX

Packing

Some Ref. Numbers are
not in sequence.

A22

X2-1
X2-2

X3

X4 AC601

L28

Tape

Tape

X1

S4

S3

S5

Packing Tape

FRONT

FRONT

Packing Tape

S6

S1

13-2 A13P0PEX

MECHANICAL PARTS LIST

see Note below

Note :

added new Item, 30.11.2011

S1

Carton (Brown, no printing)

1EM331217S

PRODUCT SAFETY NOTE: Products marked with a

! have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don’t degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Ref. No. Description Part No.

A12! RA TING LABEL A13P1EP ---------­A22 40W ST AND ASSEMBLY A13P1EP 1EM027347
B5 ST AND BRA CKET A13P0EP 1EM027087
B13 SEP ARATION SHEET A11P4UH 1EM226283
B18 GASKET A8AF0UH 1EM425861
B23 TUNER SHIELD A13P0EP 1EM330058
CL2601 WIRE ASSEMBLY 6PIN 6PIN/240MM/A WG24 WX1A13P0-208
CL2801 WIRE ASSEMBLY 2PIN 2PIN/530MM/A WG24/RBWX1A13P0-234

Ref. No. Description Part No.

A1 FRONT CABINET A13P1EP 1EM027089
A2 REAR CABINET A13P0EP 1EM027086
A4 FUNCTION KNOB(HIGH) A13L1EP 1EM225586
A5 KNOB COV ER A13L 1EP 1EM 225587
A8 JACK HOLDER(A) A13L0EP 1EM225543
A9 JACK HOLDER(D) A13L0EP 1EM225544
A11 SENSOR LED LENS A13L0EP 1EM225546
A13 POP LABEL A13P1EP ---------­A19 DECORA TION PANEL(L) A13P1EP 1EM125913
A20 DECORA TION PANEL(R) A13P1EP 1EM125914
A42 ENERGY LABEL A13P1EP ---------­B1 SHIELD BOX A13L0EP 1EM 125875
B9 SENSOR SHIELD A13L0EP 1EM330119
B10 AC INLET HOLDER A13P0 EP 1EM22 5443
B12 PCB HOLDE R A1 3P0 EP 1EM 0270 88
B18 GASKET A8AF0UH 1EM425861
B27 CLOTH(10X180XT0.5) L0336JG 0EM408827
B33 BRACKET A01P7UH 1EM328617
B50 FRC SHIELD A13P1EP 1EM126073
B61 SW HOLDER A1 3P0E P 1EM225503
CL601 WIRE ASSEMBL Y 2PIN AC-SW 2PIN/100MM/

CL602 WIRE ASSEMBL Y 2PIN AC-INLET 2PIN/

CL2103 WIRE ASSEMBL Y 29PIN FFC 29PIN/48MM/

CL2104 WIRE ASSEMBL Y 29PIN FFC 29PIN/48MM/

CL2105 WIRE ASSEMBL Y 29PIN FFC 29PIN/48MM/

L3 ASSEMBLED SCREW(D9/M3X5) A14P1UH or 1EM433298

L12 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080
L47 ASSEMBLED SCREW(D10 M3X6) A13P1EP 1EM434317
SW601! SWITCH POWER SDDJE35600 SPEVBA0AL003

AWG18/WB

135MM/A WG1 8/WB

FFC

FFC

FFC

ASSEMBLED SCREW(D9/M3X5) A14P1UH 1EM433298

THERMOSTAR TMS-L-2(12*12HC) XK10000X4003

WX1A13P0-220

WX1A13P0-229

WX1A13P0-101

WX1A13P0-101

WX1A13P0-101

PACKING

S5 SET BAG A03P0EP 1EM327238

ACCESSORY

X3 REMOTE CONTROL NH208RD NH208RD

CL2802 WIRE ASSEMBLY 2PIN 2PIN/140MM/A WG24/ RBWX1A13P0-213

CL3901 WIRE ASSEMBLY 51PIN FFC 51PIN/270MM/

CL5002 WIRE ASSEMBLY 51PIN 51PIN/UL20624/FFC WX1A13P1-422
CL5003 WIRE ASSEMBLY 41PIN 41PIN/FFC/UL20624 WX1A13P1-423
L1 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100
L3 ASSEMBLED SCREW(D9/M3X5) A14P1UH 1EM433298
L5 SCREW S-TIGHT M3X8 BIND HEAD+ GBHS3080
L9 DOUBLE SEMS SCREW M8X18 M8X18 FPH38180
L15 DOUBLE SEMS SCREW M4X10 + BLK FPH34100
L18 SCREW S-TIGHT M3X6 GCHS3060
L28 ST AND SCREW KIT A13P0EP 1ESA28729
LCD1 LCD MODULE LTA400HF21 UDULCD0SM028

UL2896

SPEAKER MAGNETIC BO X 8OHM/10W SB­05N44F

WX1A13P0-411

DS08050XQ009

PACKING

S1 CARTON A13P1EP 1EM331477
S3 STYROFOAM TOP A13P0EP 1EM028005
S4 STYROFOAM BOTT OM A13P0EP 1EM028006
S6 SERIAL NO. LABEL L9750UA ----------

ACCESSORIES

AC601! AC CORD W/O A GND WIRE CEE/ 162/ NO/

! CORD W/O A GND WIRE CB/162/NO/BLACK WAE0162LW003

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A
X2-1! OWNERS MANUAL(WE-10) A13P1EP 1EMN28419
X2-2! OWNERS MANUAL(PL-14) A13P1EP 1EMN28420
X4 BATTERY DRY R03R EL/2PA or XB00M 00MS0 01

BLACK or

BA TTER Y DR Y R03(SIZE AAA ) XB00M0RKT001

WAE016 2LTE01

2011/08/22 14-1 A13P1CA.fm

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

! have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DIGITAL MAIN CBA UNIT

Ref. No. Description Part No.

DIGIT AL MAIN CBA UNIT A13P1MMA-002

FRC CBA UNIT

Ref. No. Description Part No.

FRC CBA UNIT A13P1MFR-001

JACK ASSEMBLY

Ref. No. Description Part No.

JACK ASSEMBLY
Consists of the following:

JACK CBA
FUNCTION CBA
IR SENSOR CBA

JACK CBA

Ref. No. Description Part No.

JACK CBA
Consists of the following:

CAPACITORS

C2103 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C2104 CHIP CERAMIC CAP.(1608) CH J 100pF/50V or CHD1JJ3CH101

CAP CHIP 1608 J/ C0G/ 100pF/ 50V CHD101EY A030

C2105 CHIP CERAMIC CAP.(1608) CH J 100pF/50V or CHD1JJ3CH101

CAP CHIP 1608 J/ C0G/ 100pF/ 50V CHD101EY A030

C2106 CHIP CERAMIC CAP.(1608) CH J 100pF/50V or CHD1JJ3CH101

CAP CHIP 1608 J/ C0G/ 100pF/ 50V CHD101EY A030

C2107 CHIP CERAMIC CAP.(1608) CH J 100pF/50V or CHD1JJ3CH101

CAP CHIP 1608 J/ C0G/ 100pF/ 50V CHD101EY A030

C2109 CHIP CERAMIC CAP.(1608) CH J 100pF/50V or CHD1JJ3CH101

CAP CHIP 1608 J/ C0G/ 100pF/ 50V CHD101EY A030

C2110 CHIP CERAMIC CAP.(1608) CH J 100pF/50V or CHD1JJ3CH101

CAP CHIP 1608 J/ C0G/ 100pF/ 50V CHD101EY A030

C2111 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C2113 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C2114 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C2115 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

A13P1MJCA001

----------

----------

----------

----------

Ref. No. Description Part No.

C2302 ELECTROLYTIC CAP. 220µF/6.3V M H7 or CE0KMAVSL221

CAP ELE 220µF/6.3V/M/85 H7 CEA2 21KSN00 3

C2303 CHIP CERAMIC CAP. F Z 1µF/10V or CHD1AZ30F105

CAP CHIP 1608 Z/Y5V/1µF/10V CHD105EYA052

C2304 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V or CHD1JK30B473

CAP CHIP 1608 K/X7R/0.047µF/50V CHD473EY A032

C2305 CHIP CERAMIC CAP.(1608) CH J 33pF/50V or CHD1JJ3CH330

CAP CHIP 1608 J/C0G/33pF/50V CHD330EYA030

C2306 CHIP CERAMIC CAP.(1608) CH J 33pF/50V or CHD1JJ3CH330

CAP CHIP 1608 J/C0G/33pF/50V CHD330EYA030

C2307 CHIP CERAMIC CAP.(1608) CH D 5.6pF/50V or CHD1JD3CH5R6

CAP CHIP 1608 D/C0G/5.6pF/50V CHD5R6EY A029

C2308 CHIP CERAMIC CAP.(1608) CH D 5.6pF/50V or CHD1JD3CH5R6

CAP CHIP 1608 D/C0G/5.6pF/50V CHD5R6EY A029
C2309 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103
C2310 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103
C2312 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJ3CH221

CAP CHIP 1608 J/C0G/220pF/50V CHD221EYA030
C2313 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJ3CH221

CAP CHIP 1608 J/C0G/220pF/50V CHD221EYA030
C2314 CHIP CERAMIC CAP. CH J 220pF/50V or CHD1JJ3CH221

CAP CHIP 1608 J/C0G/220pF/50V CHD221EYA030
C2318 CHIP CERAMIC CAP. CH J 56pF/50V or CHD1JJ3CH560

CAP CHIP 1608 J/C0G/56pF/50V CHD560EYA030
C2319 CHIP CERAMIC CAP. CH J 56pF/50V or CHD1JJ3CH560

CAP CHIP 1608 J/C0G/56pF/50V CHD560EYA030
C2401 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225
C2601 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036
C2602 ELECTROLYTIC CAP. 100µF/16V M H7 or CE1CMAVSL101

CAP ELE 100µF/16V/M/85 H7 CEC101KSN00 3
C2603 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036
C2604 ELECTROLYTIC CAP. 100µF/16V M H7 or CE1CMAVSL101

CAP ELE 100µF/16V/M/85 H7 CEC101KSN00 3
C2605 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036
C2606 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V or CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EY A032
C2607 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V or CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EY A032
C2609 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V or CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EY A032
C2612 ELECTROLYTIC CAP. 100µF/10V M H7 or CE1AMAVSL101

CAP ELE 100µF/10V/M/85 H7 CEB101KSN003
C2624 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036
C2625 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V orCHD1JJ3CH102

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030
C2627 CHIP CERAMIC CAP. CH J 680pF/50V or CHD1JJ3CH681

CAP CHIP 1608 J/C0G/680pF/50V CHD681EYA030
C2628 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V or CHD1EK30B224

CAP CHIP 1608 BJ/+-10/0.22µF/25V CHD2240TU011
C2629 ELECTROLYTIC CAP. 100µF/16V M H7 or CE1CMAVSL101

CAP ELE 100µF/16V/M/85 H7 CEC101KSN00 3
C2630 CHIP CERAMIC CAP. (1608) F Z 1µF/16V or CHD1CZ30F105

CAP CHIP 1608 Z/Y5V/1µF/16V CHD105EYA047
C2631 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V or CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EY A032
C2632 CHIP CERAMIC CAP.(2125) F Z 10µF/10V CHE1AZ30F106
C2633 ELECTROLYTIC CAP. 220µF/6.3V M H7 or CE0KMAVSL221

CAP ELE 220µF/6.3V/M/85 H7 CEA2 21KSN00 3
C2634 CHIP CERAMIC CAP.(2125) B K 4.7µF/16V CHE1CK30B475

2011/08/22 15-1 A13P1EL.fm

Ref. No. Description Part No.

C2635 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

C2637 ELECTROLYTIC CAP . 100µF/16 V M H7 or CE1CMAVS L101

CAP ELE 100µF/16V/M/85 H7 CEC101KSN003

C2638 ELECTROLYTIC CAP . 220µF/10 V M H7 or CE1AMAVSL2 21

CAP ELE 220µF/10V/M/85 H7 CEB221KSN003
C2639 CHIP CERAMIC CAP.(2125) F Z 10µF/10V CHE1AZ30F106
C2640 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036
C2641 CHIP CERAMIC CAP. (1608) F Z 1µF/16V o r CHD1CZ30F105

CAP CHIP 1608 Z/Y5V/1µF/16V CHD105EYA047
C2642 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V or CHD1EK30B224

CAP CHIP 1608 BJ/+-10/0.22µF/25V CHD2240TU011
C2643 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V or CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032
C2644 CHIP CERAMIC CAP. CH J 680pF/50V or CHD1JJ3CH681

CAP CHIP 1608 J/ C0G/ 680pF/ 50V CHD681EY A030
C2646 CHIP CERAMIC CAP.(2125) B K 4.7µF/16V CHE1CK30B475
C2647 CHIP CERAMIC CAP.(1608) CH J 1000pF /50V orCHD1JJ3CH102

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030
C2648 CAP ELE KR1 220µF/35V/M/85 H9.0 or CEM221KSN014

CAP ELE 85 220µF/35V/M/85 CEB2210V8005
C2649 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036
C2650 CHIP CERAMIC CAP.(1608) CH J 1000pF /50V orCHD1JJ3CH102

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030
C2660 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225
C2662 CHIP CERAMIC CAP. (1608) F Z 1µF/16V o r CHD1CZ30F105

CAP CHIP 1608 Z/Y5V/1µF/16V CHD105EYA047
C2663 ELECTROLYTIC CAP . 220µF/10 V M H7 or CE1AMAVSL2 21

CAP ELE 220µF/10V/M/85 H7 CEB221KSN003
C2704 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

CAP CHIP 1608 J/ C0G/ 330pF/ 50V CHD331EY A030
C2706 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

CAP CHIP 1608 J/ C0G/ 330pF/ 50V CHD331EY A030
C2707 CHIP CERAMIC CAP.(1608) CH J 33pF/50V or CHD1JJ3CH330

CAP CHIP 1608 J/C0G/33pF/50V CHD330EY A030
C2708 ELECTROLYTIC CAP . 220µF/6. 3V M H7 or CE0KMAVSL2 21

CAP ELE 220µF/6.3V/M/85 H7 CEA221KSN003
C2709 CHIP CERAMIC CAP.(1608) CH J 33pF/50V or CHD1JJ3CH330

CAP CHIP 1608 J/C0G/33pF/50V CHD330EY A030
C2711 CHIP CERAMIC CAP.(1608) CH J 100pF/50V or CHD1JJ3CH101

CAP CHIP 1608 J/ C0G/ 100pF/ 50V CHD101EY A030
C2712 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

CAP CHIP 1608 J/ C0G/ 330pF/ 50V CHD331EY A030
C2713 CHIP CERAMIC CAP. CH J 330pF/50V or CHD1JJ3CH331

CAP CHIP 1608 J/ C0G/ 330pF/ 50V CHD331EY A030
C2717 CHIP CERAMIC CAP. F Z 1µF/10V or CHD1AZ30F10 5

CAP CHIP 1608 Z/Y5V/1µF/10V CHD105EYA052
C2718 CHIP CERAMIC CAP.(1608) CH J 33pF/50V or CHD1JJ3CH330

CAP CHIP 1608 J/C0G/33pF/50V CHD330EY A030
C2719 ELECTROLYTIC CAP . 47µF/10V M H7 or CE1AMAVSL470

CAP ELE 47µF/10V/M/85 H7 CEB470KSN003
C2720 CHIP CERAMIC CAP.(1608) CH J 100pF/50V or CHD1JJ3CH101

CAP CHIP 1608 J/ C0G/ 100pF/ 50V CHD101EY A030
C2721 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C2722 CHIP CERAMIC CAP.(2125) F Z 10µF/10V CHE1AZ30F106
C2723 ELECTROLYTIC CAP . 220µF/10 V M H7 or CE1AMAVSL2 21

CAP ELE 220µF/10V/M/85 H7 CEB221KSN003
C2724 ELECTROLYTIC CAP . 220µF/10 V M H7 or CE1AMAVSL2 21

CAP ELE 220µF/10V/M/85 H7 CEB221KSN003
C2726 CHIP CERAMIC CAP.(1608) CH J 47pF/50V or CHD1JJ3CH470

CAP CHIP 1608 J/C0G/47pF/50V CHD470EY A030
C2728 CHIP CERAMIC CAP.(1608) CH J 33pF/50V or CHD1JJ3CH330

CAP CHIP 1608 J/C0G/33pF/50V CHD330EY A030
C2729 CHIP CERAMIC CAP.(1608) CH J 33pF/50V or CHD1JJ3CH330

Ref. No. Description Part No.

CAP CHIP 1608 J/C0G/33pF/50V CHD330EYA030

C2730 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V or CHD1JK30B473

CAP CHIP 1608 K/X7R/0.047µF/50V CHD473EY A032

C2731 CHIP CERAMIC CAP. F Z 1µF/10V or CHD1AZ30F105

CAP CHIP 1608 Z/Y5V/1µF/10V CHD105EYA052

C2732 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V or CHD1JK30B473

CAP CHIP 1608 K/X7R/0.047µF/50V CHD473EY A032

C2735 CHIP CERAMIC CAP. B K 2200pF/50V or CHD1JK30B222

CAP CHIP 1608 K/X7R/0.0022µF/50V CHD222EY A032

C2736 CHIP CERAMIC CAP. B K 2200pF/50V or CHD1JK30B222

CAP CHIP 1608 K/X7R/0.0022µF/50V CHD222EY A032
C2737 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105
C2738 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105
C2801 CHIP CERAMIC CAP.(1608) B K 1000pF/50V or CHD1JK30B102

CAP CHIP 1608 K/X7R/0.001µF/50V CHD102EY A032
C2802 CHIP CERAMIC CAP.(1608) B K 1000pF/50V or CHD1JK30B102

CAP CHIP 1608 K/X7R/0.001µF/50V CHD102EY A032
C2803 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V or CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032
C2804 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V orCHD1JJ3CH102

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030
C2805 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105
C2806 CHIP CERAMIC CAP. (1608) B K 1µF/16V CHD1CK30B105
C2807 CAP ELE KR1 220µF/35V/M/85 H9.0 or CEM221KSN014

CAP ELE 85 220µF/35V/M/85 CEB2210V8005
C2808 CAP ELE KR1 220µF/35V/M/85 H9.0 or CEM221KSN014

CAP ELE 85 220µF/35V/M/85 CEB2210V8005
C2809 CHIP CERAMIC CAP.(1608) F Z 0.22µF/50V or CHD1JZ30F224

CAP CHIP 1608 Z/Y5V/0.22µF/50V CHD224EYA036
C2810 CHIP CERAMIC CAP.(1608) F Z 0.22µF/50V or CHD1JZ30F224

CAP CHIP 1608 Z/Y5V/0.22µF/50V CHD224EYA036
C2811 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V or CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032
C2812 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V or CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032
C2813 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V or CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032
C2814 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V or CHD1JK30B104

CAP CHIP 1608 K/X7R/0.1µF/50V CHD104EYA032
C2815 CHIP CERAMIC CAP.(1608) B K 0.47µF/16V CHD1CK30B474
C2816 CAP CHIP 3216 B M 10µF/16V or CA1C106TE143

CHIP CERAMIC CAP. B K 10µF/16V CHF1CK30B106
C2817 CAP CHIP 3216 B M 10µF/16V or CA1C106TE143

CHIP CERAMIC CAP. B K 10µF/16V CHF1CK30B106
C2818 CAP CHIP 3216 B M 10µF/16V or CA1C106TE143

CHIP CERAMIC CAP. B K 10µF/16V CHF1CK30B106
C2819 CHIP CERAMIC CAP.(1608) B K 0.1µF/16V or CHD1CK30B104

CAP CHIP 1608 K/X7R/0.1µF/25V CHD104EYA039
C2821 CHIP CERAMIC CAP. B K 470pF/50V or CHD1JK30B471

CAP CHIP 1608 K/X7R/470pF/50V CHD471EY A032
C2822 CHIP CERAMIC CAP. B K 470pF/50V or CHD1JK30B471

CAP CHIP 1608 K/X7R/470pF/50V CHD471EY A032
C2823 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/10W 0 Ω or RRZ000RYL002

RES CHIP 1608 1/10W 0 Ω RRJ00 0W AL 002
C2826 CAP ELE KR1 220µF/35V/M/85 H9.0 or CEM221KSN014

CAP ELE 85 220µF/35V/M/85 CEB2210V8005
C2827 CAP ELE KR1 220µF/35V/M/85 H9.0 or CEM221KSN014

CAP ELE 85 220µF/35V/M/85 CEB2210V8005
C2828 CAP CHIP 3216 B M 10µF/16V or CA1C106TE143

CHIP CERAMIC CAP. B K 10µF/16V CHF1CK30B106
C2829 CAP ELE KR1 220µF/35V/M/85 H9.0 or CEM221KSN014

CAP ELE 85 220µF/35V/M/85 CEB2210V8005
C2831 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V orCHD1JJ3CH102

CAP CHIP 1608 J/C0G/0.001µF/50V CHD102EYA030

2011/08/22 15-2 A13P1EL.fm

Ref. No. Description Part No.

C2832 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V or CHD1JK30B103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EYA032

C2833 CAP ELE KR1 220µF/35V/M/85 H9.0 or CEM221KSN014

CAP ELE 85 220µF/35V/M/85 CEB2210V8005

C2834 CAP ELE KR1 220µF/35V/M/85 H9.0 or CEM221KSN014

CAP ELE 85 220µF/35V/M/85 CEB2210V8005

CONNECTORS

CN2102 CONNECT OR PRINT OSU C S B7B-PH-K-

CN2103 FFC CONNECTOR IMSA-9615S-29A-PP-A or JC96J29ER007

CN2104 FFC CONNECTOR IMSA-9615S-29A-PP-A or JC96J29ER007

CN2105 FFC CONNECTOR IMSA-9615S-29A-PP-A or JC96J29ER007

CN2601 PH CONNECTOR TOP 6P B6B-PH-K-S

CN2602 CONNECT OR PRINT OSU B14B-PH-K-

CN2603 CONNECTOR PRINT OSU JS-1125-04(K) or J3JT04CHY001

CN2801 CONNECT OR BASE 2P(EH) B 2B-EH-

CN2802 PH CONNECTOR TOP 2P B2B-PH-K-S

S(LF)(S or
CONNECTOR PRINT OSU JS-1125-07(K) or J3JT07CHY001
CONNECTOR PRINT OSU C S 440054-7 J344C07AP001

CONNECTOR PRINT MES 00 6232 029 006
800+ or

CONNECTOR PRINT MES 29 S 1.0-11-29P JC1129JSH001

CONNECTOR PRINT MES 00 6232 029 006
800+ or

CONNECTOR PRINT MES 29 S 1.0-11-29P JC1129JSH001

CONNECTOR PRINT MES 00 6232 029 006
800+ or

CONNECTOR PRINT MES 29 S 1.0-11-29P JC1129JSH001

(LF)(SN) or
CONNECTOR PRINT OSU JS-1125-06(K) J3JT06CHY001

S(LF)(SN) or
CONNECTOR PRINT OSU JS-1125-14(K) or J3JT14CHY001
CONNECTOR PRINT OSU C S 1-440054-4 J344C14AP001

PH CONNECTOR TOP 4 P B4B-PH-K-S
(LF)(SN)

A(LF)(SN) or
CONNECTOR PRINT OSU C S 440052-2 J344C02AP011

(LF)(SN) or
CONNECTOR PRINT OSU JS-1125-02KK or J3JT02CHY002
CONNECTOR PRINT OSU TOP 2P 440054-2 J344C02AP001

J3PHC07JG029

JC62G29UG026

JC62G29UG026

JC62G29UG026

J3PHC06JG029

J3PHC14JG029

J3PHC04JG029

J3EHC02JG010

J3PHC02JG029

DIODES

D2401 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148
DIODE SWITCHI NG 1N41 48-F00 21 NDTZ01N4148F

D2402 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D2601 DIODE ZENER 1ZB18BB or NDWZ0001ZB18

DIODE ZENER 1N4746A B0 18V NDLZ01N4746A

D2602 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHI NG 1N41 48-F00 21 NDTZ01N4148F
D2604 SCHO TTKY BARRIER DIODE SB140 NDWZ000SB140
D2608 DIODE ZENER 6V8BSB-T26 or NDTB6R8BST26

DIODE ZENER HZS6.8NB2TE-EQ QDTB0HZS6R8N
D2611 DIODE ZENER 6V8BSB-T26 or NDTB6R8BST26

DIODE ZENER HZS6.8NB2TE-EQ QDTB0HZS6R8N
D2612 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHI NG 1N41 48-F00 21 NDTZ01N4148F
D2613 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHI NG 1N41 48-F00 21 NDTZ01N4148F
D2614 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148

DIODE SWITCHI NG 1N41 48-F00 21 NDTZ01N4148F
D2616 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400

SWITCHING DIODE KDS160E-RTK/P or ND1ZKDS160EP

DIODE SWITCHING HSC119 TRF -E or QD1Z00HSC119

DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST
D2701 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

Ref. No. Description Part No.

DIODE ZENER SMD 015AZ5.6 Y or QD1Y015AZ5R6
ZENER DIODE MM5Z5V6B or ND1BMM5Z5V6B
DIODE ZENER SMD RKZ5.6B2KJR1 QD1B00RKZ5R6

D2702 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

DIODE ZENER SMD 015AZ5.6 Y or QD1Y015AZ5R6
ZENER DIODE MM5Z5V6B or ND1BMM5Z5V6B
DIODE ZENER SMD RKZ5.6B2KJR1 QD1B00RKZ5R6

D2703 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D2704 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D2705 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

DIODE ZENER SMD 015AZ5.6 Y or QD1Y015AZ5R6
ZENER DIODE MM5Z5V6B or ND1BMM5Z5V6B
DIODE ZENER SMD RKZ5.6B2KJR1 QD1B00RKZ5R6

D2706 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

DIODE ZENER SMD 015AZ5.6 Y or QD1Y015AZ5R6
ZENER DIODE MM5Z5V6B or ND1BMM5Z5V6B
DIODE ZENER SMD RKZ5.6B2KJR1 QD1B00RKZ5R6

D2707 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D2708 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D2709 DIODE ZENER 3V9BSB-T26 or NDTB3R9BST26

DIODE ZENER HZS3.9NB2TE-EQ QDTB0HZS3R9N

D2710 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

DIODE ZENER SMD 015AZ5.6 Y or QD1Y015AZ5R6
ZENER DIODE MM5Z5V6B or ND1BMM5Z5V6B
DIODE ZENER SMD RKZ5.6B2KJR1 QD1B00RKZ5R6

D2711 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

DIODE ZENER SMD 015AZ5.6 Y or QD1Y015AZ5R6
ZENER DIODE MM5Z5V6B or ND1BMM5Z5V6B
DIODE ZENER SMD RKZ5.6B2KJR1 QD1B00RKZ5R6

D2712 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

DIODE ZENER SMD 015AZ5.6 Y or QD1Y015AZ5R6
ZENER DIODE MM5Z5V6B or ND1BMM5Z5V6B
DIODE ZENER SMD RKZ5.6B2KJR1 QD1B00RKZ5R6

D2713 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

DIODE ZENER SMD 015AZ5.6 Y or QD1Y015AZ5R6
ZENER DIODE MM5Z5V6B or ND1BMM5Z5V6B
DIODE ZENER SMD RKZ5.6B2KJR1 QD1B00RKZ5R6

D2714 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

DIODE ZENER SMD 015AZ5.6 Y or QD1Y015AZ5R6
ZENER DIODE MM5Z5V6B or ND1BMM5Z5V6B
DIODE ZENER SMD RKZ5.6B2KJR1 QD1B00RKZ5R6

D2715 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

DIODE ZENER SMD 015AZ5.6 Y or QD1Y015AZ5R6
ZENER DIODE MM5Z5V6B or ND1BMM5Z5V6B
DIODE ZENER SMD RKZ5.6B2KJR1 QD1B00RKZ5R6

D2716 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

DIODE SWITCHING HSS4148TE-E or QDTZ0HSS4148
DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D2717 DIODE ZENER 3V9BSB-T26 or NDTB3R9BST26

DIODE ZENER HZS3.9NB2TE-EQ QDTB0HZS3R9N

D2718 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

DIODE ZENER SMD 015AZ5.6 Y or QD1Y015AZ5R6
ZENER DIODE MM5Z5V6B or ND1BMM5Z5V6B
DIODE ZENER SMD RKZ5.6B2KJR1 QD1B00RKZ5R6

D2719 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D2720 ZENER DIODE EDZTE61 5.6B or QD1B00EDZ5R6

DIODE ZENER SMD 015AZ5.6 Y or QD1Y015AZ5R6
ZENER DIODE MM5Z5V6B or ND1BMM5Z5V6B
DIODE ZENER SMD RKZ5.6B2KJR1 QD1B00RKZ5R6

D2721 DIODE ZENER 5V6BSB-T26 or NDTB5R6BST26

DIODE ZENER HZS5.6NB2TE-EQ QDTB0HZS5R6N

D2802 DIODE ZENER HZS30NB2TE-EQ QDTBHZS30NB2

2011/08/22 15-3 A13P1EL.fm

Ref. No. Description Part No.

D2803 DIODE ZENER HZS30NB2TE-EQ QDTBHZS30NB2

ICS

IC2602 IC DC-DC CONVERTER BD9329EFJ-E2 QSCA0T0RM201
IC2603 IC DC-DC CONVERTER BD9329EFJ-E2 QSCA0T0RM201
IC2605 IC REGULA T OR XC6222D501PR-G QSCA0T0N1007
IC2701 IC HEADPHONE AMP BH3547F SOP 8PIN QSZBA0TRM119
IC2801 IC D-CLASS POWER AMPLIFER R2A15122FP-

W00R/HQFP

QSCA0T0HT005

COILS

L2301 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM0 01
L2302 CHIP INDUCTOR L K1608 R12K-T or LLACKB3TUR 12

COIL CHIP FERITE INDUCTOR

SDFL1608LR12K T(F) or

COIL CHIP INDUCTANS CL160808T-R12K-N LLFR120GN002
L2303 CHIP INDUCTOR L K1608 R12K-T or LLACKB3TUR 12

COIL CHIP FERITE INDUCTOR

SDFL1608LR12K T(F) or

COIL CHIP INDUCTANS CL160808T-R12K-N LLFR120GN002
L2304 CHIP INDUCTOR L K1608 R22K-T or LLACKB3TUR 22

COIL CHIP FERITE INDUCTOR

SDFL1608LR22K T(F) or

COIL (CHIP BEADS) CL160808T -R22K-N LLFR220GN002
L2602 COIL POWER INDUCTORS DIP RCR1010NP-

L2603 COIL POWER INDUCTORS DIP RCR1010NP-

L2604 CHIP INDUCTER LK1608 150M-T or LLACMB3TU150

L2605 CHIP INDUCTER LK1608 150M-T or LLACMB3TU150

L2606 CHIP INDUCTER LK1608 150M-T or LLACMB3TU150

L2607 CHIP INDUCTER LK1608 150M-T or LLACMB3TU150

L2608 CHIP INDUCTER LK1608 150M-T or LLACMB3TU150

L2609 CHIP INDUCTER LK1608 150M-T or LLACMB3TU150

L2701 INDUCTOR 12µH-J-26T LLAXJA TTU120
L2703 INDUCTOR 4.7µH-J-26T LLAXJA TTU4R7
L2704 INDUCTOR 4.7µH-J-26T LLAXJA TTU4R7
L2705 INDUCTOR 0.22µH-J-26T LLAXJA TTUR22
L2706 INDUCTOR 0.22µH-J-26T LLAXJA TTUR22
L2707 INDUCTOR 0.22µH-J-26T LLAXJA TTUR22
L2708 CHIP INDUCTOR L K1608 1R8K-T 1.8µH or LLACKB3TU1R8

L2801 COIL RADIAL LHLP10NB330M 33µH LLF3300TU003
L2802 COIL RADIAL LHLP10NB330M 33µH LLF3300TU003

100M

100M

COIL CHIP FERITE INDUCTOR

SDFL1608T150MT( F)

COIL CHIP FERITE INDUCTOR

SDFL1608T150MT( F)

COIL CHIP FERITE INDUCTOR

SDFL1608T150MT( F)

COIL CHIP FERITE INDUCTOR

SDFL1608T150MT( F)

COIL CHIP FERITE INDUCTOR

SDFL1608T150MT( F)

COIL CHIP FERITE INDUCTOR

SDFL1608T150MT( F)

COIL CHIP FERITE INDUCTOR

SDFL1608Q1R8K T(F) or

COIL CHIP INDUCTANS CL160808T-1R8K-N LLF1R80GN002

LLFR12SSN011

LLFR12SSN011

LLFR22SSN011

LLF1000SF012

LLF1000SF012

LLF150SSN012

LLF150SSN012

LLF150SSN012

LLF150SSN012

LLF150SSN012

LLF150SSN012

LLF1R8SSN011

TRANSISTORS

Q2401 CHIP TRANSISTOR KT A1504S-Y-RTK/P or NQ1YKT A1504S

CHIP TRANSISTOR KTA1504S-GR-RTK/P or NQ14KT A1504S

PNP TRANSISTOR SMD 2SA1980SFY o r NQ1Y2SA1980S

PNP TRANSISTOR SMD 2SA1980SFG NQ1G2SA1980S
Q2402 CHIP TRANSISTOR KTC3875S-Y-RTK/P or NQ1YKTC3875S

CHIP TRANSIST OR 2SC2412K T146Z o r QQ1Z2SC2412K

NPN TRANSISTOR SMD 2SC5343SFG NQ1G2SC5343S
Q2403 CHIP TRANSISTOR KTC3875S-Y-RTK/P or NQ1YKTC3875S

CHIP TRANSIST OR 2SC2412K T146Z o r QQ1Z2SC2412K

NPN TRANSISTOR SMD 2SC5343SFG NQ1G2SC5343S
Q2801 CHIP TRANSISTOR KTC3875S-Y-RTK/P or NQ1YKTC3875S

CHIP TRANSIST OR 2SC2412K T146Z o r QQ1Z2SC2412K

NPN TRANSISTOR SMD 2SC5343SFG NQ1G2SC5343S
Q2803 CHIP TRANSISTOR KT A1504S-Y-RTK/P or NQ1YKT A1504S

Ref. No. Description Part No.

CHIP TRANSISTOR KTA1504S-GR-RTK/P or NQ14KT A1504S
PNP TRANSISTOR SMD 2SA1980SFY or NQ1Y2SA1 980S
PNP TRANSISTOR SMD 2SA1980SFG NQ1G2SA1980S

RESISTORS

R2101 RES CHIP 1608 1/10W F 4.70k Ω or RTW4701HH008

RES CHIP 1608 1/10W F 4.70k Ω or RTW4701YF002
RES CHIP 1608 1/10W F 4.70k Ω or RT4701RYL002
RES CHIP 1608 1/10W F 4.70k Ω RT4701WAL002

R2102 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002
RES CHIP 1608 1/10W 0 Ω or RRZ000RYL002
RES CHIP 1608 1/10W 0 Ω RRJ00 0W AL 002

R2103 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002
RES CHIP 1608 1/10W 0 Ω or RRZ000RYL002
RES CHIP 1608 1/10W 0 Ω RRJ00 0W AL 002

R2104 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002
RES CHIP 1608 1/10W 0 Ω or RRZ000RYL002
RES CHIP 1608 1/10W 0 Ω RRJ00 0W AL 002

R2105 RES CHIP 1608 1/10W J 220 Ω or RRXA221HH013

RES CHIP 1608 1/10W J 220 Ω or RRXA221YF002
RES CHIP 1608 1/10W J 220 Ω or RRJ221RYL00 2
RES CHIP 1608 1/10W J 220 Ω RRJ22 1W AL 002

R2305 RES CHIP 1608 1/10W J 100 Ω or RRXA101HH013

RES CHIP 1608 1/10W J 100 Ω or RRXA101YF002
RES CHIP 1608 1/10W J 100 Ω or RRJ101RYL00 2
RES CHIP 1608 1/10W J 100 Ω RRJ10 1W AL 002

R2306 RES CHIP 1608 1/10W J 100 Ω or RRXA101HH013

RES CHIP 1608 1/10W J 100 Ω or RRXA101YF002
RES CHIP 1608 1/10W J 100 Ω or RRJ101RYL00 2
RES CHIP 1608 1/10W J 100 Ω RRJ10 1W AL 002

R2307 RES CHIP 1608 1/10W J 10k Ω or RRXA103HH013

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002
RES CHIP 1608 1/10W J 10k Ω or RRJ103RYL002
RES CHIP 1608 1/10W J 10k Ω RRJ103W AL 002

R2308 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002
RES CHIP 1608 1/10W 0 Ω or RRZ000RYL002
RES CHIP 1608 1/10W 0 Ω RRJ00 0W AL 002

R2309 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002
RES CHIP 1608 1/10W 0 Ω or RRZ000RYL002
RES CHIP 1608 1/10W 0 Ω RRJ00 0W AL 002

R2401 RES CHIP 1608 1/10W J 2.7k Ω or RRXA272HH013

RES CHIP 1608 1/10W J 2.7k Ω or RRXA2 72YF002
RES CHIP 1608 1/10W J 2.7k Ω or RRJ272RYL002
RES CHIP 1608 1/10W J 2.7k Ω RRJ27 2W A L002

R2402 RES CHIP 1608 1/10W J 2.7k Ω or RRXA272HH013

RES CHIP 1608 1/10W J 2.7k Ω or RRXA2 72YF002
RES CHIP 1608 1/10W J 2.7k Ω or RRJ272RYL002
RES CHIP 1608 1/10W J 2.7k Ω RRJ27 2W A L002

R2403 RES CHIP 1608 1/10W J 10k Ω or RRXA103HH013

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002
RES CHIP 1608 1/10W J 10k Ω or RRJ103RYL002
RES CHIP 1608 1/10W J 10k Ω RRJ103W AL 002

R2405 RES CHIP 1608 1/10W J 100 Ω or RRXA101HH013

RES CHIP 1608 1/10W J 100 Ω or RRXA101YF002
RES CHIP 1608 1/10W J 100 Ω or RRJ101RYL00 2
RES CHIP 1608 1/10W J 100 Ω RRJ10 1W AL 002

R2406 RES CHIP 1608 1/10W J 10k Ω or RRXA103HH013

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002
RES CHIP 1608 1/10W J 10k Ω or RRJ103RYL002
RES CHIP 1608 1/10W J 10k Ω RRJ103W AL 002

R2602 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM001

R2605 RES CHIP 1608 1/10W J 33k Ω or RRXA333HH013

2011/08/22 15-4 A13P1EL.fm

Ref. No. Description Part No.

RES CHIP 1608 1/ 10W J 3 3k Ω or RRXA333YF002

RES CHIP 1608 1/ 10W J 3 3k Ω or RRJ333R Y L002

RES CHIP 1608 1/ 10W J 3 3k Ω RRJ333W AL002
R2606 RES CHIP 1608 1/10W J 1 2k Ω or RRXA123HH013

RES CHIP 1608 1/ 10W J 1 2k Ω or RRXA123YF002

RES CHIP 1608 1/ 10W J 1 2k Ω or RRJ123R Y L002

RES CHIP 1608 1/ 10W J 1 2k Ω RRJ123W AL002
R2612 RES CHIP 1608 1/10W J 1 0 Ω or RRXA100HH013

RES CHIP 1608 1/ 10W J 1 0 Ω or RRXA100YF002

RES CHIP 1608 1/ 10W J 1 0 Ω or RRJ100RY L002

RES CHIP 1608 1/ 10W J 1 0 Ω RRJ100WAL002
R2613 RES CARBON FILM 1/4W J 100k Ω or RCX4104FS002

RES CARBON FILM T 1/4W J 100k Ω or RCX4104T1001

RES CARBON FILM 1/4W J 100k Ω RCJ104PAK001
R2614 RES CHIP 1608 1/10W J 4 7k Ω or RRXA473HH013

RES CHIP 1608 1/ 10W J 4 7k Ω or RRXA473YF002

RES CHIP 1608 1/ 10W J 4 7k Ω or RRJ473R Y L002

RES CHIP 1608 1/ 10W J 4 7k Ω RRJ473W AL002
R2615 RES CHIP 1608 1/10W F 43.0 k Ω or RTW4302HH008

RES CHIP 1608 1/ 10W F 43.0 k Ω or RTW4302YF002

RES CHIP 1608 1/ 10W F 43k Ω or RT4302RYL002

RES CHIP 1608 1/ 10W F 43.0 k Ω RT4302WA L002
R2616 RES CHIP 1608 1/10W F 30.0 k Ω or RTW3002HH008

RES CHIP 1608 1/ 10W F 30.0 k Ω or RTW3002YF002

RES CHIP 1608 1/ 10W F 30k Ω or RT3002RYL002

RES CHIP 1608 1/ 10W F 30.0 k Ω RT3002WA L002
R2617 RES CHIP 1608 1/10W F 11.0 k Ω or RTW1102HH008

RES CHIP 1608 1/ 10W F 11.0 k Ω or RTW1102YF002

RES CHIP 1608 1/ 10W F 11k Ω or RT1102RYL002

RES CHIP 1608 1/ 10W F 11.0 k Ω RT1102WA L002
R2619 RES CARBON FILM 1/4W J 68 Ω or RCX4680FS002

RES CARBON FILM T 1/4W J 68 Ω or RCX4680T1001

RES CARBON FILM 1/4W J 68 Ω RCJ680P AK001
R2622 RES CHIP 1608 1/10W J 1 00 Ω or RRXA101HH013

RES CHIP 1608 1/ 10W J 1 00 Ω or RRXA101YF002

RES CHIP 1608 1/ 10W J 1 00 Ω or RRJ101RYL002

RES CHIP 1608 1/ 10W J 1 00 Ω RRJ101 W AL0 02
R2623 RES CHIP 1608 1/10W F 68.0 k Ω or RTW6802HH008

RES CHIP 1608 1/ 10W F 68k Ω or RT6802RYL002

RES CHIP 1608 1/ 10W F 68.0 k Ω or RTW6802YF002

RES CHIP 1608 1/ 10W F 68.0 k Ω RT6802WA L002
R2624 RES CHIP 1608 1/10W F 12.0 k Ω or RTW1202HH008

RES CHIP 1608 1/ 10W F 12.0 k Ω or RTW1202YF002

RES CHIP 1608 1/ 10W F 12k Ω or RT1202RYL002

RES CHIP 1608 1/ 10W F 12.0 k Ω RT1202WA L002
R2625 RES CHIP 1608 1/10W F 39.0 k Ω or RTW3902HH008

RES CHIP 1608 1/ 10W F 39.0 k Ω or RTW3902YF002

RES CHIP 1608 1/ 10W F 39k Ω or RT3902RYL002

RES CHIP 1608 1/ 10W F 39.0 k Ω RT3902WA L002
R2627 RES CARBON FILM 1/4W J 68 Ω or RCX4680FS002

RES CARBON FILM T 1/4W J 68 Ω or RCX4680T1001

RES CARBON FILM 1/4W J 68 Ω RCJ680P AK001
R2633 RES CHIP 1608 1/10W J 1 0 Ω or RRXA100HH013

RES CHIP 1608 1/ 10W J 1 0 Ω or RRXA100YF002

RES CHIP 1608 1/ 10W J 1 0 Ω or RRJ100RY L002

RES CHIP 1608 1/ 10W J 1 0 Ω RRJ100WAL002
R2634 RES CARBON FILM 1/4W J 15k Ω or RCX4153FS002

RES CARBON FILM T 1/4W J 15k Ω or RCX4153T1001

RES CARBON FILM 1/4W J 15k Ω RCJ153PAK001
R2635 RES CHIP 1608 1/10W J 1 5k Ω or RRXA153HH013

RES CHIP 1608 1/ 10W J 1 5k Ω or RRXA153YF002

RES CHIP 1608 1/ 10W J 1 5k Ω or RRJ153R Y L002

RES CHIP 1608 1/ 10W J 1 5k Ω RRJ153W AL002
R2636 RES CHIP 1608 1/10W J 1 00k Ω or RRXA104HH013

RES CHIP 1608 1/ 10W J 1 00k Ω or RRXA104YF002

RES CHIP 1608 1/ 10W J 1 00k Ω or RRJ1 04R YL0 02

RES CHIP 1608 1/ 10W J 1 00k Ω RRJ104WAL002

Ref. No. Description Part No.

R2637 RES CHIP 1608 1/10W J 15k Ω or RRXA153HH013

RES CHIP 1608 1/10W J 15k Ω or RRXA153YF002
RES CHIP 1608 1/10W J 15k Ω or RRJ153RYL002
RES CHIP 1608 1/10W J 15k Ω RRJ153W AL 002

R2638 RES CHIP 1608 1/10W J 75k Ω or RRXA753HH013

RES CHIP 1608 1/10W J 75k Ω or RRXA753YF002
RES CHIP 1608 1/10W J 75k Ω or RRJ753RYL002
RES CHIP 1608 1/10W J 75k Ω RRJ753W AL 002

R2639 CHIP RES . 1/10W J 39k Ω or RRXAJR5Z0393

RES CHIP 1608 1/10W J 39k Ω or RRXA393YF002
RES CHIP 1608 1/10W J 39k Ω or RRJ393WAL002
RES CHIP 1608 1/10W J 39k Ω RRXA393HH013

R2701 RES CHIP 1608 1/10W J 470 Ω or RRXA471HH013

RES CHIP 1608 1/10W J 470 Ω or RRXA471YF002
RES CHIP 1608 1/10W J 470 Ω or RRJ471RYL002
RES CHIP 1608 1/10W J 470 Ω RRJ47 1W AL 002

R2705 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002
RES CHIP 1608 1/10W 0 Ω or RRZ000RYL002
RES CHIP 1608 1/10W 0 Ω RRJ00 0W AL 002

R2709 RES CHIP 1608 1/10W J 470 Ω or RRXA471HH013

RES CHIP 1608 1/10W J 470 Ω or RRXA471YF002
RES CHIP 1608 1/10W J 470 Ω or RRJ471RYL00 2
RES CHIP 1608 1/10W J 470 Ω RRJ47 1W AL 002

R2710 RES CHIP 1608 1/10W J 75 Ω or RRXA750HH0 13

RES CHIP 1608 1/10W J 75 Ω or RRXA750YF002
RES CHIP 1608 1/10W J 75 Ω or RRJ750RYL 002
RES CHIP 1608 1/10W J 75 Ω RRJ750W AL 002

R2711 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002
RES CHIP 1608 1/10W 0 Ω or RRZ000RYL002
RES CHIP 1608 1/10W 0 Ω RRJ00 0W AL 002

R2712 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002
RES CHIP 1608 1/10W 0 Ω or RRZ000RYL002
RES CHIP 1608 1/10W 0 Ω RRJ00 0W AL 002

R2713 RES CHIP 1608 1/10W J 560 Ω or RRXA561HH013

RES CHIP 1608 1/10W J 560 Ω or RRXA561YF002
RES CHIP 1608 1/10W J 560 Ω or RRJ561RYL00 2
RES CHIP 1608 1/10W J 560 Ω RRJ56 1W AL 002

R2714 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002
RES CHIP 1608 1/10W 0 Ω or RRZ000RYL002
RES CHIP 1608 1/10W 0 Ω RRJ00 0W AL 002

R2716 RES CHIP 1608 1/10W J 560 Ω or RRXA561HH013

RES CHIP 1608 1/10W J 560 Ω or RRXA561YF002
RES CHIP 1608 1/10W J 560 Ω or RRJ561RYL00 2
RES CHIP 1608 1/10W J 560 Ω RRJ56 1W AL 002

R2717 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002
RES CHIP 1608 1/10W 0 Ω or RRZ000RYL002
RES CHIP 1608 1/10W 0 Ω RRJ00 0W AL 002

R2719 RES CHIP 1608 1/10W J 51k Ω or RRXA513HH013

RES CHIP 1608 1/10W J 51k Ω or RRXA513YF002
RES CHIP 1608 1/10W J 51k Ω or RRJ513RYL002
RES CHIP 1608 1/10W J 51k Ω RRJ513W AL 002

R2720 RES CHIP 1608 1/10W J 10k Ω or RRXA103HH013

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002
RES CHIP 1608 1/10W J 10k Ω or RRJ103RYL002
RES CHIP 1608 1/10W J 10k Ω RRJ103W AL 002

R2721 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002
RES CHIP 1608 1/10W 0 Ω or RRZ000RYL002
RES CHIP 1608 1/10W 0 Ω RRJ00 0W AL 002

R2723 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002
RES CHIP 1608 1/10W 0 Ω or RRZ000RYL002

2011/08/22 15-5 A13P1EL.fm

Ref. No. Description Part No.

RES CHIP 1608 1/ 10W 0 Ω RRJ000W AL0 02
R2724 RES CHIP 1608 1/10W J 1 00 Ω or RRXA101HH013

RES CHIP 1608 1/ 10W J 1 00 Ω or RRXA101YF002

RES CHIP 1608 1/ 10W J 1 00 Ω or RRJ101RYL002

RES CHIP 1608 1/ 10W J 1 00 Ω RRJ101 W AL0 02
R2725 RES CHIP 1608 1/10W J 7 5 Ω or RRXA750HH013

RES CHIP 1608 1/ 10W J 7 5 Ω or RRXA750YF002

RES CHIP 1608 1/ 10W J 7 5 Ω or RRJ750RY L002

RES CHIP 1608 1/ 10W J 7 5 Ω RRJ750WAL002
R2728 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/ 10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/ 10W 0 Ω or RRZ000RYL002

RES CHIP 1608 1/ 10W 0 Ω RRJ000W AL0 02
R2737 RES CHIP 1608 1/10W J 1 0 Ω or RRXA100HH013

RES CHIP 1608 1/ 10W J 1 0 Ω or RRXA100YF002

RES CHIP 1608 1/ 10W J 1 0 Ω or RRJ100RY L002

RES CHIP 1608 1/ 10W J 1 0 Ω RRJ100WAL002
R2738 RES CHIP 1608 1/10W J 1 0 Ω or RRXA100HH013

RES CHIP 1608 1/ 10W J 1 0 Ω or RRXA100YF002

RES CHIP 1608 1/ 10W J 1 0 Ω or RRJ100RY L002

RES CHIP 1608 1/ 10W J 1 0 Ω RRJ100WAL002
R2739 RES CHIP 1608 1/10W J 2 .7k Ω or RRXA272HH013

RES CHIP 1608 1/ 10W J 2 .7k Ω or RRXA272YF002

RES CHIP 1608 1/ 10W J 2 .7k Ω or RRJ272RYL002

RES CHIP 1608 1/ 10W J 2 .7k Ω RRJ272WAL0 02
R2740 RES CHIP 1608 1/10W J 2 .7k Ω or RRXA272HH013

RES CHIP 1608 1/ 10W J 2 .7k Ω or RRXA272YF002

RES CHIP 1608 1/ 10W J 2 .7k Ω or RRJ272RYL002

RES CHIP 1608 1/ 10W J 2 .7k Ω RRJ272WAL0 02
R2742 RES CHIP 1608 1/10W J 8 20 Ω or RRXA821HH013

RES CHIP 1608 1/ 10W J 8 20 Ω or RRXA821YF002

RES CHIP 1608 1/ 10W J 8 20 Ω or RRJ821RYL002

RES CHIP 1608 1/ 10W J 8 20 Ω RRJ821 W AL0 02
R2753 RES CHIP 1608 1/10W J 2 2k Ω or RRXA223HH013

RES CHIP 1608 1/ 10W J 2 2k Ω or RRXA223YF002

RES CHIP 1608 1/ 10W J 2 2k Ω or RRJ223R Y L002

RES CHIP 1608 1/ 10W J 2 2k Ω RRJ223W AL002
R2754 RES CHIP 1608 1/10W J 3 00 Ω or RRXA301HH013

RES CHIP 1608 1/ 10W J 3 00 Ω or RRXA301YF002

RES CHIP 1608 1/ 10W J 3 00 Ω or RRJ301RYL002

RES CHIP 1608 1/ 10W J 3 00 Ω RRJ301 W AL0 02
R2755 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/ 10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/ 10W 0 Ω or RRZ000RYL002

RES CHIP 1608 1/ 10W 0 Ω RRJ000W AL0 02
R2757 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/ 10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/ 10W 0 Ω or RRZ000RYL002

RES CHIP 1608 1/ 10W 0 Ω RRJ000W AL0 02
R2759 RES CHIP 1608 1/10W J 1 00k Ω or RRXA104HH013

RES CHIP 1608 1/ 10W J 1 00k Ω or RRXA104YF002

RES CHIP 1608 1/ 10W J 1 00k Ω or RRJ1 04R YL0 02

RES CHIP 1608 1/ 10W J 1 00k Ω RRJ104WAL002
R2760 RES CHIP 1608 1/10W J 2 7k Ω or RRXA273HH013

RES CHIP 1608 1/ 10W J 2 7k Ω or RRXA273YF002

RES CHIP 1608 1/ 10W J 2 7k Ω or RRJ273R Y L002

RES CHIP 1608 1/ 10W J 2 7k Ω RRJ273W AL002
R2761 RES CHIP 1608 1/10W J 2 7k Ω or RRXA273HH013

RES CHIP 1608 1/ 10W J 2 7k Ω or RRXA273YF002

RES CHIP 1608 1/ 10W J 2 7k Ω or RRJ273R Y L002

RES CHIP 1608 1/ 10W J 2 7k Ω RRJ273W AL002
R2763 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/ 10W J 0 Ω or RRXA000YF002

RES CHIP 1608 1/ 10W 0 Ω or RRZ000RYL002

RES CHIP 1608 1/ 10W 0 Ω RRJ000W AL0 02
R2801 RES CHIP 1608 1/10W J 4 7k Ω or RRXA473HH013

RES CHIP 1608 1/ 10W J 4 7k Ω or RRXA473YF002

Ref. No. Description Part No.

RES CHIP 1608 1/10W J 47k Ω or RRJ473RYL002
RES CHIP 1608 1/10W J 47k Ω RRJ473W AL 002

R2803 RES CHIP 1608 1/10W J 10 Ω or RRXA100HH0 13

RES CHIP 1608 1/10W J 10 Ω or RRXA100YF002
RES CHIP 1608 1/10W J 10 Ω or RRJ100RYL 002
RES CHIP 1608 1/10W J 10 Ω RRJ100W AL 002

R2804 RES CHIP 1608 1/10W J 10 Ω or RRXA100HH0 13

RES CHIP 1608 1/10W J 10 Ω or RRXA100YF002
RES CHIP 1608 1/10W J 10 Ω or RRJ100RYL 002
RES CHIP 1608 1/10W J 10 Ω RRJ100W AL 002

R2809 RES CHIP 1608 1/10W J 33k Ω or RRXA333HH013

RES CHIP 1608 1/10W J 33k Ω or RRXA333YF002
RES CHIP 1608 1/10W J 33k Ω or RRJ333RYL002
RES CHIP 1608 1/10W J 33k Ω RRJ333W AL 002

R2810 RES CHIP 1608 1/10W J 10k Ω or RRXA103HH013

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002
RES CHIP 1608 1/10W J 10k Ω or RRJ103RYL002
RES CHIP 1608 1/10W J 10k Ω RRJ103W AL 002

R2811 RES CHIP 1608 1/10W J 10k Ω or RRXA103HH013

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002
RES CHIP 1608 1/10W J 10k Ω or RRJ103RYL002
RES CHIP 1608 1/10W J 10k Ω RRJ103W AL 002

R2812 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002
RES CHIP 1608 1/10W 0 Ω or RRZ000RYL002
RES CHIP 1608 1/10W 0 Ω RRJ00 0W AL 002

R2814 RES CHIP 1608 1/10W J 1.8k Ω or RRXA182HH013

RES CHIP 1608 1/10W J 1.8k Ω or RRXA1 82YF002
RES CHIP 1608 1/10W J 1.8k Ω or RRJ182RYL002
RES CHIP 1608 1/10W J 1.8k Ω RRJ18 2W A L002

R2818 RES CHIP 1608 1/10W J 10k Ω or RRXA103HH013

RES CHIP 1608 1/10W J 10k Ω or RRXA103YF002
RES CHIP 1608 1/10W J 10k Ω or RRJ103RYL002
RES CHIP 1608 1/10W J 10k Ω RRJ103W AL 002

R2820 RES CHIP 1608 1/10W J 47k Ω or RRXA473HH013

RES CHIP 1608 1/10W J 47k Ω or RRXA473YF002
RES CHIP 1608 1/10W J 47k Ω or RRJ473RYL002
RES CHIP 1608 1/10W J 47k Ω RRJ473W AL 002

R2827 RES CHIP 1608 1/10W J 1.8k Ω or RRXA182HH013

RES CHIP 1608 1/10W J 1.8k Ω or RRXA1 82YF002
RES CHIP 1608 1/10W J 1.8k Ω or RRJ182RYL002
RES CHIP 1608 1/10W J 1.8k Ω RRJ18 2W A L002

R2830 RES CHIP 1608 1/10W 0 Ω or RRXA000HH014

RES CHIP 1608 1/10W J 0 Ω or RRXA000YF002
RES CHIP 1608 1/10W 0 Ω or RRZ000RYL002
RES CHIP 1608 1/10W 0 Ω RRJ00 0W AL 002

MISCELLANEOUS

BC2602 BEADS INDUCTOR FBR07HA121SB-00 or LLBF00STU030

BEAD INDUCTOR B29 RID 2.3X7.5X7.5T LLEF0S0XM002

BC2603 BEADS INDUCTOR FBR07HA121SB-00 or LLBF00STU030

BEAD INDUCTOR B29 RID 2.3X7.5X7.5T LLEF0S0XM002
F2602 FUSE CHIP FMC16302AHTP PDDFMC0KE302
F2603 FUSE CHIP FMC16302AHTP PDDFMC0KE302
JK2701 JACK RGB PCB S 21/RGB-55H JXGJ 21YUQ002
JK2702 JACK RCA PCB S WHITE 01/RCA-101H(WH) or JXRJ010YUQ02

JACK R CA PCB S (W HITE) 01 MTJ-03 2-04B- 41

FE or

JACK RCA PCB S WHITE 01 / RCA-101HF(WH) JXRJ01YUQ008
JK2703 JACK SW RCA PCB S RED RCA-102H(RD) or JYRJ010YUQ03

JACK SW RCA PCB S(RED) 01 MTJ-032-04A-

75 FE
JK2704 JACK RCA PCB S GREEN 01/RCA-101H(GN) orJXRJ010YUQ 03

JACK RCA PCB S(GREEN) 01 MTJ-032-04B-73

FE or

JACK RCA PCB S GREEN 01 / RCA-

101HF(GN)
JK2705 JACK RCA PCB S BLUE 01/RCA-101H(BL) or JXRJ010YUQ04

JXRJ010LY031

JYRJ010LY031

JXRJ010LY030

JXRJ01YUQ009

2011/08/22 15-6 A13P1EL.fm

Ref. No. Description Part No.

JACK RCA PCB S(BLUE) 01 MTJ-032-04B-74
FE or

JACK RCA PCB S BLUE 01 / RCA-101HF(BL) JXRJ01YUQ010

JK2706 JACK SW RCA PCB S RED RCA-102H(RD) or JYRJ010YUQ03

JACK SW RCA PCB S(RED) 01 MTJ-032-04A­75 FE

JK2707 JACK HPEP SML PCB S PJ-358H or JXSJ020YUQ01

JACK HPEP SML PCB S 02 MSJ-035-29D
(ABS)

JK2708 JACK EARPHON 01/PJ-350P or JYSL01YUQ001

JACK SW HPEP SML PCB L MSJ-2000
AG(B110)

JK2709 JACK RCA PCB S ORANGE 01/RCA-101H(OR) orJXRJ010YUQ06

JACK RCA PCB S(ORANGE) 01 MTJ-032-04B­76 FE

JS2601 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM0 01

JS2801 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM0 01

JS2802 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM0 01

JW2401 WIRE COPPER 6111-06003-0120 or XZ40C0SHG002

WIRE COPPER JP0.6MM XZ40C0AKM0 01

JXRJ010LY033

JYRJ010LY031

JXSJ020LY001

JYSL010LY005

JXRJ010LY029

FUNCTION CBA

Ref. No. Description Part No.

FUNCTION CBA
Consists of the following:

CAPACITORS

C2150 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V or CHD1JZ30F104

CAP CHIP 1608 Z/Y5V/0.1µF/50V CHD104EYA036

RESISTORS

R2150 RES CARBON FILM T 1/4W G 6.8k Ω or RCX4682T1002

RES CARBON FILM 1/4W G 6.8k Ω RCG682PAK001

R2151 RES CARBON FILM T 1/4W G 3.0k Ω or RCX4302T1002

RES CARBON FILM 1/4W G 3.0k Ω RCG302PAK001

R2152 RES CARBON FILM T 1/4W G 1.8k Ω or RCX4182T1002

RES CARBON FILM 1/4W G 1.8k Ω RCG182PAK001

R2153 RES CARBON FILM T 1/4W G 1.0k Ω or RCX4102T1002

RES CARBON FILM 1/4W G 1.0k Ω RCG102PAK001

R2154 RES CARBON FILM T 1/4W G 680 Ω or RCX4681T1002

RES CARBON FILM 1/4W G 680 Ω RCG681P AK001

R2155 RES CARBON FILM T 1/4W J 330 Ω or RCX4331T1001

RES CARBON FILM 1/4W J 330 Ω or RCX4331FS002
RES CARBON FILM 1/4W J 330 Ω RCJ331PAK001

R2156 RES CARBON FILM T 1/4W G 1.0k Ω or RCX4102T1002

RES CARBON FILM 1/4W G 1.0k Ω RCG102PAK001

SWITCHES

SW2150 TACT SWITCH SKQSAB or SST0101AL038

T ACT SWI TCH KSM0612B SST0101HH003

SW2151 TACT SWITCH SKQSAB or SST0101AL038

T ACT SWI TCH KSM0612B SST0101HH003

SW2152 TACT SWITCH SKQSAB or SST0101AL038

T ACT SWI TCH KSM0612B SST0101HH003

SW2153 TACT SWITCH SKQSAB or SST0101AL038

T ACT SWI TCH KSM0612B SST0101HH003

SW2154 TACT SWITCH SKQSAB or SST0101AL038

T ACT SWI TCH KSM0612B SST0101HH003

SW2155 TACT SWITCH SKQSAB or SST0101AL038

T ACT SWI TCH KSM0612B SST0101HH003

SW2156 TACT SWITCH SKQSAB or SST0101AL038

T ACT SWI TCH KSM0612B SST0101HH003

----------

IR SENSOR CBA

Ref. No. Description Part No.

IR SENSOR CBA

Consists of the following:

CAPACITORS

C2160 CHIP CERAMIC CAP.(1608) B K 0.1µF/16V or CHD1CK30B104

CAP CHIP 1608 K/X7R/0.1µF/25V CHD104EYA039
C2161 CHIP CERAMICCAP B M 10µF 6.3V or CHD0KM30B106

CAP CHIP 1608 B M 10µF/6.3V CA0K106T E073
C2162 CHIP CERAMICCAP B M 10µF 6.3V or CHD0KM30B106

CAP CHIP 1608 B M 10µF/6.3V CA0K106T E073
C2163 CHIP CERAMIC CAP. F Z 0.01µF/50V or CHD1JZ30F103

CAP CHIP 1608 K/X7R/0.01µF/50V CHD103EY A032
C2164 CHIP CERAMIC CAP.(1608) B K 0.1µF/16V or CHD1CK30B104

CAP CHIP 1608 K/X7R/0.1µF/25V CHD104EYA039
C2165 CHIP CERAMIC CAP.(1608) B K 0.1µF/16V or CHD1CK30B104

CAP CHIP 1608 K/X7R/0.1µF/25V CHD104EYA039
C2166 CHIP CERAMICCAP B M 10µF 6.3V or CHD0KM30B106

CAP CHIP 1608 B M 10µF/6.3V CA0K106T E073
C2167 CHIP CERAMIC CAP.(1608) B K 0.1µF/16V or CHD1CK30B104

CAP CHIP 1608 K/X7R/0.1µF/25V CHD104EYA039

DIODES

D2161 LED(RED) LTL-1CHEE or NPQZLTL1CHEE

LED(RED) 1254IT NPQZ0012541T

IC

IC2161 O-E DEVICE PHOTO TRANSISTOR JSA-3113B NPWZJSA3113B

RESISTORS

R2160 RES CHIP 1608 1/10W J 3.3k Ω or RRXA332HH013

RES CHIP 1608 1/10W J 3.3k Ω or RRXA3 32YF002

RES CHIP 1608 1/10W J 3.3k Ω or RRJ332RYL002

RES CHIP 1608 1/10W J 3.3k Ω RRJ33 2W A L002
R2161 RES CHIP 1608 1/10W J 1.0k Ω or RRXA102HH013

RES CHIP 1608 1/10W J 1.0k Ω or RRXA1 02YF002

RES CHIP 1608 1/10W J 1k Ω or RRJ102RYL002

RES CHIP 1608 1/10W J 1.0k Ω RRJ10 2W A L002
R2163 RES CHIP 1608 1/10W J 2.4k Ω or RRXA242HH013

RES CHIP 1608 1/10W J 2.4k Ω or RRXA2 42YF002

RES CHIP 1608 1/10W J 2.4k Ω or RRJ242RYL002

RES CHIP 1608 1/10W J 2.4k Ω RRJ24 2W A L002
R2164 RES CHIP 1608 1/10W J 330k Ω or RRXA334HH013

RES CHIP 1608 1/10W J 330k Ω or RRXA334YF002

RES CHIP 1608 1/10W J 330k Ω or RRJ334R YL00 2

RES CHIP 1608 1/10W J 330k Ω RR J334WAL002
R2165 RES CHIP 1608 1/10W J 100 Ω or RRXA101HH013

RES CHIP 1608 1/10W J 100 Ω or RRXA101YF002

RES CHIP 1608 1/10W J 100 Ω or RRJ101RYL00 2

RES CHIP 1608 1/10W J 100 Ω RRJ10 1W AL 002
R2166 RES CHIP 1608 1/10W J 220 Ω or RRXA221HH013

RES CHIP 1608 1/10W J 220 Ω or RRXA221YF002

RES CHIP 1608 1/10W J 220 Ω or RRJ221RYL00 2

RES CHIP 1608 1/10W J 220 Ω RRJ22 1W AL 002
R2167 RES CHIP 1608 1/10W J 220 Ω or RRXA221HH013

RES CHIP 1608 1/10W J 220 Ω or RRXA221YF002

RES CHIP 1608 1/10W J 220 Ω or RRJ221RYL00 2

RES CHIP 1608 1/10W J 220 Ω RRJ22 1W AL 002

MISCELLANEOUS

CL2161 WIRE ASSEMBLY 2PIN 2PIN/155MM/A WG28/RBWX1A13P0-222

CL2162 WIRE ASSEMBLY 7PIN 7PIN/680MM/A WG28/R BWX1A13P0-221

RS2161 SENSOR REMOTE RECEIVER KSM-

2002TN2M-FU

----------

USEJRS0KK009

Ref. No. Description Part No.

POWER SUPPLY CBA UNIT UPBPSPFSP004

TU2301 TUNER UNIT TDTK-G731D UTNPSG0GS001

2011/08/22 15-7 A13P1EL.fm

LED40-H9825M

A13P1EP

2011-08-30

Ver. 1
