Fulgor Milano F1SP30S1 Installation Manual

Installation Instructions

Instructions d’Installation

Instrucciones de Installación

F1SP24*1 F1SP30*1

ENGLISH

TABLE OF CONTENTS

page

no i t c udo r t n I Installation notes

Connecting to

120V/208V circuit

Tools you will need

Electrical connections

Power requirements

3-wire branch circuit

Choosing oven location

tiucric hcnarb eriw-4

noitallatsni hsulF

Steps for installation

Electrical supply

Final checklist

Technical data

Wiring requirement

WARNING

If the information in this manual is not followed exactly,

personal injury or death.

INTRODUCTION

Please read these instructions COMPLETELY AND CAREFULLY. They will save you time and eort and help to

ensure optimum oven performance. Be sure to observe all WARNINGS. These installation instructions are intended for use by a qualied installer. In addition to these instructions, the oven shall be installed:

In the United States, in accordance with the National Electric Code/State and Municipal codes and/or local codes. In Canada, in accordance with Canadian Electric Code C22.1-latest edition/Provincial and Municipal codes and/ or local codes.

These shall be carefully followed at all times.

NOTE: IF INSTALLING YOUR OVEN IN CANADA PLEASE CHECK TO MAKE SURE THAT YOU HAVE A MODEL WITH THE US AND CANADIAN LISTING

MARK, AS SHOWN ABOVE:

Mark as shown above means the oven complies with both US and CANADIAN Standards.

TOOLS YOU WILL NEED

The following tools are needed to install your new oven:

Tape measure and straightedge or ruler Pencil Phillips screwdriver Level Wire cutters and wire stripper Hand or saber saw 1” (2,5cm) Hole saw Drill and drill bit Safety gloves and goggles Volt meter (0-250VAC)

PACKAGING

Remove all tape and packaging before using the oven. Destroy the packaging after unpacking the oven following the rules in force in your town. Never allow children to play with packaging material.

POWER REQUIREMENTS

The oven must be supplied with the proper voltage and frequency. The oven is manufactured to be connected to a three-wire or four-wire, single phase, 120V/240V, 60 Hz AC electrical supply on a separate circuit fused on both sides of the line. If a 120V/208V circuit must be used, see Connecting to 120V/208V Circuit, in this manual. A circuit breaker or time delay fuse, sized not to exceed the circuit rating of the appliance specied on the rating plate located on the frame behind the door of the oven is recommended (see gure at page 6).

It is recommended that you have the electrical wiring and hook-up of your oven performed by a qualied electrician. After installation is complete have the electrician show you where the main disconnect is and which of the circuit breakers/fuses are for the oven.

CHOOSING OVEN LOCATION

Carefully select the location where the oven will be placed. The oven should be located for convenient use in the kitchen, but away from strong drafts. Strong drafts may be caused by open doors or windows, or by heating and/or air conditioning vents or fans. Make sure that electrical power can be provided to the location selected.

The oven must be supplied with copper or alumimum wires. If aluminum wire is provided to connect oven to branch circuit, UL listed connectors for joining copper and aluminum must be used. Follow instructions provided with connectors.

IMPORTANT: Save these instructions for the local electrical inspector use. INSTALLER: Please leave this manual with owner for future reference. OWNER: Please keep this manual for future reference.

3 Wall or under counter installation, single oven 5

A re or explosion may result causing property damage,

ENGLISH

TABLE OF CONTENTS

page

no i t c udo r t n I Installation notes

Connecting to

120V/208V circuit

Tools you will need

Electrical connections

Power requirements

3-wire branch circuit

Choosing oven location

tiucric hcnarb eriw-4

noitallatsni hsulF

Steps for installation

Electrical supply

Final checklist

Technical data

Wiring requirement

WARNING

If the information in this manual is not followed exactly,

personal injury or death.

INTRODUCTION

Please read these instructions COMPLETELY AND CAREFULLY. They will save you time and eort and help to

These shall be carefully followed at all times.

NOTE: IF INSTALLING YOUR OVEN IN CANADA PLEASE CHECK TO MAKE SURE THAT YOU HAVE A MODEL WITH THE US AND CANADIAN LISTING

MARK, AS SHOWN ABOVE:

Mark as shown above means the oven complies with both US and CANADIAN Standards.

TOOLS YOU WILL NEED

The following tools are needed to install your new oven:

PACKAGING

Remove all tape and packaging before using the oven. Destroy the packaging after unpacking the oven following the rules in force in your town. Never allow children to play with packaging material.

POWER REQUIREMENTS

CHOOSING OVEN LOCATION

IMPORTANT: Save these instructions for the local electrical inspector use. INSTALLER: Please leave this manual with owner for future reference. OWNER: Please keep this manual for future reference.

3 Wall or under counter installation, single oven 5

A re or explosion may result causing property damage,

Installation Manual

ENGLISH

WARNING

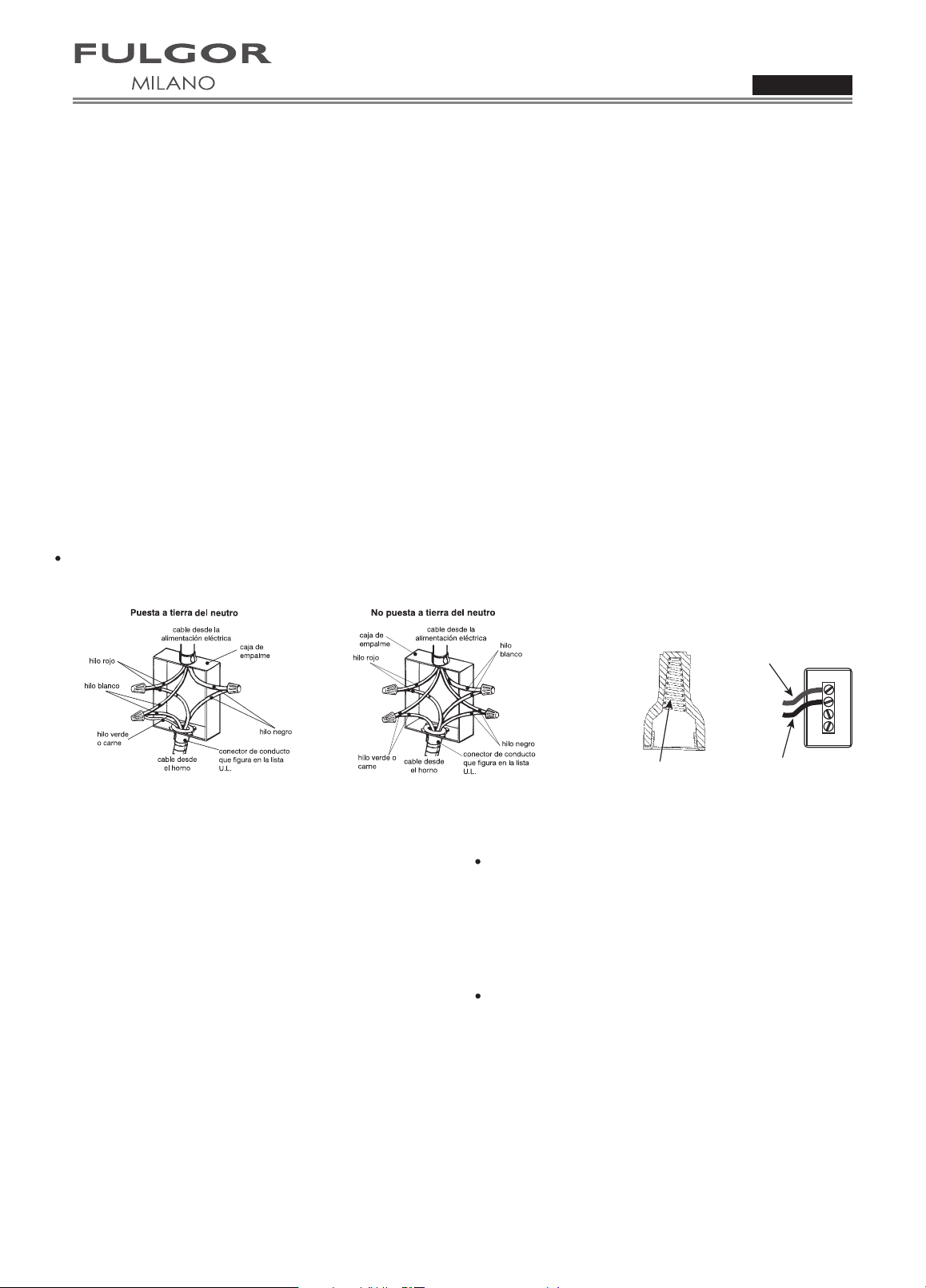

RISK OF ELECTRIC SHOCK ELECTRICAL GROUNDING CONNECTION

You must disconnect the neutral from the grounding lead. Connect the appliance in accordance with local electrical codes. For model rated up to 4.3kW connect to a 20A fuse or circuit breaker. For both US and CANADIAN installation: this appliance is equipped with copper lead wires and must be connected to copper wires only. Aluminum wires must not be used.

ENGLISH

Electrical Ratings and Maximum Connected Load

TECHNICAL DATA

For cutout dimensions see following section titled: Preparing location

SINGLE OVEN

Amperes kW Amperes kW

@ 120V/240V 60Hz @ 120V/208V 60Hz

STEPS FOR INSTALLATION

The following pages provide the necessary information for proper installation of the oven and are arranged as follows:

Technical Data Installation Cutout Dimensions, Required Clearances and Mounting instructions for:

- Under counter Installation, Single Oven

- Wall Installation, Single Oven

Electrical Supply and Wiring Requirements, Programming required if connecting to 120V/208V Circuit. Electrical Connections for 3-wire or 4-wire Branch Circuit. Final Checklist

ENGLISH

WALL OR UNDER COUNTER INSTALLATION, SINGLE OVEN

・Confirm the strength of the wall surface. ・When the strength of the wall surface is weak,

give reinforcement.

CAUTION

ENGLISH

STEPS FOR INSTALLATION

The following pages provide the necessary information for proper installation of the oven and are arranged as follows:

Technical Data Installation Cutout Dimensions, Required Clearances and Mounting instructions for:

- Under counter Installation, Single Oven

- Wall Installation, Single Oven

Electrical Supply and Wiring Requirements, Programming required if connecting to 120V/208V Circuit. Electrical Connections for 3-wire or 4-wire Branch Circuit. Final Checklist

TECHNICAL DATA

For cutout dimensions see following section titled: Preparing location

SINGLE OVEN

F1SP24*1 11.2 2.60 12.9 2.62

@ 120V/240V 60Hz @ 120V/208V 60Hz

Amperes kW Amperes kW

Electrical Ratings and Maximum Connected Load

Installation Manual

ENGLISH

F1SP30*1

INSTALLATION NOTES

1. Do not slide oven across oor. Damage to oor covering or oor could result.

2. The oven support surface must be a minimum 3/4" (2cm) thick plywood platform. For single ovens, it must support 202 pounds. The platform must be solid, level and ush with the bottom of

the cabinet cut out.

3. Use extreme caution when moving or installing the oven. It is very heavy. DO NOT LIFT THE OVEN BY THE DOOR HANDLE, remove the door for easier handling and installing. See REMOVING THE DOOR in the maintenance section

of the Operating Instructions.

4. Be very careful when moving or installing the oven to

avoid damage to the oven frame or damage to the cabinets.

5. Be sure to level the oven. An oven that is not level may

provide poor or inconsistent baking results.

6. Be careful when placing oven. DO NOT pinch the conduit

between the oven back.

16.2 3.80 17.9 3.65

WARNING

Before installing or removing, turn power OFF at the service panel. Lock service panel to prevent power from being turned ON accidentally. Securely fasten oven to cabinet using the screws provided. Failure to do so could result in oven moving or tipping during use and causing damage to the oven or cabinets or personal injury.

Know how to disconnect the power to the oven at the circuit breaker or fuse box in case of an emergency.

CAUTION

Unit is heavy and requires at least two people or proper equipment to move.

CAUTION

Do not remodel the oven.

Ltr. DIMENSION

A Cutout Width

B Cutout Depth

C Cutout Height

D Oven Position (distance from oor)

E Minimum Spacing

24” 30”

22 1/16”

(56 cm)

24”

(61 cm)

23”

(58,5 cm)

34”

(86,5 cm)

1/2”

(1,3 cm)

SINGLE

28”

(71 cm)

24”

(61 cm)

23”

(58,5 cm)

34”

(86,5 cm)

1/2”

(1,3 cm) min

ENGLISH

WALL OR UNDER COUNTER INSTALLATION, SINGLE OVEN

Electrical supply junction box

Installation Manual

ENGLISH

Electrical supply junction box

Secure oven to cabinet using the screws provided. Screws should be inserted through the mounting holes in the positions indicated in the frame (open door to see frame and mounting holes). Do not over tighten screws.

CAUTION

・Confirm the strength of the wall surface. ・When the strength of the wall surface is weak,

give reinforcement.

ENGLISH

ELECTRICAL SUPPLY

Location of rating plate

WIRING REQUIREMENTS

When making the wire connections, use the entire length of the conduit provided (3 feet). The conduit must not be cut. Before making connections make sure the power is o and read and observe the following:

1. A separate three-wire or four-wire, single phase,

3. In the United States: Wiring must conform to the National Electrical Code, ANSI/NFPA No. 7 latest edition. You can obtain a copy of the National Electrical Code by writing to: National Fire Protection Association Batterymarch Park Quincy, MA 02269

In Canada:

Wiring must conform to Canadian Electrical Code C22.1- latest edition. You can obtain a copy of the Canadian Electrical Code by writing to: Canadian Standards Association 178 Rexdale Boulevard Rexdale (Toronto), Ontario, Canada M9W 1R3

4. connections must be suitable for the rating of the appliance as per the National Electrical Code requirements. The exible armoured cable extending from the oven should be connected directly to the junction box.

5. The junction box should be located so as to allow as much slack as possible between the junction box and the oven so it can be moved if servicing is ever required.

6. A U.L. listed conduit connector must be provided at each end of the power supply cable.

This option is provided for areas where standard 240V service is not available. This option must be accessed with the oven connected to power source, and using the following sequence:

The voltage setting is stored and kept even after a long power-o.

WARNING

ELECTRICAL SHOCK HAZARD

The electrical power to the oven branch circuit must be shut o while line connections are being made. Do not use an extension cord with this appliance. Electrical ground is required on this appliance. The free end of the green wire (the ground wire) must be connected to a suitable ground. This wire must remain grounded to the oven. If cold water pipe is interrupted by plastic, non metallic gaskets, union connections or other insulating materials, DO NOT use for grounding. DO NOT ground to a gas pipe. DO NOT have a fuse in the NEUTRAL or GROUNDING circuit. A fuse in the NEUTRAL or GROUNDING circuit could result in an electrical shock. Check with a qualied electrician if you are in doubt as to whether the appliance is properly grounded. Failure to follow these instructions could result in serious injury or death.

CAUTION

Do not repair or replace any part of the appliance unless specically recommended in the manual. All other servicing should be done by a qualied technician. This may reduce the risk of personal injury and damage to the oven. Never modify or alter the construction of the appliance by removing panels, wire covers, screws, or any other part of the product.

The oven must be connected with Copper or Aluminum wire.

Wire size (Copper or Aluminum wire) and

120V/240V, 60 Hz or 120V/208V, 60 Hz branch circuit is required for the oven.

FLUSH INSTALLATION

Installation Manual

ENGLISH

Mounting strip

Ltr. DIMENSION

F Cutout Width

G Cutout Height

H Visible part of the mounting strips

I Cutout Depth

Finished sides

the cabinet)

24” 30”

23 13/16” (60,5 cm)

23 3/8””

(59,4 cm)

3/4”

(1,9 cm)

24”

(61 cm)

SINGLE

29 1/2”

(75,5 cm)

23 3/8”

(59,4 cm)

3/4”

(1,9 cm)

24”

(61 cm)

ENGLISH

This option is provided for areas where standard 240V service is not available. This option must be accessed with the oven connected to power source, and using the following sequence:

ELECTRICAL SUPPLY

Before installing the oven have a qualied electrician

verify that your home is provided with adequate electrical service and that the addition of the oven will not overload the branch circuit on which it is to be installed. A separate three-wire or four-wire single phase, 120V/240V, 60 Hz, or a 120V/208V, 60Hz branch circuit is required. NOTE : FOR USE WITH 120V/208V, 60 HZ SUPPLY VOLTAGE, SEE CONNECTING TO 208V CIRCUIT. For hook-up of the oven you will need to have an approved junction box installed where it will be easily reached through the front of the cabinet where the oven will be located. The oven has 3 feet of conduit. Allow two to three feet of slack in the line so that the oven can be moved if servicing is ever necessary.

DO NOT shorten the exible conduit.

1. Befor installing the oven remove the upper frontal cover.

2. Connect the 208V Jumper provided into the female connector as

3. Reassemble the upper cover, than connect the product to the power

Installation Manual

ENGLISH

CONNECTING TO 120V/208V CIRCUIT

This option is provided for areas where standard 240V service is not available. This option must be accessed with the oven connected to power source, and using the following sequence:

showed below.

supply and check all functions.

Location of rating plate

WIRING REQUIREMENTS

1. A separate three-wire or four-wire, single phase, 120V/240V, 60 Hz or 120V/208V, 60 Hz branch circuit is required for the oven.

The oven must be connected with Copper or Aluminum wire.

In Canada:

Wire size (Copper or Aluminum wire) and

connections must be suitable for the rating of the appliance as per the National Electrical Code requirements. The exible armoured cable extending from the oven should be connected directly to the junction box.

5. The junction box should be located so as to allow as much slack as possible between the junction box and the oven so it can be moved if servicing is ever required.

6. A U.L. listed conduit connector must be provided at each end of the power supply cable.

The voltage setting is stored and kept even after a long power-o.

WARNING

ELECTRICAL SHOCK HAZARD

The voltage setting is stored and kept even after a long power-o.

If cold water pipe is interrupted by plastic, non metallic gaskets, union connections or other insulating materials, DO NOT use for grounding. DO NOT ground to a gas pipe.

ELECTRICAL SHOCK HAZARD

DO NOT have a fuse in the NEUTRAL or GROUNDING circuit. A

The electrical power to the oven branch circuit must be shut o fuse in the NEUTRAL or GROUNDING circuit could result in an

while line connections are being made. electrical shock.

Do not use an extension cord with this appliance. Check with a qualied electrician if you are in doubt as to whether

Electrical ground is required on this appliance. The free end of the the appliance is properly grounded.

green wire (the ground wire) must be connected to a suitable Failure to follow these instructions could result in serious injury or

ground. This wire must remain grounded to the oven. death.

If cold water pipe is interrupted by plastic, non metallic gaskets, union connections or other insulating materials, DO NOT use for grounding. DO NOT ground to a gas pipe. DO NOT have a fuse in the NEUTRAL or GROUNDING circuit. A

Do not repair or replace any part of the appliance unless specically

fuse in the NEUTRAL or GROUNDING circuit could result in an

recommended in the manual. All other servicing should be done by a

electrical shock.

qualied technician. This may reduce the risk of personal injury and

Check with a qualied electrician if you are in doubt as to whether

damage to the oven.

the appliance is properly grounded.

Never modify or alter the construction of the appliance by removing

Failure to follow these instructions could result in serious injury or

panels, wire covers, screws, or any other part of the product.

death.

WARNING

CAUTION

ENGLISH

FRANÇAIS

TABLE DES MATIERES

page

no i t c udo r t n I Remarques sur l’installation

Connexion à un circuit de 120 V/208 V 13

Outils nécessaires

Branchement électrique 14

Alimentation requise

Conn

Choix de l’emplacement du four 9

Installation en alignement 12

Conne

Alimentation électrique

Liste de vérification finale 14

Données techniques

Câblage nécessaire 13

AVERTISSEMENT

Si l’information de ce manuel n’est pas suivie exactement, cela peut provoquer un incendie ou une explosion pouvant entraîner des dégâts, des blessures ou la mort.

INTRODUCTION

Vous aurez besoin des outils suivants pour installer votre nouveau four :

Mètre enrouleur et règle à tracer ou règle Crayon Tournevis Philips Niveau Cutter de électriques et dénude- Scie sauteuse ou scie à main Scie-cloche de 1 po (2,5 cm) Mèche et perceuse Gants et lunettes de sécurité Voltmètre (0-250 V AC)

EMBALLAGE

Enlevez tous les adhésifs et emballage avant d’utiliser le four. Détruisez tous les emballages après avoir désemballé le four en suivant les règles d’usage de votre ville. Ne laissez jamais les enfants jouer avec les emballages.

ALIMENTATION REQUISE

Le four doit être alimenté avec la fréquence et la tension appropriée . Le four est fabriqué pour être branché à une alimentation électrique triphasée ou à quatre en simple phase, 120 V/ des deux côtés de la ligne. Si un circuit de 120 V/208 V doit être utilisé, voyez Connexion à un circuit de 120 V/208 V dans ce manuel. Un disjoncteur ou un dispositif de surcharge dont la taille n’excède pas la valeur du circuit de l’appareil spéc

sur

la plaque de valeurs située sur le cadre derrière la porte du

four est recommandé (voir à la page 12).

Il est recommandé que vous ayez un branchement électrique parfaitement raccordé par un électricien qual

Après tout avoir installé, l’électricien doit vous montrer où est le débranchement principal et quels sont le disjoncteur et les fusibles pour le four.

CHOIX DE L’EMPLACEMENT DU FOUR

Choisissez précautionneusement l’emplacement du four. Le four doit être situé pour un usage approprié dans la cuisine, mais toujours loin des courants d’air. Les courants d’air peuvent être provoqués par des portes ouvertes ou des fenêtres, ou par des ventilateurs ou l’air conditionné. Assurez-vous que le branchement peut arriver jusqu’à l’emplacement choisi.

Le four ne doit être branché qu’avec des fils de cuivre ou aluminium.

Si un câble en aluminium est fourni pour la connection du four au circuit électrique, il est nécessaire utiliser les connecteurs énumérés par UL. Suivez les instructions fournies avec les connecteurs.

IMPORTANT : Gardez ces instructions pour consultation par l'inspecteur local des

INSTALLATEUR : Veuillez laisser ce manuel au propriétaire pour de futures références.

Veuillez garder ce manuel pour de futures références.

9 Installation des parois d'un four simple

240 V, 60 Hz CA sur un circuit séparé avec fusibles

installations électriques.

minal Block

Square-wire spring

Important: Use twist-on connector

ELECTRICAL CONNECTIONS

Be sure your appliance is properly installed and grounded by a qualied technician. Ask your dealer to recommend a qualied technician or an authorized repair service.

This appliance is manufactured with a green GROUND wire connected to the oven chassis. After making sure that the power has been turned o, connect the exible conduit from the oven to the junction box using a U.L. listed conduit connector. Figures A and B and the instructions provided below present the most common way of connecting the ovens. Your local codes and ordinances, of course, take precedence over these instructions. Complete electrical connections according to local codes and ordinances

“WARNING” Risk of Electric Shock, frame grounded to neutral of appliance through a link.

Grounding through the neutral conductor is prohibited for new branch-circuit installations (1996 NEC); mobile homes; and recreational vehicles, or in an area where local codes prohibit grounding through the neutral conductor. For installations where grounding through the neutral conductor is prohibited:

Disconnect the ground from the neutral at free end of conduit; Use grounding terminal or lead to ground unit; and Connect neutral terminal or lead to branch circuit neutral in usual manner.

3-WIRE BRANCH CIRCUIT (for US only)

Refer to Figure A, where local codes allow the connection of GROUND wire from the oven to the branch circuit NEUTRAL wire (gray or white colored wire):

● If local codes permit, connect the green GROUND wire from the oven and the white wire from the oven to the branch circuit NEUTRAL wire (gray or white colored wire).

● Connect the red and black leads from the oven to the corresponding HOT Wires in the junction box.

● Connect the local codes and power supply codes using a terminal.

● The terminal uses a thing adapting to the wire of the cord.

4-WIRE BRANCH CIRCUIT (for US and CANADA)

Refer to Figure B:

● Disconnect ground from neutral at free end of conduit.

● Connect the green GROUND wire from the oven to the GROUND wire in the junction box (bare or green colored wire).

● Connect the red and black leads from the oven to the corresponding HOT Wires in the junction box.

● Connect the white wire from the oven to the NEUTRAL (gray or white) wire in the junction box.

● Connect the local codes and power supply codes using a terminal.

● The terminal uses a thing adapting to the wire of the cord.

Installation Manual

ENGLISH

with square-wire spring

From power

supply

Ter

FINAL CHECKLIST

To prevent improper connections leading to damage of electrical components and so voiding the warranty, the following steps must be performed:

1. Check the electrical requirements and make sure you have the correct electrical supply and that the oven is properly grounded.

2. Turn on the power supply to the oven.

3. Check power at the junction box wires using a voltmeter having a range of 0-250V. If you have installed the oven for use on 240V supply, you should nd that the voltage reading between the black and red wires (Line to Line) should be 220V to 240V. If you have modied the oven(s) for use on 208V, the voltage reading between the black and red wires should be 190 to 208V.

4. Set the clock by following these steps:

● Immediately turn [+/-] knob to set hours + [INC] or - [DEC] .

● Press [+/-] knob again to change minutes.

● Immediately turn [+/-] knob to set minutes + [INC] or - [DEC] .

● Press [+/-] knob or wait for a few seconds to conrm.

Figure A Figure B

Clock is now set.

5. Test the bake mode by following this step:

● Cooling fan and oven lights will turn on, the preheat led will

● A beep is sounded when the oven reaches the preset 350 °F

6. To check the other oven functions refer to the “Using the

7. If the oven is working properly, turn o the power supply to

8. Place the cover on the junction box and make sure the

Leave these INSTALLATION instructions as well as the Operating Instructions with the owner.

From the oven

Move cooking mode knob to “BAKE” position.

start to blink.

(175 °C) and the preheat light stop to blink.

Move the knob back to “OFF” position to stop cooking.

Oven Controls” section of the USER MANUAL.

the oven.

cover is securely fastened and turn on the power to the oven.

+ 16 hidden pages
