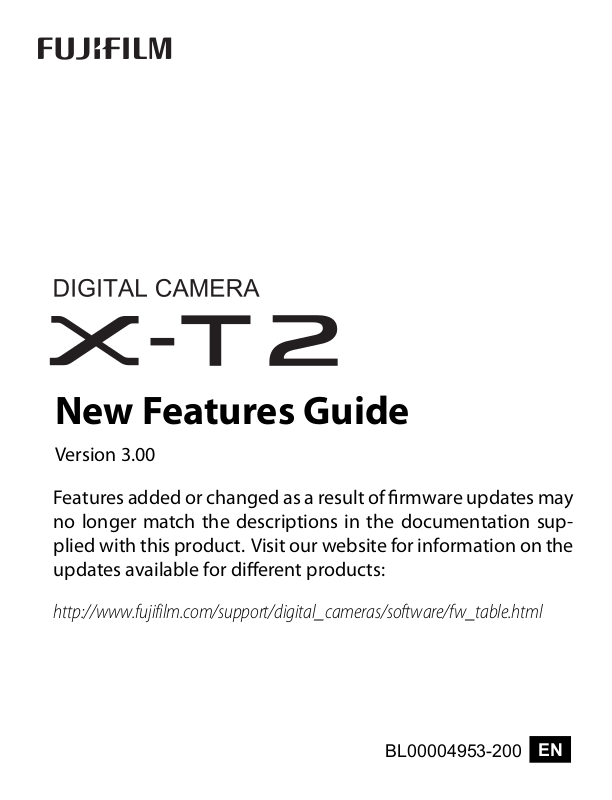

Fujifilm X-T2 User Manual
New Features Guide
Version 3.00
Features added or changed as a result of rmware updates may
no longer match the descriptions in the documentation supplied with this product. Visit our website for information on the
updates available for di erent products:
http://www.fujifilm.com/support/digital_cameras/software/fw_table.html
BL00004953-200
EN
Contents
1
2
3
4
5
6
The following changes or additions have been
made to features described in the X-T2 Version
2.10 owner’s manual.
X-T2
No. Description
To view separate RGB histograms and a display
showing areas of the frame that will be overex-
1
posed at current settings superimposed on the
view through the lens, press the function button
to which HISTOGRAM is assigned.
The focus stick can be used to change focus areas
2
when the display is zoomed in during checking
focus.
A histogram has been added to the photo in-
3
formation that can be displayed by pressing the
selector up during full-frame playback.
D CONNECTION SETTING> PC SHOOT
The
4
MODE option in the setup menu has changed to
PC CONNECTION MODE.
Third-party studio fl ash commanders compatible
5
with the FUJIFILM fl ash system can now be used.
In addition to the instax SHARE printers listed
6
in “Accessories from FUJIFILM”, the camera now
supports the SP-3.
The asterisks in the “Ver.” column indicate features available in
N
earlier versions; only the descriptions in the manual have been
changed.
See
P
P
22 1 3.00
83 2 *
175 3 3.00
247 4 3.00
265 6 3.00
307 7 3.00
Ver.
Changes and Additions
Changes and additions are as follows.
X-T2 (Version 2.10) Owner’s Manual: P 22
Customizing the Standard Display
Histograms
Histograms show the distribution of tones in the image. Brightness is
shown by the horizontal axis, the number of pixels by the vertical axis.
Number of
pixels
Shadows Highlights
Optimal exposure: Pixels are distributed in an
•
even curve throughout the tone range.
Overexposed: Pixels are clustered on the right
•
side of the graph.
Underexposed: Pixels are clustered on the left
•
side of the graph.
To view separate RGB histograms and a display showing areas of the frame that will be
overexposed at current settings superimposed on the view through the lens, press
the function button to which HISTOGRAM
is assigned.
Overexposed areas blink
A
RGB histograms
B
Pixel brightness
AB
1
