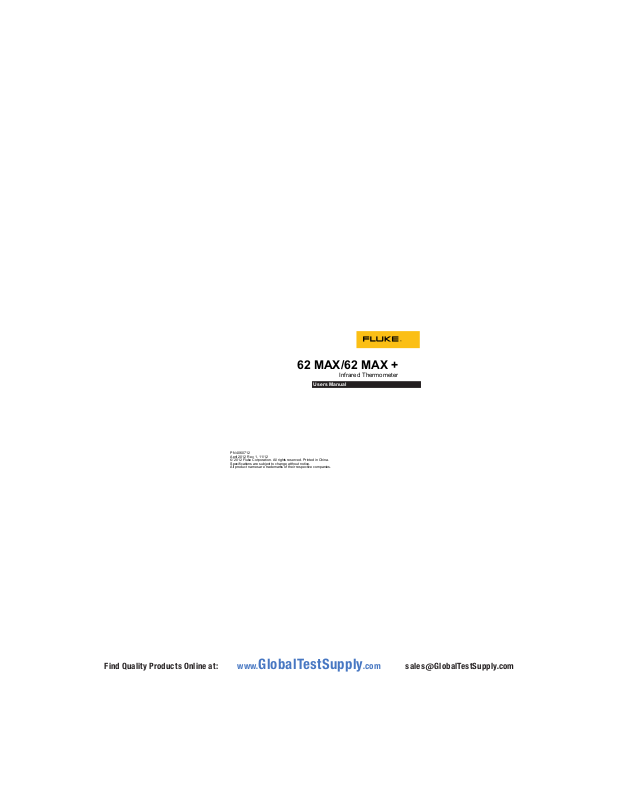

62 MAX/62 MAX +

Infrared Thermometer

Users Manual

PN 4060712
April 2012 Rev. 1, 11/12
© 2012 Fluke Corporation. All rights reserved. Printed in China.
Specifications are subject to change without notice.
All product names are trademarks of their respective companies.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

LIMITED WARRANTY AND LIMITATION OF LIABILITY

This Fluke product will be free from defects in material and workmanship for three
years from the date of purchase. This warranty does not cover fuses, disposable
batteries, or damage from accident, neglect, misuse, alteration, contamination, or
abnormal conditions of operation or handling. Resellers are not authorized to
extend any other warranty on Fluke’s behalf. To obtain service during the warranty
period, contact your nearest Fluke authorized service center to obtain return
authorization information, then send the product to that Service Center with a
description of the problem.

THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES, SUCH
AS FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR IMPLIED.
FLUKE IS NOT LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR
THEORY. Since some states or countries do not allow the exclusion or limitation of
an implied warranty or of incidental or consequential damages, this limitation of
liability may not apply to you.

11/99

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Table of Contents

Title Page

Introduction ................................................................................................................. 1

How to Contact Fluke ................................................................................................. 1

Safety Information ...................................................................................................... 2

Maintenance ............................................................................................................... 6

How to Change the Battery .................................................................................... 6

How to Clean the Product ...................................................................................... 6

Specifications ............................................................................................................. 7

Standards and Agency Approval ................................................................................ 9

The Product ................................................................................................................ 10

i

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

62 MAX/62 MAX +

Users Manual

ii

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Introduction

The Fluke 62 MAX and 62 MAX + Infrared Thermometers (the Product) can determine the
surface temperature by measuring the amount of infrared energy radiated by the target’s
surface. Note that the Japanese models indicate Celsius only.

Warning

Read all safety information before you use the Product.

How to Contact Fluke

To contact Fluke, call one of the following telephone numbers:

• Technical Support USA: 1-800-44-FLUKE (1-800-443-5853)

• Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)

• Canada: 1-800-36-FLUKE (1-800-363-5853)

• Europe: [phone]

• Japan: [phone]

• Singapore: [phone]

• Anywhere in the world: [phone]

1

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

62 MAX/62 MAX +

Users Manual

Or, visit Fluke's website at www.fluke.com.

To register your product, visit http://register.fluke.com.

To see, print, or download the latest manual supplement, visit

http://us.fluke.com/usen/support/manuals.

Safety Information

A Warning identifies conditions and procedures that are dangerous to the user. A Caution
identifies conditions and procedures that can cause damage to the Product or the equipment
under test.

Table 1 tells you about symbols used on the Product and in this manual.

Warning

To prevent eye damage and personal injury:

• Read all safety Information before you use the Product.

• Do not use the Product if it operates incorrectly.

• Use the Product only as specified, or the protection supplied by the

Product can be compromised.

• Before you use the Product, inspect the case. Do not use the Product if it

appears damaged. Look for cracks or missing plastic.

2

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Infrared Thermometer

Safety Information

• See emissivity information for actual temperatures. Reflective objects

result in lower than actual temperature measurements. These objects
pose a burn hazard.

• Do not look directly into the laser with optical tools (for example,

binoculars, telescopes, microscopes). Optical tools can focus the laser
and be dangerous to the eye.

• Do not look into the laser. Do not point laser directly at persons or

animals or indirectly off reflective surfaces.

• Replace the batteries when the low battery indicator shows to prevent

incorrect measurements.

• Do not use the Product around explosive gas, vapor, or in damp or wet

environments.

• Use the Product only as specified or hazardous laser radiation exposure

can occur.

3

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

62 MAX/62 MAX +

Users Manual

Table 1. Symbols

Symbol Meaning Symbol Meaning

This product complies with the
WEEE Directive (2002/96/EC)
marking requirements. The
affixed label indicates that you
must not discard this
electrical/electronic product in
domestic household waste.



4

Risk of danger. Important
information. See Manual.

Product Category: With
reference to the equipment types



in the WEEE Directive Annex I,
this product is classed as
category 9 "Monitoring and
Control Instrumentation” product.
Do not dispose of this product as
unsorted municipal waste. Go to
Fluke’s website for recycling
information.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Infrared Thermometer

Safety Information

Table 1. Symbols (cont.)

Symbol Meaning Symbol Meaning





Warning. Laser. 

Battery 

Conforms to China Metrology Certification

Conforms to European Union
directives.

Conforms to relevant Australian
standards.

5

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

62 MAX/62 MAX +

Users Manual

Maintenance

Caution

To avoid damage to the Product, do not leave the thermometer on or near
objects of high temperature.

How to Change the Battery

To install or change the AA IEC LR06 battery, open the battery compartment and replace the
battery as shown in Figure 16.

How to Clean the Product

Use soap and water on a damp sponge or soft cloth to clean the Product case. Carefully wipe
the surface with a moist cotton swab. The swab may be moistened with water. See Figure 17.

6

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Infrared Thermometer

Specifications

Specifications

Temperature Range

Accuracy
(Calibration geometry with
ambient temperature 23 °C
±2 °C)

Response Time (95 %) <500 ms (95 % of reading) <300 ms (95 % of reading)

Spectral Response 8 to 14 microns

Emissivity 0.10 to 1.00

Temperature Coefficient

-30 °C to 500 °C
(-22 °F to 932 °F)

≥0 °C: ±1.5 °C or ±1.5 % of
reading, whichever is
greater

(≥32 °F: ±3 °F or ±1.5 % of
reading, whichever is
greater)

≥ -10 °C to <0 °C: ±2 °C
(≥14 °F to <32 °F: ±4 °F)
< -10 °C: ±3 °C
(<14 °F: ±6 °F)

±0.1 °C/°C or ±0.1 %/°C of reading (whichever is greater)

62 MAX 62 MAX +

-30 °C to 650 °C
(-22 °F to 1202 °F)

≥0 °C: ±1 °C or ±1 % of
reading, whichever is
greater (≥32 °F: ±2 °F or
±1 % of reading, whichever
is greater)

≥ -10 °C to <0 °C: ±2 °C
(≥14 °F to <32 °F: ±4 °F)
< -10 °C: ±3 °C
(<14 °F: ±6 °F)

7

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

62 MAX/62 MAX +

Users Manual

Optical Resolution

Display Resolution

Repeatability (% of reading)

Power 1 AA IEC LR06 Battery

Battery Life

Weight 255 g (8.99 oz)

Size (175 x 85 x 75) mm (6.88 x 3.34 x 2.95) inches

Operating Temperature

Storage Temperature

Operating Humidity

Operating Altitude 2000 meters above mean sea level

Storage Altitude 12,000 meters above mean sea level

8

10:1
(calculated at 90 % energy)

0.1 °C (0.2 °F)
±0.8 % of reading or ±1.0 °C

(2 °F), whichever is greater

10 hours with laser and
backlight on

0 °C to 50 °C (32 °F to 122 °F)

-20 °C to 60 °C (-4 °F to 140 °F), (without battery)
10 % to 90 % RH non-condensing @ 30 °C (86 °F)

12:1
(calculated at 90 % energy)

±0.5 % of reading or ±0.5 °C
(1 °F), whichever is greater

8 hours with laser and
backlight on

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Infrared Thermometer

Standards and Agency Approval

Ingress Protection Rating IP 54 per IEC 60529

Drop Test 3 meters

Vibration and Shock

EMC EN 61326-1:2006 EN 61326-2:2006

IEC 60068-2-6 2.5 g, 10 to 200 Hz, IEC 60068-2-27, 50 g, 11
ms

Standards and Agency Approval

Compliance ............................................. EN/IEC 61010 -1

Laser Safety ............................................ EN 60825-1 Class 2

Implement Standard ............................... Q/SXAV37

9

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

62 MAX/62 MAX +

Users Manual

The Product

1 2

10

gtt01.eps

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Infrared Thermometer

The Product

3 4

/

5

56

Max/Min/Avg/Diff

gtt14.eps

11

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

62 MAX/62 MAX +

Users Manual

7

12

+

=

10 min

OFF

gtt16.eps

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Infrared Thermometer

The Product

0ºC

32ºF

8

10

30 Min

12

6

9

11

39

22ºC
72ºF

125°F

gtt15.eps

13

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

62 MAX/62 MAX +

Users Manual

12 13

38 mm @

300 mm

60 mm @

600 mm

100 mm @

900 mm

33 mm @

300 mm

50 mm @

600 mm

85 mm @

900 mm

14

1.5" @

2.4" @

12"

24"

62 MAX
D:S = 10:1

S

4" @

36"

D

1.4" @
12"

2" @

24"

D

S

3.4" @
36"

62 MAX +
D:S = 12:1

gtt08-11.eps

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Infrared Thermometer

The Product

14

70

21

gtt03.eps

15

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

62 MAX/62 MAX +

Users Manual

15

16

75°

225°

75°

gtt04.eps

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Infrared Thermometer

The Product

16 17

-

+

gtt13.eps
