Flowserve FRBHJC User Manual

®

These instructions must be read prior to installing,

®

Pump Division

Type: FRBHJC
VERTICAL CANTILEVER
CENTRIFUGAL PUMPS

USER INSTRUCTIONS:
INSTALLATION, OPERATION, MAINTENANCE

PCN=71569179 11-04

operating, using and maintaining this equipment.

FRBHJC USER INSTRUCTIONS ENGLISH 71569179 11-04

®

CONTENTS

PAGE

1 IN TRODUCTION AND SAFETY .........................4

1.1 General .......................................................4

1.2 CE marking and approvals ............................4

1.3 Disclaimer ...................................................4

1.4 Copyright.....................................................4

1.5 Duty conditions ............................................4

1.6 Safety .........................................................5

1.7 Nameplate and warning labels......................8

1.8 Specific machine performance......................9

1.9 Noise level ...................................................9

2 TRANSPORT AND STORAGE ......................... 10

2.1 Consignment receipt and unpacking............ 10

2.2 Handling.................................................... 10

2.3 Lifting ........................................................ 10

2.4 Storage .....................................................10

2.5 Recycling and end of product life ................ 11

3 PUMP DESCRIPTION...................................... 11

3.1 Configurations ........................................... 11

3.2 Name nomenclature................................... 11

3.3 Design of major parts ................................. 11

3.4 Performance and operating limits ................ 12

TABLE OF ENGINEERING DATA .....................13

MATERIALS OF CONSTRUCTION................... 17

6.5 Tools required............................................29

6.6 Fastener torques ........................................30

6.7 Renewal clearances ...................................30

6.8 Disassembly ..............................................30

6.9 Examination of parts ..................................31

6.10 Assembly.................................................31

6.11 Setting Impeller Clearance .........................34

7 FAULTS; CAUSES AND REMEDIES .................35

8 PARTS LIST AND DRAWINGS..........................38

8.1 FRBHJC Sectional drawing.........................38

8.5 General arrangement drawing.....................39

9 CERTIFICATION..............................................39

10 OTHER RELEVANT DOCUMENTATION AND

MANUALS....................................................39

10.1 Supplementary User Instruction manuals...39

10.2 Change notes ...........................................39

10.3 Additional sources of information ...............39

4 INSTALLATION................................................ 18

4.1 Location ....................................................18

4.2 Part assemblies .........................................18

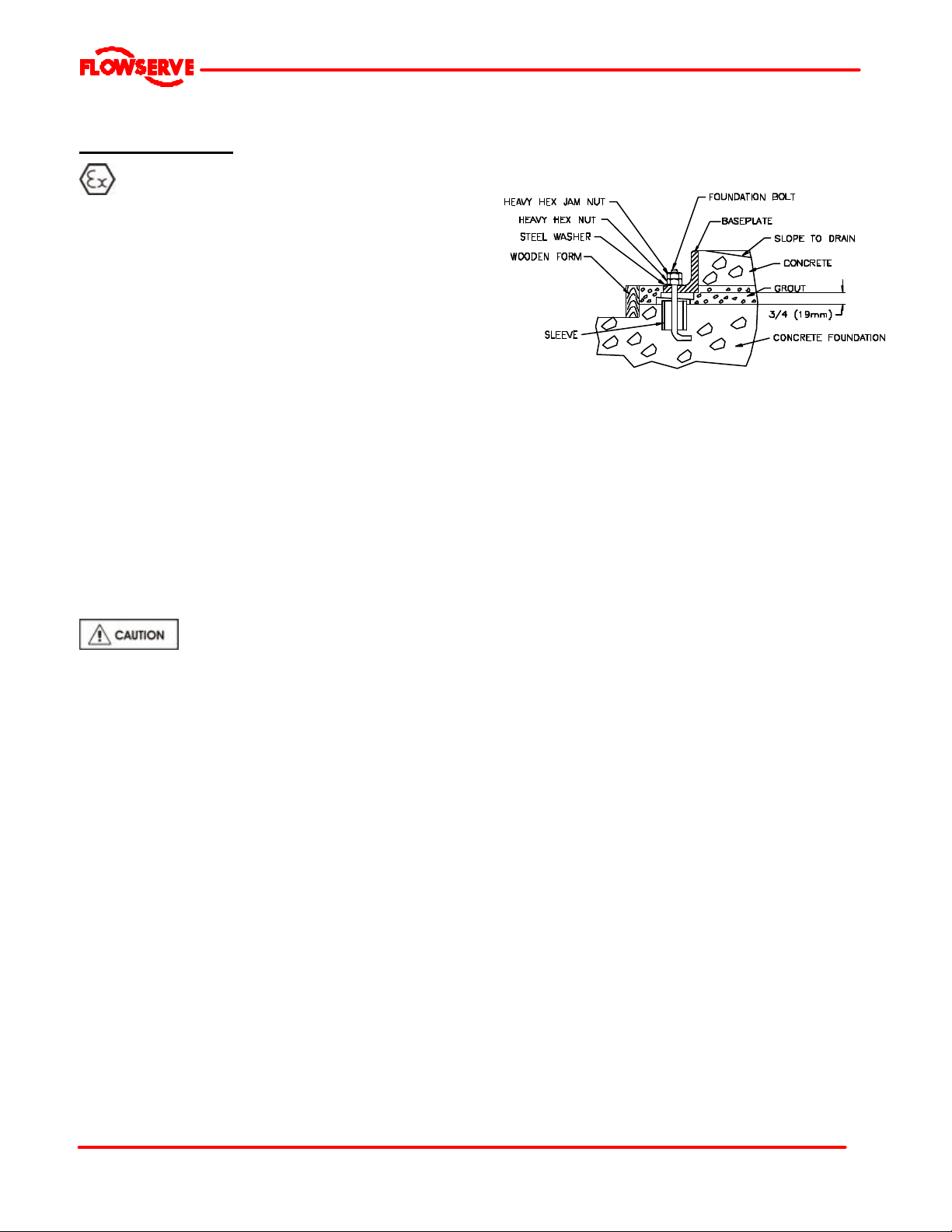

4.3 Foundation................................................ 18

4.4 Baseplate installation .................................18

4.5 Initial alignment.......................................... 19

4.6 Grouting .................................................... 21

4.7 Piping ........................................................ 21

4.8 Final shaft alignment check......................... 23

4.9 Electrical connections................................. 23

4.10 Protection systems ................................... 23

5 COMMISSIONING, STA RT-UP, OPERATION AND

SHUTDOWN................................................ 24

5.1 Pre-commissioning procedure .....................24

5.2 Pump lubricants......................................... 24

5.2 Pump lubricants......................................... 25

5.3 Direction of rotation .................................... 25

5.4 Guarding................................................... 25

5.5 Priming and auxiliary supplies..................... 25

5.6 Starting the pump....................................... 25

5.7 Running the pump ...................................... 26

5.8 Stopping and shutdown.............................. 26

5.9 Hydraulic, mechanical and electrical duty ....26

6 MAINTENANCE............................................... 27

6.1 General ..................................................... 27

6.2 Maintenance schedule ................................ 27

6.3 Spare parts ................................................ 29

6.4 Recommended spares and consumable items29

Page 2 of 36

FRBHJC USER INSTRUCTIONS ENGLISH 71569179 11-04

®

INDEX

PAGE
Alignment of shafting (see 4.5, 4.7 and 4.3) . 19,21,18

CE marking and approvals (1.2) ..............................4

Clearances (see 6.7, Renewal clearances) ............ 30

Commissioning and operation (see 5)................... 24

Configurations (3.1) .............................................11

Direction of rotation (5.3) ...................................... 25

Dismantling (see 6.8, Disassembly) ...................... 30

Duty conditions (1.5) ..............................................4

Electrical connections (4.8) ................................... 23

Examination of parts (6.9) .................................... 31

Faults; causes and remedies ................................ 34

General assembly drawings (see 8)...................... 37

Grouting (4.4) ...................................................... 21

Guarding (5.4) ..................................................... 25

Handling (2.2)...................................................... 10

Hydraulic, mechanical and electrical duty (5.9) ...... 26

Lifting (2.3) .......................................................... 10

Location (4.1) ...................................................... 18

Lubrication schedule (see 5.2, Pump lubricants).... 17

Maintenance schedule (6.2) ................................. 27

Piping (4.6) .......................................................... 21

Priming and auxiliary supplies (5.5)....................... 25

Reassembly (see 6.10, Assembly) ........................ 31

Replacement pa rts (see 6.3 and 6.4) .................... 29

Safety, protection systems (see 1.6 and 4.9) ......5,23

Sound level (see 1.9, Noise level) ...........................9

Specific machine performance (1.8) ........................9

Starting the pump (5.6) ......................................... 25

Stopping and shutdown (5.8) ................................ 26

Storage (2.4)....................................................... 10

Supplementary manuals or inform ation sources..... 38

Tools required (6.5) .............................................. 29

Torques for fasteners (6.6)................................... 30

Page 3 of 36

FRBHJC USER INSTRUCTIONS ENGLISH 71569179 11-04

®

1 INTRODUCTION AND SAFETY

1.1 General

These instructions must always be kept close

to the product's operating location or directly with
the product.

Flowserve's products are des igned, developed and
manufactured with state-of-the-art technologies in
modern facilities. The unit is produced with great care
and commitment to continuous quality control, utilising
sophisticated quality techniques, and safety
requirements.

We are committed to continuous quality improvement
and being at your service for any further information
about the product in its installation and operation or
about its support products, repair and diagnostic
services.

These instructions are intended to facilitate
familiarization with the product and its permitted use.
Operating the product in compliance with these
instructions is important to help ensure reliability in
service and avoid risks. The instructions may not take
into account local regulations; ensure such regulations
are observed by all, including those installing the
product. Always coordinate repair activity with
operations personnel, and follow all plant safety
requirements and applicable safety and health laws and
regulations.

These instructions must be read prior to

installing, operating, using and maintaining the
equipment in any region worldwide. The
equipment must not be put into service until all the
conditions relating to safety noted in the
instructions, have been met.

1.2 CE marking and approvals

It is a legal requirement that machinery and equipment
put into service within certain regions of the world shall
conform with the applicable CE Marking Directives
covering Machinery and, where applicable, Low
Voltage Equipment, Electromagnetic Compatibility
(EMC), Pressure Equipment Directive (PED) and
Equipment for Potentially Explosive Atmospheres
(ATEX).

Where applicable, the Directives and any additional
Approvals, cover important safety aspects relating to
machinery and equipment and the satisfactory
provision of technical documents and safety
instructions. Where applicable this document

incorporates information relevant to these Directives.
To establish approvals and if the product itself is CE
marked, check the serial number plate and the
Certification. (See section 9, Certification.)

1.3 Disclaimer

Information in these User Instructions is believed
to be reliable. In spite of all the efforts of Flowserve
Corporation to provide sound and all necessary
information the content of this manual may appear
insufficient and is not guaranteed by Flowserve as
to its completeness or accuracy.

Flowserve manufactures products to exacting
International Quality Management System Standards
as certified and audited by external Quality Assurance
organisations. Genuine parts and accessories have
been designed, tested and incorporated into the
products to help ensure their continued product quality
and performance in use. As Flowserve cannot test
parts and accessories sourced from other vendors the
incorrect incorporation of such parts and accessories
may adversely affect the performance and safety
features of the products. The failure to properly select,
install or use authorised Flowserve parts and
accessories is considered to be misuse. Damage or
failure caused by misuse is not covered by Flowserve's
warranty. In addition, any modification of Flowserve
products or removal of original components may impair
the safety of these products in their use.

1.4 Copyright

All rights reserved. No part of these instructions may
be reproduced, stored in a retrieval system or
transmitted in any form or by any means without prior
permission of Flowserve Pump Division.

1.5 Duty conditions

This product has been selected to meet the
specifications of your purchaser order. The
acknowledgement of these conditions has been sent
separately to the Purchaser. A copy should be kept
with these instructions.

The product must not be operated beyond the

parameters specified for the application. If there is
any doubt as to the suitability of the product for the
application intended, contact Flowserve for advice,
quoting the serial number.

If the conditions of service on your purchase order are
going to be changed (for example liquid pumped,
temperature or duty) it is requested that you/the user
seek our written agreement before start up.

Page 4 of 36

FRBHJC USER INSTRUCTIONS ENGLISH 71569179 11-04

®

1.6 Safety

1.6.1 Summary of safety markings

These user instructions contain specific safety
markings where non -observance of an instruction
would cause hazards. The specific safety markings
are:

This symbol indicates electrical safety
instructions where non -compliance would affect
personal safety.

This symbol indicates safety instructions where

non-compliance would affect personal safety.

This symbol indicates safety instructions where
non-compliance would affect protection of a safe life
environment.

This symbol indicates safety instructions
where non-compliance would affect the safe operation or
protection of the pump or pump unit.

This symbol indicates explosive atmosphere
zone marking according to ATEX. It is used in safety
instructions where non -compliance in the hazardous
area would cause the risk of an explosion.

This sign is not a safety symbol but indicates

an important instruction in the assembly process.

1.6.2 Personnel qualification and training

All personnel involved in the operation, installation,
inspection and maintenance of the unit must be
qualified to carry out the work involved. If the
personnel in question do not already possess the
necessary knowledge and skill, appropriate training and
instruction must be provided. If required the operator
may commission the manufacturer/supplier to provide
applicable training.

Always coordinate repair activity with operations and
health and safety personnel, and follow all plant safety
requirements and applicable safety and health laws
and regulations.

1.6.3 Safety action

This is a summary of conditions and actions to
prevent injury to personnel and damage to the
environment and to equipment. (For products used
in potentially explosive atmospheres section 1.6.4
also applies.)

PREVENT EXCESSIVE EXTERNAL

PIPE LOAD

Do not use pump as a support for piping. Do not mount
expansion joints, unless allowed by Flowserve in
writing, so that their force, due to internal pressure, acts
on the pump flange.

ENSURE CORRECT LUBRICATION
(See section 5, Commissioning, startup, operation and
shutdown.)

START THE PUMP WITH OUTLET
VALVE PART OPENED
(Unless otherwise instructed at a specific point in the
user instructions.)
This is recommended to minimize the risk of
overloading and damaging the pump motor at full or
zero flow. Pumps may be started with the valve further
open only on installations where this situation cannot
occur. The pump outlet control valve may need to be
adjusted to comply with the duty following the run-up
process. (See section 5, Commissioning start -up,
operation and shutdown.)

NEVER RUN THE PUMP DRY

INLET VALVES TO BE FULLY OPEN
WHEN PUMP IS RUNNING
Running the pump at zero flow or below the
recommended minimum flow continuously will cause
damage to the seal.

DO NOT RUN THE PUMP AT
ABNORMALLY HIGH OR LOW FLOW RATES
Operating at a flow rate higher than normal or at a flow
rate with no back pressure on the pump may overload
the motor and cause cavitation. Low flow rates may
cause a reduction in pump/bearing life, overheating of
the pump, instability and cavitation/ vibration.

NEVER DO MAINTENANCE WORK

WHEN THE UNIT IS CONNECTED TO POWER

HAZARDOUS LIQUIDS
When the pump is handling hazardous liquids care
must be taken to avoid exposure to the liquid by
appropriate siting of the pump, limiting personnel
access and by operator training. If the liquid is
flammable and/or explosive, strict safety procedures
must be applied.

Gland packing must not be used when pumping
hazardous liquids.

DRAIN THE PUMP AND ISO LATE PIPEWORK
BEFORE DISMANTLING THE PUMP
The appropriate safety precautions should be taken
where the pumped liquids are hazardous.

Page 5 of 36

FRBHJC USER INSTRUCTIONS ENGLISH 71569179 11-04

®

FLUORO -ELASTOMERS (When fitted.)
When a pump has experienced temperatures over 250
ºC (482 ºF), partial decomposition of fluoro-elastomers
(eg Viton) will occur. In this condition these are
extremely dangerous and skin contact must be
avoided.

HANDLING COMPONENTS
Many precision parts have sharp corners and the
wearing of appropriate safety gloves and equipment is
required when handling these components. To lift
heavy pieces above 25 kg (55 lb) use a crane
appropriate for the mass and in accordance with
current local regulations.

GUARDS MUST NOT BE REMOVED WHILE
THE PUMP IS OPERATIONAL

THERMAL SHOCK
Rapid changes in the temperature of the liquid within
the pump can cause thermal shock, which can result in
damage or breakage of components and should be
avoided.

NEVER APPLY HEAT TO REMOVE IMPELLER
Trapped lubricant or vapour could cause an explosion.

HOT (and cold) PA RTS
If hot or freezing components or auxiliary heating
supplies can present a danger to operators and
persons entering the immediate area action must be
taken to avoid accidental contact. If complete
protection is not possible, the machine access must be
limited to maintenance staff only, with clear visual
warnings and indicators to those entering the
immediate area. Note: bearing housings must not be
insulated and drive motors and bearings may be hot.

If the temperature is greater than 68 °C (175 °F) or
below 5 °C (20 °F) in a restricted zone, or exceeds
local regulations, action as above shall be taken.

1.6.4 Products used in potentially explosive
atmospheres

Measures are required to:

• Avoid excess temperature

• Prevent build up of explosive mixtures

• Prevent the generation of sparks

• Prevent leakages

• Maintain the pump to avoid hazard

The following instructions for pumps and pump units
when installed in potentially explosive atmospheres
must be followed to help ensure explosion protec tion.

Both electrical and non-electrical equipment must meet
the requirements of European Directive 94/9/EC.

1.6.4.1 Scope of compliance

Use equipment only in the zone for which it is
appropriate. Always check that the driver, drive coupling
assembly, seal and pump equipment are suitably rated
and/or certified for the classification of the specific
atmosphere in which they are to be installed.

Where Flowserve has supplied only the bare shaft
pump, the Ex rating applies only to the pump. The party
responsible for assembling the pump set shall select the
coupling, driver and any additional equipment, with the
necessary CE Certificate/ Declaration of Conformity
establishing it is suitable for the area in which it is to be
installed.

The output from a variable frequency drive (VFD) can
cause additional heating affects in the motor and so, for
pumps sets with a VFD, the ATEX Certification for the
motor must state that it is covers the situation where
electrical supply is from the VFD. This particular
requirement still applies even if the VFD is in a safe
area.

1.6.4.2 Marking

An example of ATEX equipment marking is shown
below. The actual classification of the pump will be
engraved on the nameplate.

II 2 GD c IIC 135 ºC (T4)

Equipment Group
I = Mining
II = Non -mining

Category
2 or M2 = High level protection
3 = normal level of protection

Gas and/or Dust
G = Gas; D= Dust

c = Constructional safety
(in accordance with En13463 -5)

Gas Group (Equipment Category 2 only)
IIA – Propane (typical)
IIB – Ethylene (typical)
IIC – Hydrogen (typical)

Maximum surface temperature (Temperature Class)
(See section 1.6.4.3.)

Page 6 of 36

FRBHJC USER INSTRUCTIONS ENGLISH 71569179 11-04

®

1.6.4.3 Avoiding excessive surface temperatures

ENSURE THE EQUIPMENT TEMPERATURE

CLASS IS SUITABLE FOR THE HAZARD ZONE
Pumps have a temperature class as stated in the ATEX

Ex rating on the nameplate. These are based on a
maximum ambient of 40 °C (104 °F); refer to Flowserve
for higher ambient temperatures.

The surface temperature on the pump is influenced by
the temperature of the liquid handled. The maximum
permissible liquid temperature depends on the
temperature class and must not exceed the values in
the table that follows.

The temperature rise at the seals and bearings and due
to the minimum permitted flow rate is taken into
account in the temperatures stated.

Temperature

class to

EN 13463-1

T6
T5
T4
T3
T2
T1

Maximum

surface

temperature

permitted

85 °C (185 °F)

100 °C (212 °F)
135 °C (275 °F)
200 °C (392 °F)
300 °C (572 °F)
450 °C (842 °F)

Temperature limit of liquid

handled (* depending on

material and construction

variant - check which i s lower)

Consult Flowserve

Consult Flowserve
115 °C (239 °F) *
180 °C (356 °F) *
275 °C (527 °F) *
400 °C (752 °F) *

The responsibility for compliance with the specified
maximum liquid temperature is with the plant
operator.

Temperature classification “Tx” is used when the liquid
temperature varies and when the pump is required to be
used in differently classified potentially explosive
atmospheres. In this case the user is responsible for
ensuring that the pump surface temperature does not
exceed that permitted in its actual installed location.

If an explosive atmosphere exists during the
installation, do not attempt to check the direction of
rotation by starting the pump unfilled. Even a short run
time may give a high temperature resulting from
contact between rotating and stationary components.

Where there is any risk of the pump being run against a
closed valve generating high liquid an d casing external
surface temperatures it is recommended that users fit an
external surface temperature protection device.

Avoid mechanical, hydraulic or electrical overload by
using motor overload trips, temperature monitor or a

power monitor and make routine vibration monitoring
checks.

In dirty or dusty environments, regular checks must be
made and dirt removed from areas around close
clearances, bearing housings and motors.

1.6.4.4 Preventing the build up of explosive
mixtures

ENSURE THE PUMP IS PROPERLY FILLED

AND VENTED AND DOES NOT RUN DRY
Ensure the pump and relevant suction and discharge

pipeline system is totally filled with liquid at all times
during the pump operation, so that an explosive
atmosphere is prevented. In addition it is essential to
make sure that seal chambers, auxiliary shaft seal
systems and any heating and cooling systems are
properly filled.

If the operation of the system cannot avoid this
condition the fitting of an appropriate dry run protection
device is recommended (eg liquid detection or a power
monitor).

To avoid potential hazards from fugitive emissions of
vapour or gas to atmosphere the surrounding area
must be well ventilated.

1.6.4.5 Preventing sparks

To prevent a potential hazard from mechanical
contact, the coupling guard must be non -sparking and
anti-static for Category 2.

To avoid the potential hazard from random induced
current generating a spark, the earth contact on the
baseplate must be used.

Avoid electrostatic charge: do not rub non -metallic
surfaces with a dry cloth; ensure cloth is damp.

The coupling must be selected to comply with 94/9/EC
and correct alignment must be maintained.

1.6.4.6 Preventing leakage

The pump must only be used to handle liquids for
which it has been approved to have the correct
corrosion resistance.

Avoid entrapment of liquid in the pump and associated
piping due to closing of suction and discharge valves,
which could cause dangerous excessive pressures to

Page 7 of 36

FRBHJC USER INSTRUCTIONS ENGLISH 71569179 11-04

WARNING

WARNING

®

occur if there is heat input to the liquid. This can occur
if the pump is stationary or running.

Bursting of liquid containing parts due to freezing must
be avoided by draining or protecting the pump and
ancillary systems.

Where there is the potential hazard of a loss of a seal
barrier fluid or external flush, the fluid must be

To avoid potential explosion hazards during
maintenance, the tools, cleaning and painting materials
used must not give rise to sparking or adversely affect
the ambient conditions. Where there is a risk from
such tools or materials, maintenance must be
conducted in a safe area.

It is recommended that a maintenance plan and
schedule is adopted. (See section 6, Maintenance.)

monitored.
If leakage of liquid to atmosphere can result in a

hazard, the installation of a liquid detection device is
recommended.

1.6.4.7 Maintenance to avoid the hazard

CORRECT MAINTENANCE IS REQUIRED TO
AVOID POTENTIAL HAZARDS WHICH GIVE A RISK
OF EXPLOSION

The responsibility for compliance with maintenance
instructions is with the plant operator.

1.7 Nameplate and warning labels

1.7.1 Nameplate

For details of nameplate, see the Declaration of Conformity.

1.7.2 Warning labels

BEFORE STARTING THE PUMP ON SERVICE,

CHECK TO ENSURE CORRECT ROTATION OF

MOTOR. FAILURE TO DO THIS COULD RESULT

IN SERIOUS DAMAGE TO THE EQUIPMENT.

ROTATION WARNING
P/N 2113932-001

BEFORE GROUTING, REALIGN THIS UNIT.

RECHECK ALIGNMENT BEFORE STARTING,

FAILURE TO DO THIS COULD RESULT IN
SERIOUS DAMAGE TO THE EQUIPMENT.

REFER TO INSTALLATION MANUAL AND, OR

COUPLING INSTRUCTIONS FOR METHOD OF

CHECKING ALIGNMENT.

GROUT WARNING
P/N 2113934-001

Page 8 of 36

FRBHJC USER INSTRUCTIONS ENGLISH 71569179 11-04

®

1.8 Specific machine performance

For performance parameters see section 1.5, Duty
conditions. When the contract requirement specifies

these to be incorporated into User Instructions these
are included here. Where performance data has been
supplied separately to the purchaser these should be
obtained and retained with these User Instructions if
required.

1.9 Noise level

When pump noise level exceeds 85 dBA attention must
be given to prevailing Health and Safety Legislation, to
limit the exposure of plant operating personnel to the
noise. The usual approach is to control exposure time
to the noise or to enclose the machine to reduce
emitted sound. You may have already specified a
limiting noise level when the equipment was ordered,
however if no noise requirements were defined then
machines above a certain power level will exceed 85
dBA. In such situations consideration must be given to
the fitting of an acoustic enclosure to meet local
regulations.

FRBH pump size Sound Pressure

dBA @ 1 m (3 ft)

2 FRBH -121 75 89 1780
3 FRBH -121 75 89 1780
3 FRBH -101 75 89 1780
3 FRBH -141 77 91 1780
4 FRBH -111 77 91 1780
4 FRBH -141 78 92 1780
6 FRBH -111 80 93 1780
6 FRBH -142 81 95 1780
8 FRBH -182 83 98 1180
8 FRBH -152 85 99 1780

10 FRBH -182 85 99 1180

6FRBH-183 85 100 1780
8FRBH-183 86 101 1780

Pump noise level is dependent on a number of factors ­the type of motor fitted, the operating capacity,
pipework design and acoustic characteristics of the
building. The levels specified in the table below are
estimated and not guaranteed.

The dBA values are based on the noisiest ungeared
electric motors that are likely to be encountered. They
are Sound Pressure levels at 1 m (3.3 ft) from the
directly driven pump, for "free field over a reflecting
plane". For Estimating Lwa sound power level (re 1pW)
add 14Dba to the sound pressure value.

If a pump unit only has been purchased, for fitting with
your own driver, then the "pump only" noise levels from
the table should be combined with the level for the
driver obtained from the supplier. If the motor is driven
by an inverter, it may show an increase in noise level at
some speeds. Consult a Noise Specialist for the
combined calculation.

& For units driven by equipment other than

electric motors or units contained within enclosures,
see the accompanying information sheets and
manuals.

Sound Power

dBA

Pump speed -rpm

Page 9 of 36

FRBHJC USER INSTRUCTIONS ENGLISH 71569179 11-04

®

2 TRANSPORT AND STO RAGE

2.1 Consignment receipt and unpacking

Immediately after receipt of the equipment it must be
checked against the delivery/shipping documents for its
completeness and that there has been no damage in
transportation. Any shortage and/or damage must be
reported immediately to Flowserve Pump Division and
must be received in writing within one month of receipt
of the equipment. Later claims cannot be accepted.

Check any crate, boxes or wrappings for any
accessories or spare parts that may be packed
separately with the equipment or attached to side walls
of the box or equipment.

Each product has a unique serial number. Check that
this number corresponds with that advised and always
quote this number in correspondence as well as when
ordering spare parts or further accessories.

2.2 Handling

Boxes, crates, pallets or cartons may be unloaded
using fork -lift vehicles or slings dependent on their size
and construction.

The pump should be lifted with suitably sized and
located slings. Do not use the shaft for lifting and take
special care to prevent the pump from rotating in the
slings due to unbalanced weight distribution.

2.3 Lifting

A crane must be used for all pump sets in excess
of 25 kg (55 lb). Fully trained personnel must carry out
lifting, in accordance with local regulations. The driver
and pump weights are recorded on their respective
nameplates or massplates.

2.4 Storage

2.2.1 Short- Term Storage

When it is necessary to store a pump for a short time
before it can be installed, place it in a dry, cool location.
Protect it thoroughly from moisture and condensation.
Protective flange covers should not be removed until
the pump is being installed.

Wrap the exposed portions of the shaft and coupling to
protect against sand, grit or other foreign matter. Oil
lubricated units should be lubricated (refer to Section
III) to protect the bearings. Grease lubricated units are
lubricated at the factory during assembly. Turn the

rotor over by hand at least once a week to maintain a
protective film on the bearing components.

2.4.2 LONG-TERM STORAGE
More than precautions are required if long-term storage
in excess of 90 days from factory shipment is
unavoidable.

The internal surfaces of the pump should be sprayed
with a rust preventative such as a water soluble oil or
other suitable alternative. Particular attention should
be given to the impeller, wear plate and stuffing box.

An optional method of protection is to suspend bags of
desiccant material inside casing and completely seal all
openings from the surrounding atmosphere. The
stuffing box should be packed with clean. dry rags.
Use of this method requires that the casing be initially
free of liquid. The desiccant material should be
checked at regular intervals to ensure that it has not
absorbed excessive water vapour. A warning
instruction, advising that the desiccant must be
removed prior to installation should be wired to the
pump.

A rust inhibitor should be added to the lubricating oil of
oil lubricated units to give additional protection without
destroying the lubricating properties of the oil. For
specific recommendations, consult your lubrication
dealer. Grease lubricated units, which can be identified
by the grease fitting at each bearing location, should be
well lubricated prior to placing in storage. Small
amounts of additional grease should be added at
regular intervals during storage. Refer to Section III for
additional information related to grease lubrication.

Storage of pumps in areas of high ambient vibration
should be avoided to prevent bearing damage due to
brinelling. The risk of such damage can be reduced by
frequent rotation of the shaft.

The pump half coupling and key should be removed
from the shaft, coated with rust preventative and
wrapped to prevent metal-to-metal contact. Exposed
surfaces of the pump shaft should be protected with a
rust preventative. All dismantled parts should be
wrapped and tagged according to pump serial number
and a record kept of their location.

Pumps covered with plastic should

not be stored in a cool environment because
resulting condensation can cause rusting.

Page 10 of 36

FRBHJC USER INSTRUCTIONS ENGLISH 71569179 11-04

®

2.5 Recycling and end of product life

At the end of the service life of the product or its parts,
the relevant materials and parts should be recycled or
disposed of using an environmentally acceptable
method and in accordance with local regulations. If the
product contains substances that are harmful to the
environment, these should be removed and disposed of
in accordance with current local regulations. This also
includes the liquids and/or gases that may be used in
the "seal system" or other utilities.

Make sure that hazardous substances are
disposed of safely and that the correct personal
protective equipment is used. The safety specifications
must be in accordance with the current local
regulations at all times.

3 PUMP DESCRIPTION

3.1 Configurations

Flowserve "FRBH" pumps are single stage, end
suction centrifugal pumps specifically designed for the
pulp and paper industry and consequently are ideally
suited to many process fluids. A volute type casing
with integrally cast feet and top centerline discharge
nozzle is standard. The semi-open impeller with rear
pump-out vanes is capable of passing pulpy material
and solids of a limited size. A rigid steel sump cover
plate supports the pump and drive system. The three
point thrust bearing housing support permits precision
bearing alignment and impeller clearance setting.

The pump liquid end is fitted with a non -flush restriction
bushing that also acts as a bearing for start-up
conditions.

All pumps are carefully inspected and prepared for
shipment. All exterior machined surfaces are coated
with a rust preventative compound and openings are
provided with covers or plugs. The axial impeller
running clearance is preset at the factory but should be
checked prior to final alignment in case of tampering.

3.2 Name nomencl ature

The pump size will be engraved on the nameplate. The
following example explains how the pump name
identifies the construction features and options.

8FRBH-182

Nominal discharge branch size.
Configuration – see below.
Nominal maximum impeller diameter.
Frame size

JC is added for vertical cantilever

3.3 Design of major parts

3.3.1 Pump casing

The pump casing is a volute type casing with integrally
cast feet (for horizontal configuration) and centerline
discharge nozzle. It is a one piece pressure retaining
casting with gasket connections to the stuffing box
head and the suction and discharge flanges.

3.3.2 Impeller

The impeller is semi-open design, keyed to the shaft
and secured with a contoured impeller nut.

3.3.3 Shaft

The large diameter stiff shaft, mounted on bearings,
has a keyed drive end.

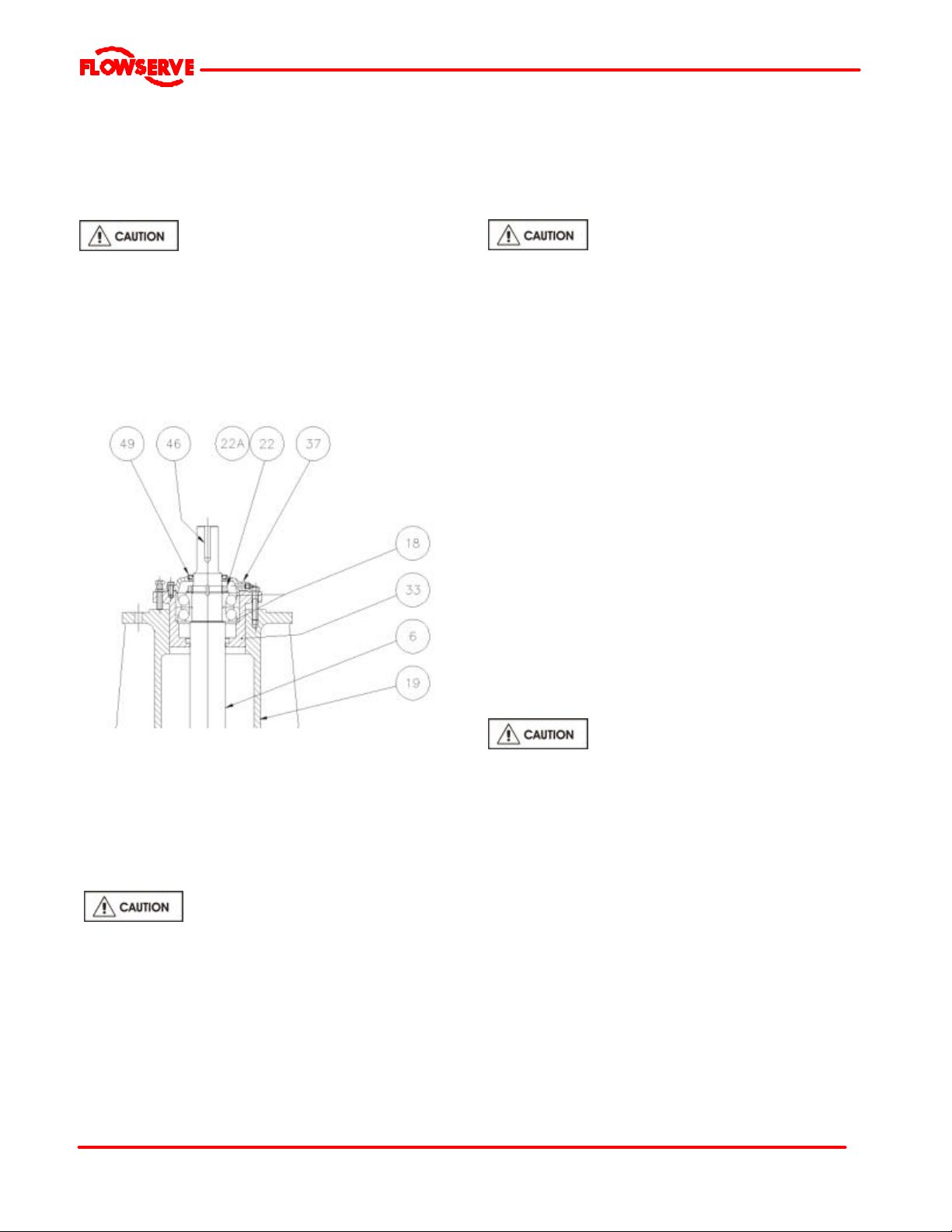

3.3.4 Pump bearings and lubrication

Ball bearings are fitted as standard and grease
lubricated. The inboard bearing located just above the
top plate is pregreased and is sealed for life. Greasing
if necessary will only be required for the lip seal that
seals the bearing housing. The outboard bearing cover
has a grease fitting accessible through the motorstand.

3.3.5 Stuffing box housing

The stuffing box or lower housing has a spigot (rabbet)
fit between the pump casing and bearing housing for
optimum concentricity. The design enables a number
of sealing options to be fitted for horizontal
configuration.

Page 11 of 36

FRBHJC USER INSTRUCTIONS ENGLISH 71569179 11-04

®

3.3.6 Driver

The driver is normally an electric motor driving via
couplings, belts, gearboxes, drive shafts etc.

3.3.7 Accessories

Accessories may be fitted when specified by the
customer.

3.4 Performance and operating limits

This product has been selected to meet the
specifications of your purchase order see section 1.5.
The following data is included as additional information
to help with your installation. It is typical, and factors
such as temperature, materials, and seal type may
influence this data. If required, a definitive statement
for your particular application can be obtained from
Flowserve.

3.4.3 MAXIMUM WORKING PRESSURES -bar (psi).

3.4.1 Operating limits

Pumped liquid temperature limits up to+177 ºC (350 ºF)
Maximum ambient temperature up to +50 ºC (122 ºF)
Maximum soft solids in suspension up to 7 % by volume
Maximum pump speed Refer to the nameplate

3.4.2 Speed torque curves

To bring a centrifugal pump up to rated speed, the
driver must be capable of providing more torque at
each speed than required by the pump. The margin
between the available and required torque affects the
time it takes the unit to reach full speed. If the torque
required by the pump exceeds the torque capability of
the drive at any run -up speed, the unit will not
accelerate to full speed. Normally, this is not a problem
with standard induction or synchronous motors
provided the proper voltage is supplied at the motor.

For pumps started at shut valve conditions, 100 percent
full speed torque can be calculated by usin g the
formula:

Torque (Nm) = 9545 Shutoff Power (kW)
r/min

Torque (lbfx ft) = 5250 Shutoff Power (hp)
r/min

Torque required by the pump at any other speed during
start-up can be determined from the curve above. Note
that the driver manufacturer usually bases 100 percent
torque on the design power of the driver and
consequently the speed-torque curves should be
plotted in torque units (e.g. Nm) instead of percentage
torque to avoid confusion.

CONSTRUCTION

TEMPERATURE

-30 to 38 (-20 to100) 10.3 (150) 10.3 (150) 6.2 (90) 13.8 (200) 8.3 (120)

O

C ( OF)

65 (150) 10.3 (150) 9.7 (140) 6.2 (90) 13.8 (200) 8.3 (120)

95 (200) 10.3 (150) 9.3 (135) 6.2 (90) 13.4 (195) 8.3 (120)
120 (250) 10.3 (150) 9.0 (130) 6.2 (90) 12.6 (185) 8.3 (120)
150 (300) 12.1 (175) 8.3 (120)
175 (350)

UP TO 12”

DISCHARGE

CONSULT FACTORY FOR APPLICATIONS IN THIS RANGE.

CASTIRON NOT RECOMMENDED DUE TO THERMAL SHOCK RISKS.

CAST IRON AND C.I.S.S. FITTED

14 TO 16”

DISCHARGE

18 TO 20”

DISCHARGE

STAINLESS STEEL

316,317L, WORTHITE, ETC.

UP TO 16”

DISCHARGE

11.0 (160) 7.6 (110)

18 TO 20”

DISCHARGE

Page 12 of 36

FRBHJC USER INSTRUCTIONS ENGLISH 71569179 11-04

®

TABLE OF ENGINEERING DATA

(FRAMES 1 & 2 - LIQUID END)

ENGINEERING DATA

PUMP DATA

SUCTION DIA. mm
(in.)
DISCHARGE DIA. mm
(in.)
CASING

C.I. 11.2
THICKNESS mm (in.)
CASING

S.S. 9.7
THICKNESS mm (in.)
CASING TYPE SV - SINGLE VOLUTE DV SV DV
GAUGE CONNECTION 1 / 4 NPT 1 / 2 NPT
DRAIN CONNECTION 3 / 8 NPT 1 / 2 NPT 3 / 4 NPT 1” NPT
NO. OF VANES 4
IMP. EYE AREA cm2
(in.2)
MAX. SPHERE DIA. mm
(in.)

2

WK

kg x m2
( lb x ft2)
*PUMP WEIGHT kg
(lb.)

IMPELLER AXIAL
CLEARANCE mm (in.)
MAXIMUM
TEMPERATURE

MAX. HYDRO C.I. 12.1 bar (175 psi) 15.5 bar (225 psi)
PRESSURE S.S. 20.7 bar (300 psi) 20.7 bar (300 psi)
