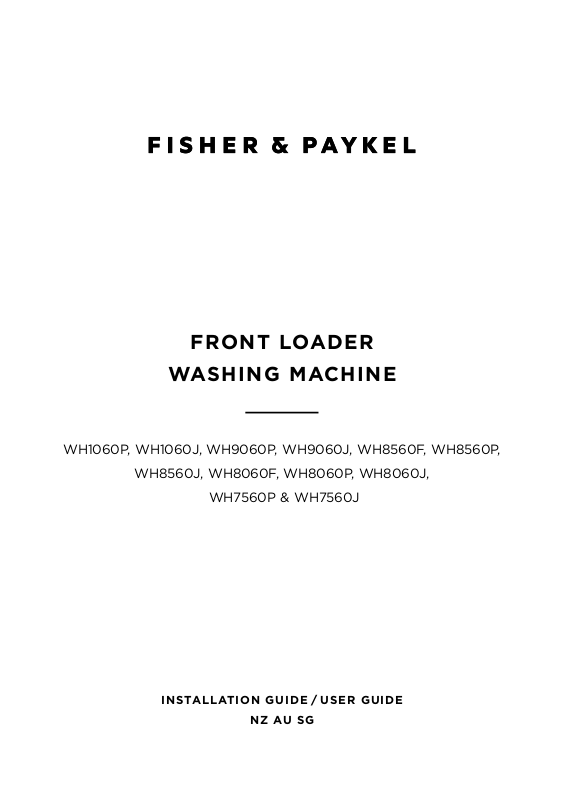

FRONT LOADER
WASHING MACHINE
WH1060P, WH1060J, WH9060P, WH9060J, WH8560F, WH8560P,
WH8560J, WH8060F, WH8060P, WH8060J,
WH7560P & WH7560J
INSTALLATION GUIDE/USER GUIDE
NZ AU SG
CONTENTS
Safety and warnings 5
Installation guide 7
Before your first wash 15
Safety features 16
Control panel 18
Wash cycles 22
Detergent and softener 27
Where to put the detergent 28
Wash preparation 31
Getting started quickly 32
Wash cycle options 34
Customising a wash cycle 41
Changing pre-set options 43
Caring for your washer 45
Before you call for service 50
Fault codes 52
Troubleshooting 53
Manufacturer’s warranty 59
Customer care 61
Registration
To register your product visit our website: fisherpaykel.com/register
3
SAFETY AND WARNINGS
!
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electric shock or death.
• If you are using an extension cord or a portable
electrical outlet device (eg multi-socket outlet
box), ensure that it is positioned so that it does
not come into contact with water or moisture.
READ AND SAVE THIS GUIDE
When using your clothes washer, follow basic precautions, including thefollowing:
General
z
This product has been designed for personal, family or household use. This product is
not designed for any commercial use. Any commercial use will terminate this product’s
manufacturer’s warranty.
z
A damaged power cord must be replaced by a Fisher & Paykel trained and supported
service technician or similarly qualified person in order to avoid a hazard. Do not use
the appliance until it has been repaired to avoid a risk of electric shock.
z
Do not operate this machine if it has been damaged during transport. Contact your
Fisher & Paykel dealer or Fisher & Paykel trained and supported service technician.
z
This clothes washer is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge,unless they are supervised or given instructions on how to use the
washerby someone responsible for their safety.
z
Keep children away from the washer while it is in operation.
z
Supervise children to ensure they do not play with the washer or climb inside thedrum.
z
The washer should only be used for washing and rinsing of textiles where this
isindicated on the care label.
z
Do not add petrol, dry-cleaning solvents, or other flammable or explosive substances to
the wash water. These substances give off vapours that could ignite or explode.
z
Do not wash articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive
substances as they give off vapours that could ignite or explode.
z
The door will be locked from the start of the cycle until the cycle is complete for safety
reasons. It is possible to open the door during the cycle under certain conditions. Never
force the door open.
z
Do not touch the door during a cycle as the door can become hot.
z
When 90°C temperature is selected, the door glass will become hot. Do not touch the
glass part of the door. Keep children away from the washer.
z
Do not touch or operate the machine with wet hands or with bare-feet.
z
Do not open the detergent dispenser during the cycle as hot water may come outofit.
z
Ensure the installation provides accessibility to the plug or incorporate a switch in the
fixed wiring in accordance with the wiring rules to allow disconnection of the appliance
from the supply after installation.
5
SAFETY AND WARNINGS
z
Read and follow the detergent manufacturers’ instructions carefully. Instructions on
how to use the detergent will be clearly indicated on the pack. Remember to store your
detergents out of the reach of children.
z
Do not wash an electric blanket in your washer unless the care label specifically states
it is safe to do so.
z
Do not wash curtains in this washer, as sunlight makes them brittle and they may
disintegrate during washing.
z
The only user-removable parts of the washer are the inlet hose(s), dispenser and
pump filter. No other parts are designed to be removed by anyone other than a
Fisher&Paykel trained and supported service technician.
z
Do not overload your washing machine beyond its rated capacity.
MODEL CODE MAXIMUM CAPACITY* (KG)
WH7560P, WH7560J 7.5
WH8060F, WH8060P, WH8060J 8.0
WH8560F, WH8560P, WH8560J 8.5
WH9060J, WH9060P 9.0
WH1060P, WH1060J 10.0
*Capacity refers to the maximum dry weight of items the washer can wash at any one time
Installation
z
For guidance on how to install your product, please refer to ‘Installation guide’
contained in this document.
z
Install the machine on a solid and level floor surface ensuring it has at least 20mm
clearance on each side. The washer must not be installed on any textured floor
coverings (eg carpet, rugs).
z
This washer must not be installed or operated on a plinth.
Water supply requirements
z
Inlet water pressure: Max. 1MPa (145psi), Min. 30kPa (4.5psi)
z
Inlet water flow rate: Min. 6litres/minute
z
A pressure-reducing valve must be installed if pressure is higher than 1MPa.
z
For optimum wash performance check the supply pressure is within the
recommendedrange.
z
New hose sets provided with the washer should be used to connect the washer to the
water mains. Old hose sets should not be re-used.
z
We recommend the inlet hose(s) are changed every five years. WARNING: Failure to do
so may result in a flood and damage to property.
z
The hot water temperature should not exceed 65°C and the cold water temperature
should not exceed35°C. Temperatures above these may cause the machine to fault or
cause damage to the machine.
Disposal
z
When disposing of the washer, it is recommended that the door is removed to
avoidchildren getting trapped inside, and that the electrical cable is cut off close to
thewasher.
6
INSTALLATION GUIDE
Accessories
Check if you received the following accessories with your Fisher&Paykel washer. Youwill
find them inside the drum or attached to the packaging.
z
1 x hot inlet hose (grey with red connectors) for WH8560F, WH8560P2, WH8060F,
WH8060P2 and WH7560P
z
1 x cold inlet hose (grey with white connectors) for all models.
z
4 x Plastic plugs to cover transit bolt holes
z
1 x Drain hose guide
Unpacking
Your washer is heavy, we recommend two people to remove the packaging.
To ensure the best performance from your new washer please follow the steps below before
using your washer.
1 Remove the outer packaging including the polystyrene
packer and plastic wrapping.
2 Lift the washer off the base.
3 Remove all packaging and accessories from inside the
drum.
4 Dispose of all packaging sustainably, ensuring these
materials are kept out of the reach of children.
7
INSTALLATION GUIDE
Removing transit safety bolts
z
The clothes washer is fitted with transit safety bolts at the rear to avoid possible damage
to the internal components during transportation.
z
The four transit bolts must be removed prior to operation of the washer. Failure
to remove these will result in damage to the washer and compromise your
manufacturer’s warranty.
z
The transit bolts must be removed in order to use the power cord.
Removing the transit bolts
Use a spanner or socket to unscrew and
1
2
remove all four transit bolts at the back of
the washer.
To remove the bolt, grommet and
white plastic spacers, pull on the black
rubber grommets.
8
3
Cover the transit bolt holes with the plastic
plugs delivered with the washer. Push to clip
into place.
Product dimensions
B
INSTALLATION GUIDE
E
G
F
H
C
A
I
FRONT
WH1060P/J WH9060P/J WH8560F/P/J WH8060F/P WH7560P/J WH8060J
PRODUCT DIMENSIONS
MM MM MM MM MM MM
PLAN
A Overall height* 850 850 850 850 850 850
B Overall width 600 600 600 600 600 600
C Overall depth** 655 655 655 655 590 590
D Depth of open door 1075 1075 1075 1 075 1010 1010
Standpipe height min 600 600 600 600 600 600
* Exact height is dependent on foot adjustment
** Including dial and door (when closed)
D
MIN. CLEARANCES
WH1060P/J WH9060P/J WH8560F/P/J WH8060F/P WH7560P/J WH8060J
MM MM MM MM MM MM
E Cavity width 640 640 640 640 640 640
F Cavity depth 650 650 650 650 610 610
G Rear 20 20 20 20 20 20
H Sides*** 20 20 20 20 20 20
I Door to sides 320 320 320 320 330 330
*** Door clearance should also be considered depending on type of installation
9
INSTALLATION GUIDE
Levelling the washer
It is IMPORTANT to level the washer. Having a level washer set up in its cavity will
ensure best performance for spinning, minimising noise, vibrations and wear and tear on
the washer.
Before positioning your washer in its final
position, check that the machine is level,
front to back and side to side.
Level the washer side to side:
1 Place the level on the centre front of
the washer.
1
2 If you need to adjust the washer’s
position, loosen the lock nut using the
spanner provided and turn the feet up or
down until the washer is level side to side.
To wind the feet up turn clockwise, to wind
the feet down turn counter-clockwise.
10
2
3
Level the washer front to back:
1 Place the level on the left side, in line with
the centre of the washer.
2 Adjust the front left foot and then the
right foot until the washer is level.
There should be equal weight on both
front feet.
Using the spanner provided, tighten the
lock nuts against the base of the washer
tolockthe feet in position.
Move and centre the washer into its final
position within the cavity, using adjacent walls
as a guide and allowing 20mm clearance at
the back and sides of the washer.
Recheck the washer is level, front to back
and side to side. Repeat the above steps
if required.
INSTALLATION GUIDE
Water supply
Water supply requirements
If you have an uncontrolled water heating source (eg a wet back or solar heating system)
you should fit a tempering valve. This will ensure the hot water temperature remains within
safe limits. Contact your registered plumber to select and install the tempering valve.
Your cold water should not exceed 35°C and your hot water should not exceed 65°C.
Temperatures above these may cause the washer to fault or cause damage to the washer.
z
Inlet water static pressure: Max.1MPa(145psi) Min.30KPa (4.5psi).
z
Inlet water flow rate at tap: Min.6litres/min.
Inlet hose(s)
Failure to adhere to the following guidance may result in
a flood and damage to property. Only use the new hose
set(s) provided with your washer.
1 Connect the straight ends of the inlet hose(s) to the
tap(s), thereare washers fitted in both ends.
2 Connect the elbow ends to the corresponding washer
inlet valves. If present, the hot valve is coloured
orange to make this easier.
3 Tighten the inlet hose(s) ends by hand until the hose
seal just makes contact with the tap-sealing face.
Continue to tighten a further half-turn.
4 Make sure there are no kinks in the hose(s).
5 Turn the tap(s) on and check for leaks. Check for leaks
again after 24 hours.
Cold supply only
For models WH8560F, WH8560P2, WH8060F, WH8060P2, and WH7560P, if you only have
a cold water supply, you must connect the inlet valve cap (blanking cap) provided with
your washer to the hot inlet valve. The cap prevents water leaking out of the hot valve. This
appliance incorporates backflow protection complying with AS3500.1/IEC61770. No further
backflow protection is required for connection to the water supply.
Your washer has an internal heater to heat water. If you do not connect a hot water inlet
hose, your washer will automatically recognise there is no hot water supply and its internal
heater will heat the cold water to the selected cycle temperature.
11
INSTALLATION GUIDE

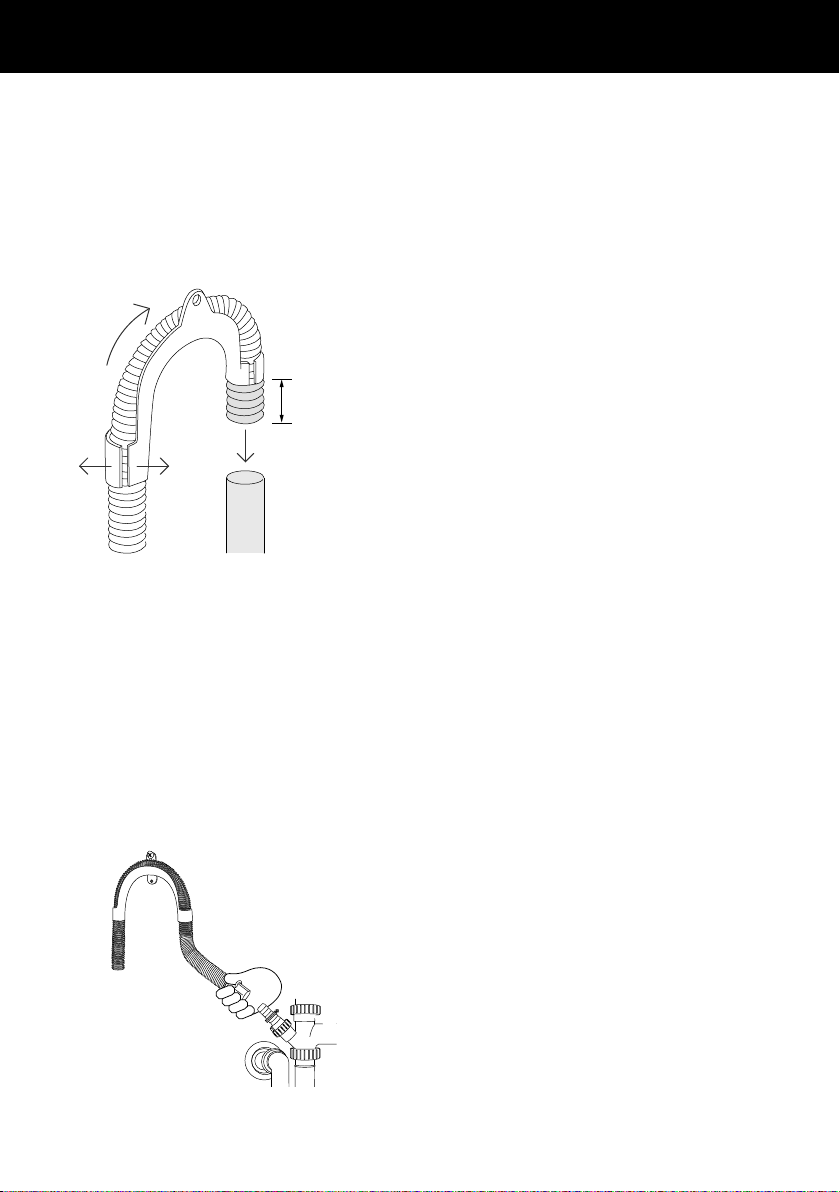

Draining
In multi-storey apartments or any upper floor, the washer should be installed on a floor
equipped with a drain. Draining must comply with local by-laws.
Place the drain hose in a tub or standpipe
The hose guide is used to hold the drain hose over the tub or standpipe.
1 Flex the guide apart and pull the hose
20mm
max.
If the drain hose is placed on the ground or if the tub or standpipe is less than 600mm
high, the washing machine will continuously drain (siphon) while being filled.
Tub or standpipe height should be a minimum of 600mm.
Regularly check that your tub or standpipe is free from lint or other obstructions. This may
affect operation or cause flooding.
through the guide.
2 Ensure a maximum of 20mm of hose is
left exposed at the end.
3 Secure the hose guide to prevent it
dislodging from the standpipe or tub.
Attach drain hose to spigot
The hose guide is used to hold the drain hose high enough to prevent continuous draining
(siphoning).
1 Flex the guide apart and pull the hose
through the guide.
2 Secure the hose guide to a wall or the
back wall of the cupboard using a screw.
3 Drill out the blanking insert from spigot to
ensure the washer can drain correctly.
4 Attach drain hose to spigot and secure
using a hose clamp.
5 Check for leaks.
12
INSTALLATION GUIDE
Electrical connection
z
This appliance must be connected to a 220V – 240V, 50Hz, sinusoidal, minimum 10A
electricalsupply.
z
Check the power cord for damage and make sure it is not squashed or twisted when
installing the washer.
z
Always remove the power cord from a socket by the plug, not by the cord.
Spare Parts
SPARE PART* PART NO.
Hose inlet long (2m) 422680P
Hose inlet large bore 426123P
* Available from your Fisher&Paykel dealer or a Fisher&Paykel trained and supported service technician
Complete your installation
z
Turn on the water and check all hose connections for leaks. Make sure there are
no kinks in the hose(s). Check the hose connections for leaks again after 24hours.
z
Uncoil power cord, remove and discard the plastic pin cover, and plug into
the wall socket.
z
Connect the appliance to an earthed outlet protected by a fuse of suitable capacity.
Test cycle

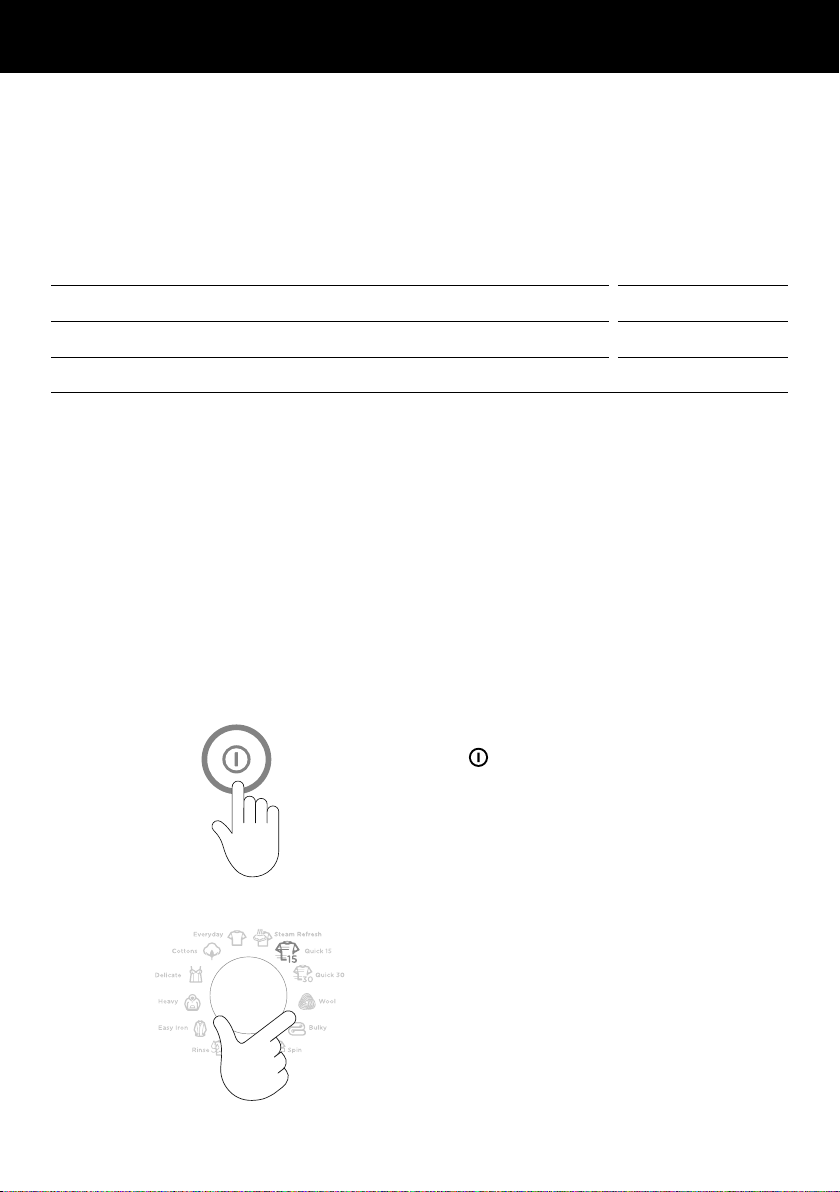

Your washer must be correctly installed before use. To check the installation and operation
of the washer follow the steps below:
1
2
Press to activate your washer.
Select a QUICK cycle. Ensure the drum is
empty and the door closed.
13
INSTALLATION GUIDE
3
4
5
Press to start. The washer will start to fill.
Wait until you see water in the bottom
of the drum.
Press
to turn the washer off.
to stop the cycle, then press
Press
press .
Check the drain hose is firmly secured to the
standpipe or tub, or spigot.
6
A test cycle must be carried out anytime the washer is moved or tipped, this will ensure the
washer has been correctly re-installed.
If there are any problems, you must address these before proceeding with normal use. The
washer will automatically turn off at the end of the cycle if there are no problems.
14
Observe that the washer pumps out the
water, and spins.
The washer will beep to signal the end of
the cycle. Any faults will be displayed on the
screen, refer to ‘Fault codes’.
again, select the SPIN cycle and
BEFORE YOUR FIRST WASH
Check you have done everything you need to before you start your first wash:
Have the packaging and transit bolts been removed?
Is the washer correctly levelled, feet are extended and cabinet corners are clear of
the floor?
Is the drain hose threaded through the hose guide ‘U bend’ (with no more than
20mm extended) and hooked into your standpipe or tub, or attached to a spigot?
Have the taps been turned on?
Is the hot hose connected to the hot valve marked ‘H’?
Is the cold hose connected to the cold valve marked ‘C’?
Have you performed the test cycle? Refer to ‘Installation guide’.
Has the power cord been connected to an appropriate power supply and the power
turned on?
Complete a Drum Clean cycle with half-load amount of detergent and without a load
in order to remove any residues remaining in the machine from the manufacturing
process.
15
SAFETY FEATURES
Add a Garment (F/P models)
The
ADD A GARMENT function can be used to interrupt the cycle to add or remove a
garment at any time during the wash part of the cycle (provided the wash temperature
selected is lower than 60°C). If necessary the water in the washer will be drained to a level
where the door can be opened. Refer to ‘Wash cycle options’ for more information.
Drum light (WH1060P, WH9060P, WH8560F, WH8060F, WH8560P3 and WH8060P3
models only)
Your washer has a drum light to help assist you when loading and unloading your washer.
When you press
automatically turn off. At the end of the cycle, the drum light will turn on again for five
minutes to help facilitate unloading.
Door lock
The door of your washer will lock once you press
beeps at the end of the cycle, ensuring safety for you and your family while yourwasher is
operating.
To unlock the door during a cycle
1
, the LED light in the drum will turn on, aftertwo minutes it will
and will stay locked until the washer
You can open the door to add or remove
items during thewash simply by pressing the
button.
The door will remain locked if the
temperature insidethe washer is above 60°C
and/or the waterlevelis above the bottom
of the door seal (awarning will be displayed
inthese circumstances).
Your washer also has the following protective measures:
z
Flood protection – turns off valves and turns pump on if a flood condition is detected.
z
Out-of-balance protection – stops and redistributes the load if an unbalanced load
condition is sensed, and/or slows the spin speed to compensate.
z
Excess suds protection – pauses to allow suds to break down before continuing the cycle.
16
SAFETY FEATURES
Opening the door during a power failure
Do not attempt to do this if the water level inthewasher is above the bottom of thedoor.
If there is a power failure during a wash cycle your washer will stop and the door will
remain locked.
1
2
3
Locate thepump filter cover at the bottom
right of your washer.
Place a coin or key in the slot and tilt it
upwards to lever the cover open.
Pull the door release tab down from the ring.
Use a screwdriver tip, pen or key to get a
good grip.
When power is restored, your washer will resume the interrupted wash cycle. If the cycle
doesn’t resume automatically, simply press to restart your washer.
17
WH8560F and WH8060F models
1
CONTROL PANEL
5
!3
2 436 7 8 9
!0 !1 !2
1 Power Press to turn the washer ON/OFF.
2 Keylock Press to disable all buttons on the control panel, except the
POWER
button. This prevents accidental button presses.
3 SmartTouch™
Control Dial
4 Digital display
screen
Rotate to select your desired wash cycle.
z
Red LED illuminates to indicate the selected wash cycle.
Shows the following:
z
TIME TO GO – the remaining time in the cycle that is
currently running.
z
Delayed start time of wash cycle.
z
Notifications if an error is detected or a warning is necessary.
5 Progess lights Indicates the current status of the wash cycle.
z
All lights are illuminated at the start of the wash cycle.
z
The light of the current status flashes, and then turns off
oncecompleted.
6 Delay Start
Less/More
7 Time Saver Press toturn
MORE to increase andLESS to decrease the delay start
Press
time.
TIME SAVER ON/OFF.
8 Wash Temp Press to increase or decrease wash water temperature.
9 Spin Speed Press to increase or decrease spin speed.
!0 Options Press to select
!1 Wash Boost Press to select
ECO RINSE, WRINKLE FREE and/or SOAK.
PRE WASH or RINSE+.
!2 Add a Garment Press to interrupt the wash part of the cycle to add or remove
agarment.
!3 Start/Pause Press to start or pause the selected wash cycle.
18
CONTROL PANEL
WH1060P, WH9060P, WH8560P3 and WH8060P3 models
1
3
5
!3
2 4
6
7 8 9
!0 !1 !2
1 Power Press to turn the washer ON/OFF.
2 Keylock Press to disable all buttons on the control panel, except the
POWER
button. This prevents accidental button presses.
3 SmartTouch™
Control Dial
4 Digital display
screen
Rotate to select your desired wash cycle.
z
Red LED illuminates to indicate the selected wash cycle.
Shows the following:
z
TIME TO GO – the remaining time in the cycle that is
currently running.
z
Delayed start time of wash cycle.
z
Notifications if an error is detected or a warning is necessary.
5 Progess lights Indicate the current status of the wash cycle.
z
All lights are illuminated at the start of the wash cycle.
z
The light of the current status flashes, and then turns off
oncecompleted.
6 Delay Start
Less/More
7 Optimise Wash Press to select
MORE to increase andLESS to decrease the delay start
Press
time.
ECO or SPEED.
8 Wash Temp Press to increase or decrease wash water temperature.
9 Spin Speed Press to increase or decrease spin speed.
!0 Wash Boost Press to select
!1 Options
Press to select
PRE WASH, RINSE or WASH+.
WRINKLE FREE.
!2 Add a Garment Press to interrupt the wash part of the cycle to add or remove
agarment.
!3 Start/Pause Press to start or pause the selected wash cycle.
19
CONTROL PANEL
WH8560P2, WH8060P2 and WH7560P models
1
3
5
!3
2 4
Power Press to turn the washer ON/OFF.
1
Keylock Press to disable all buttons on the control panel, except the
2
SmartTouch™
3
Control Dial
Digital display
4
screen
POWER button. This prevents accidental button presses.
Rotate to select your desired wash cycle.
z
Red LED illuminates to indicate the selected wash cycle.
Shows the following:
z
TIME TO GO – the remaining time in the cycle that is
6
7 8 9
!0 !1 !2
currently running.
z
Delayed start time of wash cycle.
z
Notifications if an error is detected or a warning is necessary.
Progress lights Indicate the current status of the wash cycle.
5
z
All lights are illuminated at the start of the wash cycle.
z
The light of the current status flashes, and then turns off
oncecompleted.
Delay Start
6
Less/More
Wash Temp Press to increase or decrease wash water temperature.
7
Spin Speed Press to increase or decrease spin speed.
8
Soil Level Press to select the level of soil in your load.
9
Wash Boost Press to select PRE WASH or RINSE+.
!0
Options Press to select ECO and/or WRINKLE FREE.
!1
Add a Garment Press to interrupt the wash part of the cycle to add or remove
!2
Press
MORE to increase andLESS to decrease the delay start
time.
agarment.
Start/Pause Press to start or pause the selected wash cycle.
!3
20
Loading...
