Fisher & Paykel WA4127G1-96212-A Owner’s Manual

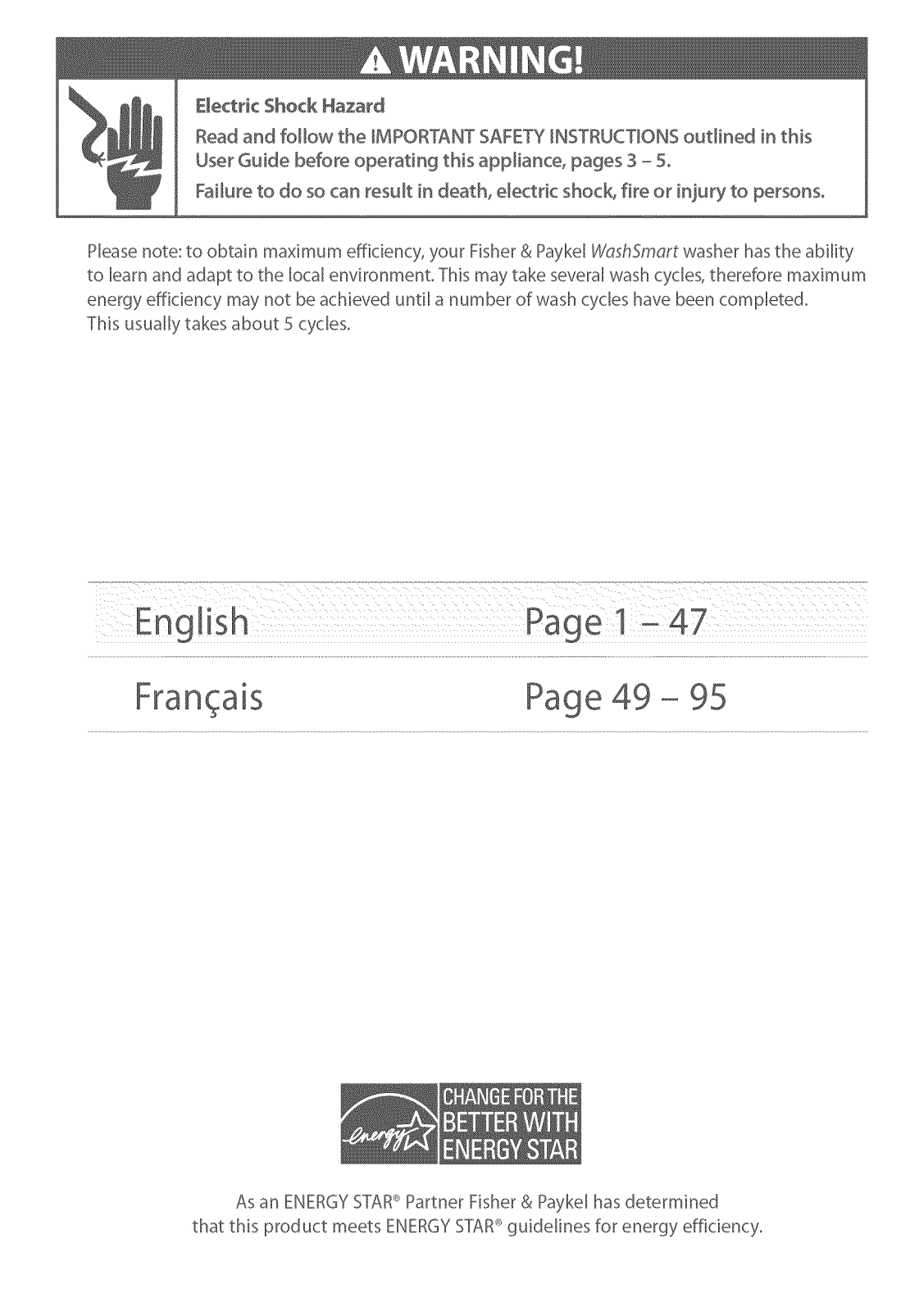

ElectricShockHazard
ReadandfollowtheIMPORTANTSAFETY_NSTRUCT_ONSoutlinedinthis
UserGuidebeforeoperatingthisappliance,pages3- 5o
Failuretodosocanresultindeath,e_ectric shock, fire or injury to persons,
PBeasenote: to obtain maximum efficiency, your Fisher & Paykd Ws,shSmort washer hasthe ability
to learn and adapt to the IocaBenvironment. This may take severaBwash cycles, therefore maximum
energy efficiency may not be achieved until a number of wash cycles have been completed.
This usually takes about 5 cycles.
Franqais Page 49 - 95
As an ENERGYSTAR®Partner Fisher & Paykd has determined
that this product meets ENERGY STAR_guidelines for energy efficiency.

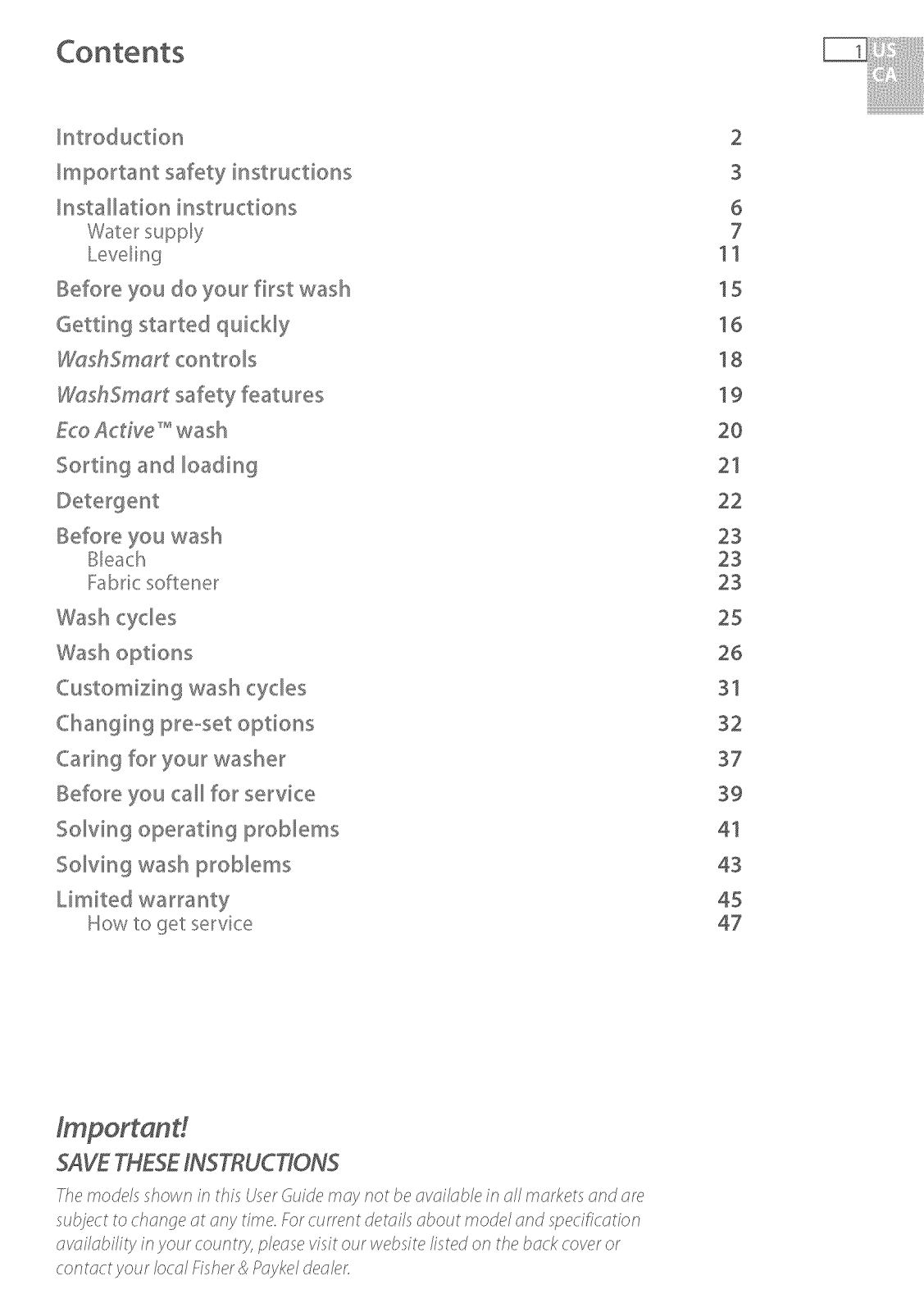

Introduction
Important safety instructions
Installation instRKtiens
Water supply

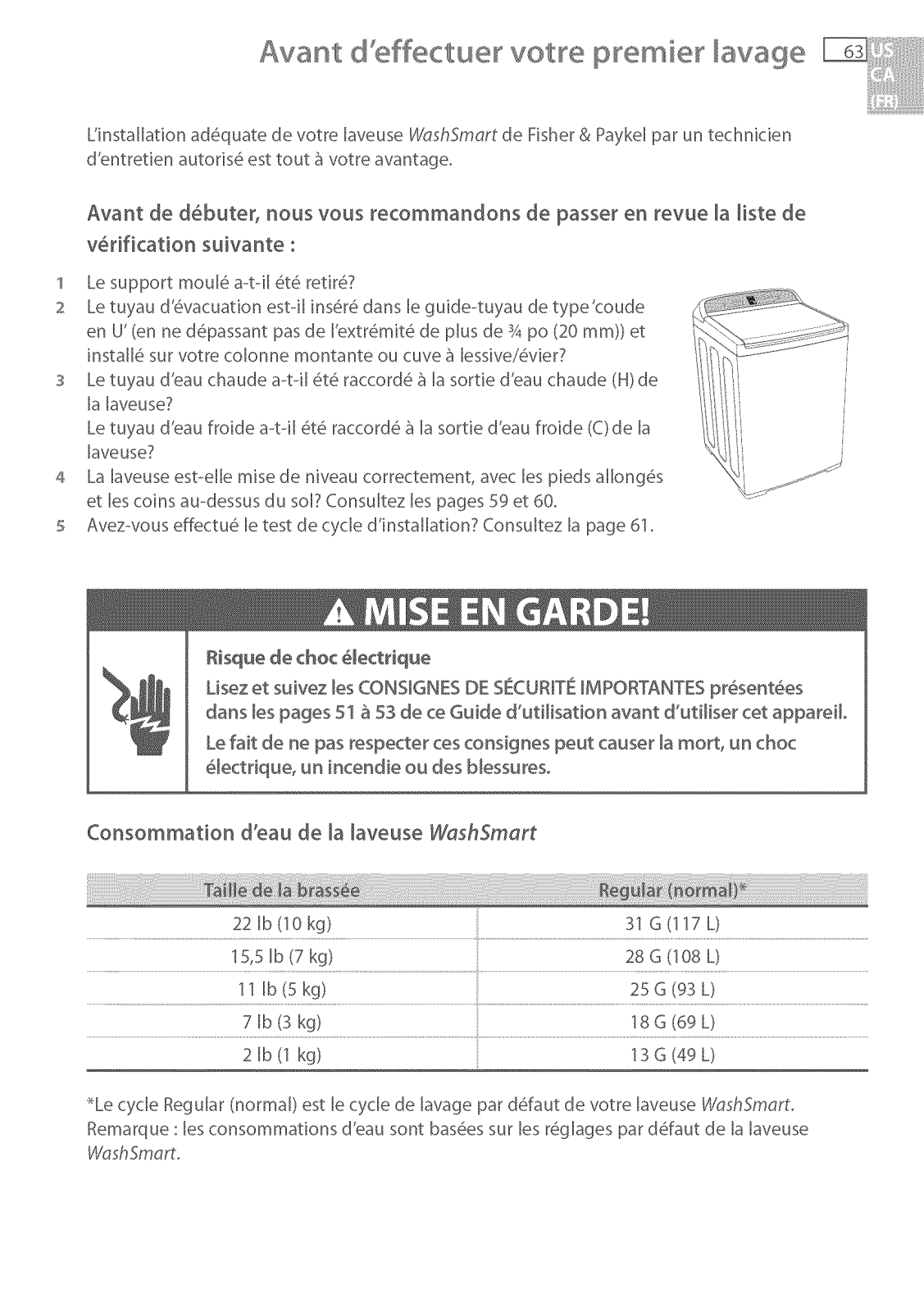

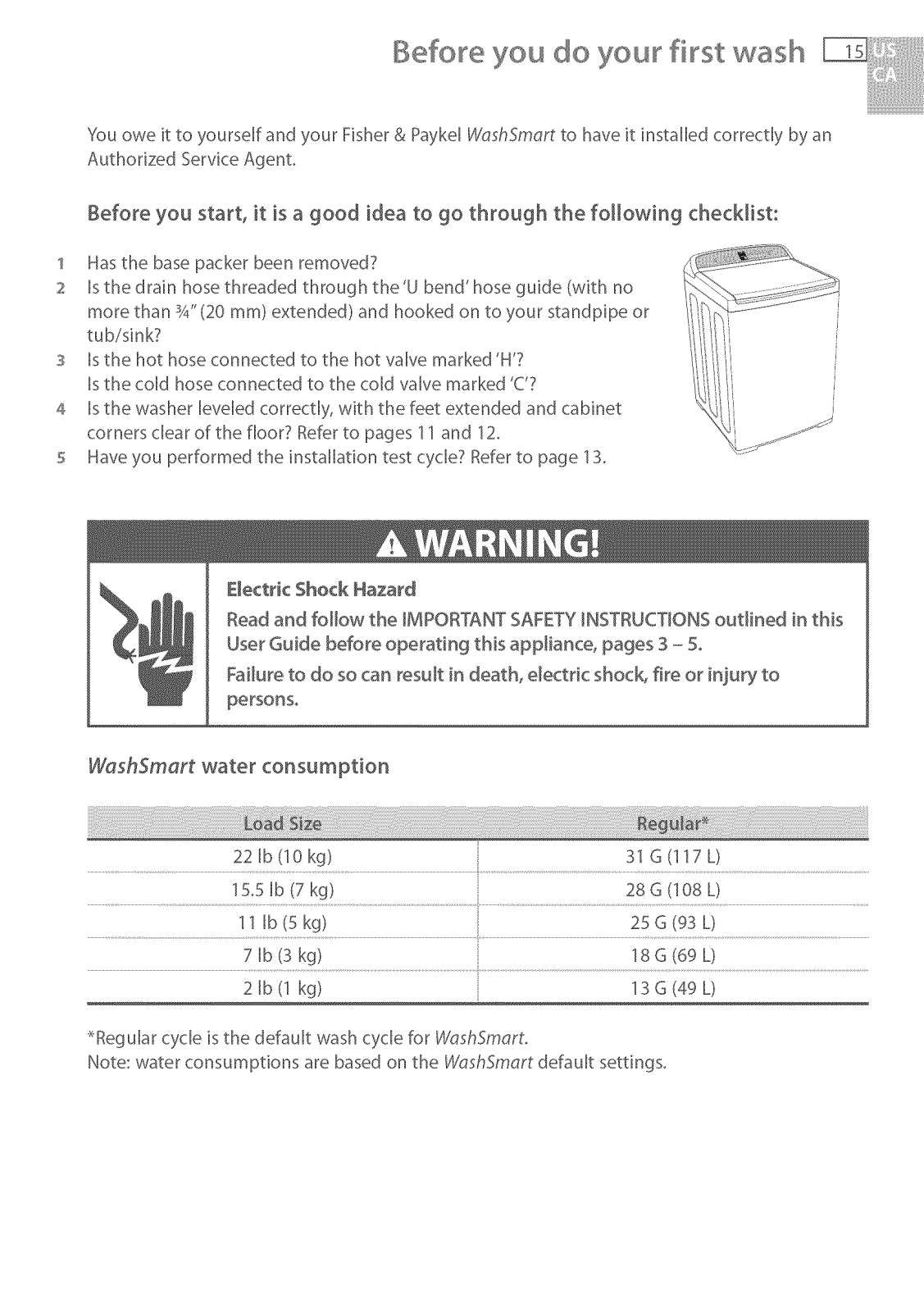

Before you do your first wash

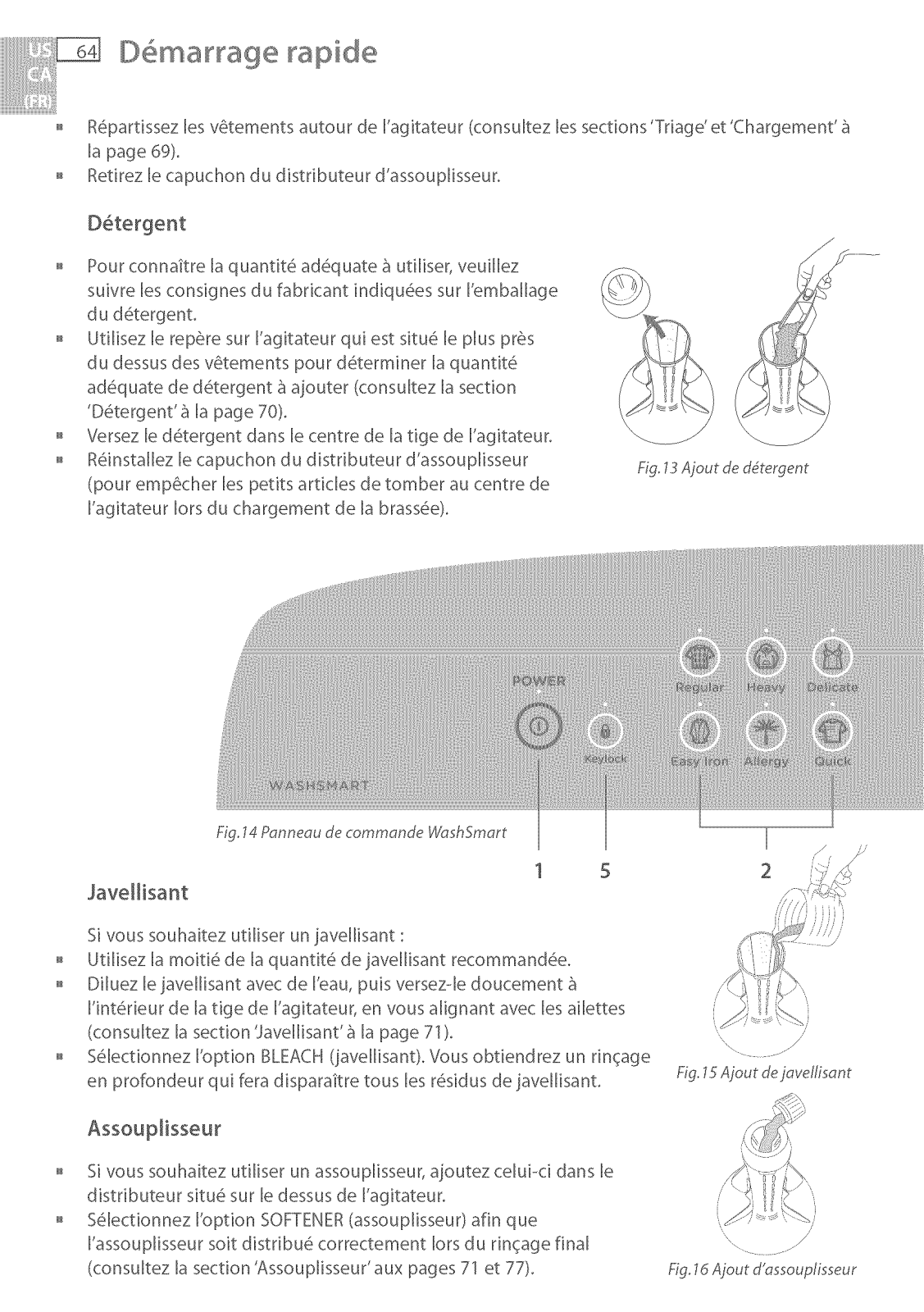

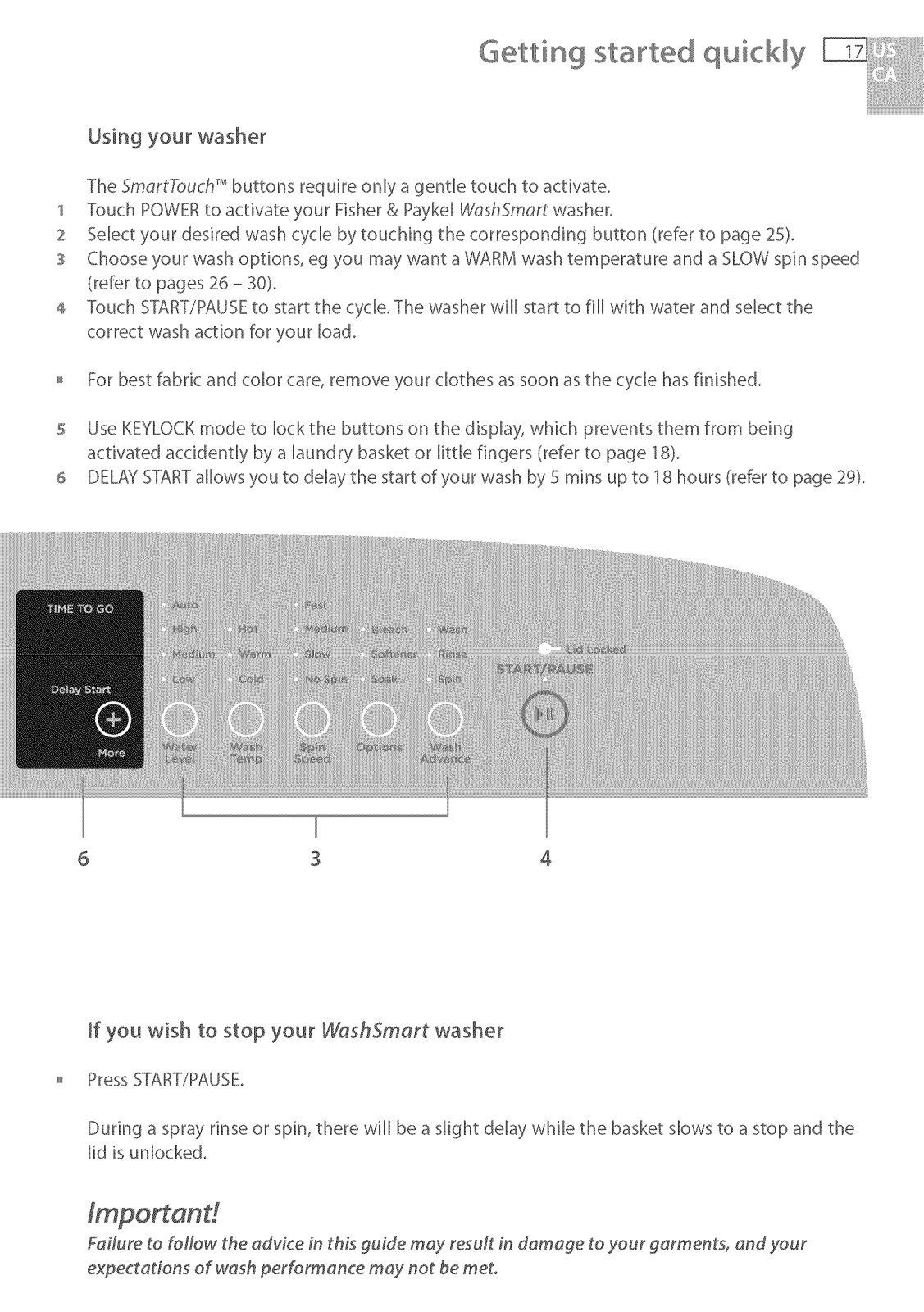

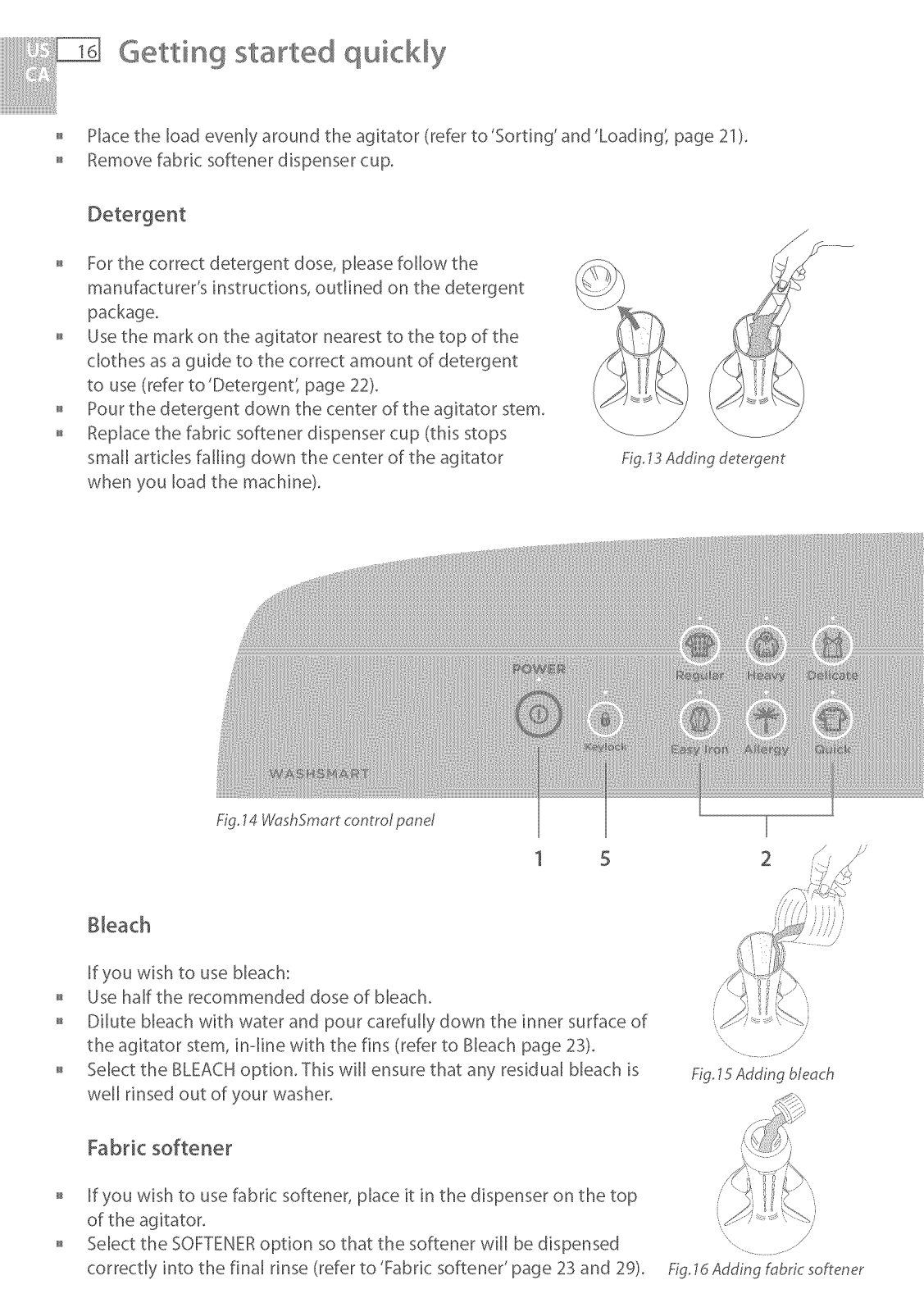

Getting started qukkly

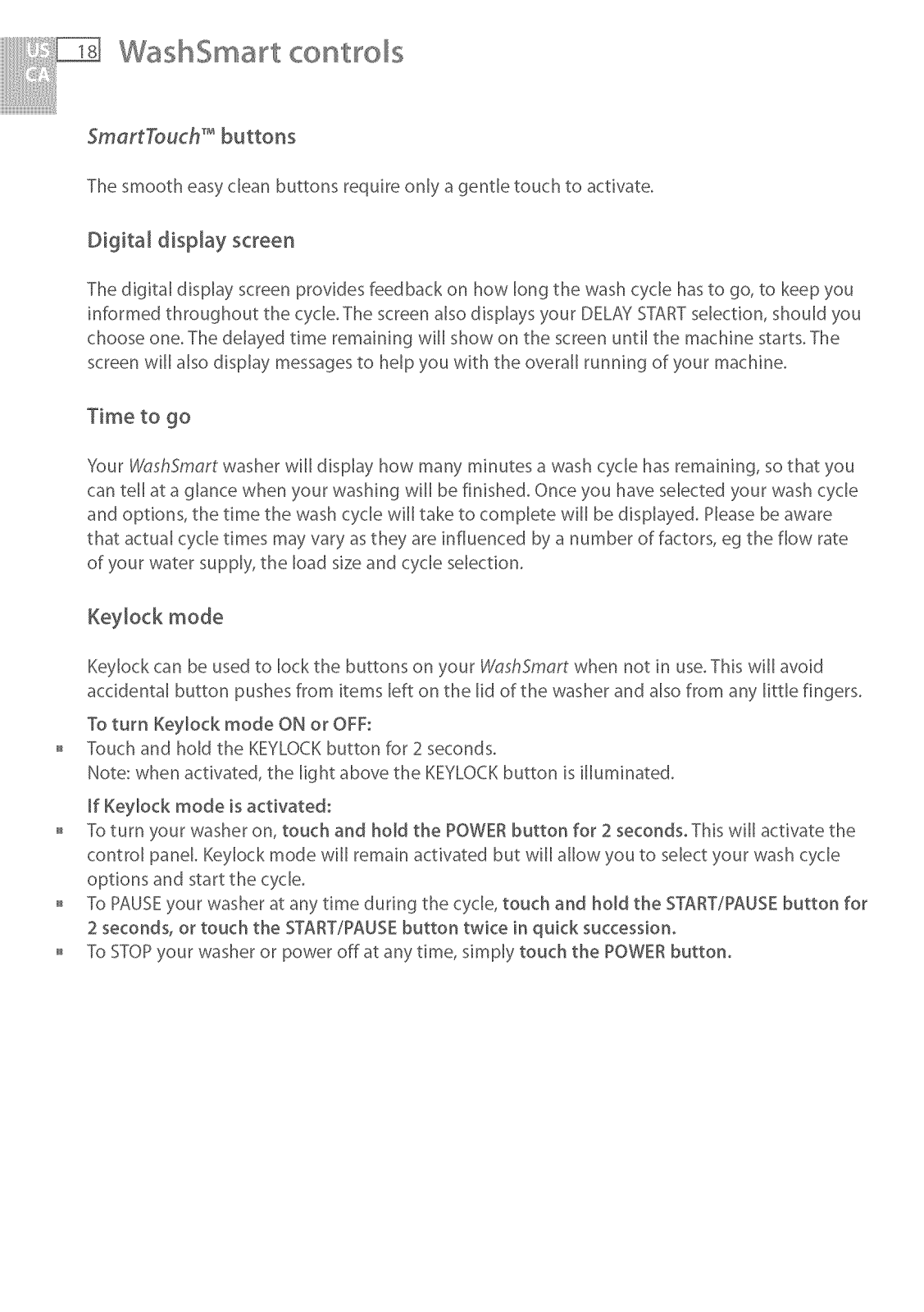

IfFcshSm_r_ controB

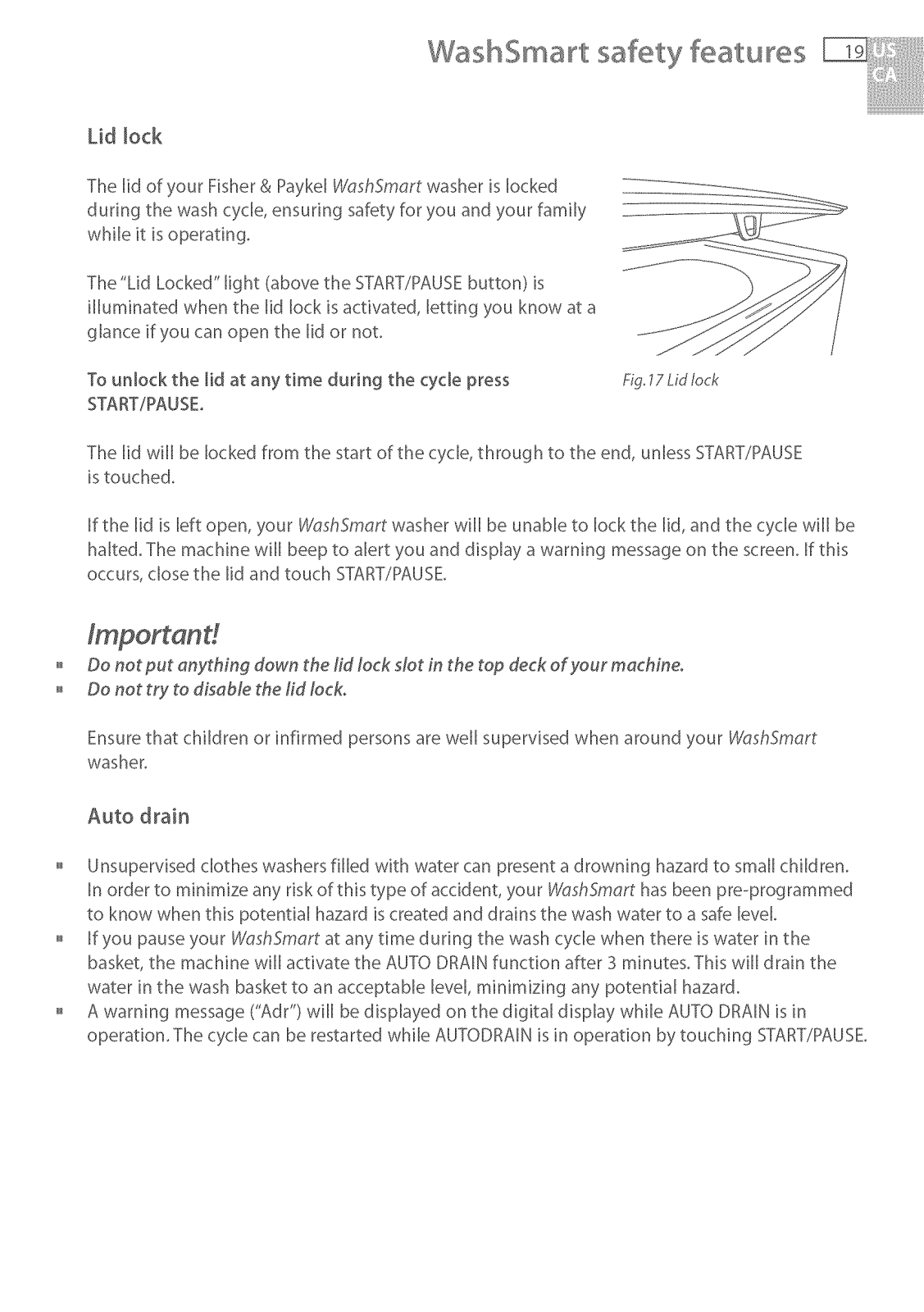

WoshSm_rt safety features

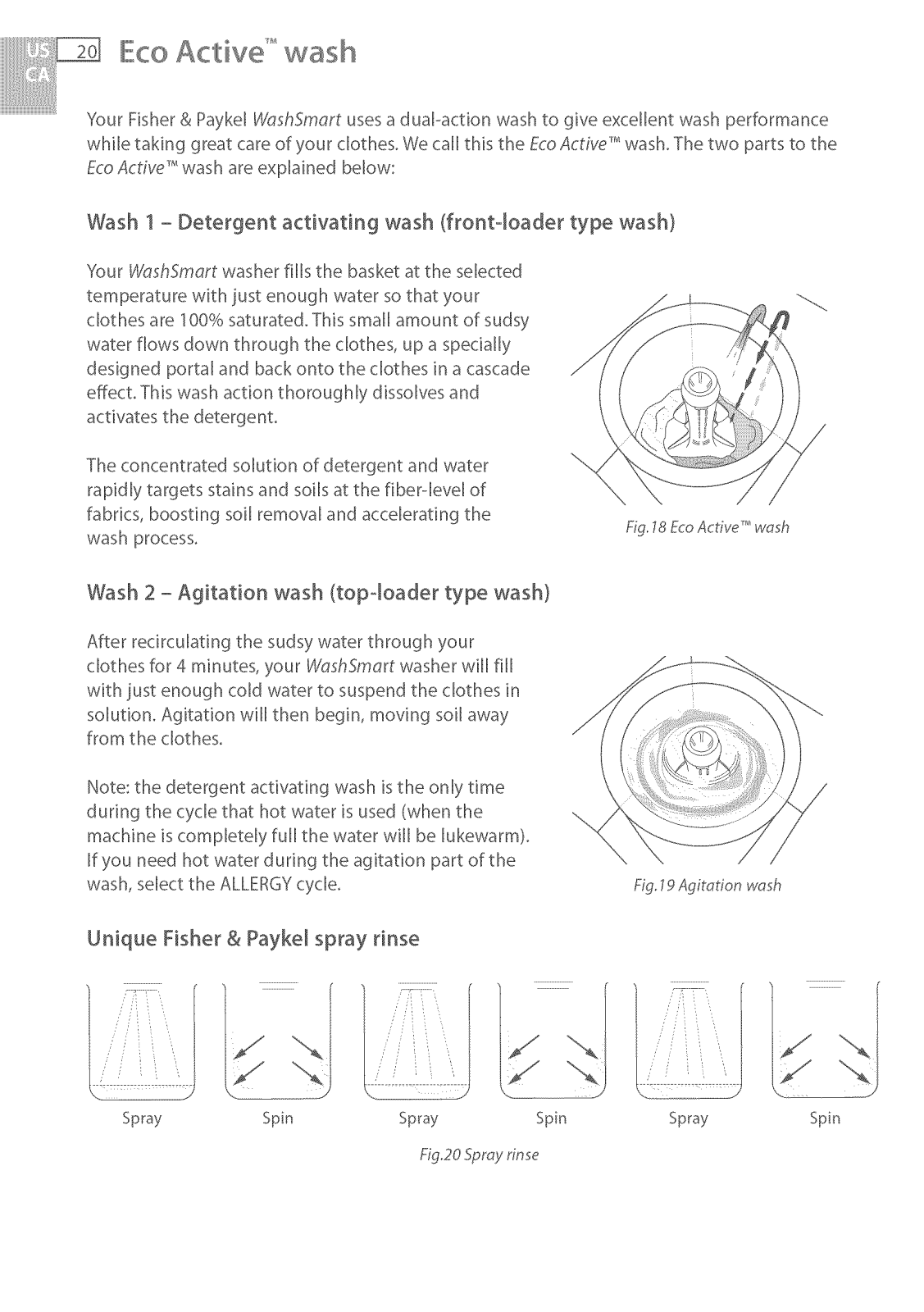

EdoActive _''wash

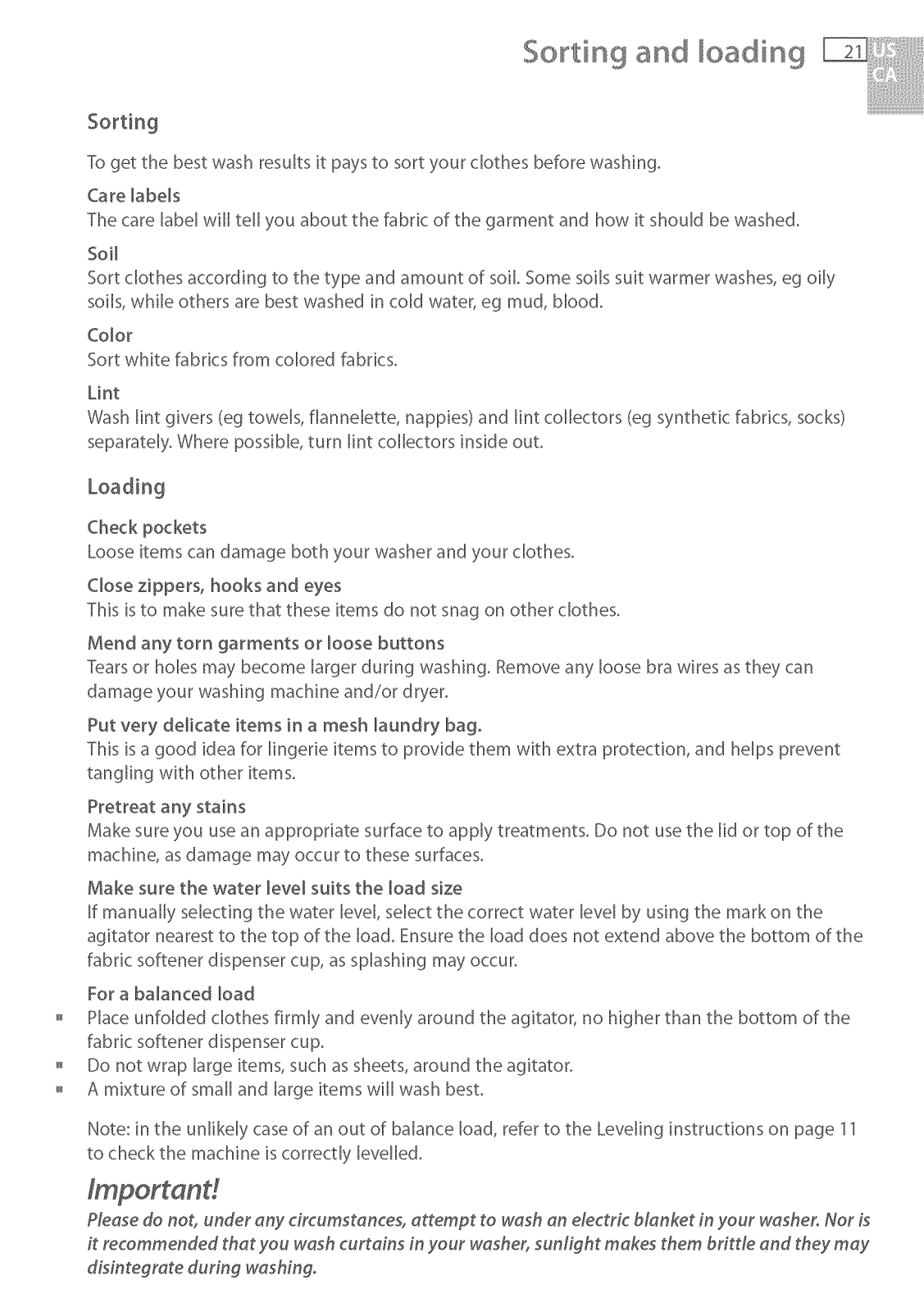

Sorting and leading

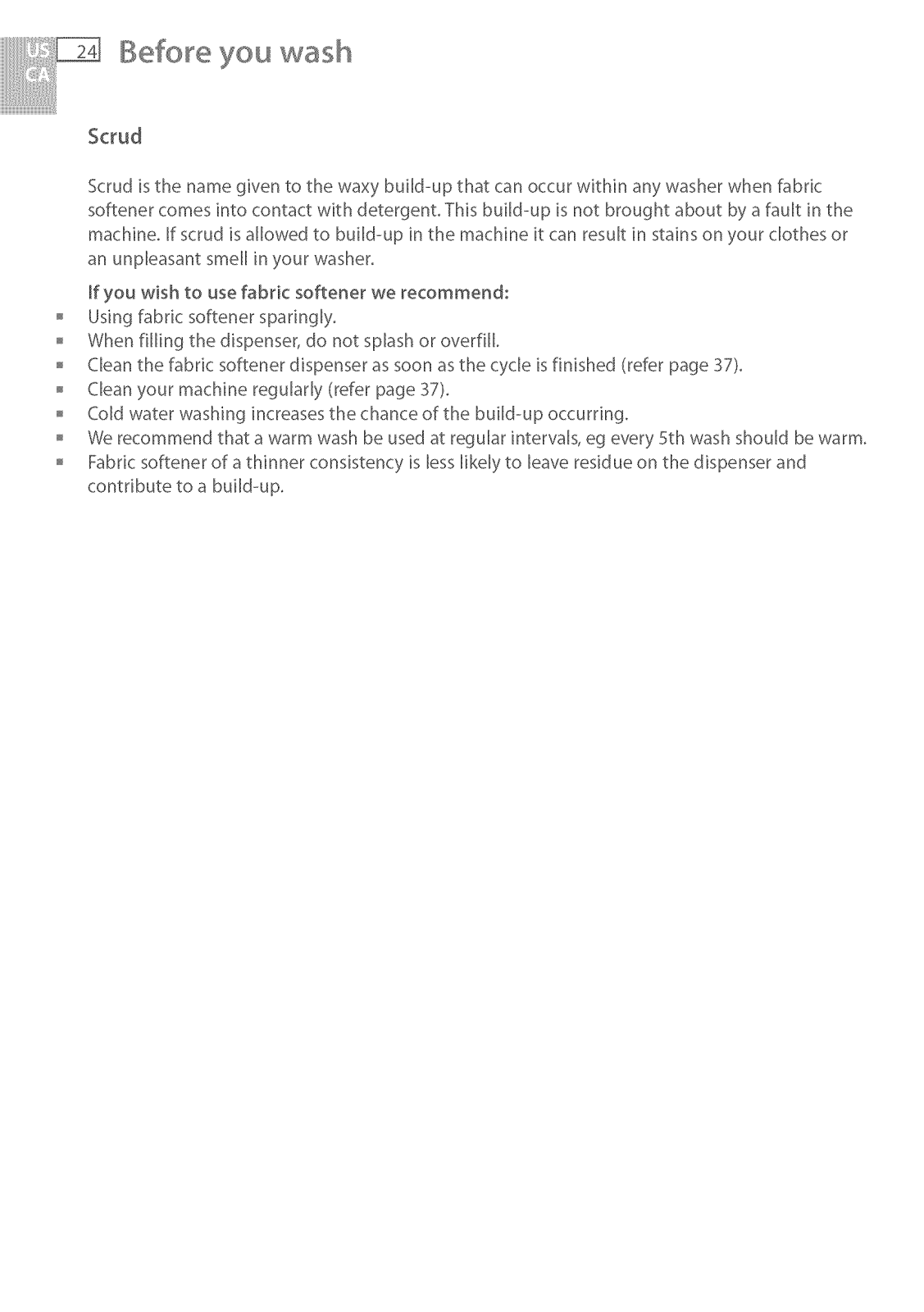

Before you wash

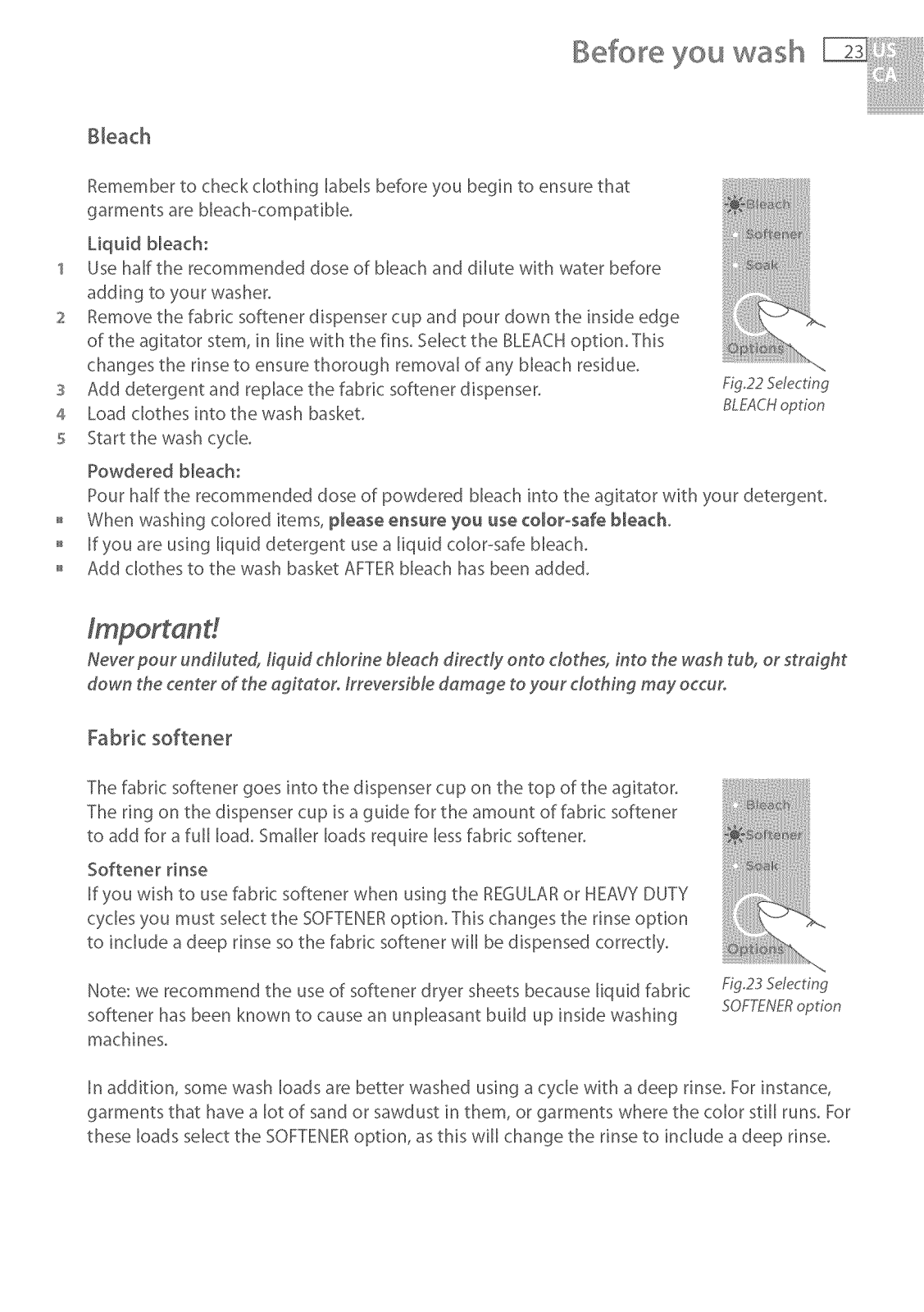

Bleach
Fabdcsoftener

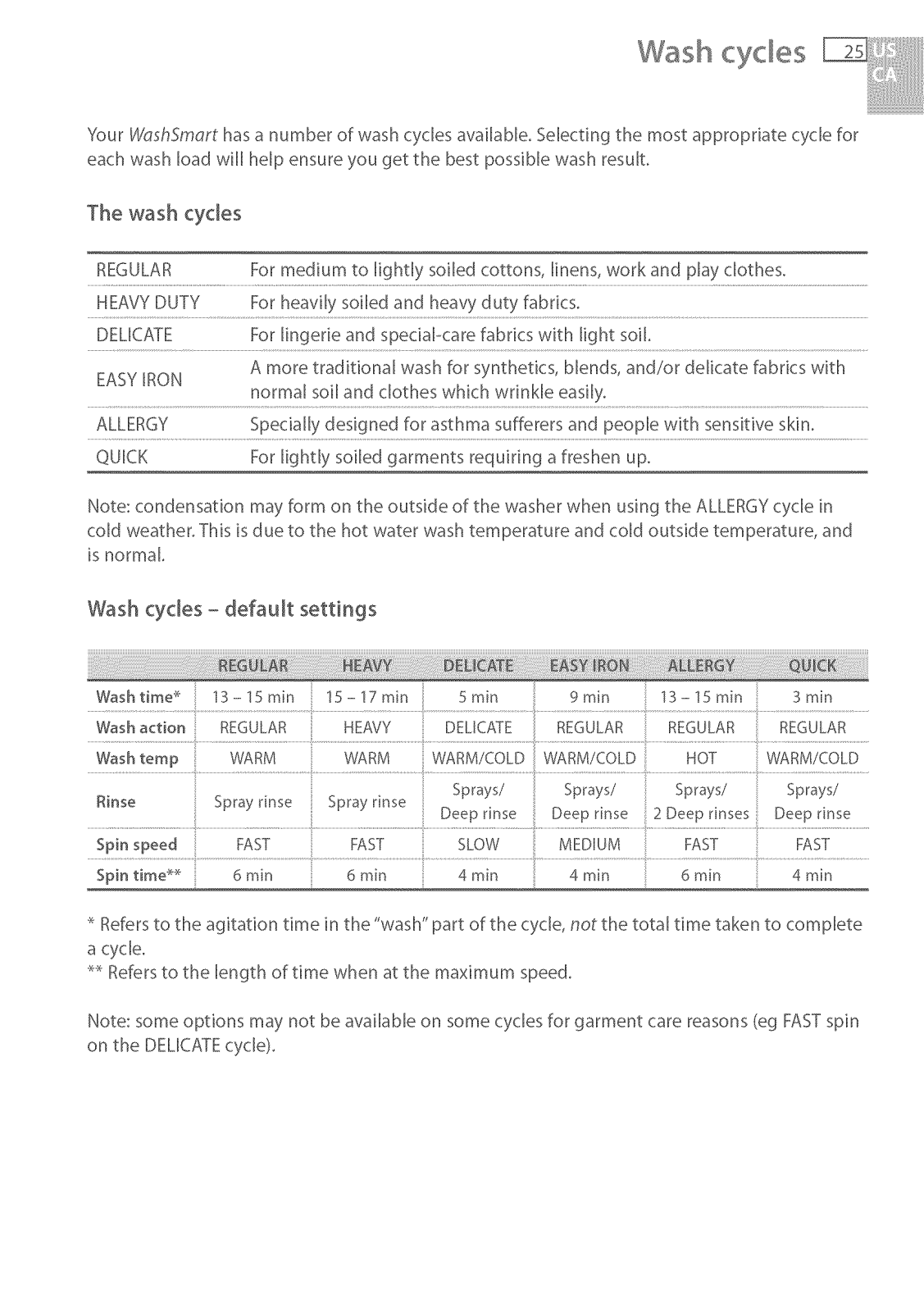

Wash cycles

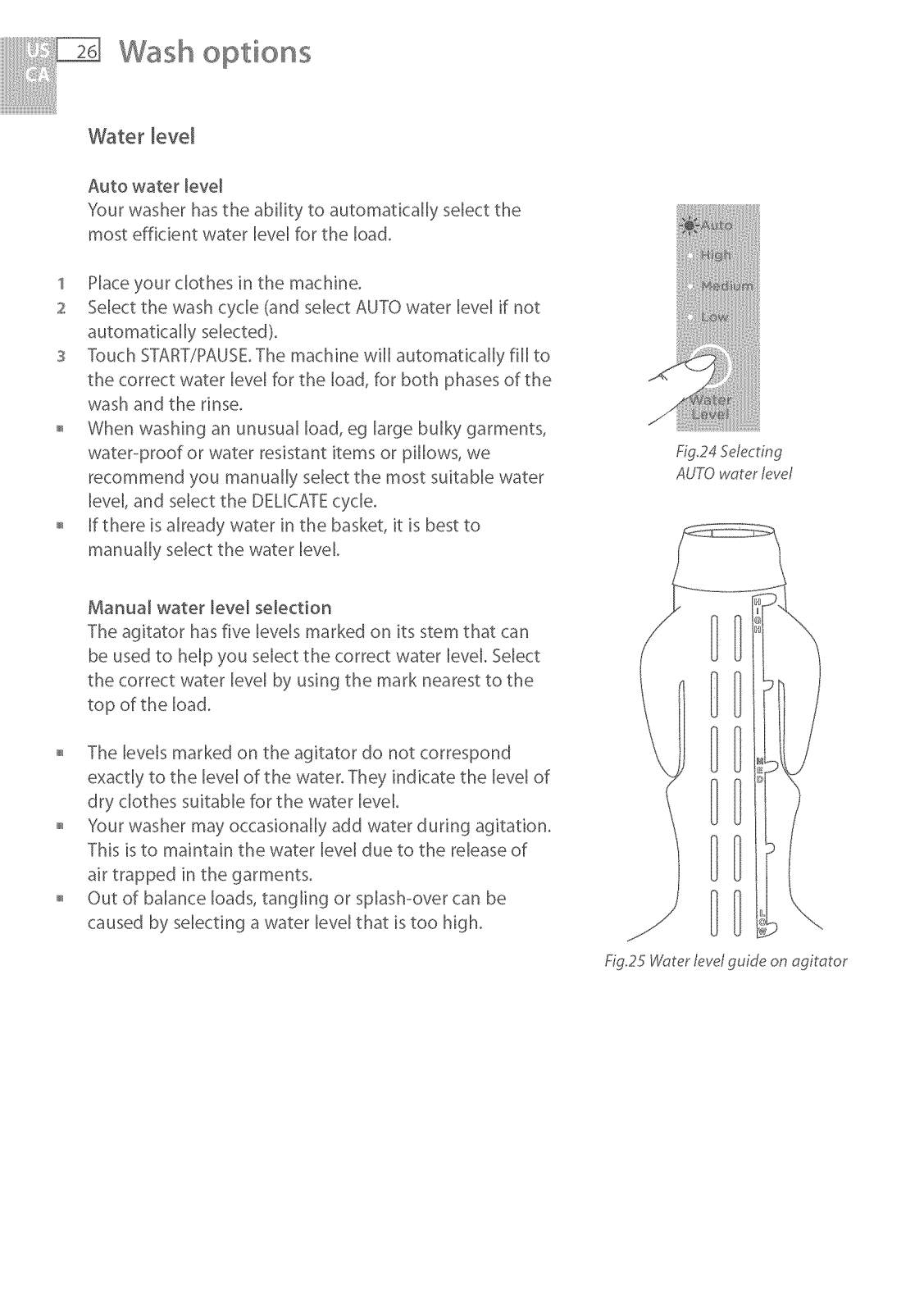

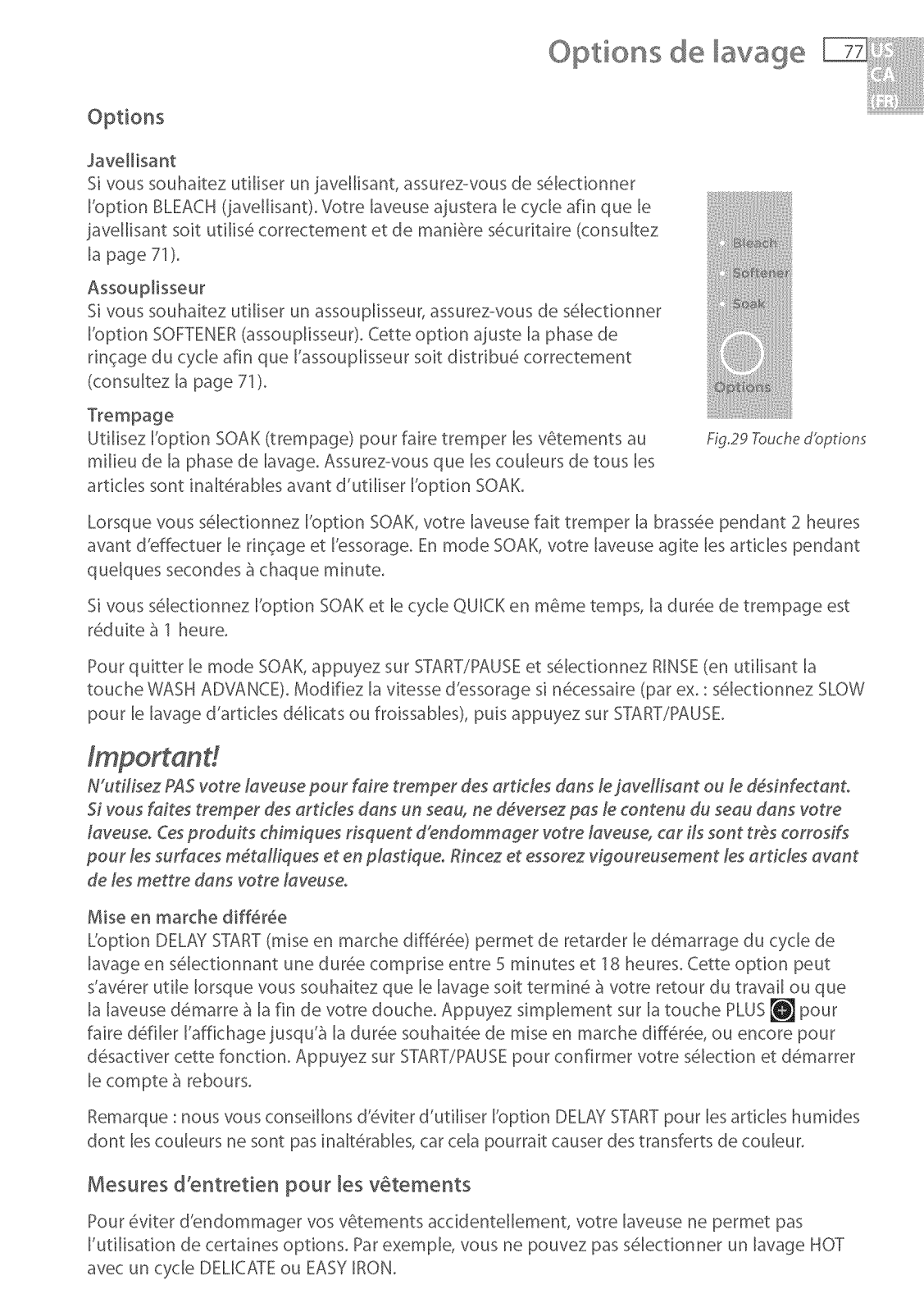

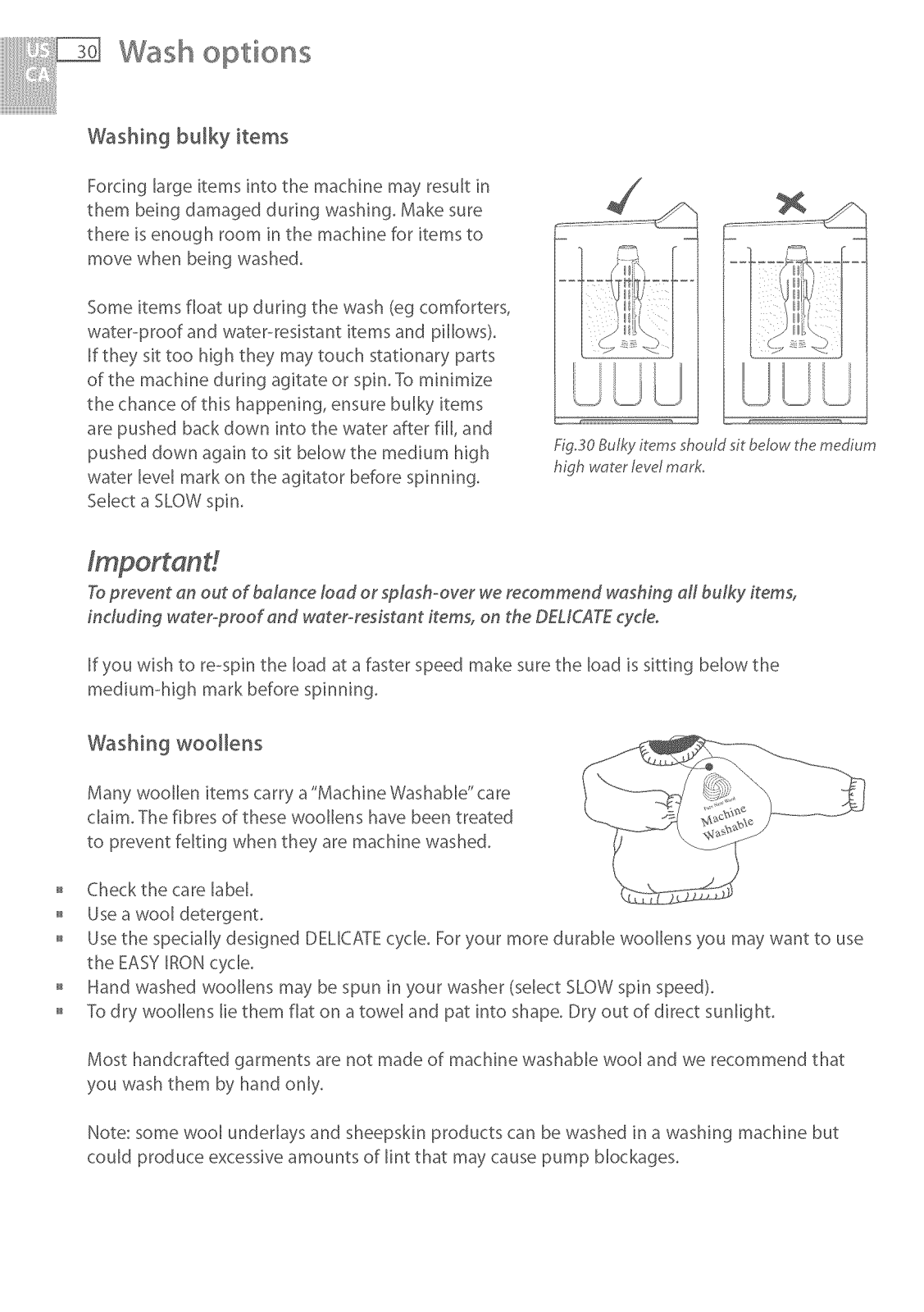

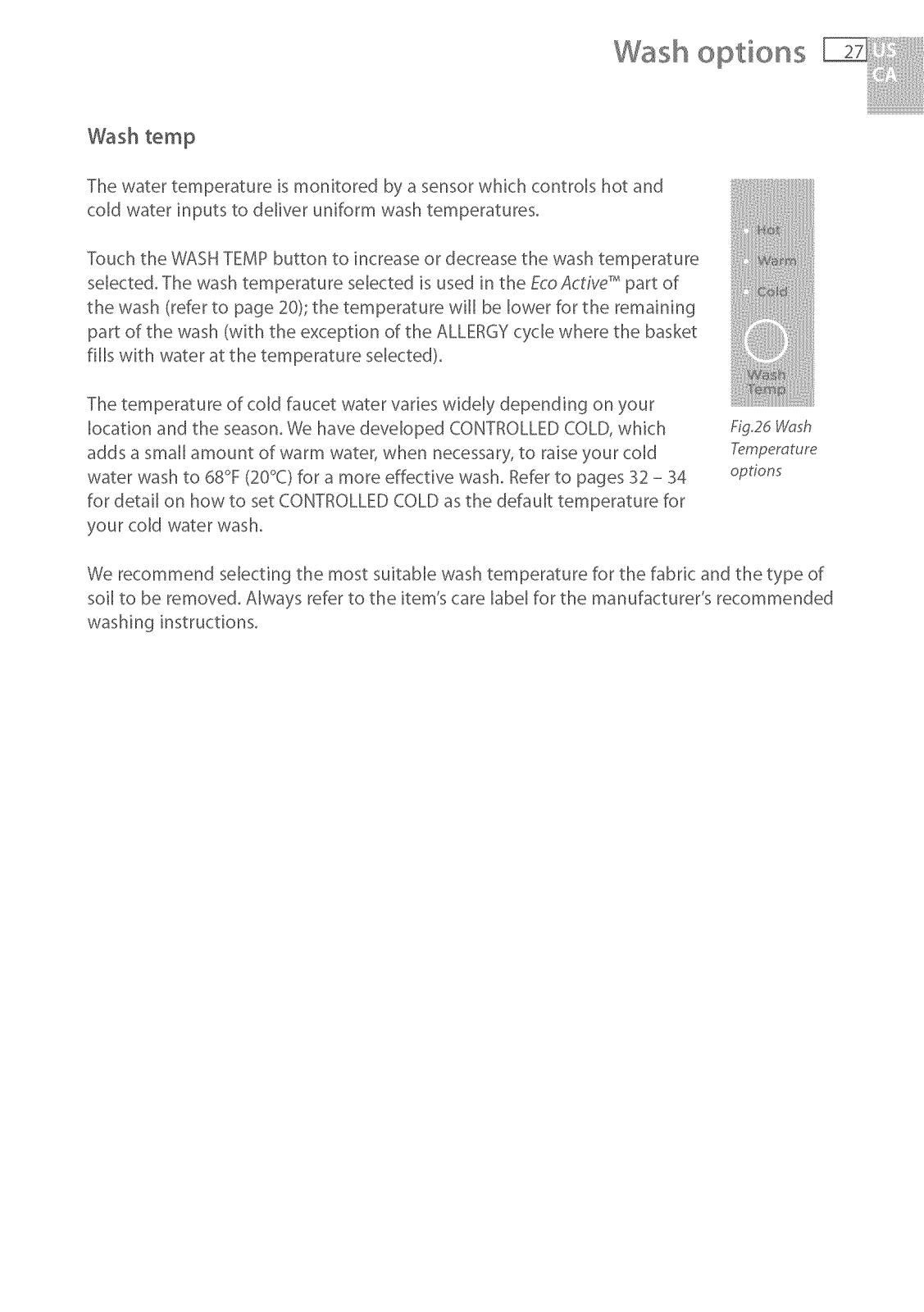

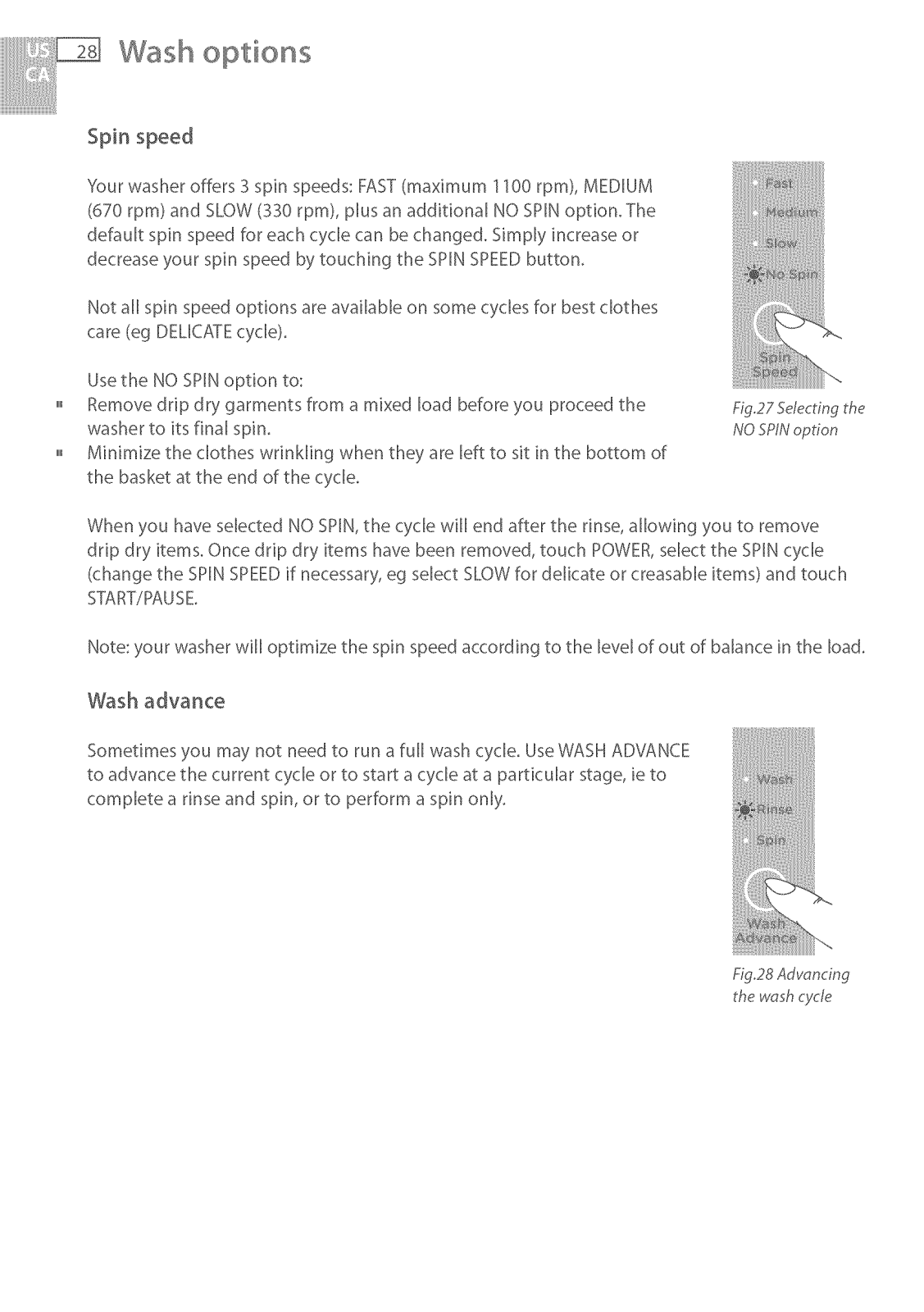

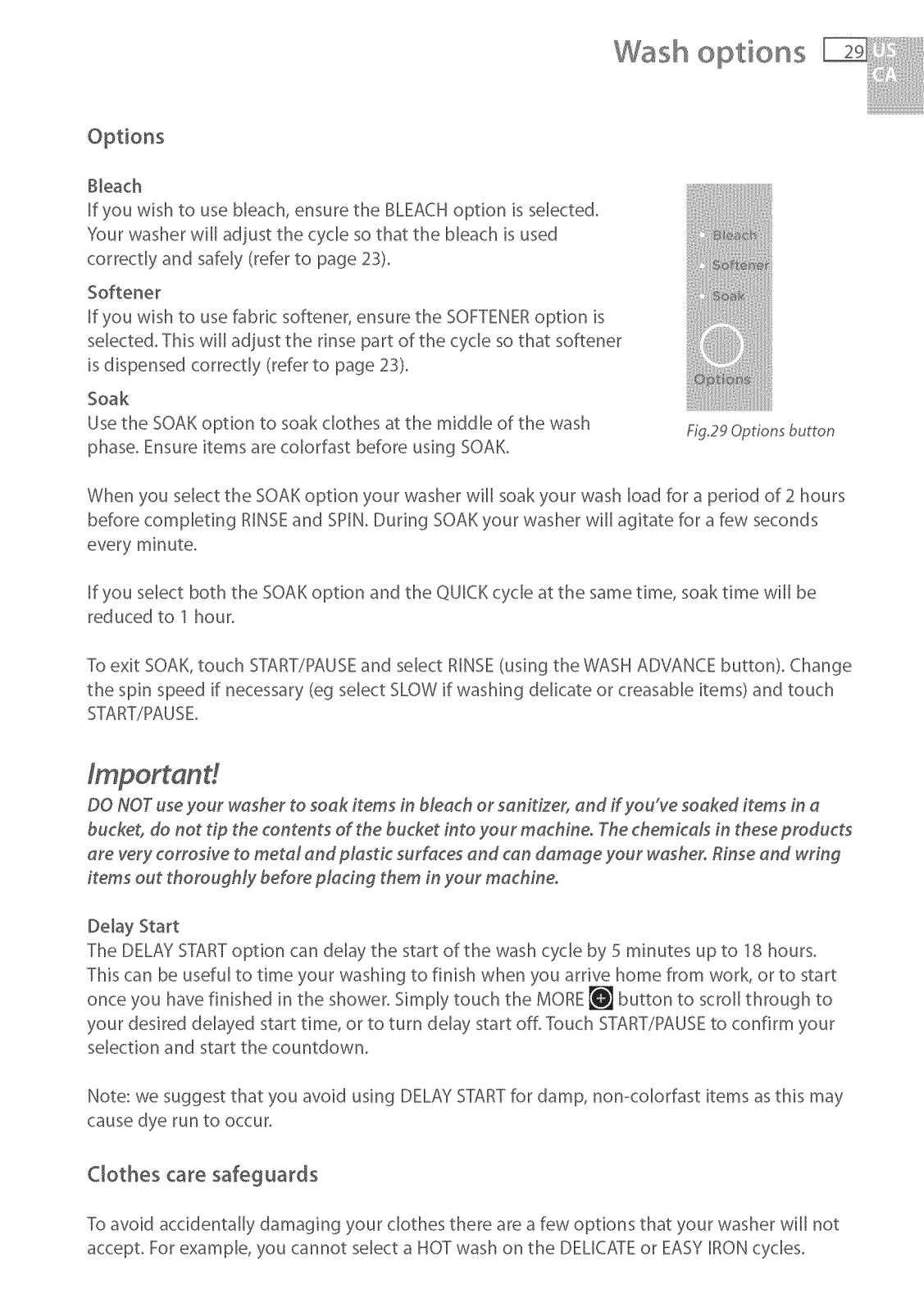

Wash options

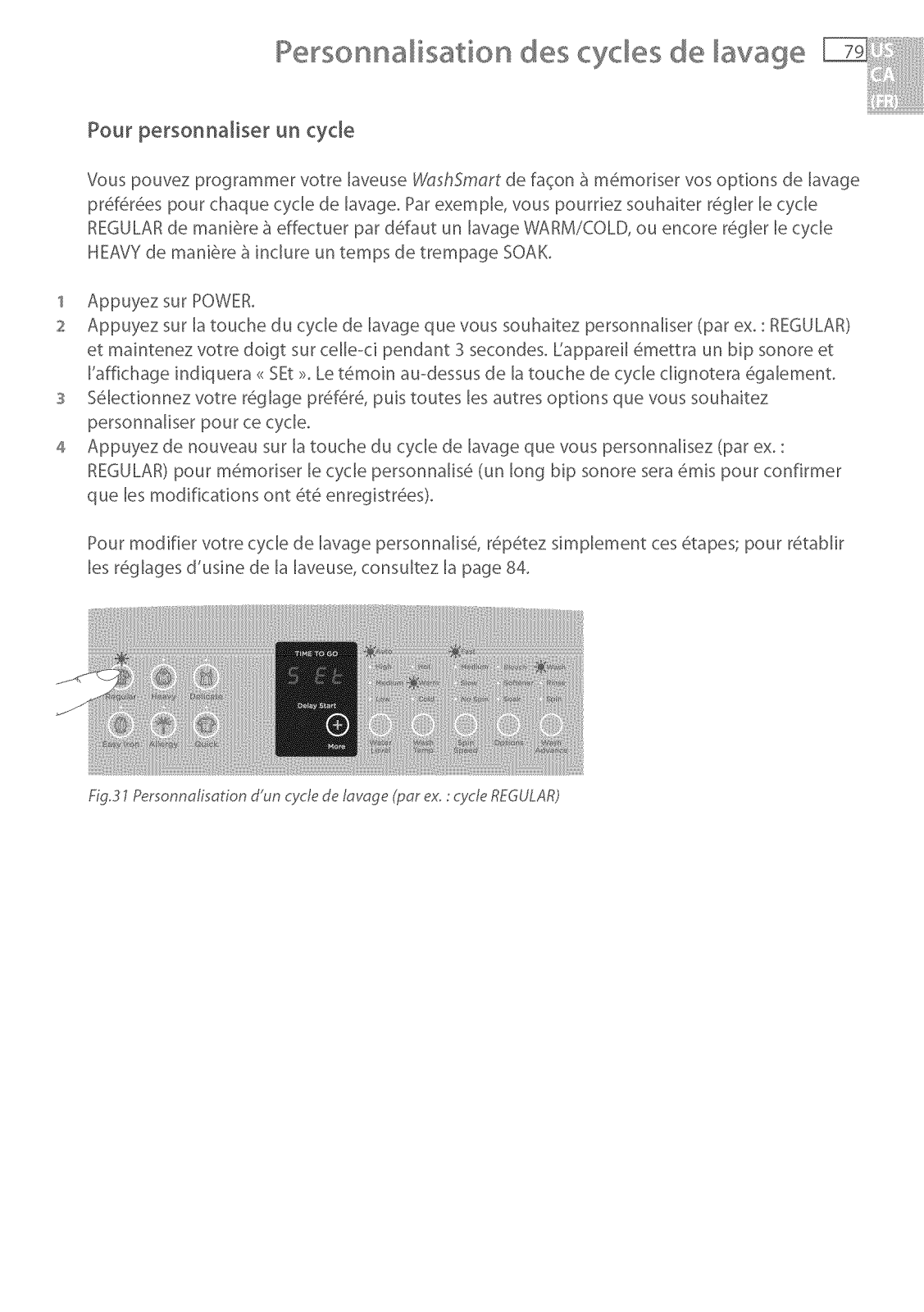

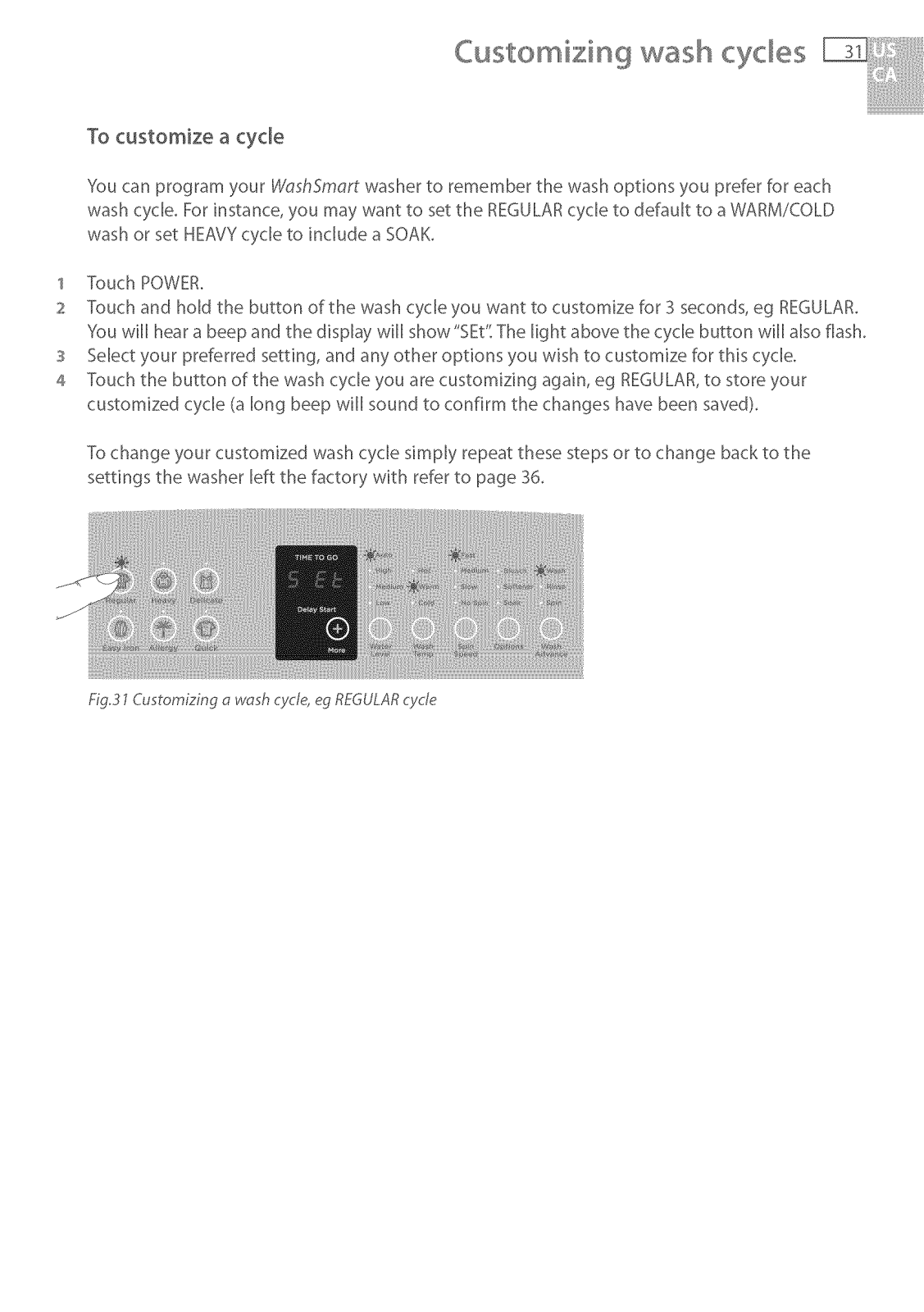

Customizing wash cycles

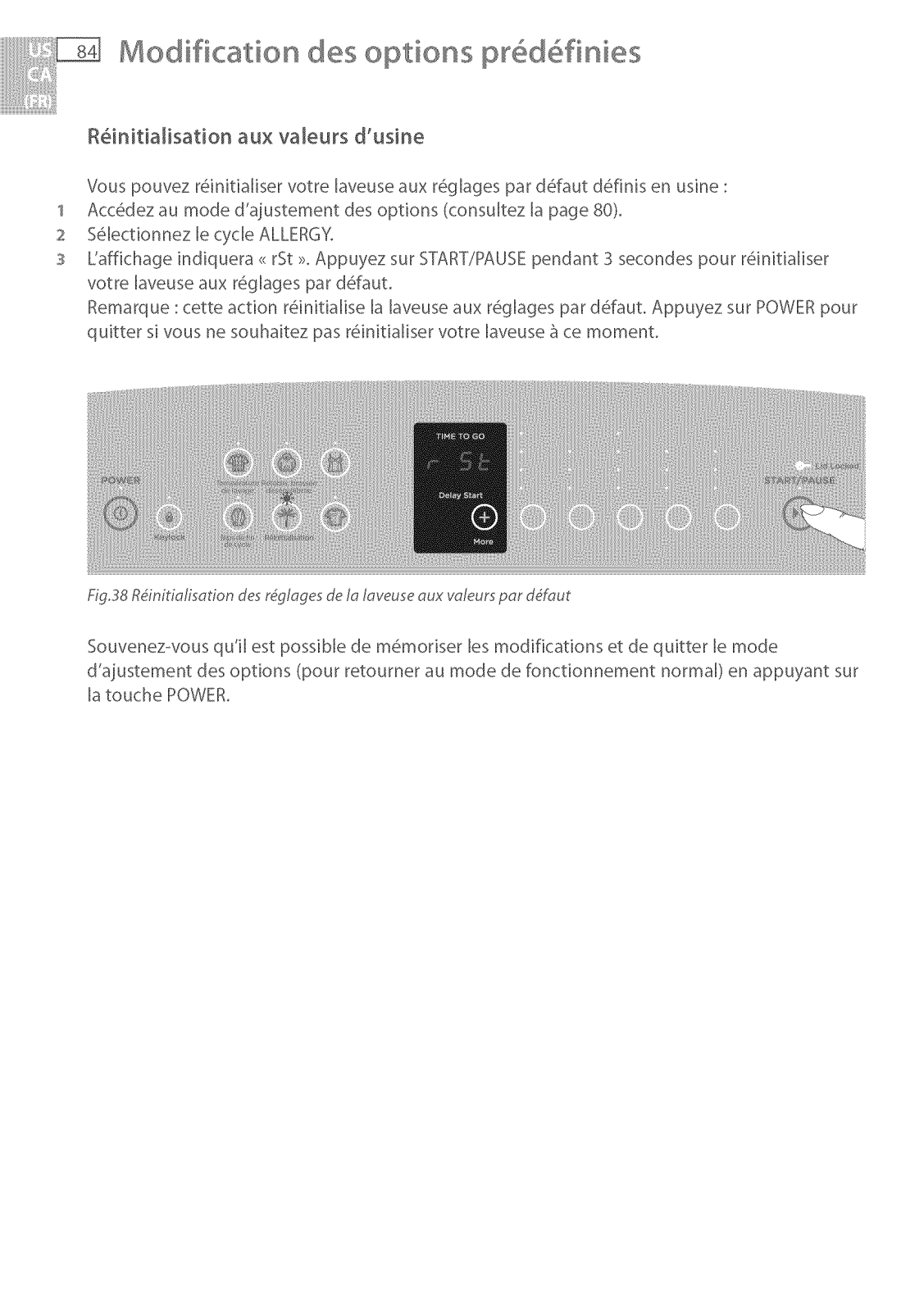

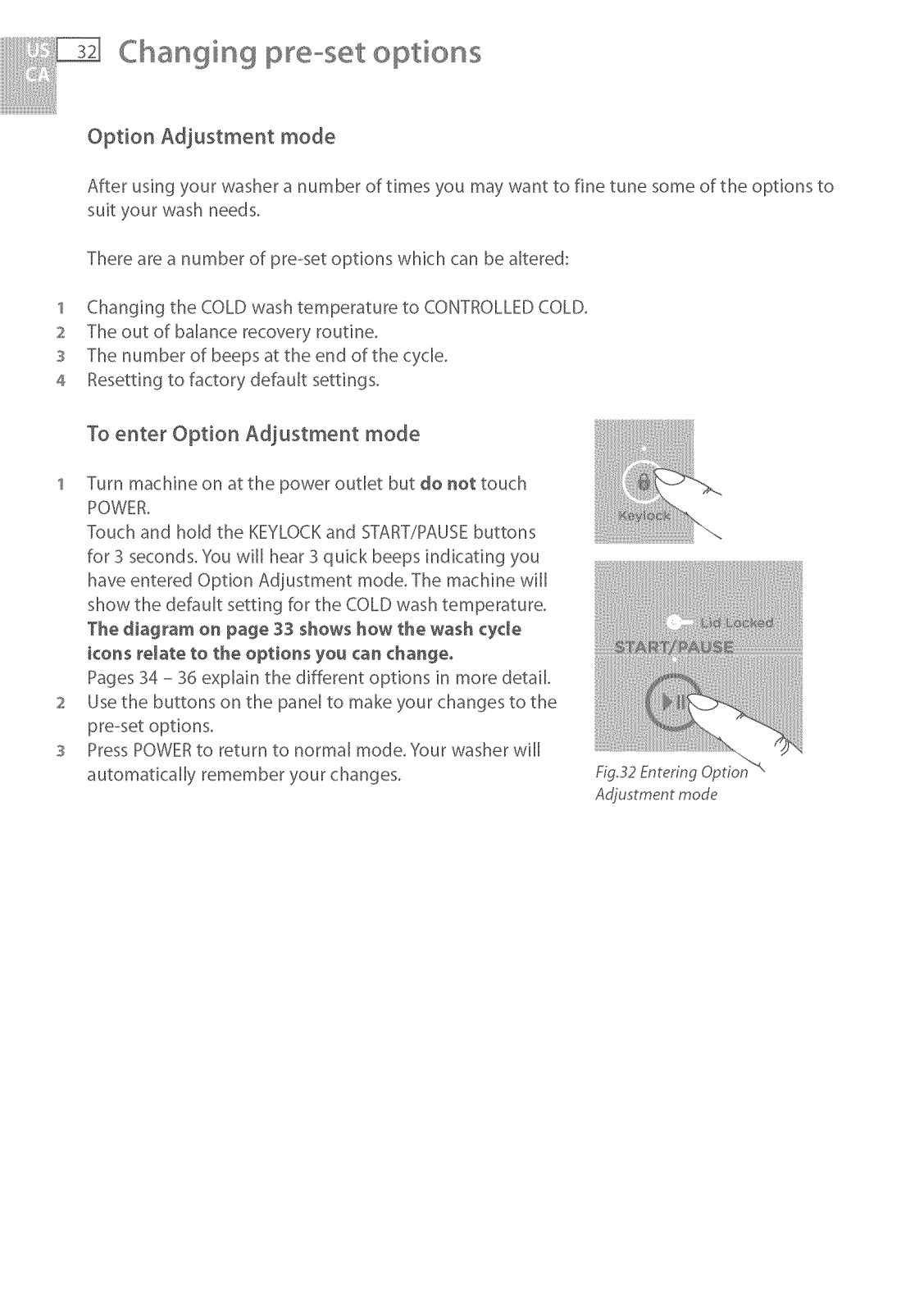

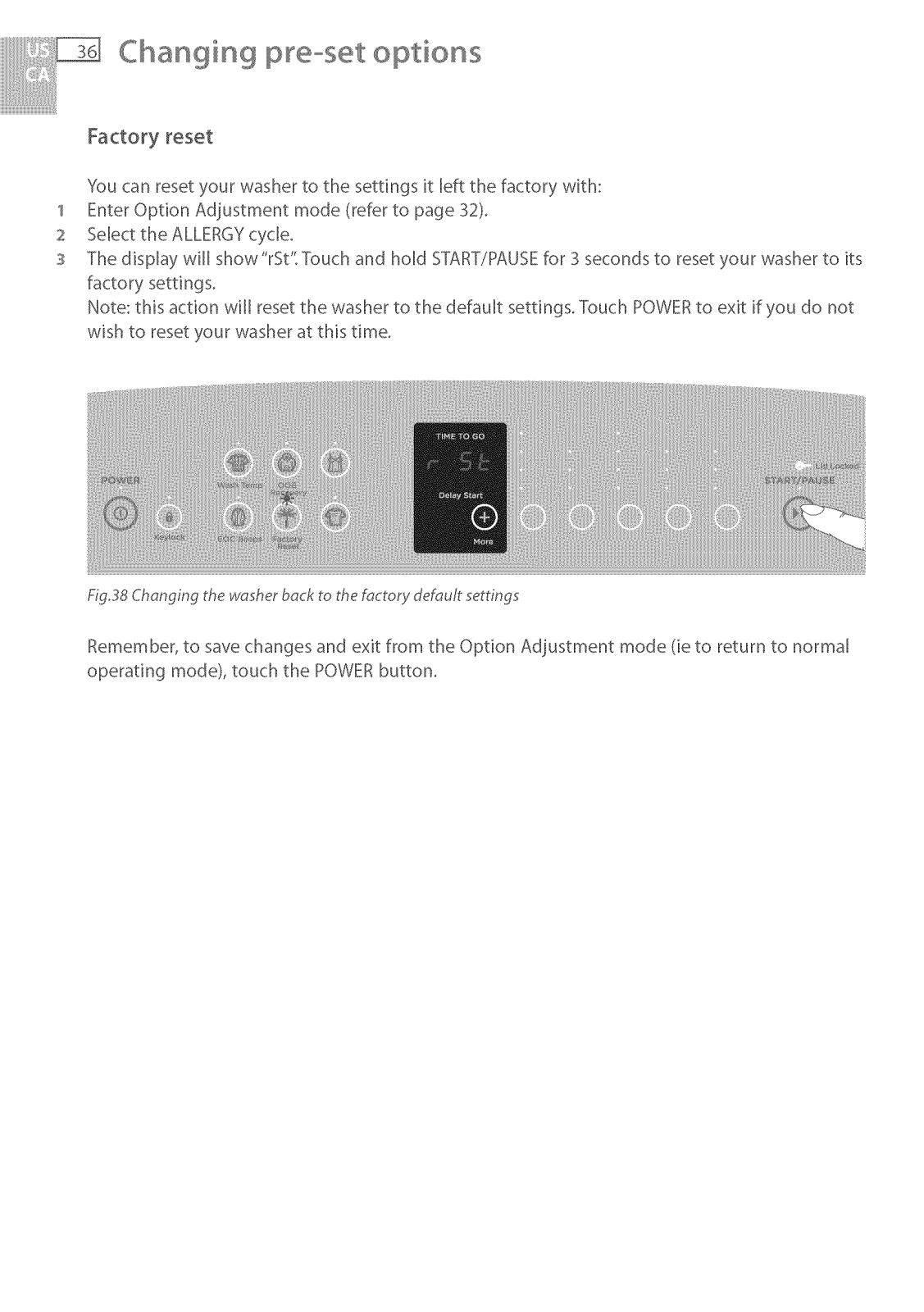

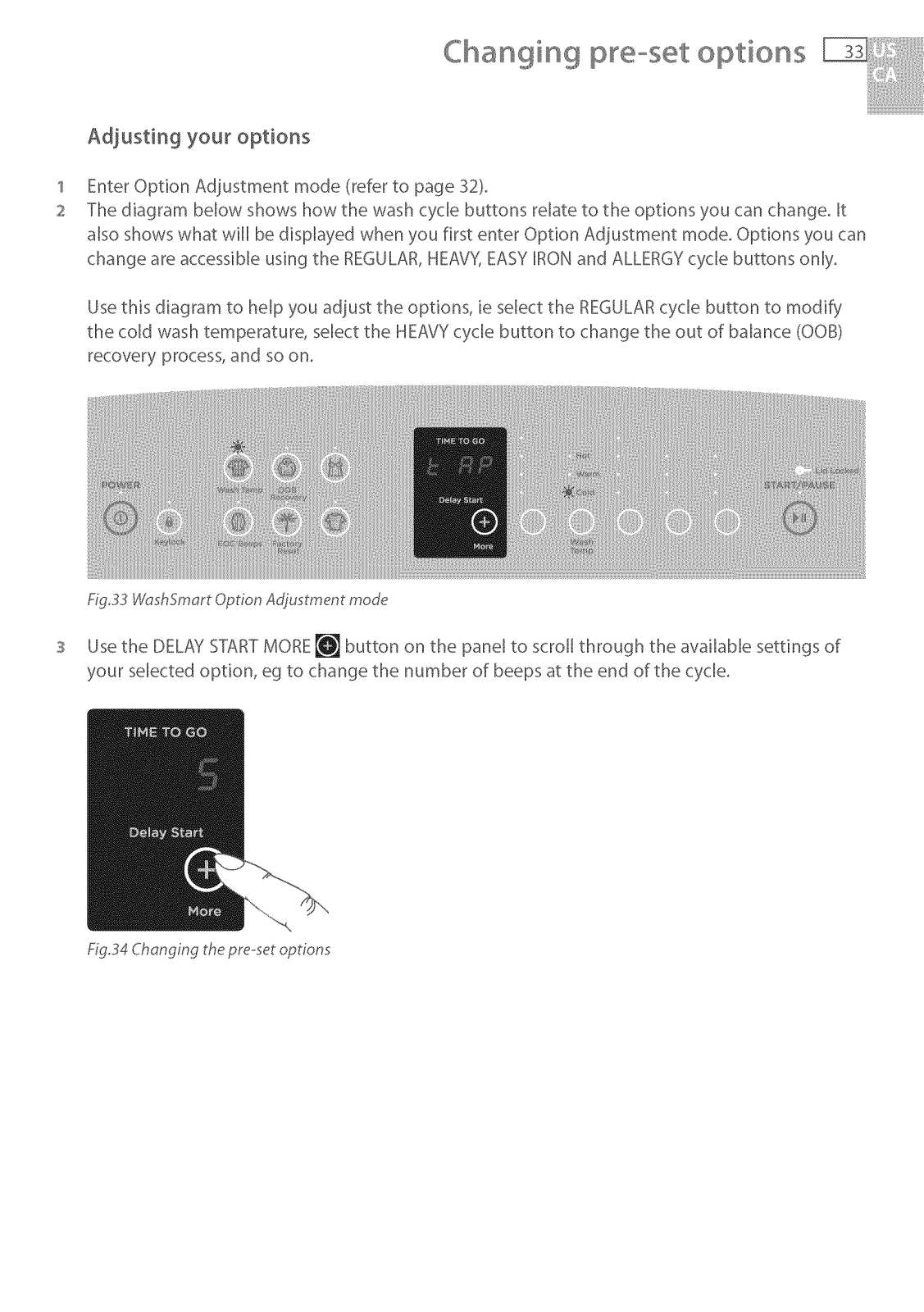

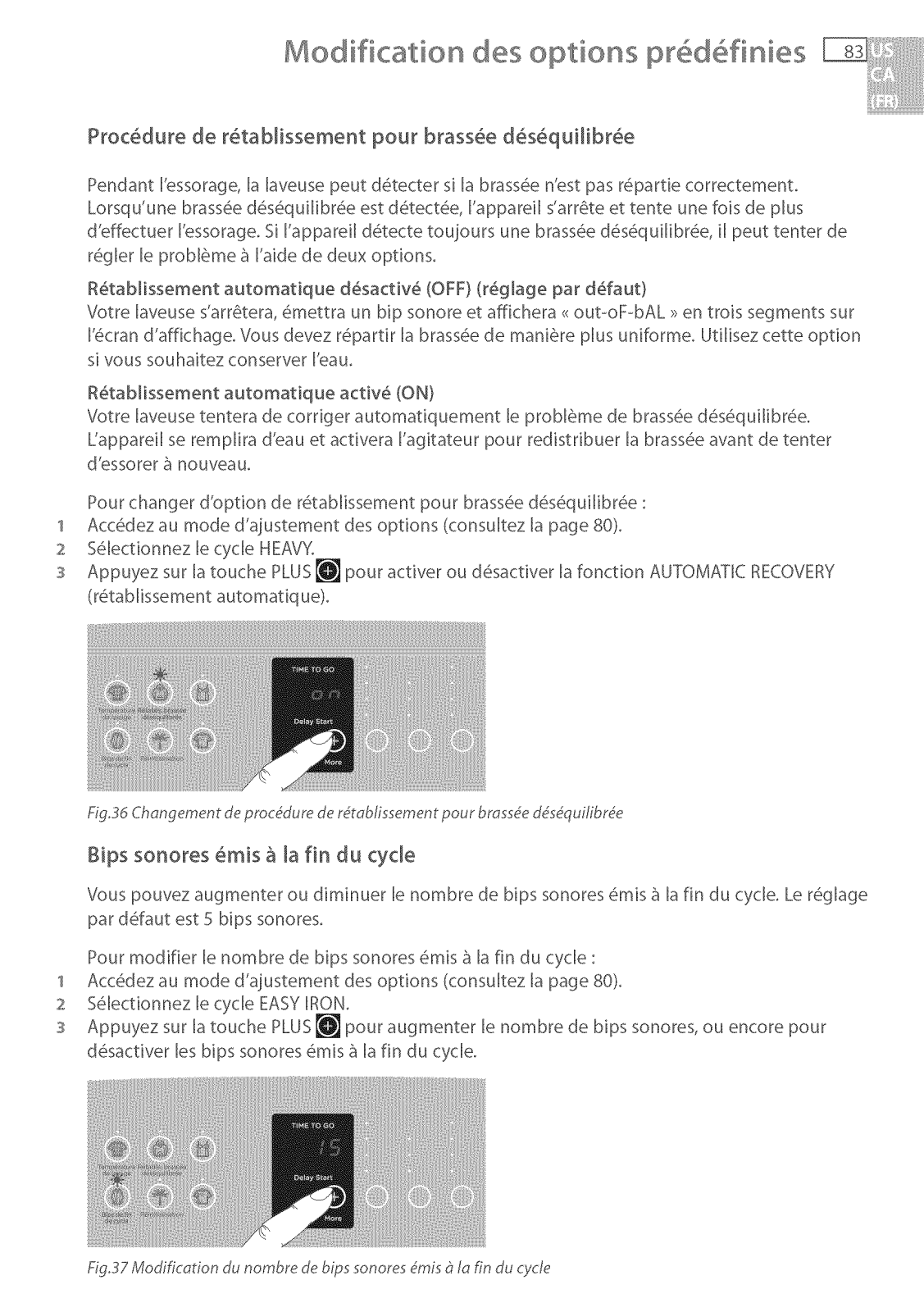

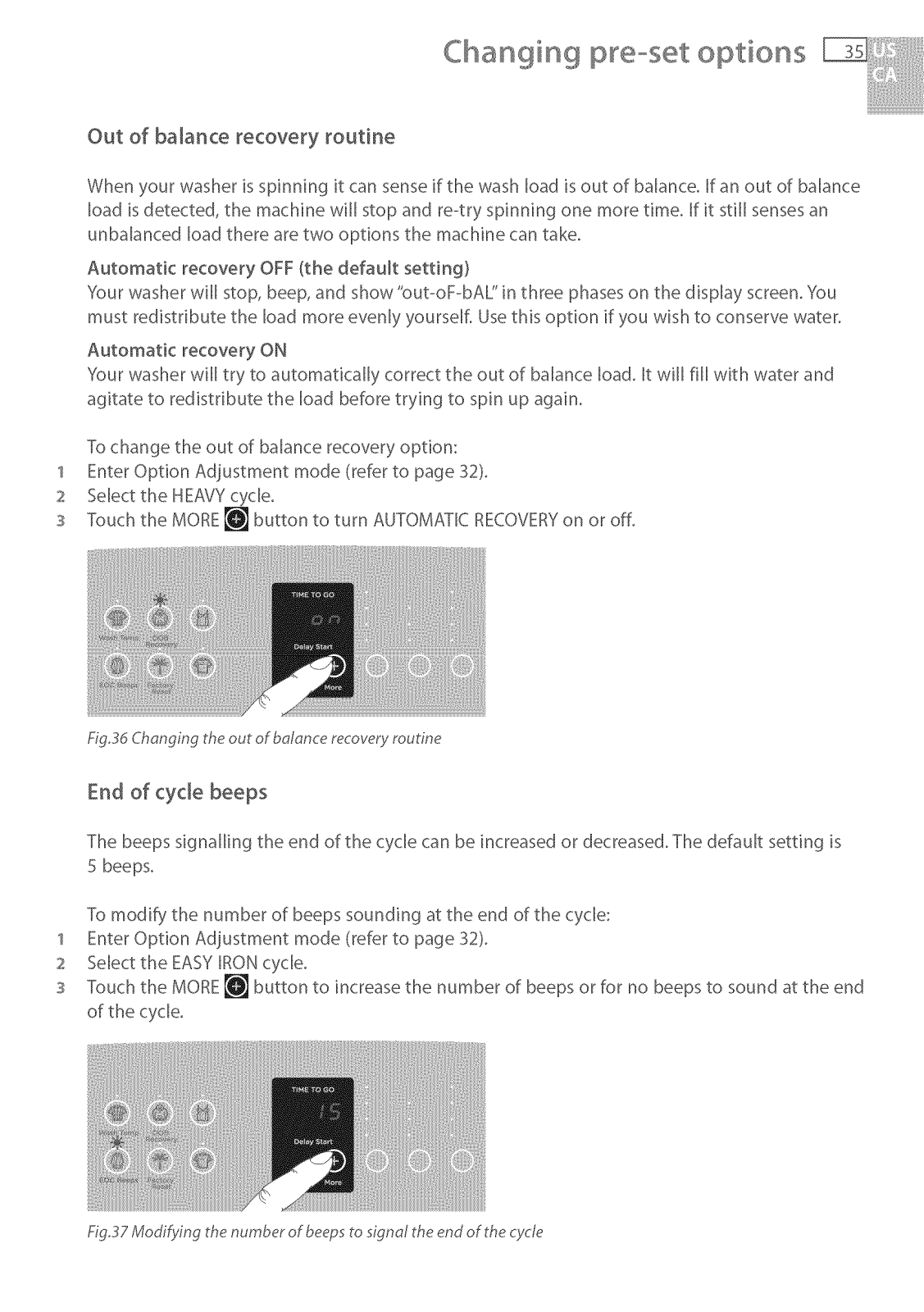

Changing preset options

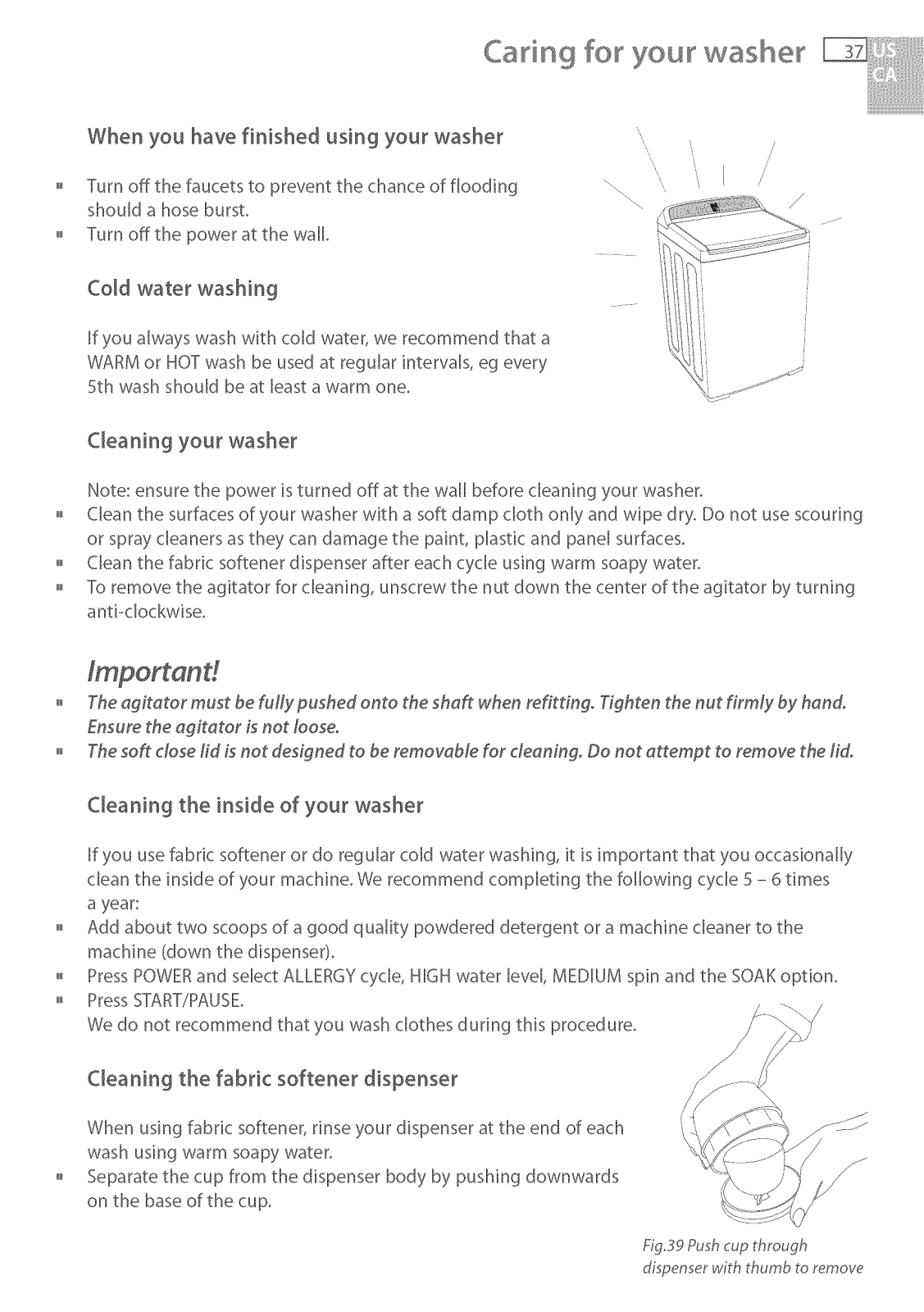

Caring for your washer

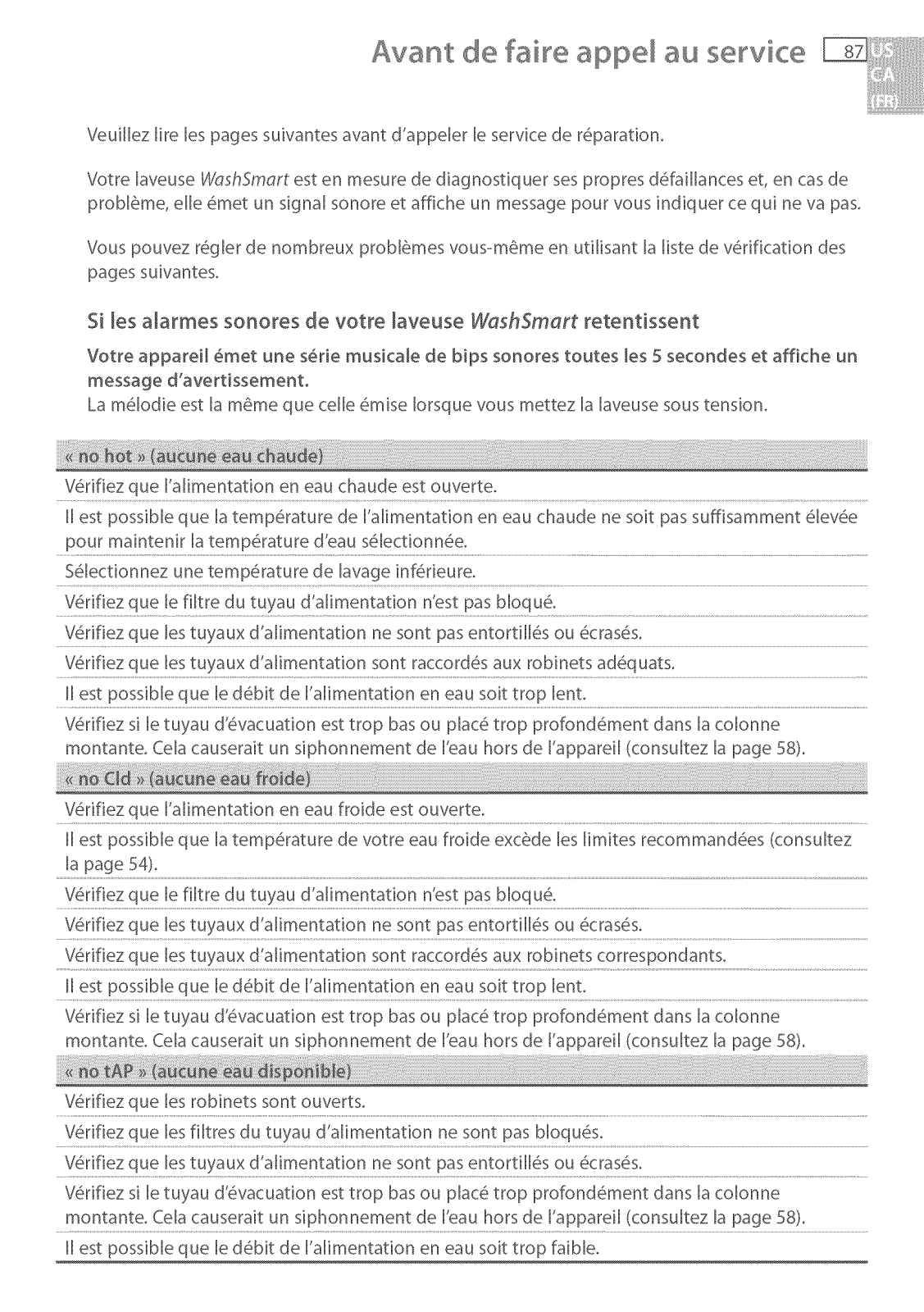

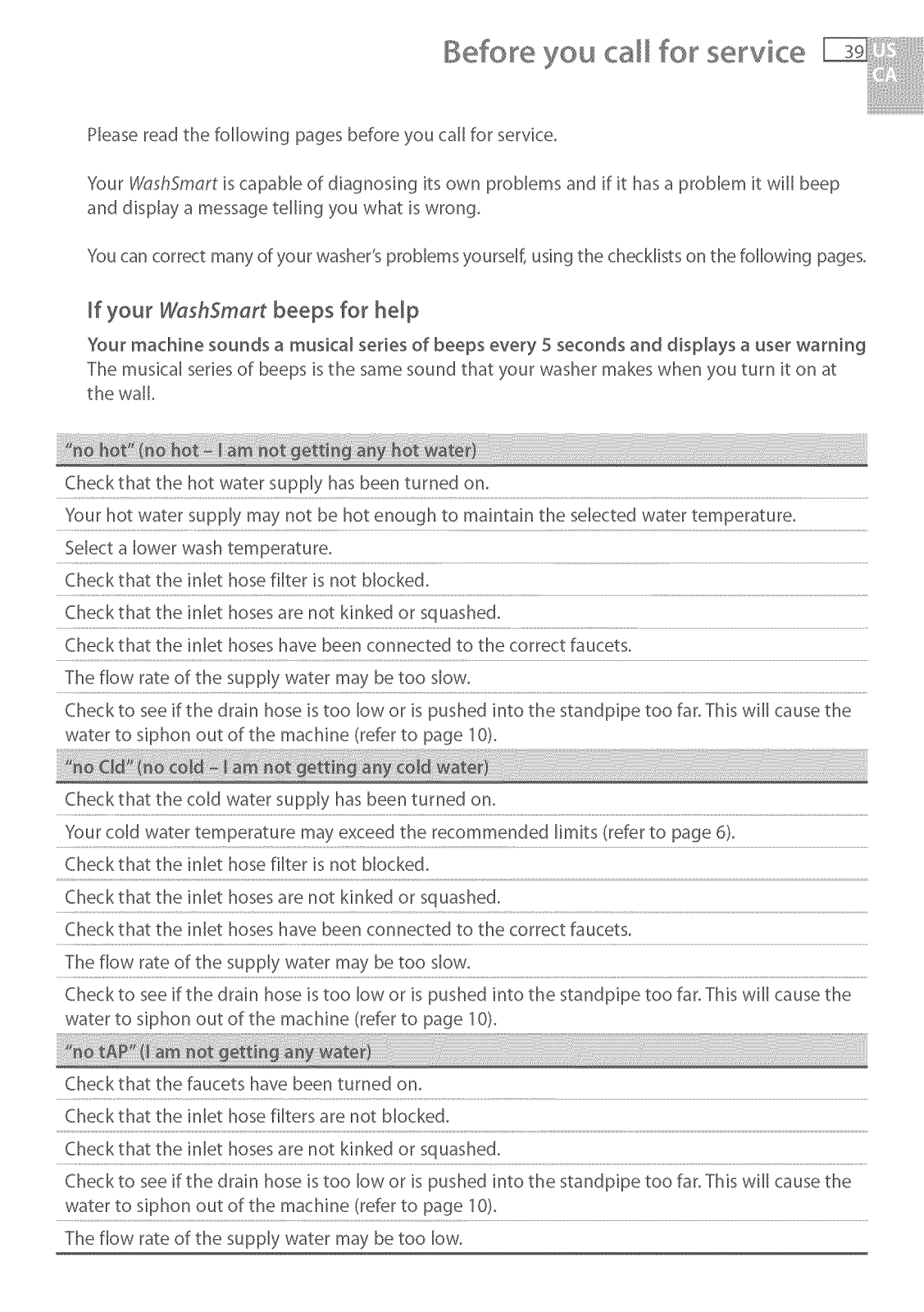

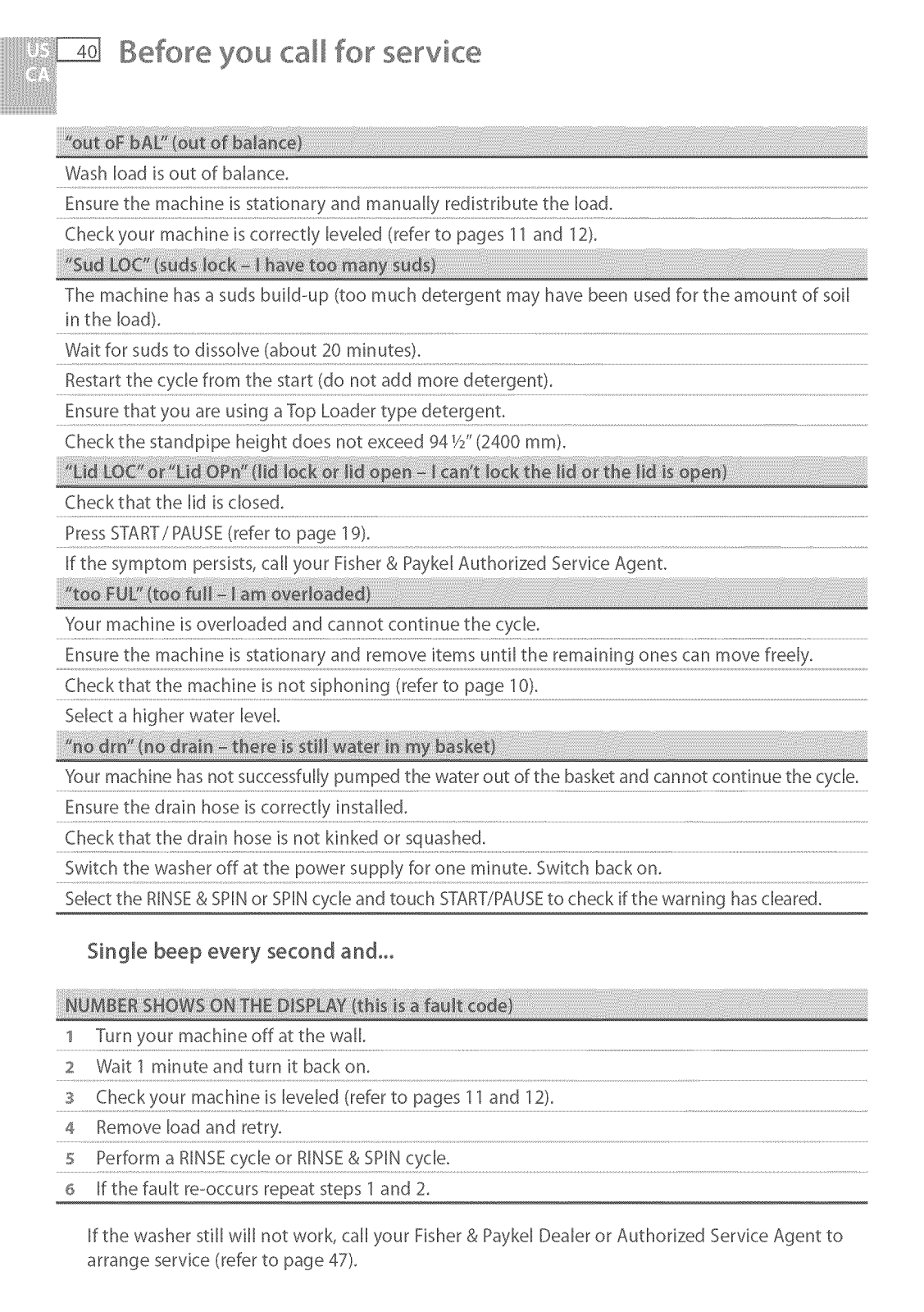

Before you call for service

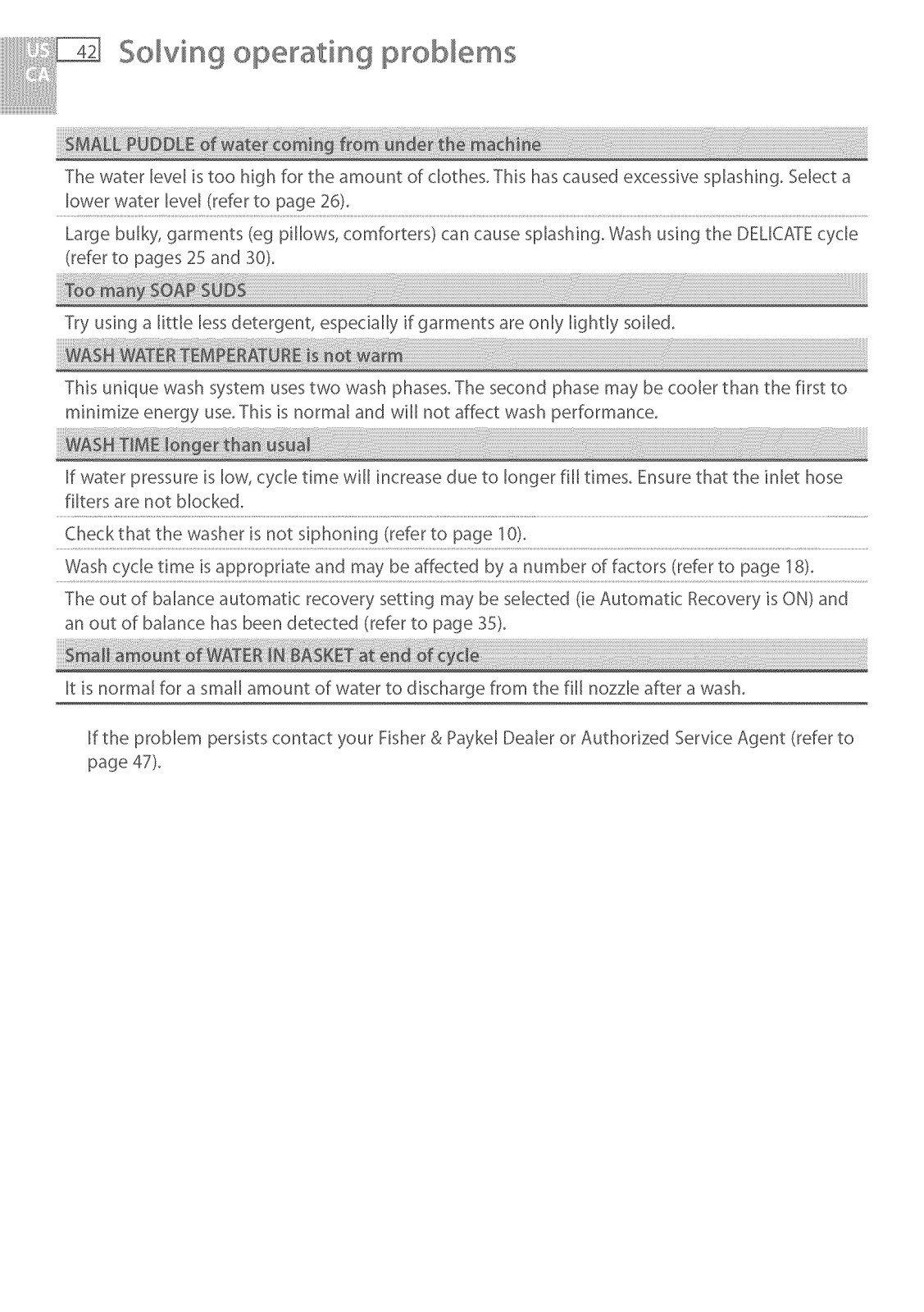

Solving operating problems

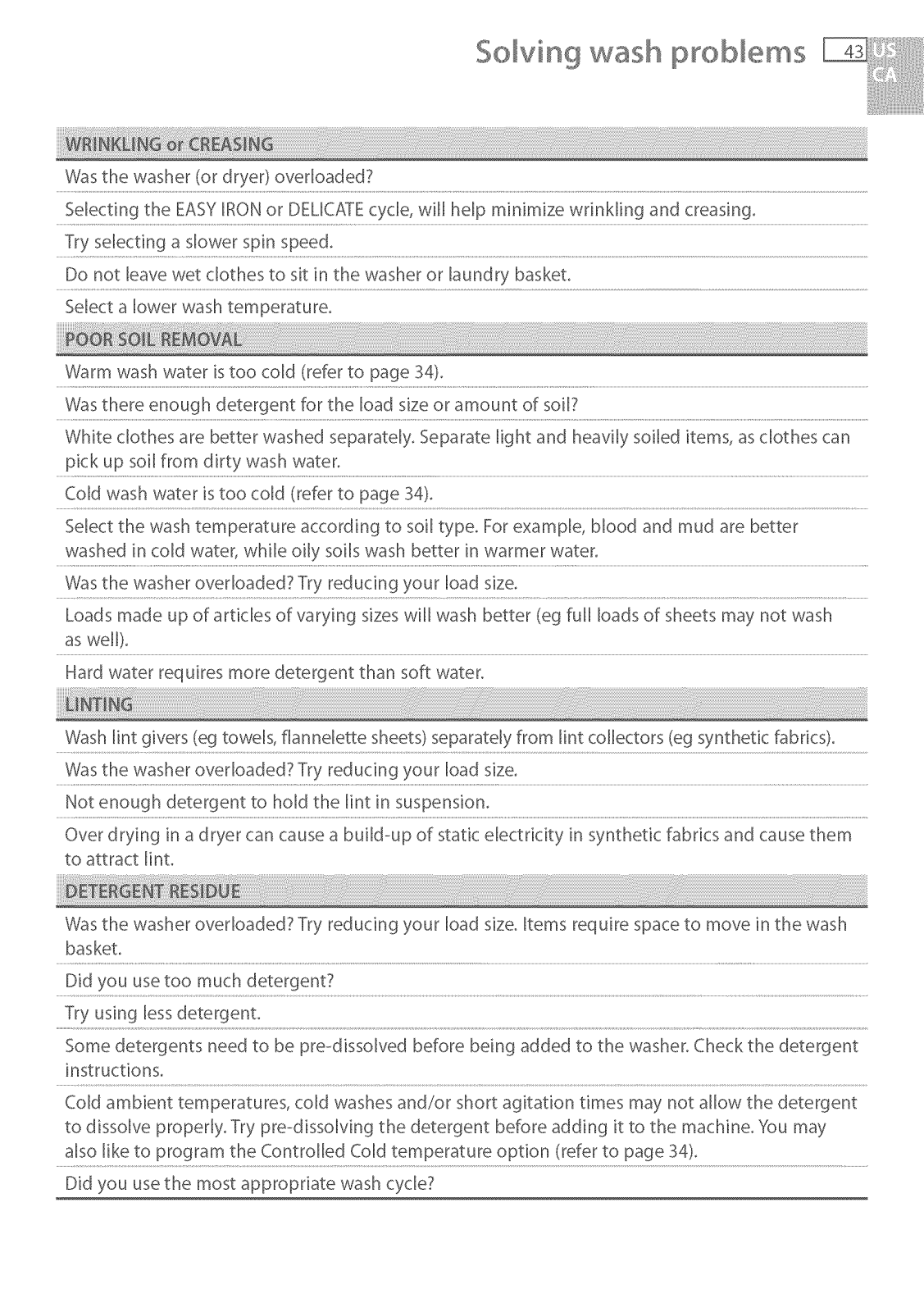

Solving wash problems
How to get service
2
3
6
7
11
15
16
18
19
20
21
22
23
23
23
25
26
31
32
37
39
41
43
45
47
SAVE THESEINSTRUCTIONS
fhe modelsshowninthis UserGuidemoynot tseovoikJbleinoll rn_rketsr;ndr;re
su_bje_t to_honge_t or_ytime.For_urrentdet#/Isabout modeland specification
ovo/l_b/litxinyourcount04pleasevisitourw#_txs/P/isPdon thetx_ckcov#Yor
contoctyour Iocol f/sh¢YDPoyk_ld¢_o/e£

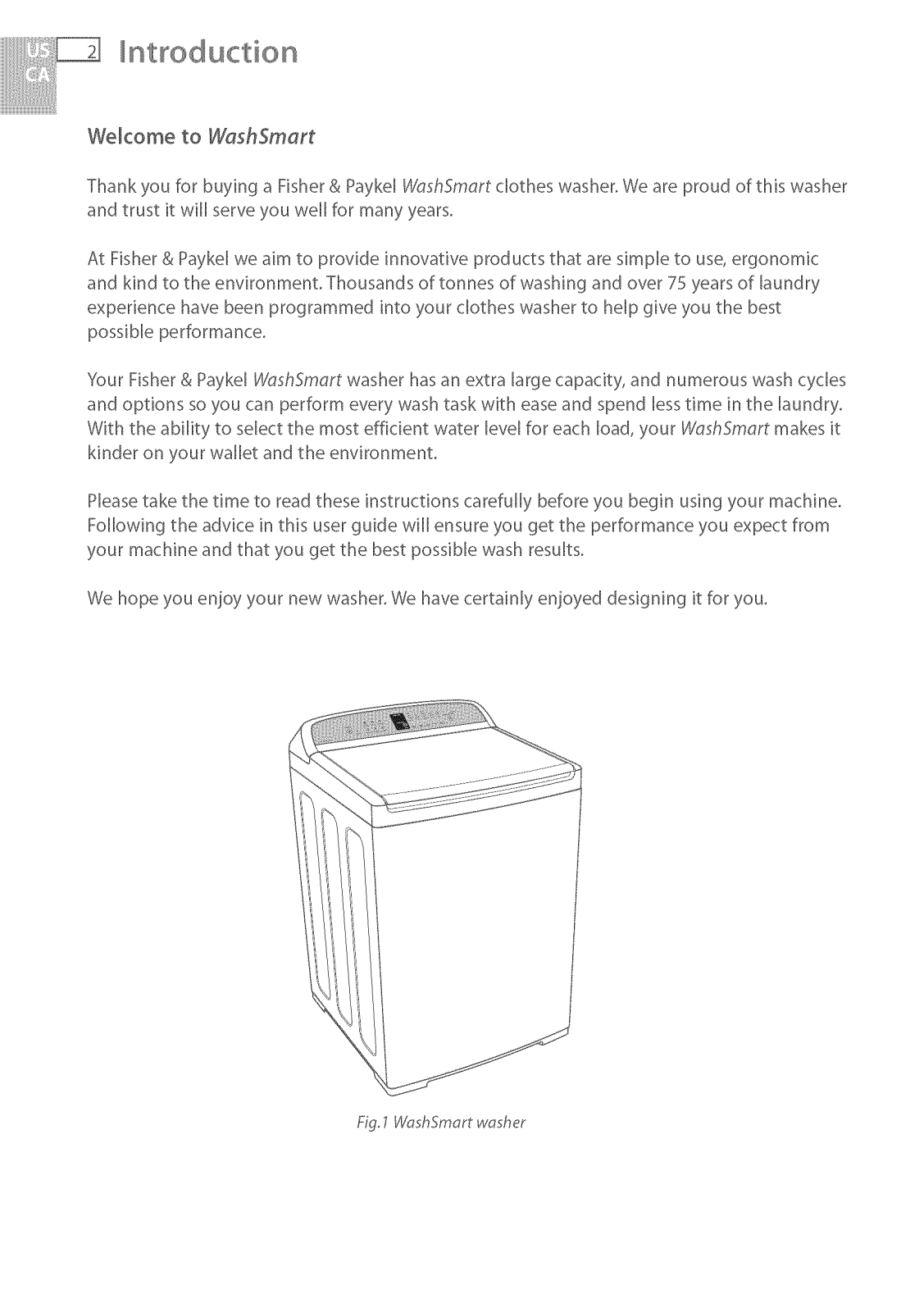

Wekome to WashSmart
Thank you for buying a Fisher & Payke[ WashSmart clothes washer. We are proud of this washer
and trust it will serve you well for many years.
At Fisher & Payke[ we aim to provide innovative products that are simple to use, ergonom[c
and kind to the environment. Thousands of tonnes of washing and over 75 years of laundry
experience have been programmed into your clothes washer to help give you the best
possibBe performance.
Your Fisher & PaykeBWashSmart washer has an extra large capacity, and numerous wash cycles
and options so you can perform every wash task with ease and spend less time in the laundry,
With the ability to select the most efficient water level for each load, your WashSmort makes it
kinder on your wailer and the environment.
Please take the time to read these instructions carefully before you begin using your machine.
Following the advice in this user guide will ensure you get the performance you expect from
your machine and that you get the best possible wash results.
We hope you enjoy your new washer, We have certainly enjoyed designing it for you,
Fig. 1 W_shSmart w_sher

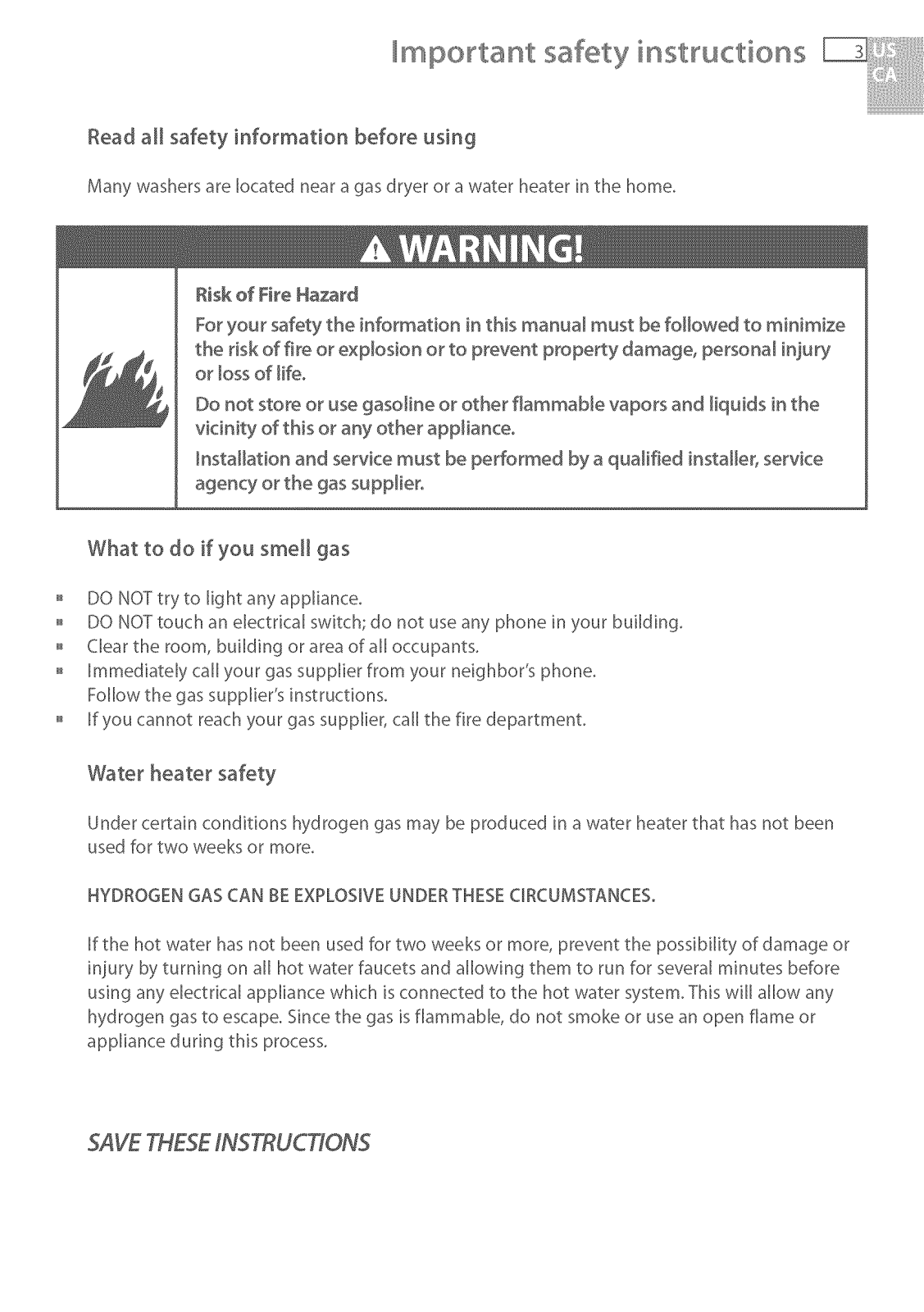

mportant safety instructions
Read all safety information before using
Many washersare located near a gasdryer or a water heater in the home.
Risk ef Fire Hazard
For your safety the information in this manual must be folbwed to minimize
the risk of fire or explosion or to prevent property damage, persona_ injury
or loss of I:feo
Do not store or use gasoline or other flammaMe vapors and Hquids in the
vicinity of this or any other app_ianceo
hstaHation and service must be performed by a qualified installer, service
agency or the gas supplier,
What to do if you smell gas
DO NOTtryto light any appliance.
DO NOT touch an electrical switch; do not use any phone in your building.
Clear the room, building or area of all occupants.
Immediately call your gas supplier from your neighbor's phone.
Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
Water heater safety
Under certain conditions hydrogen gas may be produced in a water heater that has not been
used for two weeks or more,
HYDROGENGASCAN BE EXPLOSIVEUNDERTHESECIRCUMSTANCES°
If the hot water has not been used for two weeks or more, prevent the possibility of damage or
injury by turning on all hot water faucets and allowing them to run for several minutes before
using any electrical appliance which is connected to the hot water system, This will allow any
hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or
appliance during this process,
SAVE X_ESE INSR_UCTIONS

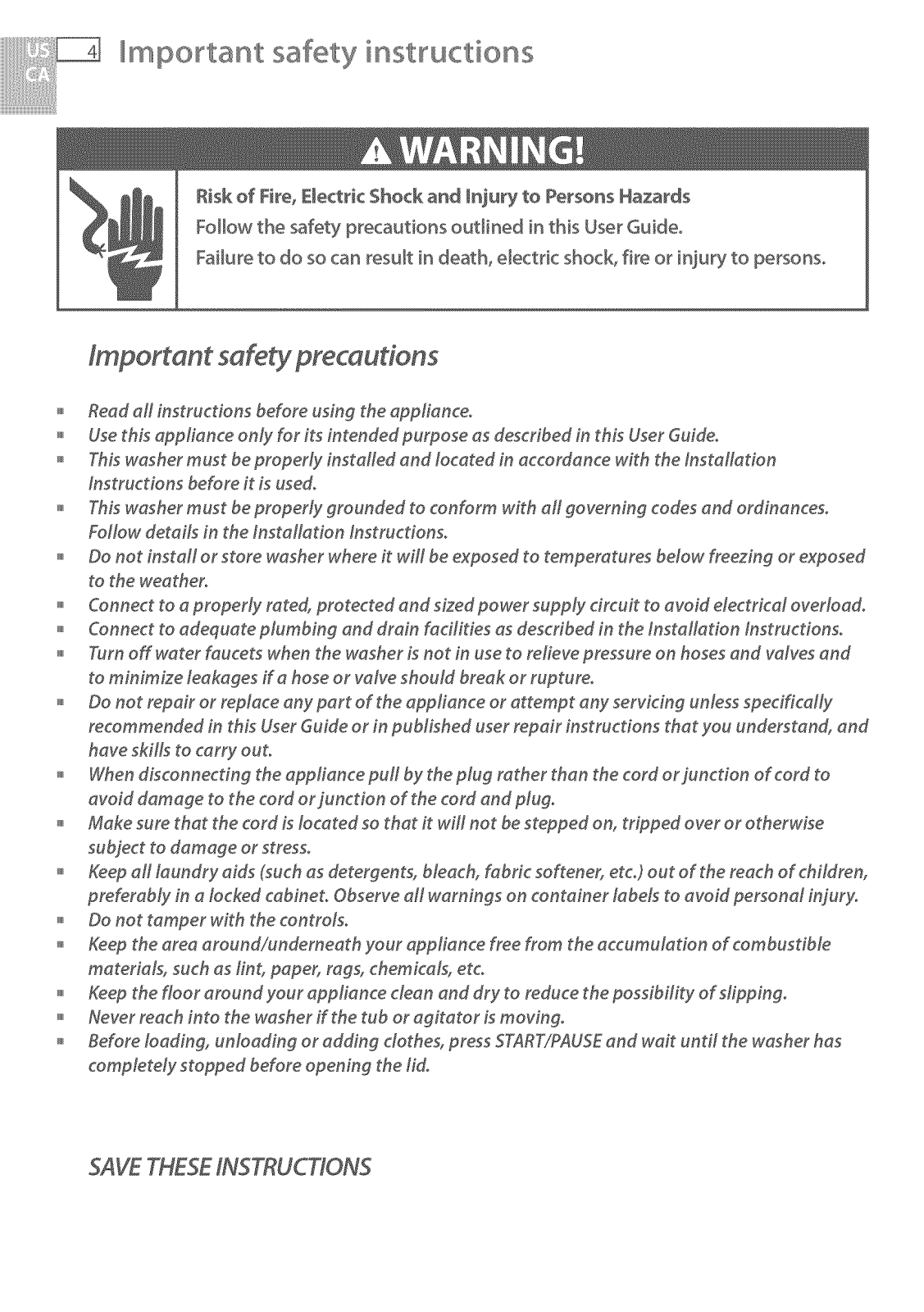

mportant safety instructions
Risk of Fire, E_ectric Shock and _njury to Persons Hazards
Follow the safety precautions outlined in this User Guide.
Failure to do so can result in death, e_ectdc shock, fire or injury to persons.
Readaft instructions before using the @pfiance.
Usethis appliance oMy for its intended purpose as described in this UserGuide.
This washermust beproperty instafied and located in accordance with the installation
instructions before it is used.
o Thiswasher must beproperty grounded to conform with aft governing codes and ordinances°
Follow details in the Installation instructions.
o Donot install or store washer where it wilt beexposed to temperatures below freezing or exposed
to the weather.
o Connect to aproperty rated, protected and seed power supp!y circuit to avoid electrical overload°
o Connect to adequate plumbing and drain facilities asdescribed in the installation instructions.
o Turnoff water faucets when the washer isnot in use to relieve pressureon hosesand valvesand
to minim#e leakages ira hose or valveshould break or rupture.
o Donot repair or replace any part of the app#ance or attempt any servicing unlessspecificafly
recommended in this UserGuideor in published userrepair instructions that you understand, and
haveskills to carry out.
o Whendisconnecting the appfance pug by the plug rather than the cord or junction of cord to
avoid damage to the cord or junction of the cord and plug.
o Makesure that the cord is located so that it wifl not bestepped on, tripped over or otherwise
subject to damage or stress°
o Keepaft laundry aids (such asdetergents, bleach, fabric sofener, etcJ out of the reach of children,
preferab!y in a locked cabinet. Observe all warnings on container labels to avoid personal injury.
o Donot tamper with the controls.
o Keepthe areaaround/underneath your appliance free #om the accumulation of combustible
materials, such astint,paper, rags, chemicals,etc.
o Keepthe floor around your appliance clean and dry to reduce the possibility of dipping.
o Neverreach into the washer if the tub or agitator is moving.
o Beforetoading, untoadingoraddingdothes, pressSTARTiPAU5Eandwaituntifthewasherhas
comptetdy stopped before opening the lid.
SAVE THESEINSTRUCTIONS

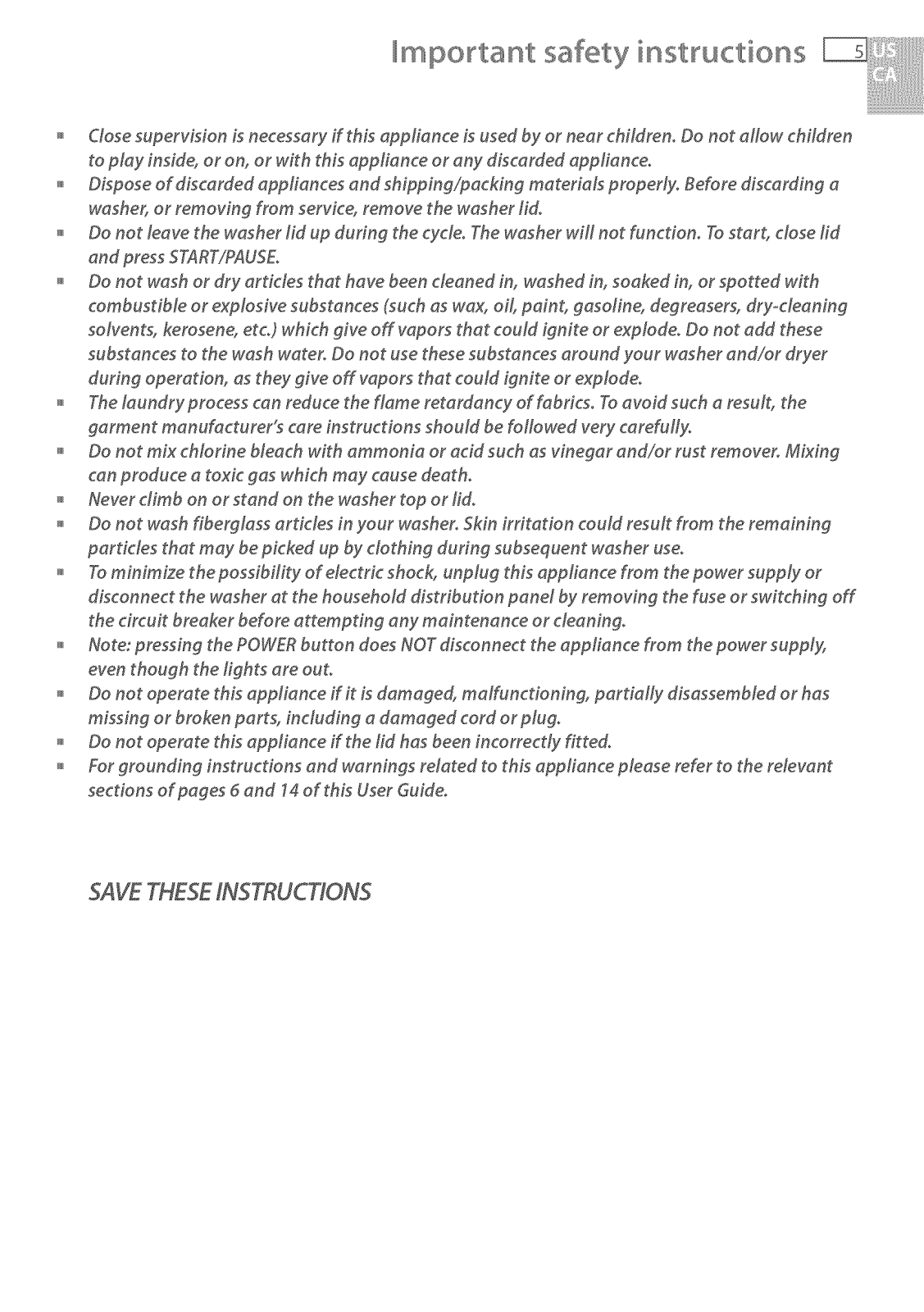

mportant safety instructions
Ctose supervision is necessary ff this @pfiance is used by or near children° Do not attow children
to ptay indd¢ or on, or with this appliance or any discarded appfiance.
o Dispose of discarded appfiances and shipping/packing materials propertyo Before discarding a
washec or removing from service, remove the washer fid.
o Do not leave the washer fid up during the cycle. The washer wifl not function. Tostart, dose fid
and press 5TART/PAUSEo
o Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with
combustible or explosive substances (such as wa_ oil, paint, gasoline, degreasers, dry_deaning
solvents, kerosene, etc.) which give off vapors that could ignite or explode° Do not add these
substances to the wash water. Do not use these substances around your washer and/or dryer
during operation, as they give off vapors that could ignite or explode°
o The laundry process can reduce the flame retardancy offabricso To avoid such a resut5 the
garment manufacturer's care instructions should be followed very carefuflyo
o Do not mix chlorine bleach with ammonia or acid such as vinegar and/or rust remover. Mixing
can produce a toxic gas which may cause death.
o Never climb on or stand on the washer top or tido
o Do not wash fiberglass articles in your washer. Skin #ritadon could result from the remaining
particles that may be picked up by clothing during subsequent washer use.
o To minimize the possibility of electric shock, unplug this appliance from the power supp!y or
disconnect the washer at the household distribution panel by removing the fuse or switching off
the circuit breaker before attempting any maintenance or cleaning°
o Note: pressing the POWER button does NOT disconnect the appfiance from the power suppty,
even though the fights are out.
o Do not @orate this appliance if it is damaged, matfunctionin¢ partiafly disassembled or has
missing or broken parts including a damaged cord or ptugo
o Do not operate this appliance if the lid has been incorrecdy fitted.
o For grounding instructions and warnings related to this appfiance ptease refer to the relevant
sections of pages 6 and 14of this User Guide.
SAVE THESEINSTRUCTIONS

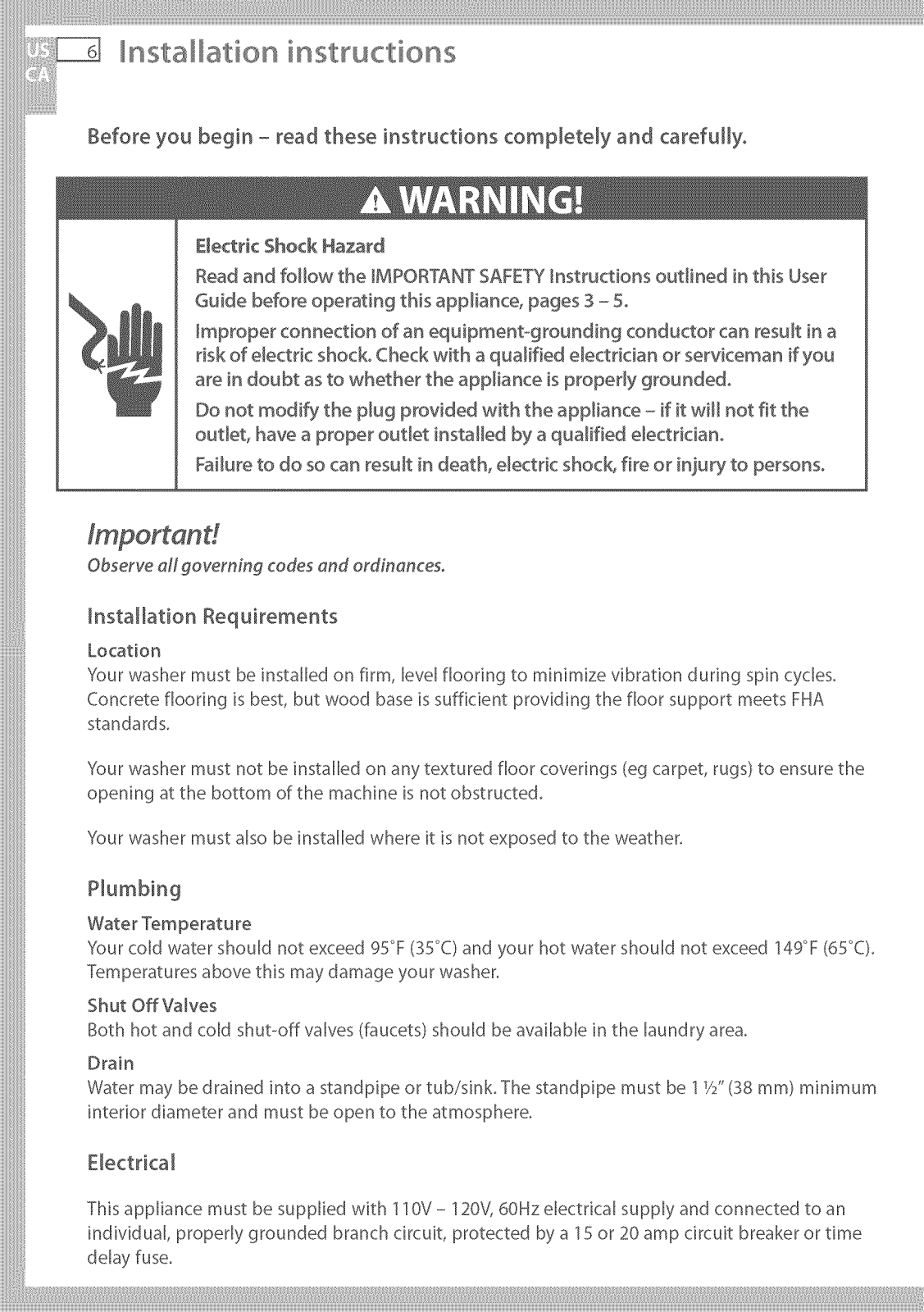

Installation instructions
Before you begin - read these instructions completely and carefuHyo
£1ectric Shock Hazard
Read and folbw the IMPORTANT SAFETY Instructions oudined in this User
Guide before operating this appliance, pages 3 - 5o
Improper connection of an equipment-groundin 9 conductor can result in a
risk of dectric shock°Check with aqualified electrician or serviceman if you
are in doubt asto whether the appliance is properly 9roundedo
Do not modify the plu 9 provided with the appliance - if it will not fit the
ouNet, have a proper outlet instaled by a qualified e_ectriciano
Failure to do so can result in death, electric shock, fire or injury to persons°
Observeall governing codes and ordinances°
Installation Requirements
Location
Your washer must be installed on firm, [eve[ flooring to minimize vibration during spin cy'c[es.
Concrete flooring [s best,but wood base [ssufficient providing the floor support meets FHA
standards.
Your washer must not be installed on any textured floor coverings (eg carpet, rugs) to ensure the
opening at the bottom of the machine [s not obstructed.
Your washer must also be installed where it is not exposed to the weather.
Water Temperature
Your cold water should not exceed 95_'F(35_'C)and your hot water should not exceed 149°F (65°C).
Temperatures above this may damage your washer.
Shut Off Valves
Both hot and cold shuboff valves (faucets) should be available in the laundry area.
Drain
Water may be drained into a standpipe or tub/sink. The standpipe must be 1Y/' (38 ram) minimum
interior diameter and must be open to the atmosphere.
Electrical
This appliance must be supplied with 110V - 120V, 60Hz electrical supply and connected to an
individual, properly grounded branch circuit, protected by a 15 or 20 amp circuit breaker or time
delay fuse.
iiiliiii,I=I 7i=_=illi¸IIIIIIIiiiiii IIIIIIIIIIIIiiiiiiiiiiiiii¸Iili¸11111!ilii_iliiiiiiiiiilll_iI,!7I,
Installation instructions

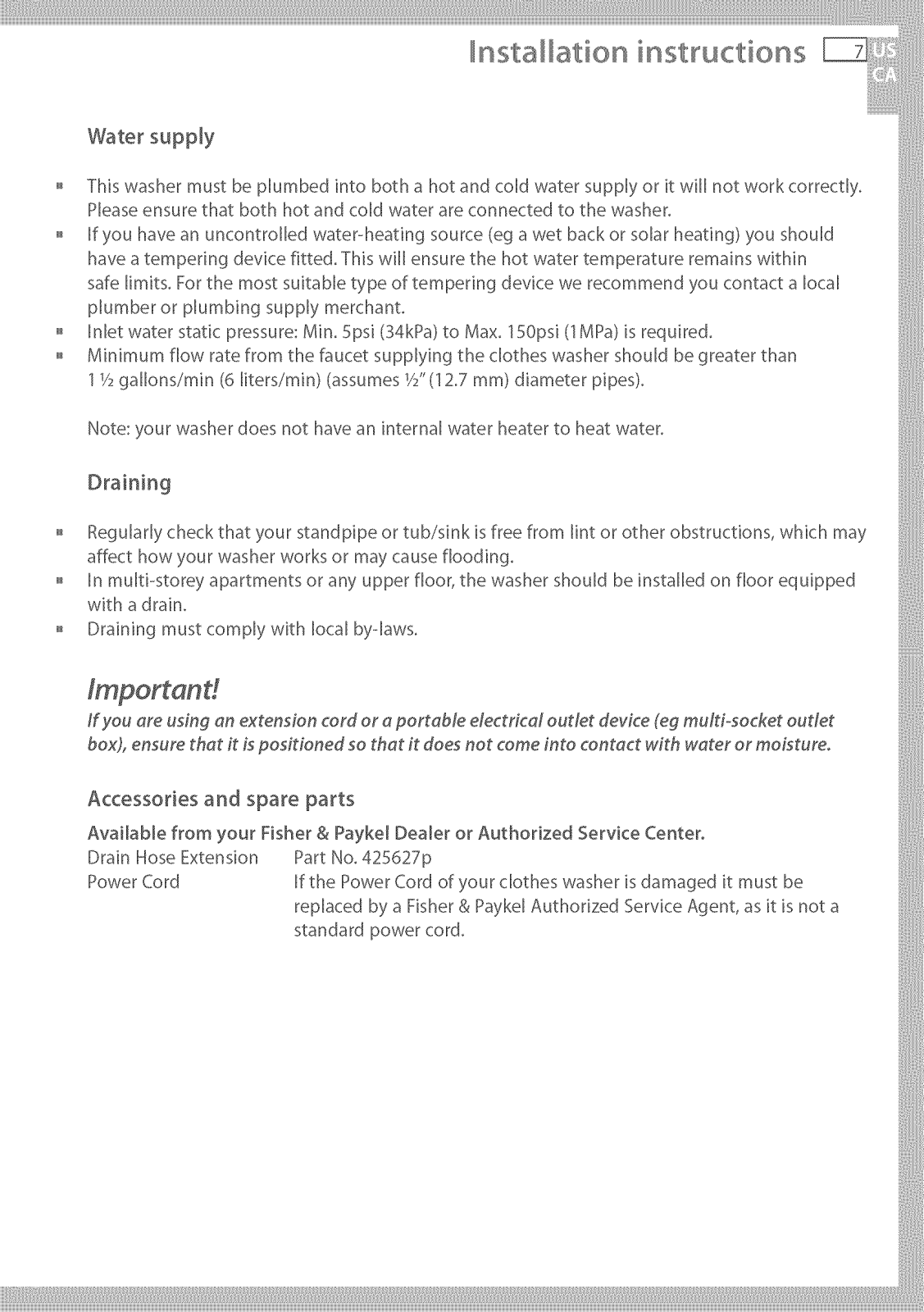

= Water supply
Thiswashermustbe plumbedinto botha hotaridcoldwatersupplyor itwUlriotworkcorrectly.
Please ensure that both hot arid cold water are connected to the washer, i
= If you have an uncontrolled water-heating source (eg a w'et back or solar heating) you should
nsta ation instructions
•4
Allow for
Washer end of hose
Faucet end of hose
Standpipe height
33 Y/' to 94 lh"
(850 - 2400 mm)
C
......... B Max 150 psi (1MPa)
.................. _....... Min 5 psi (34kPa)

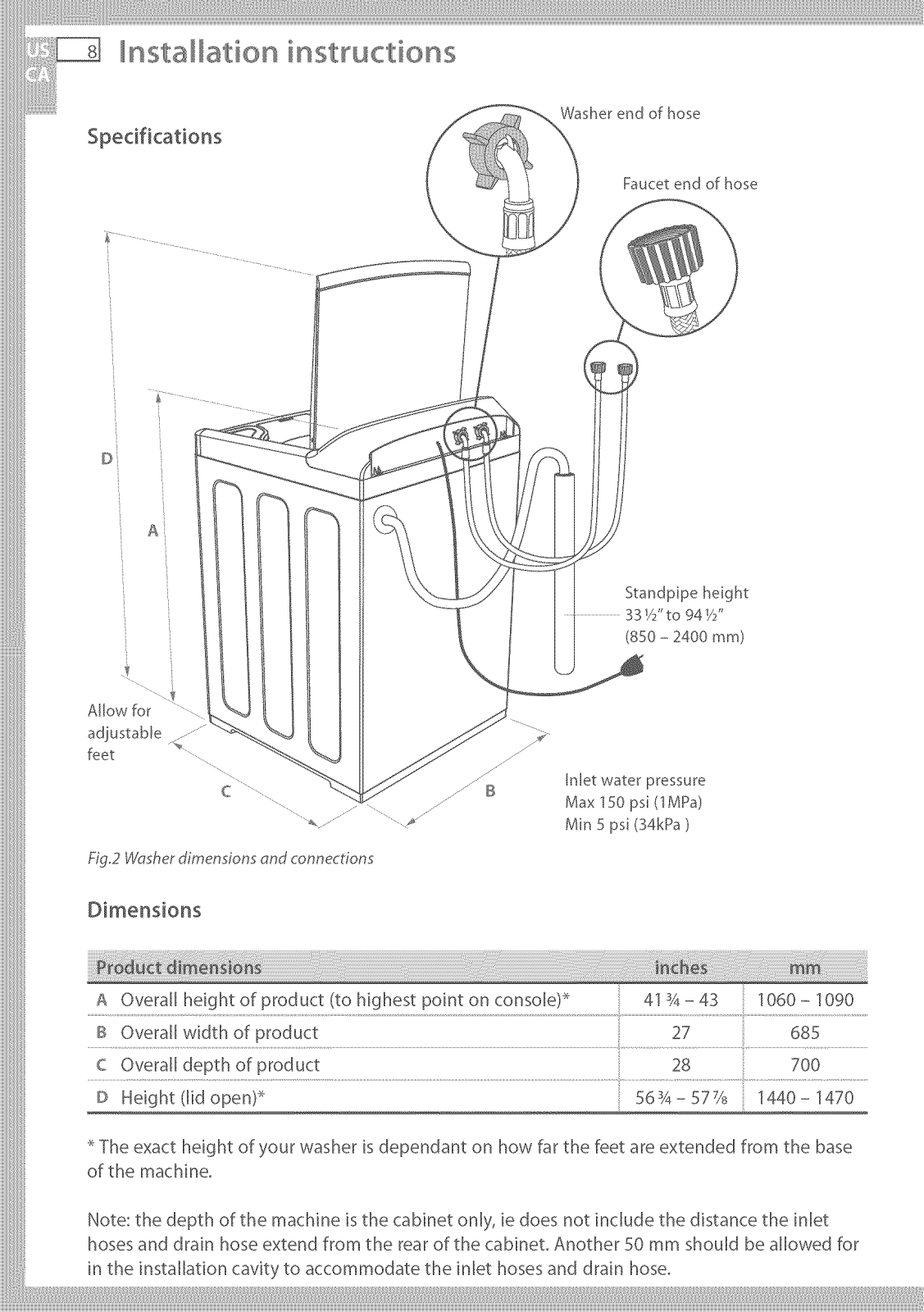

Fi9.2 Wdshe_ dimensions and connections
Inlet water pressure
Dimensions
g Overall height of product (to highest point on consob) _' 41_A- 43 1060-1090
D Height (lid open) _
_ The exact height of your washer is dependant on how far the feet are extended from the base
of the machine,
Note: the depth of the machine is the cabinet onBy, ie does not include the distance the inBet
hoses and drain hose extend from the rear of the cabinet, Another 50 mm should be allowed for
in the instaRRation cavity to accommodate the inRet hoses and drain hose,
56s4 - 57% 1440 - 1470
iiiliiii,I=I li=_=lliiIIIIIIIiiiiii IIIIIIIIIIIIiiiiiiiiiiiiii¸Iili11111111¸!II1i!!t/!!li/!iI!ii

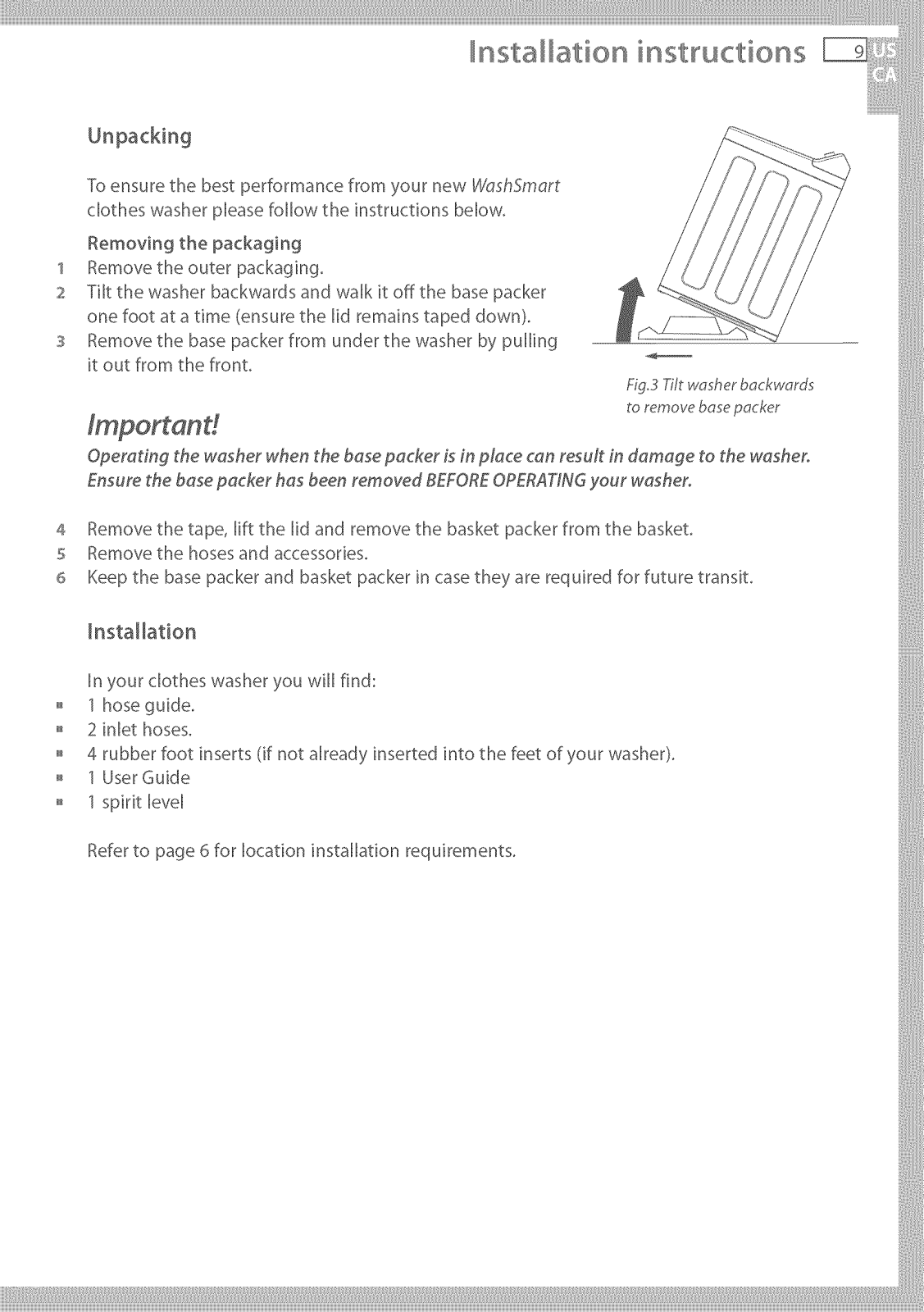

Installation instructions _!:::!:i_
uop=a_g .............................II
To ensure the best performance from ),'our new Wd_bSrnort / _'/ /_f-
clothes washer please follow the instructions below, _+ / _+ ,+// _+
0 ,.e 0
_tout from the front.
Importent_
Operating_hew==herwhen_heb_=ep_<kerJ_Jnpt=<e<_nre_._Jnd=m_ge_o_hew_her, i_1iii
Ensure the base packer has been removed BEFORE OPERATffW your washer. :}
4 Remove the tape, lift the lid and remove the basket packer from the basket.
5 Removethe hoses and accessories, iii:
6 Keep_hebasepa_keranabaske_pa_kerin_ase_heyarer<oireaforfo_ore_ransi_.
Installation
[
_r_yoordo_heswasheryoowUlf_nd:
= _hosego_de.
= 2 inlet hoses.
= 4robberfootinserts{ifnotalreadyinsertedintothefeetofyoorwasher).
= 1 UserGuide
= _sp_r_level
Refer to page 6 for location installation requirements.
nsta ation instructions

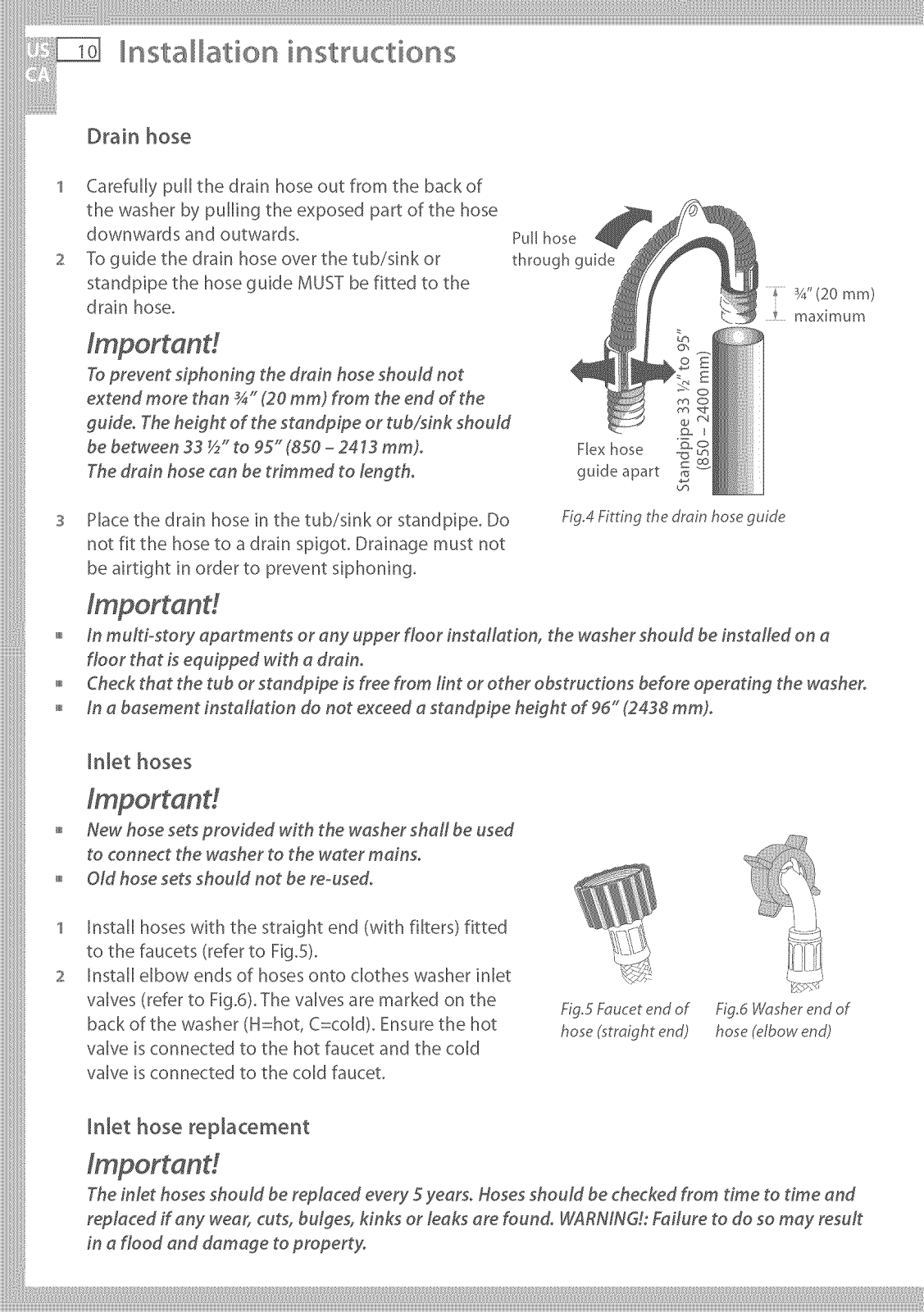

Drain hose
1 Carefully pull the drain hose out from the back of
the washer by pulling the exposed part of the hose
downwards and outwards.
2 To guide the drain hose over the tub/sink or
standpipe the hose guide MUST be fitted to the
drain hose.
Toprevent s@honing the drain hoseshould not
extend more than %" (20 mm) from the end of the
guide, Theheight of the stan@ipe or tub#ink should
be between 33 ½" to 95" (850 - 2413 mm)o
The drain hose can be trimmed to length°
Pullhose
through guide
W' (20 ram)
maximum
Flex hose
guide apart
Place the drain hose in the tub/sink or standpipe. Do
not fit the hose to a drain spigot, Drainage must not
be airtight in order to prevent siphoning.
In multi-story apartments or any @per floor installation, the washer should be installed on a
floor that is equipped with a drain°
Check that the tub or standpoe is free from tint or other obstructions before operating the washer
In a basement installation do not exceed a standpipe heoht of 96" (2438 mm)o
Fig4 Fitting the drain hose guide
Inlet hoses
New hose sets provided with the washer shaft be used
to connect the washer to the water mains.
Old hose sets should not be re-usedo
1
Install hoses with the straight end (with filters) fitted
to the faucets (refer to Fig.5).
Install elbow ends of hoses onto clothes washer inlet
2
valves (refer to Fig.6).The valves are marked on the
back of the washer (H=hot, C=cold). Ensure the hot
valve is connected to the hot faucet and the cold
valve is connected to the cold faucet.
Fig,5 Faucet end of
hose (straight end)
Fig,6W,ssherend of
hose(elbow end)
runlethose replacement
The inlet hoses should be replaced every 5 years° Hoses should be checked from time to time and
replaced if any wea_ cuts, bulges, kinks or leaks are found. WARNtNGh Failure to do so may result
in a flood and damage to property.
iiiliiii,I,I li,_,lliiIIIIIIIiiiiii IIIIIIIIIIIIiiiiiiiiiiiiii¸Iili111111111111111¸Ii/!@
Installation instructions

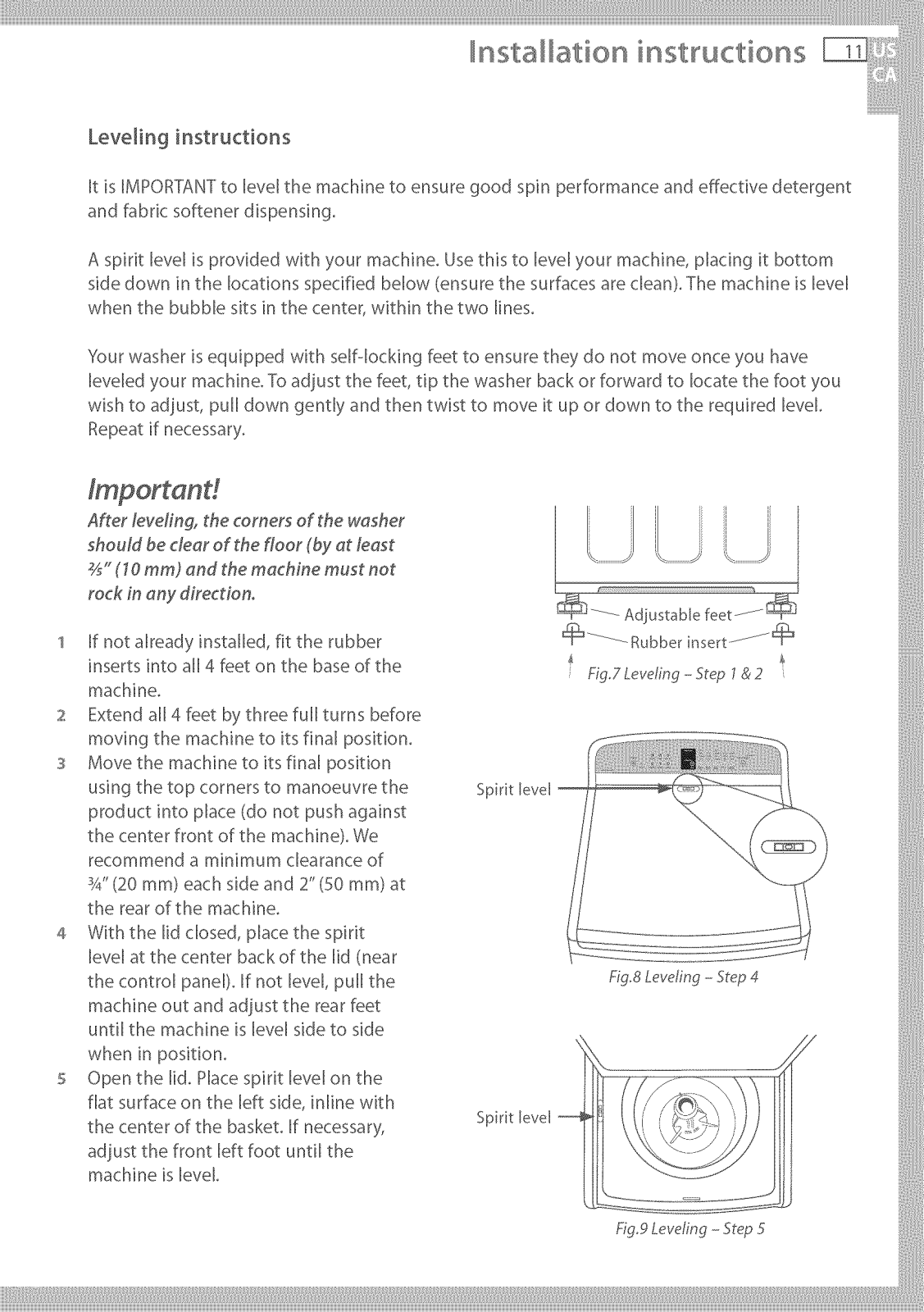

It iS IMPORTANT to level the machine to ensure good spin performance and effective detergent
andfabricsoftenerd_spens_ng.
A spirit level is provided with ),'our machine, Use this to level },,'ourmachine, placing it bottom
side down in the locations specified below (ensure the surfaces are clean}, The machine is level j
when the bubble sits in the center, within the two lines,
Your washer is equipped with self-locking feet to ensure the},,' do not move once you have
leveled )'our machine. TO adjust the feet, tip the washer back or forward to locate the foot you
wish to adjust, pull down gently and then twist to move it up or down to the required level. ]
Repeat if necessary.
Important! f
Ane__eve_J_g,the_ome_,ofthew_,he_ i i _:,
_ho._dbe<_e_o_thenoo_bu_t_e==t / I il ! !::
2 , ' I _::::::::::::::_\,===,J Y.............._ 1
"(tomm_o_,_them_<h,nem._t_ot
,__fnota_ready_nstaUed,f_ttherubber @ ......_o_,,_o_..........@ ....
nsertsntoa 4feetonthebaseofthe _ Fi 7Levdin 5_e 7& 2 _
machine. i}
g. g- p
E×tendall4feetbythreefullturnsbefore
moving the machine to its final position. /_:1c _c ..,
S Move the machine to its final position
usingthetopcornerstomanoeuvrethe _ _°"°_- _ i
product_ntop_ace(donotpushaga_nst / "\\ . :1
the center front of the machine). We / \,, /....7,
recommendam_n_mumc_earanceof "'_.,._
Sa"(20 ram) each side and 2" (50 ram)at / - !1111
the rear of the machine. /
4 Withthe lid closed, placethe spirit _-- ::ZZ _
level at the center back of the lid (near ? : :::::: _
thecontro_pandl._fnotmeveB,pu,the - :
machine out and adjust the rear feet
until the machine is [eve[ side to side /_
Ffg8 Lewhng Step4
° whon,npo , ,on
5 Open the lid. Place spirit level on the
flat surface on the left side, inline with _.. _ / _ Jil //
thecenterofthebasketIfnecessary,
adjust the front left foot until the I__/' ill ]
Sprat level
machine_s_eve_.
Installation instructions

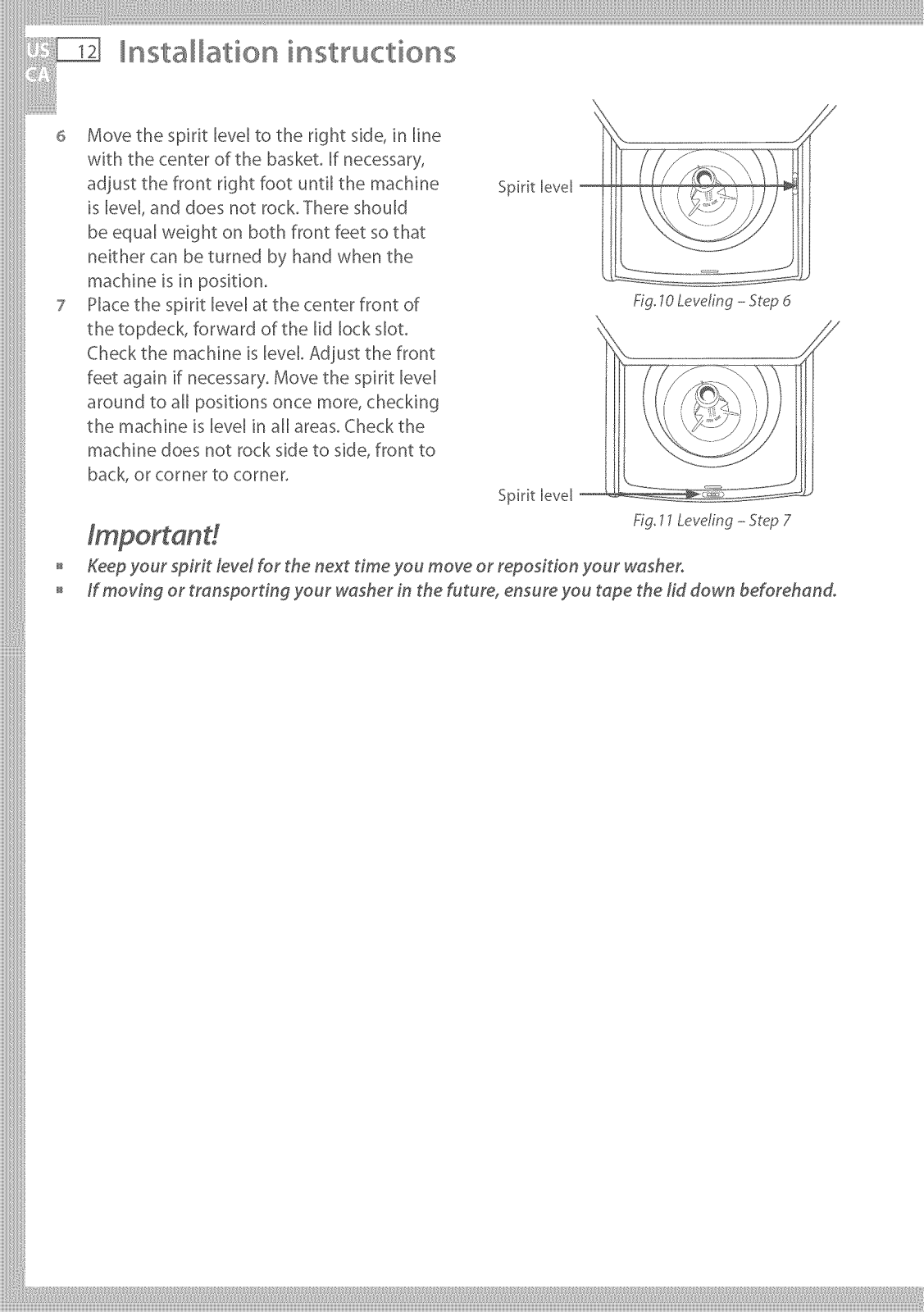

¢5 Move the spirit level to the right side, in line
with the center of the basket, If necessary,
adjust the front right foot until the machine
is level, and does not rock, There should
be equal weight on both front feet so that
neither can be turned by hand when the
machine is in position,
7 Place the spirit level at the center front of
the topdeck, forward of the lid lock slot,
Check the machine is level, Adjust the front
feet again if necessary, Move the spirit level
around to all positions once more, checking
the machine is level in all areas, Check the
machine does not rock side to side, front to
back, or corner to corner.
Spirit level
Fig,11Leveling --Step7
= Keep your spirit/eve/for the next dine you move or ropes/don your weshero
= /fmovin# or transport/n# your washer in the future, ensure you tape the/id down beforehand°
iiiliiii,I=I li=_=lliiIIIIIIIiiiiii IIIIIIIIIIIIiiiiiiiiiiiiii¸Iilililil/iiillll/iiil!li_il=!ilii'

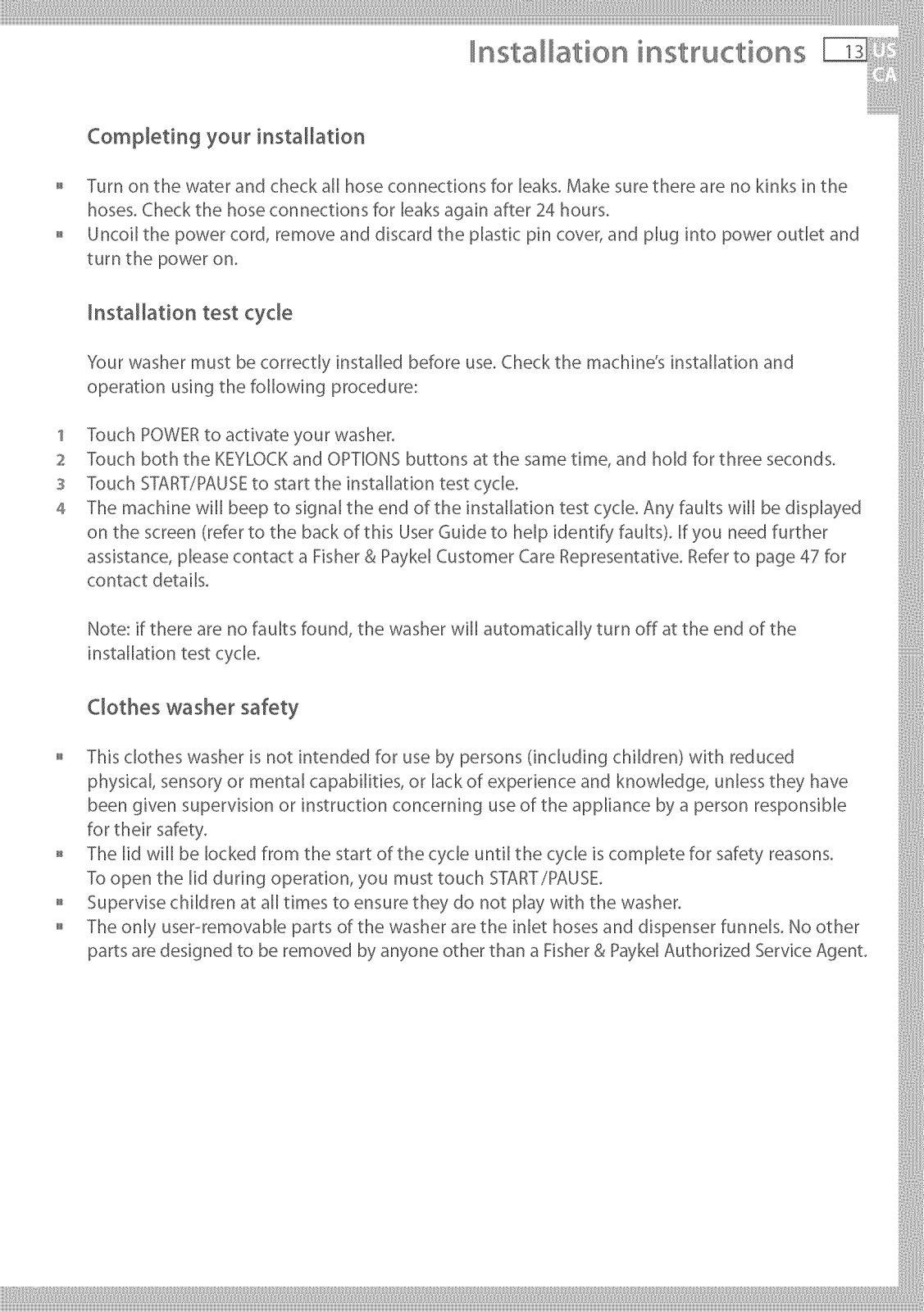

Installation instructions

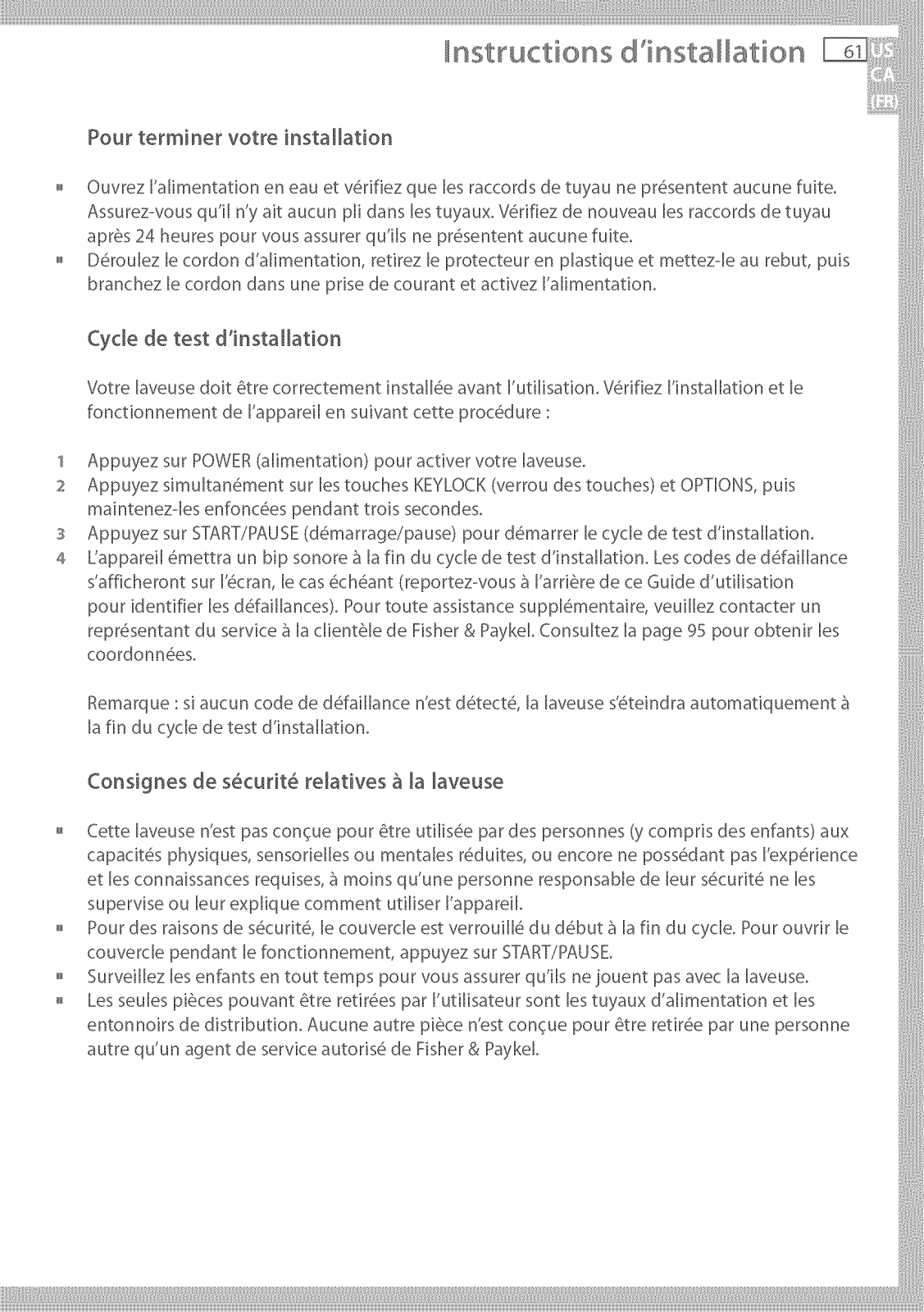

o complot ogyoo, osto,ot oo
TurnonthewaterandcheckaUhoseconnectionsforleaks.Makesuretherearenokinksinthe
hoses.Checkthehoseconnectionsforleaksagainafter24hours.
• Uncoil the power cord, remove and discard the plastic pin cover, and plug into power outlet and
turnthepoweron.
Your washer must be correctly installed before use. Check the machine's installation and
operationusingthefoUowingprocedure:
1 Touch POWER to activate your washer.
2 Touch both the KEYLOCK and OPTIONS buttons at the same time, and hold for three seconds.
TouchSTARTJPAUSEtostartthe_nstaUat_ontestcycle.
4 The machine will beep to signal the end of the installation test cycle. Any faults will be displayed i
on the screen {refer to the back of this User Guide to help identify faults), If you need further i:i
assistance, please contact a Fisher & Paykel Customer Care Representative, Refer to page 47 for
contact details,
Note: if there are no faults found, the washer will automatically turn off at the end of the
installation test cycle, ....
° Clotheswasher safety
This clothes washer is not intended for use by persons (inchding children) with reduced i
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the applance by' a person responsible
fortheirsafety.

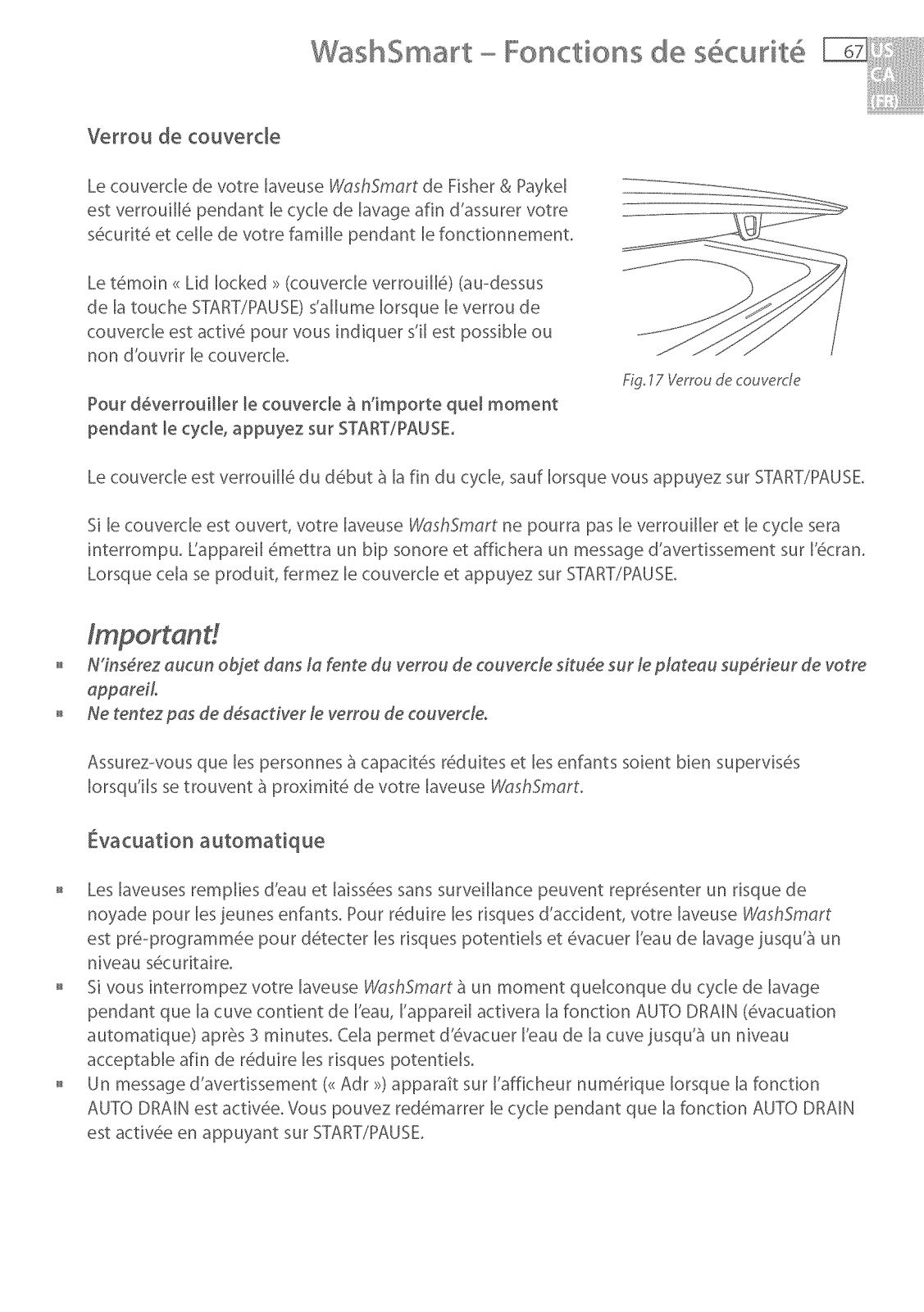

• The rid w[[[ be rocked from the start of the cycle until the cy'c[e [s complete for safety reasons.
Toopenthelidduringoperation,youmusttouchSrARTJPAUSE.
• Supervise children at all times to ensure the),' do not play with the washer,
• The only' user-removable parts of the washer are the inlet hoses and dispenser funnels. No other
parts are designed to be removed by anyone other than a Fisher & Pa)'kel Authorized Service Agent.
iliiiiiiii!ll_i!;i!:liiiiii!:lii!i_i!;i!_i!_i!_i!ii:i!_i_ii!i_ii!i!_i!i!_i!i!_i!i!_i!i!_i!i!_i!i!_i!i!_i!i!_i!i!_i!i!_i_i_¸_¸_i_lliiiiii!iiiliil
_nsta_ation instructions

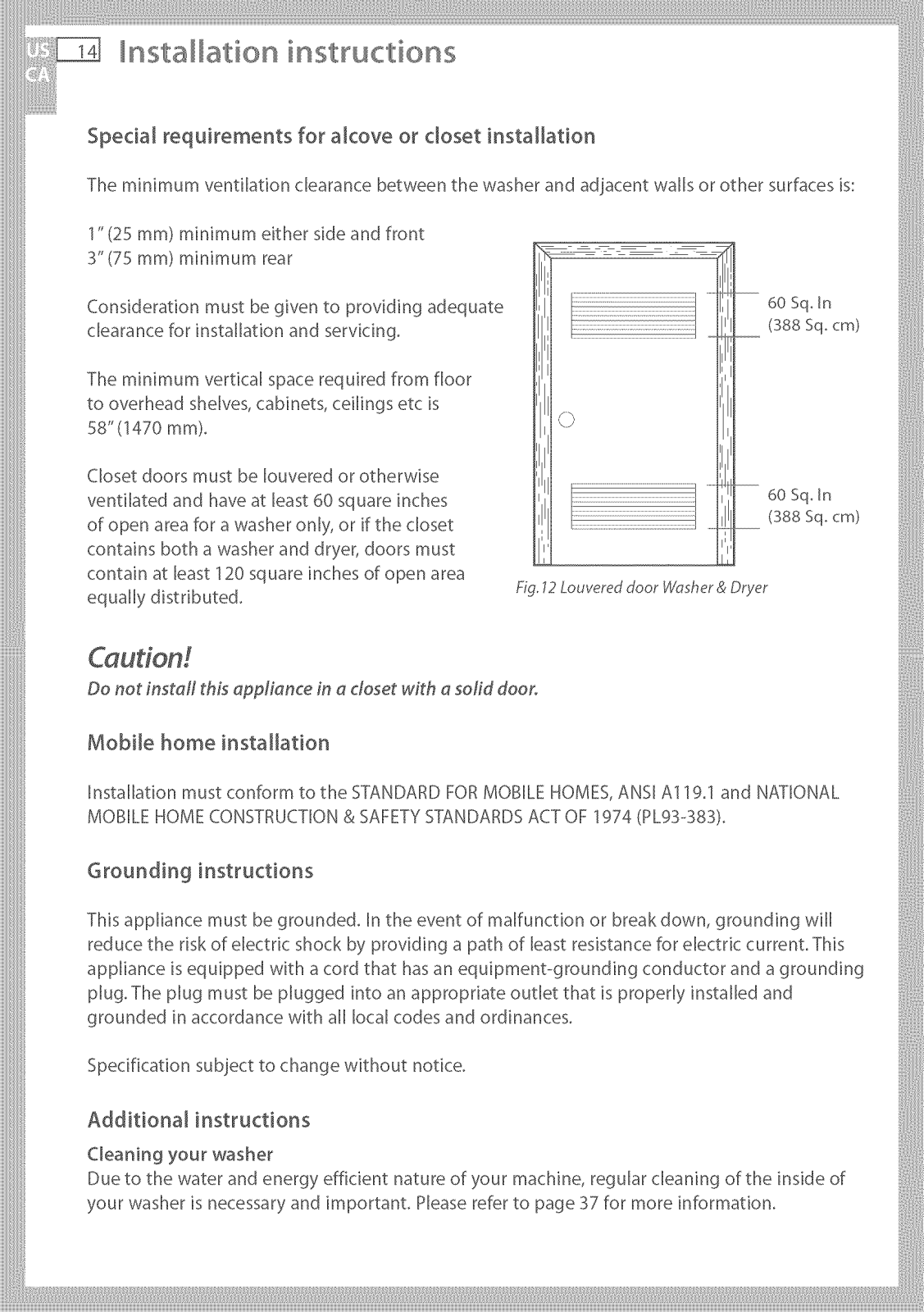

Special requirements for alcove or closet installation
The minimum ventilation clearance between the washer and adjacent walls or other surfaces is:
1"(25 ram) minimum either side and front : [
m n mumrear
Considerationmustbeg_ventoprovidingadequate 60_._o
clearancefor_nstaUat_onandservicing.
Them_n_mumvemcalspacerequiredfromfloor IHi J[
tooverheadshelves,cabinets,cemngsetc_s I t,-, I [
58"(1470 ram>, II "_ iII
Closet doors must be [ouvered or otherwise [
vent[rated and have at least60square inches
of open area for a washer only, or [f the closet
contains both awasher and dryer,doors must
contain at least 120 square inches of open area
. .j_,_..., _.._ Fig,12LouvereddoorWasher&Dryer '[
(388 Sq cm) ......
60 Sq In
(:388 Sq cm) i
........................Caution!
_o_o_i_l _hi__p#J____o_ wi_h__o_i__oo_.
Mobile home instaHation
Installation must conform to the STANDARDFORMOBILEHOMESANSIAl19,1 and NATIONAL
MOBILEHOMECONSTRUCTION& SAFETYSTANDARDSACTOF 19';'4(PL93-383).
Grounding instructions
This appliance must be grounded. In the event of maffunction or break down, grounding wi[[
reducethe risk of electric shock by providing a path of [east resistancefor electric currentThis
appliance is equipped with a cord that hasan equipment-grounding conductor and a grounding
plug.The plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with a[[ local codes and ordinances.
Specification subject to change without notice.
Additional instructions ;]_:ii
Cleoohgyoo_wo_he_
Duetothewaterandenergyefficientnatureofyourmachine,regularcleaningoftheinsideof
},'ourwasher is necessary'and important Pleaserefer to page 37 for more information,
Before you do your first wash
You owe it to },'ourself and },'our Fisher & Paykel WoshSmart to have it installed correctly by' an
Authorized Service Agent.
Before you start, Jt is agood idea to go through the following checklist:
1 Has the base packer been removed?
2 Is the drain hose threaded through the'U bend' hose guide (with no
more than _A"(20 ram) extended) and hooked on to your standpipe or
tub/sink?
s Is the hot hose connected to the hot valve marked'H'?
Is the cold hose connected to the cold valve marked 'C'?
4 Is the washer leveled correctly, with the feet extended and cabinet
corners clear of the floor? Refer to pages 11 and 12.
s Have you performed the installation test cycb? Refer to page 13,
£_ectric Shock Hazard
Read and follow the iMPORTANT SAFETYiNSTRUCTIONSoutlined in this
User Guide before operating this appliance, pages 3 - 5o
Failure to do so can result in death, electric shoc_ fire or injury to
persons,
'_-#_::_
//_ i-:_:_....... i
We@Smart water consumption
22 Ib (10 kg) 31 G (117 L)
15.5 lb (7 kg) 28G (108 L)
11 Ib (5 kg) 25 G (93 L)
7 Ib (3 kg) 18 G (6g L)
2 Ib (1 kg) 1SG (49 L)
_Regular cycle is the default wash cycle for 14,@shSmort.
Note: water consumptions are based on the WoshSm&,rt default settings.
Getting started quickly
PBacethe load evenBy around the agitator (refer to 'Sorting' and 'Loading'i page 21).
Remove fabric softener dispenser cup.
For the correct detergent dose, pBease foBBowthe
manufacturer's instructions, outBined on the detergent
package.

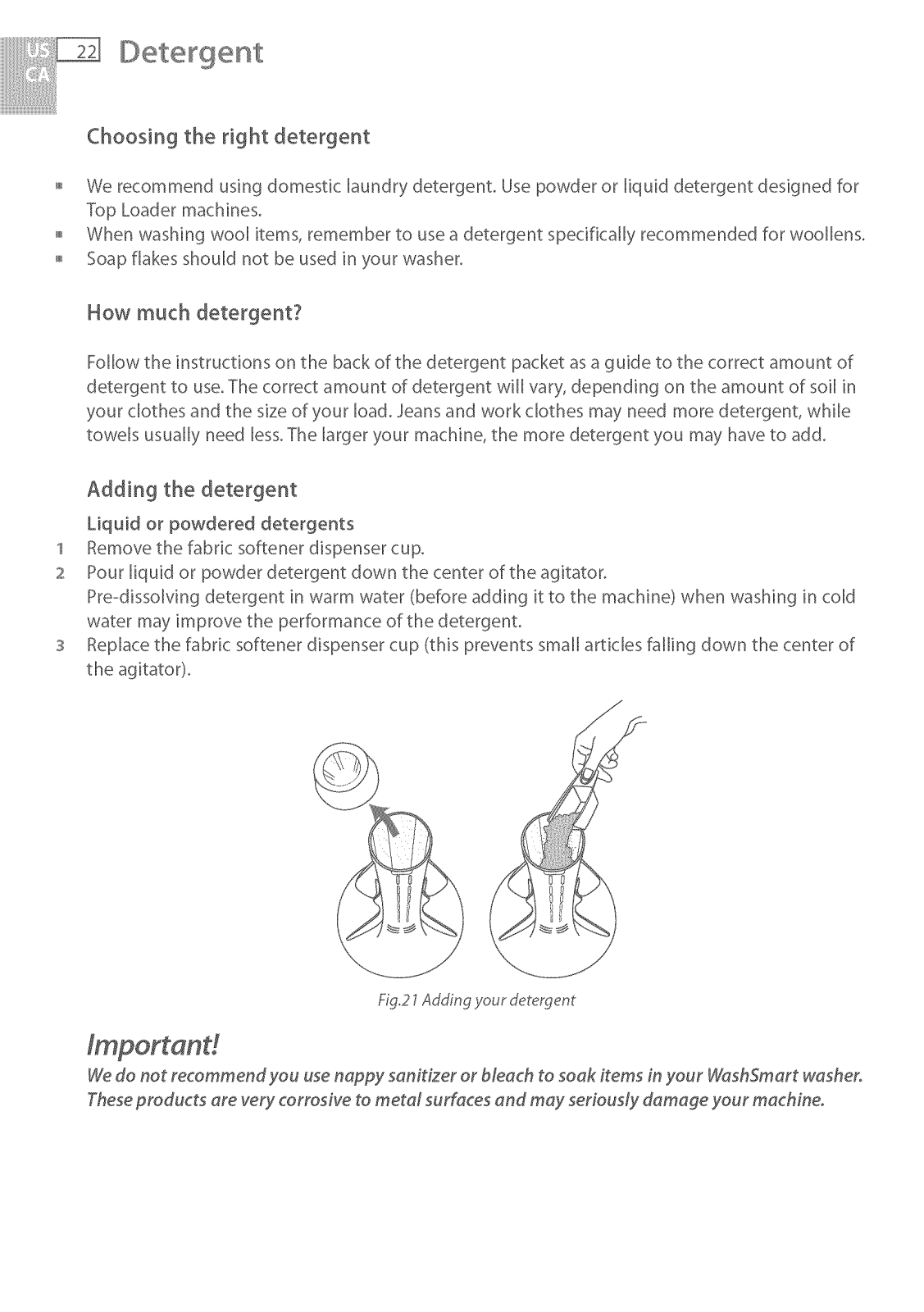

Use the mark on the agitator nearest to the top of the
clothes as a guide to the correct amount of detergent
to use (refer to'Detergent_ page 22).
Pour the detergent down the center of the agitator stem.
RepBacethe fabric softener dispenser cup (this stops
smaBBarticBes falBing down the center of the agitator
when you load the machine).
Fig. 13Adding der_.rgent
Fig. 14 W_shSmart control panel

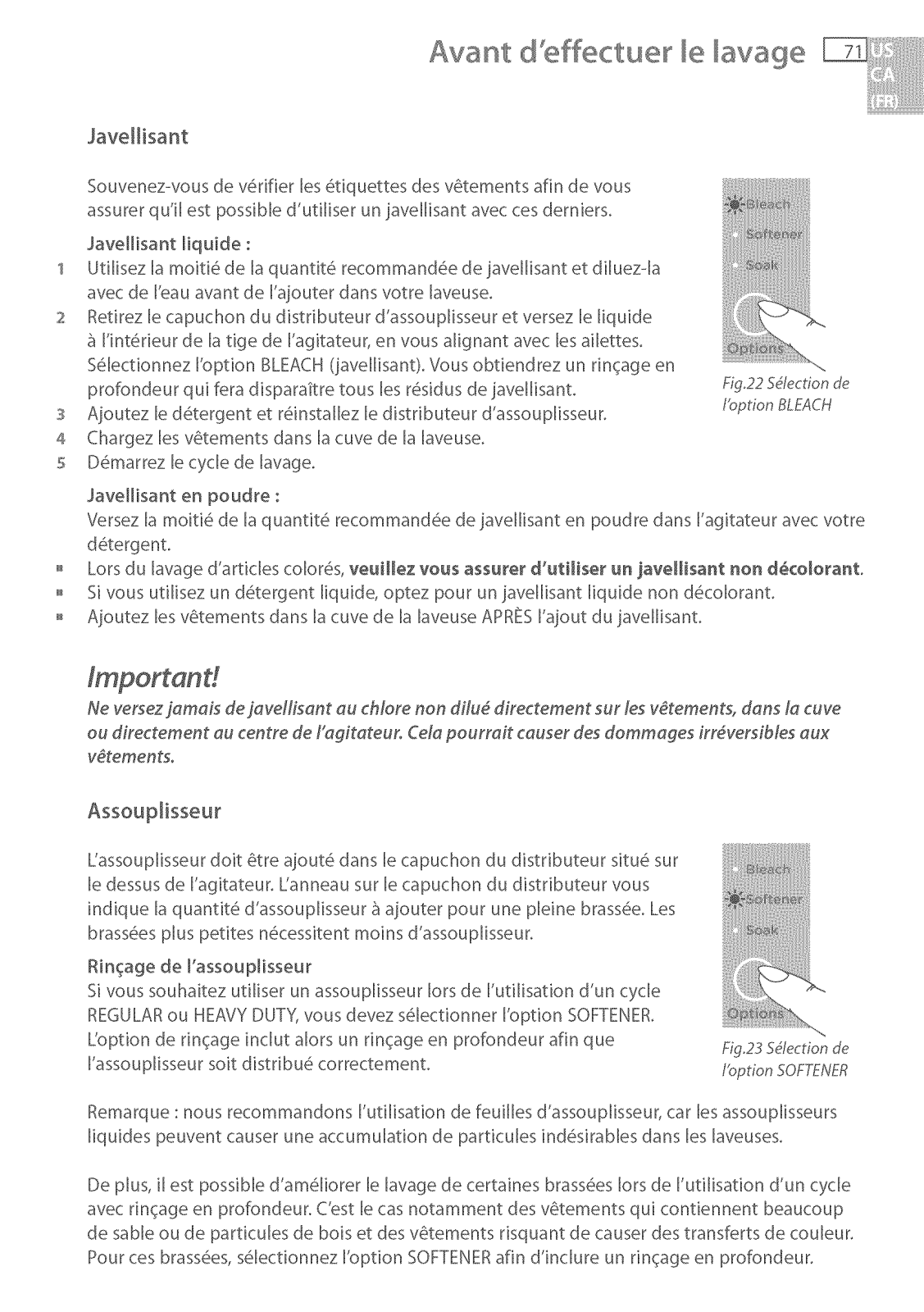

Bleach
If you wish to use bleach:
Use half the recommended dose of bleach.
Dilute bleach with water and pour carefully down the inner surface of
the agitator stem, in-line with the fins (refer to Bleach page 23),
Select the BLEACH option. This will ensure that any residual bleach is
well rinsed out of your washer.
Fabric softener
If you wish to use fabric softener, place it in the dispenser on the top
of the agitator,
Select the SOFTENER option so that the softener will be dispensed
correctly into the final rinse (refer to 'Fabric softener' page 23 and 29),
Fig.15Adding bleach
Gettin 9 started quickly

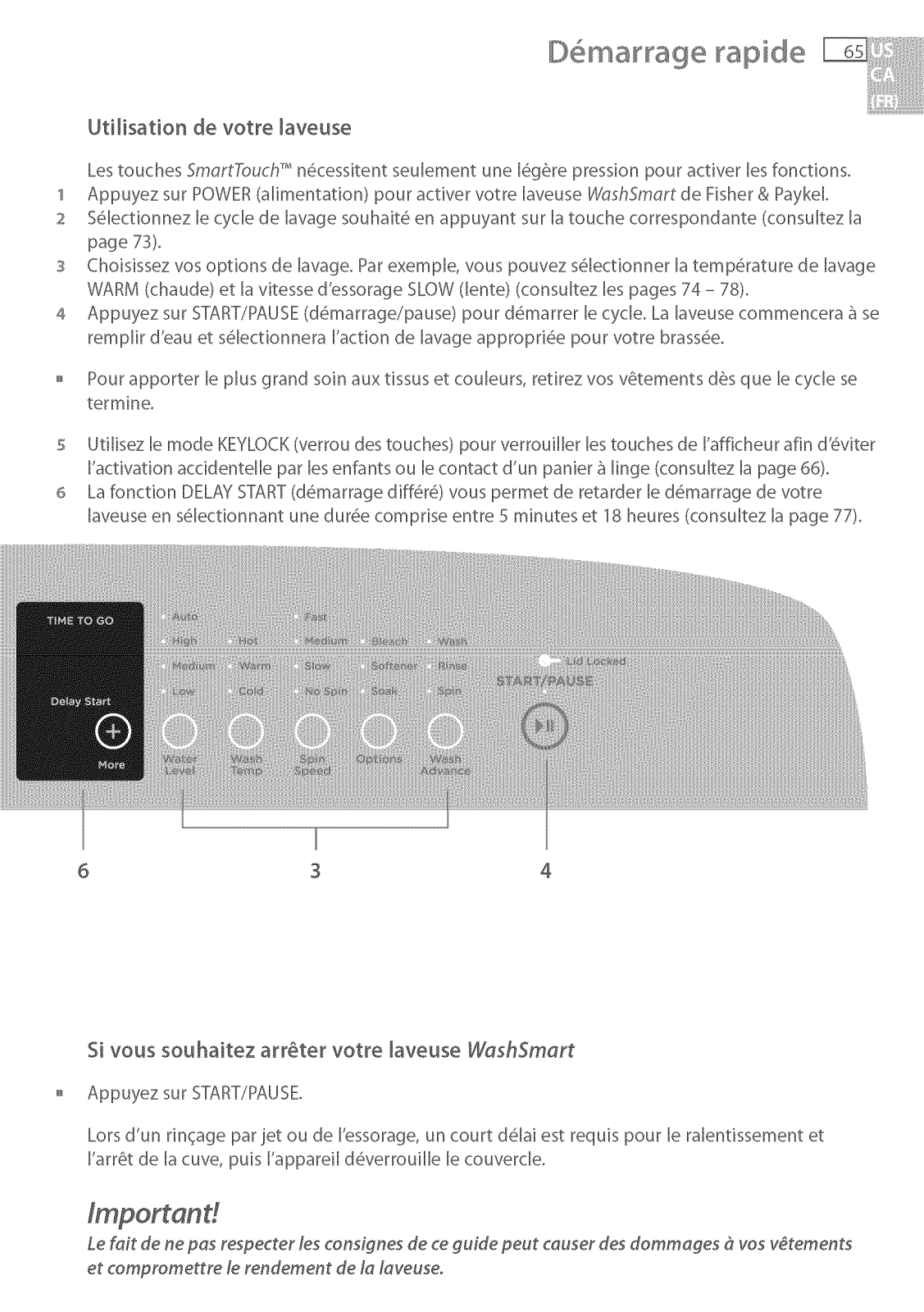

Using your washer
The 5mortTbuch ''_buttons require only a gentle touch to activate.
1 Touch POWER to activate your Fisher & Payke[ W_shSmort washer.
2 Select your desired wash cycle by touching the corresponding button (refer to page 25).
3 Choose your wash options, eg you may want a WARM wash temperature and a SLOW spin speed
(refer to pages 26 - 30).
4 Touch START/PAUSE to start the cycle. The washer w[[[ start to fi[[ with water and select the
correct wash action for your load.
For best fabric and color care, remove your clothes as soon as the cycle has finished.
5
Use KEYLOCK mode to lock the buttons on the display, which prevents them from being
activated acc[dent[y by a laundry basket or little fingers (refer to page 18).
6
DELAY STARTallows you to delay the start of your wash by 5 rains up to 18 hours (refer to page 29).
f !,ii!iii!ii ii ilj!ii!Wji!il
:iil
4
If you wish to stop your WashSmart washer
PressSTART/PAUSE.
During a spray rinseor spin, there w[[[ be a slight delaywhile the basket slowsto a stop and the
lid is unlocked.
Faiture to foitow the advice in this guide may result in damage to your garments, and your
expectations of wash performance may not be met.
WashSmart controls
SmartTouch _ buttons
The smooth easy clean buttons require only a gentle touch to activate,

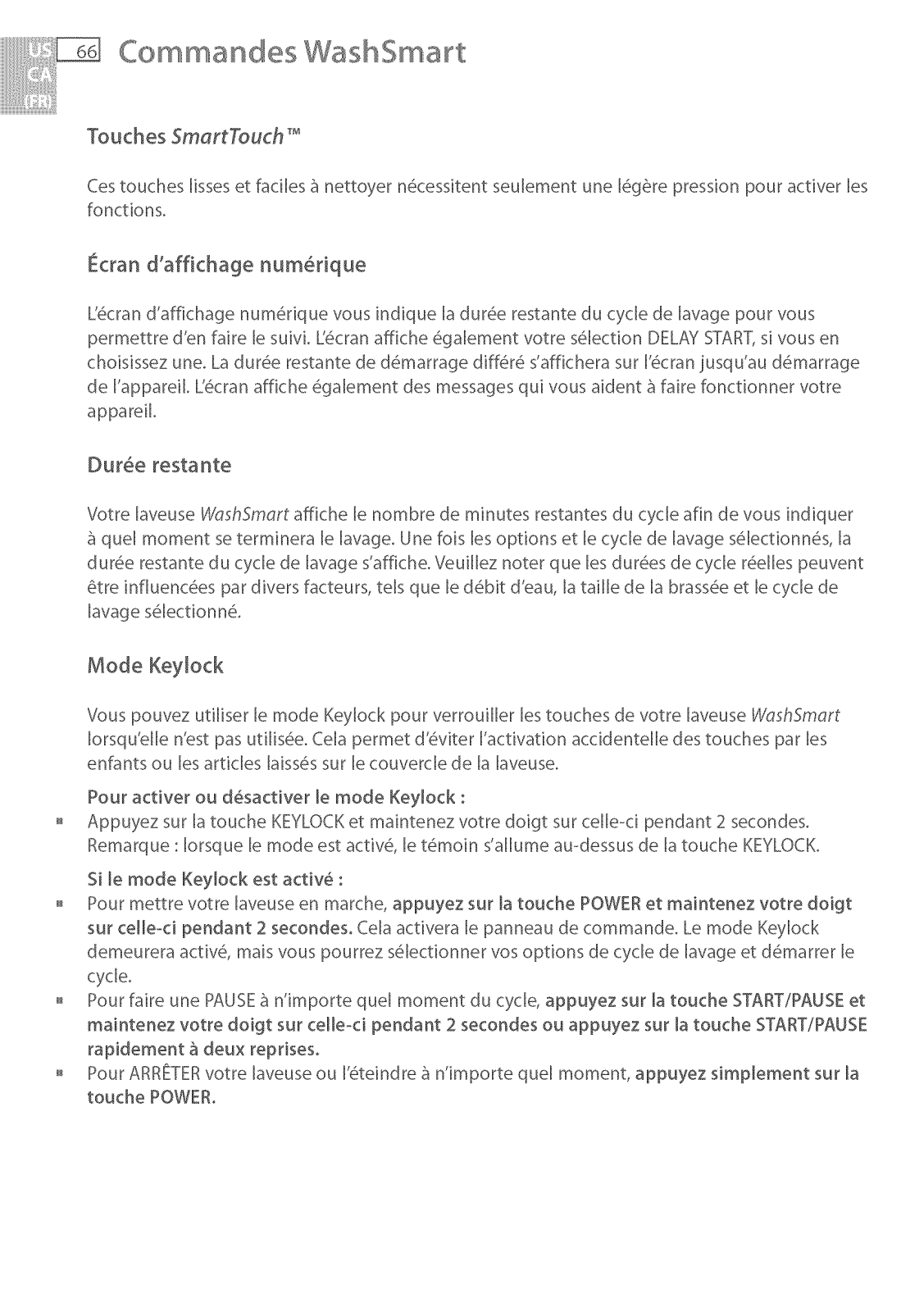

Digital display screen
The digital display screen provides feedback on how long the wash cycle has to go, to keep you
informed throughout the cycle, The screen also displays your DELAY START selection, should you
choose one, The delayed time remaining will show on the screen until the machine starts, The
screen will also display messages to help you with the overall running of your machine,
Time to go
Your Ws,shSmort washer will display how many minutes a wash cycle has remaining, so that you
can tell at a glance when your washing will be finished, Once you have selected your wash cycle
and options, the time the wash cycle will take to complete will be displayed, Please be aware
that actual cycle times may vary as they are influenced by a number of factors, eg the flow rate
of your water supply, the load size and cycle selection,
Key[ock mode
Keylock can be used to lock the buttons on your W_shSmort when not in use, This will avoid
accidental button pushes from items left on the lid of the washer and also from any little fingers,
To turn Keylock mode ON or OFF:
Touch and hold the KEYLOCK button for 2 seconds,
Note: when activated, the light above the KEYLOCK button is illuminated,
If Keylock mode is activated:
To turn your washer on, touch and hold the POWER button for 2 seconds, This will activate the
control panel. Keylock mode will remain activated but will allow you to select your wash cycle
options and start the cycle,
To PAUSE your washer at any time during the cycle, touch and hold the START/PAUSE button for
2 seconds, or touch the START/PAUSE button twice in quick succession.
To STOP your washer or power off at any time, simply touch the POWER button°
WashSmart safety features
Lid lock
The lid of your Fisher & Paykel WoshSmort washer is locked
during the wash cycle, ensuring safety for you and your family
while it is operating.
The "Lid Locked" light (above the START/PAUSE button) is
illuminated when the lid lock is activated, letting you know at a
glance if you can open the lid or not,
:',!!,ii!iS!ii!WJi!il
:iil
To unlock the lid at any time during the cycle press
START/PAUSE,
The lid will be locked from the start of the cycle, through to the end, unless START/PAUSE
istouched,
If the lid is left open, your [4,@shSmartwasher will be unable to lock the lid, and the cycle will be
halted. The machine will beep to alert you and display a warning message on the screen. If this
occurs, close the lid and touch START/PAUSE
Do not put anything down the lid lock slot in the top deck of your machineo
Do not try to disable the lid tocko
Ensure that children or infirmed persons are well supervised when around your WmshSmart
washer.
Fig 17Lidlock
Auto drain
Unsupervised clothes washers filled with water can present a drowning hazard to small children,
In order to minimize any risk of this type of accident, your [4,@shSmarthas been pre@rogrammed
to know when this potential hazard is created and drains the wash water to a safe level,
If you pause your i4,@shSmartat any time during the wash cycle when there is water in the
basket, the machine will activate the AUTO DRAIN function after 3 minutes, This will drain the
water in the wash basket to an acceptable level, minimizing any potential hazard.
A warning message ("Adr") will be displayed on the digital display while AUTO DRAIN is in
operation, The cycle can be restarted while AUTODRAIN is in operation by touching START/PAUSE

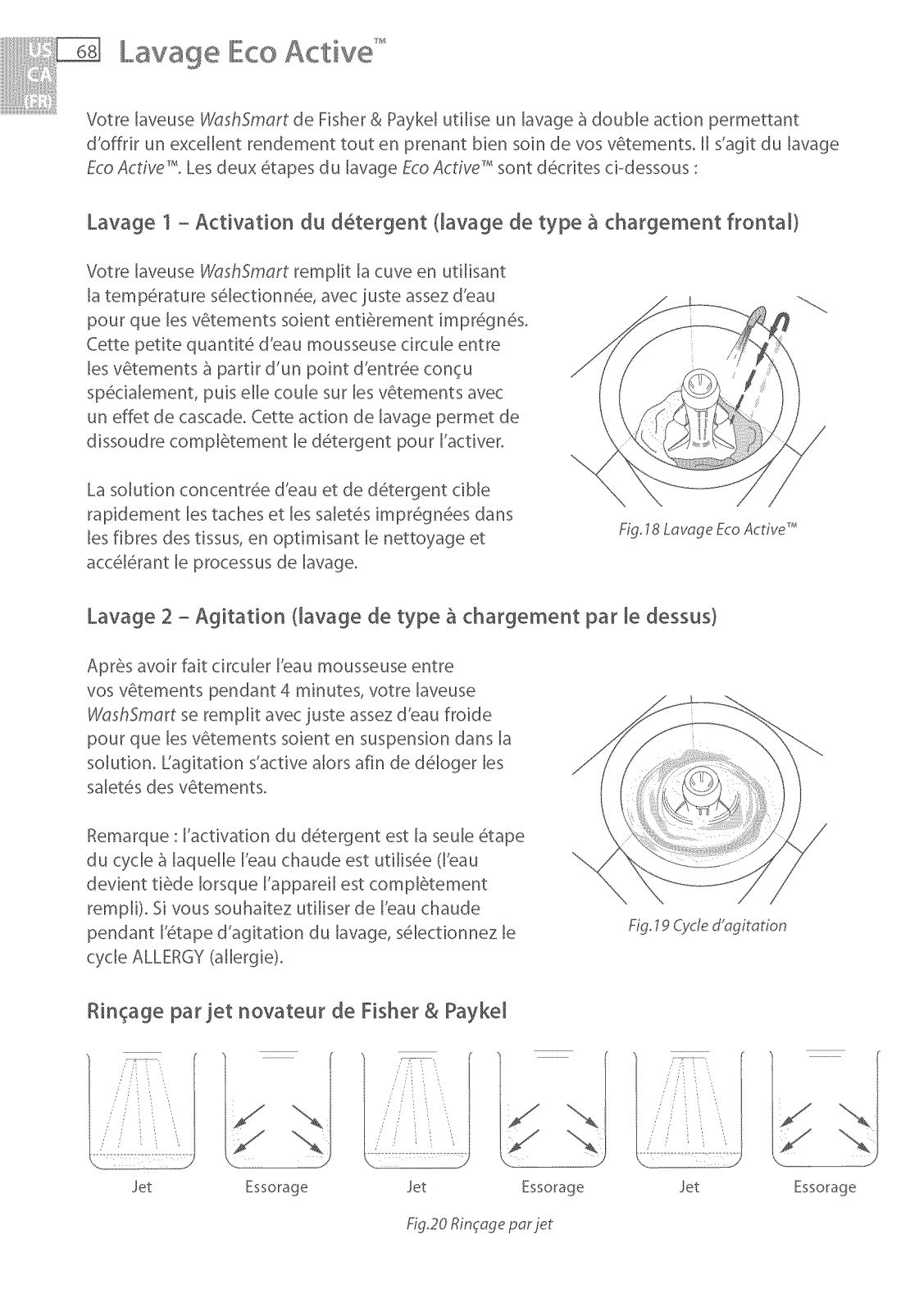

Eco Active TM
Your Fisher & Paykd W_shSmart uses a duaPaction wash to give excellent wash performance
whiBe taking great care of your dothes, We call this the Eco Active _'wash, The two }arts to the
Eco Active TM wash are explained bebw:
Wash 1 - Detergent activating wash (frontqoader type wash)
Your W_shSmort washer fills the basket at the seBected
temperature with just enough water so that your
cbthes are 100% saturated. This small amount of sudsy
water flows down through the clothes, up a specially
designed portal and back onto the clothes in a cascade
effect. This wash action thoroughly dissolves and
activates the detergent.
The concentrated solution of detergent and water
rapidly targets stains and soils at the fiber-level of
fabrics, boosting soil removal and accelerating the
wash process.
Wash 2 - Agitation wash (top-loader type wash)
After recircuhting the sudsy water through your
clothes for 4 minutes, your W_shSmart washer will fill
with just enough cold water to suspend the clothes in
solution. Agitation will then begin, moving soil away
from the clothes,
Fig.18EcoActive rw _/_sh
t
Note: the detergent activating wash is the only time
during the cycle that hot water is used (when the
machine is completely full the water will be lukewarm).
If you need hot water during the agitation part of the
wash, select the ALLERGY cycle.
Unique Fisher & Paykel spray rinse
/: ;ii!!il
, ................J
Spray Spin Spray
Fig.20 Sproy rinse
Fig. 19Agitation w(_sh
\ .............. J
Spin Spray Spin
Sorting and bading
i!,ii!f !,ii!iS!ii!WJi!il
Sorting
To get the best wash results it pays to sort your clothes before washing.
Care labels
The care label will tell you about the fabric of the garment and how it should be washed.
Soil
Sort clothes according to the type and amount of soil. Some soils suit warmer washes, eg oily
soils, while others are best washed in cold water, eg mud, blood.
Color
Sort white fabrics from colored fabrics.
Lint
Wash lint givers (eg to'weB, flannelette, nappies) and lint collectors (eg synthetic fabrics, socks)
separatdy, Where possible, turn lint collectors inside ouL
Loading
Check pockets
Loose items can damage both your washer and your clothes.
Close zippers, hooks and eyes
This is to make sure that these items do not snag on other clothes.
Mend any torn garments or Loose buttons
Tears or holes may become larger during washing. Remove any loose bra wires as they can
damage your washing machine and/or dryer.
Put very delicate items in a mesh laundry bag.
This is a good idea for lingerie items to provide them with extra protection, and helps prevent
tangling with other items.
Pretreat any stains
Make sure you use an appropriate surface to apply treatments. Do not use the lid or top of the
machine, as damage may occur to these surfaces.
Make sure the water level suits the load size
If manually selecting the water level, select the correct water level by using the mark on the
agitator nearest to the top of the load. Ensure the load does not extend above the bottom of the
fabric softener dispenser cup, as splashing may occur.
For a balanced Load
Place unfolded clothes firmly and evenly around the agitator, no higher than the bottom of the
fabric softener dispenser cup.
Do not wrap large items, such as sheets, around the agitator.
A mixture of small and large items will wash best.
i:iil
Note: [n the unHkdy case of an out of balance load, refer to the Leveling [nstructions on page 11
to check the machine is correctly levelled.
Please do not, under eny drcumstences, ettempt to wash an electric blanket in your weshero Nor is
it recommended thet you wash curtains in your washer, suM@ht makes them bdtde and they may
dNntegrate during washingo
Choosing the right detergent
We recommend using domestic laundry detergent, Use powder or liquid detergent designed for
Top Loader machines,
When washing wool items, remember to use a detergent specifically recommended for woollens,
Soap flakes should not be used in your washer.
How much detergent?
Follow the instructions on the back of the detergent packet as a guide to the correct amount of
detergent to use. The correct amount of detergent will vary, depending on the amount of soil in
your clothes and the size of your load. Jeans and work clothes may need more detergent, while
towels usually need less. The larger your machine, the more detergent you may have to add.
Adding the detergent
Liquid or powdered detergents
1 Remove the fabric softener dispenser cup.
2 Pour liquid or powder detergent down the center of the agitator.
Pre-dissolving detergent in warm water (before adding it to the machine) when washing in cold
water may improve the performance of the detergent.
3 Replace the fabric softener dispenser cup (this prevents small articles falling down the center of
the agitator).

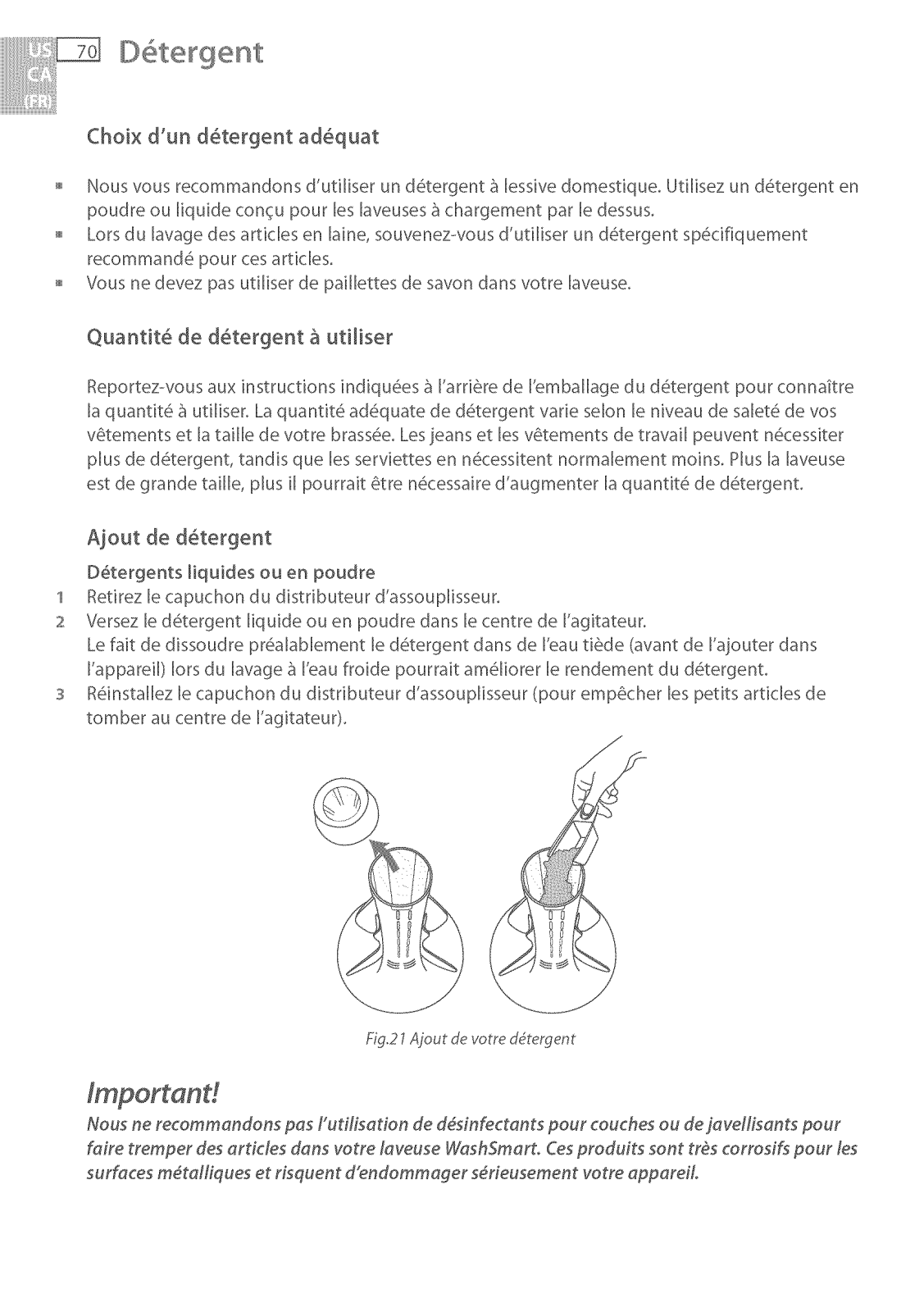

Fig.21Adding your detergent
We do not recemmend you use nappy san#izer or bteach to soak items in your WashSmart washer°
These products are very corrosive to motet surfaces and may serioudy damage your machine°
Before you wash
Bleach
Remember to check clothing labeB before you begin to ensure that
garments are Meach-compatibBe.
Liquid bleach:
1 Use half the recommended dose of Meach and diBute with water before
adding to your washer.
2 Remove the fabric softener dispenser cup and pour down the inside edge
of the agitator stem in line with the fins. Sdect the BLEACH option. This
changes the rinse to ensure thorough removal of any Heach residue.
s Add detergent and repBace the fabric softener dispenser. Fig.22Selecting
4 Load clothes into the wash basket. BL£ACHoption
S Startthe wash cycle.
Powdered bleach:
Pour half the recommended dose of powdered bleach into the agitator with your detergent.
When washing colored items, p_ease ensure you use co_orosafe bleach.
If you are using liquid detergent use a liquid color-safe bleach,
Add clothes to the wash basket AFTER bleach has been adde&
Never pour undiluted, fiquid ch!orine b/ea@ direcdy onto ctothes, into the wash tub, or straight
down the center of the agitator° lrreverdb/e damage to your ctothin# may occur.
i',!! !,ii!iS!ii!WJi!il
:iil
Fabric softener
The fabric softener goes into the dispenser cup on the top of the agitator.
The ring on the dispenser cup is a guide for the amount of fabric softener
to add for a full load. Smaller loads require less fabric softener.
Softener rinse
If you wish to use fabric softener when using the REGULAR or HEAVY DUTY
cycles you must select the SOFTENERoption. This changes the rinse option
to include a deep rinse so the fabric softener will be dispensed correctly.
Note: we recommend the use of softener dryer sheets because liquid fabric
softener has been known to cause an unpleasant build up inside washing
machines.
In addition, some wash loads are better washed using a cycle with a deep rinse. For instance,
garments that have a lot of sand or sawdust in them, or garments where the color still runs, For
these loads select the SOFTENER option, asthis will change the rinse to include a deep rinse,
Fig.23 Se/ecting
SOFTENF:Roption
Before you wash

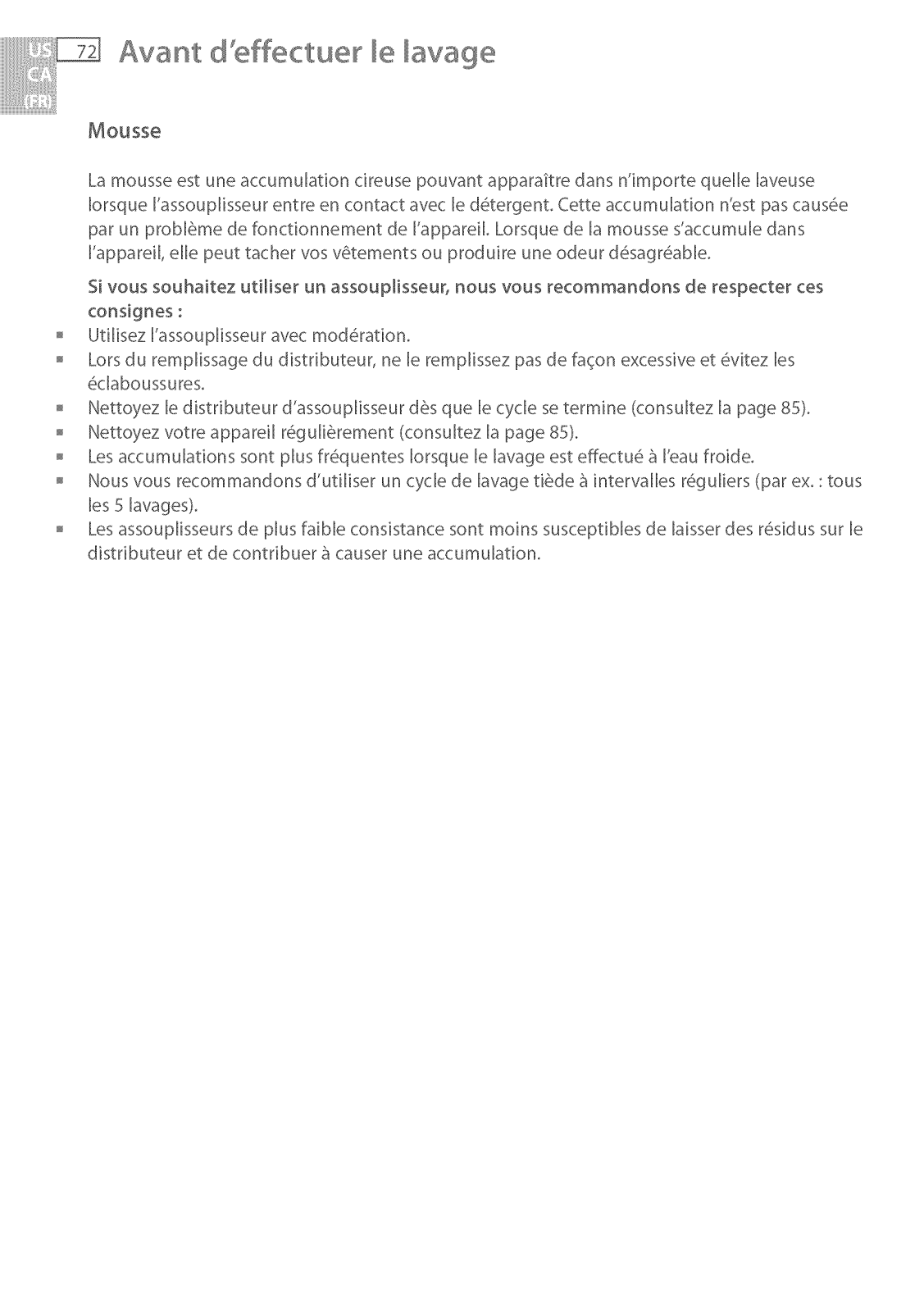

Scrud
Scrud is the name given to the waxy build-up that can occur within any washer when fabric
softener comes into contact with detergent. This build-up is not brought about by a fauBt in the
machine. If scrud is a[Bowed to buiBd-up in the machine it can result in stains on your clothes or
an unpBeasant smeBBin your washer.
If you wish to use fabric softener we recommends
Using fabric softener sparingBy.
When fi[Bing the dispenser, do not spBash or overfill
CBeanthe fabric softener dispenser as soon as the cycBe is finished {refer page 37).
CBeanyour machine regularly {refer page 37}.
CoBdwater washing increases the chance of the build-up occurring.
We recommend that a warm wash be used at regular intervals, eg every 5th wash should be warm.
Fabric softener of a thinner consistency is less likely to leave residue on the dispenser and
contribute to a build-up.
Wash cyd es __i
Your W_shSmort has a number of wash cycles available, Selecting the most appropriate cycle for
each wash load will help ensure you get the best possible wash result,
The wash cycles
REGULAR For medium to lightly soiled cottons, linens, work and play clothes.
HEAVY DUTY For heavily soiBed and heavy duty fabrics,
DELICATE For lingerie and special-care fabrics with light soil
EASY IRON
ALLERGY Spedally designed for asthma sufferers and people with sensitive skin_
QUICK For lightly soiled garments requiring a freshen up.
Note: condensation may form on the outside of the washer when using the ALLERGYcycle in
cold weather, This isdue to the hot water wash temperature and cold outside temperature, and
is normal_
Wash cycles - default settings
,,!i_i!ii!i:illi!!_i!!ii!iiiiiiiiillii_i_i_i_ii!__i__;!iiiii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!ii!ii!!!!i_i_!__i_!_i_ili!_!iiii!!_i_i_!_ig_i_i!_ii_i_iii_i_i_i_i_iiiiii!_!_iii_!_!_i!!!il!i!!!!!ii_!i_i_i_i_i_iii_!_'@_i_!_i_i_ililililili_i_i_iii_i_!_!_!_iiiiii_i_i_i_!_!ilil_____!,_i_i_ili_i_!_ilil_!_!_i_i_i_ii!i_i_i_i!!i!!___i_ i__i_ii_i_ i_J_!!_i_i_;'_iii;i!i!!!iiilli_ii!_!i!_i_i_J_!_iili;!i_!_!i_i_i_i_i_i_i_!_i_iiii_i_i_i_i_!iiii!!i!_ii!ii_;ili_i_i__i_ii!i!!i_i_i_!_i_i_i_I!__!!ij
Wash time e 13-15rain 15-!7min 5rain 9rain ]3-15rain Stain
Wash action REGULAR HEAVY DELICATE REGULAR REGULAR REGULAR
Wash temp WARM WARM WARM/COLD WARM/COLD HOT _,_,tARM/COLD
A more traditional wash for synthetics, Mends, and/or delicate fabdcs with
normaB soiBand clothes which wrinkle easiBy,
Rinse Spray rinse ' Spray rinse
Spin speed FAST FAST SLOW MEDIUM FAST FAST
_ Refers to the agitation time in the "wash" part of the cycle, not the total time taken to complete
a cycle.
__ Refers to the length of time when at the maximum speed.
Deep rinse Deep rinse 2 Deep rinses Deep rinse
Note: some options may not be available on some cyclesfor garment care reasons (eg FASTspin
on the DELICATEcycle),
Wash options

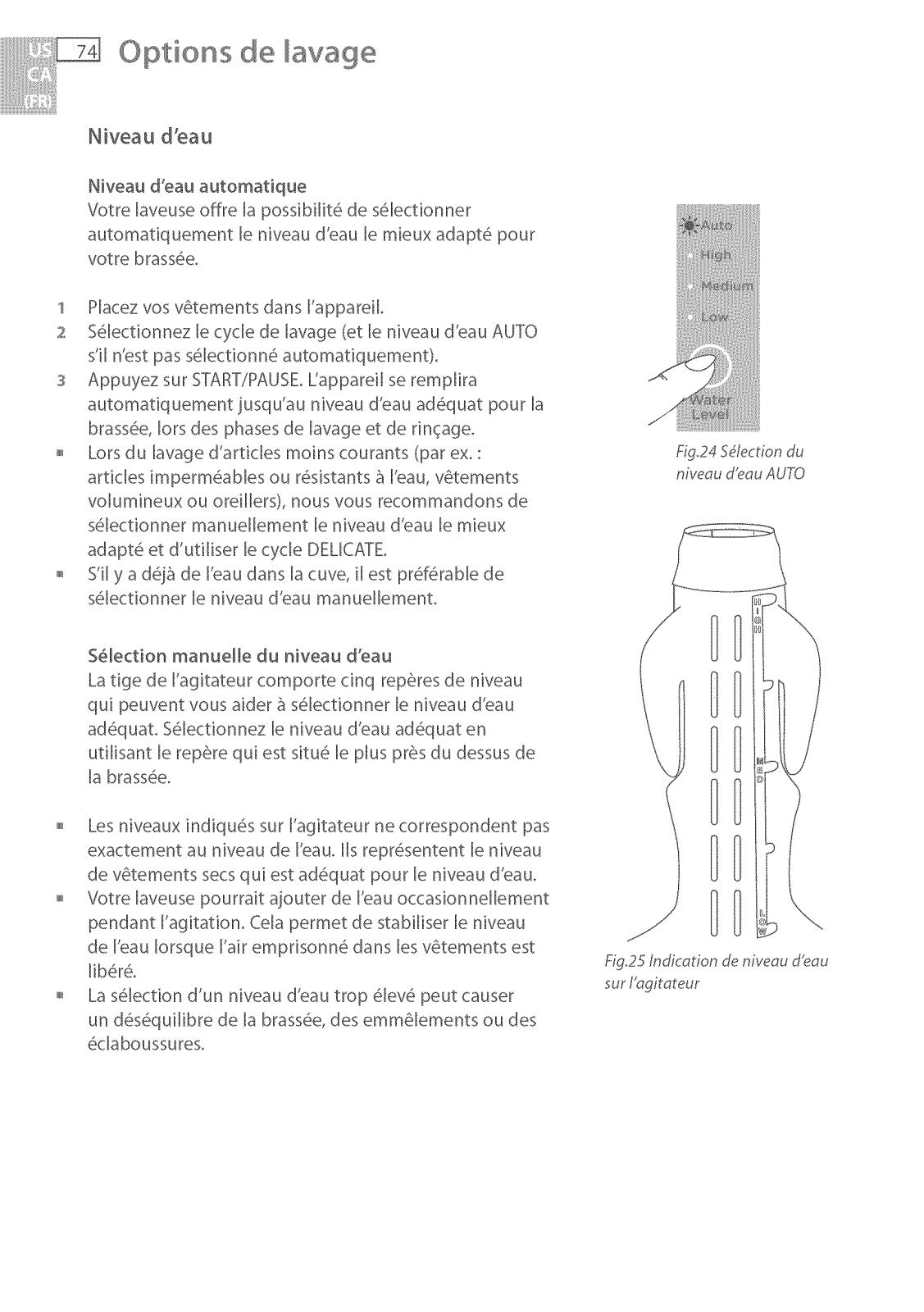

Water [eve[
Auto water level
Your washer has the ability to automatically seBect the
most efficient water [eveB for the load.
1 Place your clothes in the machine,
2 Select the wash cycle (and select AUTO water level if not
automatically selected),
3 Touch START/PAUSE, The machine will automatically fill to
the correct water level for the load, for both phases of the
wash and the rinse,
o When washing an unusual load, eg large bulky garments,
water-proof or water resistant items or pillows, we
recommend you manually select the most suitable water
level, and select the DELICATE cycle,
If there is already water in the basket, it is best to
manually select the water level.
Manual water level selection
The agitator has five levels marked on its stem that can
be used to help you select the correct water level. Select
the correct water level by using the mark nearest to the
top of the load.
Fig.24 Selecting
AUTO water level
vl
0
o The levels marked on the agitator do not correspond
exactly to the level of the water, They indicate the level of
dry clothes suitable for the water level,
o Your washer may occasionally add water during agitation.
This is to maintain the water level due to the release of
air trapped in the garments,
o Out of balance loads, tangling or splash-over can be
caused by selecting a water level that is too high.
Fig,25 Water levelguide on agitator
Wash options

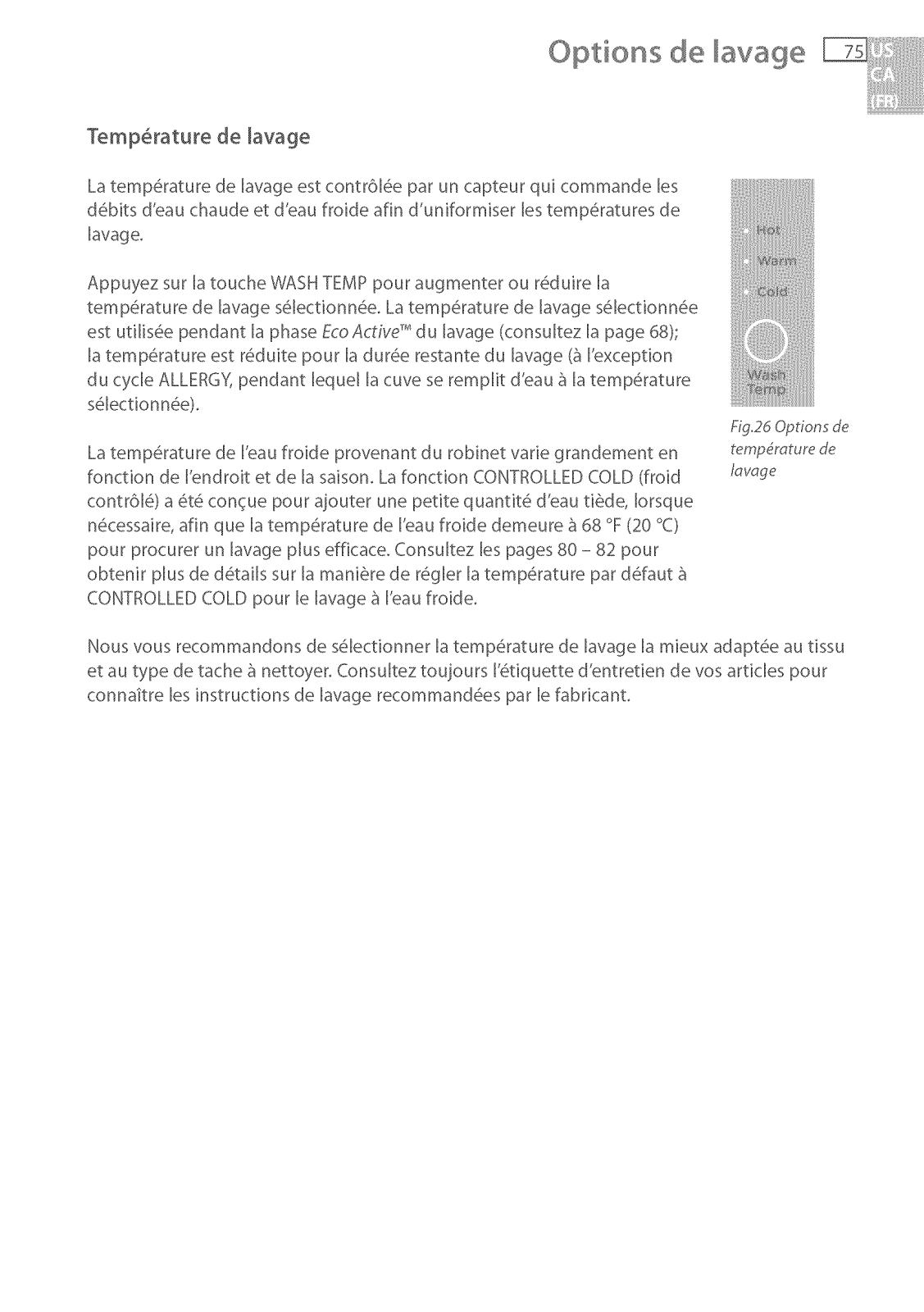

Wash temp
The water temperature is monitored by a sensorwhich controls hot and
cold water inputs to deliver uniform washtemperatures,
Touch the WASH TEMP button to increase or decrease the wash temperature
selected, The wash temperature selected ksused in the EcoActive '_ part of
the wash (refer to page 20); the temperature will be lower for the remaining
part of the wash (with the exception of the ALLERGY cycle where the basket
fills with water at the temperature selected),
i!iii:!!!ii:iS!ii!WJi!il
i:iil

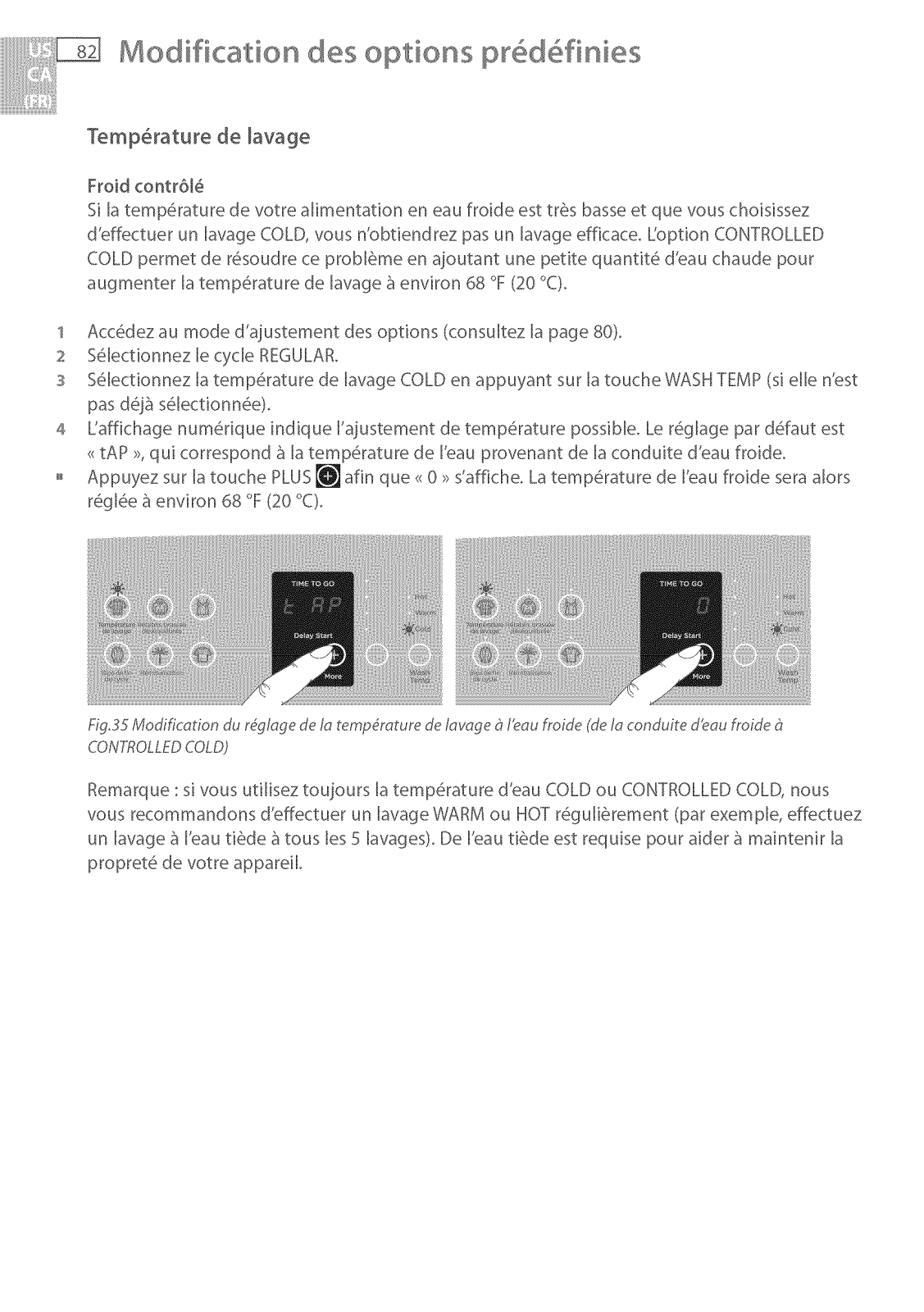

The temperature of cold faucet water varies widely depending on your

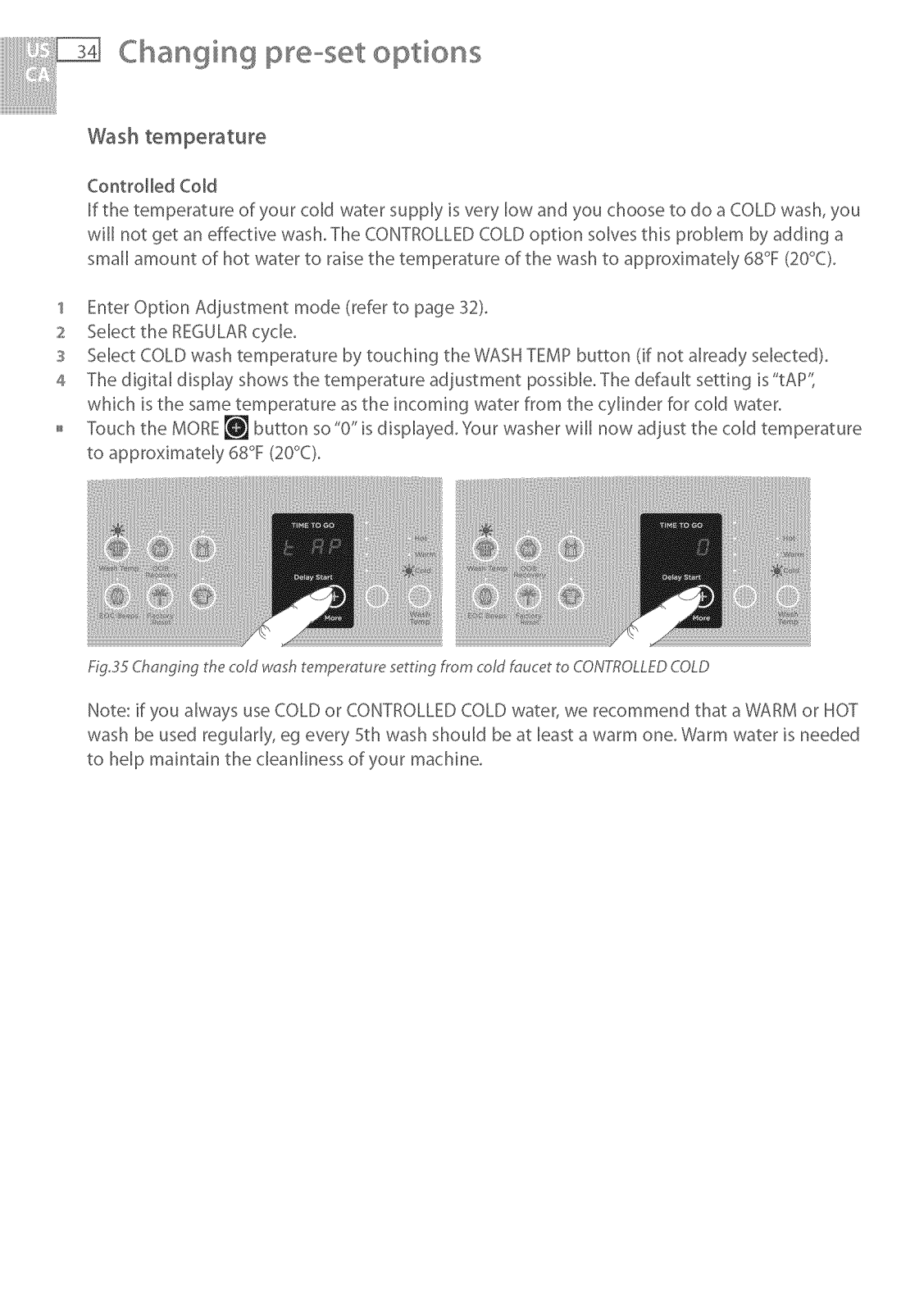

location and the season, We have developed CONTROLLED COLD, which
adds a small amount of warm water, when necessary, to raise your cold
water wash to 68°F (20°C) for a more effective wash, Refer to pages 32 - 34
for detail on how to set CONTROLLED COLD as the default temperature for
your cold water wash,
We recommend selecting the most suitable wash temperature for the fabric and the type of
soil to be removed, Always refer to the item's care label for the manufacturer's recommended
washing instructions,
Fig 26 Wash
Wash options

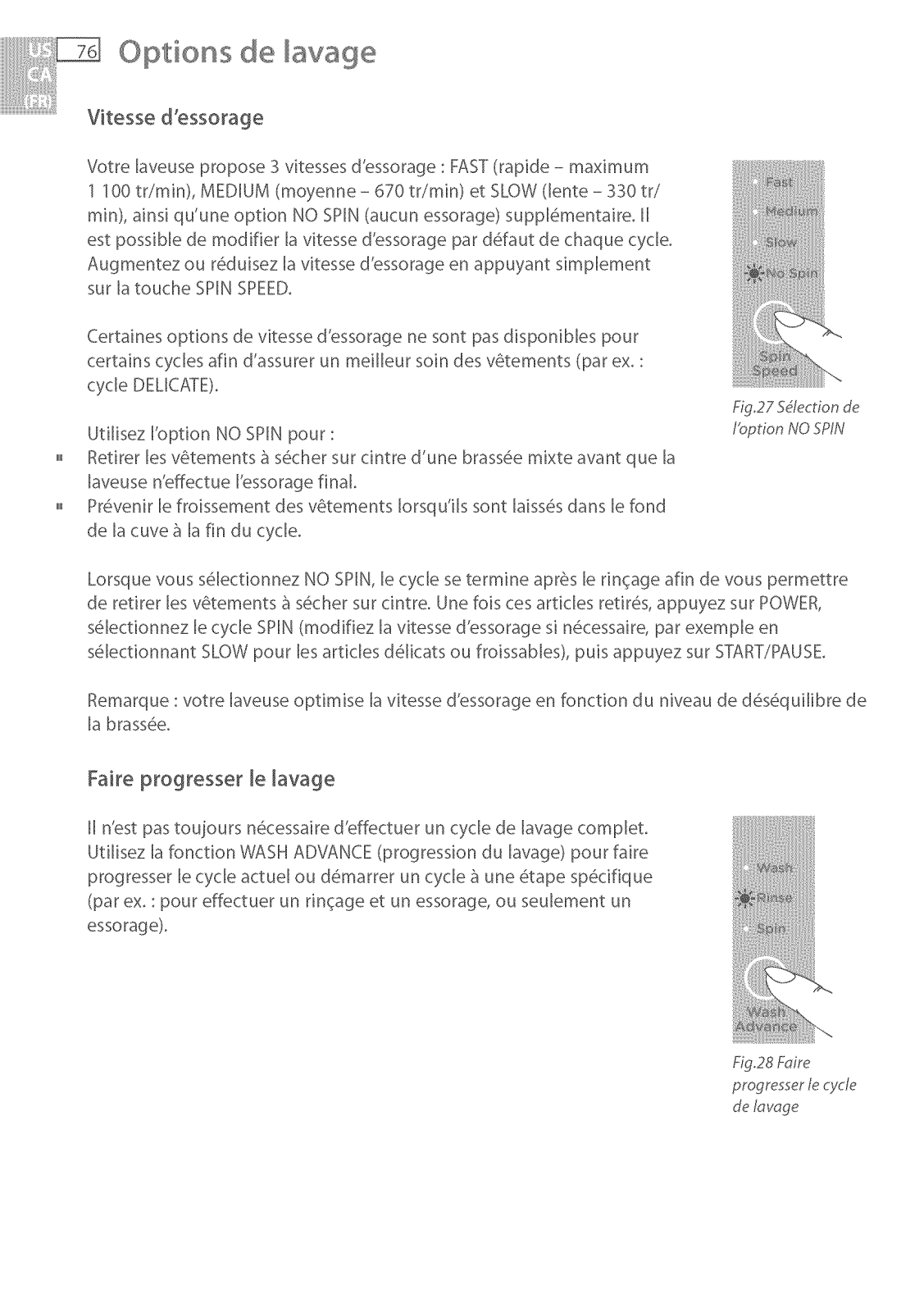

Spin speed
Your washer offers 3 spin speeds: FAST(maximum 1100 rpm), MEDIUM
(670 rpm) and SLOW(330 rpm), plus an additional NO SPINoption.The
default spin speed for eachcycle can be changed. Simply increase or
decrease your spin speed by touching the SPINSPEEDbutton,
Not all spin speed options are available on some cycles for best clothes
care (eg DELICATE cycle),
Use the NO SPiN option to:
iiiiii
Remove drip dry garments from a mixed load before you proceed the
washer to its final spin,
iiiiii
Minimize the clothes wrinkling when they are left to sit in the bottom of
the basket at the end of the cycle,
When you haveselected NOSPIN,the cycle will end after the rinse, allowing you to remove
drip dry items.Once drip dry items have been removed, touch POWER,selectthe SPINcycle
(change the SPINSPEEDif necessary,eg select SLOWfor delicate or creasable items) and touch
STAfiT/PAUSE
Note: your washer will optimize the spin speed according to the level of out of balance in the load,
Fig.27 Selecting the
NO 5PIN option
Wash advance
Sometimes you may not need to run a full wash cycle, Use WASH ADVANCE
to advance the current cycle or to start a cycle at a particular stage, ie to
complete a rinse and spin, or to perform a spin only,
Fig.28 Advancing
the washcycle
Loading...
