Fisher Paykel RGV2488LN Specifications

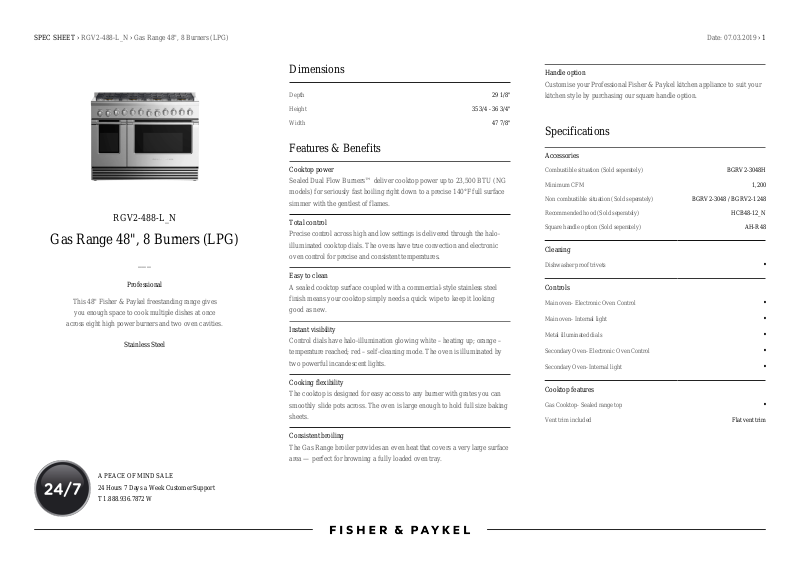

SPEC SHEET › RGV2-488-L_N › Gas Range 48", 8 Burners (LPG) Date: 07.03.2019 › 1
RGV2-488-L_N
Gas Range 48", 8 Burners (LPG)
___
Professional
This 48" Fisher & Paykel freestanding range gives
you enough space to cook multiple dishes at once
across eight high power burners and two oven cavities.
Stainless Steel
Dimensions
Depth 29 1/8"
Height 35 3/4 - 36 3/4"
Width 47 7/8"
Features & Benefits
Cooktop power
Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG
models) for seriously fast boiling right down to a precise 140°F full surface
simmer with the gentlest of flames.
Total control
Precise control across high and low settings is delivered through the haloilluminated cooktop dials. The ovens have true convection and electronic
oven control for precise and consistent temperatures.
Easy to clean
A sealed cooktop surface coupled with a commercial-style stainless steel
finish means your cooktop simply needs a quick wipe to keep it looking
good as new.
Instant visibility
Control dials have halo-illumination glowing white – heating up; orange –
temperature reached; red – self-cleaning mode. The oven is illuminated by
two powerful incandescent lights.
Cooking flexibility
The cooktop is designed for easy access to any burner with grates you can
smoothly slide pots across. The oven is large enough to hold full size baking
sheets.
Handle option
Customise your Professional Fisher & Paykel kitchen appliance to suit your
kitchen style by purchasing our square handle option.
Specifications
Accessories
Combustible situation (Sold seperately) BGRV2-3048H
Minimum CFM 1,200
Non combustible situation (Sold seperately) BGRV2-3048 / BGRV2-1248
Recommended hood (Sold seperately) HCB48-12_N
Square handle option (Sold seperately) AH-R48
Cleaning
Dishwasher proof trivets
Controls
Main oven- Electronic Oven Control
Main oven- Internal light
Metal illuminated dials
Secondary Oven- Electronic Oven Control
Secondary Oven- Internal light
Cooktop features
Gas Cooktop- Sealed range top
Vent trim included Flat vent trim
•
•
•
•
•
•
•
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 W
Consistent broiling
The Gas Range broiler provides an even heat that covers a very large surface
area — perfect for browning a fully loaded oven tray.
SPEC SHEET › RGV2-488-L_N › Gas Range 48", 8 Burners (LPG) Date: 07.03.2019 › 2
Cooktop performance
Max burner power 19000 BTU
Power back centre 13000 BTU
Power back centre (2) 13000 BTU
Power back left 13000 BTU
Power back right 13000 BTU
Power front centre 15000 BTU
Power front centre (2) 15000 BTU
Power front left 19000 BTU
Power front right 19000 BTU
Sealed Dual Flow Burners™ 8
Simmer on all burners 140 °F
Total cooktop power 120000 BTU
Gas requirements
Fitting and pipe ½ NPT, min. #" # flex line
Supply Pressure LPG Pressure 11" to 14" W.C
Oven features
Main oven- Broil pan
Main oven- Infrared Broiler
Secondary Oven- 3/4 extention racks 2
Oven performance
Main oven- Bake 22000 BTU
Main oven- Broil 22000 BTU
Main oven- Shelf positions 5
Main oven- Total Capacity (AHAM) 5.3 cu ft
Main oven- Usable Capacity (AHAM) 3.9 cu ft
Secondary Oven- Bake 18500 BTU
Secondary Oven- Capacity total (AHAM) 2.4 cu ft
Secondary Oven- Capacity usable (AHAM) 1.7 cu ft
Secondary Oven- Shelf positions 5
Total oven capacity 7.7 cu ft
The product dimensions and specifications in this page apply to the specific product and model. Under
our policy of continuous improvement, these dimensions and specifications may change at any time.
You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly
describes the model currently available. © Fisher & Paykel Appliances Ltd 2019
Other product downloads available at fisherpaykel.com
Power requirements
Electric circuit 3 wire
Rated current 15
Supply frequency 60
Supply voltage 120
Product dimensions
•
•
Depth (excluding handle and dials) 29 1/8 "
Height (excluding vent trim) 35 3/4 - 36 3/4 "
Width 47 7/8 "
Oven functions
Main oven functions 3
Main oven- Bake
Main oven- Broil
Main oven- Convection Bake
Secondary Oven- Bake
Secondary Oven- Proof
Secondary oven functions 2
Safety
Full extension telescopic racks 3
•
•
Style And Series
Product Style Professional
•
•
SKU 71351
•
