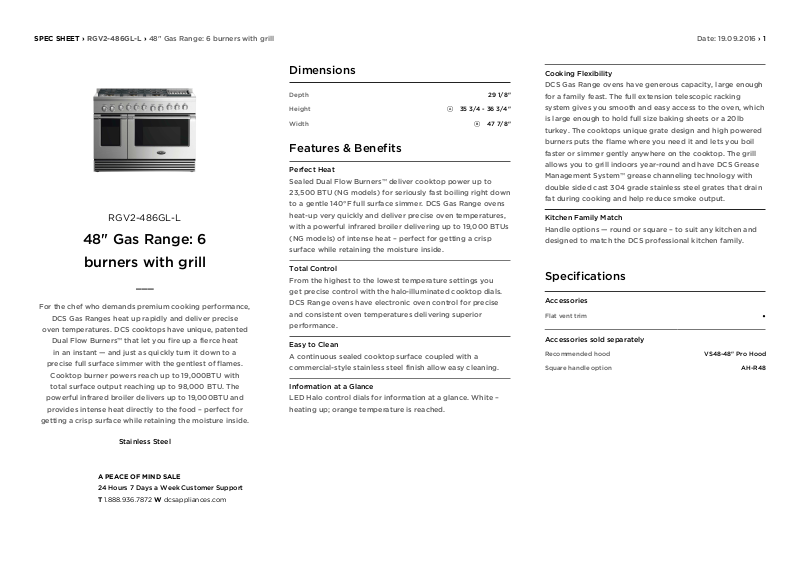

Fisher & Paykel RGV2-486GL-L Specification Sheet

SPEC SHEET › RGV2-486GL-L › 48" Gas Range: 6 burners with grill

RGV2-486GL-L

48" Gas Range: 6 burners with grill

___

For the chef who demands premium cooking performance, DCS Gas Ranges heat up rapidly and deliver precise oven temperatures. DCS cooktops have unique, patented Dual Flow Burners™ that let you fire up a fierce heat

in an instant — and just as quickly turn it down to a precise full surface simmer with the gentlest of flames. Cooktop burner powers reach up to 19,000BTU with total surface output reaching up to 98,000 BTU. The powerful infrared broiler delivers up to 19,000BTU and provides intense heat directly to the food – perfect for getting a crisp surface while retaining the moisture inside.

Stainless Steel

A PEACE OF MIND SALE

24 Hours 7 Days a Week Customer Support

T 1.888.936.7872 W dcsappliances.com

Dimensions

Depth	29 1/8"
Height	A 35 3/4 - 36 3/4"
Width	B 47 7/8"

Features & Benefits

Perfect Heat

Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a gentle 140°F full surface simmer. DCS Gas Range ovens heat-up very quickly and deliver precise oven temperatures, with a powerful infrared broiler delivering up to 19,000 BTUs (NG models) of intense heat – perfect for getting a crisp surface while retaining the moisture inside.

Total Control

From the highest to the lowest temperature settings you get precise control with the halo-illuminated cooktop dials. DCS Range ovens have electronic oven control for precise and consistent oven temperatures delivering superior performance.

Easy to Clean

A continuous sealed cooktop surface coupled with a commercial-style stainless steel finish allow easy cleaning.

Information at a Glance

LED Halo control dials for information at a glance. White – heating up; orange temperature is reached.

Date: 19.09.2016 › 1

Cooking Flexibility

DCS Gas Range ovens have generous capacity, large enough for a family feast. The full extension telescopic racking system gives you smooth and easy access to the oven, which is large enough to hold full size baking sheets or a 20lb turkey. The cooktops unique grate design and high powered burners puts the flame where you need it and lets you boil faster or simmer gently anywhere on the cooktop. The grill allows you to grill indoors year-round and have DCS Grease Management System™ grease channeling technology with double sided cast 304 grade stainless steel grates that drain fat during cooking and help reduce smoke output.

Kitchen Family Match

Handle options — round or square – to suit any kitchen and designed to match the DCS professional kitchen family.

Specifications

Accessories

Flat vent trim	•
Accessories sold separately
Recommended hood	VS48-48" Pro Hood
Square handle option	AH-R48

SPEC SHEET › RGV2-486GL-L › 48" Gas Range: 6 burners with grill

Burner ratings

Max burner power	19000 BTU
Power back centre	13000 BTU
Power back left	13000 BTU
Power back right	13000 BTU
Power front centre	15000	BTU
Power front left	19000 BTU
Power front right	15000	BTU
Power grill	10000	BTU
Simmer on all burners	140 °F

Burners

Dual Flow Burners™	6
LP Gas	•
Capacity
Main ovenShelf positions	5
Main ovenTotal Capacity (AHAM)	5.3 cu ft
Secondary OvenShelf positions	5
Secondary OvenTotal Capacity (AHAM)	2.4 cu ft
Secondary oven- 3/4 extention racks	2
Cleaning
Dishwasher proof trivets	•
Gas CooktopSealed range top	•
Grease Management System™ grease
channelling technology; (Healthier	•
Cooking)

Controls

Main ovenElectronic Oven Control	•
Main ovenInternal light	•
Metal illuminated dials	•
Secondary OvenElectronic Oven Control	•
Secondary Oven-Internal light	•
Cooking modes
Main oven functions	3
Main ovenBake	•
Main ovenBroil	•
Main ovenConvection Bake	•
Secondary oven functions	2
Secondary ovenBake	•
Secondary ovenProof	•
Gas Requirements
Minimum 5/8 inch diameter flex line	•
Pressure	11" to 14" W.C
Measurements
Depth (excluding handle and dials)	29 1/8 "
Height (excluding vent trim)	35 3/4 - 36 3/4 "
Performance
Main ovenBake	22000 BTU
Main ovenBroil	19000 BTU
Total cooktop power BTU	98000
Safety

Date: 19.09.2016 › 2

Warranty

Limited 2 Years Parts &

Warranty

Labor

SKU

71209

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. © 2016 DCS by Fisher & Paykel Appliances Limited

Other product downloads available at dcsappliances.com

Main ovenFull extention telescopic racks

3
