Fisher Paykel DE70FA1, DG70FA1 User Manual
Dryer
Installation Instructions and
User Guide US CA
Secadora
Instrucciones de Instalación y
Guía del Usuario ES
New Zealand Australia USA Canada Europe Asia Pacific
WARNING: For your safety the information in
this manual must be followed to minimize the risk
of fire or explosion or to prevent property damage,
personal injury or death.
— Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of any other appliance.
— WHAT TO DO IF YOU SMELL GAS
t Do not try to light any appliance.
t
Do not touch any electrical switch; do not use any
phone in your building.
t Clear the room, building or area of all occupants.
t
Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions
t
carefully.
If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a
qualified installer, service agency or the gas supplier.
English Page 2 – 48
Español Pág 49 – 98
The Governor of California to publish a list of substances known to the state of
California to cause cancer or reproductive harm and requires businesses to warn
customers of potential exposures to such substances.
Gas appliances contain or produce substances, which can cause death, or serious
illness and which are known to the State of California to cause cancer, birth
defects, or other reproductive harm. To reduce the risk from substances in fuel
or from fuel combustion, make sure this appliance is installed, operated, and
maintained according to the manufacturers instructions.
In the state of Massachusetts
Installation must be performed by a qualified or licensed contractor, plumber, or gasfitter
qualified or licensed by the state.
2
Contents
Dryer Safety 5
Important Safety Instructions 6
Warranty 8
Installation Instructions 9
Installer Responsibilities, Location Requirements 10
Dimensions 12
Exhausting 13
Maximum Length of Exhaust Duct 15
Alternative Exhaust Directions 17
Exhaust Venting 19
Installation 20
Grounding Instructions 21
Electrical Requirements 22
Gas Requirements 25
Level Machine, Final Installation Check List 28
Features 29
Operating Instructions 30
Reversing the Door 32
Quick Start / Using Your Dryer 33
Care Labels 38
Drying Special Items 39
Other Features 41
Cleaning 42
Trouble Shooting 44
Limited Warranty 46
US
CA
3
Thank you for buying a Fisher & Paykel dryer.
We hope you enjoy using the dryer as much as we have enjoyed designing it. We’ve gone to a lot
of effort to ensure it treats your clothes with the utmost care, drying them gently so they will look
better for longer. We know you’ll enjoy the benefits of its easy loading drum.
Please take the time to read this User Guide carefully. It will help you operate and maintain your
new dryer.
Your safety, and the safety of others is very important. Located
on your dryer and throughout this guide are safety messages and
instructions; it is important that you understand and follow them.
4
Dryer Safety
WARNING
Fire Hazard
To reduce the risk of re, electric shock, or injury to persons, read
the IMPORTANT SAFETY INSTRUCTIONS before operating this
appliance.
Failure to follow to do so can result in death or electric shock.
Symbols
Symbols will be used in this Guide to highlight when extra care is required. Abide by these at all
times to ensure you and your family are not harmed while operating your dryer.
It is important to always act with caution and use common sense when operating your dryer. Use
only as per instructed by the User Guide.
This is the safety alert symbol. This symbol alerts you to hazards that can kill
or hurt you and others.
US
CA
The safety alert symbol and the word DANGER or WARNING will precede all
safety messages. These words mean:
You can be killed or seriously injured if you don’t
DANGER
WARNING
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and
tell you what can happen if the instructions are not followed.
immediately follow instructions.
You can be killed or seriously injured if you don’t follow
instructions.
5
Important Safety Instructions
WARNING
Electric Shock Hazard
Follow the safety precautions outlined in this User Guide.
Failure to do so can result in death or electric shock.
Safety Precautions
Read all instructions carefully before using this dryer.
Use this dryer only for its intended purpose as described in this User Guide.
To minimize the possibility of electric shock, unplug this dryer from the power supply or
disconnect the dryer at the household distribution panel (by removing the fuse or switching off
the circuit breaker) before attempting any user maintenance or cleaning.
Installation must conform with local codes, or in absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54 or the Canadian Natural Gas and Propane Installation Code, CSA B149.1.
Installations and service must be performed by a qualified or licensed contractor, plumber or
gasfitter qualified or licensed by the state, province, or region where this appliance is being installed.
This dryer must be properly installed a
before it is used.
This dryer, when installed, must be electrically grounded in accordance with local codes, or in the
absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
Do not install or store the dryer where it will be exposed to water or exposed to the weather.
Connect to a properly protected, rated and sized power supply circuit to avoid electrical overload.
Do not repair or replace any part of the appliance or attempt any servicing, unless specifically
recommended in the published user repair instructions th
carry out.
When disconnecting the dryer, pull by the plug rather than the cord or junction of the cord plug,
to avoid damage to the cord or junction of the cord plug.
Make sure the cord is located so that it will not be stepped on, tripped over or otherwise subject
to stress or damage.
Do not tamper with the controls.
Note: Turning the Cycle Selector knob to an
from the power supply.
Do not operate this dryer if it is damaged, malfunctioning, partially disassembled or has missing
or broken parts, including a damaged cord or plug.
This dry
er must be directly connected to an approved fixed electrical outlet. It cannot be
plugged into an extension cord or an adaptor plug.
nd located in accordance with the Installation Instructions
at you understand and have the skills to
OFF position does NOT disconnect the appliance
6
Important Safety Instructions
WARNING
Fire Hazard
Only dry fabrics that have been washed with water.
Do not use heat to dry articles containing foam rubber or similarly
textured rubber-like materials. Dry on the Flu cycle.
A clothes dryer produces combustible lint and must be exhausted
outdoors. Take care to prevent the accumulation of lint around
the exhaust opening and in the surrounding area.
Failure to follow these instructions can result in death or personal
injury.
To Reduce the Risk of Fire in a Tumble Dryer the Following Should
be Observed:
Do not place items in a tumble dryer that have previously been cleaned in, washed in, soaked
in, or spot cleaned with flammable liquids or solids. They are a fire or explosion hazard. Highly
flammable substances commonly used in domesti
alcohol, gasoline, kerosene, some brands of spot removers and dry cleaning solvents, turpentine,
waxes, wax removers, vegetable oil, fish oil, massage oil, and cooking oil.
Do not leave hot oil-affected items in a pile or stack. This can prevent heat from escaping and can
create a fire hazard. Oil-affected items can ignite spontaneously, especially when exposed to heat
sources such as a tumble dryer. The items become warm causing an oxidation reaction in the oil.
This oxidation creates heat. If the heat cannot escape the items can become hot enough to catch
fire.
Do not use heat to dry items containing rubber, foam rubber, plastic or similar mate
padded bras, bath mats, rugs, bibs, baby pants, plastic bags, pillows etc), as these materials might
melt or burn. Some rubber materials when heated can under certain circumstances produce fire
by spontaneous combustion. Dry only on the
Unless specifically recommended by their manufacturer, do not use fabric softeners or similar
products in a tumble dryer.
Do not store or use gasoline or other flammable gases and liquids near this or any other
appliance.
Keep the area around the exhaust opening and adjacent surrounding areas free from the
accumulation of combustible materials such as lint, paper, rags, chemicals etc.
Do not store any items that may burn or melt (such as paper ma
containers, etc) next to the dryer.
Clean the lint filter each time you use the dryer, before or after each load.
c environments include acetone, denatured
rials, (such as
FLUFF cycle.
terials, plastics or plastic
US
CA
7
Important Safety Instructions
The dryer must be exhausted to the outside. Carefully follow the venting details in the Installation
Instructions.
Keep the floor around your dryer clean and dry to reduce the possibility of slipping.
If your dryer is running and you want to unload or add clothes, open the dryer door.
Do not reach into the appliance if the drum is moving.
Close supervision is necessary if this dryer is used near children. Do not allow children to play
inside, around or with this dryer or any other appliance.
Never climb on, climb into, or stand on the dryer top or drum.
Undergarments that contain metal reinforcements should not be placed di
Damage to the dryer can result if the metal reinforcements come loose during drying. If you wish
to dry these items use a drying rack (available as an optional accessory refer to page 9).
The interior of the appliance and exhaust duct should be cleaned periodically by qualified service
personnel.
When discarding or storing old clothes dryer, remove the door.
rectly in the dryer.
Warranty
Your dryer has been made to the highest standards. Years of development and rigorous testing
ensure that you have bought a world-class product, in the unlikely event that a problem should
occur, refer to the Limited Warranty section at the back of this
If you have a problem with your dryer refer to our troubleshooting section. If your problem is not
referenced, please always contact your Fisher & Paykel Authorized Service Agent or our Customer
Care Center (Toll Free 1 888 9 FNP USA (1 888 9 367 872)) rather than attempting to fix it yourself.
Guide (refer to page 46).
8
Installation Instructions
Clothes dryer installation must be performed by a qualified installer.
Install the clothes dryer according to the manufacturer’s instructions and local codes.
Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil-type)
duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable
for use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed,
and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.
To reduce the risk of sever injury or death, follow all installation instructions.
Save these instructions
Read the Important Safety Instructions on pages 6 – 8 before you start
installing your dryer.
Check to make sure you have all the tools and parts necessary to correctly install this appliance.
Tools Required
/” nut driver or socket wrench
Phillips screwdriver
Flat-blade screwdriver
Adjustable wrench 200 or 250mm (8” or 10”) for gas connections (gas models only)
Pipe joint compound (pipe dope or tape) for gas pipe connections that is resistant to LP Propane,
Butane and Natural Gas (gas dryer only)
Level
Caulking gun and compound (for installing new exhaust vent)
Gloves
Safety glasses
Knife
Duct tape
WARNING - Risk of re
US
CA
Accessories
Mobile Home Installation Kit Part No 14-D346-33
Rack Kit Part No WE1M396
Drying
Cover Plate to Rear of Cabinet Kit Part No WE1M454
See the rating plate in the door opening to identify the appropriate kit number (Mxx) for
conversion to LP or natural gas.
Parts Needed
Check with local codes and read electrical, gas and venting requirements before purchasing parts.
If you need to purchase a power supply cord kit or power supply cable, they must meet the
requirements on page 23.
9
To the Installer
The correct installation of the dryer is your responsibility.
Be sure you read the following instructions carefully before you start to install the dryer. These
instructions should be left with the home owner for future reference.
It is Your Responsibility to:
Observe all governing codes and ordinances.
Check code requirements. Some codes limit or do not permit installation of clothes dryers in
garages, closets, mobile homes or sleeping quarters. Contact your local building inspector.
Adhere to these installation instructions.
Allow for spacing requirements with side by side installations (refer page 11).
Make sure you have all items necessary for correct i
Properly install the dryer.
Contact a qualified installer as appropriate to ensure that the electrical and gas installation meets
all national and local codes and ordinances. (See page 6).
nstallation.
Location Requirements
WARNING
Explosion Hazard
Keep ammable materials and vapors, such as gasoline, away
from the dryer.
Place dryer at least 460mm (18 inches) above the oor for a
garage installation.
Failure to do so can result in death, explosion, re, or burns.
The dryer must be installed or stored in an area which is not exposed to water or weather.
It is extremely important that the dryer is installed in a well ventilated location. This dryer must
exhaust air outdoors. Do not install the dryer in any room or closet which does not permit the
free flow of replacement air.
Allow sufficient room behind the dryer for the exhaust. The air intake is at the rear of the dryer.
Ensure that there is a sufficient air passage on each side of the dryer for intake air.
10
Location Requirements
The area in which the dryer is located must be
kept clear and free from combustible materials,
gasoline and other flammable vapors and liquids.
A dryer produces combustible lint so the area
around the dryer must be cleaned regularly to
keep it free of lint.
Alcove or Closet Installation
When installing a dryer in a closet/alcove it must be
WARNING
exhausted to the outdoors. No other fuel burning appliance
can be installed in the same closet or alcove.
US
CA
The total ventilation area must be a minimum of 387cm
distributed. If the closet contains both a washer and a dryer, doors must contain a minimum of
2
(120 sq. in.) of open area equally distributed. The openings must never be obstructed (a
774cm
2
(60 sq. in.) of open area equally
louvered door with the minimum air opening is acceptable). Minimum installation clearances are
required but more clearance is recommended.
minimum clearance
required
1430mm (56 /”)
25mm (1”)
25mm (1”) 25mm (1”)
min 50mm (2”) min 76mm (3”)
total ventilation area
774cm2 (120 in. sq.)
11
Location Requirements
Bathroom or Bedroom Installation
The Dryer MUST be vented to the outdoors. See EXHAUST information.
Dimensions
Exhaust Outlet Location
Exhaust outlet
298mm (11 /”)
114mm (4 /”)
Mobile or Manufactured Home Installation
Installation must comply with the current CAN/CSA Z240 MH series Mobile Home Installation
Codes or the Manufactured Home Construction & Safety Standard, title 24, part 32-80 or, when
such standard is not applicable, with American National Standard for Mobile Home, AINSI/NFPA
NO. 501B.
The dryer MUST be vented to the outdoors with the termination securely fastened to the mobile
home structure. (See EXHAUST information).
The vent MUST NOT be terminat
The vent duct material MUST BE METAL.
The vent MUST NOT be connected to any other duct, vent, or chimney.
Do not use sheet metal screws or other fastening devices which extend into the interior of the
exhaust vent.
In addition to the above, for gas dryers:
Kit 14-D346-33 MUST be used to attach the dryer securely to the structure.
Provide an opening with a free area of at least 161cm sq. (25 sq. in.) for introduction of outside air
into the dryer room.
12
ed beneath a mobile or manufactured home.
Exhausting
WARNING
Fire Hazard
The dryer must be vented to the outdoors.
Use rigid or thick wall exible metal exhaust duct.
Do not use a plastic exhaust duct.
Do not use a metal foil exhaust duct.
Failure to follow these instructions can result in death or re.
The dryer must be exhausted to the outdoors. This will prevent the build up of lint and moisture
in the room in which it is located and reduce the risk of fire.
This appliance must always be vented to the outdoors.
Only rigid or flexible metal duct shall be used for exhausting.
In Canada and in the United States, only those foil-type flexible ducts, if any, specifically identified
for use with the appliance by the manufacturer and that comply with the Outline for Clothes
Dryer Transition Duct, Subject 2158A, shall be use
In Canada and in the United States, the required exhaust duct diameter is 102 mm (4”).
Exhaust ducting products can be purchased from your local Appliance store or Hardware store.
Plastic or metal foil flexible duct can kink, sag, be punctured, reduce airflow, extend drying times
and affect dryer operation.
A minimum of 100mm (4”) thick wall flexible metal or rigid galvanized metal duct must be used.
Using ducts larger than 100mm (4”) diameter may result in more lint accumulating.
Using straight rigid metal ducting will minimize lint accumulation. Thick wall flexible metal
ducting may be used but care must be exercised to avoid sharp bends which may squash the
duct and cause blockages. Do not use plasti
Use duct tape to secure joints. Do not use screws as they collect lint.
Keep ducting as short and straight as possible. Do not exceed the maximum exhaust duct
lengths stated later in these installation instructions.
Do not exhaust the dryer into a chimney or gas vent, a wall, a ceiling, an attic, a crawl space, or
any concealed space in a building. Do not exhaust the dryer under a house or mobile home or a
porch, or into a window well or other area that will accumulate lint.
The exhaust duct should end with an exhaust hood with a
swing out damper to prevent back drafts and entry of wild
life. Never use exhaust hoods with a magnetic damper. The
hood should have at least 305mm (12 inches) clearance
een the bottom of the hood and the ground or other
betw
obstruction. The hood opening should point down. Never
install a screen over the exhaust outlet.
d.
c ducting or thin wall flexible metal ducting.
305mm (12”)
US
CA
13
Exhausting
To reduce condensation, insulate any ducting which passes through unheated areas.
Slope the duct gently downwards to the hood, to drain condensation and reduce lint build up.
Avoid sag or loops in the duct as they may collect and store water and accumulate lint.
Before using an existing exhaust duct system for a dryer ensure that:
No plastic or other potentially combustible duct or flexible metal foil ducting has been used.
The duct is not pierced, kinked or crushed.
The duct does not exceed the maximum recommended length for the new dryer.
The exhaust hood damper opens and closes freely and with sufficient movement.
Static pressure in the exhaust ducting does not exceed 250Pa (1 inch of water column), or is no
less than 0 inches of water column (i.e. negative pressure), when measured with a manometer in
the first 150mm (6”) of the duct, with the dryer running on Fluff (no heat) setting.
The exhaust duct system meets all relevant local, state, province and national codes.
All ducting should be inspected and cleaned at least once a year to remove accumulated lint.
Frequently check that the damper on the exhaust hood moves sufficiently and opens and shuts
freely.
Mobile Home Installations
A Mobile Home Installation Kit is available (see Accessories page 9 and notes page 12).
t
Determine Vent Duct Length
Different types of vent arrangements are shown below.
14
Exhausting
Choose a route that will provide the straightest and most direct path outdoors. Plan the
installation to use the fewest number of elbows and turns.
When using elbows (rigid duct) or making turns (thick wall flexible metal duct), allow as much
room as possible. With thick wall flexible metal duct bend duct gradually to avoid kinking and
avoid 90˚ turns.
US
CA
recommended
acceptable
Maximum Length of Exhaust Duct
The maximum length of the exhaust duct system depends upon:
The type of ducts (rigid or thick walled flexible metal).
The number of elbows or bends used.
Refer to the exhaust duct length chart for the maximum duct lengths you can use. Do not use 1
duct runs longer than specified in the exhaust duct length charts (refer to next page).
Exhaust duct systems longer than specified will:
Accumulate lint creating a potential fir
Shorten the life of the dryer.
Reduce performance, resulting in longer drying times and an increased energy usage.
Determine the number of elbows/bends you will need. 2
e hazard.
In the following table, find the maximum length of rigid metal duct on the same line as the 3
number of elbows/bends to be used (refer to next page).
The total length of flexible metal duct shall not exceed 2.4m (8 ft).4
15

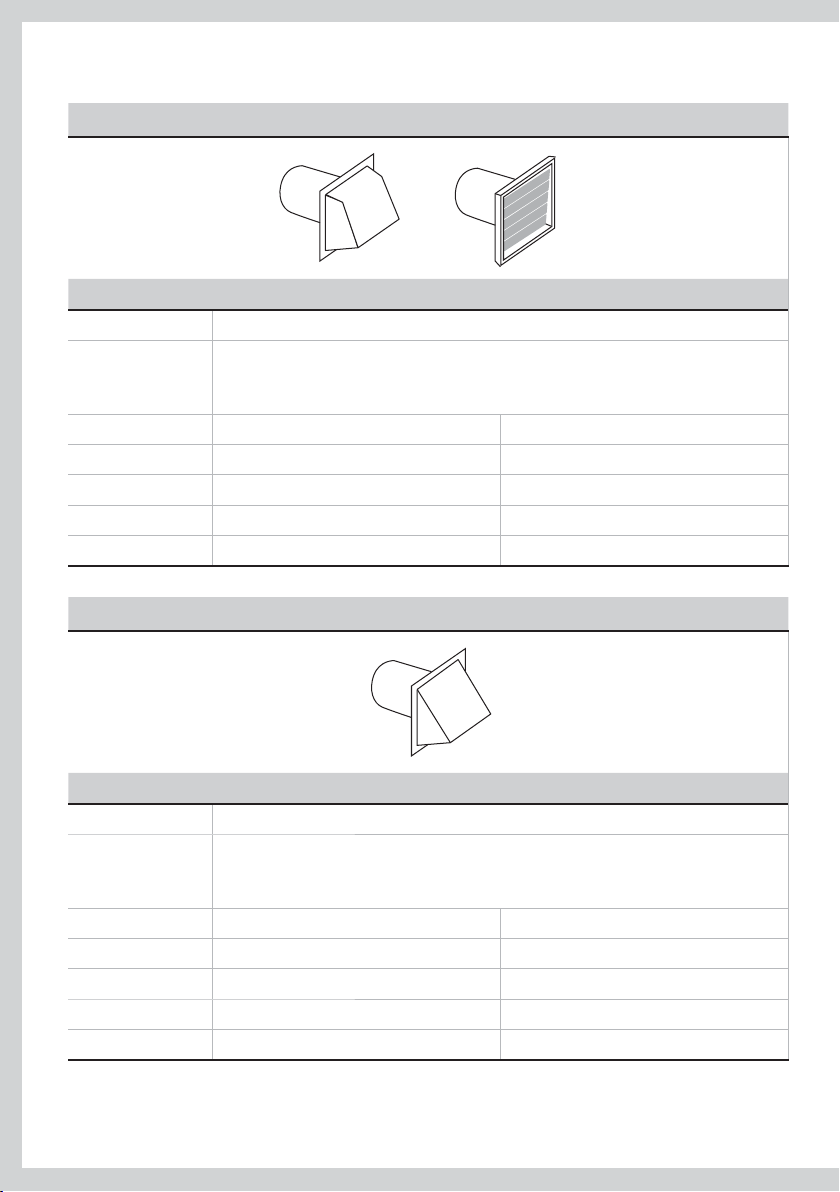

Maximum Length of Exhaust Duct
Preferred 4” Hoods
When you have a 100mm (4”) Hood
Maximum length of 100mm (4”) diameter metal duct.
Number of 90°
elbows/bends
0 27.4m 90ft
1 18.3m 60ft
2 13.7m 45ft
3 10.7m 35ft
4 7.6m 25ft
Acceptable 2 /” Hoods
Rigid
When you have a 60mm (2 /”) Hood
Maximum length of 100mm (4”) diameter metal duct.
Number of 90°
elbows/bends
0 18.3m 60ft
1 13.7m 45ft
2 10.7m 35ft
3 7.6m 25ft
4 4.6m 15ft
For exhaust systems not covered by the exhaust duct length charts (such as multiple unit hookups, plenums, and power-assist fans), call our Customer Care Center:
TOLL FREE 1 888 9 FNP USA (1 888 9 367 872).
16
Rigid

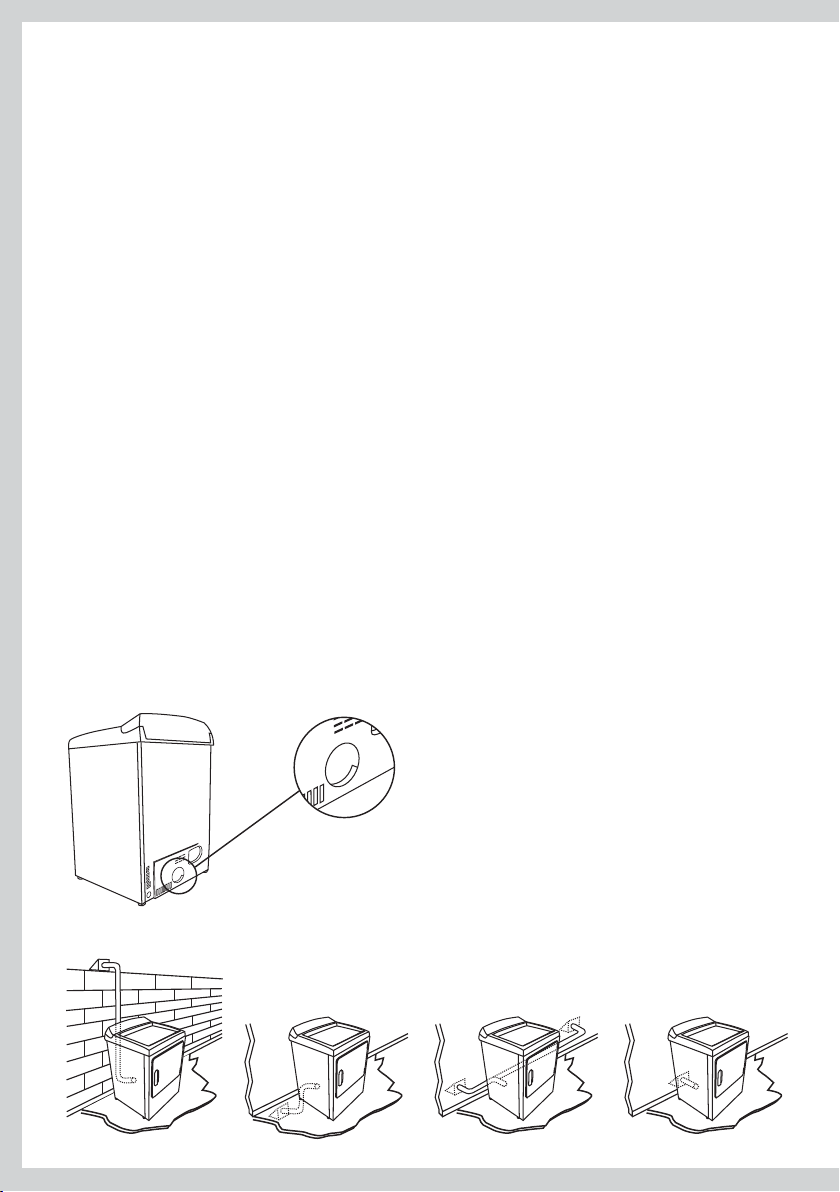

Alternative Exhaust Directions
This dryer can be vented from the rear, right, left, and bottom side of the cabinet and must be
exhausted to the outdoors.
Note:
The gas dryer can not be exhausted directly through the right side of the cabinet.
Dryer Exhaust to Right , Left or Bottom of Cabinet
Detach and remove the bottom, right or
left side knockout as desired. Remove the
screw inside the dryer exhaust duct and
save. Pull the duct out of the dryer. Protect
sharp edges around the knockout and
exhaust opening with tape.
Remove
screw
and save
Remove
desired knockout
(one only)
US
CA
Cut the duct as shown and keep portion A.
Tab Location
Through the rear opening, locate the tab in the
ddle of the dryer base. Lift the tab to about
mi
45° using a flat blade screwdriver.
Adding New Duct
Reconnect the cut portion (A) of the duct to
the blower housing. Making sure that the
shortened duct is aligned with the tab in the
base. Use the screw saved previously to secure
the duct in place through the tab on the dryer
base.
Bend tab
up 45°
Fixing
Hole
B
Portion “A”
Right or
left side
exhaust
Fixing hole
A
9”
17
Alternative Exhaust Directions
Adding Elbow and Duct for Exhaust to Right or Left Side of Cabinet
Preassemble 100mm (4”) elbow with 100mm
(4”) duct. Wrap duct tape around joint.
Insert duct assembly, elbow first, th
side opening and connect the elbow to the
dryer internal duct.
rough the
Exhaust can
be added to
left or right side
CAUTION!
Be sure not to pull or damage the electrical
wires inside the dryer when inserting the duct.
Apply duct tape as shown on the joint between
the dryer internal duct and the elbow.
CAUTION!
Internal duct joints must be secured with tape,
otherwise they may separate and cause a safety
hazard.
Adding Elbow for Exhaust through Bottom of Cabinet
Insert the elbow through the rear opening and connect it
to the dryer internal duct.
Apply duct tape on the joint between the dryer internal
duct and elbow, as shown above.
CAUTION!
Internal duct joints must be secured with tape,
otherwise they may separate and cause a safety
hazard.
Duct tape
Duct tape
Adding Cover Plate to Rear of Cabinet (Sides and Bottom Exhaust)
Connect standard metal elbows and ducts to complete
the exhaust system. Cover back opening with a plate (kit
WE1M454) available from your local service provider. Place
dryer in final location.
18
Plate (kit WE1M454)
Exhaust Venting
WARNING
Fire Hazard
Use metal exhaust duct.
Do not use a plastic exhaust duct.
Do not use thin metal foil exhaust duct.
Failure to do so can result in death or re.
Read the exhaust section (pages 13 – 18) before installing the exhaust system to determine the 1
maximum allowable exhaust duct length.
Do not use sheet metal screws when assembling ducting. Always use suitable duct tape. Never
use plastic or thin metal foil flexible exhaust material.
The exhaust outlet is located close to the center of the rear of the dryer. Make sure you join the 2
exhaust duct to the dryer with duct tape only. This will prevent lint and dust from escaping from
the dryer and exhaust system.
298mm (11 /”)
Exhaust outlet
114mm (4 /”)
US
CA
The exhaust vent can be routed up, down, left, right or straight
diagram.
out the back of the dryer. Refer to 3
19
Installation
Parts and literature are packaged inside the dryer drum.
WARNING
Excess Weight Hazard
Use two or more people to move and install the dryer.
Failure to do so can result in back or other injury.
Only remove the packaging at the customer’s premises.
This will ensure the appliance arrives in pristine condition and reduces the risk of damage when
transporting to the customer’s home.
Unpacking
Make sure dryer is in a suitable location for installation.
Consider installing the dryer before the washing machine in a side by side installation, this will
allow better access to electrical and exhaust connections.
Foam Removal from Dryer Legs
Tilt the dryer sideways and remove the foam shipping pads by pulling at the sides and breaking
them away from the dr
20
yer legs. Be sure to remove all of the foam pieces around the legs.
Grounding Instructions for Gas and Electric Dryers
WARNING
Electric Shock Hazard
Make sure appliance is wired or plugged into a grounded outlet.
Do not use an adaptor.
Do not use an extension cord.
Failure to follow these instructions can result in death, re, or
electrical shock.
WARNING
Electric Shock Hazard
Check with a qualied electrician or service person if you are in
doubt as to whether the appliance is properly grounded.
Do not modify the plug if it will not t the outlet.
Have the proper outlet installed by a qualied electrician.
Failure to follow these instructions can result in death, re, or
electrical shock.
US
CA
Grounding for a Cord-Connected Appliance
This appliance must be grounded. In the event of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current.
When this appliance is equipped with a cord having an equipment-grounding conductor and a
grounding plug, the plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with
National Electrical Code ANSI/NFPA 70, or the Canadian Electrical Code CSA C22.1.
WARNING
Refer to pages 22 – 24 for wiring details for electric dryers, including the grounding requirements
for a direct wired appliance.
all local codes and ordinances, or in their absence, with the
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check with
a qualied electrician or service representative if you are in
doubt as to whether the appliance is properly grounded.
21
Electrical Requirements for Electric Models Only
WARNING
Electric Shock Hazard
Use a new UL/CSA approved 30-ampere power cord or direct wire
cable.
Use a UL approved strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center terminal.
On all four wire installations remove the grounding link and
connect the ground wire to the green ground connecting screw.
Connect remaining 2 supply wires to remaining 2 terminals.
Securely tighten all electrical connections.
Failure to do so can result in death, re, or electrical shock.
Note:
The wiring diagram is inside the control console.
The dryer must be plugged into or
connected to an individual branch circuit,
do not use an extension cord.
Ensure pr
The power supply must be 220/240V or
208V, 60 Hz approved alternating current
electrical service. The electrical service
requirements can be found on the data
label that is located on the console back.
A 30-ampere fuse or circuit breaker is
required on each of the lines.
If a power cord is used, the cord must be plugged into a 30-ampere receptacle.
The power cord is NOT provided with U.S. electric model dryer
This dryer is supplied with the cabinet grounded through the neutral on the terminal block. If
the dryer is to be installed in (1) a new branch installation, (2) a mobile home, (3) a recreational
vehicle, (4) an area where local codes do not permit grounding through the neutral conductor,
the appliance grounding link must be removed and a 4-wire power cord/cable or a separate
grounding wire must be used.
Do not reuse a power supply cord/cable from an old dryer. The power cord/cable electric supply
wiring must be retained at the dryer cabinet with a suitable UL listed strain relief.
22
oper ground exists before use.
If local codes permit, an external
ground wire (not provided),
which meets local codes, may
be added by attaching to the
green ground screw on the rear
of the dryer, and to a grounded
metal cold water pipe or other
established ground.
s.
Electric Power Supply for Gas and Electric Dryers
Power Supply for Electric Dryers: (for Canada only)
120 / 240 V or 120 / 208 V of 60 Hz sinusoidal supplied via an
individual branch circuit with a 30 ampere fuse or breaker in
each of the lines.
Connected to a 30 ampere wall receptacle as shown
The installation conforming to local codes. Do not modify the
plug to fit a different outlet
Y
G
X
W
Electric Power Supply for Gas Dryers:
120 V 60 Hz sinusoidal supplied via a circuit protected with a
15 or 20
Connected to a wall receptacle as shown
The installation conforming to local codes and/or the current
CSA C22.1 Canadian Electrical Code part 1.
ampere fuse or breaker.
Power Supply Cord Requirements for U.S.A
US
CA
WARNING
Electric Shock Hazard
Never leave the cover o of the terminal block.
Failure to do so will result in death or electric shock.
4-wire Connections (must be used for Mobile Home Installation)
Note:
Sine January 1, 1996, the National Electric Code requires that new constructions utilize a 4 wire
connection to an electric dryer.
Turn off the circuit breaker(s) (30 amp) or remove the dryer’s circuit fuse at the electrical box.1
Be sure the dryer cord is unplugged from the wall receptacle.2
Remove the power cord cover located at the lower back.3
Remove and discard ground strap. Keep the green ground screw for step 7.4
Install 5 /” UL recognized strain relief to
Connect power cord as follows: 6
A. Connect the 2 hot lines to the outer screws of the terminal block (marked L1 and L2).
B. Connect the neutral (white) line to the center of the terminal block (marked N).
power cord entry hole. Bring power cord through strain relief.
23
Power Supply Cord Requirements for U.S.A
Attach ground wire of power cord with the green ground screw (hole above strain relief bracket). 7
Tighten all terminal block screws (3) completely.
Properly secure power cord to strain relief.8
Reinstall the cover.9
Remove ground strap
and discard. Keep green
ground screw
Cover
3-Wire Connections
If required, by local code, install external ground (not provided) to grounded metal, cold water
pipe, or other established ground determined by a qualified electrician.
Turn off the circuit breaker(s) (30 amp) or remove the dryer’s circuit fuse at the electrical box.1
Be sure the dryer cord is unplugged from the wall.2
Remove the power cord cov
Install 4 /” UL recognized strain relief to power cord entry hole. Bring power cord through strain
relief.
Connect power cord as follows:5
A. Connect the 2 hot lines to the outer screws of the terminal block (marked L1 and L2).
B. Connect the neutral (white) line to the center of the terminal block (marked N).
Be sure ground strap is connected to neutral (center) terminal of block and to green ground 6
screw on cabinet rear. Tighten all terminal block screws (3) completely.
Properly secure power cord to strain relief.7
Reinstall the cover.8
Green ground screw
Screws
(3)
Neutral
(white)
Cover
24
Screws
(3)
Neutral
(white)
er located at the lower back.3
Ground strap
Hot wire
L1
L2
Hot wire
Hot wire
1L
N
2L
Hot wire
/”, UL recognized
strain relief
Strain relief bracket
/”, UL recognized
strain relief
Relocate green
ground screw here
Green or yellow wire
Strain relief bracket
4 #10 AWG minimum copper conductors
or 120/240V 30A power supply cord kit
marked for use with dryers & provided
with closed loop or spade terminals with
upturned ends (not supplied)
3 #10 AWG minimum copper
conductors or 120/240V 30A power
supply cord kit marked for use with
dryers & provided with closed loop
or spade terminals with upturned
ends (not supplied)
Gas Requirements (Gas Models Only)
The installation must conform with Local Codes, or in the absence of Local Codes, to the National
Fuel Gas Code ANSI Z223.1/NFPA 54 or the Canadian Natural Gas and Propane Installation Code,
CSA B149.1.
WARNING
Explosion Hazard
Installations must be performed by a qualied or licensed
contractor, plumber, or gastter qualied or licensed by the state,
province, or region where this appliance is being installed.
Use a new AGA or CSA approved gas supply line.
Install a shut-o valve in an accessible place.
Only use a gas shut-o valve approved for use within the state,
province, or region where this appliance is being installed.
Securely tighten all gas connections.
Failure to follow these instructions can result in death, explosion,
or re.
Gas Type
Your dryer must have the correct burner for the type of gas in your home. Burner information is
located on the rating plate located on the front of the dryer behind the door. If this information
does not agree with the type of gas available in your home, contact your local
supplier or service center.
Fisher & Paykel
US
CA
Natural Gas
This dryer is supplied ready for use with Natural Gas.
It is design certified by CSA International for LP (Propane or Butane) Gases with the appropriate
conversion.
LP Gas Conversion
If the dryer is to be operated on LP (Liquid Propane or Butane) Gas, the dryer must be converted.
To do so, use only the approved Fisher & Paykel conversion kit listed in Accessories on page 9. Do
not use with a different gas without consulting the serving gas supplier.
The dryer must be converted for safe and proper performance by qualified service or installation
personnel.
Conversion kits for Natural and LP Gas are available from your loc
Accessories page 9). If other conversions are required, check with your local gas utility for specific
information concerning conversion requirements.
al Fisher & Paykel Dealer (see
25
Connecting Gas to Your Dryer (Gas Models Only)
Use compound or thread tape appropriate to the gas type that is to be used (Natural or LP Gas),
on the male threads of all non-flared connections.
Never use an open flame to test for gas leaks.
This dryer will operate satisfactorily up to altitudes of 2000m (6500ft) above sea level at the
BTU rating indicated on the model/serial plate. Burner input adjustments may be required if
operating above this elevation.
The dryer must be isolated from the gas supply piping system by closing the supply shut-off
valve during any pressure testing of the gas supply piping system.
Gas Ignition
This dryer has an automatic ignition system to ignite the burner. There is no pilot flame burning
in this dryer.
Connecting to the Gas Supply
The gas supply line should be 12.7mm (1 /“).
An individual manual shut-off valve must be installed on the gas supply line within 1.8m (6ft) of 2
the dryer, in accordance with the National Fuel Gas Code ANSI Z223.1/NFPA 54 for the United
States or in accordance with the B149.1 Natural Gas and Propane Installation Code for Canada.
An 3 / inch NPT plugged tapping must be installed to allow the gas inlet pressure to be checked.
It must be accessible for test gauge connection and immediately upstream of the gas connection
to the dryer.
26
/” NPT plugged tapping
Gas shut-off valve
/” NPT gas supply line
Connecting Gas to Your Dryer (Gas Models Only)
A listed connector in compliance with ANSI Z21.24/CSA6.10 must be used to connect the dryer to 4
the gas supply.
If flexible tubing is used, an elbow should be installed on the pipe at the back of the dryer for 5
the flexible tube to be connected to. This will minimize damage to the tube when the dryer is
moved back. Use a flexible tubing connection kit that has designed for use on a clothes dryer.
This kit should have the unions necessary to join to the ends of the tubing. Be sure to follow all
instructions supplied with the kit.
Copper tubing should not be used for Natural Gas and if used for LP Gas, it must be LP Gas 6
compatible.
Disconnect and discard old flexible tubing.7
The
gas pipe that comes out of the rear of your dryer has on it a 8 /” NPT male thread. Remove
the protective cap and apply sealing compound or tape to the thread. Thread sealant should be
appropriate for the type of gas to be used.
Apply thread
sealant
US
CA
Remove cap
/” NPT pipe thread
Elbow required
for flexible tubing
Completing the Connection
Use wrenches to tighten all joints but do not over tighten.1
Open the gas supply valve and check all joints by brushing on a non-corrosive leak-detecting 2
solution. Bubbling will indicate a leak. If any leaks are found, close the valve immediately and
correct the leaks. Retest with repeat until no leaks are found.
27
Level Machine
Check the dryer is level, and make necessary adjustments.
Adjust all 4 leveling legs to match washer height. Dryer MUST BE LEVEL and rest firmly on all 4
leveling legs.
Level front-to-back
4 leveling legs
Level side-to-side
Final Installation Check List
Check that:
No plastic or flexible metal foil is used in the exhaust ducting.
Exhaust is rigid ducting or thick wall flexible metal ducting.
All joints in the ducting are made with duct tape. It must not be connected with screws or other
fastening devices which extend into the inside of the duct.
Ducting is clean and is connected to the dryer.
Dryer is level.
Additionally for Electric Dryer Models Only, Check:
Dryer is plugged or directly wired into an approved fitting and is properly grounded.
Dryer starts, heats, cools and shuts off.
Additionally for Gas Dryer Models Only, Check:
Dryer is plugged into an approved fitting and is properly grounded.
All fittings in the gas line are tested for leaks.
Exhaust temperature increases, to confirm ignition has occurred.
– If ignition does not occur initially, it may be due to air in the gas line or low voltage power supply.
– The gas regulator valve may fail to open if the power supply falls below 105 Volts.
28
Features
Extra Care
Use this option to minimize the wrinkles in clothes. This option provides
approximately 15 minutes of no-heat tumbling after the clothes are dry.
This option can only be used with the Automatic cycles.
Hint: If the Signal option is selected, the Signal will sound at the end of the drying
time and will sound several times during the Extra Care cycle. This will remind you
that the cycle is complete.
Signal
This signal will sound just before the end of the cycle to remind you to remove the
clothes.
If you selected the Extra Care option a signal will sound a the end of the drying
time and will sound several times during the Extra Care cycle.
This will remind y
clothes.
Note:
Remove garments promptly at the sound of the signal. Place clothes on hangers
so wrinkles won’t set in.
Use the Signal especially when drying fabrics like polyester
press. These fabrics should be removed promptly so wrinkles won’t set in.
ou that the dry cycle is complete and you should remove your
knits and permanent
US
CA
Reset Options
Selecting Reset Options cancels all options that have been selected.
Drum Lamp
A handy light inside the dryer to help make unloading easier.
Drying Rack (Optional on some models)
A handy drying rack may be used for drying articles such as stuffed
toys, pillows or washable sweaters.
Hook the rack over the lint filter so the rack extends into the dryer
drum.
Note:
The drying rack must be used with the Timed cycle. Do not use this
drying rack when there are other clothes in the dryer.
29

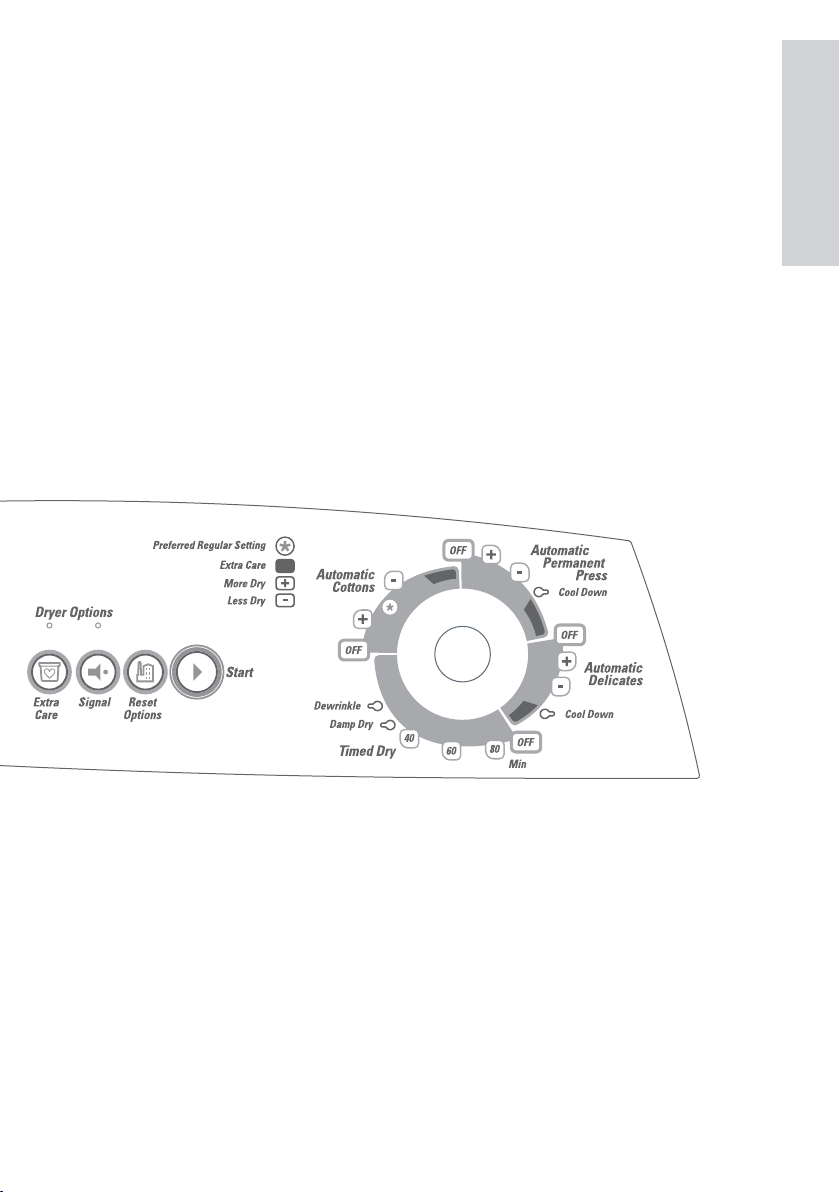

Operating Instructions Control Panel
Automatic Drying Cycles
(Cycle automatically senses dryness)
There are two automatic dryness levels:
These two settings dry your clothes to different degrees depending on the level of dryness you
would like.
Automatic Permanent Press – For synthetic blends. Select More Dry (+) for heavier fabrics,
Less Dry (–) for light fabrics.
Automatic Permanent Press – For lingerie and special care fabrics. Select More Dry (+) for
larger fabrics,
Automatic Cottons – For cottons and most linens. For most loads select the preferred Regular
Setting marked with an *. Set towards
fabrics.
Less Dry (–) for smaller fabrics.
More Dry (+) and Less Dry (–).
More Dry (+) for heavier fabrics, Less Dry (–) for lighter
Fabric Care Settings
FLUFF – For items requiring drying without heat. Perfect for airing clothes or to freshen up
garments that have been packed in a suitcase or drawer.
COTTON REGULAR – For drying general cottons such as sheets, sweats and knits. This cycle uses
high heat to dry clothes quickly. Suitable for garments labeled “tumble dry”.
PERMANENT PRESS – For drying lightweight fabrics. A medium heat is used to reduce wrinkles.
Ideal for lightweight cottons, casuals and items labelled “tumble dry with a medium heat”
cycle automatically selects the
KNITS DELICATES – For heat sensitive items, this cycle uses a low heat. Use this setting when
care labels recommend low heat settings or for garments with a synthetic fiber content, where
overheating could cause damage to fibers.
DEWRINKLE option to reduce wrinkles.
. This
30
Loading...
