Introduction
About your new Galaxy drop-in cooking system
Thank you for buying a Fisher & Paykel Galaxy. Now that it is installed and ready to use, you will want to know everything about it to make sure you get excellent results right from the start. This guide introduces you to all its features, as well as giving you a comprehensive set of cooking charts. We recommend you read the whole guide before using your new Galaxy, for both safety and cooking success.
Before using your new Galaxy
Before using your new Galaxy, please: Read this user guide, taking special note of the ‘Safety and warnings’ section following.
Remove all accessories and packaging. Set the clock. The oven will not work until the clock has been set. See the ‘Clock and timer’ section. Condition the oven by turning the function knob to FAN BAKE
0
200
C and heat for one hour.
There will be a distinctive smell while you are conditioning your oven. This is normal, but make sure your kitchen is well ventilated during the conditioning.
and the temperature knob to
1
2
6
7
8
1
Griddle burner
2
Auxilliary burner
3
Wok burner
4
Electric barbeque
5
Semi-rapid burners
3
4
6
Control panel
7
Left-hand oven
8
Left-hand storage drawer
9
Right-hand oven
10
Right-hand storage drawer
5
5
9
10
Fig.1 DI1203
Safety and warnings
Your Galaxy has been carefully designed to operate safely during normal cooking procedures. Please keep the following guidelines in mind when you are using your Galaxy:
WARNING!
Hot Surface Hazard
Accessible parts will become hot when this oven is in use. Accessible parts may become hot when the grill is in use with the door open. To avoid burns and scalds keep children away. Do not touch hot surfaces inside the oven. Use oven mitts or other protection when handling hot surfaces such as oven shelves or dishes. Take care when opening the oven door. Let hot air or steam escape before removing or replacing food. Do not touch the cooktop components, burners, trivets/pan supports or the stainless steel base when hot. Before cleaning, turn the burners off and make sure the whole cooktop is cool.
Failure to do so could result in burns and scalds.
Electrical Shock Hazard
Switch the oven off at the wall before replacing fuses or the oven lamp.
Failure to do so may result in death or electrical shock.
WARNING!
3
WARNING!
Explosion Hazard
Do not store flammable materials such as gasoline near the cooktop. Do not spray aerosols near the cooktop during use.
Failure to do so may result in death or electrical shock.
4
Safety and warnings
Important safety precautions
Isolating switch: make sure this oven is connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. Household appliances are not intended to be played with by children. Children, or persons with a disability which limits their ability to use the appliance, should have a responsible person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings. Safe food handling: leave food in the oven for as short a time as possible before and after cooking. This is to avoid contamination by organisms which may cause food poisoning. Take particular care during warmer weather. Do not place aluminium foil or dishes with reflective qualities on the oven floor as this will cause a heat build-up which will irreversibly damage the enamel. Do not stand on the door, or place heavy objects on it. Do not use abrasive cleaners on the outside surfaces of the oven. Do not use a steam cleaner to clean any part of the oven.
Do not stand or place heavy objects on this appliance. Do not use an asbestos mat or decorative covers between the flame and the saucepan as this may cause serious damage to your cooktop. Do not place aluminium foil or plastic dishes on the cooktop burners. Do not let large saucepans or frying pans overlap the bench as this can deflect heat onto your benchtop and damage the surface. Do not let large saucepans, frying pans or woks push any other pans aside. This could make them unstable or deflect heat onto your benchtop and damage the surface. Do not use a steam cleaner for cleaning this cooktop. Saucepan handles may be hot to touch. Ensure saucepan handles do not overhang other gas burners that are on. Keep handles out of reach of children. If the electrical supply cord is damaged, it must only be replaced by an authorised person. Ensure that the electrical connection plug is accessible after installation. Where this gas cooktop is installed in marine craft or in a caravan, it shall not be used as a space heater. The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure the kitchen is well ventilated. Keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood). Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present. Only use the griddle on the fish burner. To prevent excessive heat build up in the cooktop area, cooking times on the griddle should be limited to 1 hour. The barbeque cover (accessory) must not be used as a cooking surface. Fat left on the lava rocks or in the tray may ignite. If flame flare-ups become excessive during cooking turn down the temperature. The barbeque grid, rock tray and lava rocks should be cleaned after every use.
Clock and timer
Timer
Cook time for automatic cooking. The oven will automatically turn off at the end of the set cook time.
Stop time for automatic cooking.
5
Manual returns the oven to manual control during automatic cooking or when automatic cooking is completed, and for setting the clock.
Symbols are used for changing times in the selected mode.
Fig.2 Electronic clock
Setting the clock
To set the clock, press the shows the correct time. Note:
AUTO will appear in the clock display while the
button once and then press the
buttons until the clock
and
button is being pressed.
Using the timer
You can use the timer at any time, even when the oven is not in use. The timer does not turn the oven off. To set the timer, press the
want. After a few seconds, the clock will show the time of day with the To check the remaining time press the To cancel the timer, press the
buttons. Press the button to turn the timer off.
When the time is up, the timer will beep. Press the
button briefly, then the and buttons to set the time you
symbol in the display.
button.
button and then reset the time to 0:00 by pressing the and
button to turn the timer off.
Adjusting the volume of the timer
You can choose between three levels of volume for the timer beeps. To adjust the volume:
1
Check the clock is set and the timer is not running.
2
Press and hold the button. The timer will beep.
3
Release the button and re-press to hear the next level of volume. The last level selected is
stored.
Note: if the power to the oven is cut, then the ‘beep’ volume will reset to the loudest level.
6
Clock and timer
Using the manual timer (right hand oven only)
The timer can be used at any time, even when the right hand oven is not in use. If the right hand oven is in use, the timer will ring and turn the oven off when the selected time has elapsed. The timer can be set for up to 120 minutes.
To set the timer
Turn the timer control clockwise to the 120 minute mark, then turn back to show the number of minutes you require.
To cancel the timer
Turn the timer control to the ‘O’ mark.
Operating the oven
1
Select the function using the function control knob. The oven lights will come on.
2
Select the temperature using the temperature control knob. The oven temperature indicator
light, above the temperature knob on the control panel, will glow until the oven has reached the set temperature, and then it will go out.
3
When you have finished cooking, turn the function and temperature control knobs to the off O
position.
Note: the oven cooling fan comes on automatically at different stages of the cooking cycle. It blows out warm air above the door. When the oven is turned off, the cooling fan may stay on until the oven cools down.
7
Fig.3 Function control knob Fig.4 Temperature control knob
Note: oven knobs may vary from those illustrated.
8
Cooking functions
Your oven has eight cooking functions. Each function is represented by a symbol on the oven control panel.
ECO GRILL Top inner element ECO GRILL
single servings or small pieces of food. For best results leave the door open at the first stop position.
GRILL Inner and outer top elements GRILL
best results leave the door open at the first stop position. Grilled vegetables are quick to cook and full of flavour.
FAN GRILL Fan plus top elements FAN GRILL
would normally be fried. Large cuts of meat can be cooked using this function with results similar to using a rotisserie. Use FAN GRILL
moussaka. Fan-grilled whole chicken is excellent. Fan grill with the oven door closed.
DEFROST Fan only The fan circulates air around the oven, speeding up the defrosting process by approximately 30%.
uses the inner area of the top element and is useful when you need to grill
uses both of the top elements and is ideal for grilling a large area of food. For
circulates hot air from the top elements and is excellent for food that
for dishes such as lasagne and
CLASSIC BAKE Bottom element CLASSIC BAKE
or FAN BAKE . Use CLASSIC BAKE for quiches, slices or anything you want
browner on the bottom than on the top.
FAN BAKE Fan plus top and bottom elements FAN BAKE in BAKE
good for crisping food, eg pastry products, and it is also the best method for heating your pizza stone.
FAN FORCED Fan plus fan element In FAN FORCED FAN FORCED
potatoes.
BAKE Top and bottom elements BAKE time in this function. Use BAKE
eg fruit cakes, bread and roasts.
is the traditional method of cooking. It is best to cook on only one shelf at a
uses heat from the bottom element only. Preheat the oven first on BAKE
circulates hot air from the top and bottom elements. Food cooks faster than
, so you may need to lower the oven temperature by 5-10 0C. FAN BAKE is
, heat from the element around the fan is forced throughout the oven.
is perfect for multi-shelf cooking and batch baking, casseroles and baked
for delicate food and foods that require long cooking,
Automatic cooking (left hand oven only)
Use automatic cooking to automatically turn the oven on, cook, and then turn the oven off.
1
Check the clock shows the correct time.
2
Select the function and temperature. The oven temperature indicator light
will glow and the oven will come on.
3
Decide how long the food will take to cook, allowing time for
preheating if necessary.
4
Press the button. 0.00 will show. Using the
set the cooking time, eg 1 hour 15 minutes.
5
Select the time you would like the oven to turn off by
pressing the
If there is time to wait before cooking starts, the current time of day and indicator light will go out and the oven will switch off but is now set for automatic cooking. Note: the cooling fan may remain on.
If you are already at home to turn the oven on and only want the oven to turn off automatically, start cooking as normal, then follow step 5 to set a time to stop the oven.
AUTO will show in the clock display. The oven temperature
button and then using the
buttons,
buttons eg 18.00.
Fig.5 Oven clock and controls
Fig.6 Sample cook time shown
9
When automatic cooking starts,
To see the remaining cook time, press the To see the set stop time, press the To cancel automatic cooking at any time, press the function knobs to the off
When the stop time is reached, the oven will turn off, the timer will beep and
Press the Turn the temperature and function knobs to the off
button to stop the beeping and return the oven to manual mode.
AUTO will be displayed and the oven will turn on.
button.
button.
button and turn the temperature and
position.
O
position.
O
AUTO will flash:
Important!
Safe food handling: leave food in the oven for as short a time as possible before and after cooking. This is to avoid contamination by organisms which may cause food poisoning. Take particular care during warmer weather.
10
Oven shelves
Shelf positions
Shelf positions are numbered from the top down. The top positions are for grilling functions and middle shelves are suitable for baking and roasting. Do not cook or place anything on the oven floor.
Shelf supports
The shelf supports hold the wire shelves, the grill/roast pan and the glass tray.
Important!
For all shelf positions except 7, which has shelf slides, make sure you fit shelves, the grill/roast pan and the glass tray between the metal runners of the shelf supports, as shown in
Fig.6. The oven shelves and the grill/roast
pan have a ‘stop notch’ so that you do not accidentally pull them right out of the oven. Make sure you put the stop notch towards the back of the oven, as shown in Fig.7.
Shelf supports
1
2
3
4
5
6
7
8
Shelf slides
Step-down shelf
Fig. 7 Shelf positions
Rear edge to back of oven
Stop notch
Shelf slides
Shelf slides in shelf position 7 give easy access to the most commonly used shelf position for baking and roasting. The shelf slides can hold the wire shelves, grill/roast pan and the glass tray.
Step-down shelf
The step-down oven shelf increases shelving flexibility and maximises the useable space in the oven. Using the step-down shelf in the bottom shelf position is excellent for quiches and pastry tarts.
Fig. 8 Location of stop notch

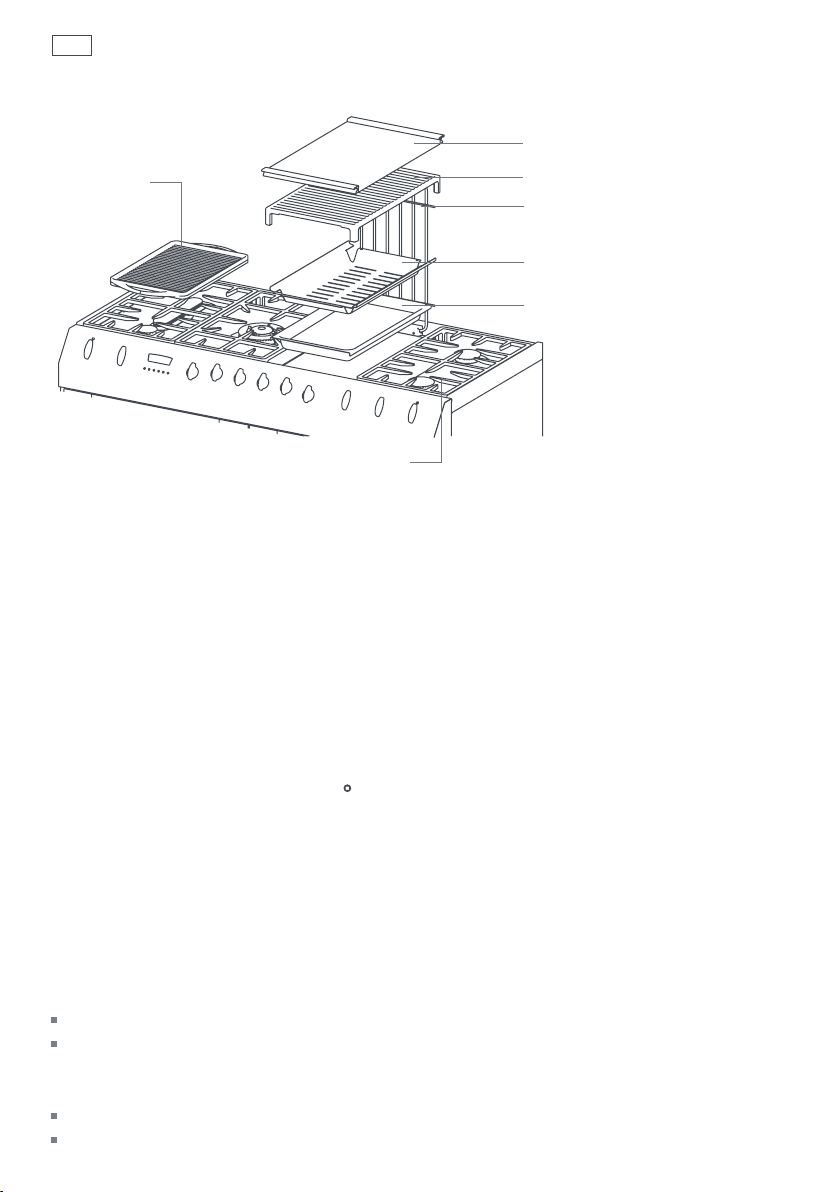

Accessories
11
Baking tray
The baking tray is suitable for biscuits and baked goods.
Three-piece grill/roast system
The three-piece grill/roast system (made up of the pan, grid and rack) is designed to give superior cooking results and to prevent hot fat and juices in the pan splattering throughout the oven. All pieces can be used together as one complete unit, or in different combinations.
Glass tray
The multipurpose glass tray is made from toughened glass to withstand high temperatures. It is suitable for roasting and grilling, and can also be used as a serving dish. The rim on the tray makes it easy to handle. The glass tray will not distort or corrode, and it will not shatter into small pieces if knocked.
Pizza stone and paddle
Your pizza stone will allow you to cook homemade pizza like those from an authentic pizza house, with a crispy base and moist toppings. To use, place the pizza stone in the oven on
a wire shelf in position 7. Turn oven to FAN BAKE the temperature specified in your recipe and preheat for 30-45 minutes. The hotter the stone, the crisper the pizza crust will be. Mix 1-2 Tbsp of flour and 1-2 Tbsp of semolina/coarse cornmeal and sprinkle this onto the pizza paddle. This will prevent the pizza dough from sticking to the paddle when you slide the dough from your paddle onto the hot stone.
and 200 0C or
Baking tray
Pan
Glass tray
Paddle
Pizza stone
Fig. 9 Accessories
Grid
Rack
12
Oven temperature conversion chart
Celsius (°C) Fahrenheit (°F) Gas Mark
110
130 250 ½
140 275 1
150 300 2
170 325 3
180 350 4
190 375 5
200 400 6
220 425 7
230 450 8 Hot
240 475 9 Very hot
225 ¼
Cool
Moderately cool
Moderate
Moderately hot

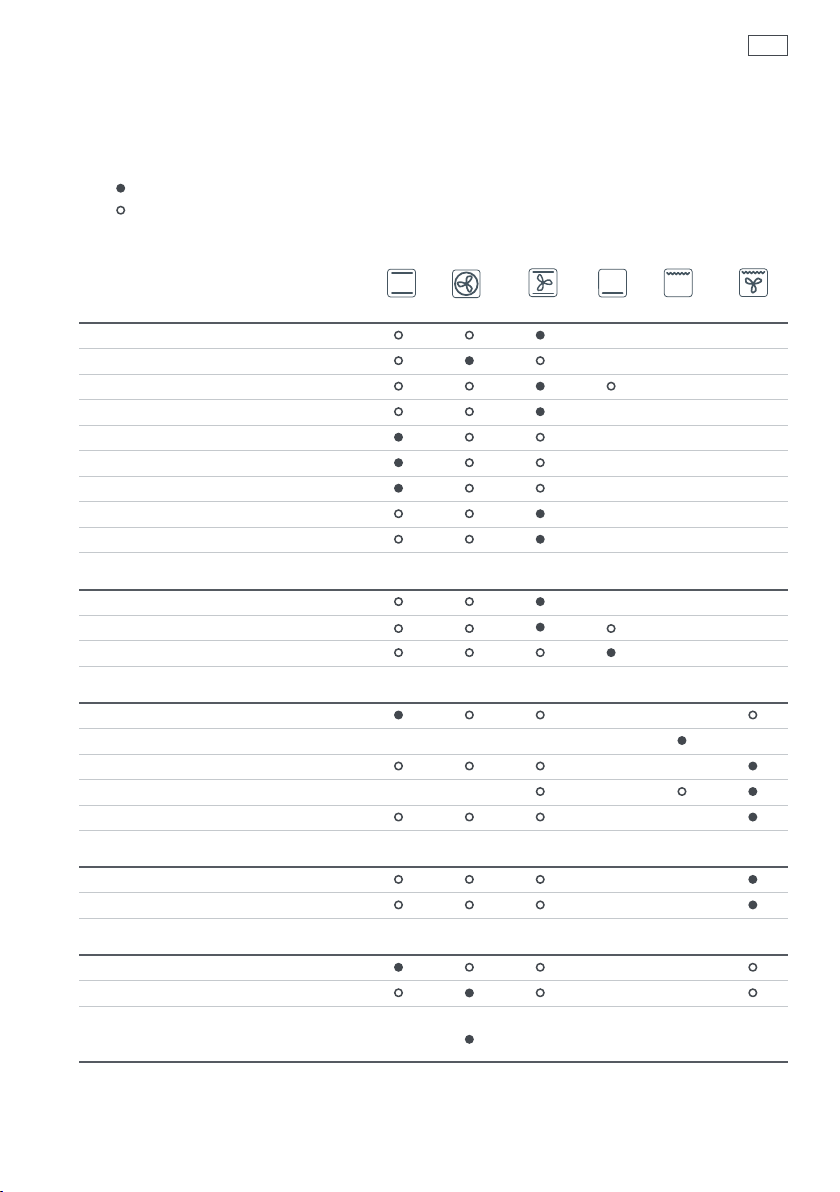

Cooking function options
This chart will help you to match your cooking requirements to the most appropriate cooking function. Key:
Recommended method
Alternative method
13
Baked products
Biscuits - single tray Biscuits - 2-3 tray Slices Butter cake Fruit cake Sponge Meringues Scones Muffins
Pastry
Filo parcels / Apple pie Lemon meringue pie Quiche
Meats
Beef - roast Beef - steak Lamb - roast Lamb - rack Pork - roast
BAKE
FAN FORCED
FAN BAKE
CLASSIC BAKE
GRILL
FAN GRILL
Poultry
Chicken - whole Chicken - pieces
Savoury dishes
Casseroles Lasagne
Complete oven meals and reheating precooked food
14
Cooking charts
Grilling
Your Galaxy oven gives a choice of GRILL grilling is considered to be a healthier option than frying. Recently, grilling has also become a popular way to cook vegetables.
Tips for successful grilling
, ECO GRILL
or FAN GRILL
. For many meats
GRILL and ECO GRILL
Preheat the grill for five minutes before using it. You can grill with the oven door open slightly, at the first ‘stop-position’, or closed. Grilling may be slightly quicker with the oven door open. Closing the door will help to contain cooking smells and save energy. Place food on the three-piece grill/roast system, and slot it into one of the upper shelf positions (see the ‘Grilling chart’ for the most appropriate shelf). The higher you place the food, the faster it will cook and brown. The higher the temperature, the faster the food will cook and brown, and we recommend you grill at high temperatures. However, you can use lower temperatures. Grill only on one shelf at a time. Use ECO GRILL In ECO GRILL system (where the metal bars are further apart).
for smaller portions of food.
, place the food on the middle of the grill rack in the three-piece grill/roast
FAN GRILL
You do not need to preheat the grill. Use FAN GRILL circulates the hot air. The thermostat maintains the oven temperature. Use FAN GRILL cuts of meat. It’s also good for dishes like lasagne and moussaka. Place food on the three-piece grill/roast system, and slot it into one of the middle or lower shelf positions (see the ‘Grilling chart’ for the most appropriate shelf).
with the oven door closed. The top elements cycle on and off, and the fan
for foods you might otherwise pan fry, barbeque or rotisserie, and for larger
Cooking charts
Grilling chart
GRILL/ECO GRILL FAN GRILL
Food Shelf Temp Time (mins) Shelf Temp oC Time (mins)
Beef
Steak - rare 3 High 8-10
Steak - medium 4 High 10-15
Steak - well done 4 High 15-20
Hamburgers - well done 4 High 12-15 5 180-200 15-20
Meatballs - well done 4 High 12-15 5 180-200 15-25
Lamb
Chops - medium 4 High 15-20 4 180-200 15-20
Chops - well done 4 High 20-25 4 190-200 20-25
Rack - medium 6 190-200 25-35
Pork
Chops - well done 4 High 15-20 5 180-200 20-30
Ham steaks - well done 4 High 10-15 5 180-200 15-20
Bacon - well done 3 High 6-8 4 180-200 10-15
Sausages
Well done 4 High 10-15 5 180-200 15-25
Chicken
Pieces - well done 5 180-200 15-30
Whole - well done 7 175 30-35
Fish
Fillets - thick 4 High 8-12 4 180-200 8-12
Fillets - thin 4 High 6-10 4 180-200 6-10
To as t
3-6 slices - medium 1 High 2-3
1-2 slices - medium 1 High 2-3
per 500 g
15
continued...
16
Cooking charts
Grilling chart continued...
GRILL/ECO GRILL FAN GRILL
Food Shelf Temp Time (mins) Shelf Temp oC Time (mins)
Family favourites
Fruit crumble 7 150-160 30-40
Macaroni cheese 7 175-180 20-25
Lasagne 7 150-160 25-30
Moussaka 7 150-160 30-35
Cannelloni 5 150-160 25-30
Vegetables 5 175-200 20-30
Snacks
Cheese on toast 2 High 4-5
Nachos 4 175 10-15
The above temperatures and times are a guide only and you may need to increase or decrease them depending on your preferences.
Cooking charts
Baking
Your Galaxy oven gives you an outstanding choice of baking options (see ‘Cooking functions’).
Tips for successful baking
Preheat the oven while you prepare your food – many baked items should not be left long before baking. Read the recipe and assemble the ingredients on the bench before you start. Use baking paper to line cake pans and biscuit trays, to eliminate the need for greasing. See the ‘Baking chart’ for suggested times, temperature and shelf positions. For best results use the trays supplied with your oven. Some foods are best cooked on a particular function (see the ‘Cooking function options’ chart). FAN BAKE hour to cook. When using FAN BAKE the oven temperature slightly (approximately 5-10 (approximately 10%). FAN FORCED shelves evenly in the oven so the hot air can circulate freely. Bread and rich fruitcakes are best cooked on BAKE this function swap them over towards the end of the cooking time (that is, move the upper tray to the lower position and the lower tray to the upper position) so both brown evenly. Always place baking pans centrally on the oven shelf. If cooking more than one pan on a shelf, space them evenly so the hot air can circulate freely around them. If the pans are large, it may be necessary to swap them around towards the end of the cooking time. CLASSIC BAKE base such as custard tarts, baked cheesecakes and quiches or anything that doesn’t need to be browned on top. Preheat the oven on FAN FORCED BAKE
is great for pastry products such as apple pie and anything that takes less than an
for a recipe that only gives instructions for BAKE you need to lower
is the best function for cooking on more than one shelf at a time. Space the
uses heat from the bottom element only and is perfect for foods with a pastry
.
o
C) and/or reduce the cooking time a little
. If two shelves of baking are cooked on
before switching function to CLASSIC
17
Important!
Some recipes recommend putting water or ice in the oven with bread dough during baking. The additional moisture improves the bread crust. You must place the water or ice in a dish on an oven shelf. Do not put it directly onto the oven floor. Placing water, ice, or any dish or tray directly on the oven floor can irreversibly damage the enamel.
18
Cooking charts
Baking chart
BAKE
Food Shelf Temp oC Time (mins)
Baked products
Biscuits 6 170-180 10-15 Slices 7 160-175 20-30 Shortbread 6 135-145 25-35 Cake - butter/choc 7 150-170 55-75 Cake - fruit light 7 150-160 70-90 Cake - fruit rich 7 135-150 4-6 hrs Sponge 7 170-190 25-35 Muffins 6 200-220 12-18 Meringues 7 110-120 55-65 Scones 6 200-220 10-15 Bread/Rolls 7 190-220 15-30 Pizza 7 225-250 12-20 Apple pie 8 175-190 25-35
Pastry
Filo 7 175-190 30-35 Flaky/Puff 7 210-225 10-20 Choux 7 185-210 35-45 Quiche 7 180-200 20-30
Bacon & egg pie 7 180-200 35-45 Custard tart - pastry case 7 180-200 14-18 Custard tart - filling 7 180 Lemon meringue pie - pastry case 7 180-200 14-18 Lemon meringue pie - filling 7 170-180 15-20
120 7 20-25
Family favourites
Lasagne 7 170-180 35-45 Meatloaf 7 175-190 60-70 Chicken pieces 7 175-180 45-50 Chicken casserole 7 175-190 50-65 Fish pie 7 175-190 25-30 Complete oven meal* - - -
Vegetables
Baked 7 160-180 45-70 Roasted 7 175-200 30-45
*
Complete oven meal example: 1.5 kg roast lamb, 800 g potatoes, 400-500 g root vegetables & fruit pie.
Depending on the size of the meat and weight of vegetables, cooking times will vary.
Two-stage baking process - adjust temperature after the first stage.
Cooking charts
FAN BAKE FAN FORCED
Shelf Temp oC Time (mins) Shelf Temp oC Time (mins)
6 160-175 8-12 5, 7 170-180 10-15 7 150-170 20-30 7 160-175 20-30 6 125-235 20-30 6 135-145 20-30 7 150-160 45-65 7 150-170 55-75 7 140-150 60-80 7 145-155 80-100 7 125-145 4-6 hrs 7 130-150 4-6 hrs 7 160-175 20-30 7 170-190 25-35 6 190-200 12-16 6 200-220 12-18 7 100-110 50-60 5, 7 110-120 55-65 6 190-210 8-12 6 190-210 10-12 7 180-210 15-25 7 190-210 15-30 7 200-230 12-18 7 225-250 15-20 8 175-190 25-30 7 180-200 25-30
7 160-175 25-30 7 175-190 30-35 7 200-220 10-20 7 210-225 10-20 7 175-200 30-40 7 185-210 35-45 7 170-190 20-30 7 180-200 20-30
7 170-190 30-40 7 180-200 35-45 7 175-195 12-16 7 180-200 14-18 7 170 7 175-195 12-16 7 180-200 14-18 7 165-175 10-15 7 170-180 15-20
110 7 20-25 7 180 120 7 20-25
19
7 150-160 35-45 7 160-170 35-45 7 170-180 50-60 7 175-190 60-70 7 155-170 45-50 7 175-180 45-50 7 150-165 45-60 7 170-180 45-60 7 170-180 20-30 7 175-190 25-30
---4, 816090-100
7 160-175 45-70 7 160-180 45-70 7 175-190 30-45 7 175-200 30-45
The above temperatures and times are a guide only and you may need to increase or decrease them depending on your preferences.
20
Cooking charts
Roasting
Your Galaxy oven is equipped to handle a variety of roasts.
Tips for successful roasting
When cooking large cuts of meat, times and temperatures are based on 30 minutes per 500 g/1 lb. Times and temperatures given below are guidelines and small adjustments may be necessary. Roasting times will be affected by the shape, size and temperature of the meat being roasted. Meat with a bone will cook more quickly than a boneless roast. Do not add water to your roast, as this steams the meat. For perfect results, use a meat probe or a meat thermometer. Let all roast meats and poultry stand for 10-15 minutes at the end of cooking before carving. This allows the meat fibres to relax. Fewer juices will be lost when it is cut and the meat will be juicier and more tender. To keep the meat warm, cover with foil. The meat will continue to cook during standing, so allow for this in your calculations (this is particularly important if you want a rare or medium rare roast). Roasting can be achieved with a range of cooking functions. FAN BAKE BAKE Meats roasted on FAN GRILL outside surface while the inside remains tender and juicy. You do not need to preheat the oven on FAN GRILL BAKE FAN FORCED position. FAN BAKE
and FAN GRILL can all be used for roasting, each giving unique results.
cook and brown in a rotisserie style. Radiant heat sears the
.
is the traditional function for roasting. Cook one tray at a time.
is perfect for roasting when you also need to cook other dishes on another shelf
tends to brown and cook faster than BAKE .
, FAN FORCED ,
Cooking charts
Roasting chart
Food Shelf Temp oC Mins/500 g Internal temp oC
Meat
Beef - rare 7 160-170 30-35 50-60
Beef - medium 7 160-170 35-45 65-70
Beef - well done 7 160-170 45-60 75-80
Mutton - well done 7 160-170 45-60 75-80
Hogget - medium 7 160-170 30-40 65-70
Hogget - well done 7 160-170 45-60 75-80
Pork - well done 7 180-185 40-45 75-80
Chicken - well done 7 160-180 25-30 82-85
Venison* - rare 7 220 3.5
*
Brown prior to roasting in an oiled frypan on high heat.
The above temperatures and times are a guide only and you may need to increase or decrease them depending on your preferences.
per cm thickness 50-60
21
22
Galaxy cooktop/hob
4 5
1
3
2
1
Griddle burner
2
Auxilliary burner
3
Wok burner
4
Electric barbeque
5
Semi-rapid burners
5
Before using the cooktop/hob
Fig. 10 Galaxy cooktop/hob
Before using your Galaxy cooktop clean it with warm soapy water and a soft cloth to remove dust. Check that the electricity is switched on in order for the electronic ignition to work.
Choose the cooktop control knob for the burner you want to use. Press down and turn the knob anti clockwise all the way to the HI symbol. Hold down the knob for 5 seconds until the burner lights. All the igniters will spark until the gas ignites on the selected burner. The flame can be adjusted anywhere between the Do not regulate the flame between high and the
HI symbol and the LO symbol.
OFF position.
If the cooktop/hob does not light
Check that the power is switched on allowing the electronic ignition to work. Check that the burner rings are placed correctly. Clean electrode tips with a toothbrush and methylated spirits. The wok burner may need a moment to stabilise the inner ring of flame. Check that you know how the flame failure device works (see below). Check the gas supply is turned on.
Galaxy cooktop/hob
If the burner has not ignited within 15 seconds, stop operating the igniter and wait at least 1 minute before attempting a further ignition of the burner. In the event of the burner flames being accidently extinguished, turn off the burner control and do not attempt to re-ignite the burner for at least 1 minute.
Safety features
Your Galaxy cooktop has a flame failure safety device fitted. A metal probe behind the burner generates a small electrical current when a flame is present. After 5 seconds the metal probe gets hot enough to hold a valve open and maintain the gas supply. If the flame is blown out then the gas to the burner is cut off. To operate the flame failure you need to hold the burner knob down for 5 seconds after the burner has ignited. Letting go of the burner knob too soon will extinguish the flame.
Flame failure cooktop models have two probes at the back of the burners, one will be the spark electrode and the other is the flame failure probe.
Cooktop/hob utensils
To get the best out of your Galaxy cooktop follow these simple suggestions: Do not use an asbestos mat between the flame and the saucepan as this may cause serious
damage to your cooktop. Never use plastic or aluminium foil dishes on the burners. Saucepans should have thick flat bottoms. Food in a saucepan with an uneven bottom will take longer to cook. Heavy saucepans may bend the trivets/pan support or deflect the flame. Match the bottom of your saucepans with the cooking zone and see that it is stable. This will give you the most efficient cooking. Do not let large saucepans or frying pans over lap the bench as this can deflect heat onto your benchtop and damage the surface. For the simmer (auxiliary) and semi rapid burners pots should be larger than 12cm in diameter. The griddle burner may be used with pots 18cm in diameter and above. The wok burner is primarily designed for woks but may be used with 17-23cm diameter pots with care. A fish kettle on the griddle burner is not only useful for fish, but for steaming long vegetables like cobs of corn, asparagus, Chinese broccoli and long beans.
23
24
Galaxy cooktop/hob
2
1
7
3
4
5
1
Griddle
6
2
Barbeque cover (accessory)
3
Barbeque grid
4
Element
5
Rock tray
6
Drip pan
7
Trivet/pan support
Fig. 11 Galaxy cooktop/hob
Using the barbeque
The Galaxy Barbeque provides the extreme heat needed to create the caramelised, juicy barbequed flavour achieved on an outdoor barbeque. The Galaxy Barbeque has a full range of heat settings from LO to HI. Turn the control knob clockwise to HI to begin cooking. Reduce the temperature when you are cooking by turning the control knob anti-clockwise. Preheat the grill for at least 10 minutes so that the barbeque grid and lava rocks can reach a suitable cooking temperature.
For initial browning of foods or searing of meat the temperature should be HI, and turned down to a lower temperature during the cooking period. Larger pieces of meat may need to be cooked at a lower temperature to allow the meat to cook through. During cooking, do not leave the Barbeque while it is on. Turn to
(Off) at the end of the cooking time.
Barbeque first use
Wash the barbeque grid in warm water. Use a scouring pad to remove any residue that might be on the grid. Rinse thoroughly and dry. Place the supplied lava rocks in the rock tray, position the rock tray on top of the drip pan and place under the element.
Cooking tips
To minimise flame flare-ups trim the fat off the edges of steak, chops and poultry. Lean mince is best for hamburgers. Steaks are best cooked for a short time on a high heat to sear the outside and leave the inside tender. For a more well done steak, sear on HI, then turn down to cook through. When adding marinades and sauces, reduce the heat and add near the end of cooking. Use long handled utensils to turn your meats.
Galaxy cooktop/hob
25
Using a griddle
Cooking with a griddle
A griddle is ideal for cooking a variety of foods. The surfaces of a cast-iron griddle will become more and more non-stick as cooking oils become baked in. This ‘seasoning’ process can be started by coating both surfaces of the griddle with cooking oil and baking in the oven at 150
O
(300
F) for about an hour.
Heat the griddle for a few minutes before using. Brush the food, not the griddle, with oil, to reduce splatter and smoking. Cook steak and vegetables at high temperatures on the ribbed side of the griddle. Turn the steak
only once, about halfway through the cooking time. To test, press the surface of the steak. The softer the meat is, the ‘rarer’ or less well done it will be.
Griddle scones, pancakes, pikelets, polenta and eggs are best cooked slowly at medium to low
temperatures on the flat side of the griddle.
O
C
Important!
Prolonged cooking with the griddle at high temperatures may damage the cooktop.
Cleaning a cast-iron griddle
Leave the griddle to cool before cleaning. Scrape away any food residue and wash in warm soapy
water.
Do not scour to the bare metal when cleaning the griddle or you will remove the non-stick
coating that has built up during cooking.
Dry the griddle thoroughly and wipe with a thin coating of cooking oil to prevent rust forming,
especially when the griddle is new.
26
Care and cleaning
Cleaning the outside of the Galaxy
Important!
Do not use abrasive cleaners or a steam cleaner on the outside surfaces of the Galaxy oven.
Before cleaning the outside of your Galaxy oven, we recommend you turn it off at the wall. Wipe the outside surfaces often, using warm water and a household detergent and/or a stainless steel cleaner and polish.
Cleaning the inside of the oven
Important!
Before you start cleaning inside your oven/s, please: Read these cleaning instructions and the ‘Safety and warnings’ section at the start of this guide. Turn the Galaxy oven off at the wall. Make sure the Galaxy oven is a safe temperature to touch.
Do not use a steam cleaner to clean the inside of the oven/s. Do not use any oven cleaners, abrasive cleaners, ammonia-based cleaners or detergents on the self-cleaning oven liners. See ‘Caring for the self-cleaning liners’.
It is easier to clean the oven while it is still warm, using household detergents or an ammonia­based cleaner. You may use ‘off the shelf’ oven cleaners, if you carefully follow the manufacturers’ instructions. To make cleaning easier, you can remove the wire shelf supports, the oven door, and the fan cover. The top element also drops down to make cleaning the oven roof easier.
Removing and replacing the oven door
B
1
To remove the oven door, open the door fully, lift
the clips (C) back towards you onto the hooks (A).
2
Raise the door slightly, holding it on either side
near the handle, Make sure the clips stay on the hooks (A) and lift the door out.
3
To put the door back on, place the upper hinge
arm (B) in the upper slot and the lower hinge arm (D) in the lower slot. Push the hinge arms in as far as they will go until the slot in the lower arm locates in the hinge support.
4
Lower the door gently and release the clips.
5
Raise the door slightly to make sure the clips are
released from the hooks. Close the door.
A. Hook B. Upper hinge arm C. Clip D. Lower hinge arm
Fig.12 Removing the oven door
A
D
C
Care and cleaning
Removing and replacing the oven lamp
Always turn the Galaxy off at the wall before touching an oven lamp. To clean the oven more easily, pull off the glass cover. If you need to replace the light bulb, simply unscrew it.
Removing and replacing the shelf supports
Push the shelf slides in position 7 back into the oven.
1
To remove the shelf supports gently push the retaining wire from underneath the stud then
2
swing the lowest edge of the shelf support up and out towards the centre of the oven. The prongs at the top will slide out. To replace the shelf support, hold them horizontally and locate the prongs into the small slots at
3
the top of oven cavity. Lower the shelf support and gently place the retaining wire underneath the stud.
4
Important!
To avoid chipping the enamel – do not lower the shelf supports until the prongs are fully inserted into the small slots at the top of the oven.
Cleaning the shelf slides
27
Important!
Do not wash the shelf slides in the dishwasher. Do not immerse them in soapy water, or use oven cleaner on them. Removing the ‘white’ lubricating grease will reduce the life of the shelf slides and prevent them from running smoothly.
Wipe the shelf slides with a damp cloth and a mild detergent only. Do not wipe off or wash away the ‘white’ lubricating grease (you can see this when the slides are extended).
Caring for the self-cleaning liners
Self-cleaning liners are supplied with some models of the Galaxy oven. They help reduce manual oven cleaning. The liners are coated with a special enamel which is porous and contains oxidising catalysts.
Any grease and dirt coming into contact with the liner is absorbed by the enamel and is broken down with the help of the oxidising catalysts at normal cooking temperatures.
As cleaning is improved by using a high temperature, it may be necessary to occasionally run the empty oven on FAN GRILL
at 200 °C for 1 to 11/2 hours.
28
Care and cleaning
Cleaning the cooktop/hob
Use warm soapy water for cleaning when the cooktop is cold. Apply soapy water with a soft sponge or cloth. Do not use steel soap pads as these may dull the appearance of your appliance over time. Trivets/pan supports can be washed in the dishwasher. Abrasive cleaners may damage the stainless steel, trivets/pan supports and the knobs. After cleaning, wipe dry with a clean cloth to ensure the surface is thoroughly dry. For extra shine, use a stainless steel polish. Do not use abrasive cleaners on any part of the cooktop as these may damage the cooktop.
The burner and burner caps can be cleaned in hot water, it is important that the holes are kept clear. When replacing the burner rings after cleaning, turn the rings until the positioning teeth are placed correctly. Be careful of sharp edges at each end of the cooktop/hob.
Cleaning the barbeque
Place the barbeque grid in hot water with a small amount of detergent when cool to touch. If there is food residue left on the Grid, scrub with a wire barbeque brush to remove it. Make sure that the Barbeque Grid is completely dry before replacing.
The rock tray, lava rocks and drip pan can also be removed and washed to get rid of any build up of fat and food. Lift up the element when cool to touch, to remove the rock tray & drip pan. Fat that accumulates in the tray lip can be removed by wiping with a paper towel. Clean the lava rocks by boiling for 20 minutes in a large container of water and dishwashing detergent. Sun dry and replace. The rocks will change colour after use.
Warranty and service
Before you call for service or assistance ...
Check the things you can do yourself. Refer to the installation instructions and your user guide and check that:
1
Your product is correctly installed.
2
You are familiar with its normal operation.
If after checking these points you still need assistance, please refer to the Service & Warranty book for warranty details and your nearest Authorised Service Centre, or contact us through our website:
www.fisherpaykel.com
29
30
Gas rate summary - NZ AU
Your Product is factory set for Natural Gas. Refer to the appropriate chart for ratings.
BURNERS NATURAL GAS LP GAS
Injector orifice
Semi-Rapid (RH Front & RH Rear) 1.3 mm 8.1 MJ/h 0.80 mm 8.0 MJ/h
Auxiliary Burner (LH Front) 0.85 mm 3.5 MJ/h 0.55 mm 3.9 MJ/h
Griddle Burner (LH Rear) 1.35 mm 8.8 MJ/h 0.80 mm 8.0 MJ/h
Wok Burner (Centre) 1.65 mm 13 MJ/h 0.92 mm 11.3 MJ/h
MJ/h @1kPa
Injector orifice
MJ/h @2.75kPa
Gas rate summary - EU
Your Product is factory set for Natural Gas. Refer to the appropriate chart for ratings.
31
DI1203DG
Griddle Burner (LH rear) Wok Burner (centre)
NG LP Gas NG LP Gas
Cat
II 2H3 + II 2H3 B/P (30) II 2E3 +
II 2L3 B/P (30) 118 2.40 080 2.50 182 145 3.50 095 3.60 263
II 2E3 B/P (50) 118 2.60 070 2.60 190 140 3.60 076 3.60 263
DI1203DG
Injector Orifice
Nominal Rating
(kW)
Injector Orifice
Nominal Rating
(kW)
Gas Rate (g/h)
Injector Orifice
118 2.60 080 2.50 182 140 3.60 095 3.60 263
Nominal Rating
(kW)
Injector Orifice
Nominal Rating
(kW)
Auxiliary Semi-Rapid (RH front, RH rear)
NG LP Gas NG LP Gas
Gas Rate (g/h)
Cat
II 2H3 + II 2H3 B/P (30) II 2E3 +
II 2L3 B/P (30) 75 S 1.0 050 1.0 73 105 Z 2.0 073 2.15 157
II 2E3 B/P (50) 75 1.0 043 1.0 73 100 Z 2.0 062 2.10 153
Injector Orifice
Nominal Rating
(kW)
Injector Orifice
Nominal Rating
(kW)
Gas Rate (g/h)
Injector Orifice
75 1.0 050 1.0 73 100 Z 2.0 073 2.15 157
Nominal Rating
(kW)
Injector Orifice
Nominal Rating
(kW)
Gas Rate (g/h)
32
Copyright © Fisher & Paykel 2006. All rights reserved.
The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.
www.fisherpaykel.com
NZ AU GB IE Galaxy user guide Published: 03/2006
Part No. 542817 A
Loading...
