Fisher & Paykel DEIX1 User Manual

TM

DEIX1

Dryer

Installation instructions and

User guide

New Zealand Australia USA Canada Europe Asia Pacific

NZ & AU

Contents

Safety Instructions

Installation Instructions

Location Requirements 8
Exhausting 10
Electrical 13
Installation 14

Features

Getting Started Quickly

Fabric Type

Heavy, Mixed, Casual, Dry and Wear 18
Light, Air Dry 19

How Dry?

Autosensing 20
Dryness Levels 20

Display Screen

All About the Option Button

Progress Screen

The Options

Creasables, Time Dry 23
End of Cycle Beeps, Reminders, Cycle Tips, Troubleshooting 24

Lifecycles®

Family Allergy, Towels, Shirts, Lingerie 25
Special Freshen Up, Warm Up, Pillows 25
Bulky Blankets, Jeans, Duvet/Doona 26

Using Your Dryer

Sorting, Loading 27
Lint Bucket 28

Lidlock

Power failure 29

Cleaning

If your Intuitive™ Dryer Beeps for Help

Trouble Shooting

Manufacturers Warranty

Customer Care

5

8

15

16

21

21

22

30

31

32

34

35

3

Thank you for buying a Fisher & Paykel Intuitive™ dryer.

We hope you enjoy using the Intuitive™ dryer as much as we have enjoyed designing it. We’ve
developed this dryer to treat your clothes with the utmost care, drying them gently so they
will look better for longer. We know you’ll enjoy the benefits of its easy loading drum, reverse
tumbling and lint removal system.

Please take the time to read this User Guide carefully. It will help you to operate and maintain
your new Intuitive™ dryer.

Your safety, and the safety of others is very important. Located on
your dryer and throughout this guide are safety messages and
instructions; it is important that you understand and follow them.

Warranty

Years of development and rigorous testing ensure that you have bought a world-class product.
In the unlikely event that a problem should occur, refer to the warranty section at the back of this
Guide (refer to Manufacturers Warranty page 34).

If you have a problem with your dryer refer to our Trouble Shooting section (refer to
Trouble Shooting pages 32 – 33, or If Your Intuitive™ Dryer Beeps For Help, page 31). If your
problem is not referenced, please always contact your Fisher & Paykel Authorised Service Agent
or our Customer Care Centre, in New Zealand – Toll Free 0800 FP CARE (0800 37 2273), in Australia
– Toll Free 1300 650 590, rather than attempting to fix it yourself.

4

Important Safety Instructions

Installation

WARNING!

To reduce the risk of electrocution, injury or fire:

■

Read all instructions carefully before using this dryer.

■

If you are replacing an old dryer, make sure that children cannot get trapped inside it by (for

example) removing the lid.

■

Do not store or install the dryer where it will be exposed to water or the weather.

■

Before you use this dryer, it must be properly installed and located as described in these instructions.

■

Follow carefully the venting details in the installation section. This dryer must be exhausted

outside.

■

Have electrical installation and service performed by a suitably qualified person. Connection by an

unqualified person could cause a safety hazard.

■

Ensure the dryer is correctly connected to a properly earthed, protected and rated power supply

circuit. This circuit must be provided with a means of isolation close to the dryer.

■

Do not plug the dryer into an extension cord.

■

Make sure the supply cable is located so that it will not be stepped on, tripped over or otherwise

subject to stress or damage.

Use

WARNING!

To reduce the risk of electrocution or injury:

■

Do not allow children to play inside, around or with this dryer or any other appliance.

■

Never climb on, climb into, or stand on the dryer top, lid or drum.

■

Do not tamper with the controls or the lid lock.

■

If your dryer is running and you want to unload or add clothes, press START/PAUSE and wait until

the machine has unlocked the lid. Do not force it open.

■

Do not put undergarments that contain metal reinforcements in the dryer. Damage to the dryer

can result if the metal reinforcements come loose during drying.

■

Do not let young children or incapacitated people use this dryer without supervision.

■

Do not operate this dryer if it is damaged, malfunctioning, partially disassembled or has missing or

broken parts, including a damaged cord or plug.

■

Disconnect this dryer from the power supply before attempting any user maintenance or cleaning.

5

Important Safety Instructions

Note:

Pressing the POWER button does NOT disconnect the dryer from the power supply, even though
the lights are out.

■

When disconnecting a dryer that is plugged in, to avoid damage to the cord or junction of the

cord plug, pull by the plug rather than the cord or junction of the cord plug.

■

Before the appliance is removed from service or discarded remove the lid and the drum door to

the drying compartment.

WARNING!

To reduce the risk of fire generally:

■

Do not use this dryer in a commercial installation. It has been designed for domestic use only.

In commercial applications there may be increased lint accumulation or flammable materials in
the atmosphere or load.

■

Use this dryer only for its intended purpose as described in this User Guide.

■

Only dry materials washed in water or a detergent and water solution. The dryer is intended for

this only.

■

Do not put in the dryer items that have been cleaned in, washed in, soaked in or spotted with

flammable liquids or solids e.g. petrol, kerosene, dry cleaning solvents, vegetable or cooking oil,
waxes or other flammable or explosive substances.
Highly flammable substances commonly used in domestic environments include acetone,
denatured alcohol, petrol, kerosene, some brands of spot removers, turpentine, waxes and wax
removers.

■

Do not use if industrial chemicals have been used for cleaning.

■

Do not dry a total textile load (dry weight) of more than 8 kilograms in this dryer.

WARNING

To r educe the risk of fire from spontaneous combustion:

■

Do not put items that have been spotted or soaked with vegetable oil or cooking oil in the dryer.

They are a fire hazard.
Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in
a tumble dryer. The items become warm causing an oxidation reaction in the oil. This oxidation
creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling,
stacking or storing oil-affected items can prevent heat from escaping creating a fire hazard.

6

Important Safety Instructions

■

If it is unavoidable that fabrics that contain vegetable oil, cooking oil or have been contaminated

by hair care products be placed in a tumble dryer, wash them first in hot water with extra
detergent – this will reduce, but not eliminate the fire hazard. Use the Air Dry cycle of the dryer
to reduce the temperature of these items. Do not remove them from the tumble dryer or pile or
stack them while they are still hot. Indeed all clothes should go through the cool down/airing
phase of the cycle. If for any reason the dryer is stopped before the cycle has finished, remove
dry clothes immediately. Do not leave them in the dryer. Spread them out to cool. Do not leave
them bunched up, e.g. in a clothes basket.

■

Do not use fabric softeners or similar products in a tumble dryer to eliminate the effects of static

electricity, unless this practice is specifically recommended by the manufacturer of the fabric
softener or product.

■

Never dry in the dryer any plastic items such as shower caps, or plastic lined tablecloths or

babies’ bibs or waterproof nappy covers. If these items must be dried, use only the Air Dry cycle.

■

Never use heat to dry in the dryer rubber items (also known as latex foam) such as rubber-

backed articles, clothes fitted with foam rubber pads, pillows, or shoes containing rubber.
Only dry using the Air Dry cycle. Foam rubber material can when heated produce fire by
spontaneous combustion.

WARNING!

To reduce the risk of fire from lint build-up:

■

Empty the lint bucket before the lint reaches the top of the transparent section, (usually once a

week if the dryer is used every day).

■

Keep the area around and underneath your dryer free from the accumulation of combustible

materials such as lint, paper, rags, chemicals etc.

■

Do not store any items that may burn or melt (such as paper, materials, plastics or plastic

containers etc.) next to the dryer.

■

At regular intervals have the interior of the dryer and exhaust duct cleaned of any accumulated

lint. This must be done by a qualified person for electrical safety.

Note:

Besides being a fire hazard, accumulated lint in the dryer also reduces the efficiency of the dryer
by causing longer drying times and increased power consumption. Ensure the Lint bucket is not
overflowing.

SAVE THESE INSTRUCTIONS

7

Installation Instructions

Read the Important Safety Instructions on pages 5 – 7 before you start installing the dryer.

Location Requirements

■

The dryer must not be stored or installed in an area that is exposed to water or the weather.

■

It must be installed in a well-ventilated location. Do not install it in any room or cupboard which

does not permit the free flow of replacement air.

■

It must exhaust air outside.

■

Before installing the dryer ensure that there is sufficient height to fully open the lid.

■

Allow sufficient room behind the dryer for the exhaust.

■

The air intake is at the rear of the dryer. Ensure that there is a sufficient air passage on each side

of the dryer for intake air.

1412 – 1428mm

1010 – 1050mm

700mm

925 – 955mm

685mm

Exhaust Outlet Location

Exhaust outlet

Does not include
foot height

111mm

352mm 333mm

Note:

These are dimensions looking at the back of the dryer. When looking at the wall to cut the duct
hole, dimensions will be the mirror image of these.

8

Alcove or Cupboard Installation Requirements

■

No fuel burning appliance can be installed in the same alcove or cupboard.

■

The top opening area in the door must be a minimum of 300cm2 and the bottom opening area

must have a minimum of 160cm
acceptable.)

■

These openings must never be obstructed.

■

Minimum installation clearances are required but more clearance is recommended.

2

. (Louvered doors with at least the minimum air openings are

minimum
clearance

1430mm

25mm 25mm 25mm

min 50mm

300cm2 minimum

160cm2 minimum

min 76mm

total ventation area

460cm2 minimum

9

Exhausting

Designing and Installing a New Exhaust Duct System

■

The dryer must be exhausted outside. This will reduce drying time, prevent the build up of lint

and moisture in the room in which it is located and reduce the risk of fire.

■

Do not exhaust the dryer into a chimney or gas vent, a wall, a ceiling or any concealed space in

a building. Do not exhaust the dryer under a building or porch, or into a light well or other area
that will accumulate lint.

■

Keep ducting as short and straight as possible and do not exceed the maximum lengths as

stated later in these installation instructions.

■

It is strongly recommended to end the exhaust duct with an exhaust hood with a self-closing

damper to prevent back drafts and entry of wildlife.

■

Do not use an exhaust outlet with an internal screen and never install a screen over it.

■

Ensure the hood has at least 300mm clearance between the bottom of the hood and the ground

or other obstruction.

■

Exhaust ducting products can be purchased from your local appliance store or hardware store.

■

100mm thick wall flexible metal or rigid galvanized metal duct is recommended. Using ducts

larger than 100mm diameter may result in more lint accumulating.

■

Using straight rigid metal ducting will minimize lint accumulation. Thick wall flexible metal

ducting may be used but care must be exercised to avoid sharp bends which may squash the
duct and cause blockages.

■

Plastic or metal foil flexible duct can kink, sag, be punctured, reduce airflow, extend drying times

and affect dryer operation. It should not be used.

■

Avoid sag or loops in the duct as they may collect and store water and accumulate lint.

■

At joints, point the male section away from the dryer.

■

Use duct tape to secure joints. Do not use screws as they collect lint.

Re-using an Existing Duct System

Before using an existing exhaust duct system ensure that:

■

The duct is not pierced, kinked or crushed.

■

It does not exceed the maximum recommended length (page 12).

■

The exhaust hood damper opens and closes freely and with sufficient movement.

■

There is not an excessive pressure drop in the duct. (Static pressure in the exhaust ducting

should not exceed 250Pa (25mm water gauge), or be less than 0 inches of water column (i.e.
negative pressure), when measured with a manometer in the first 150mm of the duct, with the
dryer running on Air Dry (no heat) setting).

10

Exhausting

Determine Vent Duct Length and Route

This dryer can only be vented from the rear.

Choose a route that will provide the straightest and most direct path outside. Plan the

installation to use the fewest number of elbows and turns.

When using elbows (rigid duct) or making turns (thick wall flexible duct), allow as much room as

possible. With flexible duct bend duct gradually to avoid kinking and avoid 90˚ turns.

recommended

acceptable

Maximum Length of Exhaust Duct

The maximum length of the exhaust duct system depends upon:

■

The type of ducts (rigid or flexible).

■

The number of elbows or bends used.

1

Refer to the exhaust duct length chart for the maximum duct lengths you can use. Do not use
duct runs longer than specified in the exhaust duct length charts (refer to next page).

Longer duct systems will:

■

Accumulate lint creating a potential fire hazard.

■

Shorten the life of the dryer.

■

Reduce performance, resulting in longer drying times and an increased energy usage.

2

Determine the number of elbows/bends you will need.

3

In the column listing the type of duct you are using (rigid or flexible), find the maximum length

of duct on the same line as the number of elbows/bends to be used

11

Maximum Length of Exhaust Duct

Maximum length of 100mm diameter duct with 100mm hood.

Number of 90˚

elbows/bends

Rigid

0 19.5m 10.9m

1 16.5m 9.4m

2 13.4m 8.2m

3 10.6m 7.6m

4 8.2m 7.0m

For exhaust systems not covered by the exhaust duct length charts (such as multiple unit hook­ups, plenums, and power-assist fans), contact our Customer Care Centre as on page 35.

Thick Wall Flexible Metal

(fully extended)

Alternative Installation for Close Clearances

Venting systems come in many varieties. Select the type best for your installation.
A typical close-clearance installation is shown.

swivel collar

sections separate,
fittings can face
same or opposite

wall connection

swivel collar

Extra long
band–clamp
for dryer
connection

telescoping
sections

beveled edges
allow corner
installations

The Maximum length using a 50mm x 150mm duct with two elbows and a 65mm exhaust hood

is 2.4 metres.

Refer to the venting system kit manufacturers instructions.

12

Electrical

Supply Requirements

The dryer requires a 230 – 240 V single phase 50 Hz sinusoidal AC supply.

It must be connected to an individual branch circuit rated for at least 30 amps and protected by

its own fuse or circuit breaker.

Either an isolating switch or a plug and socket (or both) rated for at least 30 Amps is required in

the circuit in a position close to the dryer and accessible after it is installed.

WARNING!

Electric Shock Hazard

Dryer Connection

A suitably qualified person must do the electrical part of the dryer installation

1

Ensure the supply cable is isolated from the supply.

2

Remove the terminal block cover plate and retain the screw for step 7.

3

Fit the cable clamp (supplied in the top packer under the dryer).

4

Thread the power supply cable thought the cable clamp.

5

Connect the neutral wire to the bottom screw terminal, the earth wire to the centre screw

terminal and the phase (line or active) wire to the top screw terminal.

6

Ensure there is some slack in the cable inside the terminal box and tighten the cable clamp onto

the cable.

7

Refit the terminal block cover the opposite way round from how it was supplied by inserting the

two tabs first on the rear panel of the dryer and secure cover with securing screw.

■

Use a cable clamp.

■

Disconnect power before making electrical connections.

■

Securely tighten all electrical connections.

■

Do not use an extension cord.

■

Do not plug the dryer into a standard 3 pin outlet.

■

Failure to do so can result in death, fire, or electrical shock.

Phase

P

P

Earth

Neutral

13

Installation

Unpacking

■

Only remove the packaging at the customer’s premises.

■

This will ensure the appliance arrives in pristine condition and reduces the risk of transport damage.

■

Make sure the dryer is in a suitable location for installation.

■

Consider installing the dryer before the washing machine in a side by side installation, this will

allow better access to electrical and exhaust connections.

Remove Packaging

1.

2.

3.

1. Remove straps. 2. Unfold the bottom flaps
on the carton.

4.

4. Remove the carton

by lifting it off the
product (do not cut
the carton off ).

5.

Tilt

5. Remove the basepacker
by tilting the product
back and walking the
product off it.

Walk

off

Slide out

Level Machine

■

Check the dryer is level, and make necessary adjustments to the front levelling feet.

■

The rear levelling feet are self adjusting.

3. Unfold the top flaps on
the carton, remove top
packer.

6.

6. Remove the drum
packer being careful to
rescue the cable clamp
from it. Remove the tape
from the lint collector
bucket.

Final Installation Check List

Check that:

■

All joints in the ducting are made with duct tape – no screws are used.

■

Ducting is clean and is connected to the dryer.

■

Dryer is level side to side and front to back

■

Customer has been shown how to use the dryer.

Note:

This dryer has a drum reversal feature to reduce clothes tangle. Throughout the drying cycle the
motor will run for four minutes, then stop and run in the opposite direction for forty seconds
before reversing again.

14

Features

Smart Loading

The new ergonomic design of this dryer means less bending.
Simply move clothes from the washer to the dryer with
minimal effort.

Superior Clothes Care

Superior clothes care is accomplished by an efficient high airflow
fan and careful heat control. The Intuitive™ dryer provides the
right heat for temperature sensitive delicate articles while still
efficiently drying more robust regular and denim loads.

Reverse Action Tumbling

The drum reverses regularly, so your clothes dry more evenly
without roping or tangling.

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

0˚C

65˚C

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

l

Lint Bucket

The lint filter is automatically scraped clean during the drying
cycle and the lint is deposited into the lint bucket. No touching
or scraping lint any more. Airflow is more efficient as it is never
restricted by a blocked filter.

Perfect with the Fisher & Paykel Intuitive® Washer

The dryer combined with the Intuitive® washer’s superior spin
performance and quick cycle times will cut laundry turn around
time by up to one third, reducing the time you spend doing
laundry.

Stainless Steel Drum

Being stainless steel, this drum is not only more hygienic, it’s also
more resilient and easier to keep looking good.

15

Getting Started Quickly

A. Sorting

■

Sort clothes of similar types and loads that take similar times to dry.

(Refer to Sorting page 27).

B. Loading

■

Load clothes no higher than the transparent section of the lint

bucket. (Refer to Loading page 27).

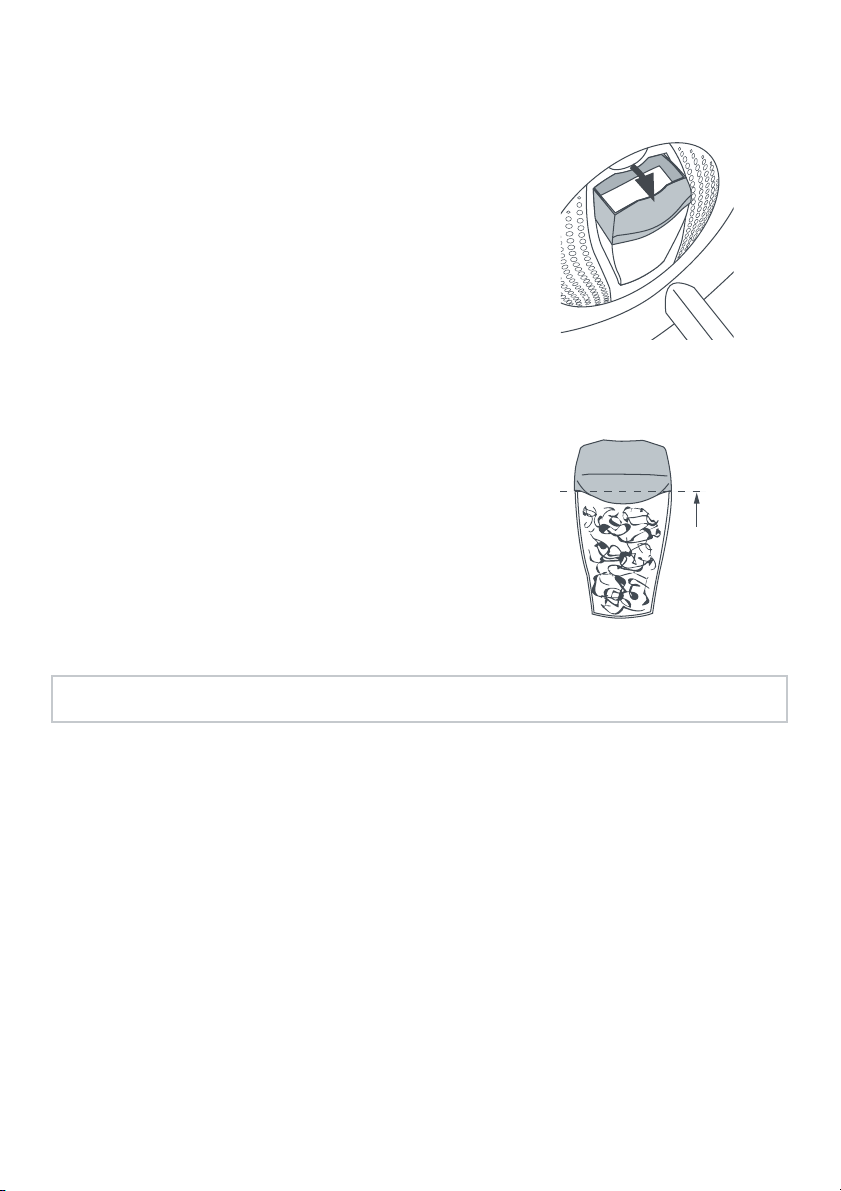

C. Lint Bucket

■

Check to see if the lint bucket needs emptying. Empty before

the lint reaches the top of the transparent section (refer to Lint
Bucket page 28).

D

Empty before this
level is reached

E GF

D. Press Power

E. Fabric Type

■

Choose the fabric type that most represents the items in your load. Your dryer defaults to a MIXED

fabric type, to change it press either the UP or DOWN arrow. A description of each cycle will pop
up on the display screen as you scroll through the lights. (For more information on the cycles refer
to page 18).

■

If you want to use AIR DRY, press the DOWN arrow until AIR DRY light is lit.

16

Getting Started Quickly

F. H o w Dry?

■

Choose how dry you want to dry your clothes, There are 5 dryness settings you can choose

between, EXTRA DRY, EXTRA DRY/DRY, DRY, DAMP/DRY, or DAMP. (Refer to page 20 for
descriptions). Press the HOW DRY button until the setting you want is lit.

G. Start

■

Press START/PAUSE to start your machine.

H. Display screen

■

Shows you what options you have selected and/or any Lifecycles® you may have chosen. The

display screen also shows you the progress of the load as well as displaying messages to help you
with the overall running of your machine.

H

J

I

I. Options Menu

■

Choose any options you want by scrolling through the OPTIONS MENU. Press the OPTIONS button.

Scroll through the options by using the UP and DOWN arrows. To select an OPTION, press ADJUST.

■

Once a selection has been made press HOME to return to the main screen (Refer to page 23).

J. Lifecycles®

■

There are 10 unique Lifecycles® that have been specifically designed to make drying simpler and

easier.

Family Specials Bulky Items

Allergy Freshen Up Blankets

Tow els Warm Up Jeans

Shirts Pillows Duvet/Doona

Lingerie

(Refer to Lifecycles® page 25).

17

Fabric Type

The Intuitive™ dryer is capable of drying many
different fabric types. On the display screen the
FABRIC TYPE button is located next to the POWER
button. Use the UP and DOWN arrows to alter the
fabric type you wish to dry with.

When you turn your Intuitive™ dryer on it will
automatically select the MIXED fabric type. This
setting is suitable for drying your everyday garments,
e.g. t-shirts, trackpants, sweatshirts etc.

To change the FABRIC TYPE, press either the UP or DOWN Arrow.

Select a fabric type that matches the type of load you are drying. Different fabrics have different
drying requirements, so it is important to choose the cycle that best describes the load. For
example if your load contains mainly delicate items it is best you select the LIGHT Fabric Type.

Always follow manufacturer’s care label instructions when drying.

If you are unsure of the temperature to select for a load, it’s best to select a lower heat rather
than a higher heat, e.g. the LIGHT or CASUAL setting instead of the MIXED setting.

There are five FABRIC TYPES programmed into your Intuitive™ dryer as well as an AIR DRY option.

HEAVY

The HEAVY setting has been designed to provide a long, high heat cycle for heavy fabrics and
denims that tend to have thick and bulky seams. This setting dries for longer intervals to ensure
heavy items are fully dry.

MIXED

The MIXED setting has a High heat for drying everyday clothing and linen. This cycle is suitable
for most garments labelled “Tumble Dry”.

CASUAL

The CASUAL setting uses a medium heat for lightweight fabrics. It is ideal for lightweight cottons
and items labelled “ tumble with a medium heat”

DRY AND WEAR

The DRY AND WEAR setting uses a medium heat combined with the selection of the
CREASABLES option. Ideal for any types of garments where you want to wear them straight

away. The Creasables option is automatically selected so there is no need to iron clothes when
you remove them from your dryer. Once drying is completed, clothes are automatically turned
every 5 minutes, without heat, to reduce the likelihood of creases and wrinkles developing. This
will continue for up to 24 hours or until you stop the dryer.

18

Fabric Type

LIGHT

The LIGHT setting is ideal for delicate or heat sensitive items. Use this setting when care-labels
recommend low heat settings or for garments with a synthetic fibre content, where overheating
could cause damage to fibres.

AIR DRY

The AIR DRY option is for items requiring drying without heat. Perfect for airing clothes or to
freshen up garments that have been packed in a suitcase or drawer.

Press the FABRIC TYPE button DOWN until the AIR DRY light is glowing. A second screen will

automatically pop up, to show AIR DRY time options. Use the ADJUST button to choose the
length of time you wish to dry your load for.

19

How Dry?

AUTO SENSING

Autosensing is automatically selected when your
Intuitive™ dryer is turned on. When selected, your
dryer automatically senses the dryness level of the
load and turns off when the clothes are dry. Intuitive’s
internal computer measures the moisture content of
the load using metal sensor bars and together with a
temperature sensor determine when the clothes have
reached the selected dryness level.

For optimum clothes care match the cycle to the load. AUTO SENSING often provides the best
results and leads to lower energy costs than TIME DRY.

There are five different dryness levels to choose from:

■

EXTRA DRY

■

DRY/EXTRA DRY

■

DRY

■

DAMP/DRY

■

DAMP

The dryer defaults to the DRY Setting. To change this
press the HOW DRY button until the dryness setting
you want is highlighted. If you choose the DAMP/DRY
or DRY/EXTRA DRY setting two lights will be displayed.

At the end of the cycle if the clothes are still damp or
are too dry next time adjust the dryness level on the
touch pad to meet your personal preferences.

Dryness Level Descriptions

EXTRA DRY

This is mainly for items that you want to store (i.e. place in a drawer, cupboard or wardrobe). By
using this setting you eliminate the possibility of ‘musty smells’ that commonly occur when items
are stored in a damp state.

DRY

Dries clothes to a level where they are considered ‘dry’, so garments can be worn immediately.

DAMP

Dries the clothes to a level where they are considered ‘moist’. It is designed for delicate, light­weight fabrics and articles of clothing which you want to iron-dry.

20

Display Screen

The display screen on the right hand side of the panel
shows you what the machine is doing during the cycle. The
display screen also shows you the different drying options
available. When you first turn your Intuitive™ dryer on it will
briefly display the message “Welcome to Intuitive”. The main
screen then appears with a big smiley face and tells you the
machine is READY TO DRY, the setting it has defaulted to
and also displays any options/lifecycles you select.

All About the Options Button…

Your Intuitive™ dryer has a menu of drying options you can use. The buttons and the display
screen on the right hand side of the panel are used to select and display the different options.

To S elect a Drying Option:

1

Push either the Options UP or Options DOWN arrow. The
Options menu will then be displayed.

2

Scroll through the options by using either the UP or DOWN

arrows. To select an option use the ADJUST button. The
option will be highlighted to show you have selected it.

3

Press HOME, the display will return to the home screen,

where your selected drying option(s) will be displayed.

4

To start your dryer press START/PAUSE.

Note:

If you want to change any of the drying options while your machine is running you will need to
press START/PAUSE before changing an option or setting.

21

Progress Screen

During the cycle the display screen shows you the progress of your load by displaying a series of
messages that indicate what stage the dryer is up to. The display screen also scrolls through any
options you may have chosen.

When you first start your dryer the words SENSING Dampness will appear on the screen. During
this period the dryer is sensing the dampness of your load.

Once the dryer has sensed your loads dampness the words

DRYING will appear on the screen. (If you have chosen
AIR DRY the word AIRING will appear). This message is

displayed for the majority of the cycle letting you know it is
in the process of drying your load. The dryer will continue
to display the word DRYING until it senses that your load is
becoming damp.

The word DAMP will appear when the dryer senses that the load is becoming dry. This is the
stage that you can remove delicate garments you wish to hang dry.

The word DAMP/DRY appears when the dryer senses that the clothes are almost dry. It will
continue drying until it reaches the HOW DRY level you have selected. Once it reaches the
dryness setting you have chosen your dryer will progress into COOLING.

You can select an option in the Options menu to remind you to remove your delicates early
(refer to page 24).

The word COOLING will appear when dryer is in the
process of cooling down the dry load. This is where the
load is tumbled with no heat, decreasing the need for
ironing. COOLING will continue until the dryer senses the
clothes have been cooled down sufficiently. The exception
is TIME DRY which has a fixed COOLING period.

22

The Options

For all the options mentioned below select the OPTIONS
menu (by pressing the UP Options arrow). Use the Options
arrows to scroll through the options until the one you want
is displayed.
Press ADJUST to select it and HOME to return to the main
screen.

1. CREASABLES

The CREASABLES option minimises the likelihood of creases or wrinkles forming in clothes, if you
are not able to unload the dryer straight away. This option rotates the drum periodically after the
cycle has finished. This tumbling action, combined with blowing cool air through the clothes,
helps garments to remain crease free.

CREASABLES uses very little power and will continue for
up to 24 hours or until the user turns the dryer off. After
completing each tumble Intuitive™ dryer will give an end
of cycle beep to remind you that the load is dry and can
be removed.

To stop the dryer press either POWER or START/PAUSE.
Intuitive™ dryer will open the drum door and unlock the lid,
so you can remove your clothes.

CREASABLES can be selected on any cycle.

2. TIME DRY

There are three timed cycles. You can choose between
20, 40 and 80 minutes. A COOLING period of 10 minutes
is included in the 80-minute and 40-minute cycle. The 20
minute cycle has a 5-minute COOL DOWN period.

To select a timed cycle, press the ADJUST button to move
to the time you wish to dry for. Your Intuitive™ dryer will
default to 40 minutes.

If you choose to select TIME DRY, please note the dryer will not sense when your clothes are dry.
This may increase the chance of over-drying.

We recommend that you dry your clothes for a slightly shorter time than you think they need, or
check on them regularly (to avoid over-drying).

23

The Options

3. END OF CYCLE BEEPS

You can change the number of beeps your Intuitive™ dryer sounds at the end of the cycle. Scroll
to Options screen 3, use the ADJUST button to move to your desired preference. Press HOME to
save your selection.

4. REMINDER – REMOVE DELICATES EARLY

If you wish, your Intuitive™ dryer can remind you to
remove your delicate items while they are still slightly
damp. This can be useful if you have a mixture of light
and heavy fabrics in your load. Your dryer will beep and
display a message when it senses that the load is nearly
dry. You will then be able to remove delicate items and
the rest of the load will continue the cycle.

To activate the reminder, scroll to Options screen 4, press the ADJUST button to select ON, then
press HOME to save your setting.

5. REMINDER – EMPTY LINT BUCKET

This reminder is automatically selected when you receive your dryer. If you do not wish to be
reminded every 5 cycles to remove the lint from the lint bucket you can turn the reminder off.
Scroll to Options screen 5, press the ADJUST button to select OFF, then press HOME to save your
setting (also refer to page 28).

6. REMINDER – ADD SOFTENER SHEETS

If you add fabric softener sheets to your dryer, you can select this option to remind you to add
them at the beginning of each cycle. To activate the reminder, scroll to Options screen 6, press
the ADJUST button to select ON, then press HOME to save your setting.

7. CYCLE TIPS

Cycle tips screens are displayed to help you to remember what each cycle does.

For example, when you select Fabric Type = Mixed, after 1 second a cycle tips screen will appear

with the words “Mixed – High heat for everyday cottons”.

Once you have become familiar with your dryer you may wish to switch these tips off. Scroll to

Options screen 7, press the ADJUST button to select OFF, then press HOME to save your setting.

8. TROUBLE SHOOTING

Your Intuitive™ dryer provides basic Trouble Shooting tips on screen. Scroll to options screen 8,
press the ADJUST button to select the topic that you require assistance with. The topic will then
be displayed on the screen. Use the options down arrow to scroll through possible solutions.
For more detailed Trouble Shooting information refer to pages 32 – 33 of this guide, or If Your
Intuitive™ Dryer Beeps For Help, page 31.

24

Lifecycles®

Your Intuitive™ dryer has a range of special, pre-programmed Lifecycles® to make doing the laundry
even easier.

■

Push the LIFECYCLES button.

■

Use the OPTIONS button to scroll through the 3

Lifecycles® menus, or you can press the LIFECYCLES
button repeatedly.

■

Use the ADJUST button to select a lifecycle.

■

Press HOME to return to the main screen.

L1 Family

ALLERGY

This cycle has been designed to complement the Allergy cycle currently available in the Intuitive™
washer. It is recommended for both, allergy sufferers and for piece of mind in times of family illness.
This cycle uses a high heat to ensure that dust mites and bacteria populations are decimated. It has
been designed primarily for sheets and everyday clothing, and is not recommended for garments
that are heat sensitive.

TOWELS

Heavy Fabric Type, Dry/Extra Dry dryness level, with Autosensing.
Specifically designed for towels.

SHIRTS

This cycle has been developed for business and dress shirts. It uses
a medium heat, Autosensing selected, Dry dryness level, with the
Creasables option selected to reduce creasing.

LINGERIE

This is an extra gentle cycle for delicate fabrics. It has been designed for garments that you previously
may have been reluctant to put into the dryer e.g. lingerie and synthetics. This cycle dries using the
Light Fabric Type setting, Autosensing, the Dry dryness level, and has the Creasables option selected
to reduce creasing. We recommend placing undergarments in a net bag for extra protection.

L2 Special Items

FRESHEN UP

This cycle tumbles for 20 minutes without heat. It has been designed to freshen clean clothes that
have been stored in a cupboard, drawer or packed in a suitcase.

WARM UP

Warm Up is designed to heat clothes for 20 minutes so that they are warm to the touch. Warm your
pyjamas before bed on a cold night, or warm towels while you are in the shower. The Warm Up
cycle uses a Casual Fabric Type and is not recommended for garments that are heat sensitive.

PILLOWS

An 80 minute no heat cycle ideal for pillows and soft toys. Foam items can be dried using this
setting.

25

Lifecycles®

L3 Bulky Items

BLANKETS

You will need to check the care label to make sure that
the item can be dried in the dryer.

It is a good idea to include 4 – 5 medium sized towels
along with the blanket for cushioning. This will reduce
shrinkage from over tumbling. If you are drying more
than one blanket, ensure that they do not sit higher than
the top of the lint bucket, otherwise there will not be
enough room for them to tumble.

This cycle uses the lowest heat setting, the Light Fabric Type setting and runs with the
Damp/Dry How Dry setting.

On completion, remove the blanket, shake and if needed stretch the blanket back to its original
shape. Place back in the dryer and repeat until the blanket is dry.

Note:

It is important to completely dry the blanket to prevent mildew from forming.

JEANS

This cycle has been designed for drying denims or similar heavyweight items like jeans and
thick towels, which are bulky or have thick seams. The Jeans lifecycle has been tailored to dry
these items. This cycle uses High Heat, the Heavy Fabric Type, and has the CREASABLES option
selected.

DUVET/DOONA

Duvets/Doonas are very bulky items and can be difficult to dry.

It is important before you put your duvet/doona in the dryer that you check to make sure
the care label says that it can be dried in a clothes dryer.

This cycle uses Autosensing, and dries on the lowest heat setting. The Fabric Type setting used
is Light, How Dry level is Dry/Extra Dry. It is a good idea to check the garment throughout the
cycle to ensure even drying. If the item contains feathers, add a heavy item (e.g. a towel tied in
a knot) to the load to help fluff the duvet/doona.

Ensure the load does not sit higher than the top of the lint bucket before starting the cycle.

26

Using Your Dryer

Check the care labels inside the garments to determine whether the garment manufacturer
recommends tumble-drying.

Sorting

It is best that you sort your garments before placing them
into the dryer. Sort into loads of similar types, and loads that
take similar times to dry.

Heavier items (e.g. towels, t-shirts and flannel sheets) are
best dried separately from lightweight items (e.g. synthetics,
poly-cotton sheets and shirts). This prevents the possibility of
some items becoming over-dried whilst others are still damp.
It will also help to extend the life of your clothing and linen.

Drying your clothes as soon as the washer has finished
will decrease the chance of creases and the chance of dye
transfer from coloured items to white items.

We recommend that articles of clothing with screen-printing
are turned inside out to ensure the screen-printing does
not stick to the drum. Garments with hooks or zippers need
to be fastened and where possible turned inside out. Place
undergarments in a net bag to provide protection from other
items in the load.

Loading

Garments need to be loaded properly to reduce the
likelihood of them creasing and to ensure the load is dried
evenly. Make sure there is ample room for the garments to
tumble freely while drying. Load in terms of the space the
garments take up when dry, rather than when they are wet.

The general rule is one wash load = one dryer load.
Only load the dryer up to the top of the transparent
section of the lint bucket. Loading any higher may result in
uneven drying, tangling, creasing and the dryer becoming
overloaded.

It is a good idea to dry ‘permanent press’ type garments
together in a separate cycle with the CREASABLES option
turned on. This will help reduce creases and the need for
ironing.

Load no higher
than here

27

Using Your Dryer

Lint Bucket

The Intuitive™ dryer’s lint removal system is unique. Unlike
other dryers, the Intuitive™ dryer automatically removes the
lint for you, from the lint screen – all you have to do is tip
the lint out!

The lint filter is hidden behind the lint bucket. As the air
passes through this filter the lint is caught on the fine
mesh. Once the lint is about 2mm thick it comes into
contact with a scraper which deposits it into the bucket.
This process is automatically performed every time lint
builds up on the filter.

Apart from the benefit of not having to scrape the lint
after every cycle, it also means the drying efficiency is not
affected by lint build-up during the drying cycle.

The lint bucket is located inside the dryer on the left-hand
side. You can remove it by gently pulling the handle and
lifting outwards. It slots easily back into place.

This lint bucket does not need to be cleaned as regularly
as other dryer’s lint filters. The lint bucket only needs to
be emptied before the lint reaches the top of the
transparent section.

Empty before this
level is reached

It is important that you run your dryer with the lint bucket in place at all times.

28

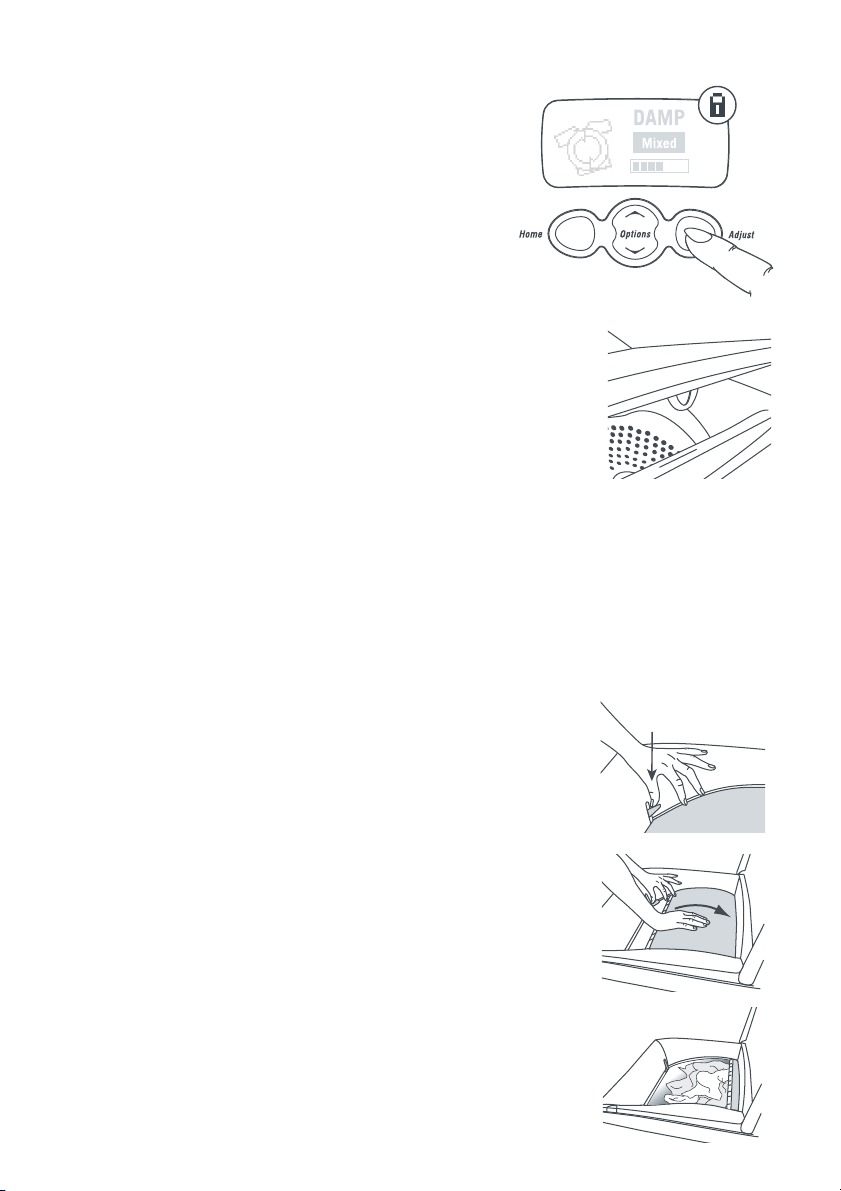

Lid Lock

Your Intuitive™ dryer locks it’s lid at the start of the
drying cycle, providing added safety for you and your
family while it is operating. This lock ensures the lid
cannot be opened while the drum is rotating.

A lidlock symbol (padlock) appears in the corner of the
screen when locked (it disappears when unlocked).
If the lidlock symbol is flashing the lid is in the process
of being unlocked. During this stage, the lid still cannot
be lifted.

The lid must be closed before the drying cycle can start. If START/
PAUSE is pressed with the lid open, the machine will beep and a
message will appear in the display screen Saying “Please close the lid
Press start to continue”, to signal that the lid needs to be closed.
Once the lid has been closed and START/PAUSE is pressed, the LID

LOCK will be activated and the drying cycle will begin.

Power Failure

If the power is cut while your Intuitive™ dryer is operating, the lid will be unlocked. In some
circumstances the drum door may not be automatically opened. If this occurs it is best if the
dryer is not interfered with. When the power is restored the dryer will automatically resume
operating. However if it does not automatically open, first close the lid and start the dryer in the
usual manner, after 5 seconds press START/PAUSE. This will cause Intuitive to open correctly with
the lid unlocked.

If it is absolutely necessary to remove some items before power is
restored follow the steps below:

1

Ensure the dryer is disconnected from the power supply.

2

Open the lid (this will already be unlocked).

3

On the left hand side of the dryer there is a thumb tab that appears

when the drum is closed. Press the thumb tab, while rotating the drum
by hand away from you (push the drum towards the back of the dryer).

4

Hold the thumb tab down until the drum starts opening.

5

Keep rotating the drum until it is fully open and it comes to a stop.

6

Now you can remove items from the dryer drum.

7

Close the lid once you have removed desired items.

8

Re-connect the power supply to your dryer.

The drum door will automatically close and the dryer will resume
normal operation when power is restored.

Hold thumb
tab down

Push

29

Cleaning

Clean your dryer with a soft damp cloth and wipe dry. Do not use
scouring cleaners as they can damage the paint and plastic surfaces.

Removing the Lid

You can remove the lid for cleaning. Open the lid fully, hold one side
with one hand and tap the other side with an upwards motion. To
replace the lid, hold the lid vertically and align both hinges before
clicking back into place.

Pre-Treatment Sprays

Do not use pre-treatment sprays or liquids on or near your dryer as they can damage your
machine’s control panel as well as any of its plastic parts. Damage to your dryer caused by pre­treatment products will not be covered by your warranty.

Stains

If stains appear inside the drum of your machine, mix a detergent and water paste (or use a non­flammable liquid cleaner) and wipe over the stain with a soft cloth. Then tumble old towels for
20 – 30 minutes on the AIR DRY setting to remove all traces of the cleaner.

Lint Bucket

The lint bucket will need to be emptied before the lint reaches the top of the transparent
section. A lint bucket that is not full ensures your clothes will remain lint-free and your dryer will
operate at maximum efficiency.

Venting

Inspect and clean all ducting at least once a year to remove accumulated lint. Check frequently
that any damper on the exhaust hood moves sufficiently and opens and shuts freely.

30

If Your Intuitive™ Dryer Beeps For Help

Your Intuitive™ dryer is capable of diagnosing its own troubles. If your dryer is displaying a
message on the display screen and is sounding a musical series of beeps every 5 seconds, it
has a problem that you may be able to solve using the checklist below. (It’s the same sound
Intuitive™ dryer makes when you plug it in).

If you are unable to solve the problem from the checklist below call for service.

Machine is beeping and… “I can’t get ANY AIR” (your dryer is still running)

This message indicates there is an airflow restriction and your clothes will take longer to dry.
Possible reasons for the airflow restriction could include:

Your lint bucket is too full. Remove the lint from the lint bucket, then run the dryer on any
cycle for a few minutes with no load to remove any lint still trapped in the dryer. Empty the lint
bucket again.

Check the exhaust system. The ducting could be restricted, squashed or blocked. Is the piping
bent, kinked or clogged? Does it need to be cleaned?

Machine is beeping and … “I can’t LOCK THE LID”

Close the lid and press START/PAUSE.

If the lid is already closed, open the lid and close it again, then press START/PAUSE.

Disconnect from the power (either by unplugging the dryer or turning off the circuit breaker
that supplies it). Wait 10 seconds, reconnect and try turning it on again.

Machine is beeping and… “I can’t CLOSE THE DRUM”

The machine is unable to close the drum due to clothes interfering with the closing
mechanism. Remove any articles that are interfering with the drum door and dry these in the
next load.

Is your load higher than the top of the lint bucket? Remove some articles and dry these in the
next load.

If your dryer is continually beeping and a message is displayed on the screen, a fault has
occurred which requires repair from a Service Agent.

Pressing the POWER button once will stop the beeping but will still display the fault code. We
recommend leaving the machine in this mode as the fault code will enable the service person to
quickly identify the cause of the problem.

31

Trouble Shooting

Pressing POWER does not turn the dryer on

Is the electrical cord plugged in? If not plug the cord in.

If there is a switch, is it switched on?

Could your household power supply be at fault? (If your plug is suitable, try plugging another
electrical appliance into the same outlet).

Check your house circuit breakers and fuses. If they are at fault contact an electrician.

Dryer does not heat

Is the dryer set to the AIR DRY Fabric Care Setting?

Has the dryer progressed to COOLING. (Check the Display Screen).

If the problem persists call for service.

Clothes are still wet/damp

Is the dryer set on DAMP?

Try selecting a higher HOW DRY? dryness level.

Is the drum warm? If not, is the dryer set to the AIR DRY setting?

Try drying similar weight clothes together.

If the problem persists call for service.

Pressing START/PAUSE does not start the dryer

Is the lid open? Shut the lid and press START/PAUSE.

Is there a fault displayed on the display screen? Refer to page 31, – If Your Dryer Beeps For Help.

Dryer is taking a long time to dry

Is the lint bucket full? If so empty it to improve performance.

Is the airflow system free from obstruction?

Has the dryer been vented correctly? Is the venting distance too great?

Is the machine over-loaded?

Have heavyweight items been separated from lightweight items?

Are the clothes very wet when they are removed from the washing machine? Increase your
washer’s spin speed.

Are you using the AIR DRY setting?

Is your dryer on LIGHT Fabric Type?

Dryer keeps stopping and starting

Your dryer has a reverse action tumble. When it changes direction it will pause momentarily
and will start again in the opposite direction, this is normal.

Has CREASABLES been selected?

32

Trouble Shooting

Linting Problems

Is the lint bucket full? When lint reaches the top of the transparent section of the bucket it
needs emptying.

Have you separated lint-shedding garments (e.g. towels) from lint receiving garments (e.g.
synthetics).

Have you checked your pockets for tissues or other items that could have been left in them?

Have you over-loaded your dryer? Over-loading can result in linting problems due to reduced
airflow and lint not being able to collect on the filter.

Have you over-dried your load? Over-drying can cause lint-attracting static electricity. Try a
lower HOW DRY Dryness Setting or use AUTO-SENSING instead of TIME DRY.

Is the lint bucket in place?

Static problems

Have your clothes been over-dried? Choose a lower dryness setting.

Items shrinking

Has the load been over-dried? Choose a lower dryness setting.

Is tumble-drying recommended? Check care labels inside garments.

If you selected TIME DRY - did you set it to dry for too long?

Has the correct temperature been used to dry the garment? Check the care label.

Clothes are creased

Does the load sit higher than the lint bucket? Your dryer is over-loaded, decrease the load size.

Did you remove your clothes as soon as the dryer was finished? Use the CREASABLES option, if
you cannot return to the dryer in time.

Have your clothes been over-dried? Select a lower dryness level. Check your garments care­labels.

Drum door will not open

Refer to page 29 – Power Failure for more information, or contact your Fisher & Paykel
Authorised Service Agent.

Lid will not open

Is the CREASABLES option selected? Press START/PAUSE to open the lid.

33

Manufacturer’s Warranty

When you purchase any new Fisher & Paykel whiteware Product you automatically receive a two
year Manufacturer’s Warranty covering parts and labour for servicing.

Fisher & Paykel Undertakes to

Repair or, at its option, replace without cost to the owner either for material or labour any part of
the Product, the serial number of which appears on the Product, which is found to be defective
within TWO YEARS of the date of purchase.

This warranty DOES NOT cover

A

Service calls which are not related to any defect in the Product. The cost of a service call will be

charged if the problem is not found to be a Product fault. For example:

1. Poor drying performance due to incorrect installation, e.g. no venting system fitted, dryer vent
against a wall, blocked lint filter.

2. Poor drying performance due to incorrect loading, e.g. overloading or underloading.

3. Damage from articles in the drum, e.g. bra wires, pens, crayons or dye transfer.

4. Damage caused by incorrect electrical installation.

B

Defects caused by factors other than:

1. Normal domestic use or

2. Use in accordance with the Product’s User Guide.

C

Defects to the Product caused by accident, neglect, misuse or Act of God.

D

Correction of unauthorised repairs.

E

Normal recommended maintenance as set out in the Product’s User Guide.

Service under this manufacturer’s warranty must be provided by an Authorised Service Agent
(refer to the Customer care section for contact details). Such service shall be provided during
normal business hours. This warranty certificate should be shown when making any claim.

Note:

This Warranty is an extra benefit and does not affect your legal rights and applies only to product
purchased in New Zealand and Australia.

Please keep this User Guide in a safe place.

Do not return to Fisher & Paykel.

34

Customer Care

Check the things you can do yourself. Refer to your
User Guide and check:

1

your appliance is correctly installed

2

you are familiar with its normal operation

3

you have read the Trouble shooting section.

If after checking these points you still need assistance please refer to the following:

In New Zealand If You Need Assistance...*

Call your Fisher & Paykel retailer who is trained to provide information on your appliance, or if we
can be of any further help, please contact our Customer Care Centre,

Toll Free: 0800 FP CARE or 0800 37 2273 Fax: [phone]
Email: [e-mail] Postal address: P. O. Box 58732, Greenmount, Auckland

If you need service...*

Fisher & Paykel has a network of independent Fisher & Paykel Authorised Service Centres whose
fully trained technicians can carry out any service necessary on your appliance. Your dealer or our
Customer Care Centre can recommend an Authorised Service Centre in your area.

In Australia If You Need Assistance...*

Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer Care Consultants.

Toll Free: 1300 650 590 Fax: [phone]
Email: [e-mail] Postal Address: PO Box 798, Cleveland QLD 4163

If you need service...*

Fisher & Paykel Australia Pty Ltd has a network of independent Fisher & Paykel Authorised Service
Centres whose fully trained technicians can carry out any service necessary on your appliance.
Our Customer Care Centre can recommend an Authorised Service Centre in your area.

*If you call or write, please provide: name, address, model number, serial number, date of
purchase and a description of the problem. This information is needed in order to better respond
to your request for assistance.

Product details can be found on the back of the console or top right hand corner of the
dryer cabinet.

Product Details

Fisher & Paykel Ltd

Model/Serial No.

Date of Purchase Purchaser

Dealer Suburb

To wn Country

35

Copyright Reserved © Fisher & Paykel 2004.

Copyright © Fisher & Paykel 2005. All rights reserved.

The product specifications in this booklet apply to

The product specifications in this booklet apply to
the specific products and models described at the

the specific products and models described at the
date of issue. Under our policy of continuous product

date of issue. Under our policy of continuous product
improvement, these specifications may change at any

improvement, these specifications may change at any
time. You should therefore check with your Customer

time. You should therefore check with your Customer
Care Center to ensure this booklet correctly describes

Care Centre to ensure this booklet correctly describes
the product currently available.

the product currently available.

www.fisherpaykel.co.nz

www.fisherpaykel.com

NZ AU

NZ AU
Clothes Washer Installation Instructions

Dryer Installation Instructions
and User Guide

and User Guide
Published: 08/2004

Published: 02/2005
Part No. ???????? A

Part No. 395629 A
