Fisher & Paykel DE7060G2, DE7060P2 Installation and Operation Guide
VENTED CLOTHES DRYER
DE7060P & DE7060G models
INSTALLATION GUIDE / USER GUIDE
NZ AU SG ROW
CONTENTS
Introduction 2
Safety and warnings 3
Installation instructions 7
Dryer controls 18
Sorting and loading 19
Drying cycles 22
Drying cycle options 24
Cleaning your dryer 27
Before you call for service 28
Troubleshooting 29
Manufacturer’s warranty 33
Customer care 35
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide
may not be available in all markets
and are subject to change at any time.
For current details about model and
specification availability in your country,
go to our website fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
1
INTRODUCTION
Welcome to your Fisher & Paykel vented dryer.
Thank you for purchasing a Fisher & Paykel clothes dryer. We are proud of this dryer
andtrust it will serve you well for many years.
At Fisher & Paykel we aim to provide innovative products that are simple to use,
ergonomic, energy efficient and kind to the environment. Thousands of tonnes of
laundry and 80 years of laundry experience have been programmed into your dryer
tohelp give you the best possible performance.
Your new dryer gives you the convenience of tumble drying and your clothes
the advantage of not being subjected to the harsh overdrying effects of the sun.
Yourclothes will feel softer, retain their shape better and require less ironing.
Thisdryerhas been specifically designed to complement our front loading and top
loading Fisher&Paykel washers.
Your vented dryer has numerous cycles and options so you can perform many drying
tasks (including flat drying) with ease, allowing you to spend less time in the laundry.
All our dryers have the ability to automatically sense when your clothes are dry, meaning
your dryer is more efficient, making it kinder on your wallet and the environment.
Please take the time to read these instructions carefully before you begin using
yourdryer. Following the advice in this user guide will ensure you get the
performanceyou expect from your dryer and that you get the best possible results.
Keep these instructions for future reference and pass them on with your dryer, if it
changes hands.
We hope you enjoy your new dryer. We have certainly enjoyed designing it for you.
Vented clothes dryer
2
SAFETY AND WARNINGS
Meaning of symbols on the dryer
Warning: Risk of fire/Flammable materials
Read the instructions
Fire Hazard
z
Only dry fabrics that have been washed with water.
z
Do not use heat to dry articles containing foam rubber or similarly
textured rubber–like materials, dry on ‘Air Dry’.
z
Never stop a tumble clothes dryer before the end of the drying
cycleunless all items are removed and spread out in order to dissipate
the heat.
z
A clothes dryer produces combustible lint; the lint filter must be
cleaned before each drying cycle.
z
Failure to follow the warnings outlined in these user instructions can
cause a fire hazard.
z
Failure to follow these instructions can result in death or personal injury.
!
WARNING!
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
z
The appliance must not be supplied through an external switching device, such as a
timer, or connected to a circuit that is regularly switched on and off by a utility.
z
We do not recommend the use of extension cords or portable electrical outlet devices
for safety reasons.
z
Do not touch or operate the machine with wet hands or with bare-feet.
z
A damaged power cord must be replaced by a Fisher & Paykel trained and supported
service technician, its service agent or similarly qualified persons in order to avoid
a hazard. The appliance must not be operated until it is repaired, as there is risk of
electric shock.
z
Do not operate this machine if it has been damaged during transport. Contact your
Fisher&Paykel dealer or Fisher & Paykel trained and supported service technician.
3
SAFETY AND WARNINGS
When using this appliance always exercise basic safety precautions including
the following:
Dryer use
z
This dryer has been designed for domestic use only, not for commercial applications,
such as massage/beauty clinics where there may be increased lint accumulation or
flammable materials in the atmosphere or load.
z
The tumble dryer is intended only for drying textile material washed in water.
z
Undergarments that contain metal reinforcements should not be placed in the dryer.
Damage to the dryer can result if the metal reinforcements come loose during drying.
If you wish to dry these items use a drying rack or place in a garment bag.
z
Check and remove all objects from pockets, eg lighters and matches.
z
Never dry rubber articles, or any plastic items or film, eg plastic lined tablecloths
andbaby bibs.
z
Clothes should go through the cool down/airing phase in the final part of the cycle.
This ensures items are left at a temperature where they will not be damaged. Ifforany
reason the dryer is stopped before the cycle has finished, dry clothes should be
removed immediately and not left in the dryer. Clothes should be quickly spread out
flat to cool so heat can dissipate, not left bunched up, eg in a clothes basket.
Do not operate this product without the lint filter in place or allow lint to accumulate
in or around the dryer.
z
This dryer is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless given supervision or instruction concerning the use of the dryer by a person
responsible for their safety.
z
Children should be supervised to ensure they do not play with the dryer.
z
Unplug the machine from the power supply when it is not in use.
z
Do not swing on or put weight on the door.
z
Your dryer is designed to stop operating in the event of power outage.
When power isresumed, the machine will remain off until the ‘Power’ button is
pressed. To restart the dryer, press ‘Power’, select your drying cycle and touch .
z
Never attempt to repair the dryer yourself.
z
The only user-removable parts of the dryer are the lint filter, drying rack and
reversible console. No other parts are designed to be removed by anyone other than
aFisher & Paykel trained and supported service technician.
z
For problems that cannot be solved from information in this User Guide, turn off and
unplug your dryer and contact a Fisher & Paykel trained and supported service technician.
z
Do not overload your dryer beyond its rated capacity:
Model Maximum capacity
DE7060P G 7Kg
z
Never put dripping wet clothes in or on top of the dryer as excess water may cause an
electrical hazard.
z
Do not under any circumstances dry an electric blanket or any other electrical, plastic
or rubber items in your dryer, unless the care label specifically states it is safe to do
so. Never dry these items at high temperatures.
4
SAFETY AND WARNINGS
z
Do not dry curtains in your dryer. Sunlight makes them brittle and they may
disintegrate during drying.
z
Do not use the water collected in the water tank for drinking or food processing.
z
Never run the dryer without the water tank in place.
z
If the water tank becomes full, the tumble dryer will pause drying and will sound an
alarm. You must empty the water tank before the dryer can continue drying. Empty
the tank, replace it back in the housing then touch to resume the cycle.
Lint
z
Accumulated lint in the dryer can become a fire hazard; it also reduces the efficiency
of the dryer by causing longer drying times and increased power consumption.
z
Clean the lint filter before every load.
z
Ensure the area around the dryer is clear of lint.
z
At regular intervals have the interior of the dryer cleaned of any accumulated lint.
This must be done by a Fisher & Paykel trained and supported service technician.
This must be done when the dryer installation is changed from free standing.
z
The dryer exhaust ducting should be inspected and cleaned periodically to remove
accumulated lint.
z
If the lint filter becomes damaged, contact your Fisher & Paykel trained and supported
service technician to arrange getting a new filter. Do not operate your dryer with a
damaged lint filter or without the filter in place, as this will cause damage to your dryer.
Installation
z
The dryer must be installed in a well-ventilated, dust-free environment.
z
The dryer must not be installed on any textured floor coverings (eg carpet, rugs) to
ensure that openings at the base of the machine are not obstructed.
z
Do not install the dryer behind a lockable door, sliding door, or behind a door where
the hinge is on the opposite side to that of the dryer in such a way that the full
opening of the door is inhibited. Ensure the dryer door can always be opened fully.
z
Please refer to INSTALLATION INSTRUCTION section of this document for detailed
installation steps.
5
SAFETY AND WARNINGS
Spontaneous combustion
IMPORTANT!
To reduce the risk of fire in a tumble dryer the following should be observed:
z
Items that have been spotted or soaked with vegetable oil or cooking oil are a fire
hazard and should not be placed in a tumble dryer.
z
Oil-affected items can ignite spontaneously, especially when exposed to heat sources
such as a tumble dryer. The items become warm causing an oxidation reaction in the
oil. This oxidation creates heat. If the heat cannot escape the items can become hot
enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat
from escaping creating a fire hazard.
z
If it is unavoidable that fabrics that contain vegetable oil, cooking oil or have been
contaminated by hair care products be placed in a tumble dryer, they should first be
washed in hot water with extra detergent — this will reduce, but not eliminate the fire
hazard. The cool down cycle of the dryer should be used to reduce the temperature
ofthese items. They should not be removed from the tumble dryer and piled or
stacked while hot.
z
Items that have previously been cleaned in, washed in, soaked in or spotted with
flammable liquids or solids, eg petrol/gasoline, kerosene, dry cleaning solvents,
vegetable or cooking oil, acetone, denatured alcohol, some brands of spot removers,
turpentine, waxes and wax removers or other flammable or explosive substances
should not be placed in a tumble dryer.
z
Do not dry unwashed items in the tumble dryer.
z
The dryer is not to be used if industrial chemicals have been used for cleaning.
z
Fabric Softeners or similar products should not be used in a tumble dryer to
eliminate the effects of static electricity, unless this practice is specifically
recommended by the manufacturer of the fabric softener product.
z
Rubber backed articles, foam rubber (latex foam), clothes or pillows fitted with
foam rubber pads, fibreglass, shoes containing rubber, shower caps, babies
waterproof napkin covers and waterproof textiles should not be dried in the dryer.
These materials can when heated produce fire by spontaneous combustion.
z
When choosing to tumble dry a duvet/doona use low-medium heat only and make
sure the drum is not overloaded due to the risk of overheating and scorching.
z
Exhaust air must not be discharged into a flue which is used for exhausting fumes
fromappliances burning gas or other fuels.
z
Disposal
Extreme care must be taken when disposing of your old appliance to avoid hazards.
z
When disposing of the dryer, it is recommended that the door is removed to avoid
children getting trapped inside, and that the electrical cable is cut off close to the dryer.
6
INSTALLATION INSTRUCTIONS
Read and follow the ‘Safety and warnings’ and ‘Installation instructions’ sections
carefully before using your dryer!
Accessories
Please check you received the following accessories with your Fisher & Paykel dryer.
Youwill find them inside the drum:
z
1 x Drying rack
z
1 x Installation guide/User guide
z
1 x Wall mounting kit
z
1 x Duct adapter
Unpacking
To ensure the best performance from your new dryer please follow the
instructionsbelow.
Removing the packaging
Remove the outer packaging (including the polystyrene packer and plastic wrapping).
1
All packaging must be removed prior to use.
z
Ensure packaging materials are kept out of reach of children.
z
Help protect the environment and dispose of the packaging fromaround
thedryer in an environmentally friendly manner.
Tilt the dryer backwards and ‘walk’ it off the base one foot at a time.
2
Not doing so may cause damage to your floor and dryer.
Remove all packaging and accessories from inside the drum and ensure
3
you remove protective covers from the door and console.
7
INSTALLATION INSTRUCTIONS
Venting
Correct installation is very important for all dryers to ensure maximum efficiency
andsafety.
Never run the dryer unless the airflow system is free from obstruction.
There must be adequate ventilation to avoid the back flow of gases into the room
fromappliances burning fuels, including open fires, when operating the dryer.
Exhaust air must not be discharged into a flue which is used for exhausting fumes
fromappliances burning gas or other fuels.
External venting
Your dryer has been designed to be vented outside to provide the following advantages:
z
Ensures optimum efficiency by preventing recirculation of moist air.
z
Eliminates condensation on walls and ceilings.
z
Reduces the chance of lint being sucked into the dryer.
z
Prevents lint and other fine particles being blown into the room.
All external venting systems should be:
z
Made from 100mm diameter flexible foil sleeved with a galvanised metal pipe where
thevent system goes through the wall, or 100mm diameter galvanised metal piping.
z
Exhausted outside and not into another confined space, eg the roof cavity of a house.
z
Fitted with a vent cap outside to stop rain water entering the dryer exhaust system.
z
Angled to avoid condensation running back into the dryer.
z
The vent system should be a maximum of 2 metres with no more than three 90⁰ bends.
z
Vent systems over 2 metres long require special installation. Contact a Fisher & Paykel
trained and supported service technician.
Internal venting
The dryer is set up in the factory for front venting. If front venting is used there must be
adequate ventilation to avoid the build up of moisture in the room, which can affect the
performance of the dryer. Venting must comply with local by-laws and regulations.
8
INSTALLATION INSTRUCTIONS
Installation options
There are two different ways your dryer can be positioned.
Freestanding or inverted and mounted on a wall.
Free standing
The dryer stands on the floor and can easily be moved into position.
Move the dryer into the desired position. Do not lift the dryer by the top panel.
1
Have a minimum clearance on all sides of at least 20mm.
2
Have a minimum clearance at the rear of 75mm.
3
The spacers from the accessory wall mounting kit
can be used to set thisdistance.
Install the dryer on a stable and level floor.
4
Free standing venting options
Note: the vent system should be less than twometres
long with no more than three 90⁰ bends.
Before a rear venting option is installed the dryer
must be changed from the front venting factory setup.
Remove the outlet grille from the front left-hand
sideand replace with the outlet cover fromthe rear
left-hand side. These covers should begently pried
atthe sides to prevent damage.

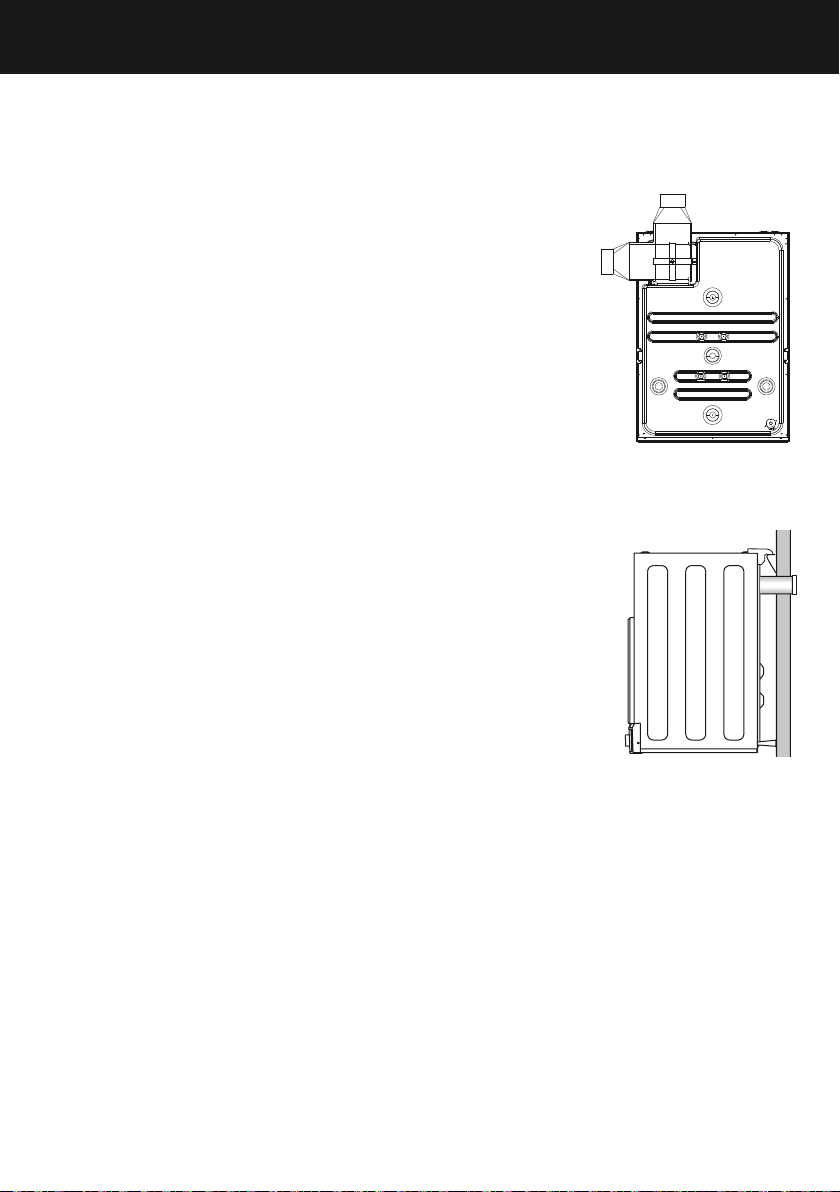

External venting with kit part
number PD-DK4W
External venting
The dryer is vented with a kit that can be positioned
toremove air to the side.
The dryer is vented directly through the wall using
a ducting kit in combination with the duct adaptor
supplied with the dryer.
The dryer is vented through a window using a ducting
kit in combination with the duct adaptor supplied with
the dryer. This requires the dryer to be a minimum
distance of 140mm from the wall to ensure the ducting
is not restricted with tight bends or can be crushed.
Internal venting
Front venting is the only recommended option for
venting into the room. The dryer is set up for front
venting when it leaves the factory.
Note: where possible all efforts should be made to
vent the dryer externally to avoid moisture build up
around the dryer.
External venting with kit part
number PD-SVHCW4
External venting with kit part
number PD-F0408
9
INSTALLATION INSTRUCTIONS
Inverted wall mounting installation
Your dryer has been designed to be inverted and mounted on the
wall above a washer or tub. A wall mounting kit must be used.
Inverting allows access to the dryer control panel.
Tools and parts required:
z
Drill and 3mm bit
z
Phillips head screwdriver.
Wall mounting kit includes:
z
2 x Plastic spacers
z
2 x Wall hanging brackets
z
2 x Hanging hook
z
4 x Wood screws
z
6 x Screws for hanging hooks
and plastic spacers.
Min. 50mm clearance
DE7060P = 618mm
DE7060G = 612mm
10
880mm min. clearance to ceiling
Min. 50mm clearance
Max. lid open height
Inverted wall mounting
Loading...
