DishDrawer

DD36, DD90 models

dishwasher

DD24, DD60

User guide

US CA NZ AU GB IE

This user guide is an accompaniment to your ‘Quick start guide’ which is included with your dishwasher.

For operating instructions, see your ‘Quick start guide’. If you no longer have your ‘Quick start guide’, you can download it from our local website, listed on the back cover.

Refer to your ‘Quick start guide’ for information on:

Starting a wash Wash programs and when to use them Controls Dos and don’ts of loading Preference options and how to change their settings

Contents

Electrical connection (GB IE only) Safety and warnings

Caring for your dinnerware Racking features Loading suggestions Water hardness and dishwashing Wash programs and detergent quantities Adding detergent Using rinse aid Water softener User maintenance instructions Troubleshooting If there is a fault How to attend to a fault

Classic models

Designer models

Integrated models with badge Integrated models with remote control Warranty and service Wash program data Standards test USA and Canada New Zealand and Australia Great Britain and Ireland

2 3

8 12 13 14 16 18 19 22 30 33

34 36 38 40 42 44

52 54 56

Important!

SAVE THESE INSTRUCTIONS

The models shown in this user guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our local website listed on the back cover or contact your local Fisher & Paykel dealer.

Electrical connection (GB IE only)3Safety and warnings

For Great Britain only

Important!

This appliance must be earthed.

Fuse replacement

The mains lead of this appliance is fitted with a BS 1363A 13 A fused plug. To change a fuse in this type of plug, use an ASTA approved fuse to BS 1362 type and proceed as follows:

Remove the fuse cover and fuse.

Fit the replacement 13A fuse into the fuse cover.

Refit both into plug.

Fuse

Important!

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost, the plug must not be used until a correct replacement is fitted. Correct replacements are identified by the colour insert or the colour embossed in words on the base of the plug. Replacement fuse covers are available from your local electrical store.

For the Republic of Ireland

The information given in respect to Great Britain will frequently apply, but a third type of plug and socket is also used: the 2-pin, side earth type.

Fuse cover

Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please contact an Authorised Service Agent. Please do not attempt to change the plug yourself. This procedure must be carried out by a qualified service technician in compliance with the manufacturer’s instructions and current standard safety regulations.

Your dishwasher has been carefully designed to operate safely during normal dishwashing procedures. Please keep the following instructions in mind when you are using your dishwasher.

IMPORTANT SAFETY INSTRUCTIONS

WARNING! - When using your dishwasher, follow basic precautions, including the following: Read all instructions before using the dishwasher. The information in this manual must be followed to minimise the risk of fire or explosion or to prevent property damage, personal injury or loss of life.

Use the dishwasher only for its intended function as described in this user guide and in your

‘Quick start guide’.

This appliance is intended to be used in household and similar applications such as: – staff kitchen areas in shops, offices and other working environments; – farm houses; – by clients in hotels, motels and other residential type environments;

–

bed and breakfast type environments. Use only detergents or rinse aid recommended for use in a domestic dishwasher and keep them out of reach of children. Check that the detergent dispenser is empty after the completion of each wash program. When loading items to be washed, locate sharp items so that they are not likely to damage the internal lid of the dishwasher and load sharp knives with the handle up to reduce the risk of cuttype injuries. Do not touch the filter plate (the round metal disc in the dishwasher base) during or immediately after use, as it may be hot from the heater plate underneath. Do not operate your dishwasher unless all enclosure panels are properly in place. Do not tamper with the controls. Do not abuse, sit on, stand in or on the drawer or dish rack of the dishwasher. The drawer should not be left in the open position since this could present a tripping hazard. The adjustable racks are designed to support cups, glasses and kitchen utensils. When the adjustable racks are in the drawer do not lean on or use them to support your body weight. To reduce the risk of injury, do not allow children to play in or on the dishwasher. Under certain conditions, hydrogen gas may be produced in a hot water heater system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher, turn on all hot water taps and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time. Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if

swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open. Check that the detergent receptacle is empty after completion of the wash cycle.

Safety and warnings

IMPORTANT SAFETY INSTRUCTIONS

Installation

This dishwasher must be installed and located in accordance with the Installation instructions before it is used. If you did not receive Installation instructions with your dishwasher, you can order them by calling your Authorised Repairer or download them from our local Fisher & Paykel website, listed on the back cover. Installation and service must be performed by a qualified technician. If the power supply cord is damaged, it must be replaced by a dealer or Authorised Repairer or a similar qualified trades person in order to avoid a hazard. Ensure the dishwasher is secured to adjacent cabinetry using the brackets provided. Failure to do so may result in an unstable product, which may cause damage or injury. Do not operate this appliance if it is damaged, malfunctioning, partially disassembled or has missing or broken parts, including a damaged power supply cord or plug. Do not store or use petrol, or other flammable vapours and liquids in the vicinity of the dishwasher. Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload. Make sure that the power supply cord is located so that it will not be stepped on, tripped over or otherwise subject to damage or stress. Do not install or store the dishwasher where it will be exposed to temperatures below freezing or exposed to weather. Do not use an extension cord or a portable electrical outlet device (e.g. multi-socket outlet box) to connect the dishwasher to the power supply. This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances. WARNING - Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper outlet installed by a qualified technician. If the dishwasher is installed as a permanently connected appliance: GROUNDING INSTRUCTIONS - This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

Safety and warnings

IMPORTANT SAFETY INSTRUCTIONS

Maintenance

Disconnect the appliance from the power supply before any cleaning or maintenance. When disconnecting the appliance pull the plug rather than the power supply cord or junction of cord to avoid damage. Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in this user guide. We recommend that you contact Customer Care to arrange service. See your ‘Service and warranty’ booklet for contact details. Keep the floor around your appliance clean and dry to reduce the possibility of slipping. Keep the area around/underneath your appliance free from the accumulation of combustible materials, such as lint, paper, rags and chemicals. Models with a remote control: Do not attempt to recharge, short-circuit, disassemble, heat or throw the remote control battery into a fire. Dispose of an old battery responsibly, keeping it out of reach of children.

Operational

Under no circumstances should you open the drawer whilst the dishwasher is in operation. Always press the opening the drawer. The dishwasher must be used with the motor assembly, filter plate, drain filter and spray arm(s) in place. To identify what these parts are, see drawings in section ‘User maintenance instructions’ of this user guide. Take care when loading the drawer not to load dishware items so they prevent the internal lid from properly sealing with the drawer. Items should be placed so they do not protrude above and/or forced into the drawer, otherwise a service call may result. Household appliances are not intended to be played with by children. Children or persons with a disability which limits their ability to use the appliance, should have a responsible person instruct them in its use. The instructor should be satisfied that they can then use the appliance without danger to themselves or their surroundings. Close supervision is necessary if this appliance is used by or near children. Do not allow children

to play inside, on or with this appliance or any discarded appliance.

If a dishwasher cleaner is used, we would strongly recommend a wash program with detergent should be run immediately afterward, to prevent any damage to the dishwasher. The dishwasher is designed for washing normal household utensils. Items that are contaminated by petrol, paint, steel or iron debris, corrosive, acidic or alkaline chemicals are not to be washed in the dishwasher. If the dishwasher is not being used for long periods of time, turn the electricity and water supply to the dishwasher off.

button to pause and wait until you hear the three additional beeps before

Safety and warnings

IMPORTANT SAFETY INSTRUCTIONS

Operational - models with remote control

To prevent unauthorized use, keep the remote control out of reach of children. Make sure that you keep the remote away from water and steam. Do not immerse and take care not to drop the remote control into water. This may damage the parts or lead to malfunction. Damage or malfunction caused by exposure to water or steam is not covered by warranty. Do not drop, step on or otherwise impact the remote control. This may damage the parts or lead to malfunction. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Do not tamper with or modify the remote control or the dishwasher in any way, as doing so will void the certification of the device. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Complies with IDA Standards

DB104887

SAVE THESE INSTRUCTIONS

Caring for your dinnerware

The combination of high temperatures and dishwasher detergent may cause damage to some items if they are washed in the dishwasher. Remember, if in any doubt about any aspect concerning items washed in the dishwasher, follow the instructions from the manufacturer of the items, or wash the item by hand.

Cutlery & silverware

All cutlery and silverware should be rinsed immediately after use to prevent tarnishing caused by some foods. The Rinse wash program is useful for this. Silver items should not come into contact with stainless steel, eg other cutlery. Mixing these items can cause staining. Remove silver cutlery from the dishwasher and hand dry it immediately after the program has finished.

Aluminium

Aluminium can be dulled by dishwasher detergent. The degree of change depends on the quality of the product.

Other metals

Iron and cast iron objects can rust and stain other items. Copper, pewter and brass tend to stain.

Woodware

Wooden items are generally sensitive to heat and water. Regular use in the dishwasher may cause deterioration over time. If in doubt, wash by hand.

Glassware

Most everyday glassware is dishwasher safe. Crystal, very fine and antique glassware may etch that is, become opaque. You may prefer to wash these items by hand.

Plastic

Some plastic may change shape or colour with hot water. Check manufacturer’s instructions about washing plastic items. Washable plastic items should be weighed down so they do not flip over and fill with water or fall through the base rack during the wash. Use the multi-purpose clip (supplied with some models only) to hold plastic items in place.

Decorated items

Most modern china patterns are dishwasher safe. Antique items, those with a pattern painted over the glaze, gold rims or hand painted china may be more sensitive to machine washing. If in doubt, wash by hand.

Glued items

Certain adhesives are softened or dissolved in machine washing. If in doubt, wash by hand.

Racking features

Cutlery basket

To reduce the risk of injury, we recommend loading knives and sharp utensils with handles facing up. Mix spoons, knives and forks within each section to stop cutlery nesting together and to ensure the water circulates freely. Keep stainless steel from touching silver cutlery to avoid staining.

Removable small items container

Small, light items like baby bottle teats are best placed into the small items container to prevent them from being displaced during the wash. You can extend your cutlery basket by clipping the container on its side.

Cutlery baskets will vary depending on model.

Racking features

Removable small items container

To optimise the cutlery space within the basket, the small items container can be placed elsewhere on the base rack. If laid flat, make sure the solid plastic side is facing up. If you place a fully laden small items container under the adjustable racks, it is best to leave the rack space directly above the container empty: there may not be enough water reaching items that are placed there.

Removable tablet tray

If you are using dishwasher tablets, place them on the removable tablet tray, as shown. See also ‘Adding detergent’ for more information.

Important!

Dishwasher tablets should not be in direct contact with dishes or cutlery.

Racking features

Racking features will vary depending on model.

Stemware notches

These notches help support long-stemmed glassware.

Glass supports

These clip on the rack wires to give your tall glasses extra stability.

Spacing-adjustable tines

(DD24/DD60 models only)

Designed to fit deep bowls (wide spacing) or small plates (narrow spacing), depending on adjustment. To adjust between wide and narrow spacings, slide the tines backward or forward by the handle at the front.

Cup rack with folding support wire

(DD36/DD90 models only)

Fold the wire up to support tall glasses.

Racking features

Adjustable racks

You can adjust these independently of each other to any height:

Fold up to unlock the rack.

Adjust the height to suit by sliding up or down.

Fold down to lock in position.

Fold the racks away if you need the space.

Knife clip

This clips onto the adjustable racks and supports knives and other utensils during the wash. Always ensure that knife blades are facing down.

Multi-purpose clip

(DD36/DD90 models only)

This keeps flimsy items (eg plastic lids and bottles) or large platters and plates stable, so they cannot be dislodged during the wash. Slide the item between the prongs of the clip.

Folding tines

For optimum stability, place larger plates between the longer tines in the front. Release and fold the tine sections down towards each other if you need the space for pots or other large items.

Loading suggestions

When loading your drawer, make sure that

you place items so that water coming from the rotating spray arms below can reach all areas

(wash performance will be reduced if it can’t) nothing blocks the water from getting to items on the adjustable racks glass and other fragile items are stable, so that they do not accidentally topple and break during the wash.

How NOT to load your drawer

Overcrowded and wash water will not reach some of the dinnerware. Cups, glasses and bowls must have their openings facing down.

Ensure dishware items are not forced into or protrude out of the drawer, as this may prevent the internal lid of the drawer from properly sealing which could result in a service call. Locate sharp items safely to prevent injuring the user and damaging the lid assembly. Check the bottom of the cutlery basket to ensure sharp or pointed items have not come through as they may stop spray arm rotation.

The plates are nesting together and wash water may not get through. Ensure cutlery are not nesting or stuck together. They need to be evenly spread out.

Ensure cutlery has not fallen through the base rack and stopped the spray arms from rotating. The large bowl is blocking wash water reaching the adjustable racks. Large utensils should be on the adjustable racks so they do not become dislodged and stop the spray arms from rotating. Sharp or pointed items must be placed horizontally or with sharp edges/points facing down to avoid risk of injury.

Water hardness and dishwashing

What is water hardness?

Hard water is water with a high concentration of minerals such as calcium and magnesium. In soft water, this concentration is low. Water hardness varies by geographical location.

How does water hardness affect dishwashing?

Hard water can be detrimental to the performance of your dishwasher. Over time, glassware washed in hard water will become opaque and dishes will become spotted or covered in a white film. Using very hard water can cause dishwasher parts to fail over time. Naturally soft or softened water has no detrimental effects if used with the correct amount of detergent. However, excess detergent combined with hot, soft water may cause irreversible etching on glassware. Etching first appears as a rainbow-coloured film and—if allowed to continue—can make glassware permanently opaque.

What can I do to minimise any detrimental effects?

Contact your local water company to find out about water hardness in your area.

If your home has hard water and your dishwasher has no built-in water softener…

Follow the detergent quantity recommendations on the following pages. If available, use a detergent with high phosphate content. Phosphate softens the water and this improves wash results. If detergent with phosphate is not available, we recommend using multipurpose tablets. Use rinse aid. We recommend you turn the rinse aid setting to 5 to help improve wash performance. Use a dishwasher cleaner/descaler regularly, or whenever you notice a build-up of limescale deposits in your dishwasher.

Important!

We recommend fitting a water softener to the household water supply. If the water hardness in your home is above 250 ppm/14.6 gpg, a water softener has to be fitted to maintain the performance of your dishwasher.

If your home has naturally soft or softened water…

Avoid using too much detergent. Follow the quantity recommendations on the following pages. Ensure the drawer is not overloaded and water can reach all the dishes.

Wash programs and detergent quantities

DD24/DD60 models

Find out about water hardness in your home, then use the table below to determine how much detergent to use for each wash program. See also section ‘Water hardness and dishwashing’. For information on which program to use for your load, see your ‘Quick start guide’. The detergent dispenser has markings to help you measure the correct quantities. See following section ‘Adding detergent’.

SOFTER

HARDER

Water hardness

parts per million (ppm)

grains per gallon (gpg)

<100 ppm or < 6 gpg*

100 -150 ppm or 6 - 9 gpg

>150 ppm or >9 gpg

Wash programs

Detergent quantities (per drawer)

US CA NZ AU GB IE

detergent dispenser

marking

grams grams

Heavy 2/3 25 25

Normal 2/3 25 25

Fast 1/3 10 10

Delicate 1/3 10 10

Rinse --



Heavy full 30

Normal full 30

Fast full 25

Delicate full 30

Rinse --

Heavy full 30

Normal full 30

Fast full 30

Delicate full 30

Rinse --

* If you have a a household water softener installed or your dishwasher has a built-in water softener, use the quantities recommended for water with a hardness under 100 ppm/6 gpg, irrespective of the water hardness

in your area. See also section ‘Water softener’.

Wash programs and detergent quantities

DD36/DD90 models

SOFTER

HARDER

Water hardness

parts per million (ppm)

grains per gallon (gpg)

<100 ppm or < 6 gpg*

100 -150 ppm or 6 - 9 gpg

>150 ppm or >9 gpg

Wash programs

Detergent quantities

US CA NZ AU GB IE

detergent

dispenser

marking

grams grams

Heavy full 30 30

Normal full 25 25

Fast 2/3 15 15

Delicate 2/3 15 15

Rinse --



Heavy full 30

Normal full 30

Fast 2/3 20

Delicate full 30

Rinse --

Heavy full 30

Normal full 30

Fast full 30

Delicate full 30

Rinse --

in your area. See also section ‘Water softener’.

Adding detergent

Suitable detergents and where to place them

Note: You may see other, equally suitable types of dishwasher detergent on the shelves of your supermarket. Read and follow the detergent manufacturer’s recommendations.

Pouch packs of gel or powder

place in detergent dispenser, but

Powdered dishwasher detergent

pour into detergent dispenser

Detergent dispenser

Filling the detergent dispenser

Press the latch down to open the dispenser.

Check that the dispenser is empty and dry,

then add detergent (do not place solid tablets in the dispenser). No detergent is needed for the Rinse program.

Close the dispenser until it clicks shut. The

detergent will automatically be released into the drawer during the wash program.

only if pack fits easily around prongs (pack must not be pierced)

place on tablet tray in cutlery basket

Latch

Solid dishwasher tablets

place on tablet tray in cutlery basket

Tablet tray

If the cutlery basket is not used for a particular load, place tablet or pouch pack in the bottom of the drawer.

Adding detergent

Unsuitable detergents

These types of detergent are not suitable and may damage your dishwasher or lead to a service call that is not covered by warranty.

Important!

Do not use these in your dishwasher! Liquid detergents Laundry detergents Hand washing liquids Soaps Disinfectants

How much detergent to use

For powdered detergent, refer to previous section ‘Wash programs and detergent quantities’ and follow the quantities relevant to your location and water hardness level. Use the markings to help you measure the correct quantities. For other types of detergent, follow the manufacturer’s recommendations.

Full (30 grams)

2/3 (20 grams) 1/3 (10 grams)

Notes on using tablets

If you are using tablets, follow manufacturer instructions on the packet. Some tablets may not be suitable for all wash programs. Using tablets could improve wash performance in hard water areas. Make sure that tablets never get in direct contact with dishes or cutlery. If you are using dishwasher tablets with a built-in rinse aid component, you may need to reduce the rinse aid setting. See your ‘Quick start guide’ for instructions.

Important!

Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children and infirm persons away from the dishwasher when it is open. Check that the detergent dispenser is empty after completion of the wash program.

Using rinse aid

We recommend using liquid rinse aid regularly to give the best drying results. Rinse aid gives a streak-free, sparkling clean look to glass and chinaware. It also prevents metal from tarnishing. The rinse aid dispenser is on the inside of the drawer, underneath the detergent dispenser. It holds approximately 1.7 fl oz / 50 ml of rinse aid. You may hear some unusual, high-pitched beeping when rinse aid is being dispensed. This is normal.

When to refill rinse aid

Indicator

If the indicator glows bright red, refill rinse aid. If the indicator glows dimly or not at all, you do not need to refill: there is enough rinse aid for the wash.

Note: Lighter coloured rinse aids will not dim the indicator as effectively as darker ones.

light

Plug

Turn the plug anticlockwise.

How to refill rinse aid

Turn the plug anticlockwise and remove.

Pour rinse aid into the circular opening, taking care not to spill any

into the drawer.

Important!

Any accidental spillages of rinse aid must be wiped up. If not wiped up, spilt rinse aid will cause excessive foaming, resulting in a service call that will not be covered by warranty.

Refit the plug, then turn it clockwise back to its original position.

Remove the plug

Important!

Make sure that the plug is closed tight, with its hand grip pointing straight ahead.

How much rinse aid to use

You may need to adjust the amount of rinse aid dispensed in each wash to suit your water conditions. The lowest setting is ‘1’, the highest is ‘5’. See the ‘Preference options’ section of your ‘Quick start guide’ for instructions on how to change the rinse aid setting. If there is excessive foam at the end of the wash, reduce the setting.

If dishes are wet or streaky after drying, increase the setting. If you live in a hard water area and you have no water softener installed in your water supply or built into your dishwasher, we recommend adjusting the rinse aid setting to 5.

Pour rinse aid into the circular opening

Refit the plug by turning it clockwise. Ensure it is closed tight.

Water softener

Setting up the water softener

Important!

Only some models (those with a letter ‘H’ in the model name) have a built-in water softener.

Models with water softener are not currently available in New Zealand and Australia.

Determine the water hardness in your local area

Your local water company will be able to provide you with information. Identify the setting you require for your dishwasher from the water hardness table below. For example, if your water hardness is 500ppm, then the water softener setting on your dishwasher should be 4. Refer to the ‘Preference options’ section of your ‘Quick start guide’ for instructions on adjusting the water softener setting.

Dishwasher setting

Parts per million

Grains per gallon (gpg)

e / oClark mmol/l

(ppm)

0 0 - 100 0 - 6 0 - 5.6 0 - 10 0 - 7 0 - 0.1

1 100 - 250 6 - 14 5.6 - 14 10 - 25 7 - 17.5 0.1 - 2.5

2 250 - 350 14 - 20 14 - 19.6 25 - 35 17.5 - 24.5 2.5 - 3.5

3 350 - 450 20 - 26 19.6 - 25.2 35 - 45 24.5 - 31.5 3.5 - 4.5

4 450 - 550 26 - 32 25.2 - 30.8 45 - 55 31.5 - 38.5 4.5 - 5.5

5 550 - 625 32 - 36 30.8 - 35 55 - 62 38.5 - 43.8 5.5 - 6.2

Water softener

Notes: If your water hardness is above 625ppm/36 gpg, we highly recommend you completely fill the

detergent dispenser for all programs except Rinse and the rinse aid setting should be at 5. If your water hardness is above 625ppm/36 gpg, the wash performance of your dishwasher will decline. You may hear some unusual noises when the water softener is in operation, this is normal.

How to fill the salt reservoir

Open the drawer(s).

Unscrew the salt reservoir cap by turning anticlockwise.

Place the salt into the salt container and pour the contents into the salt reservoir.

The salt reservoir can hold up to approximately 1 lb/0.5 kg of salt.

Fit the cap tightly back into its original position.

If you do not wash your dishes immediately after filling the salt reservoir, run a Rinse program to

remove any salt water or spilt granules.

Note: When filling the salt reservoir, you may notice water being displaced from the water softener overflow.

Salt container

Salt reservoir

Water softener

Important!

The water softener must always be filled with granular salt made especially for dishwasher water softening systems. We do not recommend the use of cooking salt like table salt, rock salt or pellets as they may contain impurities that will impair or diminish the life of the water softener.

The salt reservoir

Water softening can only take place when there is salt in the reservoir. The salt reservoir must be filled prior to using the dishwasher and whenever the salt indicator light is red.

Salt indicator light

If the salt indicator light is red, the salt reservoir is empty. If the salt indicator light is black, there is enough salt in the reservoir for the wash program that has been selected. Classic models only: The electronic display will also indicate when the salt reservoir is empty by displaying the salt

symbol.

Important!

Do not pour detergent or rinse aid into the salt reservoir. Detergent and rinse aid will destroy the water softener.

a Salt indicator light b Salt reservoir cap

Salt only

NO Detergent NO Rinse Aid

User maintenance instructions - DD24/DD60 models

Important!

Disconnect the dishwasher from the power supply (unplug or switch off at the circuit breaker) and allow all its parts to cool before any cleaning or maintenance.

Holiday time

If the dishwasher is not going to be used for some time, we recommend you leave it clean and empty. Leave the drawer(s) ajar to allow air to circulate. Turn off both the power and water supply to the dishwasher. When using your dishwasher for the first time after a long period away, we recommend pouring 3 cups of water into the drawer before loading and starting a wash. This is to lubricate components that may have dried out during non-use.

Cleaning the surfaces

Wipe with a clean damp cloth. Take care not to wet the control panel.

Dry with a clean lint-free cloth.

Important!

We do not recommend the use of the following cleaning aids on your dishwasher as they may damage the surfaces:

Plastic or stainless steel scouring pads Acid or alkaline cleaners Stainless steel cleaners or polishes

Abrasive, solvent, household cleaners Hand washing liquids or soap Laundry detergents or disinfectants

Cleaning the drain filter, spray arm and filter plate

We recommend that the drain filter is cleaned whenever there is evidence of food particles. The spray arm may need cleaning about once a month in normal use or more often should the need arise. The filter plate should not normally need cleaning. Food particles remaining on its surface can be wiped off with a clean, damp cloth.

Spray arm

Filter plate

Drain filter

User maintenance instructions - DD24/DD60 models

Important !

If a dishwasher cleaner/descaler is used, you must run a wash program with detergent immediately afterward to prevent any damage to your dishwasher.

The dishwasher must be used with the filter plate, drain filter and spray arm correctly in place.

Cleaning the drain filter

Unplug the dishwasher or turn it off at the power supply.

To access the drain filter, lift up the plastic grid above it, as shown.

Lift and remove the drain filter. It is normal to find some water under it.

Empty, rinse clean under running water and replace back into the allocated space.

Ensure the drain filter is flush with the filter plate , then lower the plastic grid back into place.

Plug the dishwasher back in or turn it on at the power supply.

User maintenance instructions - DD24/DD60 models

Cleaning the spray arm and filter plate

To remove and clean the spray arm and filter plate

Unplug the dishwasher or turn it off at the power

supply.

Unclip the glass supports (if fitted) from the rack

wires and fold all the adjustable racks away, so that they are upright and close to the top.

Remove the base rack carefully. Lift from the back end first to prevent knocking the detergent and rinse aid dispenser.

Lift the spray arm and shake any foreign material out. Rinse it clean under running water and wipe with a damp cloth.

Lift and remove the drain filter.

In the centre of the filter plate there are two rings. Turn the outer ring anticlockwise, about a 1/8

turn. This will release the filter plate.

Lift the filter plate out. Remove any foreign material, wash in hot soapy water and rinse

thoroughly in clean water, then wipe with a damp cloth. Take care handling the sharp outer edge of the filter plate.

Turn outer ring 1/8 turn

User maintenance instructions - DD24/DD60 models

To replace the filter plate and spray arm

Before replacing the filter plate, ensure the O-ring is correctly positioned on the base, as shown.

Orientate the filter plate and lower it into place: make sure its kidney-shaped hole aligns with the matching recess in the dishwasher base.

Ensure the filter plate lies flat in the base, then lock it into position: turn the outer ring clockwise until the the marks align with each other and all three pin pairs firmly interlock, as shown.

Important!

The filter plate must not be able to move about freely.

O-ring

Alignment marks

Replace the drain filter, ensuring it is flush with the filter plate.

Replace the spray arm back onto the impeller.

Interlocking pin

Outer ring

Replace the base rack, lowering its front edge into position first.

Plug the dishwasher back in or turn it on at the power supply.

Note: Where there is broken crockery or glass in the drawer, it must be carefully removed to prevent damage to the dishwasher.

User maintenance instructions - DD36/DD90 models

Important!

Disconnect the dishwasher from the power supply (unplug or switch off at the circuit breaker) and allow all its parts to cool before any cleaning or maintenance.

Holiday time

If the dishwasher is not going to be used for some time, we recommend you leave it clean and empty. Leave the drawer ajar to allow air to circulate. Turn off both the power and water supply to the dishwasher. When using your dishwasher for the first time after a long period away, we recommend pouring 3 cups of water into the drawer before loading and starting a wash. This is to lubricate components that may have dried out during non-use.

Cleaning the surfaces

Wipe with a clean damp cloth. Take care not to wet the control panel.

Dry with a clean lint-free cloth.

Important!

We do not recommend the use of the following cleaning aids on your dishwasher as they may damage the surfaces:

Plastic or stainless steel scouring pads Acid or alkaline cleaners Stainless steel cleaners or polishes

Abrasive, solvent, household cleaners Hand washing liquids or soap Laundry detergents or disinfectants

Cleaning the drain filter, spray arm and filter plate

Filter plate

Wash pump housing

Spray arm

Drain filter

User maintenance instructions - DD36/DD90 models

Important !

If a dishwasher cleaner/descaler is used, you must run a wash program with detergent immediately afterward to prevent any damage to your dishwasher.

The dishwasher must be used with the filter plate, drain filter and spray arms correctly in place.

Cleaning the drain filter

Unplug the dishwasher or turn it off at the power supply.

Ensure the tines above the drain filter are in the upright position.

Lift and remove the drain filter. It is normal to find some water under it.

Empty, rinse clean under running water and replace back into the allocated space.

Ensure the drain filter is flush with the filter plate.

Plug the dishwasher back in or turn it on at the power supply.

User maintenance instructions - DD36/DD90 models

Cleaning the spray arms and filter plate

Ensure the dishwasher is cool before you start cleaning.

To remove the base rack and spray arms

Unplug the dishwasher or turn it off at the power supply.

Take out the cutlery basket.

Unclip the glass supports (if fitted) from the rack wires and fold all the adjustable racks away, so

that they are upright and close to the top.

Fold down all the tines.

Remove the base rack carefully. Start lifting from the back first, tilting the rack as needed to clear

the adjustable racks and the dispenser in the front.

Unclip the spray arms off their mounting valves and shake any foreign material out.

Rinse the spray arm clean under running water and wipe with a damp cloth.

If necessary, wipe any soiling off the filter plate with a clean, damp cloth.

Wash pump housing

Spray arm

Mounting valve

Filter plate

User maintenance instructions - DD36/DD90 models

To replace the spray arms and base rack

Clip the spray arms back onto their mounting valves. Be careful that you don’t force them too

hard and apply too much pressure on the wash pump housing. You should hear them click into

place. Rotate them with your hand to check that they are located properly.

Replace the base rack, lowering its front edge into position first.

Clip the glass supports back on and arrange the racking back to your preference.

Plug the dishwasher back in or turn it on at the power supply.

Note: Where there is broken crockery or glass in the drawer, it must be carefully removed to prevent damage to the dishwasher.

Troubleshooting

Problem Possible cause What to do

Unclean dishes

Foaming Incorrect amount of

Water leaking Drain hose disconnected

Wash program unsuitable for the load.

Spray arm unable to rotate. Ensure no items are obstructing the spray

Drawer overloaded/ incorrectly loaded.

Filter plate/drain filter is incorrectly inserted.

Detergent put in the wrong compartment of the dispenser.

Excess food not removed from dinnerware prior to loading.

Unsuitable detergent. Use detergents suitable for automatic

Not enough detergent. See section ‘Wash programs and detergent

Spray arm holes are blocked. Clean the spray arm.

Filter plate/drain filter is blocked.

detergent.

Too much egg in the wash load.

Rinse aid setting too high. Decrease the rinse aid setting. Rinse aid dispenser plug not

closed properly.

from waste pipe. Water inlet hose not

properly connected. Other leaks. Turn water and power supplies to the

Rinse aid dispenser plug not closed properly.

See your ‘Quick start guide’ for a suitable wash program, or the soils were too heavily baked on and dishes may need soaking.

arm path. Refer to the section on loading.

See section ‘User maintenance instructions’.

Detergent must be placed in the large compartment. See section ‘Adding detergent’ for information.

Scrape all food scraps off dinnerware prior to loading.

dishwashers. See section ‘Adding detergent’ for examples of suitable and unsuitable detergents.

quantities’ or follow the detergent manufacturer’s instructions.

Clean the filter plate and drain filter.

See section ‘Wash programs and detergent quantities’ or follow the detergent manufacturer’s instructions.

Increase the amount of detergent.

Ensure that the rinse aid dispenser plug is closed tight, with its hand grip pointing straight ahead. See section ‘Using rinse aid’.

Reconnect the drain hose to the waste pipe.

Ensure the inlet hose is connected securely.

dishwasher off. Call Customer Care or your Authorised Service Centre. See your ‘Service and warranty’ booklet for contact details.

Ensure that the rinse aid dispenser plug is closed tight, with its hand grip pointing straight ahead. See section ‘Using rinse aid’.

Troubleshooting

Problem Possible cause What to do

Drawer will not open (no beeping, no wash underway)

Power failure during cycle

Childlock feature is on or the ‘Closed drawer autolock’ option is on, or both.

Power outage in your home or area.

Turn the Childlock off. Hold down the button until the symbol disappears from the display or the light above the button goes out and/or press the / button to open the drawer.

Wait until power resumes, cycle will restart in same part of wash program.

Continuous beeping

Intermittent beeping

High-pitched, subtle beeping during a wash program

Control buttons inside the drawer do not respond to touch

Dishwasher will not start

Fan noise coming from the dishwasher after a wash program has finished

Fan noise starts up when I close the drawer, even though I didn’t start a new wash

A fault has occurred. Refer to section ‘If there is a fault’.

Dishwasher is in pause mode.

Rinse aid is being dispensed.

Water over control buttons. Wipe the area dry.

Power supply is not connected.

The drawer is not closed properly.

Models with three buttons on the front only: Keylock or

Childlock feature is on.

button not pressed.

This is normal. The drying fan continues to run for a set period of time after a program has finished to assist with drying.

This is normal. In some cases, the drying fan will run whenever the drawer is closed for a set period of time after a program has finished.

Close the dishwasher and press the button to resume the program.

This is normal and needs no action.

Connect the power supply.

Ensure the drawer is firmly closed.

Turn the Keylock or Childlock off. Hold down the disappears from the display or the light above the

Press the

No action required. The fan will automatically stop after the set time is over, or when the drawer is opened. In some cases, the fan may resume when the drawer is closed again.

No action required. The fan will automatically stop after the set time is over.

/ button until the symbol

/ button goes out.

button.

Troubleshooting

Problem Possible Cause What to do

The wash program seems to have finished (the dishwasher is idle), but the end of wash beeps haven’t sounded and the drawer cannot be opened

Water pooling on inner rim of drawer after a wash

Water under the drain filter

Excess water in the drawer

Water marks on the dishes

Drawer interior is stained

Dishes did not dry Incorrect loading. Ensure the dishes are not nesting together.

No detergent dispensed

Excessive motor noise

The wash program is still underway. It is in a ‘quiet’ phase that is needed for ensuring the best wash results.

This is normal condensation. If there is any water over the control buttons,

This is normal and needs no action.

Drain hose(s) bent or kinked.

Blocked filters. Clean the filter plate/drain filter. Refer to

Rinse aid depleted. Refill the rinse aid dispenser.

Rinse aid setting too low. Increase the rinse aid setting.

Dishwasher overloaded/ incorrectly loaded.

Some foods, like tomato based products, may stain the inside of the drawer.

Dishes were left in the drawer for several hours after a wash.

Rinse aid depleted. Refill the rinse aid dispenser.

Rinse aid setting too low. Increase the rinse aid setting.

Eco wash program used. Choose a standard wash program.

Detergent dispenser was wet when loaded.

The filter plate and/or spray arm is incorrectly placed.

No water in the motor area. This usually occurs on the first use or when

No action required. The program will transition into a more audible phase after the ‘quiet’ phase is over.

wipe dry.

Straighten the drain hose(s).

’User maintenance instructions’.

Refer to the section on loading.

Pre-rinse dishes before placing in the drawer. Alternatively, using the Rinse program after adding the dishes may minimise staining.

We recommend unloading the dishes within a few hours after a wash program has finished, as the small amount of vapour left after the wash may -with time- resettle on dishes as condensation. Using rinse aid or increasing its setting may also help reduce this problem.

Clean the dispenser and ensure it is dry before adding detergent.

Refer to the ‘User maintenance instructions’ section for details on correct placement.

the dishwasher has not been used for long periods of time. Pour 3 cups of water into the drawer before running a wash program.

If there is a fault

How do I know if there is a fault?

Your dishwasher will self‐diagnose and let you know by beeping continuously and showing a fault code on the wash program panel inside the drawer (all models) and in the display (Classic models only) .

What should I do if there is a fault?

Check what kind of model you have and attend to the fault by following the appropriate flowchart following. You may be able to fix some of the faults yourself – with others, you will need to contact Fisher & Paykel Customer Care to organise a visit by a service technician.

Classic models

Go to Page 34

Designer models

Go to Page 36

Integrated models with badge

Go to Page 38

Integrated models with remote control

Go to Page 40

How to attend to a fault ‐ Classic models

START HERE

Press to stop the beeping.

Look up the fault code in the table opposite and note it down.

If it’s a ‘U’ code

U1: Turn on the water supply, then press

program.

U4: Attend to the fault on the other drawer. The drawer displaying U4 is not faulty.

U6: Open the drawer and check the spray arm.

Has the spray arm loosened or come off its mounting?

Refit the spray arm following instructions in section ‘User maintenance instructions’, then close the drawer and press the wash program.

to resume

Has the fault code disappeared? Has the dishwasher resumed normal operation?

You have corrected the fault and can continue to use your dishwasher as normal.

to resume the wash

Water pressure is too low. You may need to have a ‘4 litre’ valve installed on your water supply.

YES

If it’s an ‘E’ code

Press press

NOYES

Press briefly appear in the display. Note this number down too. It will help Fisher & Paykel Customer Care identify the fault more precisely.

Disconnect the dishwasher from the power supply (unplug or switch off at circuit breaker), turn off its water supply, then contact Customer Care with the fault code information. See your ‘Service and warranty’ booklet for contact details.

. Wait a few seconds, then

again.

Has the fault code disappeared?

YES

The fault has reset. You can

. Another number will

continue to use your dishwasher.

How to attend to a fault ‐ Classic models

Display Fault Code Possible cause of fault

U1 No water – the water supply hasn’t been

U4 Fault in the other drawer preventing the

U6 The spray arm has loosened or come off

Display Fault Code Possible cause of fault

E1 Flood detected.

turned on.

use of this drawer.

its mounting, or water pressure is too low.

E2 Motor fault.

E3 Temperature sensor fault. You may need

to have a tempering valve installed on your water supply, to ensure that incoming water is less than 65

C (149oF).

E4 Heating element failed.

E5 Fault with the internal lid of the

dishwasher.

E6 Fault with the drying fan.

E7 Electronics fault—detergent dispensing

system.

E8 Electronics fault—other systems.

E9 Electronics fault—controller.

EC Electronics fault—communication

between drawers.

How to attend to a fault ‐ Designer models

START HERE

Press

Try to open the drawer (without using excessive force).

to stop the beeping.

Can the drawer be opened?

Check which program indicators are lit on the wash program panel. Look up what fault code the indicators correspond to in the table opposite. Note down the code here:

If it’s a ‘U’ code

U1: Turn on the water supply, then press

program.

U4: Attend to the fault on the other drawer. The drawer displaying U4 is not faulty.

U6: Open the drawer and check the spray arm.

Has the spray arm loosened or come off its mounting?

Refit the spray arm following instructions in section ‘User maintenance instructions’, then close the drawer and press

to resume the wash

program.

You have corrected the fault and can continue to use your dishwasher as normal.

to resume the wash

NOYES

Water pressure is too low. You may need to have a ‘4 litre’ valve installed on your water supply.

Has the fault code disappeared? Has the dishwasher resumed normal operation?

YES

If it’s an ‘E’ code

Press . Wait a few seconds, then press

again.

Is the light above the button still red?

YES

Press

. The Eco indicator and another set of program indicators will briefly light up on the wash program panel. Mark which ones in the diagram below. This information will help Fisher & Paykel identify the fault more precisely. Which other indicators light up

when you press

Disconnect the dishwasher from the power supply (unplug or switch off at circuit breaker), turn off its water supply, then contact Customer Care with the

fault code information. See your ‘Service and warranty’ booklet for contact details.

Press seconds, then press

Is the light above the button still red?

NO, IT’S BLUE

. Wait a few

again.

IT’S BLUE

The fault has reset and you should now be able to open the drawer. You can continue to use it as normal.

YESNO,

How to attend to a fault ‐ Designer models

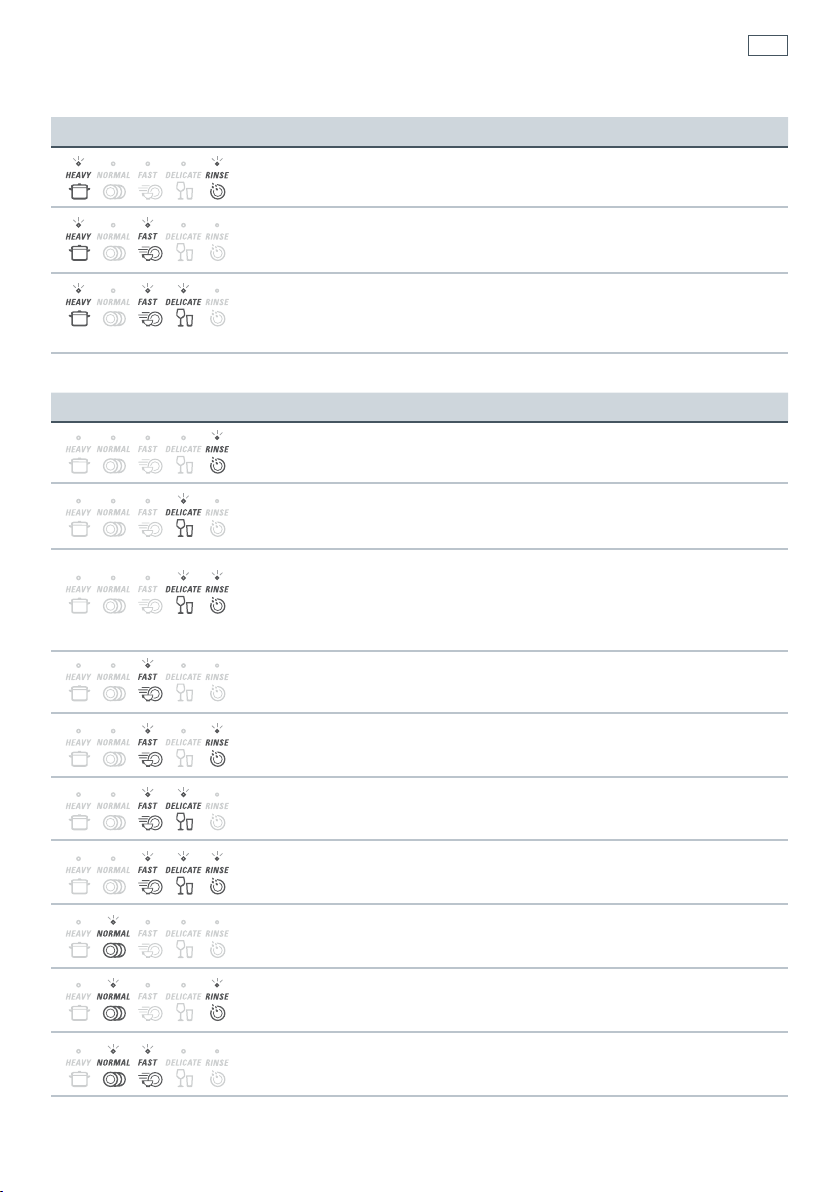

Wash program panel Fault Code Possible cause of fault

U1 No water – the water supply hasn’t been

turned on.

U4 Fault in the other drawer preventing the

use of this drawer.

U6 The spray arm has loosened or come off

its mounting, or water pressure is too low.

Wash program panel Fault Code Possible cause of fault

E1 Flood detected.

E2 Motor fault.

E3 Temperature sensor fault. You may need

to have a tempering valve installed on your water supply, to ensure that incoming water is less than 65

C (149oF).

E4 Heating element failed.

E5 Fault with the internal lid of the

dishwasher.

E6 Fault with the drying fan.

E7 Electronics fault—detergent dispensing

system.

E8 Electronics fault—other systems.

E9 Electronics fault—controller.

EC Electronics fault—communication

between drawers.

START HERE

Press

Try to open the drawer (without using excessive force).

to stop the beeping.

How to attend to a fault ‐ Integrated models with badge

Can the drawer be opened?

Check which program indicators are lit on the wash program panel. Look up what fault code the indicators correspond to in the table opposite. Note down the code here:

If it’s a ‘U’ code

U1: Turn on the water supply, then press

program.

U4: Attend to the fault on the other drawer. The drawer displaying U4 is not faulty.

U6: Open the drawer and check the spray arm.

Has the spray arm loosened or come off its mounting?

Refit the spray arm following instructions in section ‘User maintenance instructions’, then close the drawer and press

to resume the wash

program.

You have corrected the fault and can continue to use your dishwasher as normal.

to resume the wash

NOYES

Water pressure is too low. You may need to have a ‘4 litre’ valve installed on your water supply.

Has the fault code disappeared? Has the dishwasher resumed normal operation?

YES

If it’s an ‘E’ code

Press seconds, then press

Is the light above the button still red?

YES

Press of program indicators will briefly light up on the wash program panel. Mark which ones in the diagram below. This information will help Fisher & Paykel identify the fault more precisely. Which other indicators light up

when you press

Disconnect the dishwasher from the power supply (unplug or switch off at circuit breaker), turn off its water supply, then contact Customer Care with the

fault code information. See your ‘Service and warranty’ booklet for contact details.

. Wait a few

again.

. The Eco indicator and another set

Press seconds, then press

Is the light above the button still red?

NO, IT’S GREEN

. Wait a few

again.

GREEN

The fault has reset and you should now be able to open the drawer. You can continue to use it as normal.

NO, IT’S

YES

How to attend to a fault ‐ Integrated models with badge

Wash program panel Fault Code Possible cause of fault

U1 No water – the water supply hasn’t been

turned on.

U4 Fault in the other drawer preventing the

use of this drawer.

U6 The spray arm has loosened or come off

its mounting, or water pressure is too low.

Wash program panel Fault Code Possible cause of fault

E1 Flood detected.

E2 Motor fault.

E3 Temperature sensor fault. You may need

to have a tempering valve installed on your water supply, to ensure that incoming water is less than 65

C (149oF).

E4 Heating element failed.

E5 Fault with the internal lid of the

dishwasher.

E6 Fault with the drying fan.

E7 Electronics fault—detergent dispensing

system.

E8 Electronics fault—other systems.

E9 Electronics fault—controller.

EC Electronics fault—communication

between drawers.

How to attend to a fault ‐ Integrated models with remote control

START HERE

Try to open the drawer (without using excessive force).

Can the drawer be opened?

YES

Check which program indicators are lit on the wash program panel.

If it’s a ‘U’ code

Press program panel to stop the beeping, then follow the applicable instructions below.

Refit the spray arm following instructions in section ‘User maintenance instructions’, then close the drawer and press

program.

on the wash

U1: Turn on the water supply, press resume the wash program.

U4: Attend to the fault on the other drawer. The drawer displaying U4 is not faulty.

U6: Open the drawer and check the spray arm.

Has the spray arm loosened or come off its mounting?

to resume the wash

, then close the drawer to

YES

Look up what fault code the indicators correspond to in the table opposite. Note down the code here:

Water pressure is too low. You may need to have a ‘4 litre’ valve installed on your water supply.

Press The Eco indicator and another set of program indicators will briefly light up. Mark which ones in the diagram below. This information will help Fisher & Paykel identify the fault more precisely. Which other indicators light up when you press

Disconnect the

Press and hold hear a quick double beep. Do the fault code indicators and beeping come back in a few seconds?

YES

on the wash program panel.

dishwasher from the power supply to stop the beeping, then contact Customer Care. See your ‘Service and warranty’ booklet for contact details.

If it’s an ‘E’ code

until you

You have corrected the fault and can continue to use your dishwasher as normal.

Has the fault code disappeared? Has the dishwasher resumed normal operation?

YES

You have corrected the fault and can continue to use your dishwasher as normal.

Disconnect the dishwasher from the power supply (unplug or switch off at

circuit breaker), turn off its water supply, then contact Customer Care with the fault code information. See your ‘Service and warranty’ booklet for contact details.

How to attend to a fault ‐

Integrated models with remote control

Wash program panel Fault Code Possible cause of fault

U1 No water – the water supply hasn’t been

turned on.

U4 Fault in the other drawer preventing the

use of this drawer.

U6 The spray arm has loosened or come off

its mounting, or water pressure is too low.

Wash program panel Fault Code Possible cause of fault

E1 Flood detected.

E2 Motor fault.

E3 Temperature sensor fault. You may need

to have a tempering valve installed on your water supply, to ensure that incoming water is less than 65

C (149oF).

E4 Heating element failed.

E5 Fault with the internal lid of the

dishwasher.

E6 Fault with the drying fan.

E7 Electronics fault—detergent dispensing

system.

E8 Electronics fault—other systems.

E9 Electronics fault—controller.

EC Electronics fault—communication

between drawers.

Warranty and service

Before you call for service or assistance ...

Check the things you can do yourself. Refer to the ‘Installation instructions’, ‘User guide’ and ‘Quick start guide’ and check that:

your product is correctly installed

you are familiar with its normal operation.

If after checking these points you still need assistance, please see you ‘Service and warranty’ booklet for warranty information and Customer Care contact details, or contact us through our website listed on the back cover.

Fisher & Paykel Appliances

Model no Serial no. Copy this from the serial label of your dishwasher.

The label is located inside cabinet, underneath the (top) drawer.

Date of purchase

Contact details Dealer name

Wash program data - DD24/DD60 models

For information on which program to use for your load, see your ‘Quick start guide’.

Wash cycle times indicated are approximate.

USA & CANADA - Classic, Designer, and Integrated double models

HEAVY

(~127 mins)

NORMAL

(~128 mins)

FAST

(~53 mins)

DELICATE

(~82 mins)

pre-wash 120oF pre-wash

main wash 150

F main wash 130oF main wash 130oF main wash 120oF

post-rinse x3 post-rinse post-rinse post-rinse x2

final rinse 163

F final rinse 130oF final rinse 120oF final rinse 130oF

drying phase drying phase drying phase

HEAVY ECO

(~107 mins)

NORMAL ECO

(~100 mins)

FAST ECO

(~35 mins)

DELICATE ECO

(~68 mins)

main wash 150oF main wash 120oF main wash 115oF main wash 115oF

post-rinse x3 post-rinse post-rinse post-rinse x2

final rinse 150

F final rinse 125oF final rinse 115oF final rinse 120oF

drying phase drying phase drying phase

RINSE

(~11 mins)

USA & CANADA - Integrated single models

HEAVY

(~163 mins)

NORMAL

(~164 mins)

FAST

(~82 mins)

DELICATE

(~118 mins)

pre-wash 120oF pre-wash

main wash 150

F main wash 130oF main wash 130oF main wash 120oF

post-rinse x3 post-rinse post-rinse post-rinse x2

final rinse 135

F final rinse 130oF final rinse 120oF final rinse 130oF

drying phase drying phase drying phase drying phase

HEAVY ECO

(~158 mins)

NORMAL ECO

(~133 mins)

FAST ECO

(~62 mins)

DELICATE ECO

(~99 mins)

main wash 150oF main wash 120oF main wash 115oF main wash 115oF

post-rinse x3 post-rinse post-rinse post-rinse x2

final rinse 135

F final rinse 125oF final rinse 115oF final rinse 120oF

drying phase drying phase drying phase drying phase

RINSE

(~11 mins)

Wash program data- DD24/DD60 models

NEW ZEALAND & AUSTRALIA - Classic, Designer, and Integrated double models

HEAVY

(~124 mins)

main wash 70

post-rinse x2 post-rinse post-rinse post-rinse x2

final rinse 65

drying phase drying phase drying phase

HEAVY ECO

(~120 mins)

main wash 65oC main wash 40oC main wash 45oC main wash 45oC

post-rinse x2 post-rinse post-rinse post-rinse x2

final rinse 55

drying phase drying phase drying phase

NORMAL

(~128 mins)

C main wash 60oC main wash 55oC main wash 50oC

C final rinse 60oC final rinse 55oC final rinse 60oC

NORMAL ECO*

(~149 mins)

C final rinse 40oC final rinse 45oC final rinse 50oC

FAST

(~49 mins)

FAST ECO

(~33 mins)

DELICATE

(~92 mins)

DELICATE ECO

(~80 mins)

RINSE

(~11 mins)

pre-wash

NEW ZEALAND & AUSTRALIA - Integrated single models

HEAVY

(~170 mins)

main wash 70

NORMAL

(~174 mins)

C main wash 60oC main wash 55oC main wash 50oC

FAST

(~83 mins)

DELICATE

(~128 mins)

post-rinse x2 post-rinse post-rinse post-rinse x2

final rinse 57

C final rinse 57oC final rinse 55oC final rinse 57oC

drying phase drying phase drying phase drying phase

HEAVY ECO

(~166 mins)

NORMAL ECO*

(~189 mins)

FAST ECO

(~60 mins)

DELICATE ECO

(~111 mins)

main wash 65oC main wash 40oC main wash 45oC main wash 45oC

post-rinse x2 post-rinse post-rinse post-rinse x2

final rinse 55

C final rinse 40oC final rinse 45oC final rinse 50oC

drying phase drying phase drying phase drying phase

*Reference program for energy label in compliance with AS/NZS 2007.

RINSE

(~11 mins)

pre-wash

Wash program data - DD24/DD60 models

GREAT BRITAIN AND IRELAND

HEAVY

(~126 mins)

main wash 70

NORMAL

(~95 mins)

C main wash 65oC main wash 55oC main wash 50oC

FAST

(~53 mins)

DELICATE

(~92 mins)

post-rinse x2 post-rinse x2 post-rinse post-rinse x2

final rinse 65

C final rinse 65oC final rinse 50oC final rinse 60oC

drying phase drying phase drying phase

HEAVY ECO

(~121 mins)

NORMAL ECO*

(~159 mins)

FAST ECO

(~39 mins)

DELICATE ECO

(~87 mins)

main wash 60oC main wash 50oC main wash 45oC main wash 45oC

post-rinse x2 post-rinse post-rinse post-rinse x2

final rinse 55

C final rinse 60oC final rinse 45oC final rinse 50oC

drying phase drying phase drying phase

*Reference program for energy label in compliance with EN50242 Regulations.

RINSE

(~11 mins)

pre-wash

Note:

Wash times can vary depending on the incoming water temperature, ambient conditions, type of dish load and whether the drawer has been opened during the wash. Wash times are only APPROXIMATE on the electronic display and based on 120 Zealand and Australia), or 15

C (Great Britain and Ireland) incoming water.

F (USA and Canada), 20oC (New

Wash program data - DD36/DD90 models

For information on which program to use for your load, see your ‘Quick start guide’.

Wash cycle times indicated are approximate.

USA & CANADA - Designer models

HEAVY

(~141 mins)

NORMAL

(~148 mins)

FAST

(~58 mins)

DELICATE

(~85 mins)

pre-wash 120oF pre-wash

main wash 150

F main wash 140oF main wash 130oF main wash 120oF

post-rinse x3 post-rinse x3 post-rinse post-rinse x2

final rinse 163

F final rinse 150oF final rinse 140oF final rinse 130oF

drying phase drying phase drying phase

HEAVY ECO

(~135 mins)

NORMAL ECO

(~113 mins)

FAST ECO

(~39 mins)

DELICATE ECO

(~60 mins)

pre-wash

main wash 140

F main wash 120oF main wash 115oF main wash 115oF

post-rinse x3 post-rinse post-rinse post-rinse x2

final rinse 150

F final rinse 150oF final rinse 115oF final rinse 120oF

drying phase drying phase drying phase

RINSE

(~9 mins)

USA & CANADA - Integrated models

HEAVY

(~179 mins)

NORMAL

(~186 mins)

FAST

(~94 mins)

DELICATE

(~122 mins)

pre-wash 120oF pre-wash

main wash 150

F main wash 140oF main wash 130oF main wash 120oF

post-rinse x3 post-rinse x3 post-rinse post-rinse x2

final rinse 135

F final rinse 135oF final rinse 135oF final rinse 130oF

drying phase drying phase drying phase drying phase

HEAVY ECO

(~173 mins)

NORMAL ECO

(~151 mins)

FAST ECO

(~72 mins)

DELICATE ECO

(~95 mins)

pre-wash

main wash 140

F main wash 120oF main wash 115oF main wash 115oF

post-rinse x3 post-rinse post-rinse post-rinse x2

final rinse 135

F final rinse 135oF final rinse 115oF final rinse 120oF

drying phase drying phase drying phase drying phase

RINSE

(~9 mins)

Wash program data- DD36/DD90 models

NEW ZEALAND & AUSTRALIA - Designer models

HEAVY

(~130 mins)

main wash 70

post-rinse x2 post-rinse post-rinse post-rinse x2

final rinse 65

drying phase drying phase drying phase

HEAVY ECO

(~129 mins)

main wash 60oC main wash 42oC main wash 45oC main wash 45oC

post-rinse x2 post-rinse post-rinse post-rinse x2

final rinse 55

drying phase drying phase drying phase

NORMAL

(~120 mins)

C main wash 50oC main wash 55oC main wash 50oC

C final rinse 60oC final rinse 60oC final rinse 60oC

NORMAL ECO*

(~146 mins)

C final rinse 43oC final rinse 45oC final rinse 50oC

FAST

(~55 mins)

FAST ECO

(~45 mins)

DELICATE

(~98 mins)

DELICATE ECO

(~91 mins)

RINSE

(~11 mins)

pre-wash

NEW ZEALAND & AUSTRALIA - Integrated models

HEAVY

(~168 mins)

main wash 70

NORMAL

(~158 mins)

C main wash 50oC main wash 55oC main wash 50oC

FAST

(~91 mins)

DELICATE

(~136 mins)

post-rinse x2 post-rinse post-rinse post-rinse x2

final rinse 57

C final rinse 57oC final rinse 57oC final rinse 57oC

drying phase drying phase drying phase drying phase

HEAVY ECO

(~166 mins)

NORMAL ECO*

(~177 mins)

FAST ECO

(~78 mins)

DELICATE ECO

(~126 mins)

main wash 60oC main wash 42oC main wash 45oC main wash 45oC

post-rinse x2 post-rinse post-rinse post-rinse x2

final rinse 55

C final rinse 43oC final rinse 45oC final rinse 50oC

drying phase drying phase drying phase drying phase

*Reference program for energy label in compliance with AS/NZS 2007.

RINSE

(~11 mins)

pre-wash

Wash program data - DD36/DD90 models

GREAT BRITAIN AND IRELAND

HEAVY

(~126 mins)

main wash 70

NORMAL

(~95 mins)

C main wash 65oC main wash 55oC main wash 50oC

FAST

(~60 mins)

DELICATE

(~99 mins)

post-rinse x2 post-rinse x2 post-rinse post-rinse x2

final rinse 65

C final rinse 65oC final rinse 60oC final rinse 60oC

drying phase drying phase drying phase

HEAVY ECO

(~121 mins)

NORMAL ECO*

(~179 mins)

FAST ECO

(~42 mins)

DELICATE ECO

(~92 mins)

main wash 60oC main wash 50oC main wash 45oC main wash 45oC

post-rinse x2 post-rinse post-rinse post-rinse x2

final rinse 55

C final rinse 55oC final rinse 45oC final rinse 50oC

drying phase drying phase drying phase

*Reference program for energy label in compliance with EN50242 Regulations.

RINSE

(~11 mins)

pre-wash

Note:

C (Great Britain and Ireland) incoming water.

F (USA and Canada), 20oC (New

Standards test - DD24 models (USA & CANADA)

The dishwashers are tested to various standards for wash performance using the parameters detailed below.

Rinse agent setting

Maximum place setting

Water softener setting

(for DD24-H models only)

Height setting of adjustable racks

Recommended loading pattern

10 for double models

Adjust the water softener to match the water hardness. Refer to the ‘Water softener’ section.

5½” (140mm)

Top drawer

52411

3 3

2 2

4 4

Cutlery basket

Bottom drawer

12 3 4 5 6

Standards test - DD36 models (USA & CANADA)

The dishwashers are tested to various standards for wash performance using the parameters detailed below.

Rinse agent setting

Maximum place setting

Accessories to be used in the dishwasher standards test

Recommended loading pattern

6 glasses under adjustable racks

Base rack, folding tines, cutlery basket with cutlery grid, adjustable racks, glass supports, multipurpose clip. Use the multi-purpose clip to hold the platter

3 glasses

4 cups under adjustable racks

1612 1 1 1 1 1 1 1

5 3 3 3 3 33

4 4 4

4 4

3 4 4 4

3 3 3

Cutlery basket

2 2

3 3

2 2

3 3

2 2

12 3 4 5 6

Standards test - DD60 models (NZ & AUSTRALIA)

The dishwashers are tested to AS/NZS 2007 standards for both wash and dry performance, using the parameters detailed below.

Wash program

Detergent quantities

Rinse aid setting Maximum place setting (per drawer)

Accessories to be used in the Dishwasher standards test

Normal Eco

(At the end of the program, open the drawer 50 mm to improve the dry performance.)

23.75g (main wash) per drawer

4 7

Base rack, folding tines, spacing-adjustable tines, cutlery basket with cutlery grid, adjustable racks, glass supports.

Height setting of adjustable racks

140mm

Correct orientation of glass supports on both sides of drawer

Recommended loading pattern

Top and Bottom drawer

154 4

1155 3 31 3 3

5 5

115

2 2

4 4

2 2

Cutlery basket

123 45

Standards test - DD90 models (NZ & AUSTRALIA)

The dishwashers are tested to AS/NZS 2007 standards for both wash and dry performance using the parameters detailed below.

Normal Eco

Wash programme

(At the end of the programme, open the drawer 50 mm to improve the dry performance.)

Detergent quantities

Rinse aid setting

Maximum place setting

Accessories to be used in the dishwasher standards test

Height setting of adjustable racks

Correct orientation of glass supports on both sides of drawer

26.25g (main wash)

Base rack, folding tines, cutlery basket with cutlery grid, adjustable racks, glass supports, multipurpose clip.

H = 125 mm for the back right-hand adjustable rack

H = 140 mm for all the other adjustable racks

Recommended loading pattern

1 bread-andbutter plate

1 saucer

5 glasses under adjustable racks

3 glasses

113 1 1 1 1 1 1 1

3 3 3 3 3 3 35

4 4

Cutlery basket

3 cups + 1 glass under adjustable racks

2 2

5 5

2 2

4 4

2 2

12 3 45

Standards test - DD60 models (GREAT BRITAIN & IRELAND)

The dishwashers are tested to EN50242 standards for both wash and dry performances using the parameters detailed below.

Wash program Detergent quantities

Normal Eco

2.5g (pre-wash) per drawer

15.5g (main wash) per drawer

Rinse aid setting Water softener setting

4 Adjust the water softener to match the water

hardness. Refer to the ‘Water softener’ and ‘Option adjustments’ sections.

Maximum place setting (per drawer)

Accessories to be used in the Dishwasher standards test

Base rack, folding tines, spacing-adjustable tines, cutlery basket, adjustable racks, glass supports.

Height setting of adjustable racks

140mm

Correct orientation of glass supports on both sides of drawer

Recommended loading pattern

Top and Bottom drawer

small bowl between cutlery basket and first soup bowl

3 3

114 3 3

3 3

5 5

4 4

26 2

2 2 2

12 3 456 78

Cutlery basket

Standards test - DD90 models (GREAT BRITAIN & IRELAND)

The dishwashers are tested to EN50242 standards for both wash and dry performances using the parameters detailed below.

Wash programme Detergent quantities

Rinse aid setting Water softener setting

Maximum place setting

Accessories to be used in the dishwasher standards test

Height setting of adjustable racks

Normal Eco 5g (pre-wash)

22g (main wash)

4 Adjust the water softener to match the water

hardness. Refer to the ‘Water softener’ and ‘Option adjustments’ sections.

Base rack, ‘slide-and-fold’ tines, cutlery basket with cutlery grid, adjustable racks, glass supports, multi-purpose clip.

H = 125 mm for the back right-hand adjustable rack

Correct orientation of glass supports on both sides of drawer

Recommended loading pattern

5 glasses under left-hand adjustable rack

1638 1

3 1 1 1 1 1

4 4 4 4 4 4

H = 140 mm for all the other adjustable racks

2 glasses

cup

5 5 5 5 5

2 2

5 5

2 2

4 4

12 3 456 78

Cutlery basket

small serving bowl

cup

2 glasses

cup

www. sherpaykel.com

www. sherpaykel.ca

www. sherpaykel.co.nz

www. sherpaykel.com.au

www. sherpaykel.co.uk

www. sherpaykel.ie

The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.

US CA NZ AU GB IE 09.2012F&P PN - 590199 B

Fisher & Paykel DD90, DD24, DD36, DD60 User Manual 2

Specifications and Main Features

Frequently Asked Questions

User Manual
