Introduction

1 THANK YOU

WELCOME

Thank you for choosing First Alert for your security needs!

For more than half a century, First Alert has made the home-safety and security products that make your job easier. Our products are built to the highest standard which has earned us a leadership role in the home-safety and security product categories. We are committed to serving our customers, from the professionals who install our products, to the families and businesses who count on them. First Alert has been helping families and businesses stay safe for over 50 years. By having a First Alert Security System, you’re taking the first step in protecting your home or business from damage or theft. We’re watching, even when you’re not.

This manual is written for the DWS-401Wireless DVR system. It was accurate at the time it was completed. However, because of our ongoing effort to constantly improve our products, additional features and functions may have been added since that time and on-screen displays may change. We encourage you to visit our website at www.brkelectronics.com to check for the latest manuals (English and Spanish), firmware updates, downloads, other security camera products and announcements. You’ll find this product line under Products >> Security Cameras >> Wireless Cameras.

©2012 BRK Brands, Inc.

a Jarden Corporation company (NYSE:JAH) www.brkelectronics.com

All rights reserved. Distributed by BRK Brands, Inc. 3901 Liberty Street Road, Aurora, IL 60504-8122. Due to continuing product development, the product inside the packaging may look slightly different than the one on the package.

BRK Brands, Inc. is a subsidiary of Jarden Corporation (NYSE: JAH). First Alert® is a registered trademark of the First Alert Trust. To obtain warranty service, contact the Consumer Affairs Division at 1-800-323-9005, Monday through Friday, 7:30 a.m. - 5 p.m., Central Standard Time.

Made in China

Page 2

Introduction

KEY PRODUCT FEATURES 1

MAIN DESCRIPTION

Four channel MPEG-4 wireless digital video recorder suitable for applications such as high-end residential - new or remodel, light commercial, small business/retail, small warehouse or small grocery.

PRODUCT FEATURES

2.4 GHz Digital Frequency Hopping Spread Spectrum (FHSS) Technology

MPEG-4 Compression

Supports real-time AV preview and recording up to VGA@25 FPS(Single Camera Mode) or QVGA@25fps/CH (Multiple camera mode)

4GB Micro SD Card Included. Supports a maximum of 32GB SDHC memory card.

Simultaneously preview & record from all 4 wireless cameras

Independent motion-detect recording with adjustable mask zone on any of 4 cameras

Multiple recording mode selectable (Manual/ Motion-detect/Scheduling)

User-friendly interface: true color, semi-transparent GUI with notes for selected menu items

2X digital zoom

Audio surveillance cameras

24/7 Scheduled Recording

CMOS Color cameras with 25 IR LED’s for up to 60’ night vision

Camera has built-in IR cut filter for truer color representation

IP66 weather rating

Page 3



Introduction





1 TABLE OF CONTENTS







Section

CONTENTS

Page



Description

Number









1

Introduction

2-4







Safety

5



2







Product Overview

6-8



3

What is in the Box

6



DVR Controls









Top Panel

7







Side Panel & Display Indicators

8







Installation

9



4



Installing Cameras & Setting up the Wireless Receiver

9













System Operation

10-24













Main Menu Screens

10







Camera Setup

11-12







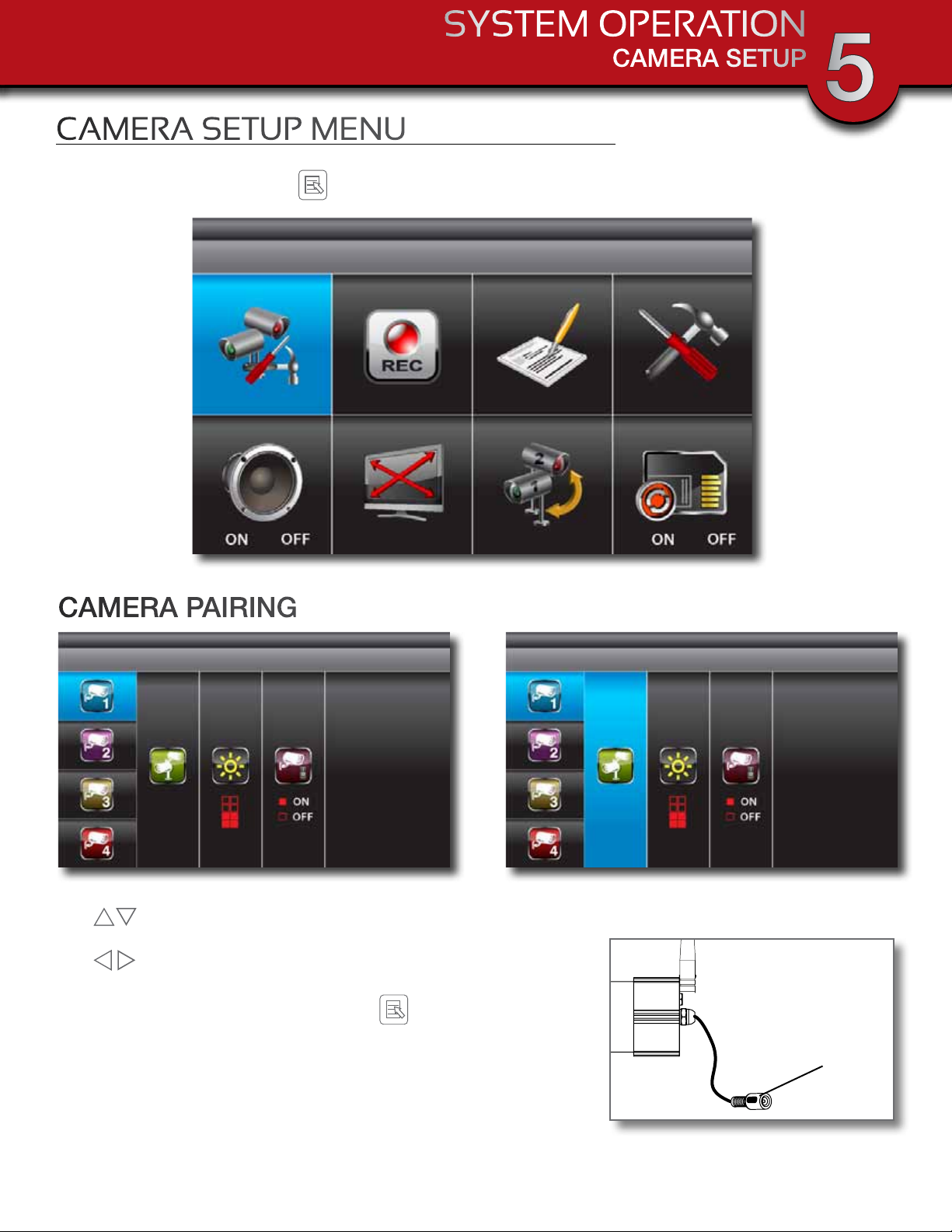

Camera Pairing

11







Camera Brightness Adjustment

12







Camera Activation

12







Recorder Setup Menu

13-18







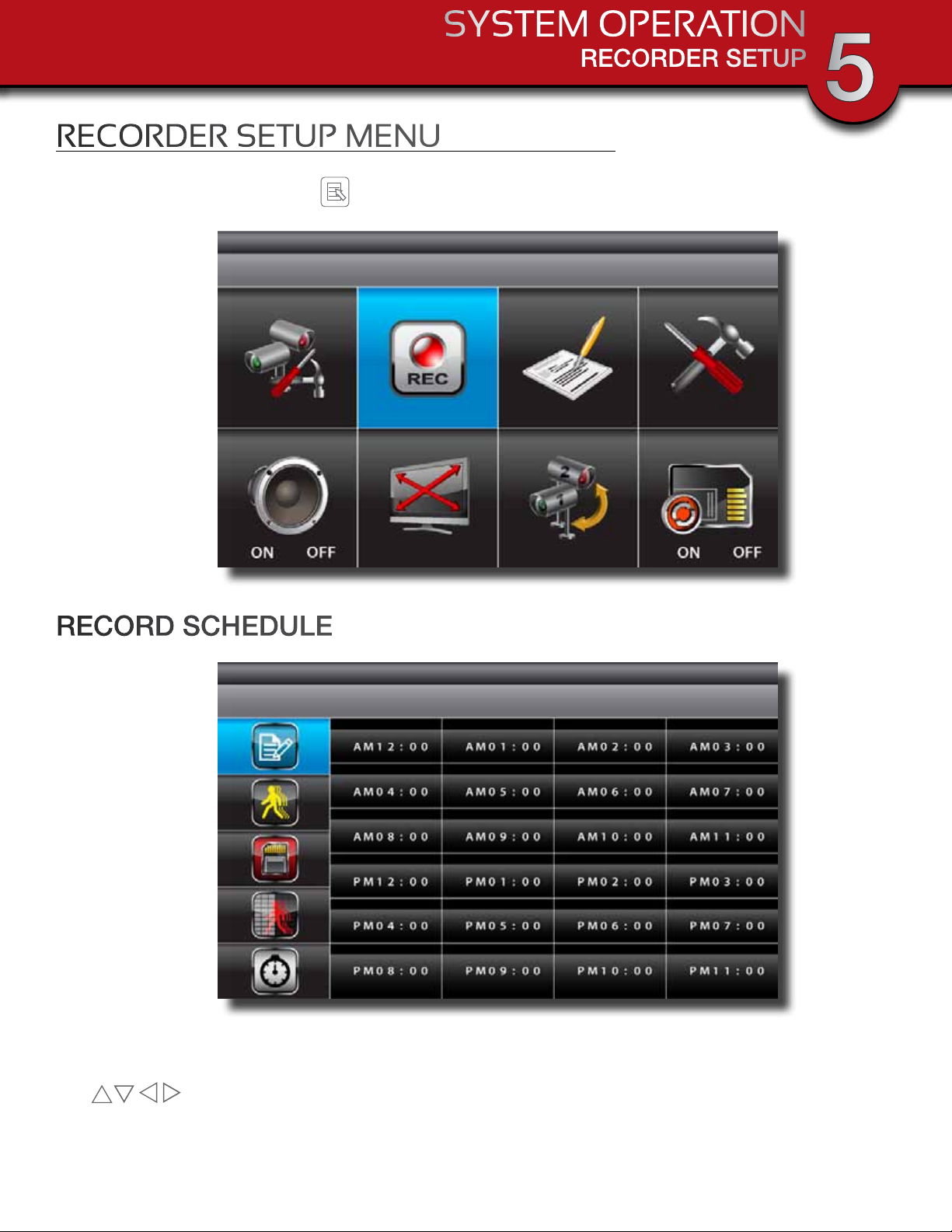

Record Schedule

13-14







Motion Detection Sensitivity

15







Format Memory Card

15







Setup Mask Area

16



5

Record Time

16







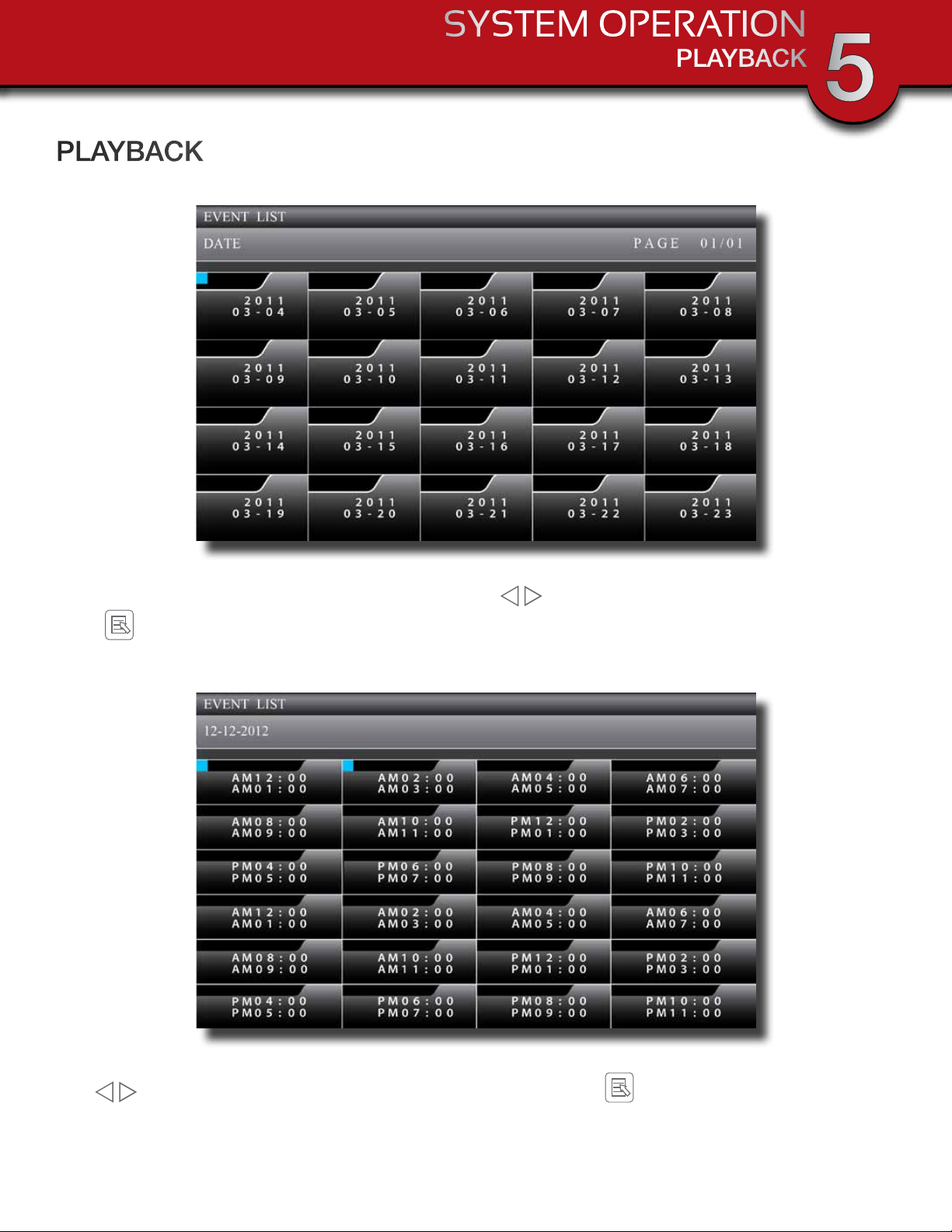

Playback

17-18







System Setup

19-22







Date and Time Setup

19







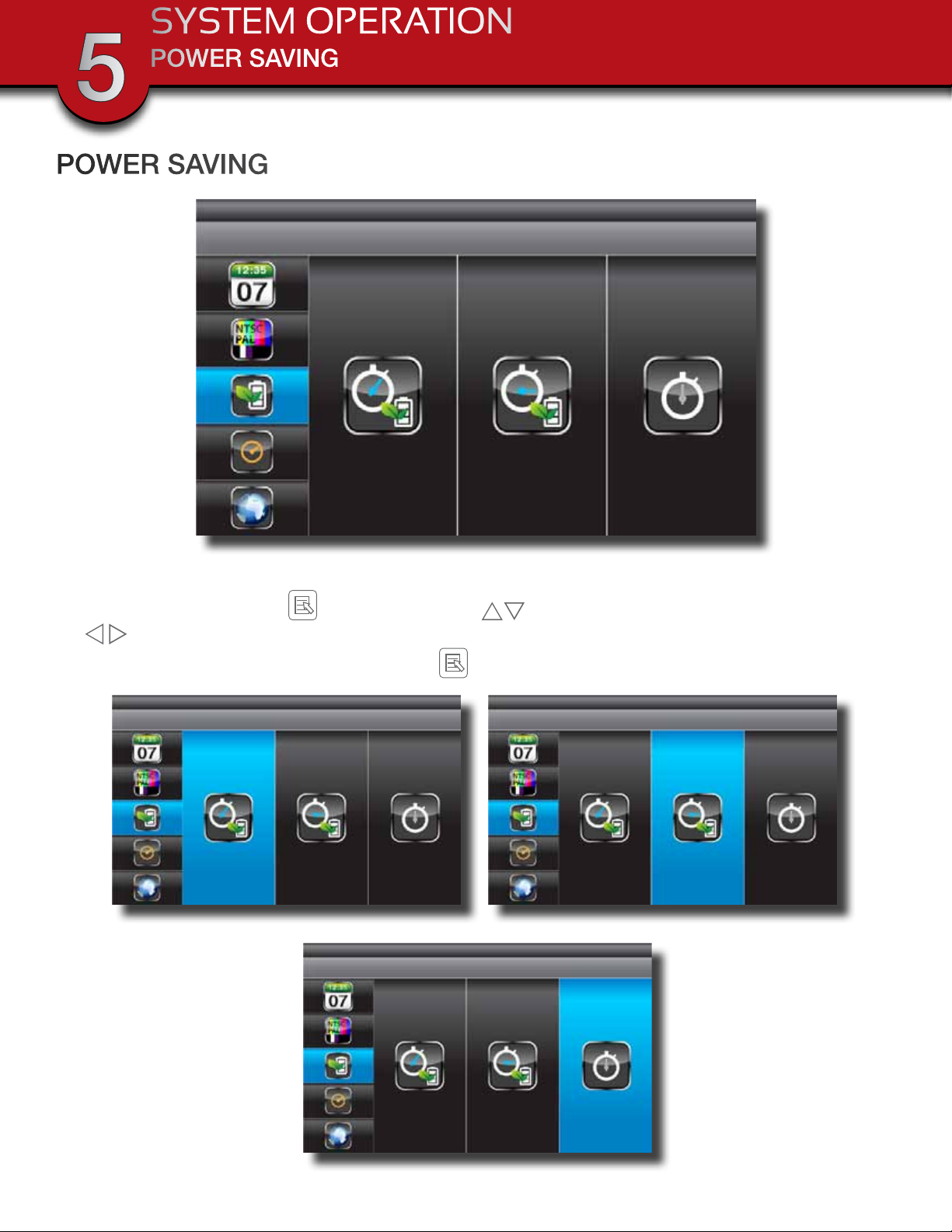

Power Saving

20







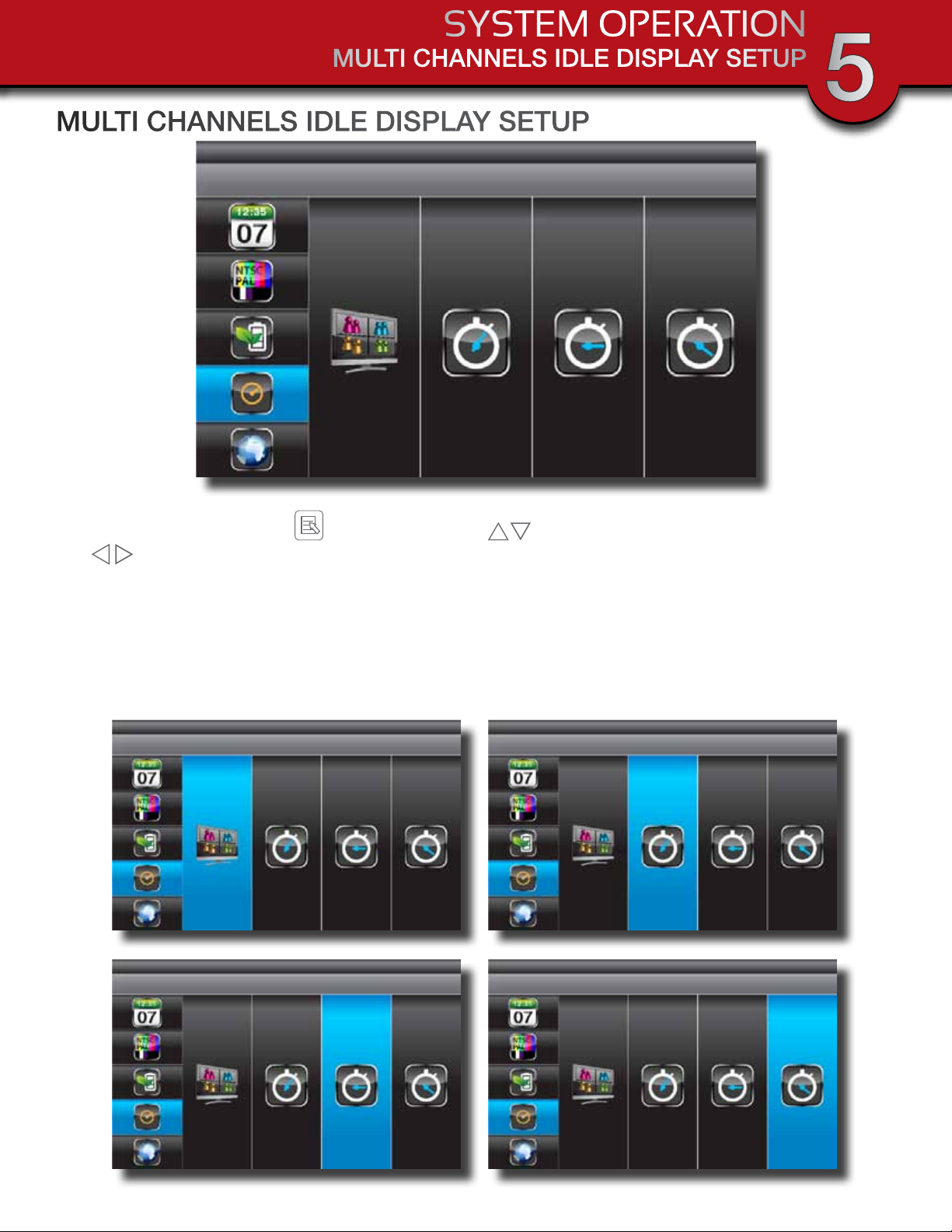

Multi-channel Idle Display

21







TV Out Setup (NTSC/PAL)

22







Language

22







Alarm Buzzer

23







Zoom

23







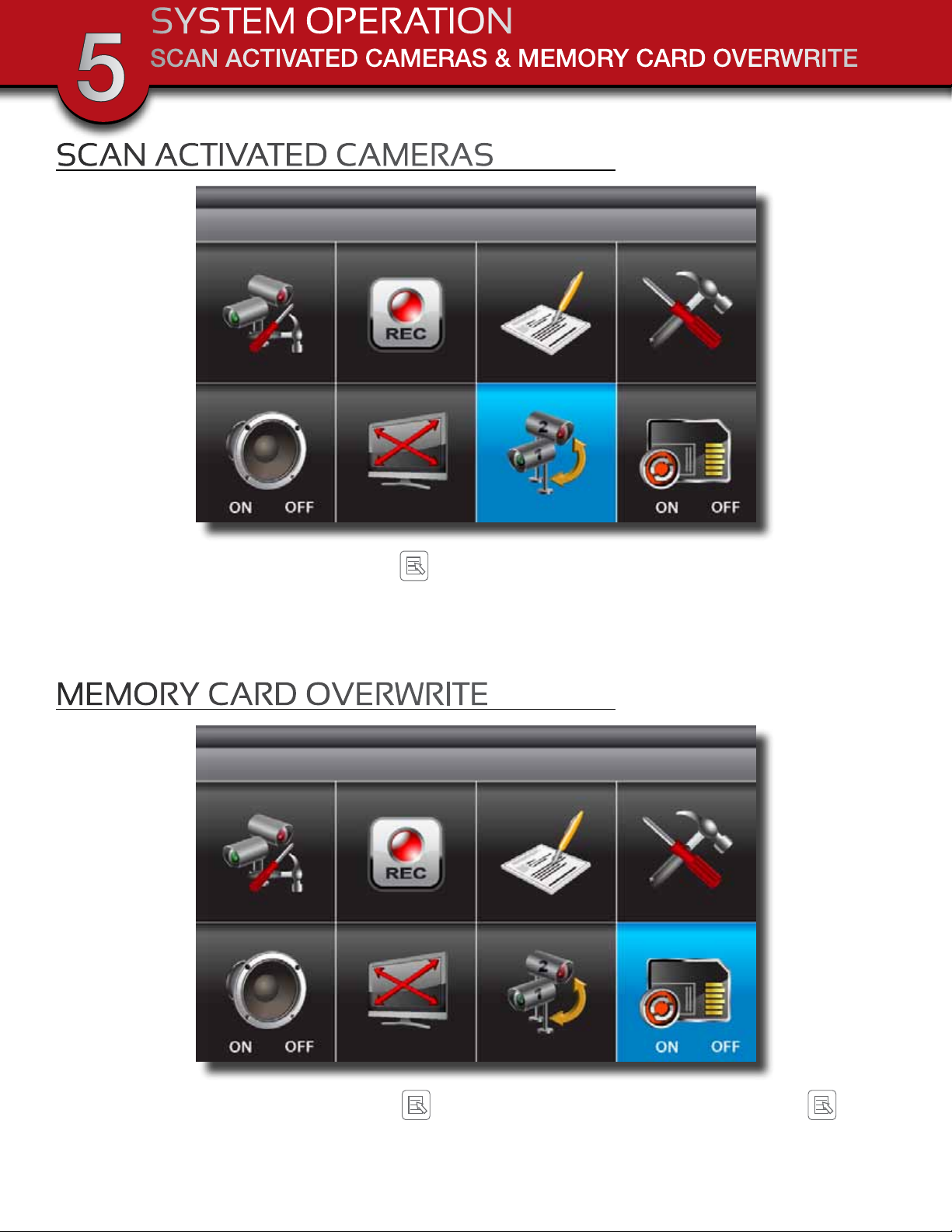

Scan Activated Channels

24







Memory Card Overwrite

24







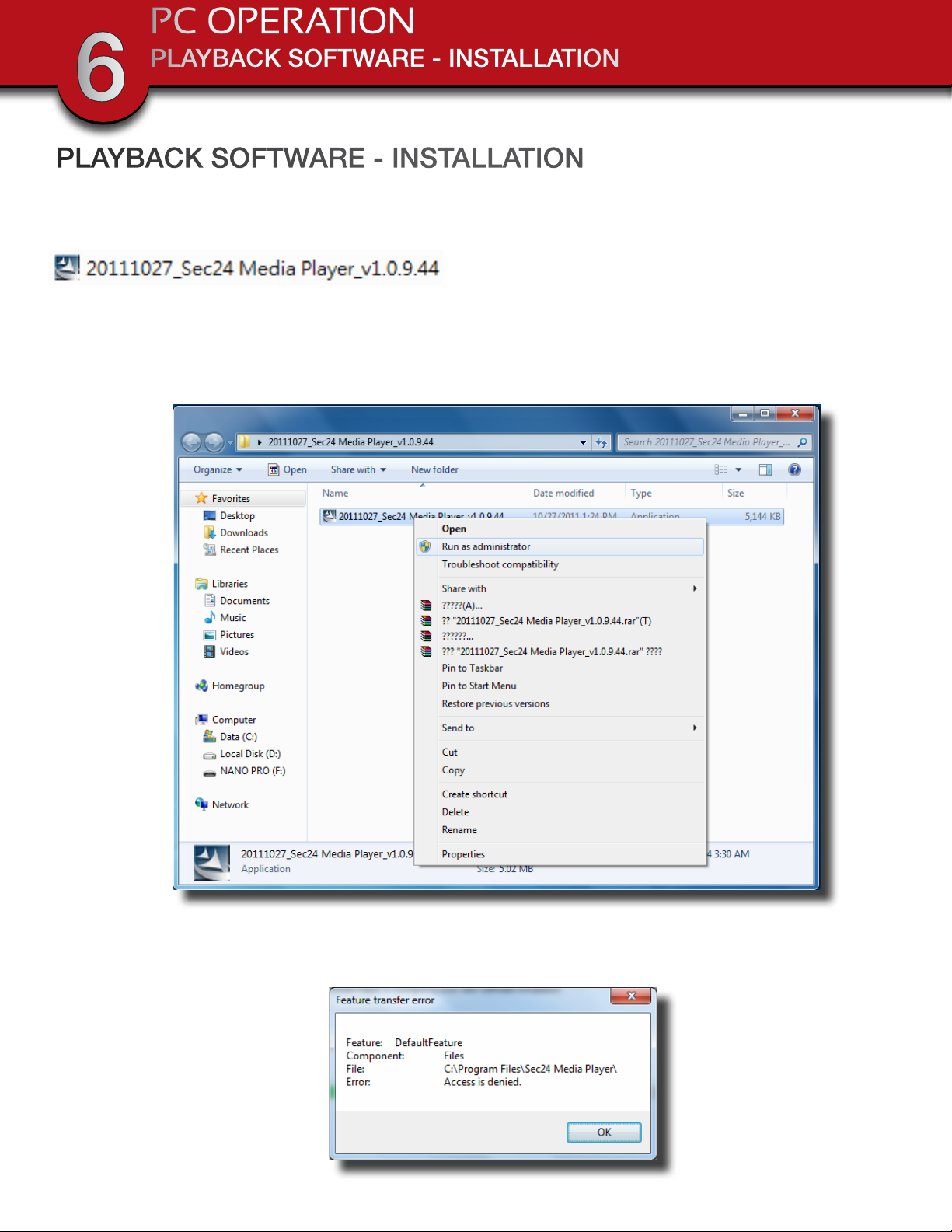

PC Playback Software and Installation

25-27



6







Appendix

28-31







Connecting to DVR System

28



7

Troubleshooting

29



System Map

30













Specifications

31







Warranty

32













Page 4

SAFETY

CAUTION STATEMENTS 2

SAFETY PRECAUTIONS

Do not drop, puncture, or disassemble the cameras or DVR.

Do not tug on the power adapter. Use the plug to remove it from the wall.

Do not expose the cameras or DVR to high temperatures.

For your own safety, avoid using the DVR when there is a storm or lightning in your area.

Use the cameras and DVR with care. Avoid pressing hard on the cameras or DVR body.

Do not crush or damage the power cable

FCC COMPLIANCE

FCC Compliance Class C Intentional Radiator

This equipment has been tested and found to comply with the limits for a Class C Intentional Radiator, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that of the receiver.

Consult the dealer or an experienced radio or TV technician for help.

Notice: Only peripherals complying with FCC limits may be attached to this equipment. Operation with noncompliant peripherals or peripherals not recommended by First Alert / BRK Brands, Inc. is likely to result in interference to radio and TV reception. Changes or modifications to the product, not expressly approved by First Alert / BRK Brands, Inc., could void the user’s authority to operate the equipment.

We, First Alert / BRK Brands, Inc. declare under our sole responsibility that the device to which this declaration relates: Complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Certification

This device contains a radio transmitter. Accordingly, it has been certified as compliant with 47 CFR Part 15 of the FCC Rules for intentional radiators. Products that contain a radio transmitter are labeled with an FCC ID.

DISPOSAL

This symbol indicates that it is prohibited to dispose of these batteries in the household waste. Take spent batteries that can no longer be charged to the designated collection points in your community.

Page 5

PRODUCT OVERVIEW

3 PACKAGE CONTENTS

WHAT’S IN THE BOX

Digital Wireless Receiver

WARNING

THESE PREMISES ARE UNDER 24 HOUR VIDEO SURVEILLANCE

PROTECTED BY

2 Window

Digital Wireless Camera, Warning Decals

Antenna and Stand

4gb

SECURITY SYSTEM

CAMERAS INCLUDED

USER’S MANUAL

Model

DWS-401 1 Camera Included







VISION

SEC24 Media Playback

AV Cable

COMPRESSION

CARD INCLUDED SURVEILLANCE

CAMERAS

MPEG-4

4GB



NIGHT





VIDEO

MICRO SD AUDIO

INDOOR/OUTDOOR













Software and Manuals



User’s Manual

IR Remote

Power Supplies for DVR and Cameras 2 total

Mounting Hardware (3 screws and 3 plastic anchors per Camera)

4GB Micro SD Memory

Wireless System

Card with Adaptor

RCA cable

(Brand may vary)

connector

Page 6

PRODUCT OVERVIEW

DVR CONTROLS 3

TOP PANEL

8

6







5

6

7



3







4





4





2



3



1







5

7







8



Receiver

IR Remote

Item Function

1Power/Mute Button

2Link & Power Indicators

3Menu Navigation Ring

4

5ESC

6ZOOM

7ALARM

8REC/DEL

Description

CONTROLS

Power unit On and Off or enable “Mute” Feature. Hold button for several seconds to turn unit On or Off. Briefly press button to toggle “Mute” On or Off.

Shows status of signal strength and Power On/Off

Center Button brings up Main Menu. In menus, press to confirm selections

Display: Switch Channel

Menu: Cursor Up

Playback: Fast Forward

Display: Switch Channel

Menu: Cursor Down

Playback: Fast Reverse

Display: Volume Up

Menu: Cursor Right

Playback: Volume Up, Switch Display Channel

Display: Volume Down

Menu: Cursor Left

Playback: Volume Down, Switch Display Channel

Display & Menu: Exit or previous screen

Playback: Previous

Zooms 2X

Turns alarm On and Off

Playback: Next Record, REC Mode: Stops Recording

Page 7

PRODUCT OVERVIEW

3 CONNECTIONS & INDICATORS

SIDE PANEL

Item

Function

Description

CONNECTIONS









1

DC 5V /1A Power Port

Connect Power Adaptor.











2

AV Out

Connect to a Monitor or TV through RCA inputs











3

Reset

Powers unit off









4

Memory Card Slot

Insert 2GB to 32GB Micro SD Memory Card (4GB Micro SD Card w/adaptor included)









1

2

3

OUT AV 5V/1 DC A

RESE T

DISPLAY INDICATORS





























































































































































































































1



2



9





4







7



3















































5

6

8



Item

Indicator Name

Icon

Description

INDICATORS

1

Channel Indicator



Shows camera channel being viewed

2

Audio Indicator



Shows whether Audio is turned On/Off for system

3

Signal Indicator



Shows status of signal strength

4

Display Mode



Shows Quad, Scan or Single Display mode

5

Volume Indicator



Audio volume 1 through 7

6

System Date & Time



System Date and Time



7

Zoom



Indicates Zoom 1X or 2X



8

Recording Indicator



Shows Recording is in Progress

9

Mute Indicator



Indicates recording mute feature is enabled

4

MUTE

100%

75%

50%

25% 0%

Battery

Strength

Chart

Page 8

InSTALLATion

CAMERAS & WIRELESS RECEIVER 4

INSTALLING CAMERAS

1. Select the position for the camera and secure the camera stand.

(Screws and anchors are supplied. Use an appropriate screw type for the mounting surface.)

2. Screw the camera onto the bracket.

3. Adjust camera to the proper view angle Make sure the lens is upright relative to your subject. Tighten the thumb bolt.

4. Screw the antenna into place on the rear of the camera. Adjust the antenna to an upright position.

5. Connect the power cable to the DC IN of the camera.

6. Plug the power supply into the electrical outlet.

7.Once the camera is connected, see Camera Setup, Camera Pairing to link the camera(s) to the receiver.

Camera Orientation

It’s important the camera is mounted correctly to ensure the image is not upside down as the camera lens can only be positioned one way.

SETTING UP THE WIRELESS RECEIVER

1.Connect the power cable to the DC IN of the receiver.

2.Plug the power supply into the electrical outlet.

VIEW ON TELEVISION OR OTHER MONITOR

1.Connecting to a monitor such as a TV: Connect the AV cable into the AV OUT of the receiver.

2.Connect the two RCA jacks to the TV AV IN. Yellow = Video; White = Audio

3.Press POWER button to turn on the receiver.

4.Once the receiver is connected, see Camera Setup, Pairing (Operating Menus) to link the camera(s) to the receiver.

LINK PWR.

MUTE

RESET

DC 5V/1A AV OUT

TV

Audio

Video

Page 9

First Alert DWS-401 User Manual

SYSTEM OPERATION

5 MAIN MENU

MAIN MENU

The Main Menu screen is used to control the various functions of the DVR system. It contains the following sub menu icons: Camera Setup, Record Setup, Event List, System Setup, Alarm Buzzer, Zoom, Scan Activated Cameras and Memory Card Overwrite.

Camera Setup-Main Menu



Record Setup-Main Menu

Event List-Main Menu



System Setup-Main Menu

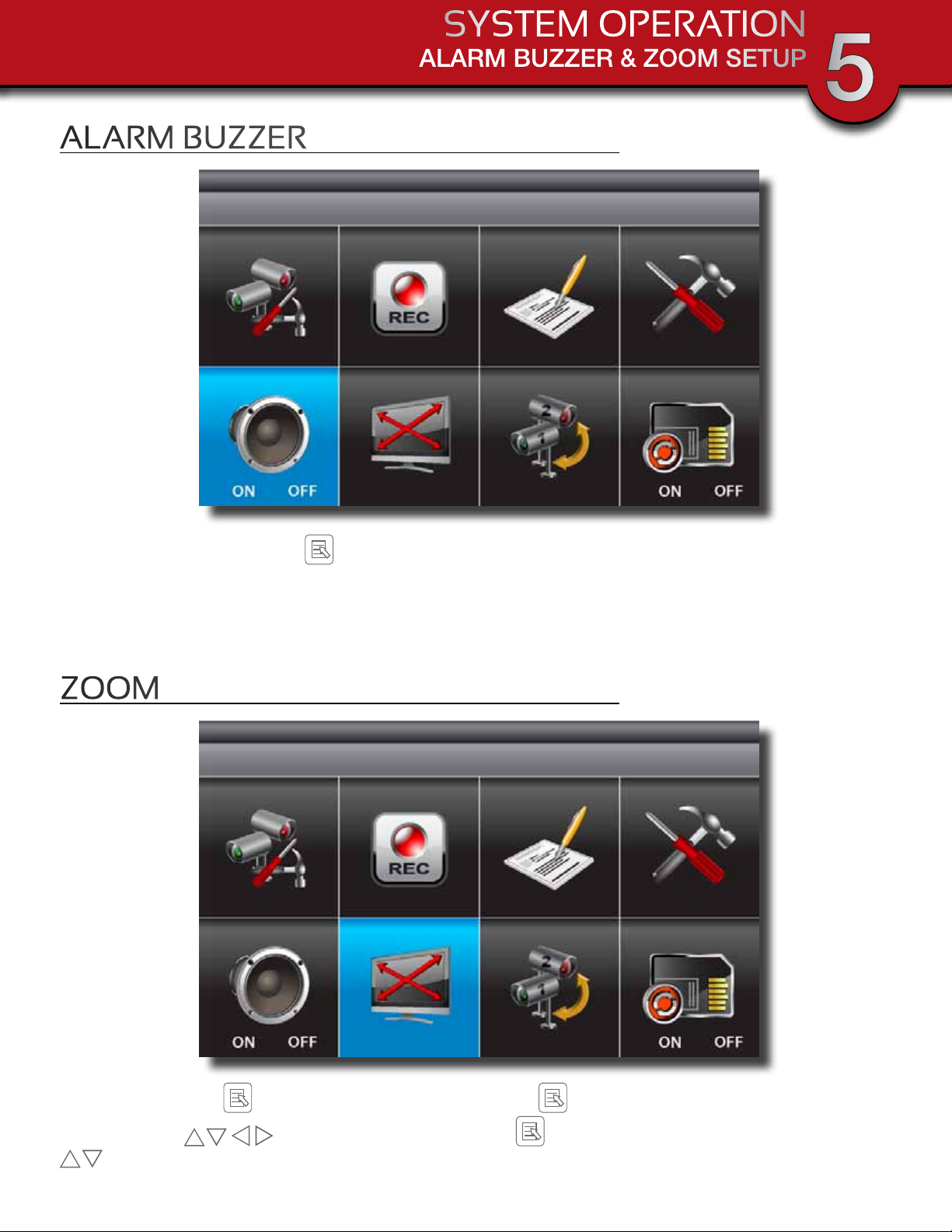

Alarm Buzzer-Main Menu

Zoom-Main Menu

Scan Activated Cameras-Main Menu



Memory Card Overwrite-Main Menu
