Fire-Lite FCPS-FS8 User Manual

PN: 51883:G1 ECN 08-592
Field Charger/Power Supply
FCPS-24FS6 & FCPS-24FS8
FCPS-24FS6E & FCPS-24FS8E
FCPS-24FS6C & FCPS-24FS8C
Document #51883 8/07/08 Revision:
G1
Fire Alarm System Limitations
While a fire alarm system may lower insurance rates, it is not a substitute for fire insurance!
An automatic fire alarm system–typically made up of smoke detectors, heat detectors, manual pull stations, audible warning devices, and a fire alarm control panel with remote notification capability–can provide early warning of a developing fire. Such a system, however, does not assure protection against property damage or loss of life resulting from a fire.
The Manufacturer recommends that smoke and/or heat detectors be located throughout a protected premise follow­ing the recommendations of the current edition of the National Fire Protection Association Standard 72 (NFPA 72), manufacturer's recommendations, State and local codes, and the recommendations contained in the Guides for Proper Use of System Smoke Detectors, which are made available at no charge to all installing dealers. These docu­ments can be found at http:/www.systemsensor.com/html/ applicat.html. A study by the Federal Emergency Manage­ment Agency (an agency of the United States government) indicated that smoke detectors may not go off in as many as 35% of all fires. While fire alarm systems are designed to provide early warning against fire, they do not guarantee warning or protection against fire. A fire alarm system may not provide timely or adequate warning, or simply may not function, for a variety of reasons:
Smoke detectors may not sense fire where smoke cannot reach the detectors such as in chimneys, in or behind walls, on roofs, or on the other side of closed doors. Smoke detectors also may not sense a fire on another level or floor of a building. A second-floor detector, for example, may not sense a first-floor or basement fire.
Particles of combustion or "smoke" from a developing fire may not reach the sensing chambers of smoke detectors because:
• Barriers such as closed or partially closed doors, walls, or chimneys may inhibit particle or smoke flow.
• Smoke particles may become "cold," stratify, and not reach the ceiling or upper walls where detectors are located.
• Smoke particles may be blown away from detectors by air outlets.
• Smoke particles may be drawn into air returns before reaching the detector.
The amount of "smoke" present may be insufficient to alarm smoke detectors. Smoke detectors are designed to alarm at various levels of smoke density. If such density levels are not created by a developing fire at the location of detectors, the detectors will not go into alarm.
Smoke detectors, even when working properly, have sens­ing limitations. Detectors that have photoelectronic sensing chambers tend to detect smoldering fires better than flam­ing fires, which have little visible smoke. Detectors that have ionizing-type sensing chambers tend to detect fast-flaming fires better than smoldering fires. Because fires develop in different ways and are often unpredictable in their growth, neither type of detector is necessarily best and a given type of detector may not provide adequate warning of a fire.
Smoke detectors cannot be expected to provide adequate warning of fires caused by arson, children playing with matches (especially in bedrooms), smoking in bed, and violent explosions (caused by escaping gas, improper stor-
age of flammable materials, etc.). Heat detectors do not sense particles of combustion and
alarm only when heat on their sensors increases at a predetermined rate or reaches a predetermined level. Rate-of-rise heat detectors may be subject to reduced sensitivity over time. For this reason, the rate-of-rise feature of each detector should be tested at least once per year by a qualified fire protection specialist. Heat
detectors are designed to protect property, not life. IMPORTANT! Smoke detectors must be installed in the
same room as the control panel and in rooms used by the system for the connection of alarm transmission wiring, communications, signaling, and/or power. If
detectors are not so located, a developing fire may damage the alarm system, crippling its ability to report a fire.
Audible warning devices such as bells may not alert people if these devices are located on the other side of closed or partly open doors or are located on another floor of a building. Any warning device may fail to alert people with a disability or those who have recently con­sumed drugs, alcohol or medication. Please note that:
• Strobes can, under certain circumstances, cause seizures in people with conditions such as epilepsy.
• Studies have shown that certain people, even when they hear a fire alarm signal, do not respond or com­prehend the meaning of the signal. It is the property owner's responsibility to conduct fire drills and other training exercise to make people aware of fire alarm signals and instruct them on the proper reaction to alarm signals.
• In rare instances, the sounding of a warning device can cause temporary or permanent hearing loss.
A fire alarm system will not operate without any electrical power. If AC power fails, the system will operate from standby batteries only for a specified time and only if the batteries have been properly maintained and replaced regularly.
Equipment used in the system may not be technically compatible with the control. It is essential to use only equipment listed for service with your control panel.
Telephone lines needed to transmit alarm signals from a premise to a central monitoring station may be out of service or temporarily disabled. For added protection against telephone line failure, backup radio transmis­sion systems are recommended.
The most common cause of fire alarm malfunction is inadequate maintenance. To keep the entire fire alarm system in excellent working order, ongoing maintenance is required per the manufacturer's recommendations, and UL and NFPA standards. At a minimum, the require­ments of NFPA 72 shall be followed. Environments with large amounts of dust, dirt or high air velocity require more frequent maintenance. A maintenance agreement should be arranged through the local manufacturer's representative. Maintenance should be scheduled monthly or as required by National and/or local fire codes and should be performed by authorized professional fire alarm installers only. Adequate written records of all inspections should be kept.
Installation Precautions
Adherence to the following will aid in problem-free installation with long-term reliability:
WARNING - Several different sources of power can be connected to the fire alarm control panel. Disconnect all
sources of power before servicing. Control unit and asso­ciated equipment may be damaged by removing and/or inserting cards, modules, or interconnecting cables while the unit is energized. Do not attempt to install, service, or operate this unit until this manual is read and understood.
CAUTION - System Reacceptance Test after Software Changes. To ensure proper system operation, this product
must be tested in accordance with NFPA 72 after any programming operation or change in site-specific software. Reacceptance testing is required after any change, addition or deletion of system components, or after any modification, repair or adjustment to system hardware or wiring.
All components, circuits, system operations, or software functions known to be affected by a change must be 100% tested. In addition, to ensure that other operations are not inadvertently affected, at least 10% of initiating devices that are not directly affected by the change, up to a maximum of 50 devices, must also be tested and proper system operation verified.
This system meets NFPA requirements for indoor dry operation at 0-49° C/32-120° F 93 ±2% RH (non-condensing) at 32 ±2° C/90 ±3° F. However, the useful life of the system's standby batteries and the electronic components may be adversely affected by extreme temperature ranges and humidity. Therefore, it is recommended that this system and all peripherals be installed in an environment with a nominal room tempera­ture of 15-27° C/60-80° F.
Verify that wire sizes are adequate for all initiating and indicating device loops. Refer to manual Specifications section for maximum allowable I.R. drop from the specified device voltage.
and at a relative humidity of
Like all solid state electronic devices, this system may operate erratically or can be damaged when subjected to lightning-induced transients. Although no system is completely immune from lightning transients and interferences, proper grounding will reduce susceptibility.
Overhead or outside aerial wiring is not recommended, due to an increased susceptibility to nearby lightning strikes.
Consult with the Technical Services Department if any problems are anticipated or encountered.
Disconnect AC power and batteries prior to removing or inserting circuit boards. Failure to do so can damage circuits.
Remove all electronic assemblies prior to any drilling, filing, reaming, or punching of the enclosure. When possible, make all cable entries from the sides or rear. Before making modifications, verify that they will not interfere with battery, transformer, and printed circuit board location.
Do not tighten screw terminals more than 9 in-lbs. Over-tightening may damage threads, resulting in reduced terminal contact pressure and difficulty with screw terminal removal.
This system contains static-sensitive components.
Always ground yourself with a proper wrist strap before handling any circuits so that static charges are removed from the body. Use static-suppressive packaging to protect electronic assemblies removed from the unit.
Follow the instructions in the installation, operating, and programming manuals. These instructions must be followed to avoid damage to the control panel and associated equipment. FACP operation and reliability depend upon proper installation by authorized personnel.
FCC Warning
WARNING: This equipment generates, uses, and can
radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for class A computing device pursuant to Subpart B of Part 15 of FCC Rules, which is designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user will be required to correct the interference at their own expense.
Canadian Requirements
This digital apparatus does not exceed the Class A limits for radiation noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
Le present appareil numerique n'emet pas de bruits radioelectriques depassant les limites applicables aux appareils numeriques de la classe A prescrites dans le Reglement sur le brouillage radioelectrique edicte par le ministere des Communications du Canada.
Table of Contents
System Overview .....................................................................................................................................................6
General ...............................................................................................................................................................6
Features ..............................................................................................................................................................6
Start-up Procedure .............................................................................................................................................7
Jumpers ..............................................................................................................................................................8
Jumper JP1 - Ground Fault Detection ........................................................................................................8
Jumpers JP2 and JP3: Coded/Noncoded Input Selection ...........................................................................8
LED Indicators ..................................................................................................................................................8
Specifications...................................................................................................................................................... 9
General ...............................................................................................................................................................11
Installation ...............................................................................................................................................................12
Backbox Mounting ............................................................................................................................................12
NAC Circuit Wiring ..........................................................................................................................................14
Style Y (Class B) ........................................................................................................................................14
ZNAC-4 Class A Option Module ...............................................................................................................14
Addressable Module Mounting .........................................................................................................................15
NEC Power-limited Wiring Requirements ........................................................................................................16
Programming Options ............................................................................................................................................17
DIP Switch Settings ...........................................................................................................................................18
Programmable Features Description .................................................................................................................19
Synchronization Type Selection ....................................... ..........................................................................19
Maximum Number of Strobes for Synchronization ............................................................................19
Synchronization Mode - Master/Slave .......................................................................................................19
AC Fail Delay/Aux. Trouble Relay Function .............................................................................................20
Input/Output Function ................................................................................................................................20
Auxiliary Power Control .....................................................................................................................21
Charger Enable/Disable ..............................................................................................................................21
Door Closers ...............................................................................................................................................21
Trouble Supervision ...............................................................................................................................................22
Supervision via FACP Notification Appliance Circuit ......................................................................................22
Supervision of FACP to FCPS wiring ........................................................................................................22
Supervision of FCPS-24FS Faults ..............................................................................................................22
Aux. Trouble Relay/AC Fail Relay ............................................................................................................23
AC Loss Reporting Delay ..................................................................................................................................23
Applications .............................................................................................................................................................24
Controlling Four NACs With One Input and Selective Silence ........................................................................24
Controlling Three NACs and One Door Holder With One Input ......................................................................26
Split Temporal Mode of Operation ..............................................................................................
......................28
Remote Supply With Resettable and Nonresettable Power ...............................................................................30
Door Release Service For All Four Outputs ......................................................................................................32
Master FACP with Slave FCPS-24FS Power Supply ........................................................................................33
Master FCPS-24FS Power Supply Connected to FACP ...................................................................................34
Canadian Applications .................................................................................... ...................................................35
Power Supply Requirements ..................................................................................................................................36
Overview ...........................................................................................................................................................36
Calculating the AC Branch Circuit ....................................................................................................................36
Calculating the System Current Draw ...............................................................................................................37
Overview ....................................................................................................................................................37
How to Calculate System Current Draw ....................................................................................................37
Calculating the Battery Size ..............................................................................................................................39
NFPA Battery Requirements ......................................................................................................................39
Selecting and Locating Batteries ..................... ...........................................................................................39
Wire Requirements .................................................................................................................................................40
4
FCPS-24FS Power Supplies P/N: 51883:G1 8/07/08
It is imperative that the installer understand the requirements of the Authority Having Jurisdiction (AHJ) and be familiar with the standards set forth by the following regulatory agencies:
Underwriters Laboratories Standards
NFPA 72 National Fire Alarm Code
Before proceeding, the installer should be familiar with the following documents.
NFPA Standards
NFPA 72 National Fire Alarm Code NFPA 70 National Electrical Code
Underwriters Laboratories Documents:
UL 464 Audible Signaling Appliances UL 864 Standard for Control Units for Fire Protective Signaling Systems UL 1638 Visual Signaling Appliances UL 1971 Signaling Devices for Hearing Impaired
CAN/ULC - S524-01 Standard for Installation of Fire Alarm Systems CAN/ULC-S527-99 Standard for Control Units for Fire Alarm Systems
Other:
NEC Article 250 Grounding NEC Article 300 Wiring Methods NEC Article 760 Fire Protective Signaling Systems Applicable Local and State Building Codes Requirements of the Local Authority Having Jurisdiction (LAHJ) Canadian Electrical Code, Part 1
Other Fire•Lite Documents:
Device Compatibility Document Document #15384
This product has been certified to comply with the requirements in the Standard for Control Units and Accessories for Fire Alarm Systems, UL 864, 9th Edition. Operation of this product with products not tested for UL 864, 9th Edition has not been evaluated. Such operation requires the approval of the local Authority Having Jurisdiction (AHJ).
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 5
System Overview
SECTION 1 System Overview
The FCPS-24FS6 is a 6 amp power supply and the FCPS-24FS8 is an 8 amp power supply. Each FCPS-24FS power supply is a compact, cost-effective, remote power supply and battery charger which provides ADA compatible strobe synchronization. The remote power supplies consist of a filtered 24 VDC output that can be configured to drive four Style Y (Class B) NACs (Notification Appliance Circuits). The four circuits can be configured for Style Z (Class A) with the optional ZNAC-4 Class A converter module. Alternatively, th e four output circuits may be configured as 24 VDC resettable or nonresettable power outputs. The input circuits, which control the power supply operation, are triggered by the reverse polarity of an NAC or by a 12 VDC or 24 VDC power source. The power supplies are compatible with 12 VDC and 24 VDC control panels.
The FCPS-24FS6E and FCPS-24FS8E offer the same features as the FCPS-24FS6 and FCPS-24FS8 respectively but allow connection to 220/240 VAC. Unless otherwise specified, the information in this manual applies to both the 110/120 VAC versions and the 220/240 VAC versions of the power supplies.
The FCPS-24FS6C and FCSP-24FS8C are the Canadian versions which offer the same features as the FCPS-24FS6 and FCPS-24FS8 respectively. Unless otherwise specified, the information in this manual also applies to the Canadian versions of the power supplies.
1.1 General
The FCPS-24FS power supplies can be used as remotely mounted power supplies and battery chargers to power four noncoded or coded NACs. The Main FACP (Fire Alarm Control Panel) NAC(s) is connected to the remote power supply input circuit(s). When the control input circuit activates due to reverse polarity of the NAC from the FACP, the power supply will activate its Notification Appliance Circuits.
During the inactive or nonalarm state, the power supply supervises its NAC field wiring for short and open conditions. AC fail, battery, charger and ground fault troubles will also be monitored by the power supply. If an NAC or power supply fault is detected, the power supply Normally-Closed Trouble contact will open.
If an alarm condition occurs and the NAC is activated, the supervision is disabled and the Notification Appliance Circuit is no longer supervised (except for shorts). Supervision of other power supply faults such as low battery, AC loss, ground fault and battery charger trouble will continue and may be monitored via the Trouble relay contacts.
1.2 Features
Self-contained in a lockable cabinet
24 VDC remote power supply
Outputs are completely power-limited
Two optically-isolated input/control circuits, compatible with 12 VDC and 24 VDC control panel NACs
Four output circuits:
Fully filtered powerFour 24 VDC Style Y (Class B) NACs (special application)Optional ZNAC-4 Class A converter module for conversion to Style Z NACsAlternatively, all four circuits may be configured as 24 VDC special application power
outputs
Output circuits may be configured as resettable or nonresettable
NAC Trouble LED - blinks to indicate the number of the circuit in trouble
6 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
System Overview
Maximum current available for any one output circuit: 3.0 amps
Maximum total continuous current available:
4.0 amps for FCPS-24FS66.0 amps for FCPS-24FS8
Maximum total short term current (one ho u r max imum):
6.0 amps for FCPS-24FS68.0 amps for FCPS-24FS8
Integral supervised battery charger for lead acid batteries only
Capable of charging 7.0 AH to 18.0 AH (Amp Hour) batteries
Fully supervised power supply, battery and NACs
Selectable Strobe Synchronization for NACs [System Sensor, Gentex and Wheelock]
Coded signal synchronization
Fixed terminal blocks for field wiring capable of accepting 12 - 22 AWG wire
Selectable Ground Fault detection by jumper JP1
Power supply trouble Form-C relay contacts (fail-safe)
Optional delay of AC loss reporting for 2 hours
Auxiliary Special Application Power Output for SLC modules (500 mA maximum) with optional reset for 4-wire smoke detectors
Mounting location for optional addressable control module
1.3 Start-up Procedure
1. Configure the power supply jumpers as described in "Jumpers" on page 8
2. Install the power supply as described in "Installation" on page 12
3. Program the power supply as described in "Programming Options" on page 17
4. Wire the power supply circuits, referring to the options described in "Trouble Supervision" on page 22 and the application examples in "Applications" on page 24
5. Connect primary power source wiring while observing the following: Make certain that the AC mains circuit breaker is off before making any wiring
connections between the mains and the power supply
Make certain primary power source is 120 VAC, 60 Hz, 3.2 ampsRun a pair of wires (with ground conductor) fro m the protected premises main breaker
box to TB1 of the power supply main circuit board
Use 14 AWG (1.6 mm O.D.) or heavier gauge wire with 600V insulation
6. Apply power to the power supply using the following procedure: apply AC power by turning on the AC mains circuit breaker connected to the power
supply
connect a properly charged battery to connector JP4 on the power supply main circuit
board
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 7
System Overview
1.4 Jumpers
JP2
JP3
jumpers
Jumper positions shown for noncoded (steady) source voltage
CAUTION! Remove all power (AC & DC) before cutting or moving any jumpers.
1.4.1 Jumper JP1 - Ground Fault Detection
The Ground Detection circuit monitors for zero impedance between the power supply and ground. Jumper JP1 is located in the top right section of the power supply circuit board. Cutting JP1 will disable ground fault detection by the power supply. This should only be done if ground faults are being monitored by a panel connected to the FCPS power supply.
1.4.2 Jumpers JP2 and JP3: Coded/Noncoded Input Selection
Jumpers JP2 and JP3 are located in the top right section of the power supply circuit board. JP2 is used for Control Input Circuit #1 and JP3 is used for Control Input Circuit #2. The position of these jumpers will depend on the type of signal being fed to the input circuits:
If the source voltage to the input circuit is a noncoded (steady voltage) input signal, the
24s8jp3b.cdr
jumper for the corresponding input circuit should be in the default position which jum pers the bottom two pins (as illustrated in drawing at left).
If the source voltage to the input circuit is coded (variable voltage), the jumper for the corresponding input circuit should be moved to jumper the top two pins.
1.5 LED Indicators
AC Power on (green) LED - indicates AC power is present
Ground Fault (yellow) LED - indicates a ground fault condition (zero impedance to ground)
Battery Trouble (yellow) LED - indicates low or no battery
NAC Trouble (yellow) LED - indicates a Notification Appliance Circuit trouble (blinks once for Circuit 1 trouble, twice for Circuit 2 trouble, three times for Circuit 3 trouble and four times for Circuit 4 trouble. Note that multiple circuits in trouble will cause the LED to blink the number of the circuit with the highest number)
ChargerTrouble/AC Loss (yellow) LED - indicates a charger fault or loss of AC power:
If AC is applied to the power supply without a battery connected, both the Charger
Trouble/AC Loss LED and Battery Trouble LED will turn on simultaneously, indicating that a battery is not connected.
When a battery is connected and the power supply is in Normal Mode, if the battery
voltage drops too low or the battery is disconnected, only the Battery Trouble LED will turn on.
When a battery is connected and the charger develops a problem, only the Charger
Trouble/AC Loss LED will turn on.
8 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
1.6 Specifications
Refer to Figure 1.1 on page 10 for terminal locations.
Primary AC Power - TB1
FCPS-24FS6 & FCPS-24FS8: 120 VAC, 60 Hz, 3.2 amps maximum
FCPS-24FS6E & FCPS-24FS8E: 240 VAC, 50 Hz, 1.6 amps maximum
Wire size: minimum #14 AWG with 600V insulation
Control Input Circuits - TB4, Terminals 3 (+) & 4 (-) and 7 (+) & 8 (-)
Trigger Input Voltage: 9 to 32 VDC
Input Current Draw in Alarm Polarity:
16 to 32 volts, 2.0 mA maximum per input9 to 16 volts, 1.0 mA maximum per input
NAC/Output Circuits - TB2, Terminals 1 (+) & 2 (-), 3 (+) & 4 (-), 5 (+) & 6 (-) and 7 (+) & 8 (-) alarm polarity
Supervised, Special Application and power-limited
Voltage Rating: 24 VDC filtered
Current:
Maximum for any one circuit - 3.0 ampsMaximum total continuous
FCPS-24FS6 - 4.0 amps FCPS-24FS8 - 6.0 amps
Maximum total short term
FCPS-24FS6 - 6.0 amps FCPS-24FS8 - 8.0 amps
Output Circuit Types: Four Style Y NACs (require 4.7 KΩ End-of-Line Resistors) or
Style Z NACs using the optional ZNAC-4 Class A converter module OR
Four resettable or nonresettable 24 VDC power outputs
System Overview
current for all output:
current (one hour maximum) for all outp uts:
Refer to Fire•Lite Device Compatibility Document for listed compatible devices
For wiring requirements, refer to "Wire Requirements" on page 40
Trouble Relay Contact Rating - TB5
Fail-safe Form-C relay (normally energized, transfers with loss of power)
5.0 amps @ 24 VDC or 5.0 amps @ 30 VAC
Secondary Power (battery) Charging Circuit - JP4
Supervised, nonpower-limited
Supports lead acid type batteries only
Float Charge Voltage: 27.6 VDC
Maximum Charge Current: 1.5 A
Battery fuse (F1) 15A, 32V (Canadian version is nonreplaceable 12A, 32V)
Maximum Battery Capacity: 18.0 AH
Minimum Battery Capacity: 7.0 AH
Power supply draws maximum standby current of 65 mA from batteries
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 9
System Overview
Nonpower-limited
To Transformer #1 To Transformer #2
Auxiliary Special Application Power Output - TB4 Terminals 9 (+) & 10 (-)
Special application power
Power-limited, nonsupervised
Voltage Rating: 24 VDC
Current:
170 mA maximum with internal 7.0 Amp Hour batteries500 mA maximum with external 18.0 Amp Hour batter ies
Power-limited, Supervised,
Special Application
in NAC Mode
NAC/Out 1 +
NAC/Out 1 -
Supervised, Nonpower-limited
Earth AC Neutral AC Hot
NAC/Out 2 +
NAC/Out 2 -
NAC/Out 3 +
NAC/Out 3 -
NAC/Out 4 +
NAC/Out 4 -
Trouble Relay Form-C Fail-safe Nonsupervised
(shown energized) Normally Open Normally Closed Common
F1 Battery Fuse
15A, 32V (Canadian version is nonreplaceable 12 A, 32V)
JP4 Supervised
+ Battery
- Battery 18 AH, 24 VDC
Nonpower­limited
Auxiliary Output 500 mA Special Application Power*
LEDs
Charger Trouble/AC Loss (yellow) NAC Trouble (yellow) Battery Trouble (yellow) Ground Fault (yellow) AC Power (green)
Figure 1.1 FCPS-24FS Board Layout
SW1
Programming DIP Switches
(change switch settings only when all power (AC & DC) is removed)
JP1 Ground Fault Detection (cut to disable)
see Note at bottom of the page.
J3
ZNAC-4 Connector
JP2 & JP3
Coded/Noncoded Input Selection
- Aux. Common + Aux. 24 VDC*
- Control Input 2 + Control Input 2
- Out Common + Out/Trouble Contact
- Control Input 1 + Control Input 1
- Sync Input + Sync Input
24fs8brd.cdr
*Note: Auxiliary Power Output is power-limited but not supervised
Note: Cutting Ground Fault jumper JP1 voids UL/NFPA Style/Class identifications for circuits unless Ground Faults are being monitored by an FACP connected to the power supply. Cut jumper
JP1 only if a panel connected to the power supply is monitoring for Ground Faults or with the approval of AHJ (Authority Having Jurisdiction).
10 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
1.7 General
System Overview
The FCPS may be used in a number of different applications. It may be used as a remotely­mounted power supply and battery charger where it can provide up to four coded or noncoded, synchronized or nonsynchronized NACs (Notification Appliance Circuits). Alternatively, output #4 can be used as a door holder circuit which will provide a steady 24 VDC output until an alarm condition or AC fail condition causes it to drop to 0 VDC following a 10 second delay. All four outputs can also provide power.
Note: All NAC outputs can be converted to Style Z with ZNAC-4 option module
AC Power
Style Y NAC or Door Holder Power Output #4
Style Y NAC Output #3
Input/Output Functions are Programmable by SW1 DIP Switch Settings
Style Y NAC Output #2
Style Y NAC Output #1
FCPS Trouble Contact Output
24 VDC Specific Application Power
NAC Control Input #2 (from FACP)
NAC Control Input #1 (from FACP)
Sync. Input
24fsblok.cdr
Battery Charger
Figure 1.2 Simplified FCPS Block Diagram
One possible application for the FCPS remote power supply utilizes the NAC repeater feature. In this application, one or two NACs are connected from the main FACP to the remote power supply control input circuits. When the control input circuits are activated by the reverse polarity of the NACs, the power supply will activate its corresponding output circuits as programmed by SW1 DIP switch configuration (refer to Table 3.1 on page 18).
During the inactive state, the remote power supply supervises its NAC field wiring for short and open conditions. If a fault is detected, the power supply will enter a trouble condition and illuminate the NAC Trouble LED. When the NACs are activated, the supervision is disabled and the circuits are no longer supervised (except for short circuit conditions). Supervision of other power supply faults such as low battery, battery charger trouble, ground fault and AC loss will continue and may be monitored via the power supply trouble relay.
If an application requires that all four outputs activate at the same time, only one NAC is required from the FACP. For this application, the NAC is connected to control input circuit #1 and SW1 DIP switch is set for this operation.
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 11
Installation
SECTION 2 Installation
Carefully unpack the system and check for shipping damage. Select a location for the cabinet that is in a clean, dry, vibration-free area where extreme temperatures are not encountered. The area should be readily accessible with sufficient room to easily install and maintain the power supply. Locate the top of the cabinet approximately five feet above the floor with the hinge mounting on the left. Determine the number of conductors required for the devices to be installed and determine the appropriate knockouts. All wiring must be in accordance with the National and/or Local codes for fire alarm systems and power supplies.
2.1 Backbox Mounting
The circuit board contains static-sensitive components. Always ground yourself with a pr oper wrist strap before handling any boards so that static charges are removed from the body. Use static
!
suppressive packaging to protect electronic assemblies.
1. Remove the PC board and transformers from the backbox before installing backbox. Set the board and transformers aside in a safe, clean place. Avoid static discharge which may
damage static sensitive components on the board
2. Mark and predrill holes for the top two keyhole mounting bolts
3. Install two upper fasteners in the wall with the screw heads protruding approximately ¼”
4. Using the upper keyholes, mount the backbox over the two screws
5. Mark the lower two holes, remove the backbox from the wall and drill the mounting holes
6. Mount the backbox, install the remaining fasteners and tighten all screws
7. When the location is dry and free of construction dust, reinstall the PC board and transformers and continue with the installation
8. IMPORTANT! Make certain to connect the supplied grounding strap between the Earth terminal on TB1 (AC Terminal Block) of the main circuit board and the chassis ground stud as illustrated in Figure 2.1:
Mounting Plate
Grounding Strap
Ground Stud
Backbox
Earth Terminal on TB1 (AC Terminal Block)
24fsgrnd.cdr
Figure 2.1 Grounding Strap
12 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
2.875” (7.3 cm)
Installation
Top
(1.9 cm)
Height=15.00”
(38.10 cm)
0.75”
(26.99 cm)
Bottom
10.625”
Backbox = 14.5”
(36.8 cm)
9.1” (23.1 cm)
Ground Stud
Mounting Plate Pem Studs
Backbox Mounting Holes
Depth = 3.050”
(7.75 cm)
2.7”
(6.86cm)
rcpscabb.cdr
1.125” (2.868 cm)
Figure 2.2 Backbox Mounting Dimensions
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 13
Installation
A
A
A X
A X
A X
A
A
A
A
A X
Y
Y A X
A X
A
2.2 NAC Circuit Wiring
2.2.1 Style Y (Class B)
The standard configuration for NACs is Style Y (Class B) as shown in Figure 2.3.
SYNC IN -
SYNCIN +
TB4
1 2 3 4 5 6 7 8 9 10
OUT1+
OUT1-
IN1-
IN1+
4.7KΩ ELR
Horn Strobe
-
Alarm Polarity Shown
TB2
-NAC4+
OUT4
8 7
-NAC3+
OUT3
6 5
-N
OUT2
4
C2+
3
-N
IN2+
IN2-
U
U
+
-
J3
3 2
JP3
JP1
JP2
1
OUT1
2
C1+
1
TB2
NO NC
U TBL
COM
24fsclsb.cdr
TB5
FCPS-24FS Circuit Board
+
Horn Strobe
-
+
Horn Strobe
-
+
-
+
Figure 2.3 NAC Style Y (Class B)
2.2.2 ZNAC-4 Class A Option Module
The ZNAC-4 is an optional Class A conversion module which mounts to connector J3 on the upper right side of the FCPS-24FS circuit board. This module allows the FCPS-24FS6 or FCPS-24FS8 to support Style Z (Class A) Notification Appliance Circuits.
-
+
Horn Strobes
Alarm Polarity
ZNAC-4
Shown
TB2
-N
OUT4
8
-
+
7
-
C4+
+
ZNAC-4 Option Module
-N OUT4
8
C4+
7
-N OUT3
6
C3+
5
-N OUT2
S
S
NC IN-
NC IN +
TB4
1 2 3 4 5 6 7 8 9 10
OUT1-
OUT1+
IN1-
IN2+
IN1+
IN2-
U
U
-
+
J3
J3
JP3
JP2
4
C2+
3
-N OUT1
2
C1+
1
TB2
NO NC
3
U
2
TBL
COM
1
JP1
FCPS-24FS Circuit
TB5
-
+
-
+
24fsclsa.cdr
14 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
Figure 2.4 Style Z (Class A) NACs using ZNAC-4 Option Module
2.3 Addressable Module Mounting
The FCPS-24FS has been designed to allow the mounting of an addressable control, relay or monitor module on the main circuit board inside the power supply cabinet with the module status LED visible through the closed door. This allows power to be fed from the FCPS-24FS Auxiliary Power output directly to the module, if needed, without running the power wires outside the cabinet. As an example, Figure 2.5 illustrates wiring from the Auxiliary power output terminals to a CMF-300 control module’s terminals 3 (-) and 4 (+).
Note that the optional module mounting kit (P/N 90286) is required to install an addressable module on the power supply main circuit board. The kit includes four female/female and four male/ female standoffs as well as four mounting screws.
Installation
*If the SLC device does not match the one in this figure, refer to the SLC manual wiring conversion charts for legacy and newer versions of the modules.
standoff
standoff
Module Installation
1. Remove FCPS-24FS main circuit board from mounting plate by removing four corner screws.
2. Install four male/female standoffs through bottom of board in holes indicated in illustration above.
3. Screw four female/female standoffs to male ends of standoffs installed in Step 2 to secure in place.
standoff
standoff
24fsmodltpH.wmf
female/female standoffs
female/female standoffs
mounting screw
4. Place addressable module over standoffs installed in Step 3 and secure with supplied screws.
addressable module
5. Reinstall main circuit board on mounting plate and wire module as show in illustration above.
Figure 2.5 Mounting Module In FCPS-24FS Cabinet
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 15
Installation
2.4 NEC Power-limited Wiring Requirements
Power-limited and nonpower-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25” away from any nonpower-limited circuit wiring. Furthermore, all power-limited circuit wiring and nonpower-limited circuit wiring must enter and exit the cabinet through different conduits. One such example of this is shown below. Your specific application may require different conduit knockouts to be used. Any conduit knockouts may be used. For power-limited applications, use of conduit is optional.
AC Power Nonpower-limited
Output Circuits Power-limited Circuits
Relay Contacts Nonpower-limited Circuit
Input Circuits Power-limited Circuit
Specific Application Power & SLC are Power-limited Circuits
*If the SLC device does not match the one in this figure, refer to the SLC manual wiring conversion charts for legacy and newer versions of the modules.
24fspwrltpH.wmf
Figure 2.6 Power-limited Wiring Example
16 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
SECTION 3 Programming Options
This section describes the programming options available via DIP switch settings. The FCPS can be field programmed using option DIP switch SW1 which is located in the lower center of the circuit board. Refer to the following illustration for switch location and DIP switch placement in the ON and OFF positions.
Important: Change DIP switch settings only when all power (AC & DC) is removed.
Programming Options
Figure 3.1 Field Programming DIP Switches
Switches 1 through 7 shown in OFF (Open) position
24fsswitc.cdr
Switch 8 shown in ON (Closed) position
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 17
Programming Options
3.1 DIP Switch Settings
The following table lists the FCPS programmable features and the switch settings required to select a particular feature. A detailed description of each feature is presented in the following pages.
Table 3.1 DIP Switch Settings
SW1 DIP Switch ON OFF
1
This switch works in conjunction with switch 2 to determine the Strobe Synchronization Type
2 1 OFF, 2 OFF = no sync (steady +24V) - default
1 OFF, 2 ON = System Sensor 1 ON, 2 OFF = Gentex 1 ON, 2 ON = Wheelock
3 FCPS configured for Slave Synchronization FCPS configured for Master Synchronization - default 4 Delay AC Fail Reporting for 2 Hours - default
Aux. Trouble Relay responds to all troubles Internal Trouble contact responds to AC loss
No Delay in AC Fail Reporting Aux. Trouble Relay responds only to AC Fail/Brownout Internal Trouble contact does not respond to AC loss
5 This switch works in conjunction with switch 6 to determine Input to Output functions 6 5 OFF, 6 OFF = General Alarm - default
• FCPS configured as Master (switch 3 OFF), NAC Outputs 1 through 4
2
are controlled by Control
Input #1; Sync Input is ignored.
• FCPS configured as Slave (switch 3 ON), NAC Outputs 1 through 42 are controlled by Control Input #1; Sync Input is monitored3.
• Resettable or nonresettable Auxiliary Power Output is available from TB4 Terminals 9 & 10. Control Input #2 determines if reset will occur (must go from On to Off for a 6 second reset to occur).
• Output #4 function follows DIP switch 8 setting.
5 OFF, 6 ON = Split Alarm
• FCPS configured as Master (switch 3 OFF), NAC Outputs 1 & 2 are controlled by Control Input #1
2
and Outputs 3 & 4
• FCPS configured as Slave
are controlled by Control Input #2; Sync Input is ignored.
5
(switch 3 ON), NAC Outputs 1 & 2 are controlled by Control Input #1
and Outputs 3 & 42 are controlled by Control Input #2; Sync Input is monitored3.
• Only nonresettable Auxiliary Power is available from TB4 Termin als 9 & 10.
• Output #4 function follows DIP switch 8 setting.
5 ON, 6 OFF = Split Temporal
• FCPS configured as Master (switch 3 OFF), Control Input #1 controls NAC Outputs 1 & 2
2
and Control Input #2 controls Outputs 3 & 4
which will generate a Temporal code signal without
sync; Sync Input is ignored.
• FCPS configured as Slave (switch 3 ON), Control Input #1 controls NAC Outputs 1 & 2 and Control
2
Input #2 controls Outputs 3 & 4 Input is monitored for Outputs 1 & 2
which will generate a Temporal code signal without sync; Sync
3
.
• Only nonresettable Auxiliary Power is available from TB4 Termin als 9 & 10.
• Output #4 function follows DIP switch 8 setting.
5 ON, 6 ON = Selective Silence
2
• FCPS configured as Master (switch 3 OFF), NAC Outputs 1 through 4
are controlled by Control
Input #1; Sync Input is ignored.
• FCPS configured as Slave (switch 3 ON), NAC Outputs 1 through 42 are controlled by Control
3
Input #1; Sync Input is monitored
• Control Input #2 determines when Selective Silence for all outputs will occur
.
4
• Only nonresettable Auxiliary Power is available from TB4 Termin als 9 & 10.
• Output #4 function follows DIP switch 8 setting.
7 Disable Charger Enable Charger - default 8 Output Circuit #4 = Door Holder Output Circuit #4 = NAC - default
1
Strobe Synchronization only works with non-coded NACs.
2
If Door Closer function is selected (switch 8 ON), Output 4 does not function as an NAC, therefore sync input is ignored for it.
3
If no synchronization is selected by switches 1 & 2, the Sync Input is ignored.
4
Selective Silence allows the silencing of the sounder portion of a horn/strobe combination device without turning off the strobe.
5
When using Split Alarm with power supply configured for Slave Mode, System Sensor can not be used (use System Sensor
with Master Mode only)
1
.
18 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
3.2 Programmable Features Description
3.2.1 Synchronization Type Selection
Synchronization is a feature that controls the activation of notification appliances in such a way that all devices will turn on and off at exactly the same time. This is particularly critical when activating strobes which must be synchronized to avoid random activation and a potential hazard or confusion. The FCPS can be programmed to operate with a variety of manufacturer’s devices. Note that strobe synchronization works only with non-coded NACs.
DIP switches 1 and 2 are used to select the type of synchronization as listed below:
Table 3.2 Sync Type Settings
DIP Switch 1 DIP Switch 2 Synchronization Type
OFF OFF no synchronization (steady 24V) OFF ON System Sensor
ON OFF Gentex ON ON Wheelock
3.2.1.1 Maximum Number of Strobes for Synchronization
The total current draw for each Notification Appliance Circuit cannot exceed 3.0 amps. Refer to the manufacturer’s documentation supplied with the strobes to determine the maximum current draw for each strobe and ensure that the circuit maximum is not exceeded.
To ensure proper strobe and circuit operation, there is also a limit to the number of strobes that can be attached to each circuit. Following is a table of the strobes that have been tested with the power supply and the maximum number that can be connected to each NAC when using the lowest candela settings. Make sure that the NAC maximum current is not exceeded:
Programming Options
Strobe Manufacturer FCPS-24FS6 (max. strobes) FCPS-24FS8 (max. strobes)
System Sensor 51 51 Wheelock 30 40 Gentex 39 39
3.2.2 Synchronization Mode - Master/Slave
The FCPS power supply can be configured for Master or Slave Synchronization by setting DIP switch 3 ON for Slave or OFF for Master mode.
In some installations, it is necessary to synchronize the flash timing of all strobes in the system for ADA compliance. Strobes accomplish this by monitoring very short timing pulses on the NAC power which are created by an F ACP such as the MS-9600. When installed at the end of an MS­9600 NAC wire run, this power supply can track (that is follow) the strobe synchronization timing pulses on the existing NAC wire run. This maintains the overall system flash timing of the additional strobes attached to this power supply.
When this power supply is configured as a sync generator (Master Synchronization mode), the Sync Input terminals are not used. The power supply is the originator of the strobe synchronization pulses on its NAC outputs. In sync generator mode, the sync type [System Sensor, Wheelock, or Gentex] is selectable via DIP switches 1 and 2.
When this power supply is configured as a sync follower (Slave Synchronization mode), the power supply’s NAC outputs track the strobe synchronization pulses present at the supply’s Sync Input terminals. The pulses originate from an upstream FACP or other power supply. Some FACPs provide synchronization timing pulses from a dedicated sync output connector. Connect the FCPS sync input terminals to the FACP sync output connector instead of the FACP NAC.
Note that the Synchronization Type configured by DIP switches 1 and 2 must be set to the same type as the signal being fed to the Sync Input circuit in the event that Selective Silence is employed.
Important! In Slave Mode, if the Input is active, but no signal is present on the Sync Input circuit, the power supply will turn the NACs on steady until a sync signal appears. The NACs will turn off when the Input becomes inactive.
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 19
Programming Options
Also in Slave Mode, if the Input is active and the Sync Input is suddenly lost (FCPS or wiring failure), there will be a three second period when NAC outputs are indeterminate. After this three second period, the power supply will turn the NACs on steady until the Input becomes inactive.
3.2.3 AC Fail Delay/Aux. Trouble Relay Function
The AC Fail Delay feature provides the option to delay generation of a trouble signal upon the loss of AC power. In addition, the operation of the Aux. Trouble Relay is altered.
Refer to "Supervision of FCPS-24FS Faults" on page 22, for operation of internal NAC trouble relay in response to AC loss.
3.2.4 Input/Output Function
DIP switches 5 and 6 are used to determine the Input Control circuits that will activate the four output circuits and the function of the output circuits. For example, to configure a General Alarm operation in which Input Control Circuit #1 activates all four output NACs, DIP switches 5 and 6 are both set to the OFF position. In this configuration, the Sync Input circuit is ignored if the power supply is set as a Master but will be monitored if the supply is set as a Slave. In addition, if the Auxiliary Power output is set as a resettable output, the circuit connected to Control Input Circuit #2 will control the auxiliary power reset function.
DIP switch 4 set to the ON position will delay the generation of an AC Loss/brownout trouble signal for 2 hours. In addition, the Aux. Trouble Relay will immediately respond to all trouble conditions on the power supply.
DIP switch 4 set to the OFF position will allow the FCPS to generate a trouble signal immediately on the loss of AC power. In addition, the Aux. Trouble Relay will respond only to AC power fail/brownout conditions.
The following table details the four possible input/output configurations:
Table 3.3 Input/Output Configurations
DIP Switch 5 DIP Switch 6 Input/Output Function
General Alarm
• FCPS configured as Master (switch 3 OFF), NAC Outputs 1 through 4 Control Input #1; Sync Input is ignored.
OFF OFF
OFF ON
ON OFF
ON ON
• FCPS configured as Slave (switch 3 ON), NAC Outputs 1 through 4 Control Input #1; Sync Input is monitored2.
• Resettable or nonresettable Auxiliary Power Output is available from TB4 Terminals 9 &
10. Control Input #2 determines if reset will occur (must go from On to Off for a 6 second reset to occur).
Split Alarm
• FCPS configured as Master (switch 3 OFF), NAC Outputs 1 & 2 are controlled by
1
Control Input #1 and Outputs 3 & 4
are controlled by Control Input #2; Sync Input is
ignored.
4
• FCPS configured as Slave Input #1 and Outputs 3 & 4
(switch 3 ON), NAC Outputs 1 & 2 are controlled by Control
1
are controlled by Control Input #2; Sync Input is monitored2.
• Only nonresettable Auxiliary Power is available from TB4 Terminals 9 & 10
Split Temporal
• FCPS configured as Master (switch 3 OFF), Control Input #1 controls NAC Outputs 1 &
1
2 and Control Input #2 controls Outputs 3 & 4
which will generate a T emporal code
signal without sync; Sync Input is ignored.
• FCPS configured as Slave (switch 3 ON), Control Input #1 controls NAC Outputs 1 & 2
1
and Control Input #2 controls Outputs 3 & 4
which will generate a Temporal code signal
without sync; Sync Input is monitored for Outputs 1 & 2
• Only nonresettable Auxiliary Power is available from TB4 Terminals 9 & 10
Selective Silence
3
• FCPS configured as Master (switch 3 OFF), NAC Outputs 1 through 41 are controlled by Control Input #1; Sync Input is ignored.
• Control Input #2 determines when Selective Silence for all outputs will occur
• Only nonresettable Auxiliary Power is available from TB4 Terminals 9 & 10
1
are controlled by
2
are controlled by
2
.
20 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
Programming Options
Table 3.3 Input/Output Configurations
1
If Door Closer function is selected (switch 8 ON), Output 4 does not function as an NAC, therefore sync input is ignored for
Output 4.
2
If no synchronization is selected by switches 1 & 2, the Sync Input is ignored.
3
Selective Silence allows the silencing of the sounder portion of a horn/strobe combination device without turning off the strobe.
4
When using Split Alarm with power supply configured for Slave Mode, System Sensor can not be used (use System Sensor
with Master Mode only)
3.2.4.1 Auxiliary Power Control
The 24 VDC Auxiliary power from TB4 Terminals 9(+) & 10(-) can be resettable or nonresettable power only when the power supply is configured for General Alarm operation. For all other configurations, the auxiliary power output is only nonresettable.
In the General Alarm configuration, the Auxiliary power output can be made resettable by applying a steady signal to Control Input 2 (positive 12 to 24 VDC on TB4 Terminal 7 and common on Terminal 8). Temporarily removing the voltage or reversing the polarity will cause the Auxiliary power output to reset for 6 seconds.
3.2.5 Charger Enable/Disable
The FCPS-24FS battery charger can be disabled to accommodate an external battery charger. Setting DIP switch 7 to the default setting of OFF will enable the battery charger. Setting DIP switch 7 to the ON position will disable the charger. It should only be disabled if an external battery charger is being used for the FCPS-24FS.
3.2.6 Door Closers
Output Circuit #4 can be configured as an NAC or door closer circuit. Setting DIP switch 8 to the OFF position will configure Output Circuit #4 as an NAC. Setting DIP switch 8 to the ON position will configure only to door holders until an alarm or AC fail condition removes the power following a 10 second delay.
Output Circuit #4 as a door closer circuit which will provide a steady 24 VDC
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 21
Trouble Supervision
SECTION 4 Trouble Supervision
4.1 Supervision via FACP Notification Appliance Circuit
4.1.1 Supervision of FACP to FCPS wiring
The F ACP (Fire Alarm Control Panel) supervises the connection between itself and the FCPS-24FS via the control panels NAC End-of-Line Resistor (ELR). The ELR must be installed at the FCPS end of the circuit, after the last notification appliance on the circuit. If no additional devices are connected from the FCPS Control Input terminals, the ELR must be connected across terminals 5 & 6 for Control Input Circuit #1 and across terminals 7 & 8 for Control Input Circuit #2. An open or short anywhere on the control panel’s NAC or power supply NAC will be detected at the FACP as an NAC trouble.
IMPORTANT: If additional notification appliances are connected to the Out terminals 5 & 6 of Control Input Circuit #1 or extended from Control Input Circuit #2 Terminals 7 & 8, the ELR must be installed after the last device on the circuit.
4.1.2 Supervision of FCPS-24FS Faults
The FACP will detect FCPS power supply faults as an open circuit condition on its NAC. An internal trouble contact is located between TB4 Terminal 3 (In+) and TB4 Terminal 5 (Out+). Any of the following conditions will cause the trouble contact to open, provided the FACP Notification Appliance Circuit is not trouble:
in alarm. The following trouble conditions will cause a general NAC
A field wiring fault on the NAC output of the power supply
An AC fail condition at the power supply (only if SW1 switch 4 is ON and a 2 hour delay has expired. If SW1 switch 4 is OFF, the Internal Trouble contact will not respond to an AC fail condition)
A battery fail condition at the power supply
A battery charger fail on the power supply
A ground fault condition on the power supply (zero impedance between power supply and ground)
Any power supply trouble will break the connection between the FACP and the ELR connected to Control Input #1 provided the FACP’s NAC is not the last notification appliance connected to FCPS terminals 5 & 6 on TB4 or, if no devices are connected to these terminals, the ELR must be connected directly across terminals 5 & 6.
If trouble monitoring is required when the power supply is in alarm, the Trouble Relay at TB5 can be used for this purpose. An addressable monitor module may be used to monitor these contacts. Refer to "Aux. Trouble Relay/AC Fail Relay" on page 23 in the following section.
Note: Control Input #2 (terminals 7 & 8) cannot be used to supervise the power supply for internal troubles, but an ELR is still required for FACP wiring supervision.
in alarm. The FACP’s ELR must be placed after
22 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
Trouble Supervision
4.1.3 Aux. Trouble Relay/AC Fail Relay
The FCPS-24FS power supply has one fail-safe Form-C aux. trouble relay located at TB5. The contacts can be monitored by an FACP input circuit or an addressable monitor module as illustrated below. The Aux. Trouble Relay responds to FCPS-24F power supply troubles depending on the setting of SW1 switch 4.
With SW1 switch 4 set to the ON position, AC Fail/brownout reporting will be delayed 2 hours and the following trouble conditions will cause the normally energized Aux. Trouble Relay to change states regardless of whether the panel is in alarm or standby:
An AC fail condition at the power supplyA battery fail condition at the power supplyA battery charger fail on the power supplyA ground fault condition on the power supply (zero impedance between the power supply
and ground
A field wiring fault on the NAC output of the power supply. (If the panel is in alarm, only
a short circuit on the NAC will be detected as a trouble)
Note: the NAC Tr ouble LED will indicate which NAC cir cuit is in tr ouble by blinking once for Circuit 1, twice for Circuit 2, three times for Circuit 3 and four times for Circuit 4. If more than one circuit is in trouble, the LED will blink the highest circuit number in trouble.
With SW1 switch 4 set to the OFF position, AC Fail/brownout reporting will occur immediately and the Aux. Trouble Relay will change state only for AC Fail/brownout conditions. A monitor module can be used to monitor the relay for AC fail.
FCPS-24FS6/8
Aux. Trouble Relay
4.2 AC Loss Reporting Delay
The reporting of AC loss to a central station is usually delayed in order to prevent multiple transmissions of AC loss and restoral, thus allowing AC power to stabilize. When a host FACP is programmed to delay AC loss reporting, the FCPS-24FS must be configured to delay the reporting of AC fail. This is accomplished by setting SW1 DIP switch 4 to the ON position. This will prevent AC loss from being reported as a trouble condition for two hours.
Changing the AC Loss Reporting setting will also affect the functioning of the Trouble Relay. Refer to "Aux. Trouble Relay/AC Fail Relay" on page 23.
SLC
Monitor Module ELR
NO NC
T7 T6
Monitor Module*
*If the SLC device does not match the one in this figure, refer to the SLC manual wiring conversion charts for legacy and newer versions of the modules.
Note that the FCPS-24FS power supply will immediately indicate loss of AC power by turning off the AC Power LED and turning on the Charger Trouble/AC Loss LED, regardless of the setting of SW1 DIP switch 4.
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 23
Applications
SECTION 5 Applications

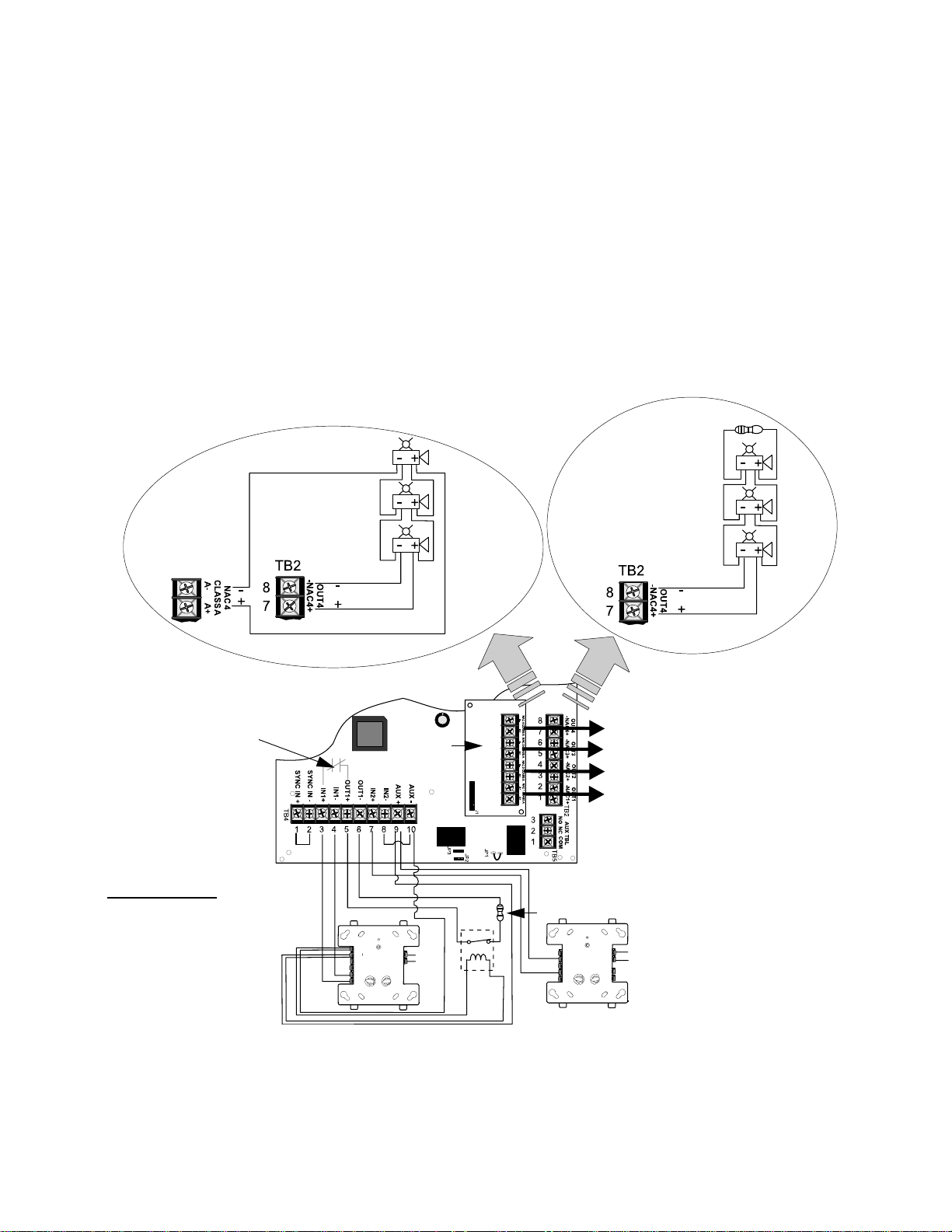

5.1 Controlling Four NACs With One Input and Selective Silence
In this application, the power supply has been set as a master with synchronized outputs and selective silence (see SW1 switch settings in following illustration). All four FCPS-24FS output circuits, which are shown as NACs (Notification Appliance Circuits), can be controlled from one input such as an addressable control module as illustrated in Figure 5.1. The control module can be powered from the FCPS-24FS auxiliary 24 VDC power output (TB4, Terminals 9 & 10) and supervised by an EOL relay. An addressable relay module, programmed as an alarm output and a silenceable point, can be used as a selective silence input.
The control module is shown to demonstrate the use of a remotely mounted device associated with an addressable fire alarm control panel. The module could be replaced with any circuit capable of polarity reversal, such as an FACP NAC.
Note: All NACs are supervised and power-limited
ELR not required for Style Z (Class A) NAC
Horn/Strobes
Alarm Polarity Shown
Internal Trouble Contact
FCPS-24FS
SW1 Switch Settings
1 & 2 = sync (any setting but OFF/OFF) 3 = OFF (master) 4 = OFF (no AC Fail reporting delay) 5 = ON
(selective silence)
6 = ON 7 = OFF (charger enabled) 8 = OFF (circuit 4 NAC function)
*If the SLC device does not match the one in this figure, refer to the SLC manual wiring conversion charts for legacy and newer versions of the modules.
Figure 5.1 Controlling Four Outputs With One Input
Style Z (Class A)
ZNAC-4
Option Module
T11
T1
T10
T2
T9
T3
T8
T4
T7
T5
T6
Control Module*
SLC
EOL Power
Supervision Relay
EOLR-1
(energized)
Use listed ELR (4.7KΩ) to terminate Style Y (Class B) NAC
Alarm Polarity Shown
Output/NAC 4 Output/NAC 3 Output/NAC 2 Output/NAC 1
End-of-Line Resistor supplied with Control Module
T11
T1
T10 T9 T8 T7 T6
SLC
T2 T3 T4 T5
Relay Module*
Horn/Strobes
Style Y (Class B)
24fsapp7tpH.wmf
FCPS-24FS has been set for Selective Silence and Relay Module has been programmed at FACP as a silenceable point so it can perform selective silence when its Normally Open contact (7 & 9) closes in alarm, then opens when silence is invoked at the FACP.
Note: the Relay Module can be mounted on the power supply inside the cabinet. This allows power wiring to remain inside the cabinet.
24 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
Applications
Notes: The following notes apply to Figure 5.1 on page 24.
1. When the FCPS-24FS power supply is in an inactive state (control module not active), a trouble on the power supply will result in an open circuit condition on the control module output circuit (monitored by End-of-Line Resistor across TB4, Terminals 5 & 6). As an alternative, the trouble contacts at TB5 of the power supply can also be used for independent trouble monitoring.
2. The addressable relay module must be programmed as a silenceable point at the FACP to allow selective silence of horn/strobe devices. The Normally Open contact of the relay module is connected between TB4 Terminal 7 (IN2 +) and Terminal 9 (Aux. Power +).
3. Do not loop wires under screw terminals. Break wires to maintain proper supervision.
4. An End-of-Line Resistor must be installed between TB4, Terminals 5 & 6 for control module wiring supervision (the ELR value is dependent on the module employed).
5. Supervise the power wiring between the FPCS-24FS auxiliary 24 VDC output on TB4, Terminals 9 & 10 with an EOL relay (P/N: A77-716B).
6. For a list of compatible devices, refer to the Device Compatibility Document.
7. IMPORTANT! When the power supply is pr ogra mmed for bo th Selective Silence and Slave Mode, TB4 Terminal 7 (IN+) must be jumpered to Terminal 9 (AUX+) and Terminal 8 (IN-) must be jumpered to Terminal 10 (AUX-). The FACP will control the Selective Silence feature with this configuration. If the terminals are not jumpered as indicated, the horn portion of the horn/strobes will be silenced
at all times.

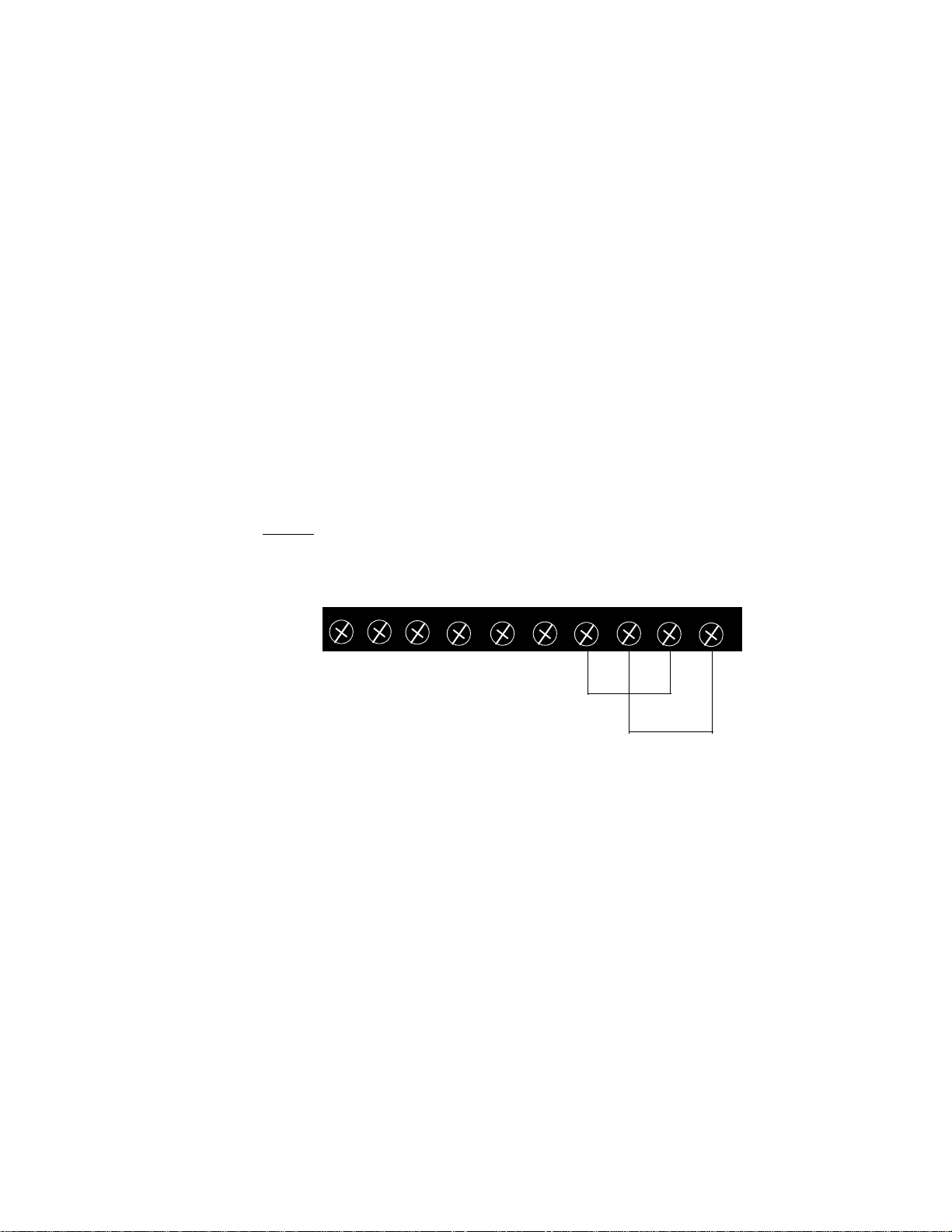

SYNC SYNC IN+ IN- OUT+ OUT- IN2+ IN2- AUX+ AUX-
TB4
1 2 3 4 5 6 7 8 9 10
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 25
Applications

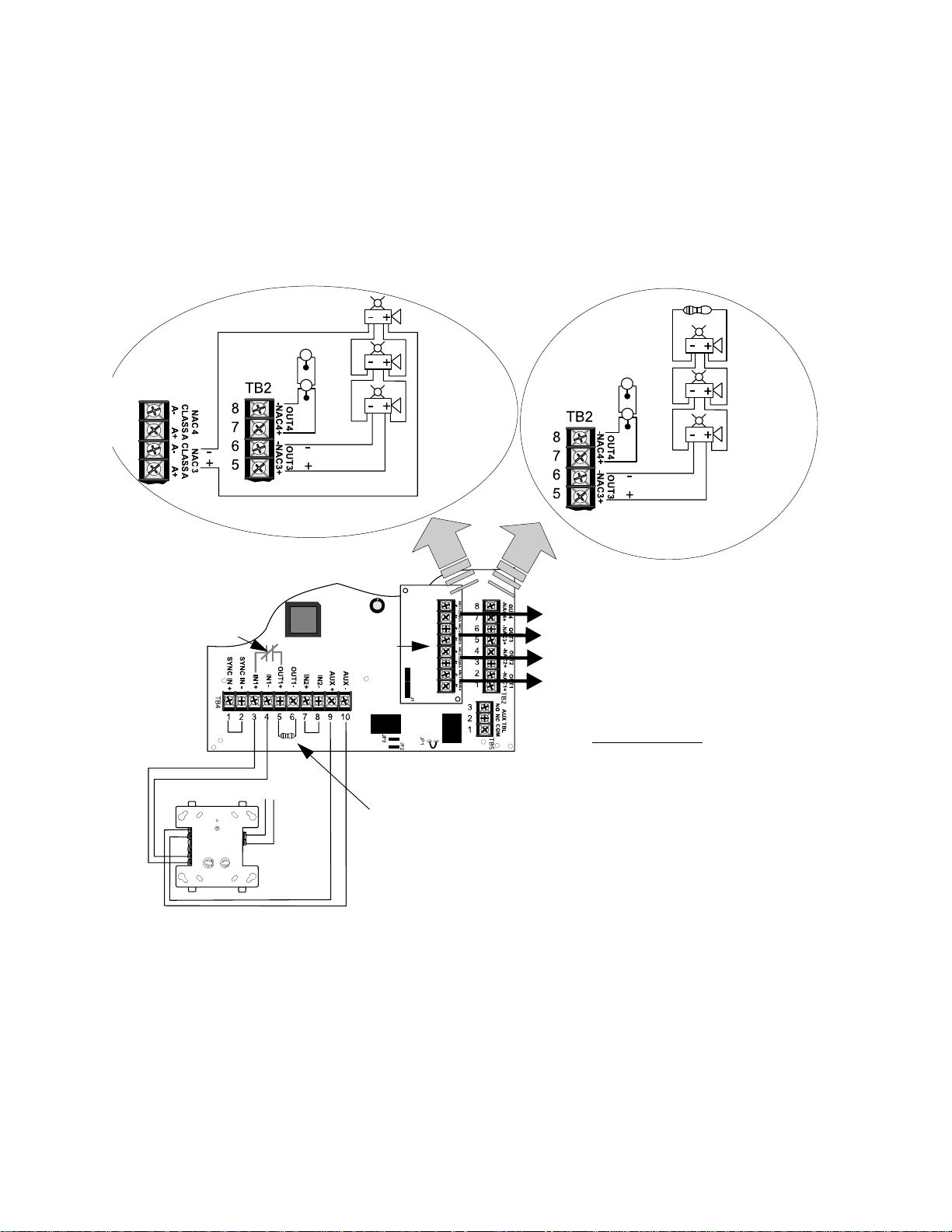

5.2 Controlling Three NACs and One Door Holder With One Input
In this application, the power supply has been set as a master with synchronized outputs. All four FCPS-24FS output circuits, three NACs and one door holder, can be controlled from one input such as an addressable control module as illustrated in Figure 5.2. The control module can be powered from the FCPS-24FS auxiliary 24 VDC power output (TB4, Terminals 9 & 10).
The control module is shown to demonstrate the use of a remotely mounted device associated with an addressable fire alarm control panel. The module could be replaced with any circuit capable of polarity reversal, such as an FACP Notification Appliance Circuit.
Note: All NACs are supervised and power-limited
ELR not required for Style Z (Class A) NAC
Door Holder
Horn/Strobes
Alarm Polarity Shown
Use listed ELR (4.7KΩ) to terminate Style Y (Class B) NAC
Door Holder
Horn/Strobes
Alarm Polarity Shown
Internal Trouble Contact
FCPS-24FS
T11 T10 T9 T8 T7 T6
Control Module*
*If the SLC device does not match the one in this figure, refer to the SLC manual wiring conversion charts for legacy and newer versions of the modules.
Style Z (Class A)
Style Y (Class B)
Door Holder Circuit 4
ZNAC-4
Option Module
Output/NAC 3 Output/NAC 2 Output/NAC 1
SW1 Switch Settings
1 & 2 = sync (any setting but OFF/OFF) 3 = OFF (master)
SLC
End-of-Line Resistor
T1 T2 T3 T4 T5
supplied with Control Module
4 = OFF (no AC Fail reporting delay) 5 = OFF 6 = OFF
(general alarm)
7 = OFF (charger enabled) 8 = ON (circuit 4 door holder)
24fsapp6tpH.wmf
Figure 5.2 Controlling Three NACs and One Door Holder With One Input
26 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
Applications
Notes: The following notes apply to Figure 5.2 on page 26.
1. The Output 4 door holder circuit will deactivate 10 seconds after Control Input #1 is activated or AC power is lost.
2. When the FCPS-24FS power supply is in an inactive state (control module not active), a trouble on the power supply will result in an open circuit condition on the control module output circuit (monitored by End-of-Line Resistor across Terminals 5 & 6). As an alternative, the trouble contacts at TB5 of the power supply can also be used for independent trouble monitoring.
3. Do not loop wires under screw terminals. Break wires to maintain proper supervision.
4. An End-of-Line Resistor must be installed between terminals 5 & 6 for control module wiring supervision (the ELR value is dependent on the module employed).
5. For a list of compatible devices, refer to the Device Compatibility Document.
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 27
Applications
5.3 Split Temporal Mode of Operation
In this application, the power supply has been set as a master with two synchronized and two nonsynchronized outputs as determined by the Split Temporal mode feature. Control Input #1 (TB4, Terminals 3 & 4) is connected to an addressable control module which will cause the synchronized power supply output circuits 1 & 2 to turn on. Control Input #2 (TB4, Terminals 7 &
8) is connected to an FACP Notification Appliance Circuit which is used to activate the power supply’s temporal output circuits 3 & 4.
Note: All NACs are supervised and power-limited
ELR not required for Style Z (Class A) NAC
Bells
Use listed ELR (4.7KΩ) to terminate Style Y (Class B) NAC
Bells
Internal Trouble Contact
FCPS-24FS
End-of-Line Resistor supplied with Control Module
T11 T10 T9 T8 T7 T6
Control Module*
*If the SLC device does not match the one in this figure, refer to the SLC manual wiring conversion charts for legacy and newer versions of the modules.
Style Z (Class A)
Style Y (Class B)
Temporal Bell Circuit 4
ZNAC-4
Option Module
Temporal Bell Circuit 3
Horn/Strobe Circuit 2 Horn/Strobe Circuit 1
SLC
FACP NAC End-of-Line Resistor
SW1 Switch Settings
1 & 2 = sync (any setting but OFF/OFF) 3 = OFF (master) 4 = OFF (no AC Fail reporting delay)
T1 T2 T3 T4 T5
NAC (steady, no sync)
FACP
5 = ON 6 = OFF
Split Temporal
7 = OFF (charger enabled) 8 = OFF (circuit 4 NAC)
24fsapp5tpH.wmf
Figure 5.3 Split Temporal Mode Application
28 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
Applications
Notes: The following notes apply to Figure 5.3 on page 28.
1. When the FCPS-24FS power supply is in an inactive state (control module not active), a trouble on the power supply will result in an open circuit condition on the control module output circuit (monitored by End-of-Line Resistor across Terminals 5 & 6). As an alternative, the trouble contacts at TB5 of the power supply can also be used for independent trouble monitoring.
2. Do not loop wires under screw terminals. Break wires to maintain proper supervision.
3. An End-of-Line Resistor must be installed between terminals 5 & 6 for control module wiring supervision (the ELR value is dependent on the module employed) and across terminals 7 & 8 for FACP NAC wiring supervision (the ELR value is dependent on the NAC).
4. For a list of compatible devices, refer to the Device Compatibility Document.
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 29
Applications
5.4 Remote Supply With Resettable and Nonresettable Power
The FCPS-24FS can be used as a remote stand-alone power supply to provide power to any devices that require filtered, resettable or nonresettable power. The FCPS-24FS6 can provide up to 4 amps of continuous current and the FCPS-24FS8 can provide up to 6 amps of continuous current. The power supply must be set for Split Alarm mode. Output circuits 1 & 2 are configured as resettable power outputs by connecting the resettable power from an FACP to Control Input 1 Terminals 3(+) & 4(-) on TB4 of the FCPS-24FS. Output circuits 3 & 4 are configured as nonresettable power outputs by connecting jumpers between the auxiliary 24 VDC output on TB4 to the Control Input 2 terminals on TB4 [Terminals 9(+) to 7(+) and 1(-) to 8(-)].
Note: All four outputs can be configured as resettable or all four can be configured as nonresettable by setting the power supply for General Alarm and then connecting a resettable power source to Control Input 1 or a nonresettable power source, such as the Aux. Power output of the FCPS-24FS, to Control Input 1.
For addressable panel applications, an addressable monitor module can be used to monitor the trouble contact of the FCPS-24FS and the resettable power connection from the FACP using an End-of-Line power supervision relay. If the FCPS-24FS enters a trouble condition, the Normally Closed trouble contact will open and if the resettable power from the F ACP is lost, the Normally Closed power supervision relay contact will open.
FCPS-24FS
24 VDC Resettable Power
FACP
End-of-Line Resistor supplied with Monitor Module
Power Output 4 Nonresettable
Power Output 3 Nonresettable
Power Output 2 Resettable Power Output 1 Resettable
EOL Power
Supervision Relay
EOLR-1
(energized)
SW1 Switch Settings
1 = OFF 2 = OFF 3 = OFF (master) 4 = OFF (no AC Fail reporting delay) 5 = OFF 6 = ON 7 = OFF (charger enabled) 8 = OFF (circuit 4 NAC)
T11 T10 T9 T8 T7 T6
T1 T2 T3 T4 T5
Monitor Module* *If the SLC device does not match the one in this figure, refer to the SLC manual wiring conversion charts for legacy and newer versions of the modules.
No Sync
Split Alarm
SLC
SLC
24fsapp4.cdr
Figure 5.4 Remote Power Supply Application
30 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
Applications
Notes: The following notes apply to Figure 5.4 on page 30.
1. An End-of-Line Resistor must be installed between TB5, Terminal 1 (trouble relay common) and the monitor module input circuit for module wiring supervision (the ELR value is dependent on the module employed).
2. An End-of-Line power supervision relay must be connected between TB4, Terminals 5 & 6. The Normally Closed (when energized) power supervision relay contact must be in series with the End-of-Line Resistor referred to in note 1.
3. Do not loop wires under screw terminals. Break wires to maintain proper supervision.
4. For a list of compatible devices, refer to the Device Compatibility Document.
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 31
Applications
5.5 Door Release Service For All Four Outputs
This application illustrates the use of the FCPS-24FS to power 24 VDC door holders. The power supply must be set for General Alarm. A signal must be supplied from the FACP to activate the FCPS-24FS outputs. This signal should consist of a +24 VDC nonresettable source connected through the FACP Normally Closed alarm contacts. During normal (nonalarm) condition, the +24 VDC should be applied to the FCPS-24FS Control Input 1. This will result in the outputs of the power supply being activated which will in turn energize the door holders. When the FACP enters an alarm condition, the alarm contacts will open, removing the +24 VDC signal from the FCPS-24FS, causing the door holders to release. It is important to note that, for this application,
doors will close immediately on activation of an alarm condition. AC loss, however, will switch to batteries in sufficient time to prevent doors from closing.
Door Holder Circuit 4
FCPS-24FS
Door Holder Circuit 3
Door Holder Circuit 2
SLC
Door Holder Circuit 1
End-of-Line Resistor supplied with Monitor Module
SW1 Switch Settings
1 = OFF 2 = OFF 3 = OFF (master) 4 = OFF (no AC Fail reporting delay) 5 = OFF 6 = OFF 7 = OFF (charger enabled) 8 = OFF (circuit 4 NAC)
No Sync
General Alarm
*If the SLC device does not match the one in this figure, refer to the SLC manual wiring conversion charts for legacy and newer versions of the modules.
T11 T10 T9 T8 T7 T6
Monitor Module*
T1 T2 T3 T4 T5
Figure 5.5 Using the FCPS-24FS with 24 VDC Door Holders
Notes: The following notes apply to Figure 5.5.
1. During a normal (nonalarm) condition, nonresettable +24 VDC should be applied to TB4, Terminal 3 (-24 VDC is applied directly to Terminal 4 from the FACP).
2. The Normally Closed alarm relay may consist of an actual relay in the F ACP or a control module which may be mounted remotely or at the FACP.
3. A monitor module may be used to monitor the FCPS-24FS Trouble contacts at TB5. Any power supply trouble will cause the contacts to change states.
4. A maximum of 4.0 amps from the FCPS-24FS-6 and 6.0 amps from the FCPS-24FS8 may be drawn continuously for holding doors.
5. For a list of compatible devices, refer to the Device Compatibility Document.
6. An alarm condition will cause the doors to close immediately.
SLC
24fsapp3TpH.wmf
32 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
5.6 Master FACP with Slave FCPS-24FS Power Supply
In this application, an FCPS-24FS power supply, configured as a Slave unit, is connected to a master FACP NAC programmed for synchronized output. The power supply should be set for synchronization which matches the FACP programming.
SW1 Switch Settings
Standby Polarity Shown
FCPS-24FS
See Note 3
Horn/Strobes
1 & 2 = sync (any setting but OFF/OFF) 3 = ON (slave) 4 = OFF (no AC Fail reporting delay) 5 = OFF 6 = OFF 7 = OFF (charger enabled) 8 = OFF (circuit 4 NAC)
24fsapp1.cdr
Applications
general alarm
5.6a: Supervised Master/Slave Connections (Filtered, Synchronized NAC Source)
Standby Polarity Shown
SW1 Switch Settings
1 & 2 = sync (any setting but OFF/OFF) 3 = ON (slave) 4 = OFF (no AC Fail reporting delay) 5 = OFF 6 = OFF 7 = OFF (charger enabled) 8 = OFF (circuit 4 NAC)
24fsapp1b.cdr
5.6b: Supervised Master/Slave Connections (Remote Sync Source)
Figure 5.6 Supervised Master/Slave Connections
Note: The following notes apply to both illustrations in Figure 5.6
1. Refer to NFPA 72, Chapter 4-4, Visible Characteristics, Public Mode.
2. Use only devices from the same manufacturer in each system.
3. If the F ACP has a dedicated sync output connector, wire the remote sync output connector to the FCPS Sync In terminals TB4 terminals 1 & 2. Refer to the Supervised Master/Slave Connections (Remote Sync Source) in 5.6b.
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 33
Applications
5.7 Master FCPS-24FS Power Supply Connected to FACP
In this application, a master FCPS-24FS power supply, set for synchronization, is connected to an FACP NAC with nonsynchronized output.
Standby Polarity Shown
FCPS-24FS
SW1 Switch Settings
1 & 2 = sync (any setting but OFF/OFF)
Horn/Strobes
(no synchronization)
Figure 5.7 Supervised FACP to Master Connections (nonsynchronized source)
3 = OFF (master) 4 = OFF (no AC Fail reporting delay) 5 = OFF 6 = OFF 7 = OFF (charger enabled) 8 = OFF (circuit 4 NAC)
24fsapp11.cdr
general alarm
Note: The following notes apply to this illustration
1. Refer to NFPA 72, Chapter 4-4, Visible Characteristics, Public Mode.
2. Use only devices from the same manufacturer in each system.
34 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
5.8 Canadian Applications

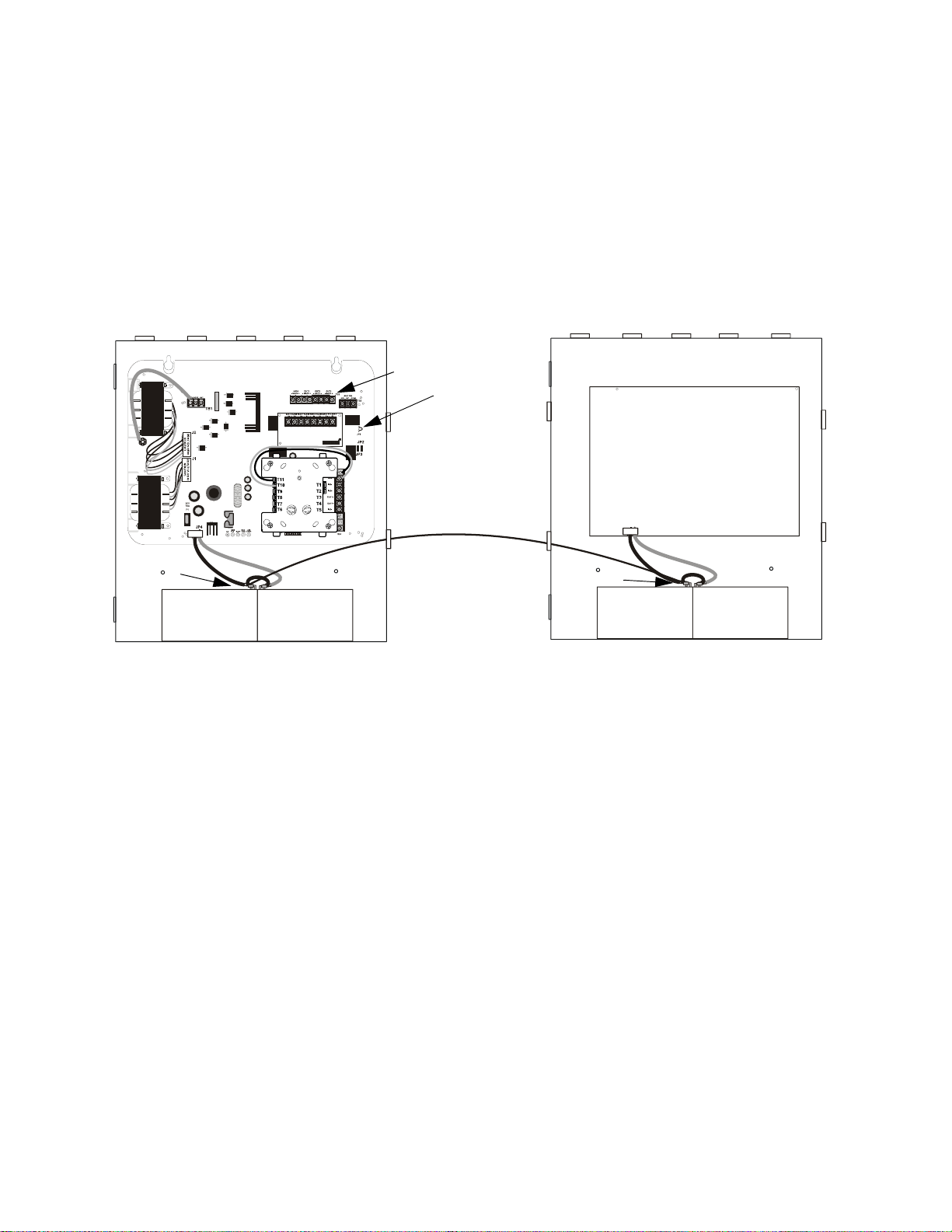

Canadian applications, per ULC, require the following:
the FCPS power supply must be used as a Notification Appliance Circuit extender only. The TB2 terminals cannot be configured as auxiliary power outputs.
the host FACP must monitor for all ground fault conditions. The Ground Fault Detection circuit on the FCPS power supply must be disabled by cutting jumper JP1.
the negative (-) battery terminal of the FCPS power supply must be connected to the negative (-) battery terminal of the host FACP.
Applications
NAC Outputs only
Cut JP1
Battery -
FCPS Power Supply
Battery -
24fsCanadiantpH.wmf
Host FACP
*If the SLC device does not match the one in this figure, refer to the SLC manual wiring conversion charts for legacy and newer versions of the modules.
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 35
Power Supply Requirements
SECTION 6 Power Supply Requirements
6.1 Overview
This section contains instructions and tables for calculating power supply currents in alarm and standby conditions. This is a four-step process, consisting of the following:
1. Calculating the total amount of AC branch circuit current required to operate the system
2. Calculating the power supply load current for non-fire and fire alarm conditions and calculating the secondary (battery) load
3. Calculating the size of batteries required to support the system if an AC power loss occurs
4. Selecting the proper batteries for your system
6.2 Calculating the AC Branch Circuit
The power supply requires connection to a separate, dedicated AC branch circuit, which must be labeled FIRE ALARM. This branch circuit must connect to the line side of the main power feed of the protected premises. No other non-fire alarm equipment may be powered from the fire alarm branch circuit. The branch circuit wire must run continuously , without any disconnect devices, from the power source to the power supply. Overcurrent protection for this circuit must comply with Article 760 of the National Electrical Codes as well as local codes. Use 14 AWG (2.00 mm wire with 600 volt insulation for this branch circuit.
2
)
Use Table 6.1 to determine the total amount of current, in AC amperes, that must be supplied to the system
Table 6.1 120/240 VAC Branch Circuit Requirements
Device Type Number of
Devices
FCPS-24FS6/8
or
FCPS-24FS6/8E
[ ] [ ] X [ ] = [ ] [ ] X [ ] =
1X
Sum Column for AC Branch Current Required =
Current Draw
(AC amps)
3.2 or
1.6
T otal Current
per Device
=
36 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
6.3 Calculating the System Current Draw
6.3.1 Overview
The power supply must be able to power all internal and external devices continuously during the non-fire alarm condition. To calculate the non-fire alarm load on the power supply when primary power is applied, use Calculation Column 1 in Table 6.3 on page 38. The power supply must support a larger load current during a fire alarm condition. To calculate the fire alarm load on the power supply, use Calculation Column 2 in Table 6.3 on page 38. The secondary power source (batteries) must be able to power the system during a primary power loss. To calculate the non-fire alarm load on the secondary power source, use Calculation Column 3 in Table 6.3 on page 38.
When calculating current draw and the battery size, note the following:
Primary refers to the main power source for the power supply
Secondary refers to the power supply’s backup batteries
All currents are given in amperes (A). Table 6.2 shows how to convert milliamperes and microamperes to full amperes
Table 6.2 Converting to Full Amperes
To convert... Multiply Example
Power Supply Requirements
Milliamperes (mA) to amperes (A)
Microamperes (μA) to amperes (A)
6.3.2 How to Calculate System Current Draw
Use Table 6.3 on page 38 to calculate current draws as follows:
1. Enter the quantity of devices in all three columns
2. Enter the current draw where required. Refer to the Fire-Lite Device Compatibility Document for compatible devices and their current draw
3. Calculate the current draws for each in all columns
4. Sum the total current for each column
5. Copy the totals from Column 2 and Colu mn 3 to T a ble 6.3 on page 38
Following are the types of current that can be entered into Table 6.3 on page 38
Calculation Column 1 - The primary supply current load that the power supply must
Calculation Column 2 - The primary supply current load the power supply must support
Calculation Column 3 - The standby current drawn from the batteries in a non-fire alarm
mA x 0.001 3 mA x 0.001 - 0.003 A
μA x 0.000001 300 μA x 0.000001 = 0.0003 A
support during a non-fire alarm condition, with AC power applied
during a fire alarm condition, with AC power applied
condition during a loss of AC power
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 37
Power Supply Requirements
Table 6.3 contains three columns for calculating current draws. For each column, calculate the current and enter the total (in amperes) in the bottom row. When finished, copy the totals from Calculation Column 2 and Calculation Column 3 to Table 6.4 on page 39.
Table 6.3 System Current Draw Calculations
Device Type Calculate Column 1
Main Circuit Board 1 X [ 0.091] = 1 X [ 0.145] = 1 X [ 0.065] =
Power Supervision Relay
NAC/Output #1
NAC/Output #2 [ ] X [ ] =
NAC/Output #3 [ ] X [ ] =
NAC/Output #4 [ ] X [ ] =
Current Draw from TB4 Terminals 9 & 10
Sum each column
for totals
Primary, Non-Fire Alarm Current (amps)
Qty X (current draw) = Total Qty X (current draw) = Total Qty X (current draw) = Total
[ ] X [ 0.025] = [ ] X [0.025 ] = [ ] X [ 0.025] =
[ ] = [ ] = [ ] =
Primary Non-Alarm = Primary Alarm = Secondary Alarm =
Calculate Column 2 Primary, Fire Alarm Current (amps)
[ ] X [ ] =
Calculation Column 3 Secondary, Non-Fire Alarm Current (amps)
38 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
6.4 Calculating the Battery Size
Use T able 6.4 to calculate the total Standby and Alarm load in ampere hours (AH). This total load determines the battery size (in AH) required to support the power supply under the loss of AC power. Complete Table 6.4 as follows:
1. Enter the totals from Table 6.3 on page 38, Calculation Columns 2 and 3 where shown
2. Enter the NFPA Standby and Alarm times. Refer to “NFPA Battery Requirements”
3. Calculate the ampere hours for Standby and Alarm, then sum the Standby and Alarm ampere hours
4. Multiply the sum by the derating factor of 1.2 to calculate the proper battery size (in AH)
5. Write the ampere hour requirements on the Protected Premises label located inside the cabinet door
Table 6.4 Total Secondary Power Requirements at 24 VDC
Power Supply Requirements
Secondary Standby Load (total from Table 6.3 Calculation Column 3) [ ]
Primary Alarm Load (total from Table 6.3 Calculation Column 2) [ ]
Sum of Standby and Alarm Ampere Hours = AH for nonULC applications, multiply by the Derating Factor for ULC applications, multiply by the Derating Factor
Battery Size, Total Ampere Hours Required = AH
Table Footnote
Required Standby Time (24 or 60 hours)
X [ ] = AH Required Alarm Time
(for 5 min., enter 0.084, for 10 min., enter 0.168) X [ = AH
1
1
X 1.2 X 2.5
1. Multiply by only one of the Derating Factors, depending on whether the
power supply is being used for a ULC (Canadian) application or nonULC application.
6.4.1 NFPA Battery Requirements
NFP A 72 Local and Proprietary Fire Alarm Systems require 24 hours of standby power followed by 5 minutes in alarm
6.4.2 Selecting and Locating Batteries
Select batteries that meet or exceed the total ampere hours calculated in Table 6.4 . The power supply can charge batteries in the 7 AH to 18 AH range. The power supply cabinet is capable of housing batteries up to 7 AH. Batteries larger than 7 AH require the BB-17F or other UL listed external battery cabinet.
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 39
Wire Requirements
APPENDIX A Wire Requirements
Connecting external system accessories to the main circuits must be carefully considered to ensure proper operation. It is important to use the correct type of wire, gauge and run length for each circuit. The following table lists NAC wiring requirements for the FCPS-24FS6 & FCPS-24FS8 Field Charger Power Supply.
Table A.1 NAC Wiring Requirements for Power Supply
Max.
allowable
total loop
NAC Load
(Amps)
resistance
(ohms)
0.25 12.80 3316 2085 1309 824 1658 1042 654 412
0.5 6.40 1658 1042 654 412 829 521 327 206
0.75 4.27 1105 695 436 275 553 347 218 137
1.0 3.20 829 521 327 206 415 261 164 103
1.25 2.56 663 417 262 165 332 208 131 82
1.5 2.13 553 347 218 137 276 174 109 69
1.75 1.83 474 298 187 118 237 149 93 59
2.0 1.60 415 261 164 103 207 130 82 51
2.25 1.42 368 232 145 92 184 116 73 46
2.5 1.28 332 208 131 82 166 104 65 41
2.75 1.16 301 190 119 75 151 95 59 37
3.0 1.07 276 174 109 69 138 87 55 34
Max. allowable wire pair lenth
AWG 12
solid
CLASS-B
AWG 14
solid
(feet)
AWG 16
solid
AWG 18
solid
Max. allowable wire pair length
AWG 12
solid
CLASS-A
AWG 14
solid
(feet)
AWG 16
solid
Note: Calculations are based on Direct-Current Resistance data for uncoated copper wire, per National Electrical Code (2005 Edition) Table 8, Conductor Properties.
AWG 18
solid
40 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
Index
A
AC
Loss 6 Loss Reporting Delay 23
AC fail
delay 20 see also AC loss reporting delay 20
AC loss
reporting delay 20
AC loss reporting
delay 7
AC power 9
current 9 LED 8 voltage 9
activation
reverse polarity 6 alarm condition 6 applications 6 Auxiliary Power 7, 10
current 10
voltage 10 Auxiliary Power Control
see also resettable or nonresettable power 21
B
backbox dimensions 13 battery
capacity 9
charge current 9
charger capacity 7
float charge voltage 9
fuse F1 9
lead acid 7, 9
maximum capacity 7
see also secondary power 9
trouble 6 battery/charger trouble LED 8
C
cabinet
see also backbox 13 capacity
battery 9 charge current
maximum 9 charger trouble 6
LED 8 circuit board
layout 10 Class A Converter Module 14
see also ZNAC-4 6 Class B
see also Style Y 6 Coded Input 8 Coded/Noncoded Input Selection 8 coding
NAC 6 compatibility
input circuit 6
control circuit 6
current 9 see also input circuit 9 voltage 9
current
maximum continuous 7 maximum short term 7 standby 9 total continuous 9 total short term 9
D
dimensions
backbox 13
E
ELR
installation 22 see also End-of-Line Resistor 22
End-of-Line Resistor
see also ELR 22
F
faults 22 FCPS-24FS6 6 FCPS-24FS8 6 Features 6 filtered power 6 float charge voltage 9 Form-C
see also Relay 7
G
ground fault 6 ground fault detection 7, 8
Jumper JP1 8
ground fault LED 8
I
input
current 9 voltage 9
input circuit 6
activation 6 compatibility 6 see also control 9
installation 12
J
JP1 Jumper
ground fault detection 8
JP2 Jumper
Coded/Noncoded Input 8
JP3 Jumper
Coded/Noncoded Input 8
Jumper
JP1 ground fault detection 7, 8 JP2 Coded/NonCoded Input 8 JP3 Coded/Noncoded Input 8
L
LED
AC power 8
FCPS-24FS Power Supplies PN 51883:G1 8/07/08 41
Index
battery/charger trouble 8
Charger Trouble 8
Ground Fault 8
NAC Trouble 8 LED indicators 8
M
mounting
see also installation 12
N
NAC
activation 6
coding 6
see also Notification Appliance Circuit 6
supervision 22 NAC Circuit Wiring 14 NAC output
see also output circuit 9 NAC style
see alsoNFPA Style 6 NAC Trouble LED 8 NACs 7 NEC power-limited wiring requirements 16 NFPA Style
see also Style 6 nonalarm state 6 Noncoded Input 8 nonresettable power 21 Notification Appliance Circuit
see also NAC 6
O
output
circuit types 9
maximum current 3.0 amps 9 output circuit
current 9
maximum current 7
see also NAC output 9
Style 9
voltage rating 9 output power 6
P
Power
nonresettable 6
resettable 6 power supply
board layout drawing 10
connectors and jumpers 10 power supply requirements 36 powering supply 36 power-limited 6 power-limited wiring 16
R
relay
trouble 6, 7, 9, 23 reporting delay
AC loss 23 resettable power 21
S
secondary power
see also battery 9
Special Application Power
see also Auxiliary Power 10 specifications 9 Startup Procedure 7 strobe synchronization 7 Style
see also NFPA Style 6 Style Y
see also Class B 6 supervision 6
NAC 22
trouble 22 synchronization
ADA compatible 6
selectable 7
T
trouble
supervision 22 trouble relay 6, 7, 9, 23
contact rating 9 trouble supervision 6 troubles 22
power supply 6
W
Wire Requirements 40 wiring 7
AC power 9
power-limited 16
Z
ZNAC-4 14
see also Class A Converter Module 6
42 FCPS-24FS Power Supplies PN 51883:G1 8/07/08
Limited Warranty
Honeywell International Inc. warrants products manufactured by it
to be free from defects in materials and workmanship for eighteen (18) months from the date of manufacture, under normal use and service. Products are date stamped at time of manufa cture. The sole and exclusive obligation of Honeywell International Inc. is to repair or replace, at its option, free of charge for parts and labor, any part that is defective in materials or workmanship under normal use and service. All returns for credit are subject to inspection and testing at the factory before actual determination is made to allow credit. Honeywell International Inc. does not warrant products not manufactured by it, but assigns to the purchaser any warranty extended by the manufacturer of such products. This warranty is void if the product is altered or repaired by anyone other than Honeywell
International Inc. or as expressly authorized by Honeywell International Inc. in writing, or is serviced by anyone other than Honeywell International Inc. or its authorized distributors. This
warranty is also void if there is a failure to maintain the products and systems in which they operate in a proper and workable manner. In case of defect, secure a Return Material Authorization form from our Return Authorization Department.
This writing constitutes the only warranty made by Honeywell
International Inc., with respect to its products. Honeywell International Inc., does not represent that its products will prevent
any loss by fire or otherwise, or that its products will in all cases provide the protection for which they are installed or intended. Buyer acknowledges that Honeywell International Inc., is not an insurer and assumes no risk for loss or damages or the cost of any inconvenience, transportation damage, misuse, abuse, accident or similar incident.
HONEYWELL INTERNATIONAL INC. GIVES NO WARRANTY, EXPRESS OR IMPLIED, OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR OTHERWISE WHICH EXTENDS BEYOND THE DESCRIPTION ON THE F ACE HEREOF. UNDER NO CIRCUMSTANCES SHALL HONEYWELL INTERNATIONAL INC. BE LIABLE FOR ANY LOSS OF OR DAMAGE TO PROPERTY, DIRECT, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE USE OF, OR INABILITY TO USE HONEYWELL
INTERNATIONAL INC.’S PRODUCTS. FURTHERMORE, HONEYWELL INTERNATIONAL INC. SHALL NOT BE LIABLE FOR
ANY PERSONAL INJURY OR DEATH WHICH MAY ARISE IN THE COURSE OF, OR AS A RESULT OF, PERSONAL, COMMERCIAL OR INDUSTRIAL USE OF ITS PRODUCTS.
This warranty replaces all previous warranties and is the only warranty made by Honeywell International Inc. No increase or alteration, written or verbal, of the obligation of this warranty is authorized.
Warn-HL-05-2007.fm
World Headquarters
1 Firelite Place
Northford, CT 06472-1653 USA
203-484-7161
fax 203-484-7118
www.firelite.com
Loading...
