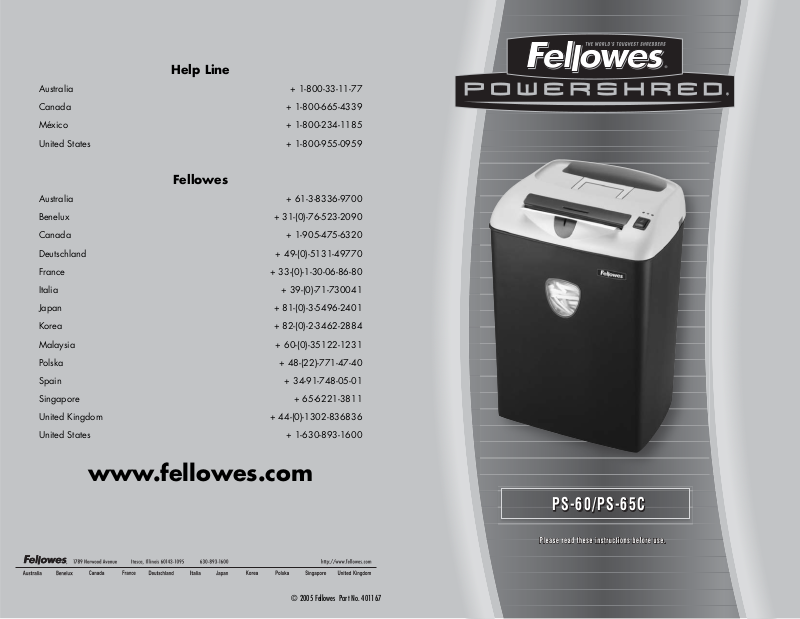

Fellowes PS-60, PS-65C User Manual

PS-60/PS-65C

Help Line

Australia + 1-800-33-11-77

Canada + 1-800-665-4339

México + 1-800-234-1185

United States + 1-800-955-0959

Fellowes

Australia + 61-3-8336-9700

Benelux + 31-(0)-76-523-2090

Canada + 1-905-475-6320

Deutschland + 49-(0)-5131-49770

France + 33-(0)-1-30-06-86-80

Italia + 39-(0)-71-730041

Japan + 81-(0)-3-5496-2401

Korea + 82-(0)-2-3462-2884

Malaysia + 60-(0)-35122-1231

Polska + 48-(22)-771-47-40

Spain + 34-91-748-05-01

Singapore + 65-6221-3811

United Kingdom + 44-(0)-1302-836836

United States + 1-630-893-1600

www.fellowes.com

© 2005 Fellowes Part No. 401167

PS-60/PS-65C

PS-60/PS-65C

ENGLISH

Models PS-60/PS-65C

OPERATION

PAPER

Shredder head

Sheet capacity gauge

Window

Bin

Paper entry

SET UP

Insert waste bag (Fellowes #36052) for easy disposal.

CAPABILITIES

Will shred: Paper, credit cards, staples and small paper clips
Will not shred: Continuous forms, adhesive labels, transparencies,

newspaper, cardboard, large paper clips, laminates or plastic other than
noted above

Paper shred size:

Strip-Cut .......................................................................... 7/32” (5.8mm)

Confetti-Cut .....................................................5/32” x 2” (3.9 x 50mm)

Maximum:

Sheets per pass (Strip-Cut) ..................................................................12*

Sheets per pass (Confetti-Cut) ............................................................... 8*

Passes per day ................................................................................25-50

Cards per pass ........................................................................................1

Cards per day ....................................................................................... 10

Paper width .............................................................................9”/229mm

Continuous operation ...............................................................10 minutes

*20lb., 8.5”x11” (75g) paper at 120v, PS-60/PS-65C–2.0Amps; heavier paper,
humidity or other than rated voltage may reduce capacity.

IMPORTANT SAFETY INSTRUCTIONS — Read Before Using!

• Keep away from children and pets. Always unplug or set
safety lock when not in use.

• Keep foreign objects – gloves, jewelry, clothing, hair,
etc.– away from shredder entries. In case of accident,
press and hold Reverse (R) to back out object.

• Avoid touching exposed blades under Confetti-Cut shredder head. • Use only designated entry for cards.

2

• Never use aerosol, petroleum-based or other flammable
products on or near shredder.

• Do not use if damaged or defective. Do not open shredder
head. Do not place near or over heat or water source.

Control switch

Card entry

Handle

Waste opening

Safety lock (yellow)

Standby (green)

Safety interlock (red)

Safety lock switch

Auto-On (I)

Off (O)

Reverse (R)

Continuous operation:

10-minute maximum
NOTE: Shredder runs briefly

after each pass to clear entry.
Continuous operation beyond
10-minutes will trigger
20-minute cool down period.

Safety Lock prevents accidental operation. To set, wait for shredding to stop, then slide switch toward back until yellow
light goes on. For greater safety, always unplug shredder after use.

Set to Off (O)
and plug in

Check paper amount

CARD

Press Auto-On (I)

TROUBLESHOOTING

Paper jam: Set to Off (O), lift head and empty bin. Replace head on bin and follow

(Red)

any or all of the below procedures.

Press and hold
Reverse (R)

Alternate slowly back and forth

Set to Off (O)
and unplug

Lift head off bin and cut
hanging shreds. Replace
head. Plug in.

MAINTENANCE

Confetti-Cut and Strip-Cut:

Run regularly in reverse for
one minute

Confetti-Cut only:

Lubricate when bin is full, or
immediately, if:

• Capacity decreases

• Motor sounds different, or
Shredder stops running

Follow oiling procedure below and repeat twice.

*Apply oil across entry Press Auto-On (I)Set to Off (O) Shred one sheet

*Only use a non-aerosol vegetable oil in long nozzle container such as Fellowes 35250

WARRANTY

LIMITED WARRANTY Fellowes, Inc. (“Fellowes”) warrants the cutting blades of the
machine to be free from defects in material and workmanship for 5 years from
the date of purchase by the original consumer. Fellowes warrants all other parts
of the machine to be free of defects in material and workmanship for 1 year from
the date of purchase by the original consumer. If any part is found to be defective
during the warranty period, your sole and exclusive remedy will be repair or
replacement, at Fellowes’ option and expense, of the defective part.
This warranty does not apply in cases of abuse, mishandling, or unauthorized
repair. ANY IMPLIED WARRANTY, INCLUDING THAT OF MERCHANTABILITY OR

Press Auto-On (I)

Hold card
at edge

Press and hold
Reverse (R)

FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED IN DURATION TO THE
APPROPRIATE WARRANTY PERIOD SET FORTH ABOVE. In no event shall Fellowes be
liable for any consequential or incidental damages attributable to this product.
This warranty gives you specific legal rights. The duration, terms, and conditions of
this warranty are valid worldwide, except where different limitations, restrictions,
or conditions may be required by local law.
For more details or to obtain service under this warranty, please contact us or
your dealer.

Feed into paper entry
and release

Feed into card
entry and release

Indicator lights:

(Red) Make sure head is on basket
correctly. Check for jam.

(Yellow) Slide safety lock switch to front to
resume shredding

Set to Off (O)
and unplug

Press and hold
Reverse (R)
2-3 seconds

3
