PS-14Cs
User Manual
2 pgs3.33 Mb0

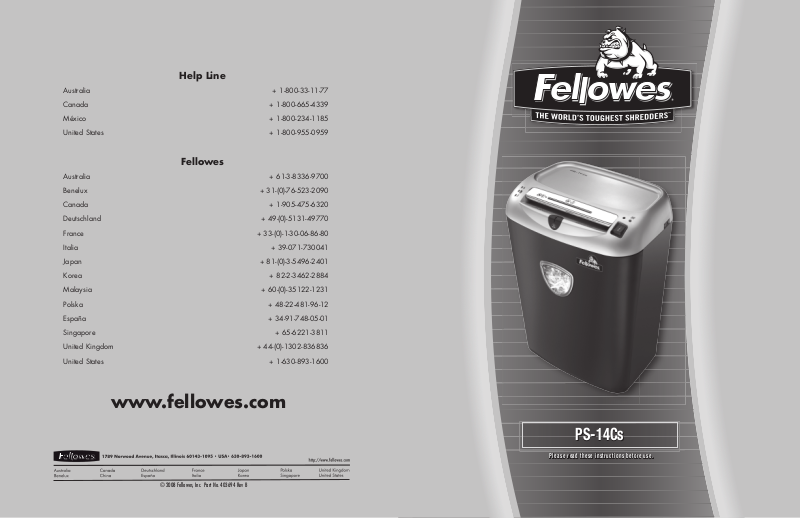

Fellowes PS-14Cs User Manual

Help Line
Help Line
Australia + 1-800-33-11-77
Canada + 1-800-665-4339
México + 1-800-234-1185
United States + 1-800-955-0959
Fellowes
Fellowes
Australia + 61-3-8336-9700
Benelux + 31-(0)-76-523-2090
Canada + 1-905-475-6320
Deutschland + 49-(0)-5131-49770
France + 33-(0)-1-30-06-86-80
Italia + 39-071-730041
Japan + 81-(0)-3-5496-2401
Korea + 82-(0)-2-3462-2884
Malaysia + 60-(0)-35122-1231
Polska + 48-(22)-771-47-40
Spain + 34-91-748-05-01
Singapore + 65-6221-3811
United Kingdom + 44-(0)-1302-836836
United States + 1-630-893-1600
www.fellowes.com
© 2008 Fellowes, Inc. Part No. 403694 Rev B
© 2006 Fellowes, Inc. Part No. 401926
PS-14Cs
PS-14Cs
Please read these instructions before use.
Please read these instructions before use.
PS-14C
s
ENGLISH
PS-14C
PS-14C
PS-14C
PS-14C
PS-14C
OPERATION
Shredder head SafeSense® Technology
Indicator lights (red)
Paper Jam
Door Open
Overheated
Window Sheet capacity gauge
Sheet capacity icon
See safety instructions below
Pull-out bin Paper entry
Breakthrough Safety Technology! SafeSense® stops shredding when hands are too close to the opening.
SET UP
Disconnect Power Switch must be in ON position to operate shredder.
Insert waste bag (Fellowes #36052) for easy disposal.
A B
— To Test SafeSense® Technology
Press Auto-On ( I )
Touch test area
Model PS-14Cs
Disconnect power switch
Card/CD entry
SafeSense® override switch
Active Not active
SafeSense® (yellow)
Standby (green)
Control switch
Auto-On (I) Off (O) Reverse (R)
Sensor lights up
PAPER
Continuous operation:
10-12 minute maximum NOTE: Shredder runs briefly
after each pass to clear entry. Continuous operation beyond 10-12 minutes will trigger 20-minute cool down period.
Set to Off (O)
and plug in
Check paper amount
CARD/CD
Press Auto-On (I)
Press Auto-On (I)
Hold card/CD
at edge
Feed into paper entry and release
Set to Off (O)
Feed into card/CD entry and release
TROUBLESHOOTING
Paper jam: Set to Off (O) and empty bin. Replace bin, close door and follow any or all of the below procedures.
Press and hold Reverse (R)
Alternate slowly back and forth
Set to Off (O) and unplug
Gently pull uncut paper from paper entry. Plug in.
Press and hold Reverse (R)
ATTENTION: If the SafeSense® light remains on, you must engage the Override Switch in order to perform steps above. Once the jam is cleared, reset the SafeSense® feature. (See SafeSense® instructions below.)
Indicator lights:
Yellow - SafeSense® active
Yellow flashing - SafeSense® not active
Make sure bin is pushed in
Wait 20 minutes for motor to cool down
and unplug
CAPABILITIES
SafeSense® paper jam: If the SafeSense® feature activates (SafeSense® light remains on) to cause the user
Sensor light illuminated–paper
jammed
to think the shredder has jammed when it has not, use the Override Switch to deactivate the SafeSense®
Will shred: Paper, credit cards, CD/DVD’s, staples and small paper clips Will not shred: Continuous forms, adhesive labels, transparencies, newspaper,
cardboard, large paper clips, laminates or plastic other than noted above Paper shred size:
Cross-Cut .....................................5/32 inches x 1-1/2 inches (3.9mm x 38mm)
IMPORTANT SAFETY INSTRUCTIONS — Read Before Using!
• Keep away from children and pets. Keep hands away
from paper entry. Always set to off or unplug when not in use.
• Keep foreign objects – gloves, jewelry, clothing, hair, etc. – away from shredder openings. If object enters top opening, switch to Reverse (R) to back out object.
• Avoid touching exposed blades under Cross-Cut shredder head.
• Use only designated entry for cards/CDs. Keep finger away from
CD hole.
2
Maximum:
Sheets per pass (Cross-Cut) ............................................................................. 14*
Cards/CDs per pass .......................................................................................... 1*
Paper width ................................................................................9 inches/229mm
Continuous operation ......................................................................10-12 minutes
* 20lb., 8.5 inches x 11 inches (75g) paper at 120v, 60 Hz, 4.0Amps; heavier paper, humidity or other than rated voltage may reduce capacity. Recommended daily usage rates: 25-50 paper passes; 25 cards; 10 CDs.
• Never use aerosol, petroleum based or other flammable products on or near shredder. Do not use canned air on shredder.
• Do not use if damaged or defective. Do not open shredder head. Do not place near or over heat or water source.
• 14 sheets per pass to avoid jams.
• The grounded socket-outlet shall be installed near the equipment
and shall be easily accessible.
feature and clear the paper. Warning – when switch is in override position, the SafeSense® light will flash and the SafeSense® feature will NOT function. Once the paper is cleared, reset the SafeSense® feature.
MAINTENANCE
Run regularly in reverse for one minute
Oil when bin is full, or immediately, if:
• Capacity decreases
• Motor sounds different, or
Shredder stops running
Follow oiling procedure below and repeat twice.
Set to Off (O) Press Auto-On (I)
*Only use a non-aerosol vegetable oil in long nozzle container such as Fellowes 35250
*Apply oil across entry
WARRANTY
LIMITED WARRANTY Fellowes, Inc. (“Fellowes”) warrants the cutting blades of the machine to be free from defects in material and workmanship for 5 years from the date of purchase by the original consumer. Fellowes warrants all other parts of the machine to be free of defects in material and workmanship for 1 year from the date of purchase by the original consumer. If any part is found to be defective during the warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes’ option and expense, of the defective part. This warranty does not apply in cases of abuse, mishandling, or unauthorized repair. ANY IMPLIED
WARRANTY, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS
SafeSense® override switch
Active Not active
Shred one sheet
HEREBY LIMITED IN DURATION TO THE APPROPRIATE WARRANTY PERIOD SET FORTH ABOVE. In
no event shall Fellowes be liable for any consequential or incidental damages attributable to this product. This warranty gives you specific legal rights. The duration, terms, and conditions of this warranty are valid worldwide, except where different limitations, restrictions, or conditions may be required by local law. For more details or to obtain service under this warranty, please contact us or your dealer.
Press and hold
Reverse (R) 2-3 seconds
3
