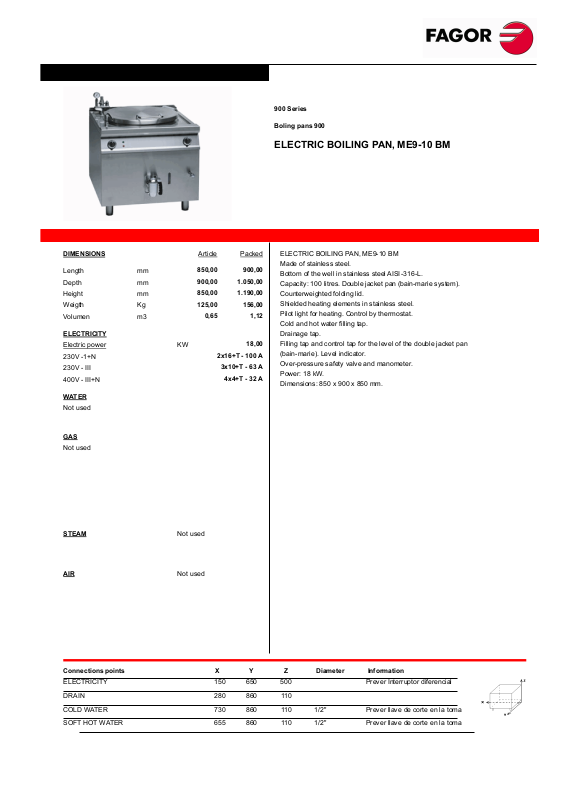

Fagor ME 9-10BM Datasheet

ELECTRIC BOILING PAN, ME9-10 BM

Boling pans 900

900 Series

ELECTRIC BOILING PAN, ME9-10 BM

Made of stainless steel.

Bottom of the well in stainless steel AISI-316-L.

Capacity: 100 litres. Double jacket pan (bain-marie system).

Counterweighted folding lid.

Shielded heating elements in stainless steel.

Pilot light for heating. Control by thermostat.

Cold and hot water filling tap.

Drainage tap.

Filling tap and control tap for the level of the double jacket pan

(bain-marie). Level indicator.

Over-pressure safety valve and manometer.

Power: 18 kW.

Dimensions: 850 x 900 x 850 mm.

850,00

900,00

850,00

125,00 156,00

1,12

Length

Depth

Height

Weigth

Volumen

mm

mm

mm

Kg

m3

18,00

2x16+T - 100 A

3x10+T - 63 A

4x4+T - 32 A

230V -1+N

230V - III

400V - III+N

GAS

KW

Connections points X Y Z Diameter Information

DIMENSIONS

900,00

1.050,00

1.190,00

0,65

ELECTRICITY

STEAM

AIR

Article Packed

Electric power

WATER

Not used

Not used

Not used

Not used

150 650 500ELECTRICITY Prever Interruptor diferencial

280 860 110DRAIN

730 860 110COLD WATER Prever llave de corte en la toma1/2"

655 860 110SOFT HOT WATER Prever llave de corte en la toma1/2"
