IMPORTANT–Do not connect to power until the sensor is completely installed and the

installation has been double-checked.

Adjusting the Delay Time

1. The delay time adjustment knob sets how long the beam can be interrupted before triggering the alarm (see fig. 11):

a. A short interrupt time (high sensitivity) is suitable for catching fast moving

intruders, but more susceptible to false alarms.

b. A long interrupt time (low sensitivity) reduces false alarms, but fast

moving intruders may not trigger the sensor.

2. Adjust the knob to the site’s situation. You may need to make adjustments later after the walk-through test.

Testing the Unit

1. Power up the transmitter and receiver.

2. If the yellow or red LED remains steady ON even when the beam is not interrupted, readjust the alignment.

3. Walk between the transmitter and receiver to interrupt the beams. Walk at various speeds, and adjust the delay time adjustment knob as needed.

Table 5: Specifications

Model Max. range (outdoor) Max. range (indoor)

Standby Current @12VDC (+/-10%)

Triggered current @12VDC No. of beam channel Voltage output Power Detection method Interrupt speed* Alarm output Tamper output (Tx & Rx) Alarm LED (receiver) Signal LED (receiver) Power LED (Tx & Rx) Laser wavelength Laser output power Alignment angle Operating temperature Weight Case

*This is the minimum time interval between breaking of both beams which will trigger the output. Setting the interval longer will reduce false alarms from birds or falling leaves, etc., while setting it shorter will detect faster moving objects.

E-960-D90Q 90’ (30m) 190’ (60m)

27.7mA

28mA

7.6mA (Rx)

N/A N/A N/A 4 1~4V 10~30 VAC/VDC (non-polarized) Simultaneous breaking of 2 beams 50msec~700msec (variable) NO/NC relay, 1A @ 120VAC, min. 1 sec. NC switch, 1A @ 120VAC Red LED - ON: When transmitter and receiver are not aligned or when beam is broken. Yellow LED - ON: When receiver's signal is weak or when beam is broken. Green LED ON: Indicates connected to power 650nm

≤

5mW

Horizontal: ±900, Vertical: ±5

-130F (-250C) to +1310F (+550C)

2.5 lbs. (1.1kg) PC Resin

NOTE – The alarm will be triggered only if both the upper and lower beams are simultaneously interrupted.

IMPORTANT – Test the detector periodically to ensure the alignment and delay time settings are suitable for the site.

E-960-D190Q 190’ (60m) 390’ (120m)

29.7mA 30mA

9.6mA (Rx)

E-960-D290Q 290’ (90m) 590’ (180m) 31mA

30.4mA

11.4mA (Rx)

Fig. 11: Adjusting the Delay Time

300ms

E-964-D390Q 390’ (120m) 790’ (240m)

35.7mA 36mA

15.6mA

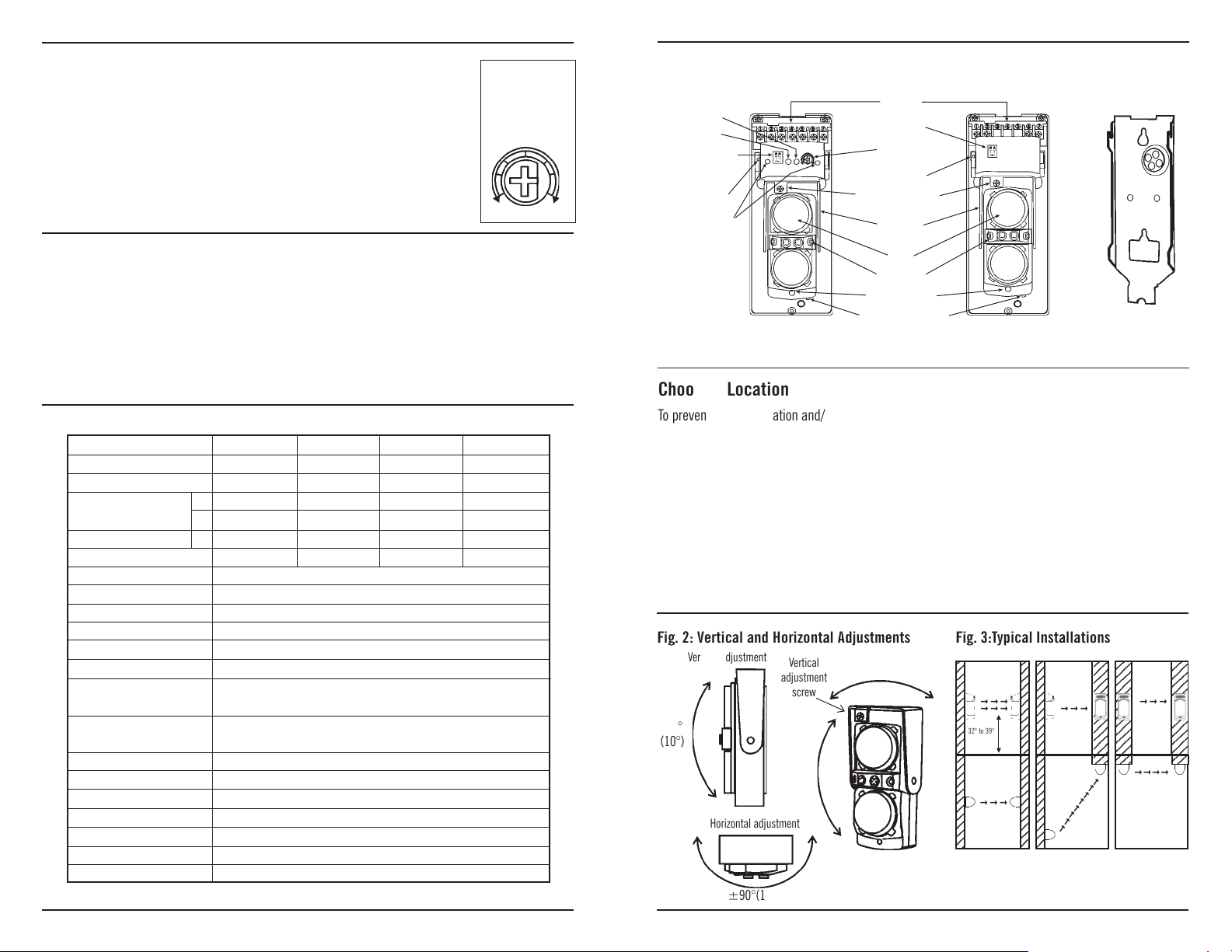

Fig. 1: Identifying the Sensors

Receiver Transmitter Mounting Plate

Signal LED

Alarm LED

Frequency selection*

switch

700ms50ms

Power LED

Voltage output

probes

* For multi-frequency E-964-D390Q model only.

Terminals

Frequency selection*

switch

Delay time

adjustment knob

Power LED

Vertical adjustment

screw

Horizontal

adjustment

Lens

View finder

Alignment laser

Laser ON/OFF switch

Choose a Location

To prevent erratic operation and/or false alarms:

• Wind will not directly cause false alarms, but could cause leaves or similar objects to fly or wave into the beams. Therefore, do not mount near trees, bushes, or other leafy vegetation.

• Do not mount where the transmitter or receiver could be splashed by water or mud.

• Do not mount where the unit could be suddenly exposed to a bright light, such as a floodlight or a passing automobile’s headlight.

• Do not let sunlight or any direct beam of light enter the sensing spot of the transmitter. If needed, mount so the receiver, not the transmitter, faces the sun.

• Do not mount where animals could break the beams.

Fig. 2: Vertical and Horizontal Adjustments Fig. 3:Typical Installations

Vertical adjustment

±5° (10°)

adjustment

Horizontal adjustment

±90°(180°)

Vertical

screw

Side Views

!!! !!!

32" to 39"

Top Views

!!!

!!! !!!

!!!!!!!!

!!! !!!

!!!!

Typical Installations

The photoelectric beam lens can be adjusted horizontally ±90°, and vertically ±5° (see fig. 2). This allows much flexibility in terms of how the transmitter and receiver can be mounted. See fig. 3.

Install at a distance of 32” to 39” (80 to 100 cm) above the ground for most situations. See fig. 3.

Running the Cable

Run a cable from the alarm control panel to the photobeam sensor. If burying the cable is required, make sure to use electrical conduit. Shielded cable is strongly suggested. See Table 1 for maximum cable length.

Table 1: Cable Length

Model E-964-D390Q

Wire Size

AWG22

0.33mm

0.0005in AWG20

0.52mm

0.0008in AWG18

0.83mm

0.0013in AWG17

1.03mm

0.0016in

Note (1):

E-960-D90Q E-960-D190Q

12V 24V 12V 24V 12V 24V

320m

1,050 ft.

550m

1,800 ft.

800m

2,600 ft.

980m

3,190 ft.

2,800m

18,000 ft.

4,800m

15,750 ft.

7,200m

23,620 ft.

8,800m

28,870 ft.

280m

920 ft.

450m

1,480 ft.

700m

2,300 ft.

850m

2,790 ft.

2,400m 7,870 ft.

4,200m

13,780 ft.

6,200m

20,340 ft.

7,600m

24,930 ft.

Max. cable length when two or more sets are connected is the value shown in Table 1 divided by the number of sets.

Note (2):

The power line can be wired to a distance of up to 3,300 ft. (1,000m) with AWG22 (0.33mm2) telephone wire.

E-960-D290Q

200m

660 ft.

350m

1,150 ft.

500m

1,640 ft.

590m

1,940 ft.

1,600m

5,250 ft.

3,000m

9,840 ft.

4,200m

13,780 ft.

5,200m

17,060 ft.

12V 24V

110m

390 ft.

560 ft.

820 ft.

1,020 ft.

2,950 ft.

170m

4,590 ft.

250m

7,220 ft.

310m

8,530 ft.

900m

1,400m

2,200m

2,600m

Adjusting the Alignment

The transmitter and receiver sensor units can be adjusted ±5º vertically and ±90º horizontally once the unit is mounted and power is connected (see fig. 2 on page 3).

There are two ways to adjust alignment:

1. Laser adjustment (see fig. 1 on page 3):

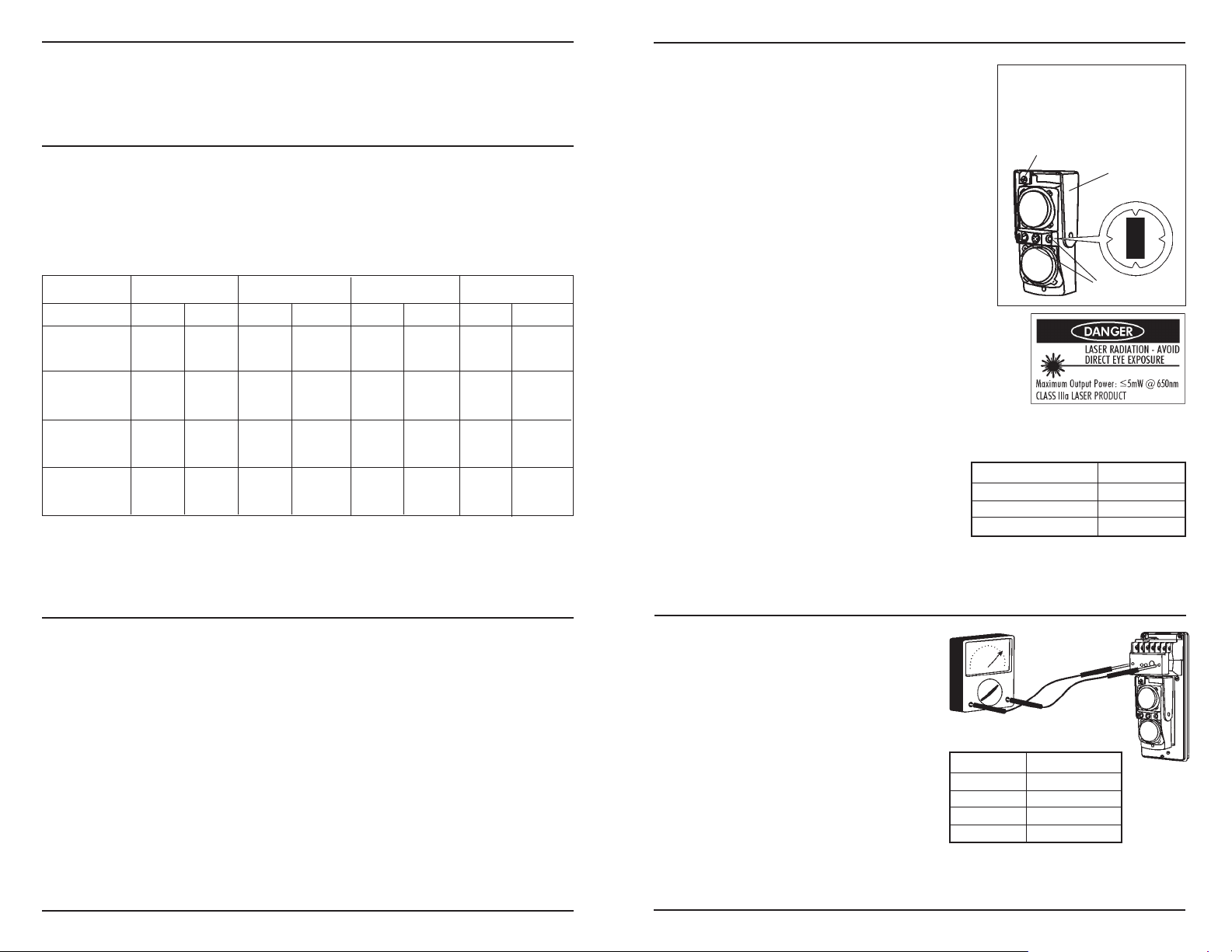

Fig. 10: Horizontal and Vertical Sensor Adjustment

Vertical

Adjustment

Horizontal

Adjustment

a. Remove the transmitter cover, then turn the laser on with

the ON/OFF switch (see fig. 1 on page 3). A red dot will show where the photoelectric beams are aimed.

b. Adjust the transmitter's sensor unit vertically and

horizontally until the red dot is centered on the receiver and both the receiver’s LEDs turn off. See Table 3. It may be necessary to adjust the horizontal and vertical angle

View

Finders

of the receiver's sensor unit as well.

c. Repeat steps a and b for the receiver.

d. Turn the lasers off, and then replace the covers.

WARNING: Do not look directly at the lasers.

2. Eyeball adjustment (see fig.10): a. Remove the transmitter cover, and look into one of

the alignment viewfinders (one of the four holes located between the two lenses) at a 45° angle.

b. Adjust the horizontal angle of the lens vertically

and horizontally until the receiver is clearly seen in the viewfinder.

c. Repeat steps a and b for the receiver.

d. Replace the transmitter and receiver covers.

NOTE - If you cannot see the opposite unit in the viewfinder, put a sheet of white paper near the unit to be seen, move your eyes about 2" (5cm) away from the viewfinder, and try again.

Table 3: Receiver LED Indicators

Alarm and signal LEDs Signal strength Two LEDs OFF

One LED ON Two LEDs ON

Best Good Re-adjust

Wiring the Transmitter – Wall Mount

1. Remove the cover. Remove the screw under the lens unit in order to detach the mounting plate. See fig. 4.

2. If the sensor wiring comes from inside the wall – Break a hole in the mounting plate’s rubber grommet, and pull the cable through the grommet’s hole. Then run the cable through the hole near the top of the sensor unit so it comes out the front. Using two of the included mounting screws, attach the mounting plate to the wall. Then reattach the sensor unit to the mounting plate, connect the wires, and snap on the cover. See fig. 5.

3. If the sensor wiring is run along the surface of the wall – There are two plastic knockouts on the back of the sensor unit, one on top and one on bottom. Break out the appropriate knockout, and pull the wiring through the knockout. Then run the wiring through the hole near the top of the sensor unit so it comes out the front. Using two of the included mounting screws, attach the mounting plate to the wall. Then reattach the sensor unit to the mounting plate, connect the wires, and snap on the cover. See fig. 6.

Fine Tuning the Receiver

1. Once the sensor is mounted and aligned, the sensor can be fine tuned using the voltage output jack.

a. Set the range of a volt-ohm meter (VOM) to

1~4VDC.

b. Insert the red (+) probe into the (+) terminal

and the black (-) probe into the (-) terminal. c. Measure the voltage (see table 4). d. Adjust the horizontal angle by hand until the

VOM indicates the highest voltage. e. Adjust the vertical angle by turning the vertical

Table 4:

Voltage output Alignment quality

2.6~4.0V

2.0~2.6V

1.1~2.0V <1.1V

adjustment screw until the VOM indicates the

highest voltage.

NOTE - Do not interrupt the beam while adjusting alignment.

Best Good Fair Re-adjust

Note: 5VDC is maximum

possible reading.

3. Two layer (double stacked) applications.

Sensor #1

Ch1

Sensor #4 Sensor #5 Sensor #6

Ch3

Rx Ch1

Rx Ch3

Sensor #2 Sensor #3

Ch1

Ch3

4. Perimeter security application.

Ch1

Ch3

Wiring the Transmitter – Pole Mount

(NOTE – Pole mounting bracket required.)

1. Remove the cover. Remove the screw under

Ch2

Ch4

Ch2

Ch4

the lens unit in order to detach the mounting plate. See fig. 4.

2. Break a hole in the mounting plate’s rubber grommet, and pull the cable through the grommet’s hole. Then run the cable through the hole near the top of the sensor unit so it comes out the front. Use the included mounting bracket to mount to the pole. Then

reattach the sensor unit to the mounting plate, connect the wires, and snap on the cover. See fig. 7.

Wiring (fig. 8)

1. Screw the wires tightly to avoid slipping off the terminals, but not so tight that they break.

2. Screws on terminals which are not used should be tightened.

3. Grounding may be necessary, depending on the location.

Rx Ch2

Rx Ch3

Ch1

Sensor #3

Sensor #1

Ch4

Sensor #2

Sensor #4

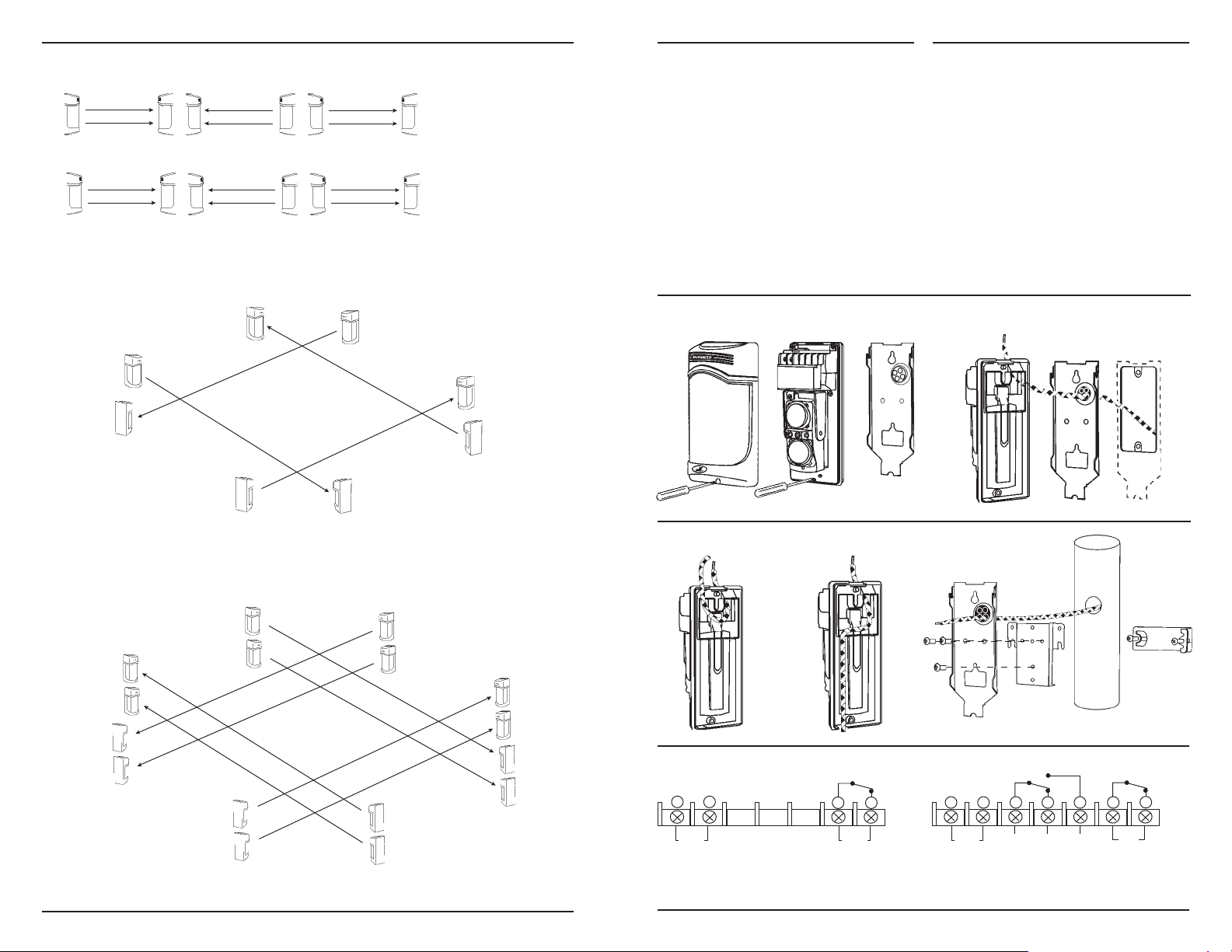

5. Two layer (double stacked) perimeter security application.

Ch2

Ch4

Ch1

Ch3

Ch4

Ch1

Ch3

Rx Ch1

Ch3

Fig. 5: Wall Mount, Wire from Inside WallFig. 4: Remove the Transmitter cover

Ch4

Ch2

Fig. 6: Wall Mount, Wire Runs Along Wall

Ch1

Ch3

Ch2

Ch4

Ch1

Ch3

Ch2

Ch4

Fig. 8: Wiring

Transmitter

10~30

AC/DC

{

Power

10~ 30 VAC/VDC

(non-polarized)

– or –

N.C.

{

Tamperoutput N.C. switch 120V(AC/DC) 1A (Triggers if cover detached)

Fig. 7: Pole Mount

Receiver

1234567

10~30

AC/DC

Power

10~ 30 VAC/VDC

(non-polarized)

COM. N.O.

{

Alarm output

120V (AC/DC) 1A

N.C.

{

N.C.

Tamperoutput N.C. switch 120V(AC/DC) 1A (Triggers if cover detached)

{

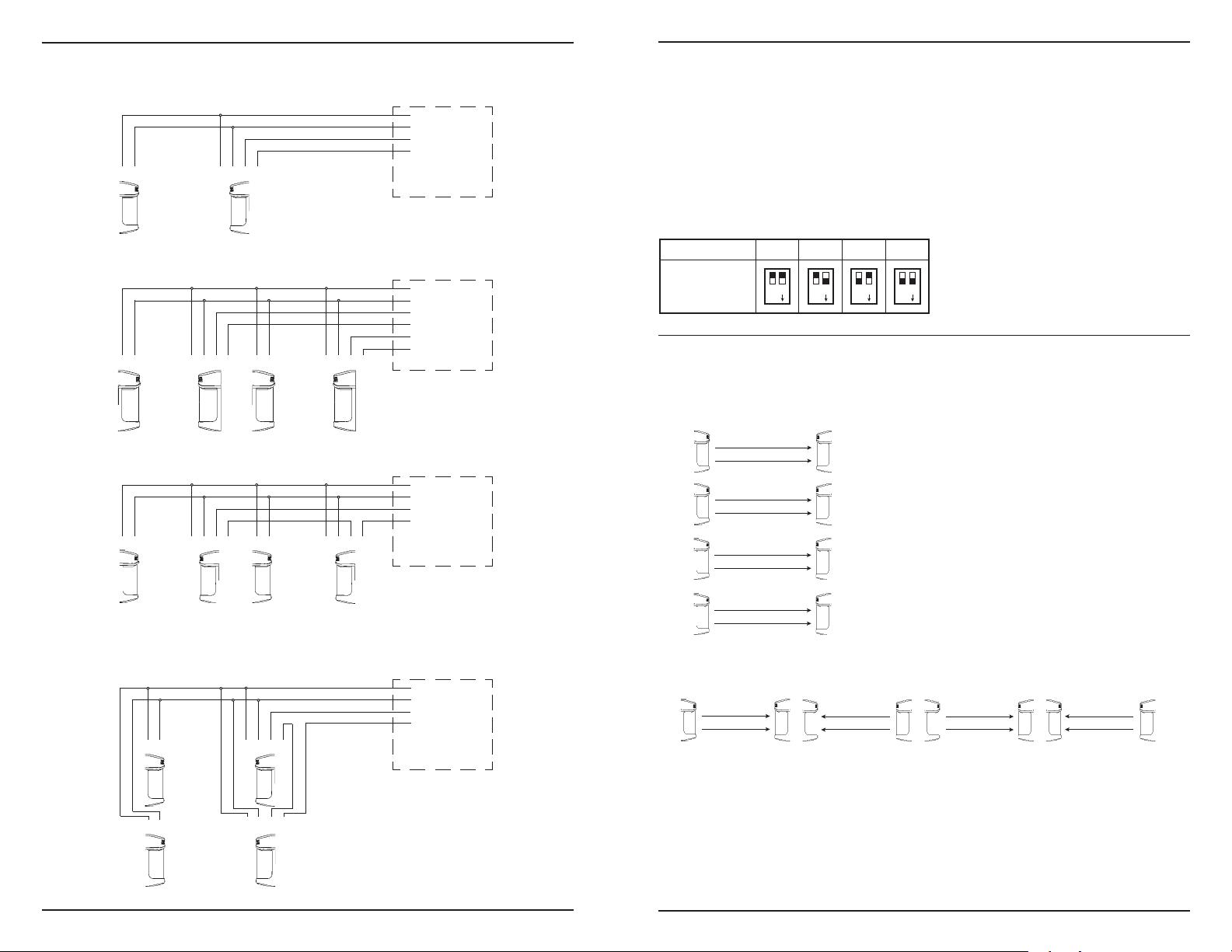

Fig. 9: Examples of Possible Ways To Connect One or More Sensors

Example connection 1 - Standard

}

Control panel

(12VDC)

Power

Alarm signal

Selectable 4-channel beam frequency (For E-964-D390Q model only)

The sensor beam frequency can be set at different levels on-site to avoid interference from other twin photobeam sensors nearby. Useful during mutliple sensor applications as shown below. To select between four different beam frequencies, adjust the beam channel switch of the transmitter side and receiver side. See fig. 1 for switch location and table 2 for switch position.

➀➁

Transmitter

➀➁➂➃

Receiver

Example connection 2 - Dual Sensors, Separate Channels

➀➁ ➀➁➂➃

Transmitter

Receiver

➀➁ ➀➁➂➃

Transmitter

Receiver

Example connection 3 - In-line Single Channel

➀➁

Transmitter

➀➁➂➃

Receiver

➀➁

Transmitter

➀➁➂➃

Receiver

Control panel

(12VDC)

}

Power

}

Alarm (ch. 1)

}

Alarm (ch. 2)

Control panel

(12VDC)

}

Power

}

Alarm signal

Important –

The transmitter and receiver sensor pair must be set with the same frequency.

Table 2: Beam Frequency Selection Chart (For E-964-D390Q model only)

CH4

CH3

12NO12

Frequency channel CH1 CH2

Switch position

Multiple sensor sample applications ( For E-964-D390Q model only)

1. Single pair multiple layer application.

Ch1

Ch2

Ch3

Ch4

Sensor #1

Sensor #2

Sensor #3

Sensor #4

Rx Ch1

Rx Ch2

Rx Ch3

Rx Ch4

Example connection 4 - Two stacked

➀➁ ➀➁➂➃

➀➁

➀➁➂➃

2. Long distance series application.

}

Power

}

Alarm signal

Ch1

Sensor #1

Rx Ch1

Sensor #2 Sensor #3 Sensor #4

Ch2

Ch3

Ch4

FAAC E-960-D190Q User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
