FAAC DIALCODE User Manual

DIAL CODE SERIES

O W N E R S M A N U A L

Telephone entry systems with two line large LC or VF displays

www.chamberlain.com

VISIT US ON THE WEB

with

sur ge s uppre ssion

BUILT-IN

TABLE OF CONTENTS

1

LC/VF Page

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Resident Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Screen Saver Mode (VF Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

LC Entry Phone Features Inside / Outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

VF Entry Phone Features Inside / Outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8

Entry Phone Features (Processor) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

LC Mounting Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

VF Mounting Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Description of Surge Suppression Terminal Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

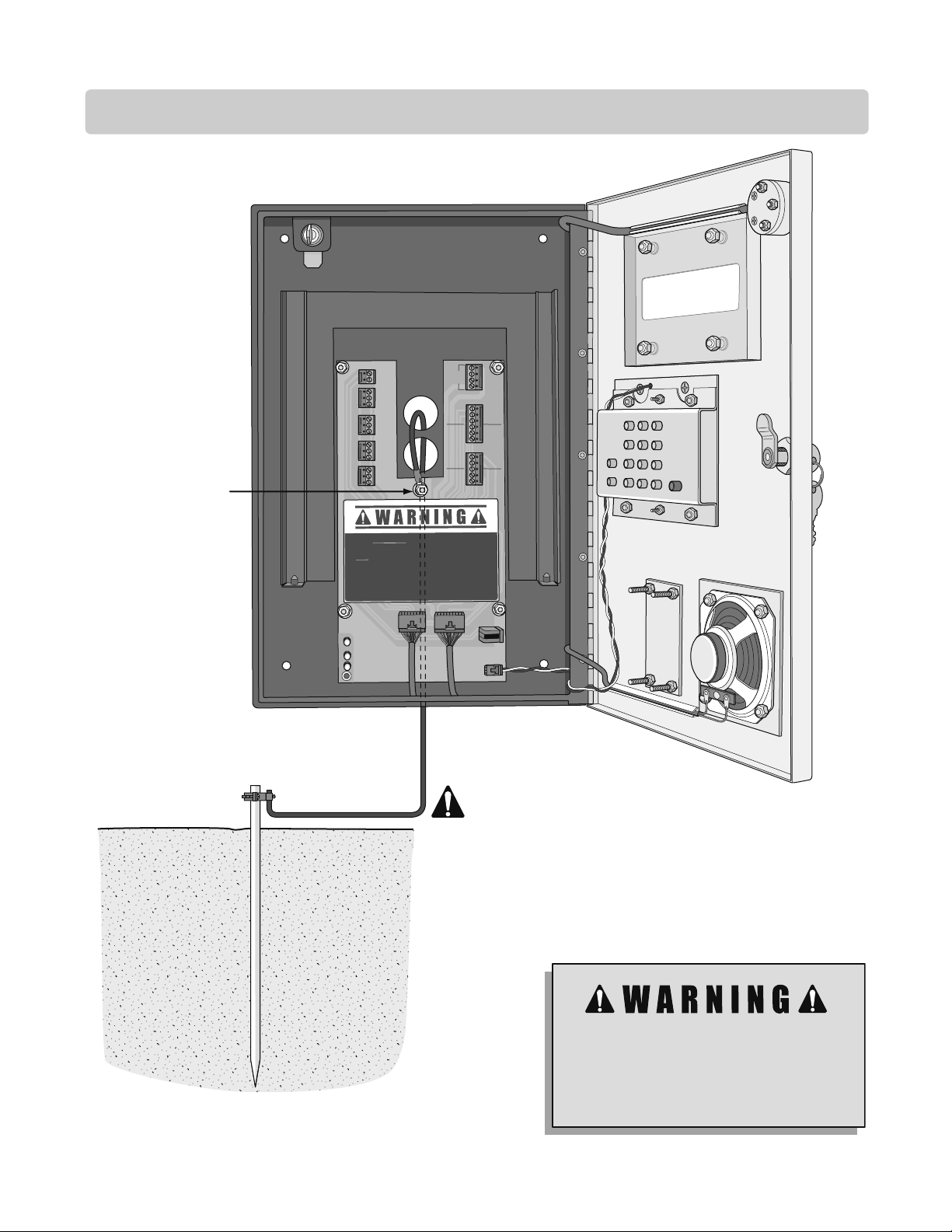

Grounding the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Earth Ground Rod Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

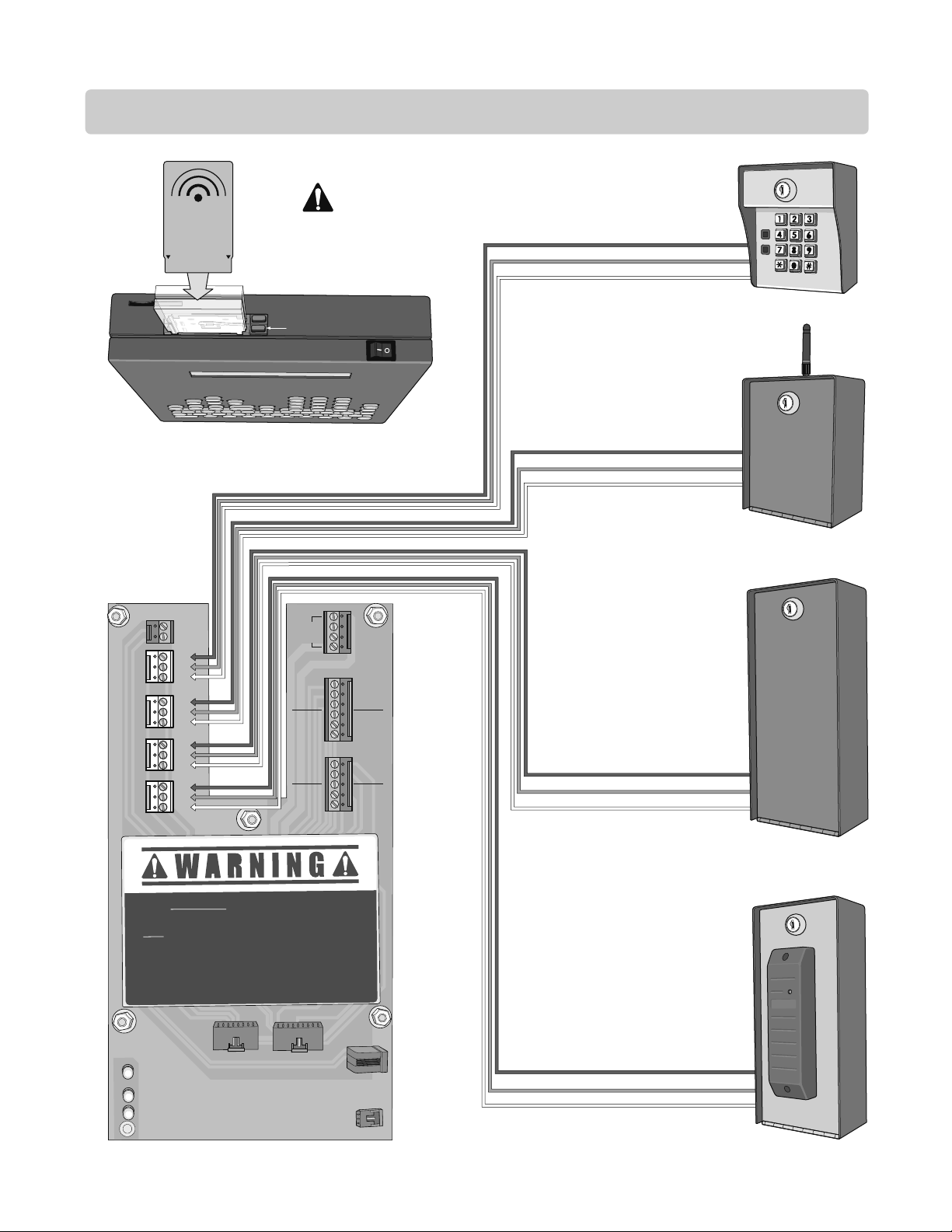

Basic Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Postal Lock Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

RS485 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-19

Memory Card Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Viewing Software Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Warning and Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Programming the Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Selecting Program Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Resident Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Transmitter / Card Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Area Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Utility Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Clock / Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-31

Strike Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Talk Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Greeting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Back-Up Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

LC Illustration and Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

VF Illustration and Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

LC/VF manual

Version 3.0

To be installed by Qualified Dealers ONLY!

3 Year Warranty

Factory to Dealer

• Two line LC or VF Directory.
– Names listed in Directory in alphabetical order.

• Memory capacity: 25, 50, 150, 250, 500, 1000 names.

• User-friendly programmability via built-in alpha-numeric

keyboard eliminates the need for user's manual.

• Four character alpha-numeric password required to enter

programming mode.

• Programmable Utility keycodes for keyless entry.
– 60 Utility keycodes available per system.
– Time zones associated with Utility keycodes.

• Programmable real-time clock with leap year & daylight

savings compensation.

• 2 programmable 7-day timers for door and gate control.

• Programmable talk time.

• Touch-tones through microphone are ignored by system.

• System mutes tones in speaker during dialing.

• Postal lock capability with programmable strike time.

• Surge protection:
– 6000V, 3000A
– Power input port
– Telephone line port
– RS485 ports
– Relay ports
– Input port
– Immune to 25,000V electrostatic discharge.

PRODUCT OVERVIEW

2

LC/VF Page

• Two output relays with independent strike times.

• Relay output for VCR time lapse recorder to record 5
seconds per transaction.

• Power failure backups:

– Battery backup for complete function for 5 hrs.
– Battery enables dial out, program, & display.
– Non-Volatile removable SRAM memory has

unlimited write cycles (unlike EEPROM).

– Non-Volatile Real Time Clock/Calendar.

• High quality voice communication system with back­ground noise filtering.

• Voice messages (digital) to help & guide user.

• Volume control via software.

• Non-Volatile PCMCIA memory card

• Two (2) slots for PCMCIA memory cards.

• Double box with built-in full keyboard for data processing.

• By pressing '9' for gate or '5' for door, communication is
not lost. Talk time is extended to avoid unpleasant cutoff
between visitor and resident.

• Both DTMF tone and rotary dial detection.

• Programmable via modem (optional).

• FCC part 68 ,15 & Canadian DOC approval

• ETL approved UL 294, UL 1950

• Construction: Front and Back Panel: 16 gauge stainless
steel.
Processor Containment Box: Gold/zinc plated, powder
coated aluminum (weather resistant finish)

• Entire system is rain resistant.

• Power Input: 12 Vac, 40VA UL listed
transformer(provided).

• Operating Environment:

– Temperature: -40 F to +185 F.

(Heater kit available at additional cost.)

– Relative Humidity: 5% - 95%

non-condensing.

• Dimensions: 11 1/4" W X 16 7/16" H X 4 1/8" D

• Shipping Weight: Approximately 25 lbs.

STANDARD FEATURES

SPECIFICATIONS

A
R

G
O
R

P

T

X

E

P OGR M

EXT

E

RASE

W

Q

S

A

SHIFT

Z

SP CE BAR

3

2

6

1

5

9

4

8

P

7

0

O

I

L

U

B K

HELP

ENTER

R

D

C

X

K

Y

T

G

F

V

PACE

J

’

H

M

N

B

SE

A

ER

W

Q

A

FT

SH

Z

R

A

E B
C
A

S

3

2

6

1

5

9

4

8

P

7

0

O

I

L

CK

U

K

ELP

H

Y

TER

EN

T

M

R

G

E

F

D

V

S

C

X

SP CE

J

’

H

M

N

B

RESIDENT USE

3

LC/VF Page

(fig a.)

Fairbanks, George
CODE: 012

(fig c.)

Fairbanks, George
DIALING! CODE: 012

(fig d.)

TIME TO TALK> 17 SEC

___

(fig e.)

(fig b.)

Use Keys

To View Directory

When operating, the Telephone Entry System will alternate between the “Welcome” screen (fig a.) and the “View
Directory” screen (fig b.).

By pressing or dialing the number “9” on their digital

or rotary phone,

By pressing or dialing the number “5

”

on their digital

or rotary phone,

The resident will open the door or pedestrian gate.

The resident will open the vehicular entrance gate.

Use the keys to scroll up and down

through the names listed in the Telephone Entry System's

electronic directory as shown in (fig c.) The names are

listed in alphabetical order by last name.

When the desired name is found, enter the corresponding

3-digit code. The system will dial the number assigned to

the resident code entered. (fig d.) After connecting, the

screen will display the talk time as shown in (fig e.) If the

resident wants to allow access to the visitor, they simply

press (or dial) “9” for vehicular gate entrances, or “5” for

door or pedestrian gate . If the resident wants to deny

access, they simply hang up the phone.

OR

OR

WELCOME

Entry 1 – Vehicular Gate Entry 2 – Door or Pedestrian Gate

All systems, no matter what the memory capacity, are

equipped with 60 different Utility codes. To access the

facility within the time zone set, the Utility Company

must first press the key TWICE and then enter

their 4-digit code. If it is within the programmed time

zone for entry, the screen will display “Access

Granted” (fig c.) and access will be allowed. If,

however, it is not within the time zone for entry, the

display will inform the user and access will not be

allowed (fig d.)

Residents are assigned a 6-digit, personalized keycode

for accessing the facility. To use the keycode assigned,

the resident must first push the key once and

enter their keycode. The screen will display “Access

Granted” (fig a.) and access will be allowed. If an

incorrect keycode is entered, the system will inform the

user of the invalid entry (fig b.) The resident can then

re-enter their keycode.

RESIDENT USE

4

LC/VF Page

USING KEYCODES AND UTILITY CODES (ACTIVE ENTRY 1 ONLY)

* ACCESS GRANTED *

Please Enter

(fig a.)

* ACCESS GRANTED *

Please Enter

(fig c.)

* INVALID ENTRY *

Invalid 6-Digit Code

(fig b.)

* ACCESS DENIED *

Not In Access Period

(fig d.)

RESIDENT 6-DIGIT KEYCODES

INDIVIDUAL UTILITY CODES

EXAMPLE - KEY CODE 002543 =

0

0 2

5

4

3

EXAMPLE - UTILITY CODE 8716 =

8 7

1

6

SCREEN SAVER MODE (VF ONLY)

PRESS ANY KEY

(fig e.)

If the VF Dial Code System is inactive for 15 seconds it
will go into sleep mode. The screen will continue to
display the scrolling message “Press Any Key” until a
key is pressed (fig e.) The Screen saver mode is not
available while in program mode.

LC ENTRY PHONE FEATURES (INSIDE)

5

LC/VF Page

All components and specifications are subject to change without notice.

Memory
Card

Mounting
Holes (4)

Processor Key
Release / Lock

LC Display

Processor Unit

Dialing Keys

Programming
Keys

Memory
Card Slot

Memory
Card Release
Buttons

Processor

Microphone

Power Switch

Display
Window

Stainless
Steel Door

Key Lock

External
Keypad

Parallel Port

POWER

GATE
RELAY

DOOR
RELAY

Surge Suppressor
Terminal Board

Postal Lock Setup

External
Speaker

LC ENTRY PHONE FEATURES (OUTSIDE)

6

LC/VF Page

EXTERNAL MICROPHONE

KEY LOCK - Opens the Processor

Containment Box to access the Processor.

HELP KEY - With digital voice messages to
help guide the user.

EXTERNAL SPEAKER

DISPLAY WINDOW - Heavy-duty, 3/8” thick

protective lens.

DIALING KEYS LIGHT - Lights up
dialing keys for easy visibility.

PHONE DIALING KEYS - Used to dial
residents / keycodes

SCROLL KEYS - Scrolls through names in
alphabetical order on screen.

UNLOCK KEY - Residents and utility
personnel use this key with their key code
to open gate.

HANG-UP KEY - Pressed when user wants
to hang up.

ACCESS FOR POSTAL LOCK

16 GAUGE STAINLESS STEEL DOOR -

Heavy-duty and weather resistant.

1

2

3

4

5

6

7

8

9

10

11

12

All components and specifications are subject to change without notice.

1

5

6

7

2

3

4

8

9

10

11

12

7

LC/VF Page

VF ENTRY PHONE FEATURES (INSIDE)

All components and specifications are subject to change without notice.

Memory
Card

Mounting
Holes (4)

Processor Key
Release / Lock

VF Display

Processor Unit

Dialing Keys

Programming
Keys

Memory
Card Slot

Memory
Card Release

Processor
Power Switch

Microphone

Buttons

Display
Hood

Display
Window

Stainless
Steel Door

Key Lock

External
Keypad

Parallel Port

POWER

GATE
RELAY

DOOR
RELAY

Surge Suppressor
Terminal Board

Postal Lock Setup

External
Speaker

8

LC/VF Page

VF ENTRY PHONE FEATURES (OUTSIDE)

EXTERNAL MICROPHONE

KEY LOCK - Opens the Processor

Containment Box to access the Processor.

HELP KEY - With digital voice messages to
help guide the user.

EXTERNAL SPEAKER

DISPLAY WINDOW - Heavy-duty, 3/8” thick

protective lens.

DISPLAY HOOD - Reduces reflections and
direct sunlight.

DIALING KEYS LIGHT - Lights up
dialing keys for easy visibility.

PHONE DIALING KEYS - Used to dial
residents / keycodes

SCROLL KEYS - Scrolls through names in
alphabetical order on screen.

UNLOCK KEY - Residents and utility
personnel use this key with their key code
to open gate.

HANG-UP KEY - Pressed when user wants
to hang up.

ACCESS FOR POSTAL LOCK

16 GAUGE STAINLESS STEEL DOOR -

Heavy-duty and weather resistant.

1

2

3

4

5

6

7

8

9

10

11

12

13

All components and specifications are subject to change without notice.

1

6

5

7

8

2

3

4

9

10

11

12

13

ENTRY PHONE FEATURES (PROCESSOR)

9

LC/VF Page

MEMORY CARD - Stores all programmed information.
(Different memory sizes available)

COMMUNICATOR CARD - Card for RS485 devices.

POWER ON/OFF SWITCH

CARD RELEASE BUTTONS - Eject Cards when pressed.

MAIN MEMORY CARD SLOT - Holds Main Memory

Card.

RS485 MEMORY CARD SLOT - Holds RF Communicator
Card or Backup Memory.

LCD TWO LINE, LARGE LIQUID CRYSTAL DISPLAY OR
VF SUPER BRIGHT VACUUM FLUORESCENT DISPLAY
SCREEN- Displays information and instructions, two

lines at a time.

DIRECTION KEYS - Move cursor to desired position
within screens.

PROGRAM KEY - Sets Processor to the program mode.

EXIT KEY - Press this key to go back to the previous

screen / menu.

ERASE KEY - Erases information screens no longer
needed.

ENTER KEY - Registers information into memory after it
is typed.

HELP KEY - Helps user while in programming or user
modes.

SCROLL KEYS - Scrolls through screens / menus.

KEYBOARD - Works like standard keyboard to type in

information and names.

PHONE JACK (RJ11) - Connects to surge suppressor
terminal board.

INPUT/OUTPUT CONNECTOR - Connects to Surge
Suppressor terminal board.

COMMUNICATION PORT - Connects to surge
suppressor terminal board.

PARALLEL PORT - Used for the Icon26 only.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

All components and specifications are subject to change without notice.

0001

500

052

1

4

5
6

Main Memory Card Slot

RS485 Memory Card Slot

Remote Access RS-485

COMMUN CATOR CARD

capacity

Elite Entry Phone

2

7

3

10
11
12
13

8
9

EXIT

Q W

A

PROGRAM

ENTER

HELP

E

R

T Y U I

S

D F

Z

X

C

G H J

V

ERASE

SHIFT

SPACE BAR

2

1

4

7

B

5 6

8

0

N

3

M

9

O

K L

14

P

BACK

SPACE

’

15

171819

16

LC MOUNTING INSTALLATION

10

LC/VF Page

3

"

/

Mounting Holes (4)

1"

4

Wall

1

14 "

1"

Installation on Wall

7

6 "

/

8

Remove the Processor

1

8 "

/

Wire Knock Outs

TEL

TP

LINE

RING

+)

-)

RS-485 (1

GND

(+)

-)

RS-485 (2

GND

(+)

-)

RS-485 (3

/

2

GND

(+)

-)

RS-485 (4

GND

12V

POWER

ACDC

NPUT

DOOR-NO

DOOR

DOOR-NC

RELAY
DOOR-C
GATENO

GATE

GATENC

RELAY

GATEC

VCR

VCR-NO

RELAY

VCRC

POS AL/EX T

GND

SW INPUT

NPUT
CHASSIS
GROUND

Unit from the
Processor Containment
Box and bolt the
Processor Containment
Box to the recess in the
wall using the four
mounting holes. Feed
the power and phone
lines through the

4

Knock

Outs

knockout in the back of
the box to make all wire

OWER

GATE
RE AY

DOOR
RELAY

3

8 "

/

4

1

/

1"

Front View

1 "

2

Side View

connections.

7

/

16 "

16

321

654

9807

NOTE: Be sure to install the
unit at normal eye level

1

/

3 "

1

/

11 "

4

4

1

/

4 "

8

Be sure to read and follow all Chamberlain Elite instructions before installating and operating any Chamberlain Elite
products. Not responsible for improper installations or failure to comply with local building codes.

All components and specifications are subject to change without notice.

11

LC/VF Page

VF MOUNTING INSTALLATION

1"

1

14 "

1"

Mounting Holes (4)

Wire Knock Outs

TEL

TP

LINE

RING

+)

-)

RS-485 (1

GND

+)

-)

RS-485 (2

GND

(+)

-)

RS-485 (3

/

2

GND

(+)

-)

RS-485 (4

GND

12V

POWER

ACDC

NPUT

DOOR-NO

DOOR

DOOR-NC

RELAY
DOOR-C
GATENO

GATE

GATENC

RELAY
GATEC

VCR

VCR-NO

RELAY

VCRC

POS AL/E IT

GND

SW INPUT

NPUT
CHASSIS
GROUND

3

"

/

4

Installation on Wall

Remove the Processor
Unit from the
Processor Containment

Wall

1

8 "

6 "

/

4

7

/

8

Box and bolt the

It is MANDATORY that his un t is properly
grounded The provded "chass s gound" wire
must be connec ed to he ground rod If unit is
not grounded lightning damage wi l occur
Please refer to he owners manual for proper
ground ng instruct ons

POWER

GATE
RELAY

DOOR
RELAY

MADE IN USAeit entr phone com

Processor Containment
Box to the recess in the
wall using the four
mounting holes. Feed
the power and phone

Knock

Outs

lines through the
knockout in the back of

3

8 "

/

4

1

/

1"

1 "

2

the box to make all wire
connections.

7

/

16 "

16

Front View

321

654

9807

Side View

NOTE: Be sure to install the

unit at normal eye level

1

/

3 "

1

/

11 "

4

4

1

/

4 "

8

3"

Be sure to read and follow all Chamberlain Elite instructions before installating and operating any Chamberlain Elite
products. Not responsible for improper installations or failure to comply with local building codes.

All components and specifications are subject to change without notice.

DESCRIPTION OF SURGE SUPPRESSION TERMINAL BOARD

12

LC/VF Page

NOTE: Telephone line used for Telephone Entry System must be a dedicated line.

1

3

TEL

LINE

RS485 (1)

RS485 (2)

3

RS485 (3)

3

RS485 (4)

3

TIP

RING

(+)
(-)

GND

(+)
(-)

GND

(+)
(-)

GND

(+)
(-)

GND

Knockouts for

Incoming Wires

CHASSIS
GROUND

12V

AC/DC

DOOR-NO
DOOR-NC
DOOR-C
GATE-NO
GATE-NC
GATE-C

VCR-NO

VCR-C

GND

INPUT

POWER

INPUT

DOOR

RELAY

GATE

RELAY

VCR

RELAY

POSTAL/EXIT

SW INPUT

2

4

5

Removable Screw Terminal Connectors for Easy Wiring.

POWER IN

AC/DC

12V

6

TELEPHONE LINE: Tip and Ring Connection.

1

7

POWER IN: 12 Vac transformer input.

2

8

3

RS485: Connect to corresponding RS485 terminals (-, +,

GND) of remote security devices.

DOOR RELAY: For allowing access through pedestrian gate or

4

door.

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground" wire

GATE RELAY: For use with gate operator to control access

5

through main vehicular gate.

must be connected to the ground rod. If unit is

VCR RELAY: For use with Time Lapse VCR. Each time access

not grounded, lightning damage will occur.
Please refer to the owners manual for proper
grounding instructions.

MADE IN USAeliteentryphone.com

6

is granted, the VCR Relay is activated for 5 seconds, allowing
recording of all access to facility.

7

POSTAL/EXIT SW INPUT: For allowing postal lock access to

pedestrian gate or door. Activates gate relay using gate strike
time.

8

9

10

11

POWER

GATE
RELAY

DOOR
RELAY

9

10

11

CHASSIS GROUND: Entry Phone MUST be properly

grounded. Refer to “Grounding the Unit” and “ Earth Ground
Rod Installation” sections.

POWER LED: Indicates Phone system has 12 Vac power.

GATE RELAY LED: Indicates gate relay is activated.

DOOR RELAY LED: Indicates door relay is activated.

GROUNDING THE UNIT

13

LC/VF Page

Chassis Ground

TEL

TIP

L NE

RING

(+)
( )

RS 485 (1)

GND

(+)
( )

RS 485 (2)

GND

(+)
( )

RS 485 (3)

GND

(+)
( )

RS 485 (4)

GND

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground" wire
must be connected to the ground rod. If unit is
not grounded, lightning damage will occur.
Please refer to the owners manual for proper
grounding instructions.

DOOR NO

DOOR NC
DOOR C
GATE NO
GATE NC
GATE C

VCR NO

CHASSIS
GROUND

12V

POWER

AC/DC

INPUT

DOOR
RELAY

GATE

RELAY

VCR

RELAY

VCR C

POSTAL/EXIT

GND

SW INPUT

INPUT

MADE N USAeliteentryphone com

Ground Rod

POWER

GATE
RELAY

DOOR
RELAY

Refer to the next page for ground rod installation.

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground" wire
must be connected to the ground rod. If unit is not
grounded, lightning damage will occur.

14

LC/VF Page

EARTH GROUND ROD INSTALLATION

The earth ground rod must be located within
3 feet from the TES System.

The ground wire must be a single, whole piece of
wire. Never splice two wires for the ground wire.
If you should cut the ground wire too short,
break it, or destroy its integrity, replace it with a
single wire length.

Chamberlain Elite is not responsible for
improper installation or failure to comply
with all necessary local building codes.

To the “Chassis Ground” of TES System

For the correct wire gauge,
consult the local code

For the correct depth
consult the local code

For the correct diameter, consult the local code

Proper grounding gives an electrical charge, such as from an electrical static discharge or a near lightning strike, a path from
which to dissipate its energy safely into the earth.

Without this path, the intense energy generated by lightning could be directed towards the Telephone Entry System (TES).
Although nothing can absorb the tremendous power of a direct lightning strike, proper grounding can protect the Telehone
Entry System in most cases.

The type and length of earth ground rods vary by region. Contact the building inspector’s office in the municipality where you
plan to install the unit for correct grounding materials and installation procedures.

Before digging, contact local underground utility locating companies.

Avoid damaging gas, power, or other underground utility lines.

BASIC WIRING DIAGRAM

15

LC/VF Page

(+)
(-)

GND

(+)
(-)

GND

(+)
(-)

GND

(+)
(-)

GND

DOOR-NO
DOOR-NC
DOOR-C
GATE-NO
GATE-NC
GATE-C

12V

AC/DC

POWER

INPUT

GND
INPUT

VCR-NO

VCR-C

TEL

LINE

TIP

RING

RS485 (1)

RS485 (2)

RS485 (3)

RS485 (4)

GATE

RELAY

DOOR

RELAY

CHASSIS
GROUND

POSTAL/EXIT

SW INPUT

VCR

RELAY

It is MANDATORY that this unit is properly

d The pro i

Pedestrian Gate

Vehicular Gate

Entry Door

Conduit

Conduit

Maglock

MaglockSolenoid

Access Door

Dial

Dial

OROR

Master Gate Operator
(Strike Open Input)

Connect two wires to the main vehicular gate operator or
door. The gate relay will be activated by either pressing 9 on
the resident's phone, entering a utility or resident keycode,
Gate 7-day timer or ElitePro remote programming software.

Connect two wires to the secondary gate or door. The door
relay will be activated by either pressing 5 on the resident's
phone, Door 7-day timer or ElitePro remote programming
software.

24 AWG

22 AWG

20 AWG

18 AWG

16 AWG

85 Ft

140 Ft

225 Ft

350 Ft

560 Ft

12 Vac
(50 VA)

Maximum

Distance

Wire

Gauge

RING

TIP

Entry 2

Door Relay Terminal Connection

Entry 1

Gate Relay Terminal Connection

Telephone Line: MUST be a dedicated line for the phone system ONLY!
NOTE: Installation where fiber optic cables are present may require additional

modifications from your telephone
provider. Contact your provider for
more information.

Removable Screw Terminal
Connectors for Easy Wiring.

POWER IN

12V

AC/DC

Polarity does not matter

Processor Transformer

12 Vac (50VA) Provided

Use 18 AWG wire where possible

POSTAL LOCK INSTALLATION

16

LC/VF Page

GATE
RELAY

DOOR
RELAY

POWER

(+)

(-)

GND

(+)

(-)

GND

(+)

(-)

GND

(+)

(-)

GND

DOOR-NO
DOOR-NC
DOOR-C
GATE-NO
GATE-NC
GATE-C

12V

AC/DC

POWER

INPUT

GND

INPUT

VCR-NO

VCR-C

TEL

LINE

TIP

RING

RS485 (1)

RS485 (2)

RS485 (3)

RS485 (4)

GATE

RELAY

DOOR

RELAY

CHASSIS
GROUND

POSTAL/EXIT

SW INPUT

VCR

RELAY

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground" wire
must be connected to the ground rod. If unit is
not grounded, lightning damage will occur.
Please refer to the owners manual for proper
grounding instructions.

MADE IN USA

Postal Lock

Switch Wires (2)

Postal Lock
Switch Assembly

Stainless Steel
Front Panel of
Telephone Entry
System

Switch Assembly
Mounting Holes
(Mount with Postal
Lock on TES
Front Panel)

Postal Lock

Side View

Installation:

These parts are used only when postal access to your facility is required. The postal lock mechanism must be obtained by application
to your local post office.

Open the front panel of the Telephone Entry System and remove the hole plug.

(Retain nuts and washers) Install the postal lock with the sliding bolt oriented
away from the speaker.

Install the enclosed plate end switch assembly over the sliding bolt so that
when the bolt is extended it will activate the switch as shown in the diagram.

Fasten by using the enclosed flat washer, lock washer, and nut on each of the
four studs. Adjust the plate and switch location as the nuts are tightened to
ensure switch activation when the bolt is extended.

Connect the two wires from the postal lock switch to the postal/exit connector
on the surge suppressor terminal board. Note that polarity or color coding is
not required. When the postal lock is engaged, the system’s gate relay is
activated for a duration according to the programmed “Gate Strike Time”.

Test operation by activating the lock. Ensure that full extension of the sliding
bolt will not bend or break the switch.

1

2

3

4

5

6

Postal Lock
Switch Assembly

Front View

Switch Assembly
Mounting Holes

RS485 CONNECTION CONFIGURATIONS

17

LC/VF Page

Configuration #1

“Daisy Chain” wiring configuration

(Recommended method for superior data transmission)

• Up to 31 RS485 devices supported

• Maximum distance from the last RS485 device to the Telephone Entry System is 4000 Ft.

• Turn “ON” the terminator switch ONLY for the last device installed in the RS485 line.

• Use 22 AWG twisted pair shielded wire

Turn Terminator Switch “ON”
for Last Device on Wire Run

Gnd

+

–

4000 Ft Max.

Each RS485 device must have a unique “Device ID Number” set by using the rotary switches on the device. (Refer to specific RS485 Instruction sheets).

Configuration #2

“Star” wiring configuration

Turn Terminator Switch “ON”
for Last Device on Wire Run

+

Gnd

–

Turn Terminator Switch “ON”
for Last Device on Wire Run

4000 Ft Max.

Turn Terminator Switch “ON”
for Last Device on Wire Run

Each RS485 device must have a unique “Device ID Number” set by using the rotary switches on the device. (Refer to specific RS485 Instruction sheets).

Wire Run

Turn Terminator Switch “ON”
for Last Device on Wire Run

Turn Terminator Switch “ON”
for Last Device on Wire Run

Turn Terminator Switch “ON”
for Last Device on Wire Run

RS485 DAISY CHAIN CONNECTION EXAMPLE

18

LC/VF Page

“Preferred Method”

Remote Access RS485

COMMUNICATOR CARD

capacity

Elite Entry Phone

Main Me Card Slot

RS485 Memory Card Slot

RS485 Card Release Button

NOTE: To support RS485 devices you must insert the RF

communicator card in the RS485 memory card slot
BEFORE turning on the processor.

LINE

RS485 (1)

RS485 (2)

RS485 (3)

RS485 (4)

TEL

TIP

RING

(+)
(-)

GND

(+)
(-)

GND

(+)
(-)

GND

(+)
(-)

GND

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground" wire
must be connected to the ground rod. If unit is
not grounded, lightning damage will occur.
Please refer to the owners manual for proper
grounding

instructions.

CHASSIS
GROUND

12V

AC/DC

DOOR-NO
DOOR-NC
DOOR-C
GATE-NO
GATE-NC
GATE-C

VCR-NO

VCR-C

GND

INPUT

POWER

INPUT

DOOR

RELAY

GATE

RELAY

VCR

RELAY

POSTAL/EXIT

SW INPUT

MADE IN USAeliteentryphone.com

Keypad

RS485 Remote

Device 1

Ground

(-)

(+)

Use 22 AWG Twisted Pair Shielded Wire

Stand-Alone Receiver

RS485 Remote

Device 2

POWER

GATE
RELAY

DOOR
RELAY

Card Reader

RS485 Remote

Device 3

Universal Interface Board

RS485 Remote

Last Device

RS485 STAR CONNECTION EXAMPLE

19

LC/VF Page

Remote Access RS485

COMMUNICATOR CARD

capacity

Elite Entry Phone

Main M ard Slot

RS485 Memory Card Slot

RS485 Card Release Button

NOTE: To support RS485 devices you must insert the

RF communicator card in the RS485 memory card slot
BEFORE turning on the processor.

Use 22 AWG Twisted Pair Shielded Wire

Keypad

RS485 Remote

Device 1

(+)

(-)

Ground

Stand-Alone Receiver

RS485 Remote

Device 2

(+)

(-)

Ground

TEL

LINE

RS485 (1)

RS485 (2)

RS485 (3)

RS485 (4)

RING

(+)

GND

(+)

GND

(+)

GND

(+)

GND

TIP

(-)

DOOR-NO
DOOR-NC

CHASSIS
GROUND

DOOR-C
GATE-NO
GATE-NC
GATE-C

(-)

(-)

(-)

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground" wire
must be connected to the ground rod. If unit is
not grounded, lightning damage will occur.
Please refer to the owners manual for proper
g

rounding instructions

.

12V

AC/DC

VCR-NO

VCR-C

GND

INPUT

MADE IN USAeliteentryphone.com

RELAY

GATE

RELAY

RELAY

POSTAL/EXIT

POWER

INPUT

DOOR

VCR

SW INPUT

Universal Interface Board

RS485 Remote

Device 3

(+)

(-)

Ground

Card Reader

RS485 Remote

Device 4

POWER

GATE
RELAY

DOOR
RELAY

(+)

(-)

Ground

MEMORY CARD INSTALLATION

VIEWING THE SOFTWARE VERSION

20

LC/VF Page

Turn power on and insert Memory Card into Main
Memory Card Slot (Main Memory Card in back slot,
Backup Memory Card in front slot.) (fig a.) Push it all
the way in until card “snaps” into place and the release
button pops up. The screen should display the
“Welcome Screen” (fig b.)

To view the memory capacity of the system or to view
the software version currently running on the system in
operation an information screen is accessible on all
Dial Code systems for easy reference. Turn power off
and insert Memory Card in Main Memory Slot. Turn
power on and the information screen should display as
seen in (fig e.)

If the screen continues to display the “Insert Memory
Card” screen (fig c.) then eject memory card by
pressing the corresponding release button down and
reinsert Memory Card into main slot (fig d.). Otherwise
continue with programming.

WELCOME

Insert Memory Card

IN MAIN SLOT

Memory Capacity

Software Version Number

(fig a.)

(fig b.)

(fig c.)

DIAL CODE LC-250

REV. 1.00_

(fig e.)

(fig d.)

Push Button

Card Pops Out

Main Memory Card Release Button

Main Memory Card Slot

RS 485 Memory Card Slot

WARNINGS AND PRECAUTIONS

21

LC/VF Page

The Telephone Entry System is only water resistant when the
Stainless Steel Door is closed and locked. Do not expose the
Processor Unit or the open Processor Containment Box to rain,
snow, or harsh weather conditions. Do not drop the Processor or
expose it to impact.

Do not touch the terminals on the RAM Cards.
Do not bend, drop or expose to impact.

250

500

ERASE

SHIFT

SPACE BAR

3

2

6

1

5

4

HELP

ENTER

PROGRAM

EX T

W

Q

A

Z

T

R

E

F

D

S

V

C

X

9

8

7

0

U

Y

H

G

N

B

P

O

I

L

BACK

K

J

SPACE

’

M

IMPORTANT NOTE: While in the help screens, programming will be disabled.

To continue programming, press the button to exit the help screens first.

PROGRAMMING THE PROCESSOR

22

LC/VF Page

ENTERING THE PROGRAM MODE

When the Processor unit is turned on and the button is pressed, the screen will display:

If you enter the wrong password, the screen will prompt you to try again:

Press to retry entering your password. Press to quit the programming menu.

TO ENTER PROG MODE,
Type Password >____

Type in the factory present password (7777). Press . The Program Selection Screen
will display:

SELECT PROG MODE:
(N)Names (U)Utility

INVALID PASSWORD

(R)Retry (EXIT)Quit

R

Pressing the button will provide users with a help message.

IMPORTANT NOTE: While in the help screens, programming will be disabled.

To continue programming, press the button to exit the help screens first.

SELECTING PROGRAM MODE

23

LC/VF Page

*We recommend you customize your password to avoid unauthorized programming (see “Password” section)

To select a Program Mode, press the corresponding letter from one of the nine options.

LIST OF PROGRAM MODES:

Names

Utility

Password*

Clock/Timer

Strike Time

Talk TIme

Greeting

Volume

Backup

page 24-26

page 27

page 28

pages 29-31

page 32

page 32

page 33

page 33

page 34

Program or edit Resident Names

Program or edit Utility Codes

Program New Password ( recommended )

Program System Clock and Seven Day Timers

Program relay output time ( for 2 relays )

Program length of Talk Time

Program custom Welcome Screen Message

Program Volume level

Backup of memory card

1

2

3

4

5

6

7

8

9

N

U

P

C

S

T

G

V

B

Use the keys to scroll through the nine different Program Modes.

Pressing the button will provide users with a help message.

SELECT PROG MODE:
(N)Names (U)Utility

SELECT PROG MODE:

(P)Password

SELECT PROG MODE:

(C)Clock/Timer

SELECT PROG MODE:

(S)Strike Time

SELECT PROG MODE:

(T)Talk Time

SELECT PROG MODE:

(G)Greeting

SELECT PROG MODE:
(V)Volume (B)Backup

RESIDENT INFORMATION

24

LC/VF Page

SELECT PROG MODE:
(N)Names (U)Utility

PROG A NEW NAME N
PROG BY CODE:___

You now have three options:

Resident name

Resident code

OR OR

STEP

1

STEP

2

Type in the desired Resident name, LAST name first, followed by the first name (fig c.). If the code you have

selected is already used, there will be a name already. You can edit the name by simply typing over it.

Press the key to complete the entry. You may also use the keys to move the cursor

within a code.

STEP

3

Type in the desired Resident phone number (fig d.). If you need to enter an area code refer to the area code page.

Press the key to complete the entry. The “KEY CODE” screen will be displayed. (fig e.)

STEP

4

To program by name, press

the key and the first

empty code will display.

N

To program by code, enter

a three digit code* and press

the key.

Assignment of Resident Key Codes is optional. The first three digits of the Key Code is the assigned Directory

Code. Assign the last three digits (numeric characters only) to create an individual Key Code. If using the RF

Card, proceed to Step 6 (fig e.). Press the key.

STEP

5

To view or edit an existing name

or code, use the

keys to scroll through Directory.

(fig a.)

(example - fig c.) (example - fig d.)

(example - fig e.)

(fig b.)

005 LastNAME,First
Jones, Robert_

005 KEY CODE:
005123

005 PHONE NUMBER:

_-___-496-2634

An individual six digit Resident Key code may be

assigned to each resident . Residents can use

their Key Code to access the premises.

The unit will only accept codes within it’s

range - depending on memory capacity.

*

In the Program Selection Screen (fig a.), Press the key. The screen will display (fig b.):

N

Repeat steps 7 and 8 for up to ten devices per directory code. After the last device has been programmed,

press or key to return to the program selection screen.

TRANSMITTER/CARD PROGRAMMING

25

LC/VF Page

STEP

6

005 TRANSM/CARD#1:
___-_____ (S) SCAN

To complete entry, press the key to return to the program selection screen.

To program RF devices ( i.e. transmitters/cards etc.) continue on to Step 7.

NOTE: To enable the transmitter/card programming feature, you must insert the communicator card
in the “backup” slot before you turn on unit. (refer to “Memory Card Installation” section)

005 TRANSM/CARD#2:
___-_____ (S) SCAN

005 TRANSM/CARD#10:
___-_____ (S) SCAN

•

•

•

•

STEP

7

STEP

9

NOTE: The time zones and restrictions associated with transmitter/card codes can only be programmed remotely using the

EMS modem software.

STEP

8

CVB

N

M

’

X

Z

A

Q W

E

R

T Y U I

0

7

4

1

2

3

5 6

8

9

O

P

S

D F

G H J

K L

SPACE BAR

EXT

HELP

PROGRAM

ERASE

ENTER

BACK
SPACE

SHIFT

STAND-ALONE
RECEIVER
Model ERRB485

Processor

Touch the card to the card reader

to activate remote device

Model ECR485B

Press button on transmitter to activate remote device

(fig a.)

(fig b.)

Use keys to view and

program up to 10 transmitter or card

codes associated to the directory code.

To program a transmitter or card code

you may enter the code manually using

the keypad or you may scan the

transmitter/card code.

To scan a card code, press and release

the key and activate the card

as shown in fig a.

To scan a transmitter code, press and

release the key and activate

the transmitter as shown in fig b.

S

S

In special applications, it is necessary to enter area codes for Resident Phone Numbers. Area codes are

entered from the Phone Number screen (fig a.).

Use the key to enter the area code and prefix field (fig b.). The Prefix defaults to “1” for normal

11-digit dialing. Where necessary, you can change the prefix to any number. To choose 8, 9, or 10-digit

dialing, when no prefix is needed, press while in the prefix field. Then type the required

number of digits in the area code field followed by the phone number. Press the key to

continue with the entry as described in the “Resident Information” section.

AREA CODES

26

LC/VF Page

To erase “Resident” information, press the key. Press the key for assistance.

(fig a.)

005 PHONE NUMBER:

_-___-___-____

(fig b.)

005 PHONE NUMBER:

1-___-___-____

PREFIX FIELD AREA CODE FIELD

IMPORTANT NOTE: While in the help screens, programming will be disabled.

To continue programming, press the button to exit the help screens first.

UTILITY CODES

27

LC/VF Page

IMPORTANT NOTE: While in the help screens, programming will be disabled.

To continue programming, press the button to exit the help screens first.

Use the keys to view

or edit existing Codes. The last screen

will display memory spaces available.

Select a code that you wish to edit.

To program a new Utility Code, press

the key and type in a 4 digit

code. If the code entered is used, type

in another.

Enter the desired time zone in the

screen that follows (fig d.)

Use the keys to move the

cursor. To view the previous screen, use

the key. Press the

key to complete your transaction.

Press the key or the

key to enter code. Type the name of the

utility in the screen that follows and

press the key or

(fig c.).

A 4-digit Utility Code (numeric characters only) may be assigned to “Utility Companies” such as delivery, telephone,
construction companies, water, power, etc. These utilities can use their individual code to access the premises
within the time zone that you program. Each system, no matter what the memory capacity, is equipped with 60
available Utility Codes and time zones.

SELECT PROG MODE:
(N)Names (U)Utility

PROG UTILITY CODE> N
View/Edit Codes >

In the Program Selection Screen (fig a.),

Press the key. The screen will

display (fig b.):

You now have two options:

OR

STEP

U

1

STEP

2

N

STEP

3

STEP

4

(fig a.)

(fig b.)

UTILITY CODE:4762
NAME:FedEx

4762 TimeZone
09:00AM To 05:00PM

(example - fig c.)

(example - fig d.)

To erase “Utility” information, press the key. Press the key for assistance.

For “User Mode” operation, Refer to the “Resident Use” Section.

To customize a password, type in a four character

password (it may be alphanumeric characters).

Press the key to enter the new

password. It will be displayed by asterisk (*) for

security (fig b.) (To leave the password

unchanged, press the key.)

A confirmation screen will appear (fig c.). Type in

the same password and press the key.

If you enter a different password, the password will

not be confirmed and you will have to repeat the

transaction.

PASSWORD

28

LC/VF Page

SELECT PROG MODE:

(P)Password

NEW PASSWORD:

****

RE-ENTER PASSWORD:

****

The factory present password is 7777. We suggest that you customize it.

In the Program Selection Screen (fig a.), Press the

key.

P

Always remember your password! This password is required to enter the Program Mode. If you

lose your password, you will need to contact the manufacturer to reissue a new password.

(fig a.)

(fig b.)

(fig c.)

Pressing the button will provide users with a help message.

IMPORTANT NOTE: While in the help screens, programming will be disabled.

To continue programming, press the button to exit the help screens first.

CLOCK/TIMER

29

LC/VF Page

Use the key to set the Date and time, use

the keys to move the cursor. Press the

key to enter your input.(fig c.)

Use the keys to select the

current day of the week. Press the key

to enter your input. (fig d.)

The Clock/Timer allows you to set the date and time, and to program gates and doors to be opened or closed whenever
specified. This clock is equipped with 100 year calender, auto leap year compensation and daylight savings.

1. DATE AND TIME

SELECT PROG MODE:

(C)Clock/Timer

PROG CLOCK/TIMER

(1)Date & Time

PROG CLOCK/TIMER

(2)Gate Timer

PROG CLOCK/TIMER

(3)Door Timer

DATE>02-11-2000
Time>07:31am p=pm

Today Is THURSDAY
Use To Select Day

Daylight Savings>y
(Y)Yes (N)No

In the Program Selection Screen (fig a.), Press the

key.

C

Use the keys to scroll between

the three different menu choices (fig b.). Select the

number of your choice or press the

key while on the selection of your choice.

Select daylight savings by pressing for

yes or for no. The key will

complete the date and time entry. (fig e.)

1

Y

N

(fig a.)

(fig b.)

(fig c.)

(fig d.)

(fig e.)

CAUTION: Make sure to set the Date and Time

before programming the clock timers for the
door and gate.

Press to turn timer 1 ON or press to

turn timer 1 OFF. Press the key. Type the

desired timer 1 setting. For am type For pm

type Press to program the timer 2.

CLOCK/TIMER CONTINUED

30

LC/VF Page

•

•

•

•

Setup New Timers> N
View/Edit Timers>

Use to view and program timer(s) for

Sunday through Saturday. Move the cursor

to time and type in the setting. Two timers can be set

for each day of the week following the procedure below.

(fig a.)

N

F

A

P

2./ 3. DOOR AND GATE TIMERS

SUN G Tmr1: ON F=off
07:00am -> 05:00pm

(fig a.)

SUN G Tmr2: ON F=off
07:00am -> 05:00pm

SAT G Tmr1: ON F=off
07:00am -> 05:00pm

SUN G Tmr1: ON F=off
07:00am -> 05:00pm

(fig c.)

(fig b.)

MON G Tmr1: ON F=off
08:00am -> 04:30pm

USE ARROWS TO VIEW / PROGRAM
INDIVIDUAL TIME ZONES

See next page for instructions

To program the second timer, repeat the above procedure. Press the key when complete.

Press to program Gate Timers Menu. Press to program the Door Timers Menu.

2

3

Program timers 1 and 2 for any day of the week (fig b. & c.)

To exit “Timers” screen, press the key. Press the key for assistance.

IMPORTANT NOTE: While in the help screens, programming will be disabled.

To continue programming, press the button to exit the help screens first.

Timer 1 & 2 settings can be copied to any day(s) of the

week. Select the day(s) of the week to be copied.

Press to select day or press to not

select day of week. Press when complete.

(fig e.)

CLOCK/TIMER CONTINUED

31

LC/VF Page

2./ 3. DOOR AND GATE TIMERS, continued’

GATE Tmr1: ON F=off
__:__am -> __:__pm

COPY Timers1,2 To
Workdays(y) Sun(n)

PRESS TO PROGRAM SETS OF
TIME ZONES

Y

N

GATE Tmr2: ON F=off
__:__am -> __:__pm

(fig d.)

(fig e.)

COPY Timers1,2 To
Mon(n) Tue(n) Wed(n)

COPY Timers1,2 To
Thr(n) Fri(n) Sat(n)

Setup New Timers> N
View/Edit Timers>

Press to program Gate Timer Menu Press to program the Door Timers Menu

2

3

See previous page for instructions

To program the second timer, repeat the above

procedure. Press the key when complete.

To exit “Timers” screen, press the key. Press the key for assistance.

IMPORTANT NOTE: While in the help screens, programming will be disabled.

To continue programming, press the button to exit the help screens first.

Press to turn timer 1 ON or press to

turn timer 1 OFF. Press the key. Type the

desired timer 1 setting. For am type ,For pm type

. Press to program the timer 2.

N

N

F

A

P

Program timers 1 and 2 for any day of the week (fig d.)

STRIKE TIME

32

LC/VF Page

Strike Time sets the amount of time your gate or door relay will be held open.

TALK TIME

(fig c.)

(fig e.)

(fig g.)

In the Program Selection Screen (fig g.), Press the key. Choose the desired Talk Time, press for 20 seconds,

for 40 seconds, or for 80 seconds (fig h.). Press the key to confirm your entry.

You can set the amount of time to talk on the Entry Phone at 20, 40, or 80 seconds.

SELECT PROG MODE:

(T)Talk Time

TALKTIME IS 20 SEC
(B)40 Sec (C)80 Sec

In the Program Selection

Screen (fig a.), Press the

key.

S

The strike time can be set for

both gates and doors (fig b.)

For either the Gate or Door Strike TIme, you may now type in a name and location (up to 13 characters) to which you want

the programmed strike time applied. (fig e.) and (fig f.) Press the key to complete the transaction.

Press the key to set the Door Strike Time. Type in

a time from 1 to 99 seconds (fig c.). Press the

key to enter your selection.

D

Press the key to set the Gate Strike Time. Type in

a time from 1 to 12 seconds (fig d.). Press the

key to enter your selection.

G

SELECT PROG MODE:

(S)Strike Time

(fig a.)

Door Strike Time > D
Gate Strike Time > G

(fig b.)

DOOR STRIKE TIME:
[01-99] 10 Seconds

DOOR NAME/LOCATION
South Entry Door

GATE NAME/LOCATION
North Side Gate

(fig d.)

(fig f.)

(fig h.)

GATE STRIKE TIME:
[01-12] 05 Seconds

AT

B

C

GREETINGS

33

LC/VF Page

VOLUME ADJUST

SELECT PROG MODE:

(G)Greeting

In the Program Selection Screen (fig a.), Press

the key.

Type the name of the facility and press the

key to complete your entry. The

system will automatically center your entry on

the Welcome screen.(fig b.)

G

(fig a.)

FACILITY NAME:

Woodbridge Meadows

(fig b.)

Use the Greeting Screen to customize the Welcome message.

SELECT PROG MODE:
(V)Volume (B)Backup

In the Program Selection Screen (fig c.), Press

the key.

Use the keys to adjust the

volume to the desired level (fig d.). Press the

key to complete the entry.

Volume at unit speaker for visitor/tenant

communication.

V

(fig c.)

CALL VOLUME>

- ___________ +

(fig d.)

Use the Volume Screen to adjust both call and unit message volume levels.

Pressing the button will provide users with a help message.

IMPORTANT NOTE: While in the help screens, programming will be disabled.

To continue programming, press the button to exit the help screens first.

Use the keys to adjust the

volume to the desired level (fig e.). Press the

key to complete the entry.

Unit messages. For example: access granted,

invalid entry, etc.

UNIT MSG VOLUME>

- ___________ +

(fig e.)

BACK-UP MEMORY

34

LC/VF Page

MAIN Card Updated On
05-15-01 03:50am

Press the key to Backup.

Press the key to exit the backup

process (fig e.).

NOTE: You must have an extra memory card (sold separately)
installed in the RS485 Slot (fig a.) of the Processor in order to
perform the backup process.

NOTE: Back-up Memory card must be
the same size or greater than the Main
Memory card being backed up.

The screens will display when the cards

were last updated. (fig c.) and (fig d.)

Use the keys to scroll

through the information.

SELECT PROG MODE:
(V)Volume (B)Backup

(fig b.)

(fig c.)

BACKUP Card Updated
02-11-01 04:20am

(fig d.)

(ENTER) To Backup
(EXIT) To Quit

(fig e.)

In the Program Selection Screen (fig b.),

Press the key.

Insert additional memory card in the
Backup Slot.

B

(fig a.)

Pressing the button will provide users with a help message.

IMPORTANT NOTE: While in the help screens, programming will be disabled.

To continue programming, press the button to exit the help screens first.

Back-Up Memory Card Release Button

Main Memory Card Slot

RS485 Memory Card Slot

ERROR MESSAGES

35

LC/VF Page

WELCOME

WELCOME

Battery Is Low

It Must Be Recharged

Codes Detected out

of Range, See Manual

(fig a.)

B

(fig b.)

(fig c.)

OUT OF RANGE CODES: If the processor detects one
or more 3-digit codes present on the memory card
inserted that cannot be accessed, an error message is
displayed. (fig a.) Codes that cannot be accessed by
the limitation of the system being used cannot be
edited.

LOW BATTERY If the battery backup is reaching it’s
minimal charge level, a battery icon with a “B” next to
it will display in the top right corner of the
display. (fig b.) An alert beep will accompany this
icon. The batteries must be charged to continue.*

LOW BATTERY ICONS: If a battery icon appears in
the top right corner of the display and the letter next
to it is an “M” or a “C”, as shown in (fig d.) and (fig
e.), contact Manufacturer for instructions.

If the battery backup level reaches it’s minimal charge,
an error message will display (fig c.) and the system
will become non-functional until the battery backup is
charged by using the plug in transformer.*

C

(fig d.)

WELCOME

M

(fig e.)

*IMPORTANT NOTE: In order to charge the battery in the Dial Code System, the processor MUST be plugged in to the
transformer and the processor MUST BE ON. If the power is off on the processor, the battery will not be charging.

LC ILLUSTRATION & PARTS LIST

36

LC/VF Page

All components and specifications are subject to change without notice.

(+)

( )

GND

(+)

( )

GND

(+)

( )

GND

(+)

( )

GND

DOOR NO
DOOR NC
DOOR C
GATE NO
GATE NC
GATE C

12V

AC/DC

POWER

INPUT

GND

INPUT

VCR NO

VCR C

TEL
L NE

TIP

RING

RS 485 (1)

RS 485 (2)

RS 485 3)

5 4)

GATE

RELAY

DOOR
RELAY

CHASS S
GROUND

POSTAL/EXIT

SW INPUT

VCR

RELAY

T009 T035

T033

T031
T037

T029

T003

T002

T014SPT

T012SPT

T026

T010

T011

T060

T000

T030

T027

T000 Transformer 12 Vac 50VA (Provided)
T002 External Keypad
T003 Keylock
T009 Processor Containment Box (Back Box)
T010 Processor Key Release / Lock
T011 Battery Back-Up
T012SPT 9-Pin Comm Port Connector (Surge Protection Terminal)
T014SPT External Box Connection Kit (Surge Protection Terminal)
T020 LC Complete Internal Metal Box (Processor Box)
T025 Programming Keys
T026 Postal Lock Assembly
T027 LCD Processor - No Memory Card
T029 Key for Internal / External Lock
T030 LCD Display
T031 Kit for Keypad Light
T032 Phone Control Board (Inside Processor)

LC Part # LC Description

T025

T020

T044

T032

T033 LCD Display Window
T035 LC External Box Assembly
T036 Heater Pad Option (Pre-Installed in Processor)
T037 Keypad Light
T044 Speaker 4 OHM
T060 Dial Code Surge Protection Board
T25MEM 25 Name Memory Card
T50MEM 50 Name Memory Card
T150MEM 150 Name Memory Card
T250MEM 250 Name Memory Card
T500MEM 500 Name Memory Card
T1000MEM 1000 Name Memory Card
RFCARD4K RS485 Communicator Card 4000
RFCARD8K RS485 Communicator Card 8000
RFCARD16K RS485 Communicator Card 16000

LC Part # LC Description

Elte Entry Phone

COMMUNIC TOR CARD

Remote Access RS-485

capacity

Memory

Card

RS485

Card

LC Processor

37

LC/VF Page

VF ILLUSTRATION & PARTS LIST

All components and specifications are subject to change without notice.

(+)
( )

GND

(+)
( )

GND

(+)

( )

GND

(+)

( )

GND

DOOR NO
DOOR NC
DOOR C
GATE NO
GATE NC
GATE C

12V

AC DC

POWER

INPUT

GND
NPUT

VCR NO

VCR C

TEL
L NE

T P

RING

RS 485 1)

RS 485 2)

RS 485 3)

485 4

GATE

RELAY

DOOR
RELAY

CHASSIS
GROUND

POSTALEX T

SW INPUT

VCR

RELAY

T026

T000

T014SPT

T012SPT

T009 T034

T008

T004

T029

T003

T002

T010

T011

T018

T028

T025

T019

T007

T005

T006

T060

T000 Transformer 12 Vac 50VA (Provided)
T002 External Keypad
T003 Keylock
T004 Display Window Glass Only (VF)
T005 Display Window Metal Bracket (VF)
T006 Display Window Glass and Bracket (VF)
T007 Display Hood (VF)
T008 Stainless Steel Door (VF)
T009 Processor Containment Box (Back Box)
T010 Processor Key Release / Lock
T011 Battery Back-Up
T012SPT 9-Pin Comm Port Connector

(Surge Protection Terminal)

T014SPT External Box Connection Kit (Surge Protection Terminal)
T018 Vacuum Florescent Display
T019 VF Complete Internal Metal Box (Processor Box)
T025 Programming Keys
T026 Postal Lock Assembly
T028 VFD Processor - No Memory Card

T029 Key for Internal / External Lock
T031 Kit for Keypad Light
T032 Phone Control Board (Inside Processor)
T034 VF External Box Assembly
T036 Heater Pad Option (Pre-Installed in Processor)
T037 Keypad Light
T044 Speaker 4 OHM
T060 Dial Code Surge Protection Board
T25MEM 25 Name Memory Card
T50MEM 50 Name Memory Card
T150MEM 150 Name Memory Card
T250MEM 250 Name Memory Card
T500MEM 500 Name Memory Card
T1000MEM 1000 Name Memory Card
RFCARD4K RS485 Communicator Card 4000
RFCARD8K RS485 Communicator Card 8000
RFCARD16K RS485 Communicator Card 16000

VF Part # VF Description VF Part # VF Description

T044

Elte Entry Phone

COMMUNCATOR CARD

Remote Access RS-485

capacity

Memory

Card

RS485

Card

VF Processor

T032

T031
T037

APPROVALS

38

LC/VF Page

Instruction to the User:

This equipment has been tested and found to comply with the limits for a class 13 digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment.
Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV
reception. The user is cautioned that changes and modifications made to the equipment without the approval of
manufacturer could void the users authority to operate this equipment.

"Notice: The Industry Canada (IC) label identifies certified equipment. This certification means that the
equipment meets telecommunications network protective, operational and safety requirements as prescribed in
the appropriate Terminal Equipment Technical Requirements document(s). The department does not guarantee
the equipment will operate to the users satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the
local telecommunications company. The equipment must also be installed using a acceptable method of
connection. The customer should be aware that compliance with the above conditions may not prevent
degradation of service in some situations.

Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs
or alterations made by a user to this equipment, or equipment malfunctions, may give the telephone
communications company cause to request the user to disconnect the equipment.

User should ensure for their own protection, that the electrical ground connections of the power utility, telephone
lines and internal metallic water pipe system, if present, are connected together. This precaution may be
particularly important in rural areas."

Caution: Users should not attempt to make such connection themselves, but should contact the appropriate
electric inspection authority, or an electrician, as appropriate.”

"Notice: The Ringer Equivalent Number (REN) assigned to each terminal device provides an indication of the
maximum number of terminals allowed to be connected to the telephone interface. The termination on a
interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer
Equivalent Numbers of all the devices does not exceed 5."

UL STD 294, 5th Ed.
UL STD 1950, 3rd Ed.

The Chamberlain Group, Inc.

Complies with Part 68, FCC Rules

FCC Part 15 - Tested to comply with
FCC standards for home or office use

This Class B digital apparatus meets all requirements of
CANADIAN Interference Causing Equipment Regulations.

845 Larch Avenue

Elmhurst, Illinois 60126-1196

114A28 66F

© 2008 The Chamberlain Group, Inc. – All Rights Reserved
