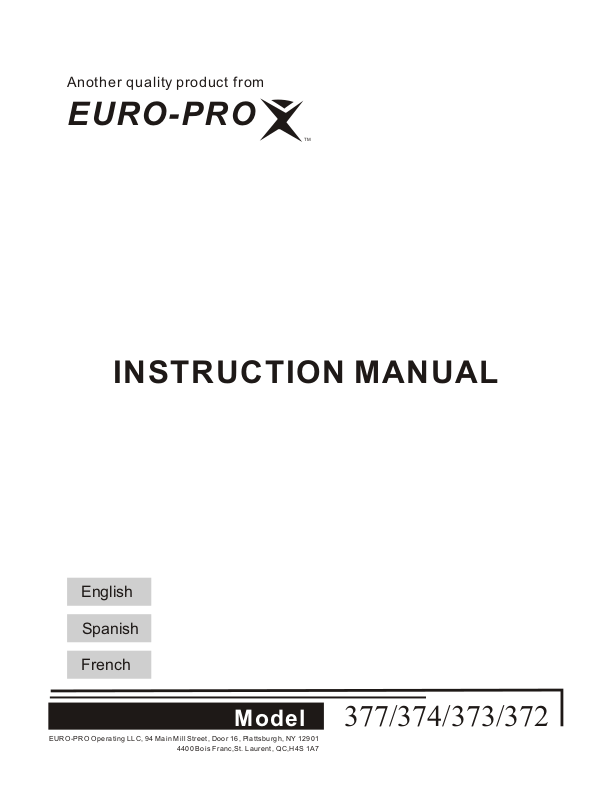

Page 1
Another quality product from
EURO-PRO
TM
INSTRUCTION MANUAL
English
Spanish
French
Model
EURO-PRO Operating LLC, 94 Main Mill Street, Door 16, Plattsburgh, NY 12901
4400 Bois Franc,St. Laurent, QC,H4S 1A7
377/374/373/372
Page 2
¡°¡±
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical sewing machine, basic safety precautions should always be followed, including
the following.
Read all instructions before using this sewing machine.
This sewing machine is designed for household use.
English
DANGER-
A sewing machine should never be left unattended when plugged in. Always unplug this sewing machine
from the electrical outlet immediately after using and before cleaning.
Warning
Do not allow to be used as a toy. Attention is necessary when this sewing machine is used by
1.
or near children.
Use this sewing machine only for its intended use as described in this manual. Use only attachments
2.
recommended by the manufacturer as contained in this manual.
Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly,
3.
if it has been dropped or damaged, or dropped into water. Return the sewing machine to the nearest
authorized dealer or service center for examination, repair,electrical or mechanical adjustment.
4. Never operate the sewing machine with any air openings blocked. Keep ventilation openings from
the sewing machine and foot control free from the accumulation of lint, dust, and loose cloth.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol spray products are being used or where oxygen is being administered.
8. To disconnect, turn all controls to the off O position, then remove plug from outlet.
-To reduce the risk of burns, fire, electric shock or injury to persons...
TO REDUCE RISK OF ELECTRIC SHOCK:
¡±
¡±
9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
10. Keep fingers away from all moving parts. Special care is required around the sewing machine needle.
11. Always use the proper needle plate. The wrong plate can cause the needle to break.
12. Do not use bent needles.
13. Do not pull or push fabric while stitching. It may deflect the needle, causing it to break.
14. Switch the sewing machine off O when making any adjustments in the needle area, such as
threading needle, changing needle, threading bobbin, or changing presser foot and the like.
15. Always unplug sewing machine from the electrical outlet when removing covers, lubricating,
o
r when making any other user servicing adjustments mentioned in the instruction manual.
16. Always unplug before replacing lamp. Replace bulb with the same rated 15 watts.
¡±
¡±
SAVE THESE INSTRUCTIONS
1
Page 3
Contents
Principal parts
How to connect the machine to the power supply
How to use the foot control
How to replace the sewing lamp
Changing the needle
Thread and needle chart
To select a suitable needle
Removing and attaching the presser foot
Regulating the thread tension
Reverse stitch
The pattern selector
Removing the bobbin case and bobbin
Winding the bobbin
Threading the bobbin case
Threading the needle
Drawing up the bobbin thread
Straight stitch and zigzag stitch
Changing sewing direction
Fastening seams
Triple stretch stitch
Tricot zigzag stitch
3-4
4
4
4
5
5
5
6
6
7
7-8
8
9
9
10
11
11
12
12
12
13
Smocking stitch
Overlock stitch
Double action stitch
Double overlock stitch
Sewing buttonholes
Sewing zippers
Hemming
Sewing blind hems
Sewing embroidery
Darning plate
Buttons
Cleaning the feed dog
Cleaning the shuttle race
Free arm sewing
Trouble shooting: causes and remedies
13
13
14
15
14-15
15
16
16
17
17
17
18
18
19
20
2
Page 4
15
14
4
1
2
17
3
5
PRINCIPAL PARTS
1.Bobbin winder thread guide
2.Thread tension dial
3.Pattern selector dial
4.Bobbin winder spindle
6
5.Bobbin winder stopper
6.Balance wheel
7.Stitch length dial
8.Reverse button
7
8
9.Needle clamp and screw
( Model 377)
English
16
13
12
11
(Accessories storage compartment)
10
10.Shuttle cover
11.Presser foot
12.Presser foot thumb screw
13.Needle
14.Screw for face plate
15.Face plate
16.Extension table
17.Stitch display
18.Presser foot lifter
9
18
PRINCIPAL PARTS
1.Bobbin winder thread guide
2.Thread tension dial
3.Pattern selector dial
4.Bobbin winder spindle
5.Bobbin winder stopper
6.Balance wheel
7.Stitch length dial
8.Reverse button
9.Needle clamp and screw
(Model 374)
(Accessories storage compartment)
10.Shuttle cover
11.Presser foot
12.Presser foot thumb screw
13.Needle
14.Screw for face plate
15.Face plate
16.Extension table
17.Stitch display
18.Presser foot lifter
3
Page 5
(Accessories storage compartment)
PRINCIPAL PARTS
1.Bobbin winder thread guide
2.Thread tension dial
3.Pattern selector dial
4.Bobbin winder spindle
5.Bobbin winder stopper
6.Balance wheel
7.Stitch display
8.Reverse button
9.Needle clamp and screw
10.Shuttle cover
11.Presser foot
12.Presser foot thumb screw
13.Needle
14.Screw for face plate
15.Face plate
16.Extension table
17.Presser foot lifter
( Model 373/372)
HOW TO CONNECT THE MACHINE TO THE POWER SUPPL
Y
1.Fit the machine plug into the machine.
2.Plug the power cord to the power supply.
Note:*Before plugging in the machine, ensure the voltage and
number of cycles indicated, conforms to your electrical
power supply.
HOW TO USE THE FOOT CONTROL
Sewing speed can be varied by the foot control. The harder you press
on the controller, the faster the machine runs.
Note:*By releasing the controller, the machine stops running auto matically.
*Before using the machine, practice controlling the speed
without threading.
HOW TO REPLACE THE SEWING LAMP
The sewing lamp is located behind the face plate.
Remove the face plate by loosing the screw of the face plate.
Bulb type:
To remove...Unscrew
To replace...Screw
Note:*Before replacing a bulb, disconnect the machine from the
power supply.
*Bulbs are available from sewing machine retailers.(Use a
15-Watt bulb)
Caution!
Before leaving the machine, changing parts or doing any other
work on it, always disconnect the plug from the wall socket.
Switch
4
Page 6
THREAD AND NEEDLE CHART
FABRICS
LIGHT
WEIGHT
MEDIUM
WEIGHT
HEAVY
WEIGHT
Note: *In general, fine threads and needles are used for sewing thin fabrics, and thicker threads and needles are
used for sewing heavy fabrics, Always test thread and needle size on a small piece of fabric which will
be used for actual sewing.
Sheer cottons, Silk,
Synthetics, Georgette
Medium Weight Cottons, Synthetics,
Poplin, Velvet, Light Weight Woollens
Heavy Weight Cottons, Denim
Tweed, Gaberdine, Drapery
*Use the same thread for needle and bobbin.
*When sewing stretch, very fine fabrics and synthetics, use a STRETCH needle. The STRETCH
needle effectively prevents skipped stitches.
*When sewing very fine fabrics, sew over a piece of paper to prevent yarn distortion.
Fine Silk
Fine Cotton
Fine Synthetic
Fine Cotton Covered Polyester
50 silk
50 to 80 Cotton
50 to 60 Synthetic
Cotton Covered Polyester
50 Silk
40 to 50 Cotton
40 to 50 Synthetic
Cotton Covered Polyester
THREADS
NEEDLE SIZE
9 or 11
11 or 14
14 or 16
English
CHANGING THE NEEDLE
1. Turn the balance wheel towards you until the needle is in
its highest position.
2. Loosen the needle clamp screw by turning its top edge
towards you. Remove the needle from the clamp.
3. Place the new needle into the needle clamp with it s flat
side facing away from you. Push the needle up into needle
clamp as far as possible.
4. Tighten the needle clamp screw firmly.
TO SELECT A SUITABLE NEEDLE
A number indicating the size
of needle is marked on the
Stem
stem. The higher the number,
the thicker the needle.
,
A STRETCH needle is
stretch needle
recommended for stretch fabrics.
*
Do not use any needle which
is bent or blunted.
(4)
(3)
5
Page 7
REMOVING AND ATTACHING THE PRESSER FOOT
To Remove:
1. Turn the balance wheel towards you until the needle is at its highest position.
2. By lifting the lever on the back of the foot holder, the presser foot will drop off.
Note: *Do not force the presser foot to remove it.
To Attach:
1. Place the presser foot so that the pin on the foot lies just under the groove of the
foot holder. Lower the foot holder.
presser
foot
1
lifter
2
2. When the presser foot lifter is raised youll fin d the presser foot is locked in place.
,
lever
groove
1
2
REGULATING THE THREAD TENSION
Generally, should any tension adjustment be necessary, the adjustment can normally be made by regulating
the upper thread tension dial only. Bobbin thread tension has been adjusted at the factory and readjustment
is seldom required except for special instances, thread and fabric.
Bobbin thread tension is just right when you can pull the thread from bobbin case easily with a little resistance.
Thread tension may be adjusted by tightening or loosening the thread tension dial.
The needle thread and the bobbin thread
Properly adjusted thread
tension for straight sewing
The needle thread is too
tight
should interiock in the center of two layers of fabric
The bobbin
thread ap-
pears on the
upper surface
of the fabrics
Loosen the needle thread tension by
moving the dial to the lower number
How to adjust the bobbin
*
thread tension
pin
To increase tension,
turn screw clock wise.
The needle thread is too
loose
The needle
thread ap-
pears on the
underside of
the fabrics
Tighten the needle thread tension by
moving the dial to the higher number
Remember the higher the number, the tighter the tension. Correctly balanced tensions for one fabric may not
be suitable for another. The required tension depends upon the stiffness of fabric, thickness of the fabric,
numbers of layers of fabric being sewn, as well as the type of stitch you are making. It is better to test the stitching on a scrap of the fabric you are using before starting to make a garment. The general range for many fabrics is 3-5.
6
To decrease tension.
turn screw counter-
clock wise.
Page 8
STITCH LENGTH DIAL (Model 377 and 374 only)
To change the length of the stitches proceed as follows:
Turn the dial so that the number for the required stitch length is at setting mark. The numbers indicate the approximate
stitch length in mm. The smaller the numbers, the shorter the stitch.
English
Model 377
setting
mark
REVERSE STITCH:
(Model EP 377/374/373/372)
Model 374
stitch lengths
Press center of the stitch length dial (reversing button) and hold for reverse stitching. Fabric will immediately start feeding
backwards. Release button and machine will resume normal forward sewing. Very useful for fastening ends of seams and
darts without having to tie threads, and for strengthening seams.
Model EP 377
THE PATTERN SELECTOR
(Model 377)
Model 374 Model 373/372
The desired pattern can be selected by turning the pattern selector dial. The marks on the dial correspond to the
patterns shown on the panel respectively, as follows;
M( ) straight stitch, middle needle position
O( ) straight stitch, left needle position
1-5( 54321) zigzag stitch with variable width
A( ) tricot stitch
B( ) stretch blind stitch
C( ) double action stitch
D( ) reverse blind stitch
automatic buttonhole sewing
Selecting Stretch Stitch:
When sewing stretch stitch, set the stitch length dial at
S.S. .
When you release the
stretch stitch mechanism will be off automatically.
M( ) triple straight stretch stitch, middle needle
position.
O( ) triple straight stretch stitch, left needle
position.
1-5( 54321) triple zigzag stretch stitch or ric-rac stitch
A( ) smocking stitch
B( ) fancy stretch stitch or blanket stitch
C( ) double overlock stitch
D( ) overlock stitch
engagement on the dial, the
Standard djustment
Turn the stitch length dial so that
the SS mark is uppermost.
This is a standard adjustment for most types of fabric.
For different types of fabric, adjustment may be necessary.
To shorten the stretch stitches, turn the dial slightly towards To lengthen, turn the dial towards .
¡°¡± ¡°¡±
On most fabrics, these adjustments allow for various
pattern possibilities.
When making stretch stitches, the mark must always
be within the SS range - (see drawing).
SS
¡°¡±
SS
7
Page 9
THE PATTERN SELECTOR
The desired pattern can be selected by turning the pattern selector dial. The marks in the stitch display correspond
to the patterns shown on the panel respectively, as follows:
A ( ) straight stitch, middle needle position
B ( ) straight stitch, left needle position
C ( ) zigzag stitch with variable width
D ( ) tricot stitch
E ( ) stretch blind stitch
F ( ) double action stitch
G ( ) reverse blind stitch
( Model 374)
automatic buttonhole sewing
THE PATTERN SELECTOR
( )
1 - 3
( )
4-6
7
( )
8
( )
( )
9
10
( )
( )
11
12
( )
( )
straight stitch
zigzag stitch
triple zigzag stretch stitch
triple straight stretch stitch
overlock stitch
smocking stitch
tricot stitch
shell stitch
automatic buttonhole sewing
( Model 373/372)
RE MOVING THE BOBBIN CASE AND BOBBIN
1. Raise the presser foot and turn the balance wheel towards
you until the thread takd-up lever is at its highest position.
2. Open the shuttle cover.
3. Open hinged latch of bobbin case and pull bobbin case out of
machine.
Release the latch and the bobbin will fall out. As long as you
hold the bobbin case latch open, the bobbin cannot drop
out.
8
Open
Page 10
WINDING THE BOBBIN
1. Draw thread from spool through
bobbin winder tension disc as shown.
2. Pull end of thread through hole in bobbin
as shown.
3. Push bobbin winder shaft to far left position,
if it is not already there. Place bobbin onto
shaft with end of thread coming from top of
bobbin. Push bobbin winder shaft to right
until it clicks. Hold onto end of thread.
4. Start machine. The thread that is held will
snap or may be trimmed with a scissors,
Bobbin will cease turning when completely
filled. Push shaft to left to remove bobbin.
When the bobbin winding is incorrect, release
the screw of the upper thread guide and adjust
the thread guide up or down until the winding
of the bobbin is balanced.
THREADING THE BOBBIN CASE
Hold the bobbin between the thumb and forefinger of your right
hand and pull off about 15cm (6 inches) of thread.
1. Hold the bobbin case in your left hand as shown and place
the filled bobbin inside.
English
1
3
2
4
bobbin case
bobbin
2. Pull the thread into the slot in the edge of the bobbin case.
3. Now pull the thread under the tension spring and into the
thread eyelet.
To insert the bobbin case and bobbin......
Ensure that about 15 cm (6 inches) of thread extends
out of bobbin. Hold the bobbin case so that long
finger on case points up. Open the latch of bobbin
case. Slip the bobbin case over the center pin of
hook and press in place until the long finger of the
bobbin case enters the notch entirely to lock the
bobbin in place. Release latch and press it down.
9
latch
long finger
slot
tension spring
eyelet
notch
latch
Page 11
THREADING THE NEEDLE
Install the spool pin behind the machine
(as shown in fig A ).
Place spool on spool pin, with thread
coming from the back of the spool. Place
the take - up lever 5 in the highest
position.
fig A
6, 7, 8
3
1
2
5
A
B
4
1. Raise the presser foot using the foot lever
marked B .
2. Draw the thread through the thread
guides on the top cover as drawing in, .¢Ù¢Ú
3. Hold the spool still with right hand, pull
the end of the thread between the
tension disk as shown in .¢Û
4. Following the slotted threading path,
pull the thread down to thethread check
spring (inside) and lead it across from
left to right.
5. Pull the thread upward and slip into
the slotted hole of thread take-up level
from left to fight
6. Draw the thread through guides and
7
and thread the needle from front to
,
8
rear , leave the thread about 15cm(6
inches) long underneath the presser
foot.
5
.
6
B
1
2
5
3
6
7
4
8
10
Page 12
DRAWING UP THE BOBBIN THREAD
1.Hold the end of the needle thread with your left hand.
2.Turn the balance wheel slowly towards you with your right
hand until the needle goes down and comes up. Then stop
the balance wheel when the take-up lever is at its highest
position.
Lightly draw up the needle thread forming a loop with the
bobbin thread.
3.Puil about 15cm (6 inches) of both threads away from you
under the presser foot.
English
needle thread
1
2
needle
thread
bobbin
thread
STRAIGHT STITCH AND ZIGZAG STITCH
Model 377 Model 374
Presser foot
Pattern selector
Stitch length dial
zigzag foot
M ( )
(for straight gtitch)
1 - 5 (54321) (for zigzag stitch)
O ( )
or
0.3-4
A ( ) B ( )
(for straight stitch)
zigzag foot
or
C ( ) (for zigzag stitch)
0.3-4
Starting Sewing
1. Be sure both the threads are drawn back under the presser foot.
2. While holding the threads with your left hand, turn the balance
wheel toward you to bring the needle into the fabric where you
wish to start sewing.
3. Lower the presser foot, and press the speed controller gently,
then start sewing slowly.
*Sew a few reverse stitches by pushing reverse button for
reinforcing the end of seams.
*Raise the needle to its highest position before turning the
pattern selector dial and stitch width dial.
3
Model 373/372
( ) (for straight stitch)
( ) (for zigzag stitch)
-
zigzag foot
11
Page 13
Changing Sewing Directions
1. Stop the machine, and turn the balance wheel toward you to
bring the needle down into the fabric. Raise the presser foot.
2. Pivot the fabric around the needle to change direction as
desired.
3. Lower the presser foot and continue sewing.
Fastening Seams
1. For fastening the ends of seams, press in the reversing
button and sew several reverse stitches.
2. To remove the fabric, raise the presser foot and draw the
fabric away from you.
3. Cut threads on thread cutter at the rear of presser bar or
with a pair of scissors.
Leave about 15 cm (6 inches) of hread hanging from the
needle eye.
thread cutter
TRIPLE STRETCH STITCH
If you wish to sew stretch fabrics, this is the right stitch to avoid thread breaking. This is also very suitalbe
for seams that need great strength,e.g.crutch seams or pocket seams.
TRIPLE STRAIGHT STRETCH STITCH
Model 377
Presser foot
Pattern selector
Stitch length dial
zigzag foot
M( ) 8( )
S.S.
(Model 374/373/372)
Model 374
Model 373/372
zigzag foot
TRIPLE ZIGZAG STRETCH STITCH
Presser foot
Pattern selector
Stitch length dial
Model 377
zigzag foot
O( ) 7( )
S.S.
Model 374
Model 373/372
zigzag foot
Note: * Use a STRETCH needle.
The blue tipped shank needle effectively prevents
skipped stitches.
12
Page 14
TRICOT ZIGZAG STITCH
This stitch is very suitable for darning tears. It can
also be used for reinforcing stretch materials and
sewing on fabric parts.
Model 377
Presser foot
Pattern selector
Stitch length dial
Note: *Use a STRETCH needle.
The stretch needle effectively prevents
skipped stitches.
zigzag foot
A ( )
0.3 to 4
Model 374
zigzag foot
D ( )
0.5 to 4
Model 373/372
zigzag foot
11( )
-
SMOCKING STITCH
With a narrow strip of fabric directly under the line
of gathering, stitch over the gathers. The design will
be a series of small diamonds.
When smocking a garment, the stitching should be
done before the piece is sewn into the garment.
Presser foot
Pattern selector
Stitch length dial
Model 377
zigzag foot
A ( )
S.S.
Model 374
Model 373/372
zigzag foot
10( )
-
English
OVERLOCK STITCH
With this seam it is possible to prevent raw edges, especially on easilyfraying fabrics,with a good-locking and
lasting edge finish.
Model 377
Presser foot
Pattern selector
Stitch length dial
Place the fabric under the presser foot so that the stitches are made
over the edge.
Lower the presser foot and start sewing.
Guide the material lightly as shown.
Sew on a piece of waste fabric to check the machine setting.
The overlock stitches are formed correctly when the needle sews
to the right and just misses the fabric edge.
Note: *Use a needle.
zigzag foot
D ( ) 9( )
S.S.
STRETCH
Model 374
Model 373/372
zigzag foot
The stretch needle effectively prevents skipped stitches.
13
Page 15
DOUBLE ACTION STITCH
DOUBLE OVERLOCK STITCH
(Model EP 377 only)
This is a good stilch to use in attaching or binding
elastic fabrics and stretch lace, lingerie stretch knit.
The stitch is decorative as well as useful.
Presser foot
Pattern selector
Stitch length dial
Model 377
zigzag foot
C ( )
1 to 2.5
Model 374
zigzag foot
F( )
1 to 2.5
Model 373/372
DECORATIVE EDGING
Turn the raw edgeunder 2cm and press. Place the
fabric right side up with the middle of the turnover
under the center of the presser foot, so that the
stitch sews on to the fold and just over the raw edge
underneath.
Use this versatile stitch to insert elastic in garments.
Simply stitch elastic into place, making sure it is
evenly spaced. To do this, mark the correct length
piece into quarters, then match these markings with
center front and side seams.
Presser foot zigzag foot
Pattern selector
Stitch length dial
C( )
S.S.
SEWING BUTTONHOLES
The built -in buttonhole mechanism of this machine makes it possible to sew
button holes in a short time without turning the material.
Model 373/372
buttonhole foot
Presser foot
Model 377/374
buttonhole foot
Pattem selector
Stitch length dial
Raise the foot and the needle to its highest position. Replace the foot with
the transparent buttonhole foot for sewing buttonholes.
Mark the location and the desired length of buttonhole on the fabric using a
pencil or tailor s chalk.
Note:
(Model EP 377 and 374 only)
,
*To find the most suitable
stitch length, it is better
to sew a sample buttonhole
on a piece of waste fabric.
* When sewing very fine
fabrics and synthetics, de crease the pressure of foot
0.5 to 1
* The mark on the stitch
length dial shows a range of
buttonhole sewing. An
adjustment can be made
by setting the mark, as
shown.
* Buttonhole stitch length is
adjustable only on one side.
and sew over a piece of
paper to prevent yarn dis tortion.
coarse
stitches
heavy
for
fabrics
Foot
buttonhole foot
dense
stitches
for light
fabrics
Arrow
(Start here)
Sleigh
range of
stitch length
14
Page 16
SEWING BUTTONHOLES (Model 377 and 374)
1. Set the patter
through
an
d bobb
tow
ards you until th
2.Lower the foot and sew slowly u
the
n stop the machine at
3. Rais
e the nee
several stitches of bar tac
4. Rais
e the needle and set the selector at
rig
ht side o
bu
ttonhole. Stop t
5. Rais
e need
stitche
point . To lock thr
po
int of zigz
6. Cut the
no
t to damage the bar tacks.
n selec
tor at
the ope
in threa
f butto
ning in the butto
dle and s
¡°¡±
ds to the left side. Turn the ba
e need
le come
(2).
et the se
k until the n
nhol
e the sam
he machine at
le and se
s of final ba
(5).
buttonhole open carefully u
t the sele
r tack. Stop the machine with the needle at
eads
ag widt
, set the pattern selecto
h). And sew a few st
. Then pass the needle threa
nhole foot and draw bo
s to the poi
ntil the d
esire
lecto
r at . Th
¡°¡±
eedle i
e lengt
(4).
ctor at then s
¡°¡±
sing a seam ripper, taking ca
itche
lance w
(1).
nt
d length is sewn
s at point
then sewt
¡°¡±
h as the left side of
ew sev
r at B (z
¡° §
s.
SEWING BUTTONHOLES (Model 373/372)
1. Set th
through the open
ne
wheel tow
2. Lower the foot and sew slow
th
3. Rais
se
4. Rais
5. Raise the nee
stitch
poi
6. Cu
Note
e patter
n selector at Th
edle and bobbin threa
ards yo
en stop th
veral s
left sid
butto
nt
t the bu
care not to da
: To make a
same p
e machine at
e the nee
e the nee
nhole
es of fin
(5).
dle and s
titches of bar tack u
dle and set the sel
e of but
tonhole just a
. Stop the m
dle and set the sel
al bar ta
ttonhole op
mage the ba
heavier buttonhole, sew
roced
ing in the b
u until the n
ure.
uttonhole fo
ds to the right side. Tu
(2).
et the selector a
s the sa
achin
e at
ck. Stop the m
en ca
refull
r tacks.
¡°¡±
en pass th
ot and dr
eedle c
omes to t
ly until a desired le
t
ntil the n
ector at
¡°¡±
eedle is at point
¡°¡±
me len
(4).
ector a
gth as th
t
¡°¡±
achine with th
y using a seam
twice b
e needle threa
aw both of
rn the ba
he poin
t
ngth is se
then sew
then s
ew the
e right side of
then se
e needle at
ripper, taking
y repe
(1).
w seve
ating the
th need
heel
en sew
(3).
eral
lance
wn,
(3).
(Model EP 377 and 374 only)
d
le
,
he
ero
re
( Model 373/372 )
d
ral
English
SEWING ZIPPERS
Presser foot
Pattern selector
Stitch length dial
Model 377
zipper foot
M( )
1 to 4
Model 374
zipper foot zipper foot
A( )
1 to 4
Raise the foot and the needle to its highest position by turning
the balance wheel towards you. Replace the foot with the zipper
foot.
1. Pin or baste the zipper tape to the fabric and place the work-
piece in position under the foot.
Attach snap on zipper foot so that the needle passes on its
left hand side.
* When starting sewing, both needle and bobbin threads ends
should be put away under the foot.
2. Sew on the right side of the zipper by guiding Zipper teeth
as close as possible to the needle drop. Before the foot reaches
the slider on the zipper tape, raise the foot and open the
zipper by keeping the needle in the fabric.
Lower the foot and sew on the remaining of the seam,
3. To sew the left side zipper change position of foot to bring
the foot to the left side of the needle. Sew on in the same
way as you did on the right side of zipper.
Model 373/372
1-3( )
Zipper foot
Elements
Zipper foot
Tape
Fabric
Slider
Needle
Fabric
Element
tape
Elements
Element
Slider
Fia. 1
15
Page 17
HEMMING
(Model 377 only)
Presser foot
Pattern selector
Stitch length dial
hemmer foot
M( )
1 to 4
Raise the foot and the needle to its highest position. Replace the
foot with the hemmer foot.
Fold over the fabric edge by about 3mm (1/8 inches ) and place it
under the foot. Secure the folded edge with a few stitches. Take
out the workpiece and draw the hem into the hemmer foot by
pulling on the threads.
Lower the foot and swe the hem.
During sewing, fold the fabric to the left a little and allow it to
run into the hemmer foot.
Make sure that the fabric does not move under the right half of
the foot. The fabric must be fed into the scroll of the hemmer
sufficiently so that the workpiece edge runs freely through the
groove under the foot.
hemmer foot
3mm
SEWING BLIND HEMS
Presser foot
Pattern selector
Stitch length dial
blind hem foot
B ( )
(Model 377/374/373/372)
Model 377
Model 374
blind hem foot
E( )
1 to 3
1 to 3
Model 373/372
1. Turn up the hem to the desired width and press. ( Fig. 1)
2. Fold hem back against the right side of the garment with
top edge of hem extending about 4 mm (1/6 inches) to the
right side of the garment folded. (Fig. 2)
3. Place the garment under the foot so that double-folded edge
runs along the hemlguide and lower the foot.
Sew slowly for better control, making sure the narrow
zigzag stitches are sewn on the hem edge and wide zigzag
stitches will just catch one thread of folded edge. (Fig. 3)
4. Unfold the fabric and you will have a bling stitch hem
(Fig. 4)
(Fig. 1)
4mm (1/6 )
,
(Fig. 2)
Guide
adjusting
screw
(Fig. 3)
,
(Fig. 1)
Guide
Foided edge
16
(Fig. 4)
Page 18
SEWING EMBROIDERY
English
Presser foot
Pattern selector
darning plate
( ) or
zig zag
Raise and take off the foot.
Place the fabric in embroidery hoop. Place darning plate
over needle plate (see below). Lower the presser foot lifter.
Hold the embroidery hoop firmly with your hand.
While sewing the desired pattern, move the embroidery hoop
slowly and do not allow your fingers to get near the needle.
*Set the needle thread tension a little looser so that the bobbin
thread is not pulled through to the right side of fabric.
(See page 13).
*It is recommended to mark the required embroidery pattern
on the right side of the fabric with a pencil or tailor s chalk.
,
DARNING PLATE
There are a few times when you want to control the feeding of
the fabric yourself. Raise needle to its highest position and
raise presser foot. Place darning plate over needle plate
aligning two pins of darning plate with holes of needle plate.
You may then determine the movement of the fabric yourself.
See above for embroidery.
embroidery hoop
BUTTONS
Model 377
Presser foot
Pattern selector
1. Align two holes of button with slot
of presser foot and lower foot to
hold the button securely.
2. Turn hand wheel manually until
needle point is just above button.
3. Adjust stitch selector so needle enters
right hole of button.
4. Turn hand wheel by hand so needle
enters second hole. The stitch selector
may need to be adjusted again. Stitch
a number of times.
NOTE:
You may find it helpful to use transparent tape to position your button
and to keep it in place during sewing.
Tear away after stitching.
5. Finish sewing with an extra two
inches of thread remaining. Draw
these threads to reverse side of gar ment and tie.
button foot
1-5(54321)
Model 374
Model 373/372
button foot
4-6( )
Button foot
Holes of button
Thread Shank
Sew-through buttons on coats and
jackets should nave a thread shank to
make them stand away from the fabric.
Place a straight pin or sewing machine
needle on top of button between the
holes, and sew over the pin or needle.
Pull thread to back of button and wind
around stitches to form a firm shank.
Tie thread ends securely.
17
Page 19
CLEANING THE FEED DOG
It is necessary to keep the feed dog teeth always cleaned in order
to ensure smooth sewing.
1. Remove the needle and the presser foot.
2. Unscrew the needle plate set screws with a screw driver to take
off the needle plate from the machine.
3. With a brush, clean out dust and lint clogged on the feed dog
teeth.
4. Refit the needle plate.
CLEANING THE SHUTTLE RACE
Unplug the machine from the power supply.
To remove shuttle:
Raise needle to its highest position and remove bobbin case.
Turn levers away from shuttle and lift out retaining ring and
shuttle, by grasping center pin.
Clean the reverse side of feed dog with a small brush. Remove
lint and thread from all parts of shuttle and wipe with a lightly
oiled cloth.
To reassemble:
Hold shuttle by center pin and fit carefully back into shuttle
race, forming perfect circle with shuttle driver..
Replace retaining ring polished side out, making sure the bottom
pin fits into notch. Lock retaining ring by turning levers back into
position, Refit bobbin case with bobbin.
lever
shuttle
bobbin
shuttle driver
retaining ring
case
bobbin
lever
18
Page 20
FREE ARM SEWING
This sewing machine can be used like a flat bed machine, but easily
converts to a free arm machine by removing the extension table.
The free arm enables you to sew tubular types of pieces more easily.
Just slip the sleeve or pants leg on the free arm as shown above.
You will find many uses for this free arm feature such as:
1. Mend elbows and knees of garments more easily.
2. Sew in sleeves more easily. This is especially true when sewing
smaller garments.
3. Applique, embroider or hem around edges of cuffs or pants legs.
4. Sew in elastic casings in skirts or pants at the waist line.
English
19
Page 21
TROUBLE SHOOTING: CAUSES AND REMEDIES
THREAD FORMS LOOPS
CAUSE
Thread tension not properly regulated
Needle thread properly threaded and/or bobbin thread
not properly wound
Thread size not suited to fabric
Thread check spring not working properly
SHRINKING OR PUCKERING OF THE SEAM
Tension too tight
Sewing foot pressure too strong
Needle and bobbin threads of poor quality
Bobbin thread unevenly wound
MACHINE DOES NOT RUN FREELY AND MAKES A NOLSE
Machine needs oiling
Dust and thread in shuttle
Wrong oil used, has now clogged machine
Drive belt tension too tight
REMEDY
Read instructions for regulating needle-and bobbin thread tension
Thread machine properly and/or wing bobbin thread correctly
See Size of needle and thread
Have spring replaced
Read instructions for regulating needle-and bobbin thread tensions
Read instructions for regulating sewing foot pressure
IRREGULAR STITCHES
Use top quality threads
Re-wind bobbin
Read instructions on how to oil
Read instructions on how to clean shuttle race
Clean machine carefully and re-oil with top quality oil
Loosen tension of drive belt
TROUBLE SHOOTING: CAUSES AND REMEDIES
NEEDLE THREAD BREAKS
CAUSE
Needle not properly threaded
Thread tension too tight
Something wrong with the needle
Thread is too heavy for needle
Thread check spring is broken
Needle not properly inserted
Needle plate, shuttle or sewing foot damaged
BOBBIN THREAD BREAKS
Bobbin thread entangled because of incorrectly wound bobbin
Bobbin thread not under tension spring on bobbin case
STITCHES ARE LEFT OUT
Needle not properly fitted on needle bar
Needle bent or blunt
Needle worn
NEEDLE BREAKS
Needle bent
Needle not properly fitted
Fabric too heavy or too hard
You are pulling on the fabric
REMEDY
Thread properly
loosen tension
Replace needle
Change
Have a new spring fitted
Insert needle properly
Replace
Wind bobbin correctly
Thread bobbin correctly
Fit needle properly
Replace
Replace
Replace
Fit needle properly
Use needle of correct size
Do not pull
20
Loading...
