Epson VS210, VS315W, VS310 User Manual

VS210/VS310/VS315W User's Guide

Introduction to Your Projector ................................................................................................................... 7

Setting Up the Projector ........................................................................................................................... 19

Projector Features................................................................................................................................ 7

Product Box Contents...................................................................................................................... 8

Additional Components .................................................................................................................. 8

Optional Equipment and Replacement Parts................................................................................... 9

Warranty and Registration Information.......................................................................................... 10

Notations Used in the Documentation................................................................................................ 10

Where to Go for Additional Information .............................................................................................. 11

Projector Part Locations..................................................................................................................... 11

Projector Parts - Front/Top............................................................................................................ 12

Projector Parts - Rear.................................................................................................................... 13

Projector Parts - Base.................................................................................................................... 14

Projector Parts - Control Panel...................................................................................................... 14

Projector Parts - Remote Control................................................................................................... 17

Projector Placement........................................................................................................................... 19

Projector Setup and Installation Options ....................................................................................... 19

Projection Distance........................................................................................................................ 21

Projector Connections........................................................................................................................ 22

Connecting to Computer Sources.................................................................................................. 23

Connecting to a Computer for USB Video and Audio................................................................ 23

Connecting to a Computer for VGA Video ................................................................................ 24

Connecting to a Computer for USB Mouse Control................................................................... 25

Connecting to a Computer for Sound........................................................................................ 26

Connecting to Video Sources........................................................................................................ 26

Connecting to a Component-to-VGA Video Source.................................................................. 27

Connecting to a Composite Video Source ................................................................................ 27

Connecting to an S-Video Video Source................................................................................... 28

Connecting to a Video Source for Sound.................................................................................. 29

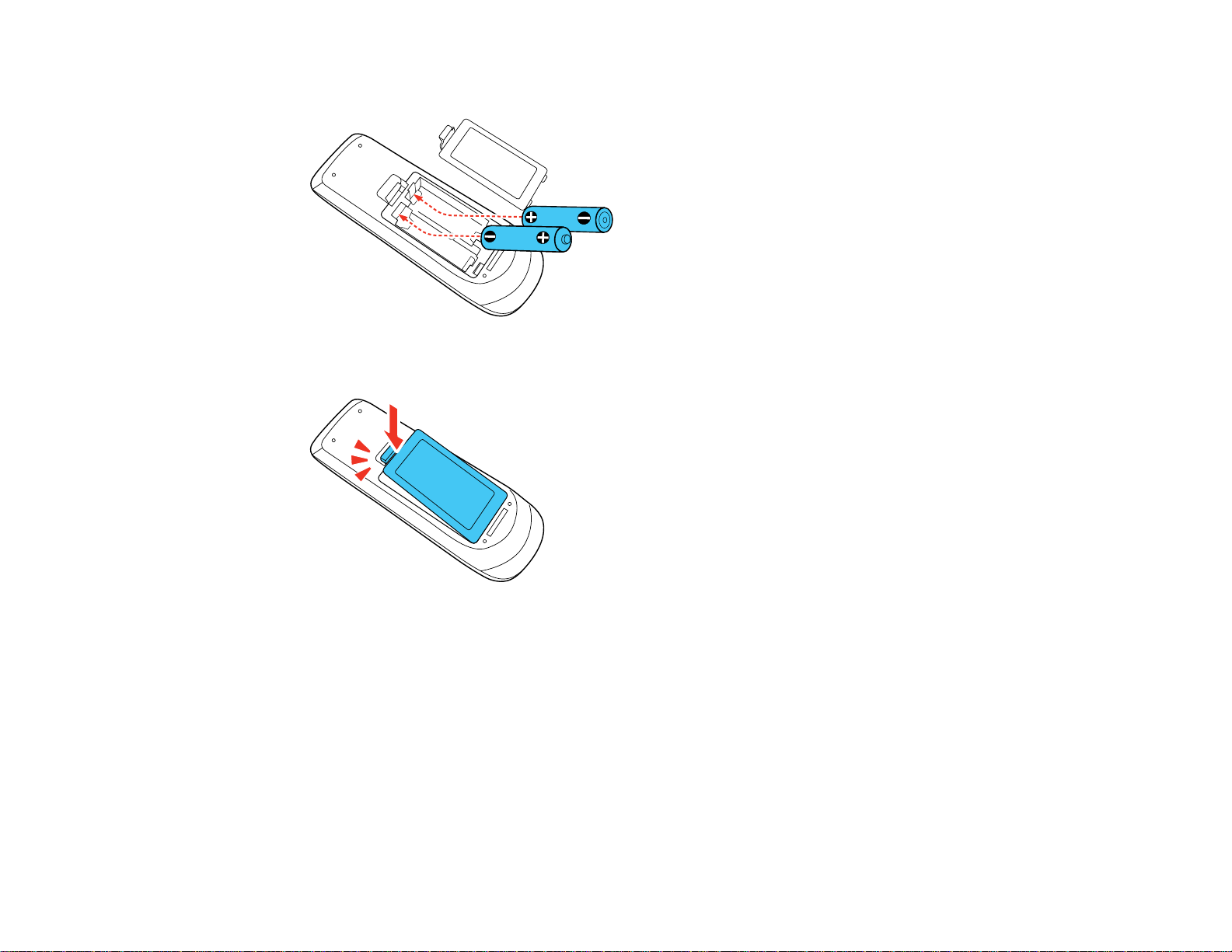

Installing Batteries in the Remote Control .......................................................................................... 29

Opening the Lens Cover .................................................................................................................... 31

Using Basic Projector Features ............................................................................................................... 32

Turning On the Projector.................................................................................................................... 32

Turning Off the Projector.................................................................................................................... 34

Selecting the Language for the Projector Menus................................................................................ 36

Adjusting the Image Height................................................................................................................ 36

Image Shape...................................................................................................................................... 38

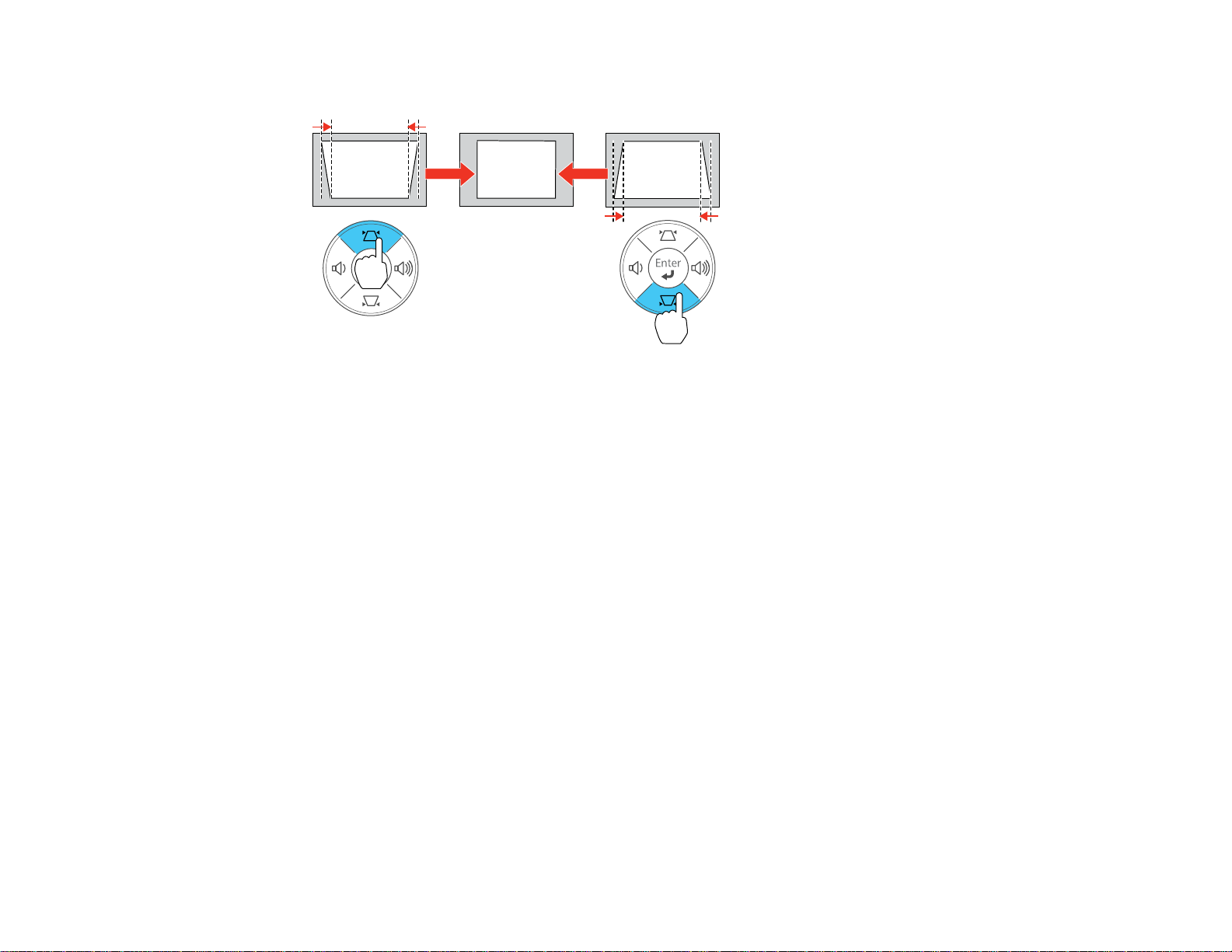

Correcting Image Shape With the Keystone Buttons..................................................................... 38

Resizing the Image............................................................................................................................. 39

Focusing the Image Using the Focus Ring......................................................................................... 40

Remote Control Operation ................................................................................................................. 41

Using the Remote Control as a Wireless Mouse ........................................................................... 42

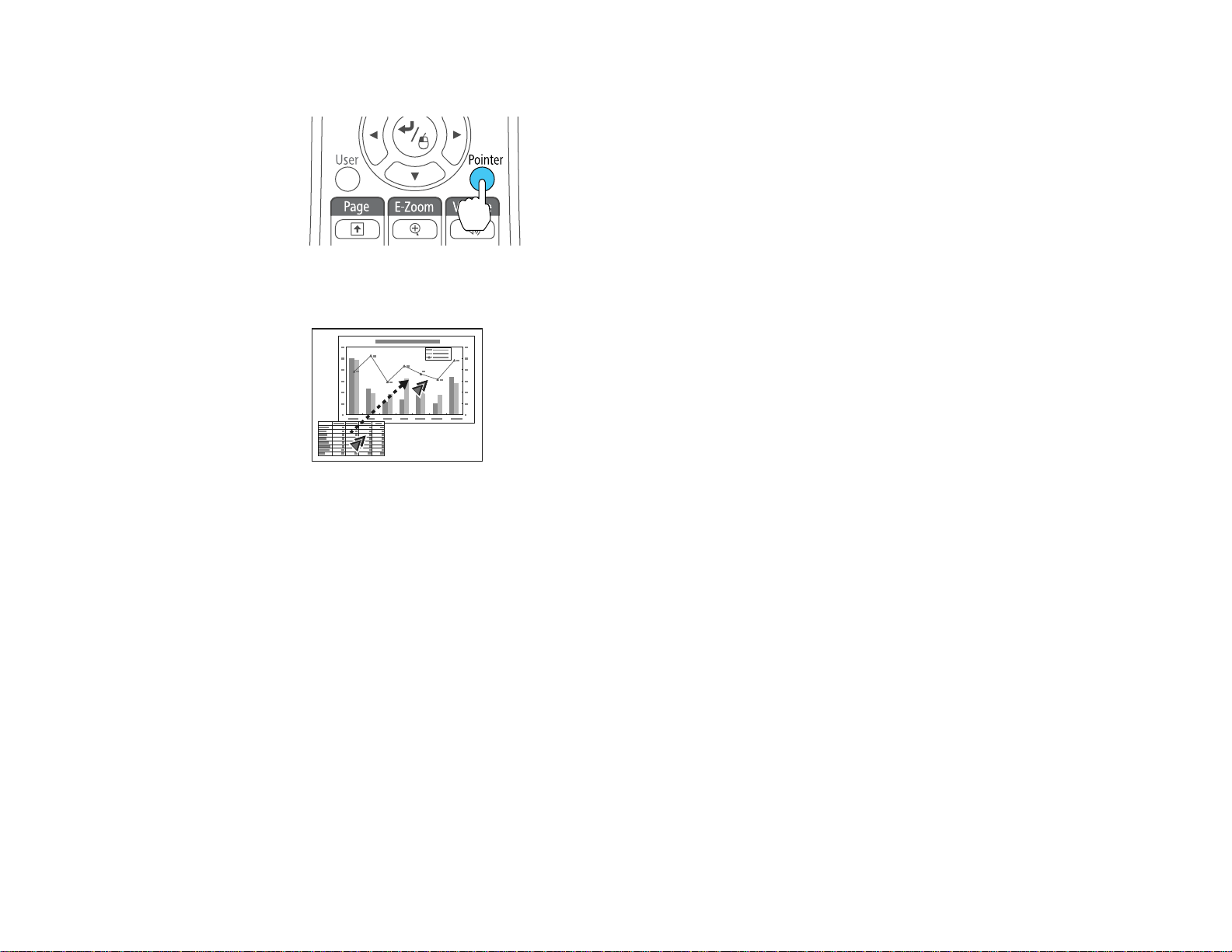

Using the Remote Control as a Presentation Pointer .................................................................... 43

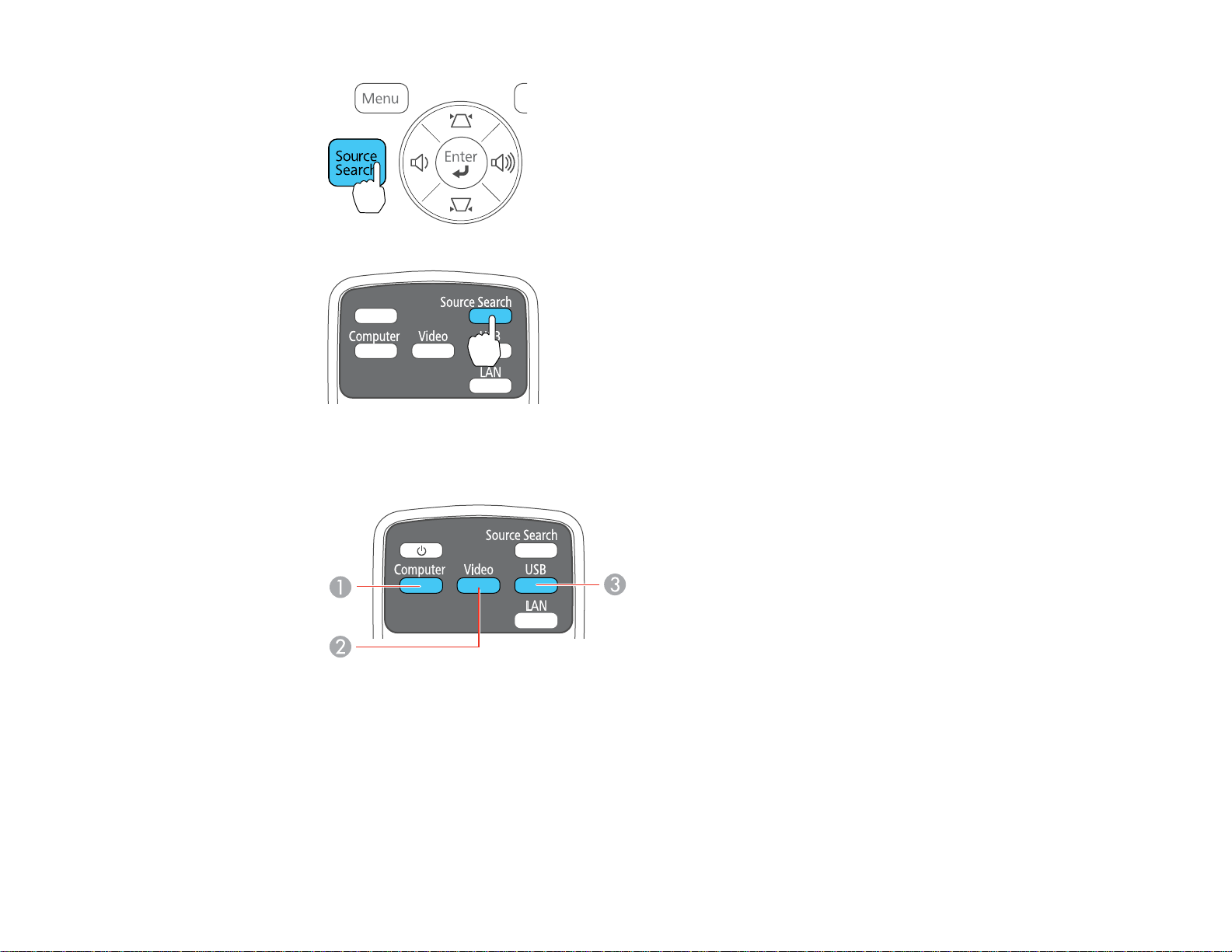

Selecting an Image Source................................................................................................................ 44

Projection Modes ............................................................................................................................... 46

Changing the Projection Mode Using the Remote Control ............................................................ 46

Changing the Projection Mode Using the Menus........................................................................... 46

Image Aspect Ratio............................................................................................................................ 47

Changing the Image Aspect Ratio................................................................................................. 48

Available Image Aspect Ratios...................................................................................................... 48

Color Mode......................................................................................................................................... 49

Changing the Color Mode.............................................................................................................. 49

Available Color Modes................................................................................................................... 50

Turning On Auto Iris....................................................................................................................... 51

Controlling the Volume With the Volume Buttons............................................................................... 51

Adjusting Projector Features................................................................................................................... 53

Shutting Off the Picture and Sound Temporarily................................................................................ 53

Stopping Video Action Temporarily.................................................................................................... 53

Zooming Into and Out of Images........................................................................................................ 54

Projector Security Features................................................................................................................ 55

Password Security Types.............................................................................................................. 55

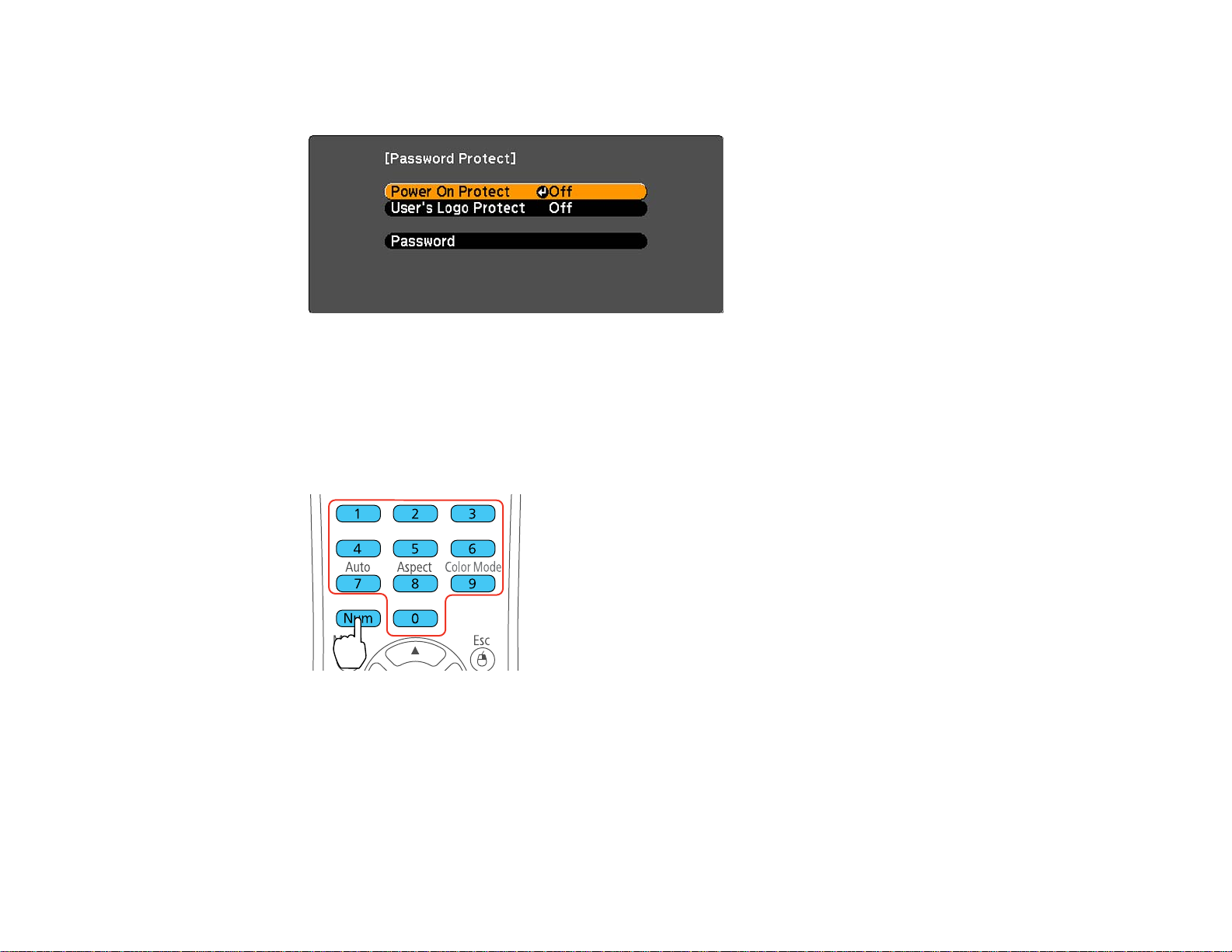

Setting a Password................................................................................................................... 55

Selecting Password Security Types.......................................................................................... 57

Entering a Password to Use the Projector ................................................................................ 57

Saving a User's Logo Image to Display..................................................................................... 59

Locking the Projector's Buttons..................................................................................................... 61

Unlocking the Projector's Buttons............................................................................................. 61

Installing a Security Cable............................................................................................................. 62

Adjusting the Menu Settings.................................................................................................................... 63

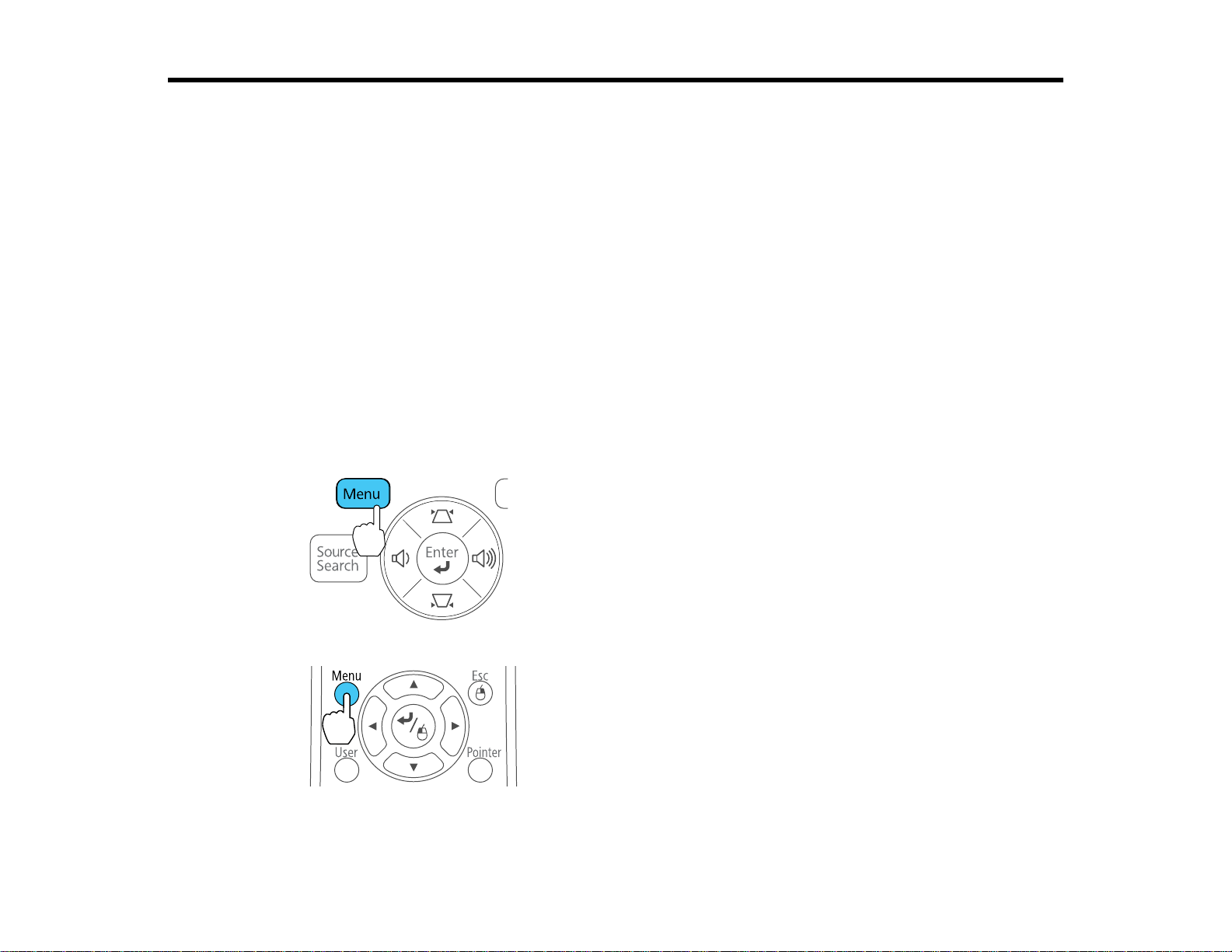

Using the Projector's Menus............................................................................................................... 63

Image Quality Settings - Image Menu................................................................................................ 64

Input Signal Settings - Signal Menu ................................................................................................... 66

Projector Feature Settings - Settings Menu........................................................................................ 68

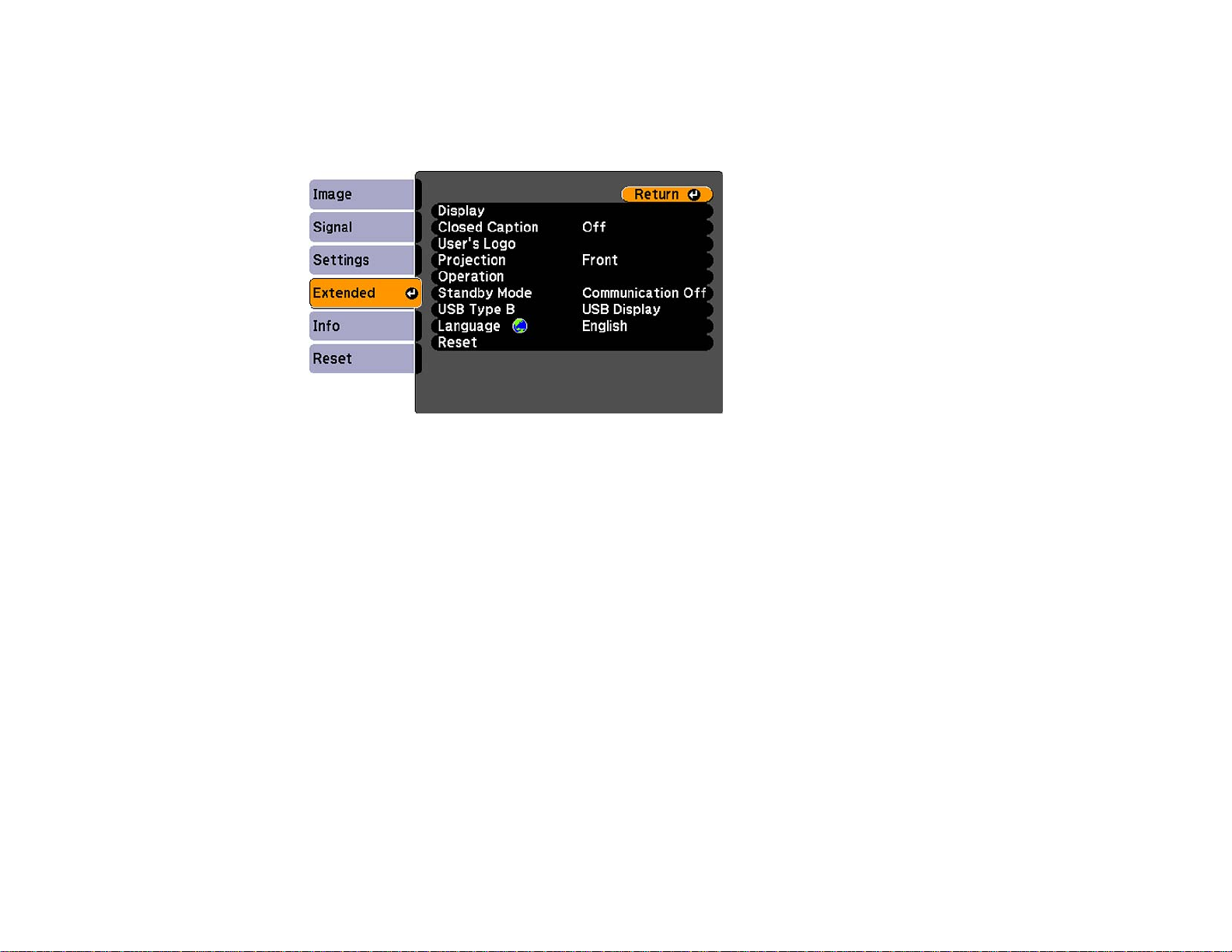

Projector Setup Settings - Extended Menu ........................................................................................ 70

Projector Information Display - Info Menu .......................................................................................... 73

Projector Reset Options - Reset Menu............................................................................................... 74

Maintaining and Transporting the Projector........................................................................................... 76

Projector Maintenance....................................................................................................................... 76

Cleaning the Lens.......................................................................................................................... 76

Cleaning the Projector Case.......................................................................................................... 77

Air Filter and Vent Maintenance .................................................................................................... 77

Cleaning the Air Filter and Vents............................................................................................... 77

Replacing the Air Filter.............................................................................................................. 78

Projector Lamp Maintenance......................................................................................................... 80

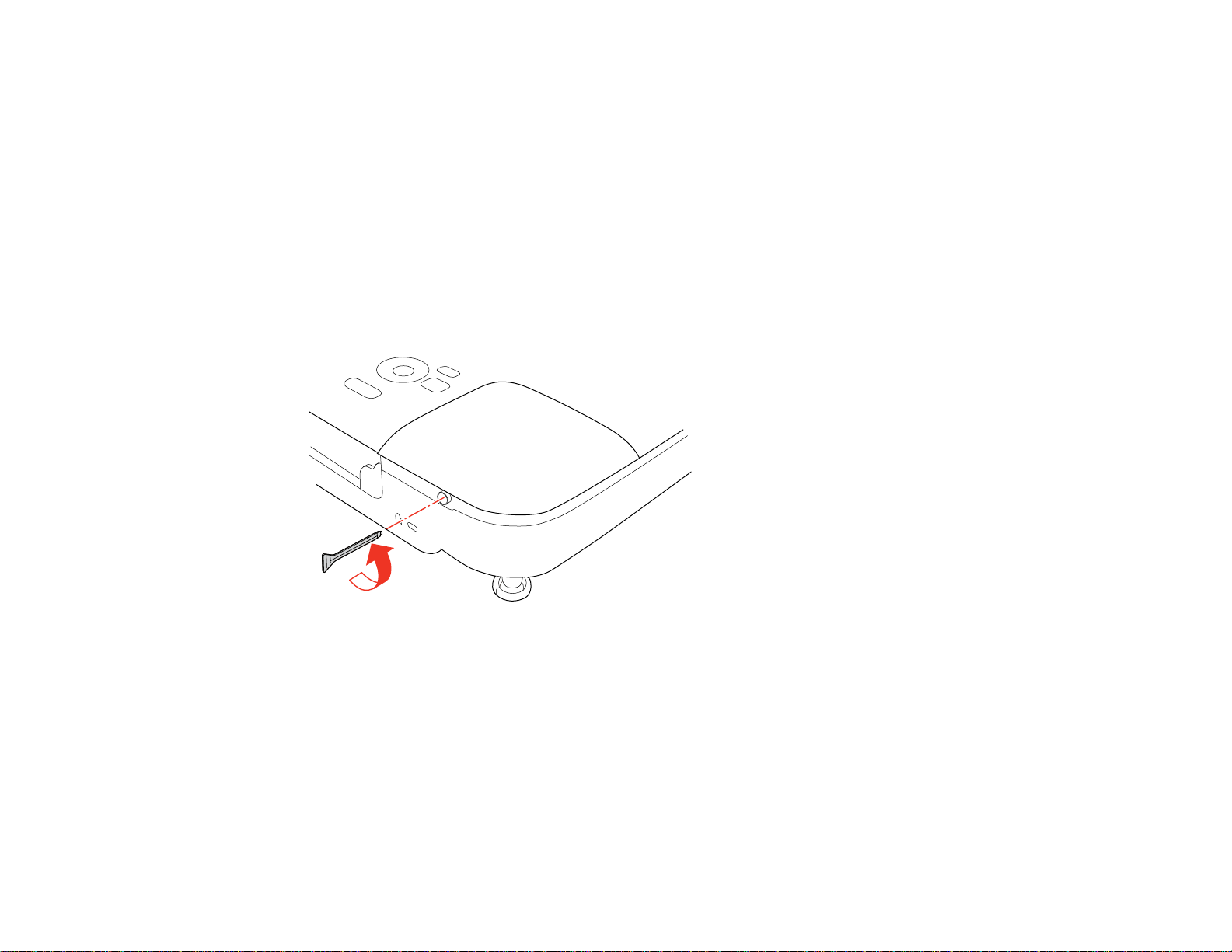

Replacing the Lamp.................................................................................................................. 81

Resetting the Lamp Timer......................................................................................................... 86

Replacing the Remote Control Batteries ....................................................................................... 87

Transporting the Projector.................................................................................................................. 89

Solving Problems...................................................................................................................................... 90

Projection Problem Tips..................................................................................................................... 90

Projector Light Status......................................................................................................................... 90

Using the Projector Help Displays...................................................................................................... 93

Solving Image or Sound Problems..................................................................................................... 93

Solutions When No Image Appears............................................................................................... 94

Solutions When Image is Incorrect Using the USB Display Function ............................................ 95

Solutions When "No Signal" Message Appears............................................................................. 95

Displaying From a PC Laptop................................................................................................... 96

Displaying From a Mac Laptop ................................................................................................. 96

Solutions When "Not Supported" Message Appears..................................................................... 96

Solutions When Only a Partial Image Appears.............................................................................. 97

Solutions When the Image is Not Rectangular.............................................................................. 97

Solutions When the Image Contains Noise or Static ..................................................................... 98

Solutions When the Image is Fuzzy or Blurry................................................................................ 98

Solutions When the Image Brightness or Colors are Incorrect...................................................... 99

Solutions When There is No Sound or Low Volume.................................................................... 100

Solving Projector or Remote Control Operation Problems............................................................... 100

Solutions to Projector Power or Shut-Off Problems..................................................................... 100

Solutions to Problems With the Remote Control.......................................................................... 101

Solutions to Password Problems................................................................................................. 102

Where to Get Help............................................................................................................................ 102

Technical Specifications ........................................................................................................................ 104

General Projector Specifications...................................................................................................... 104

Projector Lamp Specifications.......................................................................................................... 106

Remote Control Specifications......................................................................................................... 107

Projector Dimension Specifications.................................................................................................. 107

Projector Electrical Specifications.................................................................................................... 107

Projector Environmental Specifications............................................................................................ 108

Projector Safety and Approvals Specifications................................................................................. 108

Supported Video Display Formats.................................................................................................... 108

USB Display System Requirements................................................................................................. 110

Notices ..................................................................................................................................................... 112

Recycling.......................................................................................................................................... 112

Important Safety Information............................................................................................................ 112

Important Safety Instructions............................................................................................................ 112

FCC Compliance Statement............................................................................................................. 115

Trademarks...................................................................................................................................... 116

Copyright Notice............................................................................................................................... 116

Copyright Attribution.................................................................................................................... 117

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features Notations Used in the Documentation Where to Go for Additional Information Projector Part Locations

Projector Features

The VS210, VS310, and VS315W projectors include these special features:

Bright, high-resolution projection system

• Up to 2600 lumens of brightness (white light output and color light output)

• VS210: Native resolution of 800 × 600 pixels (SVGA)

• VS310: Native resolution of 1024 × 768 pixels (XGA)

• VS315W: Native resolution of 1280 ×800 pixels (WXGA)

Flexible connectivity

• Plug-and-play 3-in-1 USB projection, audio, and mouse control for instant setup

Easy-to-use setup and operation features

• Low total cost of ownership with longer lamp life

• 1.2× optical zoom ratio for improved zooming capability (VS310/VS315W)

• Built-in closed captioning decoder

• Epson Instant Off and Direct Power On features for quick setup and shut down

Product Box Contents Additional Components Optional Equipment and Replacement Parts Warranty and Registration Information

Parent topic: Introduction to Your Projector Related concepts

Projector Part Locations

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.

Make sure your projector box included all of these parts:

1 Projector 2 Remote control 3 Remote control batteries (two AA alkaline) 4 Power cord 5 VGA computer cable 6 Projector documentation CD

Parent topic: Projector Features

Additional Components

Depending on how you plan to use the projector, you may need to obtain the following additional components:

• To receive an S-Video signal, you need an S-Video cable compatible with your device. See your local computer or electronics dealer for purchase information.

• To receive a component video signal, you need a D-sub, 15-pin, component-to-VGA video cable. You can purchase one from Epson or an authorized Epson reseller.

• To project with audio from certain ports, you may need a commercially available audio cable compatible with your device. See your local computer or electronics dealer for purchase information.

Parent topic: Projector Features

Optional Equipment and Replacement Parts

You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Epson offers the following optional accessories and replacement parts for your projector:

Option or part Part number

Genuine Epson Replacement lamp (ELPLP67) V13H010L67 Air filter replacement set (2 filters; ELPAF32) V13H134A32 Epson DC-06 document camera (ELPDC06) V12H321005 Epson DC-10s document camera ELPDC10S Epson DC-11 document camera V12H377020 BrightLink Solo interactive module (IU-01) V12H415020 BrightLink Solo interactive module with RM Easiteach (IU-01) V12H415020RM AP-60 Projector Sound Solution V12H329020 PixiePlus Control System ELPSP10 Accolade Duet portable projector screen ELPSC80 ES1000 Ultra Portable Tabletop Projection screen V12H002S4Y ES3000 Ultra Portable Tabletop Projection screen V12H002S3Y Universal projector ceiling mount ELPMBPJF Adjustable suspended ceiling channel kit ELPMBP01 False ceiling plate kit ELPMBP02 Structural Round ceiling plate ELPMBP03 Adjustable Extension Column (pipe) 8" - 11" (20 to 28 cm) ELPMBC01 Component-to-VGA video cable (ELPKC19) V12H005C19

Option or part Part number

VGA video cable 1.8 m length ELPKC02 VGA video cable 3.0 m length ELPKC09 VGA video cable 20 m length ELPKC10 Kensington security lock ELPSL01 1-Year Extended Service Program - Depot Service EPPFTPA1 2-Year Extended Service Program - Depot Service EPPFTPA2 2-Year Extended Service Program - Exchange Service EPPEXPA1

Parent topic: Projector Features

Warranty and Registration Information

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty brochure that came with your projector.

In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States or Canada. See the Extra Care Road Service brochure for details.

Register your product online using the projector CD or at this site: www.epson.com/webreg Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector during a presentation? Here's where to look for help:

• Built-in help system Press the Help button on the remote control or projector to get quick solutions to common problems.

• www.epson.com/support (U.S) or www.epson.ca/support (Canada) View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24

hours a day.

• If you still need help after checking this manual and the sources listed above, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help".

Parent topic: Introduction to Your Projector Related references

Where to Get Help

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.

Projector Parts - Front/Top Projector Parts - Rear Projector Parts - Base Projector Parts - Control Panel Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

Projector Parts - Front/Top

1 Exhaust vent 2 Lamp cover 3 Control panel 4 Projector status lights 5 Focus ring (VS210) 6 Speaker 7 Air filter cover 8 Intake vent 9 Zoom ring (VS310/VS315W) 10 Focus ring (VS310/VS315W) 11 Remote receiver

12 Lens cover 13 Front adjustable foot 14 Foot release lever 15 Lens cover lever

Parent topic: Projector Part Locations

Projector Parts - Rear

1 Remote control receiver 2 Audio ports 3 S-Video port 4 USB TypeB port 5 Computer port 6 Lamp cover screw 7 Kensington security lock slot 8 Video port 9 AC input port

Parent topic: Projector Part Locations

Projector Parts - Base

1 Mounting bracket holes 2 Front adjustable foot 3 Rear feet 4 Security cable attachment point

Parent topic: Projector Part Locations

Projector Parts - Control Panel

VS210

1 Power button 2 Source Search button (searches for connected sources) 3 Menu button (accesses projector menu system) 4 Enter button (selects options) 5 Wide/Tele buttons (adjust projected image size) and arrow buttons 6 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons 7 Esc button (cancels/exits functions) 8 Help button (accesses projector help information)

VS310/VS315W

1 Power button 2 Source Search button (searches for connected sources) 3 Menu button (accesses projector menu system) 4 Enter button (selects options) 5 Volume control buttons and arrow buttons 6 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons 7 Esc button (cancels/exits functions) 8 Help button (accesses projector help information)

Parent topic: Projector Part Locations Related references

Projector Light Status

Projector Parts - Remote Control

1 Power button

2 Computer button (cycles through connected computer sources) 3 Video button (cycles through connected video sources) 4 Numeric buttons (enter numbers) 5 Auto button (automatically adjusts position, tracking, and sync settings) 6 Aspect button (selects the image aspect ratio) 7 Num button (when held down, switches numeric buttons to number function) 8 Menu button (accesses projector menu system) 9 Arrow buttons (move through on-screen options and control wireless mouse functions) 10 Enter button (selects options and controls wireless mouse functions) 11 User button (customizable for different functions) 12 Page up/down buttons (control presentation slides) 13 E-Zoom +/– buttons (zoom into and out of the image) 14 A/V Mute button (turns off picture and sound) 15 Help button (accesses projector help information) 16 Freeze button (stops video action) 17 Volume up/down buttons (adjust speaker volume) 18 Pointer button (activates on-screen pointer) 19 Esc button (cancels/exits functions and controls wireless mouse functions) 20 Color Mode button (selects display modes) 21 LAN button (button is not functional) 22 USB button (cycles through connected USB sources) 23 Source Search button (searches for connected sources)

Parent topic: Projector Part Locations

Related references

Projector Setup Settings - Extended Menu

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.)

VS210 4:3 Aspect Ratio

Screen or Projection distance image size

1 50 inches 58 to 79 inches (147 to 200 cm) 2 80 inches 93 to 126 inches (237 to 321 cm) 3 100 inches 117 to 158 inches (297 to 401 cm) 4 150 inches 176 to 237 inches (446 to 603 cm)

VS310 4:3 Aspect Ratio

Wide to Tele

Screen or Projection distance image size

1 50 inches 59 to 71 inches (150 to 180 cm) 2 80 inches 95 to 114 inches (241 to 290 cm) 3 100 inches 119 to 143 inches (302 to 363 cm) 4 150 inches 179 to 215 inches (454 to 546 cm)

VS315W 16:10 Aspect Ratio

Screen or Projection distance image size

1 50 inches 55 to 66 inches (139 to 168 cm) 2 80 inches 88 to 106 inches (225 to 270 cm) 3 100 inches 111 to 133 inches (281 to 338 cm) 4 150 inches 167 to 200 inches (424 to 509 cm)

Parent topic: Projector Placement

Wide to Tele

Projector Connections

You can connect the projector to a variety of computer, video, and audio sources to display presentations, movies, or other images, with or without sound.

• Connect any type of computer that has a USB port or standard video output (monitor) port.

• For video projection, connect devices such as DVD players, gaming consoles, digital cameras, and camera phones with compatible video output ports.

• If your presentation or video includes sound, you can connect audio input cables, if necessary.

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.

Connecting to Computer Sources Connecting to Video Sources

Parent topic: Setting Up the Projector Related references

Projector Setup Settings - Extended Menu Product Box Contents

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.

Connecting to a Computer for USB Video and Audio Connecting to a Computer for VGA Video Connecting to a Computer for USB Mouse Control Connecting to a Computer for Sound

Parent topic: Projector Connections

Connecting to a Computer for USB Video and Audio

If your computer meets the system requirements, you can send video and audio output to the projector through the computer's USB port (preferably USB 2.0). Connect the projector to your computer using a USB cable.

1. In the projector's Extended menu, set the USB Type B setting to USB Display.

2. Turn on your computer.

3. Connect the cable to your projector's USB TypeB port.

1 USB TypeB port

4. Connect the other end to any available USB port on your computer.

5. Do one of the following:

• Windows 7/Windows Vista: Select Run EMP_UDSe.exe in the dialog box that appears to install the Epson USB Display software.

• Windows XP: Wait as messages appear on your computer screen and the projector installs the Epson USB Display software on your computer.

• Windows 2000: Select Computer, EPSON_PJ_UD, and EMP_UDSe.EXE to install the Epson USB Display software.

• Mac OS X: The USB Display setup folder appears on your screen. Select USB Display Installer and follow the on-screen instructions to install the Epson USB Display software.

Follow any on-screen instructions. You need to install this software only the first time you connect the projector to the computer.

The projector displays the image from your computer's desktop and outputs sound, if your presentation contains audio.

Parent topic: Connecting to Computer Sources Related references

Projector Setup Settings - Extended Menu USB Display System Requirements

Connecting to a Computer for VGA Video

You can connect the projector to your computer using a VGA computer cable. Note: To connect a Mac that includes only a Mini DisplayPort or Mini-DVI port for video output, you need

to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for compatible adapter options.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

3. Connect the other end to a Computer port on the projector.

1 Computer port

4. Tighten the screws on the VGA connectors.

Parent topic: Connecting to Computer Sources Related tasks

Connecting to a Computer for Sound

Connecting to a Computer for USB Mouse Control

If you connected your computer to a Computer or USB TypeB port on the projector, you can set up the remote control to act as a wireless mouse. This lets you control computer presentations at a distance from your computer. To do this, connect the projector to your computer using a USB cable, if it is not connected already.

1. Connect the USB cable to your projector's USB TypeB port.

1 USB TypeB port

2. Connect the other end to any available USB port on your computer.

3. If necessary, configure your computer to work with an external USB mouse. See your computer documentation for details.

Parent topic: Connecting to Computer Sources Related references

Projector Setup Settings - Extended Menu Projector Parts - Remote Control

Connecting to a Computer for Sound

If your computer presentation includes sound and you did not connect it using the projector's USB TypeB port, you can still play sound through the projector's speaker system. Just connect an optional stereo mini-jack adapter cable (with one 3.5 mm mini-plug and two RCA plugs).

1. Connect the audio cable to your laptop's headphone or audio-out jack, or your desktop's speaker or audio-out port.

2. Connect the other end to the projector's Audio ports.

1 Audio ports

Parent topic: Connecting to Computer Sources

Connecting to Video Sources

Follow the instructions in these sections to connect video devices to the projector.

Connecting to a Component-to-VGA Video Source Connecting to a Composite Video Source Connecting to an S-Video Video Source Connecting to a Video Source for Sound

Parent topic: Projector Connections

Connecting to a Component-to-VGA Video Source

If your video source has component video ports, you can connect it to the projector using a componentto-VGA video cable. Depending on your component ports, you may need to use an adapter cable along with a component video cable.

1. Connect the component connectors to your video source's color-coded component video output ports, usually labeled Y, Pb,Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable.

2. Connect the VGA connector to the projector's Computer port.

1 Computer port

If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's Signal menu.

Parent topic: Connecting to Video Sources Related references

Input Signal Settings - Signal Menu

Related tasks

Connecting to a Video Source for Sound

Connecting to a Composite Video Source

If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable.

1. Connect the cable with the yellow connector to your video source's yellow video output port.

Related tasks

Connecting to a Video Source for Sound

You can play sound through the projector's speaker system if your video source has audio output ports. Connect the projector to the video source using an RCA audio cable.

1. Connect the audio cable to your video source's audio-out ports.

2. Connect the other end of the cable to the projector's Audio ports.

1 Audio ports

Parent topic: Connecting to Video Sources

Installing Batteries in the Remote Control

The remote control uses the two AA batteries that came with the projector.

1. Open the battery cover as shown.

2. Insert the batteries with the + and – ends facing as shown.

3. Close the battery cover and press it down until it clicks into place.

Parent topic: Setting Up the Projector

Opening the Lens Cover

1. To open the projector's lens cover, slide the lens cover open.

2. To cover the lens, slide the lens cover closed.

Parent topic: Setting Up the Projector

Using Basic Projector Features

Follow the instructions in these sections to use your projector's basic features.

Turning On the Projector Turning Off the Projector Selecting the Language for the Projector Menus Adjusting the Image Height Image Shape Resizing the Image Focusing the Image Using the Focus Ring Remote Control Operation Selecting an Image Source Projection Modes Image Aspect Ratio Color Mode Controlling the Volume With the Volume Buttons

Turning On the Projector

Turn on the computer or video equipment you want to use before you turn on the projector so it can display the image source.

1. Open the projector's lens cover.

2. Connect the power cord to the projector's power inlet.

3. Plug the power cord into an electrical outlet. The projector's power light turns orange. This indicates that the projector is receiving power, but is

not yet turned on (standby mode). Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.

4. Press the power button on the projector or the remote control to turn on the projector. The projector beeps and the power light flashes green as the projector warms up. After about five

seconds, the power light stops flashing and turns green. Warning: Never look into the projector lens when the lamp is on. This can damage your eyes and is

especially dangerous for children.

If you do not see a projected image right away, try the following:

• Verify the lens cover is open all the way.

• Turn on the connected computer or video device.

• Insert a DVD or other video media, and press the play button (if necessary).

• Press the Source Search button on the projector or remote control to detect the video source.

Parent topic: Using Basic Projector Features

Turning Off the Projector

Before turning off the projector, shut down any computer connected to it so you can see the computer display during shutdown.

Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.

1. Press the power button on the projector or the remote control. The projector displays a shutdown confirmation screen.

2. Press the power button again. (To leave it on, press any other button.) The projector beeps twice, the lamp turns off, and the power light turns orange.

Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the projector for transport right away.

3. To transport or store the projector, make sure the power light is orange (but not flashing), then unplug the power cord.

Caution: To avoid damaging the projector or lamp, never unplug the power cord when the power light is green or flashing orange.

4. Close the projector's lens cover.

Parent topic: Using Basic Projector Features

Selecting the Language for the Projector Menus

If you want to view the projector's menus and messages in another language, you can change the Language setting.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select the Language setting and press Enter.

5. Select the language you want to use and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Using Basic Projector Features

Adjusting the Image Height

If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust the image height using the projector's adjustable feet.

1. Turn on the projector and display an image.

2. To adjust the front foot, pull up on the foot release lever and lift the front of the projector.

The foot extends from the projector.

3. Release the lever to lock the foot.

4. If the image is tilted, rotate the rear feet to adjust their height.

If the projected image is unevenly rectangular, you need to adjust the image shape.

Parent topic: Using Basic Projector Features Related concepts

Image Shape

Related references

Projector Feature Settings - Settings Menu

Image Shape

You can project an evenly rectangular image by placing the projector directly in front of the center of the screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off to the side, you may need to correct the image shape for the best display quality.

When you turn on automatic keystone correction in your projector's Settings menu, your projector automatically corrects vertical keystone effects when you reposition the projector.

Correcting Image Shape With the Keystone Buttons

Parent topic: Using Basic Projector Features

Correcting Image Shape With the Keystone Buttons

You can use the projector's keystone correction buttons to correct the shape of an image that is unevenly rectangular on the sides.

1. Turn on the projector and display an image. Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

2. Press one of these keystone buttons to display the keystone adjustment screen.

3. Press a keystone button on the projector's control panel to adjust the image shape.

After correction, your image is slightly smaller. Note: If the projector is installed out of reach, you can also correct the image shape using the

Keystone settings in the projector menus.

Parent topic: Image Shape Related references

Projector Feature Settings - Settings Menu

Resizing the Image

You can resize the image using the projector's zoom ring or the Wide and Tele buttons, depending on the projector model.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

• If the projector includes a zoom ring, rotate it to enlarge or reduce the image size.

• If the projector includes Wide and Tele buttons, press the Wide button on the projector's control panel

to enlarge the image size. Press the Tele button to reduce the image size.

1 VS310/VS315W 2 VS210

Parent topic: Using Basic Projector Features

Focusing the Image Using the Focus Ring

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

2. To sharpen the image focus, rotate the projector’s focus ring.

1 VS310/VS315W 2 VS210

Parent topic: Using Basic Projector Features

Remote Control Operation

The remote control lets you control the projector from almost anywhere in the room, up to 19.7 feet (6 m) away. You can point it at the screen, or the front or back of the projector.

Make sure that you aim the remote control at the projector's receivers within the angles listed here.

1 19.7 feet (6 m) 2 ± 30º 3 ± 15º

Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or the projector may not respond to commands. If you will not use the remote control for a long time, remove the batteries.

Using the Remote Control as a Wireless Mouse Using the Remote Control as a Presentation Pointer

Parent topic: Using Basic Projector Features Related tasks

Replacing the Remote Control Batteries

Using the Remote Control as a Wireless Mouse

You can use the projector's remote control as a wireless mouse so you can control your computer presentation from a distance.

1. Connect the projector to a computer using the projector's USB TypeB or Computer port to display video.

2. If you connected your computer to the Computer port, also connect a USB cable to the projector's USB TypeB port and to a USB port on your computer (for wireless mouse support).

3. Start your presentation.

4. Use the following buttons on the remote control to control your presentation:

• To move through slides or pages, press the up or down Page buttons.

• To move the cursor on the screen, use the arrow buttons.

• To left-click, press the button once (press it twice to double-click).

• To right-click, press the Esc button.

• To drag-and-drop, hold the button as you move the cursor with the arrow buttons, then release

at the destination.

Parent topic: Remote Control Operation Related references

Projector Setup Settings - Extended Menu

Using the Remote Control as a Presentation Pointer

You can use the projector's remote control as a pointer to help you call out important information during a presentation. The default pointer shape is an arrow, but you can select an alternative shape using the Settings menu.

1. Press the Pointer button on the remote control.

2. Use the arrow buttons on the remote control to move the pointer on the screen.

3. Press Esc to clear the pointer from the screen.

Parent topic: Remote Control Operation Related references

Projector Feature Settings - Settings Menu

Selecting an Image Source

If you connected multiple image sources to the projector, such as a computer and DVD player, you may want to switch from one image source to the other.

1. Make sure the connected image source you want to use is turned on.

2. For video image sources, insert a DVD or other video media and press its play button (if necessary).

3. Do one of the following:

• Press the Source Search button on the projector or remote control until you see the image from

the source you want.

• Press the button for the source you want on the remote control. If there is more than one port for

that source, press the button again to cycle through the sources.

1 Computerport sources 2 Videosources 3 USBport sources

Parent topic: Using Basic Projector Features

Projection Modes

Depending on how you positioned the projector, you may need to change the projection mode so your images project correctly.

• Front (default setting) lets you project from a table in front of the screen.

• Front/Ceiling flips the image over top-to-bottom to project upside-down from a ceiling or wall mount.

• Rear flips the image horizontally to project from behind a translucent screen.

• Rear/Ceiling flips the image over top-to-bottom and horizontally to project from the ceiling and behind

a translucent screen. You can change the projection mode using the remote control or by changing a menu setting.

Changing the Projection Mode Using the Remote Control Changing the Projection Mode Using the Menus

Parent topic: Using Basic Projector Features

Changing the Projection Mode Using the Remote Control

You can change the projection mode to flip the image over top-to-bottom.

1. Turn on the projector and display an image.

2. Hold down the A/V Mute button on the remote control for five seconds.

The image disappears briefly and reappears flipped top-to-bottom.

3. To change projection back to the original mode, hold down the A/V Mute buttonfor five seconds

again.

Parent topic: Projection Modes

Changing the Projection Mode Using the Menus

You can change the projection mode to flip the image over top-to-bottom and/or left-to-right using the projector menus.

1. Turn on the projector and display an image.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select the Projection setting and press Enter.

5. Select a projection mode and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Projection Modes

Image Aspect Ratio

The projector can display images in different width-to-height ratios called aspect ratios. Normally the input signal from your video source determines the image's aspect ratio. However, for certain images you can change the aspect ratio to fit your screen by pressing a button on the remote control.

If you always want to use a particular aspect ratio for a certain video input source, you can select it using the projector's menus.

Changing the Image Aspect Ratio Available Image Aspect Ratios

Parent topic: Using Basic Projector Features Related references

Image Quality Settings - Image Menu

Changing the Image Aspect Ratio

You can change the aspect ratio of the displayed image to resize it.

1. Turn on the projector and switch to the image source you want to use.

2. Press the Aspect button on the remote control.

The shape and size of the displayed image changes, and the name of the aspect ratio appears briefly on the screen.

3. To cycle through the available aspect ratios for your input signal, press the Aspect button

repeatedly.

Parent topic: Image Aspect Ratio

Available Image Aspect Ratios

You can select the following image aspect ratios, depending on the input signal from your image source. Note: Black bands and cropped images may project in certain aspect ratios, depending on the aspect

ratio and resolution of your input signal.

VS210/VS310

Aspect ratio setting Description Normal Displays images using the full projection area and maintains the

aspect ratio of the image.

4:3 Displays images using the full projection area at 4:3 aspect ratio. 16:9 Converts the aspect ratio of the image to 16:9.

VS315W

Aspect ratio setting Description Normal Displays images using the full projection area and maintains the

16:9 Converts the aspect ratio of the image to 16:9. Full Displays images using the full width of the projection area, but does

Zoom Displays images using the full width of the projection area and

Native Displays images as is (aspect ratio and resolution are maintained).

Parent topic: Image Aspect Ratio

Color Mode

The projector offers different Color Modes to provide optimum brightness, contrast, and color for a variety of viewing environments and image types. You can select a mode designed to match your image and environment, or experiment with the available modes.

If you always want to use a particular color mode for a certain video input source, you can select it using the projector menus.

aspect ratio of the image.

not maintain the aspect ratio.

maintains the aspect ratio of the image.

Changing the Color Mode Available Color Modes Turning On Auto Iris

Parent topic: Using Basic Projector Features Related references

Image Quality Settings - Image Menu

Changing the Color Mode

You can change the projector's Color Mode using the remote control to optimize the image for your viewing environment.

1. Turn on the projector and switch to the image source you want to use.

2. If you are projecting from a DVD player or other video source, insert a disc or other video media and

press the play button, if necessary.

3. Press the Color Mode button on the remote control to change the Color Mode.

The image appearance changes and the name of the Color Mode appears briefly on the screen.

4. To cycle through all the available Color Modes for your input signal, press the Color Mode button

repeatedly.

Parent topic: Color Mode

Available Color Modes

You can set the projector to use these Color Modes, depending on the input source you are using:

Color Mode Description Presentation Best for color presentations in a bright room Dynamic Best for projecting in a bright room Theatre Best for movies projected in a dark room Sports Best for television images in a bright room sRGB Bestfor standard sRGB computer displays Blackboard Best for presentations onto a green chalkboard (adjusts the colors

accordingly)

Whiteboard Best for presentations onto a whiteboard (adjusts the colors

accordingly)

Photo Best for still images projected in a bright room

Parent topic: Color Mode

Turning On Auto Iris

In certain color modes, you can turn on the Auto Iris setting to automatically optimize the image based on the brightness of the content you project.

1. Turn on the projector and switch to the image source you want to use.

2. Press the Menu button.

3. Select the Image menu and press Enter.

4. Select the Auto Iris setting and select On.

Note: You can turn Auto Iris on or off for each Color Mode that supports the feature. You cannot change the Auto Iris setting when you are using a Closed Caption setting.

5. Press Menu or Esc to exit the menus.

Parent topic: Color Mode

Controlling the Volume With the Volume Buttons

You can use the Volume buttons on the remote control to adjust the volume as you project a presentation with audio. You can also use the volume buttons on the projector's control panel (VS310/VS315W). The volume buttons control the projector’s internal speaker system.

You must adjust the volume separately for each connected input source.

1. Turn on the projector and start a presentation that includes audio.

2. Press the Volume buttons as necessary to lower or raise the volume.

A volume gauge appears on the screen.

3. To set the volume to a specific level for an input source, you can set the volume using the projector's

menus.

Parent topic: Using Basic Projector Features Related references

Projector Feature Settings - Settings Menu

Adjusting Projector Features

Follow the instructions in these sections to use your projector's feature adjustments.

Shutting Off the Picture and Sound Temporarily Stopping Video Action Temporarily Zooming Into and Out of Images Projector Security Features

Shutting Off the Picture and Sound Temporarily

You can temporarily turn off the projected picture and sound if you want to redirect your audience's attention during a presentation. Any sound or video action continues to run, however, so you cannot resume projection at the point that you stopped it.

If you want to display an image such as a company logo or picture when the presentation is stopped, you can set up this feature using the projector's menus.

1. Press the A/V Mute button on the remote control to temporarily stop projection and mute any sound.

2. To turn the picture and sound back on, press A/V Mute again.

Parent topic: Adjusting Projector Features

Stopping Video Action Temporarily

You can temporarily stop the action in a video or computer presentation and keep the current image on the screen. Any sound or video action continues to run, however, so you cannot resume projection at the point that you stopped it.

1. Press the Freeze button on the remote control to stop the video action.

2. To restart the video action in progress, press Freeze again.

Parent topic: Adjusting Projector Features

Zooming Into and Out of Images

You can draw attention to parts of a presentation by zooming into a portion of the image and enlarging it on the screen.

1. Press the E-Zoom + button on the remote control.

You see a crosshair on the screen indicating the center of the zoom area.

2. Use the following buttons on the remote control to adjust the zoomed image:

• Use the arrow buttons to position the crosshair in the image area you want to zoom into.

• Press the E-Zoom + button repeatedly to zoom into the image area, enlarging it up to four times.

• To pan around the zoomed image area, use the arrow buttons.

• To zoom out of the image, press the E-Zoom – button as necessary.

• To return to the original image size, press Esc.

Parent topic: Adjusting Projector Features

Projector Security Features

You can secure your projector to deter theft or prevent unintended use by setting up the following security features:

• Password security to prevent the projector from being turned on, and prevent changes to the startup

screen and other settings.

• Button lock security to block operation of the projector using the buttons on the control panel.

• Security cabling to physically cable the projector in place.

Password Security Types Locking the Projector's Buttons Installing a Security Cable

Parent topic: Adjusting Projector Features

Password Security Types

You can set up these types of password security using one shared password:

• Power On Protect prevents anyone from using the projector without first entering a password.

• User's Logo Protect prevents anyone from changing the custom screen the projector can display

when it turns on or when you use the A/V Mute feature. The presence of the custom screen

discourages theft by identifying the projector’s owner.

Setting a Password Selecting Password Security Types Entering a Password to Use the Projector Saving a User's Logo Image to Display

Parent topic: Projector Security Features

Setting a Password

To use password security, you must set a password.

1. Hold down the Freeze button on the remote control until you see the Password Protect menu. This

takes about five seconds.

2. Press the down arrow to select Password and press Enter.

You see the prompt "Change the password?".

3. Select Yes and press Enter.

4. Hold down the Num button on the remote control and use the numeric buttons to set a four-digit

password.

The password displays as **** as you enter it. Then you see the confirmation prompt.

5. Enter the password again.

You see the message "Password accepted."

6. Press Esc to return to the Password Protect menu.

7. Make a note of the password and keep it in a safe place in case you forget it.

Parent topic: Password Security Types

Selecting Password Security Types

After setting a password, you see the Password Protect menu. Select the password security types you want to use.

If you do not see this menu, hold down the Freeze button on the remote control for five seconds until the menu appears.

1. To prevent unauthorized use of the projector, select Power On Protect, press Enter, select On, and

press Esc.

2. To prevent changes to the User's Logo screen or related display settings, select User's Logo

Protect, press Enter, select On, and press Esc.

Note: Be sure to keep the remote control in a safe place; if you lose it, you will not be able to enter the

password required to use the projector.

Parent topic: Password Security Types

Entering a Password to Use the Projector

If a password is set up and a Power On Protect password is enabled, you see a prompt to enter a password whenever you turn on the projector.

You must enter the correct password to use the projector.

1. Hold down the Num button on the remote control while you enter the password using the numeric

buttons.

The password screen closes.

2. If the password is incorrect, the following may happen:

• You see a "wrong password" message and a prompt to try again. Enter the correct password to proceed.

• If the password is incorrect three times, you see a message that the projector is locked and a request code. Write down the code, turn the projector off, and disconnect the power cord from the projector. Then reconnect the power cord, turn the projector back on, and enter the password again. (Do not try to enter a password more than 29 times. Contact Epson and provide the

displayed request code and your proof of purchase information to obtain a code to unlock the projector.)

• If the password is incorrect 30 times in a row, the projector remains locked. You must send the projector to Epson for service.

Parent topic: Password Security Types

Saving a User's Logo Image to Display

You can transfer an image to the projector and then display it whenever the projector turns on. You can also display the image when the projector is not receiving an input signal or when you temporarily stop projection (using the A/V Mute feature). This transferred image is called the User's Logo screen.

The image you select as the User's Logo can be a photo, graphic, or company logo, which is useful in identifying the projector's owner to help deter theft. You can prevent changes to the User's Logo by setting up password protection for it.

1. Display the image you want to project as the User's Logo.

2. Press the Menu button, select the Extended menu, and press Enter.

3. Select the User's Logo setting and press Enter. You see a prompt asking if you want to use the displayed image as a user's logo.

4. Select Yes and press Enter. You see a selection box overlaying your image.

5. Use the arrow buttons on the remote control to surround the image area you want to use as the User's Logo and press Enter.

You see a prompt asking if you want to select this image area.

6. Select Yes and press Enter. (If you want to change the selected area, select No, press Enter, and repeat the last step.)

You see the User's Logo zoom factor menu.

7. Select a zoom percentage and press Enter. You see a prompt asking if you want to save the image as the User's Logo.

8. Select Yes and press Enter. Note: It takes a few moments for the projector to save the image; do not use the projector, its remote

control, or any connected equipment until it is finished. You see a completion message.

9. Press Esc to exit the message screen.

10. Select the Extended menu and press Enter.

11. Select Display and press Enter.

12. Select when you want to display the User's Logo screen:

• To display it whenever there is no input signal, select Display Background and set it to Logo.

• To display it whenever you turn the projector on, select Startup Screen and set it to On.

• To display it whenever you press the A/V Mute button, select A/V Mute and set it to Logo.

To prevent anyone from changing the User's Logo settings without first entering a password, set a password and enable User's Logo security.

Parent topic: Password Security Types

Locking the Projector's Buttons

You can lock the buttons on the projector's control panel to prevent anyone from using the projector. You can lock all the buttons or all the buttons except the power button.

1. Press the Menu button.

2. Select the Settings menu and press Enter.

3. Select the Control Panel Lock setting and press Enter.

4. Select one of these lock types and press Enter:

• To lock all of the projector's buttons, select Full Lock.

• To lock all buttons except the power button, select Partial Lock. You see a confirmation prompt.

5. Select Yes and press Enter.

Unlocking the Projector's Buttons

Parent topic: Projector Security Features

Unlocking the Projector's Buttons

If the projector's buttons have been locked, hold the Enter button on the projector's control panel for seven seconds to unlock them.

Parent topic: Locking the Projector's Buttons

Installing a Security Cable

You can install two types of security cables on the projector to deter theft.

• Use the security slot on the back of the projector to attach a Kensington Microsaver Security system,

available from Epson.

• Use the security cable attachment point on the projector to attach a wire cable and secure it to a room

fixture or heavy furniture.

Parent topic: Projector Security Features Related references

Projector Parts - Rear

Adjusting the Menu Settings

Follow the instructions in these sections to access the projector menu system and change projector settings.

Using the Projector's Menus Image Quality Settings - Image Menu Input Signal Settings - Signal Menu Projector Feature Settings - Settings Menu Projector Setup Settings - Extended Menu Projector Information Display - Info Menu Projector Reset Options - Reset Menu

Using the Projector's Menus

You can use the projector's menus to adjust the settings that control how your projector works. The projector displays the menus on the screen.

1. Press the Menu button on the control panel or remote control.

You see the menu screen displaying the Image menu settings.

2. Press the up or down arrow buttons to move through the menus listed on the left. The settings for each menu are displayed on the right.

Note: The available settings depend on the current input source.

3. To change settings in the displayed menu, press Enter.

4. Press the up or down arrow button to move through the settings.

5. Change the settings using the buttons listed on the bottom of the menu screens.

6. To return all the menu settings to their default values, select Reset.

7. When you finish changing settings on a menu, press Esc.

8. Press Menu or Esc to exit the menus.

Parent topic: Adjusting the Menu Settings

Image Quality Settings - Image Menu

Settings on the Image menu let you adjust the quality of your image for the input source you are currently using. The available settings depend on the currently selected input source.

To change settings for an input source, make sure the source is connected and select that source.

Setting Options Description Color Mode See the list of available Color Adjusts the vividness of image

Modes colors for various image types

and environments

Brightness Varying levels available Lightens or darkens the overall


Contrast Varying levels available Adjusts the difference between

light and dark areas of the image

Color Saturation Varying levels available Adjusts the intensity of the image

colors

Tint Varyinglevels available Adjusts the balance of green to

magenta tones in the image

Sharpness Varying levels available Adjusts the sharpness or

softness of image details

Color Temp. (color temperature) High Sets the overall color tone; High

Medium

tints the image blue and Low tints the image red

Low

Setting Options Description Color Adjustment Slider bars for each color Adjusts the intensity of individual

Auto Iris On Adjusts the projected luminance

Off

Note: The Brightness setting does not affect lamp brightness. To change the lamp brightness mode, use the Power Consumption setting.

Parent topic: Adjusting the Menu Settings Related references

Available Color Modes

Input Signal Settings - Signal Menu

Normally the projector detects and optimizes the input signal settings automatically. If you need to customize the settings, you can use the Signal menu. The available settings depend on the currently selected input source.

hues in the image

based on the image brightness when certain Color Modes are selected

Note: You can restore the default settings of the Position, Tracking, and Sync settings by pressing the Auto button on the remote control.

To change settings for an input source, make sure the source is connected and select that source.

Setting Options Description Auto Setup On Automatically optimizes

Off

computer image quality (when On)

Resolution Auto Sets the input signal resolution if

Normal

not detected automatically using the Auto option.

Wide

Tracking Varyinglevels available Adjusts signal to eliminate

vertical stripes in computer images

Sync. Varying levels available Adjusts signal to eliminate

fuzziness or flickering in computer images

Position Up, down, left, right Adjusts the image location on the

screen

Progressive Off Sets whether to convert

interlaced-to-progressive signals for certain video image types

Off: for fast-moving video images On: for still images

Input Signal Auto Specifies the signal type from

RGB Component

input sources connected to computer ports

Auto: detects signals automatically

RGB: corrects color for computer/RGB video inputs

Component: corrects color for component video inputs

Setting Options Description Video Signal Auto Specifiesthe signal type from the

Various video standards

Aspect See the list of available aspect Sets the aspect ratio (width-to-

ratios height ratio) for the selected input

Overscan Off Sets the output image ratio (the

4% 8%

Parent topic: Adjusting the Menu Settings Related references

Available Image Aspect Ratios

Projector Feature Settings - Settings Menu

Options on the Settings menu let you customize various projector features.

input sources connected to the composite video and S-Video ports

Auto: detects signal automatically

source

range of the projected image).

Setting Options Description Keystone Varying levels available Lets you manually correct vertical

sides

Auto Keystone -- Automatically adjusts vertical

sides to rectangular

Control Panel Lock Full Lock Controls projector button locking

Partial Lock Off

to secure the projector

Full Lock: locks all buttons Partial Lock: locks all buttons

except the power button

Off: no buttons locked

Pointer Shape Three shapes available Changes the shape of the remote

control pointer feature

Power Consumption Normal Selects the brightness mode of

ECO

the projector lamp Normal: sets maximum lamp

brightness ECO: reduces lamp brightness

and fan noise, and saves power and lamp life

Volume Varying levels available Adjusts the volume of the

projector’s speaker system

Remote Receiver Front Limits reception of remote control

Rear

signals by the selected receiver;

Off turns off all receivers

Front/Rear Off

Setting Options Description User Button Power Consumption Assigns a menu option to the

Info Progressive Closed Caption Test Pattern Resolution

Test Pattern On Displays a test pattern to assist in

Off

Parent topic: Adjusting the Menu Settings

Projector Setup Settings - Extended Menu

Settings on the Extended menu let you customize various projector setup features that control its operation.

User button on the remote control for one-touch access

focusing and zooming the image and correcting image shape (press Esc to cancel pattern display)

Setting Options Description Display Messages Selects various display options

Display Background Messages: controls whether Startup Screen A/V Mute

messages are displayed on the screen

Display Background: selects the screen color or logo to display when no signal is received

Startup Screen: controls whether a special screen appears when the projector starts up

A/V Mute: selects the screen color or logo to display when A/V Mute is turned on

Closed Caption Off Controls use of closed captions

CC1

and selects the closed caption channel

CC2

User's Logo – Creates a screen that the

projector displays to identify itself and enhance security

Projection Front Selects the way the projector

Front/Ceiling

faces the screen so the image is oriented correctly

Rear Rear Ceiling

Setting Options Description Operation Direct Power On Selects various operation options

Sleep Mode DirectPower On: turns on the Sleep Mode Timer High Altitude Mode

projector when you plug it in Sleep Mode: automatically turns

off the projector after an interval of inactivity

Sleep Mode Timer: sets the interval for Sleep Mode

High Altitude Mode: regulates the projector’s operating temperature at altitudes above 4921 feet (1500 m)

Standby Mode Communication On Selects whether the following can

Communication Off

occur when the projector is in standby mode (on) or not (off)

• Monitor and control the projector from a computer

USB Type B USB Display Selects the use of the projector's

Link 21L

USB TypeB port USB Display: select when you

connect a computer to the projector's USB TypeB port to display images

Link 21L: allows a remote Windows computer to operate the projector over a USB connection using the Link 21L Utility

Language Various languages available Selects the language for

projector menu and message displays (not changed by Reset option)

Parent topic: Adjusting the Menu Settings

Projector Information Display - Info Menu

You can display information about the projector and input sources by viewing the Info menu. However, you cannot change any settings in the menu.

Note: The lamp usage timer does not register any hours until you have used the lamp for at least 10 hours. Available settings depend on the current input source.

Information item Description Lamp Hours Displaysthe number of hours (H) the lamp has been used in

Normal and ECO Power Consumption modes; if the information is

displayed in yellow, obtain a genuine Epson replacement lamp soon

Source Displays the name of the port to which the current input source is

connected

Input Signal Displays the input signal setting of the current input source Resolution Displays the resolution of the current input source Video Signal Displays the video signal format of the current input source Refresh Rate Displays the refresh rate of the current input source Sync Info Displaysinformation that may be needed by a service technician

Information item Description Status Displaysinformation about projector problems that may be needed

by a service technician

Serial Number Displays the projector's serial number

Parent topic: Adjusting the Menu Settings Related references

Optional Equipment and Replacement Parts Projector Lamp Specifications

Projector Reset Options - Reset Menu

You can reset most of the projector settings to their default values using the Reset All option on the Reset menu.

You can also reset the projector's lamp usage timer to zero when you replace the lamp using the Reset Lamp Hours option.

You cannot reset the following settings using the Reset All option:

• Input Signal

• User's Logo

• Language

• Lamp Hours

• Password

• User Button

• Zoom (VS210)

Parent topic: Adjusting the Menu Settings

Maintaining and Transporting the Projector

Follow the instructions in these sections to maintain your projector and transport it from place to place.

Projector Maintenance Transporting the Projector

Projector Maintenance

Your projector needs little maintenance to keep working at its best. You may need to clean the lens periodically, and clean the air filter and air vents to prevent the projector

from overheating due to blocked ventilation. The only parts you should replace are the lamp, air filter, and remote control batteries. If any other part

needs replacing, contact Epson or an authorized Epson servicer. Warning: Before cleaning any part of the projector, turn it off and unplug the power cord. Never open

any cover on the projector, except as specifically explained in this manual. Dangerous electrical voltages in the projector can injure you severely.

Warning: Do not try to service this product yourself, except as specifically explained in this manual. Refer all other servicing to qualified servicers.

Cleaning the Lens Cleaning the Projector Case Air Filter and Vent Maintenance Projector Lamp Maintenance Replacing the Remote Control Batteries

Parent topic: Maintaining and Transporting the Projector

Cleaning the Lens

Clean the projector's lens periodically, or whenever you notice dust or smudges on the surface.

• To remove dust or smudges, gently wipe the lens with lens-cleaning paper.

• To remove stubborn smudges, moisten a soft, lint-free cloth with lens cleaner and gently wipe the lens. Do not spray any liquid directly on the lens.

Warning: Do not use a lens cleaner that contains flammable gas. The high heat generated by the projector lamp may cause a fire.

Caution: Do not use glass cleaner to clean the lens, or you may damage it. Do not use canned air, or the gases may leave a residue. Avoid touching the lens with your bare hands to prevent fingerprints on or damage to the lens surface.

Parent topic: Projector Maintenance

Cleaning the Projector Case

Before cleaning the projector case, turn off the projector and unplug the power cord.

• To remove dust or dirt, use a soft, dry, lint-free cloth.

• To remove stubborn dirt, use a soft cloth moistened with water and mild soap. Do not spray liquid directly on the projector.

Caution: Do not use wax, alcohol, benzene, paint thinner, or other chemicals to clean the projector case. These can damage the case. Do not use canned air, or the gases may leave a residue.

Parent topic: Projector Maintenance

Air Filter and Vent Maintenance

The projector's air filter keeps the intake air clean, and its vents expel the exhaust. If dust collects on the air filter or vents, clean them as described in this manual. Dust clogs may cause the projector to overheat due to improper ventilation.

Be sure to clean the air filter and vents if you see a message telling you to do so. Also make sure nothing blocks the vents.

Cleaning the Air Filter and Vents Replacing the Air Filter

Parent topic: Projector Maintenance

Cleaning the Air Filter and Vents

Clean the projector's air filter or vents if they get dusty, or if you see a message telling you to clean them.

1. Turn off the projector and unplug the power cord.

2. Gently remove the dust using a small vacuum designed for computers or a very soft brush (such as

a paintbrush).

Note: You can remove the air filter so you can clean both sides of it. Do not rinse the air filter in water, or use any detergent or solvent to clean it.

Caution: Do not used canned air, or the gases may leave a residue.

3. If dust is difficult to remove or the air filter is damaged, replace the air filter.

Parent topic: Air Filter and Vent Maintenance

Replacing the Air Filter

You need to replace the air filter in the following situations:

• After cleaning the air filter, you see a message telling you to clean or replace it

• The air filter is torn or damaged

You can replace the air filter while the projector is mounted to the ceiling, if necessary. The illustrations here show the projector placed on a table.

1. Turn off the projector and unplug the power cord.

2. Carefully open the air filter cover.

3. Pull the air filter out of the projector.

Note: Air filters contain ABS resin and polyurethane foam. Dispose of used air filters according to local regulations.

4. Place the new air filter in the projector as shown and push gently until it clicks into place.

5. Close the air filter cover.

Parent topic: Air Filter and Vent Maintenance

Projector Lamp Maintenance

The projector keeps track of the number of hours the lamp is used and displays this information in the projector's menu system.

Replace the lamp as soon as possible when the following occurs:

• The projected image gets darker or starts to deteriorate

• A message appears when you turn on the projector telling you to replace the lamp

• The projector's lamp light is flashing orange

Replacing the Lamp Resetting the Lamp Timer

Parent topic: Projector Maintenance Related references

Optional Equipment and Replacement Parts Projector Lamp Specifications

Projector Information Display - Info Menu

Replacing the Lamp

Before you replace the lamp, let the projector cool down for at least one hour so the lamp will not be hot. Warning: Let the lamp fully cool before replacing it to avoid injury. You can replace the lamp while the projector is mounted to the ceiling, if necessary.

1. Turn off the projector and unplug the power cord.

2. Allow the projector lamp to cool down for at least one hour.

3. Use the screwdriver included with the replacement lamp to loosen the screw securing the lamp

cover.

Warning: If the lamp is broken, glass fragments may be loose inside the lamp chamber. Be careful removing any broken glass to avoid injury.

4. Slide the lamp cover out and lift it off.

5. Loosen the screws securing the lamp to the projector. The screws do not come all the way out.

6. Lift up the lamp handle and gently pull the lamp out of the projector.

Note: The lamp(s) in this product contain mercury. Please consult your state and local regulations regarding disposal or recycling. Do not put in the trash.

7. Gently insert the new lamp into the projector. If it does not fit easily, make sure it is facing the right

way. Press the handle down until it locks into place.

Caution: Do not touch any glass on the lamp assembly to avoid premature lamp failure.

8. Push in the lamp firmly and tighten the screws to secure it.

9. Replace the lamp cover and tighten the screw to secure it.

Note: Be sure the lamp cover is securely installed or the lamp will not come on.

Reset the lamp timer to zero to keep track of the new lamp’s usage.

Parent topic: Projector Lamp Maintenance Related tasks

Resetting the Lamp Timer

You must reset the lamp timer after replacing the projector's lamp to clear the lamp replacement message and to keep track of lamp usage correctly.

Note: Do not reset the lamp timer if you have not replaced the lamp to avoid inaccurate lamp usage information.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Reset menu and press Enter.

4. Select Reset Lamp Hours and press Enter.

You see a prompt asking if you want to reset the lamp hours.

5. Select Yes and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Projector Lamp Maintenance

Related tasks

Replacing the Lamp

Replacing the Remote Control Batteries

The remote control uses two AA manganese or alkaline batteries. Replace the batteries as soon as they run out.

Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types, or mix new and old batteries.

1. Open the battery cover as shown.

2. Remove the old batteries.

Warning: If the battery fluid has leaked, wipe it away with a soft cloth and avoid getting the fluid on your hands. If it gets on your hands, wash them immediately to avoid injury.

3. Insert the batteries with the + and – ends facing as shown.

4. Close the battery cover and press it down until it clicks into place.

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.

Parent topic: Projector Maintenance Related references

Remote Control Operation

Transporting the Projector

The projector contains precision parts, some of which are glass. Follow these guidelines to transport or ship the projector safely:

• Close the lens cover to protect the lens.

• Remove any equipment connected to the projector.

• Use a carrying case to hand-carry the projector.

• When transporting the projector a long distance or as checked luggage, place it in a carrying case. Then pack the case in a firm box with cushioning around it and mark the box "Fragile."

• When shipping the projector for repairs, place it in its original packing materials, if possible, or use equivalent materials with cushioning around the projector. Mark the box "Fragile."

Note: Epson shall not be liable for any damages incurred during transportation. Parent topic: Maintaining and Transporting the Projector

Solving Problems

Check the solutions in these sections if you have any problems using the projector.

Projection Problem Tips Projector Light Status Using the Projector Help Displays Solving Image or Sound Problems Solving Projector or Remote Control Operation Problems Where to Get Help

Projection Problem Tips

If the projector is not working properly, try turning it off and unplugging it. Then plug it back in and turn it on.

If this does not solve the problem, check the following:

• The lights on the projector may indicate what the problem is.

• The projector's Help system can display information about common problems, if the projector is operating.

• The solutions in this manual can help you solve many problems.

If none of these solutions help, you can contact Epson for technical support.

Parent topic: Solving Problems

Projector Light Status

The lights on the projector indicate the projector status and let you know when a problem occurs. Check the status and color of the lights and look for a solution in the table here.

1 Power light 2 Lamp light 3 Temperature light

Power light Lamp light Temperature Status and solution

light

Green Off Off Normal operation. Flashing green Off Off Warming up. Wait for an image to appear. Orange Off Off Standby or sleep mode. Flashing orange Off Off Preparing for monitoring or shutting down. (When

the light remains orange, you can unplug the projector.)

Power light Lamp light Temperature Status and solution

light

Flashing red Off Flashing orange Projector is too hot.

• Make sure that the vents and air filter are not clogged with dust or obstructed by nearby objects.

• Make sure the environmental temperature is not too hot.

• If overheating continues, clean or replace the air filter.

Red Off Red Projector has overheated and turned off. Leave it

turned off to cool down for five minutes.

• Make sure that the vents and air filter are not clogged with dust or obstructed by nearby objects.

• If operating the projector at high altitude, turn on High Altitude Mode.

• If overheating continues, clean or replace the air filter.

• If the problem persists, unplug the projector and contact Epson for help.

Red Flashing red Off Lamp has a problem.

• Check to see if the lamp is burned out, broken, or installed incorrectly. Reseat or replace the lamp as necessary.

• If operating the projector at high altitude, turn on High Altitude Mode.

• If the problem persists, unplug the projector and contact Epson for help.

Light status Flashing Off Replace the lamp soon to avoid damage. Do not varies orange continue using the projector.

Red Off Flashing red Afan or sensor has a problem. Turn the projector

off, unplug it, and contact Epson for help.

Power light Lamp light Temperature Status and solution

light

Red or flashing Flashing red Flashing red Internal projector error. Turn the projector off, red unplug it, and contact Epson for help.

Note: If the lights display a pattern not listed in the table above, turn the projector off, unplug it, and contact Epson for help.

Parent topic: Solving Problems Related references

Projector Setup Settings - Extended Menu Where to Get Help

Related tasks

Cleaning the Air Filter and Vents Replacing the Air Filter Replacing the Lamp

Using the Projector Help Displays

You can display information to help you solve common problems using the projector's Help system.

1. Turn on the projector.

2. Press the Help button on the projector or the remote control. You see the Help menu.

3. Use the up and down arrow buttons to highlight the problem you want to solve.

4. Press Enter to view the solutions.

5. When you are finished, do one of the following:

• To select another problem to solve, press Esc.

• To exit the help system, press Help.

Parent topic: Solving Problems

Solving Image or Sound Problems

Check the solutions in these sections if you have any problems with projected images or sound.

Solutions When No Image Appears Solutions When Image is Incorrect Using the USB Display Function Solutions When "No Signal" Message Appears Solutions When "Not Supported" Message Appears Solutions When Only a Partial Image Appears Solutions When the Image is Not Rectangular Solutions When the Image Contains Noise or Static Solutions When the Image is Fuzzy or Blurry Solutions When the Image Brightness or Colors are Incorrect Solutions When There is No Sound or Low Volume

Parent topic: Solving Problems

Solutions When No Image Appears

If no image appears, try the following solutions:

• Press the A/V Mute button on the remote control to see if the image was temporarily turned off.

• Make sure all necessary cables are securely connected and the power is on for the projector and

connected video sources.

• Press the projector's power button to wake it from standby or sleep mode. Also see if your connected

computer is in sleep mode or displaying a blank screen saver.

• Check the settings on the Signal menu to make sure they are correct for the current video source.

• Adjust the Brightness setting or select the Normal Power Consumption setting.

• Check the Display setting to make sure Messages is set to On.

• If the projector does not respond when you press the control panel buttons, the buttons may be

locked. Unlock the buttons.

• If the projector does not respond when you press buttons on the remote control, make sure the remote

receivers are turned on.

• For images projected with Windows Media Center, reduce the screen size from full screen mode.

• For images projected from applications using Windows DirectX, turn off DirectX functions.

Parent topic: Solving Image or Sound Problems Related references

Projector Setup Settings - Extended Menu Image Quality Settings - Image Menu

Input Signal Settings - Signal Menu Projector Feature Settings - Settings Menu

Related tasks

Unlocking the Projector's Buttons

Solutions When Image is Incorrect Using the USB Display Function

If no image appears or if the image appears incorrectly using the USB Display function, try the following solutions:

• Press the USB button on the remote control.

• Make sure the USB Type B setting in the Extended menu is set to USB Display, if available.

• With Mac OS X, select the USB Display icon in the Dock or from the Applications folder.

• With Windows Media Center, reduce the screen size from full screen mode.

• With Windows DirectX, turn off DirectX functions.

• Turn off the Transfer layered window setting in the Epson USB Display Settings program on your

computer.

Parent topic: Solving Image or Sound Problems Related references

Projector Setup Settings - Extended Menu

Solutions When "No Signal" Message Appears

If the "No Signal" message appears, try the following solutions:

• Press the Source Search button and wait a few seconds for an image to appear.

• Turn on the connected computer or video source, and press its play button to begin your presentation,

if necessary.

• Check the connection from the projector to your video sources.

• If you are projecting from a laptop computer, make sure it is set up to display on an external monitor.

• If necessary, turn the projector and the connected computer or video source off and then on again.

Displaying From a PC Laptop Displaying From a Mac Laptop

Parent topic: Solving Image or Sound Problems

Displaying From a PC Laptop

If you see the "No Signal" message when you display from a PC laptop, you need to set up the laptop to display on an external monitor.

1. Hold down the laptop's Fn key and press the key labelled with a monitor icon or CRT/LCD. (See your laptop manual for details.) Wait a few seconds for an image to appear.

2. To display on both the laptop's monitor and the projector, try pressing the same keys again.

3. If the same image is not displayed by the laptop and projector, check the Windows Display utility to make sure the external monitor port is enabled. (See your computer or Windows manual for instructions.)

4. If necessary, check your video card settings and set the multiple display option to Clone.

Parent topic: Solutions When "NoSignal" Message Appears

Displaying From a Mac Laptop

If you see the "No Signal" message when you display from a Mac laptop, you need to set up the laptop for mirrored display. (See your laptop manual for details.)

1. Open the System Preferences utilityand select Displays.

2. Select the VGA Display or Color LCD option, if necessary.

3. Click the Arrange or Arrangement tab.

4. Select the Mirror Displays checkbox.

Parent topic: Solutions When "NoSignal" Message Appears

Solutions When "Not Supported" Message Appears

If the "Not Supported" message appears, try the following solutions:

• Make sure the correct input signal is selected on the Signal menu.

• Make sure the computer's display resolution does not exceed the projector's resolution and frequency

limit. If necessary, select a different display resolution for your computer. (See your computer manual for details.)

Parent topic: Solving Image or Sound Problems Related references

Input Signal Settings - Signal Menu Supported Video Display Formats

Solutions When Only a Partial Image Appears

If only a partial computer image appears, try the following solutions:

• Press the Auto button on the remote control to optimize the image signal.

• Try adjusting the image position using the Position menu setting.

• Press the Aspect button on the remote control to select a different image aspect ratio.

• If you zoomed into or out of the image using the E-Zoom buttons, press the Esc button to return to a

full display.

• Check your computer display settings to disable dual display and set the resolution within the

projector's limits. (See your computer manual for details.)

• Check the resolution assigned to your presentation files to see if they are created for a different

resolution than you are projecting in. (See your software help for details.)

Parent topic: Solving Image or Sound Problems Related references

Input Signal Settings - Signal Menu Supported Video Display Formats

Solutions When the Image is Not Rectangular

If the projected image is not evenly rectangular, try the following solutions:

• Place the projector directly in front of the center of the screen, facing it squarely, if possible.

• If you adjusted the projector height using the projector feet, press the keystone buttons on the

projector to adjust the image shape.

• Turn on automatic keystone adjustments using the projector's menus.

Parent topic: Solving Image or Sound Problems Related references

Projector Feature Settings - Settings Menu

Related tasks

Correcting Image Shape With the Keystone Buttons

Solutions When the Image Contains Noise or Static

If the projected image seems to contain electronic interference (noise) or static, try the following solutions:

• Check the cables connecting your computer or video source to the projector. They should be:

• Separated from the power cord to prevent interference

• Securely connected at both ends

• Not connected to an extension cable

• Check the settings on the projector's Signal menu to make sure they match the video source. If

available for your video source, adjust the Progressive setting.

• Select a computer video resolution that is compatible with the projector.

• If you are projecting from a computer, press the Auto button on the remote control to automatically

adjust the Tracking and Sync settings.

• If you adjusted the image shape using the projector controls, try decreasing the Sharpness setting to

improve image quality.

• If you connected an extension power cable, try projecting without it to see if it caused interference in

the signal.

Parent topic: Solving Image or Sound Problems Related references

Input Signal Settings - Signal Menu Supported Video Display Formats

Related tasks

Displaying From a PC Laptop Displaying From a Mac Laptop

Solutions When the Image is Fuzzy or Blurry

If the projected image is fuzzy or blurry, try the following solutions:

• Adjust the image focus.

• Clean the projector lens.

Note: To avoid condensation on the lens after bringing the projector in from a cold environment, let the projector warm up to room temperature before using it.

• Position the projector close enough to the screen.

• Turn on automatic keystone adjustment in the projector's menus.

• Adjust the Sharpness setting to improve image quality.

• If you are projecting from a computer, press the Auto button on the remote control to automatically

adjust the tracking and sync. If any bands or overall blurriness remains, display a uniformly patterned image on the screen and manually adjust the Tracking and Sync settings.

Parent topic: Solving Image or Sound Problems Related references

Input Signal Settings - Signal Menu Image Quality Settings - Image Menu Projection Distance

Related tasks

Focusing the Image Using the Focus Ring Cleaning the Lens

Solutions When the Image Brightness or Colors are Incorrect

If the projected image is too dark or light, or the colors are incorrect, try the following solutions:

• Press the Color Mode button on the remote control to try different color modes for the image and

environment.

• Adjust the available settings on the Image menu for the current input source, such as Brightness,

Contrast, Tint, Color Adjustment, and/or Color Saturation.

• Make sure you selected the correct input source on the Signal menu.

• Make sure all the cables are securely connected to the projector and your video device. If you

connected long cables, try connecting shorter cables.

• If the colors are incorrect from a video source, make sure you selected the correct Video Signal

setting.

• If you are using the ECO Power Consumption setting, try selecting Normal in the Settings menu.

• If the image has been progressively darkening, you may need to replace the projector lamp soon.

Parent topic: Solving Image or Sound Problems Related concepts

Projector Lamp Maintenance

Related references

Input Signal Settings - Signal Menu Image Quality Settings - Image Menu Projector Feature Settings - Settings Menu

Solutions When There is No Sound or Low Volume

If there is no sound when you expect it or the volume is too low, try the following solutions:

• Adjust the projector's volume settings.

• Press the A/V Mute button on the remote control to resume video and audio if they were temporarily

stopped.

• Press the Source Search button to switch to the correct input source, if necessary.

• Check your computer or video source to make sure the volume is turned up and the audio output is set

for the correct source.

• Check the audio cable connections between the projector and your video source.

• Make sure any connected audio cables are labelled "No Resistance".

• If you are using the USB Display function, turn on the Output audio from the projector setting in the

Epson USB Display Settings program on your computer.

Parent topic: Solving Image or Sound Problems

Solving Projector or Remote Control Operation Problems

Check the solutions in these sections if you have problems operating the projector or remote control.

Solutions to Projector Power or Shut-Off Problems Solutions to Problems With the Remote Control Solutions to Password Problems

Parent topic: Solving Problems

Solutions to Projector Power or Shut-Off Problems

If the projector does not come on when you press the power button or shuts off unexpectedly, try the following solutions:

• Make sure the power cord is securely connected to the projector and to a working electrical outlet.

• The projector's buttons may be locked for security. Unlock the buttons or use the remote control to

turn on the projector.

100

Epson VS210, VS315W, VS310 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction to Your Projector

Projector Features

Product Box Contents

Additional Components

Optional Equipment and Replacement Parts

Warranty and Registration Information
