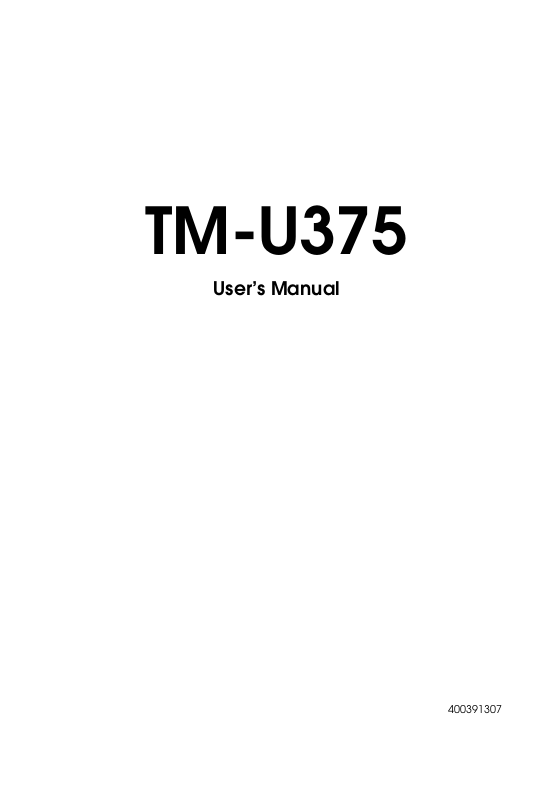

TM-U375

User’s Manual

400391307

Printer Part Names

Printer cover

(1)

Control panel

(2)

Power switch

(3)

Take-up spool

(4)

Display module connector

(5)

Interface connector

(6)

Drawer kick-out connector

(7)

Power connector

(8)

DIP switches (under a cover)

(9)

Cover open recess

(10)

Control Panel

VALIDATION/SLIP

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. No patent liability is assumed with respect to the use of the information contained herein. While every precaution has been taken in the preparation of this book, Seiko Epson Corporation assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.

EPSON and ESC/POS are registered trademarks of Seiko Epson Corporation.

NOTICE: The contents of this manual are subject to change without notice. Copyright

1995, 1998 by Seiko Epson Corporation, Nagano, Japan.

EMC and Safety Standards Applied

Product Name: TM-U375/U375P Model Name: M63UA/M115A

The following standards are applied only to the printers that are so labeled. (EMC is tested using the EPSON power supply)

Europe: CE Marking

Safety: EN60950

North America: EMI: FCC/ICES-003 Class A

Safety: UL 1950/CSA C22.2 No. 950

Japan: EMI: VCCI Class A

Oceania: EMC: AS/NZS 3548

WARNING

The connection of a non-s hielded printer i nterface cable to th is printer w ill invalidat e the EMC standards of this device.

You are cautioned that changes or modifications not expressly approved by SEIKO EPSON Corporation could void your authority to operate the equipment.

CE Marking

The printer conforms to the following Directives and Norms

Directive 89/336/EEC EN 55022 Class B

EN 55024

IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-11

Directive 90/384/EEC EN45501

FCC Compliance Statement

For American Users

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

FOR CANADIAN USERS

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme

la norme NMB-003 du Canada.

iii

GEREÄUSCHPEGEL

Gemäß der Dritten Verordnung zum Gerätesicherheitsgesetz (Maschinenlärminformations- Verordnung-3. GSGV) ist der arbeitsplatzbezogene Geräusch-Emissi on swert kleiner als 70 dB(A) (basierend au f ISO 7779).

Introduction

Features

The TM-U375 and handle slip, validation, and journal printing (both journal and receipt printing with pressure-sensitive paper) in a single unit. The main features of the TM-U375 and

World’s smallest multi-function 1.5 station printer.

High-speed printing using logic seeking.

Easy problem handling (e.g., paper jams or objects dropped into the printer) via a clamshell mechanism.

Two validation/slip paper entrances: from above for validation paper

and from the front for slip paper.

U Free-format printing in page mode. Q Various check printing pattern. Cl

Logic seeking and page mode for check printing.

Movable platen for easy paper insertion.

Paper load switch for easy paper roll loading.

Control capability for two drawers.

Selectable character size (7 x 9 font or 5 x 9 font).

Q Command protocol based on the Q

ASB

(Automatic Status Back) function that automatically transmits

printer status changes.

EPSON® intelligent module connection (for the TM-U375 only).

EPSON display module series connection (for the TM-U375 only).

Bidirectional parallel interface in accordance with the IEEE 1284

Nibbe/Byte Modes.

TM-U375P

are high-performance

printers are as follows:

ESC/POS@

standard.

POS

printers which

About This Manual

Setting up and Using

Chapter 1 contains information on unpacking the printer, setting it up,

setting the DIP switches, and adjusting the paper near end detector.

Chapter 2 contains information on using the printer.

LI Chapter

3 contains troubleshooting information.

Reference

Chapter 4 contains specifications.

Notes, Cautions, and Warnings

Note:

Notes have important information and of your

printer.

useful

A CAUTION:

Cautions must be observed to avoid minor yourself or

damage to your equipment.

tips on the operation

injury

Warnings

bodily injury.

must be followed carefully to avoid serious

Chapter 1 Setting Up the Printer

Unpacking....................................................

Removing the Protective Materials Connecting the Printer to Your Computer. Connecting the Printer to Your Drawer.

Anschließen Connecting the Printer to Your Direct Connection Display Module

Grounding the Printer Connecting the Power Supply Installing the Ribbon Cassette Installing the Paper Roll Running the Self-test

Setting the DIP Switches

Adjusting the Paper Roll End Sensing Position Using the Power Switch Cover

des Druckers an Ihre Geldladee

............................................

..........................................

.............................................

Running the self-test with paper roll Running the self-test with the slip paper

Running the self-test with validation paper.....................

.........................................

TM-U375 DIP-switch functions. TM-U375P DIP-switch functions

.................................

...........................

.............................

..........................l-8

(For the TM-U375 only)..........

.....................................

..........................

.......................

.............................

.......................l-23

....................................

Chapter 2 Using the Printer

Operating the Control Panel

Buttons................................................

Indicator lights..........................................

Slip Paper Handling............................................

Validation Paper Handling.......................................

Replacing the Paper Roll........................................

Replacing the Ribbon Cassette...................................

Removing the ribbon cassette. ..............................

Installing the ribbon cassette . .............................

.....................................

. .

l-2 l-2 l-4 l-6

1-10 l-11 1-12 1-14 1-16

1-18 1-18 1-18 l-19 l-20 l-21 l-22

l-25

2-2 2-2 2-2 2-4 2-4 2-5 2-6 2-7 2-8

vii

Chapter

3 Troubleshooting

Troubleshooting................................................

General problems Printing problems Paper handling problems

Hexadecimal Dumping.

Starting hexadecimal dumping

Ending hexadecimal dumping

Chapter

Printing Specifications Character Specifications Paper Specifications. Electrical Specifications.

Safety and EMI Standards Applied

Safety Standardss Electrostatic Protection (measured based on the IEC801-2 test conditions) . 4-6 Reliability. Environmental Specifications

Interface Specifications

Printing on Cut Sheets

Transmit Status Identificationn

Notes On Number of Printable Columns

4 Reference

....................................................

Example print control for cut sheet

.........................................

...................................

..........................................

...............................

Information

...........................................

.........................................

............................................

.........................................

.................................

...............................................

.....................................

..........................................

...........................................

...........................

.....................................

.............................

3-2 3-2 3-2

3-4 3-6 3-6 3-7

4-2 4-2 4-3 4-6 4-6

4-6

4-6 4-7

4-8 4-8

44-11 4-12

viii

Chapter

Setting Up the Printer

Setting Up the Printer 1-1

Unpacking

The illustration below shows the items included for the standard specification printer.

Take-up spool

Paper roll (1

pc)

Ribbon

cassette

Hexagonal lock

screws (2

(only for the

Note:

Q&A

See the Note on page 1-5 for information on the screws.

pcs)

serial interface)

Power switch cover

Removing the Protective Materials

The printer is protected during shipping by protective materials that must be removed before you turn on the printer.

Loosen the screw and remove the protective material A from the printer, as the illustration shows on page 1-3.

1-2

Setting Up the Printer

Protective material

Note:

Store the steps below.

the

protective material A on the back of

the

printer, following

1.Insert the projections on corresponding holes as

Q&l

Tighten the

Protective material A

Note:

the

Put

ship

or store your printer.

screw.

protective material A back in its original position if you ever

the

protective material A into

the

illustration below.

the

Setting Up the Printer

1-3

2. Remove the protective materials and

as the illustration.

Note:

Put the protective materials B and C back in its original position if you

ever

ship or store your printer.

Protective material

Connecting the Printer to Your Computer TM-U375

Follow the procedures below only when you use the printer as a single unit

(not connected to an intelligent module). When you use the printer with the intelligent module, refer to the

You need an appropriate serial interface cable to connect your computer to the printer’s built-in interface.

IT-U Series User’s Manual for details.

Make sure that both the printer and computer are turned off; then plug the cable connector securely into the printer’s interface connector.

Tighten the screws on both sides of the cable connector.

1-4 Setting Up the Printer

that

screws

requires

Your printer comes with inch-type hexagonal lock installed. millimeter-type lock screws, replace the inch-type screws with the enclosed millimeter-type screws by using a hex screwdriver

mm). To distinguish the two types of screws, see the figure

below.

If you

plan to use an interface cable

Notch (one or more lines)

Inch-type

Plug the other end of the cable into the computer.

Millimeter-type

TM-U375P

You need an appropriate parallel interface cable to connect your computer to the printer.

Make sure that the printer and the computer are turned off. Then plug the cable into the connector on the printer, as shown.

Setting Up the Printer 1-5

Note:

Squeeze the wire clips on the printer

place on

Connect the other end of the cable to the connector on your computer.

both

sides of

the

connector.

together

until

they

Connecting the Printer to Your Drawer

Follow the procedures below to connect a drawer to the printer only when you use the printer as a single unit (not connected to an intelligent module). (Intelligent module connection is available only for the TM-U375.) When you use the TM-U375 with the intelligent module, refer to the

User’s Manual

Make sure that the printer is turned off.

Plug the cable connector securely into the printer’s drawer kick-out connector until it clicks.

for details.

Use

a drawer

Using an well as

the

that

improper

printer.

matches the

drawer

may damage the drawer as

printer

specification.

lock in

IT-U Series

1-6 Setting Up the Printer

TM-U375

TM-U375P

A CAUTIONS:

not connect

out

connector.

not

confuse the drawer

the

display

a telephone

module connector.

line

the drawer kick

kick

out connector and

Setting Up the Printer

1-7

Anschließen des Druckers

lhre Geldlade

Verfahren

Drucker anzuschließen,

angeschlossen an ein intelligentes Modul) betrieben

betr. Verwendung

Betriebsanleitung der IT-U

Sie wie

im folgenden beschrieben, um eine Geldlade an den

aber

nur, wenn der Drucker

des

Druckers mit einem intelligenten Modul siehe

Serie.

A ACHTUNG:

Nur

eine

Geldlade verwenden, Druckerspezifikation ungeeigne ten Geldlade such

der Drucker beschäaligt werden.

Stellen

Sie

sicher,

Stecken Steckverbinder am Drucker ein, bis er hörbar einrastet.

TM-U375

Sie

daß

den Kabelsteckverbinder fest in den Auszug-

entsprich t. Bei

kann

der Drucker ausgeschaltet

die

der Verwendung einer

sowohl

als

Einzeleinheit (nicht

wird.

Einzelheiten

die

Geldlade

ist.

als

1-8

Setting Up the Printer

TM-U375P

ACHTUNG:

Am Auszug-Steckverbinder

Telefonleitung anschließen.

icht den Auszug-Steckverbinder für die Geldlade

2. und

für die

den

Displaymodul-Steckverbinder vetwechseln.

Geldlade

keine

Setting Up the Printer

1-9

Connecting the Printer to Your Direct Connection Display

Module (For the

Follow the procedures below to connect a direct connection display module to the printer only when you use the printer as a single unit (not connected to an intelligent module). When you use the printer with the intelligent module, refer to the

Make sure that the printer is turned off.

Plug the cable connector (provided with the direct connection display module) securely into the printer’s display module connector until it clicks.

TM-U375

only)

IT-U Series User’s Manual for details.

A CAUTIONS:

not

connect a telephone

out

connector.

not

confuse the drawer

the

display

Never connect any

module to the DM connector.

4.If you connect module to the DM connector, Corporation

product

1-10 Setting Up the Printer

module connector.

product other

any product

is not liable for any

or to the

TM-U375 itself.

line

to the drawer

kick out connector

than the

other than the

Seiko

Epson

damage to the other

display

kick

and

Grounding the Printer

When you use the printer as a single unit (not connected to an intelligent

module), you need to ground your printer. (Intelligent module connection

is available for the TM-U375 only.)

Recommended wire is described below. Thickness of wire Diameter of terminal to be attached

Make sure that the printer is turned off.

Connect the ground wire to the ground connector (marked FG) on the bottom of the printer with the screw provided on the printer. Alternatively, another screw located beside the power connector on the TM-U375P can be used to connect the ground wire.

TM-U375

: AWG18

or equivalent

3.2

Setting Up the Printer

1-11

TM-U375P

Ground the other end of the ground wire.

Connecting the Power Supply

When the printer is used as a single unit, not connected to an intelligent module, use the optional EPSON power supply, When the printer is connected to an intelligent module, the power is supplied by the intelligent module. Refer to for details. (Intelligent module connection is available for the TM-U375 only.)

PS-150

for your printer.

the IT-U Series User’s Manual

1-12

Using an

electrical

When

from the printer, plugged damage the

Make sure that the printer’s power switch is turned off, and that the power supply’s power cord is unplugged from the electrical outlet.

Setting Up the Printer

incorrect

shock.

connecting or disconnecting the

to an electrical outlet; otherwise

power supply

make sure that

power

supply or the

may

the

printer.

cause fire

power

supply is not

you

supply

may

Check the label on the power supply to make sure that the required voltage matches that of your electrical outlet.

Plug the power supply’s DC cable connector into the printer’s power connector as shown below.

TM-U375

TM-U375P

Plug the power supply’s power cord into an electrical outlet.

Note:

remove

and pull it

cord is unplugged before you disconnect the DC cable connector.

the DC

straight

cable

connector, grasp

out. Make sure

the

connector at the arrow

that the

power

Setting Up the Printer

supply 's

power

1-13

Installing

the Ribbon Cassette

A CAUTIONS:

Never direction of the arrow marked on the cassette; otherwise

the ribbon cassette may be damaged.

turn

the ribbon

cassette’s

knob in the opposite

Be sure replace a

Note:

Use

Turn on the printer and open the printer cover.

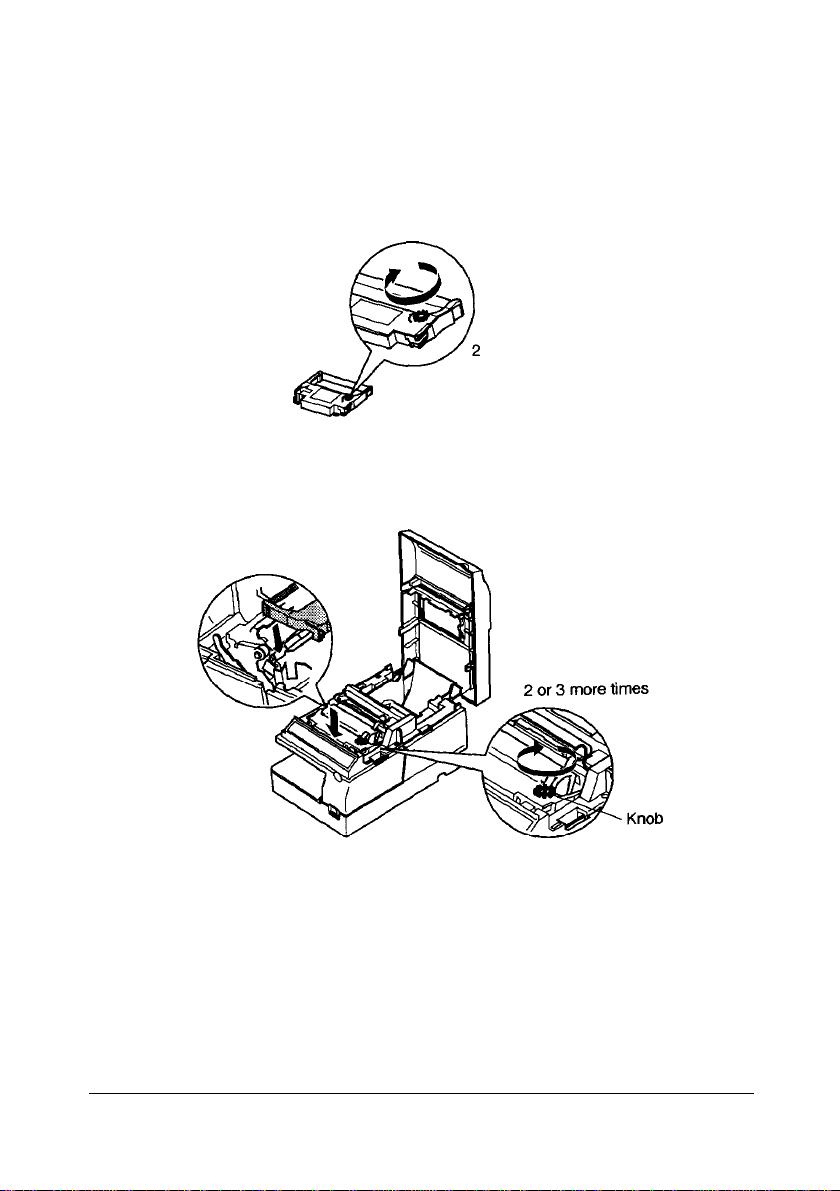

Turn the ribbon cassette’s knob two or three times in the direction of the arrow, to take up any slack in the ribbon.

Insert the ribbon in the position as the illustration below and push the ribbon cassette until it clicks. Then rotate the cassette’s knob two or three more times. This is necessary to place the ribbon in the correct position.

the printer is

ribbon

the

EPSON ERC-38 ribbon cassette for your printer.

not

receiving

cassette; otherwise

data when you

times

data may

lost.

1-14

Setting Up the Printer

or 3more times

Knob

Make sure that the ribbon is installed between the print head and the

ribbon mask without wrinkles or creases, as shown below.

Print head

Note:

Q3.l

the

ribbon is not installed

grasp

the

cassette's tab on

then

pull

the

cassette out of

above to install

the

ribbon cassette again.

correctly,

the

left side,

the

printer.

to remove

lift the left

Repeat steps

the

ribbon cassette,

side out first, and

3 and

Tab

Setting Up the Printer

1-15

Installing

the Paper Roll

Use a paper roll that matches the specifications.

Note:

The

printer must be turned on before installing

Fold the paper so it is exactly straight and even, as shown in the

illustration, and will not tear off jaggedly.

Turn on the printer, open the printer cover, and remove the take-up

Insert the paper roll as shown below.

the

Correct

paper roll.

spool.

1-16

Insert the tip of the paper into the paper inlet as far as it will go, and push the PAPER LOAD switch

to feed the paper roll until the paper

comes out from the top of the printer. Note that the arrow in the exploded drawing below points towards the front of the printer.

Setting Up the Printer

Paper inlet

PAPER LOAD switch

When using the take-up spool, follow the steps and the illustration below.

Pull out the side of the take-up spool and insert the tip of the paper roll into the groove on the spool as the illustration below.

Rotate the spool two or three times to secure the paper and reinsert

the side of the take-up spool as the illustration below.

2 or

Install

Tear off the receipt paper on the cutter; then close the printer cover.

Note:

When the

inactive.

the

take-up spool in the printer.

printer cover is open,

the

PAPER FEED

Setting Up the Printer

button is

1-17

Running the Self-test

Any time that you want to check the performance of your printer you can run the self test described below. This shows whether your printer is working correctly. It is independent of any other equipment or software. You can run the self-test with the paper roll, slip paper, or validation paper.

Running the self-test with paper roll

Note:

Be sure to install run

the

self test.

Make sure the printer is turned off and the printer cover is closed properly.

While holding down begin the self-test. The self-test prints the printer settings and pauses printing. (The JOURNAL OUT light flashes.)

Press the PAPER FEED button to continue printing. The self-test

prints some lines of characters from the character table.

4. The self-test automatically ends after printing the paper. The printer becomes ready to receive data from the computer

after the self-test.

Self-test mode switches to normal mode.

the

ribbon cassette and

the

PAPER FEED button, turn on the printer to

the

paper roll before you

"***

completed

***"

Running the self-test with the slip paper

Note:

Be sure to install

Make sure the printer is turned off and the printer cover is closed properly.

2.Hold down the RELEASE button and turn on the printer to begin the

self-test. The VALIDATION/SLIP light flashes.

Feed a sheet of slip paper into the printer. The self-test loads the paper automatically, prints the printer settings, and then ejects the paper. The VALIDATION/SLIP light flashes.

Remove the paper and feed another sheet of slip paper into the printer to print characters from the character table. Continue to feed slip paper into the printer until

1-18

Setting Up the Printer

the

paper roll in

the

self-test prints

the

printer to prevent

"***

completed

slip

paper jams.

***".

The self-test automatically ends after printing The printer is ready to receive data from the computer after the self-test completes.

6. Self-test mode switches to normal mode.

"***

completed

Running the self-test with validation paper

Note:

Be sure to install

paper jams.

Make sure the printer is turned off and the printer cover is closed properly.

Hold down the PAPER FEED and RELEASE buttons and turn on the printer to begin the self-test. The VALIDATION/SLIP light flashes.

Feed a sheet of validation paper into the printer. The self-test prints the printer settings, and then ejects the paper. The VALIDATION/SLIP

light flashes.

Remove the paper and feed another sheet of validation paper into the printer to print characters from the character table. Continue to feed validation paper into

***".

The self-test automatically ends after printing The printer is ready to receive data from the computer after the self-test completes.

Self-test mode switches to normal mode.

the

paper roll in

the

printer until the self-test prints

the

printer to prevent validation

"***

completed

"***

completed

***".

Note:

you want to pause

validation paper at any point, press

the

PAPER FEED button again to resume

the

self-test for

the

paper roll, slip paper, or

the

PAPER FEED button. Press

the

self-test.

Setting Up the Printer

1-19

Setting the DIP Switches

Turn off to prevent an

printer.

You can change your interface and print column settings by changing DIP switch settings.

1. Make sure the printer is turned off.

Remove the screw from the DIP switch cover. Then take off the DIP switch cover, as shown in the illustration below.

There are two sets of switches. Notice that ON is marked on each set of switches. Use tweezers or another narrow tool to move the switches.

the printer

electrical short,

while

removing the DIP switch cover

which

can damage the

the

1-20

Use the following tables to set the DIP switches. Numbers starting with

1 are in the first set, and numbers starting with 2 are in the second.

Setting Up the Printer

TM-U375 DIP-switch functions

DIP Switch Set 1

SW Function

l-1 Data reception error

Receive buffer capacity

l-2 l-3 Handshaking l-4Word length

Parity check

1-5

Parity selection

l-6

Transfer speed (see table below)

l-7 l-8 Transfer speed (see table below)

Ignored

bytes

XON/XOFF

7 bits

Yes

Even

OFF

Prints

bytes

DTR/DSR

8 bits

Odd

Transfer Speed (BPS)

1200

2400 4800 9600

BPS: Bits Per Second

DSW2 SW

2-l Connection of display module

2-2

2-3

2-4 2-5 2-6 2-7

2-8

Function

(see Note 1 on the next page)

Selects number of characters

per line

(CPL) 7 X 9 font/5 X 9 font (refer to the

Handshaking operation (busy condition) For internal use only. For internal use only. For internal use only. Pin 6 reset signal (see Note 2 on the next page) Pin 25 reset signal

(see Note 2 on the next page)

Notes on Number

SW7

ON OFF ON OFF

Connected

CPL/

35 CPL

Printable Columns

Receive

buffer full receive buffer full

Used

SW8

ON ON OFF OFF

OFF

Not connected

40 CPU

section in Chapter

Off-line or

Not used

CPL

not

change the settings of switch

2-4, 2-5

Setting Up the Printer

and

2-6.

1-21

Notes:

This function can be used only when a direct connection display

module is connected to the display module connector.

2..

DIP switch settings cannot be changed after the power is turned

after

on or turning 7 and 8.

the printer is reset through the interface.

the

power on, do not change

TM-U375P DIP-switch functions

DIP Switch Set 1

SW Function

1-1 Auto line feed

l-2 Receive buffer capacity l-3 Undefined l-4 Undefined 1-5 Undefined 1-6

Undefined l-7 Undefined l-8 Undefined

DIP Switch Set 2

1 Undefined

2-2 Print column selection

2-3 Handshaking (busy condition)

2-4 Reserved. 2-5 2-6 2-7 Undefined 2-8

Function

9 font/9 X 9 font

Settings must not be changed. Settings must not be changed.

nInit reset signal Fixed to ON.

the

settings of DIP

Enabled

40 bytes

ON OFF

42CPL/35CPL

Receive

buffer full

When

switches

OFF

Disabled 4K

bytes

40CPL/33CPL

Off-line or

receive buffer full

A CAUTION:

not

change the settings of switch

Replace

1-22 Setting

the

DIP switch cover and secure it

the Printer

2-4, 2-5, 2-6 and 2-8.

with

the screw.

Note:

attach the

the

cover

DIP switch cover, insert

leftward,

shown

the

cover upward

the

illustration below.

then

Adjusting the Paper Roll End Sensing Position

The paper near end detector detects when the paper is almost gone by measuring the diameter of the paper roll. Software programs can use the

ESC

4 command to stop printing when the paper is almost gone.

If you want to change the amount of paper remaining when the printer stops printing, follow the steps below to adjust the paper near end detector.

slide

,%Note:

the

inner diameter of

inch),

the

paper roll near-end detector may not work properly.

1. Open the printer cover and remove the take-up spool.

Determine the point on the paper roll at which you want the near-end detector to be triggered. Then measure the distance A shown in the

illustration.

the

paper roll core is less

Setting Up the Printer

than

10 mm

(0.39

1-23

Distance A

Notes:

There may be some difference between

the

actual sensing position.

and

Find the corresponding adjustment position number from

the

measured distance A

the

table below.

Distance A

10 mm (0.39 inch) 8 mm (0.32 inch) 6 mm (0.24 inch)

mm (0.16 inch)

mm (0.08 inch)

Loosen the detector screw with a coin or screwdriver.

Set the detector scale to the position you determined from the table by

moving the detector screw up or down. The numbers not marked on

Detector scale

the

detector scale. Use the illustration below for reference.

Adjustment position number

#2 #3

#4 #5

#1, #2, #3...

Detector scale

are

1-24

Secure the detector screw; then replace the take-up spool and close the printer cover.

Setting Up the Printer

Using

the

Power Switch Cover

You can use the provided power switch cover to protect the power switch from accidental or improper operation. Attach the cover as shown in the

illustration below.

You can turn the power on or off with the switch cover attached by inserting a pointed object (like a ball point pen) through either of the two

small holes on the switch cover.

Push to attach the cover.

If an accident attached, unplug the immediately.

occurs

when

the

power

power supply

Setting Up the Printer

switch cover

cord

from

the outlet

1-25

Chapter 2

Using the Printer

2-1

Operating the Control Panel

The control panel has two buttons and four lights.

Buttons

The control panel buttons perform paper feeding and release functions.

PAPER FEED

Press the PAPER FEED button once to advance paper one line. You can also press the

PAPER FEED

button continuously to feed the paper continuously.

RELEASE

Press

the

RELEASE button to release the paper clamp.

lndicator lights

The control panel lights provide information on printer conditions.

POWER (green)

The POWER light is on when the printer power is on.

ERROR (red)

The

ERROR

light is on or is flashing when the printer is not ready to print.

The ERROR light is on under the following conditions:

When you first turn on the printer or after you reset the printer using the interface. The ERROR light goes off after the printer is initialized.

When the printer cover is open. Close the printer cover if this is the case.

l When the printer stops printing because it senses the paper roll end.

Install a new paper roll if this is the case.

2-2 Using the Printer

Slip

Paper Handling

Use only slip paper (flat paper without wrinkles, creases, or folds) that matches the specifications.

Note:

Be sure to install the paper

print only on slip paper. This will prevent paper jams.

Send the appropriate control commands from the computer to print on slip paper.

When the VALIDATION/SLIP light flashes, insert a slip into the slip paper inlet as shown in the illustration below.

Make sure you insert the slip paper into the inlet as far as it will go.

roll

in the printer, even if you plan to

The paper will automatically be drawn in and printing will begin.

Note:

When the

application software), remove the paper from

VALIDATION/SLIP

light

flashes

(this depends

the

paper

Validation Paper Handling

Use only validation paper (flat paper, without wrinkles, creases, or folds)

that matches the specifications.

Note:

Be sure to install print only on validation paper.

2-4 Using the Printer

the

paper roll in

the

printer, even

This

will prevent paper jams.

on the

path.

you plan to

1. Send the appropriate control commands from the computer to print on validation paper.

2.When the VALIDATION/SLIP light flashes, insert a sheet of validation

paper into the validation paper inlet (see the illustration below); printing will then begin.

Make sure you insert

Note:

When the

application software), remove

VALIDATION/SLIP light flashes (this depends on the

the

validation paper into the inlet as far as it will go.

Replacing the Paper Roll

To change the paper roll, follow the steps below.

Cut the journal paper on the cutter; then remove the take-up spool.

the

paper from

the

paper

path.

Using the Printer 2-5

Pull out the paper roll and cut the paper, as the illustration below.

Press the PAPER LOAD switch and remove the paper in the direction of the arrow, as the illustration below.

LOAD switch

PAPER

Never pull

Reinstall a new paper roll by following the steps in

Roll

in Chapter 1.

out

the

paper roll manually.

Replacing the Ribbon Cassette

Never opposite direction of the arrow marked on the cassette; otherwise the ribbon cassette may be damaged.

Be sure the printer replace a ribbon cassette; otherwise

Note:

Use

2-6 Using the Printer

turn the

the

EPSON-ERC-38 ribbon cassette for your printer.

ribbon cassette’s feed

is not

receiving data when

Installing

knob in the

you

data

may be

the Paper

lost.

Note:

Qsh

There

are two ways to replace

printer off and on again before installing or removing

cassette, making sure

(When

you turn off

is lost.) The

other

that

the

printer power, data sent from

is to open

the

data

sent

the

printer cover and press

RELEASE button before installing or removing

Both

ways cause

and

the

paper clamp to release. If one of

ribbon

might

the

print head to move to

not be inserted or removed correctly.

Removing the ribbon cassette

Turn the printer power off and on again; then open the printer cover.

Grasp the ribbon cassette’s tab on the left side, lift the left side out first, and then pull the cassette out of the printer, as shown in the illustration below.

ribbon cassette. One is to turn

the

ribbon

from

the

computer is not lost.

the

computer

the

ribbon cassette.

the

center of

these

ways is not used,

the

printer

the

Tab-

Using the Printer

2-7

Installing the ribbon cassette

Turn the ribbon cassette’s knob two or three times in the direction of the arrow, to take up

Insert the ribbon in the position as shown below, and push the ribbon cassette into the printer until it clicks. Then rotate the cassette’s knob two or three more times. This is necessary to place the ribbon in the correct position.

any

slack in the ribbon.

or 3 times

Using the Printer

2-8

Make sure that the ribbon is installed between the print head and the ribbon mask without wrinkles or creases, as shown below.

Print head

Note:

Remove

printer for a long time.

the

ribbon cassette from the printer when you store the

Using the Printer 2-9

Chapter 3

Troubleshooting

Troubleshooting 3-1

Troubleshooting

Read this section if you have a printer problem.

General problems

The lights on the control panel do not come on.

Make sure that the power supply’s DC cable is properly plugged into the printer’s power connector.

Make sure that the power supply’s power cord is properly plugged in the AC inlet of the power supply.

Make sure that the power supply’s power cord is properly plugged into the electrical outlet.

Printing problems

The ERROR light is on (not flashing) and nothing is printed.

If the JOURNAL OUT light is on:

The paper roll is not installed, or the paper roll is nearly or completely

depleted. Install a new paper roll in the printer.

Roll

in Chapter 1.

the JOURNAL OUT light is off:

Make sure that the printer cover is properly closed.

The ERROR light is flashing and the printer does not print.

First, turn off the printer and check for a paper jam. (See the paper jam description on page 3-4.)

3-2 Troubleshooting

See

Installing

the Paper

If there is no paper jam and the printer has been printing for quite a while, the print head may be overheated. If the print head is overheated, the printer will resume printing when the head has cooled (usually within two

or three minutes).

If there is no paper jam and the print head is not overheated, turn off the printer and turn it back on after about 10 seconds. If the printer still does not work, unplug the power supply cord from the outlet immediately. Then contact a qualified service person.

The ERROR light is off but nothing is printed.

Try to run the self-test to make sure that the printer works properly. See

Self-test later in this section. If the self-test does not work, contact your

dealer for assistance.

If the self-test works properly, check the following:

Check the connection at both ends of the interface cable between the printer and the computer. Make sure that this cable meets the specifications for both the printer and the computer.

The data transmission settings may be different between the printer and the computer. Make sure that the printer’s DIP switch settings for data transmission are the same as the interface settings using the self-test. See

computer's.

Running the

You can print the printer’s

Self-test

in Chapter 1.

If the printer still does not print, contact your dealer for assistance.

The printer sounds like it is printing, but nothing is printed.

The ribbon cassette may not be installed properly. See

Ribbon Cassette

in Chapter 2.

Replacing the

The ribbon may be worn out. Replace the ribbon cassette as described in

Replacing the Ribbon Cassette in Chapter 2.

Troubleshooting 3-3

4. Cut the paper roll.

Remove the paper jam while pulling the release lever toward you, and pull the paper out in the direction of the arrow as shown in the

illustration below.

Notes:

Q?l

1..

Never pull out the jammed paper in the opposite direction from

the ejection side

Pull out

make sure you remove any remaining pieces.

Press down the print head cover after confirming that the print head is at the center of the printer. If the print head is not at the center of the printer, bring it to the center by holding the base of the print head.

the

Release lever

Left side of the printer

the printer.

paper gently in the paper feeding direction, and

Troubleshooting

3-5

Close the print head cover. The cover clicks when it is closed securely.

Install the ribbon cassette, following the steps in Replacing the Ribbon

Cassette

Install the paper roll, following the steps in Chapter 1.

10. Close the printer cover.

The remaining amount of paper roll is not detected correctly.

If a paper roll with a red end mark at the paper end is used, the mark may cause the paper to stick together. If this occurs, the paper roll near-end detector may not work properly. (See

Sensing Position

in Chapter 2.

in Chapter 1.)

Installing

Adjusting the Paper Roll End

the Paper Roll in

Hexadecimal Dumping

This feature allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hex dump function, the printer prints all commands and other data in hexadecimal format along with a guide section to help you find specific commands.

Starting hexadecimal dumping

Open the printer cover and turn on the power while pressing the PAPER FEED button, then close the cover. The printer first prints “Hexadecimal

Dump” on the paper roll, and prints the data received thereafter in hexadecimal numbers and their corresponding characters.

Notes:

Q&L

3-6 Troubleshooting

“. ”

is printed if no character corresponds to the

Control commands are printed in bold for emphasis.

During hexadecimal dumping, all commands except

and

DLE ENQ

are disabled.

data

received.

DLE EOT

If there is insufficient print data to fill one line (such as at the end of a hexadecimal dump), the data will not print.

(This means that 8-byte data is required to print on one line.) remaining data in this case can be printed by placing the printer in off-line mode by opening the cover or pressing the PAPER

FEED button.

The

Example

inting

Hexadecimal Dump

21 001B 26

lB2.5 01

41 42 4344 45

024040:

lB63

34001B:.%..c4.. 464748:

.!..&@@

ABCDEFGH

Ending hexadecimal dumping

End hexadecimal dumping by turning off the power or by resetting the printer after printing completes.

Troubleshooting 3-7

Chapter

Reference Information

Reference Information 4-1

Printing Specifications

Printing method: Head wire layout:

Serial impact dot matrix Serial type 9-pin 1/72 inch

Printing direction:Bidirectional, minimum distance printing (logic seeking) Printing speed:

Approximately 3.5

LPS (40 columns,16 CPI, continuous printing) Approximately 5.4

LPS (20 columns,16 CPI, continuous printing) (LPS: Lines Per Second;

Note:

During

excessive

the

actual printing

use, printing stops to protect the print head.

speed

may be slower than that listed above.

CPI:

Characters Per Inch)

Characters per line: See the table below. Characters per inch: See the table below.

Character Specifications

Number of characters:

Character structure:

Character size:

Alphanumeric

: Extended graphics: (space pages included) International:

9 (total horizontal dot positions: 400 half dots)

9 (total horizontal dot positions:

5 See the table below.

128

In this case,

X 8

(tables)

200

dots)

4-2 Reference Information

(*)

Default font is 7 X 9.

Paper Specifications

Paper feed method: Paper feed pitch:

Friction feed

l/6

inch (default)

Programmable in units of

1/144

inch by using

commands.

Paper feed speed:

Approximately 2.67

IPS

(16 LPS)

(continuous paper feeding)

Paper size:

a) Paper roll

Paper width:

0.5 mm (2.99" ?

.02")

Outside diameter:

l Single-ply paper: Journal paper only:

(with take-up flange diameter of Receipt paper only:

l 2-ply paper:

Inside diameter:

83 + 0 mm (3.27") or less (lower paper must be taken up)

(.39")

10 mm

or more

60 + 0 mm (2.36") or less

75 mm (2.95"))

83 + 0 mm (3.27") or less

@ Normal paper

Paper thickness: Single-ply paper:

(.OO24

0.06 to 0.085 mm

.0033")

@ Multi-ply paper

(.0020

.0031")

(.0063")

per sheet or less

Paper thickness:

0.05 to 0.08 mm Total thickness: 0.16 mm

Maximum number of sheets:

2 (1 original

1 copy)

Recommended paper: Mitsubishi Paper Mills Co., no-carbon paper (blue)

N4OHi

Upper sheet: Lower sheet:

Cut sheets:

(thickness: 0.06 mm (.0023"), weight: 47.2

N60

(thickness: 0.08 mm (.0031”), weight: 68.0

Slip/validation paper

(Use cut sheet with a paper roll loaded.)

Paper types: Paper size (W X

@ Slip paper:

Normal, pressure sensitive, and carbon copy paper

L):

160

70 to 182 mm

6.30 to

10.12")

(maximum 58 lines at 4.23 mm

to 257 mm (2.76 to 7.17"

(.17")

pitch)

@ Validation paper: 135 to 182 mm X 70 to 257 mm (5.3 1 to 7.17"

2.76 to 10.12") (.17")

(maximum 16 lines at 4.23 mm

pitch)

g/m2)

l Single-ply paper (without copy paper)

Thickness:

0.09 to 0.12 mm

(.0035

.0047")

Reference Information 4-3

l Copy paper

Thickness: Backing paper:

Copy and original paper:

Carbon copy paper:

Total thickness:

Example: Original

Original paper: Carbon copy paper: Copy paper: Backing paper: Roll paper:

2-ply copy

0.04

mm (.0016")

0.07 mm

0.04

mm (.0016")

0.07

mm (.0028")

0.08

mm (.003

0.07 to 0.12 mm (.0028 to

0.04

(.0016

.0047")

to 0.07 mm

to. 0028") Approximately 0.035 mm (.00138")

0.09 to 0.31 mm (.0035 to (roll paper thickness included)

(.0028")

(0.035 mm

(.0014")X2

1")

.012")

sheets)

Total thickness:

0.30

mm (.0118")

Copying capability:

As copying capability is influenced by the ambient temperature, printing must be performed under the conditions described in the table below.

Relationship between Ambient Temperature and Number of Copies

Number of Copies

Original

2-ply copy

Original + l-ply copy 5° to 40°C (41° to

Notes

on using

l Use cut sheets with a paper roll loaded. l Use cut sheet that is flat, without curls, folds, warps, or wrinkles, especially at

cut sheets

Ambient Temperature

10°

40°C (50°

to 104°F)

104°F)

the paper end. Otherwise, the paper may become ink stained or the ribbon

may get caught in the printer mechanism. Especially slip paper with curls at the paper end may cause character misalignment within the area about 17 mm

l Glue must not be on the bottom edge of slip paper. It is desirable that the

(.67")

from the paper edge.

glue should be on the top edge of slip paper. Choose slip paper carefully

when the glue is on the right or left edge of the slip paper, since paper feeding

and paper insertion are affected by gluing conditions (e.g., glue quality,

method, and length) and glue location (refer to the figure in the next page).

Be careful especially when slip paper is wide and has the glue on the right or

left edge, since meandering may occur.

4-4 Reference Information

Do not use

Use carefully

Paper feeding direction

Glue Location of Slip paper

Cut sheets with holes (e.g., sprocket holes) within the areas shown in the figures below must not be used. Otherwise, the paper cannot be detected by the paper detector. Paper that is translucent must not be used.

Validation paper

: Holes

are prohibited in

this area.

Inserting direct1

Srnrn(.3z?)

6 3

Slip paper

lOmm(.98”)

: Holes

are

prohtbited

Inserting

direction

1‘

sure to disable paper-end

detection (using ESC c

before printing.

Glued

in this

area

l Use of multi-ply copy paper with a thick middle sheet may decrease copying

capability.

l Printing noise may change depending on paper thickness. Noise may

increase when thick single-ply paper is used.

Reference Information

4-5

Environmental Specifications

Temperature:

Operating: 5° to 40°C (41° to 104°F) Storage:

Humidity:

Operating: 20 to 80%RH (see the range in Figure A.10 below, for 30°C (86°F) and above, without condensation) Storage: 20 to 90%RH (excluding paper and ribbon, without condensation)

Vibration resistance:

When packed:

Impact resistance:

When packed:

When unpacked:

- 10° to 50°C (14° to 122°F) (excluding paper and ribbon)

Frequency: 5 to 55 Hz

Acceleration: 2 G Sweep:

Time:

Directions: No external or internal damage should be found after the vibration test, and the printer should operate normally.

Package: Height: Directions: No external or internal damage should be found after the drop test, and the printer should operate normally.

Height:

Directions: A non-operating printer should not be damaged after it is dropped (for all 4 edges).

10 minutes (half circle) 1 hour

X, Y, and Z

Epson standard package

60 cm (23.62")

5 cm (1.97")

Lift one edge and release it (for all 4 edges)

temperature

1 corner, 3 edges, and 6 surfaces

Reference Information 4-7

terface

Acoustic noise:

Operating:

Specifications

Approx. 65 dB or less (Bystander position,

receipt/journal

printing)

Serial interface: Parallel interface:

Note:

Refer

RS-232 compatible

IEEE 1284 compatible (Nibble/Byte Modes)

the

EPSON

TM-U375/U375P

Printing on Cut Sheets

Use

the

following

Step

Host

Transmit the

command.

Insert the paper. Detects the cut sheet and turns on the

Transmit data and Prints the data and feeds the paper.

commands. Transmit the FF After printing, ejects the paper and selects paper roll

command.

procedure

Operation

ESC c

0 Switches to cut sheet mode and waits for a cut sheet to

Specification for details.

to print on slip or validation paper.

Printer

be loaded, according to the time set by the

command. The VALIDATION/SLIP light blinks.

VALIDATION/SLIP light.

When using slip paper, detects the slip after the set

(t2)

time enters the slip waiting state. When the slip paper is detected, feeds the slip as far as the print start position, then redetects the slip and waits for the print data. If the slip is not detected after feeding the paper, re-enters the slip waiting state. When using validation paper, detects the paper after the set time detected, re-enters the validation paper waiting state. When the validation paper is detected, waits

for the print data.

If no cut sheet is inserted within the set time

switches from cut sheet mode to paper roll mode

automatically.

mode. Turns off the VALIDATION/SLIP light.

Operation

ESC f m

has passed. If the slip is not detected, re-

(t2)

has passed. If the paper is not

(t-1),

4-8 Reference Information

Notes:

When

printing on a single cut sheet that is narrower carriage movement range, once the printer has been put in the cut sheet mode and the sheet

following operations

supply home command

jam.

switch

on or

off,

(ESC <),

the

interface.

When the

come in contact

The cut

command.

Use Example Print Control

carriage moves away from

with the left

sheet

waiting state can be canceled by

the

ASB function to correctly determine

should

of paper has

be avoided: turning

opening

for

the

or sending a reset command

end of

Cut

Sheet

been inserted,

the

cover, issuing

the home

the

paper, causing a paper

later in

position, it may

the DLE ENQ

the

paper state. See

this

section.

power

the

than

return

through

the

Reference Information 4-9

Example print control for cut sheet

1) Enables

2) Enables

3) Receives ASB due to 2).

4) Selects slip printing.

5) Waits for slip paper to be selected.

6) Waits for slip paper to be inserted.

7) To cancel the slip paper waiting state, send

8) Waits for the slip to

printing

stop due to slip paper-end.

ASB

for all status changes.

ASB:

waits for slip paper selection

4-0*)

to be “selected” (0). *Indicates bit 0

of the fourth byte of the ASB data. The

same rule applies correspondingly to the

following:

ASB:

wait for cut sheet sensor (ASB

to be “paper p”

DLE ENQ 3. When canceled, the printer returns to paper roll mode, and the 4 bytes of are transmitted. ASB: slip paper state “not selected” (1).

ASB:

waits for the slip paper state

4-l) to be “printable” (0).

(0).

(ASB 4-l)

loaded.

(ASB

ASB

becomes

(ASB

3-5)

4-10 Reference Information

9) Transmits each line of print data until there is no data to be transmitted. In this case, paper has run out. ASB: “not printable” (1). Advances to step been sent.

10)

Ejects the slip paper.

ASB

is transmitted when the

slip paper state (ASB

10)

when all the data has

4-l)

becomes

When

printing on a single cut

carriage movement range, once cut

sheet

mode and

following operations

supply

switch

home

command interface. When the come in contact

jam.

2. The command.

Use

Example Print Control for Cut

carriage moves away from

cut

sheet

waiting state can be canceled by

the

ASB function to correctly determine

on or

(ESC),

with the left

the sheet of

should

off,

opening or sending a reset command

sheet that

paper

be avoided: turning

end of

Sheet

is narrower

the

printer

the

cover, issuing

the

later in

has

been inserted,

the home

position, it may

paper, causing a paper

the

this

than the

been put in

the

power

the

the DLE ENQ

paper state. See

section.

the

return through the

Transmit Status

Identification

The values of specific bits are fixed in the status information transmitted by the printer, so that the status bytes of commands can be identified. The user can therefore confirm the command to which the status belongs, as

shown in the following table. When using Auto Status Back three-byte code (except for XOFF) as byte of the

ASB.

Otherwise, the status transmitted by using the command

and the status of the second and following bytes of the

(ASB), however, process the consecutive

ASB

data after confirming the first

ASB

differentiated.

Command

ESC u ESC v GSI GS r XON <00010001>B XOFF DEL EOT ASB

(1st byte)

ASB (2nd

byte-4th byte)

Status Replay

<O**O****>B <O**O****>B <O**O****>B <O**O****>B

<0001001 <O**l**lO>B <0**

**OO>B

I>B

<O**O****>B

cannot be

Reference Information 4-11

Notes On Number of Printable Columns

When DIP switch 2-2 is set to ON to increase the number of printable columns, the number of dots and the printable area is as shown below. The

OFF setting is shown for comparison.

Number of Horizontal Dots/Character

Printable Area/Line

c*:)

t*c)

DIP switch 2-2 setting

OFF ON

7 X 9 Font 5 X 9 Font

(*) The 5 X 9 font uses 6 normal dots for one character, but the printer

processes the data as 12 half-dots in the print buffer. Therefore, in this case the printer processes the data as 11 half-dots for one character.

There are restrictions when DIP switch 2-2 is ON, as follows:

1) The printable area for one line is decreased. Setting DIP switch 2-2 to ON increases the number of printable

columns per line but decreases the printable area for one line. Be sure to note the end position of a line and the number of dots for bit-images.

400

385

2) The 10th dot is not printed in the 7 The 7

9 font uses 10 half-dots for one character. However, when

9 font.

DIP switch 2-2 is ON, the printer does not print 10th dot, since the number of printable dots in this setting is 9 and the 10th byte is truncated. Therefore, the 10th dot in some characters is not printed during extended graphic character printing.

This applies to the character for which dots are defined for the 10th byte.

3) The printing results may differ even if the same data is printed. The printer cannot print horizontally adjacent dots. Therefore, the printing results may differ even if the same character codes are transmitted, since the dots placed on the borderline between characters differ depending on the DIP switch

2-2

setting. Particularly in line

drawings, a line may be broken when DIP switch 2-2 is ON.

4-12 Reference Information

Epson TM-U375 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Features

About This Manual

Setting up and Using

Reference

Notes, Cautions, and Warnings

Contents

Unpacking

Removing the Protective Materials

TM-U375P

Connecting the Printer to Your Drawer

Connecting the Printer to Your Direct Connection Display

Grounding the Printer

Connecting the Power Supply

Running the Self-test

Running the self-test with paper roll

Running the self-test with the slip paper

Running the self-test with validation paper

Setting the DIP Switches

TM-U375 DIP-switch functions

TM-U375P DIP-switch functions

Adjusting the Paper Roll End Sensing Position

Operating the Control Panel

Buttons

lndicator lights

Validation Paper Handling

Replacing the Paper Roll

Replacing the Ribbon Cassette

Removing the ribbon cassette

Installing the ribbon cassette

Troubleshooting

General problems

Printing problems

Hexadecimal Dumping

Starting hexadecimal dumping

Ending hexadecimal dumping

Printing Specifications

Character Specifications

Paper Specifications

Environmental Specifications

Printing on Cut Sheets

Example print control for cut sheet

Notes On Number of Printable Columns
