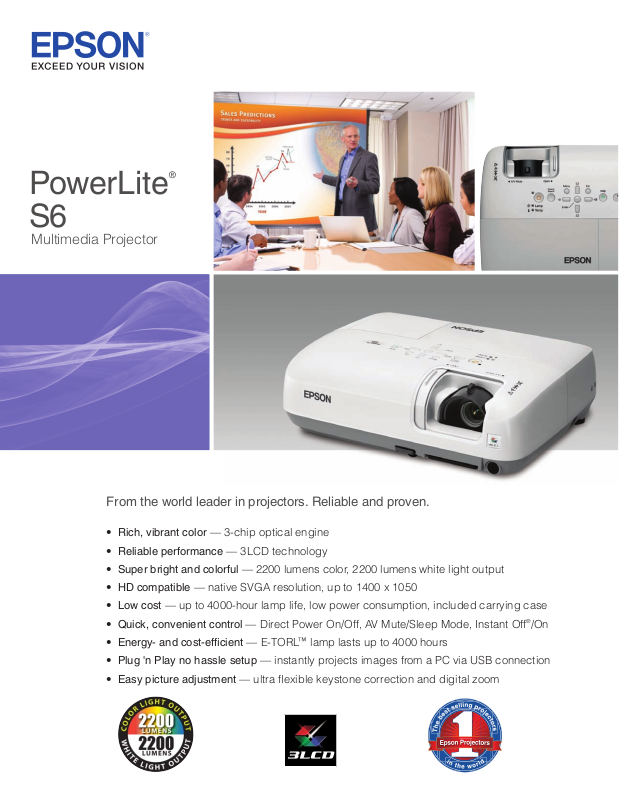

Epson S6 User Manual
PowerLite
S6
Multimedia Projector
®
From the world leader in projectors. Reliable and proven.
• Rich, vibrant color — 3-chip optical engine
• Reliable performance — 3LCD technology
• Super bright and colorful — 2200 lumens color, 2200 lumens white light output
• HD compatible — native SVGA resolution, up to 1400 x 1050
• Low cost — up to 4000-hour lamp life, low power consumption, included carrying case
• Quick, convenient control — Direct Power On/Off, AV Mute/Sleep Mode, Instant Off
• Energy- and cost-efficient — E-TORL
• Plug 'n Play no hassle setup — instantly projects images from a PC via USB connection
• Easy picture adjustment — ultra flexible keystone correction and digital zoom
™
lamp lasts up to 4000 hours
®
/On
PowerLite S6
Multimedia Projector
ORDERING INFORMATION
Product Name Product Code UPC
PowerLite S6 V11H283420 010343 87073 4
Replacement Lamp V13H010L41 010343 86410 8
Replacement Air Filters V13H134A13 010343 86412 2
Audio L/R
Computer Component 1S-video
USB (Type B)
Speaker Anchor Bar
Composite
Power
Monitor Out
Video
BACK PANEL
SPECIFICATIONS
Projection System
Epson 3LCD, 3-chip optical engine
Projection Method
Front/rear/ceiling mount
Driving Method
Epson Poly-silicon TFT Active Matrix
Pixel Number
480,000 dots (800 x 600) x 3
White Light Output**
2200 lumens (ISO 21118 Standard)
Color Light Output**
2200 lumens
Aspect Ratio
4:3
Native Resolution
800 x 600 (SVGA)
Resize
640 x 480 (VGA), 1024 x 768 (XGA),
1152 x 864 (SXGA), 1280 x 800 (WXGA),
1440 x 900 (WSXGA), 1400 x 1050 (SXGA+)
Lamp Type
170 W UHE
Lamp Life*
Up to 4000 hours (Low Light Output Mode)
Up to 3000 hours (High Light Output Mode)
Throw Ratio Range
1.5 – 2.0
Size (projected distance)
30" – 350" (0.87 – 10.5 m)
Keystone Correction Manual
Vertical:
± 30 degrees
Plug 'n Play
Projector is Mac compatible via DVI to VGA
adapter (not included).
Contrast Ratio
2000:1
* Lamp life results will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
** Light output varies depending upon modes (color and brightness) selected.
Color Reproduction
16.77 million colors
PROJECTION LENS
Type
Digital zoom/Manual focus
F-number
1.44
Focal Length
16.6 mm
Zoom Ratio
Digital zoom 1.0 – 1.35
OTHER
Display Performance
NTSC: 560 lines
PAL: 560 line
(Depends on observation of the
multi-burst pattern)
Input Signal
NTSC/NTSC4.43/PAL/M-PAL/N-PAL/
PAL60/SECAM
Interfaces
Computer/component video:
D-sub 15 pin x 1
S-video: Mini DIN x 1
Composite video: RCA (Yellow) x 1
Audio in: RCA x 1 (White/Red)
USB connector: Type B x 1
Monitor out: D-sub 15 pin x 1
Speaker
1 W (Mono)
Operating Temperature
41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
Power Supply Voltage
100 – 240 V ±10%, 50/60 Hz
Power Consumption
246 W, 3 W standby
Fan Noise
35 dB (High Light Output Mode)
28 dB (Low Light Output Mode)
Security
Kensington
Password protect function
DIMENSIONS (W X D X H)
Including feet: 12.9" x 9.6" x 4.0"
Excluding feet: 12.9" x 9.6" x 3.6"
Weight: 6.0 lb/2.7 kg
REMOTE CONTROL
Features
Source search selection, power, volume,
e-zoom, A/V mute, freeze, menu, page up
and down, help, auto, mouse functions
Operating Angle
Right/left: ± 30 degrees
Upper/lower:
Operating Distance
19' (6 m)
SUPPORT — THE EPSON CONNECTION
Pre-sales support
U.S. and Canada 800-463-7766
Internet website www.epson.com
Service Programs
Two-year projector limited warranty, Epson
Road Service program, Epson PrivateLine
dedicated toll-free support and 90-day lamp
warranty
What’s In The Box
Power cable, computer cable (VGA),
USB cable, soft carrying case, projector
remote control, batteries, user manual CD,
Quick Setup Sheet, PrivateLine support
card, registration card and password
protection sticker
®
-style lock provision,
± 15 degrees
ACCESSORY PART NUMBERS
Universal projector ELPMBPJF
ceiling mount
Component to VGA video cable ELPKC19
S-video cable ELPSV01
SwissGear® backpack ELPKS63
Wheeled soft case ELPKS62
Soft shoulder case for
projector and laptop ELPKS61
Molded hardshell case ELPKS58
50" portable screen ELPSC06
60" portable pop-up screen ELPSC07
80" portable pop-up screen ELPSC08
Duet™ screen ELPSC80
Epson DC-10s document camera
Kensington security lock ELPSL01
PACKAGING SPECIFICATIONS
PowerLite S6
Dimensions 16.8" x 14.9" x 7.2" (W x D x H)
Weight 11.7 lb
SM
Replacement Lamp
Dimensions 6.3" x 5.5" x 5.6" (W x D x H)
Weight 0.7 lb
Master Carton
Dimensions 28.4" x 13.1" x 6.8" (W x D x H)
Weight 1.1 lb
®
Units Per Master Carton 10
Replacement Air Filter
Dimensions 3.9" x 1.2" x 4.9" (W x D x H)
Weight 0.88 lb
Master Carton
Dimensions 12.3" x 5.3" x 4.7" (W x D x H)
Weight 1.1 lb
Units Per Master Carton 10
ELPDC10S
Epson America, Inc.
3840 Kilroy Airport Way, Long Beach, CA 90806
Specifications and terms are subject to change without notice. Epson is a registered trademark, Epson Exceed Your Vision is a registered logomark, and E-TORL is a trademark of Seiko Epson Corporation. PowerLite
and PrivateLine are registered trademarks, Duet and Plug 'n Project are trademarks, and Epson Connection is a service mark of Epson America, Inc. All other product and brand names are trademarks and/or registered
trademarks of their respective companies. Epson disclaims any and all rights in these marks. Copyright 2008 Epson America, Inc. CPD-26279 8/08 PDF
Epson Canada, Ltd.
3771 Victoria Park Avenue, Toronto, Ontario M1W 3Z5
