Epson L20000UNL, L20002UNL User Manual

Pro L20000UNL/L20002UNL

User's Guide

Pro L20000UNL/L20002UNL User's Guide .............................................................................................. 11

Introduction to Your Projector ................................................................................................................. 12

Setting Up the Projector ........................................................................................................................... 27

Projector Features.............................................................................................................................. 12

Additional Components ................................................................................................................ 13

Additional Projector Software and Manuals................................................................................... 14

Optional Equipment and Replacement Parts................................................................................. 15

Warranty and Registration Information .......................................................................................... 16

Notations Used in the Documentation ................................................................................................ 17

Where to Go for Additional Information .............................................................................................. 17

Projector Part Locations ..................................................................................................................... 17

Projector Parts - Front/Top ............................................................................................................ 18

Projector Parts - Side/Rear............................................................................................................ 19

Projector Parts - Base.................................................................................................................... 20

Projector Parts - Interface Ports .................................................................................................... 21

Projector Parts - Control Panel ...................................................................................................... 23

Projector Parts - Remote Control................................................................................................... 24

Projector Placement........................................................................................................................... 27

Projector Setup and Installation Options ....................................................................................... 29

Installing the Projector in a Mount.................................................................................................. 30

Protecting the Built-in Camera....................................................................................................... 32

Projection Distance........................................................................................................................ 32

Projector Connections........................................................................................................................ 33

Connecting to Video Sources ........................................................................................................ 34

Connecting to an HDMI Video Source ...................................................................................... 34

Connecting to a Component-to-BNC Video Source .................................................................. 35

Connecting to a Component Video Source ............................................................................... 35

Connecting to an SDI Video Source.......................................................................................... 36

Connecting to Computer Sources.................................................................................................. 37

Connecting to a Computer for VGA Video................................................................................. 37

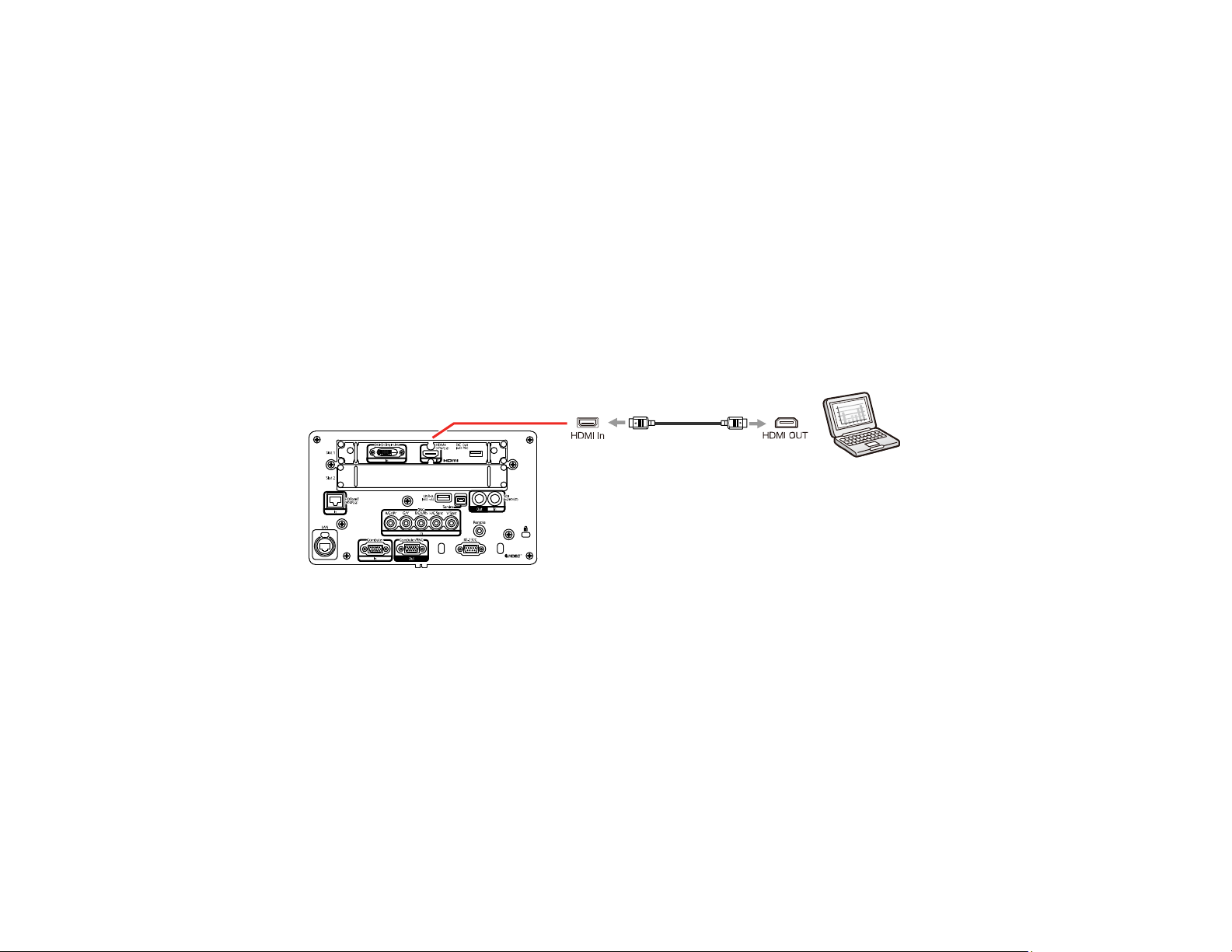

Connecting to a Computer for HDMI Video............................................................................... 38

Connecting to a Computer for DVI-D Video .............................................................................. 38

Connecting to a Computer for 5 BNC Video.............................................................................. 39

Connecting to a Computer for DisplayPort Video...................................................................... 39

Connecting to an HDBaseT Transmitter ....................................................................................... 40

Connecting to an External Computer Monitor................................................................................ 41

Attaching and Removing a Lens......................................................................................................... 42

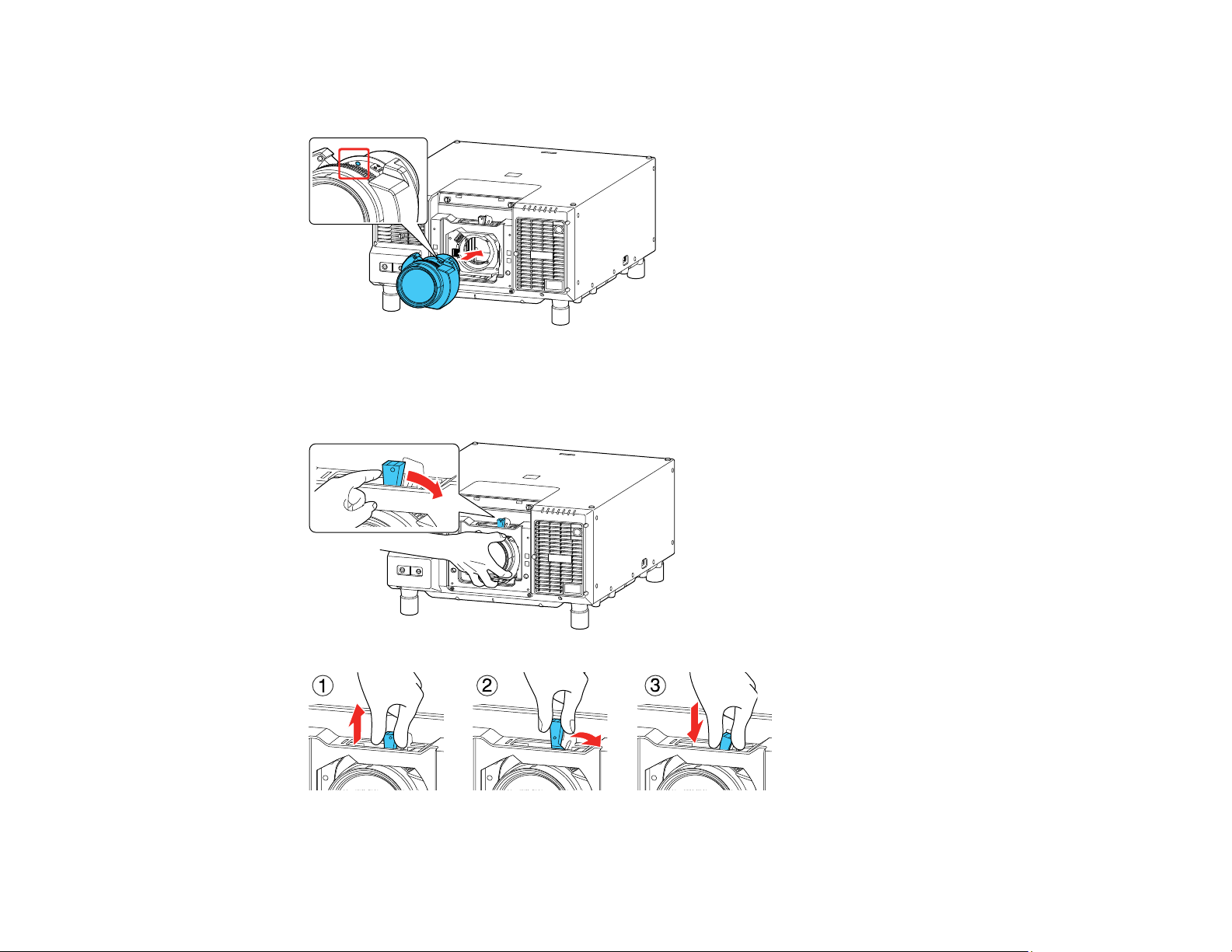

Attaching a Lens ........................................................................................................................... 42

Removing a Lens .......................................................................................................................... 47

Installing Batteries in the Remote Control .......................................................................................... 48

Using the Projector on a Network ............................................................................................................ 51

Wired Network Projection................................................................................................................... 51

Connecting to a Wired Network ..................................................................................................... 51

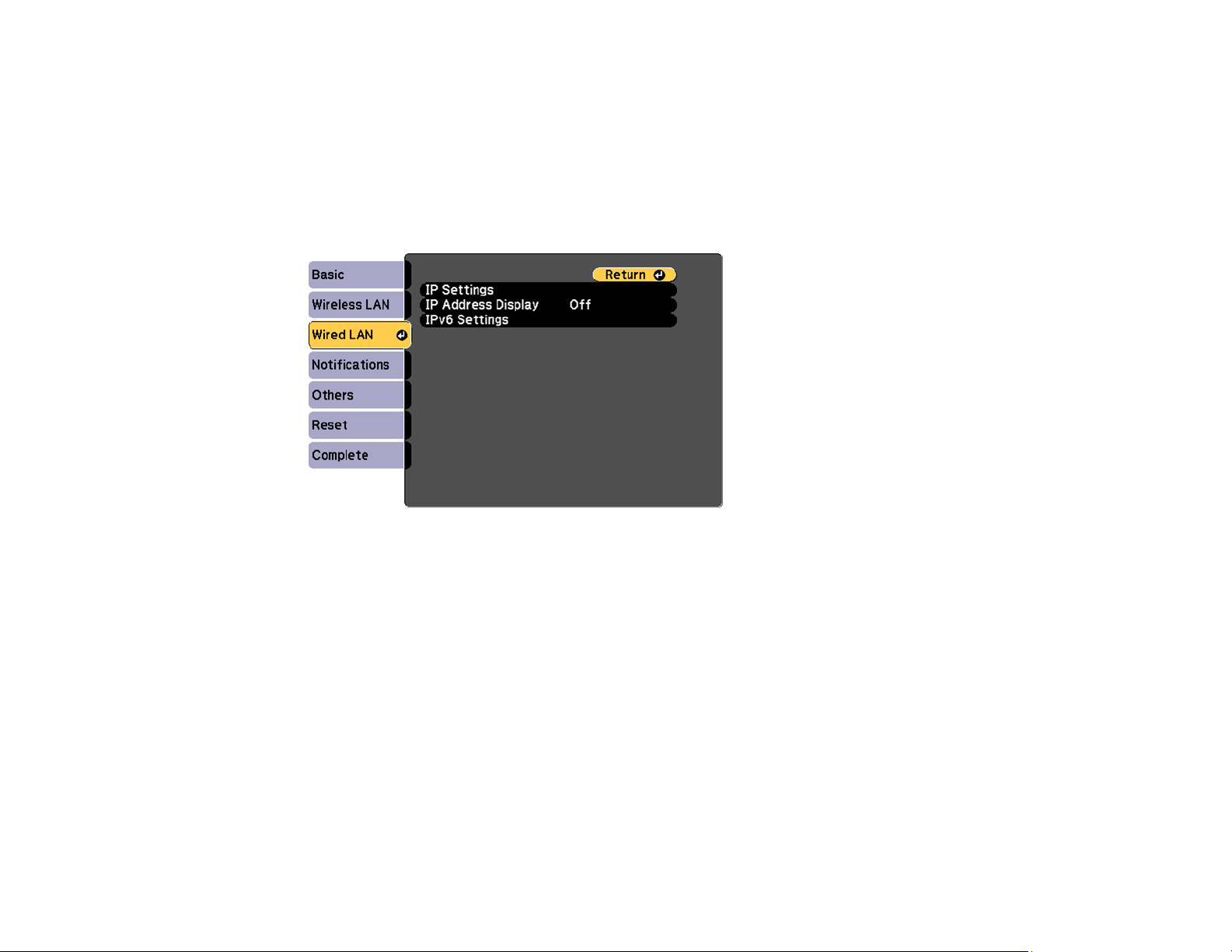

Selecting Wired Network Settings ................................................................................................. 52

Wireless Network Projection .............................................................................................................. 55

Using a QR Code to Connect a Mobile Device .............................................................................. 55

Using Quick Wireless Connection (Windows)................................................................................ 57

Selecting Wireless Network Settings Manually.............................................................................. 58

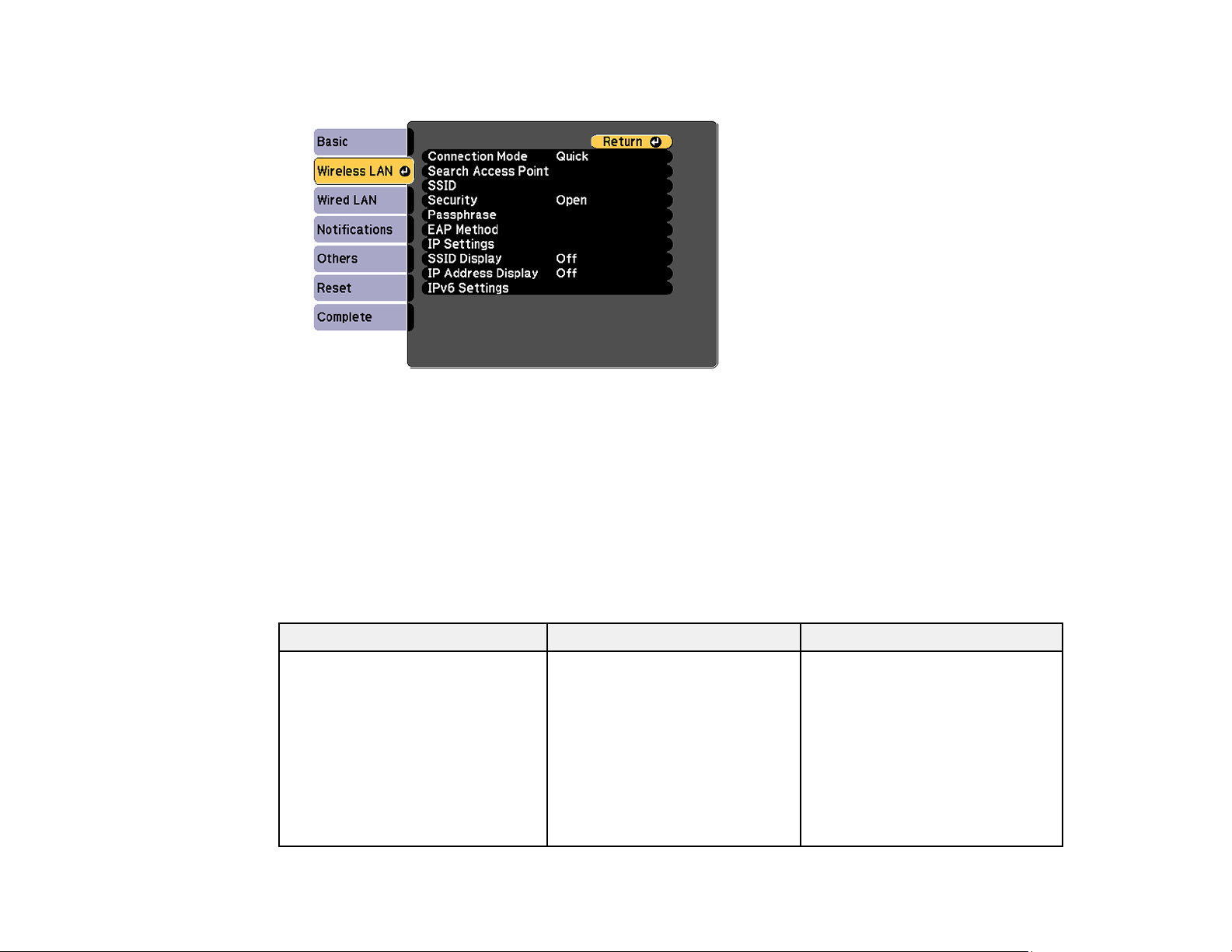

Wireless LAN Menu Settings .................................................................................................... 61

Selecting Wireless Network Settings in Windows.......................................................................... 63

Selecting Wireless Network Settings on Mac ................................................................................ 64

Setting Up Wireless Network Security ........................................................................................... 64

Setting Up Projector Network E-Mail Alerts ........................................................................................ 66

Network Projector E-mail Alert Messages ..................................................................................... 68

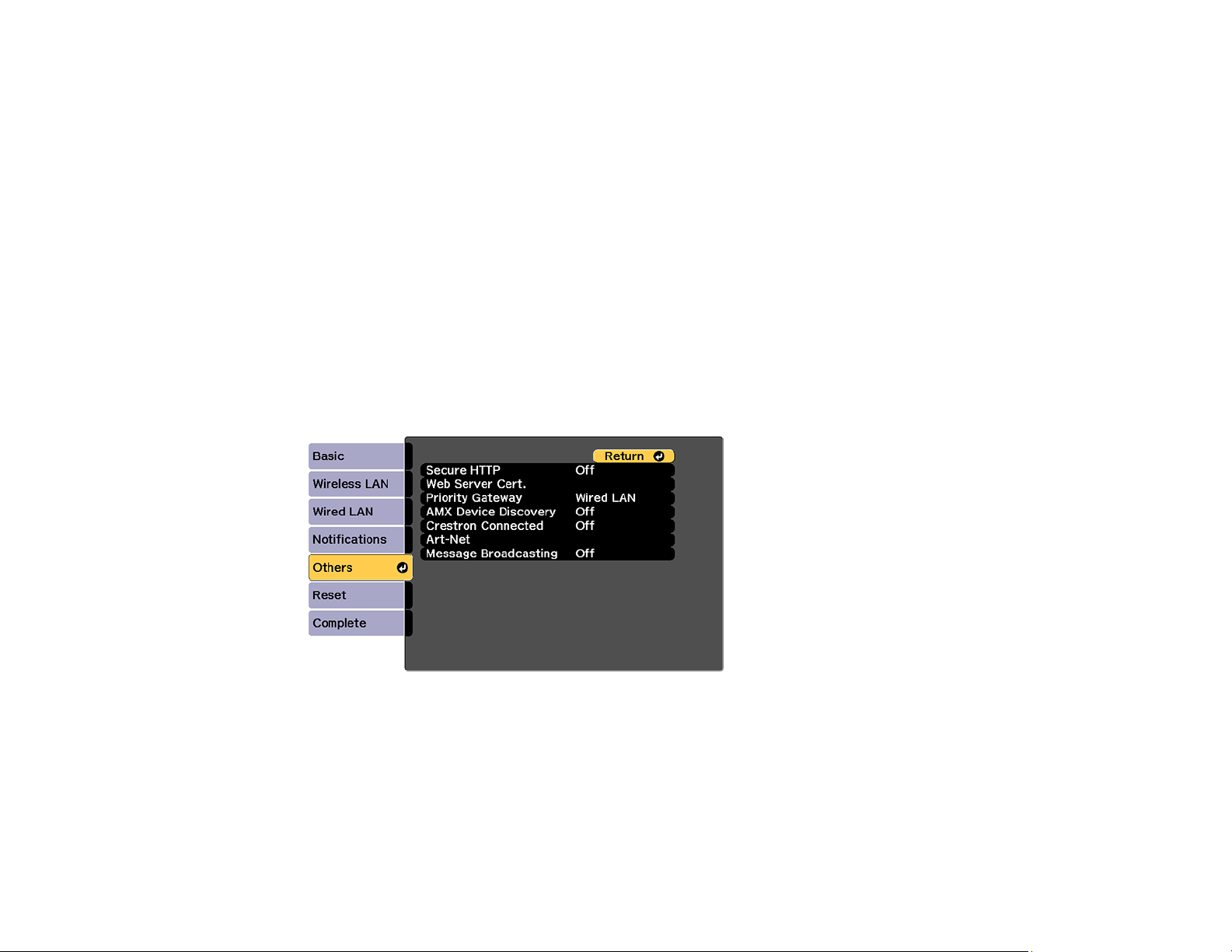

Selecting Other Network Settings....................................................................................................... 68

Setting a Static IP Address on the LCD Screen.................................................................................. 70

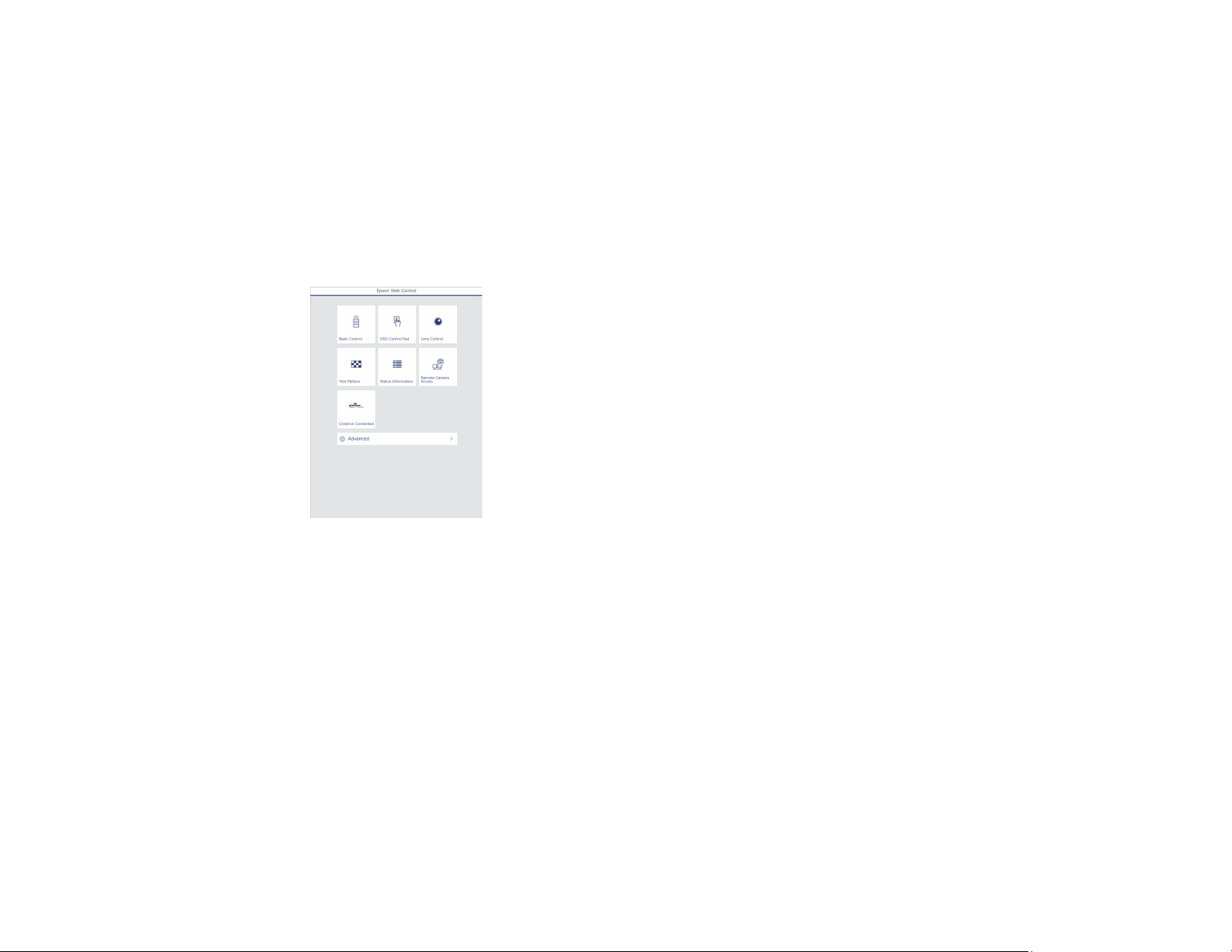

Controlling a Networked Projector Using a Web Browser .................................................................. 71

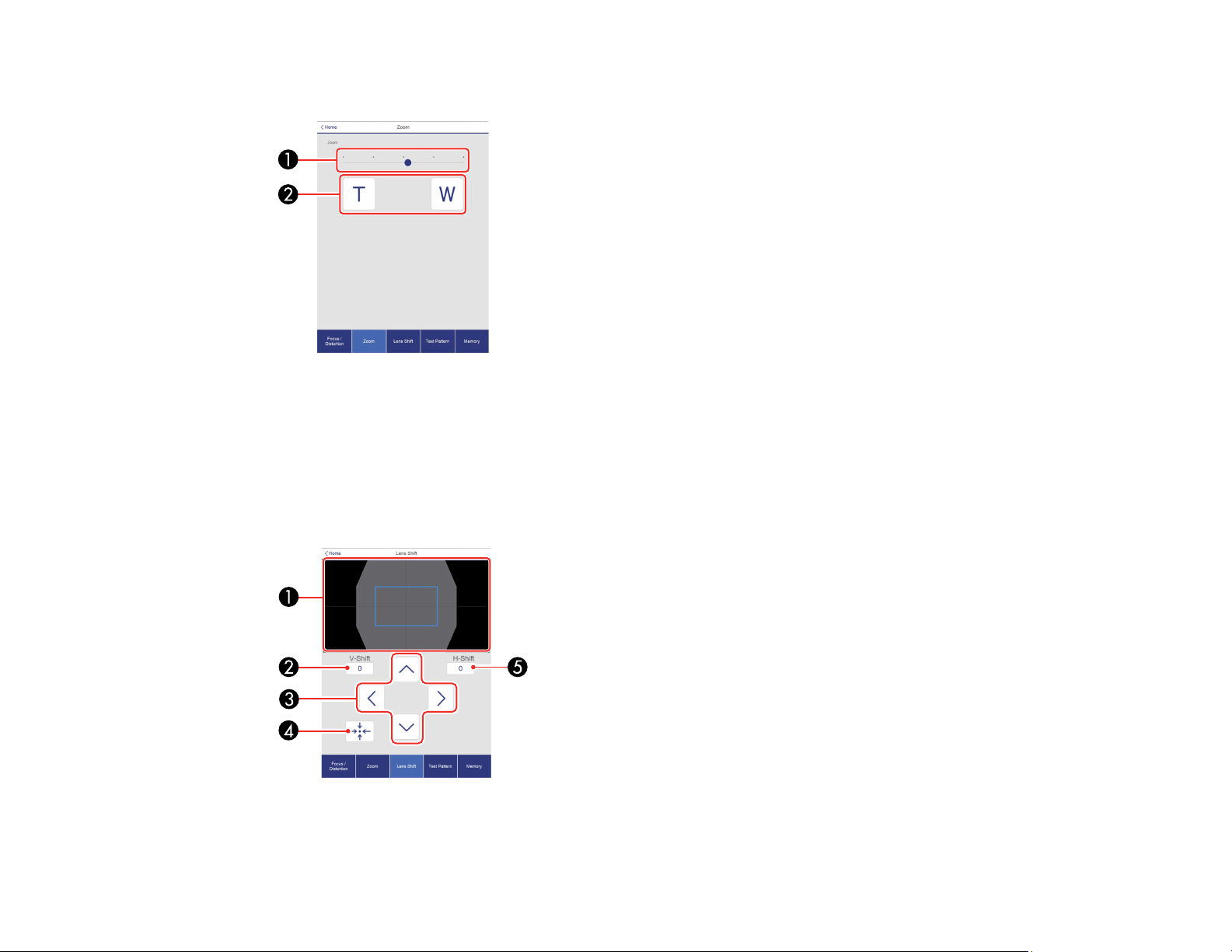

Web Control Options ..................................................................................................................... 73

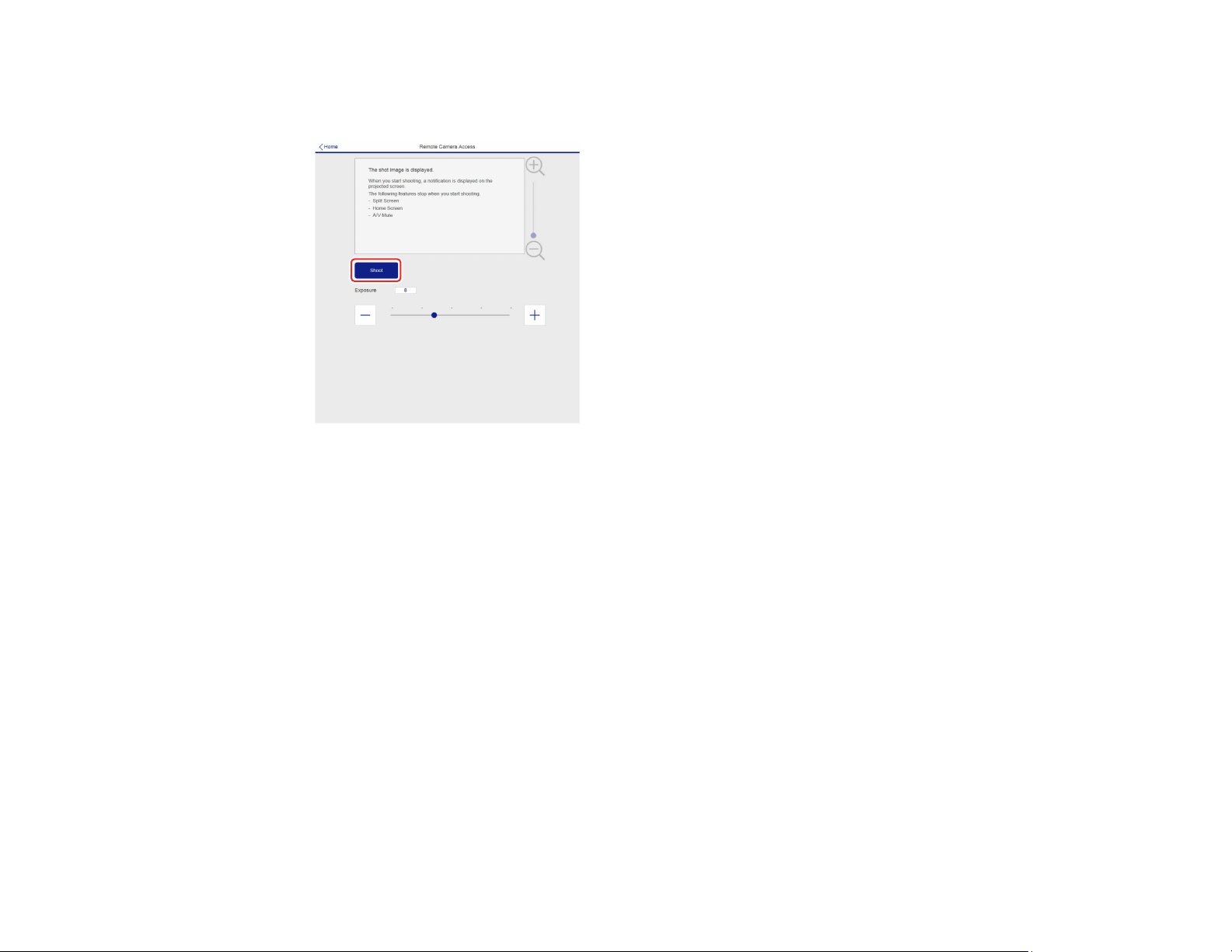

Viewing an Image Capture of the Displayed Image from a Remote Location ............................... 79

Using Crestron Connected................................................................................................................. 83

Setting Up Crestron Connected..................................................................................................... 84

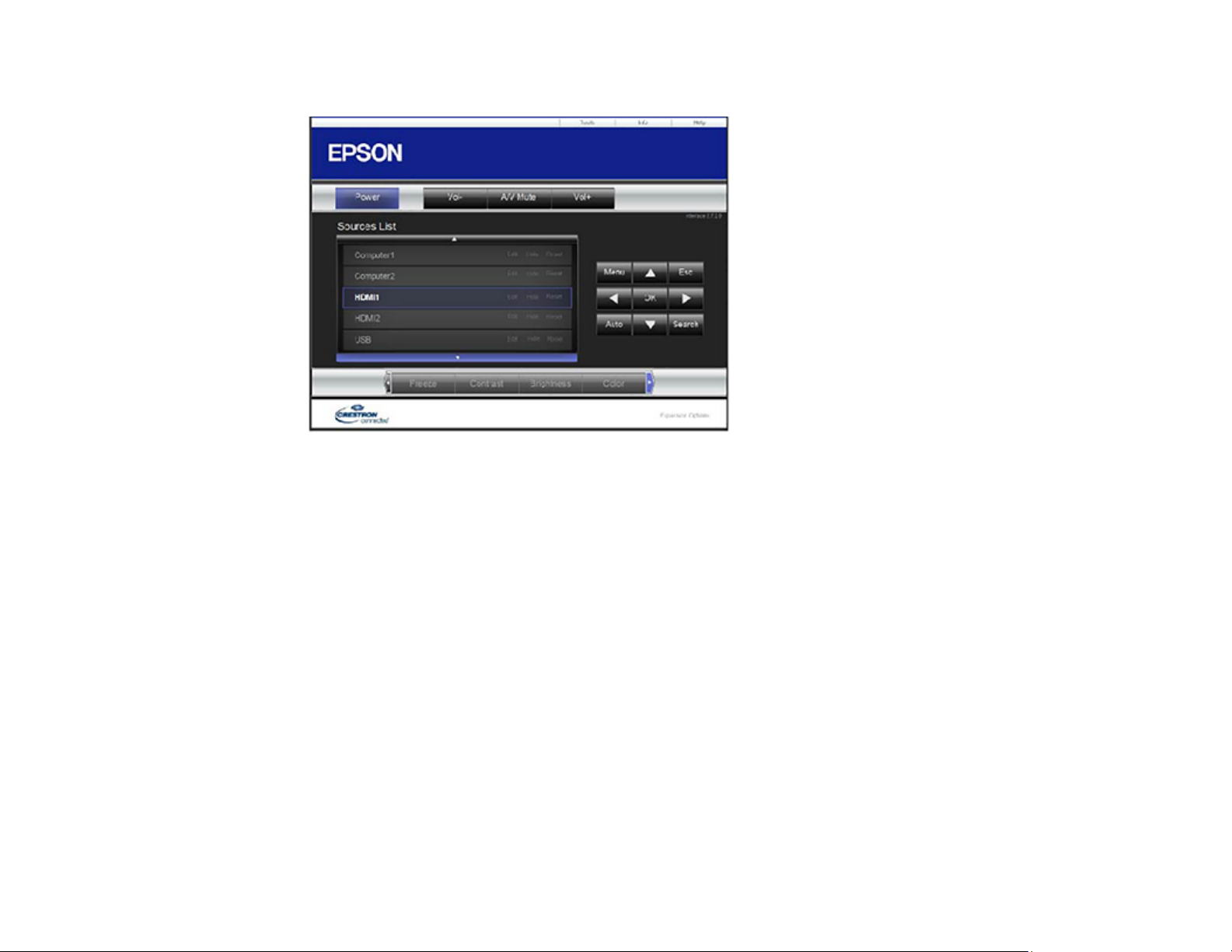

Controlling a Networked Projector Using Crestron Connected...................................................... 85

Art-Net Channel Definitions................................................................................................................ 87

Registering a Digital Certificate on the Projector ................................................................................ 92

Importing a Web Server Certificate Using the Projector Menus..................................................... 92

Registering Digital Certificates from a Web Browser ..................................................................... 94

Digital Certificate Types................................................................................................................. 95

Using Basic Projector Features ............................................................................................................... 97

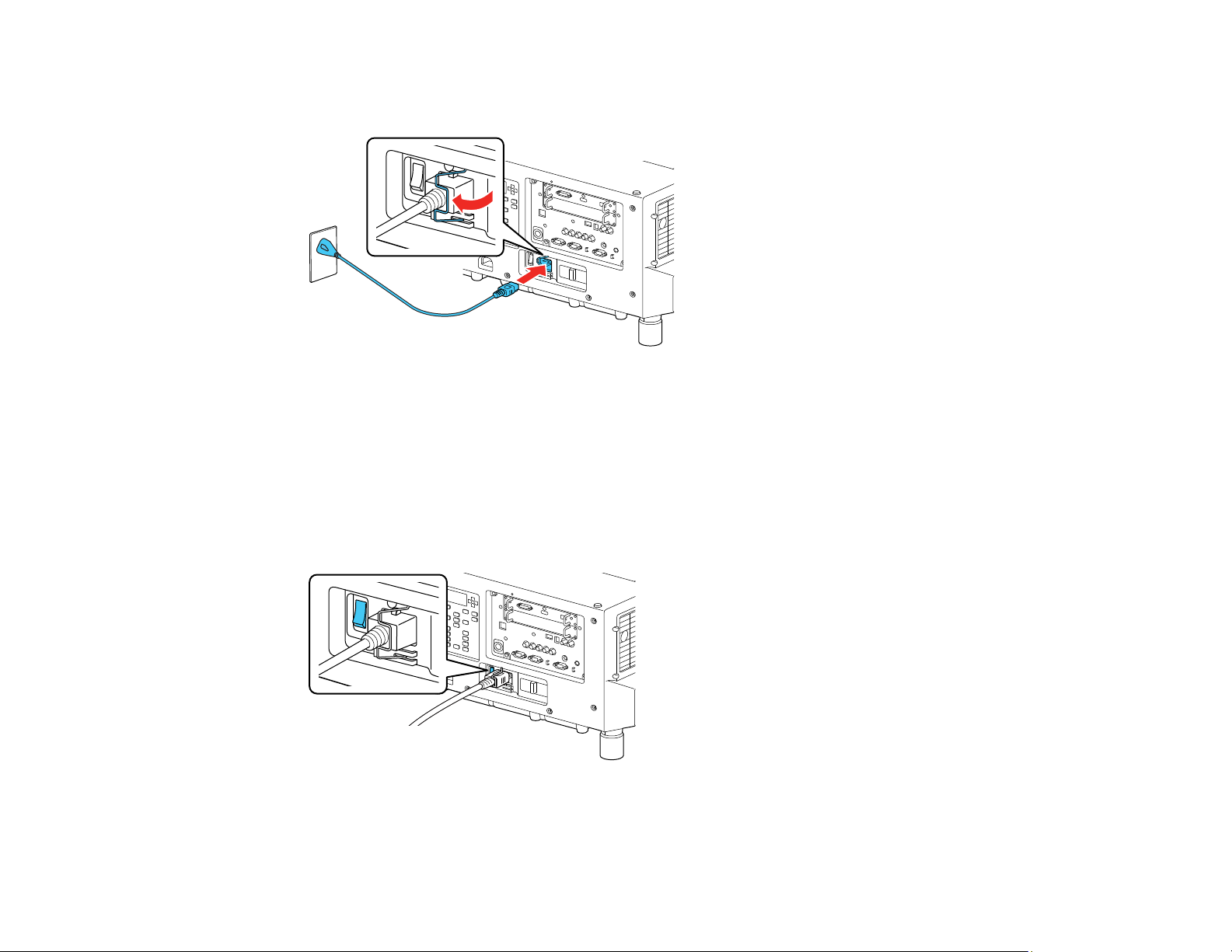

Turning On the Projector .................................................................................................................... 97

Turning Off the Projector .................................................................................................................... 99

Selecting the Language for the Projector Menus.............................................................................. 101

Adjusting the Image Height .............................................................................................................. 102

Resizing the Image with the Zoom Button ........................................................................................ 103

Focusing the Image Using the Focus and Distortion Buttons ........................................................... 103

Setting the Screen Type................................................................................................................... 105

Adjusting the Image Position Using Lens Shift ................................................................................. 106

Adjusting the Image Position Using Screen Position........................................................................ 109

Displaying a Test Pattern ................................................................................................................. 109

Image Shape.................................................................................................................................... 110

Correcting Image Shape with H/V Keystone................................................................................ 110

Correcting Image Shape with Quick Corner ................................................................................ 112

Correcting Image Shape with Curved Surface ............................................................................ 114

Correcting Image Shape with Corner Wall................................................................................... 119

Correcting Image Shape with Point Correction............................................................................ 122

Selecting an Image Source .............................................................................................................. 124

Remote Control Operation ............................................................................................................... 126

Projection Modes ............................................................................................................................. 127

Changing the Projection Mode Using the Remote Control .......................................................... 127

Changing the Projection Mode Using the Menus ......................................................................... 128

Image Aspect Ratio .......................................................................................................................... 129

Changing the Image Aspect Ratio ............................................................................................... 129

Available Image Aspect Ratios .................................................................................................... 130

Color Mode....................................................................................................................................... 131

Changing the Color Mode............................................................................................................ 131

Available Color Modes................................................................................................................. 132

Adjusting the Brightness................................................................................................................... 132

Constant Brightness Usage Hours .............................................................................................. 134

Adjusting Luminance Controls.......................................................................................................... 136

Adjusting Gamma............................................................................................................................. 138

Setting the Date and Time................................................................................................................ 140

Date and Time Settings ............................................................................................................... 141

Adjusting Projector Features ................................................................................................................. 142

Shutting Off the Picture Temporarily ................................................................................................ 142

Stopping Video Action Temporarily .................................................................................................. 143

Projector Security Features.............................................................................................................. 144

Password Security Types ............................................................................................................ 144

Setting a Password ................................................................................................................. 145

Selecting Password Security Types........................................................................................ 146

Entering a Password to Use the Projector............................................................................... 147

Saving a User's Logo Image to Display................................................................................... 148

Locking the Projector's Lens Settings and Buttons...................................................................... 150

Unlocking the Projector's Buttons ........................................................................................... 152

Locking the Remote Control Buttons .......................................................................................... 152

Installing a Security Cable ........................................................................................................... 154

Projecting Two Images Simultaneously............................................................................................ 154

Input Sources for Split Screen Projection .................................................................................... 156

Using Advanced Image Adjustment Features .................................................................................. 156

Using Frame Interpolation .......................................................................................................... 157

Creating Image Presets............................................................................................................... 159

Using MPEG Noise Reduction..................................................................................................... 160

Adjusting Scaled Resolution Images (Super-resolution) ............................................................. 161

Adjusting Detail Enhancement .................................................................................................... 162

Adjusting the Color Convergence (Panel Alignment)................................................................... 163

Adjusting the Color Tone (Color Uniformity) ................................................................................ 165

Running Light Source Calibration ................................................................................................ 167

Using Multiple Projectors ................................................................................................................. 169

Multiple Projector Adjustment Overview ...................................................................................... 169

Projector Identification System for Multiple Projector Control ...................................................... 171

Setting the Projector ID........................................................................................................... 171

Setting the Remote Control ID ................................................................................................ 172

Tiling Images into One Image...................................................................................................... 173

Configuring Tiling Automatically.............................................................................................. 173

Configuring Tiling Manually..................................................................................................... 176

Blending the Image Edges .......................................................................................................... 178

Adjusting the Black Level ............................................................................................................ 180

Matching Tint and Brightness (Screen Matching) ....................................................................... 184

Matching the Screens Automatically....................................................................................... 185

Matching the Screens Manually ............................................................................................. 186

Scaling an Image......................................................................................................................... 188

Enabling Protocol Emulation ............................................................................................................ 189

Saving Settings to Memory and Using Saved Settings .................................................................... 190

Saving a Scheduled Event ............................................................................................................... 192

Viewing Scheduled Events .......................................................................................................... 194

Editing a Scheduled Event........................................................................................................... 195

Copying Menu Settings Between Projectors .................................................................................... 196

Saving Settings to a USB Flash Drive.......................................................................................... 197

Transferring Settings from a USB Flash Drive ............................................................................. 198

Saving Settings to a Computer .................................................................................................... 200

Transferring Settings from a Computer ....................................................................................... 201

Adjusting the Menu Settings .................................................................................................................. 204

Using the Projector's Menus............................................................................................................. 204

Image Quality Settings - Image Menu .............................................................................................. 206

Input Signal Settings - Signal Menu.................................................................................................. 210

Projector Feature Settings - Settings Menu...................................................................................... 214

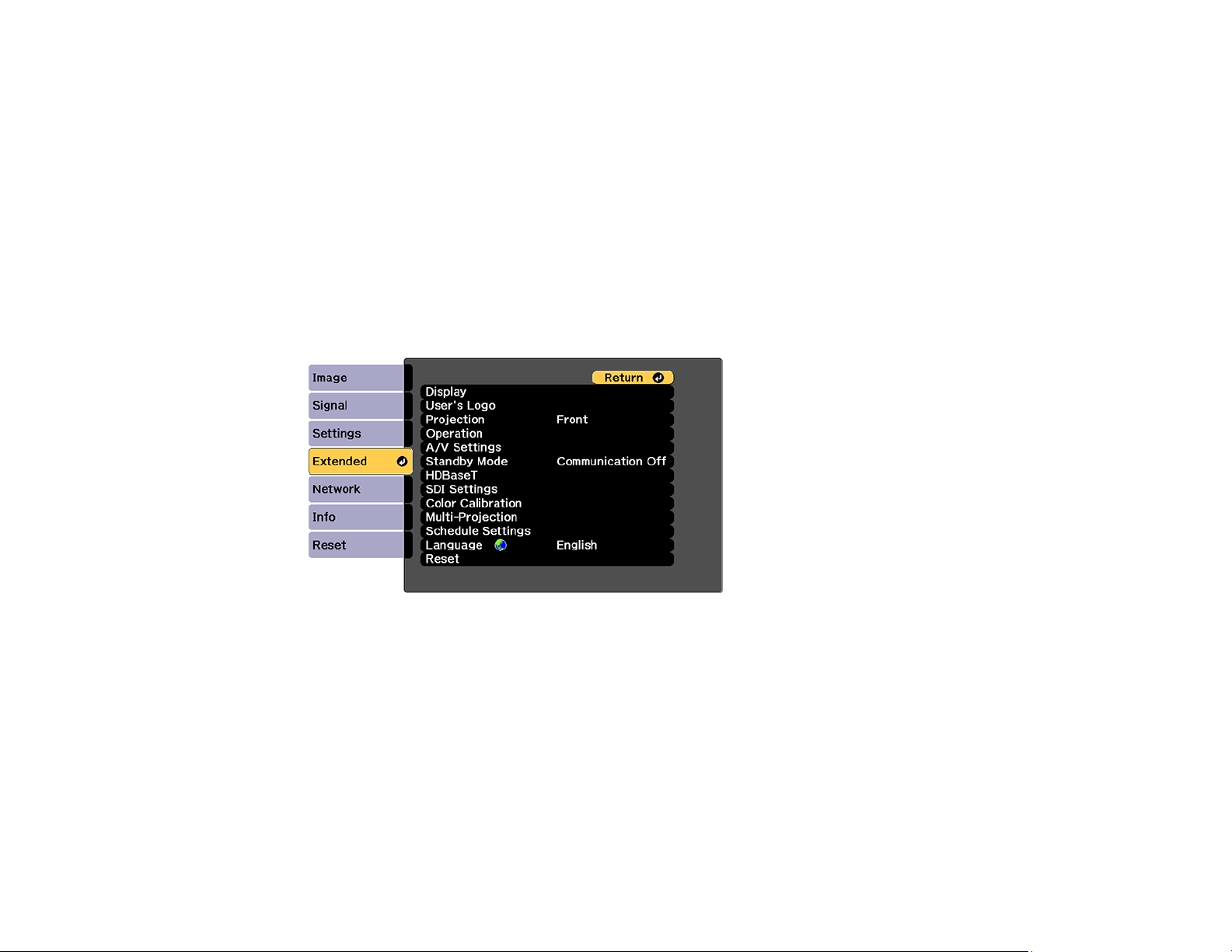

Projector Setup Settings - Extended Menu....................................................................................... 218

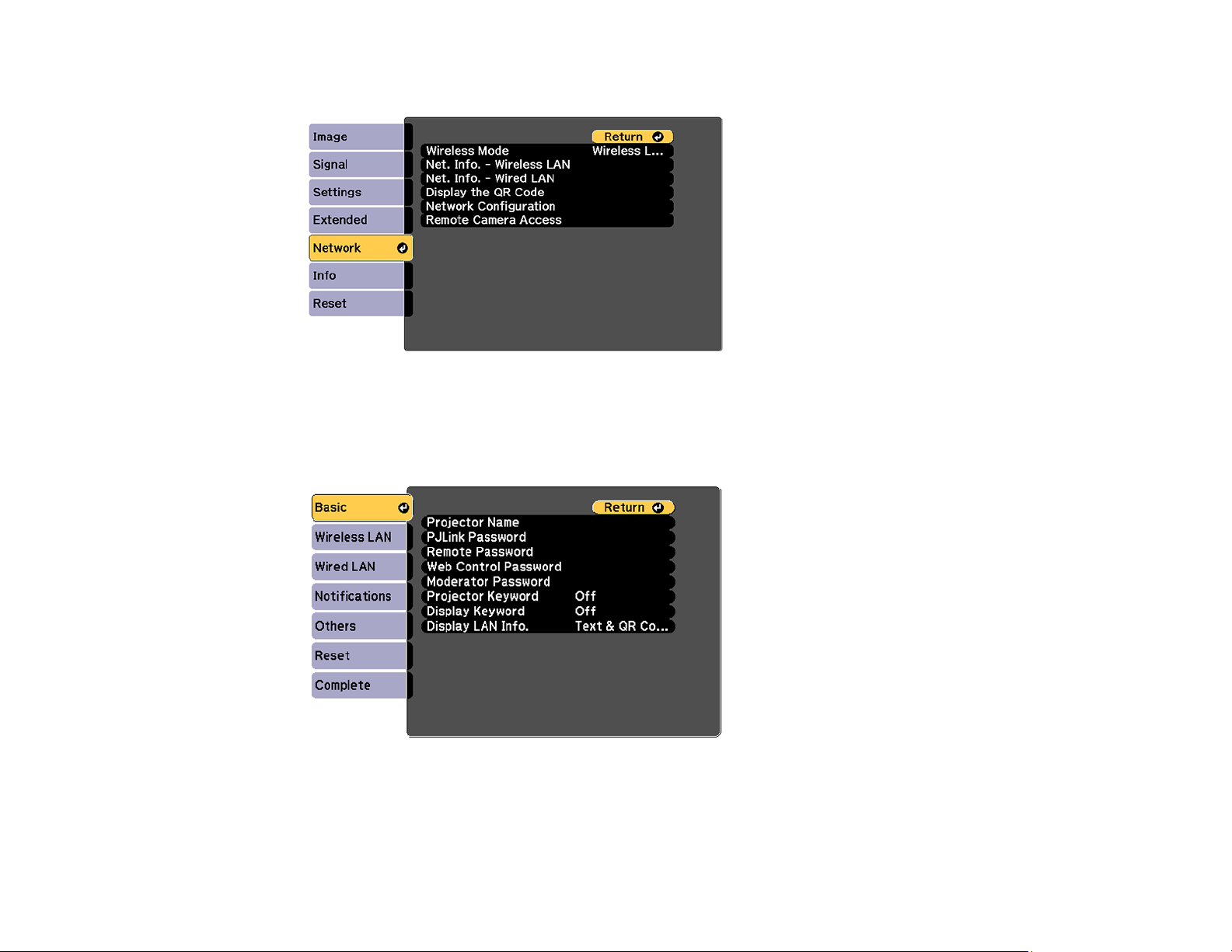

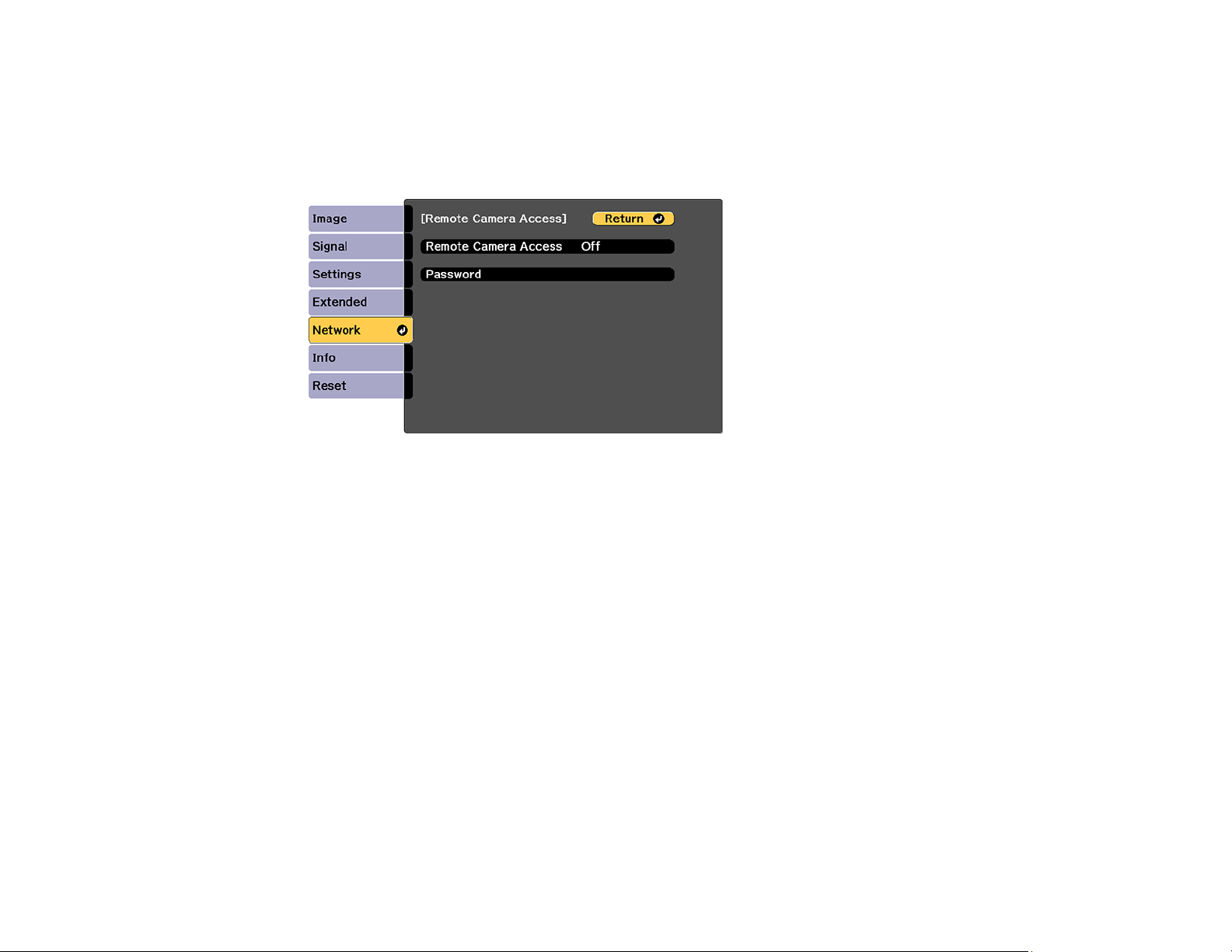

Projector Network and Camera Settings - Network Menu ................................................................ 225

Projector Information Display - Info Menu ........................................................................................ 227

Event ID Code List....................................................................................................................... 230

Projector Reset Options - Reset Menu............................................................................................. 231

Maintaining and Transporting the Projector ......................................................................................... 233

Projector Maintenance ..................................................................................................................... 233

Cleaning the Lens........................................................................................................................ 233

Cleaning the Projector Case ........................................................................................................ 234

Air Filter and Vent Maintenance .................................................................................................. 234

Cleaning the Air Filters and Air Intake Vents........................................................................... 235

Replacing the Air Filters.......................................................................................................... 239

Replacing the Remote Control Batteries ..................................................................................... 242

Transporting the Projector................................................................................................................ 244

Solving Problems .................................................................................................................................... 247

Projection Problem Tips ................................................................................................................... 247

Projector Light Status ....................................................................................................................... 248

Viewing Projector Status Information ............................................................................................... 253

Projector Status Display Messages ............................................................................................. 255

Using the Projector Help Displays .................................................................................................... 260

Solving Image Problems .................................................................................................................. 261

Solutions When No Image Appears............................................................................................. 261

Solutions When "No Signal" Message Appears........................................................................... 262

Displaying From a PC Laptop ................................................................................................. 263

Displaying From a Mac Laptop ............................................................................................... 264

Solutions When "Not Supported" Message Appears ................................................................... 264

Solutions When Only a Partial Image Appears............................................................................ 264

Solutions When the Image is Not Rectangular ............................................................................ 265

Solutions When the Image Contains Noise or Static ................................................................... 266

Solutions When the Image is Fuzzy or Blurry .............................................................................. 266

Solutions When the Image Brightness or Colors are Incorrect .................................................... 267

Solutions When Automatic Adjustments are not Applied Correctly.............................................. 268

Solving Projector or Remote Control Operation Problems ............................................................... 269

Solutions to Projector Power or Shut-Off Problems..................................................................... 269

Solutions to Remote Control Problems........................................................................................ 270

Solutions to Password Problems ................................................................................................. 271

Solving Network Problems ............................................................................................................... 272

Solutions When Wireless Authentication Fails ............................................................................ 272

Solutions When You Cannot Access the Projector Through the Web ......................................... 273

Solutions When the Image Contains Static During Network Projection ....................................... 274

Solutions When Network Alert E-Mails are Not Received............................................................ 274

Where to Get Help............................................................................................................................ 274

Technical Specifications ........................................................................................................................ 276

General Projector Specifications ...................................................................................................... 276

Projector Light Source Specifications............................................................................................... 277

Remote Control Specifications ......................................................................................................... 278

Projector Dimension Specifications.................................................................................................. 278

Projector Electrical Specifications .................................................................................................... 278

Projector Environmental Specifications............................................................................................ 279

Projector Safety and Approvals Specifications................................................................................. 280

Safety and Approvals Specifications for Latin America .................................................................... 280

Supported Video Display Formats.................................................................................................... 281

Notices ..................................................................................................................................................... 285

Recycling.......................................................................................................................................... 285

Important Safety Information ............................................................................................................ 285

Important Safety Instructions............................................................................................................ 285

Laser Safety Information ............................................................................................................. 289

Laser Safety Labels..................................................................................................................... 289

Hazard Distance (HD) ................................................................................................................. 293

Typical Setup Configurations (U.S. Only) .................................................................................... 296

List of Safety Symbols (corresponding to IEC60950-1 A2)............................................................... 298

Manufacturer and Importer Address................................................................................................. 302

FCC Compliance Statement............................................................................................................. 303

Binding Arbitration and Class Waiver ............................................................................................... 303

Trademarks...................................................................................................................................... 306

Copyright Notice............................................................................................................................... 307

A Note Concerning Responsible Use of Copyrighted Materials................................................... 308

Copyright Attribution.................................................................................................................... 308

Pro L20000UNL/L20002UNL User's Guide

Welcome to the Pro L20000UNL/L20002UNL User's Guide.

For a printable PDF copy of this guide, click here.

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features Notations Used in the Documentation Where to Go for Additional Information Projector Part Locations

Projector Features

The Pro L20000UNL and Pro L20002UNL projectors include these special features:

Bright, high-resolution projection system

• Up to 20000 lumens of brightness (white light output and color light output)

Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

• Native resolution of 1920 × 1200 pixels (WUXGA)

Flexible connectivity

• Wired and wireless network support for projection, monitoring, and control via remote network computer

• Variety of connection methods for a computer or video device including HDMI, BNC, DVI-D, SDI, and HDBaseT

• Ports for connecting an external monitor

Easy-to-use setup and operation features

• Interchangeable bayonet lens options available

• Project images side by side from two separate input sources

• Create one large seamless display when projecting from multiple projectors using Edge Blending

• Epson's Instant Off and Direct Power On features for quick setup and shut down

• Support for Crestron Connected and Art-Net network monitoring systems

• Network message broadcast system to project timely messages to all networked projectors (Windows only)

Additional Components Additional Projector Software and Manuals Optional Equipment and Replacement Parts Warranty and Registration Information

Parent topic: Introduction to Your Projector

Related concepts

Projector Part Locations Projector Connections Using Multiple Projectors Using Crestron Connected

Additional Components

Depending on how you plan to use the projector, you may need to obtain additional components.

Note: To connect a Mac that does not include a compatible video output port, you need to obtain an adapter that allows you to connect to an input port on the projector. Contact Apple for compatible adapter options. To connect a smartphone or tablet, you may need to obtain an adapter that allows you to connect to the projector. This allows you to mirror your smartphone or tablet screens, watch movies, and more. Contact your device manufacturer for compatible adapter options.

Unless listed as available from Epson in this table, see your local computer or electronics dealer for purchase information.

Signal or connection type

Component video Component-to-BNC or D-sub, 15-pin, component-to-VGA video cable or

Additional component necessary

adapter

Available for purchase from Epson or an authorized Epson reseller.

Signal or connection type

HDMI HDMI cable

VGA VGA computer cable

BNC VGA-to-5-BNC cable or adapter

DVI-D Compatible DVI-D cable

HDBaseT Compatible 100Base-TX LAN cable

SDI Compatible BNC video cable

DisplayPort Compatible DisplayPort cable (with optional DisplayPort interface board

Additional component necessary

Available for purchase from Epson or an authorized Epson reseller.

You also need a splitter that supports HDMI signals (commerically available).

Available for purchase from Epson or an authorized Epson reseller.

If you want to connect the projector using a splitter, you also need a splitter that supports VGA signals (commercially available) and a second VGA computer cable.

Available for purchase from Epson or an authorized Epson reseller.

installed)

Parent topic: Projector Features

Related concepts

Projector Connections

Related references

Optional Equipment and Replacement Parts

Additional Projector Software and Manuals

After connecting and setting up the projector, install the projector software as necessary. You may need to install it from a software CD, if included, or download the software and manuals as necessary.

You can install the projector software programs listed here and view their manuals for instructions on using them.

Note: If you still need help after checking this manual and the sources listed here, you can use the

Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help."

Projector software Manual Description

Epson Projector Management (Windows only)

Epson iProjection (Windows/Mac)

Epson Projector Professional Tool (Windows only)

— Open Source Software

Epson Projector Management Operation Guide

Epson iProjection Operation Guide (Windows/Mac)

Epson Projector Professional Tool Operation Guide

License

Lets you monitor and control your projector through the network.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support

(Canada) and select your projector.

Lets you project the computer screens of users over a network.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support

(Canada) and select your projector.

Lets you manage multiple Epson projectors simultaneously

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support

(Canada) and select your projector.

You can download this document from the Epson web site. Go to epson.com/support (U.S.) or epson.ca/support (Canada) and select your projector.

Parent topic: Projector Features

Optional Equipment and Replacement Parts

You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada. Or you can purchase online at epsonstore.com (U.S. sales) or epsonstore.ca (Canadian sales).

Epson offers the following optional accessories and replacement parts for your projector:

Option or part Part number

Air filter (ELPAF58) V13H134A58

HDBaseT Transmitter (ELPHD01) V12H547020

HDMI/DVI-D interface board (ELPIF01) V12H917F01

DisplayPort interface board (ELPIF03) V12H916F01

Remote control cable set (ELPKC28) V12H005C28

Ultra short-throw lens (ELPLX02) V12H004X02

White ultra short-throw lens (ELPLX02W) V12H004Y02

Short-throw zoom lens (ELPLU04) V12H004U04

Wide-throw zoom lens (ELPLW06) V12H004W06

Wide-throw zoom lens (ELPLW08) V12H004W08

Middle-throw zoom lens (ELPLM15) V12H004M0F

Middle-throw zoom lens (ELPLM10) V12H004M0A

Middle-throw zoom lens (ELPLM11) V12H004M0B

Long throw zoom lens (ELPLL08) V12H004L08

Epson Stacking and Rigging Frame (ELPMB57) V12H989A01

Parent topic: Projector Features

Warranty and Registration Information

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty that came with your projector.

In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Road Service brochure for details.

Note: Availability varies by region.

Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector? Here's where to look for help:

• epson.com/support (U.S.), epson.ca/support (Canada), or epson.com.jm/support (Caribbean)

View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24 hours a day.

• If you still need help after checking this manual and any other sources listed here, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help."

Parent topic: Introduction to Your Projector

Related references

Where to Get Help

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.

Projector Parts - Front/Top Projector Parts - Side/Rear Projector Parts - Base Projector Parts - Interface Ports Projector Parts - Control Panel Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

Projector Parts - Front/Top

1 Cap for lens cover

2 Built-in camera

3 Projection lens

4 Lens cover

5 Air filter covers

6 Remote receivers

7 Status lights

8 Replacement lens cover (for certain lenses)

9 Holes for optional mounting

Parent topic: Projector Part Locations

Projector Parts - Side/Rear

1 Remote receiver

2 Exhaust vent

3 Air intake vent

4 Control panel

5 Power switch

6 AC inlet

7 Power cord holder

8 Built-in camera protection plate

9 Kensington security slot

10 Interface ports

Parent topic: Projector Part Locations

Related tasks

Installing the Projector in a Mount

Projector Parts - Base

1 Projector feet

2 Ceiling mounting holes

3 Drop-prevention wire installation points

4 Air intake vent

5 Transportation eye bolt holes

Parent topic: Projector Part Locations

Related tasks

Installing a Security Cable Transporting the Projector

Projector Parts - Interface Ports

1 Slot 1 for installing an interface board (HDMI/DVI-D interface board described below)

2 Slot 2 for installing an optional DisplayPort interface board (described below)

3 HDBaseT port

4 Network LAN port

5 Computer In port

6 Computer/BNC Out port

7 BNC In ports

8 Cable clip slot

9 RS-232C port

10 Remote port

11 SDI Out port

12 SDI In port

13 Service port

14 USB-A port

HDMI/DVI-D Interface Board

1 DVI-D In port

2 HDMI In port

3 DC Out port

Optional DisplayPort Interface Board

1 DisplayPort In1 port

2 DisplayPort In2 port

Caution: Do not attempt to install or remove your projector's interface board. Static electricity or other interference may damage the projector or cause it to malfunction. Contact Epson to have an interface board installed or removed.

Parent topic: Projector Part Locations

Related references

Optional Equipment and Replacement Parts

Projector Parts - Control Panel

1 On button (turns on the projector)

2 Standby button (turns off the projector)

3 Sync. lights (indicate the selected image source)

4 Sync. buttons (select an image source)

5 Auto button (automatically adjusts computer images)

6 Test Pattern button (displays a test pattern)

7 Lens Shift button (adjusts the image position)

8 Calibration button (starts lens calibration)

9 Zoom button (changes the image size)

10 Focus button (adjusts the image focus)

11 Distortion button (corrects image distortion)

12 Geometry button (adjusts the image shape)

13 Shutter button (turns input signal on or off temporarily)

14 Enter button (selects options)

15 Arrow buttons (move through on-screen options; adjust the focus, zoom, and lens shift)

16 Lock button (displays the Control Panel Lock screen)

17 Light button (lights up the control panel buttons and LCD screen temporarily)

18 Esc button (cancels/exits functions)

19 Arrow buttons (select LCD screen settings)

20 LCD screen (displays projector status information)

21 Menu button (accesses projector menu system)

Parent topic: Projector Part Locations

Projector Parts - Remote Control

1 On button (turns on the projector)

2 Standby button (turns off the projector)

3 Source buttons (select an image source)

4 User1, User2, and User3 buttons (open menu assigned by user)

5 Aspect button (selects the image aspect ratio)

6 Auto button (automatically adjusts computer images)

7 Freeze button (stops video action)

8 Default button (resets settings to their default values in the projector menu system)

9 Menu button (accesses projector menu system)

10 Arrow buttons (move through on-screen options and move pointer)

11 Enter button (selects options)

12 On-Screen button (displays or hides the on-screen menus or messages)

13 Zoom button (changes the image size)

14 Focus button (adjusts the image focus)

15 Lens Shift button (adjusts the image position)

16 Page up and down buttons (scroll through image files when projecting from a computer over a

network connection, or change the displayed test pattern)

17 Numeric buttons (enter numbers)

18 ID button (hold down and use numeric keys to select projector to control)

19 ID switch (selects control of one or all projectors from the remote control)

20 Remote port (connects to a remote control cable)

21 i button (displays the Info menu)

22 Num button (hold down and use numeric keys to enter numbers)

23 Test Pattern button (displays a test pattern)

24 Geometry button (corrects image shape)

25 Calibration button (starts lens calibration)

26 Distortion button (corrects image distortion)

27 Shutter button (turns signal on or off temporarily)

28 Esc button (cancels/exits functions and moves to previous menu levels)

29 Memory button (saves and applies presets)

30 Color Mode button (selects display modes)

31 Search button (searches for connected sources)

32 Light button (lights up the remote control buttons temporarily)

33 Indicator light (lights up when the remote control is in use)

34 Remote control signal emitter (emits remote control signals)

Parent topic: Projector Part Locations

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.

Projector Placement Projector Connections Attaching and Removing a Lens Installing Batteries in the Remote Control

Projector Placement

You can place the projector on almost any flat surface to project an image.

You can also install the projector in a ceiling mount if you want to use it in a fixed location.

Keep these considerations in mind as you select a projector location:

• Place the projector on a sturdy, level surface or install it using a compatible mount.

• Install the projector at any angle. There is no vertical or horizontal limit to how the projector can be installed.

• Leave plenty of space around and under the projector for ventilation as described here, and do not place it on top of or next to anything that could block the vents.

• Place the projector parallel to the screen.

• Position the projector within reach of a grounded electrical outlet or extension cord.

Caution: Be sure to leave the following amount of space around the projector to avoid blocking the air

exhaust and intake vents.

1 7.87 inches (20 cm)

2 19.7 inches (50 cm)

Caution: If you are setting up the projector with the intake vent facing down or placing the projector in a mount, be sure to leave the following amount of space around the projector.

1 3.9 inches (10 cm)

2 7.87 inches (20 cm)

Note: When setting up multiple projectors, leave the following amount of space between the projectors.

1 19.7 inches (50 cm)

If you are stacking multiple projectors, follow these guidelines:

• Do not stack more than two projectors.

• Tilt the projectors only within the extendable range of the feet.

• Make sure all of the projector's feet sit firmly on the projector below.

Projector Setup and Installation Options Installing the Projector in a Mount Protecting the Built-in Camera Projection Distance

Parent topic: Setting Up the Projector

Projector Setup and Installation Options

You can set up or install your projector in the following ways:

Front

Rear

Front ceiling

Rear ceiling

If you project from the ceiling or from the rear, select the correct Projection setting and, if necessary, adjust the OSD Rotation setting.

Parent topic: Projector Placement

Related references

Projector Setup Settings - Extended Menu

Installing the Projector in a Mount

When installing the projector in an optional mount, follow these guidelines:

• When using a ceiling or portrait mount, use commercially available M6 screws (up to a depth of 1.06 inches [27 mm]) to attach the mount to the projector at these four points:

• When using a clamp to attach the projector to an aluminum truss, use commercially available M6 screws (up to a depth of 1.06 inches [27 mm]) to attach the clamp to at least four points on the projector. You can use any of these points on the projector to accommodate the distance between the screw holes and the center of the aluminum truss pipe.

Caution: Make sure to attach a commercially available drop-prevention wire that supports weights of at least 220 lb (100 kg) to secure the projector to the mount to prevent it from falling. Make sure there is no slack in the wire and that it is securely attached to the two connection points on the bottom of the projector.

Parent topic: Projector Placement

Related references

Projector Parts - Side/Rear

Protecting the Built-in Camera

If you use the projector near other devices that emit laser beams, install the protective plate over the built-in camera to protect it from interference.

Remove the protective plate from its storage area on the side of the projector and place it over the builtin camera on the front of the projector. When you finish, remove the protective plate from the camera and return it to its storage area.

Parent topic: Projector Placement

Related references

Projector Parts - Front/Top

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Use the tables here to determine approximately how far to place the projector from the screen based on the installed lens and the size of the projected image. (Conversion figures may have been rounded up or down.)

You can also use the projector Throw Distance Calculator at epson.com/support (U.S.) or

epson.ca/support (Canada).

Number Lens Screen size Projection distance

1 ELPLX02

ELPLX02W

2 ELPLU04 60 to 1000 inches

3 ELPLW08 42.9 to 1039.0 inches (109 to 2639 cm)

4 ELPLW06 58.7 to 1395.3 inches (149 to 3544 cm)

5 ELPLM15 78.3 to 2190.2 inches (199 to 5563 cm)

6 ELPLM10 120.5 to 3183.5 inches (306 to 8086 cm)

7 ELPLM11 175.2 to 4648.4 inches (445 to 11807 cm)

8 ELPLL08 261.4 to 6367.7 inches (664 to 16174 cm)

Note: If the screen is larger than 500 inches (1270 cm), fine text and images may not display clearly.

Parent topic: Projector Placement

Related references

Optional Equipment and Replacement Parts

Projector Connections

See these sections to connect the projector to a variety of projection sources.

100 to 1000 inches (254 to 2540 cm)

(152.4 to 2540 cm)

29.1 to 302.8 inches (74 to 769 cm)

31.5 to 670.0 inches (80 to 1702 cm)

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.

Connecting to Video Sources Connecting to Computer Sources Connecting to an HDBaseT Transmitter Connecting to an External Computer Monitor

Parent topic: Setting Up the Projector

Related references

Projector Setup Settings - Extended Menu

Connecting to Video Sources

Follow the instructions in these sections to connect video devices to the projector.

Connecting to an HDMI Video Source Connecting to a Component-to-BNC Video Source Connecting to a Component Video Source Connecting to an SDI Video Source

Parent topic: Projector Connections

Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality.

1. Connect the HDMI cable to your video source's HDMI output port.

2. Connect the other end to the projector's HDMI In port on the HDMI/DVI-D board in slot 1. If you are

connecting an optical HDMI cable, you must also connect the cable's USB power connector to the

DC Out port on the board.

Note: Depending on the length and performance quality of the HDMI cable, images may not display

correctly. For best results, use a cable that conforms to the HDMI standard.

Parent topic: Connecting to Video Sources

Connecting to a Component-to-BNC Video Source

If your video source has component video ports, you can connect it to the projector using an optional component-to-BNC video cable. Depending on your component ports, you may need to use an adapter cable along with a component video cable.

1. Connect the component connectors to your video source's color-coded component video output

ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable.

2. Connect the BNC connectors to the projector's R/Cr/Pr, G/Y, B/Cb/Pb ports.

Parent topic: Connecting to Video Sources

Connecting to a Component Video Source

If your video source has component video ports, you can connect it to the projector using an optional component-to-VGA video cable. Depending on your component ports, you may need to use an adapter cable along with a component video cable.

1. Connect the component connectors to your video source's color-coded component video output

ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable.

2. Connect the VGA connector to the Computer In port on the projector.

3. Tighten the screws on the VGA connector.

If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's Signal menu.

Parent topic: Connecting to Video Sources

Related references

Input Signal Settings - Signal Menu

Connecting to an SDI Video Source

If your video source has an SDI port, you can connect it to the projector using an optional BNC video cable.

1. Connect the BNC video cable to your video source's SDI output port.

2. Connect the other end to the projector's SDI In port.

Note: Select the signal for the SDI In port in the SDI Settings in the Extended menu.

Parent topic: Connecting to Video Sources

Related references

Projector Setup Settings - Extended Menu

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.

Connecting to a Computer for VGA Video Connecting to a Computer for HDMI Video Connecting to a Computer for DVI-D Video Connecting to a Computer for 5 BNC Video Connecting to a Computer for DisplayPort Video

Parent topic: Projector Connections

Connecting to a Computer for VGA Video

You can connect the projector to your computer using a VGA computer cable.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

3. Connect the other end to the Computer In port on the projector.

4. Tighten the screws on the VGA connector.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for HDMI Video

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.

1. Connect the HDMI cable to your computer's HDMI output port.

2. Connect the other end to the projector's HDMI In port on the HDMI/DVI-D board in slot 1. If you are

connecting an optical HDMI cable, you must also connect the cable's USB power connector to the

DC Out port on the board.

Note: Depending on the length and performance quality of the HDMI cable, images may not display

correctly. For best results, use a cable that conforms to the HDMI standard.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for DVI-D Video

If your computer has a DVI-D connector, you can connect it to the projector using an optional DVI-D cable.

1. Connect the DVI-D cable to your computer's DVI-D connector.

2. Connect the other end to the projector's DVI-D In port on the HDMI/DVI-D interface board in slot 1.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for 5 BNC Video

You can connect the projector to your computer using an optional VGA-to-5-BNC cable.

1. Connect the VGA connector to your computer's monitor port.

2. Connect the 5 BNC connectors to the projector's BNC In ports.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for DisplayPort Video

If your computer has a DisplayPort connector, you can connect it to the projector using an optional DisplayPort cable. You must have installed the optional DisplayPort interface board in slot 2 to provide a DisplayPort connection.

1. Connect the DisplayPort cable to your computer's DisplayPort connector.

2. Connect the other end to the projector's DisplayPort In port on the optional DisplayPort interface

board in slot 2.

Parent topic: Connecting to Computer Sources

Related references

Optional Equipment and Replacement Parts

Connecting to an HDBaseT Transmitter

To send an HDMI or RS-232C signal over a long distance, you can connect the projector to an optional HDBaseT transmitter using a 100Base-TX network cable. This is useful when you want to send a signal to or control the projector from a remote location, such as in a hall or event site, since you can use a network cable up to 328 feet (100 m) in length. To ensure proper data transmission, use a Category 6 STP cable or better.

1. Turn off the projector and HDBaseT transmitter.

Note: Make sure the projector and HDBaseT transmitter are turned off when connecting or disconnecting a network cable between the two devices.

2. Connect one end of the network cable to the HDBaseT port on the transmitter.

3. Connect the other end to the projector's HDBaseT port.

Note: See the documentation that came with the HDBaseT transmitter for instructions on connecting

it to your video device or computer.

4. Turn on the projector and HDBaseT transmitter.

Note: To enable communication from the Ethernet and serial ports on the transmitter, select On as the Control Communications setting in the projector's Extended menu. Turning on this setting disables the

projector's LAN, RS-232C, and Remote ports. If you connected an Extron XTP transmitter or switcher to the projector's HDBaseT port, select On as the Extron XTP setting in the projector's Extended menu.

Parent topic: Projector Connections

Related references

Projector Setup Settings - Extended Menu

Connecting to an External Computer Monitor

If you connected a computer to the projector's Computer In or BNC In ports, or a video source to the projector's SDI In port, you can also connect an external monitor to the projector. This lets you see your presentation on the external monitor even when the projected image is not visible.

1. Make sure your computer or video source is connected to the projector's Computer In, BNC In, or

SDI In port.

2. Connect the external monitor's cable to your projector's Computer/BNC Out (for computer or BNC

sources) or SDI Out (for SDI sources) port.

Parent topic: Projector Connections

Attaching and Removing a Lens

Follow the instructions in these sections to attach or remove a compatible lens.

Attaching a Lens Removing a Lens

Parent topic: Setting Up the Projector

Attaching a Lens

You can attach a compatible lens to the projector.

Warning: Turn off the projector and unplug its power cord before attaching or removing a lens; otherwise you could receive an electric shock.

1. Turn off the projector and unplug the power cord.

Caution: Avoid touching the lens with your bare hands to prevent fingerprints on or damage to the lens surface. Make sure the front of the projector is not facing up when you attach the lens. This prevents dirt or dust from entering the projector and lowering the projection quality.

2. Use your hand to loosen the screw securing the lens cover to the projector.

3. Press the buttons on the sides of the lens cover and pull the lens cover off the projector.

4. If you are attaching the ELPLX02 or ELPLX02W lens, loosen the screws securing the lens

replacement cover on top of the projector and slide the cover off as shown.

5. If the lens lock lever is in the Lock position, release the lock lever. Pull the black lever up (1), pinch

the metal tab against the lever, move it toward the Release position until it stops (2), and then push the black lever in as shown (3).

6. If the lens has a cap covering its narrower end, remove the cap and store it for use if you remove the

lens later.

7. Position the lens so the white circle is on top and insert the lens straight into the projector's lens

socket.

8. Hold the lens firmly as you lock the lens in place. Pull the black lever up (1), pinch the metal tab

against the lever, move it toward the Lock position until it stops (2), and then push the black lever in as shown (3).

9. Replace the lens cover as shown.

10. Tighten the screw to secure the lens cover to the projector.

11. Do one of the following:

• If you attach a lens that is different from the previous lens, you see a message to calibrate the lens the next time you turn on the projector. Select Yes to calibrate the lens.

• If you remove and attach the same lens, press and hold the Default button on the remote control for at least 3 seconds or select Lens Calibration in the Extended menu to calibrate the lens.

Lens calibration takes up to 3 minutes to complete. When calibration is finished, the lens returns to its previous position.

Caution: If you see a message that lens calibration failed, turn off the projector, unplug the power cord, remove the lens, and reinstall it. If you continue to see an error message, contact Epson.

Parent topic: Attaching and Removing a Lens

Related references

Projector Setup Settings - Extended Menu

Removing a Lens

You can remove a lens to replace it with a different lens.

Warning: Turn off the projector and unplug its power cord before attaching or removing a lens; otherwise you could receive an electric shock.

Caution: Remove the lens only when necessary and make sure the front of the projector is not facing up when you remove the lens. This prevents dirt or dust from entering the projector and lowering the projection quality. Avoid touching the lens with your bare hands to prevent fingerprints on or damage to the lens surface.

1. Center the lens using the Lens Shift button.

2. Turn off the projector and unplug the power cord.

Warning: Wait about 30 minutes after turning off the projector before removing the lens. Touching the lens immediately after projecting or turning off the projector may cause burns.

3. Use your hand to loosen the screw securing the lens cover to the projector.

4. Press the buttons on the sides of the lens cover and pull the lens cover off the projector.

5. Hold the lens firmly as you release the lens lock. Pull the black lever up (1), pinch the metal tab against the lever, move it toward the Release position until it stops (2), and then push the black lever in as shown (3).

6. Remove the lens from the projector.

7. If you are not attaching a different lens right away, replace the lens cover and lens cover cap to protect the projector.

Parent topic: Attaching and Removing a Lens

Related tasks

Adjusting the Image Position Using Lens Shift

Installing Batteries in the Remote Control

The remote control uses the two AA batteries that came with the projector.

Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types,

or mix new and old batteries.

1. Remove the battery cover.

2. Insert the batteries with the + and – ends facing as shown.

Warning: Make sure the batteries are inserted in the correct positions. If the batteries are not inserted correctly, they could explode or leak, causing a fire, injury, or damage to the product.

3. Replace the battery cover and press it down until it clicks into place.

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.

Parent topic: Setting Up the Projector

Using the Projector on a Network

Follow the instructions in these sections to set up your projector for use on a network.

Wired Network Projection Wireless Network Projection Setting Up Projector Network E-Mail Alerts Selecting Other Network Settings Setting a Static IP Address on the LCD Screen Controlling a Networked Projector Using a Web Browser Using Crestron Connected Art-Net Channel Definitions Registering a Digital Certificate on the Projector

Wired Network Projection

You can project through a wired network. To do this, you connect the projector to your network with an Ethernet cable, and then set up your projector and computer for network projection.

After connecting and setting up the projector, install the projector software. You may need to install it from a software CD, if included, or download the software and manuals as necessary.

Note: If your projector is connected via a LAN (Ethernet) cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software.

Connecting to a Wired Network Selecting Wired Network Settings

Parent topic: Using the Projector on a Network

Related references

Additional Projector Software and Manuals

Connecting to a Wired Network

To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network cable. You can also connect a commercially available etherCON LAN cable. To ensure proper data transmission, use a Category 5 shielded cable or better.

1. Connect one end of the network cable to your network hub, switch, or router.

2. Connect the other end of the cable to the projector's LAN port.

Parent topic: Wired Network Projection

Selecting Wired Network Settings

Before you can project from computers on your network, you must select the network settings for the projector using its menu system.

Note: Make sure you already connected the projector to your wired network using the LAN port.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Basic menu and press Enter.

6. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing

the Remote screen in Epson Web Control. (Default user name is EPSONREMOTE; default password is guest.)

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for

accessing Epson Web Control. (Default user name is EPSONWEB; default password is admin.)

• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector

as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app.

• Projector Keyword lets you turn on a security password to prevent access to the projector by

anyone not in the room with it. The projector displays a random keyword that you must enter from a computer using the Epson iProjection (Windows/Mac) software or an iOS or Android device, or on a Chromebook, using the Epson iProjection app.

• Display Keyword lets you display a keyword on the projected image when accessing the

projector from a computer using the Epson iProjection (Windows/Mac) software or an iOS or Android device, or on a Chromebook, using the Epson iProjection app.

• Display LAN Info lets you select how the projector displays network information. You can select

an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.

Note: Use the displayed keyboard to enter the name, passwords, and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

7. Select the Wired LAN menu and press Enter.

8. Select your IP Settings as necessary:

• If your network assigns addresses automatically, turn on the DHCP setting.

• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet

Mask, and Gateway Address as needed.

Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on

the remote control. To select a highlighted number, press Enter.

9. To prevent display of the IP address on the standby screen, turn off IP Address Display.

10. To connect the projector to the network using IPv6, select On as the IPv6 Settings option. Then select the Auto Configuration and Use Temporary Address settings as necessary.

11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wired Network Projection

Wireless Network Projection

You can project over a wireless network. To do this, you must set up your projector and computer for wireless projection.

To connect wirelessly to your projector, configure the connection using the projector's Network menus.

After connecting and setting up the projector, install the projector software. You may need to install it from a software CD, if included, or download the software and manuals as necessary.

Note: If your projector is connected via a LAN cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software.

Using a QR Code to Connect a Mobile Device Using Quick Wireless Connection (Windows) Selecting Wireless Network Settings Manually Selecting Wireless Network Settings in Windows Selecting Wireless Network Settings on Mac Setting Up Wireless Network Security

Parent topic: Using the Projector on a Network

Related references

Additional Projector Software and Manuals

Using a QR Code to Connect a Mobile Device

After you select the wireless network settings for your projector, you can display a QR code on the screen and use it to connect a mobile device using the Epson iProjection app.

Note: Make sure you have installed the latest version of Epson iProjection on your device. Visit

epson.com/iprojection (U.S.) or epson.ca/iprojection (Canada) for more information.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Basic menu and press Enter.

5. Set the Display LAN Info setting to Text & QR Code.

6. Select Complete and follow the on-screen instructions to save your settings and exit the menus.

7. Do one of the following:

• Press the LAN button on the remote control.

• Select Display the QR Code in the projector's Network menu.

Your projector displays the QR code on the projection surface.

Note: If you do not see the QR code after pressing the LAN button, press Enter to display it.

8. Start Epson iProjection on your mobile device.

9. Use the QR code reader feature to read the QR code and connect your device to the projector. Visit

epson.com/iprojection (U.S.) or epson.ca/iprojection (Canada) for instructions.

Parent topic: Wireless Network Projection

Related references

Additional Projector Software and Manuals

Using Quick Wireless Connection (Windows)

You can create a Quick Wireless Connection USB Key to quickly connect the projector to a Windows computer wirelessly. Then you can project your presentation and remove the key when you are done.

Note: A USB flash drive is not included with your projector.

1. Create a Quick Wireless Connection USB Key with a USB flash drive and the Epson iProjection (Windows) software.

Note: See the online Epson iProjection Operation Guide for instructions.

2. Turn on the projector.

3. Press the LAN button on the remote control.

The LAN standby screen is displayed.

4. Verify the SSID and IP address.

5. Insert the USB key into the projector's USB-A port.

You see a projected message that the network information update is complete.

6. Remove the USB key.

7. Insert the USB key into a USB port on your computer.

Note: In Windows Vista, if you see the AutoPlay window, select Run MPPLaunch.exe, then select Allow on the next screen.

8. Follow the on-screen instructions to install the Epson iProjection software.

Note: If you see a Windows Firewall message, click Yes to disable the firewall. You need administrator authority to install the software. If it is not installed automatically, double-click MPPLaunch.exe in the USB key.

After a few minutes, your computer image is displayed by the projector. If it does not appear, press the LAN or Source Search button on your remote control or restart your computer.

9. Run your presentation as necessary.

10. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows taskbar, then remove the USB key from your computer.

Note: You can share the USB key with other computers without disconnecting your computer. You may need to restart your computer to reactivate your wireless LAN connection.

Parent topic: Wireless Network Projection

Related references

Additional Projector Software and Manuals Projector Parts - Interface Ports

Selecting Wireless Network Settings Manually

Before you can project from your wireless network, you must select the network settings for the projector using its menu system.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Make sure the Wireless Mode setting is set to Wireless LAN On.

5. Select Network Configuration and press Enter.

6. Select the Basic menu and press Enter.

7. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing

the Remote or Basic Control screen in the Epson Web Control. (Default user name is EPSONREMOTE; default password is guest.)

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for

accessing the projector over the web. (Default user name is EPSONWEB; default password is admin.)

• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector

as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app.

• Projector Keyword lets you turn on a security password to prevent access to the projector by

• Display Keyword lets you display a keyword on the projected image when accessing the

projector from a computer using the Epson iProjection (Windows/Mac) software or an iOS or Android device, or on a Chromebook, using the Epson iProjection app.

• Display LAN Info lets you select how the projector displays network information. You can select

an option to display a QR code that lets you quickly connect your iOS or Android devices with the Epson iProjection app.

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

8. Select the Wireless LAN menu and press Enter.

9. Select the settings on the Wireless LAN menu as necessary for your network.

10. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

After you complete the wireless settings for your projector, you need to select the wireless network on your computer, or iOS or Android device.

Wireless LAN Menu Settings

Parent topic: Wireless Network Projection

Wireless LAN Menu Settings

Setting Options Description

Connection Mode Quick

Advanced

Selects the type of wireless connection:

Quick: lets you connect to multiple smartphones, tablets, or computers directly

Advanced: lets you connect to multiple smartphones, tablets, or computers via a wireless network access point

Setting Options Description

Search Access Point To Search View Search for available wireless

network access points in

Advanced connection mode

SSID Up 32 alphanumeric characters Sets the SSID (network name) of

the wireless LAN system the projector is connecting to

Security Open

WPA2-PSK

WPA/WPA2-PSK

WPA2-EAP

WPA/WPA2-EAP

Passphrase Between 8 to 63 alphanumeric

characters

EAP Method EAP Type

User name

Password

Client Certificate

Verify Server Cert.

CA certificate

RADIUS Serv.Name

Channel 1ch

6ch

11ch

Selects the type of wireless security used in the wireless network (some options are only available when the Connection

Mode setting is set to Advanced)

Enter a paraphrase for the wireless network

Sets the EAP settings for WPA2EAP and WPA/WPA2-EAP security

In Quick connection mode, selects the frequency band (channel) used by the wireless LAN

Setting Options Description

IP Settings DHCP

IP Address

Subnet Mask

Gateway Address

SSID Display On

Off

IP Address Display On

Off

IPv6 Settings IPv6

Auto Configuration

Use Temporary Address

Parent topic: Selecting Wireless Network Settings Manually

Selecting Wireless Network Settings in Windows

Turns on DHCP if your network assigns addresses automatically; set to Off to manually enter the network's IP Address, Subnet Mask, and Gateway Address (some options are only available when the Connection Mode setting is set to Advanced)

Selects whether to display the SSID on the network standby screen

Selects whether to display the IP address on the network standby screen

Selects the IPv6 settings when you connect the projector to the network using IPv6

Before connecting to the projector, select the correct wireless network on your computer.

1. To access your wireless utility software, access the Desktop and double-click the network icon on the Windows taskbar.

2. Do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

3. Click Connect.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings on Mac

Before connecting to the projector, select the correct wireless network on your Mac.

1. Click the AirPort icon on the menu bar at the top of the screen.

2. Make sure AirPort is turned on, then do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

Parent topic: Wireless Network Projection

Setting Up Wireless Network Security

You can set up security for your projector to use on a wireless network. Set up one of the following security options to match the settings used on your network:

• WPA2-PSK (Advanced and Quick connection mode)

• WPA2-EAP (Advanced mode)

• WPA/WPA2-PSK (Advanced connection mode)

• WPA/WPA2-EAP (Advanced connection mode)

Note: Contact your network administrator for guidance on entering the correct information.

1. If you want to set up WPA2-EAP or WAP/WAP2-EAP security, make sure your digital certificate file is compatible with projector registration and placed directly on a USB storage device.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Wireless LAN menu and press Enter.

6. Set the Security setting to match your network settings.

7. Do one of the following depending on the network security setting you selected:

• WPA2-PSK or WPA/WPA2-PSK: Select Complete and follow the on-screen instructions to save

your settings and exit the menus. Skip the remaining steps.

• WPA2-EAP or WPA/WPA2-EAP: Select EAP Method and press Enter.

8. Select your authentication protocol as the EAP Type setting.

9. To import your certification, select the certificate type (either Client Certificate or CA certificate) and press Enter.

Note: You can also register a digital certificate from your web browser. Make sure to register just once or the certificate may not install correctly.

10. Select Register and press Enter.

11. Follow the on-screen instructions to connect a USB storage device to the projector's USB-A port.

12. Press Enter to display the certificate list.

13. Select the certificate to import from the displayed list.

You see a message to enter the certificate password.

14. Enter a password and press Enter.

You see a completion message after the certificate is imported.

15. Set the following EAP settings as necessary:

• User name lets you enter a user name up to 64 alphanumeric characters long. To enter more than

32 characters, use your web browser.

• Password lets you enter a password up to 64 alphanumeric characters long when using the

PEAP, EAP-FAST, or LEAP protocols. To enter more than 32 characters, use your web browser.

• Verify Server Cert. lets you select whether or not to verify the server certificate when a CA

certificate has been set.

• RADIUS Serv.Name lets you enter the server name to be verified.

16. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wireless Network Projection

Related references

Wireless LAN Menu Settings

Setting Up Projector Network E-Mail Alerts

You can set up the projector to send you an e-mail alert over the network if there is a problem with the projector.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Notifications menu and press Enter.

5. Turn on Mail Notification.

6. Enter the IP address for the SMTP Server setting.

Note: Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x is a number from 0 to 255).

7. Select a number for the SMTP server Port Number setting, from 1 to 65535 (default is 25).

8. Enter the sender's email address as the From setting.

9. Choose an Address Setting field, enter the e-mail address, and select or deselect the alerts you want to receive there. Your e-mail address can be up to 32 alphanumeric characters long. Repeat for up to three addresses.

10. If you are using the PJLink protocol for projector control, turn on the PJLink Notification setting and enter the IP address where you want to receive PJLink notifications as the Notified IP Address setting.

11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Network Projector E-mail Alert Messages

Parent topic: Using the Projector on a Network

Network Projector E-mail Alert Messages

When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you receive an e-mail containing the following information:

• The email address entered as the From setting

• Epson Projector on the subject line

• The name of the projector experiencing a problem

• The IP address of the affected projector

• Detailed information about the problem

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Parent topic: Setting Up Projector Network E-Mail Alerts

Selecting Other Network Settings

You can select optional network settings on the Others menu.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Others menu and press Enter.

5. If you want to use the Secure HTTP protocol to encrypt communication when using Web Control, turn on the Secure HTTP setting and import the web server certificate using the Web Server Cert. setting.

6. Select the Priority Gateway setting for your network.

7. If your network environment uses an AMX controller, turn on the AMX Device Discovery setting to allow the projector to be detected.

8. If your network environment uses a Crestron Connected controller, turn on the Crestron Connected setting to allow the projector to be detected.

Note: Enabling Crestron Connected disables the Message Broadcasting feature in the Epson Projector Management software (Windows only).

9. If you want to control the projector using Art-Net (an Ethernet communication protocol based on TCP/IP), turn on the Art-Net setting.

10. If you want this projector to receive broadcasted messages over the network, turn on the Message Broadcasting setting. Administrators can broadcast messages over the network using the Epson Projector Management software (Windows only).

11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Using the Projector on a Network

Related concepts

Using Crestron Connected

Related references

Art-Net Channel Definitions Additional Projector Software and Manuals

Setting a Static IP Address on the LCD Screen

You can set a static IP address on the projector's LCD screen while the projector is in standby mode. This lets you set the address without needing to project anything.

1. Press the Menu button on the projector or remote control.

2. Select the Extended menu and press Enter.

3. Select the A/V Settings > A/V Output, select Always On, and press Enter.

4. Select Standby Mode, select Communication On, and press Enter.

5. Press the Menu button to exit the menu system.

6. Turn off the projector, connect it to a wired LAN, and turn on the power using the power switch.

7. Hold down the HDBaseT/LAN button on the projector control panel for at least three seconds.

You see the static IP setting menu:

8. Press the Enter button on the projector control panel, press the down arrow button to select OFF as the DHCP setting, and press Enter again.

9. Use the up and down arrow buttons as necessary to change the IP address values. Use the left and right arrow buttons to move the cursor to the next or previous number position. When you finish, press Enter.

Note: You can also enter the numbers using the numeric buttons on the remote control.

10. Repeat the last step to enter the subnet mask and gateway address, if necessary, and press Enter.

11. Press Enter to select Finish and return to the status information screen.

Parent topic: Using the Projector on a Network

Related references

Projector Parts - Control Panel

Related tasks

Selecting Wired Network Settings

Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely.

Note: The web setup and control features support Microsoft Internet Explorer 11.0 or later, Microsoft Edge, Google Chrome, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser.

Note: If you set Standby Mode to Communication On, you can use a web browser to select settings

and control projection even if the projector is in standby mode.

1. Make sure the projector is turned on.

2. Start your web browser on a computer or device connected to the network.

3. Type the projector's IP address into the browser's address box and press the computer's Enter key.

Note: You may need to log in to access some of the options on the Web Control screen. If you see a log in window, enter your user name and password. (The default user name is EPSONWEB and the default password is admin.)

You see the Epson Web Control screen.

1 Select Basic Control to control the projector remotely.

2 Select Test Pattern to display a test pattern

3 Select Crestron Connected to open the menu (if you enabled Crestron Connected in the

Network > Others menu)

4 Select Advanced to open the advanced menu screen.

5 Select Status Information to view the projector's status.

6 Select Remote Camera Access to take an image capture of the displayed image from a

remote location

7 Select Lens Control to adjust the lens (focus, zoom, and lens shift).

8 Select OSD Control Pad to change the projector's menu settings.

4. Select the option corresponding to the projector function you want to control.

Web Control Options Viewing an Image Capture of the Displayed Image from a Remote Location

Parent topic: Using the Projector on a Network

Related tasks

Selecting Other Network Settings

Web Control Options

Basic Control

Note: If the Remote Password is set to On, you need to enter your user name and password. (The

default username is EPSONREMOTE and the default password is guest).

1 Turns on the projector (power on)

2 Input source selection controls

3 Turns off the image temporarily

4 Searches for sources

5 Turns off the projector (standby)

OSD Control Pad

1 Returns to the Home screen

2 Displays the projector's setting menus

3 Use your finger or mouse to navigate the menus

4 Returns settings to their default values

5 Returns to the previous menu (if this doesn't work, select Home)

6 Displays help topics

Note: You cannot change some settings using Epson Web Control.

Lens Control

Focus/Distortion screen

Note: Depending on the currently installed lens, this screen may look different.

1 Returns to the Home screen

2 Focus adjustment slider

3 Focus adjustment buttons

4 Distortion adjustment slider

5 Distortion adjustment buttons

6 Displays the Focus/Distortion screen

7 Displays the Zoom screen

8 Displays the Lens Shift screen

9 Displays the Test Pattern screen

10 Displays the Memory screen

Zoom screen

Note: Zoom is not available for the ELPLX02 and ELPLX02W lenses.

Note: Depending on the currently installed lens, this screen may look different.

1 Zoom adjustment slider

2 Zoom adjustment buttons

Lens Shift screen

Note: Depending on the currently installed lens, this screen may look different.

1 The blue square displays the current image position and the red square displays the new image

position

2 Displays the vertical image position; select to change the value

3 Moves the image position up, down, left, or right

4 Moves the lens to the home position

5 Displays the horizontal image position; select to change the value

Test Pattern screen

1 Displays available test patterns; select to project a test pattern

2 Turns off test pattern display

Memory screen

1 Overwrites your current settings with saved settings

2 Saves your current settings to memory

3 Displays a list of saved memories

4 Erases a saved memory

5 Renames a saved memory

Status Information screen

1 Returns to the Home screen

2 Displays a list of monitored settings

3 Displays the setting status

4 Select to view different status information

Remote Camera Access screen

1 Displays the image you captured using the Shoot button

2 Takes a picture of the projected image using the camera on the front of the projector

3 Adjusts the image exposure

4 Zooms in or out on the image you captured

Parent topic: Controlling a Networked Projector Using a Web Browser

Related tasks

Viewing an Image Capture of the Displayed Image from a Remote Location

You can take an image capture of the projected image and view it from a remote location using the projector's built-in camera.

Note the following when using this feature:

• This feature is not supported with the ELPLX02 or ELPLX02W lens.

• This feature is not supported when performing the following functions: Tiling, Tiling Assist, Screen

Matching, Color Calibration, Lens Calibration, Message Broadcasting in the Epson Projector Management software.

• Using this feature cancels the following functions: Split Screen, Shutter, on-screen display (when the

message is hidden).

1. Hold down the Freeze button on the remote control for about five seconds or until you see this menu.

2. Make sure the Remote Camera Access setting is set to Off, then exit the menu.

3. Press the Menu button.

4. Select the Network menu and press Enter.

5. Select Network Configuration and select the Others menu.

6. Make sure the Secure HTTP setting is enabled and return to the Network menu.

7. Select Remote Camera Access and press Enter.

You see a screen like this:

8. Select On as the Remote Camera Access setting.

9. Select the Password setting and enter a password up to 32 alphanumeric characters long.

Note: Do not use these characters in the password: * (asterisk), : (colon), or a space character.

10. Open a web browser on a computer or mobile device connected to the projector over a network connection.

11. Enter the projector's IP address in your browser's address box to connect to Epson Web Control.

You see a screen like this:

Note: You can view the projector's IP address by selecting Net. Info. - Wireless LAN or Net. Info. Wired LAN on the Network menu.

12. Select Remote Camera Access.

Note: You may need to log in to access some of the options on the Epson Web Control screen. If

you see a log in window, enter your user name and password. (The default user name is

EPSONWEB and the default password is admin.)

13. Click Shoot to take a capture of the projected image. (You cannot capture warning or caution messages.)

Note: If you see a password screen, enter the password you selected for remote camera access. You cannot perform any projector operations during shooting other than turning off the projector.

The projector displays a message on the projection screen for several seconds while it takes an image capture. When finished, the captured image is displayed in the area above the Shoot button.

Parent topic: Controlling a Networked Projector Using a Web Browser

Using Crestron Connected

If you are using the Crestron Connected network monitoring and control system, you can set up your projector for use on the system. Crestron Connected lets you control and monitor your projector using a web browser.

Note: You cannot use the Message Broadcasting feature in the Epson Projector Management software when you use Crestron Connected.

For additional information on Crestron Connected, contact Crestron.

Setting Up Crestron Connected Controlling a Networked Projector Using Crestron Connected

Parent topic: Using the Projector on a Network

Related references

Additional Projector Software and Manuals

Setting Up Crestron Connected

To set up your projector for monitoring and control using a Crestron Connected system, make sure your computer and projector are connected to the network.

Note: If you want to use the Crestron Connected system when the projector is turned off, you need to adjust the Standby Mode settings in the Extended menu.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Others menu and press Enter.

5. Set the Crestron Connected setting to On to allow the projector to be detected.

Note: Enabling Crestron Connected disables the Message Broadcasting feature in the Epson Projector Management software.

6. Turn off the projector, then turn it on again to enable the setting.

Parent topic: Using Crestron Connected

Related references

Projector Setup Settings - Extended Menu

Controlling a Networked Projector Using Crestron Connected

Once you have set up your projector to use Crestron Connected, you can control and monitor projection using a compatible web browser.

1. Start your web browser on a computer connected to the network.

2. Type the projector's IP address into the browser's address box and press the computer's Enter key.

You see the Epson Web Control screen:

3. Select Crestron Connected.

You see a screen like this:

Note: Sources in the image above vary depending on ports available on your product.

4. Select the input source that you want to control in the Sources List box. You can scroll through available sources using the up and down arrows in the box.

5. To control projection remotely, click the on-screen buttons that correspond to the projector's remote control buttons. You can scroll through button options at the bottom of the screen.

Note: These on-screen buttons do not directly correspond to the projector's remote control buttons:

• OK acts as the Enter button

• Menu displays the projector's menu

6. To view information about the projector, click the Info tab.

7. To change projector, Crestron, and password settings, click the Tools tab, select settings on the displayed screen, and click Send.

8. When you finish selecting settings, click Exit to exit the program.

Parent topic: Using Crestron Connected

Art-Net Channel Definitions

Art-Net is an Ethernet communication protocol based on the TCP/IP protocol. You can control the projector by using a DMX controller or an application system.

The following table lists the channel definitions used to control the projector in Art-Net.

Begin by setting channel 13 to Can control.

Note: When controlling the projector using Art-Net and performing operations from the remote control or control panel, settings made by the DMX controller or application software may not be applied to the projector correctly or may differ from the projector's actual status. If you want to apply control for multiple channels to the projector, set Channel 13 to Cannot control before you make any other settings. Then set Channel 13 to Can control after setting multiple channels. You can then control the projector without changing the setting for Channel 13.

Channel/Function Operation Parameters Description

1 Adjusting light (dimming)

2 Shutter control Shutter closed

0% to 100% 0 to 255 Adjusts the image

Non-operational

Shutter open

0 to 63

64 to 191

192 to 255

brightness (default is

Closes and opens the shutter (default is

128)

Channel/Function Operation Parameters Description

3 Switch source Non-operational 0 to 23, 32 to 47, 64 to 71,

88 to 127, 144 to 167, 184 to 255

HDBaseT 24 to 31

SDI 48 to 55

Computer 56 to 63

BNC 72 to 79

LAN 80 to 87

Slot 1-1* 128 to 135

Slot 1-2* 136 to 143

Slot 2-1* 168 to 175

Slot 2-2* 176 to 183

4 Lens position Non operational

Move to home position

5 Horizontal lens

(+) Lens adjustment Movement - large: 0 to 31

shift

0 to 31, 64 to 255

32 to 63

Movement - medium: 32 to 63

Movement - small: 64 to 95

Switches to the specified source (default is 0)

Shifts the lens to the home position (default is 0)

Shifts the lens horizontally by the amount of shift specified (default is

128)

Non-operational 96 to 159

(–) Lens adjustment Movement - small: 160 to

191

Movement - medium: 192 to 223

Movement - large: 224 to 255

Channel/Function Operation Parameters Description

6 Vertical lens shift (+) Lens adjustment Movement - large: 0 to 31

Movement - medium: 32 to 63

Movement - small: 64 to 95

Non-operational 96 to 159

(–) Lens adjustment Movement - small: 160 to

191

Movement - medium: 192 to 223

Movement - large: 224 to 255

7 Electronic zoom (+) Lens adjustment Movement - large: 0 to 31

Movement - medium: 32 to 63

Movement - small: 64 to 95

Non-operational 96 to 159

(–) Lens adjustment Movement - small: 160 to

191

Shifts the lens vertically by the amount of shift specified (default is

128)

Zooms using the specified amount of movement (default is

128)

Movement - medium: 192 to 223

Movement - large: 224 to 255

Channel/Function Operation Parameters Description

8 Electronic focus (+) Lens adjustment Movement - large: 0 to 31

Movement - medium: 32 to 63

Movement - small: 64 to 95

Non-operational 96 to 159

(–) Lens adjustment Movement - small: 160 to

191

Movement - medium: 192 to 223

Movement - large: 224 to 255

9 Electronic distortion

(+) Lens adjustment Movement - large: 0 to 31

Movement - medium: 32 to 63

Movement - small: 64 to 95

Non-operational 96 to 159

(–) Lens adjustment Movement - small: 160 to

191

Performs electronic focus using the specified amount of movement (default is

128)

Corrects distortion using the specified amount of movement (default is 128)

Movement - medium: 192 to 223

Movement - large: 224 to 255

Channel/Function Operation Parameters Description

10 Load lens memory

Non-operational 0 to 15, 176 to 255 Loads the specified

Load lens memory 1 16 to 31

Load lens memory 2 32 to 47

Load lens memory 3 48 to 63

Load lens memory 4 64 to 79

Load lens memory 5 80 to 95

Load lens memory 6 96 to 111

Load lens memory 7 112 to 127

Load lens memory 8 128 to 143

Load lens memory 9 144 to 159

Load lens memory 10 160 to 175

11 Power control Power off

Non-operational

Power on

12 Geometry correction

Off 0 to 15 Performs geometry

H/V-Keystone 16 to 31

Quick Corner 32 to 47

0 to 63

64 to 191

192 to 255

lens memory (default is 0)

Turns the projector power on or off (default is 128)

correction (default is

255)

Point Correction 48 to 63

Curved Surface 64 to 79

Corner Wall 80 to 95

Load geometry correction

96 to 111 Loads a geometry

memory 1

Load geometry correction

112 to 127

memory 2

Load geometry correction

128 to 143

memory 3

Non-operational 144 to 175

correction memory (default is 255)

Channel/Function Operation Parameters Description

13 Lock Cannot control

Can control

14 Freeze Non-operational 0 to 31, 96 to 159, 224 to

Freeze off 32 to 95

Freeze on 160 to 223

* The slot number of the interface board followed by the port number from left to right on the interface board

Parent topic: Using the Projector on a Network

Related tasks

Selecting Other Network Settings

0 to 127

128 to 255

255

Registering a Digital Certificate on the Projector

Follow the instructions here if you need to install a digital certificate on the projector to provide security for your presentation files.

Note: You can register a digital certificate over a network or from a connected USB device. However, be sure to register just once from either a USB device or network, or the certificate may not install correctly.

Enables/disables ArtNet operations (default is 0)

Pauses or resumes image display (default is 128)

Importing a Web Server Certificate Using the Projector Menus Registering Digital Certificates from a Web Browser Digital Certificate Types

Parent topic: Using the Projector on a Network

Importing a Web Server Certificate Using the Projector Menus

You can create your web server certificate and import it using the projector menus and a USB flash drive.

Note: You can also register digital certificates from your web browser. Make sure to only register once, or the certificate may not install correctly.

1. Make sure your digital certificate file is compatible with projector registration and saved in the root directory of the USB flash drive.

2. Press the Menu button on the remote control.

3. Select the Network menu and press Enter.

4. Select the Network Configuration setting and press Enter.

5. Select the Others menu and press Enter.

6. Select On as the Secure HTTP setting.

7. Select the Web Server Cert. setting and press Enter.

8. Select Register and press Enter.

9. Insert a USB flash drive into the projector's USB-A port.

10. Press Enter to display the certificate list.

11. Select the certificate you want to import from the displayed list.

A message is displayed prompting you to enter the password for the certificate.

12. Enter the password and press Enter.

The certificate is imported and a completion message appears.

Parent topic: Registering a Digital Certificate on the Projector

Related references

Digital Certificate Types

Registering Digital Certificates from a Web Browser

You can register the digital certificates on the projector for wireless LAN authentication.

1. Make sure your digital certificate file is compatible with projector registration.

2. Make sure the projector is turned on.

3. Start your web browser on a computer or mobile device connected to the network.

4. Type the projector's IP address into the browser's address box and press the computer's Enter key.

You see the Web Control screen:

5. Select Advanced.

6. Under Network, select Certificate.

7. Click the Choose File button, select the certificate file, and click Open.

8. Enter a password in the Password box and click Send.

9. When you finish registering the certificate, click Apply to finalize your changes and complete the registration.

Parent topic: Registering a Digital Certificate on the Projector

Related references

Digital Certificate Types

You can register these types of digital certificates.

Client Certificate (PEAP-TLS/EAP-TLS)

Specification Description

Format PKCS#12

Extension PFX/P12

Encryption RSA

Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512

Key length 512/1024/2048/4096 bit

Password Up to 32 alphanumeric characters; required

CA Certificate (PEAP/PEAP-TLS/EAP-TLS/EAP-FAST)

Specification Description

Format X509v3

Extension DER/CER/PEM

Encryption RSA

Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512

Key length 512/1024/2048/4096 bit

Encoding BASE64/Binary

Web Server Certificate (Secure HTTP)

Specification Description

Format PKCS#12

Extension PFX/P12

Encryption RSA

Specification Description

Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512

Key length 512/1024/2048/4096 bit

Common name Network host name

Organization Optional

Password Up to 32 alphanumeric characters; required

Note: You can set a password of up to 64 characters if you use a web browser to enter the text.

Parent topic: Registering a Digital Certificate on the Projector

Using Basic Projector Features

Follow the instructions in these sections to use your projector's basic features.

Turning On the Projector Turning Off the Projector Selecting the Language for the Projector Menus Adjusting the Image Height Resizing the Image with the Zoom Button Focusing the Image Using the Focus and Distortion Buttons Setting the Screen Type Adjusting the Image Position Using Lens Shift Adjusting the Image Position Using Screen Position Displaying a Test Pattern Image Shape Selecting an Image Source Remote Control Operation Projection Modes Image Aspect Ratio Color Mode Adjusting the Brightness Adjusting Luminance Controls Adjusting Gamma Setting the Date and Time

Turning On the Projector

Turn on the computer or video equipment you want to use before you turn on the projector so it can display the image source.

Note: Install a circuit breaker for 13 A to 20 A to the wiring that supplies power to the projector and do not connect any other devices to that wiring.

1. Connect the power cord to the projector's power inlet. Flip the power cable holder over the plug as shown.

Note: If you connected the projector using the 100 V power cord, the image brightness is reduced to approximately 55% of the brightness achievable with the 220 V power cord and the Laser light flashes orange. For optimal performance, connect the 220 V power cord that came with the projector. You cannot access the Light Source Mode, Estimated Remains, or Light Source Calibration menu settings when connected using the 100 V power cord.

2. Plug the power cord into an electrical outlet.

3. Turn on the power switch on the side of the projector.

The projector's On/Standby light flashes briefly and then turns blue. This indicates that the projector is receiving power.

Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.

4. Press the On button on the projector or remote control to turn on the projector.

The projector beeps and the Status light flashes blue as the projector warms up. After about 30 seconds, the Status light stops flashing and turns blue.

Warning: Never look into the projector lens when the laser is on. This can damage your eyes and is especially dangerous for children and pets.

Caution: Make sure no objects are blocking the light from the projector lens. Objects blocking the lens for an extended time can melt and light that is reflected back into the lens can cause the projector to malfunction.

If you do not see a projected image right away, try the following:

• Make sure the lens cap is off.

• Turn on the connected computer or video device.

• Insert a DVD or other video media and press the play button, if necessary.

• Press the Search button on the remote control to detect the video source, or press one of the source

buttons on the remote control or projector.

Parent topic: Using Basic Projector Features

Related references

Projector Setup Settings - Extended Menu

Related tasks

Turning Off the Projector

Before turning off the projector, shut down any computer connected to it so you can see the computer display during shutdown.

Note: Turn off this product when not in use to prolong the life of the projector. Laser life will vary depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.

1. Press the Standby button on the projector or remote control.

The projector displays a shutdown confirmation screen.

2. Press the Standby button on the projector or remote control again. (To leave it on, press any other button.)

The projector beeps twice, the laser turns off, and the Status light turns off.

Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the projector for transport right away (if necessary).

3. Turn off the power using the power switch on the side of the projector.

The On/Standby light turns off.

4. To transport or store the projector, make sure the Status light is off, then unplug the power cord. (If necessary, flip open the power cable holder first.)

100

Epson L20000UNL, L20002UNL User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction to Your Projector

Projector Features

Additional Components

Additional Projector Software and Manuals

Optional Equipment and Replacement Parts
