Epson Expression ET-3700 User Manual

User's Guide
NPD5703-01 EN
User's Guide

Contents

Contents
About This Manual
Introduction to the Manuals...................6
Using the Manual to Search for Information. . . . . . . 6
Marks and Symbols.........................8
Descriptions Used in this Manual...............8
Important Instructions
Safety Instructions for Ink................. 10
Printer Advisories and Warnings.............. 11
Advisories and Warnings for Setting Up the
Printer................................11
Advisories and Warnings for Using the Printer. . 11 Advisories and Warnings for Transporting or
Storing the Printer.......................12
Advisories and Warnings for Using the
Printer with a Wireless Connection...........12
Advisories and Warnings for Using the LCD
Screen................................12
Protecting Your Personal Information...........12
Printer Basics
Part Names and Functions...................13
Control Panel.......................... 15
Basic Screen
Icons displayed in the LCD Screen........... 16
Basic Operations........................17
Entering Characters......................18
Viewing Animations........................19
Conguration
...................15
Network Settings
Network Connection Types.................. 21
Ethernet Connection.....................21
Wi-Fi Connection....................... 21
Wi-Fi Direct (Simple AP) Connection.........22
Connecting to a Computer...................22
Connecting to a Smart Device................ 23
Making Wi-Fi Settings from the Printer..........23
Making Wi-Fi Settings Manually.............24
Making Wi-Fi Settings by Push Button Setup
(WPS)................................25
Making Wi-Fi Settings by PIN Code Setup
(WPS)................................27
Making Wi-Fi Direct (Simple AP)
Connection Settings......................28
Making Advanced Network Settings..........29
Checking the Network Connection Status........31
Network Icon...........................31
Checking Detailed Network Information
from the Control Panel....................31
Printing a Network Connection Report........32
Printing a Network Status Sheet...............39
Replacing or Adding New Access Points.........39
Changing the Connection Method to a Computer. . 39
Changing the Network Connection to Ethernet
from the Control Panel......................40
Disabling Wi-Fi from the Control Panel..........41
Disconnecting Wi-Fi Direct (Simple AP)
Restoring the Network Settings from the
Control Panel............................ 42
Preparing the Printer
Available Paper and Capacities..............44
Loading Paper in the Paper Cassette..........46
Loading Envelopes and Precautions.......... 49
List of Paper Type....................... 49
Placing Originals..........................50
Placing Originals on the Scanner Glass. . . . . . . . 50
Menu Options for Settings...................51
Menu Options for General Settings...........51
Menu Options for Maintenance............. 56
Menu Options for Print Status Sheet..........57
Menu Options for Print Counter.............57
Menu Options for User Settings............. 57
Menu Options for Restore Default Settings. . . . . 57
Menu Options for Firmware Update..........58
Saving Power.............................58
Saving Power - Control Panel...............58
Printing
Printing from the Printer Driver on Windows. . . . . 59
Accessing the Printer Driver................59
Printing Basics..........................59
Printing on 2-Sides.......................61
Printing Several Pages on One Sheet..........62
2
User's Guide
Contents
Printing and Stacking in Page Order (Reverse
Order Printing).........................63
Printing a Reduced or Enlarged Document. . . . . 63
Printing One Image on Multiple Sheets for
Enlargement (Creating a Poster).............64
Printing with a Header and Footer........... 70
Printing a Watermark.....................71
Printing Multiple Files Together.............72
Printing Using the Color Universal Print
Feature...............................72
Adjusting the Print Color..................73
Printing to Emphasize in Lines............74
Canceling Printing.......................74
Menu Options for the Printer Driver..........74
Printing from the Printer Driver on Mac OS......77
Printing Basics..........................77
Printing on 2-Sides.......................78
Printing Several Pages on One Sheet..........79
Printing and Stacking in Page Order (Reverse
Order Printing).........................80
Printing a Reduced or Enlarged Document. . . . . 80
Adjusting the Print Color..................81
Canceling Printing.......................81
Menu Options for the Printer Driver..........82
Making Operation Settings for the Mac OS
Printer Driver..........................83
Printing from Smart Devices................. 84
Using Epson iPrint.......................84
Using Epson Print Enabler.................85
Using AirPrint..........................86
Canceling the Ongoing Job...................87
Copying
Copying Basics........................... 88
Copying on 2-Sides........................88
Copying Multiple Originals onto One Sheet. . . . . . .89
Basic Menu Options for Copying..............89
Advanced Menu Options for Copying...........90
Scanning
Scanning Using the Control Panel..............92
Scanning to a Computer (Event Manager)......92
Scanning to the Cloud....................96
Scanning to a Computer (WSD).............98
Scanning from a Computer..................101
Scanning Using Epson Scan 2..............101
Scanning from Smart Devices................104
Installing Epson iPrint...................104
Scanning Using Epson iPrint...............104
Relling
Ink and Replacing
Maintenance Boxes
Checking the Status of the Remaining Ink and
the Maintenance Box......................106
Checking the Status of the Maintenance Box -
Control Panel..........................106
Checking the Status of the Remaining Ink
and the Maintenance Box - Windows.........106
Checking the Status of the Remaining Ink
and the Maintenance Box - Mac OS..........107
Ink Bottle Codes......................... 107
Relling the Ink Tanks.....................109
Maintenance Box Handling Precautions........ 113
Replacing a Maintenance Box................113
Maintaining the Printer
Checking and Cleaning the Print Head -
Control Panel..........................115
Checking and Cleaning the Print Head -
Windows.............................116
Checking and Cleaning the Print Head - Mac
OS..................................116
Running Power Cleaning...................116
Running Power Cleaning - Control Panel. . . . . 117
Running Power Cleaning - Windows.........117
Running Power Cleaning - Mac OS..........118
Aligning the Print Head....................118
Aligning the Print Head - Control Panel. . . . . . 118
Cleaning the Paper Path....................119
Cleaning the Paper Path for Ink Smears.......120
Cleaning the Paper Path for Paper Feeding
Problems.............................120
Cleaning the Scanner Glass..................122
Cleaning the Translucent Film............... 123
Checking the Total Number of Pages Fed rough
the Printer.......................125
Checking the Total Number of Pages Fed
rough the Printer - Control Panel......... 125
Checking the Total Number of Pages Fed rough Checking the Total Number of Pages Fed
rough the Printer - Mac OS..............125
the Printer - Windows.............125
3
User's Guide
Contents
Network Service and Software Information
Application for
Running Web Cong on a Web Browser. . . . . . 126
Running Web
Running Web Cong on Mac OS............127
Application for Scanning Documents and
Adding the Network Scanner..............128
Application for Conguring Scanning Operations from the Control Panel (Epson
Event Manager)..........................129
Application for Laying Out Photos (Epson Easy
Photo Print).............................129
Application for Printing Web Pages (E-Web Print) 130
Soware
Updater)...............................130
Installing the Latest Applications..............131
Updating the Printer's Firmware using the
Uninstalling Applications...................133
Uninstalling Applications - Windows.........133
Uninstalling Applications - Mac OS..........134
Printing Using a Network Service.............134
Conguring
Cong
Update Tools (EPSON
Printer Operations
on Windows.......... 127
Soware
Solving Problems
Checking Messages on the LCD Screen. . . . . . . 136
Checking the Printer Status - Windows.......137
Checking the Printer Status - Mac OS........137
Checking the Soware Status. . . . . . . . . . . . . . . . 137
Removing Jammed Paper...................138
Paper Does Not Feed Correctly. . . . . . . . . . . . . . . 138
Paper Jams............................138
Paper Feeds at a Slant....................139
Several Sheets of Paper are Fed at a Time. . . . . . 139
Power and Control Panel Problems............139
Power Does Not Turn On.................139
Power Does Not Turn O.................139
Power Turns O Automatically.............139
LCD Screen Gets Dark...................139
Cannot Print from a Computer...............140
Checking the Connection (USB)............140
Checking the Connection (Network).........140
Checking the
Soware
and Data............141
Checking the Printer Status from the
Computer (Windows)....................142
Checking the printer status from the
computer (Mac OS).....................143
When You Cannot Make Network Settings......143
Cannot Connect from Devices Even
Network Settings are No Problems.......... 144
Checking the SSID Connected to the Printer. . . 145
Checking the SSID for the Computer.........146
Cannot Print from an iPhone or iPad.......... 147
Printout Problems........................147
Printout is Scued or Color is Missing........147
Banding or Unexpected Colors Appear.......147
Colored Banding Appears at Intervals of
Approximately 3.3 cm....................148
Blurry Prints, Vertical Banding, or
Misalignment..........................148
Print Quality is Poor.....................149
Paper Is Smeared or Paper is Smeared During Automatic 2-Sided
Printing..............................151
Printed Photos are Sticky.................152
Images or Photos are Printed in Unexpected
Colors...............................152
Cannot Print Without Margins.............152
Edges of the Image are Cropped During
Borderless Printing......................152
e Position, Size, or Margins of the Printout
Are Incorrect..........................153
Printed Characters Are Incorrect or Garbled. . . 153
e Printed Image Is Inverted..............153
Mosaic-Like Patterns in the Prints...........153
Uneven Colors, Smears, Dots, or Straight
Lines Appear in the Copied Image...........154
Moiré (Cross-Hatch) Patterns Appear in the
Copied Image......................... 154
An Image of the Reverse Side of the Original
Appears in the Copied Image..............154
e Printout Problem Could Not be Cleared. . . 154
Other Printing Problems................... 155
Printing Is Too Slow.....................155
Printing Slows Down Dramatically During
Continuous Printing.....................155
Cannot Cancel Printing from a Computer
Running Mac OS X v10.6.8................155
Cannot Start Scanning.....................156
Scanned Image Problems...................156
Uneven Colors, Dirt, Spots, and so on Appear
when Scanning from the Scanner Glass.......156
Image Quality Is Rough...............157
e
Appears in the Background of Images. . . 157
Oset
Scued
...............150
ough
4
User's Guide
Contents
Text is Blurred.........................157
Moiré Patterns (Web-Like Shadows) Appear. . . 157 Cannot Scan the Correct Area on the
Scanner Glass..........................158
Text is Not Recognized Correctly when
Saving as a Searchable PDF................158
Cannot Solve Problems in the Scanned Image. . 159
Other Scanning Problems...................159
Scanning Speed Is Slow...................159
Scanning Stops when Scanning to PDF/
Multi-TIFF........................... 160
Other Problems..........................160
Slight Electric Shock when Touching the
Printer...............................160
Operation Sounds Are Loud...............160
Application Is Blocked by a Firewall (for
Windows Only)........................160
A Message Prompting You to Reset the Ink
Levels is Displayed......................161
Ink Spilled............................161
Appendix
Technical Specications....................162
Printer Scanner
Interface Specications...................163
Network Function List...................164
Wi - F i Ethernet
Security Protocol.......................165
Supported ird Party Services.............165
Dimensions...........................166
Electrical
Environmental Specications..............167
System Requirements....................167
Regulatory Information....................168
Standards and Approvals................. 168
Restrictions on Copying..................169
Copyright.............................. 172
Trademarks.............................173
Where to Get Help........................174
Technical Support Web Site................174
Contacting Epson Support................174
Specications
Specications
Specications
Specications
Specications
....................162
................... 163
.....................164
...................165
.................. 166
5
User's Guide

About This Manual

About This Manual

Introduction to the Manuals

e following manuals are supplied with your Epson printer. As well as the manuals, check the various types of help information available from the printer itself or from the Epson soware applications.
❏ Important Safety Instructions (paper manual)
Provides you with instructions to ensure the safe use of this printer.
❏ Start Here (paper manual)
Provides you with information on setting up the printer, installing the soware, using the printer, and so on.
❏ User's Guide (digital manual)
is manual. Provides overall information and instructions on using the printer, on network settings when using the printer on a network, and on solving problems.
You can obtain the latest versions of the above manuals with the following methods.
❏ Paper manual
Visit the Epson Europe support website at http://www.epson.eu/Support, or the Epson worldwide support website at http://support.epson.net/.
❏ Digital manual
Start EPSON Soware Updater on your computer. EPSON Soware Updater checks for available updates of Epson soware applications and the digital manuals, and allows you to download the latest ones.
Related Information
& “Soware Update Tools (EPSON Soware Updater)” on page 130

Using the Manual to Search for Information

e PDF manual allows you to search for information you are looking for by keyword, or jump directly to specic sections using the bookmarks. You can also print only the pages you need. is section explains how to use a PDF manual that has been opened in Adobe Reader X on your computer.
6
User's Guide
About This Manual
Searching by keyword
Click Edit > Advanced Search. Enter the keyword (text) for information you want to nd in the search window, and then click Search. Hits are displayed as a list. Click one of the displayed hits to jump to that page.
Jumping directly from bookmarks
Click a title to jump to that page. Click + to view the lower level titles in that section. To return to the previous page, perform the following operation on your keyboard.
❏ Wi n d o w s : H o ld down Alt, and then press ←.
❏ Mac OS: Hold down the command key, and then press ←.
Printing only the pages you need
You can extract and print only the pages you need. Click Print in the File menu, and then specify the pages you want to print in Pages in Pages to Print.
❏ To specify a series of pages, enter a hyphen between the start page and the end page.
Example: 20-25
❏ To specify pages that are not in series, divide the pages with commas.
Example: 5, 10, 15
7
User's Guide
About This Manual

Marks and Symbols

Caution:
!
Instructions that must be followed carefully to avoid bodily injury.
Important:
c
Instructions that must be observed to avoid damage to your equipment.
Note:
Provides complementary and reference information.
&
Related Information
Links to related sections.

Descriptions Used in this Manual

❏ Screenshots of the printer driver and the Epson Scan 2 (scanner driver) screens are from Windows 10 or macOS
Sierra. e content displayed on the screens varies depending on the model and situation.
❏ Illustrations of the printer used in this manual are examples only. Although there may be slight dierences
depending on the model, the method of operation is the same.
❏ Some of the menu items on the LCD screen vary depending on the model and settings.

Operating System References

Windows
In this manual, terms such as "Windows 10", "Windows 8.1", "Windows 8", "Windows 7", "Windows Vista", "Windows XP", "Windows Server 2016", "Windows Server 2012 R2", "Windows Server 2012", "Windows Server 2008 R2", "Windows Server 2008", "Windows Server 2003 R2", and "Windows Server 2003" refer to the following operating systems. Additionally, "Windows" is used to refer to all versions.
❏
Microso
❏ Microso
❏
Microso
❏ Microso
❏ Microso
❏
Microso
❏ Microso
❏ Microso
❏
Microso
❏ Microso
Wi n d o w s® 10 operating system
®
Wi n d o w s® 8.1 operating system
®
Wi n d o w s® 8 operating system
®
Wi n d o w s® 7 operating system
®
Wi n d o w s Vis ta® operating system
®
Wi n d o w s® XP operating system
®
Wi n d o w s® XP Professional x64 Edition operating system
®
Wi n d o w s Ser v e r® 2016 operating system
®
Wi n d o w s Ser v e r® 2012 R2 operating system
®
Wi n d o w s Ser v e r® 2012 operating system
®
8
User's Guide
About This Manual
❏ Microso® Wi n d o w s Ser v e r® 2008 R2 operating system
❏
Microso
❏ Microso
❏ Microso
Mac OS
In this manual, "Mac OS" is used to refer to macOS Sierra, OS X El Capitan, OS X Yosemite, OS X Mavericks, OS X Mountain Lion, Mac OS X v10.7.x, and Mac OS X v10.6.8.
Wi n d o w s Ser v e r® 2008 operating system
®
Wi n d o w s Ser v e r® 2003 R2 operating system
®
Wi n d o w s Ser v e r® 2003 operating system
®
9
User's Guide

Important Instructions

Important Instructions

Safety Instructions

Read and follow these instructions to ensure safe use of this printer. Make sure you keep this manual for future reference. Also, be sure to follow all warnings and instructions marked on the printer.
❏ Some of the symbols used on your printer are to ensure safety and proper use of the printer. Visit the following
Web site to learn the meaning of the symbols.
http://support.epson.net/symbols
❏ Use only the power cord supplied with the printer and do not use the cord with any other equipment. Use of
other cords with this printer or the use of the supplied power cord with other equipment may result in re or electric shock.
❏ Be sure your AC power cord meets the relevant local safety standard.
❏ Never disassemble, modify, or attempt to repair the power cord, plug, printer unit, scanner unit, or options by
yourself, except as specically explained in the printer's manuals.
❏ Unplug the printer and refer servicing to qualied service personnel under the following conditions:
e power cord or plug is damaged; liquid has entered the printer; the printer has been dropped or the casing damaged; the printer does not operate normally or exhibits a distinct change in performance. Do not adjust controls that are not covered by the operating instructions.
❏ Place the printer near a wall outlet where the plug can be easily unplugged.
❏ Do not place or store the printer outdoors, near excessive dirt or dust, water, heat sources, or in locations
subject to shocks, vibrations, high temperature or humidity.
❏ Take care not to spill liquid on the printer and not to handle the printer with wet hands.
❏ Keep the printer at least 22 cm away from cardiac pacemakers. Radio waves from this printer may adversely
aect the operation of cardiac pacemakers.
❏ If the LCD screen is damaged, contact your dealer. If the liquid crystal solution gets on your hands, wash them
thoroughly with soap and water. If the liquid crystal solution gets into your eyes, ush them immediately with water. If discomfort or vision problems remain aer a thorough ushing, see a doctor immediately.

Safety Instructions for Ink

❏ Be careful not to touch any ink when you handle the ink tanks, ink tank caps, and opened ink bottles or ink
bottle caps.
❏ If ink gets on your skin, wash the area thoroughly with soap and water.
❏ If ink gets into your eyes, ush them immediately with water. If discomfort or vision problems continue aer
a thorough ushing, see a doctor immediately.
❏ If ink gets into your mouth, see a doctor right away.
❏ Do not disassemble the maintenance box; otherwise ink may get into your eyes or on your skin.
❏ Do not shake an ink bottle too vigorously or subject it to strong impacts as this can cause ink to leak.
❏ Keep ink bottles, the ink tank unit, and maintenance box out of the reach of children. Do not allow children to
drink from or handle the ink bottles and ink bottle cap.
10
User's Guide
Important Instructions

Printer Advisories and Warnings

Read and follow these instructions to avoid damaging the printer or your property. Make sure you keep this manual for future reference.

Advisories and Warnings for Setting Up the Printer

❏ Do not block or cover the vents and openings in the printer.
❏ Use only the type of power source indicated on the printer's label.
❏ Avoid using outlets on the same circuit as photocopiers or air control systems that regularly switch on and o.
❏ Avoid electrical outlets controlled by wall switches or automatic timers.
❏ Keep the entire computer system away from potential sources of electromagnetic interference, such as
loudspeakers or the base units of cordless telephones.
❏ e power-supply cords should be placed to avoid abrasions, cuts, fraying, crimping, and kinking. Do not place
objects on top of the power-supply cords and do not allow the power-supply cords to be stepped on or run over. Be particularly careful to keep all the power-supply cords straight at the ends and the points where they enter and leave the transformer.
❏ If you use an extension cord with the printer, make sure that the total ampere rating of the devices plugged into
the extension cord does not exceed the cord's ampere rating. Also, make sure that the total ampere rating of all devices plugged into the wall outlet does not exceed the wall outlet's ampere rating.
❏ If you plan to use the printer in Germany, the building installation must be protected by a 10 or 16 amp circuit
breaker to provide adequate short-circuit protection and over-current protection for the printer.
❏ When connecting the printer to a computer or other device with a cable, ensure the correct orientation of the
connectors. Each connector has only one correct orientation. Inserting a connector in the wrong orientation may damage both devices connected by the cable.
❏ Place the printer on a
will not operate properly if it is tilted at an angle.
❏ Allow space above the printer so that you can fully raise the document cover.
❏ Leave enough space in front of the printer for the paper to be fully ejected.
❏ Avoid places subject to rapid changes in temperature and humidity. Also, keep the printer away from direct
sunlight, strong light, or heat sources.
stable surface that extends beyond the base of the printer in all directions. e printer
at,

Advisories and Warnings for Using the Printer

❏ Do not insert objects through the slots in the printer.
❏ Do not put your hand inside the printer during printing.
❏ Do not touch the white at cable and ink tubes inside the printer.
❏ Do not use aerosol products that contain ammable gases inside or around the printer. Doing so may cause re.
❏ Do not move the print head by hand; otherwise, you may damage the printer.
❏ Be careful not to trap your ngers when closing the scanner unit.
❏ Do not press too hard on the scanner glass when placing the originals.
11
User's Guide
Important Instructions
❏ Prolonged use of the printer when the ink level is below the lower line could damage the printer. Fill the ink
tank to the upper line while the printer is not operating. To display the correct ink level estimates, reset the ink level aer lling the tank.
❏ Always turn the printer o using the
P
until the
❏ If you are not going to use the printer for a long period, be sure to unplug the power cord from the electrical
outlet.
light stops ashing.
P
button. Do not unplug the printer or turn o the power at the outlet

Advisories and Warnings for Transporting or Storing the Printer

❏ When storing or transporting the printer, avoid tilting it, placing it vertically, or turning it upside down;
otherwise ink may leak.
❏ Before transporting the printer, make sure that the print head is in the home (far right) position.

Advisories and Warnings for Using the Printer with a Wireless Connection

❏ Radio waves from this printer may negatively aect the operation of medical electronic equipment, causing
them to malfunction. When using this printer inside medical facilities or near medical equipment, follow directions from the authorized personnel representing the medical facilities, and follow all posted warnings and directions on the medical equipment.
❏ Radio waves from this printer may negatively aect the operation of automatically controlled devices such as
automatic doors or re alarms, and could lead to accidents due to malfunction. When using this printer near automatically controlled devices, follow all posted warnings and directions on these devices.

Advisories and Warnings for Using the LCD Screen

❏
LCD screen may contain a few small bright or dark spots, and because of its features it may have an uneven
e brightness. ese are normal and do not indicate that it is damaged in any way.
❏ Only use a dry, so cloth for cleaning. Do not use liquid or chemical cleaners.
❏
exterior cover of the LCD screen could break if it receives a heavy impact. Contact your dealer if the
e screen's surface chips or cracks, and do not touch or attempt to remove the broken pieces.

Protecting Your Personal Information

When you give the printer to someone else or dispose of it, erase all the personal information stored in the printer's memory by selecting Settings > Restore Default Settings > Clear All Data and Settings on the control panel.
12
User's Guide

Printer Basics

Printer Basics

Part Names and Functions

Output tray Holds the ejected paper.
A
Paper cassette Loads paper.
B
Edge guides Feeds the paper straight into the printer. Slide to the edges of the paper.
C
Legal paper guide Slide out to load legal size paper.
D
Document cover Blocks external light while scanning.
A
Scanner glass Place the originals.
B
13
User's Guide
Control panel Indicates the printer's status and allows you to make print settings.
C
Front cover Open to load paper in the paper cassette.
D
Printer Basics
Scanner unit Scans placed originals. Open to rell the ink tank or to remove jammed
A
paper. This unit should usually be kept closed.
Ink tank cover Open to rell the ink tank.
B
Ink reservoir tank (Ink tank) Supplies ink to the print head.
C
Ink tank unit Contains the ink tanks.
D
Print head Ink is ejected from the print head nozzles underneath.
E
Maintenance box cover Remove when replacing the maintenance box. The maintenance box is a
A
container that collects a very small amount of surplus ink during cleaning or printing.
Rear cover Remove when removing jammed paper.
B
AC inlet Connects the power cord.
C
LAN port Connects a LAN cable.
D
USB port Connects a USB cable to connect with a computer.
E
14
User's Guide

Control Panel

Printer Basics
Turns the printer on or o.
A
Do not turn o while the power light is ashing (while the printer is operating or processing data).
Unplug the power cord when the power light is
Displays the home screen.
B
Displays the solutions when you are in trouble.
C
Displays menus and messages. Use buttons on the control panel to select a menu or to make settings.
D
Selects the number of pages to print.
E
Stops the current operation.
F
Returns to the previous screen.
G
H
Use the u d l r buttons to move the focus to the target, and then press the OK button to open the selected menu or to make settings.
Applies to a variety of functions depending on the situation.
I
Starts an operation such as printing or copying.
J
o.
Basic Screen Conguration
15
User's Guide
Printer Basics
Indicates items that have been setup for the printer as icons. Select the icon to check the current settings or access
A
each setting menu.
This action bar is displayed on the home screen only.
Displays each mode.
B
Switch tabs.
C
Indicates the setting items. Select each item to set or change the settings. The items vary depending on each mode.
D
The grayed out items are not available. Select the item to check why they are unavailable.
Available buttons are displayed.
E

Icons displayed in the LCD Screen

following icons are displayed on the LCD screen depending on the printer's status.
e
Indicates the status of consumables.
Select the icon to check the approximate service life of the maintenance box.
Indicates the network connection status.
Select the icon to check and change the current settings. This is the shortcut for the following menu.
Settings > General Settings > Network Settings > Wi-Fi Setup
The printer is not connected to a wired (Ethernet) network or unset it.
The printer is connected to a wired (Ethernet) network.
The printer is not connected to a wireless (Wi-Fi) network.
The printer is searching for SSID, unset IP address, or having a problem with a wireless (Wi-Fi) network.
The printer is connected to a wireless (Wi-Fi) network.
The number of bars indicates the signal strength of the connection. The more bars there are, the stronger the connection.
The printer is not connected to a wireless (Wi-Fi) network in Wi-Fi Direct (Simple AP) mode.
The printer is connected to a wireless (Wi-Fi) network in Wi-Fi Direct (Simple AP) mode.
Indicates whether or not Quiet Mode is set for the printer. When this feature is enabled, the noise made by printer operations is reduced, but print speed may slow down. However, noises may not be reduced depending on the selected paper type and print quality.
Indicates that there is additional information. Select the icon to displays the message.
Indicates a problem with the items. Select the icon to check how to solve the problem.
16
User's Guide
Printer Basics

Basic Operations

Move the focus using the u d l r buttons to select the items, and then press the OK button to conrm your selection or run the selected feature.
Move the focus to the setting item using the u d l r buttons, and then press the OK button to switch the item on or o.
To enter the value, name, address, and so on, move the focus to the input then press the OK button to display the on-screen keyboard.
using the u d l r buttons, and
eld
17
User's Guide
Printer Basics

Entering Characters

On-screen Keyboard
You can enter characters and symbols by using on-screen keyboard when you make network settings and so on.
Note:
Available icons vary depending on the setting item.
A
B
C
D
E
F
G
H
I
Indicates the character count.
Moves the cursor to the input position.
Switches between upper case and lower case or numbers and symbols.
You can also switch them by using the
Switches the character type. You can enter alphanumerics, symbols, and special characters such as umlauts and accents.
You can also switch them by using the
Changes the keyboard layout.
Enters frequently used email domain addresses or URLs by simply selecting the item.
Enters a space.
Enters character.
Deletes a character to the left.
button.
button.
On-screen Keypad
You can enter numbers by using the on-screen keypad when entering the number of copies and so on.
18
User's Guide
Printer Basics
e on-screen keyboard makes it easier to enter larger numbers. When entering a smaller number, use +/- buttons.
A
B
C
Cancels entering and closes the on-screen keypad.
Conrms the entered numbers and closes the on-screen keypad.
Clears the entered number.

Viewing Animations

You can view animations of operating instructions such as loading paper or removing jammed paper on the LCD screen.
❏ Press
❏ Select How To at the bottom of the operation screen: Displays the context-sensitive animation.
button: Displays the help screen. Select How To and then select the items that you want to view.
Indicates the total number of steps and the current step number.
A
In the example above, it shows step 2 from 6 steps.
B
Press l button to return to the previous step.
Indicates your progress through the current step. The animation repeats when the progress bar reaches the end.
C
19
User's Guide
D
Press r button to move to the next step.
Printer Basics
20
User's Guide

Network Settings

Network Settings

Network Connection Types

You can use the following connection methods.

Ethernet Connection

Connect the printer to a hub with an Ethernet cable.
Related Information
& “Making Advanced Network Settings” on page 29

Wi-Fi Connection

Connect the printer and the computer or smart device to the access point. for home or
networks where computers are connected by Wi-Fi through the access point.
oce
is the typical connection method
is
21
User's Guide
Network Settings
Related Information
& “Connecting to a Computer” on page 22 & “Connecting to a Smart Device” on page 23 & “Making Wi-Fi Settings from the Printer” on page 23

Wi-Fi Direct (Simple AP) Connection

Use this connection method when you are not using Wi-Fi at home or at the oce, or when you want to connect the printer and the computer or smart device directly. In this mode, the printer acts as an access point and you can connect up to four devices to the printer without having to use a standard access point. However, devices directly connected to the printer cannot communicate with each other through the printer.
Note:
Wi-Fi Direct (Simple AP) connection is a connection method designed to replace Ad Hoc mode.
printer can be connected by Wi-Fi or Ethernet, and Wi-Fi Direct (Simple AP) connection simultaneously.
e However, if you start a network connection in Wi-Fi Direct (Simple AP) connection when the printer is connected by Wi-Fi, the Wi-Fi is temporarily disconnected.
Related Information
“Making Wi-Fi Direct (Simple AP) Connection Settings” on page 28
&

Connecting to a Computer

We recommend using the installer to connect the printer to a computer. You can run the installer using one of the following methods.
❏ Setting up from the website
Access the following website, and then enter the product name. Go to Setup, and then start setting up.
http://epson.sn
❏ Setting up using the soware disc (only for the models that come with a soware disc and users with computers
with disc drives.)
Insert the soware disc into the computer, and then follow the on-screen instructions.
22
User's Guide
Network Settings
Selecting the Connection Methods
Follow the on-screen instructions until the following screen is displayed, and then select the connection method of the printer to the computer.
Select the connection type and then click Next.
Follow the on-screen instructions.

Connecting to a Smart Device

You can use the printer from a smart device when you connect the printer to the same Wi-Fi network (SSID) as the smart device. To use the printer from a smart device, set up from the following website. Access to the website from the smart device that you want to connect to the printer.
http://epson.sn > Setup
Note:
If you want to connect a computer and a smart device to the printer at the same time, we recommend connecting the computer
rst.

Making Wi-Fi Settings from the Printer

You can make network settings from the printer's control panel in several ways. Choose the connection method that matches the environment and conditions that you are using.
If you know the information for the access point such as SSID and password, you can make settings manually.
If the access point supports WPS, you can make settings by using push button setup.
23
User's Guide
Network Settings
Aer connecting the printer to the network, connect to the printer from the device that you want to use (computer, smart device, tablet, and so on.)
Related Information
& “Making Wi-Fi Settings Manually” on page 24 & “Making Wi-Fi Settings by Push Button Setup (WPS)” on page 25 & “Making Wi-Fi Settings by PIN Code Setup (WPS)” on page 27 & “Making Wi-Fi Direct (Simple AP) Connection Settings” on page 28 & “Making Advanced Network Settings” on page 29

Making Wi-Fi Settings Manually

You can manually set up the information necessary to connect to an access point from the printer's control panel. To set up manually, you need the SSID and password for an access point.
Note:
If you are using an access point with its default settings, the SSID and password are on the label. If you do not know the SSID and password, contact the person who set up the access point, or see the documentation provided with the access point.
1.
Select

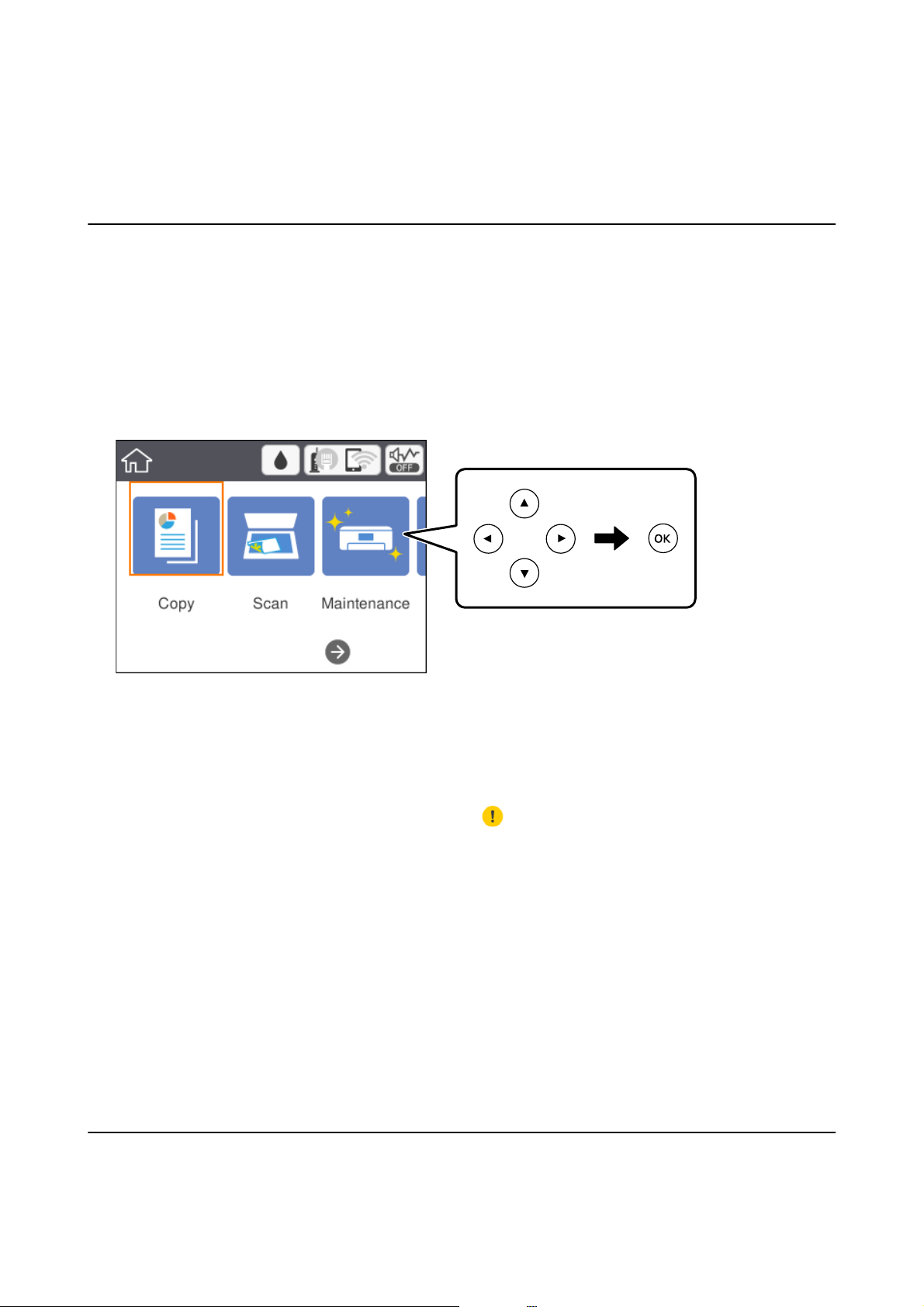

To select an item, move the focus to the item using the
on the home screen.
u d l r
buttons, and then press the OK button.
2. Select Wi-Fi (Recommended).
If the printer has already been connected by Ethernet, select Router.
24
User's Guide
Network Settings
3. Press the OK button.
If the network connection is already set up, the connection details are displayed. Select Change Settings to change the settings.
If the printer has already been connected by Ethernet, select Change to Wi-Fi connection., and then select Ye s aer checking the message.
4. Select Wi-Fi Setup Wizard.
5. Select the SSID for the access point.
Note:
❏ If the SSID you want to connect to is not displayed on the printer's control panel, press the
list. If it is still not displayed, press the
❏ If you do not know the SSID, check if it is written on the label of the access point. If you are using the access point
with its default settings, use the SSID written on the label.
6.
Enter the password.
Note:
❏ e password is case-sensitive.
❏ If you do not know the password, check if it is written on the label of the access point. If you are using the access point
with its default settings, use the password written on the label. e password may also be called a "Key", a "Passphrase", and so on.
❏ If you do not know the password for the access point, see the documentation provided with the access point, or
contact the person who set it up.
7. When you have setup
nished,
select Start Setup.
button, and then enter the SSID directly.
button to update the
8. Select OK to nish.
Note: If you fail to connect, load A4 size plain paper, and then select Print Check Report to print a connection report.
9. Close the network connection settings screen.
Related Information
& “Basic Operations” on page 17 & “Entering Characters” on page 18 & “Checking the Network Connection Status” on page 31 & “When You Cannot Make Network Settings” on page 143

Making Wi-Fi Settings by Push Button Setup (WPS)

You can automatically set up a Wi-Fi network by pressing a button on the access point. If the following conditions are met, you can set up by using this method.
❏ e access point is compatible with WPS (Wi-Fi Protected Setup).
❏ e current Wi-Fi connection was established by pressing a button on the access point.
Note:
If you cannot nd the button or you are setting up using the soware, see the documentation provided with the access point.
25
User's Guide
1. Select on the home screen.
Network Settings
To select an item, move the focus to the item using the
2. Select Wi-Fi (Recommended).
If the printer has already been connected by Ethernet, select Router.
3. Press the OK button.
u d l r
buttons, and then press the OK button.
If the network connection is already set up, the connection details are displayed. Select Change Settings to change the settings.
If the printer has already been connected by Ethernet, select Change to Wi-Fi connection., and then select Ye s aer checking the message.
4. Select Push Button Setup (WPS).
5. Hold down the [WPS] button on the access point until the security light ashes.
If you do not know where the [WPS] button is, or there are no buttons on the access point, see the documentation provided with your access point for details.
6. Press the OK button on the printer.
26
User's Guide
7. Close the screen.
Network Settings
screen automatically closes
e
Note:
If connection fails, restart the access point, move it closer to the printer, and try again. If it still does not work, print a network connection report and check the solution.
8. Close the network connection settings screen.
Related Information
& “Basic Operations” on page 17 & “Checking the Network Connection Status” on page 31 & “When You Cannot Make Network Settings” on page 143
aer
a
specic
length of time.

Making Wi-Fi Settings by PIN Code Setup (WPS)

You can automatically connect to an access point by using a PIN code. You can use this method to set up if an access point is capable of WPS (Wi-Fi Protected Setup). Use a computer to enter a PIN code into the access point.
1. Select
on the home screen.
To select an item, move the focus to the item using the
2. Select Wi-Fi (Recommended).
If the printer has already been connected by Ethernet, select Router.
3. Press the OK button.
u d l r
buttons, and then press the OK button.
If the network connection is already set up, the connection details are displayed. Select Change Settings to change the settings.
If the printer has already been connected by Ethernet, select Change to Wi-Fi connection., and then select Ye s
checking the message.
aer
4. Select Others > PIN Code Setup (WPS).
27
User's Guide
Network Settings
5. Use your computer to enter the PIN code (an eight digit number) displayed on the printer's control panel into the access point within two minutes.
Note:
See the documentation provided with your access point for details on entering a PIN code.
6. Press the OK button on the printer.
7. Close the screen.
e screen automatically closes aer a specic length of time if you do not select Close.
Note:
If connection fails, restart the access point, move it closer to the printer, and try again. If it still does not work, print a connection report and check the solution.
8. Close the network connection settings screen.
Related Information
&
“Basic Operations” on page 17
& “Checking the Network Connection Status” on page 31 & “When You Cannot Make Network Settings” on page 143

Making Wi-Fi Direct (Simple AP) Connection Settings

method allows you to connect the printer directly to devices without an access point. e printer acts as an
is access point.
Important:
c
When you connect from a computer or smart device to the printer using the Wi-Fi Direct (Simple AP) connection, the printer is connected to the same Wi-Fi network (SSID) as the computer or smart device and the communication is established between them. Since the computer or smart device is automatically connected to the other connectable Wi-Fi network if the printer is turned o, it is not connected to the previous Wi-Fi network again if the printer is turned on. Connect to the printer's SSID for Wi-Fi Direct (Simple AP) connection from the computer or smart device again. If you do not want to connect every time you turn the printer on or network by connecting the printer to an access point.
we recommend using Wi-Fi
o,
28
User's Guide
1. Select on the home screen.
Network Settings
To select an item, move the focus to the item using the
2. Select Wi - F i D irec t .
3. Press the OK button.
If you have made Wi-Fi Direct (Simple AP) settings, the detailed connection information is displayed. Go to step 5.
u d l r
buttons, and then press the OK button.
4. Press the OK button.
5. Check the SSID and password displayed on the printer's control panel.
On the computer's network connection screen or the smart device's Wi-Fi screen, select the SSID shown on the printer's control panel to connect.
Note:
You can check the connection method on the Web site. To access the Web site, scan the QR code displayed on the printer's control panel using the smart device or enter the URL (http://epson.sn) on the computer, and then go to Setup.
6. Enter the password displayed on the printer's control panel on the computer or smart device.
7.
8. Close the screen.
Related Information
& & “Checking the Network Connection Status” on page 31 & “When You Cannot Make Network Settings” on page 143
the connection is established, select OK on the printer's control panel.
Aer
“Basic Operations” on page 17

Making Advanced Network Settings

You can change the network device name, TCP/IP setup, proxy server and so on. Check your network environment before making changes.
29
User's Guide
1. Select Settings on the home screen.
Network Settings
To select an item, move the focus to the item using the
2. Select General Settings > Network Settings > Advanced.
3. Select the menu item for settings, and then select or specify the setting values.
Related Information
& “Basic Operations” on page 17 & “Setting Items for Advanced Network Settings” on page 30
u d l r
buttons, and then press the OK button.
Setting Items for Advanced Network Settings
Select the menu item for settings, and then select or specify the setting values.
❏ Device Name
You can enter the following characters.
❏ Character limits: 2 to 15 (you must enter at least 2 characters)
❏ Usable characters: A to Z, a to z, 0 to 9, -.
❏ Characters you cannot use at the top: 0 to 9, -.
❏ Characters you cannot use at the bottom: -
❏ TCP/IP
❏ Auto
Select when you are using an access point at home or you are allowing the IP address to be acquired automatically by DHCP.
❏ Manual
Select when you do not want the printer's IP address to be changed. Enter the addresses for IP Address, Subnet Mask, and Default Gateway, and make DNS Server settings according to your network environment.
When you select Auto for the IP address assignment settings, you can select the DNS server settings from Manual or Auto. If you cannot obtain the DNS server address automatically, select Manual, and then enter the primary DNS server and secondary DNS server address directly.
❏ Proxy Server
❏ Do Not Use
Select when you are using the printer in a home network environment.
❏ Use
Select when you are using a proxy server in your network environment and you want to set it to the printer. Enter the proxy server address and port number.
❏ IPv6 Address
❏ Enable
Select this when using an IPv6 address.
❏ Disable
Select this when using an IPv4 address.
30
