Epson EH-TW420 User Manual

Download

Page 1

User's Guide

Page 2

Notations Used in This Guide

f Safety Indications

So that you can use the projector safely and correctly, symbols are applied in the documentation and on the projector to indicate possible harm to the user or to others and the risk of damage to property. The indications and their meaning are as follows. Make sure you understand them properly before reading the guide.

Warning

Caution

f General Information Indications

Attention

Indicates the possibility of death or serious injury if this symbol is ignored or if sufficient care is not taken.

Indicates the possibility of injury or damage to property if this symbol is ignored or if sufficient care is not taken.

Indicates procedures which may result in damage or injury if sufficient care is not taken.

Indicates additional information and points which may be useful to know regarding a topic.

Procedure

[ (Name) ]

"(Menu Name)"

Indicates a page where detailed information regarding a topic can be found.

Indicates that an explanation of the underlined word or words in front of this symbol appears in the glossary of terms. See the "Glossary" section of the "Appendices". s p.85

Indicates operating methods and the order of operations. The procedure indicated should be carried out in the order of the numbered steps.

Indicates the name of the buttons on the remote control or the control panel. Example: [Esc] button

Indicates configuration menu items. Example: "Image" - "Brightness"

Page 3

Projector Features......................................................................................5

Part Names and Functions ........................................................................6

Front/Top..............................................................................................................6

Rear ..................................................................................................................... 7

Control Panel ....................................................................................................... 8

Remote Control ....................................................................................................9

Base ...................................................................................................................11

Useful Functions

Changing the Projected Image................................................................13

Switching by Automatic Detection of Input Signal (Source Search)...................13

Direct Switching by Remote Control ..................................................................14

Functions for Enhancing Projection.......................................................15

Selecting the Projection Quality (Selecting Color Mode) ................................... 15

Setting Auto Iris.................................................................................................16

Hiding the Image and Sound Temporarily (A/V Mute) ....................................... 17

Freezing the Image (Freeze).............................................................................. 18

Changing the Aspect Ratio ................................................................................19

Enlarging Part of the Image (E-Zoom) ...............................................................22

Security Functions ...................................................................................24

Managing Users (Password Protect) ................................................................. 24

Restricting Operation (Control Panel Lock)........................................................27

Anti-Theft Lock ...................................................................................................28

Configuration Menu

Using the Configuration Menu ................................................................30

List of Functions.......................................................................................31

Image Menu .......................................................................................................31

Signal Menu .......................................................................................................32

Settings Menu ....................................................................................................34

Extended Menu .................................................................................................. 35

Info Menu (Display only) .................................................................................... 37

Reset Menu........................................................................................................ 38

Troubleshooting

Using the Help ..........................................................................................40

Problem Solving .......................................................................................42

Reading the Indicators .......................................................................................42

When the Indicators Provide No Help................................................................ 46

Appendices

Installation Methods ................................................................................ 55

Cleaning ....................................................................................................56

Cleaning the Projector's Surface ....................................................................... 56

Cleaning the Lens .............................................................................................. 56

Cleaning the Air Filter and Air Intake Vent......................................................... 56

Replacing Consumables ......................................................................... 57

Replacing the Remote Control Batteries ........................................................... 57

Replacing the Lamp ........................................................................................... 58

Replacing the Air Filter ...................................................................................... 61

Saving a User's Logo............................................................................... 63

Screen Size and Distance........................................................................ 66

Connecting and Removing a USB Device .............................................67

Connecting a USB Device ................................................................................. 67

Reading the Indicators ....................................................................................... 67

Removing a USB Device ................................................................................... 67

Inserting and Ejecting a SD Card ........................................................... 68

Inserting a SD Card .......................................................................................... 68

Reading the SD Card Access Lamp.................................................................. 68

Ejecting a SD Card ............................................................................................ 69

Connecting with USB Cable for Projection (USB Display)................... 70

How to Connect ................................................................................................. 70

Connecting a USB Cable .........................................................................73

Page Up/Down by Remote Control.................................................................... 73

Operating the Mouse Pointer by Remote Control (Wireless Mouse function) ... 74

Using Slideshow ......................................................................................77

Image Files that can be Projected in a Slideshow............................................. 77

Basic Slideshow Operations .............................................................................. 77

Setting Image File Display and Slideshow......................................................... 82

Optional Accessories and Consumables .............................................. 84

Glossary....................................................................................................85

ESC/VP21 Commands ............................................................................. 87

Command List.................................................................................................... 87

Cable Layouts.................................................................................................... 87

USB Connection Setup ...................................................................................... 88

List of Supported Monitor Displays ....................................................... 89

Specifications...........................................................................................92

Specifications..................................................................................................... 92

Operating Requirements of Supplied Software ................................................. 95

Page 4

Contents

Appearance ...............................................................................................96

Index ..........................................................................................................97

Page 5

Projector Features

Ease of use

f The A/V mute slide makes it easy to project and store

You can stop and resume projection easily by opening and closing the A/V mute slide which makes giving clear presentations easier.

f A single foot design means you do not have to make any difficult

levelling adjustments

You can easily make height adjustments with one hand.

sQuick Start Guide

f Connecting with USB cable for projection (USB Display)

You can project what's on the computer screen simply by connecting a Windows computer with a USB cable.

sQuick Start Guide

f Projecting images from a USB storage device or SD card without

using a computer

Connect the USB storage device or SD card to the projector, and you can project JPEG images of photographs shot with a digital camera and so on, as a slideshow. This makes projection easy, since it is not necessary to connect a computer. s p.77

Enhanced security functions

f Password Protect to restrict and manage users

By setting a password you can restrict who can use the projector. s p.24

f Control Panel Lock restricts button operation on the control panel

You can prevent people from changing the settings on the projector without permission. s p.27

f Equipped with various anti-theft devices

The projector is equipped with the following security devices. s p.28

• Security slot

• Security cable installation point

Easy to handle

f Direct power On/Off

In places where power is managed centrally, such as in a conference room, the projector can be set to power on and off automatically when the power source to which the projector is connected is switched on or off.

f No cool down delay

After turning the projector's power off, you can disconnect the projector's power cable without having to wait for the projector to cool down first.

Page 6

Part Names and Functions

Front/Top

Name Function

Control panel s p.8

J I H

F E D

Name Function

Front adjustable

feet

Foot adjust lever Pull out the foot lever to extend and retract the

A/V mute slide Slide shut when not using the projector to

Remote receiver Receives signals from the remote control.

Focus ring Adjusts the image focus. s Quick Start

Zoom ring Adjusts the image size. s Quick Start Guide

A/V mute slide

knob

Security slot (j) The security slot is compatible with the

Extend and adjust the position of the projected image when the projector is placed on a surface such as a desk. s Quick Start Guide

front foot. s Quick Start Guide

protect the lens. By closing during projection you can hide the image and the sound (A/V Mute). s Quick Start Guide, p.17

s Quick Start Guide

Guide

Slide the knob to open and close the A/V mute slide.

Microsaver Security System manufactured by Kensington. s p.28

Lamp cover Open this cover when replacing the projector's

lamp. s p.59

Air exhaust vent

Caution

Do not place objects that may become warped or otherwise affected by heat near the air exhaust vent and do not put your face or hands near the air exhaust vent while projection is in progress.

Page 7

Part Names and Functions

Rear

KJI

FHGA

Name Function

SD Card Access

Lamp

Speaker

Power inlet

Remote receiver Receives signals from the remote control.

HDMI input port For signals from a computer or HDMI-

Displays SD card access status. s p.68

Connects to the power cable. s Quick Start

Guide

s Quick Start Guide

compatible video sources. s Quick Start Guide

Name Function

S-Video input

port

Video input port

Audio input port Connects to the audio output port of the

USB port (Type B) You can use a number of functions by

USB port (Type A) Connect a digital camera or USB storage

USB indicator Indicates the status of USB port (Type A) by

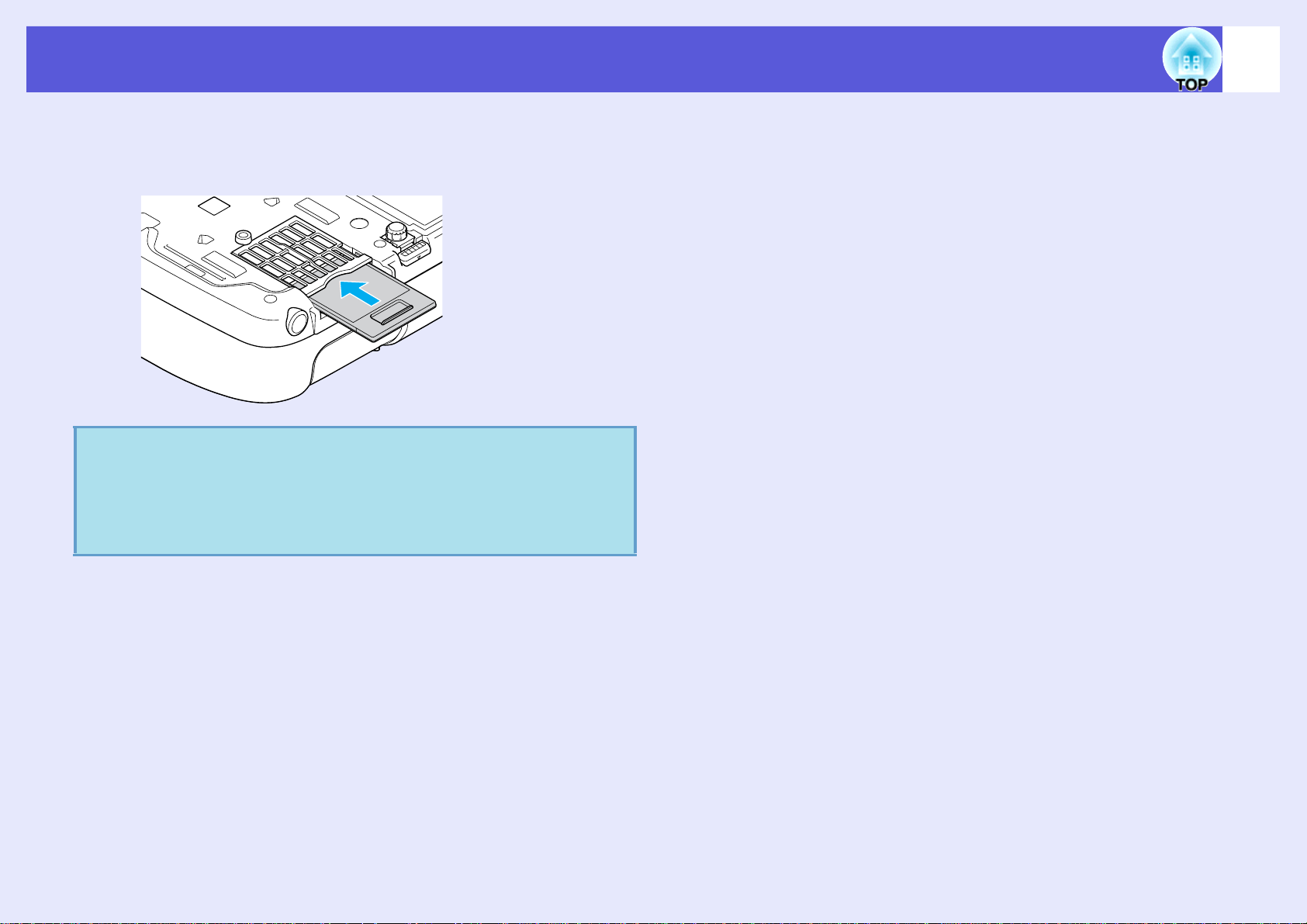

SD card slot Insert an SD card, and project a stored image

For S-videog signals from video sources.

For composite videog signals from video sources.

equipment you want to project from and inputs the audio. s Quick Start Guide

connecting a computer via a USB cable and making connection settings.

• Connect to a computer by USB cable to

project images from the computer. s p.70

• You can Page Up/Down and operate a mouse pointer using the remote control. You can also use this port to control the projector from a computer. s p.73

device to project a slideshow of images stored on the device. s p.67, 77

flashing or being lit. s p.67

file as a slideshow. s p.68, 77

Computer input

port

For video signals from a computer and component video sources. s Quick Start Guide

g signals from other video

Page 8

Part Names and Functions

Control Panel

Name Function

[t] button

Status indicators The color of the indicators and whether they

Turns the projector power on or off. s Quick Start Guide

are flashing or lit indicates the status of the projector. s p.42

FED

Name Function

[v] [w] buttons Corrects keystone distortion.

If pressed when a configuration menu or a help screen is displayed, these buttons select menu items and setting values. s Quick Start Guide, s p.30

[Help] button Displays and closes the help screen which

shows you how to deal with problems if they occur. s p.40

[Esc] button Stops the current function.

If pressed when a configuration menu is displayed, it moves to the previous menu level.

s p.30

[a] [b] buttons Press to adjust the volume.

If pressed when a configuration menu or a help screen is displayed, these buttons select menu items and setting values. s Quick Start Guide, s p.30

[Menu] button Displays and closes the configuration menu.

s p.30

[Source Search]

button

[Enter] button If pressed during projection of computer signal

Changes to the next input source that is connected to the projector and is sending an image. s p.13

images, it automatically adjusts the tracking, synchronization, and position to project the optimum image. When a configuration menu or a help screen is displayed, it accepts and enters the current selection and moves to the next level. s p.30

Page 9

Part Names and Functions

Remote Control

Name Function

[t] button

[S-Video] button Changes to images from the S-Video input

[Computer]

button

Numeric buttons

[Freeze] button Images are paused or unpaused. s p.18

[A/V Mute] button

[Auto Setup]

button

[Aspect] button

Turns the projector power on or off. s Quick Start Guide

port. s p.14

Changes to images from the Computer input port. s p.14

Use these buttons when entering a password.

s p.24

Turns the video and audio on or off. s p.17

If pressed during projection of computer signal images, it automatically adjusts the tracking, synchronization, and position to project the optimum image.

The aspect ratiog changes each time the button is pressed. s p.19

[Page] buttons

(+) (-)

[E-Zoom] buttons

(z) (x)

You can Page Up/Down between pages projected by USB display. s p.70

• Page Up/Down between slides of a slideshow can be made. s p.77

• Page Up/Down is enabled when the projector is connected to a computer with a USB

cable. s p.73

(+) Enlarges the image without changing the projection size. (-) Reduces parts of the image that have been enlarged using the [z] button.

s p.22

Page 10

Part Names and Functions

Name Function

[Menu] button Displays and closes the configuration menu.

s p.30

[ ] button

[Enter] button When a configuration menu or a help screen is

[Esc] button Stops the current function. If pressed when a

If pressed when a configuration menu or a help screen is displayed, these buttons select menu items and setting values. s p.30, 40 Select an item or photograph during slideshow projection. s p.77 When using the Wireless Mouse function, the mouse pointer moves in the direction you press the button. s p.74

displayed, it accepts and enters the current selection and moves to the next level.

s p.30, 40

When using the Wireless Mouse function, this functions as the left mouse button. s p.74

configuration menu is displayed, it moves to the previous level. s p.30, 40 When using the Wireless Mouse function, this functions as the right mouse button. s p.74

Name Function

[Num] button Use these buttons when entering a password.

s p.24

[HDMI] button Changes to images from the HDMI input port.

s p.14

[Slideshow]

button

[Video] button Changes to images from the Video input port.

[USB Display]

button

[Source Search]

button

Remote control

light-emitting area

Changes to slideshow images. s p.14

s p.14

Changes to USB Display images. s p.14

Changes to the next input source that is connected to the projector and is sending an image. s p.13

Outputs remote control signals. s Quick

Start Guide

[Volume] buttons

(a) (b)

[Help] button Displays and closes the help screen which

[Color Mode]

button

(a) Lowers the volume. (b) Raises the volume.

s Quick Start Guide

shows you how to deal with problems if they occur. s p.40

Each time the button is pressed, the color mode changes. s p.15

Page 11

Part Names and Functions

Base

Name Function

Air filter

(Air intake vent)

Front adjustable

feet

This prevents dust and other foreign particles from getting inside the projector when air is drawn in. The projector displays a warning message when it is time to clean or replace the air filter. s p.56, 61

s p.6

Name Function

Suspension

bracket fixing points (3 points)

Rear foot

(2 points)

Security cable

installation point

Attach the optional ceiling mount here when suspending the projector from a ceiling.

s p.55, 84

Turn to extend and retract to adjust the horizontal tilt. sQuick Start Guide

Pass a commercially available anti-theft wire lock through here when you want to secure the projector to a fixed object. s p.28

Page 12

Useful Functions

This chapter explains useful functions for giving presentations and so on, and the security functions.

Changing the Projected Image..........................13

• Switching by Automatic Detection of Input Signal

(Source Search) .................................................................13

• Direct Switching by Remote Control ..............................14

Functions for Enhancing Projection.................15

• Selecting the Projection Quality

(Selecting Color Mode) .....................................................15

Changing color mode by remote control........................................15

Changing color mode with the configuration menu.......................16

• Setting Auto Iris ...............................................................16

• Hiding the Image and Sound Temporarily

(A/V Mute) .........................................................................17

• Freezing the Image (Freeze).............................................18

• Changing the Aspect Ratio...............................................19

Switching methods .........................................................................19

Changing the aspect of computer image/HDMI image..................20

Security Functions..............................................24

• Managing Users (Password Protect)............................... 24

Type of Password Protect .............................................................. 24

Setting Password Protect................................................................ 24

Entering the Password.................................................................... 26

• Restricting Operation (Control Panel Lock) ................. 27

• Anti-Theft Lock ................................................................ 28

Installing the wire lock................................................................... 28

• Enlarging Part of the Image (E-Zoom) ...........................22

Page 13

Changing the Projected Image

Use the following methods to switch images for projection.

• Switching by source search The projector automatically detects signals being input from connected equipment, and the image being input from the equipment is projected.

• Direct switching Switch by pressing the button for the target input port on the remote control.

Switching by Automatic Detection of Input Signal (Source Search)

You can project the target image quickly because the [Source Search] button skips input ports where no image is being input.

Procedure

When your video equipment is connected, start playback before beginning this operation.

Using the remote control

Computer VideoS-Video

Slideshow

USB Display

HDMI

Using the control panel

When two or more pieces of equipment are connected, press the [Source Search] button until the target image is projected.

Page 14

Changing the Projected Image

The following screen showing the status of image signals is

displayed when only the image that the projector is currently displaying is available, or when no image signal can be found. You can select the input port where the connected equipment you want to use is projecting. If no operation is performed after about 10 seconds, the screen closes.

Direct Switching by Remote Control

You can switch directly to the targeted source by pressing a button on the remote control.

Refer to the following for button operation. s p.9

Page 15

Functions for Enhancing Projection

Selecting the Projection Quality (Selecting Color Mode)

You can easily obtain the optimum image quality simply by selecting the setting that best corresponds to your surroundings when projecting. The brightness of the image varies depending on the mode selected.

Mode Application

Dynamic Ideal for use in a bright room. This is the brightest

mode and reproduces shadow tones well.

Game Ideal for making presentations using color materials

in a bright room.

Living Room Ideal for making presentations using black-and-

white materials in a bright room.

Theater Ideal for watching films in a dark room. This gives

images a natural tone.


Sports

sRGBg Ideal for images that conform to the sRGB color

Dark Wall Even if you are projecting onto a blackboard

Ideal for projecting still pictures, such as photos, in a bright room. This makes images vivid and brings them into contrast.

Ideal for watching TV programmes in a bright room. This makes images vivid and brings them to life.

standard.

(greenboard), this setting gives your images a natural tint, just like when projecting onto a screen.

f Changing color mode by remote control

Procedure

Each time you press the button, the color mode name is displayed on the screen and the color mode changes.

If you press the button while the color mode name is displayed on the screen, it changes to the next color mode.

*1 Selectable only with the following signal inputs.

Computer, HDMI Digital-RGB, USB Display, Slideshow

*2 Selectable only with the following signal inputs.

Component video, S-Video, composite video, HDMI component

Page 16

Functions for Enhancing Projection

f Changing color mode with the configuration menu

Procedure

Using the remote control

Using the control panel

Press the [Menu] button and select "Image" - "Color Mode" in the configuration menu.

s p.30

Setting Auto Iris

By automatically setting the luminance according to the brightness of the displayed image, it lets you enjoy deep and rich images.

Procedure

Using the remote control

Using the control panel

Press the [Menu] button and select "Image" - "Auto Iris" in the configuration menu.

s p.30

B C

Select a Color Mode name.

Press the [Menu] button to close the configuration menu.

Select "On".

The set value is stored for each color mode.

Page 17

Functions for Enhancing Projection

Press the [Menu] button to close the configuration menu.

This item can be selected only when "Dynamic" or "Theater" is selected as the "Color Mode" setting in the "Image" menu.

Hiding the Image and Sound Temporarily (A/V Mute)

You can use this when you want to focus the audience's attention on what you are saying, or if you do not want to show details such as when you are changing between files during presentations from a computer.

Procedure

Remote control

Projector

Each time you press the button, or the A/V mute slide is opened or closed, A/V Mute turns on or off.

Page 18

Functions for Enhancing Projection

• If you use this function when projecting moving images,

the images and sound continue to be played back by the source, and you cannot return to the point where A/V Mute was activated.

• From the remote control you can choose to display black, blue, or logo as the A/V mute display using the "Extended" - "Display" - "A/V Mute" setting in the configuration menu.

• When the A/V mute slide is closed and A/V Mute begins, the power supply can be set to automatically turn off after about 30 minutes by setting "Extended" - "Operation" "Lens Cover Timer" in the configuration menu.

p.35

Freezing the Image (Freeze)

When the moving image on the screen is frozen, the image continues to project, so you can project a moving image one frame at a time like a still photo. Also, you can perform operations such as changing between files during presentations from a computer without projecting any images if the Freeze function is activated beforehand.

Procedure

Remote control

p.36

Each time you press the button, Freeze turns on or off.

Page 19

Functions for Enhancing Projection

• Audio does not stop.

• The image source continues to play back the moving images even while the screen is frozen, so it is not possible to resume projection from the point where it was paused.

• If the [Freeze] button is pressed while the configuration menu or a help screen is displayed, the menu or help screen being displayed is cleared.

• Freeze still works while E-Zoom is being used.

Changing the Aspect Ratio

When you connect video equipment and project images that have been recorded in digital video or onto DVDs in 16:9 wide-screen format, change the aspect ratiog. Changing the aspect ratio is also required when you want to project computer images at full size. Switching methods and types of aspect ratio are as follows.

f Switching methods

Procedure

Each time you press the button, the aspect name is displayed on the screen and the aspect changes.

If you press the button while the aspect name is displayed on the screen, it changes to the next aspect mode.

This can also be set using "Aspect" from the "Signal"

menu in the configuration menu.

p.32

Page 20

Functions for Enhancing Projection

f Changing the aspect of computer image/HDMI image

When projecting input images from the Computer input port or HDMI input port, the aspect ratio can be changed as follows. The projection size is 1280 x 800 dots (aspect ratio 16:10) due to WXGA panel resolution. When projecting on to 16:9 screens, set the aspect to "16:9".

Setting Explanation Projection example

Normal During image input

from Computer input port

Projects to the full projection size retaining the aspect of the input image.

During 1024 ^ 768 signal input

Auto During image input

from HDMI input port

16:9 Projects to the full projection size at an aspect of

Full Projects to full projection size. During 1024 ^ 768 signal input

Projects in an appropriate aspect based on information from the signal being input.

16:9.

During 1280 ^ 800 signal input

During 1024 ^ 768 signal input

Page 21

Functions for Enhancing Projection

Setting Explanation Projection example

Zoom Projects to full projection size in the lateral

direction retaining the aspect ratio of input image. Parts that extend beyond the projection size are not projected.

During 1024 ^ 768 signal input

Through Projects at the resolution of the input image size

to the center of the screen. This is ideal for clearer projection. When image resolution is above 1280 ^ 800, the periphery of the image is not projected.

When some portions of an image are missing or not all of the image can be projected during computer image projection, set

"Resolution" in the configuration menu to "Wide" or "Normal" according to the panel size of the computer.

During 800 ^ 600 signal input During 1400 ^1050 signal

input

p.32

Page 22

Functions for Enhancing Projection

Enlarging Part of the Image (E-Zoom)

This is useful when you want to expand images such as graphs and tables to see them in greater detail.

Procedure

Remote control

Start E-Zoom.

Remote control

Move the cross to the area of the image that you want to enlarge.

Cross

Page 23

Functions for Enhancing Projection

Remote control

Enlarge.

Each time the button is pressed, the area is enlarged. You can enlarge quickly by holding the button down. You can reduce the enlarged image by pressing the [-] button. Press the [Esc] button to cancel.

• The enlargement ratio appears on the screen. The selected area can be enlarged to between 1 to 4 times in 25 incremental steps.

• Hold down the [ ] [ ] [ ] [ ] button to scroll the image.

Page 24

Security Functions

The projector has the following enhanced security functions.

• Password protect You can limit who can use the projector.

• Control Panel Lock You can prevent people from changing the settings on the projector without permission.

• Anti-Theft Lock The projector is equipped with various types of anti-theft security devices.

Managing Users (Password Protect)

When the Password Protect function is activated, people who do not know the password cannot use the projector to project images even if the projector power is on. Furthermore, the user's logo that is displayed when you turn on the projector cannot be changed. This acts as an anti-theft device as the projector cannot be used even if it is stolen. At the time of purchase the Password Protect function is not activated.

f Type of Password Protect

The following two kinds of password protect settings can be made according to how the projector is being used.

1. "Power On Protect"

When "Power On Protect" is "On", the password must be entered whenever the projector is turned on after it has been disconnected from the power supply to which it was connected the last time the password was entered. If the correct password is not entered, projection does not start.

2."User's Logo Protect"

Even if someone tries to change the user's logo set by the owner of the projector, it cannot be changed. When "User's Logo Protect" is set to "On" the following setting changes are prohibited.

• Capturing a user's logo

• Changing settings of "Display Background", "Startup Screen", and "A/V Mute" in the "Display" setting in the configuration menu.

f Setting Password Protect

Use the following procedure to set Password Protect.

Procedure

Remote control

Hold down the [Freeze] button for about five seconds.

The password protect setting menu is displayed.

• If Password Protect is already activated, you must enter the password. If the password is entered correctly, the password protect

setting menu is displayed.

p.26

• When the password is set, stick the password protect sticker in a visible position on the projector as a further theft deterrent.

"Entering the Password"

Page 25

Security Functions

Turn on "Power On Protect".

(1) Select "Power On Protect", and then press the [Enter] button. (2) Select "On", and then press the [Enter] button. (3) Press the [Esc] button.

Turn on "User's Logo Protect".

(1) Select "User's Logo Protect", and then press the [Enter] button. (2) Select "On", and then press the [Enter] button. (3) Press the [Esc] button.

Set the password.

(1) Select "Password", and then press the [Enter] button. (2) When the message "Change the password?" is displayed, select

"Yes" and then press the [Enter] button. The default setting for the password is "0000". Change this to your own desired password. If you select "No", the screen shown in step 1 is displayed again.

(3) With holding down the [Num] button, enter a four digit number

using the numeric buttons. The number entered is displayed as "* * * *". When you enter the fourth digit, the confirmation screen is displayed.

Remote control

Numeric

buttons

(4) Re-enter the password.

The message "Password accepted." is displayed. If you enter the password incorrectly, a message is displayed prompting you to re-enter the password.

Page 26

Security Functions

f Entering the Password

When the password entry screen is displayed, enter the password using the numeric buttons on the remote control.

Procedure

With holding down the [Num] button, enter the password by using the numeric buttons.

When you enter the correct password, projection begins.

Attention

• If an incorrect password is entered three times in succession, the message "The projector's operation will be locked." is displayed for about five minutes, and then the projector switches to standby condition. If this happens, disconnect the power plug from the electrical outlet and then reinsert it and turn the projector's power back on. The projector displays the password entry screen again so that you can enter the correct password.

• If you have forgotten the password, make a note of the "Request Code: xxxxx" number that appears on the screen and contact the nearest address provided in the Support and Service Guide.

Epson Projector Contact List

• If you continue to repeat the above operation and input the wrong password thirty times in succession, the following message is displayed and the projector does not accept any more password entries. "The projector's operation will be locked. Contact Epson

as described in your documentation."

Contact List

Epson Projector

Page 27

Security Functions

Restricting Operation (Control Panel Lock)

Do one of the following to lock the operation buttons on the control panel.

•Full lock All of the buttons on the control panel are locked. You cannot perform any operations from the control panel, including turning the power on or off.

• Partial lock All of the buttons on the control panel, except for the [t] button, are locked.

This is useful at events or shows when you want to deactivate all buttons and only project, or at schools when you want to limit button operation. The projector can still be operated using the remote control.

Procedure

Using the remote control

Press the [Menu] button and select "Settings" "Control Panel Lock" in the configuration menu.

s p.30

Using the control panel

Check the buttons you can use and the operations they perform in the guide under the menu.

Select either "Full Lock" or "Partial Lock".

Page 28

Security Functions

Select "Yes" when the confirmation message is displayed.

The control panel buttons are locked according to the setting you chose.

You can release the control panel lock by one of the following two methods.

• From the remote control, select "Off" from "Settings" "Control Panel Lock" in the configuration menu.

• When you press and hold down the [Enter] button on the control panel for about seven seconds, a message is displayed and the lock is released.

Anti-Theft Lock

As the projector is often setup on ceiling mounts and left in rooms unattended, it is possible that someone may try and take the projector, so the projector includes the following security devices.

• Security slot The security slot is compatible with the Microsaver Security System manufactured by Kensington. You can find details about the Microsaver Security System on the Kensington homepage

http://www.kensington.com/

• Security cable installation point A commercially available theft-prevention wire lock can be passed through the installation point to secure the projector to a desk or pillar.

f Installing the wire lock

Pass an anti-theft wire lock through the installation point. See the documentation supplied with the wire lock for locking instructions.

Page 29

Configuration Menu

This chapter explains how to use the configuration menu and its functions.

Using the Configuration Menu ..........................30

List of Functions.................................................31

• Image Menu .......................................................................31

• Signal Menu .......................................................................32

• Settings Menu ....................................................................34

• Extended Menu .................................................................35

• Info Menu (Display only)..................................................37

• Reset Menu ........................................................................38

Page 30

Using the Configuration Menu

Selecting from the top menu

Top menu

Guide

Selecting from the sub menu

Sub menu (Settings)

Changing the selected item

Exit

Buttons used

Using the control panel

Using the remote control

Select the setting to change

Page 31

List of Functions

Image Menu

Items that can be set vary depending on the image signal currently being projected as shown in the following screen shots. Setting details are saved for each image signal.

Computer image

Sub Menu Function

Color Mode You can select the quality of the image to suit your surroundings. s p.15 Brightness You can adjust the image brightness. Contrastg You can adjust the difference between light and shade in the images. Color Saturation You can adjust the color saturation for the images. Tint (Adjustment is only possible when NTSC signals are being input if you use composite video/S-video.)

You can adjust the image tint.

Sharpness You can adjust the image sharpness. Color Temp. You can adjust the overall tint of the image. When "High" is selected the image becomes tinged with blue, and when "Low" is selected the image

becomes tinged with red. (This item cannot be selected if "sRGB

Color Adjustment Red, Green, Blue: You can adjust the saturation of each color individually.

(This item cannot be selected if "sRGB

Auto Iris (This item can be selected only when "Dynamic" or "Theater" is selected as the "Color Mode" setting in the "Image" menu.)

Set to On/Off to adjust luminance according to the image. s p.16

Reset You can reset all adjustment values in the "Image" menu to their default settings. To return all menu items to their default settings, see s p.38

g" is selected as the "Color Mode" setting in the "Image" menu.)

Component videog/Composite videog/S-videog

Page 32

List of Functions

Signal Menu

Items that can be set vary depending on the image signal currently being projected as shown in the following screen shots. Setting details are saved for each image signal.

Computer image

Sub Menu Function

Auto Setup You can select whether the image is automatically adjusted to the optimum state (On) or not (Off) when the input signal changes. s p.49 Resolution When set to "Auto", the resolution of the input signal is automatically identified. When set to "Auto", if parts of the projected image are missing,

set "Wide" for a wide screen or "Normal" in case of a 4:3 or 5:4 screen depending on the size of the computer panel.

Trackingg You can adjust computer images when vertical stripes appear in the images. s p.49 Sync.g You can adjust computer images when flickering, fuzziness, or interference appear in the images. s p.49 Position You can adjust the display position up, down, left, and right so that all of the image is projected if a part of the image is missing. Progressiveg (Component video and HDMI can be set only during 480i/576i signal input)

Off: IP conversion is carried out for each field in the screen. This is ideal for viewing images with a large amount of movement. On: interlace

HDMI Video Range (This cannot be set when a digital RGB signal is input)

When the projector's HDMI input port is connected to a DVD player and so on, the projector's video range can be set according to the DVD player's video range setting.

Input Signal You can select the input signal from the Computer input port.

If set to "Auto" the input signal is set automatically according to the connected equipment. If colors do not appear correctly when set to "Auto", select the appropriate signal according to the connected equipment.

Video Signal If set to "Auto", video signals are recognized automatically. If interference appears in the image or a problem occurs such as no image is being

projected when set to "Auto", select the appropriate signal according to the connected equipment.

Aspect You can set the aspect ratiog for projected images. s p.19

HDMI image

Component videog Composite videog/S-videog

g (i) signals are converted into progressiveg (p) signals. This is ideal for viewing still images.

Page 33

List of Functions

Sub Menu Function

Reset You can reset all adjustment values in the "Signal" menu to their default settings, except for "Input Signal".

To return all menu items to their default settings, see s p.38

Page 34

List of Functions

Settings Menu

Sub Menu Function

Keystone You can correct vertical keystone distortion in images. s Quick Start Guide Auto Keystone Performs automatic keystone correction.

(This can only be specified when "Front" is selected from "Extended" - "Projection".)

Control Panel Lock You can use this to restrict operation of the projector's control panel. s p.27 Brightness Control You can set the lamp brightness to one of two settings.

Select "Low" if the images being projected are too bright such as when projecting images in a dark room or onto a small screen. When "Low" is selected, the amount of electricity consumed and the lamp's operating life are changed as follows, and fan rotation noise during projection is reduced. Electrical consumption: about a 40 W decrease, lamp life: about 1.3 times longer

Volu me You can adjust the volume. Reset You can reset all adjustment values in the "Settings" menu to their default settings.

To return all menu items to their default settings, see s p.38

Page 35

List of Functions

Extended Menu

Sub Menu Function

Display You can make settings related to the projector's display.

Messages: You can set whether to display (On) or not display (Off) the source name when you change the input source, the color mode name

when you change the Color Mode, a message when no image signal is input, and so on.

Display Background Startup Screen A/V Mute

: You can set the screen displayed during A/V Mute as "Black", "Blue", or "Logo".

User's logo You can change the user's logo that is displayed as a background and displayed during A/V Mute. s p.63 Projection You can choose one of the following settings according to the way the projector is setup. s p.55

"Front" "Front/Ceiling" "Rear" "Rear/Ceiling" You can change the setting as follows by pressing down the [A/V Mute] button on the remote control for about five seconds. "Front" W "Front/Ceiling" "Rear" W "Rear/Ceiling"

: You can set the screen status for when no image signal is available to "Black", "Blue", or "Logo".

: You can set whether the startup screen (the image projected when starting the projector) is displayed (On) or not (Off).

Page 36

List of Functions

Sub Menu Function

Operation Direct Power On: You can set whether Direct Power On is enabled (On) or disabled (Off).

When it is set to "On" and the projector power cable is connected to an electrical outlet, be aware that sudden surges of electricity may cause

the projector to turn on automatically.

Sleep Mode: When set to "On", this turns off the power automatically when no image signal is input and no operations are performed. Sleep Mode Timer: When Sleep Mode is set to "On", you can set how long the projector should wait before turning off the power from 1 to 30

minutes.

Lens Cover Timer: When set to "On", this turns off the power automatically 30 minutes after the lens cover is closed. High Altitude Mode: Set this to "On" when using the projector above an altitude of 1500 m.

USB Type B Connect the projector to a computer with a USB cable, and set to "USB Display" to project the image on the computer. s p.70

Set to "Wireless Mouse" to operate the mouse pointer by remote control. s p.74 Set to "Page Up/Down" to page up/down by remote control. s p.73

Link 21Lg You can set whether to use the utility software EMP Link 21L (On) or not (Off). Set this to "On" and use it after installing the USB

communication driver.

Language You can set the language for message displays. Reset You can reset "Display

To return all menu items to their default settings, see s p.38

*1 When "User's Logo Protect" is set to "On" in "Password Protect", settings concerning user's logo cannot be changed. You can make changes after setting "User's

Logo Protect" to "Off". s p.24

*2 Except for "High Altitude Mode".

" and "Operation*2" in the "Extended" menu to their default settings.

Page 37

List of Functions

Info Menu (Display only)

Lets you check the status of the image signals being projected and the status of the projector. Items displayed vary depending on the image signal currently being projected as shown in the following screen shots.

Signal from the computer image/component

Composite videog/S-videog

USB Display/Slideshow

videog/HDMI image

Sub Menu Function

Lamp Hours You can display the cumulative lamp operating time*.

When it reaches the lamp warning time, the characters are displayed in yellow.

Source You can display the input port name for the connected equipment currently being projected. Input Signal Displays the "Input Signal" setting from the "Signal" menu according to "Source". Resolution You can display the input resolution. Video Signal You can display the content of "Video Signal" set in the "Signal" menu. Refresh Rateg You can display the refresh rate. Syncg Info You can display the image signal information.

This information may be needed if service is required.

Status This is information about problems that have occurred on the projector.

This information may be needed if service is required.

* The cumulative use time is displayed as "0H" for the first 10 hours. After 10 hours or more, one hour is added for each subsequent hour.

Page 38

List of Functions

Reset Menu

Sub Menu Function

Reset All You can reset all items in all menus to their default settings.

The following items are not reset to their defaults: "Input Signal", "User's Logo", "Lamp Hours", and "Language".

Reset Lamp Hours You can clear the cumulative Lamp Hours use time, and return it to "0H". Reset it when you replace the lamp.

Page 39

Troubleshooting

This chapter describes how to identify problems and what to do if a problem is found.

Using the Help.....................................................40

Problem Solving .................................................42

• Reading the Indicators......................................................42

t Power indicator lights red ..........................................................43

i · o Indicator is lit or flashing orange.........................................45

• When the Indicators Provide No Help ............................46

Problems relating to images ...........................................................47

Problems when projection starts.....................................................51

Other problems ...............................................................................52

Page 40

Using the Help

If a problem occurs with the projector, Help uses on-screen displays to assist you in solving the problem. By answering the questions, you can make the correct settings.

Procedure

Using the remote control

Using the control panel

Press the [Help] button.

The help screen is displayed.

Using the remote control

Using the control panel

Select a menu item.

Page 41

Using the Help

Using the remote control

Using the control panel

Confirm the selection.

Questions and solutions are displayed as shown on the screen below. Press the [Help] button to exit Help.

• If Help does not provide a solution to the problem, refer to

"Problem Solving".

• Displayed help contents differ with the model of projector.

p.42

Page 42

Problem Solving

If you are having a problem with the projector, first check the projector's indicators and refer to "Reading the Indicators" below. If the indicators do not show clearly what the problem might be, refer to "When the Indicators Provide No Help". s p.46

Reading the Indicators

The projector is provided with the following three indicators that indicate the operating status of the projector.

Indicates the operating status.

Orange : Standby condition

When the [t] button is pressed in this condition, projection starts.

Green (Flashing): Warm-up in progress

Warm-up time is about 30 seconds. After warm-up is complete, the indicator stops flashing.

Green : Projection in progress

Indicates the projection lamp status. Indicates the internal temperature status.

Refer to the following table to see what the indicators mean and how to remedy problems that they indicate. If all indicators are off, check that the power cable is connected correctly and that the power is being supplied normally. Sometimes, when the power cable is unplugged, the t indicator remains lit for a short period which is not a fault.

Page 43

Problem Solving

f t Power indicator lights red

Status Cause Remedy or Status

Red Red Red

Red

Red Red Red

Red

Internal Error Stop using the projector, disconnect the power cable from the electrical outlet, and contact your local dealer or the nearest

Fan Error Sensor Error

Auto Iris error Stop using the projector, disconnect the power cable from the electrical outlet, and contact your local dealer or the nearest

High Temp Error (overheating)

Problem

: Lit : Flashing: : Off

address provided in the Support and Service Guide. s Epson Projector Contact List

Stop using the projector, disconnect the power cable from the electrical outlet, and contact your local dealer or the nearest address provided in the Support and Service Guide. s Epson Projector Contact List

address provided in the Support and Service Guide. s Epson Projector Contact List

The lamp turns off automatically and projection stops. Wait for about five minutes. After about five minutes the projector switches to standby condition, so check the following two points.

• Check that the air filter and air exhaust vent are clear, and that the projector is not positioned against a wall.

• If the air filter is clogged, clean or replace it. s p.56, 61 If the error continues after checking the points above, stop using the projector, disconnect the power cable from the electrical outlet, and contact your local dealer or the nearest address provided in the Support and Service Guide. s Epson

Projector Contact List

When using at an altitude of 1500 m or more, set "High Altitude Mode" to "On". s p.36

Page 44

Problem Solving

Status Cause Remedy or Status

Red Red

Lamp Error Lamp Failure Lamp Cover Open

: Lit : Flashing: : Off

Check the following two points.

• Take out the lamp and check if it is cracked. s p.59

• Clean the air filter. s p.56 If it is not cracked - Re-fit the lamp and turn on the power.

If the error continues - Replace the lamp with a new lamp and turn on the power.

If the error continues - Stop using the projector, disconnect the power cable from the electrical outlet, and contact

your local dealer or the nearest address provided in the Support and Service Guide.

s Epson Projector Contact List

If it is cracked - Replace it with a new lamp, or contact your local dealer for further advice. If replacing the lamp yourself,

be careful to avoid pieces of broken glass (you cannot continue projecting until the lamp is replaced).

s Epson Projector Contact List

Check that the lamp cover and the lamp are securely installed. s p.59 If the lamp cover or the lamp is not securely installed, the lamp does not switch on.

When using at an altitude of 1500 m or more, set "High Altitude Mode" to "On". s p.36

Page 45

Problem Solving

f i o Indicator is lit or flashing orange

Status Cause Remedy or Status

High Temp Warning (This is not a problem. However, if the temperature rises too high again, projection stops automatically.)

• Check that the air filter and air exhaust vent are clear, and that the projector is not positioned against a wall.

• If the air filter is clogged, clean or replace it. s p.56, 61

Replace Lamp Replace it with a new lamp. s p.59

If you continue to use the lamp after the replacement period has passed, the possibility that the lamp may explode increases. Replace it with a new lamp as soon as possible.

p.46

Red

Orange

• If the projector is not operating properly, even though the indicators are all showing normal, refer to "When the Indicators Provide No Help".

• If an indicator is displaying a status not described in the tables, stop using the projector, disconnect the power cable from the electrical outlet, and contact your local dealer or the nearest address provided in the Support and Service Guide.

Warning

: Lit : Flashing : Off : Varies according to the projector status

Epson Projector Contact List

Page 46

Problem Solving

When the Indicators Provide No Help

If any of the following problems occur and the indicators do not offer a solution, refer to the pages given for each problem.

Problems relating to images

f No images appear s p.47

Projection does not start, the projection area is completely black, the projection area is completely blue, and so on.

f Moving images are not displayed s p.47

Moving images being projected from a computer appear black and nothing is projected.

f Projection stops automatically s p.47 f The message "Not supported." is displayed s p.48 f The message "No Signal." is displayed s p.48 f Images are fuzzy or out of focus s p.48 f Interference or distortion appears in images s p.49

Problems such as interference, distortion, or black & white checked patterns appear.

f The image is truncated (large) or small, or the aspect is not

suitable s p.49

Only part of the image is displayed, or the height and width ratios of the image are not correct, and so on.

f Image colors are not right s p.50

The whole image appears purplish or greenish, images are black & white, colors appear dull, and so on. (Computer monitors and LCD screens have different color reproduction performance, so the colors projected by the projector and the colors appearing on the monitor may not necessarily match, but this is not a sign of a problem.)

f Images appear dark s p.50

Appendices

This chapter provides information on maintenance procedures to ensure the best level of performance from the projector for a long time to come.

Installation Methods...........................................55

Cleaning...............................................................56

• Cleaning the Projector's Surface .....................................56

• Cleaning the Lens..............................................................56

• Cleaning the Air Filter and Air Intake Vent ..................56

Replacing Consumables....................................57

• Replacing the Remote Control Batteries ........................57

• Replacing the Lamp ..........................................................58

Lamp replacement period...............................................................58

How to replace the lamp.................................................................59

Resetting the lamp operating time..................................................61

• Replacing the Air Filter....................................................61

Air filter replacement period ..........................................................61

How to replace the air filter............................................................61

Saving a User's Logo .........................................63

Inserting and Ejecting a SD Card ......................68

• Inserting a SD Card ........................................................ 68

• Reading the SD Card Access Lamp................................ 68

• Ejecting a SD Card........................................................... 69

Connecting with USB Cable for Projection

(USB Display) ......................................................70

• How to Connect ................................................................ 70

When connecting for the first time ................................................ 71

From the second time..................................................................... 72

Connecting a USB Cable....................................73

• Page Up/Down by Remote Control................................. 73

• Operating the Mouse Pointer by Remote Control

(Wireless Mouse function) ............................................... 74

Wireless mouse operation .............................................................. 75

Using Slideshow ................................................. 77

Screen Size and Distance ..................................66

Connecting and Removing a USB Device........67

• Connecting a USB Device .................................................67

• Reading the Indicators......................................................67

• Removing a USB Device ...................................................67

• Image Files that can be Projected in a Slideshow.......... 77

• Basic Slideshow Operations............................................. 77

Starting Slideshow ......................................................................... 77

Exiting Slideshow .......................................................................... 78

Slideshow file browser screen ....................................................... 78

Playing individual images.............................................................. 80

Running Slideshow ........................................................................ 81

Rotating images ............................................................................. 82

• Setting Image File Display and Slideshow. .................... 82

Page 54

Optional Accessories and Consumables.........84

Optional accessories .......................................................................84

Consumables ..................................................................................84

Glossary ..............................................................85

ESC/VP21 Commands........................................87

• Command List ...................................................................87

• Cable Layouts....................................................................87

USB connection..............................................................................87

• USB Connection Setup......................................................88

List of Supported Monitor Displays..................89

Computer images (analog RGB) ....................................................89

Component Video...........................................................................90

Composite video/S-video ...............................................................90

Input signal from HDMI input port................................................91

Specifications .....................................................92

• Specifications .....................................................................92

• Operating Requirements of Supplied Software .............95

Appearance .........................................................96

Index ....................................................................97

Page 55

Installation Methods

The projector supports the following four different projection methods. Install according to the conditions of the installation location.

Warning

• A special method of installation is required when suspending the projector from a ceiling (ceiling mount). If it is not installed correctly, it could fall causing an accident and injury.

• If you use adhesives on the ceiling mount to prevent the screws from loosening, or if you use things such as lubricants or oils on the projector, the projector case may crack causing it to fall from its ceiling mount. This could cause serious injury to anyone under the ceiling mount and could damage the projector. When installing or adjusting the ceiling mount, do not use adhesives to prevent the screws from loosening and do not use oils or lubricants and so on.

Attention

Do not use the projector on its side. This may cause malfunctions to occur.

• Suspend the projector from the ceiling and project images from front of the screen. (Front/Ceiling projection)

• An optional ceiling mount is required when suspending

the projector from a ceiling.

• You can change the setting as follows by pressing down the [A/V Mute] button on the remote control for about five seconds.

"Front" Set "Rear" or "Rear/Ceiling" in the configuration menu.

p.35

"Front/Ceiling"

• Suspend the projector from the ceiling and project images from behind a translucent screen. (Rear/Ceiling projection)

p.84

• Project images from front of the screen. (Front projection)

• Project images from behind a translucent screen. (Rear projection)

Page 56

Cleaning

You should clean the projector if it becomes dirty or if the quality of projected images starts to deteriorate.

Cleaning the Projector's Surface

Clean the projector's surface by wiping it gently with a soft cloth. If the projector is particularly dirty, moisten the cloth with water containing a small amount of neutral detergent, and then firmly wring the cloth dry before using it to wipe the projector's surface.

Attention

Do not use volatile substances such as wax, alcohol, or thinner to clean the projector's surface. The quality of the case may change or become discolored.

Cleaning the Lens

Attention

If dust collects on the air filter it can cause the internal temperature of the projector to rise, and this can lead to problems with operation and shorten the optical engine's service life. Clean the air filter immediately when the message is displayed.

Use a commercially available cloth for cleaning glasses to gently wipe the lens.

Attention

Do not rub the lens with harsh materials or subject the lens to shocks, as it can easily become damaged.

Cleaning the Air Filter and Air Intake Vent

Clean the air filter and the air intake vent when the following message is displayed. "The projector is overheating. Make sure nothing is blocking the air vent, and clean or replace the air filter" s "How to replace the air filter" p.61

• If a message is frequently displayed, even after cleaning, it is time to replace the air filter. Replace it with a new air

filter.

• It is recommended that you clean these parts at least once every three months. Clean them more often than this if using the projector in a particularly dusty environment.

p.61

Page 57

Replacing Consumables

This section explains how to replace the remote control batteries, the lamp, and the air filter.

Replacing the Remote Control Batteries

If delays in the responsiveness of the remote control occur or if it does not operate after it has been used for some time, it probably means that the batteries are becoming flat. When this happens, replace them with new batteries. Have two spare AA-size alkaline or manganese dry batteries ready to use. You can only use AA-size alkaline or manganese dry batteries.

Attention

Make sure you read the Safety Instructions/Support and Service Guide before handling the batteries.

Procedure

Remove the battery cover.

While pushing the battery cover catch, lift the cover up.

Safety Instructions

Replace the old batteries with new batteries.

Caution

Check the positions of the (+) and (-) marks inside the battery holder to ensure the batteries are inserted the correct way.

Replace the battery cover.

Press the battery cover until it clicks into place.

Catch

Page 58

Replacing Consumables

Replacing the Lamp

f Lamp replacement period

It is time to replace the lamp when:

• The message "Replace the lamp." is displayed.

A message is displayed.

• The lamp indicator flashes orange.

Attention

• The lamp replacement message is set to appear after the following time periods in order to maintain the initial brightness and quality

of the projected images.

- When used continually at high brightness: About 2900 hours

- When used continually at low brightness: About 3900 hours

• If you continue to use the lamp after the replacement period has passed, the possibility that the lamp may explode increases. When the lamp replacement message appears, replace the lamp with a new one as soon as possible, even if it is still working.

• Depending on the characteristics of the lamp and the way it has been used, the lamp may become darker or stop working before the lamp warning message appears. You should always have a spare lamp ready in case it is needed.

"Brightness Control" p.34

Flashing orange

• The projected image gets darker or starts to deteriorate.

Page 59

Replacing Consumables

f How to replace the lamp

Warning

When replacing the lamp because it has stopped illuminating, there is a possibility that the lamp may be broken. If replacing the lamp of a projector which has been installed on the ceiling, you should always assume that the lamp is broken, and you should stand to the side of the lamp cover, not underneath it. Remove the lamp cover gently. Small pieces of glass may fall out when the lamp cover is opened. If pieces of glass get into your eyes or mouth, seek medical advice immediately.

Caution

Wait until the lamp has cooled down sufficiently before removing the lamp cover. If the lamp is still hot, burns or other injuries may result. It takes about one hour after the power has been turned off for the lamp to be cool enough.

Procedure

After you turn off the projector's power and the confirmation buzzer beeps twice, disconnect the power cable.

Wait until the lamp has cooled down, then remove the lamp cover.

Loosen the lamp cover fixing screw with the screwdriver supplied with the new lamp or a + head screwdriver. Then slide the lamp cover straight forward and lift it to remove.

Page 60

Replacing Consumables

Loosen the two lamp fixing screws.

Take out the old lamp.

If the lamp is cracked, replace it with a new lamp, or contact your local dealer for further advice. s Epson Projector Contact List

Install the new lamp.

Insert the new lamp along the guide rail in the correct direction so that it fits in place, push down firmly at the location marked "PUSH", and once it is fully inserted tighten the two screws.

Page 61

Replacing Consumables

Attention

• Make sure you install the lamp securely. If the lamp cover is

• This product includes a lamp component that contains mercury

f Resetting the lamp operating time

The projector records how long the lamp is turned on and a message and indicator notify you when it is time to replace the lamp. After replacing the lamp, make sure you reset the lamp hours in the configuration menu.

s p.38

Replace the lamp cover.

removed, the lamp turns off automatically as a safety precaution. If the lamp or the lamp cover is not installed correctly, the lamp does not turn on.

(Hg). Please consult your local regulations regarding disposal or recycling. Do not dispose of it with normal waste.

Replacing the Air Filter

f Air filter replacement period

It is time to replace the air filter when:

• The air filter is ripped.

• The message is displayed even though the air filter has been cleaned.

f How to replace the air filter

The air filter can be replaced even when the projector is suspended from a ceiling.

Procedure

After you turn off the projector's power and the confirmation buzzer beeps twice, disconnect the power cable.

Remove the air filter.

Put your finger into the recess of the air filter and slide it forward to remove it.

Only reset the lamp operating time after the lamp has been replaced. Otherwise the lamp replacement period is not indicated correctly.

Page 62

Replacing Consumables

Install the new air filter.

Slide the air filter in from the outside and push until it clicks into place.

Dispose of used air filters properly in accordance with your local regulations. Material quality of the frame section: Polycarbonate, ABS resin Material quality of the filter section: Polyurethane form

Page 63

Saving a User's Logo

You can save the image that is currently being projected as a user's logo.

When registering a user logo , the current user logo is

Procedure

Using the remote control

erased and the default setting is not resumed.

Project the image you want to use as the user's logo, and then press the [Menu] button.

From the configuration menu, select "Extended" "User's Logo".

Check the buttons you can use and the operations they perform in the guide under the menu.

• If "User's Logo Protect" from "Password Protect" is set to "On", a message is displayed and the user's logo cannot be changed. You can make changes after setting "User's Logo Protect" to "Off".

• If "User's Logo" is selected when Keystone, E-Zoom, or Aspect are being performed, the function currently being performed is cancelled.

s p.30

p.24

Using the control panel

Page 64

Saving a User's Logo

When "Choose this image as the User's Logo?" is displayed, select "Yes".

When you press the [Enter] button on the remote control or the control panel, the screen size may change as it changes to the resolution of the image signal.

Move the box to select the part of the image to use as the user's logo.

Using the control panel

E F

You can save at up to 400^300 dots in size.

When "Select this image?" is displayed, select "Yes".

Select the zoom factor from the zoom setting screen.

Using the remote control

Page 65

Saving a User's Logo

When the message "Save this image as the User's Logo?" is displayed, select "Yes".

The image is saved. After the image has been saved, the message "Completed" is displayed.

Saving the user's logo may take about 15 seconds. Do not use the projector or any connected equipment while it is saving. This may cause malfunctions to occur.

Page 66

Screen Size and Distance

See the following table to choose the best position for your projector. The values are only a guide.

Units: cm (in.) Units: cm (in.) Units: cm (in.)

16:10 Screen Size

30"

40"

50"

60"

80"

100"

120"

150"

200"

250"

65 ^ 40

(26 ^ 16)

86 ^ 54

(34 ^ 21) 110 ^ 67

(43 ^ 26) 130 ^ 81

(51 ^ 32)

170 ^ 110

(67 ^ 43)

220 ^ 130

(87 ^ 51)

260 ^ 160 (102 ^ 63)

320 ^ 200 (126 ^ 79)

430 ^ 270

(169 ^ 106)

540 ^ 340

(213 ^ 134)

Projection Distance

Minimum (Wide) to

Maximum (Tele)

94 to 113

(37 to 45)

126 to 152

(50 to 60)

158 to 191

(62 to 75)

191 to 230

(75 to 90)

255 to 307

(101 to 121)

320 to 385

(126 to 152)

385 to 463

(152 to 182)

482 to 579

(190 to 228)

644 to 774

(253 to 305)

806 to 968

(317 to 381)

(0)

4:3 Screen Size

30"

40"

50"

60"

70"

80"

100"

150"

200"

235"

61 ^ 46

(24 ^ 18)

81 ^ 61

(32 ^ 24)

100 ^ 76

(39 ^ 30)

120 ^ 91

(47 ^ 36)

140 ^ 110

(55 ^ 43)

160 ^ 120

(63 ^ 47)

200 ^ 150

(79 ^ 59)

300 ^ 230

(118 ^ 91)

410 ^ 300

(161 ^ 118)

480 ^ 360

(189 ^ 142)

Projection Distance

Minimum (Wide) to

Maximum (Tele)

106 to 129

(42 to 51)

143 to 173

(56 to 68)

180 to 217

(71 to 85)

216 to 260

(85 to 103)

253 to 304

(100 to 120)

290 to 348

(114 to 137)

363 to 436

(143 to 172)

546 to 656

(215 to 258)

729 to 876

(287 to 345)

857 to 1030

(338 to 406)

(0)

16:9 Screen Size

30"

40"

50"

60"

70"

80"

100"

150"

200"

260"

(228 ^ 126)

66 ^ 37

(26 ^ 15)

89 ^ 50

(35 ^ 20)

110 ^ 62

(43 ^ 24)

130 ^ 75

(51 ^ 30)

150 ^ 87

(59 ^ 34)

180 ^ 100

(71 ^ 39)

220 ^ 120

(87 ^ 47)

330 ^ 190

(130 ^ 75)

440 ^ 250

(173 ^ 98)

580 ^ 320

Projection Distance

Minimum (Wide) to

Maximum (Tele)

96 to 116

(38 to 46)

130 to 156

(51 to 62)

163 to 196

(64 to 77)

196 to 236

(77 to 93)

229 to 276

(90 to 109)

263 to 316

(103 to 124)

329 to 396

(130 to 156)

495 to 596

(195 to 234)

662 to 795

(261 to 313)

861 to 1035

(339 to 407)

(+0.8)

(+1.1)

(+1.4)

(+1.6)

(+1.9)

(+2.2)

(+2.7)

+10

(+4.1)

+14

(+5.5)

+18

(+7.1)

Center of lens

90°

Screen

Center of lens

90°

Screen

is the distance from the lens center to the bottom of the screen (top of the screen when hung from the ceiling).

Page 67

Connecting and Removing a USB Device

You can connect a digital camera, hard disk drive and USB memory compatible with USB 2.0 or 1.1. You can project image files from a connected digital camera or USB storage device in Slideshow.

s p.77

Connecting a USB Device

This section explains how to connect USB devices using the digital camera as an example. Connect with a specified USB cable or one supplied with the digital camera.

Attention

• Normal operation is not possible when using a USB hub. Connect the projector directly to a digital camera or USB storage device.

• When connecting a USB compatible hard disk drive, be sure to use the hard disk drive's accessory AC adaptor.

Reading the Indicators

The USB indicator colors are lit as follows to indicate the status of the USB device connected to the projector.

Use a USB cable of up to 3 meters in length. If the cable

length is over 3 meters, the slideshow may not operate normally.

To digital camera's

USB port

USB cable

To USB port

(Type A)

: Lit : Off

Indicators Status

(orange) A USB device is connected. (green) A Slideshow of images from the connected device is

being played. A USB device is not connected.

Removing a USB Device

After finishing projecting, use the following procedure to remove USB devices from the projector.

Procedure

A B

Turn off power for the digital camera or USB device.

Remove from the projector's USB port (Type A).

Page 68

Inserting and Ejecting a SD Card

You can project image files from a inserted SD card or SDHC (SD High Capacity) card in Slideshow.s p.77

From here on these are referred to as SD cards. The following explains how to insert and eject SD cards.

Inserting a SD Card

Attention

Insert the SD card so that it faces the correct direction. Inserting a card in the wrong direction may result in malfunction or damage.

Procedure

Insert the SD card into the card slot with its top surface facing up.

Firmly insert the card as far as it can go.

Reading the SD Card Access Lamp

The SD card access lamp is lit or flashing as follows to indicate the access status of the SD card.

: Flashing : Lit : Off

Lamp Status

Reading data from the SD card.

SD card is standing by. SD card is not being accessed.

SD card

(commercially available)

Page 69

Inserting and Ejecting a SD Card

Ejecting a SD Card

Attention

Do not remove the card while its access lamp is flashing. You may damage the card or projector.

Procedure

SD Card

Access Lamp

Lightly press the SD card.

The SD card ejects.

Grip the SD card and pull it straight out.

Page 70

Connecting with USB Cable for Projection (USB Display)

The projector can project computer images when connected via a USB cable to a Windows computer. This function is called USB Display. Computer images can quickly be projected simply by connecting with a USB cable.

How to Connect

Procedure

Attention

Do not connect via a USB hub: connect the projector directly to the computer.

Turn the power on for the computer.

Connect a USB cable (commercially available).

Also connect an audio cable (commercially available) when you want to output audio from the projector's speaker.

s "When connecting for the first time" p.71 s "From the second time" p.72

Open the A/V mute slide.

Turn the power on for the projector.

Using the

control panel

Beep!

Using the

remote control

Connects to the power cable (supplied).

Page 71

Connecting with USB Cable for Projection (USB Display)

f When connecting for the first time

When you are using Windows 2000, double-click "My Computer" "EPSON_PJ_UD" - "EMP_UDSE.EXE", on your computer.

Driver installation starts automatically.

When using user authorization with a Windows 2000 computer, a Windows error message may be displayed and installation may not be possible. In this case, update Windows to the latest status and then reconnect. For more details, contact the nearest address provided in the

Contact List

Select "Agree".

You cannot run USB Display if the driver is not installed. Be sure to select "Agree". If you want to cancel installation, select "Disagree".

Support and Service Guide. s Epson Projector

Computer images are projected.

It may take a little time before computer images are projected. Until computer images are projected, leave the equipment as it is and do not disconnect the USB cable or turn off the power to the projector.

• When images are not projected, click "All Programs" "EPSON Projector" - "EPSON USB Display" - "EPSON USB Display Vx.x".

• When automatic installation is not performed, doubleclick "EMP_UDSE.EXE" under "My Computer" "EPSON_PJ_UD".

• To uninstall the driver, click "Change/Remove" under "Start" - "Control Panel" - "Add or Remove Programs" "EPSON USB Display".

• Disconnecting The projector can be disconnected simply by disconnecting the USB cable. There is no need to use the "Safely Remove Hardware" feature in Windows.

Page 72

Connecting with USB Cable for Projection (USB Display)

f From the second time

Computer images are projected.

It may take a little time before computer images are projected. Leave the equipment as it is during this period.

Page 73

Connecting a USB Cable

Connect the computer’s USB port and the USB port (Type B) on the rear of the projector with a commercially available USB cable to use functions other than those available with USB Display. Refer to the pages indicated for method of use. Further, these functions cannot be used simultaneously with USB Display.

• Use the [Page] (+)/(-) buttons on the remote control to Page Up/

Down. s p.73

• Operating the mouse pointer by remote control. s p.74

• Control by sending commands from the computer to the projector.

s p.87

Page Up/Down by Remote Control

When projecting a computer screen image, you can operate Page Up/ Down with the supplied remote control if the computer is not nearby.

Procedure

A B

Windows 98/98SE/2000/Me/XP Home Edition/XP Professional Vista Home Basic/Vista Home Premium/Vista Business/Vista Enterprise/Vista Ultimate Mac OS X 10.3 to 10.5

Connect the computer to the projector by USB cable.

Set "Extended" - "USB Type B" to "Page Up/Down" under the configuration menu.

• When using USB Display, set "Extended" - "USB Type B" to

• You cannot use the Page Up/Down function and the Wireless

s p.70

"USB Display" under the configuration menu. s p.70

Mouse function simultaneously. s p.74

Compatible computer

To USB port

USB cable

To USB port (Type B)

Page 74

Connecting a USB Cable

Example of Use: When showing a slideshow in PowerPoint, the previous

and next slides are displayed as follows.

To display previous slide/ next slide in PowerPoint slideshow

To previous slide

To next slide

Operating the Mouse Pointer by Remote Control (Wireless Mouse function)

The supplied remote control has a mouse pointer operation function. This function is called Wireless Mouse function. You can use this when the current input source is the computer or HDMI .

• You cannot use the Wireless Mouse function during use of

Procedure

A B

USB Display.

• You cannot use the Wireless Mouse function and Page Up/ Down simultaneously.

Connect the computer to the projector by USB cable.

Set "Extended" - "USB T ype B" to "Wireless Mouse" under the configuration menu.

s p.70

Compatible computer

Windows 98/98SE/2000/Me/XP Home Edition/XP Professional Vista Home Basic/Vista Home Premium/Vista Business/Vista Enterprise/Vista Ultimate Mac OS X 10.3 to 10.5

Page 75

Connecting a USB Cable

• You may not be able to use the Wireless Mouse function

depending on your version of the Windows or Macintosh operating system.

• You may need to make settings on the computer side to use the mouse. Refer to the computer's documentation for more detailed information.

f Wireless mouse operation

Moving mouse pointer Mouse click operation

After connecting, you can use the mouse pointer in the following ways.

Left click Right click

Double click: Press the button rapidly twice.

Drag and drop

(1) Hold down [Enter] and press [ ] to drag. (2) Release [Enter] at any position to drop.

Page 76

Connecting a USB Cable

• When the left and right mouse buttons are set oppositely

on your computer, the remote control operations are also reversed.

• You cannot use the Wireless Mouse function when using the following functions.

- Using the Configuration Menu

- Using the Help Menu

- Using E-Zoom

- Capturing a user's logo

- Adjusting the volume

Page 77

Using Slideshow

You can make presentations by connecting the projector to a digital camera, USB storage device or SD card. The image files stored on these devices can be projected directly. This makes projection easy, since it is not necessary to connect a computer.

Image Files that can be Projected in a Slideshow

The image files that can be projected in a slideshow are as follows.

Type

Still images only

• USB storage devices that have a security function cannot

• Due to the characteristics of JPEG files, if the

• Movie files cannot be projected.

be used.

compression ratio is high the image may not be projected properly.

File type

(extension)

.jpg Shall be JPEG files that support the Exif

standard. Images with a resolution above 8176 x 6144 cannot be projected. The horizontal/vertical pixel count of the image shall be multiples of 8.

Comment

Basic Slideshow Operations

The following explains the basic operating method for Slideshow. The following operations are all performed by remote control. Therefore the button names refer to buttons on the remote control.

f Starting Slideshow

Procedure

Slideshow starts automatically when the projector is connected to a USB storage device or SD card.

Refer to the following for how to connect a USB storage device or SD card. Connecting a USB storage device: s p.67 Connecting a SD card: s p.68

During projection of images from another source, the

projector will switch to the device you connect as soon as you press the [Slideshow] button.

Page 78

Using Slideshow

f Exiting Slideshow

Procedure

To end a slideshow, remove the connected USB storage device or SD card.

Refer to the following for how to remove a USB storage device or SD card. Removing a USB storage device: s p.67 Removing a SD card: s p.69

f Slideshow file browser screen

The following kind of screen is displayed when the slideshow begins. This screen is called the file browser screen.

When the projector is connected to multiple storage devices, the following kind of drive selection screen is displayed containing icons that indicate

the type of storage. In this case, press the [ ] button, and after selecting the drive for the content you want to display, press the [Enter] button.

You can connect up to 5 storage devices simultaneously: 1

SD card and 4 USB storage devices.

Page 79

Using Slideshow

The following explains the file browser screen.

Status display Control panel (top)

Contents screen

Control panel (bottom)

Operation guide

The following table explains about each menu item and content of the file browser screen and how they work when selected and accepted with the [Enter] button.

Item names Function

Status display This lets you check the drive, folder, current page being

displayed and total number of pages.

Control panel (top) Back to Top: Moves to one level upper folder.

Previous page: Displays the previous page when

there is a previous page.

Select drive: Move to a drive selection screen.

Item names Function

Contents screen Displays folder and thumbnails of image files.

• Press the [ ] button, and select a folder or thumbnailed image file. The selected folder and image file are surrounded by a colored border (cursor).

• The contents screen runs to multiple pages according to the number of folders and image files.

• When you select an image file and press the [Enter] button, the selected image file is played.

• When you select a folder and press the [Enter] button, the contents of the folder are displayed.

• When you select the "Back to Top" icon and press the [Enter] button, the content display switches to one level upper folder. When displaying a folder in the top level, this icon is not displayed.

• JPEG images, which cannot be displayed in thumbnails are indicated by an icon as shown.

Control panel (bottom)

Operation guide Operation guide is displayed according to the item

Option: Displays the option screen.

s p.82

Next page: Displays the next page when there

is a next page.

Slideshow: Starts Slideshow.

selected. Can operate with the button concerned.

When contents cover several pages, change page displays by pressing [Page] (+) / (-).

Page 80

Using Slideshow

f Playing individual images

Procedure

Press the [ ] button, and position the cursor on the image file you want to project.

Press the [Enter] button.

The selected image file is played.

• Position the cursor on the image file, press the [Esc] button, and the following sub-menu is displayed. In this state, you can also play the image file by pressing the [Enter] button.

• During play, press the [ ] button to switch between image files.

Page 81

Using Slideshow

f Running Slideshow

You can play image files in a folder one by one in sequence. This function is known as Slideshow. Run Slideshow by the following procedure. The following explains how to run a slideshow on the contents screen being displayed.

Procedure

• When you want to start a slideshow from a particular image file, play the file and press the [Enter] button.

• When you want to play a slideshow of image files in a particular folder, position the cursor on the folder in the browser and press the [Esc] button. Select "Slideshow" from the displayed submenu, and press the [Enter] button.

A B C

In the file browser screen, display the folder you want to run Slideshow.

Press the [ ] button and position the cursor over "SlideShow" at the control panel (bottom).

Press the [Enter] button.

The slideshow runs and images in the folder are projected sequentially one by one. When the last image is projected in the slideshow, the file browser screen is automatically displayed again. When "Continuous Play" on the option screen is set to "On", the slideshow is automatically repeated. s p.82

• You can set conditions such as projecting repeatedly and adding transition effects between images. To change image files automatically when running a slideshow, set the screen switching time in the option menu to other than "No". (When the screen switching time is set to "No",

you must change slides manually.)

p.82

Page 82

Using Slideshow

f Rotating images

You can rotate the image being played in 90° units. You can also rotate images being played in a slideshow. Use the following procedure to rotate images.

Procedure

A B

Display a single image file or run a slideshow.

When an image is displayed, press the [ ] button or [ ] button.

Bottom

Top

Bottom Top

Top

Bottom

Setting Image File Display and Slideshow.

To set the browser's image display order and set Slideshow, display the option menu.

Procedure

Press the [ ] button on the file browser screen, position the cursor over "Option" at the control panel (bottom), and press the [Enter] button.

The option screen is displayed.

Top

Bottom

Page 83

Using Slideshow

Position the cursor over the item you want to change, press the [Enter] button, and the setting becomes effective.

Refer to the following table for details of each item.

Item Function

Display Setting Sets the order of files for display. Files can be

selected in order of name or ascending order

of update. Continuous Play Sets whether to play Slideshow repeatedly. Screen switching time Sets the display time for one file in a

slideshow. You can set "No" or "1 to 60 sec".

If you set "No", images are not switched

automatically. Effect Sets transition effects between images.

Press the [ ] button, position the cursor on "OK", and then press the [Enter] button.

Page 84

Optional Accessories and Consumables

Prepare the following options and consumables. Purchase depending on usage. The following list of optional accessories and consumables is current as of: 2008.07. Details of accessories are subject to change without notice and availability may vary depending on the country of purchase.

f Optional accessories

Soft carrying case ELPKS16B

Use this case if you need to travel with the projector.

60" portable screen ELPSC07 80" portable screen ELPSC08 100" screen ELPSC10

Portable roll-type screens (Aspect ratio

50" portable screen ELPSC06

A compact screen that can be carried easily. (Aspect ratio 4:3)

HD-15 cable ELPKC02 (1.8m - for mini D-Sub15-pin/mini D-Sub 15pin)

This is the same as the computer cable supplied with the projector.

HD-15 cable ELPKC09 (3m - for mini D-Sub15-pin/mini D-Sub 15pin) HD-15 PC cable ELPKC10 (20 m - for mini D-Sub15-pin/mini D-Sub 15pin)

Use one of these longer cables if the computer cable bundled with the product is too short.

Ceiling plate* ELPFC03 Pipe 370 (370 mm silver) Pipe 570 (570 mm silver) Pipe 770 (770 mm silver)

Ceiling mount (For use with the ceiling plate)* ELPMB18

Use when installing the projector on a ceiling.

ELPFP04

ELPFP05

ELPFP06

g 4:3)

f Consumables

Lamp unit ELPLP41

Use as a replacement for used lamps.

Air filter (by 2) ELPAF13

Use as a replacement for used air filters.

* A special method of installation is required to suspend the projector from a

ceiling. Contact your dealer or the nearest address provided in the Support and

Service Guide if you want to use this installation method. s Epson Projector

Contact List

Page 85

Glossary

This section briefly explains terms that are used with the projector and difficult terms that are not explained in the text of this guide. For details, refer to other commercially available publications.

Aspect ratio The width-to-height ratio of a projected image or screen. When the width-to-height ratio is 16:9 or 16:10, the elongated screen is known

as wide-screen. The aspect ratio for standard images is 4:3.

Component Video A video signal which has the luminance component and color component separated to provide better image quality.

Refers to images that consist of three independent signals: Y (luminance signal), Pb and Pr (color difference signals).

Composite video Video signals that have the video brightness signals and color signals mixed together. The type of signals commonly used by household

video equipment (NTSC, PAL, and SECAM formats). The carrier signal Y (luminance signal) and chroma (color) signal that are contained in the color bar are overlapped to form a single signal.

Contrast The relative brightness of the light and dark areas of an image can be increased or decreased to make text and graphics stand out more

clearly, or to make them appear softer. Adjusting this particular property of an image is called "contrast adjustment".

Dolby Digital A sound format developed by Dolby Laboratories. Normal stereo is a 2-channel format that uses two speakers. Dolby Digital is a 6-

channel (5.1-channel) system which adds to this a center speaker, two rear speakers, and a sub-woofer.

HDTV An abbreviation for High-Definition Television that refers to high-definition systems which satisfy the following conditions.

• Vertical resolution of 720p or 1080i or greater (p = progressive

• Screen aspect ratio Dolby Digital

Interlace A method of image scanning whereby the image data is divided into fine horizontal lines that are displayed in sequence starting from left

to right and then from top to bottom. The even-numbered lines and odd-numbered lines are displayed alternately.

Progressive A method of image scanning whereby the image data from a single image is scanned sequentially from top to bottom to create a single

image.

Refresh rate The light-emitting element of a display maintains the same luminosity and color for an extremely short time. Because of this, the image

must be scanned many times per second to refresh the light-emitting element. The number of refresh operations per second is called the Refresh rate and is expressed in hertz (Hz).

SDTV An abbreviation for Standard Definition Television that refers to standard television systems which do not satisfy the conditions for

HDTV

Squeeze mode In this mode, wide-screen images in 16:9 mode are compressed in the horizontal direction so that they are stored on the recording

medium as 4:3 images. When these images are played back by the projector in squeeze mode, they are restored to their original 16:9 format.

sRGB An international standard for color intervals that was formulated so that colors that are reproduced by video equipment can be handled

easily by computer operating systems (OS) and the Internet. If the connected source has an sRGB mode, set both the projector and the connected signal source to sRGB.

SVGA A type of video signal with a resolution of 800 (horizontal) ^ 600 (vertical) dots that is used by IBM PC/AT-compatible computers. S-Video A video signal which has the luminance component and color component separated to provide better image quality.

Refers to images that consist of two independent signals: Y (luminance signal) and C (color signal).

g audio reception and playback (or output)

g High-Definition Television.

g of 16:9

g, i = interlaceg)

Page 86

Glossary

SXGA A type of video signal with a resolution of 1280 (horizontal) ^ 1024 (vertical) dots that is used by IBM PC/AT-compatible computers. Synchronization The signals output from computers have a specific frequency. If the projector frequency does not match this frequency, the resulting

images are not of a good quality. The process of matching the phases of these signals (the relative position of the crests and the troughs in the signal) is called Synchronization. If the signals are not synchronized, flickering, blurriness, and horizontal interference occur.

Tracking The signals output from computers have a specific frequency. If the projector frequency does not match this frequency, the resulting

images are not of a good quality. The process of matching the frequency of these signals (the number of crests in the signal) is called Tracking. If tracking is not carried out correctly, wide vertical stripes appear in the signal.

VGA A type of video signal with a resolution of 640 (horizontal) ^ 480 (vertical) dots that is used by IBM PC/AT-compatible computers. XGA A type of video signal with a resolution of 1024 (horizontal) ^ 768 (vertical) dots that is used by IBM PC/AT-compatible computers.

Page 87

ESC/VP21 Commands

Command List

The ESC and VP21 commands are commands sent from the computer to control the projector. When the power ON command is transmitted to the projector, the power turns on and it enters warm-up mode. When the projector's power has turned on, a colon ":" (3Ah) is returned. When a command is input, the projector executes the command and returns a ":", and then accepts the next command. If the command being processed terminates due to a problem, an error message is output and a ":" is returned.

Item Command

Power ON/OFF ON PWR ON

OFF PWR OFF

Signal selection Video SOURCE 41

S-Video SOURCE 42 HDMI SOURCE 30 USB Display SOURCE 51 Slideshow SOURCE 52

A/V Mute ON/OFF ON MUTE ON

OFF MUTE OFF

A/V Mute selection Black MSEL 00

Blue MSEL 01 Logo MSEL 02

Item

Signal selection Computer (Auto) SOURCE 1F

Computer SOURCE 11

Command

Computer Port

Cable Layouts

f USB connection

Connector shape: USB (Type B)

(Type B)

* Add a Carriage Return (CR) code (0Dh) to the end of each command and

transmit.

Page 88

ESC/VP21 Commands

USB Connection Setup

To control the projector with ESC/VP21 commands using communication via USB connection, it is necessary to set "Extended" - "USB Type B" from the configuration menu to something other than "USB Display". In addition to that, the following preparations are required.

Procedure

Download the USB driver (USB-COM Driver) from the Epson Web site to your computer.

Go to http://www.epson.com and select the support section of your

local Epson Web site.

Install the downloaded USB driver onto your computer.

Read the instructions displayed on the download screen.

Set "Extended" - "Link 21L" to "On" from the projector’s configuration menu.

Page 89

List of Supported Monitor Displays

f Computer images (analog RGB)

Signal

Refresh Rateg

(Hz)

Resolution

(dots)

Normal 16:9 Full Zoom Through

Aspect Mode

VGAEGA 70 640^350 1280^700 1280^720 1280^800 1280^700 640^350

VGAg 60/72/75/85, iMac

SVGAg 56/60/72/75/85, iMac

XGAg 60/70/75/85, iMac

640^480/640^360 800^600/800^450

1024^768/1024^576

1066^800 1280^720 1280^800 1280^800 640^480 1066^800 1280^720 1280^800 1280^800 800^600 1066^800 1280^720 1280^800 1280^800 1024^768

60 1280^768 1280^768 1280^720 1280^800 1280^768 1280^768

WXGA

60 1360^768 1280^722 1280^720 1280^800 1280^722 1280^768

60/75/85 1280^800 1280^800 1280^720 1280^800 1280^800 1280^800

WXGA+ 60/75/85 1440^900 1280^800 1280^720 1280^800 1280^800 1280^800

WSXGA+

60 1680^1050 1280^800 1280^720 1280^800 1280^800 1280^800

70/75/85 1152^864 1066^800 1280^720 1280^800 1280^800 1280^800

SXGAg

60/75/85 1280^1024 1000^800 1280^720 1280^800 1280^800 1280^800 60/75/85 1280^960 1066^800 1280^720 1280^800 1280^800 1280^800

SXGA+ 60/75/85 1400^1050 1066^800 1280^720 1280^800 1280^800 1280^800

UXGA 60 1600^1200 1066^800 1280^720 1280^800 1280^800 1280^800 MAC13" 67 640^480 1066^800 1280^720 1280^800 1280^800 640^480 MAC16" 75 832^624 1066^800 1280^720 1280^800 1280^800 832^624

75 1024^768 1066^800 1280^720 1280^800 1280^800 1024^768

MAC19"

60 1024^768 1066^800 1280^720 1280^800 1280^800 1024^768

MAC21" 75 1152^870 1059^800 1280^720 1280^800 1280^800 1152^800

*1 Connection is not possible if the equipment does not have a VGA output port. *2 Letterbox signal *3 This is limited to selection of "Wide" from "Resolution" on the configuration menu. Even when signals other than those mentioned above are input, it is likely that the image can be projected. However, not all functions may be supported.

Page 90

List of Supported Monitor Displays

f Component Video

Units: dots

Signal

Refresh rateg

(Hz)

Resolution

SDTVg(480i) 60 720^480/720^360

SDTV(576i) 50 720^576/720^432 SDTV(480p) 60 720^480/720^ 360 SDTV(576p) 50 720^576/720^ 432

HDTVg(720p) 50/60 1280^720 1280^720 1280^720 1280^800 1280^720 1280^720

HDTV(1080i) 50/60 1920^1080 1280^720 1280^720 1280^800 1280^720 1280^800

* Letterbox signal

f Composite video/S-video

Signal

TV (NTSC) 60 720^480/720^360

TV(PAL, SECAM) 50 720^576/720^432

* Letterbox signal

Refresh rateg

(Hz)

Resolution

Aspect Mode

Normal 16:9 Full Zoom Through

1066^800 1280^720 1280^800 1280^800 640^480 1066^800 1280^720 1280^800 1280^800 768^576 1066^800 1280^720 1280^800 1280^800 640^480 1066^800 1280^720 1280^800 1280^800 768^576

Units: dots

Aspect Mode

Normal 16:9 Full Zoom Through

1066^800 1280^720 1280^800 1280^800 640^480 1066^800 1280^720 1280^800 1280^800 768^576

Page 91

List of Supported Monitor Displays

f Input signal from HDMI input port

Units: dots

Signal

Refresh rateg

(Hz)

Resolution

VGAg 60 640^480/640^360

16:9 Full Zoom Through

1280^720 1280^800 1280^800 640^480

Aspect Mode

SVGAg 60 800^600 1280^720 1280^800 1280^800 800^600

XGAg 60 1024^768 1280^720 1280^800 1280^800 1024^768

SXGAg

60 1280^960 1280^720 1280^800 1280^800 1280^800 60 1280^1024 1280^720 1280^800 1280^800 1280^800

SXGA+ 60 1400^1050 1280^720 1280^800 1280^800 1280^800

UXGA 60 1600^1200 1280^720 1280^800 1280^800 1280^800

SDTVg(480i) 60 720^480/720^360

SDTV(480p) 60 720^480/720^ 360

SDTV(576i) 50 720^576/720^432 SDTV(576p) 50 720^576/720^ 432

1280^720 1280^800 1280^800 640^480 1280^720 1280^800 1280^800 640^480 1280^720 1280^800 1280^800 768^576 1280^720 1280^800 1280^800 768^576

HDTVg(720p) 50/60 1280^720 1280^720 1280^800 1280^720 1280^720

HDTV(1080i) 50/60 1920^1080 1280^720 1280^800 1280^720 1280^800

HDTV(1080p) 50/60 1920^1080 1280^720 1280^800 1280^720 1280^800

* Letterbox signal

Page 92

Specifications

Product name EH-TW420 Dimensions 327 (W) ^ 92 (H) ^ 245 (D) mm Panel size 0.56" Display method Polysilicon TFT active matrix Resolution 1,024,000 pixels WXGA

(1280 (W) ^ 800 (H) dots) ^ 3

Focus adjustment Manual Zoom adjustment Manual (1 to 1.2) Lamp UHE lamp 170 W, Model No.: ELPLP41 Max. audio output 7 W monaural Speaker 1 Power supply 100 to 240 V AC ±10%, 50/60 Hz 2.8 to 1.5 A Power consumption 100 to 120 V area Operating: 246 W

Standby power consumption: 3.0 W

220 to 240 V area Operating: 231 W

Standby power consumption: 4.3 W

Operating altitude Altitude 0 to 2286m (0 ft to 7500 ft) Operating temperature 5 to +35°C (No condensation) Storage temperature -10 to +60°C (No condensation) Mass Approx. 2.8 kg

Page 93

Specifications

Product name EH-TW420 Connectors

*1 USB Type A supports USB1.1. *2 USB Type B supports USB2.0. *3 USB ports are not guaranteed to operate all devices that support USB.

Computer input port 1 Mini D-Sub15-pin (female) blue Audio input port 1 RCA pin jack S-Video input port 1 Mini DIN 4-pin Video input port 1 RCA pin jack Audio input port 1 RCA pin jack HDMI input port 1 HDMI Monitor Out port 1 USB port (Type A) USB port (Type B)

*1*3

*2*3

1 USB connector (Type A) 1 USB connector (Type B)

Card slot 1 SD card x 1

Angle of tilt

0° to 30°0° to 30°

SDHC logo is a trademark.

If you use the projector tilted at an angle of

more than 30° it could be damaged and cause

an accident.

Page 94

Specifications

Class B Personal Computers and Peripherals; and/or

CPU Boards and Power Supplies used with Class B

We: Epson America, Inc. Located at: 3840 Kilroy Airport Way

Tel: 562-290-5254

DECLARATION of CONFORMITY

According to 47CFR, Part 2 and 15

Personal Computers

MS: 3-13 Long Beach, CA 90806

FCC Compliance Statement

For United States Users

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2 and 15 of the FCC rules as a Class B digital device. Each product marketed, is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on a statistical basis as required by 47CFR 2.909. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Trade Name: EPSON

Type of Product: Projector

Model: H285C/H284C/H283C

WARNING

The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC Certification or Declaration of this device and may cause interference levels which exceed the limits established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded equipment interface cable with this device. If this equipment has more than one interface connector, do not leave cables connected to unused interfaces. Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

Page 95

Specifications

Operating Requirements of Supplied Software

The following computer requirements must be satisfied to operate USB Display supplied with this projector.

Requirements

OS Windows 2000 SP4

Windows XP SP1 Windows XP SP2 Windows Vista Windows Vista SP1

CPU Mobile Pentium III 1.2GHz or greater

Recommended: Pentium M 1.6 GHz or greater

Memory capacity 256 MB or greater

Recommended: 512 MB or greater

Hard disk space 256 MB or greater Display XGA(1024 ^ 768) or greater resolution

16 bit color or greater display color Approx. 32,000 color display

Page 96

Appearance

Page 97

Index

A/V Mute .............................................................17

A/V mute slide .......................................................6

Air exhaust vent .................................................... 6

Air filter ................................................................11

Air filter replacement period ................................ 61

Air intake vent ..................................................... 11

Angle of tilt ..........................................................93

Audio input port ..................................................... 7

Auto Setup ..........................................................32

Brightness ........................................................... 31

Brightness Control ............................................... 34

Ceiling .................................................................35

Cleaning the air filter and air intake vent ............. 56

Cleaning the projector’s surface .......................... 56

Color Adjustment ................................................. 31

Color Mode .................................................... 15, 31

Color Saturation .................................................. 31

Computer input port .............................................. 7

Configuration menu ............................................. 30

Connecting a USB Cable .................................... 73

Connecting a USB Device ...................................67

Consumables ...................................................... 84

Contrast ............................................................... 31

Control panel .........................................................8

Control Panel Lock ........................................ 27, 34

Cross ................................................................... 22

Dark Wall ............................................................. 15

Direct Power On .................................................. 36

Display ................................................................ 35

Display Background ............................................ 35

Dynamic .............................................................. 15

ESC/VP21 ...........................................................87

Extended menu ...................................................35

External dimension diagram ................................96

E-zoom ................................................................22

Focus ring ..............................................................6

Freeze .................................................................18

Front ....................................................................35

Front adjustable feet ..............................................6

Full lock ...............................................................27

Game ...................................................................15

Glossary ..............................................................85

Help function ........................................................40

High Altitude Mode: .............................................36

How to replace the air filter ..................................61

How to replace the lamp ......................................59

Image menu .........................................................31

Indicators .............................................................42

Info menu .............................................................37

Input Signal ....................................................32, 37

Keystone ..............................................................34

Lamp cover ........................................................... 6

Lamp Hours ........................................................ 37

Lamp indicator .................................................... 42

Lamp replacement period ................................... 58

Language ............................................................ 36

Low brightness .................................................... 34

Menu ................................................................... 30

Messages ............................................................ 35

Mouse pointer ..................................................... 75

Numeric buttons .................................................... 9

Operating temperature ........................................ 92

Operation ............................................................ 36

Optional accessories ........................................... 84

Overheating ........................................................ 43

Part names and functions ..................................... 6

Password protect ................................................ 24

Password protect sticker ..................................... 24

Photo ................................................................... 15

Position ............................................................... 32

Power indicator ................................................... 42

Power inlet ............................................................7

Problem solving .................................................. 42

Progressive ......................................................... 32

Projection ............................................................ 35

Projection distance .............................................. 66

Page 98

Index

Rear .................................................................... 35

Rear foot .............................................................11

Rear screen ......................................................... 55

Refresh rate ........................................................37

Remote control ....................................................11

Remote control light-emitting area ...................... 10

Remote receiver ................................................ 6, 7

Replacing batteries .............................................57

Request code ......................................................26

Reset All .............................................................. 38

Reset menu ......................................................... 38

Resetting the lamp operating time ................ 38, 61

Resolution ............................................... 32, 37, 89

Screen size .........................................................66

SD card ............................................................... 68

Settings menu ..................................................... 34

Sharpness ........................................................... 31

Sleep Mode ......................................................... 36

Source ................................................................. 37

Source Search ......................................................8

Specifications ...................................................... 92

Sports .................................................................. 15

sRGB ................................................................... 15

Startup Screen .................................................... 35

Storage temperature ........................................... 92

Sub Menu ............................................................ 30

Supported monitor displays ................................. 89

Suspension bracket fixing points ......................... 11

S-video port ........................................................... 7

Sync Info ............................................................. 37

Synchronization ................................................... 32

Temp indicator .....................................................42

Theater ................................................................15

Tint .......................................................................31

Top menu ............................................................30

Tracking ...............................................................32

User's logo ...........................................................63

User’s logo protect ...............................................24

Video port ..............................................................7

Video Signal ..................................................32, 37

Volume ................................................................34

Zoom ring ..............................................................6

Page 99

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. No patent liability is assumed with respect to the use of the information contained herein. Neither is any liability assumed for damages resulting from the use of the information contained herein.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's operating and maintenance instructions.

Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.

General Notice: Macintosh, Mac, and iMac are registered trademarks of Apple Computer, Inc. IBM is a registered trademark of International Business Machines Corporation. Windows, Windows NT, and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the U.S and/or other countries. Dolby is a trademark of Dolby Laboratories. HDMI and High-Definition Multimedia Interface are trademarks or

registered trademarks of HDMI Licensing LLC.

Other product names used herein are also for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks. This product uses open source software.

The contents of this guide may be changed or updated without further notice.

Illustrations in this guide and the actual projector may differ.

Epson EH-TW420 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Notations Used in This Guide

Contents

Projector Features

Part Names and Functions

Front/Top

Rear

Control Panel

Remote Control

Base

Useful Functions

Changing the Projected Image

Switching by Automatic Detection of Input Signal (Source Search)

Direct Switching by Remote Control

Functions for Enhancing Projection

Selecting the Projection Quality (Selecting Color Mode)

Setting Auto Iris

Hiding the Image and Sound Temporarily (A/V Mute)

Freezing the Image (Freeze)

Changing the Aspect Ratio

Enlarging Part of the Image (E-Zoom)

Security Functions

Managing Users (Password Protect)

Restricting Operation (Control Panel Lock)

Anti-Theft Lock

Configuration Menu

Using the Configuration Menu

List of Functions

Image Menu

Signal Menu

Settings Menu

Extended Menu

Info Menu (Display only)

Reset Menu

Troubleshooting

Using the Help

Problem Solving

Reading the Indicators

When the Indicators Provide No Help

Appendices

Installation Methods

Cleaning

Cleaning the Projector's Surface

Cleaning the Lens

Cleaning the Air Filter and Air Intake Vent

Replacing Consumables

Replacing the Remote Control Batteries

Replacing the Lamp

Replacing the Air Filter

Saving a User's Logo

Screen Size and Distance

Connecting and Removing a USB Device

Connecting a USB Device

Reading the Indicators

Removing a USB Device

Inserting and Ejecting a SD Card

Inserting a SD Card

Reading the SD Card Access Lamp

Ejecting a SD Card

Connecting with USB Cable for Projection (USB Display)

How to Connect

Connecting a USB Cable

Page Up/Down by Remote Control

Operating the Mouse Pointer by Remote Control (Wireless Mouse function)

Using Slideshow

Image Files that can be Projected in a Slideshow

Basic Slideshow Operations

Setting Image File Display and Slideshow.

Optional Accessories and Consumables

Glossary

ESC/VP21 Commands

Command List

Cable Layouts

USB Connection Setup

List of Supported Monitor Displays

Specifications

Specifications
